User Manual
BEVERAGE COOLER
Please Read and Save this Use & Care Book
JC-90VEL-F
Antarctic Star
INSTALLATION
STOP
Follow the Instructions Below
Prior to Using the Beverage Center !
Do not plug the beverage center into a power
outlet until it has been resting in its upright
position for at least six (6) hours.
If the beverage center has been laid on its side, placed upside
down or tilted more than 45
°
during moving or transpo, it is
extremely impoant to allow the refrigerant and compressor
oil to separate and settle so the compressor operates properly.
Failure to do so will cause severe mechanical problems with the
unit's motor/compressor, and w void the warranty.
TRANSPORT
Use two or more people to move the beverage center.
Do NOT use stainless steel handle to move or lift the unit.
VENTILATION SPACE
In order for the beverage center to function efficiently, it MUST be placed in an adequately
ventilated space to allow for heat dissipation. It is impoant to allow at least 2 inches (50 mm) of
space on each side and above of the unit, and 4 inches (100 mm) of space behind the unit.
The door requires approximately 22 inches (558 mm) of space in front of the beverage
center to open. To fully utilize the unit, space should be allowed for the door to open fully to 160
°
.
STABLE SURFACE
The beverage center must be placed on a flat, stable surface. Adjust the unit's front
leveling legs to assure quiet operation and prevent rattling when the compressor activates.
IMRNT:
- Never place the unit on soft materials such as foam, plastic or thick textured carpeting.
- Make sure the unit and door are aligned. Use the adjustable legs (front only) to align
the unit and/or the screws under the triangular bracket cover to align the door. See page 6
for more detailed instructions on accessing the metal bracket.
1

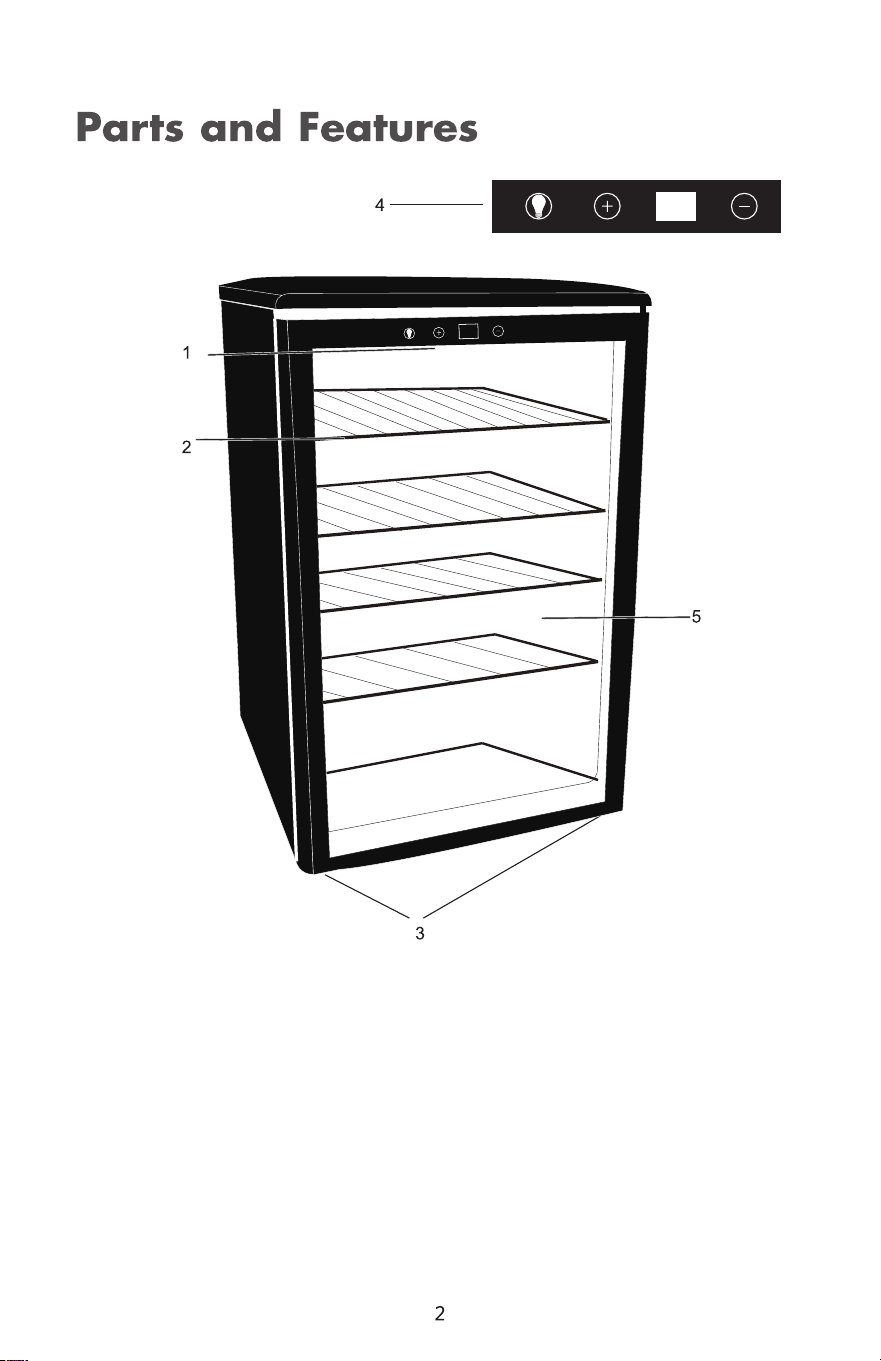

1.Interior Light
2.Wire Shelves（4）
3.Adjustable Leveling Legs
4.Touch Control Panel
5.Tinted Double Pane Glass Door
6.Drip Tray in Back（not shown）
INSTALLATION
POWER SUPPLY
This beverage center is equipped with a 11560Hz single phase motor.
Do not use a ground-fault circuit interrupter (GFCI) outlet to connect the unit. (Fig. A.)
The power plug is a standard grounded three-prong non-polarized flush mount,
which allows for easier connection to power outlets.
Power plug must be connected to the outlet directly, and never to an extension cord.
IMPORNT: Do not cut or remove the third ground prong from the power cord.
POWER CORD
Never shoen or lengthen the power cord. Do not fold or coil the power cord.
IORNT - Never place the excess length of power cord into the compressor enclosure in the
back of the beverage center. This action creates a dangerous heat build-up which can melt the
cord, cause an electrical hazard and may potentially cause a fire.
Touching the power cord to the compressor at the back of the unit during operation can create an
electrical hazard and damage the compressor.
If the power cord is damaged, it must immediately be replaced by a trained service provider, as
special tools are required.
CLEAN BEFORE USE
IMPORNT: Never use with an extension cord. Power cord length is 5 feet long (1524 mm).
To remove any manufacturing dust and residual odors, wipe the beverage center inside and
out with a damp cloth and a solution of baking soda and warm water (2 tbsp. baking soda to 1 qt.
water). Wipe away any residual baking soda with a clean moist cloth. Allow to dry before operating.
Periodically clean the beverage center with a sponge or cloth moistened with mild soapy water,
or baking soda and water.
PROTECT FROM MOISTURE
Heavy moisture in the environment can cause degradation to the insulation, as well as rust to the
cabinet, compressor and / or power supply.
Do not spray the beverage center with water.
PROTECT FROM HEAT
Place the beverage center away from heat source or direct sun.
Do not operate your beverage center outdoors or in an environment with high temperatures and I
or high humidity, such as garages, attics or outdoor patios. The temperature variances will create
condensation on the glass door.
Do not cover the beverage center with tarps or other items while operating, as this may cause
overheating.
3
INSTALLATION
DOOR REVERSAL INSTRUCTIONS
TOOLS NEEDED: Phillips screwdriver #2 or 5/16" (8 mm) socket tool and thin flathead screwdriver.
The beverage center is shipped with the door hinge brackets attached on the right side.
The door may be reversed to allow opening from the le side.
If you plan on reversing the door hinges, DO NOT plug the beverage center into the power
outlet. And the screwdriver is not included.
REMOVE GLASS SHELVES BEFORE REVERSING THE DOOR.
IMRTANT: NEVER LAY THE BEVERAGE CENTER ON IT
S BACK.
The compressor and motor components are installed at the back of the beverage center and may
easily be damaged if the unit is placed on its back.
Gently remove the plastic hole inse plugs from
the left side of the beverage center with a thin
flathead screwdriver. Save the plugs for Step 11.
Slide the cover towards the front of the beverage
center and lift off.
Lift and remove the door.
4
Loosen the triangular bracket cover by pushing the
bracket cover towards the back of the beverage
center and simultaneously pulling up.
Remove the metal bracket by unscrewing the three
screws.
INSTALLATION
DOOR REVERSAL INSTRUCTIONS
---
Switch Axel
Inse Position
✓
With the unit on its side, remove the bottom metal
base bracket with nylon washer. Unscrew the axle
insert with a flathead screwdriver. Screw it into
the opposite hole of the metal base bracket.
To re-attach the door, place the door onto the bottom
axle insert. Place the top bracket into the door and
align the metal bracket holes over the holes in the
top of the unit cabinet. Tighten the three screws to
hold in place.
Reinstall the triangular bracket cover by carefully
threading the bracket cover onto the metal bracket
and pressing down.
re-inse
into the
opposite
side
The rubber gasket should be compressed on all
sides of the door. If the gasket is more compressed
on one side, the metal bracket position should be
adjusted. Make sure the door is level. Once the door
position is finalized, securely tighten the screws.
Reinstall all plastic
hole insert plugs.
The re-
installation of the plastic
hole insert plug
s
is
important t
o
maintain the seal and integrity of the
insulation. Extra inserts are included in case the
plugs are damaged during removal.
IMPORNT: It is extremely impoant to wait at least six hours before plugging the beverage
center into a power outlet. During the door reversal process, the refrigerant and compressor oil
fluids mixed. It is impoant to allow the refrigerant and compressor oil to separate and settle so
the compressor operates properly. Failure to do so will cause severe mechanical problems,
perhaps even the destruction of the unit's motor/compressor, and will void the warranty.
5
Gently place the beverage on the opposite side to
complete the door reversal. Remove screw and re-
insert
it into the opposite side. Re-attach the metal
base bracket with nylon washer
on the new hinge
side. Lift the unit to an upright position.
INSTALLATION
USING YOUR BEVERAGE CENTER
Staup
Connect the power cord to a standard wall outlet. Do not use a GFCI outlet to connect the unit
(see page 4). After connection, you will immediately hear a sho beep.
Temperature - Adjustable Thermostat Control
The default temperature is 4守F. Use the 0 and
0
buttons to set the desired temperature
between the range of 32
°
F - 61
°
F.
The display will flash while the temperature is being set. After a few seconds, it will reve to its
current internal temperature reading. The digital display reading will adjust as the unit cools. While
the unit is adjusting to the new setting
,
press the
0
+ or
0
- buttons to view the selected
temperature setting.
If there is a power outage, the unit will reve to the last temperature setting once power is restored.
Loading Beverages
When first loading the beverage center to full capacity, we recommend the following steps to
effectively cool a large number of beverages.
1. Use the Adjustable Thermostat Control to set the temperature to 43
°
F (also the default
temperature).
2. Allow the b
everage center to cool for a minimum of two hours.
3. Load the beverages. To achieve the maximum capacity, refer to the loading diagrams.
4. Aer initially filling with beverages, the internal temperature will rise as indicated on the display.
5. Once the beverage center has cooled the beverages to 4守F, use the Adjustable Thermostat
Control to select a desired cooler internal temperature (lowest temperature setting is 40
°
F).
6. Allow several hours for the beverage center to cool to the desired lower temperature.
Note: It is normal for temperature variances to occur inside the unit, and areas near the door will
have slightly warmer temperatures.
6
INSTALLATION
LED LIGHT
Press the button to turn the LED light on and off.
To enhance the lifespan of the LED light and
conserve energy, it is recommended to predominantly
utilize the light for loading and selecting beverages.
SHUTDOWN
If the beverage center will not be i
n use for a long period of time, disconnect it from the power
outlet, clean inside thoroughly and leave the door open to prevent mildew.

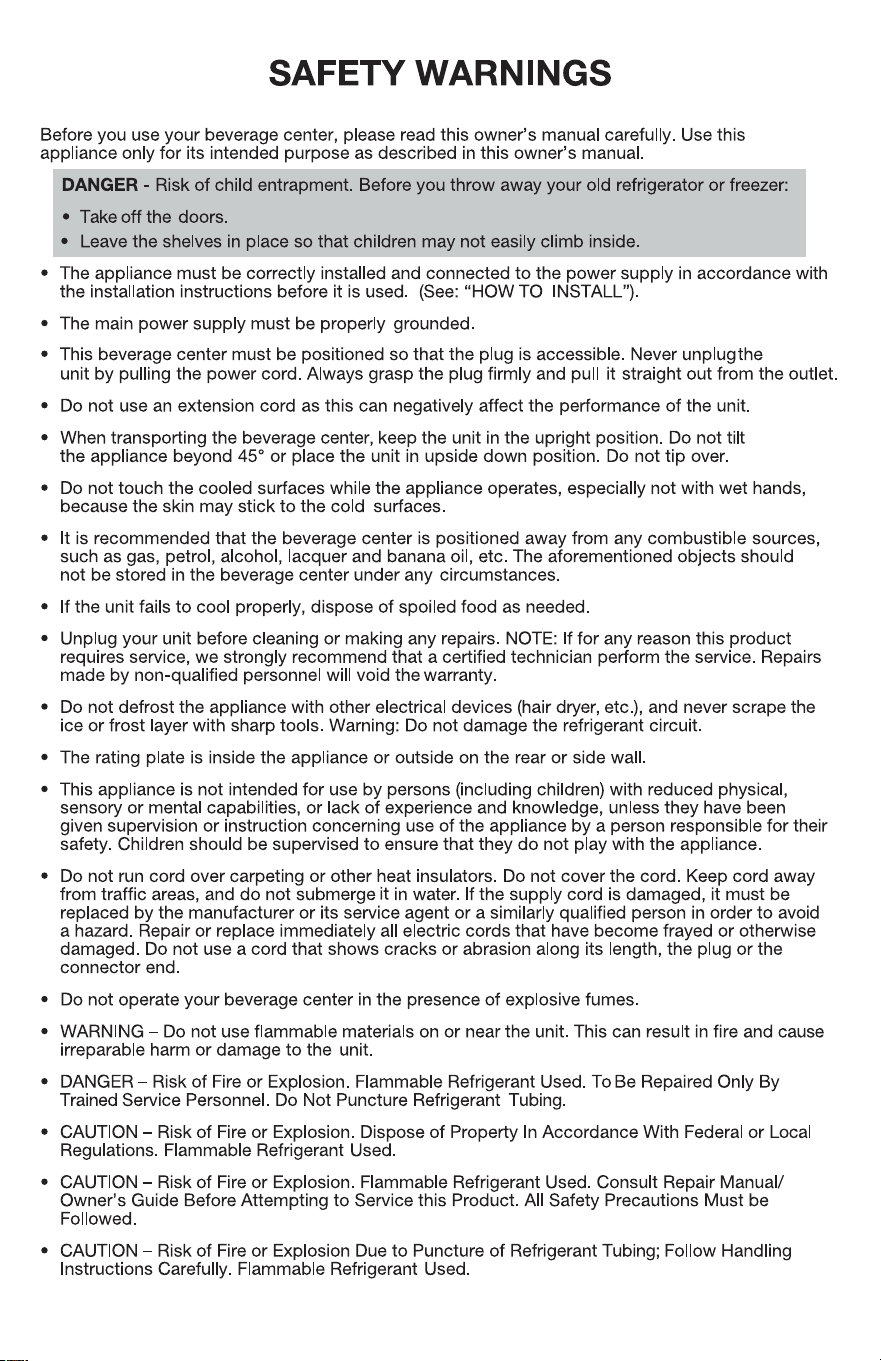

SAFETY WARNING
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
This beverage center should not be positioned within a recessed or enclosed cabinet. It is
designed for freestanding installation only. This unit is not designed to be installed in a RV, garage
or any outside installation.
The surface of the compressor may become hot during the normal operation. Do not touch as this
may cause injury.
OTHER DANGERS
Keep the beverage center away from any combustible or volatile liquids or gases, including
gasoline, oil, alcohol, paint, paint thinners and solvents. Such chemicals should never be stored in
the unit.
7
DEFROSTING
Frost may develop on the interior back panel of the unit when the temperatu
re setting is very low
and the unit is not fully stocked with beverages. The presence of frost may force the unit to run
continuously and thus increase the internal temperature.
To defrost the beverage center:
1. Use the 0 and 0 buttons to increase the temperature until the compressor turns o.
2. Allow the internal ice/frost buildup to melt. Ensure that the internal drain (located at the middle
back of the lower shel is not clogged.
3. During this time, the melted frost flows through an internal drain into a holding pan on top of the
compressor. The heat of the compressor evaporates the liquid.
4. Reset the temperature to 43
°
F and allow it to cool for at least one hour.
5. Adjust to the desired temperature setting.
CLEANING AND MAINTENANCE
It is impoant to periodically clean and maintain the beverage center. When performing
maintenance, make ceain that the unit is unplugged from the power outlet.
Wipe the inner and outer surfaces of the beverage center and clean with a damp cloth. If needed,
use a gentle detergent or a solution of baking soda and water. Remove any residue with clean
water and a soft cloth, then dry with another cloth.
Once clean, you may use a common kitchen appliance wax on outer suaces.
Inspect, clean and maintain the rubber gasket around the door. A small amount of petroleum jelly
applied to the bracket side of gaskets will keep the gasket pliable and ensure a good seal.
IMRTANT:
- Do NOT use hot water, harsh detergents, gasoline, kerosene, solvents, acids or anything
flammable to clean the beverage center. These can damage the paint and degrade the
plastic components.
- Do NOT spray the beverage center with water as this may cause rust and degrade the
insulation.
- Do NOT clean glass shelves with hot water when they are cold. Shelves may break if
exposed to sudden temperature changes or impact. For your protection, tempered glass is
designed to shatter into many small pebble-size pieces.
- If any replacement components are required, they must be obtained from Tramontina's
Customer Service Depament. This ensures that the correct replacement components are
provided, and minimizes risk of possible ignition due to incorrect pas or improper service.
8
9
10
11
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO
GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way,
Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
Thank you for purchasing this product! If you have any questions about the product,
such as missing parts, damaged products, product assembling, and operation, please
contact us via Amazon Message or customer service number: 213-4467172 or
661-4358826.
V2
