Pressure Test Pump
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
PRODUCT PRESENTATION
Manual pressure test pump is composed of pump body, plunger,
sealing ring, control valve, pressure gauge, water tank and so on.
Working principle: The plunger is lifted up by the handle to create a
vacuum in the pump body, and the inlet valve is opened. The liquid
enters the pump body through the filter screen and water pipe. When
the handle applies force to press down, the inlet valve is closed, the
outlet valve is opened, the pressure water is output, and the water
enters the detected object. The work is carried out in such a cycle to
realize the pressure test of the rated pressure.

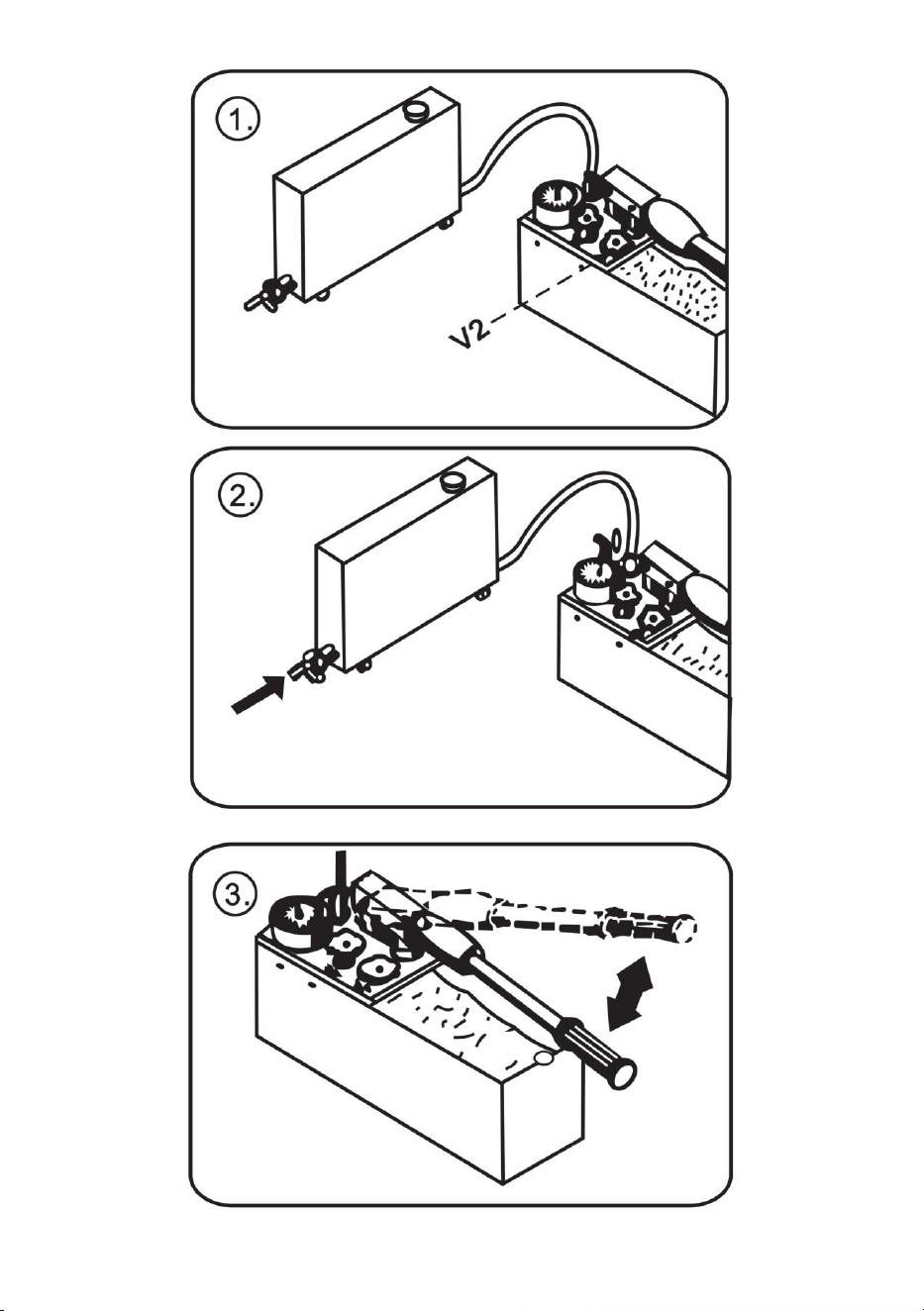

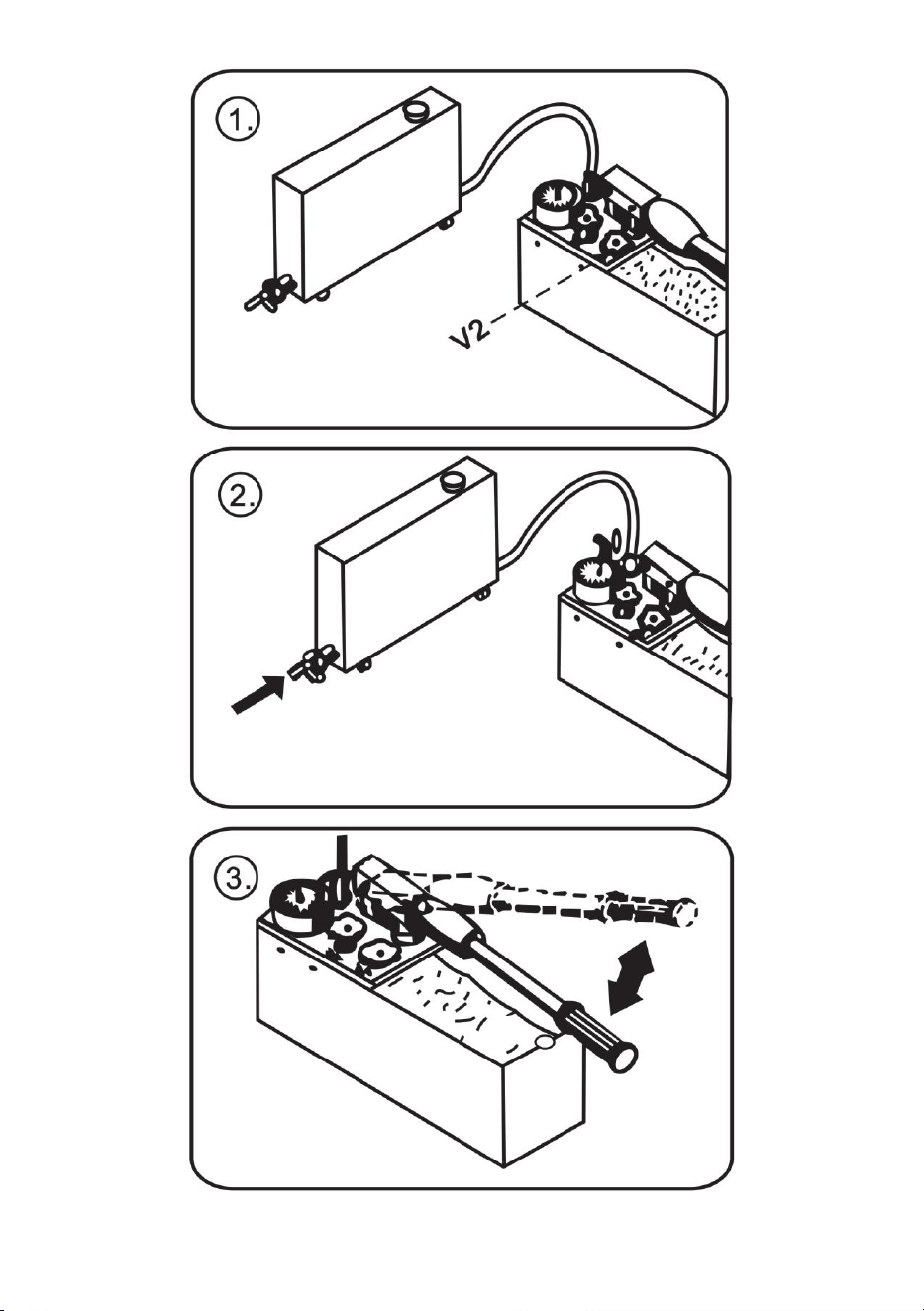

TESTING PROCEDURES
1. Connect the test pump to the system and close the valve V2
2. Fill the system with liquid and bleed the air. Tightly close all
openings.
3. Pump the liquid in system until testing pressure is reached

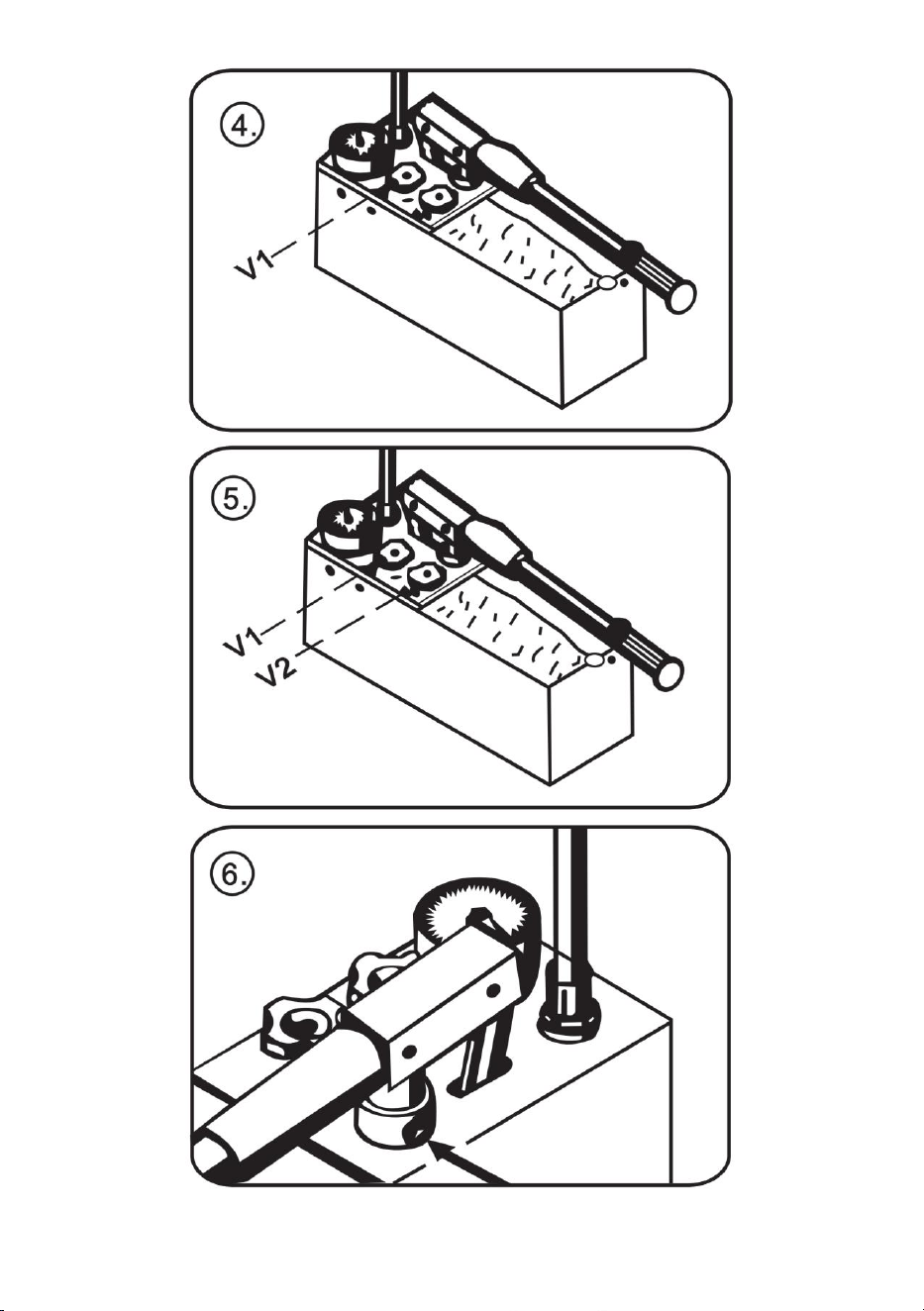

4. Close valve V1
5. After testing release the pressure by openingV1 and V2
6. Service Use water resistant grease
- 3 -
- 4 -
- 5 -
PERFORMANCE PARAMETER
Model
RP-25
Tank capacity
2.8 gallon
Pressure test range
0-25 bar
Hose specification
Pressure resistant hose with ½ inch
external threaded connector

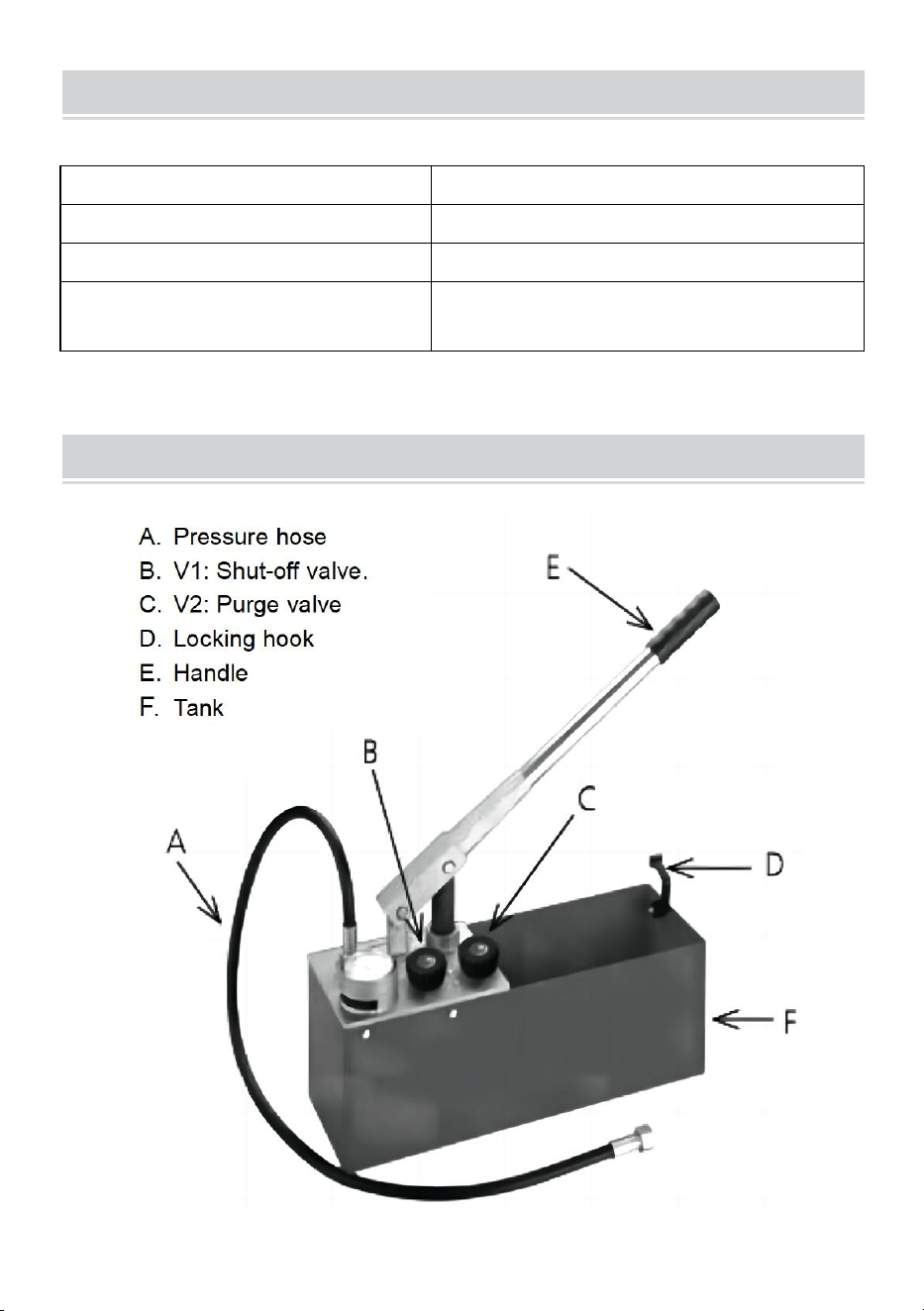

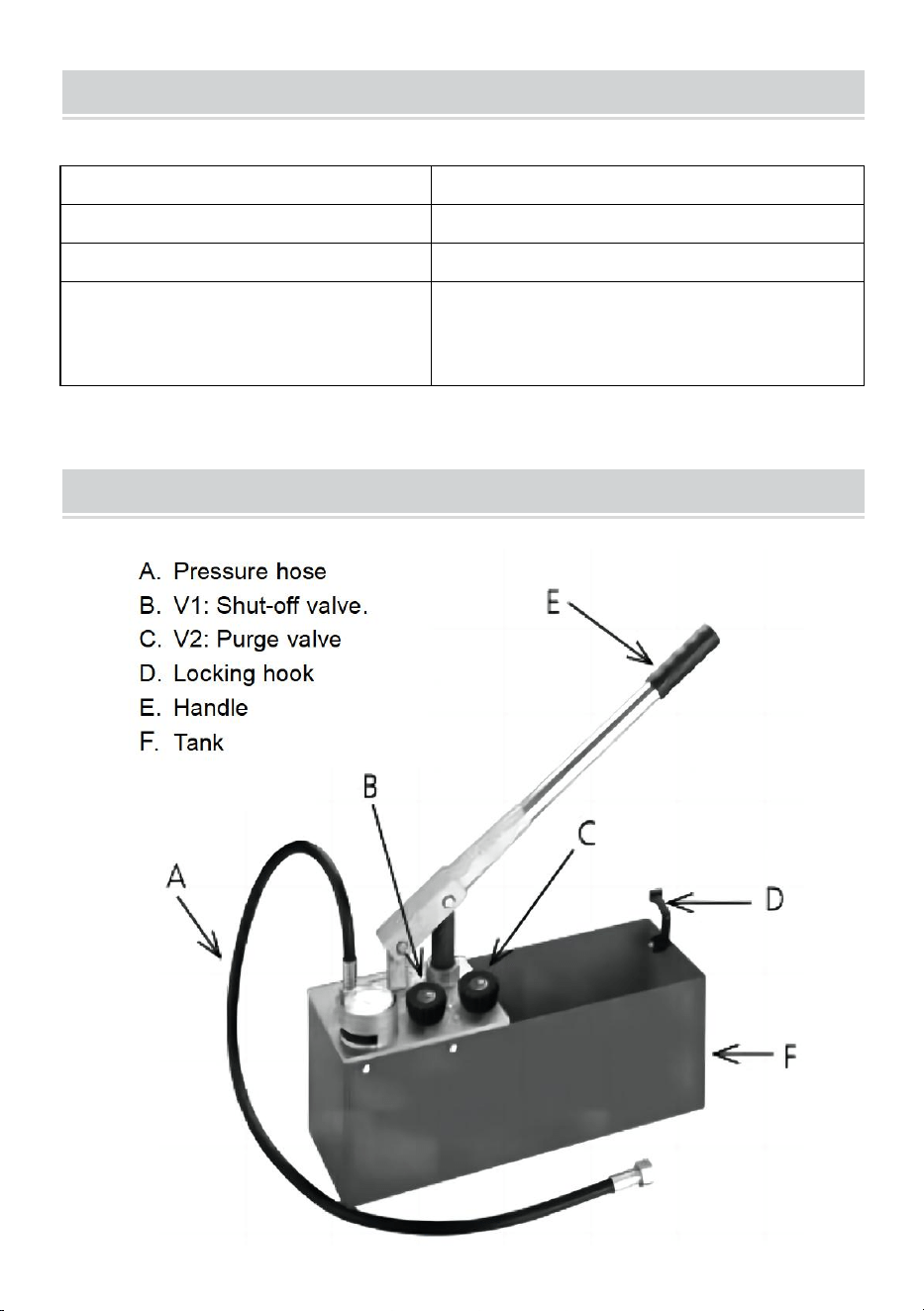

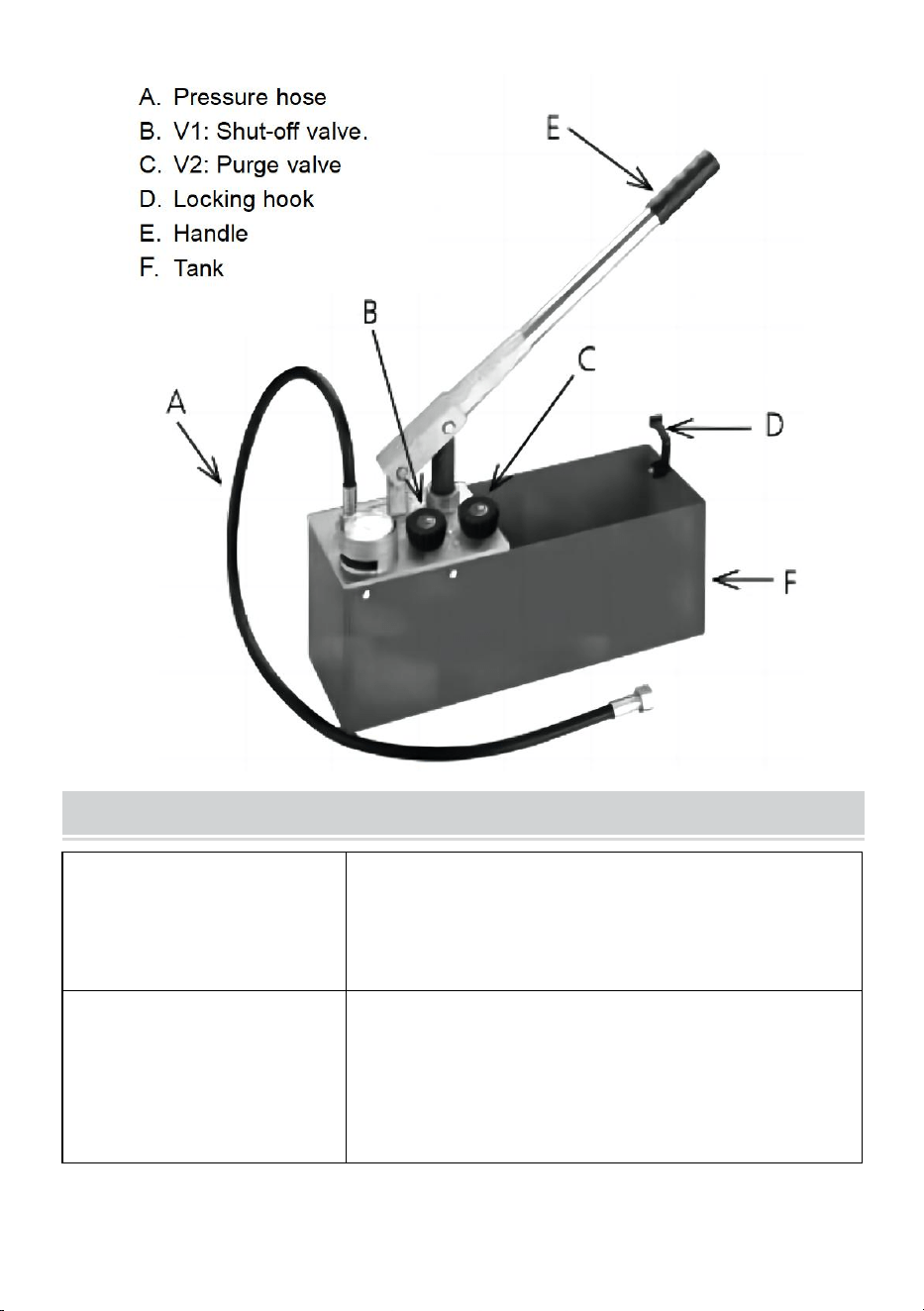

EXPLOSION DIAGRAM AND PARTS LIST
- 6 -
FAILURE RECOVERY
When the handle moves
upward, the water
cannot be sucked up.
1. Check whether the suction pipe is blocked
by garbage.
2. Check whether the switch is tightened.
The handle is weak
when moving up and
down.
1. Check whether the switch is tightened.
2. Check whether the sealing ring of the
piston shaft is damaged.
3. Check whether the check valve in the outlet
joint is unclean.
The pressure gauge
shows that the pressure
is unstable.
1. If there is leakage in the pipeline or outlet
joint, the sealing ring should be replaced.
2. the meter rod connection leakage, replace
the sealing country.
3. pressure gauge damage, repair pressure
gauge.
Special attention:
Do not use in workplaces with acid, alkali and corrosive substances.
- 8 -
