Manufacturers of Whole House Residential Indoor Air Quality Products.
Humidifiers - Dehumidifiers - Air Cleaners - UV Air Purifiers - Heat/Energy Recovery Ventilators
USA: www.GeneralFilters.com Canada: www.CGFProducts.com
Air Cleaners
(GFI #4510, 4500, & GFI#4530)
Installation Manual
GeneralAire
®
Models MAC 1400, MAC 2000, & MAC 2020
Media Air Cleaners
For installation in the return air duct of any forced air heating and cooling system
Please Leave This Manual With The Homeowner
Date of Installation:______________Installed by:___________________Installer Phone:_________________
Place Serial Number Sticker Here:
• Installationbyanyoneotherthanaqualiedcontractorvoidsthewarranty.
• Modicationoralterationofproduct,parts,installationinstructionsorlocalsafetycodesvoidswarranty.
• Readourfullwarrantypolicyattheendofthisdocument.
MERV 11 Air Cleaners
75% Dust Spot Efficiency 1.0 to 3.0 Microns
MAC 2020
MAC 2000
MAC 1400
Form No. 14064 Rev. A
2
IMPORTANT: A 22 Inch Clearance Must Be Allowed For Removal Of The Media Cartridge
From The Cabinet.
1. Turn off electricity to furnace.
2. Remove front cover.
3. Slide media cartridge from air cleaner cabinet, and discard packing
material.
4. Remove and discard existing furnace air lter.
5. Install cabinet in return air system.
6. Properly install airow direction arrows on interior of cabinet. Duct
supports are recommended to support weight of cabinet. See typical
installations.
7. Slide the media cartridge into the cabinet. Be sure the airow arrow
on the cartridge is in the same direction as the arrow in the cabinet.
The wire mesh is always on the downstream side of the lter media.
Replace cover.
8. If a condition indicator is to be used, install on a vertical duct surface
between the air cleaner and the furnace blower.
9. Turn on electricity and furnace and check performance of all equipment.

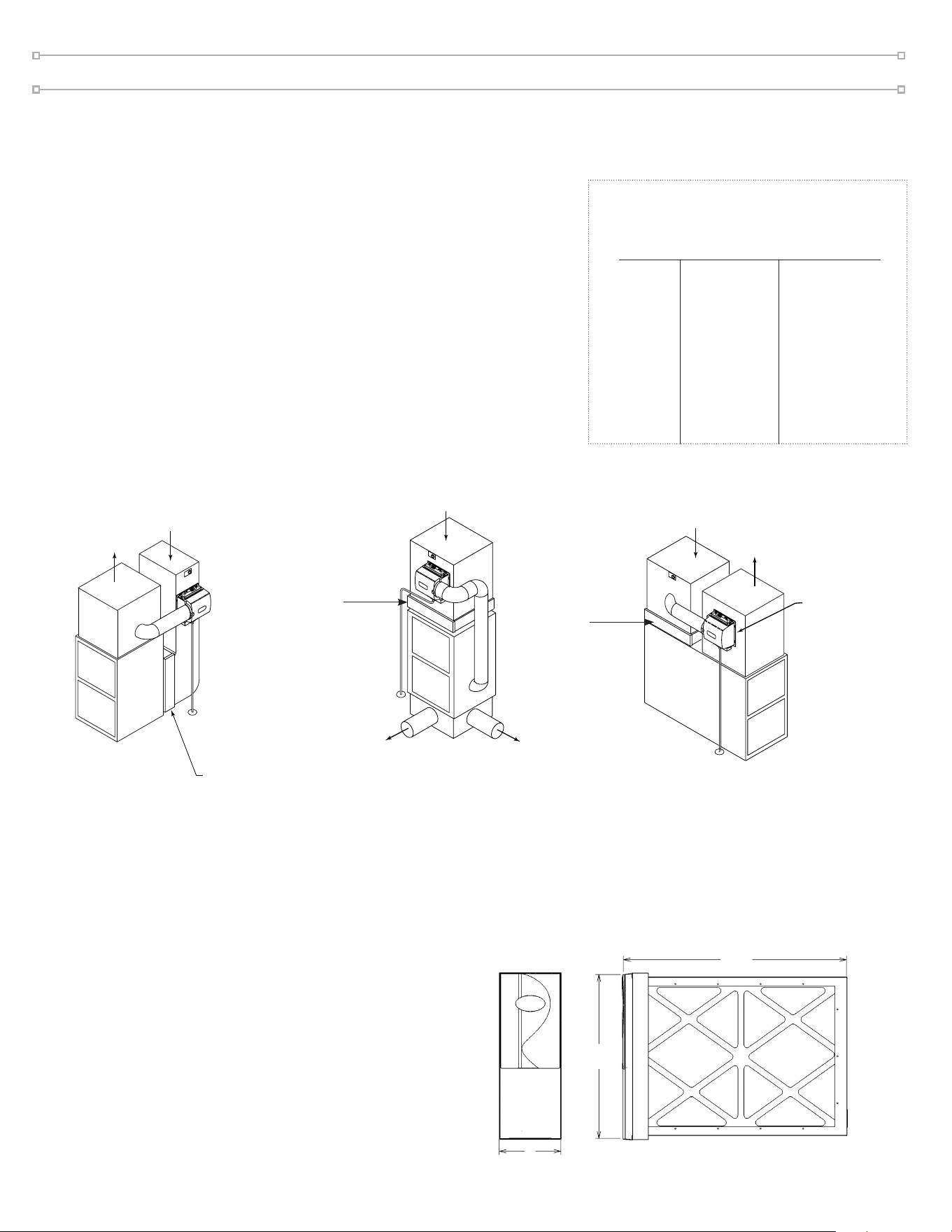

Installation Instructions
HIGH BOY COUNTER-FLO
W
RETURN AIR
RETURN AIR
WARM AIR
WARM AIR
WARM AIR
LOW BO
Y
RETURN AIR
WARM AIR
GeneralAire
Flow Through
Humidier
GeneralAire
MAC Air Cleaner
GeneralAire
MAC Air Cleaner
GeneralAire
MAC Air Cleaner
IMPORTANT:
Ensure Proper Clearance For Removal Of The Media Cartridge From the Cabinet
• MAC 1400 26 Inches
• MAC 2000 26 Inches
• MAC 2020 22 Inches
Dimensions
• MAC 1400 17 5/16” H x 26 1/8” D x 7” W
• MAC 2000 21 1/8” H x 26 1/8” D x 7” W
• MAC 2020 21 5/16” H x 22 5/8” D x 7” W
Depth measurement includes door.
!
CFM IN W.C. IN W.C.
MAC 2000 MAC 1400
MAC 2020
600 0.04 0.07
800 0.06 0.11
1000 0.08 0.16
1200 0.11 0.22
1400 0.14 0.28
1600 0.17
1800 0.21
2000 0.26
Pressure Drop Schedule
H
D
W
3
If you do not have on-line access, please mail a postcard with your name, phone number, email address, product
purchased, model number, date of purchase, serial number, and contractor contact information to:
USA: General Filters, Inc. 43800 Grand River Ave Novi, MI 48375
www.GeneralFilters.com Toll Free (866) 476-5101
Canada: 400 Midwest Road Toronto, ON, M1P 3A9 Canada
www.CGFProducts.com Toll Free (888) 216-9184
Maintenance
Parts
Warranty
The air cleaner media will normally need to be replaced every 4 to 6 months (end of the heating or cooling
season) with normal usage. If an air cleaner condition indicator is used, change the media when the device
indicates that service is required. Additionally, the frequency of lter replacement can be determined by
visual examination.

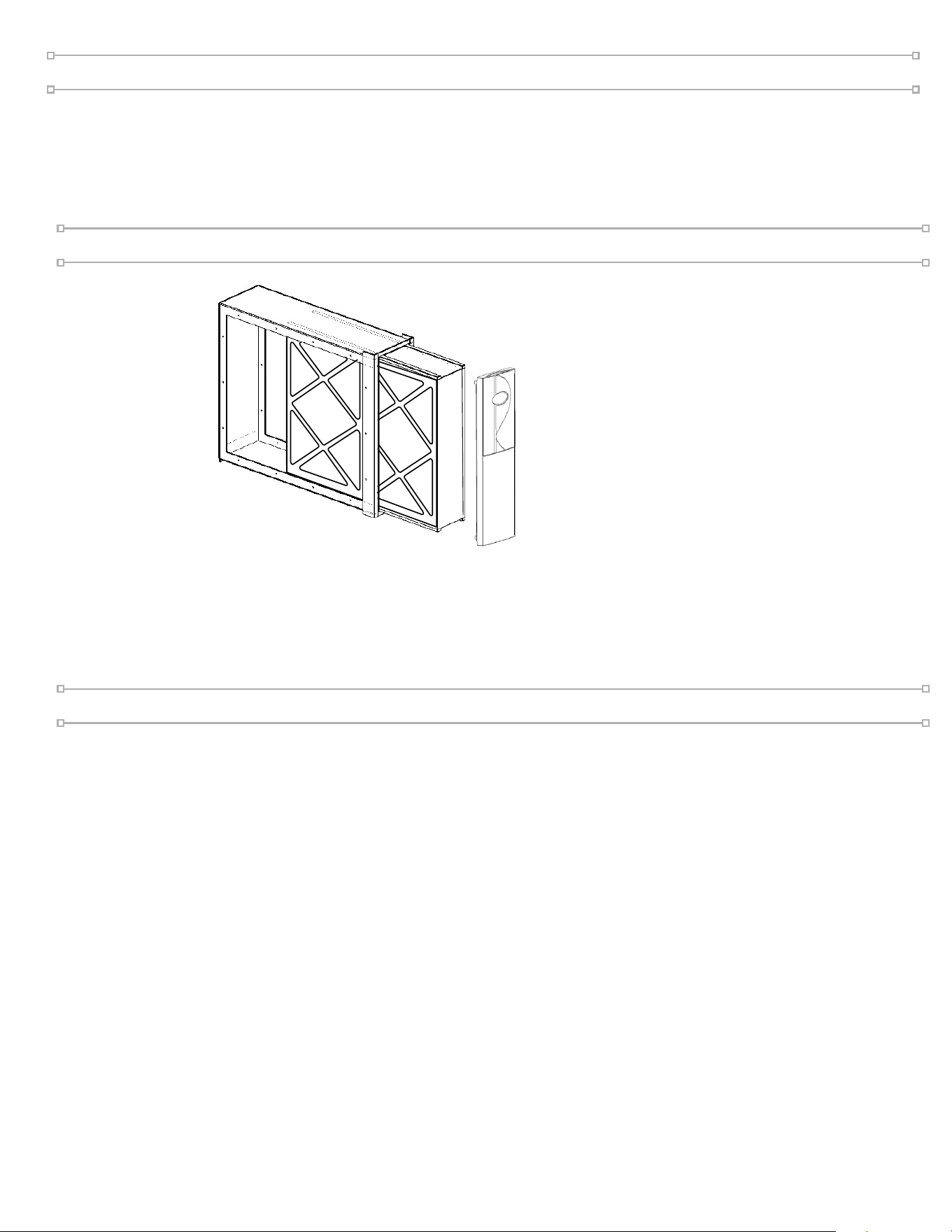

Cabinet
Filter Cartridge Media
Filter Access Door
Replacement Filter Cartridge Media Filter Access Door Cabinet
MAC 1400 GFI #4541 MERV 11 14056 14021
MAC 2000 GFI #4551 MERV 11 14018 14001
MAC 2020 GFI #4556 MERV 11 14018 14172
This air cleaner, if properly registered on line at www.generallters.com is warranted to the consumer against defects in materials and
workmanship for a period of ten years from the date of installation. The air cleaner media is not covered by this limited warranty or any
other warranties.
Any other defective parts will be repaired without charge except for removal, reinstallation and transportation costs. To obtain repair
service under this limited warranty, the consumer must send the defective part or the complete unit to the manufacturer.
There are no express warranties covering this air cleaner other than as set forth above, the implied warranties of merchantability and
tness for a particular purpose are expressly excluded. The manufacturer assumes no liability in connection with the installation or
use of this product, except as stated in this limited warranty. The manufacturer will in no event be liable for incidental or consequential
damages.
This limited warranty gives you specic legal rights, and you may also have other rights which vary from state to state. Some states do
not allow either limitations on implied warranties, or exclusions from incidental or consequential damages, so the above exclusion and
limitation may not apply to you. Any questions pertaining to this limited warranty should be addressed to the manufacturer. U.S.A.: The
manufacturer has elected not to make available the informal dispute settlement mechanism which is specied in the Magnuson-Moss
Warranty Act.)
