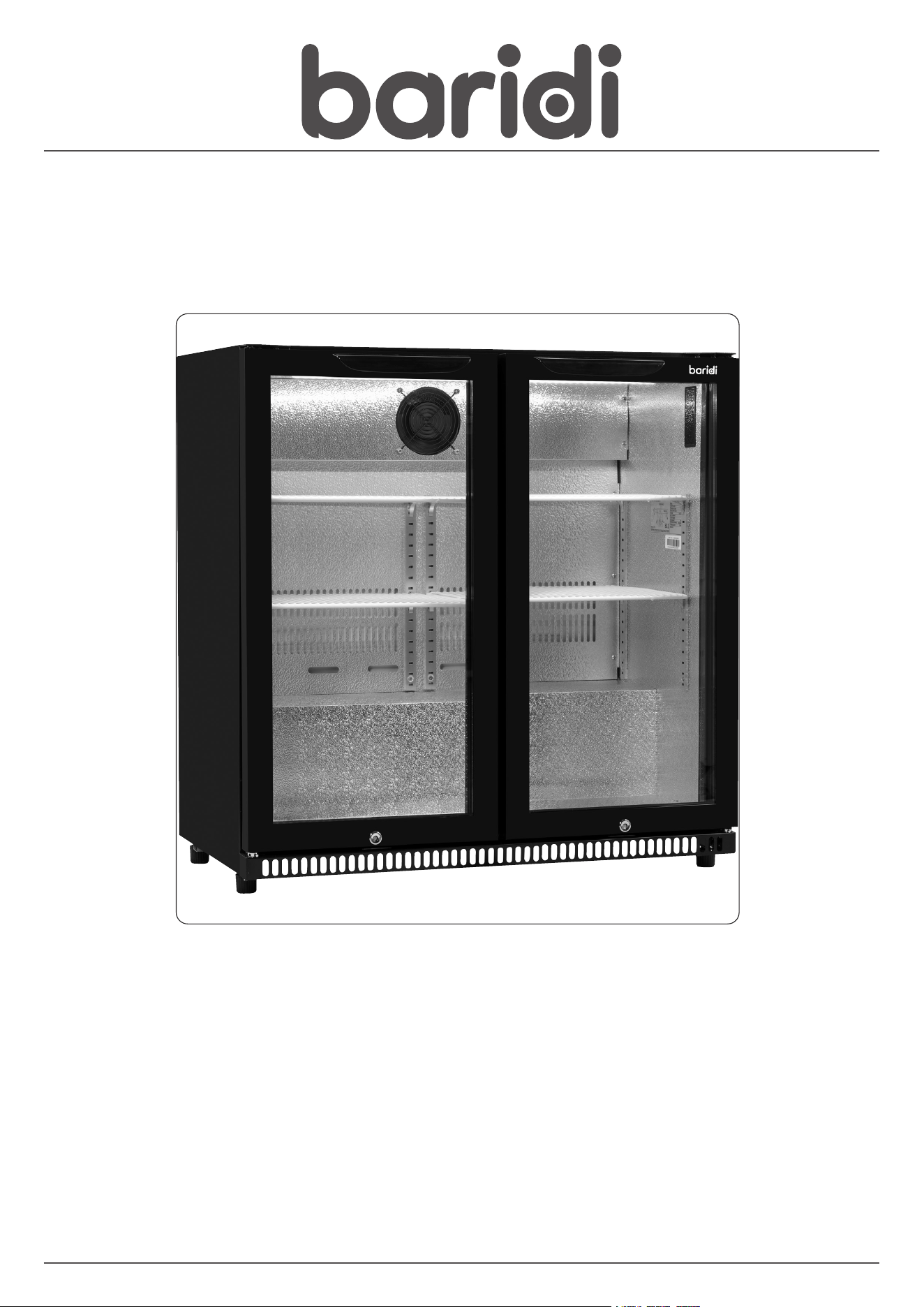

Baridi DH272 Hinged Double Door, Back Bar Drinks Fridge/Cooler, 190L Capacity, 262 Cans - Black

1

Baridi Double Door, Back Bar Drinks Fridge/Cooler, 190L Capacity

- Hinged/Sliding Doors

Model No: DH272, DH273

Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

DH272, DH273 Issue 1 10/10/24

DH272

www.dellonda.co.uk

2

• Inspect power supply leads, plugs and all electrical connections for wear and damage.

• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.

• DO NOT use worn or damaged cables, plugs or connectors.

• DO NOT use with an extension cord.

• Ensurethatanyfaultyitemisrepairedorisreplacedimmediatelybyaqualiedelectrician.

• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.

• Ifthesupplycordisdamaged,itmustbereplacedbythemanufacturer,itsserviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.

Important Information

Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with care

for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these

780 x 370 x 740mm 780 x 405 x 740mm

19kg

* The climate class indicates the environment which the

product has been tested.

The product has been tested in the following conditions of (Dry

Bulb Temperature °C / Relative Humidity % RH)

0 = (20°C/50%RH)

3

IMPORTANT:Ensurethatthevoltageratingontheappliancesuitsthepowersupplytobeusedandthattheplugisttedwiththecorrectfuse.

• DO NOT pull or carry the appliance by the power cable. DO NOT pull the plug from the socket by the cable.

GENERAL SAFETY

• Children shall NOT play with the appliance.

• Cleaning and user maintenance on the appliance shall not be made by children without supervision.

• DO NOTstoreexplosivesubstancessuchasaerosolcanswithaammablepropellantinthisappliance.

• The appliance shall be disconnected from its power source during service and when replacing parts.

• Beforeswitchingonyourfridgeforthersttime,readtheinformationinthisusermanualcarefully.

• Please keep this booklet in a safe place for future reference. If you ever sell your fridge, hand this user manual to the new owner.

• The manufacturer does not accept responsibility for any damages that may arise due to non-observation of these instructions. The user is liable for

• WARNING! Always remember to disconnect from mains supply before cleaning. Always check that the plug and cable are undamaged.

• Allrepairsmustbecarriedoutbyqualiedengineers.Inadequaterepairsmaybedangerous.Nevertrytorepairtherefrigeratoryourself.

• Ensureyourchosenlocationhasaatandstablesurface.Theunitmaybelevelledbyturningbothofthestabilisersinthefrontcorners.Checkthe

unitislevelusingaspiritlevel.Forstability,pleaseensurestabilisersarefullywoundtooor.

• WARNING! Keep clear of obstruction all ventilation openings in the appliance enclosure or the structure for building in.

• DO NOT position this appliance with its rear panel directly against a wall. Maintain a gap of at least 50mm between the appliance and any adjacent

wall.

• Position the fridge away from heat sources, where the units is well ventilated and protected from moisture, or extremes of heat or cold. The fridge

may not function properly if the temperature rises above +30°C.

• Ensure all vents are clear of obstruction particularly if the unit is built-in.

OPERATION

BEFORE FIRST USE

IMPORTANT! ALLOW THE REFRIGERATOR TO STAND UPRIGHT FOR 24 HOURS BEFORE CONNECTING TO

MAINS SUPPLY.

• DO NOT position this appliance with its rear panel directly against a wall. For good circulation and operating

efciency,theventilationgrillesmustneverbeblocked.

• Removeallpackagingandplacethefridgeonastable,secureatsurface.Positionthefridgeawayfrom

heat sources, where the unit is well-ventilated and protected from moisture, or extremes of heat or cold. The

fridge may not function properly if the temperature rises above +30°C.

• NEVER USE AN EXTENSION LEAD: If the mains cable will not reach the nearest socket, either rearrange your

stabilisers in the front corners. Check the unit is level using a spirit level.

NOTE: It is not recommended to operate the fridge on settings that run below 4°C/MAX. Such settings will

causecontentattherearofthefridgeclosetoevaporatortofreeze,andwillresultinunnecessarystrainon

the cooling systems, and undue high energy consumption.

OPERATION

• Place the shelves on their supports.

• Checkthefridgeisworkingproperlybeforeinstallingandllingit.

• Neverputwarmorhotfoodsdirectlyintothefridge.

ELECTRONIC THERMOSTAT

• The digital display will show the internal cabinet temperature. NOTE: Thismayuctuateastherefrigerator

• If you attempt to restart without waiting, the refrigerator will not start and may damage the compressor.

MAINTENANCE

• WARNING! Disconnect from mains supply before performing maintenance.

DEFROSTING

• lce may build up on the evaporator if the unit is put to work constantly for a period of time.

• When ice begins to build up to approx 10 mm or 1/5 inch thick, defrost is required.

4

Dellonda Limited, Sole UK Distributor of Baridi

Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

• The ice will start to melt. When the ice has melted and drained away, dry off any residual moisture with a soft cloth.

• Switch on the power again via thermostat.

Please note it will take around 12 hours for the fridge and contents to get back down to temperature.

CLEANING

1.UNPLUGyourfridgeandremoveanystocktoasuitableback-upfridge.

2. Wash the inner compartment with warm water and neutral detergent. DO NOT allowthecontrolpanel,cablesorplugtogetwet.NEVERuse

corrosive detergents, wire brushes, or abrasive scourers to clean your chiller.

NEVERusemetalorsharpimplementstoremovedebris.

3. Dry all surfaces thoroughly.

4. To ensure trouble-free operation the condenser should be cleaned every three months where appropriate using a vacuum cleaner. The condenser is

located behind lower grill of the cabinet. In exceptionally dusty locations the condenser should be cleaned more often.
