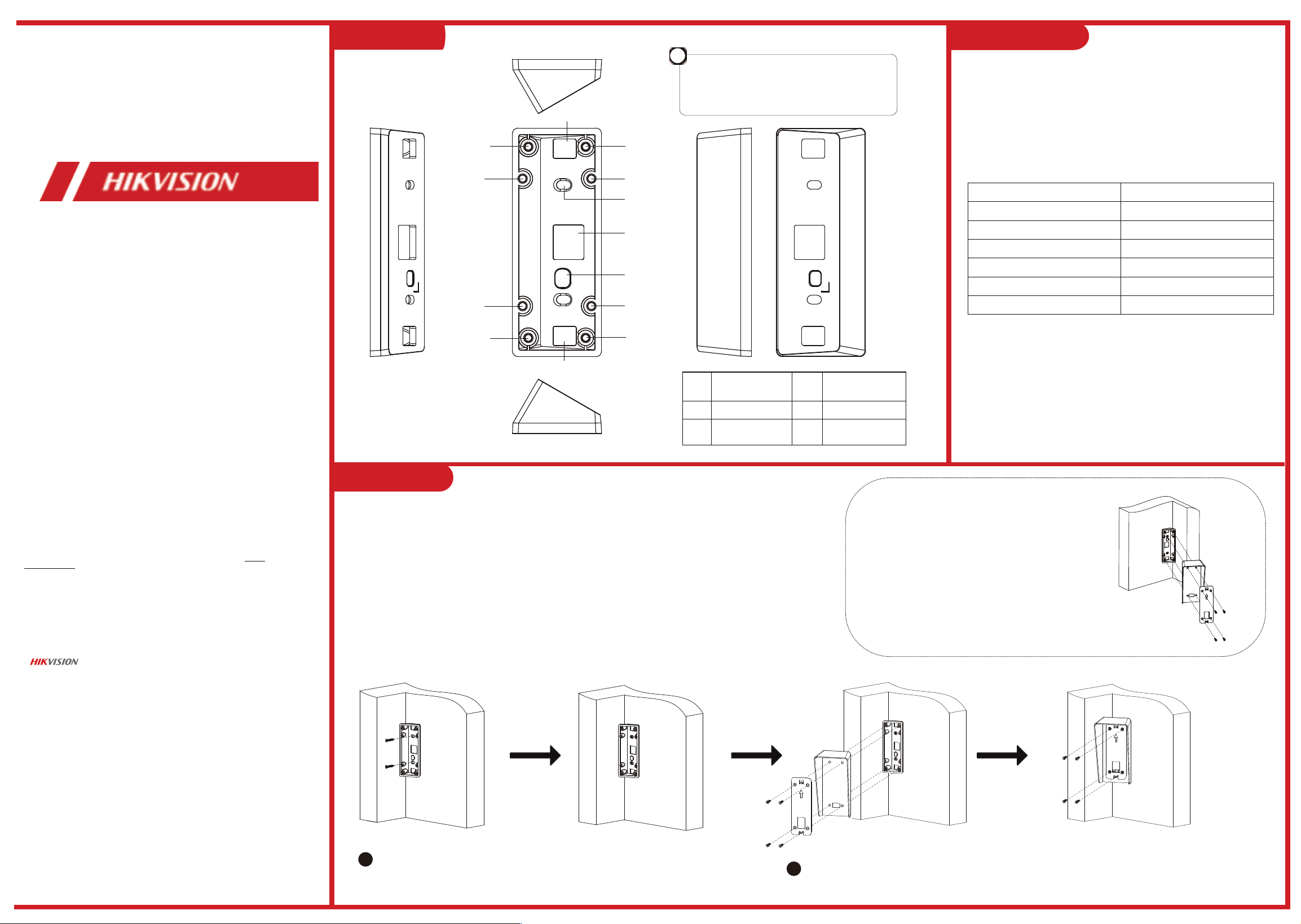

Wall-Mounted Bracket
User Manual
2
Specifications
3
Installation
1
Apperance
UD40053B
Before You Start
a. Make sure the device in the package is in good condition and all the
assembly parts are included.
b. Check the product specification for the installation environment.
Installation(Take Installing on the left side for example)
Align the bracket with the wall. Secure the mounting bracket on
the wall with 2 SC-KA4X25-SUS-KB6203 screws.
1
Align the protective shield(DS-KABV6113-RS) and the applied mounting
plate with the bracket. Secure the protective shield and the mounting plate
on the bracket with 4 SC-KM4X8-SUS-GB819.2 screws.
2
Installing on the right side is the
same as installing on the left side,
you can refer to the figure on the
left.
Product
Wall-Mounted Bracket
Product Model
DS-KABV24-A
Dimension
(W × H × D)
119.6mm
× 46.7mm × 28.3mm
Applicable Products
DS-KB2412T-IM
Protective Shield Model
DS-KABV6113-RS
Working Temperature
-40℃to 70℃
Working Humidity
10% to 90%
1
Apperance
Hole 4
Hole 6
Hole 5
Hole 3
Hole 1 Hole 1
Hole 1 Hole 1
Hole 2
Hole 2
Hole 2
Hole 2
Hole 5
Hole 1
Fixing Hole Between
Bracket and Protective
Shield
Hole 4
Reserved
Hole 2
Reserved Installation
Hole
Hole 5
Installation Holes for
Fixing Brackets to the Wall
Hole 3
Outlet Hole When Device
is Installed on the Right
Side
Hole 6
Outlet Hole When Device
is Installed on the Left
Side
i
When facing the door and installing the device on the left, the
holes in the bracket and protective shield cover should be aligned
with the corresponding four installation holes.
When facing the door and installing the device on the right, the
holes in the bracket and protective shield cover should be aligned
with the corresponding four installation holes.
