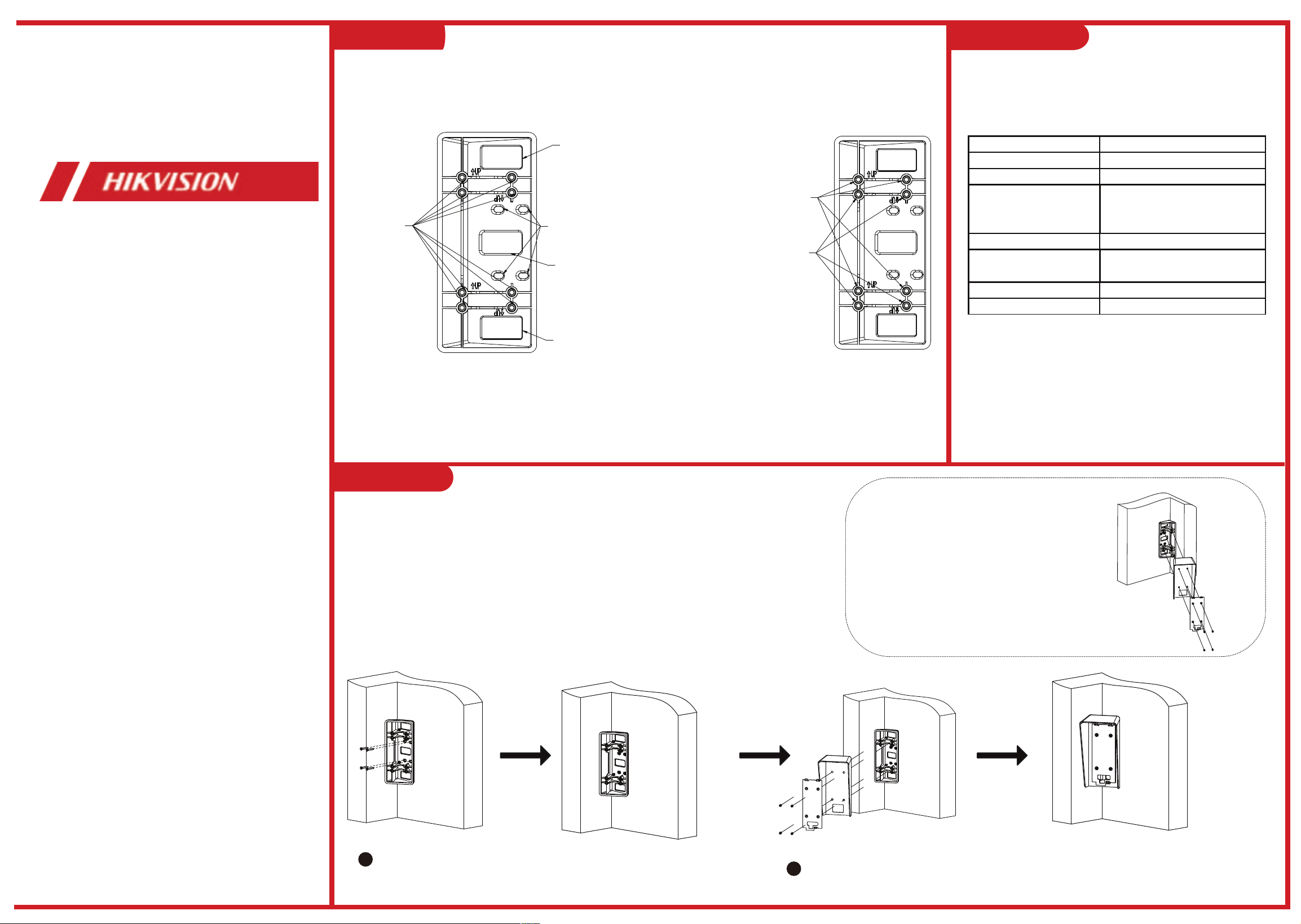

Wall-Mounted Bracket
User Manual
2
Specifications
3
Installation
1
Apperance
UD33305B
Product Wall-Mounted Bracket
Product Model DS-KABV6113-A
Dimension (W × H × D) 133.1 mm x 60.1 mm x 35.1 mm
Applicable Products
DS-KV6113-PE1(C)，
DS-KV6113-WPE1(C)，
DS-KV6103-PE1(C)
Protective Shield Model DS-KABV6113-RS
Mounting Plate
In KV6103/6113 Series
Door Station Product Package
Working Temperature -30℃ to 60℃
Working Humidity 10 % to 90%
When facing the door and
installing the device on the left,
the holes in the bracket and
protective shield cover should be
aligned with the corresponding
four installation holes.
When facing the door and
installing the device on the right,
the holes in the bracket and
protective shield cover should be
aligned with the corresponding
four installation holes.
Fixing Hole Between
bracket and protective
shield
Outlet Hole When Device
is Installed on the Right
Side
Installation Holes for
Fixing Brackets to the Wall
Reserved
Outlet Hole When Device
is Installed on the Left
Side
Before You Start
a. Make sure the device in the package is in good condition and all the
assembly parts are included.
b. Check the product specification for the installation environment.
Installation(Take Installing on the left side for example)
Align the bracket with the wall. Secure the mounting bracket on
the wall with 4 SC-KA3X20-NI-JMF screws.
1
Align the protective shield(DS-KABV6113-RS) and the applied mounting
plate with the bracket. Secure the protective shield and the mounting plate
on the bracket with 4 SC-KM3X8-BNI screws.
2
Installing on the right side is the
same as installing on the left side,
you can refer to the figure on the
left.
