• Page 1 - English - : User guide Thank you for purchasing this Samsung product To receive more complete service please register your product at wwwsamsungcom Model Serial No To directly go to the page that provides instructions on how to use the manual for visually impaired users select the Menu Learning Screen link below quotMenu Learning Screen quot Link
• Page 2 - English - : Contents Guide Connections Connection Guide 7 Connecting to the network Displaying your mobile device screen on the Product 13 Switching between external devices connected to the Product 17 Connection Notes Using Multi Control Using Storage Share Remote Control and Peripherals 22 About the Samsung Smart Remote 25 Connecting the Samsung Smart Remote to the Product 26 About the Ark Dial Connecting the Ark Dial to the product Controlling External Devices with a Samsung Remote Control Using the Universal Remote Setup Learn how to use Samsung Smart Remote 30 Learn how to use Ark Dial 30 Learn how to use Game Controller 30 Using a mobile remote control 31 Using Anynet HDMICEC Controlling the Product with a Keyboard Mouse or Gamepad Entering Text using the OnScreen Virtual Keyboard Smart Features 39 Using Smart Hub 44 Using Ambient mode 50 About the Samsung Daily Home screen 52 Using Samsung Gaming Hub 54 Using the Home Function 55 About the For You Home Screen 59 About the Live Home Screen 60 About the Apps Home Screen About the Settings Home Screen Using a Samsung account Using Workspace 78 Using TV Access Using the User guide Using the Internet Using SmartThings Playing picturesvideomusic 93 Using Multi View 96 Using Bixby Using Daily Board Using the Game Bar Using Click to Search Product Viewing 111 ProductViewing Support Functions Picture and Sound Using Intelligent Mode Adjusting the Picture Quality 119 Setting the Viewing Environment for External Devices 125 Conguring a Sound Mode and Expert Settings 127 Using the Sound Support Functions System and Support Using the Time Functions and the Timers Using the Power and Energy Saving Functions Using the Panel Care feature Updating the Products Software Using the Parental Settings function Audio and Video Functions for the Visually or Hearing Impaired Using Voice Assistants on the Product Using Other Functions
• Page 3 - English - : Precautions and Notes 151 Read Before Using Apps Read Before Using the Internet Function 154 Read Before Playing Photo Video or Music Files 167 Read Before Using Bluetooth Devices Licences amp Other Information 170 Installing the Software Troubleshooting Picture Issues The screen is ashing or has become dark 171 The picture is not bright or the picture colours do not look clear 172 The picture colours look like black and white or do not look the way they should look 173 The Product automatically turns off by itself 173 The Product image does not look as good as it did in the store Displayed video looks blurry The picture is distorted There is a dotted line on the edge of the screen 174 The picture wont display in full screen 174 The Subtitle function in the Product menu is deactivated Subtitles appear on the Product screen The HDR of the connected external device turns off The monitor does not turn off and the screen displays photos and the time 175 Its annoying that My Contents automatically runs even when I sleep at night Sound and Noise Issues How can I connect an audio device to the Product There is no sound or the sound is too low at maximum volume 176 The picture is good but there is no sound 177 HDMI ARC is connected and there is no sound 177 The speakers are making an odd sound 177 The sound is interrupted 177 Whenever a function is used on the Product or the channel is changed the Product voices the activity The Product explains in voiceover the video scenes displayed on the screen The Product audio is not being played through the Soundbar or AV receiver The sound is not heard clearly The volume of the external device cannot be adjusted I want to turn off and on the Product and audio device at the same time
• Page 4 - English - : External Device Connectivity Issues 180 The quotMode Not Supportedquot message appears The video is OK but there is no audio 180 I want to connect to a PC and mobile device via screen mirroring 181 Proper operation cannot be guaranteed if this is lined and used through an external USB hub No screen appears when connecting the Product to an external device 181 I want to connect to a Bluetooth speaker 182 The PC screen does not appear or it ickers 182 The computer does not wake up through Wake PC A special key on the keyboard or mouse is entered automatically The displayed image size does not t the screen the image colours are blurred or the text does not appear clear 183 A computer has been connected but the Expert Settings option is greyed out I want the Product screen to turn off immediately when the connected external device turns off Network Issues 184 Wireless network connection failed Unable to connect to a wireless access point Unable to connect to the network Wired network connection failed Connected to a local network but not to the Internet Anynet HDMICEC Issues 185 What is Anynet 185 Anynet does not work The connected device is not displayed 186 I want to start Anynet I also want the connected devices to turn on when the Product is turned on 186 I want to exit Anynet It is inconvenient to turn on other devices because the Product also turns on It is inconvenient because the connected devices eg settop box turn off together The message quotConnecting to Anynet devicequot or quotDisconnecting from Anynet devicequot appears on the screen The Anynet device wont play Remote Control Issues 187 The remote control does not work 187 External devices cannot be operated with the Product remote control When I turn on the product with the remote control another device is also turned on Apps I cannot nd the app I want I launched an app but its in a different language How can I change the language 188 The app does not work properly Its image quality is poor 188 The Smart Hub Home Screen keeps appearing whenever you turn on the Product Media Files 189 Some les are interrupted during playback Some les cant be played Voice Assistant Issues 190 The microphone is off The voice commands do not work well BixbyAlexa answers although I did not call it I spoke quotHi BixbyAlexaquot but BixbyAlexa does not answer Voice recognition does not work with the Samsung Smart Remote unlike other features There is no response even if the Voice Assistant button is pressed 192 During voice recognition the heavy load message appears and the function does not work I want to see weather information of the desired area Other issues 193 The Product is hot 193 The Product smells like plastic 193 The settings are lost after 5 minutes or every time the Product is turned off 194 The Product is tilted to the side 194 The stand is wobbly or crooked 194 I want to know how to attach and remove the Product stand 195 A POP Products internal banner ad appears on the screen 195 The Product is making a popping noise 195 The Product is making a humming noise 195 The screen is off but I hear noise
• Page 5 - English - : 195 The Product narrates the screen events in voiceover Q amp A Diagnosing Product operational issues Self Diagnosis 199 Reset Smart Hub 199 Reset picture 199 Reset sound Getting Support Finding the contact information for service Getting support through Remote Management Checking the Calibration Report 201 Requesting service Accessibility Guidance Menu Learning Screen Using the Remote control 204 Using the Accessibility Menu Using the Product with Voice Guide on 212 Using Smart Hub 214 Launching the User guide 215 Using Bixby

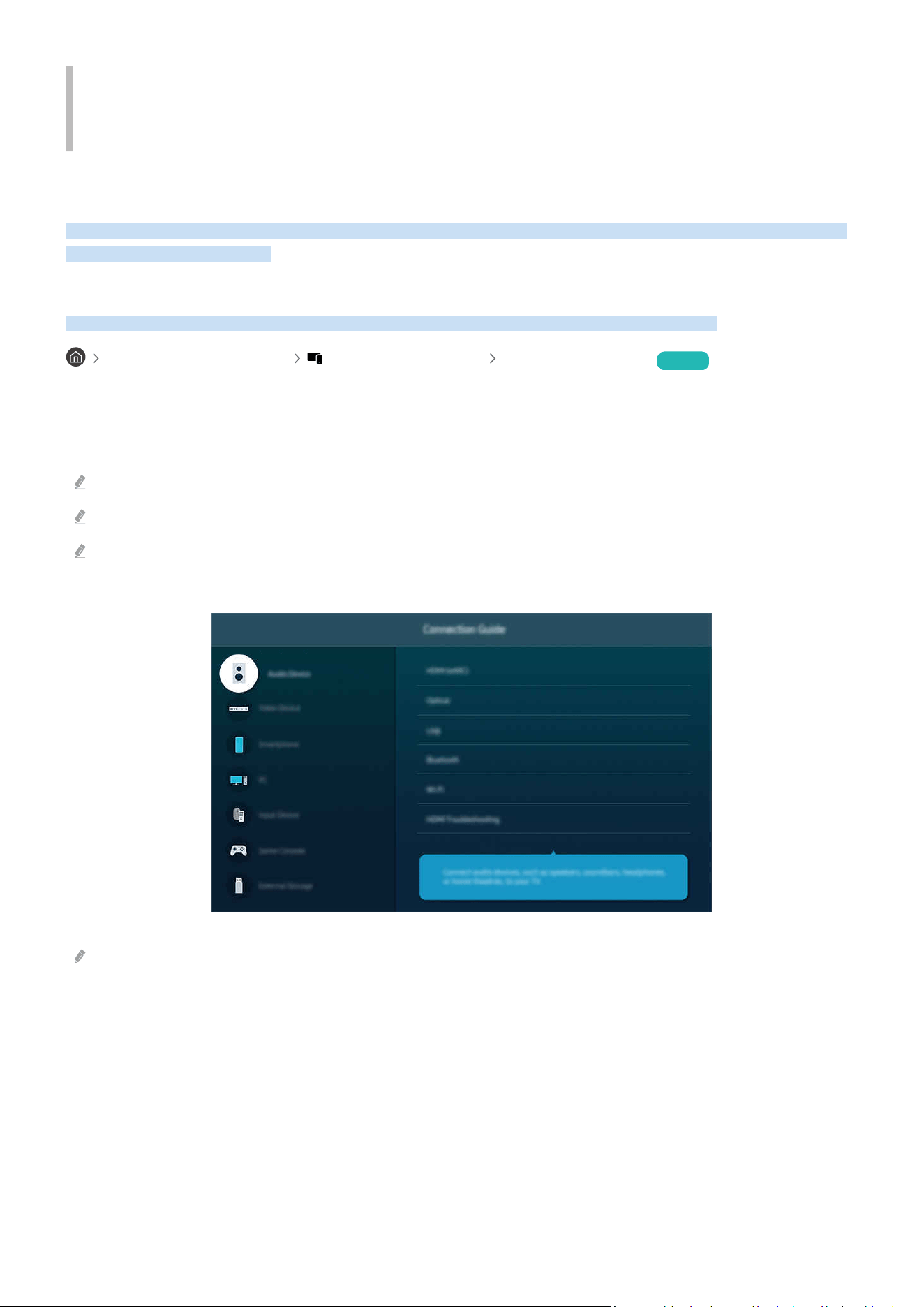

• Page 6 - English - : Guide Learn how to use various features Connections You can get access to the network by using a LAN cable or wireless access point Using various connectors you can also connect external devices Connection Guide You can view detailed information about external devices that can be connected to the Product left directional button Connected Devices Connection Guide Try Now It shows you how to connect various external devices such as Audio Device Video Device Smartphone PC Input Device Game Console and External Storage using pictures on the screen If you select the connection method and an external device the connection details appear The connection method and available external devices may differ depending on the model Some functions may not be supported depending on the model or geographical area Using HDMI Troubleshooting you can check the connection to HDMI cable and external devices takes approximately 2 minutes The image on your Product may differ from the image above depending on the model and geographical area 6

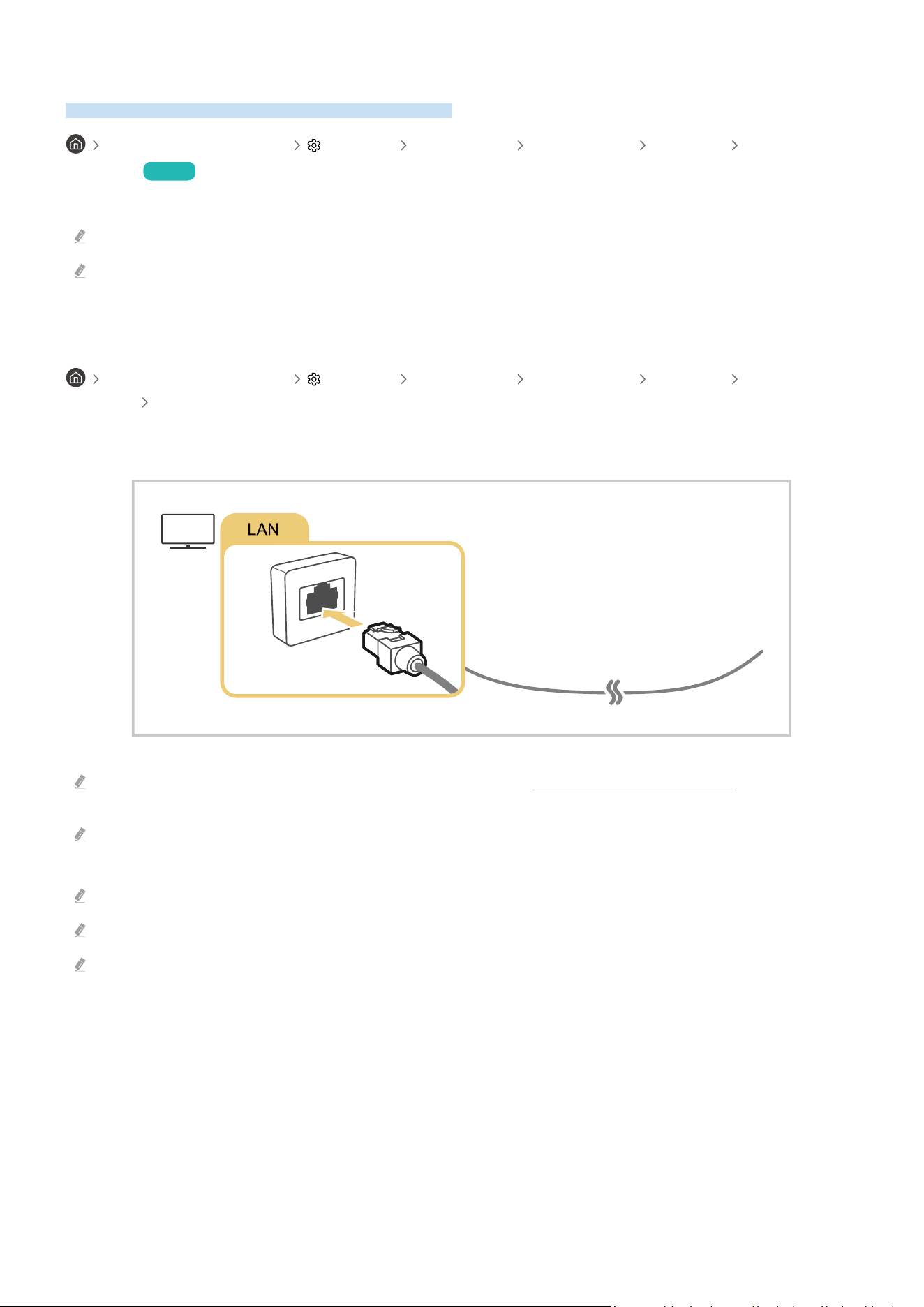

• Page 7 - English - : Connecting to the network You can get access to the network through your Product left directional button Settings All Settings Connections Network Network Settings Try Now Congure network settings to connect to an available network To ensure safe and secure use of the product connect to the network using a securely managed router When the network is connected it enables casting YouTube content DLNA WiFi Speaker SmartThings Easy Setting Box and Screen Mirroring Services supported by software updates are subject to change Establishing a wired network connection left directional button Settings All Settings Connections Network Network Settings Wired If you connect a LAN cable the Product automatically accesses the network If the Product does not automatically connect to the network refer to quotWired network connection failedquot in quotTroubleshootingquot To connect a LAN cable use a CAT 7 STP type cable for the connection 10010 Mbps Shielded Twisted Pair The Product will not be able to connect to the network if your network speed is below 10 Mbps This function may not be supported depending on the model Wired networks are not supported by some models 7

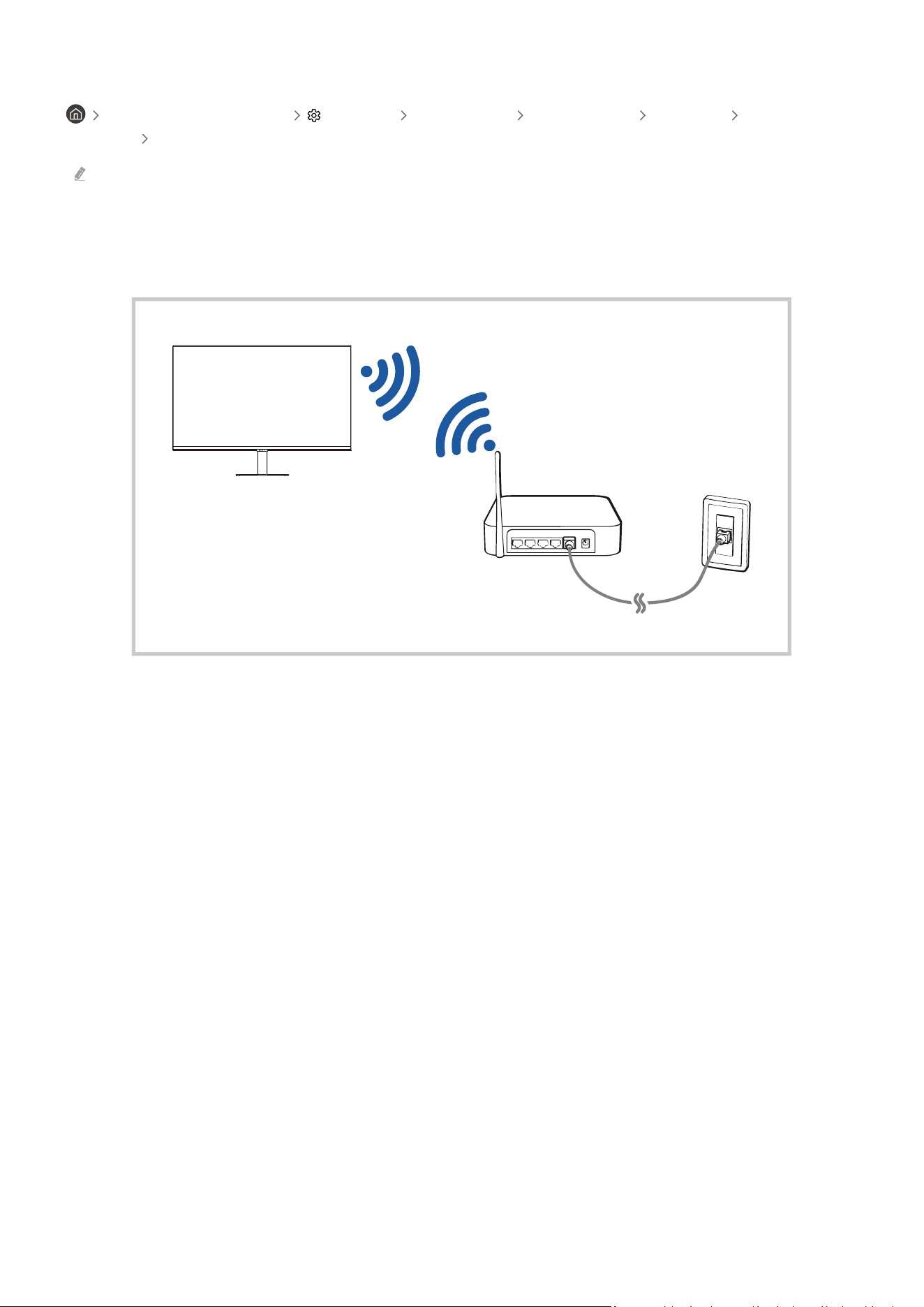

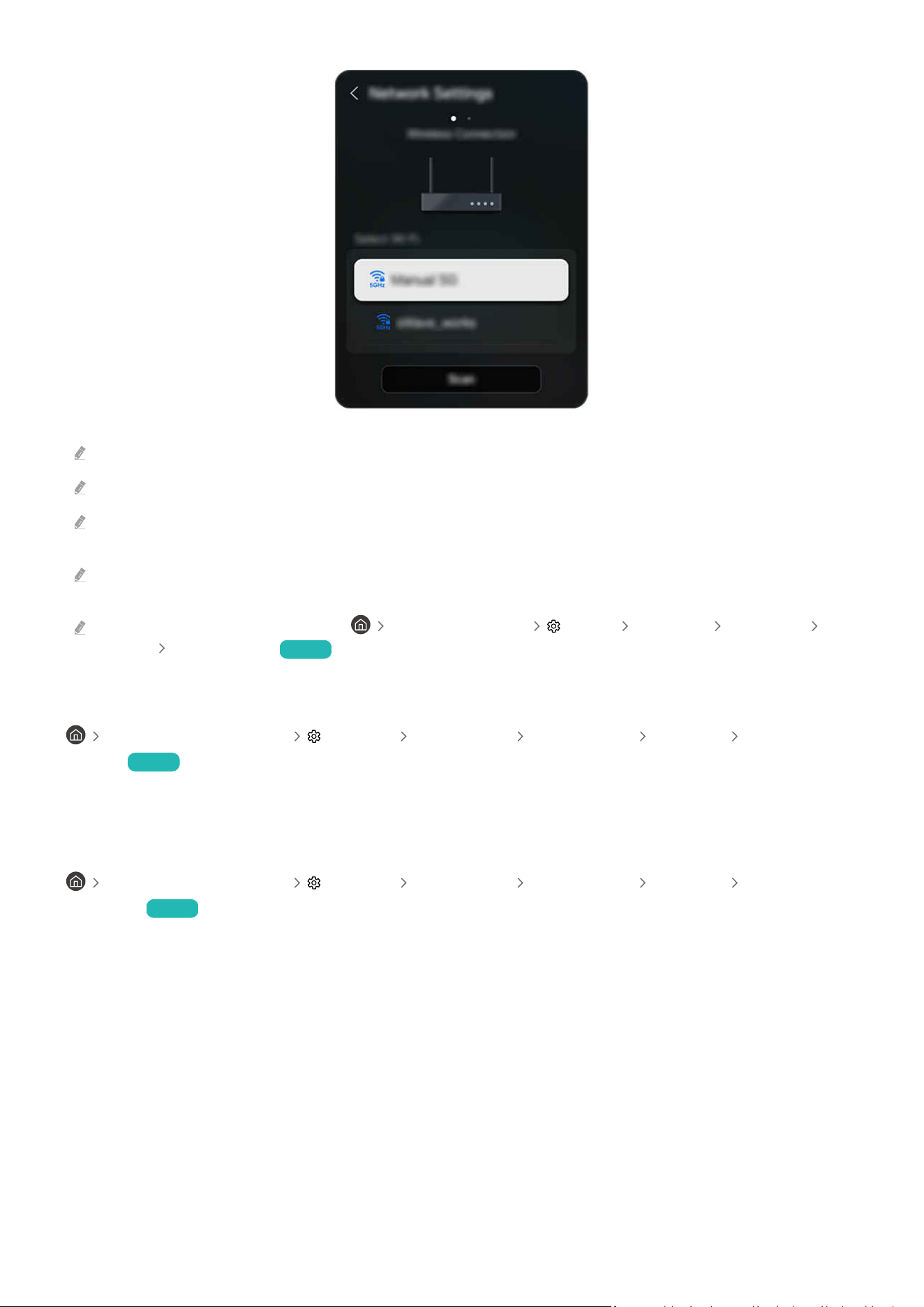

• Page 8 - English - : Establishing a wireless network connection left directional button Settings All Settings Connections Network Network Settings Wireless The menu name may differ depending on the model Make sure that you have the wireless access points name SSID and password settings before attempting to connect The network name SSID and security key are available on the wireless access points conguration screen See the wireless access points user manual for more information 8
• Page 9 - English - : The image on your Product may differ from the image above depending on the model and geographical area If no wireless access point is found select Add Network at the bottom of the list and enter the network name SSID If your wireless access point has a WPS or PBC button select Use WPS at the bottom of the list and then push the WPS or PBC button on your access point within 2 minutes The Product will connect automatically To view or delete previously connected network names SSIDs move the focus to Manage and then press the Select button To disconnect WiFi select Disconnect in left directional button Settings All Settings Connections Network Network Status Try Now Checking the network connection status left directional button Settings All Settings Connections Network Network Status Try Now View the current network status Resetting Your Network left directional button Settings All Settings Connections Network Reset Network Try Now Restore the network settings to the factory default 9
• Page 10 - English - : Turning on the Product with a mobile device left directional button Settings All Settings Connections Network Expert Settings Power On with Mobile Try Now You can turn on the Product using a mobile device connected to the same network as the Product This function is available with a mobile device connected to the Product through the SmartThings app or the Apple AirPlay function Apple AirPlay may not be supported depending on the model or geographical area Connecting an IP control device to the Product left directional button Settings All Settings Connections Network Expert Settings IP Remote Try Now You can connect an IP control device to the Product remotely to manage your IP device To use this function Power On with Mobile must be turned on Turning this feature on may allow other IP control devices to control your Product We recommend turning this feature on only if an authorised thirdparty custom controller is installed and congured specically for a Samsung Product and if your WiFi network is password protected This function may not be supported depending on the model Allowing to connect a wireless network left directional button Settings All Settings Connections Network Expert Settings WiFi Try Now You can enable the connection to WiFi To connect a wireless network the function must be active Changing the name of the Product left directional button Settings All Settings Support About the Smart Monitor Edit Name Try Now You can change the name of the Product on the network 10
• Page 11 - English - : Displaying your mobile device screen on the Product You can watch the screen of your mobile device on the Product screen through Smart View Apple AirPlay or Tap View When you start screen sharing with a mobile device Smart View Apple AirPlay Tap View the Product screen switches to the Multi View or mobile devices screen Watch multiple contents at the same time with the Multi View screen This function may not be supported depending on the model For more information refer to quotUsing Multi Viewquot Using Screen Sharing Smart View For information on how to share the screen with your mobile device refer to left directional button Connected Devices Connection Guide Smartphone Screen Sharing Smart View Try Now To turn off Screen Sharing Smart View disconnect the mobile device or press the button on the remote control Using the Smart View menu on your mobile device you can change the settings such as aspect ratio Using Apple AirPlay Use AirPlay if you are an iPhone or iPad user For more information refer to left directional button Connected Devices Connection Guide Smartphone Apple AirPlay Try Now This function may not be supported depending on the model or geographical area To use Apple AirPlay make sure left directional button Settings All Settings Connections Apple AirPlay Settings is enabled 11
• Page 12 - English - : Using Screen Sharing Tap View By tapping the mobile device on your Product you can watch Multi View or mobile devices screen through the Product screen When you tap a mobile device on your Product while running a music app on your mobile device the Product screen switches to the Music Wall screen This function may not be supported depending on the model This function is available in Samsung mobile devices with Android 81 or higher When the Product is in power saving mode the Tap View feature is not available Enable Tap View on your mobile device For more information about conguration refer to Enabling Tap View Turn on the screen of your mobile device Tap your mobile device on the Product The Product screen switches to Multi View Music Wall or mobile devices screen Be sure to tap away from the Product screen and bezel corners It may scratch or break the Product or mobile device screen We recommend using your mobile device with the cover in place and lightly tap it on any external edge of the Product Watch Multi View Music Wall or mobile devices screen on the Product screen Music Wall screen is a function that allows you to enjoy music along with visual video effects that change according to the genre and beat of the music The displayed Product screen may differ depending on the model This function enables ScreenSound Mirroring by detecting vibrations generated when you tap the mobile device on the Product Enabling Tap View Enable Tap View in the SmartThings app Depending on the SmartThings app version you may need to register the Product with your mobile device This function may not be supported depending on the model Launch the SmartThings app on your mobile device Select Settings in SmartThings app on your mobile device Set Tap View to on Upon connection for the rst time select Allow on a popup window of the Product 12
• Page 13 - English - : Switching between external devices connected to the Product You can switch between Product programmes and the content of external devices left directional button Connected Devices When you select a connected external device on the Source screen the output of the selected device is displayed on the Products screen To control a device Bluray player game console etc that supports universal remote control with the Products remote control connect the device to an HDMI port on the Product and then turn on the device The output displayed on the Product is automatically switched to the output of the device or you can congure universal remote control for the device automatically For more information refer to quotControlling External Devices with a Samsung Remote Control Using the Universal Remote Setupquot When a USB device is connected to the USB port a popup message appears that lets you switch easily to the media content listed on the device This function may not be supported depending on the device and geographical area 13

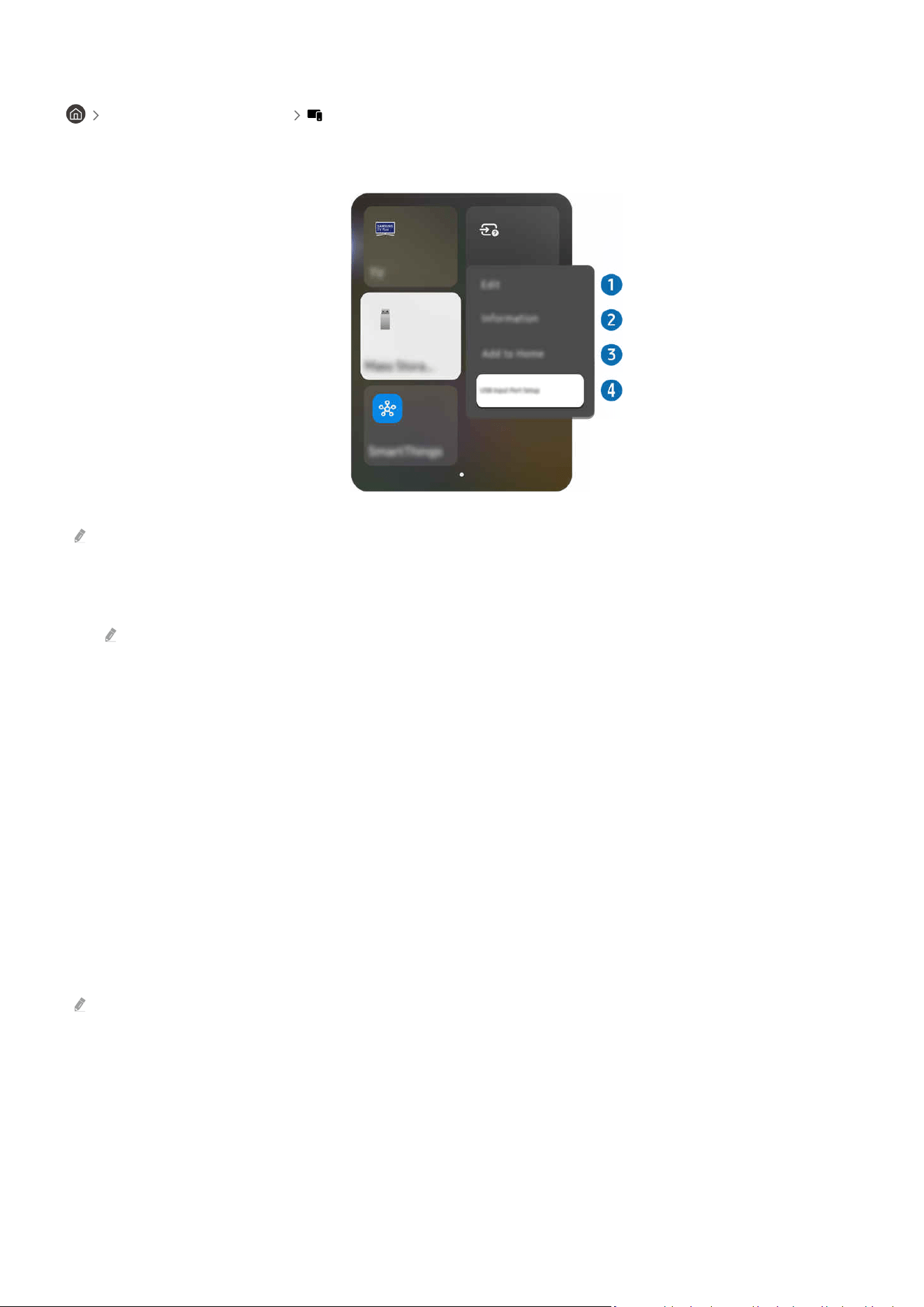

• Page 14 - English - : Editing the name and icon of an external device left directional button Connected Devices You can change the port name for a connected external device or add it to the Home Screen The image on your Product may differ from the image above depending on the model and geographical area Move the focus to a connected external device Press and hold the Select button The following functions become available Available functions may differ depending on the port type 1Edit You can rename the input ports and change the device icons 2Information You can view detailed information about an external device 3Add to Home You can add the port of an external device to the Home Screen for quick switching 4USB Input Port Setup Set up the device to connect to the smart monitor USB port and set up the port changing type This function may not be supported depending on the model 14

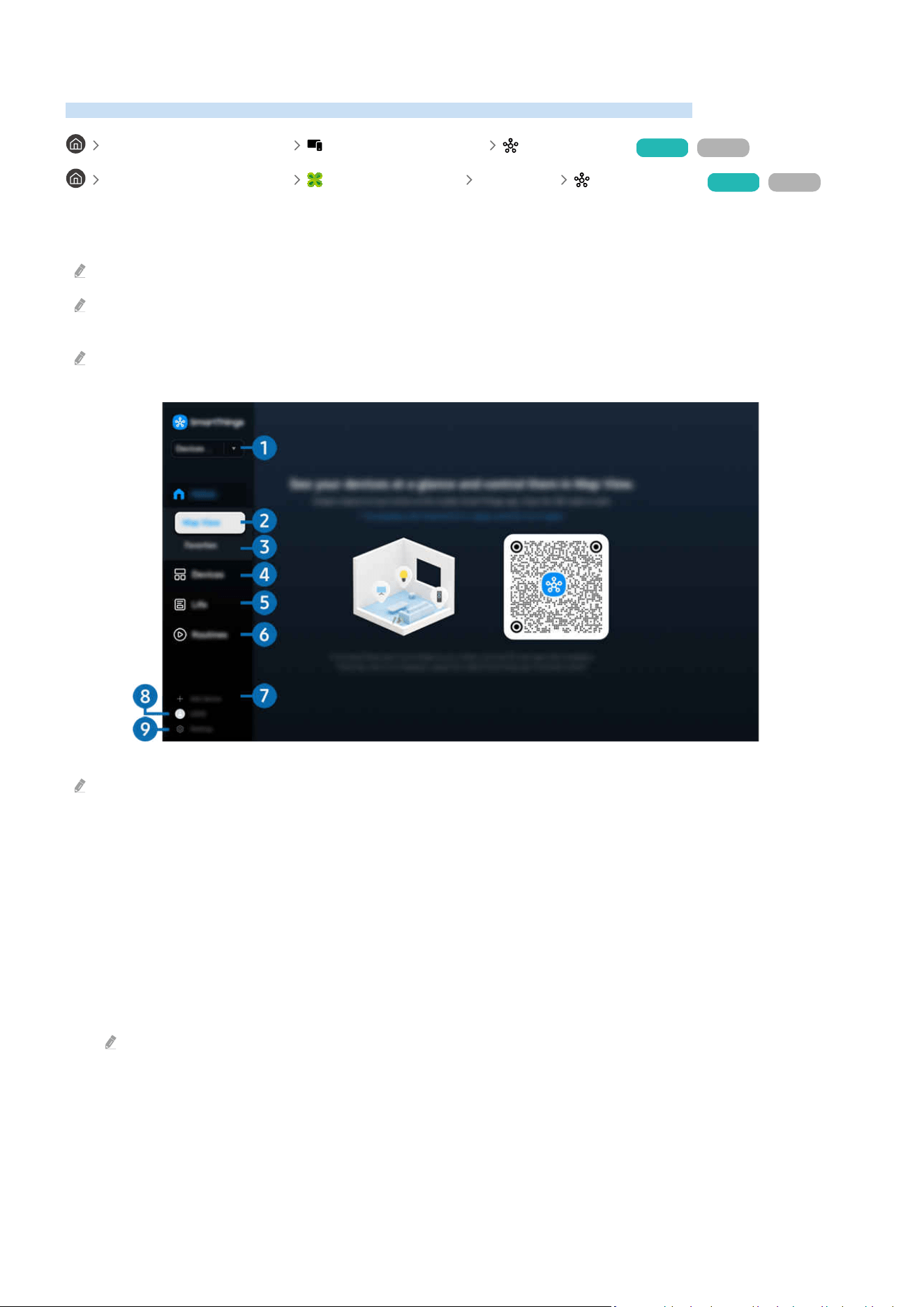

• Page 15 - English - : Using additional functions SmartThings You can use the SmartThings feature It allows the Product to connect and control the detected various devices in the same space For more information about SmartThings refer to quotUsing SmartThingsquot This function may not be supported depending on the model or geographical area Samsung TV Plus When the product is connected to a network popular programmes or themespecific highlights are provided for viewers 24 hours a day A programming schedule for Samsung TV Plus is also provided to let you know when to tune in Depending on the model this feature may not be supported Camera Experience Connect a USB camera or use the SmartThings app on your mobile phone to connect a camera Connect a camera to use video call home workout and other new features This function may not be supported depending on the model For details on how to connect refer to Camera Share left directional button Connected Devices Connection Guide Smartphone Camera Share 15
• Page 16 - English - : TV Access By mirroring you can watch TV from the Product screen For more information refer to quotUsing TV Accessquot Connection Guide Displays device connection instructions For more information refer to quotConnection Guidequot Universal remote setup Register an external device and control both the product and the external device with a single remote control This function may not be supported depending on the model or geographical area For more information refer to quotControlling External Devices with a Samsung Remote Control Using the Universal Remote Setupquot 16
• Page 17 - English - : Connection Notes When connecting an external device note the following The types names locations and number of supported ports may differ depending on the Product Refer to the external devices operating manual when connecting it to the Product The number of external device connectors and their names and locations may differ with the manufacturer Connection notes for HDMI The following types of HDMI cables are recommended High Speed HDMI Cable High Speed HDMI Cable with Ethernet Premium High Speed HDMI Cable Premium High Speed HDMI Cable with Ethernet Ultra High Speed HDMI Cable Use an HDMI cable with a thickness of 066 inches 17 mm or less Using a noncertified HDMI cable may result a blank screen or a connection error Some HDMI cables and devices may not be compatible with the Product due to different HDMI specifications This Product does not support HDMI Ethernet Channel Ethernet is a Local Area Network LAN built with coaxial cables standardised by the IEEE Use a cable shorter than 10 feet 3 m to get the best UHD viewing quality Many computer graphics adapters do not have HDMI ports but have DVI or DisplayPort ports instead If your PC does not support HDMI video out connect your PC with a DVI to HDMI cable When the Product is connected to an external device such as a DVDBD player or a settop box via HDMI power sync mode will be automatically activated In the power sync mode the Product continues to detect and connect external devices via HDMI cable This function can be deactivated by removing the HDMI cable of the connected device This function may not be supported depending on the model 17
• Page 18 - English - : Automatic device detection operates each time a new HDMI external device is connected The automatic device detection function recognises external devices to provide the user with an optimised viewing environment If a computer has been connected press the down directional button on the remote control when the function is activated as shown in the guide displayed at the bottom of the screen The device name is immediately set to PC If a connected device is not recognised by the automatic device detection function the device name is indicated as Unknown and the menu used to manually set the device name appears From the menu press the Setup button to manually set the device name If a computer connected via HDMI is recognised as an unknown device the display picture quality may not appear appropriate for a computer display In that case press the Setup button to change the device name to PC If you select the Later button the menu is closed and the connected device name remains Unknown You can manually change the device name later For details on how to manually set a device name refer to quot Controlling External Devices with a Samsung Remote Control Using the Universal Remote Setupquot Connection notes for USB TypeC This function is available only in M1M7M8 series Check the bandwidth of your USB TypeC cable whether it is available The output may not be adequate depending on the cable specification and condition Do not quickly connect or disconnect the connector and power cable because it requires some time Due to the compatibility issue the function may not be available when any Thunderbolt device is connected using a cable When charging with a USB TypeC cable malfunction may occur depending on the device type In this case use the provided charger or consult the manufacturer of the device 18
• Page 19 - English - : Connection notes for audio devices To obtain better Product audio quality connect a soundbar or AV receiver to the Product If you connect an external audio device using an optical cable the Sound Output setting automatically changes to the connected device However to make this happen you must turn on the external audio device before connecting the optical cable To manually change the Sound Output setting do one of the following This function may not be supported depending on the model Use the Quick Settings screen to change to the connected device Use the Select button to select Receiver Optical on the Sound Output menu left directional button Settings Sound Output Select button to toggle between sound output modes Try Now Use the Settings screen to change to the connected device Select Receiver Optical on the Sound Output menu left directional button Settings All Settings Sound Sound Output Try Now Refer to the soundbars user manual when connecting it to the Product An unusual noise coming from a connected audio device while you are using it may indicate a problem with the audio device itself If this occurs ask for assistance from the audio devices manufacturer Digital audio is only available with 51 channel broadcasts Audio Out If an external audio device is connected to the port and Audio Out is selected the internal speaker is muted sound is played via the external device and the volume is not adjustable This function may not be supported depending on the model Headphone If headphones are connected to the port and Headphone is selected the internal speaker is muted sound is played via the headphones and the volume is adjustable This function may not be supported depending on the model 19
• Page 20 - English - : Connection notes for computers For resolutions supported by the Product refer to the Product user manual from the Samsung Electronics website at httpswwwsamsungcom If you want to connect your PC and Product wirelessly both of them must be connected to each other on the same network When sharing content with other networkbased devices such as those in an IP Internet Protocol storage system sharing may not be supported due to the networks configuration quality or functionality for example if the network has an NAS NetworkAttached Storage device Connection notes for mobile devices To use the Smart View function the mobile device must support a mirroring function such as Screen Mirroring or Smart View To check whether your mobile device supports the mirroring function refer to the mobile devices user manual The Screen Sharing Smart View feature may not operate smoothly in a 24 GHz environment For better experience 50 GHz is recommended 5 GHz may not be available depending on the model To use WiFi Direct the mobile device must support the WiFi Direct function To check whether your mobile device supports WiFi Direct refer to the mobile devices user manual The mobile device and your Product must be connected to each other on the same network Use AirPlay if you are an iPhone or iPad user For more information refer to left directional button Connected Devices Connection Guide Smartphone Apple AirPlay Try Now This function may not be supported depending on the model or geographical area The video or audio may stop intermittently depending on network conditions When sharing content with other networkbased devices such as those in an IP Internet Protocol storage system sharing may not be supported due to the networks configuration quality or functionality for example if the network has an NAS NetworkAttached Storage device 20
• Page 21 - English - : Using Multi Control Connect to nearby Galaxy devices to control them using the same keyboard and mouse left directional button Settings All Settings Connections Multi Control Turn on Multi Control to connect nearby Galaxy devices and use them with your keyboard and mouse To connect to nearby devices turn on Multi Control WiFi and Bluetooth on the devices and logged in with the same Samsung account This function may not be supported depending on the model or geographical area This feature may not be supported depending on the Galaxy device model and the One UI version Using Storage Share Connect to a nearby Galaxy device to access its storage and check stored les left directional button Settings All Settings Connections Storage Share Turn on the Storage Share feature The Galaxy devices in the vicinity can be found in the list under Connected Devices Select the intended device from the list and access the device storage to check stored les To connect to those devices make sure that Storage Share mode WiFi and Bluetooth are enabled and the same Samsung account is logged in on all the devices This function may not be supported depending on the model This feature may not be supported depending on the Galaxy device model and the One UI version 21
• Page 22 - English - : Remote Control and Peripherals You can control Product operations with your Samsung Smart Remote Pair external devices such as a keyboard for ease of use About the Samsung Smart Remote Learn about the buttons on the Samsung Smart Remote Button Description Power Press to turn the Product on or off MIC LED Used as MIC when using voice recognition with the remote control When charging the remote control via the USB port the LED is lit if charging is in progress When charging is complete the LED is turned off Do not impact the MIC hole or use a sharp object to poke into the hole This function may not be supported depending on the model or geographical area Click to Search If this button is pressed while watching a broadcast users are provided with recommendations related to the current content Types of recommendations may differ depending on the content provider This function may not be supported depending on the model or geographical area Voice Assistant Runs Voice Assistant Press and hold the button say a command and then release the button to run Voice Assistant The supported Voice Assistants languages and features may differ by geographical region This function may not be supported depending on the model or geographical area 22
• Page 23 - English - : Button Description Settings Number Colour button You can access Settings menu virtual numeric pad SmartThings Connected Devices directly Accessing the SmartThings app using this button may not be supported depending on the model Use this button to access additional options that are specific to the feature in use Press to bring up the virtual numeric pad on the screen Use the numeric keypad to enter numeric values Select numbers and then select Done or Enter Number to enter a numeric value Use to change the channel enter a PIN ZIP code and etc If the Colour Button appears with a number strip on the screen select the Colour Button and then select a specic colour by using the directional button up down left right Settings Number Option button You can access Settings menu virtual numeric pad SmartThings Connected Devices directly Accessing the SmartThings app using this button may not be supported depending on the model Use this button to access additional options that are specific to the feature in use Press to bring up the virtual numeric pad on the screen Use the numeric keypad to enter numeric values Select numbers and then select Done or Enter Number to enter a numeric value Use to change the channel enter a PIN ZIP code and etc Colour Button When pressed coloured buttons appear on the screen Use this button to access additional options that are specic to the feature in use This function may not be supported depending on the model or geographical area Directional button up down left right Moves the focus Select Selects or runs a focused item When pressed while you are watching a broadcast programme detailed programme information appears Return Press to return to the previous menu When pressed for 1 second or more the running function is terminated When pressed while you are watching a programme the previous channel appears Smart Hub Press to switch to the Home Screen If you press this button for more than 1 second the same function found when pressing the button is provided 23

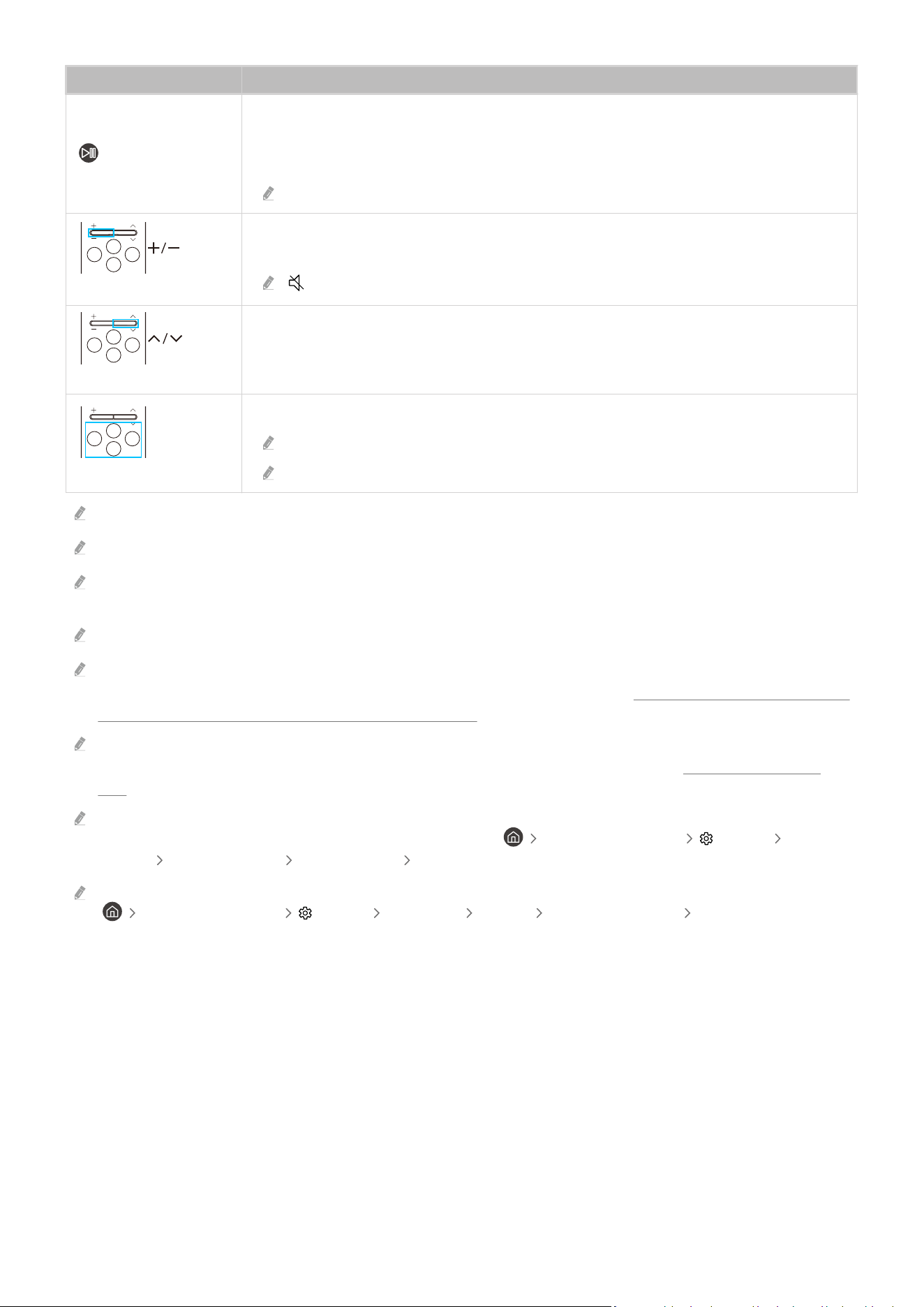

• Page 24 - English - : Button Description Playpause When pressed the playback controls appear Using these controls you can control the media content that is playing To use Game Bar press and hold the button in Game Mode Game Bar may not be supported depending on the model or geographical area Volume Push the button up or down to control the volume Press the button to mute Press and hold for 2 seconds or longer to load Accessibility Shortcuts may not be present depending on the model Channel Move the button up or down to change the channel To see the Guide screen press the button When pressed for 1 second or more the Channel List screen appears Press and hold the button up or down to quickly change the channel Launch app button Launch the app indicated by the button Available apps may differ depending on the geographical area or contents provider This function may not be supported depending on the model In standby mode press any button on the remote control to turn on the screen The functions related to the broadcast and channel are available only in some apps or external devices Use the Samsung Smart RemoteTM236 TM256 less than 6 m from the Product The usable distance may vary with the wireless environmental conditions The images buttons and functions of the Samsung Smart Remote may differ with the model or geographical area To use the Samsung Smart Remote to control a compatible external device that does not support HDMICEC Anynet you must congure universal remote control for the device For more information refer to quotControlling External Devices with a Samsung Remote Control Using the Universal Remote Setupquot To use the Samsung Smart Remote to control a compatible external device that does support HDMICEC Anynet connect the device to an HDMI port on the Product using an HDMI cable For more information refer to quotUsing Anynet HDMI CECquot If the orientation of the remote controlTM236 TM256 is incorrect some models may display an alert asking users to hold it correctly To turn off the alert access Remote Grip Sensor left directional button Settings All Settings General amp Privacy Remote Control Remote Grip Sensor For specic functions of each button on the Samsung Smart RemoteTM236 TM256 access the Remote Control Guide left directional button Settings All Settings Support Tips and User Guides Remote Control Guide 24

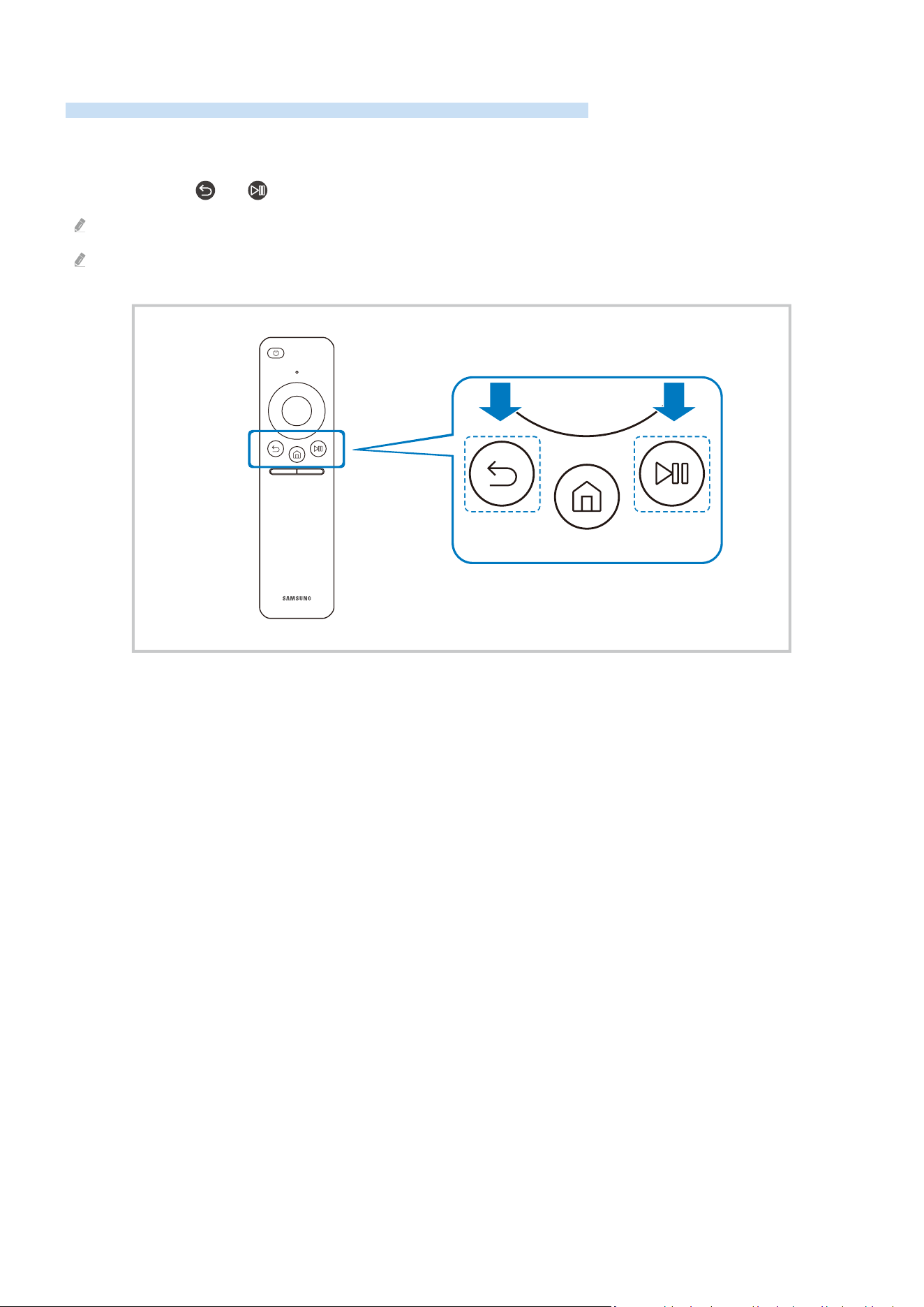

• Page 25 - English - : Connecting the Samsung Smart Remote to the Product Connect the Samsung Smart Remote to your Product to operate the Product When you turn on the Product for the rst time the Samsung Smart Remote pairs to the Product automatically If the Samsung Smart Remote does not pair to the Product automatically point it at the front of the Product then press and hold the and buttons simultaneously for 3 seconds or more Pairing is not available in M5 series The images buttons and functions of the Samsung Smart Remote may differ with the model or geographical area 25
• Page 26 - English - : About the Ark Dial Learn about the buttons on the Ark Dial Use the Ark Dial to freely change the screen settings or switch the mode without having to hold the remote control Use the Ark Dial to access the Ark Dial Menu Button Description Solar Cell Expose to light when the remote is not in use This will extend the remotes operating time LED The LED on the front will light when charging When the battery is fully charged the LED will turn off This function may not be supported depending on the model or geographical area Power Press to turn the Product on or off Source Press to change the input source of the Product Press repeatedly to toggle from among connected external input sources Return Press to return to the previous menu Volume Move the button up or down to adjust the volume Enter Selects or runs a focused item Ark Dial Menu Displays the Ark Dial Menu Wheel Turn the wheel to move the focus or to adjust the screen size or position The functionality may differ depending on the apps supported by the Product The focus moves when the sensor detects turning of the wheel and the movement may not be simultaneous with the wheel turning sound Directional button up downleftright Use the directional keys to move the focus or adjust the screen position For more information about the Ark Dial Menu refer to quotAbout the Ark Dial Menuquot In standby mode press any button on the Ark Dial to turn on the screen Use the Ark Dial less than 6 m from the product The usable distance may vary with the wireless environmental conditions The Universal Remote function operates normally only when you use the Ark Dial that comes with the product The images buttons and functions of the Ark Dial may differ with the model or geographical area 26

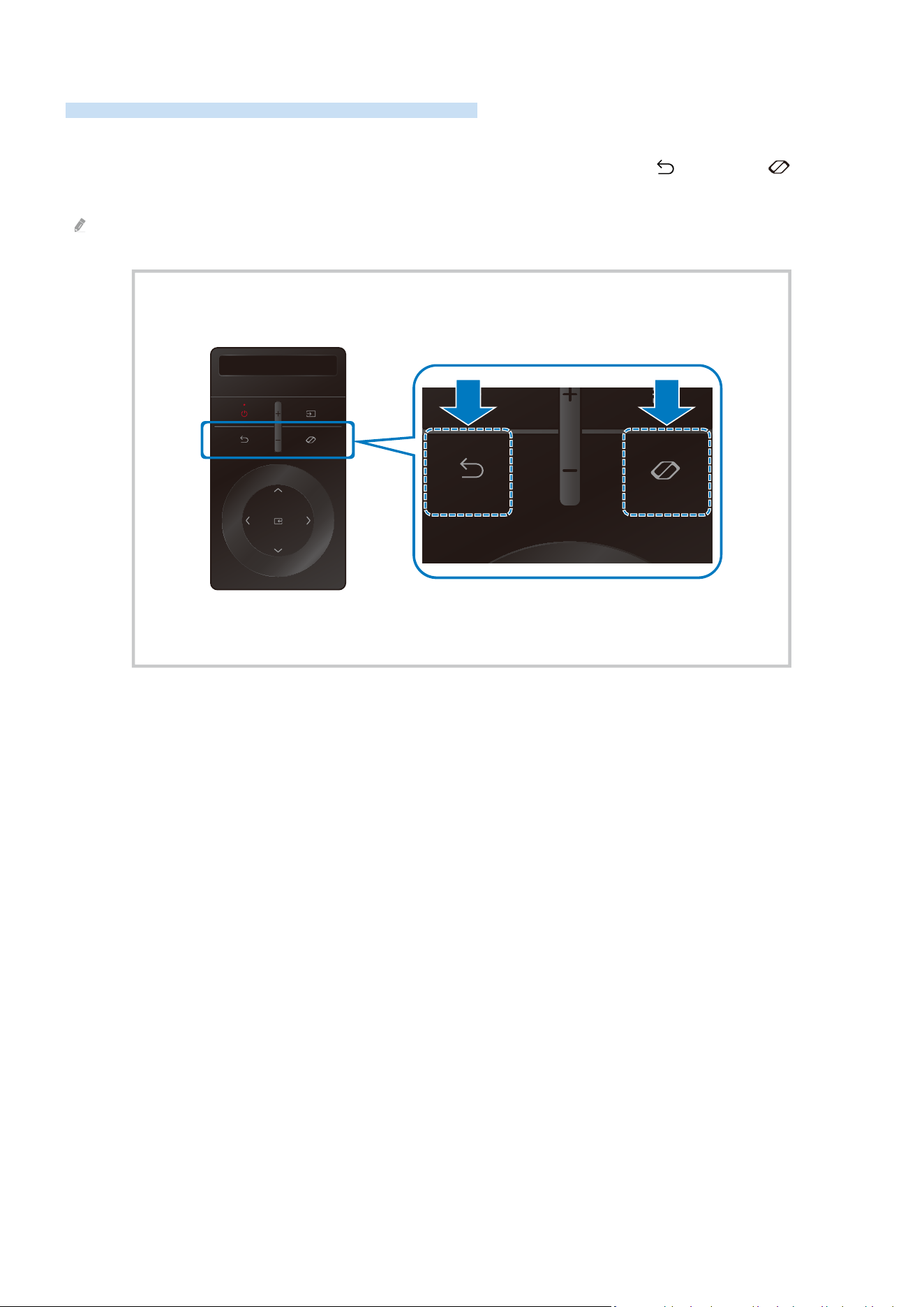

• Page 27 - English - : Connecting the Ark Dial to the product Connect the Ark Dial to your product to operate the product When you turn on the product for the rst time the Ark Dial pairs to the product automatically If a connection is not established automatically direct the Ark Dial at the front of the Product and press Return and Ark Dial Menu together for more than 3 seconds This function may not be supported depending on the model or geographical area 27

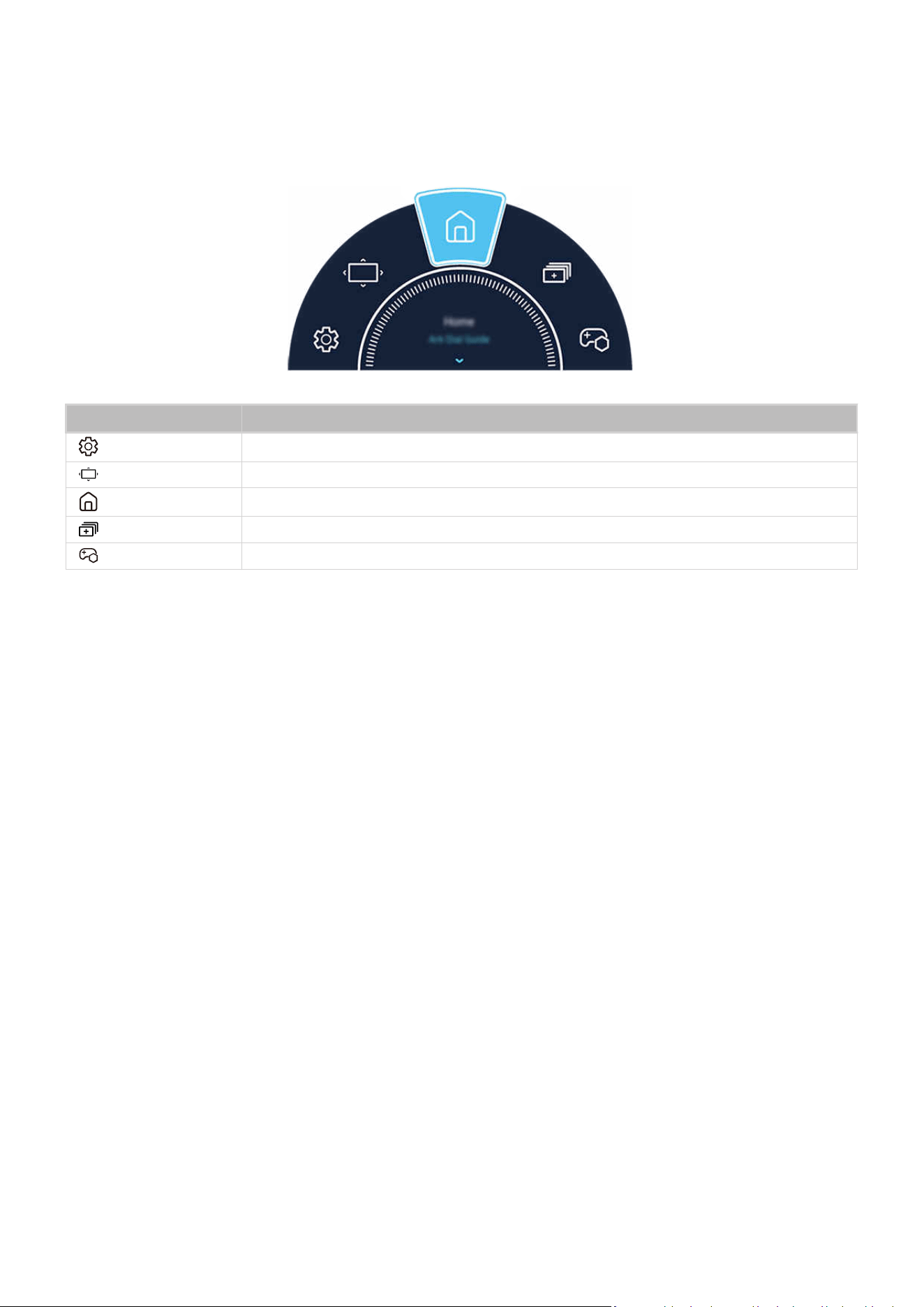

• Page 28 - English - : About the Ark Dial Menu From the Ark Dial Menu press the Down key on the Ark Dial to access the Ark Dial Guide Use the Ark Dial Guide to nd out about the useful features of the Ark Dial Items Description Quick Settings Quick Settings can be used to quickly congure frequently used features Flex Move Screen Enlarge or reduce the screen size Home Press to return to the Home Screen Multi View You can simultaneously view multiple screens that are split Game Bar Control the Game Settings and Game Enhancer Settings easily by using the Game Bar 28
• Page 29 - English - : Controlling External Devices with a Samsung Remote Control Using the Universal Remote Setup Control the Product and connected external devices with a Samsung remote control left directional button Connected Devices Universal remote setup You can control all external devices connected to the Product using a single Samsung remote Run the Universal Remote Setup menu to register external devices This function may not be supported depending on the model or geographical area You can also use the Anynet HDMICEC function to operate external Samsung devices with your Products remote control without any additional setup For more information refer to quotUsing Anynet HDMICECquot Specic external devices connected to the Product may not support the universal remote feature Do not place any obstacle in front of an external device or the Products logo It may cause improper transmitted signals from the remote control The Product memorises both the external device and its connection port HDMI 1 HDMI 2 etc If you have difculty controlling external devices with the Universal Remote Setup try adjusting the positions of the external devices This function may not operate properly depending on the Product installation environment and the features of external devices Learn how to use Samsung Smart Remote You can learn how to use Samsung Smart Remote left directional button Settings Support Tips and User Guides Remote Control Guide Find details on how to use the Samsung Smart Remote Press the menu to use a variety of functions of the Samsung Smart Remote This function may not be supported depending on the model 29
• Page 30 - English - : Learn how to use Ark Dial You can learn how to use Ark Dial Menu Settings Support Tips and User Guides Ark Dial Guide Use the useful features of Ark Dial The Ark Dial is supplied with the Odyssey Ark If you press on the Ark Dial you can access the following menu items Quick Settings Flex Move Screen Home Multi View Game Bar From the Ark Dial Menu press the Down key on the Ark Dial to access the Ark Dial Guide Learn how to use Game Controller You can learn how to use Game Controller left directional button Settings Support Tips and User Guides Game Controller Guide Find details on how to use the Game Controller Press the menu to learn more about the functions of each Game Controller button This function may not be supported depending on the model Button layouts may vary between controllers Using a mobile remote control Control the Product using the remote control for a mobile device Use mobile remote control functions from the SmartThings app on your mobile device Use the power button on the Product to turn it on and scan the QR code displayed on the screen Users may need to update the SmartThings app to the latest version This function may not be supported depending on the model 30
• Page 31 - English - : Using Anynet HDMICEC Control an external device connected via Anynet HDMICEC with the remote control You can use the Products remote control to control external devices that are connected to the Product by an HDMI cable and that support Anynet HDMICEC Note that you can only set up and operate Anynet HDMICEC with the remote control This function may not be supported depending on the model Connecting an external device through Anynet and using their menus left directional button Settings All Settings General amp Privacy External Device Manager Anynet HDMICEC Try Now Set Anynet HDMICEC to On Connect an HDMICECcompliant device to the Product Turn on the connected external device The device is automatically connected to the Product After the connection process is nished you can access the menu of the connected device using your Product remote and control the device The connecting process can take up to 2 minutes to complete Read before connecting an Anynet HDMICEC device Anynet HDMICECenabled devices must be connected to the Product with an HDMI cable Note that some HDMI cables may not support Anynet HDMICEC You can congure the Products Universal Remote to control thirdparty cable boxes Bluray players and home theatres that do not support HDMICEC For more information refer to quotControlling External Devices with a Samsung Remote Control Using the Universal Remote Setupquot Anynet cannot be used to control external devices that do not support HDMICEC The Product remote control may not work under certain circumstances If this occurs set up the device as an Anynet HDMICECenabled device again Anynet HDMICEC works only with external devices that support HDMICEC and when those devices are either in standby mode or turned on Anynet HDMICEC can control up to 12 compliant external devices up to 3 of the same type except for home theatres Anynet HDMICEC can control only one home theatre system To listen to 51 channel audio from an external device connect the device to the Product via an HDMI cable and connect a 51 home theatre system directly to the external devices digital audio output connector If an external device has been set up for both Anynet and a universal remote control the device can be controlled only with the universal remote control 31
• Page 32 - English - : Controlling the Product with a Keyboard Mouse or Gamepad Connecting a keyboard mouse or gamepad to make it easier to control the Product You can connect a keyboard mouse or gamepad to control the Product easily Connecting a USB keyboard mouse or gamepad left directional button Connected Devices Connection Guide Input Device Plug the keyboard mouse or gamepad cable into the USB port This function may not be supported by some apps or external devices XInput USB gamepads are supported Connecting a Bluetooth keyboard mouse or gamepad left directional button Settings All Settings Connections Bluetooth Try Now If your device was not detected position the keyboard close to the Product and then select Scan The Product scans for available devices again This function may not be supported by some apps or external devices A maximum of four gamepads can be connected regardless of connection method eg USB or Bluetooth When using two Bluetooth audio devices it is best to use USB gamepads When using one Bluetooth audio device up to two Bluetooth gamepads can be connected For more information refer to the Bluetooth devices user manual This function may not be supported depending on the model or geographical area 32
• Page 33 - English - : Using the keyboard and mouse Button Description Directional keys Use to navigate the menu or move the focus to highlight items on the Home Screen Enter key Selects or runs a focused item ESC key Returns to the previous screen Number Keys Enter numbers F1 key Turns on or off the Product F2 key Each time you press the button the focus switches between the virtual numeric pad Connected Devices menu Settings menu and SmartThings app F3 key Playspauses F4 key Displays the Settings screen F5 key Displays the Home Screen F6 key Displays the Source screen F7 key Displays the Channel List F8 key Mutes the sound F9 F10 key Adjusts the volume F11 F12 key Changes the channel Page Up Page Down Scrolls a webpage displayed by the Internet app Leftclick Selects and runs an item This function is not available in some apps You can click a menu or link to start a function as you do on a PC Rightclick Calling up shortcut buttons such as Easily access a menu by rightclicking on the mouse and selecting the menu from among the displayed shortcut buttons Displayed shortcut buttons may differ depending on the screen The key operation may differ depending on some apps or the keyboard 33
• Page 34 - English - : Using the Gamepad Check the supported gamepads Try Now This function may not be supported depending on the model or geographical area Manufacturer Controllers Connection Force feedback Microsoft Xbox Series XS controller Bluetooth O Xbox One S controller Bluetooth O USB O Xbox 360 controller USB O Xbox Elite Wireless Controller Series 2 Bluetooth O Xbox Adaptive controller Bluetooth USB Sony Dualsense Edge Bluetooth O USB O Dualsense Bluetooth O USB O DualShock 4 Bluetooth O USB O Google Stadia controller USB Not support WiFi Not support Amazon Luna controller Bluetooth O USB O WiFi Not support Joytron CYVOX DX USB O Logitech F710 USB O F510 USB O F310 USB PowerA MOGA XP5X Plus Bluetooth controller Bluetooth USB Nvidia Shield controller Bluetooth O USB Not support Nintendo Nintendo Switch Pro USB O Bluetooth O Nintendo JoyConLR Bluetooth O 34
• Page 35 - English - : Some keys are not available on this product depending on controller Force feedback quotNot supportquot This product cant support force feedback quotquot Controllers dont have force feedback function This product will support only XInput mode for the supported gamepads Xbox controllers may require rmware updates Controller audio output 35 mm port is not available on this product Other controllers may or may not work for cloud gaming 35
• Page 36 - English - : Using the controller Button Description Left joystick and dpad 4 way navigation Right joystick Up Down Volume control Up Down Left Right Channel control Up Down on Product screen Select press Mute the sound A button or X button Sony Only Enter OK B button or O button Sony Only Return Cancel Pressing and holding B button Pressing and holding O button Sony Only Exit Home button Gaming Hub homepage Gaming Hub supported countries Smart Hub homepage Pressing and holding Home button During cloud game play Quick panel Option button on the left Game Bar when Game Mode is turned on and an external source is connected X button or button Sony Only Numeric keys 123 Pressing and holding the left and right joysticks simultaneously Power off Turning power on is not possible The key operation may differ depending on some apps or the controller If you connect controller to this product by WiFi solution you cannot use UI navigation function Gaming Hub and Cloud game may not be supported depending on the country Setting up the input devices left directional button Settings All Settings General amp Privacy Keyboard and Mouse Try Now Keyboard Settings Try Now You can set up the keyboard with the Keyboard Language and Keyboard type functions Mouse Settings Try Now You can set up the mouse with the Primary Button Mouse Pointer Size and Pointer Speed functions 36
• Page 37 - English - : Entering Text using the OnScreen Virtual Keyboard Use the virtual keyboard to enter text on your Product The image on your Product may differ from the image above depending on the model and geographical area 1Recommend text When you type a word you want to use as a search term this function displays related suggestions from which you can choose one 2Editing Buttons By selecting any of popup Editing Buttons after entering characters on the virtual keyboard you can quickly perform the editing function This function is only available when the Show Editing Buttons feature is turned on 3Settings Select on the virtual keyboard screen The following options are available The options available may differ depending on the function running currently Recommended text Recommended text Reset Recommended Text Memory Show Editing Buttons Languages and Types 37
• Page 38 - English - : Entering Text using the remote controls microphone and the onscreen virtual keyboard When the virtual keyboard is on the screen press and hold the button on the Samsung Smart Remote speak into the microphone on the Samsung Smart Remote and then release the button What you say appears on the screen as text Entering text with your voice may not be supported for some functions This function may not be supported depending on the model or geographical area The Samsung Smart Remote may not be supported depending on the model or geographical area The images buttons and functions of the Samsung Smart Remote may differ with the model or geographical area 38

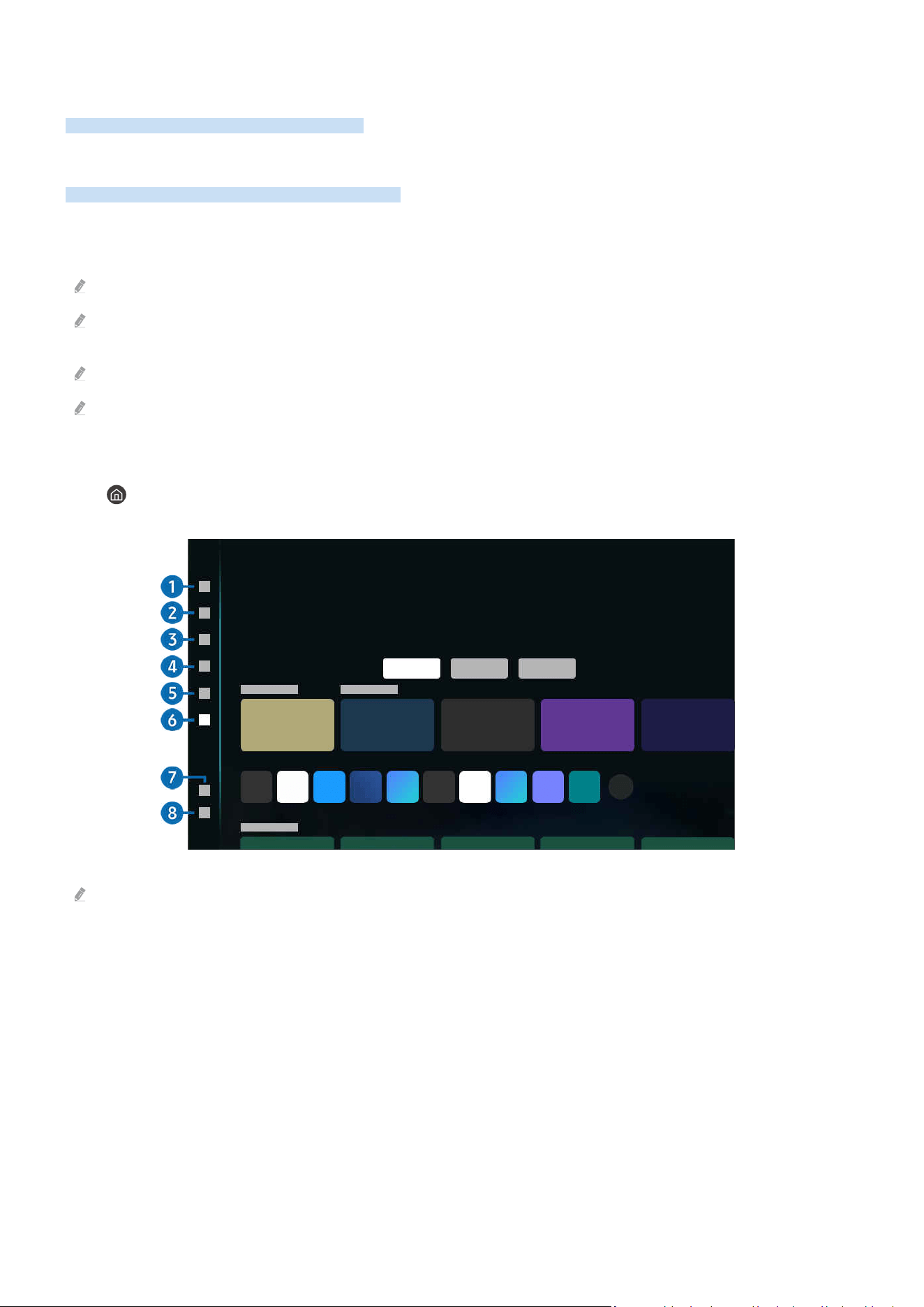

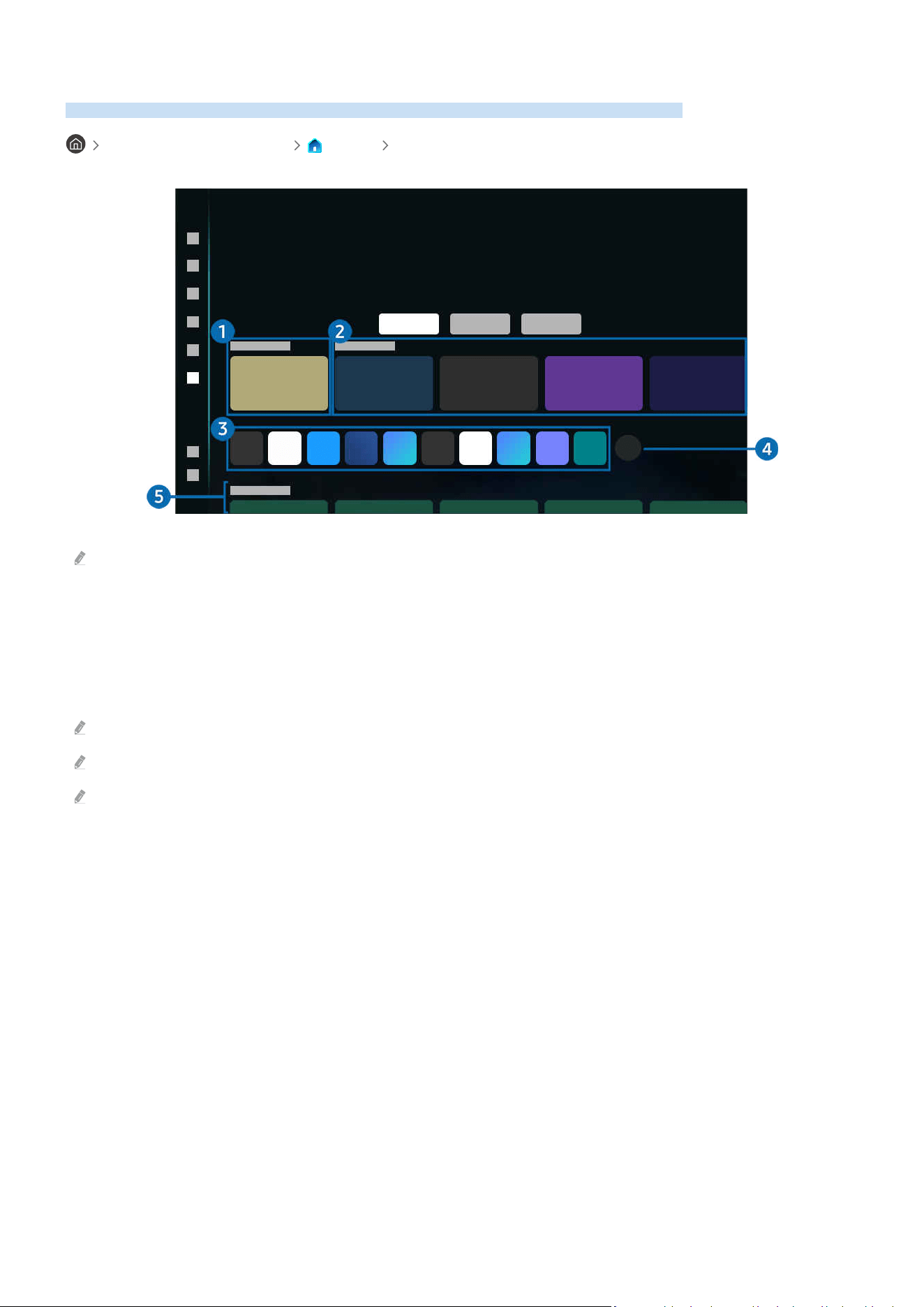

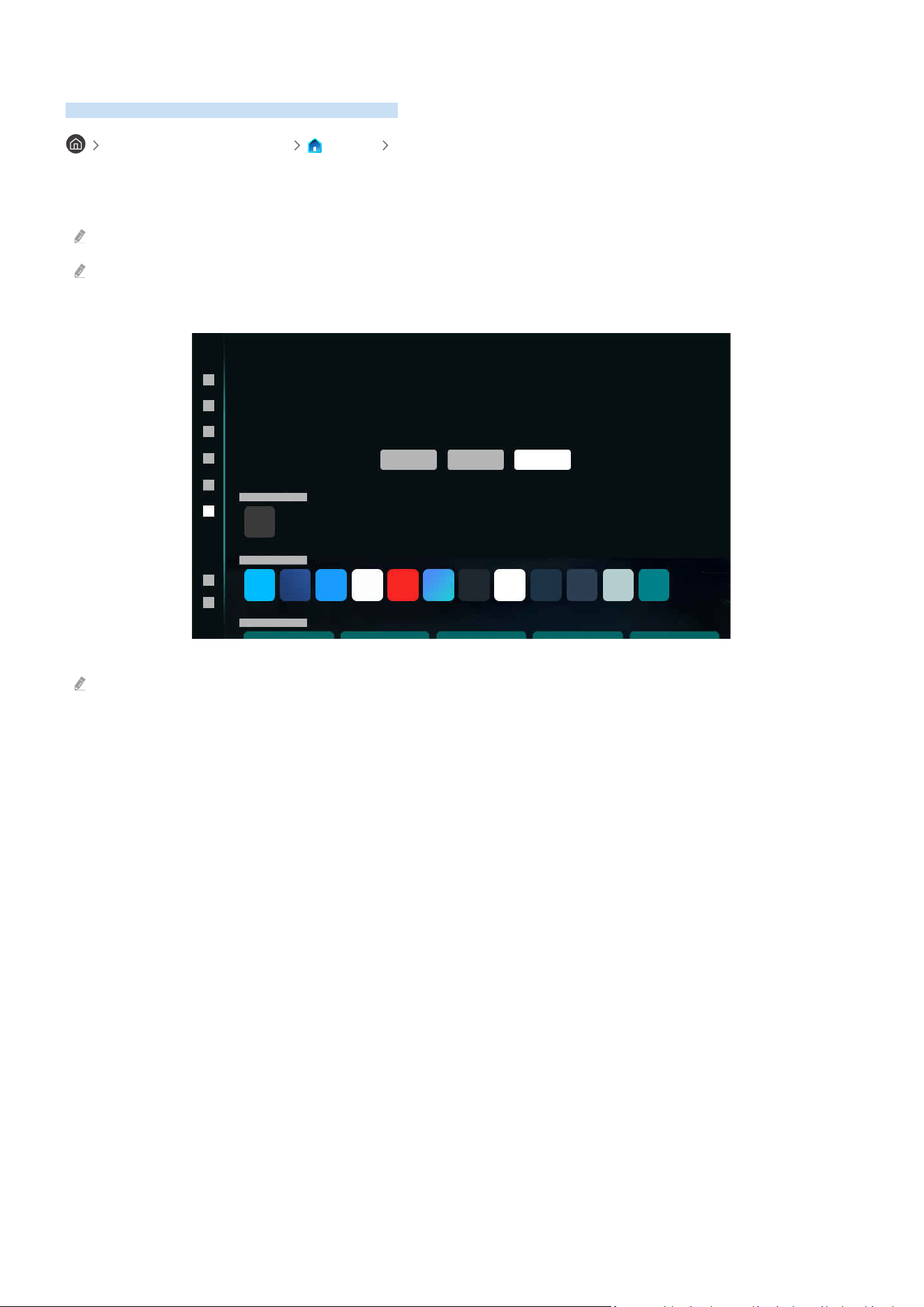

• Page 39 - English - : Smart Features You can enjoy various apps with Smart Hub Using Smart Hub View descriptions of Smart Hubs basic functions From Smart Hub you can use the Internet search function install and use various apps view photos and videos or listen to music stored on external storage devices and perform more functions Some Smart Hub services are paid services To use smart functions you should connect to a network agree to the terms and conditions and log in with your Samsung account Some Smart Hub features may not be supported depending on the service provider language or geographical area Smart Hub service outages can be caused by disruptions in your network service Displaying the Home Screen Press button The image on your Product may differ from the image above depending on the model and geographical area 39
• Page 40 - English - : 1Samsung Account Go to the Samsung Account screen to create a new account or sign out of your account For more information refer to quotUsing a Samsung accountquot 2 Search Search for channels programmes movies and apps offered by Smart Hub To use the Search service make sure the Product is connected to a network This function may not be supported depending on the model or geographical area 3 Ambient Set your Product to display content you desire such as the time or weather when the Product is not used To return to Product mode from Ambient mode press the left directional button Home Press the button to turn off the Product This function may not be supported depending on the model or geographical area For more information about Ambient mode refer to Using Ambient mode 4 Samsung Daily Provides useful services such as home training remote work and commerce allowing users to conveniently experience different lifestyles This function may not be supported depending on the model or geographical area For more information about Samsung Daily refer to quotAbout the Samsung Daily Home screenquot 40

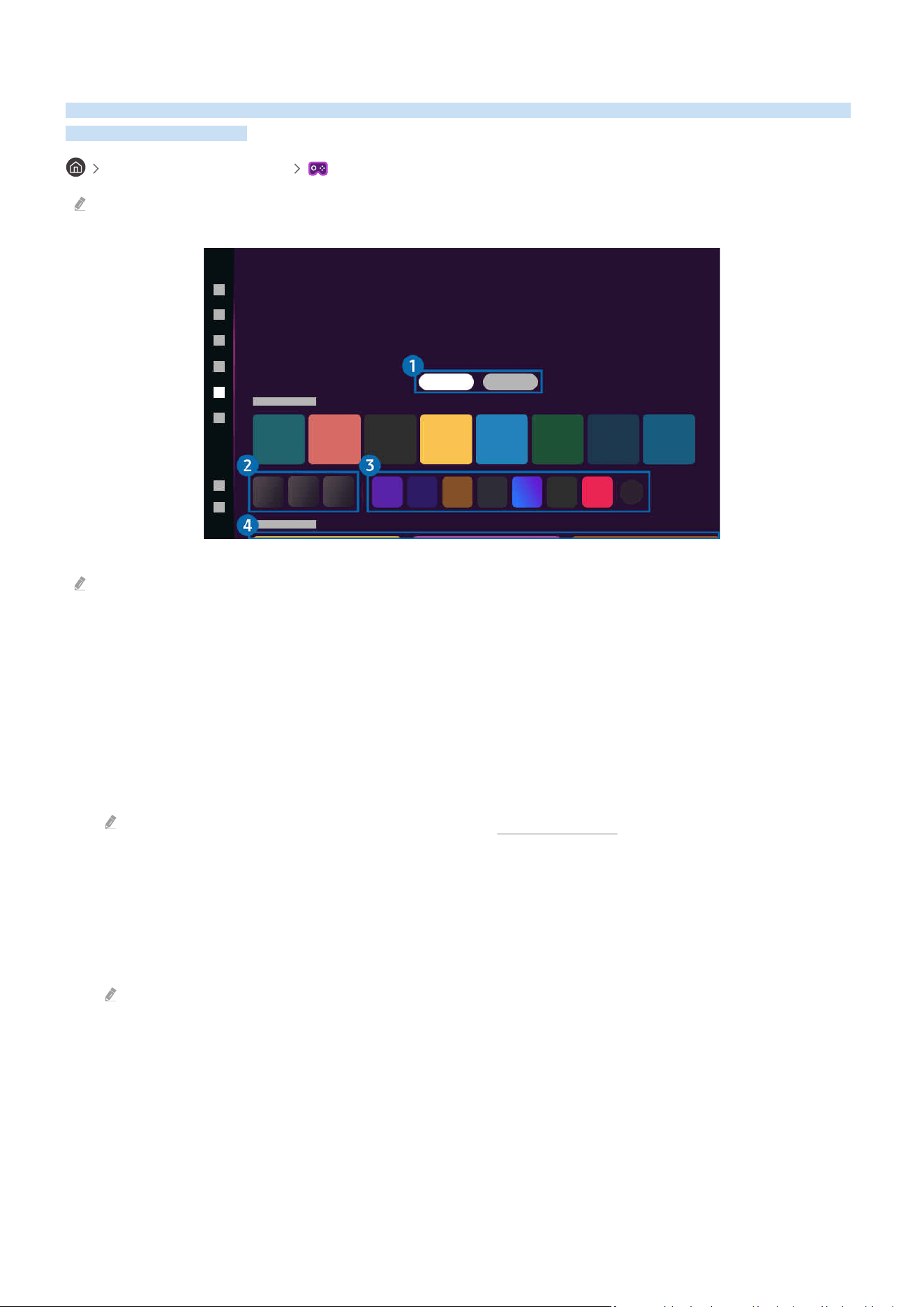

• Page 41 - English - : 5 Game Play games from the Product screen by connecting a Controller to the Product Congure settings to optimise the Controller and audio device for playing games This function may not be supported depending on the model or geographical area For more information about Game refer to quotUsing Samsung Gaming Hubquot 6 Home View a variety of TV programmes Install various apps offered by Smart Hub such as video music and sports apps and use the apps from the Product For more information about Home refer to quotUsing the Home Functionquot 7 Settings Manage external devices connected to the Product and congure settings for various functions available on the Product For more information about Settings refer to quotAbout the Settings Home Screenquot 8 Privacy Choices From your Product easily manage the privacy policy regarding services related to Smart Hub and verify how personal information is protected To use Smart Hub you must agree to the Smart Hub service agreement and the collection and use of personal information Without giving consent you cannot use the additional features and services You can view the entire text of the Terms amp Privacy by navigating to left directional button Settings All Settings General amp Privacy Terms amp Privacy Try Now If you want to stop using Smart Hub you can cancel the agreement To cancel the Smart Hub service agreement select Reset Smart Hub left directional button Settings Support Device Care Reset Smart Hub Try Now 41
• Page 42 - English - : Launching Smart Hub automatically left directional button Settings All Settings Advanced Features Start Screen Options Start with Smart Hub Home Try Now Enabling Start with Smart Hub Home automatically launches Smart Hub when the Product is turned on Navigate to this option to enable or disable the feature Automatic casting in Multi View left directional button Settings All Settings Advanced Features Start Screen Options Autorun Multi View Casting Try Now Casting YouTube content from the mobile device automatically displays the content on Multi View It is available on the screen for any broadcast external device or app that supports Multi View This function may not be supported depending on the model 42
• Page 43 - English - : Automatic Mirroring from Multi View left directional button Settings All Settings Advanced Features Start Screen Options Autorun Multi View Mirroring If you screen mirror your mobile device the Multi View automatically displays the device screen Navigate to this option to enable or disable the feature It is available on the screen for any broadcast external device or app that supports Multi View This function may not be supported depending on the model Testing Smart Hub connections left directional button Settings Support Device Care Self Diagnosis Smart Hub Connection Test Try Now Resetting Smart Hub left directional button Settings Support Device Care Reset Smart Hub Try Now You can reset the Smart Hub settings To reset Smart Hub enter the PIN You can set the PIN in left directional button Settings All Settings General amp Privacy Change PIN Try Now 43

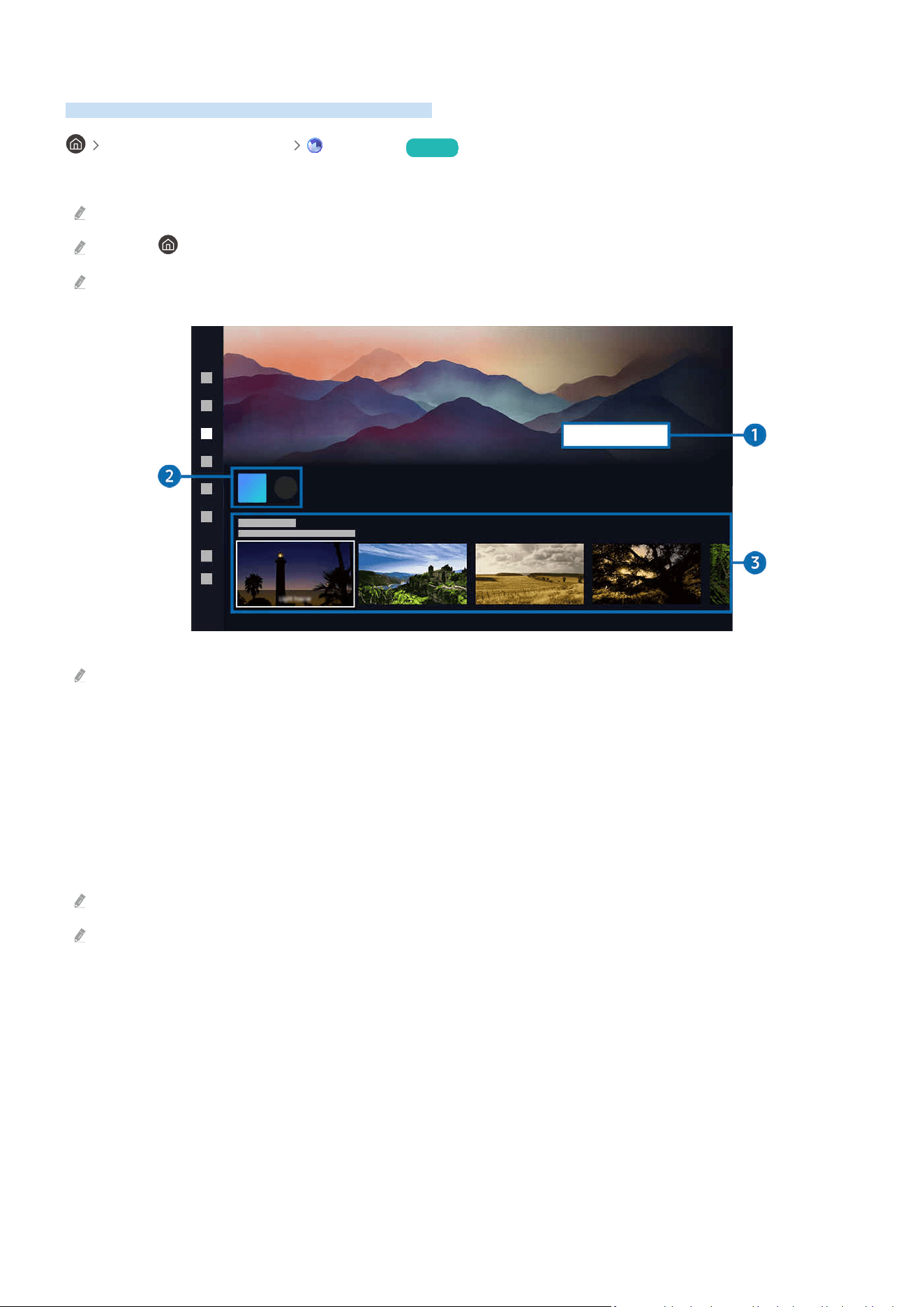

• Page 44 - English - : Using Ambient mode Learn about the functions available in Ambient mode left directional button Ambient Try Now Set your Product to display a photo or content you desire when the Product is not used This function may not be supported depending on the model Press the button in Ambient mode screen to enter to Ambient Home In Ambient mode some functions may not be supported The image on your Product may differ from the image above depending on the model and geographical area 1Getting to Know Ambient mode Press View Help to briey view information about Ambient mode including functions 23rd Party App You can download images from the 3rd Party apps and use them in Ambient mode You can move the app to another location by selecting Edit List located at the end of the list Supported 3rd Party apps may vary depending on the region Whenever a new 3rd Party apps is released users can display a wider variety of artwork 44
• Page 45 - English - : 3Function and content preview Select a preferred content and a preferred background and set them as your Ambient mode While in Ambient mode press the Select button on the remote control to view the content details You can use the SmartThings app on a Mobile Device to select a desired content and change the settings Indicates content perfectly suited for the time of the day Available content categories may differ depending on the model or geographical area Changing art work Change the artwork to display in Ambient mode Press the Up button on the remote control to move the focus to an artwork Use the left or right directional button to move to the desired art work and then press Select button on the remote control View Details View detailed information about the selected image Favourites Add or delete specic images in Favourites by pressing the Select button and then the Up directional button on the remote control To view items that are set as Favourites navigate to Ambient Favourites Favourites The item is not set as Favourites Favourites The item is set as Favourites 45
• Page 46 - English - : Edit Change various settings according to the users preferences Available functions may not be supported depending on the model or content Weather Filter You can add a weather effect to content Time Filter You can select any background time format for content Colour Changes the Colour of the content Vibes Selects a mood that matches the content Backgrounds Changes the background of the content Shadow Effects Applies a shadow effect that you select to the content Filter You can select a image filter effect to content BGM Mode You can add a background music to content 46
• Page 47 - English - : Screen Settings You can adjust the settings such as content brightness saturation and colour tone Brightness Adjusts the brightness of the content Saturation Adjusts the saturation of the content Colour Tone Adjusts the colours of the content Red Tone Green Tone Blue Tone Adjusts the red green blue contrast Selecting Content Category Available content categories may differ depending on the model or geographical area Favourites While in Ambient mode press the Select button on the remote control and press Favourites to save the displayed content to Favourites Special Edition Allows you to enjoy creative artwork and interior design content created by the worlds nest artists and designers Cinemagraph Adds a looping animation to a specic part of the photo to make it more attentiongrabbing 47
• Page 48 - English - : My Album Allows you to set a photo stored in your mobile device or Samsung Cloud as the wallpaper of the Ambient mode screen To import photos from your mobile device or Samsung Cloud use the SmartThings app on your mobile device For more information about how to congure the photo settings select How to Select Photos Q Collection Provides content that is dedicated to Samsung QLED Mood Enjoy a range of options to create the right ambience to suit your mood Relaxation Relax with a selection of calming content inspired by nature to soothe your mood Décor Allows you to select content with a sensible and beautiful design Info Allows you to select essential realtime information such as weather temperature time and news Artwork Allows you to select content such as world famous photos and artwork Background Theme Allows you to select a background theme provided by Samsung Take a picture of a wall using the SmartThings app on your mobile device to create a custom background theme When you use this function there may be a delay in image transmission and optimisation depending on network conditions A created Background Theme can be set as the background for content To set it as the background for content press the Select button on the remote control while in Ambient mode and select Edit 48

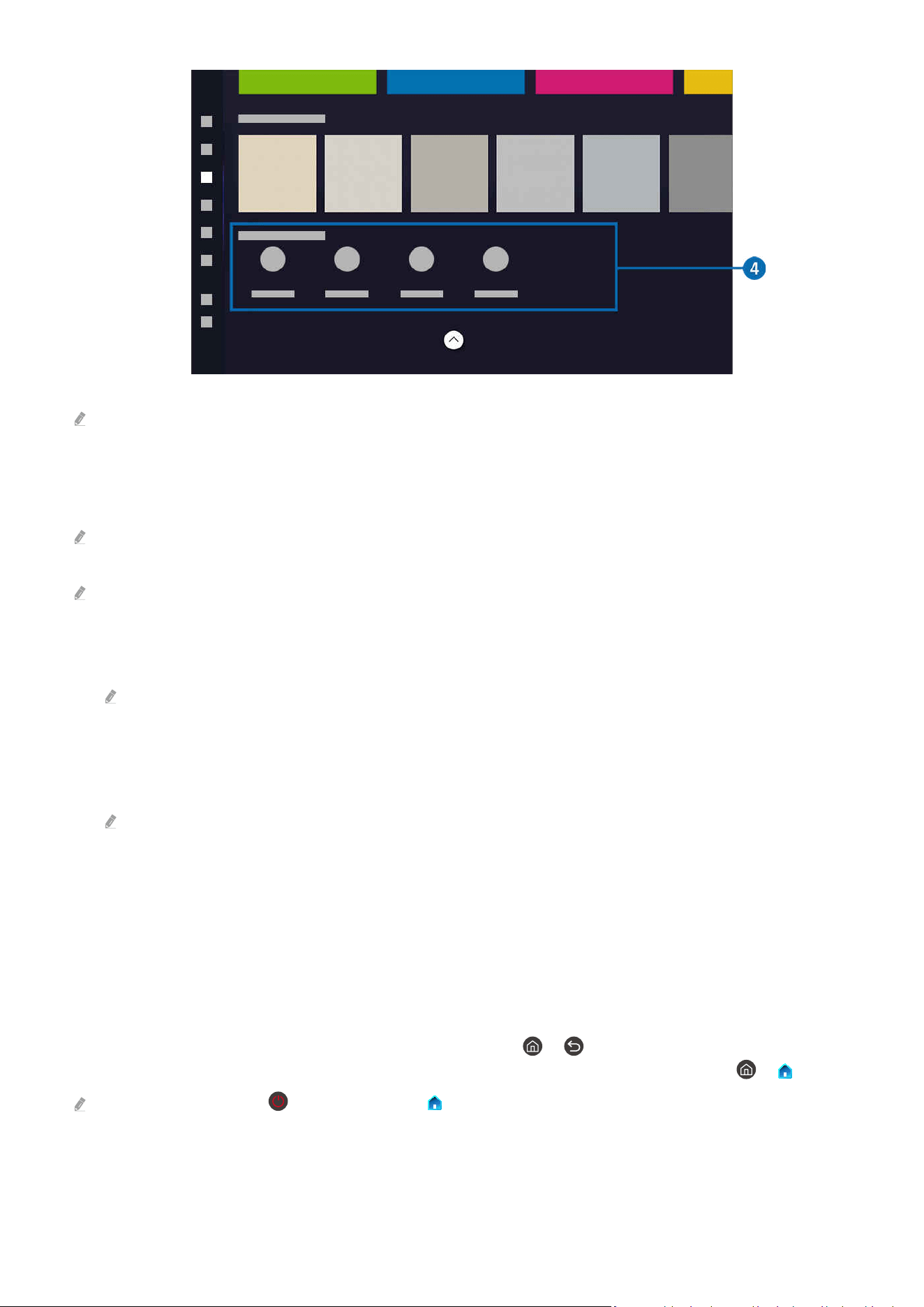

• Page 49 - English - : The image on your Product may differ from the image above depending on the model and geographical area 4Ambient Screen Options Following Ambient mode options are congurable This menu can be found at the bottom of the Ambient mode home To congure the option settings scroll down to the far bottom Available options may vary depending on the model Auto Brightness Changes the auto brightness setting for Ambient mode When this function is set to Off the brightness level of the Product screen is not automatically adjusted in response to the surrounding light level Sleep After Sets the time when the Ambient mode screen turns off automatically If there is no remote control input for the set time the screen goes off Reset My Album Reset photos saved in My Album What is Ambient Briey view information about Ambient mode including functions Entering the Product viewing screen from Ambient mode To access the Product screen from Ambient mode press either the or button to redirect to the Ambient mode Home Screen press the left directional button on the remote control and then select either or Home If the Product is off and the button is pressed the Home screen appears 49

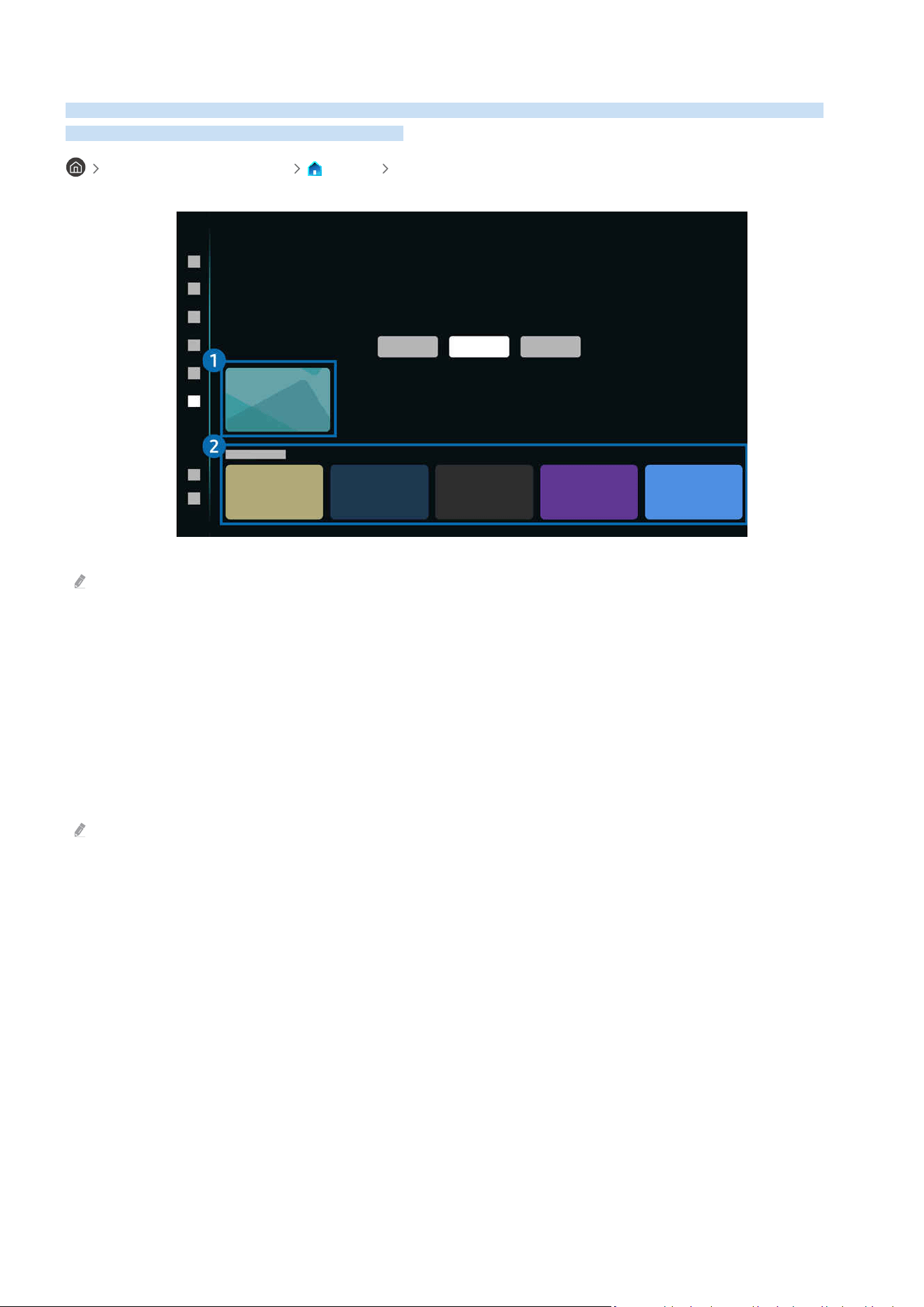

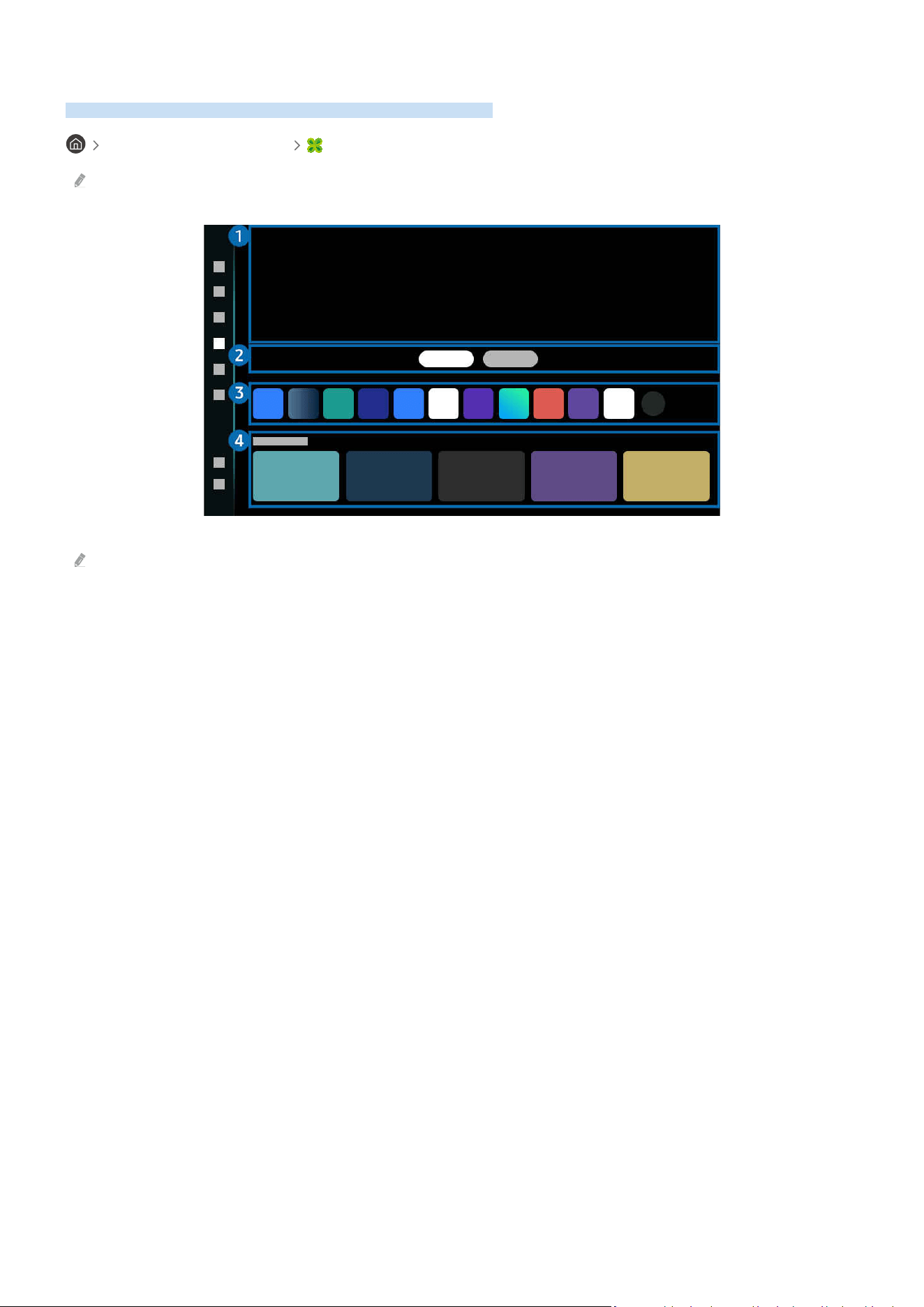

• Page 50 - English - : About the Samsung Daily Home screen Easily use a wide variety services provided by Samsung Daily left directional button Samsung Daily This function may not be supported depending on the model or geographical area The image on your Product may differ from the image above depending on the model and geographical area Provides useful services such as home training remote work and commerce allowing users to conveniently experience different lifestyles 1Banner Provides information related to apps provided by Samsung Daily 50
