DOUBLE DOOR REFRIGERATOR
MERM45S3ABB
MERM45S3AST
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
01
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
THANK YOU LETTER
------------------------------------------- 01
SPECIFICATIONS
------------------------------------------------ 02
PRODUCT OVERVIEW
----------------------------------------- 03
PRODUCT INSTALLATION
------------------------------------ 04
OPERATION INSTRUCTIONS
--------------------------------- 09
CLEANING AND MAINTENANCE
---------------------------- 11
TROUBLESHOOTING
------------------------------------------- 13
02
SPECIFICATIONS
Product model MERM45S3ABB / MERM45S3AST
Volume 4.5 cu.ft.(127 L)
Rated Voltage 115 V~
Rated Frequency 60 Hz
Rated Current 0.9 A
Refrigerant
R600a
Amount 1.34 oz (38 g)
Product Dimension ( W x D x H) 18.5x20.1x46.9 in (470 x 510 x 1190 mm)
03
PRODUCT OVERVIEW

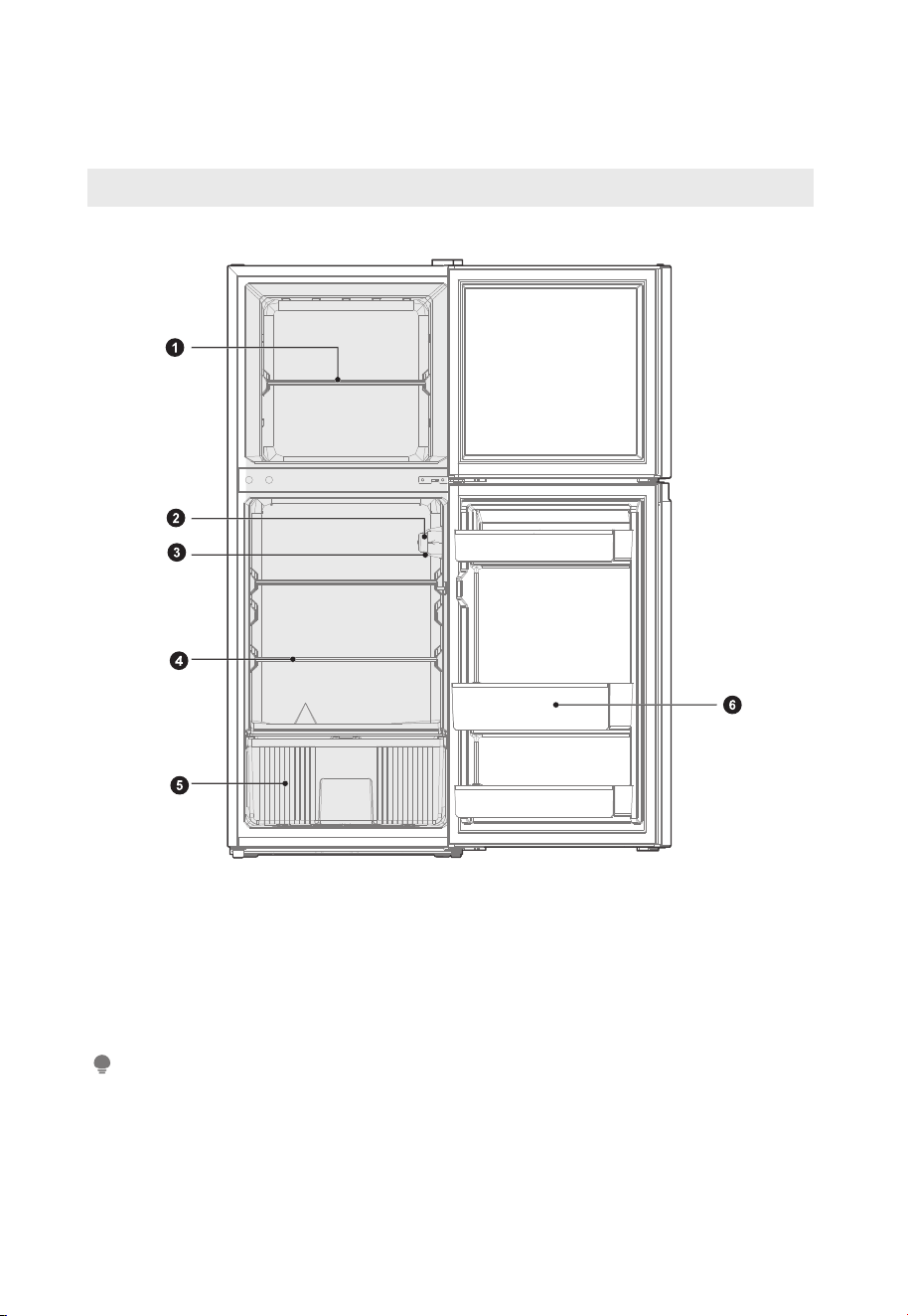

Names of components
1
Shelf
2
Temperature control knob
3
LED light
4
Shelf
5
Fruits and vegetables box
6
Door tray
ATTENTION
The picture above is only for reference. The actual conguration will depend on the physical
product or statement by the distributor.
04
PRODUCT INSTALLATION
Install Instruction
Finding a suitable location
• This refrigerator is designed to be free standing only, and should not be recessed or
built-in.
• The refrigerator should be placed in a well-ventilated indoor place; the ground shall
be at and sturdy .
• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in
moist or watery places to prevent rust or reduction of insulating effect.
Dimensions and Clearances
• Too small of a distance from adjacent items may result in the degradation of
freezing capability and increased electricity costs. Allow over 100 mm of clearance
from each adjacent wall when installing the appliance.
Providing a proper power supply
• Check your local power source. This refrigerator requires a
AC115 V, 60 Hz
power
supply.
• Use a receptacle that accepts the grounding prong. The power cord is equipped
with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding)
wall outlet to minimize the possibility of electric shock hazard from this refrigerator.
CAUTION
The refrigerator should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating plate.
Never unplug your refrigerator by pulling on the power cord. Always grip the plug
rmly and pull straight out from the outlet.
Start to use
• The refrigerator shall stay for half an hour before connecting power when it is rstly
started.
• The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the
refrigerator shall run for more than 4 hours in summer in advance considering that
the ambient temperature is high.
05
Space requirement diagram (when the door is open and when the door is closed)
B
A
C
D
B
E
150 °
Width
Overall
Height
Depth
Width
doors open
150
o
Depth
doors open
150
o
A B C D E
470 1190 510 865 727
Notice: All dimensions in mm.
ATTENTION
The picture above is only for reference. The actual conguration will depend on the physical
product or statement by the distributor.
06
Door right-left change
List of tools to be provided by the user
Cross screwdriver
Putty knife Thin-blade screwdriver
5/16
″
socket spanner
Masking tape

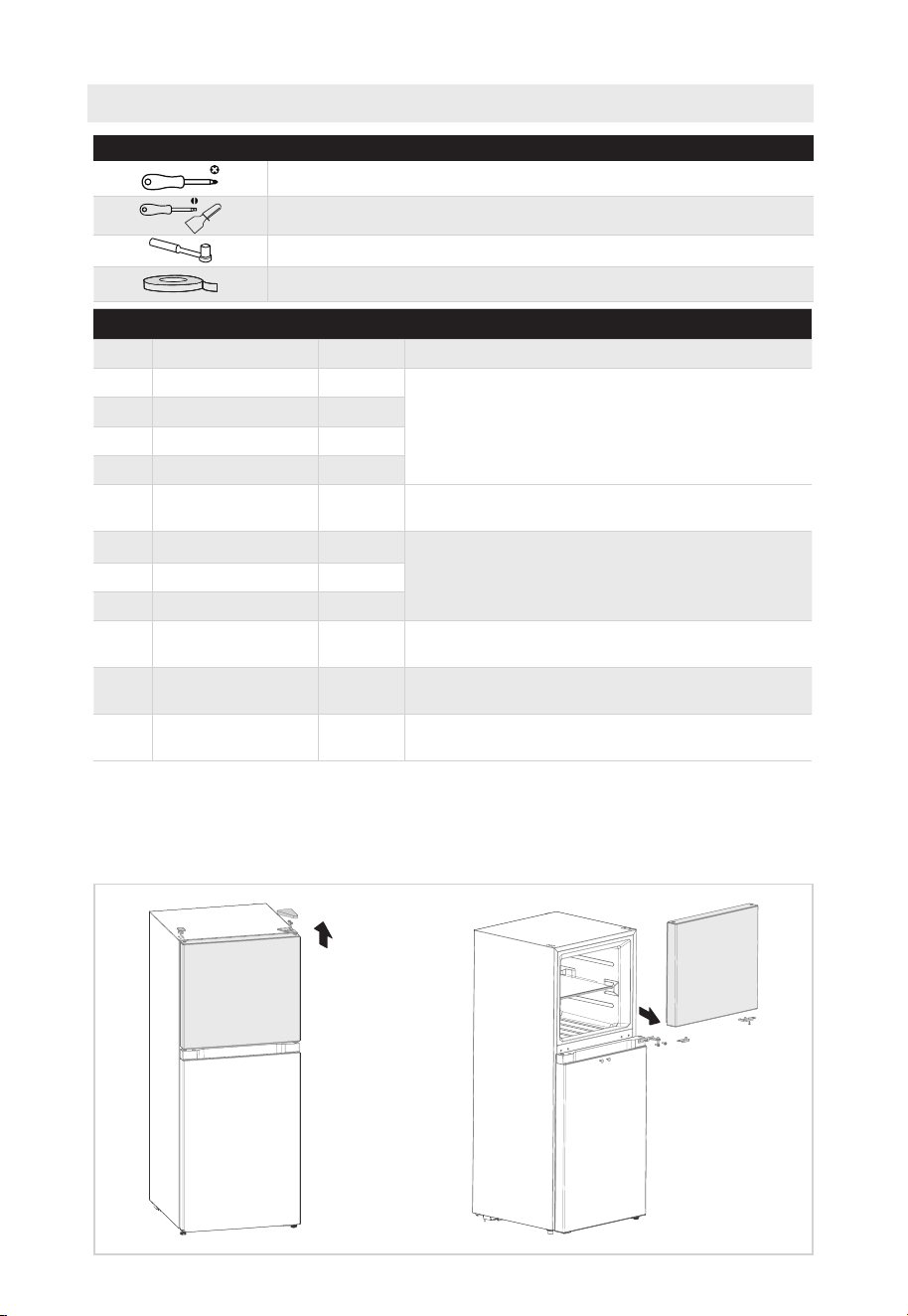

Parts to be used for door reverse
SN Parts Quantity Notes
1 Upper hinge 1
Pre-installed on the refrigerator and to be used
when changing the door
2 Upper hinge cover 1
3 Hole cover 1
4 Reft stopper 2
5 Left stopper 2
In the attached plastic bag, take them out for
use when door is reversed
6 Middle hinge 1
Pre-installed on the refrigerator and to be used
when changing the door
7 Insert pin 2
8 Right lower hinge 1
9 Left lower hinge 1
In the attached plastic bag, take them out for
use when door is reversed
10 Leveling feet 1
Pre-installed on the refrigerator and to be used
when changing the door
11 Spacer 1
In the attached plastic bag, take them out for
use when door is reversed
Step:
1. Power off the refrigerator, and remove all objects from the door trays.
2. Remove the hinge cover, then remove the upper hinge screws, upper hinge
and hole cap on the other side.
07
3. Remove the freezer door ,the middle hinge,the screw hole caps. Remove the
screws and limit blocks xed on the lower end cover of refrigeration.
4. Remove the refrigerating door ,remove the bottom hinge and adjustable foot
of the other side.
5. Install the adjusting foot to the right side, take out 2 limit blocks from the
plastic bag in the instruction manual and x them to the left side of the lower
end cover respectively with screws, And freeze the left side of the lower end
cover, remove the other side of the lower hinge from the instruction bag and
install it on the left side.

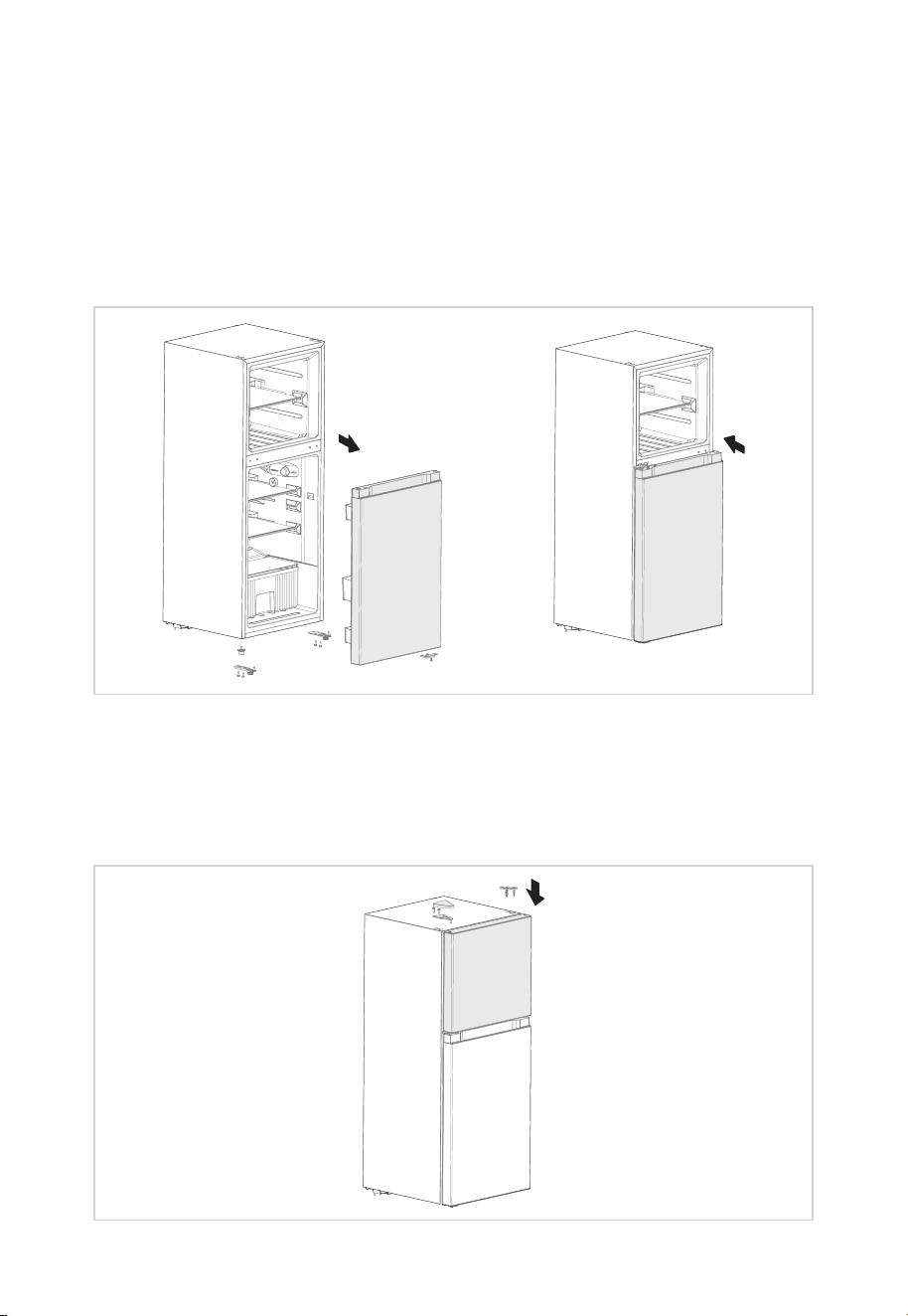

6. Place the refrigerating door from top to bottom, take out the gasket from
the plastic bag in the instructions and put it into the axle hole on the left side
of the refrigerating door, as shown in the picture. Fix the center hinge with
screws and install the studs.
7. Put the freezer door on the middle hinge , assemble the upper hinge on the
other side ,x the hinge cover on the upper hinge and x hole cap on the other
side.
08
Leveling feet
To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate for the uneven oor.
The front should be slightly higher than the rear to aid in door closing.
Leveling screws can be turned easily by tipping the cabinet slightly.
Turn the leveling screws counterclockwise
to raise the unit, clockwise to
lower it.
Connecting the appliance
After installing the appliance, connect the power plug into a socket outlet.
ATTENTION
After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you
put food into the appliance. If you add food before the appliance has cooled completely, your
food may spoil.
Tips for energy saving
• Do not place the appliance near cookers, radiators or other heat sources. If the
ambient temperature is high, the compressor will run more frequently and for
longer, resulting in increased energy consumption.
• Ensure that there is sufcient ventilation at the base of the appliance, on the sides
of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter “Installation”.
• The arrangement of drawers, shelves and racks as shown in the illustration offers the
most efcient use of energy and should therefore be retained as far as possible. All
drawers and shelves should remain in the appliance to keep the temperature stable
and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the
middle drawers can be removed. The top and bottom drawers and shelves should
be removed last if necessary.
• An evenly lled refrigerator/freezer compartment contributes to optimal energy
use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has
already cooled down increases energy efciency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food
reduces the energy consumption in the refrigerator compartment and thus increases
the energy efciency.
• Open the door only as briey as necessary to minimize cold loss. Opening the door
briey and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close
properly and energy consumption is not increased unnecessarily.
09
OPERATION INSTRUCTIONS
Control panel
• Turn the temperature control knob to 3, the internal temperature of the
refrigerator becomes lower.
• Turn the temperature control knob to 1, the internal temperature of the
refrigerator becomes higher.
• The letter on the knob only represents the temperature level, but does not
mean the specic temperature, the “0” means stop working.
• NOTE: Please adjusting and using between “1”and”3”.
ATTENTION
The actual control panel may differ from model to model.
10
Tips on storing food
Freezer compartment
• The freezer is designated for the storage of food frozen at very low temperature,
long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing
hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, sh or chopped meat), cut them into parts
that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be
followed. If there is no information on the packaging, food should not be stored for
longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable
temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be
returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that
it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the
thermostat setting, the frequency of opening the door of the freezer, the type of
food and the time of transporting the product from the shop to the household.
Always follow the instructions printed on the packaging and never exceed the
maximum storage time stated on the package.
Cooling compartment
• To reduce moisture and subsequent ice build-up, never put liquid into the
refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts
of the evaporator. Storing uncovered liquids results in a more frequent need for
defrosting.
• Never put warm foods in the refrigerator. These should rst cool down at room
temperature and then be placed so as to ensure adequate air circulation in the
refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because
they could freeze to the wall. Do not keep regularly opening the door of the
refrigerator.
• Meat and clean sh (packed in a package or plastic foil) can be placed in the
refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for
fresh fruit and vegetables.
ATTENTION
The optimal temperature setting of each compartment depends on the ambient temperature.
Above optimal temperature is based on the ambient temperature of 25 °C.
11
CLEANING AND MAINTENANCE
Defrost
• Power off the refrigerator.
• Remove the food from the refrigerator and place it properly to prevent food
from melting.
• Clear the drain pipe (to use soft materials to prevent damage to the liner),
Prepare the water containers for defrosting. (pay attention to clean the
compressor compartment water draining tray, ovoding overow to the
ground).
• You can also use the appropriate amount of hot water to speed up the defrost,
with a dry towel to dry the water after defrosting.
• After defrosting, put back the foods in cabinet, and power on the refrigerator.
Stop using
Power failure:
In case of power failure, even if it is in summer, foods inside the appliance can be
kept for several hours; during the power failure, the times of door opening shall
be reduced, and no more fresh food shall be put into the appliance.
Long-time nonuse:
The appliance shall be unplugged and then cleaned. Please leave the doors open
to prevent odor.
Moving:
Before the refrigerator is moved, take all objects inside out, x the glass
partitions, vegetable holder, freezing chamber drawers and etc. with tape, and
tighten the leveling feet; close the doors and seal them with tape. During moving,
the appliance shall not be laid upside down or horizontally, or be vibrated; the
inclination during movement shall be no more than 45°.
The appliance shall run continuously once it is started. Generally, the operation of the
appliance shall not be nterrupted; otherwise the service life may be impaired.
Foods can be preserved for a couple of hours even in summer in case of power failure; it is
recommended to reduce the frequency of opening door.
12

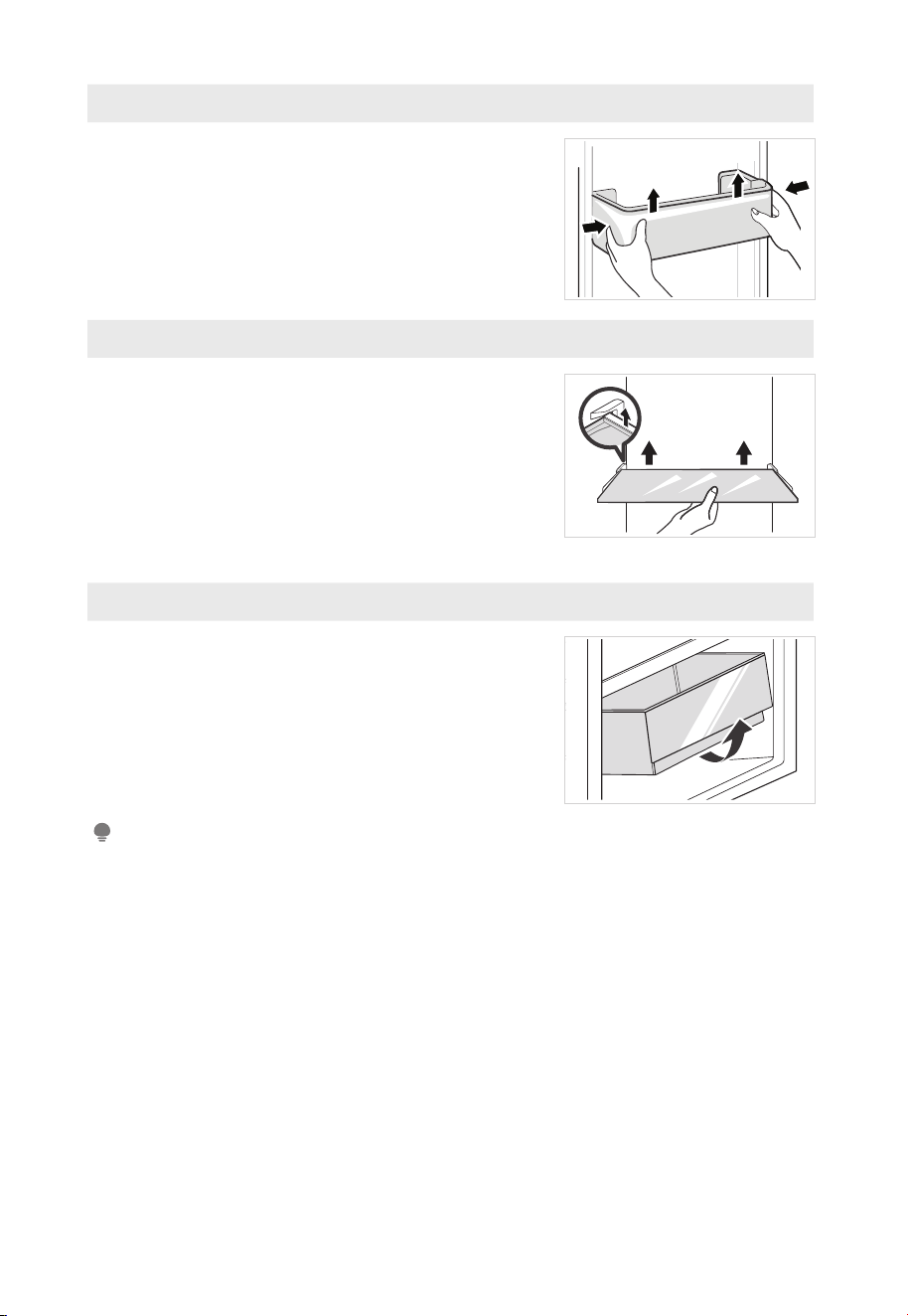

Cleaning of door tray
• According to the direction arrow in the gure
below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
• After washing the tray having been taken
out, you can adjust its installing height in
accordance with your requirement.
Cleaning of glass shelf
• As the innermost part of the refrigerator liner
where contacting the shelves has a backstop,
you shall raise the shelves upward, then you
can be able to take it out.
• Adjust or clean the shelves according to your
requirement.
Cleaning the vegetable drawer
1. Remove the contents of the drawer. Hold the
handle of the vegetable drawer and pull it out
completely until it stops.
2. Lift the vegetable drawer up and remove it by
pulling it out.
ATTENTION
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested
for cleaning. The freezer of shall be nally cleaned with clean water and dry cloth. Open the
door for natural drying before the power is turned on. Do not use hard brushes, clean steel
balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,
banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this
may damage the fridge surface and interior.
13
TROUBLESHOOTING
The following simple issues can be handled by the user. Please call the after-sale
service department if the issues are not solved.
Problem Possible reason
Failed operation
• Check whether the appliance is connected to power or
whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial circuits have
tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time operation
of the compressor
• Long operation of the refrigerator is normal in summer
• when the ambient temperature is high it is not suggestible
having too much food in the appliance at the same time
• Food shall get cool before being put into the appliance
• The doors are opened too frequently
Light fails to get lit
• Check whether the refrigerator is connected to power supply
and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not be
properly closed
• The door is stuck by food packages too much food is placed
• The refrigerator is tiltedr.
Loud noises
• Check whether the oor is level and whether the refrigerator
is placed stably
• Check whether accessories are placed at proper locations
14
Problem Possible reason
Door seal fails to be
tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration (or blow it
with an electrical drier or use a hot towel for heating)
Water pan overows
• There is too much food in the chamber or food stored
contains too much water,resulting in heavy defrosting
• The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the housing,
which is normal when housing becomes hot due to high
ambient temperature, storage of too much food or shutdown
of the compressor is shut down, provide sound ventilation to
facilitate heat dissipation
Surface
condensation
• Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high.
Just wipe the condensate with a clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during operation,
and the buzzes are loud particularly upon start or stop. This is
normal.
• Creak: Refrigerant owing inside of the appliance may
produce creak, which is normal.
