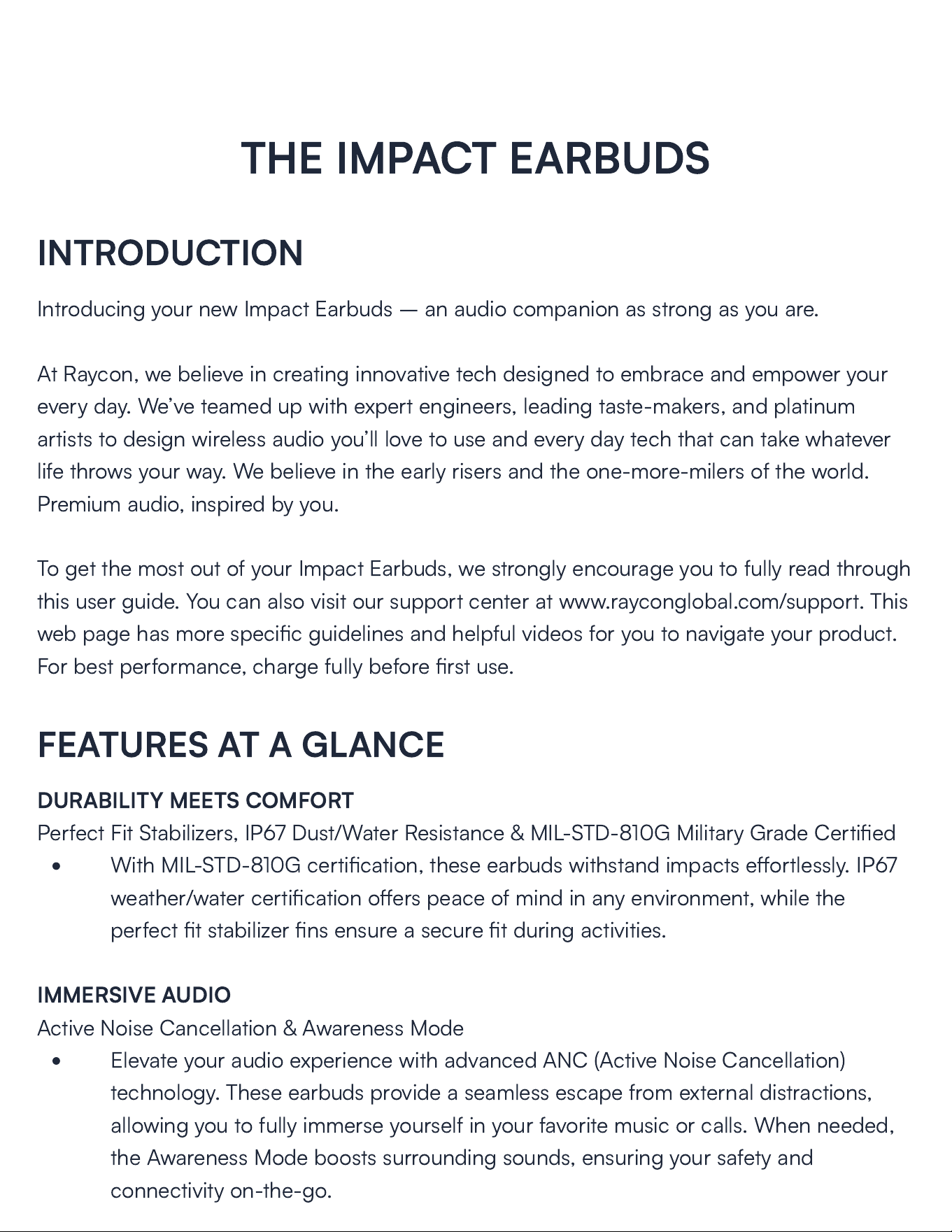

THE IMPACT EARBUDS
INTRODUCTION
Introducing your new Impact Earbuds
–
an audio companion as strong as you are.
At Raycon, we believe in creating innovative tech designed to embrace and empower your
every day. We
’
ve teamed up with expert engineers, leading taste-makers, and platinum
artists to design wireless audio you
’
ll love to use and every day tech that can take whatever
life throws your way. We believe in the early risers and the one-more-milers of the world.
Premium audio, inspired by you.
To get the most out of your Impact Earbuds, we strongly encourage you to fully read through
this user guide. You can also visit our support center at www.rayconglobal.com/support. This
web page has more speci
fi
c guidelines and helpful videos for you to navigate your product.
For best performance, charge fully before
fi
rst use.
FEATURES AT A GLANCE
DURABILITY MEETS COMFORT
Perfect Fit Stabilizers, IP67 Dust/Water Resistance & MIL-STD-810G Military Grade Certi
fi
ed
With MIL-STD-810G certi
fi
cation, these earbuds withstand impacts e
ff
ortlessly. IP67
weather/water certi
fi
cation o
ff
ers peace of mind in any environment, while the
perfect
fi
t stabilizer
fi
ns ensure a secure
fi
t during activities.
IMMERSIVE AUDIO
Active Noise Cancellation & Awareness Mode
Elevate your audio experience with advanced ANC (Active Noise Cancellation)
technology. These earbuds provide a seamless escape from external distractions,
allowing you to fully immerse yourself in your favorite music or calls. When needed,
the Awareness Mode boosts surrounding sounds, ensuring your safety and
connectivity on-the-go.

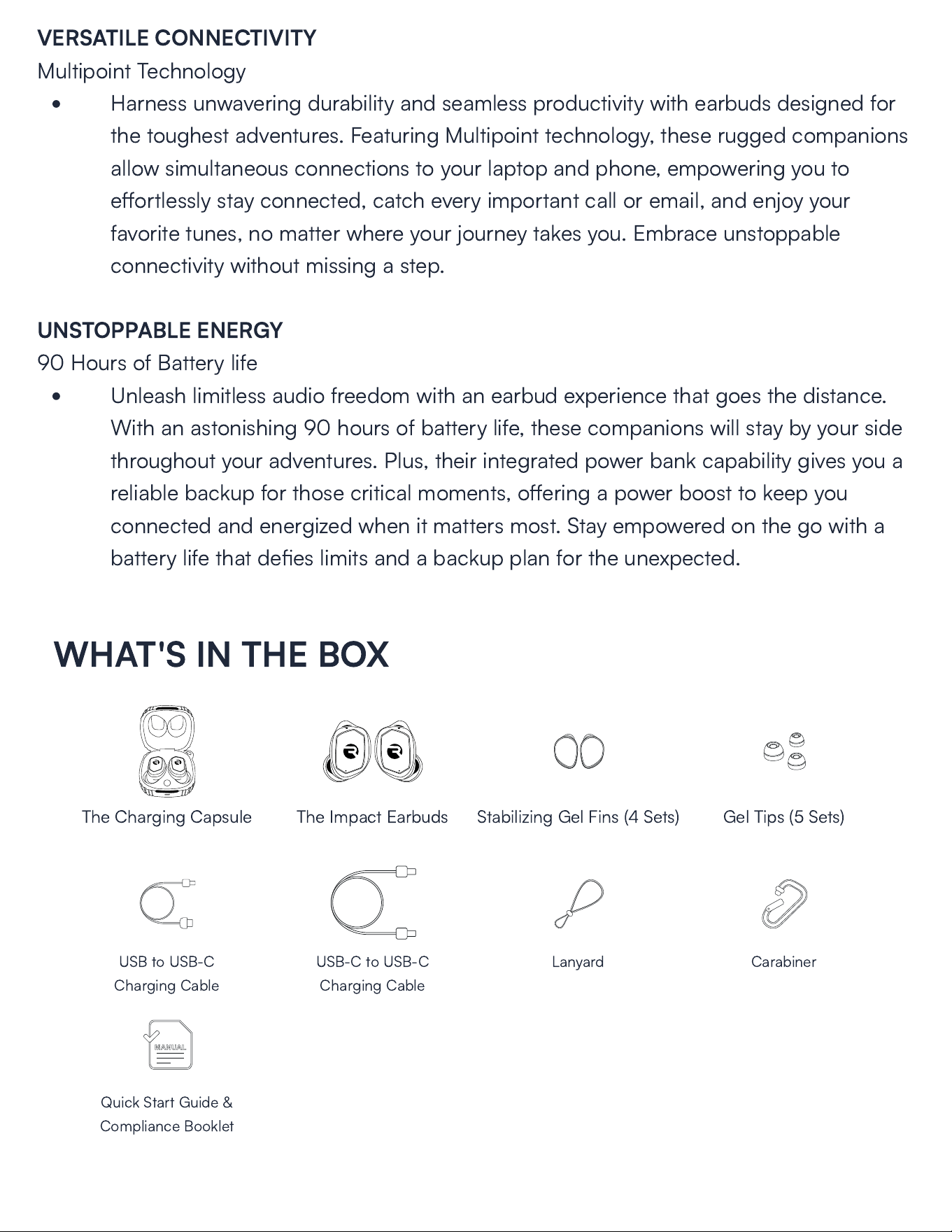

VERSATILE CONNECTIVITY
Multipoint Technology
Harness unwavering durability and seamless productivity with earbuds designed for
the toughest adventures. Featuring Multipoint technology, these rugged companions
allow simultaneous connections to your laptop and phone, empowering you to
e
ff
ortlessly stay connected, catch every important call or email, and enjoy your
favorite tunes, no matter where your journey takes you. Embrace unstoppable
connectivity without missing a step.
UNSTOPPABLE ENERGY
90 Hours of Battery life
Unleash limitless audio freedom with an earbud experience that goes the distance.
With an astonishing 90 hours of battery life, these companions will stay by your side
throughout your adventures. Plus, their integrated power bank capability gives you a
reliable backup for those critical moments, o
ff
ering a power boost to keep you
connected and energized when it matters most. Stay empowered on the go with a
battery life that de
fi
es limits and a backup plan for the unexpected.
WHAT'S IN THE BOX
The Charging Capsule The Impact Earbuds Stabilizing Gel Fins (4 Sets) Gel Tips (5 Sets)
USB to USB-C
Charging Cable
USB-C to USB-C
Charging Cable
Lanyard Carabiner
Quick Start Guide &
Compliance Booklet
UNIT AT A GLANCE
1.
Touch Control Surface
2.
LED Indicator / Microphone (4 Mics
total)
3.
Perfect Fit Stabilizer
4.
Gel Tip
5.
Capsule Charging Port
6.
Wireless Charging Surface
7.
Battery Indicator
8.
Reset Button
FUNCTIONS / TOUCH CONTROL

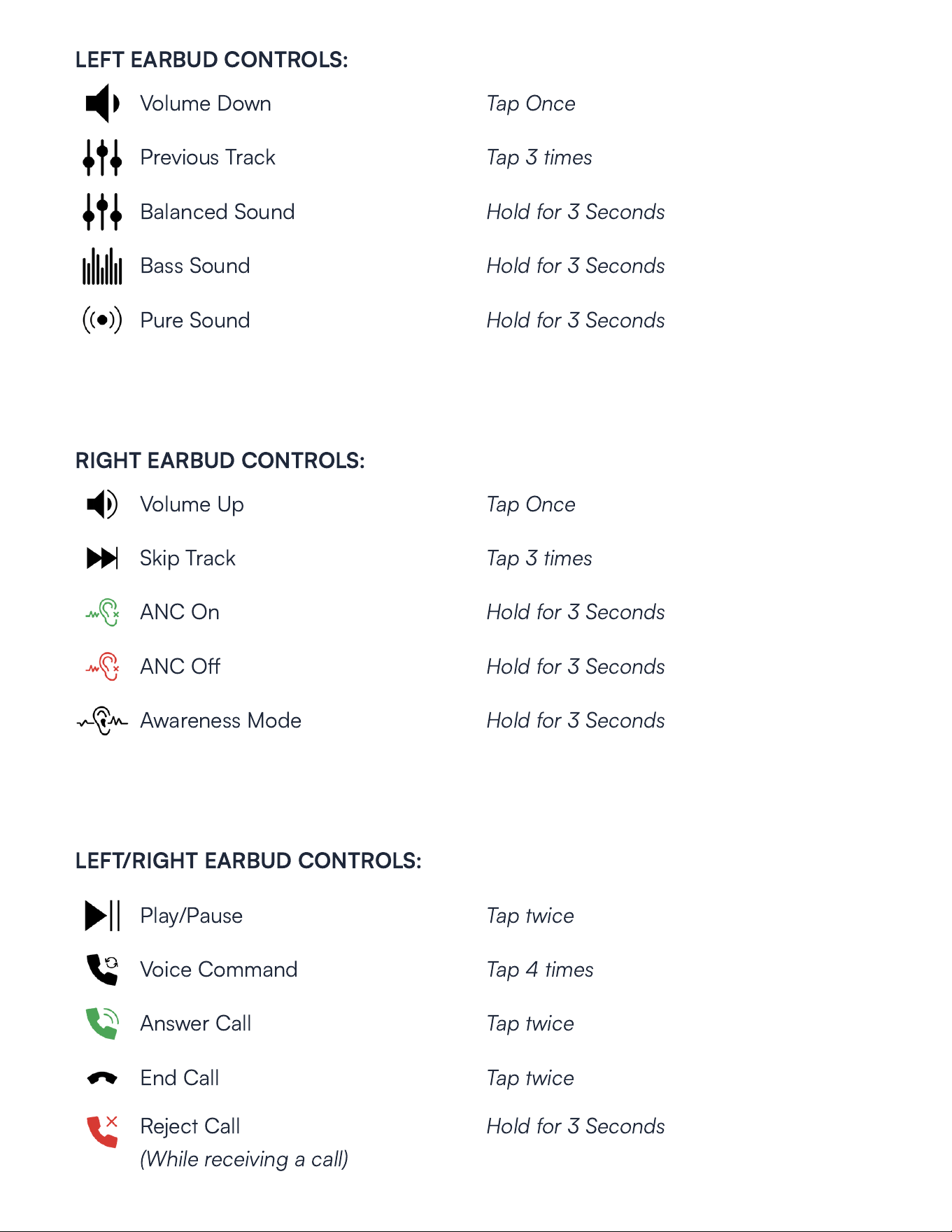

LEFT EARBUD CONTROLS:
Volume Down
Tap Once
Previous Track
Tap 3 times
Balanced Sound
Hold for 3 Seconds
Bass Sound
Hold for 3 Seconds
Pure Sound
Hold for 3 Seconds
RIGHT EARBUD CONTROLS:
Volume Up
Tap Once
Skip Track
Tap 3 times
ANC On
Hold for 3 Seconds
ANC O
ff
Hold for 3 Seconds
Awareness Mode
Hold for 3 Seconds
LEFT/RIGHT EARBUD CONTROLS:
Play/Pause
Tap twice
Voice Command
Tap 4 times
Answer Call
Tap twice
End Call
Tap twice
Reject Call
(While receiving a call)
Hold for 3 Seconds
Power On
Hold for 3 Seconds
Power O
ff
Hold for 10 Seconds

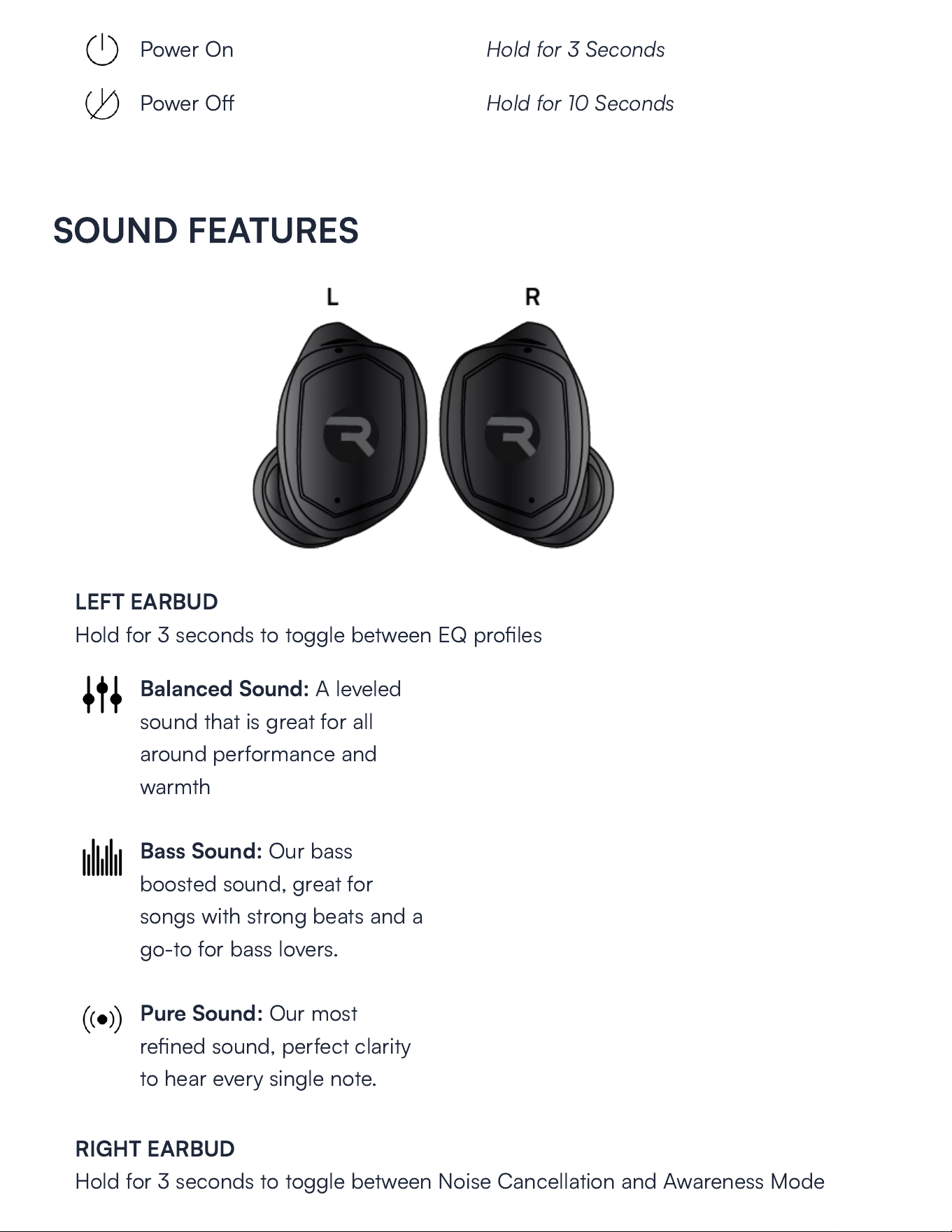

SOUND FEATURES
LEFT EARBUD
Hold for 3 seconds to toggle between EQ pro
fi
les
Balanced Sound:
A leveled
sound that is great for all
around performance and
warmth
Bass Sound:
Our bass
boosted sound, great for
songs with strong beats and a
go-to for bass lovers.
Pure Sound:
Our most
re
fi
ned sound, perfect clarity
to hear every single note.
RIGHT EARBUD
Hold for 3 seconds to toggle between Noise Cancellation and Awareness Mode
Active Noise Cancellation (ANC):
Uninterrupted focus by blocking
out unwanted noise
Awareness Mode:
Enhance and
stay connected to the world
around you by amplifying external
noise.

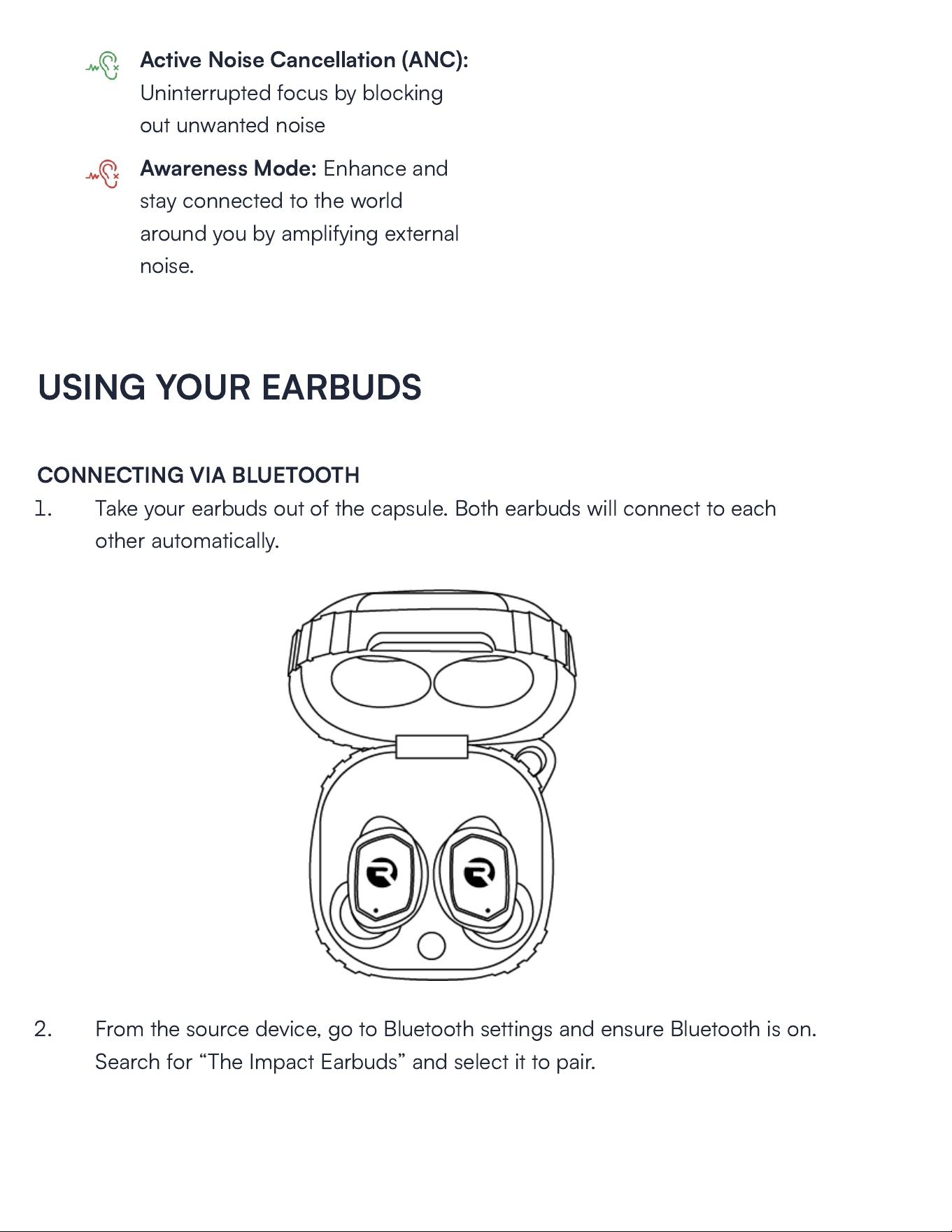

USING YOUR EARBUDS
CONNECTING VIA BLUETOOTH
1
. Take your earbuds out of the capsule. Both earbuds will connect to each
other automatically.
2
. From the source device, go to Bluetooth settings and ensure Bluetooth is on.
Search for
“
The Impact Earbuds
”
and select it to pair.

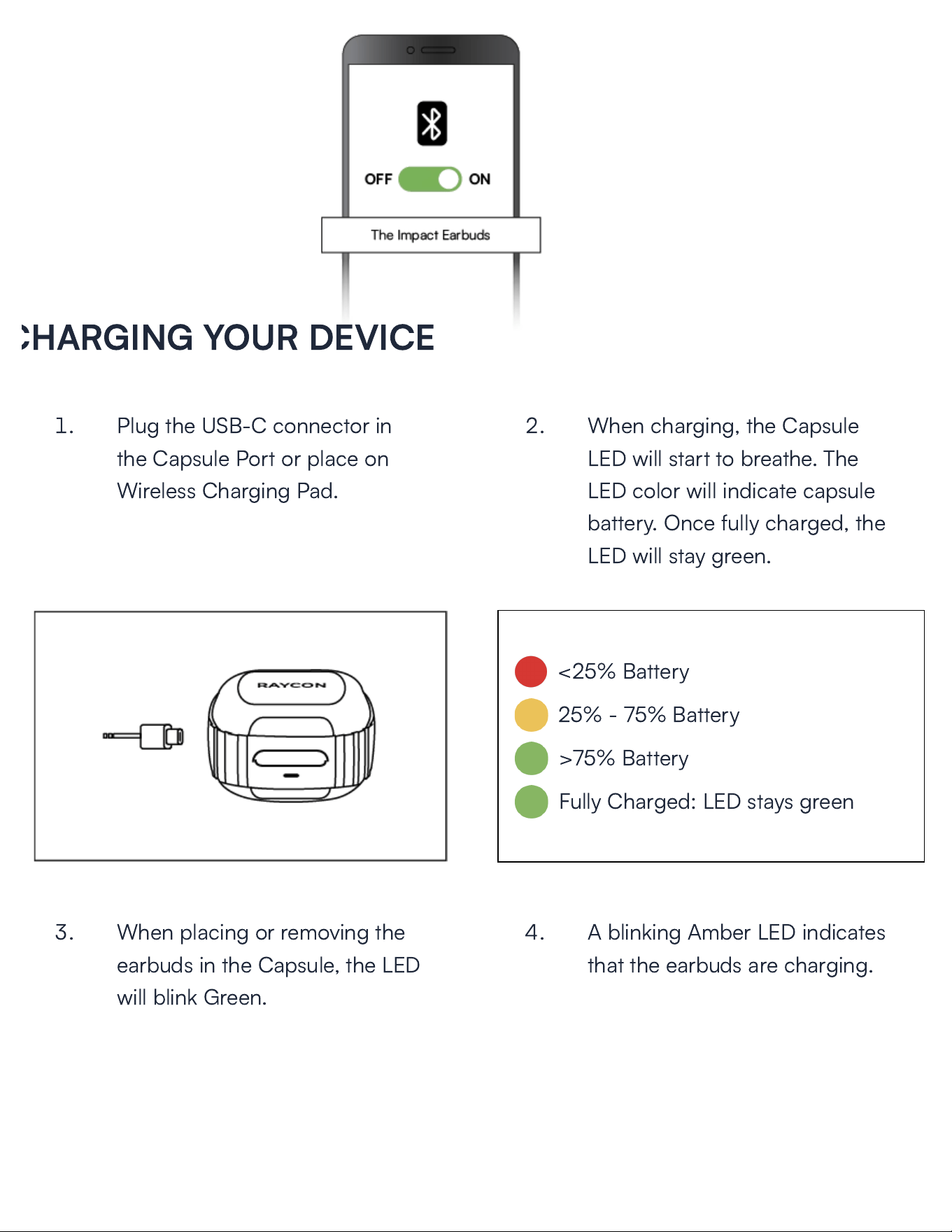

CHARGING YOUR DEVICE
1
. Plug the USB-C connector in
the Capsule Port or place on
Wireless Charging Pad.
2
. When charging, the Capsule
LED will start to breathe. The
LED color will indicate capsule
battery. Once fully charged, the
LED will stay green.
<25% Battery
25% - 75% Battery
>75% Battery
Fully Charged: LED stays green
3
. When placing or removing the
earbuds in the Capsule, the LED
will blink Green.
4
. A blinking Amber LED indicates
that the earbuds are charging.

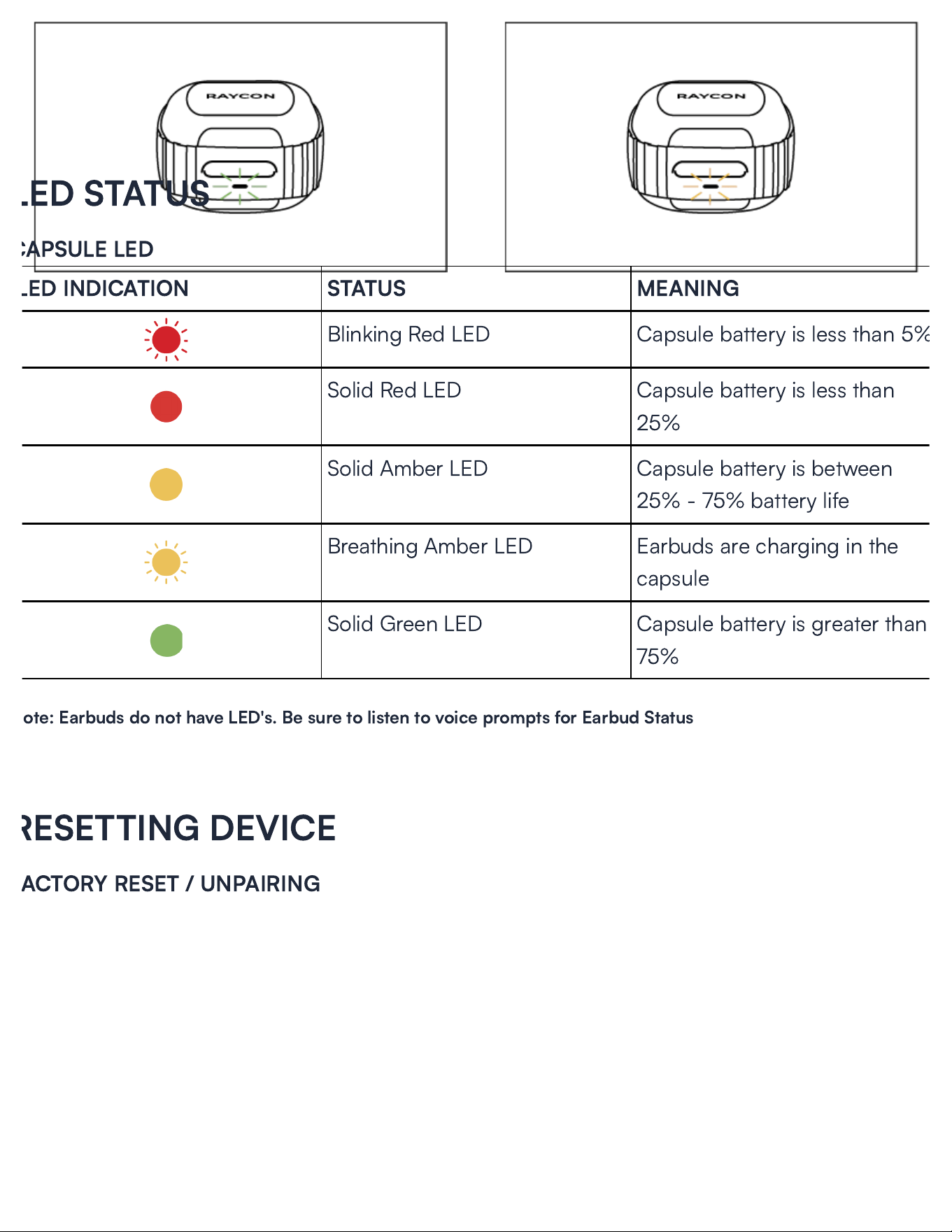

LED STATUS
CAPSULE LED
ote: Earbuds do not have LED's. Be sure to listen to voice prompts for Earbud Status
LED INDICATION STATUS MEANING
Blinking Red LED Capsule battery is less than 5%
Solid Red LED Capsule battery is less than
25%
Solid Amber LED Capsule battery is between
25% - 75% battery life
Breathing Amber LED Earbuds are charging in the
capsule
Solid Green LED Capsule battery is greater than
75%
RESETTING DEVICE
ACTORY RESET / UNPAIRING

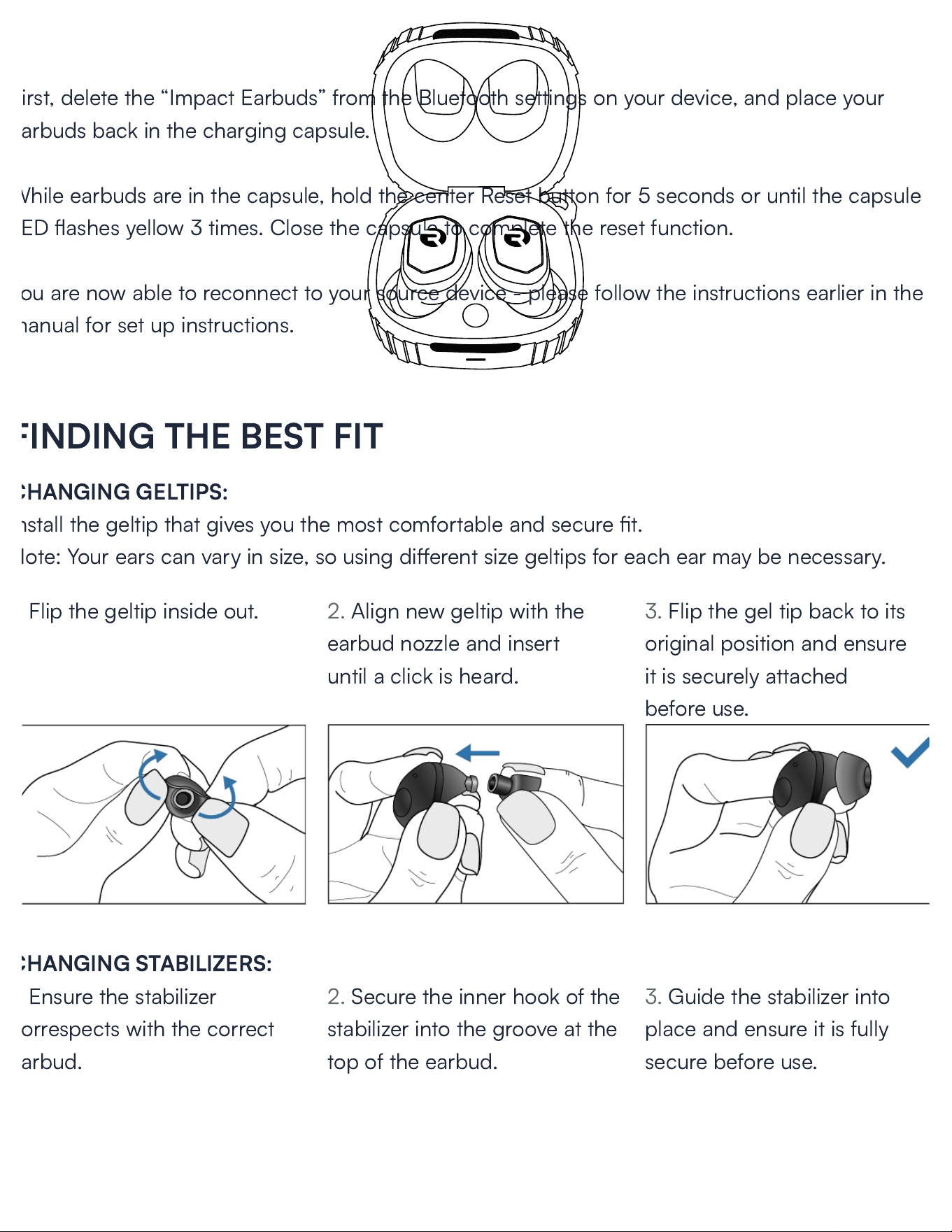

irst, delete the
“
Impact Earbuds
”
from the Bluetooth settings on your device, and place your
arbuds back in the charging capsule.
While earbuds are in the capsule, hold the center Reset button for 5 seconds or until the capsule
ED
fl
ashes yellow 3 times. Close the capsule to complete the reset function.
You are now able to reconnect to your source device - please follow the instructions earlier in the
manual for set up instructions.
FINDING THE BEST FIT
CHANGING GELTIPS:
nstall the geltip that gives you the most comfortable and secure
fi
t.
Note: Your ears can vary in size, so using di
ff
erent size geltips for each ear may be necessary.
CHANGING STABILIZERS:
Flip the geltip inside out.
2.
Align new geltip with the
earbud nozzle and insert
until a click is heard.
3.
Flip the gel tip back to its
original position and ensure
it is securely attached
before use.
Ensure the stabilizer
orrespects with the correct
arbud.
2.
Secure the inner hook of the
stabilizer into the groove at the
top of the earbud.
3.
Guide the stabilizer into
place and ensure it is fully
secure before use.

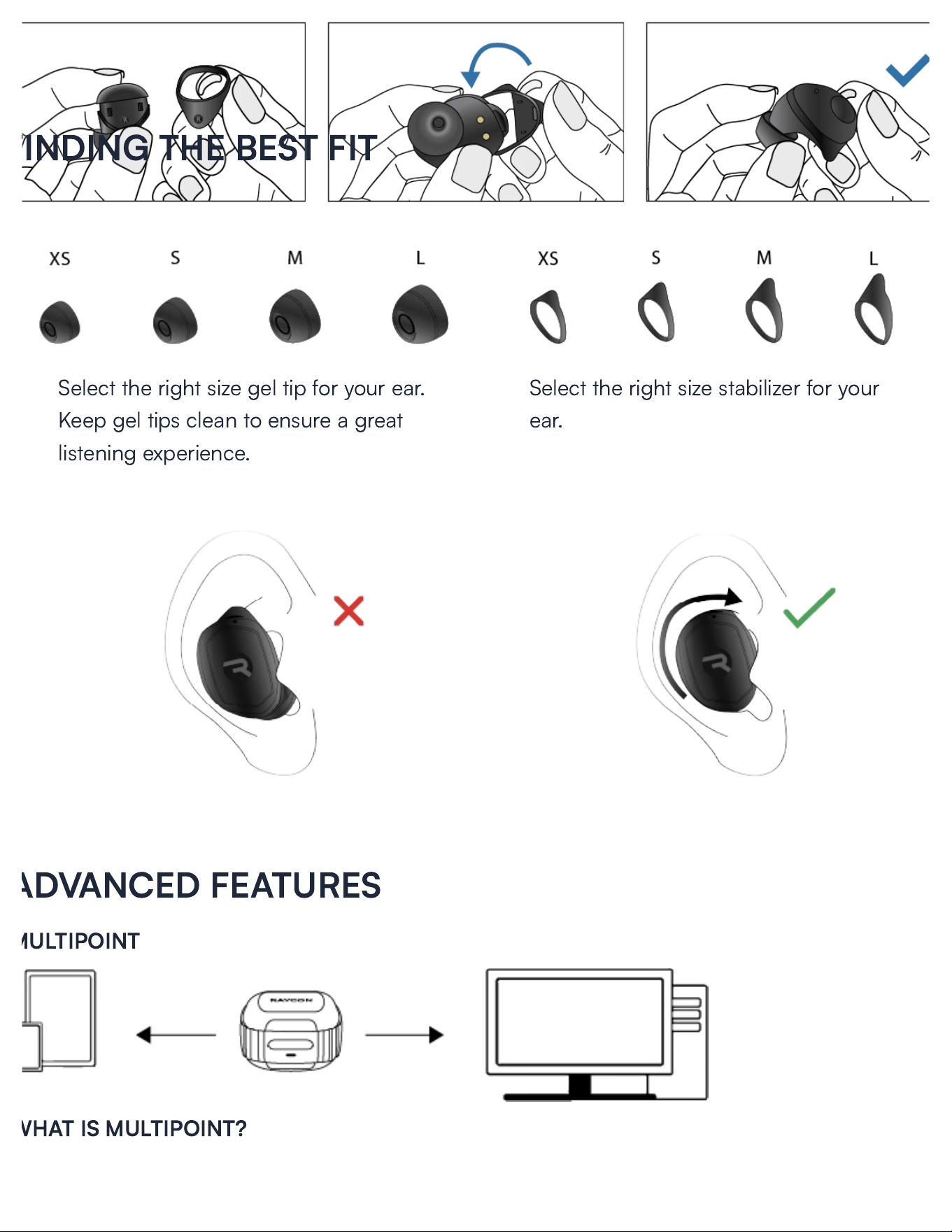

FINDING THE BEST FIT
Select the right size gel tip for your ear.
Keep gel tips clean to ensure a great
listening experience.
Select the right size stabilizer for your
ear.
ADVANCED FEATURES

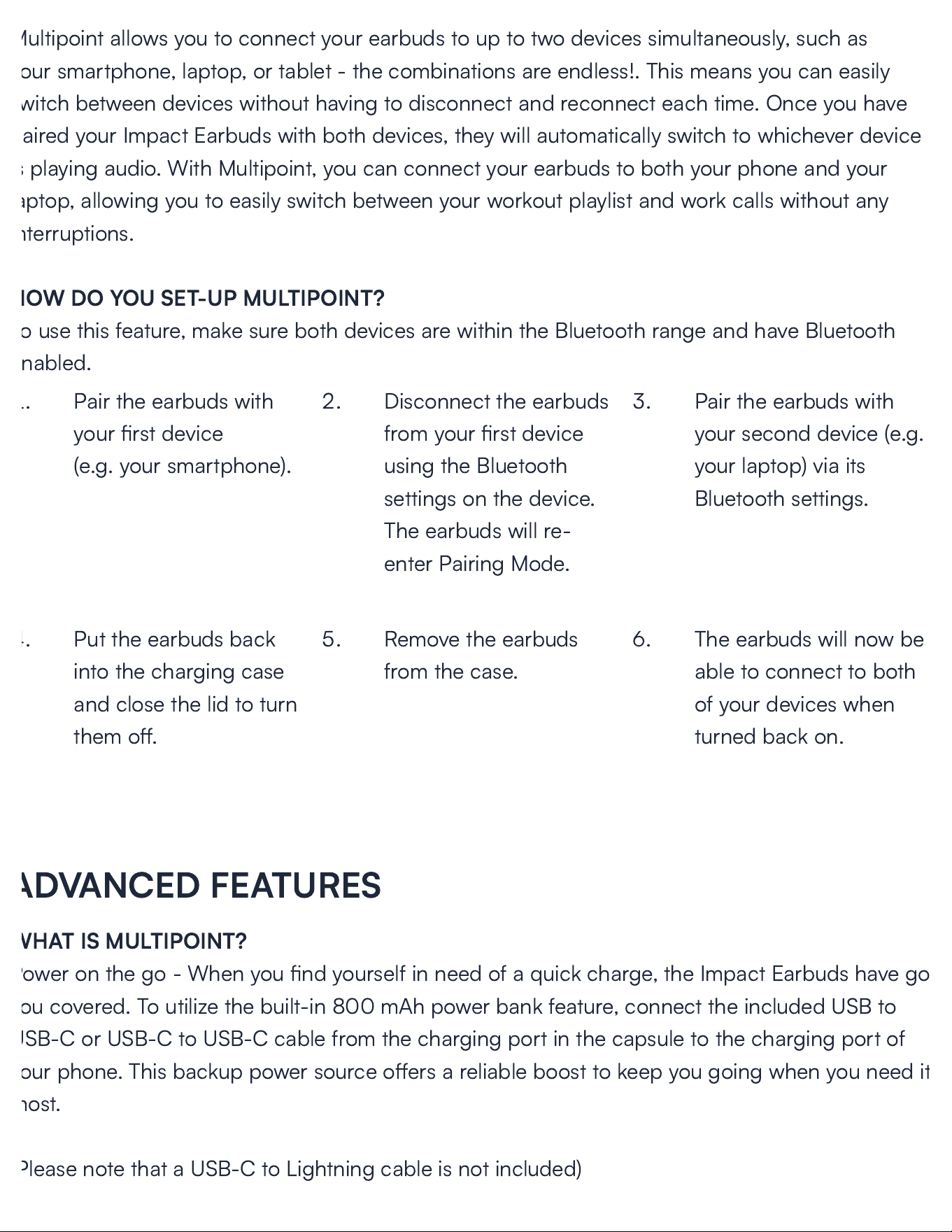

MULTIPOINT
WHAT IS MULTIPOINT?
Multipoint allows you to connect your earbuds to up to two devices simultaneously, such as
our smartphone, laptop, or tablet - the combinations are endless!. This means you can easily
witch between devices without having to disconnect and reconnect each time. Once you have
aired your Impact Earbuds with both devices, they will automatically switch to whichever device
s playing audio. With Multipoint, you can connect your earbuds to both your phone and your
aptop, allowing you to easily switch between your workout playlist and work calls without any
nterruptions.
HOW DO YOU SET-UP MULTIPOINT?
o use this feature, make sure both devices are within the Bluetooth range and have Bluetooth
nabled.
1
. Pair the earbuds with
your
fi
rst device
(e.g. your smartphone).
2
. Disconnect the earbuds
from your
fi
rst device
using the Bluetooth
settings on the device.
The earbuds will re-
enter Pairing Mode.
3
. Pair the earbuds with
your second device (e.g.
your laptop) via its
Bluetooth settings.
4
. Put the earbuds back
into the charging case
and close the lid to turn
them o
ff
.
5
. Remove the earbuds
from the case.
6
. The earbuds will now be
able to connect to both
of your devices when
turned back on.
ADVANCED FEATURES
WHAT IS MULTIPOINT?
Power on the go - When you
fi
nd yourself in need of a quick charge, the Impact Earbuds have go
ou covered. To utilize the built-in 800 mAh power bank feature, connect the included USB to
USB-C or USB-C to USB-C cable from the charging port in the capsule to the charging port of
our phone. This backup power source o
ff
ers a reliable boost to keep you going when you need it
most.
Please note that a USB-C to Lightning cable is not included)

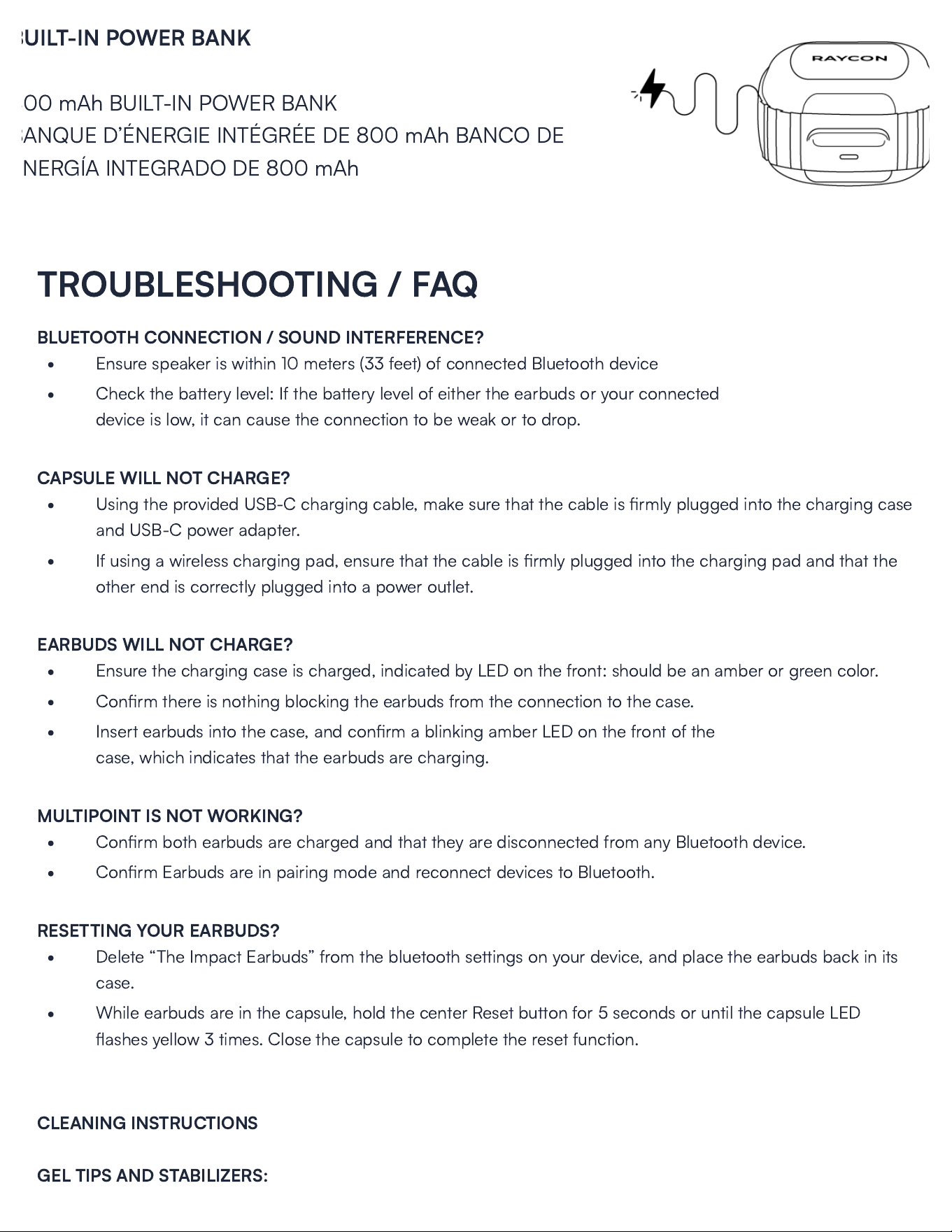

BUILT-IN POWER BANK
800 mAh BUILT-IN POWER BANK
BANQUE D
’
ÉNERGIE INTÉGRÉE DE 800 mAh BANCO DE
NERGÍA INTEGRADO DE 800 mAh
TROUBLESHOOTING / FAQ
BLUETOOTH CONNECTION / SOUND INTERFERENCE?
Ensure speaker is within 10 meters (33 feet) of connected Bluetooth device
Check the battery level: If the battery level of either the earbuds or your connected
device is low, it can cause the connection to be weak or to drop.
CAPSULE WILL NOT CHARGE?
Using the provided USB-C charging cable, make sure that the cable is
fi
rmly plugged into the charging case
and USB-C power adapter.
If using a wireless charging pad, ensure that the cable is
fi
rmly plugged into the charging pad and that the
other end is correctly plugged into a power outlet.
EARBUDS WILL NOT CHARGE?
Ensure the charging case is charged, indicated by LED on the front: should be an amber or green color.
Con
fi
rm there is nothing blocking the earbuds from the connection to the case.
Insert earbuds into the case, and con
fi
rm a blinking amber LED on the front of the
case, which indicates that the earbuds are charging.
MULTIPOINT IS NOT WORKING?
Con
fi
rm both earbuds are charged and that they are disconnected from any Bluetooth device.
Con
fi
rm Earbuds are in pairing mode and reconnect devices to Bluetooth.
RESETTING YOUR EARBUDS?
Delete
“
The Impact Earbuds
”
from the bluetooth settings on your device, and place the earbuds back in its
case.
While earbuds are in the capsule, hold the center Reset button for 5 seconds or until the capsule LED
fl
ashes yellow 3 times. Close the capsule to complete the reset function.

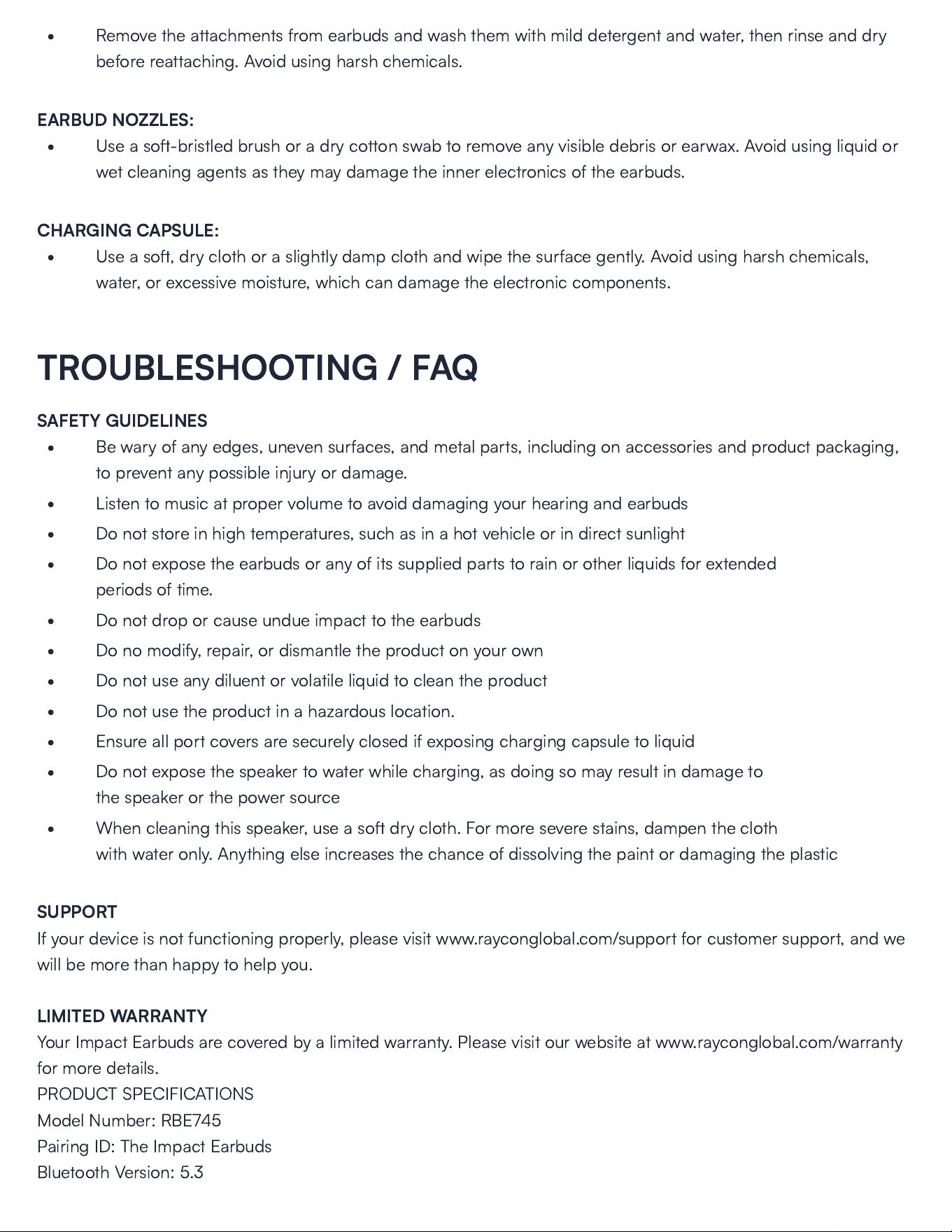

CLEANING INSTRUCTIONS
GEL TIPS AND STABILIZERS:
Remove the attachments from earbuds and wash them with mild detergent and water, then rinse and dry
before reattaching. Avoid using harsh chemicals.
EARBUD NOZZLES:
Use a so
-bristled brush or a dry cotton swab to remove any visible debris or earwax. Avoid using liquid or
wet cleaning agents as they may damage the inner electronics of the earbuds.
CHARGING CAPSULE:
Use a so
, dry cloth or a slightly damp cloth and wipe the surface gently. Avoid using harsh chemicals,
water, or excessive moisture, which can damage the electronic components.
TROUBLESHOOTING / FAQ
SAFETY GUIDELINES
Be wary of any edges, uneven surfaces, and metal parts, including on accessories and product packaging,
to prevent any possible injury or damage.
Listen to music at proper volume to avoid damaging your hearing and earbuds
Do not store in high temperatures, such as in a hot vehicle or in direct sunlight
Do not expose the earbuds or any of its supplied parts to rain or other liquids for extended
periods of time.
Do not drop or cause undue impact to the earbuds
Do no modify, repair, or dismantle the product on your own
Do not use any diluent or volatile liquid to clean the product
Do not use the product in a hazardous location.
Ensure all port covers are securely closed if exposing charging capsule to liquid
Do not expose the speaker to water while charging, as doing so may result in damage to
the speaker or the power source
When cleaning this speaker, use a so
dry cloth. For more severe stains, dampen the cloth
with water only. Anything else increases the chance of dissolving the paint or damaging the plastic
SUPPORT
If your device is not functioning properly, please visit www.rayconglobal.com/support for customer support, and we
will be more than happy to help you.
LIMITED WARRANTY
Your Impact Earbuds are covered by a limited warranty. Please visit our website at www.rayconglobal.com/warranty
for more details.
PRODUCT SPECIFICATIONS
Model Number: RBE745
Pairing ID: The Impact Earbuds
Bluetooth Version: 5.3

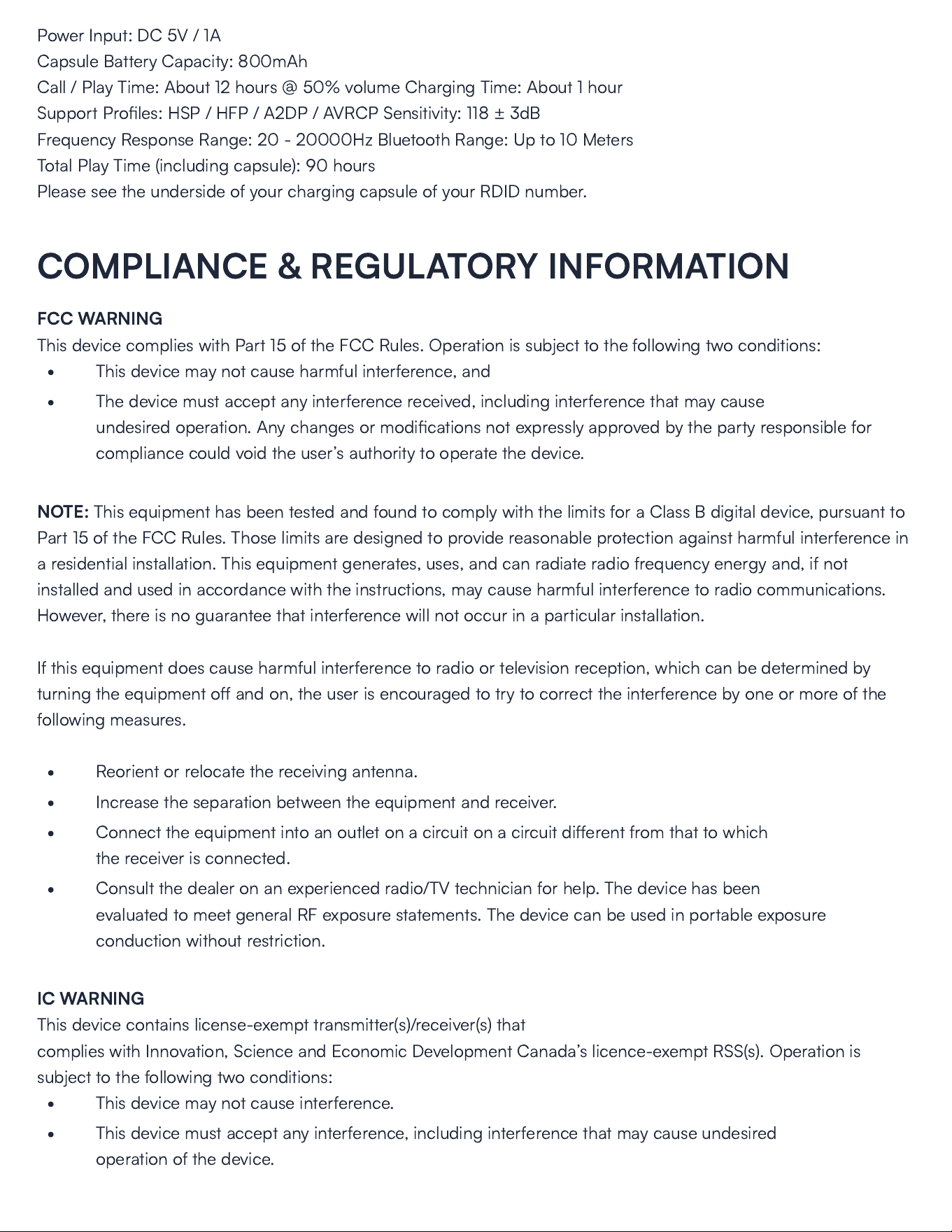

Power Input: DC 5V / 1A
Capsule Battery Capacity: 800mAh
Call / Play Time: About 12 hours @ 50% volume Charging Time: About 1 hour
Support Pro
fi
les: HSP / HFP / A2DP / AVRCP Sensitivity: 118 ± 3dB
Frequency Response Range: 20 - 20000Hz Bluetooth Range: Up to 10 Meters
Total Play Time (including capsule): 90 hours
Please see the underside of your charging capsule of your RDID number.
COMPLIANCE & REGULATORY INFORMATION
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
The device must accept any interference received, including interference that may cause
undesired operation. Any changes or modi
fi
cations not expressly approved by the party responsible for
compliance could void the user
’
s authority to operate the device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. Those limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o
ff
and on, the user is encouraged to try to correct the interference by one or more of the
following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit on a circuit di
ff
erent from that to which
the receiver is connected.
Consult the dealer on an experienced radio/TV technician for help. The device has been
evaluated to meet general RF exposure statements. The device can be used in portable exposure
conduction without restriction.
IC WARNING
This device contains license-exempt transmitter(s)/receiver(s) that
complies with Innovation, Science and Economic Development Canada
’
s licence-exempt RSS(s). Operation is
subject to the following two conditions:
This device may not cause interference.
This device must accept any interference, including interference that may cause undesired
operation of the device.
RF EXPOSURE STATEMENT:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable
exposure condition without restriction.
