Model# 048-TL-W8KI/048-TL-W10KI
/048-TL-W12KI
Read all instructions before use this device.
Product appearance and color may vary from pictures.
Keep the manual properly for future reference.
Recommended Room Size: 300-350 sp.ft / 28~33m
2
(048-TL-W8KI)
370-440 sp.ft / 34~41m
2
(048-TL-W10KI) /
450-520 sp.ft / 42~48m
2
(048-TL-W12KI)
IMPORTANT SAFETY INSTRUCTIONS
ASSEMBLING YOUR AIR CONDITIONER
USING YOUR AIR CONDITIONER
CLEANING AND MAINTENANCE
TROUBLESHOOTING
............................................................................................10
..................................................................................................1
.........................................................................................................................25
.......................................................................................................24
.......................................................................................................19
CONTENTS
* The design and specifications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details.
* The shape and position of buttons and indicators may vary according to the model, but their function
are the same.
Model Number: 048-TL-W8KI 048-TL-W10KI 048-TL-W12KI
Power supply(Ph-V-Hz)
1Ph, 115V~, 60Hz 1Ph, 115V~, 60Hz 1Ph, 115V~, 60Hz
RATED Capacity(Btu/h)
8000 10000 12000
RATED Input(W)
740 950 1190
RATED Current(A)
8.3 10 12
Moisture Removal(L/h)
1.25 1.5 1.75
Refrigerant type (R32)(g)
280 300 330
Refrigerant type (R32)(ozs)
R32/9.88 R32/10.58 R32/11.64
Indoor noise level Cooling
(Hi/Med/Lo/Mute)(dBA)
48/45/42/42 51/47/42/42 55/49/42/42
Outdoor noise level
(Hi/Med/Lo) (dBA)
58/52/48 60/52/48 61/56/48
Application area (m2)
28-33 34-41 42-48
Application area (sp.ft)
300-350 370-440 450-520
Dimension(W*D*H)(mm/in)
525x489x340/20.67x19.25x13.39 525x489x340/20.67x19.25x13.39 525x489x340/20.67x19.25x13.39
Net weight (kg/lbs)
25.5/56.2 26.2/57.8 26.6/58.6
1
1. Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
2. Use only the included accessories and parts, and specified tools for the installation.
Using nonstandard parts can cause water leakage, electrical shock, fire, and injury or
property damage.
3. Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against shock.
Voltage information can be found on the nameplate of the appliance.
4. Your appliance must be used in a properly grounded wall receptacle. If the wall receptacle
you intend to use is not adequately grounded or protected by a time delay fuse or circuit
breaker (the fuse or circuit breaker needed is determined by the maximum current of the
appliance. The maximum current is indicated on the nameplate located on the appliance),
have a qualified electrician install the proper receptacle.
4. Install the appliance on a flat, sturdy surface. Failure to do so could result in damage or
excessive noise and vibration.
6. The appliance must be kept free from obstruction to ensure proper function and to mitigate
safety hazards.
7. Do not modify the length of the power cord or use an extension cord to power the appliance.
8. Do not share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
9. Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
10.Do not install the appliance in a location that may be exposed to combustible gas, as this
could cause fire.
11.he appliance has wheels to facilitate moving. Make sure not to use the wheels on thick
carpet or to roll over objects, as these could cause tipping.
12.Do not operate the appliance if it has been dropped or damaged.
13.The appliance with electric heater shall have at least 3 feet / 1 meter space away from the
combustible materials.
14.Do not touch the appliance with wet or damp hands or when barefoot.
15.If the air conditioner is knocked over during use, turn off the appliance and unplug it
from the main power supply immediately. Visually inspect the appliance to ensure there
is no damage. If you suspect the appliance has been damaged, contact a technician or
customer service for assistance.
IMPORTANT SAFETY INSTRUCTIONS
Read All Instructions and Cautionary Markings Before Operation and Installation to prevent
death or injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause death, harm
or damage.
This symbol indicates the
possibility of personnel
injury or loss of life.
This symbol indicates the possibility
of property damage or serious
consequences.
WARNING
WARNING CAUTION
2
16.In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning. Your air conditioner should be used in such a way that it is protected from
moisture. e.g. condensation, splashed water, etc. Do not place or store your air
conditioner where it can fall or be pulled into water or any other liquid. Unplug
immediately if it occurs.
17.All wiring must be performed strictly in accordance with the wiring diagram located
inside of the appliance.
18.The appliance's circuit board(PCB) is designed with a fuse to provide overcurrent
protection. The specifications of the fuse are printed on the circuit board, such
as: T 3.15A/250V, etc.
19.After proper installation, condensate will not overflow during normal use. If the fan hits

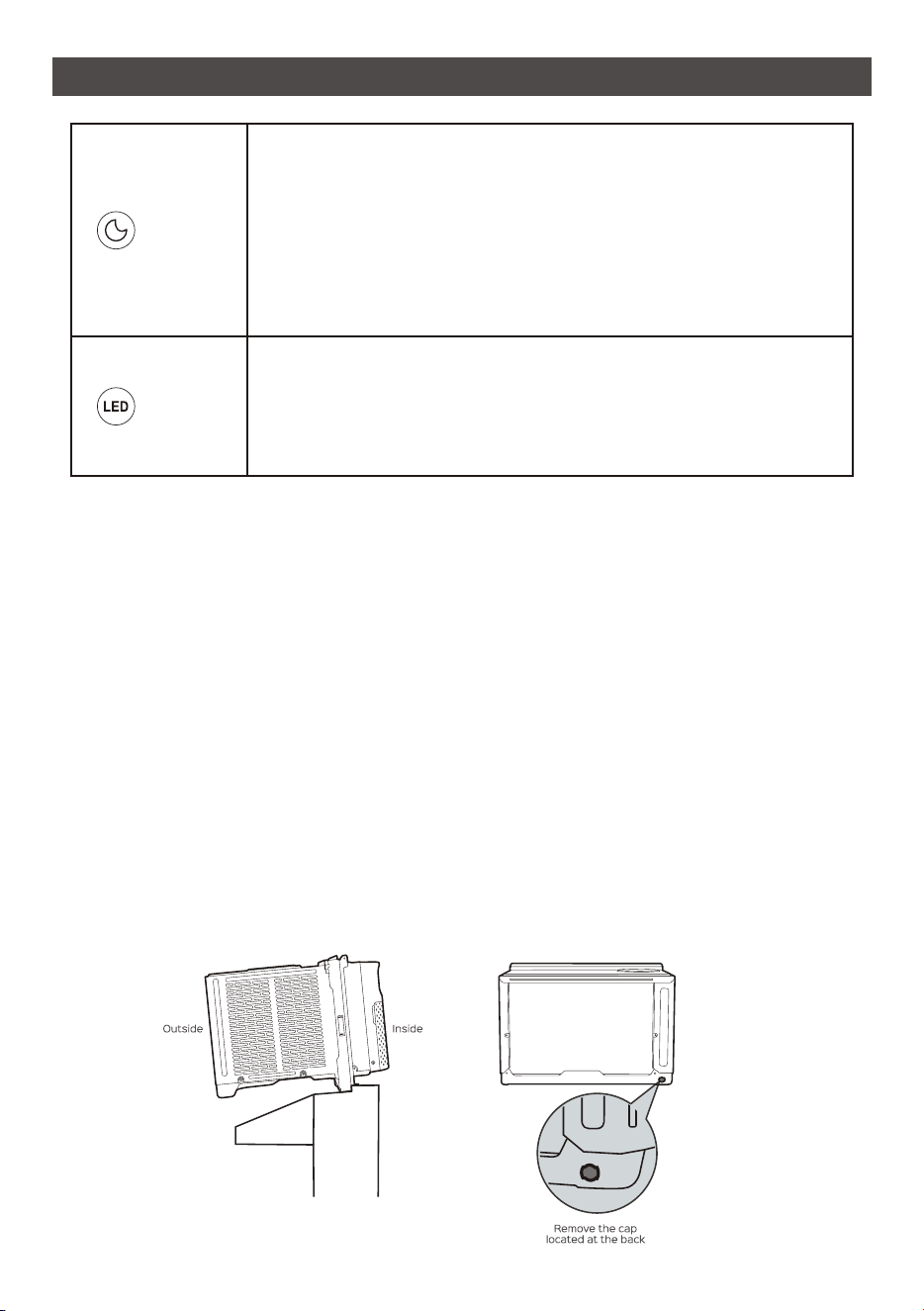

the built-up water and the sound annoys you, please remove the cap located at the back
of the air conditioner to drain the water away.
IMPORTANT SAFETY INSTRUCTIONS
1. This appliance can be used by children aged from 8 years and above and person with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
(be applicable for the European Countries)
2. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the
appliance. Children must be supervised around the appliance at all times.
(Be applicable for other countries except the European Countries.)
3. If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
4. Prior to cleaning or other maintenance, the appliance must be disconnected from the
supply mains.
5. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
6. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
7. Do not operate with a damaged cord, plug, power fuse or circuit breaker. Discard the
appliance or return to an authorized service facility for examination and/or repair.
8. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
9. The appliance shall be installed in accordance with national wiring regulations.
10.Contact the authorized service technician for repair or maintenance of this appliance.
11.Contact the authorized installer for installation of this appliance.
12.Do not cover or obstruct the inlet or outlet grilles.
CAUTION
3
IMPORTANT SAFETY INSTRUCTIONS
13.Do not use this product for functions other than those described in this instruction manual.
14.Before cleaning, turn off the power and unplug the appliance.
15.Disconnect the power if strange sounds, smell, or smoke comes from it.
16.Do not press the buttons on the control panel with anything other than your fingers.
17.Do not operate or stop the appliance by inserting or pulling out the power cord plug.
18.Do not use hazardous chemicals to clean or come into contact with the appliance.
Do not use the appliance in the presence of inflammable substances or vapour such as
alcohol, insecticides, petrol,etc.
19.Always contact a qualified person to carry out repairs. If the damaged power supply cord
must be replaced with a new power supply cord obtained from the product manufacturer
and not repaired.
20.Hold the plug by the head of the power plug when taking it out.
21.Turn off the product when not in use.
Operation of Current Device
The power supply cord contains a current measuring device that detects damage to the
power cord. Test your power supply cord as follows:
1. Plug in the air conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button.
You will notice a click as the RESET button pops out.
3. Press the RESET Button. You will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this is also indicated by a light on the plug head.)
NOTE:
1. The power supply cord with this air conditioner contains a current detection device
designed to reduce the risk of fire.
2. In the event that the power supply cord is damaged, it can not be repaired. It must be
replaced with a cord from the manufacturer.
3. Do not use this device to turn the unit on or off.
4. Always make sure the RESET button is pushed in for correct operation.
5. The power supply cord must be replaced if it fails to reset when either the TEST button is
pushed, or it can not be reset.Please contact Customer Service.
Plug in & press RESET
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Power supply cord with 3-prong grounding
plug and current detection device.
WARNING FOR USING R32 REFRIGERANT
4
IMPORTANT SAFETY INSTRUCTIONS
For R32 refrigerant models:
1. Appliance shall be installed, operated and stored in a room with a floor area larger
2
than 4 m .
2
2. Appliance shall not be installed in an unvertilated space, if that space is smaller than 4 m .
3. Compliance with national gas regulations shall be observed.
4. Keep ventilation openings clear of obstruction.
5. The appliance shall be stored so as to prevent mechanical damage from occurring.
6. A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
7. Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specification.
8. Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried
out under the supervision of the person competent in the use of flammable refrigerants.
9. Please follow the instruction carefully to handle, install, clear, service the air conditioner
to avoid any damage or hazard. Flammable Refrigerant R32 is used within air conditioner.
When maintaining or disposing the air conditioner, the refrigerant (R32) shall be recovered
properly, shall not discharge to air directly.
10.No any open fire or device like switch which may generate spark/arcing shall be around
air conditioner to avoid causing ignition of the flammable refrigerant used.
11.Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
12.Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction
carefully to avoid any hazard.
13.For specific information on the type of gas and the amount, please to the relevant label
on the unit itself.
Caution: Risk of fire/flammable materials
(Required for R32 units only)
Warning: low burning velocity material
(For R32 models apply to IEC60335-2-40:2018)
Note about Fluorinated Gases
1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific
information on the type, the amount and the Co2 equivalent in tonnes of the fluorinated
greenhouse gas(on some models), please refer to the relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
3. Product uninstallation and recycling must be performed by a certified technician.
5
IMPORTANT SAFETY INSTRUCTIONS
Explanation of symbols displayed on the unit:
FOR HOUSEHOLD USE ONLY READ AND SAVE THESE INSTRUCTIONS
1. Transport of equipment containing flammable refrigerants
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5. Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge. The maximum
number of pieces of equipment permitted to be stored together will be determined by
local regulations.
6. Information on servicing
1) Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on the
system.
2) Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
flammable gas or vapour being present while the work is being performed.
3) General work area
All maintenance staff and others working in the local area shall be instructed on the
nature of work being carried out. Work in confined spaces shall be avoided. The area
around the workspace shall be sectioned off. Ensure that the conditions within the area
have been made safe by control of flammable material.
4) Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres. Ensure
that the leak detection equipment being used is suitable for use with flammable
refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
WARNING
CAUTION
CAUTION
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
6
5) Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the charging area.
6) No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing
any pipe work that contains or has contained flammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of fire or explosion. All possible
ignition sources, including cigarette smoking, should be kept sufficiently far away from
the site of installation, repairing, removing and disposal, during which flammable
refrigerant can possibly be released to the surrounding space. Prior to work taking place,
the area around the equipment is to be surveyed to make sure that there are no flammable
hazards or ignition risks. No Smoking signs shall be displayed.
7) Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into
the system or conducting any hot work. A degree of ventilation shall continue during the
period that the work is carried out. The ventilation should safely disperse any released
refrigerant and preferably expel it externally into the atmosphere.
8) Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to
the correct specification. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using flammable
refrigerants:
a. The charge size is in accordance with the room size within which the refrigerant containing
parts are installed;
b. The ventilation machinery and outlets are operating adequately and are not obstructed;
c. If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for
the presence of refrigerant; Marking to the equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected;
d. Refrigeration pipe or components are installed in a position where they are unlikely to be
exposed to any substance which may corrode refrigerant containing components, unless
the components are constructed of materials which are inherently resistant to being
corroded or are suitably protected against being so corroded.
9) Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the owner of the
equipment so all parties are advised. Initial safety checks shall include:
a. That capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
b. That there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
c. That there is continuity of earth bonding.
IMPORTANT SAFETY INSTRUCTIONS
7
7. Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring
that this will not exceed the permissible voltage and current permitted for the equipment
in use. Intrinsically safe components are the only types that can be worked on while live in
the presence of a flammable atmosphere. The test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer. Other parts may result
in the ignition of refrigerant in the atmosphere from a leak.
8. Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental effects. The check shall also take into
account the effects of aging or continual vibration from sources such as compressors or
fans.
9. Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
10.Leak detection methods
The following leak detection methods are deemed acceptable for systems containing
flammable refrigerants. Electronic leak detectors shall be used to detect flammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25 %
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means
of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen
(OFN) shall then be purged through the system both before and during the brazing process.
11.Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose
conventional procedures shall be used. However, it is important that best practice is
followed since flammability is a consideration. The following procedure shall be adhered
to: Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert
gas; Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into
the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe.
This process may need to be repeated several times. Compressed air or oxygen shall not be
used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN
and continuing to fill until the working pressure is achieved, then venting to atmosphere,
and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is
within the system. When the final OFN charge is used, the system shall be vented down to
atmospheric pressure to enable work to take place. This operation is absolutely vital if
brazing operations on the pipe-work are to take place. Ensure that the outlet for the
vacuum pump is not close to any ignition sources and there is ventilation available.
IMPORTANT SAFETY INSTRUCTIONS
8
12.Charging procedures
In addition to conventional charging procedures, the following requirements shall be
followed. Ensure that contamination of different refrigerants does not occur when using
charging equipment. Hoses or lines shall be as short as possible to minimise the amount
of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the
refrigeration system is earthed prior to charging the system with refrigerant. Label the
system when charging is complete (if not already). Extreme care shall be taken not to
overfill the refrigeration system. Prior to recharging the system it shall be pressure tested
with OFN. The system shall be leak tested on completion of charging but prior to
commissioning. A follow up leak test shall be carried out prior to leaving the site.
13.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall
be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a.Become familiar with the equipment and its operation.
b.Isolate system electrically.
c.Before attempting the procedure ensure that: Mechanical handling equipment is available,
if required, for handling refrigerant cylinders; All personal protective equipment is
available and being used correctly; The recovery process is supervised at all times by a
competent person; Recovery equipment and cylinders conform to the appropriate standards.
d. Pump down refrigerant system, if possible.
e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
f. Make sure that cylinder is situated on the scales before recovery takes place.
g. Start the recovery machine and operate in accordance with manufacturer's instructions.
h. Do not overfill cylinders. (No more than 80 % volume liquid charge).
i. Do not exceed the maximum working pressure of the cylinder, even temporarily.
j. When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and the equipment are removed from site promptly and all isolation valves on the
equipment are closed off.
K. Recovered refrigerant shall not be charged into another refrigeration system unless it has
been cleaned and checked.
14.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains flammable refrigerant.
15.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system charge
is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
9
IMPORTANT SAFETY INSTRUCTIONS
Cylinders shall be complete with pressure relief valve and associated shut-off valves in
good working order. Empty recovery cylinders are evacuated and, if possible, cooled
before recovery occurs. The recovery equipment shall be in good working order with a
set of instructions concerning the equipment that is at hand and shall be suitable for the
recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall
be available and in good working order. Hoses shall be complete with leak-free disconnect
couplings and in good condition. Before using the recovery machine, check that it is in
satisfactory working order, has been properly maintained and that any associated
electrical components are sealed to prevent ignition in the event of a refrigerant release.
Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the
refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer
Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have been
evacuated to an acceptable level to make certain that flammable refrigerant does not
remain within the lubricant. The evacuation process shall be carried out prior to
returning the compressor to the suppliers. Only electric heating to the compressor body
shall be employed to accelerate this process. When oil is drained from a system, it shall be
carried out safely.
Gentle Reminder
Check the appliance regularly and refer to TROUBLESHOOTING or contact our customer
support if it shows any of the following signs:
- Power cord or plug is damaged.
- Loud noise, unusual smell or excessive heat.
10
Part Name Quantity
Window Air Condioner
Remote Control
Long Foam Seal
(Non-Adhesive)
Long Foam Seal
(Adhesive)
Security Bracket
3/4 Screw
"
1/2 Screw"
Plascene
Remote Control Baery
1
1
1
1
1
4
3
1
2
Short Lock Frame
(back-up use)
Long Lock Frame
(back-up use)
2
2
ASSEMBLING YOUR AIR CONDITIONER
Package Contents
11
ASSEMBLING YOUR AIR CONDITIONER
Window Requirements
1. This air conditioner is designed to be installed in a standard single-hung or double-hung
window with a window width between 25" and 36"(645mm - 915mm).
2. The air conditioner can be installed without the side panels to fit in a narrow window
opening. See the window dimensions. If the air conditioner is installed on a window with
a width of 645-720mm, the air conditioner must be installed to the right and the right
bracket must be abut on the air conditioner, otherwise the air conditioner will not
operate normally.
3. The lower sash (the lower part of the window that moves up and down) must allow for
14.5" of vertical clearance when open.
4. All supporting parts must be secured to firm wood, masonry or metal.
5. The electrical outlet must be within reach of the power cord.
NOTE:
1. Save the product packaging and installation instructions for future reference.
2. Store the air conditioner in the product box during winter or when not in use.
Interior
Wall
Stool
Sill
Offset
Exterior
Wall
14.5 inch
368 mm
25-36 inch
645-915 mm
12
ASSEMBLING YOUR AIR CONDITIONER
Getting Started
SUGGESTED TOOLS FOR INSTALLATION (Not included)
CAUTION:
Heavy object. Team handling is required during the installation process.
1. Removing All the Packaging
Carefully remove all the packaging straps and wraps from the air conditioner and accessories.
CAUTION:
When handling the unit, be careful to avoid cuts from the sharp metal edges and aluminum
fins on the front and rear coils.
NOTE:
To be easy installation, both the left and right curtains, curtain frames, top channel, and bottom
channel, are pre-assembled in factory.
2.Applying the Adhesive Foam Seal
Measure the length of the upper window frame, trim the adhesive foam
seal to the appropriate length and apply as shown.
Phillips
screwdriver
Scissors
or knife
Pencil Level Ruler or
tape measure
Left curtain frame,
pre-assembled in factory.
Left curtain,
pre-assembled in factory.
Top channel,
pre-assembled in factory.
Right curtain frame,
pre-assembled in factory.
Right curtain,
pre-assembled in factory.
Bottom channel,
pre-assembled in factory.
ASSEMBLING YOUR AIR CONDITIONER
13

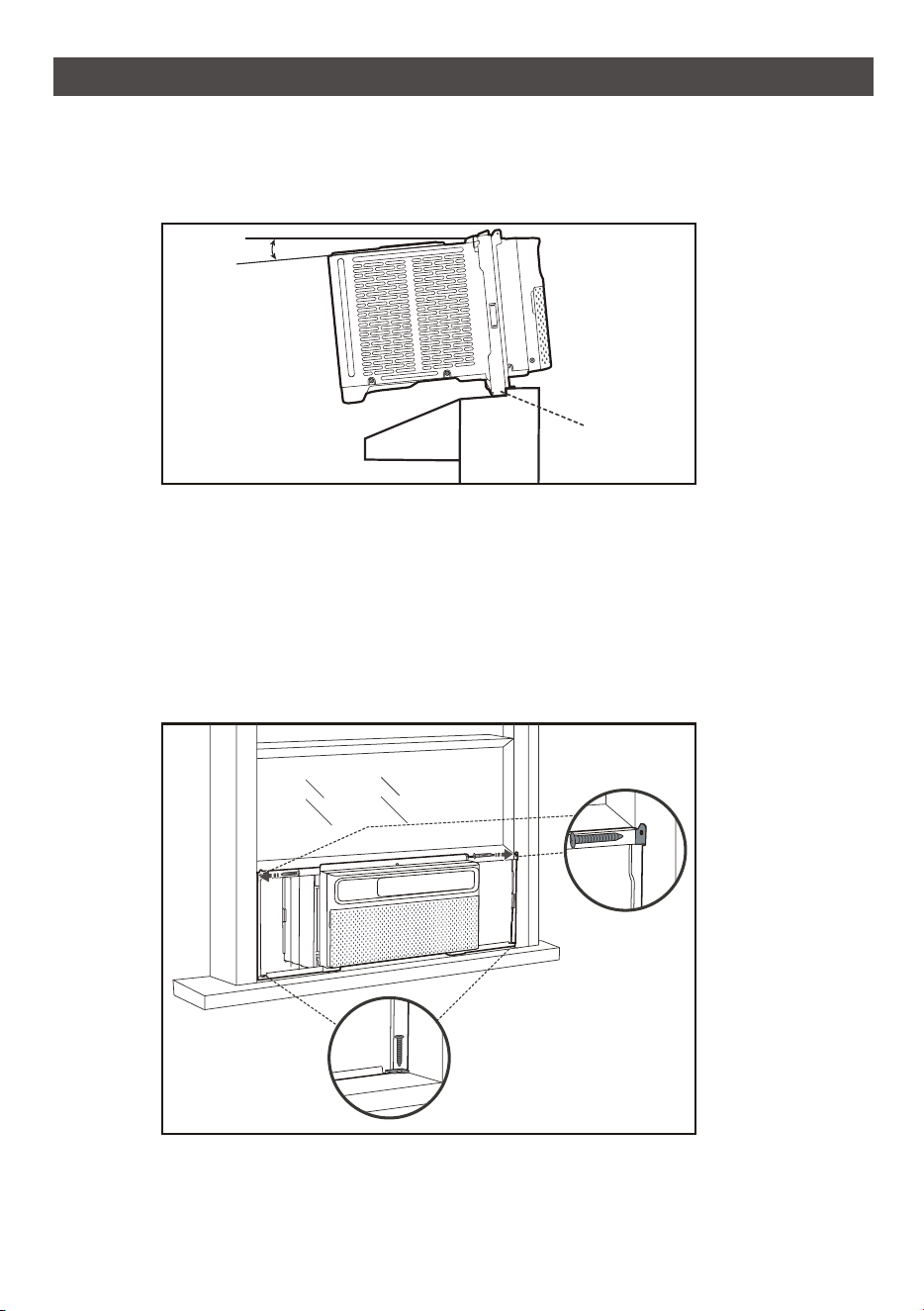

3.Placing Inside an Open Window
Carefully lift the air conditioner with a helper to the windowsill and pull
down the sash, making sure the air conditioner is centered and its bottom
rail is flush against the windowsill.
NOTE:
o
The air conditioner should be tilted about 3 for better drainage of condensate and
rainwater. Use a level: about 1/3 bubble willshow correct slant.
4.Securing the Side Brackets
Extend the side brackets from both sides of the air conditioner onto the
left and right window frames and secure by installing four 3/4" screws as
shown.
NOTE:
Fix the upper screws first, then the lower screws.
o
About 3
Outside Inside
Bottom Rail
3/4 Screws *4"
14
ASSEMBLING YOUR AIR CONDITIONER
5.Securing the Side Panels
Pull the side panels inwards to align with the brackets, then secure onto
the sides by snapping the jutting points onto the locking pins.
6.Sealing the Crevices with Plasticene (Optional)
Fill the crevices between the side brackets and panels with the included
plasticene.
Locking Pins
Jutting Points
15
ASSEMBLING YOUR AIR CONDITIONER

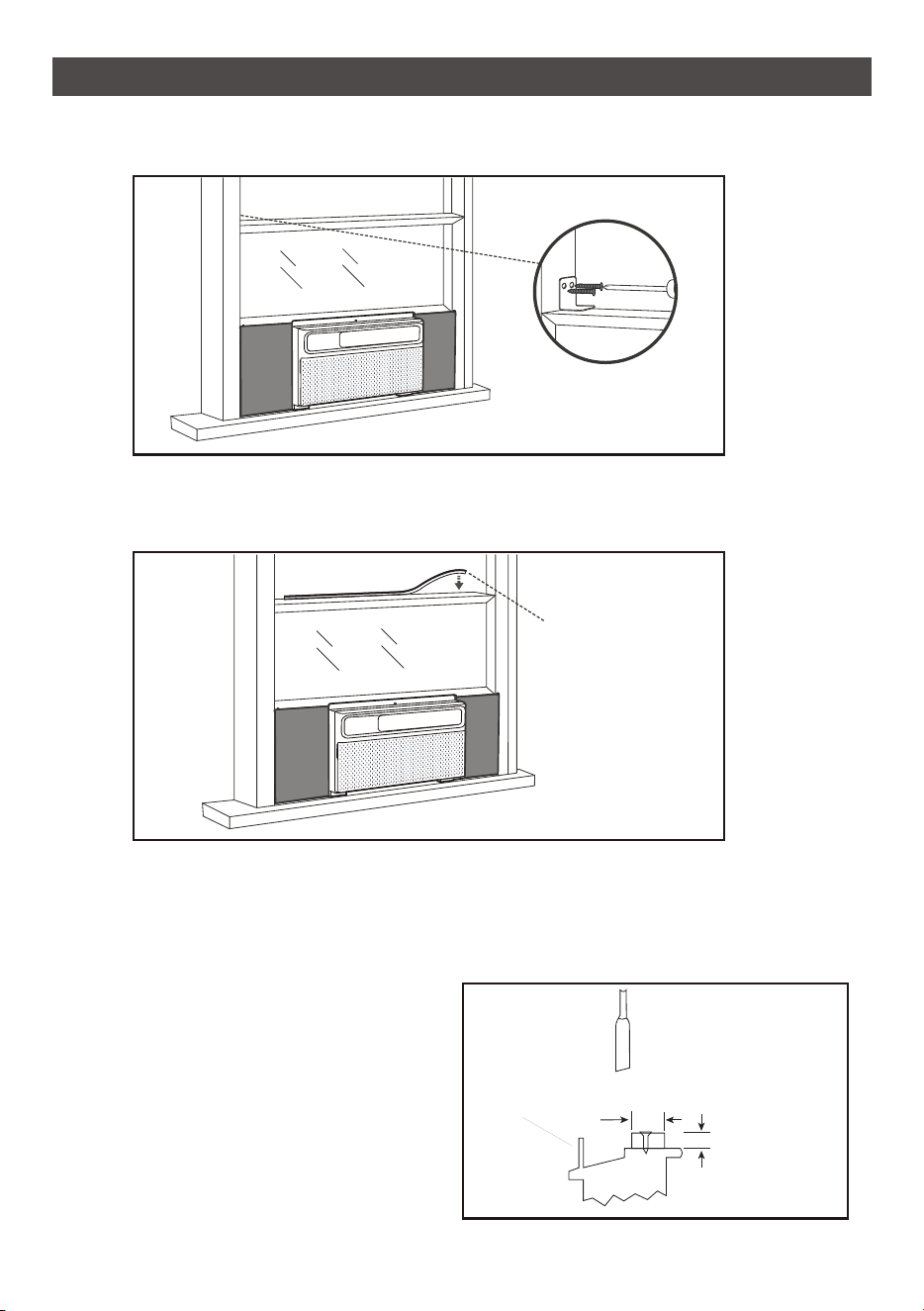

7.Installing the Screw Into the Top Rail
Install the 1/2" screw into the top rail of the air conditioner.
8.Applying the Panel Seals(optional)
Measure the length extended by the side panels, trim the panel seals to
the appropriate length, peel off the backings and apply on the panels on
both sides.
Top Rail
1/2 Screw *1"
Panel Seals *2
16
ASSEMBLING YOUR AIR CONDITIONER
9.Installing the Security Bracket
Attach the security bracket on top of the window sash and secure with two 1/2" screws.
10.Filling the Gap Between Sashes
Trim the non-adhesive foam seal to the appropriate length and insert
between the window sashes.
CAUTION:
When open the window, besure that the fixed screws are avaliable from the curtain to the
window frame.

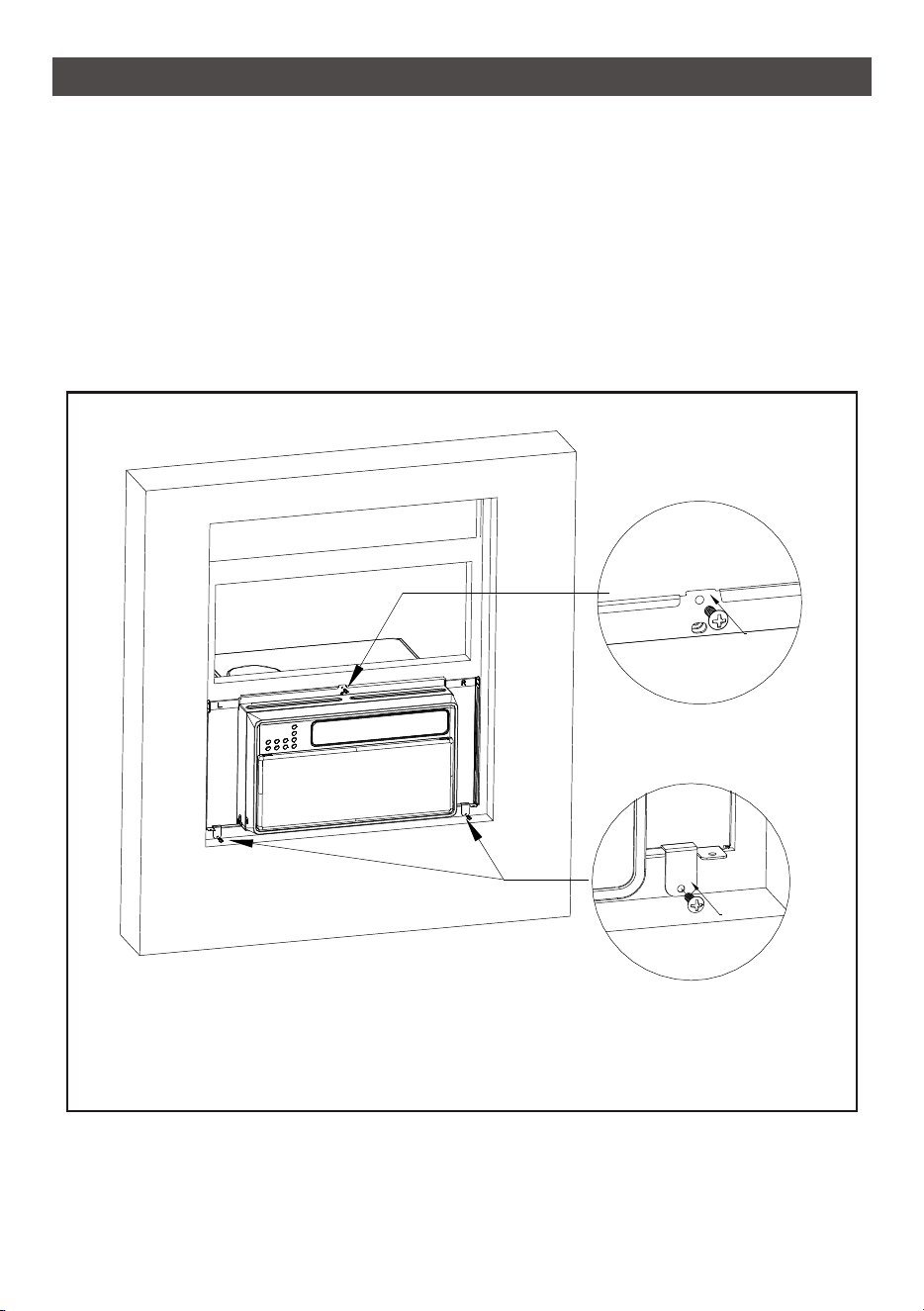

If AC Is Blocked By Storm Window
1. Add wood as shown, or remove
storm window before air
conditioner is installed.
2. If Storm Window Frame must
remain, be sure the drain holes
or slots are not caulked or
painted shut. Accumulated Rain
Water or Condensate must be
allowed to drain out.
1/2 Screw *2"
Non-Adhesive
Foam Seal
Storm window
frame or other
obstruction.
SASH
Board thickness as
required, for proper
pitch to rear, along
entire sill. Fasten
with nails or screws.
OUTSIDE INSIDE
1-1/2 min
(38 mm)
"
Screw the top channel
into the window frame
with 3 screw./4"
Screw the back-up lock
frame into the window
frame with 3/4 screws,
both sides at the bottom.
"
ASSEMBLING YOUR AIR CONDITIONER
For some special window frame, as too thin or too thick, you may need to use the back-up lock
frame to do the additional fixed.
If the AC unit can not be screw-fixed well by the steel frame holes, you must use the back-up lock
frame to do the additional fixed, as the aluminum alloy window.
1. Install the screw into the top channel of the AC unit, and screw into the window frame.
2. Select two suitable back-up using lock frames, fix them at the bottom of steel frame near the
sides with screws.
3. If needed, you can use the other two back-up using lock frames to do the additional fix at the
top area.
17
ASSEMBLING YOUR AIR CONDITIONER
18
Installation & Assembly Instructions
Important Considerations
1. Before installing the appliance, you must read the manual carefully to
get the safety information and notes.
2. Unit refrigerant charge amount: refer to unit name plate marking.
3. A leak test must be done after the installation is completed.
4. It is a must to do the safety inspection before maintaining or repairing
an air conditioner using combustible refrigerant in order to ensure
that the fire risk is reduced to minimum.
5. It is necessary to operate the machine under a controlled procedure
in order to ensure that any risk arising from the combustible gas or
vapor during the operation is reduced to minimum.
Introduction to Refrigerants R32
1.Site Safety 2.Operation Safety
3.Installation Safety
- Refrigerant Leak Detector
- Appropriate Installation Location
- The left picture is the schematic diagram of arefrigerant leak detector.
Please note that:
1. The installation site should be in a well-ventilated condition.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be
free from open fire or welding, smoking, drying oven or any other heat source higher than
548 which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static measures
such as wear anti-static clothing and/or gloves.
4. It is necessary to choose the site convenient for installation or maintenance wherein the air
inlets and outlets of the indoor and outdoor units should be not surrounded by obstacles
or close to any heat source or combustible and/or explosive environment.
5. If the indoor unit suffers refrigerant leak during the installation, all the personnel should go
out till the refrigerant leaks completely for 15 minutes. If the product is damaged, it is a
must to carry such damaged product back to the maintenance station and it is prohibited to
weld the refrigerant pipe or conduct other operations on the user's site.
6. It is necessary to choose the place where the inlet and outlet air of the indoor unit is even.
7. It is necessary to avoid the places where there are other electrical products, power switch
plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on
two sides of the indoor unit, and also prevent mechanical damage from occurring.
Open Flames
Prohibited
Ventilation
Necessary
Mind Static
Electricity
Must Wear
Protective Clothing
and Anti-Static
Gloves
Don't Use
Mobile Phone
19
USING YOUR AIR CONDITIONER
Turn on the air conditioner or switch to standby.
Adjust fan speed (Low, Med, High, Auto)
NOTE: Fan speed setting is available in Auto,Cool, and Fan modes only.
Select to adjust the airflow direction by swinging the louver
vertically.
Decrease the air conditioning temperature.
Increase the air conditioning temperature.
Switch between Cool/Dry/Fan/Auto mode.
Remind to clean the dust filter.
Turn on/off the ECO mode, under Cool/Dry mode.
Timer on or Timer off the unit.
Turn on/off the MUTE mode.
Indicates Cool, Dry, Fan, and Auto mode, respectively.
Indicates the unit is in Sleep mode.
Indicates the unit is in MUTE mode.
Indicates that there is a WiFi connection
Indicates Low, Medium, High, and Automatic fan speeds, respectively.
20
USING YOUR AIR CONDITIONER

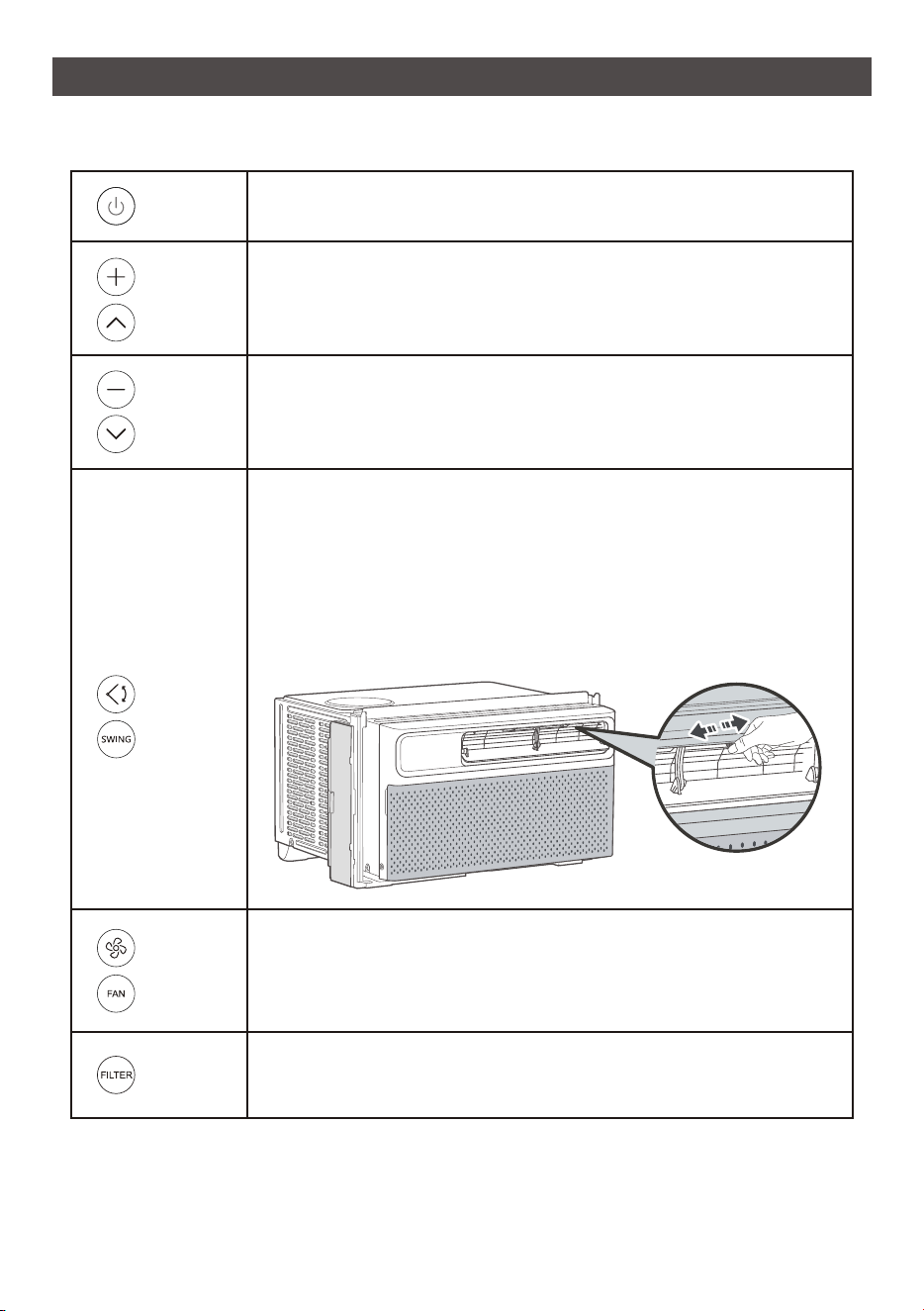

General Operations
Press to turn on the air conditioner or switch it to standby mode.
Press to increase the air conditioning
oo
temperature by 1 F/ C.
1.Press to make the louver move up and down.
2.Press again to stop the louver at the desired angle.
NOTE: To adjust the airflow direction horizontally, manually move
the levers located on top of the air outlet from side to side.
NOTE: Do not adjust the big vertial louver by hand, otherwise will
cause damage.
Power
Button
Swing/
Oscillation
Button
Decrease
Button
Increase
Button
Adjust Fan Speed
Press repeatedly to adjust fan speed: Low, Med, High, and Auto.
Press to decrease the air conditioning
oo
temperature by 1 F/ C.
Fan Speed
Button
NOTE:
- In Auto speed, fan speed will adapt to the room temperature.
- In Dry Mode, fan speed cannot be adjusted.
Reset Filter Reminder
To clean the filter, see page below.
Filter
Button
21
USING YOUR AIR CONDITIONER
Press repeatedly to cycle through Cool, Dry, Fan and Auto modes.
Cool Mode
- In Cool mode, the air conditioner cools the room to the desired
temperature.
- Temperature and fan speed are adjustable.
Dry Mode
- In Dry mode, the air conditioner works as a dehumidifier to remove
humidity in the room. The fan is constantly running at a low speed.
- Temperature and fan speed cannot be adjusted.
Fan Mode
- In Fan mode, the air conditioner circulates air like a normal fan.
Remember to open the vent during this function, but keep it closed
during cooling for maximum cooling efficiency.
- Fan speed can be set to Low, Med, or High.
- Temperature cannot be adjusted.
Auto Mode
- In Auto mode, the air conditioner adjusts its working mode
(Cool or Fan) automatically based on the room temperature.
- Temperature and fan speed cannot be adjusted.
- When the air conditioner is on standby/running, press the Timer
button and its icon will flash on the remote display. During the
flashing process, press + or - to select a timer from 0.5 to 24 hours,
then press the Timer button again to confirm the setting. After the
timer ends, the air conditioner will start/stop running
automatically.
- Turning the air conditioner ON or OFF at any time or adjusting the
timer setting to 0.0 hour will cancel the timer program.
In Eco mode, when the desired temperature is reached, the
compressor will turn off and the fan will continue to run for
3 minutes. Then the fan cycles on for 1 minutes at 5 minute intervals
until the room temperature is above the set temperature, at which
time the compressor turns back on and cooling restarts.
Mode
Button
Timer
Button (On
Remote
Control)
Eco Mode
Button (On
Remote
Control)
22
USING YOUR AIR CONDITIONER
In Sleep mode, the air conditioning temperature will adjust gradually
every 30 minutes to keep you comfortable while preventing overcooling.
After 10 hours, Sleep mode will exit automatically and the temperature
will return to the initial temperature.
NOTE: In Sleep mode, all the button sounds will be muted, and all the
indicators on the display will turn off after 15 seconds, except for the
Sleep mode indicator.
Long press 5 seconds to turn on or off MUTE mode.
- Turn on or off the display on the air conditioner.
oo
- Long press 5 seconds to switch between F/ C.
Sleep
Mode
Button (On
Remote
Control)
LED
Display
Button (On
Remote
Control)
Other Features
Filter Reminder
When the running time of the fan reaches 500 hours, the filter reminder will light up to
remind you to clean the filter. To clean the filter, see page below.
Display Auto Off
- Display will dim after 30 seconds (off after 15 seconds in sleep mode).
- Wake up the display with any button.
Memory
If the air conditioner is turned OFF and stays connected to the power, it will operate under
the previous settings (except the timer setting) when it is turned ON again.
Drain Water
After proper installation, condensate will not overflow during normal use.
If the fan hits the built-up water and the sound annoys you, please remove the cap located at
the back of the air conditioner to drain the water away.
NOTE: Removing the cap may affect the heat transfer efficiency.
23
Remote Control
For more information on how to use the remote and other functions of your air conditioning unit,
or to understand how each mode works, please refer to the next few pages.
Battery Replacement
The air conditioner comes with two batteries for the included remote control. Please be sure to
insert them correctly for proper use of the remote.
Tips for Using the Remote
1. The remote must be used within 26ft of the unit
2. The unit will make a sound when it receives the remote’s signal
3. Curtains, other materials, and even direct sunlight can interfere with the infrared signal
receiver.
4. Press “MODE” and “ ^” and hold for 3s to reset the wifi setting.
Note:
•
• Do not leave batteries in the remote if you do not plan on using the device for more than 2
months
• Follow your local city ordinances for information on proper disposal of old and used batteries.
Do not dispose of batteries in unsorted municipal waste.

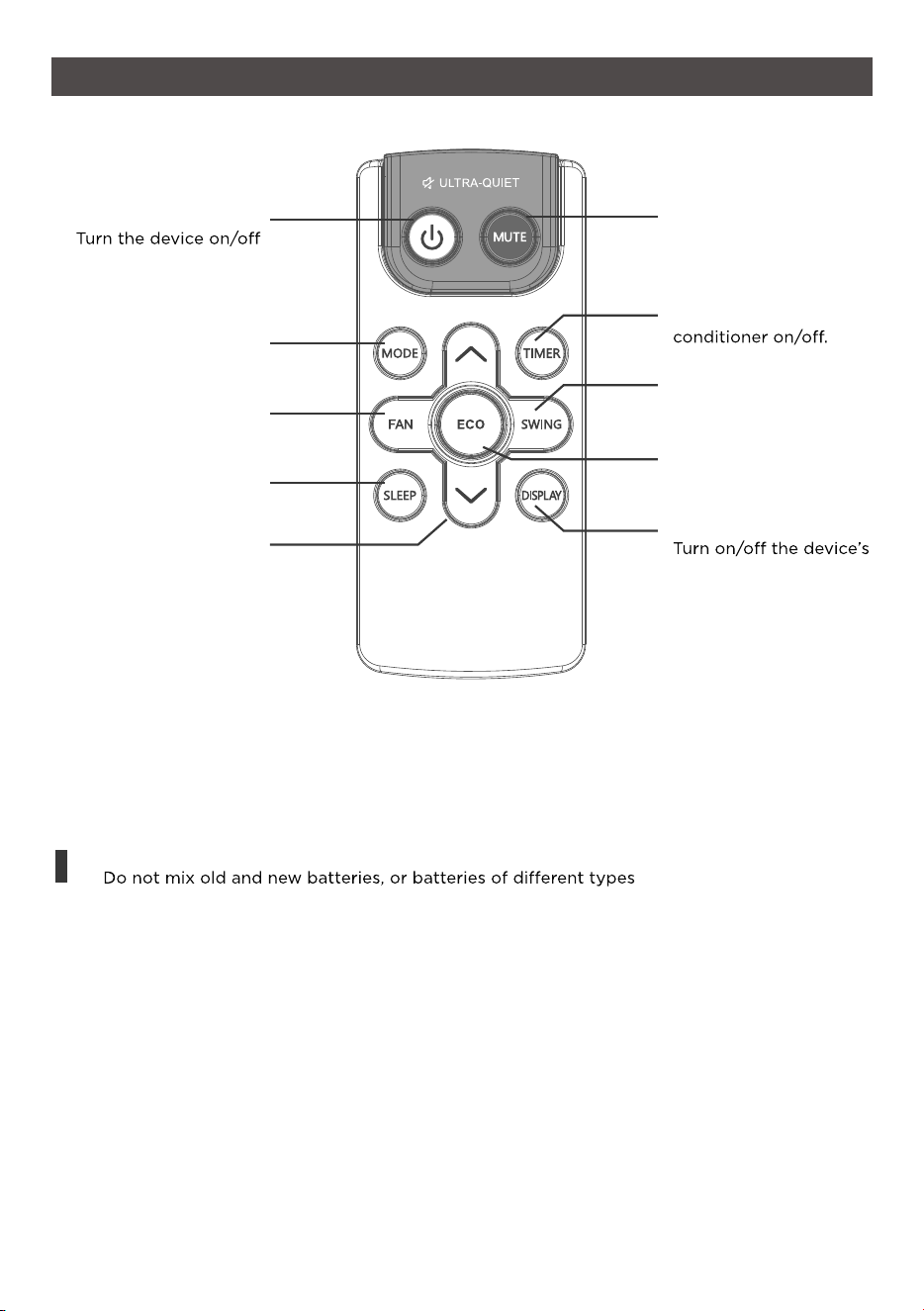

ECO MODE
Designed to save energy
while keeping your room
at the set temperature.
SWING
Start and pause vent
oscillation.
TIMER
Set a Timer to turn the air
MUTE
Select Mute to lower the
operating volume to its
quietest setting.
POWER
MODE
Cycle through Cool, Dry,
Fan, and Auto modes.
FAN SPEED
Adjust the fan speed (Low,
Medium, High, Auto)
SLEEP MODE
Designed to save energy
while your sleep.
UP/DOWN
Increased or decrease the
temperature/Timer.
DISPLAY
display. Press and hold
for 5s to switch between
°F/°C.
How to Control Your AC
24
CLEANING AND MAINTENANCE
Care and Cleaning
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit
before cleaning to prevent shock or fire hazards.
Air Filter Cleaning
The air filter should be checked at least once every month to see if it needs cleaning.
oo
Never use hot water over 104 F (40 C) to clean the air filter. Never attempt to operate the
unit without the air filter.
Trapped particles and dust can build up in the filter and may decrease airflow as well as
cause the cooling coils to accumulate frost. To clean the air filter:

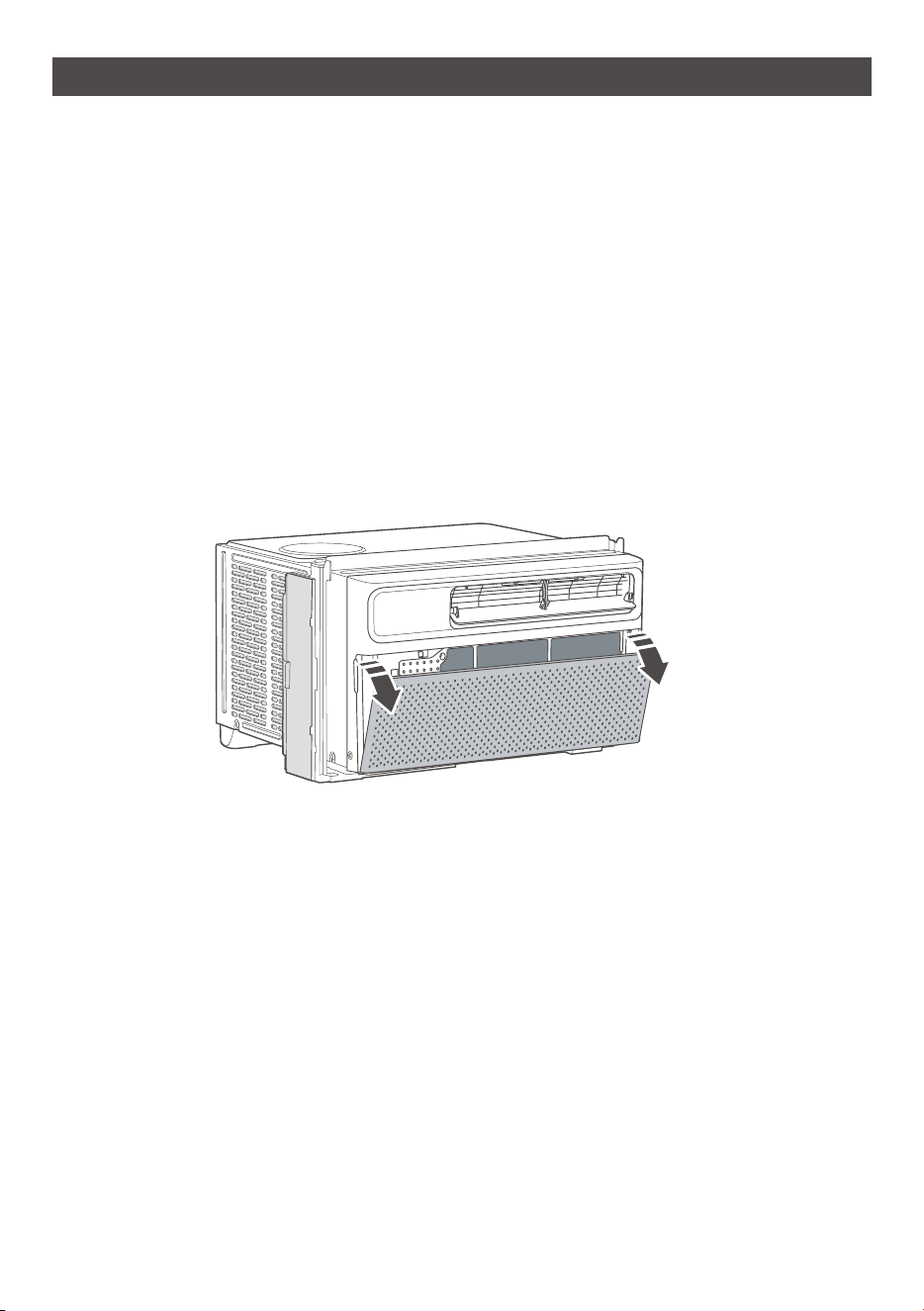

1. Pull the grille out from the indents on both sides at the front and remove the filter inside.
2. Wash the filter using liquid dish soap and warm water. Rinse the filter thoroughly.
Gently shake the filter to remove excess water.
3. Let the filter dry completely before placing it into the air conditioner.
4. If you do not wish to wash the filter, you may vacuum the filter to remove the dust and
other particles.
Cabinet Cleaning
To clean the air conditioner cabinet:
- Unplug the air conditioner to prevent shock or a fire hazard. The cabinet and front panel
of the air conditioner may be dusted with an oil free cloth or washed with a cloth dampened
in a solution of warm water and mild liquid soap. Rinse thoroughly with a damp cloth and
wipe dry.
- Never use harsh cleaners, wax or polish on the cabinet front.
- Be sure to wring excess water from the cloth before wiping around the controls. Excess
water in or around the controls may cause damage to the air conditioner.
Winter Storage
To store the air conditioner when it is not in use for an extended period of time, remove it
carefully from the window according to the installation instructions and cover it with plastic
or place it in the original box.
25
TROUBLESHOOTING
Possible Cause Solution
The air conditioner
is unplugged
Make sure the air conditioner plug is pushed
completely into the outlet.
The fuse is
blown/circuit
breaker is tripped
Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
Power failure
- The unit will automatically restart when power
is restored.
- There is a protective time delay (approx.
3 minutes) to prevent tripping of the
compressor overload. For this reason, the unit
may not start normal cooling for 3 minutes
after it is turned back on.
The current
interrupter device
is tripped
- Press the RESET button located on the power
cord plug.
- If the RESET button will not stay engaged,
discontinue use of the air conditioner and
contact a qualified service technician.
Air flow is restricted
Make sure there are no curtains, blinds or
furniture blocking the front of the air conditioner.
The temperature
control may not be
set correctly.
Lower the set thermostat temperature.
The air filter is dirty
Clean the filter. Refer to
CLEANING & MAINTENANCE.
The room may be too
warm
Please allow time for the room to cool down
after turning on the air conditioner.
Cold air is escaping
Check for open furnace registers and cold air
returns.
The cooling coils are
frozen
Switch to high fan speed and set the thermostat
to a higher temperature.
Temperature sensor
is not well situated.
Temperature sensor behind the air filter is
touching the coil.
Try to move it so it does not contact the cold coil.
Problem
The air conditioner
will not start
The air conditioner
does not cool as
it should
The air conditioner
is freezing up
Ice blocks the air
flow and stops the
air conditioner from
cooling the room
Switch to high fan speed and set the thermostat
to a higher temperature.
TROUBLESHOOTING
26
Possible Cause Solution
The batteries are
inserted incorrectly
Check the position of the batteries.
The batteries may
be dead
Replace the batteries.
Hot and humid
weather
This is normal.
The air conditioner is
not correctly tilted
outside
Improper installation. Tilt air conditioner
slightly to the outside to allow water drainage.
Refer to installation instructions.
Moisture removed
from the air is
draining into the
base pan
This is normal for a short period in areas with low
humidity and normal for a longer period in areas
with high humidity.
A "da-da" sound may
occur for 30 seconds
when the unit is
turned on due to the
compressor starting.
This is normal.
Problem
The remote
control is not
working
Water is dripping
INSIDE when the
unit is cooling
Noise when the
unit starts
Water is dripping
outside
Water is dripping
OUTSIDE when
the unit is cooling
