Page 1 of 6 REPORT NO.: BTEK240627009AS
TEST REPORT
California Energy Commission's Appliance Efficiency Regulations
Report Reference No. ..................... :
BTEK240627009AS
Date of Issue .................................... :
2024-07-02
Total number of pages ..................... :
6 pages
Tested by …………………………….:
Cary Gu / Test Engineer
Checked by …………………………..:
Vic Li / Project Engineer
Approved by …………………………:
Double Lee / Project Manager
Testing Laboratory ......................... :
Shenzhen BANTEK Testing Co.,Ltd.
Address ............................................ :
A5&A6, Building B1&B2, No.45 Gangtou Road, Bogang
Community, Shajing Street, Bao'an District, Shenzhen, Guangdong,
China518104
Applicant’s name ............................ :
NINGBO HYSOUND ELECTRONIC CO., LTD
Address ............................................ :
NO528, XIAOHE EAST ROAD, DONGQIAO TOWN, HAISHU
SECTION, NINGBO CITY, CHINA
Manufacturer’s name ..................... :
NINGBO HYSOUND ELECTRONIC CO., LTD
Address ............................................ :
NO528, XIAOHE EAST ROAD, DONGQIAO TOWN, HAISHU
SECTION, NINGBO CITY, CHINA
Test specification:
Standard ........................................... :
CALIFORNIA CODE OF REGULATIONS (CEC-140-2021-002)
Section 1605.3(v) Standards for Consumer Audio and Video
Equipment
Test procedure ................................. :
IEC 62087:2011, Methods of Measurement for the Power
Consumption of Audio, Video, and Related Equipment IEC
62301:2011, Household electrical appliances – Measurement of
standby power
Non-standard test method……….:
N/A
Test Report Form No. ....................... :
CEC-400-2021-002
Test Report Form(s) Originator ........ :
BANTEK Compliance Testing Laboratory
Master TRF ...................................... :
2022-05
This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or
trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples
identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from
which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the
tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of
issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice
shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time
shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report
contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or
non-compliance to the specification.
Page 2 of 6 REPORT NO.: BTEK240627009AS
Test item description .................... :
SPEAKER BOX
Trademark ...................................... :
PYLE
Model and/or type reference ........... ..:
PPHP1537UB, PPHP155ST，PPHP1237UB, PPHP1037UB,
PPHP837UB
Model difference ................................. :
Everything is the same except for the model name
Manufacturer name ............................ :
NINGBO HYSOUND ELECTRONIC CO., LTD
Manufacturer address ....................... :
NO528, XIAOHE EAST ROAD, DONGQIAO TOWN, HAISHU
SECTION, NINGBO CITY, CHINA
Factory name ..................................... :
NINGBO HYSOUND ELECTRONIC CO., LTD
Factory address ................................. :
NO528, XIAOHE EAST ROAD, DONGQIAO TOWN, HAISHU
SECTION, NINGBO CITY, CHINA
Rating(s) ........................................... :
Input: 110VAC 50/60Hz 3A
Note .................................................... :
N.A.
Copy of marking plate:
N/A.
Summary of testing:
The appliance complies with the requirements of CEC Appliance Efficiency Regulations for Consumer
Audio and Video Equipment.
Page 3 of 6 REPORT NO.: BTEK240627009AS
Test item particulars ..................................................:
Classification of installation and use ............................:
Class I equipment
Supply Connection .......................................................:
Non-detachable power supply cord
Possible test case verdicts:
- test case does not apply to the test object ... :
N/A
- test object does meet the requirement .......... :
P (Pass)
- test object does not meet the requirement ... :
F (Fail)
Testing:
Date of receipt of test item ................................. :
2024-06-28
Date (s) of performance of tests ....................... :
2024-06-28 to 2024-07-01
General remarks:
1.
"(see Enclosure #)" refers to additional information appended to the report. "(see appended table)" refers
to a table appended to the report.
2.
Throughout this report a comma is used as the decimal separator.
General product information:
1. This equipment is a SPEAKER BOX which is used with Audio similar electronic apparatus, It is
considered as a Class I equipment.
Page 4 of 6 REPORT NO.: BTEK240627009AS
1. GENERAL CONDITIONS FOR MEASUREMENT:
The ambient temperature:
23.7°C( Requirement: 25°C±10°C)
Relative humidity:
59% RH
Input voltage total harmonic
distortion(V%THD):
0.7% (Requirement: ≤ 5% (up to and
including the 13th harmonic))
Crest factor of input voltage:
1.42 (Requirement:1.34 - 1.49)
Test voltage
110 V
Test frequency
60 Hz
Remark:
1.
When determining for test conclusion, measurement uncertainty of tests has been considered.
2.
Measurements of power of 0.50 W or greater was made with an uncertainty of less than or equal to 2 %
at the 95 % confidence level.
3.
Measurements of power of less than 0.50 W was made with an uncertainty of less than or equal to
0.01 W at the 95 % confidence level.
4.
The power measurement instrument shall, as applicable, have a resolution of:
(1) 0.01 W or better for measurements up to 10 W;
(2) 0.1 W or better for measurements of 10 to 100 W; or
(3) 21 W or better for measurements over 100 W.
2. PRODUCT INFORMATION:
Consumer Audio and Video Equipment:
Digital Versatile Disc Players and Digital Versatile Disc Recorders
Compact Audio Products
3. TESTING REQUIREMENTS:
1. The test method for standby-passive mode for consumer audio and video equipment is International
Electrotechnical Commission (IEC) 62087:2011 – “Methods of Measurement for the Power Consumption of
Audio, Video, and Related Equipment.”
2. Consumer Audio and Video Equipment. The power usage of consumer audio and video equipment
manufactured on or after the effective dates shown shall be not greater than the applicable values in
Table V-2. For equipment that consists of more than one individually powered product, each with a
separate main plug, the individually powered products shall each have a power usage not greater than
the applicable values shown in Table V-2.
Page 5 of 6 REPORT NO.: BTEK240627009AS
4.TEST RESULT SUMMARY:
Standards for Consumer Audio and Video Equipment
Test Result
Verdict
Appliance Type
Maximum Power Usage
Standard Limit
(watts)
Compact Audio Products
Power Usage in Audio Standby-
Passive Mode for Models Without
a Permanently-Illuminated Clock
Display.
2
--
N
Power Usage in Audio Standby-
Passive Mode for Models With a
Permanently-Illuminated Clock
Display.
4
2.75
P
Digital Versatile Disc
Players and Digital
Versatile Disc Recorders
Power Usage in Video Standby-
Passive Mode (watts)
3
--
N
CONCLUSION: The appliance complies with the requirements of CEC Appliance Efficiency Regulations for
Consumer Audio and Video Equipment.
4. Equipment Used during Test:
Number
Model
designation
Measurement
Calibration date
Next Calibration
date
BS-126
WT310E
Power analyzer
2024-06-11
2025-06-10
BS-060
HTC-1
Digital temperature and
humidity meter
2024-06-11
2025-06-10
BS-277
RA200
Anemometer
2024-06-11
2025-06-10
Page 6 of 6 REPORT NO.: BTEK240627009AS

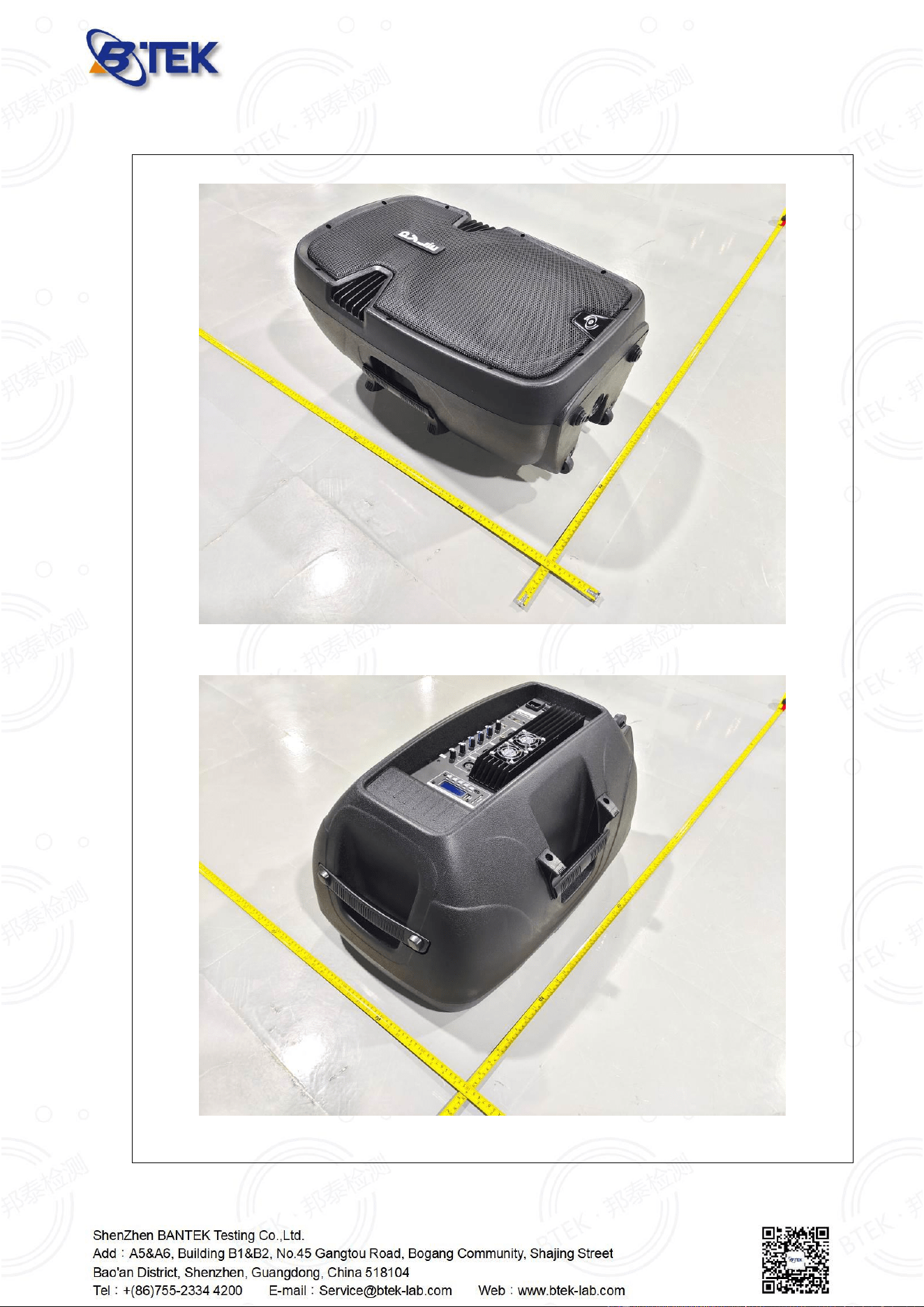

EUT Photo
View 1
View 2
---END OF REPORT---
