• Page 1 - English - : PRECAUTIONS 2191477A870B e PRECAUTIONS 21 General safety instructions 21 Installation 24 Appliance purpose 25 This user manual 25 Manufacturers liability 25 Identification plate 25 Disposal 25 To save energy 26 Information on power consumption in offstandby mode 26 How to read the user manual 26 DESCRIPTION 26 General description 26 Control panel 28 USE 28 Preliminary operations 28 Basic functions 28 Using the hob 28 CLEANING AND MAINTENANCE 33 Cleaning the glass ceramic hob 33 What to do if 33 INSTALLATION 34 Electrical connection 34 Section cut from the countertop 35 Mounting 36 Fixing to the builtin cabinet 37 Fixing brackets 37 Testing 37 Instructions for the installer 37 We advise you to read this manual carefully which contains all the instructions for maintaining the appliances aesthetic and functional qualities For further information on the product wwwsmegcom PRECAUTIONS General safety instructions Risk of personal injury During use the appliance and its accessible parts become very hot Keep children well away from the appliance The appliance becomes very hot during use Take care never to touch the heating elements Protect your hands by using oven gloves when handling hot pans Never try to put out a fire or flames with water turn off the appliance and smother the flames with a fire blanket or other appropriate cover This appliance may only be used by children aged 8 years and over and by people of reduced physical sensory or mental capacity or lacking in experience in the use of electrical appliances provided that they are supervised or have been given instructions on the safe use of the appliance and of the hazards associated with it Children must not play with the appliance Keep children below the age of 8 away from the appliance unless they are constantly supervised Keep children under the age of 8 away from the appliance when it is in use Cleaning and maintenance must not be carried out by unsupervised children Be aware of how rapidly the
• Page 2 - English - : 22 PRECAUTIONS 91477A870B cooking zones heat up Do not place empty pans on the heat Danger of overheating After use the cooking zones remain hot for a certain period of time after they have been turned off Do not touch the hob surfaces The cooking process must always kept under control A short cooking process must be continuously monitored WARNING Leaving food that contains fat and oil unattended when cooking can be dangerous and can cause a fire DO NOT attempt to extinguish a fire with water Turn off the appliance and smother the flames for example with a lid or a blanket Do not use the Booster andor the Double Booster functions if present to heat fats or oils Fire hazard Do not place metal objects such as dishes or cutlery on the surface of the hob during cooking as they may overheat Do not cook foods in closed tins or containers or plastic containers Do not insert pointed metal objects cutlery or utensils into the slots in the appliance Do not use or store flammable materials near the appliance Do not pour water directly onto very hot trays If you need to move food or at the end of cooking open the door 5 cm for a few seconds let the steam come out then open it fully Switch off the appliance immediately after use Do not pull the cable to unplug the appliance if present DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE STORAGE COMPARTMENT IF AVAILABLE OR NEAR THE APPLIANCE DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE DO NOT MODIFY THIS APPLIANCE Always wear personal protective equipment PPE before carrying out any work on the appliance installation maintenance positioning or moving Do not clean the appliance if it is still hot or in operation Before performing any work on the appliance switch off the power supply WARNING Make sure that the appliance has been switched off and disconnected from the mains power supply or that the mains power has been switched off before replacing the interior lighting bulbs
• Page 3 - English - : PRECAUTIONS 2391477A870B e The bulbs used in this appliance are specific for household appliances do not use them for home lighting Do not try to repair the appliance yourself or without the assistance of a qualified technician Installation and servicing should be carried out by qualified personnel in accordance with current standards If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards If cracks or fissures form or if the glass ceramic cooking surface breaks turn off the appliance immediately Disconnect the power supply and call Technical Support Do not touch or clean the hob surface during operation or when the residual heat indicator lights are still on Activate the controls lock when you have children or pets that could reach the hob Supervise children carefully as they cannot readily see the indication of residual heat After use the cooking zones remain hot for a certain period of time even if they have been turned off Keep children away from the cooking zones The appliance is not intended to operate with external timers or remotecontrol systems WARNING Only use a protective shield designed by the manufacturer of the cooking appliance The use of inadequate protective shields can lead to accidents Risk of damaging the appliance Do not use harsh or abrasive detergents or sharp metal scrapers to clean the glass door of the oven since they may scratch the surface and cause the glass to shatter Use wooden or plastic utensils Do not use steam jets to clean the appliance Do not use the appliance as a support surface Do not obstruct ventilation openings and heat dispersal slots Do not sit on the appliance Never leave the appliance unattended during cooking operations that could lead to oils and fats overheating and catching fire Be very careful Risk of fire Do not store objects on the cooking surfaces Do not spray any product near the appliance DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER Do not use plastic kitchenware or containers for cooking
• Page 4 - English - : 24 PRECAUTIONS 91477A870B Cooking vessels or griddle plates should be placed inside the perimeter of the hob All pans must have smooth flat bottoms If any liquid does boil over or spill remove the excess from the hob Take care not to spill acid substances such as lemon juice or vinegar on the hob Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt or catch fire paper plastic or aluminium foil on the appliance while it is in use Do not use steam jets to clean the appliance Place the cookware directly on the glass ceramic surface Do not put empty pans or frying pans on switched on cooking zones Do not use rough or abrasive materials or sharp metal scrapers Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating Do not use abrasive or corrosive detergents eg scouring powders stain removers and metallic sponges on glass parts The glass ceramic surface is highly resistant to impacts However avoid hard solid objects falling on the cooking surface as they may cause it to break Keep sensor buttons clean at all times and do not place any object on them To prevent scratching the glass surface avoid sliding pots across it Lift them and place them gently where needed instead Installation THIS APPLIANCE MUST NOT BE INSTALLED IN A BOAT OR CARAVAN This appliance must not be installed on a pedestal Always use any necessary required personal protective equipment PPE before performing any work on the appliance installation maintenance positioning or movement Check that the cabinet has the required slots Check that the cabinet material is heat resistant Installation and servicing should be carried out by qualified personnel in accordance with current standards Have the electrical connection performed by authorised technical personnel
• Page 5 - English - : PRECAUTIONS 2591477A870B e The appliance must be connected to earth in compliance with electrical system safety standards Use cables withstanding a temperature of at least 90 C The tightening torque of the screws of the terminal supply wires must be 15 2 Nm Be careful when connecting additional electrical appliances Connection cables must not come into contact with hot cooking zones The power cable must only be installed or replaced by a qualified technician Allow the appliance to be disconnected after installation via an accessible plug or a switch in the case of a fixed connection Fit the power line with an all pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations This appliance can be used up to a maximum altitude of 2000 metres above sea level Appliance purpose This appliance is intended for cooking food in the home environment Every other use is considered inappropriate It cannot be used in employee kitchens shops offices and other working environments in farmsfarmhouses by guests in hotels motels and residential environments In bed and breakfast accommodation This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the users reach for the whole working life of the appliance Read this user manual carefully before using the appliance The explanations in this manual include images which describe all that regularly appears on the display However it should be kept in mind that the appliance may be equipped with an updated version of the system and as such all that appears on the display may differ from those in the manual Manufacturers liability The manufacturer declines all liability for damage to persons or property caused by use of the appliance other than that specified failure to comply with the instructions in the user manual tampering with any part of the appliance use of nonoriginal spare parts Identification plate The identification plate bears the technical data serial number and brand name of the appliance Do not remove the identification plate for any reason Disposal This appliance conforms to the WEEE European directive 201219EU and must be disposed of separately from other waste at the end of its service life The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment in accordance
• Page 6 - English - : 26 DESCRIPTION 91477A870B with current European directives To dispose of the appliance Cut the power cable and remove it Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste or return it to the retailer when purchasing an equivalent product on a one for one basis Our appliances are packaged in nonpolluting and recyclable materials Deliver the packing materials to the appropriate recycling centre To save energy The diameter of the base of the pan must not extend beyond the lines printed on the glass ceramic surface Pans must not be placed outside the perimeter of the hob or on the display When buying a pan check whether the diameter indicated is that of the base or the top of the pan as the top is almost always larger than the base When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also helps to retain vitamins contained in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Information on power consumption in offstandby mode Technical data on the appliances power consumption in offstandby mode can be found at wwwsmegcom under the page corresponding to the product in question How to read the user manual This user manual uses the following reading conventions DESCRIPTION General description Power voltage Danger of electrocution Disconnect the mains power supply Unplug the appliance Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended Do not let children play with the plastic bags Under certain circumstances if the hob and the oven are used at the same time the maximum power limit of the electrical system might be exceeded WarningCaution InformationAdvice

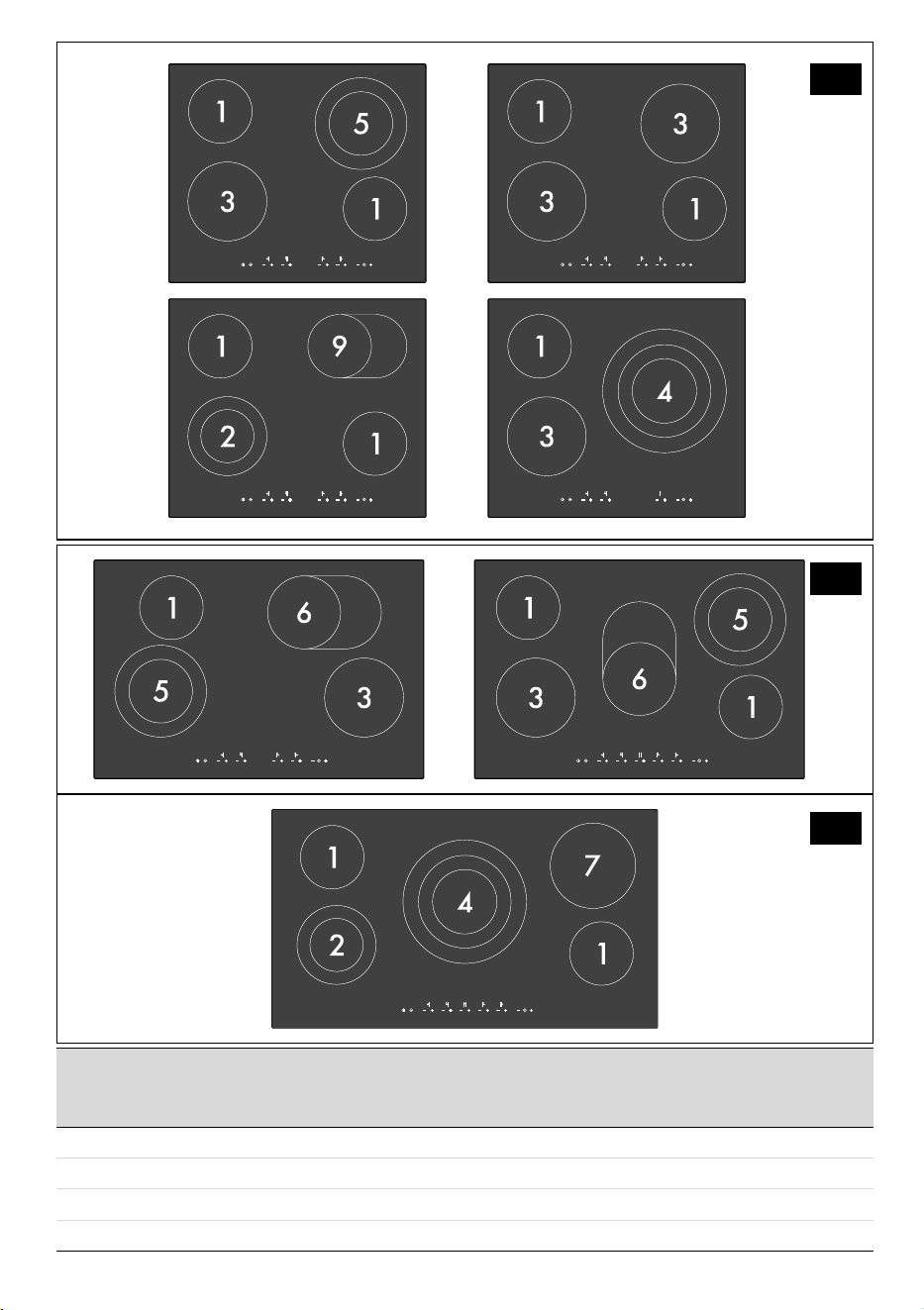

• Page 8 - English - : 28 USE 91477A870B Power levels are approximate and may vary according to the settings made and the mains voltage Control panel Symbols Cooking zones USE Preliminary operations Remove any protective film from the outside or inside of the appliance including any accessories if present Remove any labels apart from the technical data plate Basic functions First power connection When connected to the power supply for the first time or after power has been switched back on after a power failure an automatic check is carried out that control turns on the indicator lights and the displays for a few seconds Afterwards the appliance can be used normally Switching on and off To switch on the hob hold down the ONOFF key for 1 second If no cooking zone is activated within 5 seconds of switching on the hob switches off automatically Using the hob Switching on a single cooking zone 1 After switching on the hob use the Increase button to activate the required cooking zone The symbol appears on the display 5 214 2200 148 1000 6 oval plate 2200 170 1400 71992000 8 184 1700 124 700 9 oval plate 2000 148 1100 Zone Outer diameter mm Maximum power draw W Inside diameter mm Maximum power draw W Middle diameter mm Maximum power draw W ONOFF button Turns the hob on or off Control lock button Activates or deactivates the controls lock if pressed for 3 seconds Increase button Increases the power level or cooking time Decrease button Reduces the power level or cooking time Timer button Activates the timer for the automatic shutdownminute minder function Front left Rear left Central Rear right Front right Central right Front 30 cm model only Rear 30 cm model only See General safety instructions
• Page 9 - English - : USE 2991477A870B e 2 Press the Increase button again The or symbol appears on the display to indicate that the cooking zone is on at maximum power 3 Press the Increase or Decrease buttons to increase or decrease the power level Switching on the double triple cooking zone 1 After setting the maximum power or press the Increase buttons An illuminated dot appears on the display next to the power setting to indicate that the internal cooking zone or is on For a triple cooking zone if present 2 Press the Increase button again to completely activate the cooking zone The illuminated dot flashes on the display next to the power setting to indicate that the entire cooking zone or is on To modify the power level both zones 3 Use the Increase and Decrease buttons to increase or decrease the power level Melting function To activate the Melting function first turn on the hob then 1 After having set the power to press the Increase button appears on the display 2 Press the increase button again appears on the display Residual heat If the cooking zone is still hot after being switched off the symbol will be displayed on the display Accelerator This function can be used to reach the selected heating level more quickly The cooking zones will start at maximum power Once the selected power level is reached power is reduced 1 Use the Increase and Decrease buttons to select a power level ranging between 1 and 9 also in double or triple mode 2 Press the Increase and Decrease buttons simultaneously for the cooking zone on which you wish to activate the accelerator function The display alternately shows and the power level that has just been selected Controls lock The controls lock is a device that protects the appliance from accidental or inappropriate use Useful for preventing accidental changes to set cooking values the lock can be activated while the hob is on or off When the cooking zone is off it cannot be activated by pressing the Decrease button If the Increase button is pressed when the cooking zone is on maximum power the cooking zone switches off If the Increase button is pressed when the cooking zone is on maximum power the cooking zone switches off This function can be used to melt food such as butter and chocolate Power level Heating times with the function activated min
• Page 10 - English - : 30 USE 91477A870B 1 After switching on the hob press the Controls lock button for at least 2 seconds An illuminated dot appears on the button to indicate that the controls are locked Pressing any button will cause or to be displayed depending on the model 2 Press the Controls lock button for at least 2 seconds The lighted dot above the symbol switches off to indicate that the controls have been unlocked and any button can be pressed Minute minder timer on some models only This function allows you to set a minute minder timer which will sound a buzzer at the end of the preset time from 1 to 99 minutes 1 Press the Timer button when the appliance is off appears on the display to indicate that the timer can be modified 2 Use the and buttons to set the required minute minder time press and hold to set the time more quickly 3 At the end of the set time the hob will warn the user with a series of buzzers To stop this buzzer press the Timer button 4 To deactivate the minute minder timer during the countdown zero its value using the Decrease button When appears on the display the timer is deactivated Automatic shutdown timer on some models only This function allows you to set a minute minder timer which will sound a buzzer at the end of the preset time from 1 to 99 minutes 1 Press the Timer button when the appliance is off The display shows to indicate that the timer can be modified 2 Press the Timer button again If at least one cooking zone is active a lighted dot comes on under the controls of the first active zone from left to right 3 Use the Increase and Decrease buttons to set the required automatic shut down time hold the buttons down to advance more quickly or select an additional cooking zone using the Timer button 4 To modify the set time press the Timer button until an illuminated dot appears under the controls of the cooking zone for which you wish to make the modification 5 At the end of the previously set time the hob deactivates the cooking zone and warns the user with a series of buzzes Press any button to stop the indication Secondary menu The hob has a secondary menu for activating or deactivating certain parameters 1 Automatic controls lock activating this mode will cause the controls lock to activate automatically one minute after the last operation by the user 2 Showroom activating this mode will cause the appliance to deactivate all the heating elements while keeping the control panel active useful for instore demonstration purposes Every minute appears for one second on the display To use the hob normally set this mode to 3 ECOLogic on some models only when activating this mode the hob electronics will automatically adjust the power levels to stay within the set maximum power draw 3 or 4 kW To use the hob at maximum power this mode has to be set to When installing for the first time within two minutes of turning powering on to the hob hold down the Increase and Decrease buttons for the first cooking zone the one near For safety reasons the ONOFF button remains active with at least one cooking zone switched on The entire hob can be switched off at any time even if the controls lock is active If the automatic shutdown timer is activated and no cooking zone is active it functions like a minute minder timer
• Page 11 - English - : USE 3191477A870B e the symbol The cooking zone display shows the number of the setting currently being modified 1 Automatic controls lock 2 Showroom 3 ECOlogic with its setting at the side activated deactivated For example indicates that the automatic controls Lock is deactivated Press the Increase or Decrease buttons to change the settings to or If the ECOlogic parameter is modified you can select the following values 3 kW 4 kW maximum power draw To change the subsequent settings press the Controls lock button Advice on energysaving The diameter of the base of the pan must correspond to the diameter of the cooking zone When buying a pot check whether the diameter indicated is that of the base or the top as the top is almost always larger than the base The base of the cookware must be thick and completely flat In addition the hob should be clean and dry as well When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also makes it possible to preserve the vitamins in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover the pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Do not use castiron cookware or cookware with a rough base If the hob is already installed and in use cut the power supply to the hob Switch the power back on and proceed as indicated above within two minutes If hob and oven are being used at the same time under certain conditions the maximum power limit that can be used by your electrical system might be exceeded
• Page 12 - English - : 32 USE 91477A870B Cooking information table Limiting the cooking duration The hob has an automatic device which limits the duration of use If the cooking zone settings are not changed the maximum duration of operation for each zone depends on the power level selected When the device for limiting the duration of use is activated the cooking zone turns off a short beep will be emitted and if the zone is hot the symbol appears on the display Protection from overheating If you are using the hob at full power for a long time for the electronics it could be difficult to cool down especially if the room temperature is high In this case a device activates to disconnect the power to the front cooking zones and flash on the display If the temperature of the electronic circuit board does not decrease the device will disconnect power to all the cooking zones and will appear on the display on some models only Cooking can be resumed once the temperature returns below alarm levels Other functions If you press three or more controls at the same time or for a long period eg due to accidentally placing a saucepan on them or due to an overflow of liquid an automatic device deactivates all the cooking zones if they are on and the display will show error Power lev el Cooking mode Suitable for 0 OFF setting Off U Dishwarming Warming up dishes Cooking small amounts of food mini mum power Melting butter chocolate or similar products 2 Cooking small amounts of food Keeping small amounts of water on the boil whisk egg yolk sauces or butter 34 Normal cooking Heating solid or liquid food keeping water on the boil defrosting deepfrozen food cooking 2 or 3 egg omelettes fruit and vegetable dishes various cook ing processes 5 Cooking large amounts of food Keeping water on the boil cooking 4 or 6 egg omelettes fruit and vegetable dishes various cooking processes 6 Cooking large amounts of food roast Stewing meat fish and vegetables simmering food making jams etc 78 Roasting larger pieces frying with flour Roasting meat fish steaks and liver sautéing meat fish eggs etc 9P Roasting browning cooking maximum power Deepfrying potatoes etc or bringing water to the boil rapidly Power level Maximum cooking time min U 600 1 600 2 360 3 300 4 240 5 180 6 120 7 120 8 120 P70
• Page 13 - English - : CLEANING AND MAINTENANCE 3391477A870B e CLEANING AND MAINTENANCE Cleaning the glass ceramic hob Cleaning the surfaces To keep the surfaces in good condition they should be cleaned regularly after use Let them cool first Ordinary daily cleaning Always and only use specific products that do not contain abrasives or chlorinebased acids Pour the product onto a damp cloth and wipe the surface rinse thoroughly and dry with a soft cloth or a microfibre cloth Weekly cleaning Clean and maintain the hob once a week using an ordinary glass ceramic cleaning product Always follow the manufacturers instructions The silicon in these products creates a protective waterrepellent membrane which also resists dirt All marks stay on the membrane and can therefore be removed easily After cleaning dry the surface with a clean cloth Make sure that there is no detergent left on the cooking surface as it might undergo an aggressive reaction when heated up and could modify the structure of the cooking surface Food stains or residues Light coloured marks from pans with aluminium bases can be easily cleaned off with a cloth moistened in vinegar Remove any burnton residues after cooking then rinse with water and dry thoroughly with a clean cloth Dirt which may have fallen on the hob while cleaning lettuce or potatoes can scratch the hob when moving pans Consequently remove any dirt from the cooking surface immediately Changes in colour do not affect the operation and stability of the glass These are not alterations to the material of the hob but just residues which have not been removed and have then carbonised Shiny surfaces can form due to the bases of pans especially aluminium ones rubbing on the surface and due to the use of unsuitable detergents They are difficult to remove using conventional cleaning products It may be necessary to repeat the cleaning process several times Use of corrosive detergents or rubbing of pan bases can wear away the decoration on the hob over time and contribute to the formation of stains What to do if The hob does not work Make sure that the hob is connected and that the main switch is turned on Make sure that there is no power failure Make sure that the fuse has not blown In this case replace the fuse Make sure that the circuit breaker of the residential electrical system has not tripped In this case reset the circuit breaker The cooking results are unsatisfactory Make sure that the cooking temperature is not too high or too low Make sure that the hob has proper ventilation and that the air intakes are completely free The hob smokes Let the hob cool down and clean it once cooking is complete Make sure that the food has not spilled out of the pan and use a larger cooking vessel if needed The fuses blow or the circuit breaker of the residential electrical system trips repeatedly Call Technical Support or an electrician There are cracks or fissures in the hob Turn off the appliance immediately disconnect the power supply and contact Technical Support See General safety instructions In case of stubborn dirt clean when cold using a damp kitchen sponge and neutral detergent then dry with a microfibre cloth We recommend the use of cleaning products distributed by the manufacturer After cleaning dry the appliance thoroughly to prevent any water or detergent from interfering with its operation or creating unsightly marks

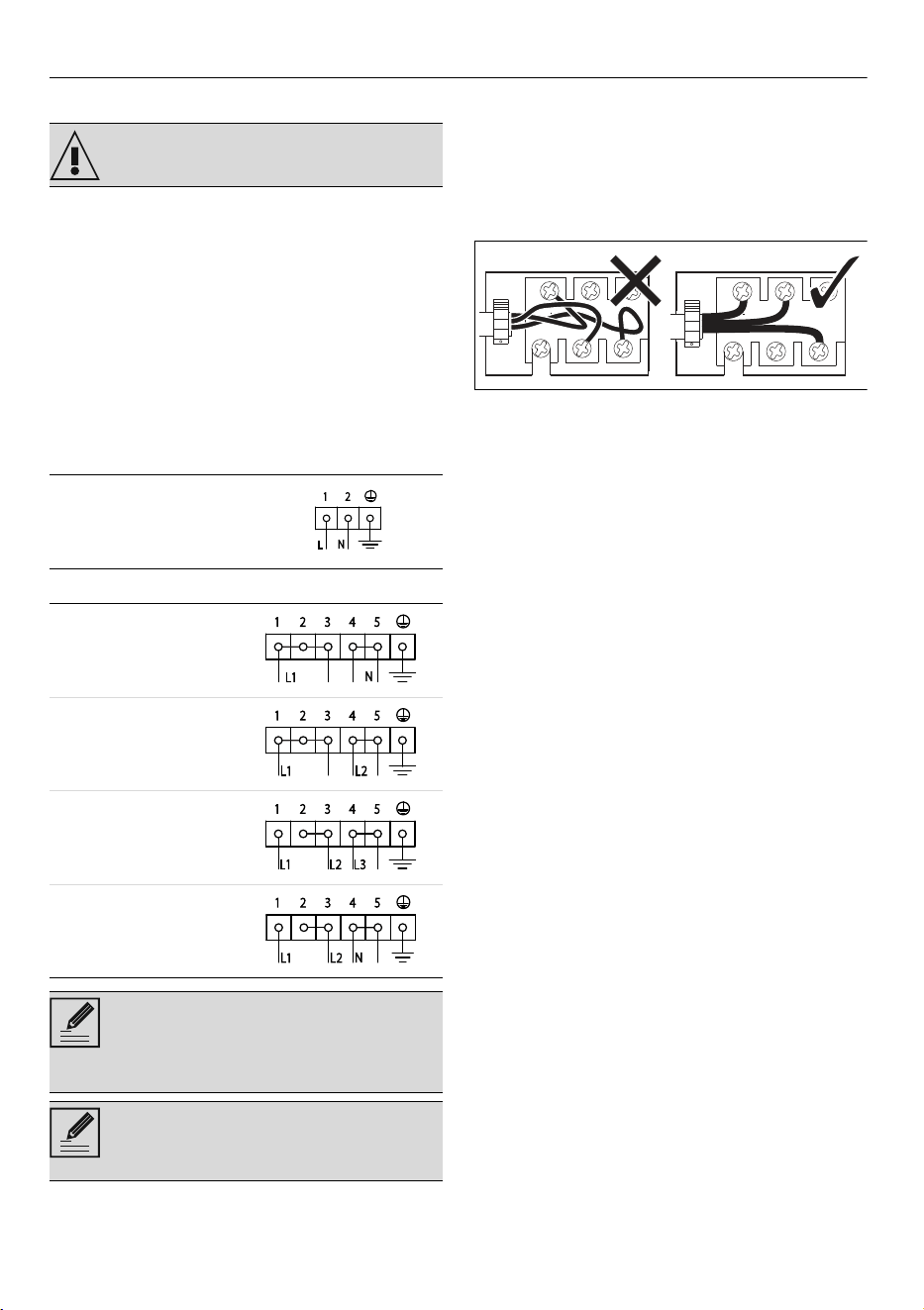

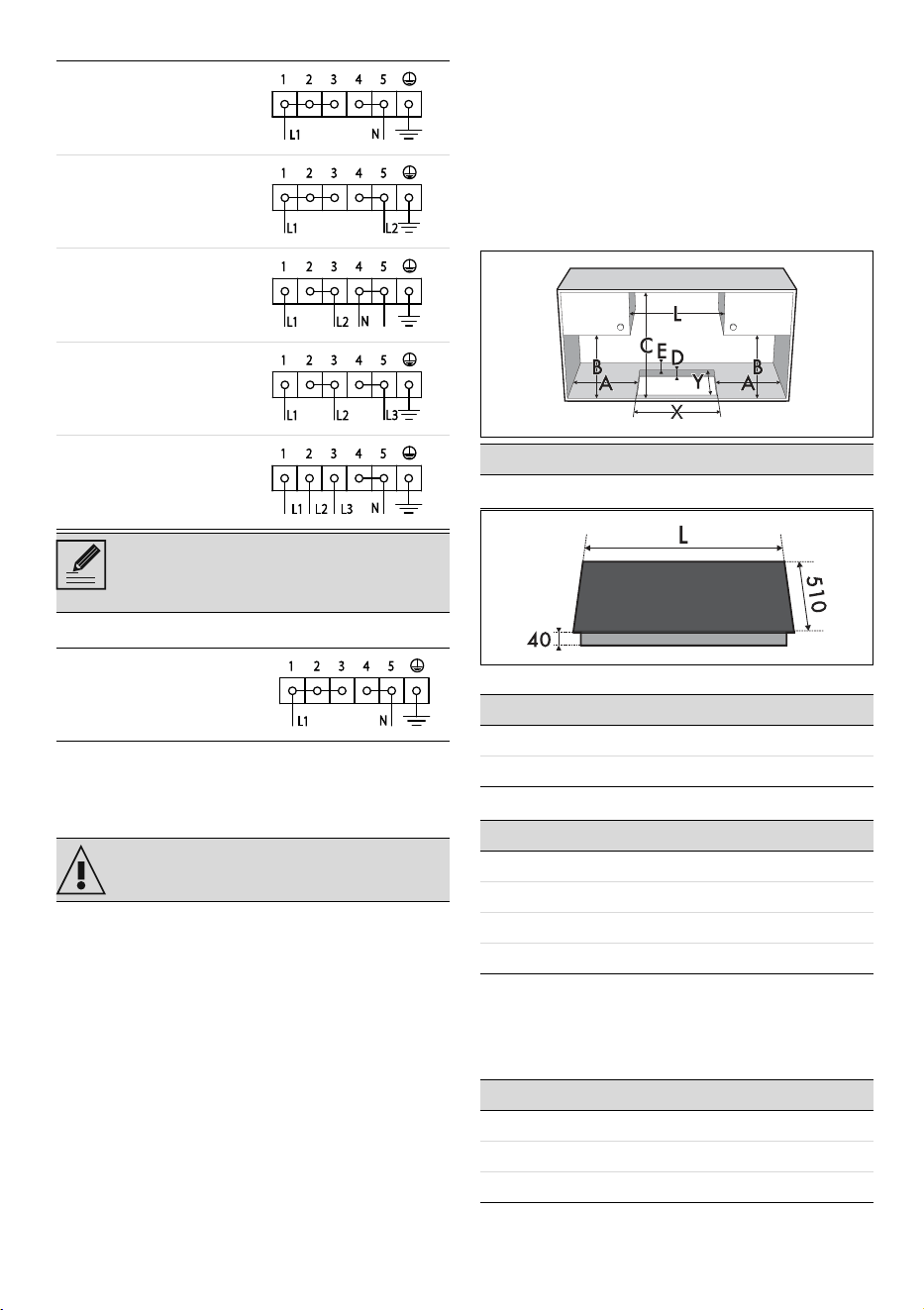

• Page 14 - English - : 34 INSTALLATION 91477A870B INSTALLATION Electrical connection General information Check the mains characteristics against the data indicated on the plate The identification plate bearing the technical data serial number and brand name is visibly positioned on the appliance Do not remove this plate for any reason The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires Terminal block connection Arrange the cables in an orderly manner to avoid overlapping or contact with any jumpers The cables must be of the correct length to avoid builduptwisting inside the terminal box The appliance can work in the following modes 30 cm models 60 cm models See General safety instructions 220240 V 1N 3 x 15 mm ² threecore cable 220240 V 1N 5 x 25 mm ² fivecore cable 220240 V 2 5 x 25 mm ² fivecore cable 220240 V 3 5 x 25 mm ² fivecore cable 380415 V 2N 5 x 25 mm ² fivecore cable The aforementioned power cables are sized taking into account the coincidence factor in compliance with standard EN 6033526 Always use the jumper provided if any for each connection terminals 2 and 3 4 and 5 must always be connected

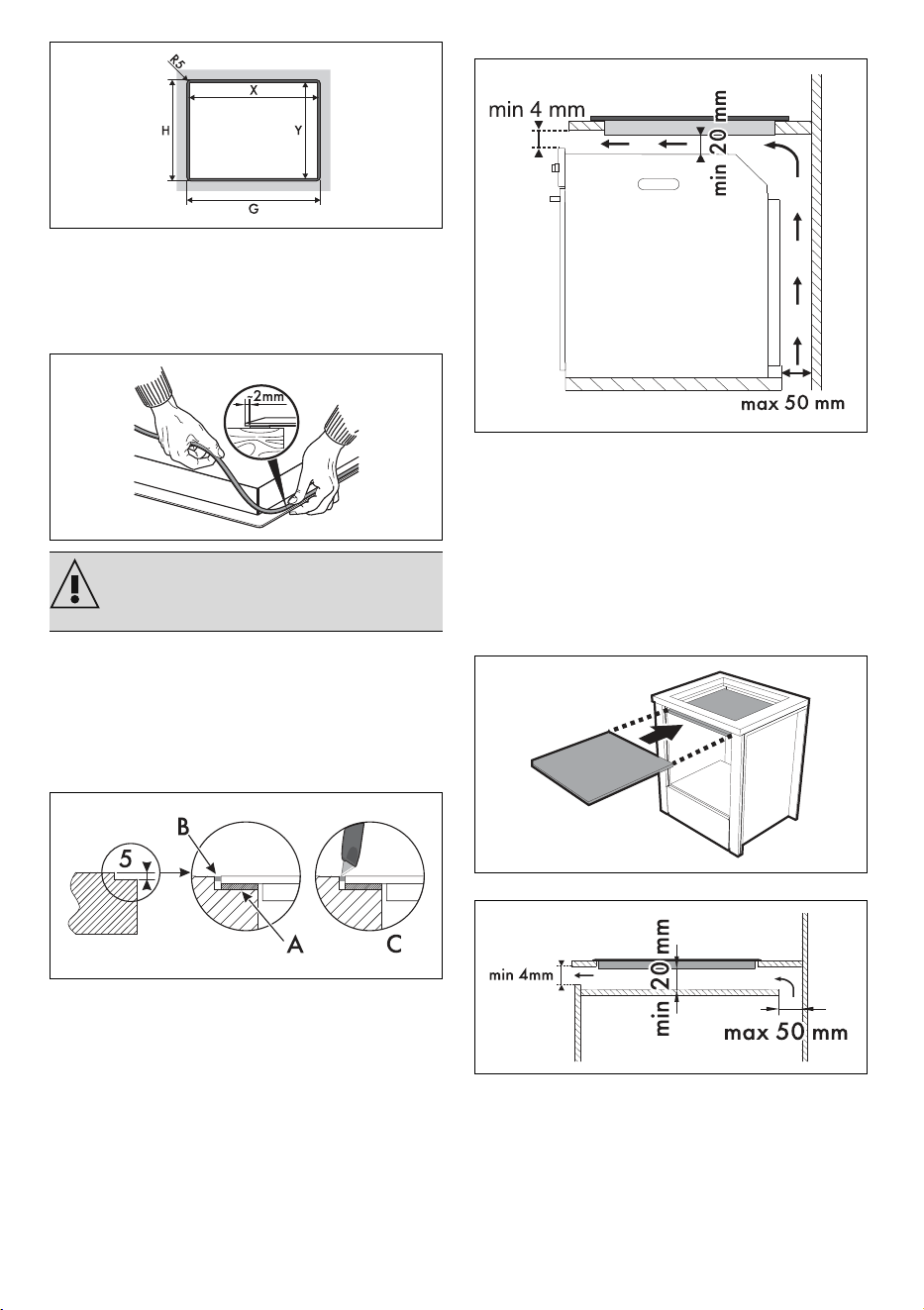

• Page 15 - English - : INSTALLATION 3591477A870B e 60 77 90 cm models 60 90 cm models limited to 3 kW Section cut from the countertop Safety instructions for positioning and installation Installation can be carried out on various materials such as masonry metal solid wood or plastic laminated wood as long as they are heat resistant gt90C Veneers adhesives or plastic coatings on adjacent furniture should be temperature resistant gt90C otherwise they might warp over time If the piece of furniture does not have the required recess opening either it will have to be cut or masonry work carried out by a competent technician The minimum clearance between exhaust hoods and the cooking surface must be at least the distance indicated in the exhaust hood installation instructions The minimum clearances must also be respected for the edges of the hob on the back as indicated in the assembly instructions If the appliance is to be installed above an oven the oven must be fitted with a cooling fan Appliance overall dimensions mm with frame with bevelled edge with straight edge For this kind of hobs additional milling is needed in the recessed hole if you wish to install the hob flush with the work surface 220240 V 1N 3 x 6 mm ² threecore cable 220240 V 2 3 x 6 mm ² threecore cable 380415 V 2N 4 x 4 mm ² fourcore cable 220240 V 3 4 x 4 mm ² fourcore cable 380415 V 3N 5 x 25 mm ² fivecore cable Always use the jumper provided if any for each connection terminals 4 and 5 must always be connected 220240 V 1N 3 x 15 mm ² threecore cable See General safety instructions A B C D E min 50 min 460 min 750 2060 min 50 L X Y 570 560 500 760 750 500 L X Y 300 270 490 600 565 490 770 745 490 900 850 490 L X Y G H 600 565 490 604 514 770 745 490 774 514 900 865 490 904 514
• Page 16 - English - : 36 INSTALLATION 91477A870B Hob seal To prevent leakage of liquid between the frame of the hob and the countertop place the adhesive seal provided along the entire outer edge of the hob before assembly In the case of flush mounting after placing the adhesive seal A on the glass surface and after positioning and securing the hob fill the edges with insulating silicone B and wipe off any excess If for any reason the hob needs to be removed cut the silicone using a cutter before attempting to remove it C Mounting On top of oven builtin unit The clearance between the hob and the kitchen furniture or other installed appliances must be enough to ensure sufficient ventilation and air discharge If installed above an oven a space must be left between the bottom of the hob and the top of the appliance installed below On top of empty kitchen unit or drawers If there are other pieces of furniture lateral walls drawers etc dishwashers or fridges under the hob a doublelayer wooden base must be installed at least 20 mm from the bottom of the hob to avoid any accidental contact It must only be possible to remove the doublelayer base using suitable equipment opens on bottom Do not use silicone to secure the hob This would make it impossible to remove the hob without damaging it

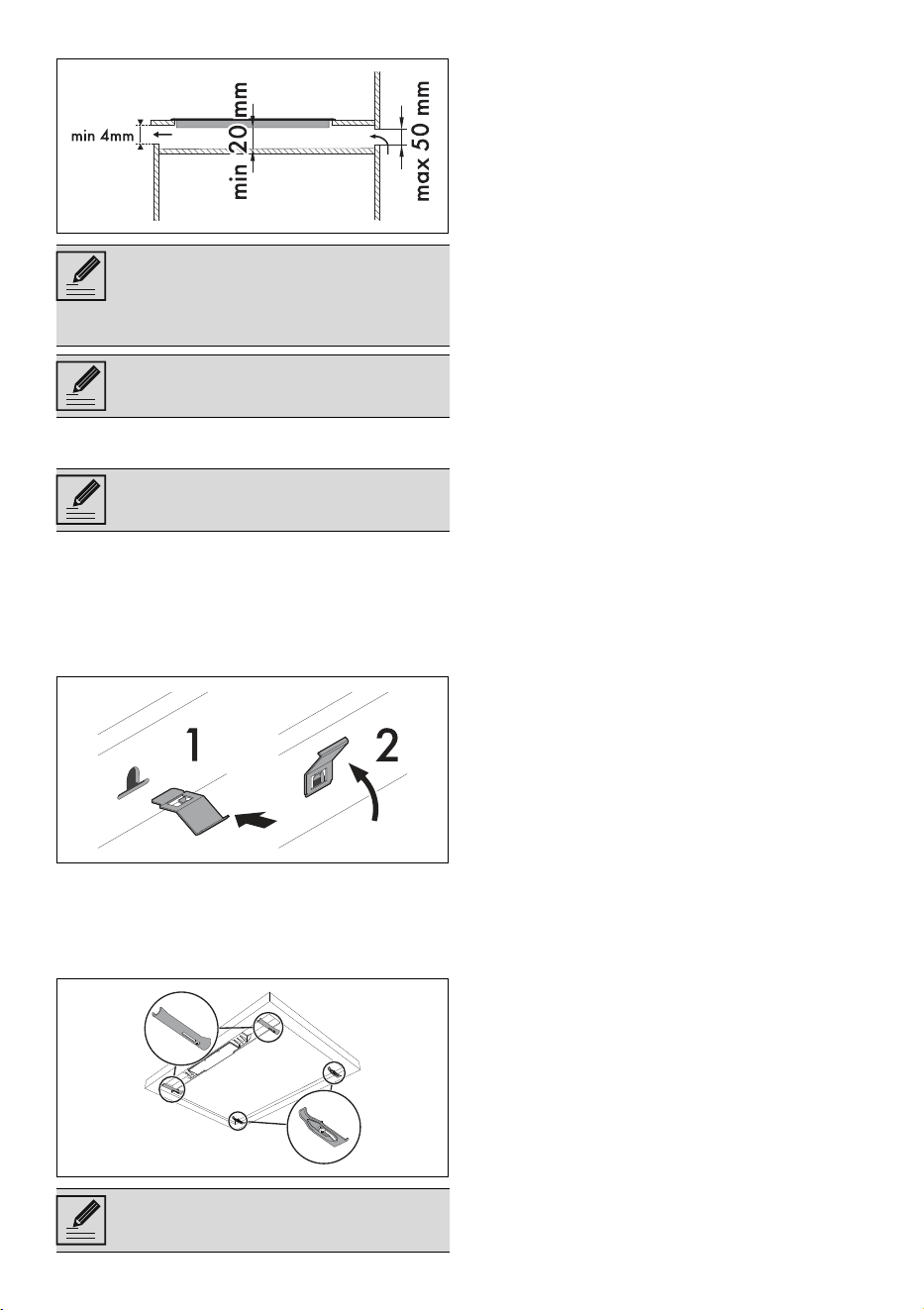

• Page 17 - English - : INSTALLATION 3791477A870B e opens on rear Fixing to the builtin cabinet To ensure the hob is fixed and centred as accurately as possible the clips provided must be positioned as described below 1 Fit the clips by gently pressing them horizontally into the appropriate space 2 Then turn them upwards to fix them in place Fixing brackets Screw the mounting brackets into the holes on the sides of the bottom casing to fasten the hob correctly to the structure Fixed connection Fit the power line with an allpole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations For the AustralianNew Zealand market The circuit breaker incorporated in the fixed connection must comply with ASNZS 3000 Testing At the end of installation carry out a brief inspection test If it fails to work after making sure that you have carried out the instructions correctly contact Technical Support Instructions for the installer If you use a plug if present to connect to the power supply the plug must be accessible after installation Do not bend or trap the power cable The appliance must be installed according to the installation diagrams If the appliance does not work correctly after having carried out all the checks contact your local Authorised Service Centre Once the appliance has been installed please explain to the user how to use it correctly Failure to install the doublelayer wooden base exposes the user to possible accidental contact with sharp or hot parts If installed on top of an oven the latter must be equipped with a cooling fan The clips should not be installed at the front of the appliance If tightened too much the glass may be strained and crack
