• Page 1 - English - : 28 PRECAUTIONS 91477B277B PRECAUTIONS 28 General safety instructions 28 Installation 31 Appliance purpose 32 This user manual 32 Manufacturers liability 32 Identification plate 33 Disposal 33 To save energy 33 Information on power consumption in offstandby mode 33 How to read the user manual 33 DESCRIPTION 34 General description 34 Control panel 34 USE 36 Basic functions 36 Preliminary operations 36 Using the hob 38 Additional functions 41 Special functions 42 User menu 44 Error notifications 46 CLEANING AND MAINTENANCE 46 Cleaning the glass ceramic hob 46 What to do if 46 INSTALLATION 47 Electrical connection 47 Section cut from the countertop 48 Mounting 49 Ventilation 50 Fixing to the builtin cabinet 50 Instructions for the installer 50 We advise you to read this manual carefully which contains all the instructions for maintaining the appliances aesthetic and functional qualities For further information on the product wwwsmegcom PRECAUTIONS General safety instructions Risk of personal injury During use the appliance and its accessible parts become very hot Keep children well away from the appliance Protect hands with heat resistant gloves during use Never try to put out a fire or flames with water Turn off the appliance and smother the flames with a fire blanket or other appropriate cover This appliance may only be used by children aged 8 years and over and by people of reduced physical sensory or mental capacity or lacking in experience in the use of electrical appliances provided that they are supervised or have been given instructions on the safe use of the appliance and of the hazards associated with it Children must not play with the appliance Keep children under the age of eight at a safe distance unless they are constantly supervised Keep children under the age of 8 away from the appliance when it is in use Cleaning and maintenance must not be carried out by unsupervised children Be aware of how rapidly the cooking zones heat up Do not place empty pans on the heat
• Page 2 - English - : PRECAUTIONS 2991477B277B e Danger of overheating Activate the controls lock when you have children or pets which could reach the hob Do not touch or clean the hob surface during operation or when the residual heat indicator lights are still on After use switch off the plates Never rely solely on the cookware detector Supervise children carefully as they cannot readily see the residual heat indication After use the cooking zones remain hot for a certain period of time even if they have been turned off Keep children away from the cooking zones The cooking process must always kept under control A short cooking process must be continuously monitored WARNING Cooking foods containing fat andor oil without monitoring them can be dangerous and can cause a fire Fats and oils can catch fire if they overheat Do not leave the appliance unattended while preparing foods containing oils or fats If fats or oils catch fire never put water on them Place the lid on the pan and turn off the relevant cooking zone Do not use the Booster andor the Double Booster functions if present to heat fats or oils Fire hazard Do not place metal objects such as dishes or cutlery on the surface of the hob during cooking as they may overheat Do not cook foods in closed tins or containers or plastic containers Do not use magnetic tins Do not use trivets or other items between the bottom of the pan and the glass ceramic surface Danger of burns Do not insert pointed metal objects cutlery or utensils into the slots in the appliance Do not use or store flammable materials near the appliance or directly underneath the hob Switch off the appliance immediately after use Do not pull the cable to unplug the appliance if present DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE DO NOT MODIFY THIS APPLIANCE Always wear personal protective equipment PPE before carrying out any work on the appliance installation maintenance positioning or moving Do not clean the appliance if it is still hot or in operation After use the cooking zones remain hot for a certain period
• Page 3 - English - : 30 PRECAUTIONS 91477B277B of time after they have been turned off Do not touch the hob surfaces Before performing any work on the appliance switch off the power supply Do not try to repair the appliance yourself or without the assistance of a qualified technician If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards If cracks or fissures form or if the glass ceramic cooking surface breaks turn off the appliance immediately Disconnect the power supply and call Technical Support People who have pacemakers or other similar devices fitted must make sure that the operation of these devices is not affected by the induction field the frequency range of which is between 20 and 50 kHz In conformity with the provisions regarding electromagnetic compatibility the electromagnetic induction cooking hob comes under group 2 and class B EN 55011 Risk of damaging the appliance Do not use abrasive or corrosive detergents eg scouring powders stain removers and metallic sponges on glass parts Use wooden or plastic utensils Do not sit on the appliance Do not use the glass ceramic cooking surface as a support surface Do not use the appliance as a support surface Do not obstruct ventilation openings and heat dispersal slots Do not use the hob if the pyrolytic cycle is taking place inside any oven installed below Do not use steam jets to clean the appliance Never leave the appliance unattended during cooking operations where fats or oils could be released as these could then heat up and catch fire Be very careful Fire hazard Never leave objects on the cooking surfaces DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER Cooking vessels or griddle plates should be placed inside the perimeter of the hob All pans must have smooth flat bottoms If any liquid does boil over or spill remove the excess from
• Page 4 - English - : PRECAUTIONS 3191477B277B e the hob Take care not to spill acid substances such as lemon juice or vinegar on the hob Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt or catch fire paper plastic or aluminium foil on the appliance while it is in use Place the cookware directly on the glass ceramic surface Do not put empty pans or frying pans on switched on cooking zones Do not use rough or abrasive materials or sharp metal scrapers The glass ceramic surface is highly resistant to impact However prevent hard solid objects from falling on the cooking surface as they may cause it to break Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating This appliance is not intended to be operated by means of external timer or separate remote control system To prevent scratching the glass surface avoid sliding pots across it Lift them and place them gently where needed instead Installation THIS APPLIANCE MUST NOT BE INSTALLED IN BOATS OR CARAVANS This appliance must not be installed on a dishwasher Position the appliance into the cabinet cutout with the help of a second person Check that the carcase has the required openings Check that the carcase material is heat resistant Installation and servicing should be carried out by qualified personnel in accordance with current standards Have the electrical connection performed by authorised technical personnel The appliance must be connected to earth in compliance with electrical system safety standards Use cables that can withstand temperatures of at least 90C Run the power cable in the rear part of the unit Make sure that it does not come into contact with the lower part of the hob or a builtin oven below it Be careful when connecting additional electrical appliances Connection cables must not come into contact with hot cooking zones The tightening torque of the
• Page 5 - English - : 32 PRECAUTIONS 91477B277B screws of the terminal supply wires must be 12 15 Nm Do not attach the appliance too tightly to the unit as this could cause damage during use or partially obstruct the heat dispersal slots The power cable must only be installed or replaced by a qualified technician If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards Always use any necessary required personal protective equipment PPE before performing any work on the appliance installation maintenance positioning or movement Before performing any work on the appliance switch off the power supply Allow the appliance to be disconnected after installation via an accessible plug or a switch in the case of a fixed connection Fit the power line with an all pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations If the electrical supply is restricted means of allpole disconnection must be accessible and incorporated in the fixed wiring in accordance with the wiring rules This appliance can be used up to a maximum altitude of 2000 metres above sea level Appliance purpose This appliance is intended for cooking food in the home environment Every other use is considered inappropriate It cannot be used in employee kitchens shops offices and other working environments in farmsfarmhouses by guests in hotels motels and residential environments In bed and breakfast accommodation This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the users reach for the whole working life of the appliance Read this user manual carefully before using the appliance The explanations in this manual include images which describe all that regularly appears on the display However it should be kept in mind that the appliance may be equipped with an updated version of the system and as such all that appears on the display may differ from those in the manual Manufacturers liability The manufacturer declines all liability for damage to persons or property caused by use of the appliance other than that specified failure to comply with the instructions in the user manual
• Page 6 - English - : PRECAUTIONS 3391477B277B e tampering with any part of the appliance use of nonoriginal spare parts Identification plate The identification plate bears the technical data serial number and brand name of the appliance Do not remove the identification plate for any reason Disposal This appliance conforms to the WEEE European directive 201219EU and must be disposed of separately from other waste at the end of its service life The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment in accordance with current European directives To dispose of the appliance Cut the power cable and remove it Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste or return it to the retailer when purchasing an equivalent product on a one for one basis Our appliances are packaged in nonpolluting and recyclable materials Deliver the packing materials to the appropriate recycling centre To save energy The diameter of the base of the pan must not extend beyond the lines printed on the glass ceramic surface Pans must not be placed outside the perimeter of the hob or on the display When buying a pan check whether the diameter indicated is that of the base or the top of the pan as the top is almost always larger than the base When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also helps to retain vitamins contained in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Information on power consumption in offstandby mode Technical data on the appliances power consumption in offstandby mode can be found at wwwsmegcom under the page corresponding to the product in question How to read the user manual This user manual uses the following reading conventions Power voltage Danger of electrocution Disconnect the mains power supply Unplug the appliance Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended Do not let children play with the plastic bags Under certain circumstances if the hob and the oven are used at the same time the maximum power limit of the electrical system might be exceeded WarningCaution InformationAdvice
• Page 7 - English - : 34 DESCRIPTION 91477B277B DESCRIPTION General description Power levels are approximate and may vary according to the pan used or the settings made Control panel 1 ONOFF button Zone Dimensions H x L mm Power draw at lev 9 W Power draw in booster function W Power draw in Dou ble Booster function W 1 2 single 180 x 218 2100 2500 3000 1 2 multizone 360 x 218 3000 3700 3 250 x 250 2300 3000 4 210 x 210 2300 3000 5 200 x 200 2300 3000 6 160 x 160 1400 2100
• Page 8 - English - : DESCRIPTION 3591477B277B e 2 Settings icons 3 Cooking zones display 4 Timer display 5 Settings menu button 6 AutoVent 20 function button 7 Grill function button 8 Scroll bar List of icons Warming Function Timer Pause Function Clean Function Controls Lock Function Automatic pan detection function Button volume Display brightness ECO function List of buttons OnOff turns the hob on or off Settings menu allows you to access the appliances settings Grill Function activates the Grill function AutoVent 20 function activates communication between the hob and the extractor hood Scroll bar increases or decreases the power level of a cooking zone allows you to adjust settings and to select user menu options Cooking zones display The buttons for selecting the cooking zones and the timer icons above each of them and the Warming function icon are found in this zone Timer display The controls for setting the independent timer and the timer for the cooking zones are located in this area The following text is displayed when it is possible to set an independent timer Advantages of induction cooking Energy saving thanks to the direct transmission of energy to the pan suitable magnetisable cookware is required compared to traditional electric cooking Improved safety as the energy is only transmitted to the pan placed on the hob High level of energy transmitted from the induction cooking zone to the base of the pan Rapid heating speed Reduced danger of burns as the cooking surface is only heated under the base of the pan foods which overflow do not stick Power control The hob is fitted with a power control module that optimiseslimits consumption If the overall set power level exceeds the maximum limit permitted the electronic circuit board will automatically manage the power supplied by the hot plates The module tries to maintain the maximum deliverable power levels Levels set by The appliance is equipped with an induction generator for each cooking zone Each generator located under the glass ceramic cooking surface creates an electromagnetic field which induces a thermal current in the base of the pan This means the heat is no longer transmitted from the hob to the pan but created directly inside the pan by the inductive current
• Page 9 - English - : 36 USE 91477B277B the automatic control will appear on the display USE Basic functions First power connection When connected to the power supply for the first time or after power has been switched back on after a power failure an automatic check is carried out that control turns on the indicator lights and the displays for a few seconds Afterwards the appliance can be used normally Switching on the hob for the first time When the appliance is used for the first time after having been connected to the mains power supply the flashing symbol appears on the display It is used to access the appliances technical menu and is intended only for Technical Support personnel When the appliance is switched on the icon the dimly lit button and the text appear on the timer display Preliminary operations Remove any protective film from the outside or inside of the appliance including any accessories if present Remove any labels apart from the technical data plate Usable cookware diameters If you use pans with a diameter less than the one indicated in the column above the appliance might not detect them Bear in mind the following Do not exceed the limits of the zones printed on the hob Do not cover the control panel Do not place the pans next to the edges of the glass If you wish to use a griddle or a long pan in zones 1 and 2 in Multizone mode it is recommended that you use one with a maximum size of 22 x 36 cm and a minimum size of 19 x 19 cm Cookware suitable for use in induction cooking Cookware used on the induction cooking surface must be made of metal with magnetic properties and a sufficiently large base Suitable cookware Enamelled steel cookware with thick bases Cast iron cookware with an enamelled Priority is given to the last zone set The power control module does not affect the total power consumption of the appliance See General safety instructions Burner minimum Ø cm Ø recommended cm Zone 1 2 sin gle 9 11 18 Zone 1 2 Multizone 19 22 Zone 3 13 25 Zone 4 9 11 21 Zone 5 7 9 20 Zone 6 11 16

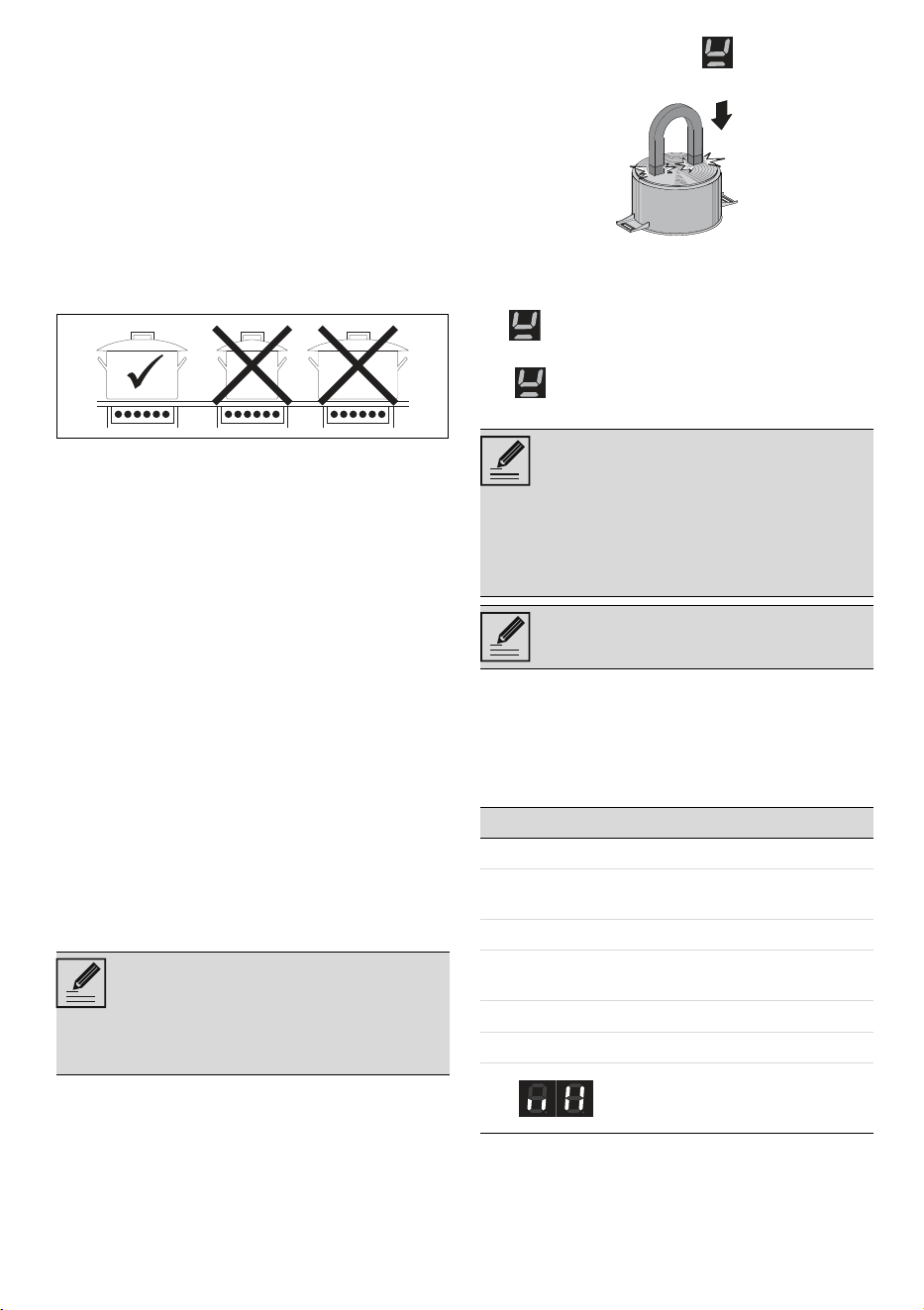

• Page 10 - English - : USE 3791477B277B e base Cookware in multilayer stainless steel ferritic stainless steel and aluminium with a special base Unsuitable cookware Copper stainless steel aluminium fireproof glass wood ceramic and terracotta cookware Advice on energysaving The diameter of the base of the pan must correspond to the diameter of the cooking zone When buying a pot check whether the diameter indicated is that of the base or the top as the top is almost always larger than the base The base of the cookware must be thick and completely flat In addition the hob should be clean and dry as well When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also makes it possible to preserve the vitamins in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover the pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Do not use castiron cookware or cookware with a rough base Advice on energysaving To see whether the pan is suitable bring a magnet close to the bottom if it is attracted the pan is suitable for induction cooking If you do not have a magnet you can put a small amount of water in the pan place it on a cooking zone and start the hot plate If the symbol appears on the display it means the pan is not suitable Pan detection indication Once a zone has been activated selected if the symbol appears on the display it means the pan is unsuitable The symbol is also displayed if there is no pan present or if it is removed Power level table The power in the cooking zones can be adjusted to various levels In the table below you will find instructions for the different types of cooking Limiting the cooking duration The appliance has an automatic device that limits the duration of use If the cooking settings for a pan are not If hob and oven are being used at the same time under certain conditions the maximum power limit that can be used by your electrical system might be exceeded Use only cookware with a perfectly flat bottom which is suitable for induction hot plates Using pans with an irregular bottom could jeopardise the efficiency of the heating system and prevent the pan from being detected on the hot plate Make sure that the pans do not cover the control panel Power level Suitable for 0 OFF setting from 1 to 2 Cooking small amounts of food minimum power from 3 to 4 Cooking from 5 to 6 Cooking large quantities of food roasting larger portions from 7 to 8 Roasting slow frying with flour 9 Roasting P Roasting browning maximum power see Booster and Double Booster

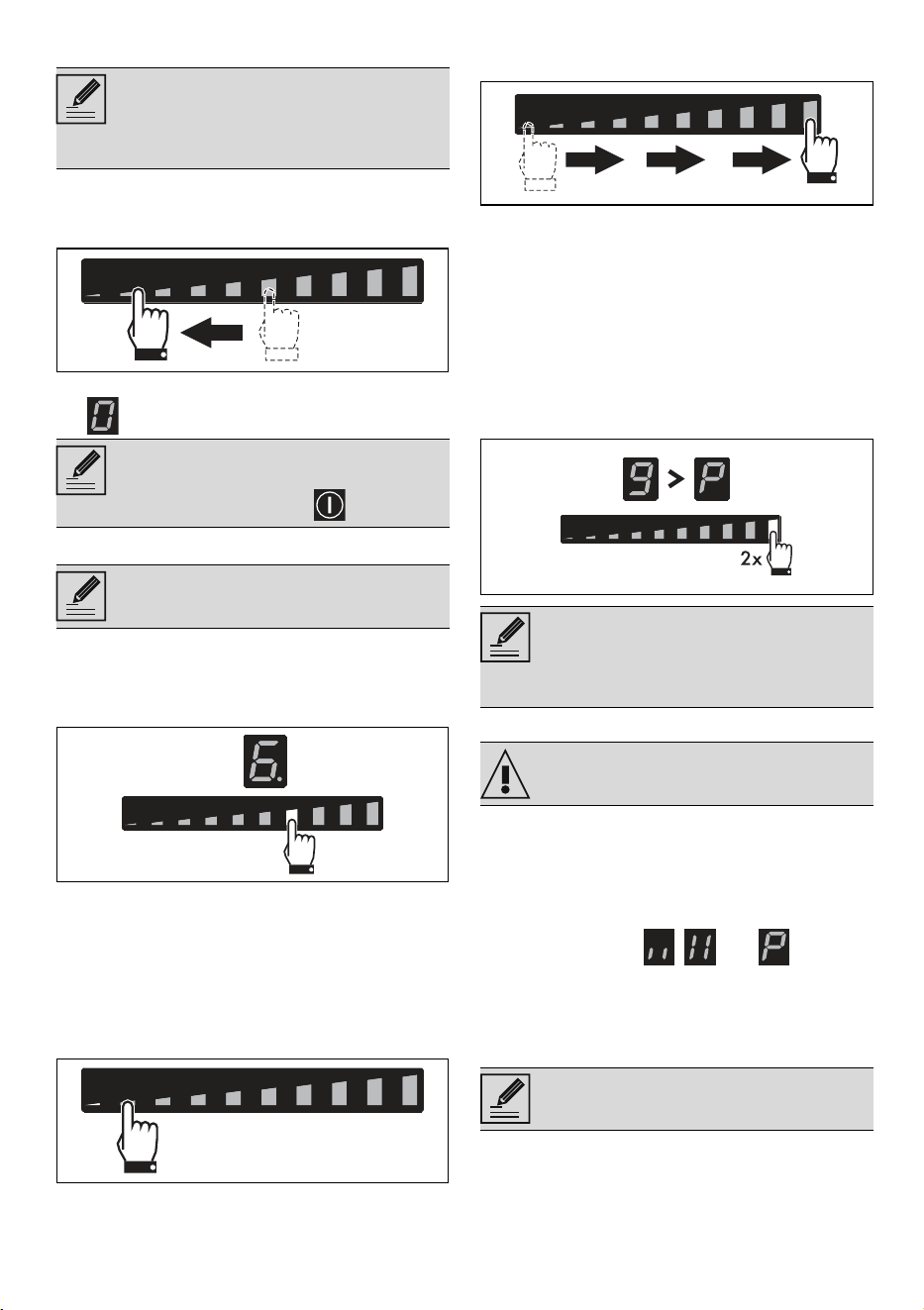

• Page 11 - English - : 38 USE 91477B277B changed the maximum operation time for each zone depends on the power level selected Heating is switched off when the device for limiting the duration of use is activated Using the hob Switching on and off To switch on the hob press and hold the ON OFF button for 1 second If no cooking zone is activated within 5 seconds of switching on the hob switches off automatically The text appears on the timer display for a few seconds during which an independent timer can be set see Independent timer If power limitation has been set the number associated with the set power will be displayed for a few seconds instead of In this case it is still possible to set an independent timer by touching the timer display Switching on the cooking zone automatically After switching on the hob Position a pan suitable for induction cooking and not empty on the cooking zone you wish to use The button corresponding to the zone on which the pan has been placed switches on automatically and is displayed The other zones cannot be activated If the automatic pan detection system is not active when the appliance is switched on the symbol will appear on the displays of all the cooking zones To activate the zones select them using the relative display and choose the required power level Adjusting cooking zones After switching on the display 1 Position a pan suitable for induction cooking and not empty on the cooking zone you wish to use 2 The display corresponding to the zone on which the container has been placed turns on automatically and displays Adjusting cooking zones After having placed a pan on the cooking zone and made sure that the zone has been activated 1 Place a finger on the lefthand side of the scroll bar of the cooking zone to be used The power level is now 2 Move your finger to the left or right to select the power level from 1 to 9 or enable the Booster or Double Booster function see specific sections The display of the zone being used will indicate Power level Maximum cooking dura tion in hours 18 ½ 26 ½ 35 ½ 44 ½ 53 ½ 61 ½ 71 ½ 81 ½ 91 ½ The hob is fitted with an automatic pan detection system indicated by the icon This feature is active by default but can be deactivated via the user menu The appliance is fitted with an automatic pan sensing system
• Page 12 - English - : USE 3991477B277B e the selected power level Switching off the cooking zones 1 Move your finger to the far left of the scroll bar of the cooking zone you wish to turn off 1 The display of the zone selected indicates Quick selection After switching on the appliance and having selected a cooking zone 1 Place a finger on the scroll bar at approximately the required power level 2 Move your finger to the left or right to select the required cooking power Booster function After switching on the hob and having selected a cooking zone 1 Place a finger on the lefthand side of the scroll bar The display of the cooking zone used will turn on the power level indicated is 1 2 Slide your finger to the far right on the scroll bar to select power level 9 3 Press the segment at the far right of the scroll bar The display of the cooking zone used will show P Select any other power level to deactivate the Booster function The Booster function can be activated quickly After switching on the hob and having selected a cooking zone press the last segment at the far right of the scroll bar twice Double Booster Function The Double Booster function allows more power to be supplied compared to the Booster function After having activated the Booster function for a cooking zone press the far right of the scroll bar again The symbols and will be displayed in sequence to indicate that the Double Booster function is on To deactivate the function simply select any other power level or switch off the appliance The power level can also be selected by pressing the scroll bar at the point that corresponds to the required power level To switch off more than one cooking zone at the same time simply switch off the appliance using the button The appliance is fitted with an automatic pan sensing system The Booster function remains active for a maximum of 5 minutes after which the power is reduced automatically to level 9 See General safety instructions The Double Booster Function is only available for zones 1 and 2

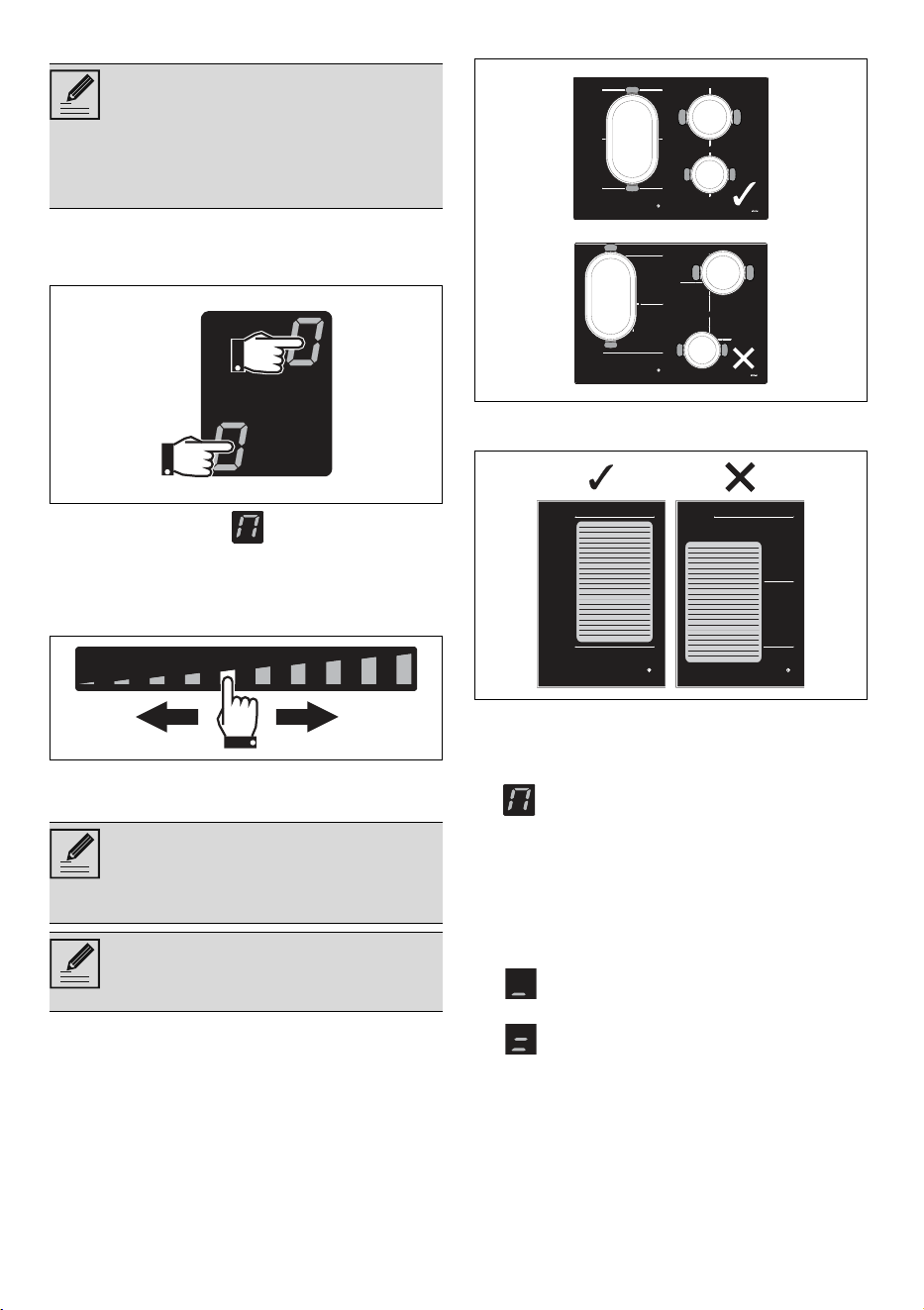

• Page 13 - English - : 40 USE 91477B277B Multizone function After switching on the hob 1 Place a finger on the buttons of the front left and rear left cooking zone at the same time After a short beep the symbol will appear next to the button of the rear zone The Multizone function is now active 2 Use the lefthand scroll bar to set the required cooking power The same power level will be set for both cooking zones If a large oval or oblong pan is being used make sure that it is placed in the centre of the cooking zone If you use a griddle make sure that it is positioned correctly To deactivate the Multizone function Simultaneously press the buttons of the cooking zones on which the Multizone function is active The symbol disappears and the two zones can be regulated separately Residual heat indicator After the cooking zone has been switched off a symbol appears on each display to indicate whether the zone is still hot and indicates the approximate temperature 1 if the temperature is between 60 C and 79 C 2 if the temperature is between 80 C and 99 C This function allows you to operate two cooking zones front and rear at the same time when using pans such as fish kettles or rectangular pans It is only possible to activate it between zones 1 and 2 It is not possible to activate the Double Booster function for the cooking zones on which the Multizone function is active The Multizone function can be activated automatically by placing a long pan on zones 1 and 2
• Page 14 - English - : USE 4191477B277B e 3 if the temperature is 100 C or higher Additional functions Rapid heating function The rapid heating function heats one cooking zone at maximum power for a limited time after which it continues cooking at the set power level After selecting a cooking zone Press and hold a power level from 1 to 8 for at least 3 seconds appears on the display of the cooking zone After the heating time has elapsed the cooking zone reverts to the previously selected power level This function can be deactivated by pressing and holding the set power level for at least 3 seconds or by selecting a lower power level Rapid heating times Warming function To activate the Warming function first turn on the hob then 1 Select a cooking zone 2 Press the far left of the scroll bar approximately between level 0 and level 1 to activate the function the symbol appears on the display of the selected cooking zone Select any power level to deactivate the Warming function Or press the button Independent timer After having switched on the hob without selecting a zone 3 Touch the inside of the timer setting area where CL is displayed 4 appears and the icon flashes on the display 5 Pressing again will cause the digit on the left to flash It is now possible to set the minutes using the scroll bar eg 6 When the digit on the left stops flashing the tens of minutes eg can be selected using the same procedure 7 After a few seconds the timer will start the countdown Timed cooking The timed cooking function can be activated when at least one cooking zone is switched on 1 Select a power level Supervise children carefully as they cannot easily see the residual heat indicator The cooking zones remain hot for a certain period of time even after they have been turned off Make sure that children never touch the hob This function is not available for power level 9 or the Booster and Double Booster functions Power level Automatic heating time minutesseconds 1 48 s 2 2 m 24 s 3 3 m 50 s 4 5 m 12 s 5 6 m 48 s 62 m 7 2 m 48 s 8 3 m 36 s This function allows you to keep cooked food warm or to keep water on the boil The warming function deactivates automatically after 2 hours of operation and switches off the cooking zone used This function is used to set a countdown timer that will emit a sound at the end of the preset time A maximum time of 99 minutes can be set A maximum of 99 minutes can be set This function is used to program the automatic switchoff of each cooking zone at the end of a period of time This function can be activated on multiple cooking zones at the same time
• Page 15 - English - : 42 USE 91477B277B 2 Follow the same procedure as for an independent timer The symbol is displayed above the cooking zone display to indicate that the zone is timed 3 Timed cooking will start a few seconds after the last selection 4 When the time elapses a series of beeps will be emitted This can be deactivated by pressing the timer area Modifying or deactivating timed cooking 1 Use the button to activate the hob 2 To modify or deactivate the timer and timed cooking simply press the timer setting area and follow the same procedure used for setting it in order to modify or zero the minutes Recall Function If the appliance is switched off unintentionally carry out the following procedure within 6 seconds 1 Switch on the appliance The button starts to flash 2 Press the pause button immediately to restore the functions that were previously active Special functions Grill Function To activate the Grill function 1 Place a griddle or a long pan on the left zones 2 Press the button which starts to flash The symbol appears on the front zone display and the symbol appears on the rear zone display The scroll bar will be set automatically to level 9 preheating stage After three minutes of operation the power will be reduced to level 7 The button remains lit steadily Press the button and use the scroll bar to modify the power level at any time Press the button to deactivate the Grill function AutoVent 20 function The AutoVent 20 function is deactivated by default but can be enabled from the user menu When enabled the button remains dimly lit at all times This function has an automatic and a manual mode Automatic mode default adjusts the speed of the hood extractor fan according to the total power of the appliance see User menu option U8 Manual mode allows the speed of the hood extractor fan to be controlled by pressing the button After switching on the hob activate manual mode as follows 1 Press the button which will light up at maximum brightness 2 Each subsequent press of the button increases the speed of the extractor hood fan according to a cyclic sequence with 5 levels of adjustment from 0 off to 4 maximum speed To go back to manual mode the appliance has If you modify a timer that has already been started it has to be started again from the beginning This is used to restore some functions that have already been started after the appliance has been switched off unintentionally This function restores the cooking zones timer and rapid heating functions no other functions will be restored This function is used to automatically activate the Multizone function for the left zones only It is used when cooking with a griddle or long pans This function allows the speed of the hood extractor fan to be controlled via a wireless connection The hood must be designed to use the AutoVent 20 function The connection is always unidirectional from the hob to the hood it is not possible to control the hob via the hood
• Page 16 - English - : USE 4391477B277B e to be switched off and on again Settings menu The settings menu allows you to modify some of the operating characteristics of the appliance and allows you to carry out operations indicated below With the appliance switched off press the button to access the settings menu The scroll bar and the icons of settings that can be changed will be displayed Individual settings can be selected using the segment of the scroll bar that is most directly below it Press the button again to exit from the menu Pause function To activate the Pause function 1 Switch on at least one cooking zone 2 Hold down the pause button The symbol displays on all the cooking zones To deactivate the Pause function 1 Hold down the button The pause symbol which has just been pressed starts to flash 2 Press any button apart from the Pause button 3 The pause function has now been deactivated and the previously set functions are restored Clean Function At least one cooking zone must be active in order to activate the Clean function 1 Access the settings menu 2 Press the segment of the scroll bar below the icon 3 A 15second countdown appears on the timer display after which the appliance resumes with the previous settings Select any power level to deactivate the Warming function Or press the button Controls lock This is useful when cleaning the appliance and to prevent functions being modified by mistake To activate the controls Lock carry out the following procedure 4 Access the settings menu 5 Press the segment of the scroll bar below the icon appears on the displays of all the cooking zones To deactivate the controls lock carry out the following procedure 1 Access the settings menu Refer to the hood manual for further details The and refer to functions that can only be modified from the user menu This function pauses the operation of all the cooking zones The cooking time limitation the residual heat indicators and the control lock function remain enabled during the Pause function When the power comes back on after a power failure the pause function will be deactivated The pause function can be maintained for a maximum of 10 minutes after which the appliance switches off This function pauses the appliance for 15 seconds during which it is possible to remove dirt or stains Be careful as the surface may be hot This feature is designed to lock all the hob zones except for the and buttons
• Page 17 - English - : 44 USE 91477B277B 2 Press the segment of the scroll bar below the icon All the symbols disappear Button volume 1 Access the settings menu 2 Press the segment of the scroll bar under the icon 3 Use the scroll bar to select the required volume Display lighting 1 Access the settings menu 2 Press the segment of the scroll bar under the icon 3 Use the scroll bar to select the required level of brightness User menu The user menu allows you to modify some operating characteristics of the appliance There are 9 options are available Each option is marked with the letter U together with a progressive number on the timer display Accessing the user menu 1 If the hob is off switch it on using the button 2 Press again to switch it off the button starts to flash 3 Press and hold 4 The following symbols appear on the cooking zone displays Press all the buttons of the cooking zones in sequence in a clockwise direction starting from the front left Every effective touch will be confirmed by a beep Models with 4 cooking zones Models with 5 cooking zones Press all the buttons of the cooking zones in sequence in a clockwise direction starting from the front left 1 A beep will sound to confirm every effective press of a button 5 Release the button The user menu has been accessed and the symbol alternating with the number option U0 Power limitation appears on the display of the rear left zone The total power of the appliance can be modified in steps of 01 kW ECOLogic Advance function The timer display indicates the default power setting in kW 74 Press the timer display to enable changes to be made to the power settings Then press the left half of the scroll bar to decrease the power and the right half to increase it Keep the button pressed to reach the required setting more quickly Press the symbol to go back to selecting the options rear left zone display Press the segments of the scroll bar to select Option Description U0 Maximum total power kW To be modified by the installer only U1 Option disabled U2 Button volume U3 Timer alarm volume U4 Display brightness U5 Timer animation U6 Automatic pan detection U7 Timer alarm duration U8 Hood fan configuration U9 AutoVent 20 function If the buttons are pressed in the incorrect order the procedure for accessing the menu will have to be repeated from step 3 2 3 4
• Page 18 - English - : USE 4591477B277B e an option After selecting an option press the front left display to modify it User options Option U2 modifies the volume of the button sounds 4 sound levels can be selected using the scroll bar 0 minimum volume 3 maximum volume Option U3 modifies the volume of the sound signals when the timer has ended 4 levels can be selected 0 minimum volume 3 maximum level Option U4 modifies the brightness of the display 10 levels can be selected 0 maximum brightness 9 minimum brightness Option U5 allows you to modify the type of animation of the seconds countdown of the independent timer and timed cooking from 59 to 0 seconds 0 animation 1 1 animation 2 Option U6 allows you to activate or deactivate the automatic pan detection function see Automatic cooking zone activation 0 automatic detection off 1 automatic detection on Option U7 specifies the length of the alarm when the timer has finished 3 levels can be selected 0 alarm duration 120 seconds 1 alarm duration 10 seconds 2 alarm disabled Option U8 allows you to activate the Auto Vent 20 function in automatic mode 8 levels can be selected The following table summarises the possible settings Refer to the table below to select the most suitable value according to the power limitation of the appliance Option U9 allows you to activate or deactivate the AutoVent 20 function 0 function off 1 function on Exiting the user menu There are two ways to exit from the user menu 1 Press the button Any modifications will be discarded and the hob will be switched off The first segment on the left option U0 is reserved for the power limitation procedure installer only For technical reasons the second segment from the left option U1 is disabled Selecting this option will have no effect According to the adjustment range of each option the scroll bar will show only those segments that correspond to the adjustments available for each option Options U2 and U4 that correspond to icons and respectively can also be modified via the settings menu The seconds count is displayed when the timer is set to 1 minute If automatic pan detection is disabled the area must be switched on manually when a pan is placed on the hob Hardness level Hood lighting Hood fan speed Delicate cooking Medium cooking Intense cooking 0 Off Off 1On Off 2 4 6 On Off speed 1 speed 2 3 5 7 On speed 1 Speed 2 Speed 3 Hardness level Power limitation 2 3 up to 4 kW 4 5 from 4 to 5 kW 6 7 5 kW upwards If the appliance is set to a lower power level lower than the one indicated in the table above it may not be possible to select some of the fan speeds
• Page 19 - English - : 46 CLEANING AND MAINTENANCE 91477B277B Or 2 Press the button for at least two seconds The modifications will be saved and the hob will be switched off Error notifications If the appliance malfunctions or operates incorrectly the associated error code appears on the display The error codes always begin with the letter E or Er followed by a series of digits eg Er47 30 Errors coded as E02 E2 Er21 Indicate that the appliance or part of it is overheating If this occurs you should switch off the appliance immediately remove all pans and let it cool down If these errors persist or if other errors appear make a note of the code and contact Technical Support CLEANING AND MAINTENANCE Cleaning the glass ceramic hob Cleaning the surfaces To keep the surfaces in good condition they should be cleaned regularly after use Let them cool first Ordinary daily cleaning Always and only use specific products that do not contain abrasives or chlorinebased acids Pour the product onto a damp cloth and wipe the surface rinse thoroughly and dry with a soft cloth or a microfibre cloth Weekly cleaning Clean and maintain the hob once a week using an ordinary glass ceramic cleaning product Always follow the manufacturers instructions The silicon in these products creates a protective waterrepellent membrane which also resists dirt All marks stay on the membrane and can therefore be removed easily After cleaning dry the surface with a clean cloth Make sure that there is no detergent left on the cooking surface as it might undergo an aggressive reaction when heated up and could modify the structure of the cooking surface Food stains or residues Light coloured marks from pans with aluminium bases can be easily cleaned off with a cloth moistened in vinegar Remove any burnton residues after cooking then rinse with water and dry thoroughly with a clean cloth Dirt which may have fallen on the hob while cleaning lettuce or potatoes can scratch the hob when moving pans Consequently remove any dirt from the cooking surface immediately Changes in colour do not affect the operation and stability of the glass These are not alterations to the material of the hob but just residues which have not been removed and have then carbonised Shiny surfaces can form due to the bases of pans especially aluminium ones rubbing on the surface and due to the use of unsuitable detergents They are difficult to remove using conventional cleaning products It may be necessary to repeat the cleaning process several times Use of corrosive detergents or rubbing of pan bases can wear away the decoration on the hob over time and contribute to the formation of stains What to do if The hob does not work Make sure that the hob is connected and that the main switch is turned on Make sure that there is no power failure Make sure that the fuse has not blown In See General safety instructions In case of stubborn dirt clean when cold using a damp kitchen sponge and neutral detergent then dry with a microfibre cloth We recommend the use of cleaning products distributed by the manufacturer After cleaning dry the appliance thoroughly to prevent any water or detergent from interfering with its operation or creating unsightly marks
• Page 20 - English - : INSTALLATION 4791477B277B e this case replace the fuse Make sure that the circuit breaker of the residential electrical system has not tripped In this case reset the circuit breaker The cooking results are unsatisfactory Make sure that the cooking temperature is not too high or too low Make sure that the hob is properly ventilated and that the air inlets are unobstructed Use cookware that is certified and tested for induction cooking The hob smokes Let the hob cool down and clean it once cooking is complete Make sure that the food has not spilled out of the pan and use a larger cooking vessel if needed The fuses blow or the circuit breaker of the residential electrical system trips repeatedly Call Technical Support or an electrician There are cracks or fissures in the hob Turn off the appliance immediately disconnect the power supply and contact Technical Support INSTALLATION Electrical connection General information Check the mains characteristics against the data indicated on the plate The identification plate bearing the technical data serial number and brand name is visibly positioned on the appliance Do not remove this plate for any reason The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires Terminal block connection Arrange the cables in an orderly manner to avoid overlapping or contact with any jumpers The cables must be of the correct length to avoid builduptwisting inside the terminal box The device can be connected in the following ways 80 cm models with 4 cooking zones 80 cm models with 5 cooking zones and 90 cm models See General safety instructions 220240V 3 x 6 mm ² threecore cable 220240V 3 4 x 4 mm ² fourcore cable 380415V 2N 4 x 4 mm ² fourcore cable 380415V 3N 5 x 15 mm ² fivecore cable 220240V 3 x 6 mm ² threecore cable 220240V 3 4 x 6 mm ² fourcore cable 380415V 2N 4 x 6 mm ² fourcore cable 380415V 3N 5 x 25 mm ² fivecore cable For all types of connection use the jumper provided

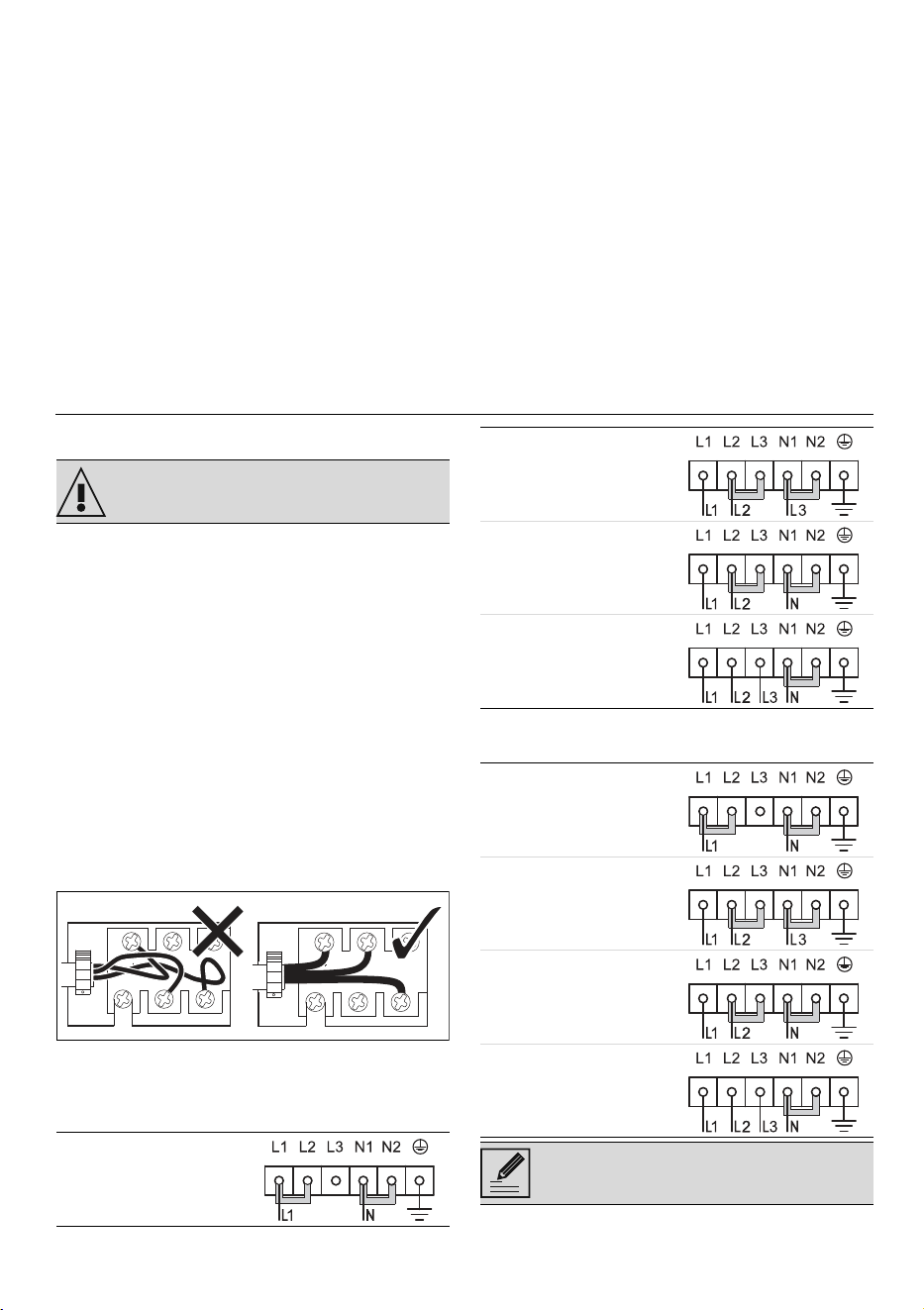

• Page 21 - English - : 48 INSTALLATION 91477B277B Fixed connection Fit the power line with an allpole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations For the AustralianNew Zealand market The circuit breaker incorporated in the fixed connection must comply with ASNZS 3000 Section cut from the countertop Safety instructions for positioning and installation Installation can be carried out on various materials such as masonry metal solid wood or plastic laminated wood as long as they are heat resistant gt90C Veneers adhesives or plastic coatings on adjacent furniture should be temperature resistant gt90C otherwise they might warp over time If the piece of furniture does not have the required recess opening either it will have to be cut or masonry work carried out by a competent technician The minimum clearance between exhaust hoods and the cooking surface must be at least the distance indicated in the exhaust hood installation instructions The minimum clearances must also be respected for the edges of the hob on the back as indicated in the assembly instructions If the appliance is to be installed above an oven the oven must be fitted with a cooling fan Appliance overall dimensions mm Standard mounting mm Flush mounting mm For this type of mounting you have to make an additional cut at the edges of the recess in the furniture if you wish to install the hob flush with the countertop The values indicated refer to the cross section of the internal lead The power cables are sized taking into account the coincidence factor in compliance with standard EN 60335 26 See General safety instructions A B C D E min 50 min 460 min 750 20 60 min 50 L X Y 800 750780 480490 900 839844 478482 A B C D E min 50 min 460 min 750 20 60 min 50

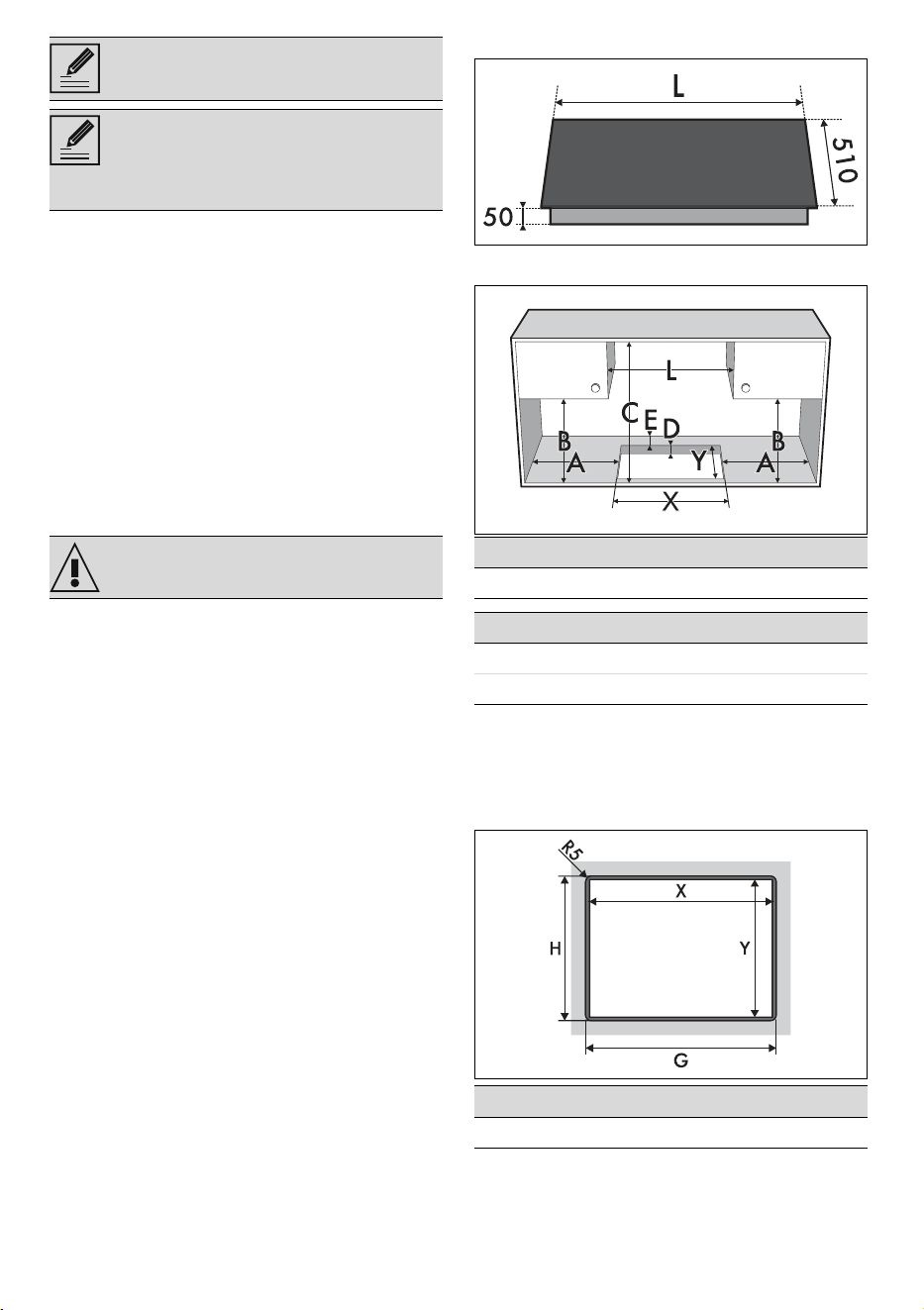

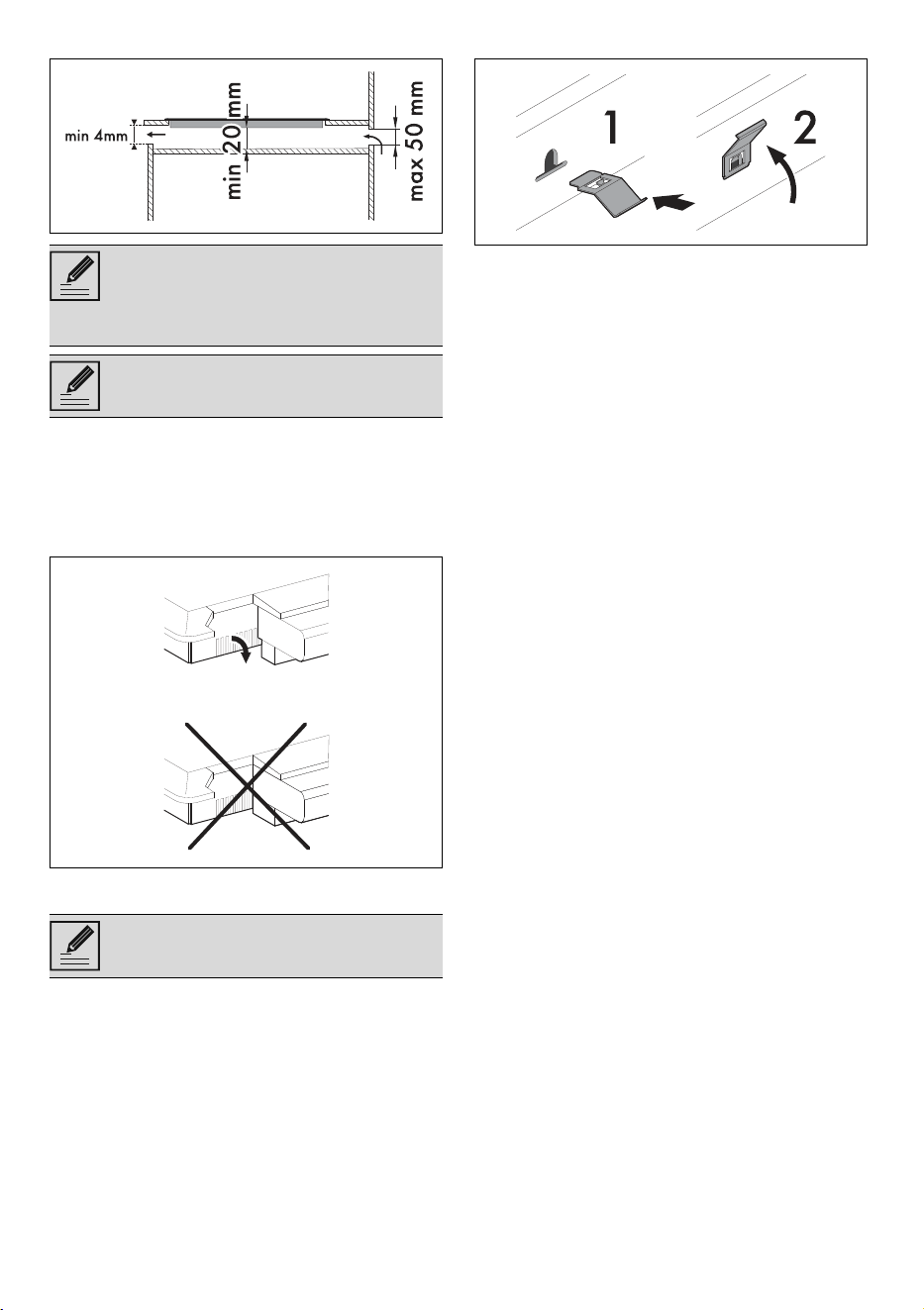

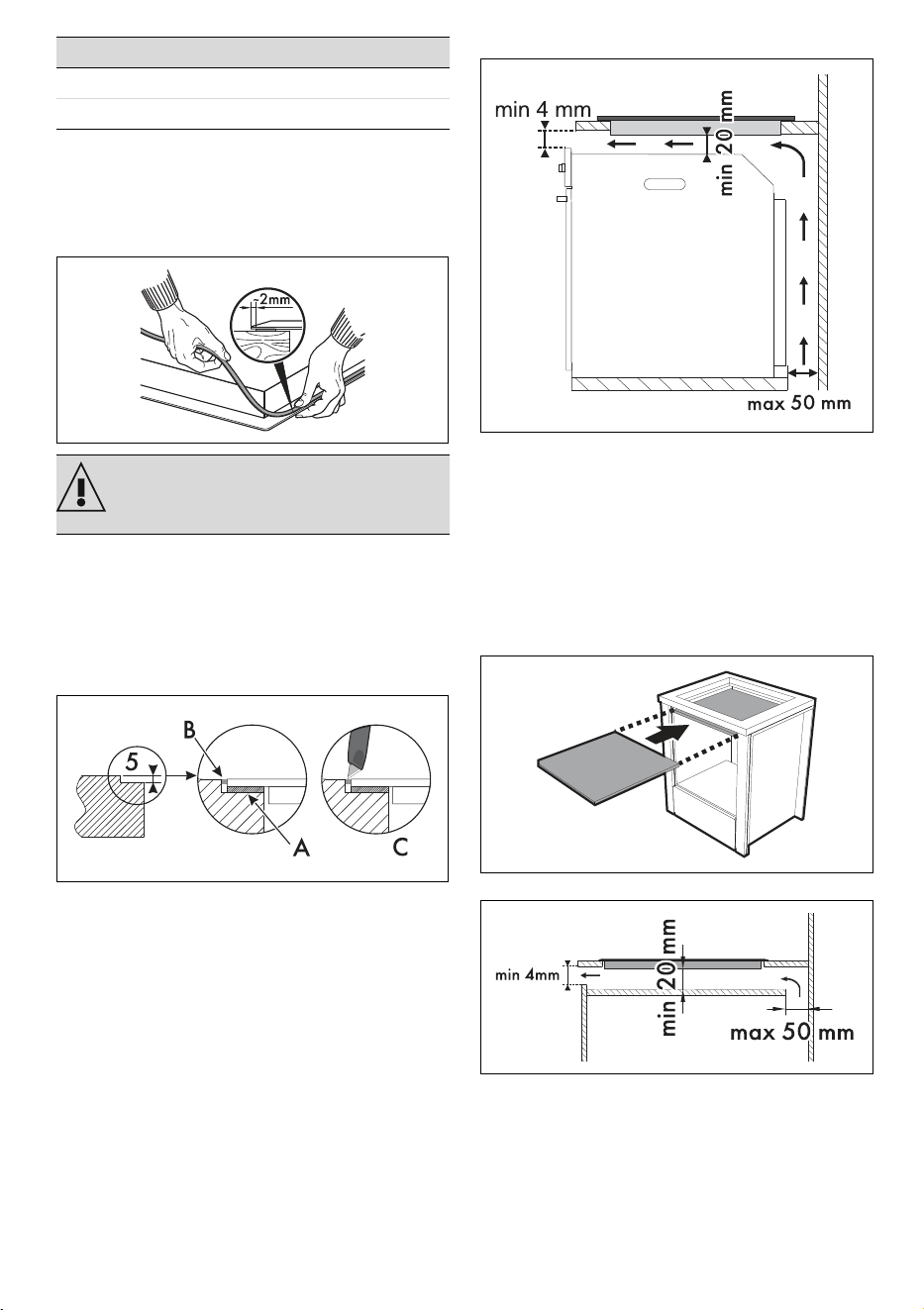

• Page 22 - English - : INSTALLATION 4991477B277B e Hob seal To prevent leakage of liquid between the frame of the hob and the countertop place the adhesive seal provided along the entire outer edge of the hob before assembly In the case of flush mounting after placing the adhesive seal A on the glass surface and after positioning and securing the hob fill the edges with insulating silicone B and wipe off any excess If for any reason the hob needs to be removed cut the silicone using a cutter before attempting to remove it C Mounting On top of oven builtin unit The clearance between the hob and the kitchen furniture or other installed appliances must be enough to ensure sufficient ventilation and air discharge If installed above an oven a space must be left between the bottom of the hob and the top of the appliance installed below On top of empty kitchen unit or drawers If there are other pieces of furniture lateral walls drawers etc dishwashers or fridges under the hob a doublelayer wooden base must be installed at least 20 mm from the bottom of the hob to avoid any accidental contact It must only be possible to remove the doublelayer base using suitable equipment opens on bottom L X Y G H 800 730750 480490 803 513 900 840 478482 903 513 Do not use silicone to secure the hob This would make it impossible to remove the hob without damaging it
• Page 23 - English - : 50 INSTALLATION 91477B277B opens on rear Ventilation The illustrations below show an example of installation suitable for proper ventilation and one example of incorrect installation to be avoided Fixing to the builtin cabinet To ensure the hob is fixed and centred as accurately as possible the clips provided must be positioned as described below 1 Fit the clips by gently pressing them horizontally into the appropriate space 2 Then turn them upwards to fix them in place Instructions for the installer If you use a plug if present to connect to the power supply the plug must be accessible after installation Do not bend or trap the power cable The appliance must be installed according to the installation diagrams If the appliance does not work correctly after having carried out all the checks contact your local Authorised Service Centre Once the appliance has been installed please explain to the user how to use it correctly Failure to install the doublelayer wooden base exposes the user to possible accidental contact with sharp or hot parts If installed on top of an oven the latter must be equipped with a cooling fan The clips should not be installed at the front of the appliance
