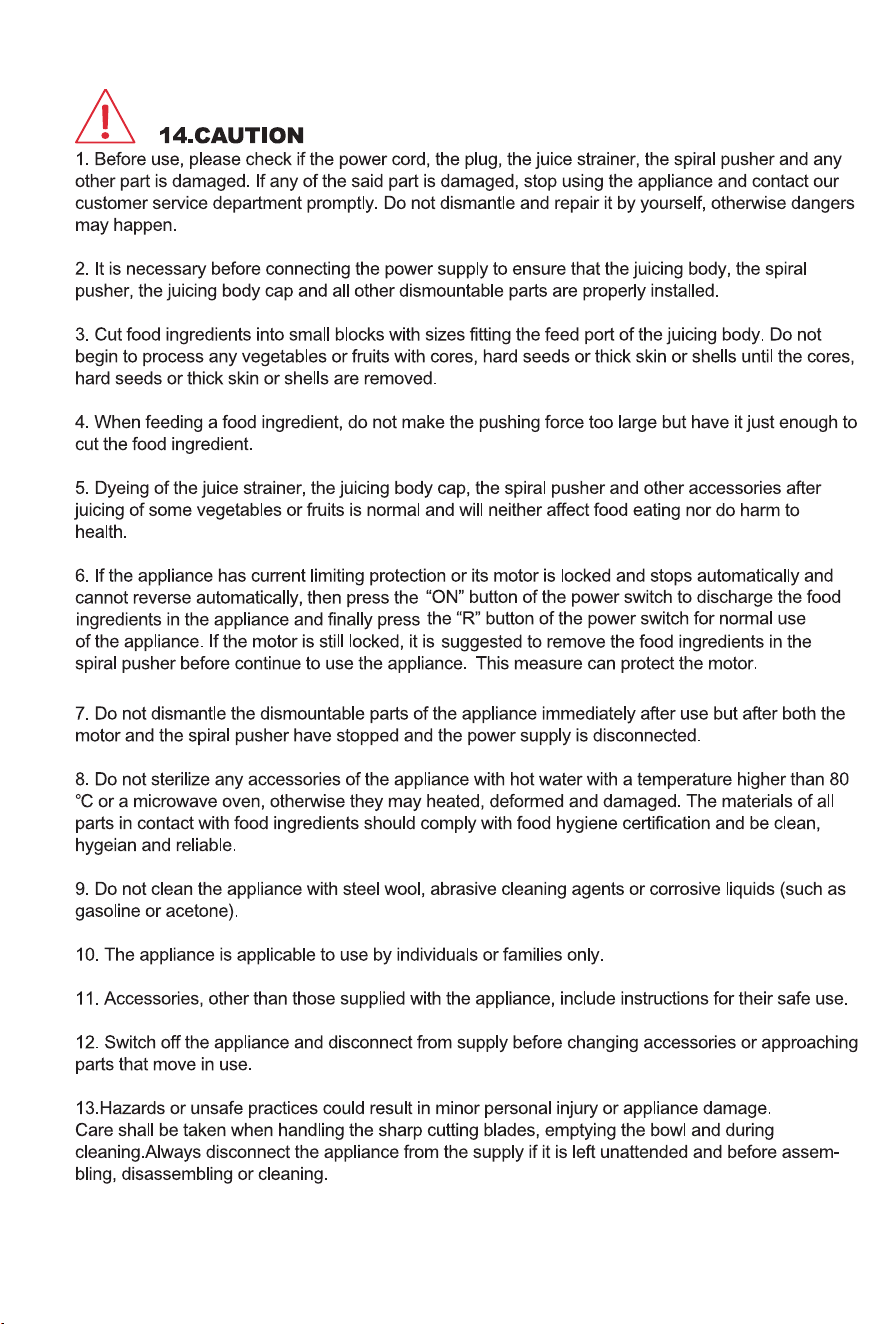

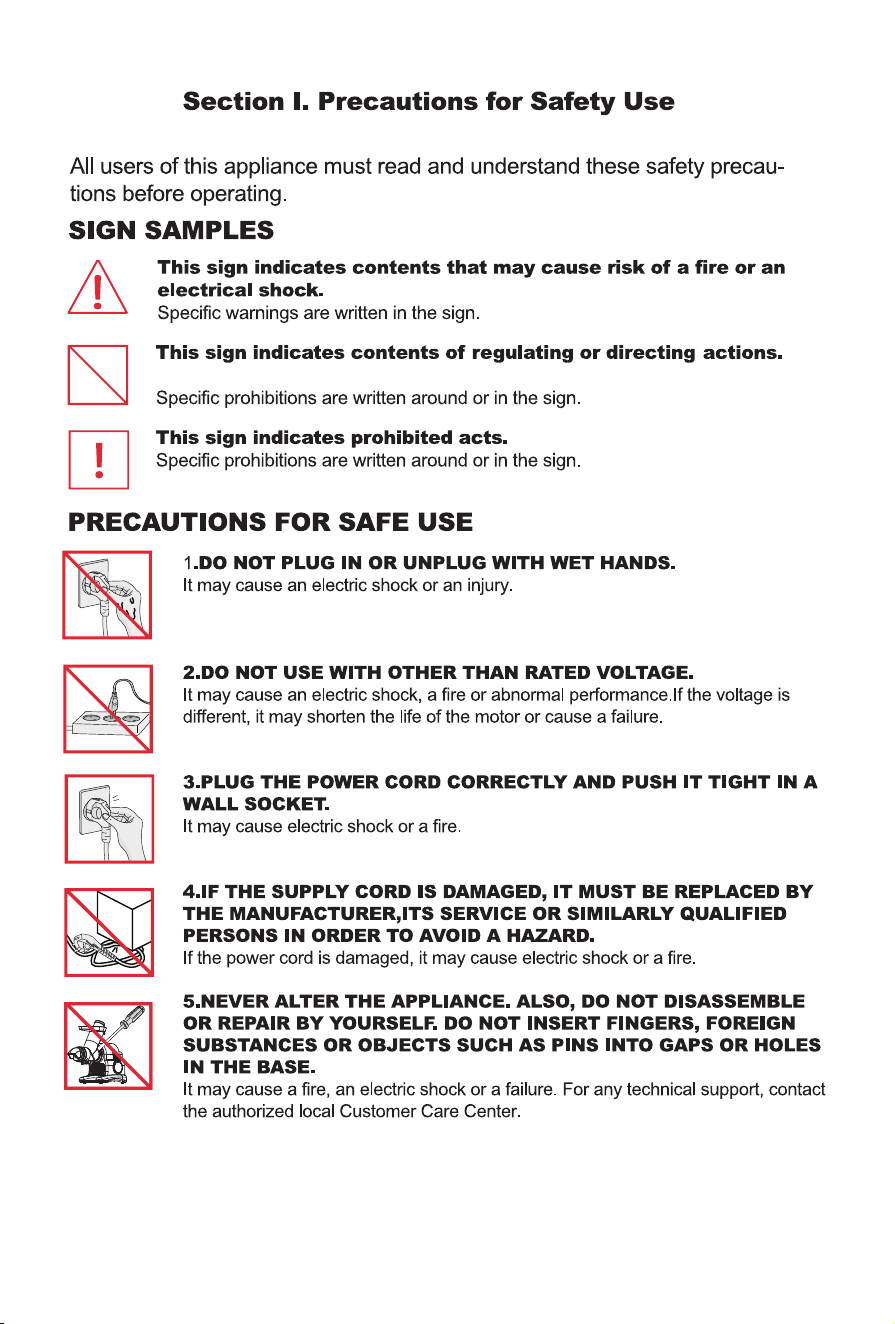

Precautions for Safety Use
Product component
Method of Operation
How to assemble
Tips for Ingredients Selection
Maintenance

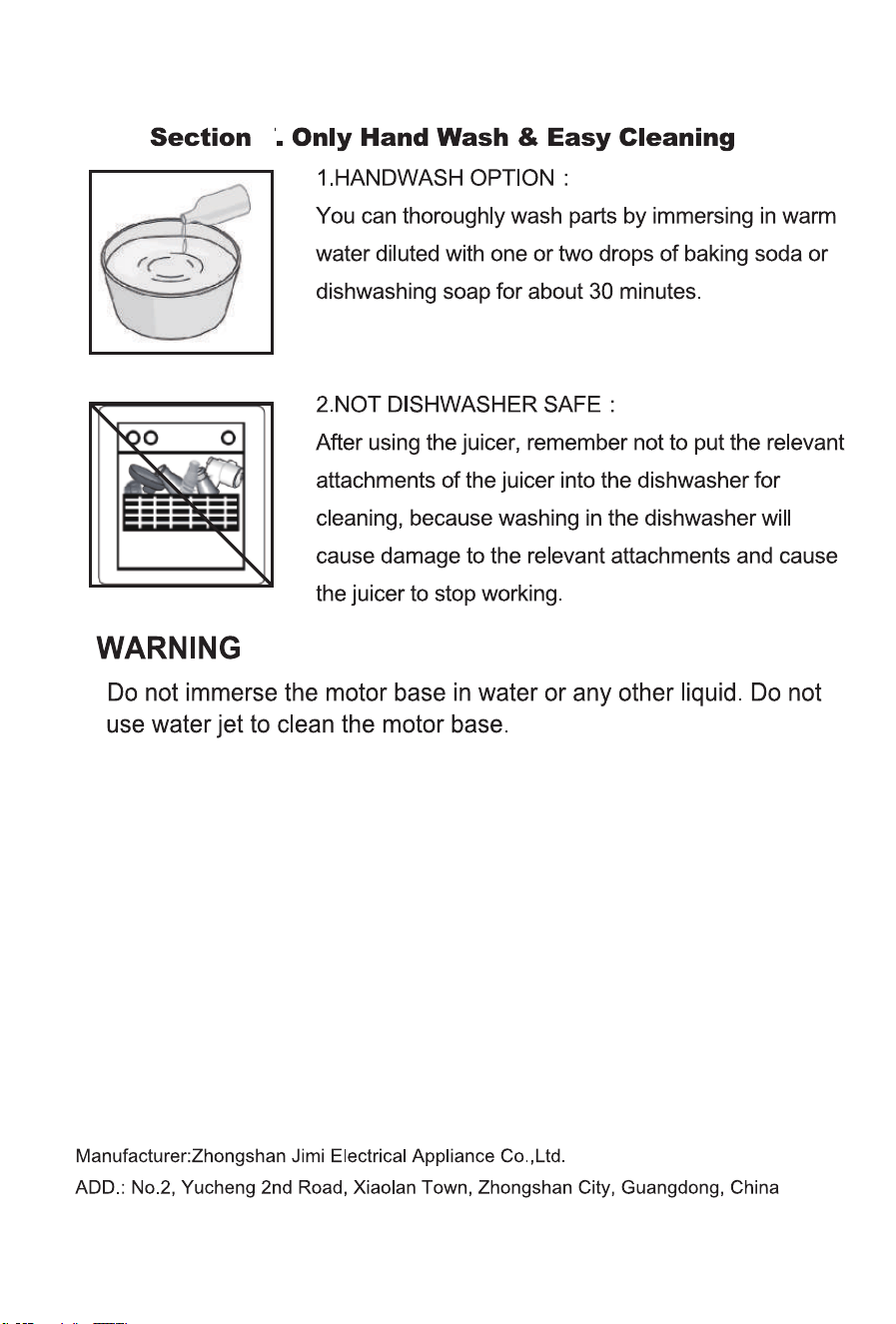

Only Hand Wash & Easy Cleaning

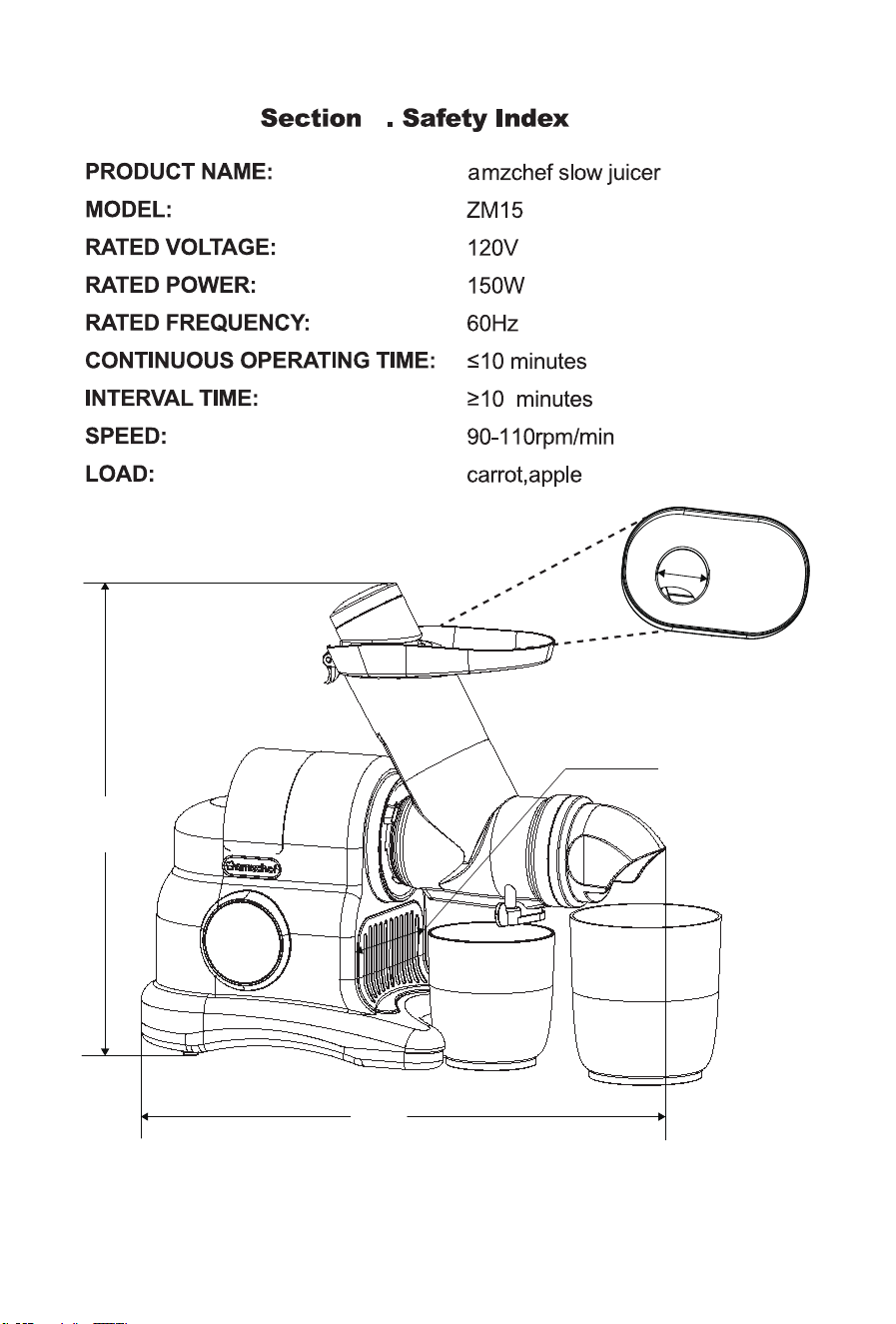

Safety Index

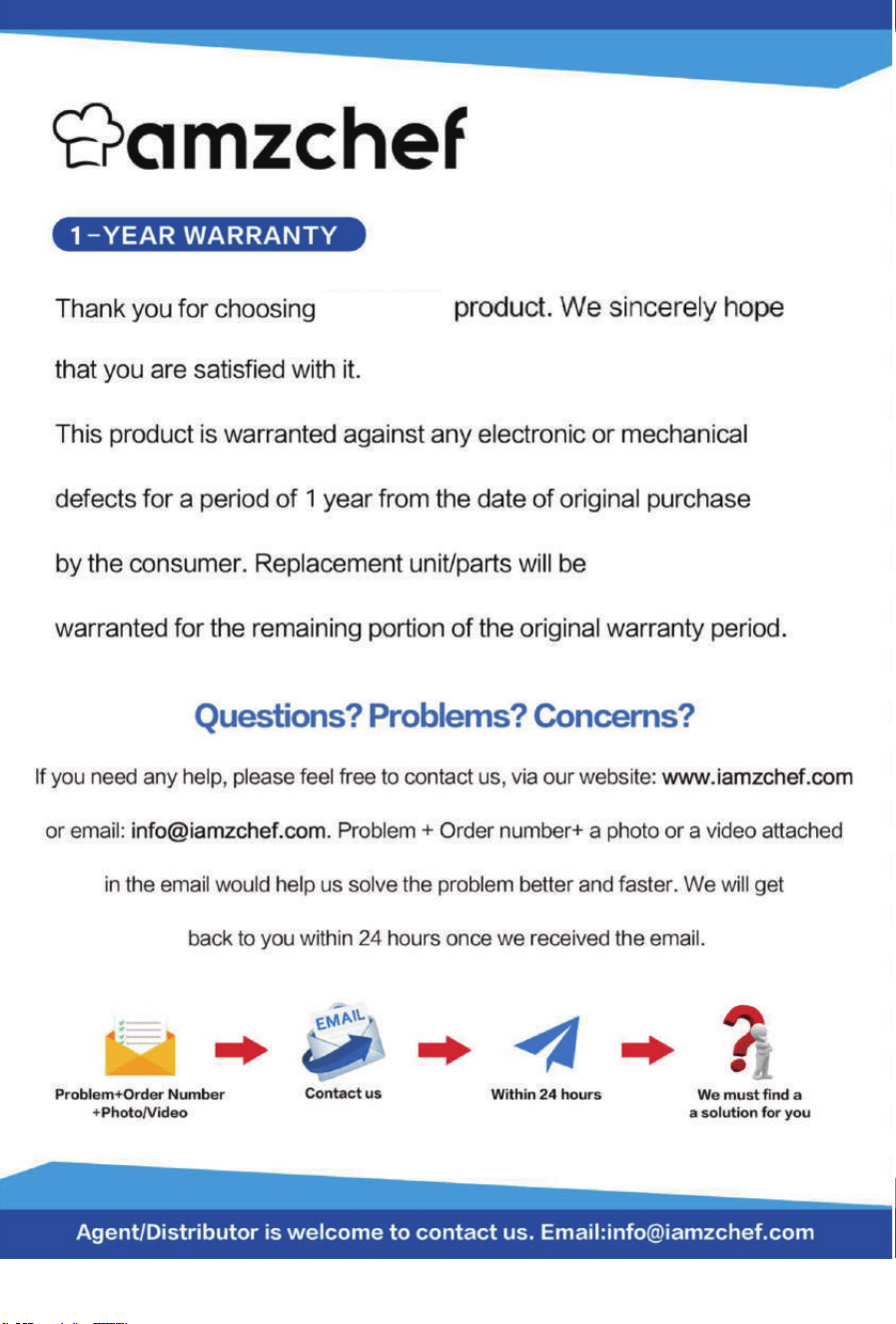

Warranty

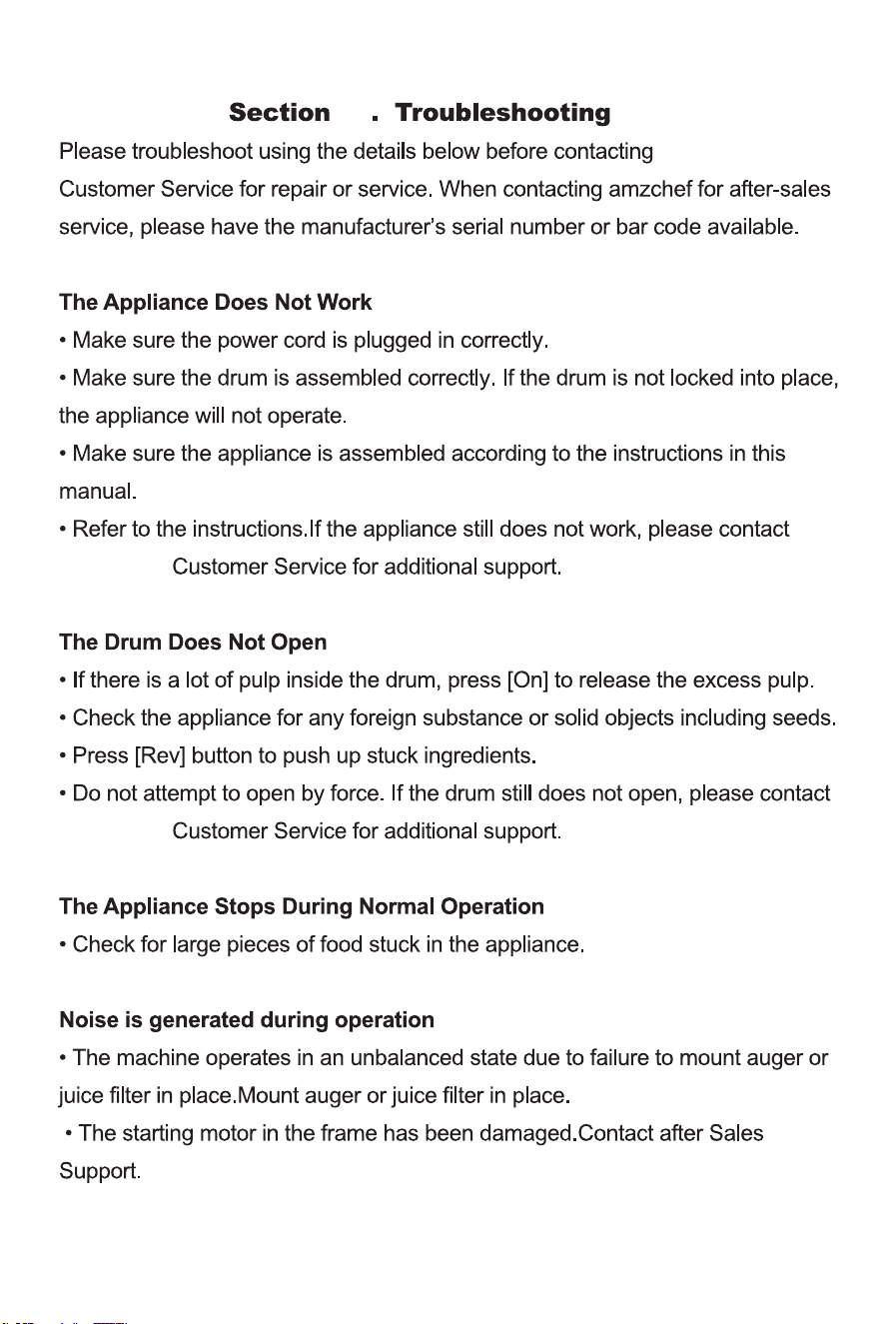

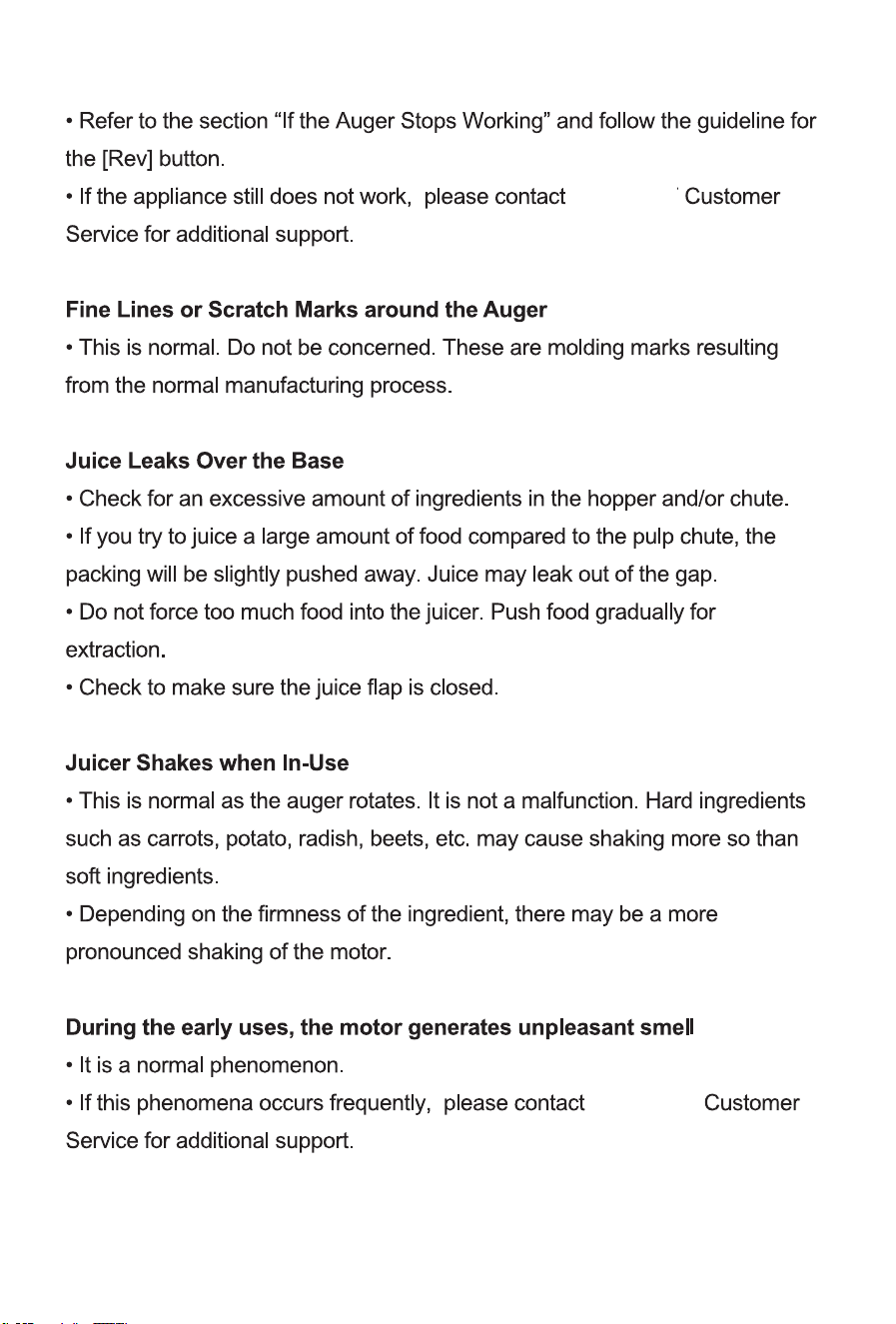

Troubleshooting
1

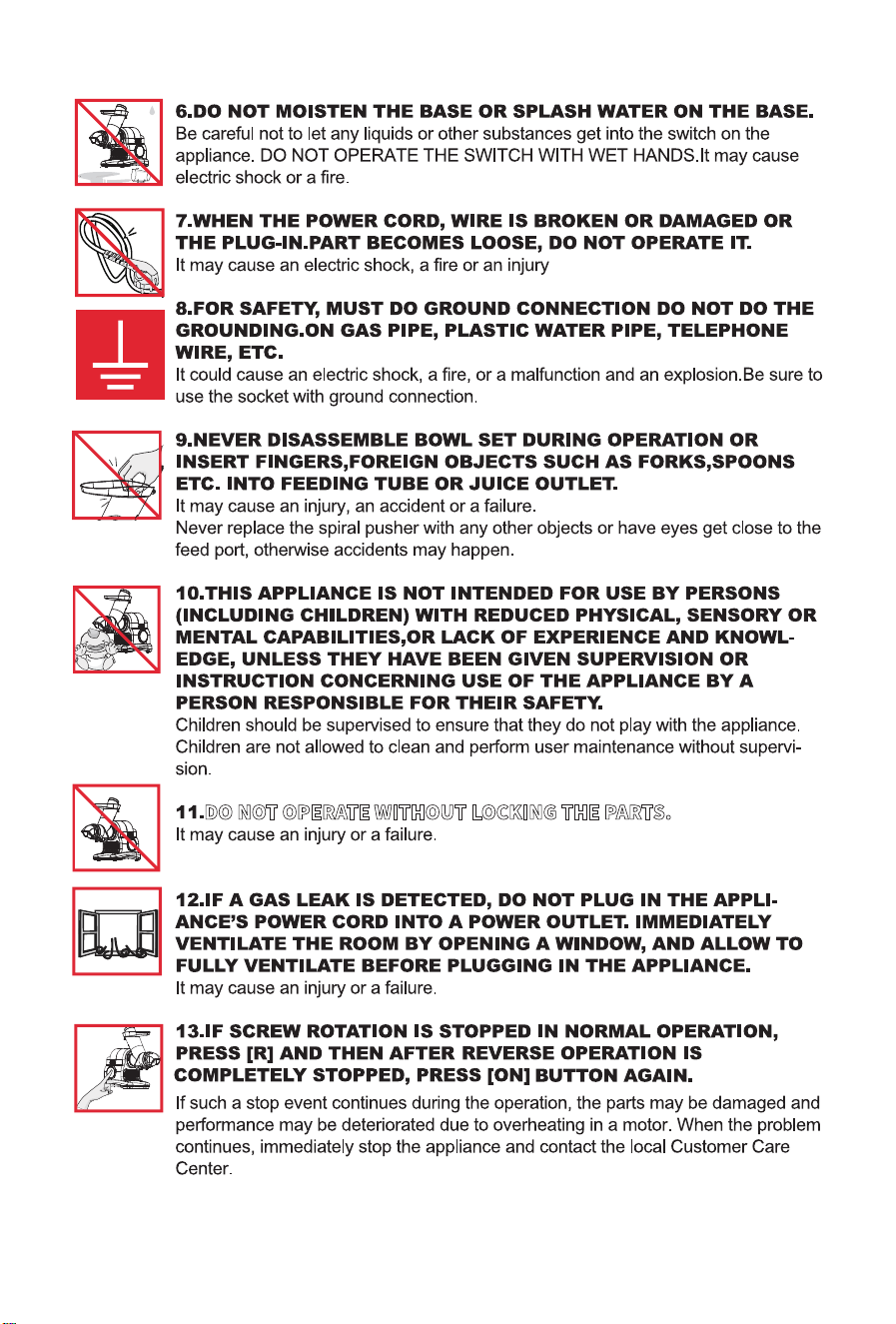

DO NOT OPERATE WITHOUT LOCKING THE PARTS.
2
3
1.Power Cable
2.Control panel
3.Main Body
4.Locking Button
5.Feeding Chute
6.Food Pusher
7.Auger
8.Filter
9.End Cap
10.Pulp Container
11.Juice container
Section 2. Product component
①
③
⑥
⑤
⑪
⑩
⑨
⑧
⑦
④
②
4
Modes runs from 100 to 110 RPM for hard fruits like apple, pear,
carrot, beets, ginger and kale.
Modes runs from 70 to 90 RPM for soft and juicy fruits and vege-
tables like watermelon, orange, grape, celery, cucumber.
Steps to operate:
1. Connect the appliance to the power, all indicators will flash 3 times,
then the on/off button turns to red ( standby mode).
2. Touch the on/off button, all other keys will flash again. Select the
desired function. the selected key will flash and keep the light on after
2 seconds when the appliance starts to work.
3. If you want to change the function during work, touch the on/off
button to make the appliance goes into standby mode, and then follow
step 2.
4. In case of Pulp blockage or motor locking, touch the on/off button
and then the “R” button to rotate the auger reversely to release it.
Touch the on/off button to exit the reverse function, and follow step 2 to
resume work.
5. Touch the on/off button to stop the appliance.
3
Reverse: This function can be used
when pulp discharge is blocked or the
motor is locked.
5
Aliging the sign " " on the juicing body with
the " " on the main body, then put the
juicing body into the main body.(You will
hear"Tick sound to confirm fasten ittightly
and correctly).
4
TIPS: In the case of clogging
1.The first time, you don't need to do anything --- the juicer will stop
for 3 seconds --- then reverse for 10 seconds --- stop for 3 seconds
--- and finally run forward.
2.If the juicer is blocked again, repeat the first step, then stop for 3
seconds---reverse for 10 seconds---the display screen will flash and
the juicer will stop. (Reminds that you need to clean the accesso-
ries)
Insert the Auger into the main juicing boday
and push it horizontally until it reaches the
bottom (when alignment fails, just turn the
Auger slighty).
6
Insert the end cap ,rotate anticlockwise until
aligning“ ”on end cap with“ ”on the
juicing body.
7
8
9
7
Put food ingredient into the Feeding Chute
and push the items down with the food
pusher.
8
Cut large pieces of fruit into smaller pieces as appropriate(less than
2.75 inches/7cm).
Select fresh fruits and vegetables, which contain more juice. The
proper fruits include: pineapple, beet root, celery stalk, apple, cucum-
ber, spinach, melons, tomato, orange and grape.
Tips:
1.Any hard core,seed,skin or shell from fruits shall be removed in
advance.
2.Jam can not be achieved, some fruit can not squeeze juice (such as
bananas, mangoes, dried fruit, sugar cane, etc.).
VEGETABLE JUICE EXTRACTOR
Cut vegetables into strips(less than 2.75 inches/7cm).
Juicing of various vegetables including carrots, beets, celery, peppers,
and radishes without destroying the natural flavor and nutrition benefits
Fresh taste and full nutrition are guaranteed with this unique extraction
process.
5
9
WHEATGRASS AND LEAFY GREENS
Cut it into strips (less than 2.75 inches/7cm).
Wheatgrass, kale, cabbage, spinach, and pine tree needles are just
some of the natural products that can be juiced with the AMZCHEF
juicer. Enjoy the best that nature offers in raw foods of all kinds and
juice them for full nutritional benefits.
6
The main body cannot be washed under in water, and must be
cleaned with twisted wet clothinstead.
10
Take out the plunger
Press and hold the locking button on
the side of the Juicing Body, and start
rotating it clockwise to remove it form
the Main Body. The accessories cannot
be removed if the button is not pressed.
After detaching the Jucing body, take
out the tray,the juice strainer (or the end
cap) and the auger in order. The
dismountable parts may be flushed with
clean water.
11
17
25.50cm
10.0inch
3.1inch
7.8cm
30.30cm
11.9inch
19.80cm
7.8inch
8
13
amzchef
14
10
amzchef
amzchef
amzchef
15
amzchef
amzchef
16
