Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 356442-0028-F1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Air Cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Alternator, Ignition, Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Blower Housing, Rewind Starter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Camshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, Breather. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Carburetor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Carburetor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Carburetor Overhaul Kit, Engine & Valve Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Controls, Governor Spring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Crankcase Cover, Intake Manifold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cylinder Head, Valves, Valve Covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electronic Governor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Exhaust System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Flywheel, Rotating Screen, Stub Shaft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fuel Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Replacement Engine - US & Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Shrouds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Starter - Electric #1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Starter - Electric #2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Model 29, 30, 35 & 38 Engine Accessories Catalog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Maintenance Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Starter Motor Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Oil Filter Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Oil Filter Side Outlet Manifolds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Starter Motor Side Outlet Manifolds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Center Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Muffler Guards and Shields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Spark Arrestors and Deflectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Muffler Mounting Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Flywheel and Air Intake Guards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
PTO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Speed Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025

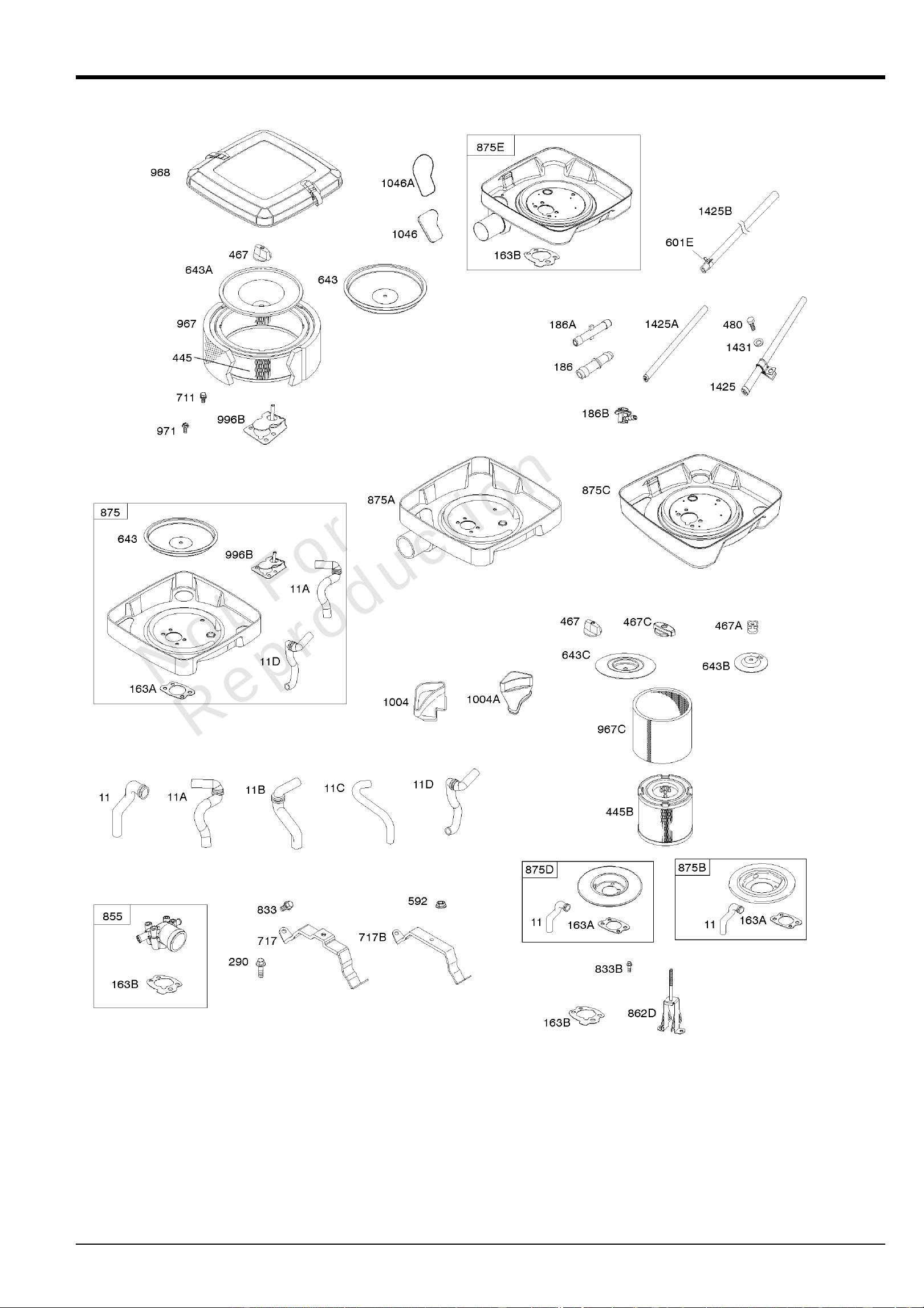

Air CleanerAir CleanerAir CleanerAir Cleaner
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air CleanerAir CleanerAir CleanerAir Cleaner
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
11 691556 TUBE, Breather
11A 844921 TUBE, Breather
-Used After Code Date 09122200
11B 806083S TUBE, Breather
-Used Before Code Date 09122300
163A 692081 GASKET, Air Cleaner
-(Air Cleaner)
163B 844931 GASKET, Air Cleaner
186 844032 CONNECTOR, Hose
186A 845121 CONNECTOR, Hose
186B 845141 CONNECTOR, Hose
290 809911 SCREW
-(Intake Elbow)
445 394018S FILTER, A/C Cartridge
445B 845090 FILTER, A/C Cartridge
-Used After Code Date 11042700
445B 393957S FILTER, A/C Cartridge
-Used Before Code Date 11042800
467 844618 KNOB, Air Cleaner Cover
-Used After Code Date 10033100
-Used Before Code Date 14102400
467 691985 KNOB, Air Cleaner Cover
-Used Before Code Date 10040100
467A 691668 KNOB, Air Cleaner Cover
467C 846431 KNOB, Air Cleaner Cover
-Used After Code Date 14102300
480 806660 SCREW
-(Tube Clamp) (M8x18mm)
592 690939 NUT
-(Rewind Starter) (M6)
601E 593879 CLAMP, Hose
643C 845087 RETAINER, Air Filter
711 841233 SCREW
-(Carburetor Shield)
717 692153 BRACKET, Air Cleaner
717B 692542 STRAP/STUD, Air Cleaner Mounting
833 841233 SCREW
-(Air Cleaner Mounting Strap/Stud)
833B 691593 SCREW
-(Air Cleaner Mounting Strap/Stud) (M6x12mm)
855 845586 ADAPTER, Air Cleaner
862D 845089 STRAP/STUD, Air Cleaner Mounting
-Used After Code Date 09123100
862D 691565 STRAP/STUD, Air Cleaner Mounting
-Used Before Code Date 10010100
875 846046 BASE-AIR CLEANER
875D 845088 BASE, Air Cleaner
967 272490S FILTER, Pre Cleaner
967C 271794S FILTER, Pre Cleaner
968 699959 COVER, Air Cleaner
-(With Clips)
971 807084 SCREW
-(Air Cleaner Base to Carburetor/Throttle Body) (M6x14mm)
1004 842258 DUCT, Air
1004A 841656 DUCT, Air
1046 692082 PLUG, Blower Housing
1046A 843068 PLUG, Blower Housing
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025
Air CleanerAir CleanerAir CleanerAir Cleaner
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Air CleanerAir CleanerAir CleanerAir Cleaner
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1425 844712 HOSE, Purge Line
1431 844035 WASHER
-(Tube Clamp)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025
Air CleanerAir CleanerAir CleanerAir Cleaner
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Air CleanerAir CleanerAir CleanerAir Cleaner

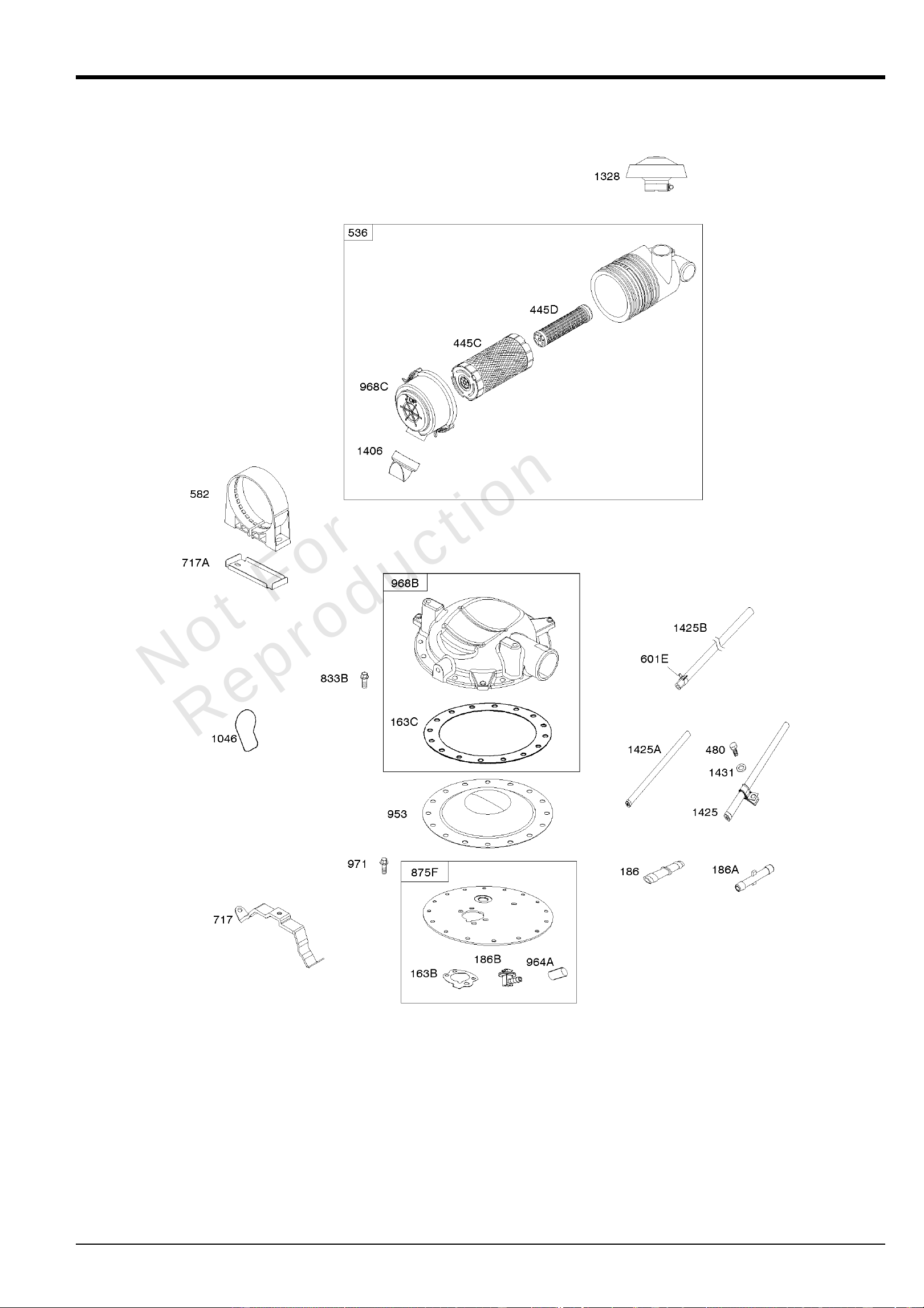

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
163B 844931 GASKET, Air Cleaner
163C 841823 GASKET, Air Cleaner
-(Air Cleaner)
186 844032 CONNECTOR, Hose
186A 845121 CONNECTOR, Hose
186B 845141 CONNECTOR, Hose
276B 806137 WASHER, Sealing
-(Solenoid)
445C 841497 FILTER, A/C Cartridge
445D 821136 FILTER, A/C Cartridge
480 806660 SCREW
-(Tube Clamp) (M8x18mm)
536 809670 CLEANER, Air
582 809878 CLAMP, Air Cleaner
601E 593879 CLAMP, Hose
717 692153 BRACKET, Air Cleaner
833B 691593 SCREW
-(Air Cleaner Mounting Strap/Stud) (M6x12mm)
875F 844996 BASE, Air Cleaner
953 845030 SCREEN, Air Cleaner
964A 807468 CAP, Carburetor
968B 841822 COVER, Air Cleaner
971 807084 SCREW
-(Air Cleaner Base to Carburetor/Throttle Body) (M6x14mm)
1046 692082 PLUG, Blower Housing
1406 842623 VALVE, Debris
1425 844712 HOSE, Purge Line
1431 844035 WASHER
-(Tube Clamp)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025
Alternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, Switches
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
Alternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, Switches

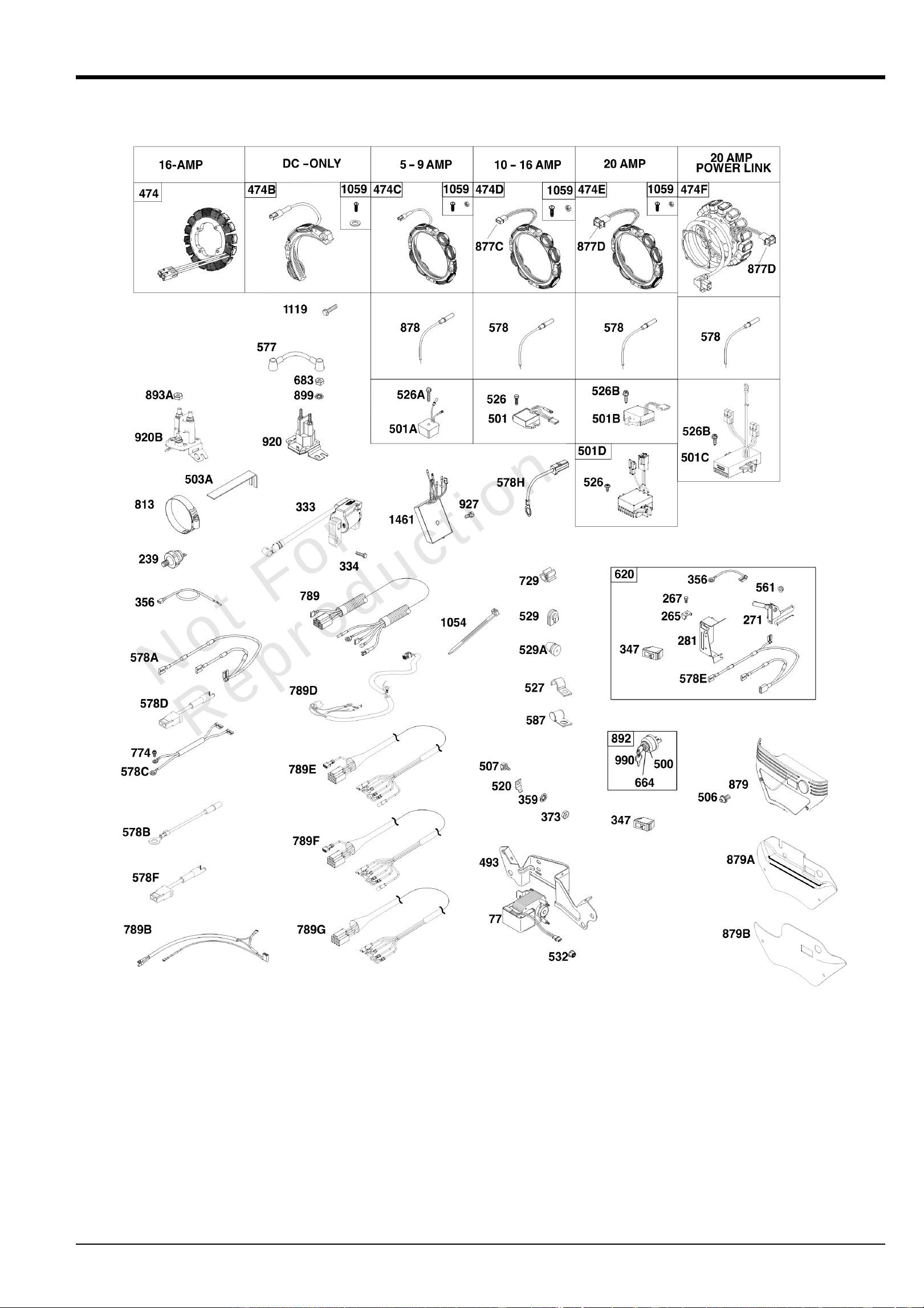

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
20 805049S SEAL, Oil
-(PTO Side)
77 ----- Motor-Servo
-(Motor-Servo is No Longer Available)(See ref#1463 for Replacement Kit)
239 690233 SWITCH, Oil Pressure
265 691024 CLAMP, Casing
267 692083 SCREW
-(Casing Clamp)
267 841552 SCREW
-(Casing Clamp) (M5x20mm)
271 692541 LEVER, Control
281 690742 PANEL, Control
333 845606 ARMATURE, Magneto
334 692066 SCREW
-(Magneto Armature)
347 795333 SWITCH, Rocker
356 690796 WIRE, Stop
-(Control Panel)
359 691077 WASHER
-(Ground Terminal)
373 691612 NUT
-(Ground Terminal)
474D 592830 ALTERNATOR
-(10-16 Amp Regulated)
493 691518 BRACKET, Mounting
500 691086 WASHER
-(Key Switch)
501 845907 REGULATOR
503A 845016 STRAP, Starter
-(60mm )
506 807120 SCREW
-(Carburetor/EFI Cover)
507 691972 INSULATOR
520 691084 TERMINAL, Ground
526 692067 SCREW
-(Regulator) (M6x12mm)
526B 691547 SCREW
-(Regulator) (M6x28mm)
527 690423 CLAMP, Tube
529 690744 GROMMET
529A 691527 GROMMET
532 691115 NUT
-(Mounting Bracket)
561 690713 NUT
-(Control Lever)
577 690795 CABLE, Starter
578 692306 WIRE ASSEMBLY
578A 844547 HARNESS, Wiring
578B 845849 WIRE ASSEMBLY
578E 691999 WIRE ASSEMBLY
578C 690809 WIRE ASSEMBLY
587 807116 CLAMP, Tube
620 494052 BRACKET, Control
-(Ignition Coil)
664 691087 NUT
-(Key Switch)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025
Alternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, Switches
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
Alternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, SwitchesAlternator, Ignition, Switches
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
683 691029 NUT
-(Starter Solenoid)
729 690586 CLIP, Wire
774 692067 SCREW
-(Stop Wire) (M6x12mm)
789 691996 HARNESS, Wiring
813 690635 CLAMP
877C 399916 WIRE/CONN-ALTERNATOR
-(2 Wires, 7-53/64 )(2 Bare Wire Ends, And Insulated Snap ConnectMale Pin
Terminal)
877D 698092 WIRE/CONNECTOR, Alternator
878 691362 HARNESS, Wiring
879A 842132 COVER, Carburetor/EFI
892 692318 SWITCH, Key
893A 691029 NUT
-(Starter Solenoid)
899 691077 WASHER
-(Starter Solenoid)
920 691656 SOLENOID, Starter
920B 846820 SOLENOID, Starter
990 691959 SET, Key
1048 690669 MODULE, Electronic Governor
1054 280275 TIE, Cable
1059 698516 KIT, Screw/Washer
1119 691552 SCREW
-(Alternator) (M4x30mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025

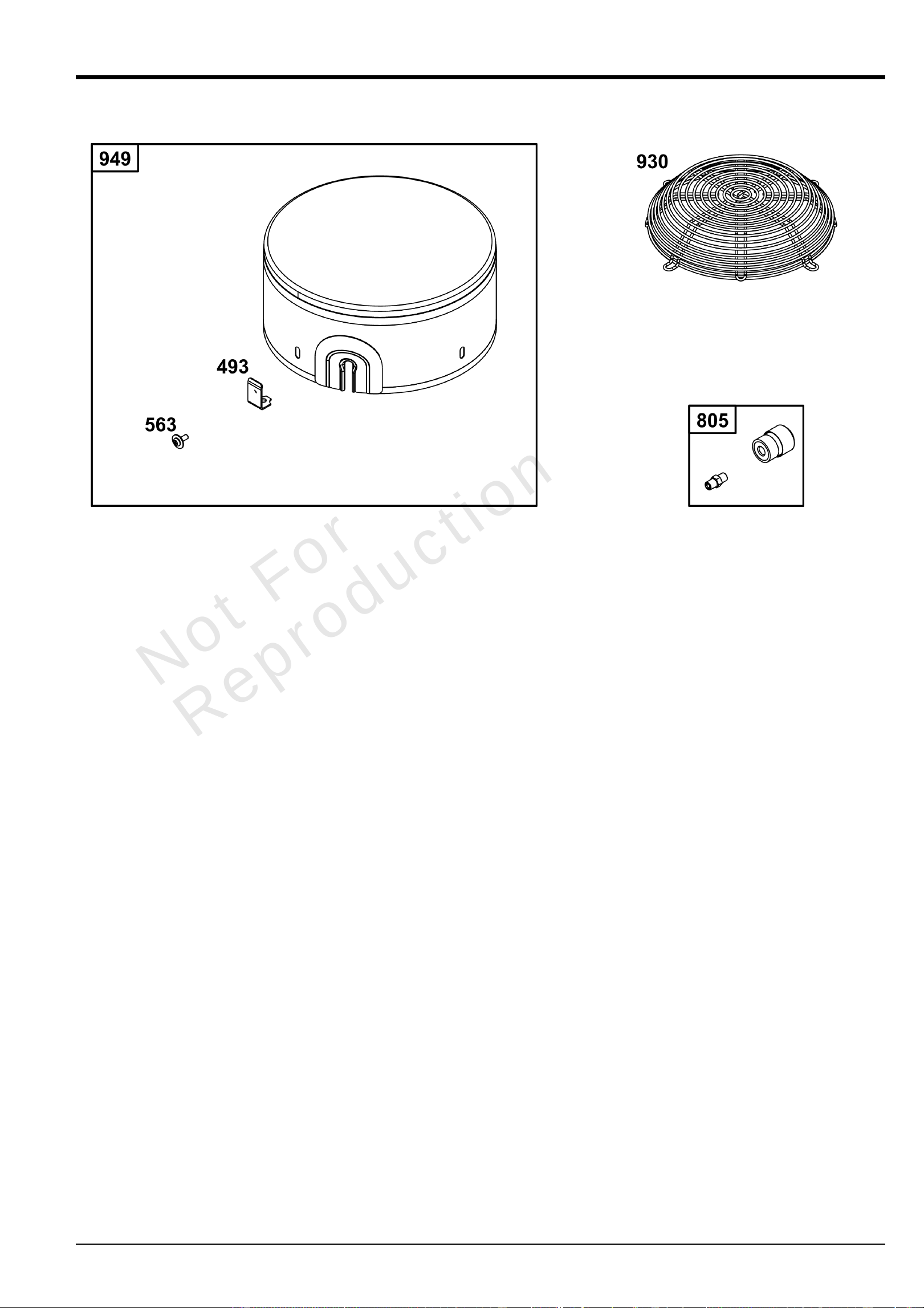

Blower Housing, Rewind StarterBlower Housing, Rewind StarterBlower Housing, Rewind StarterBlower Housing, Rewind Starter
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
Blower Housing, Rewind StarterBlower Housing, Rewind StarterBlower Housing, Rewind StarterBlower Housing, Rewind Starter

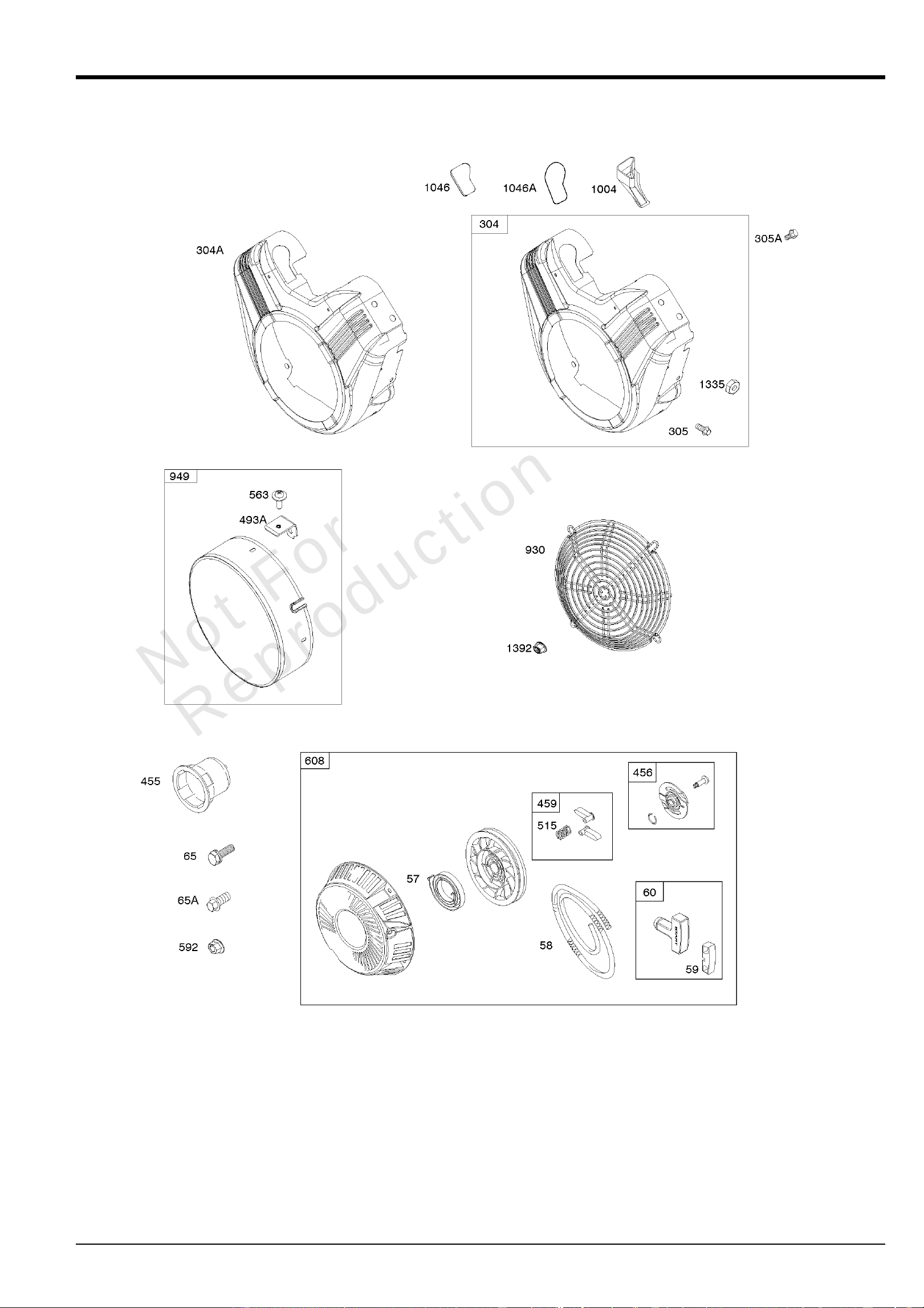

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
57 692086 1 SPRING, Rewind Starter
58 66574 1 ROPE, Starter
59 805957 1 INSERT, Grip
60 808167 1 GRIP, Starter Rope
65 690341 SCREW
-(Rewind Starter) (5/16-18 x 0.875)
-Used Before Code Date 14112700
65 846234 SCREW
-(Rewind Starter) (M8x22mm)
-Used After Code Date 14112600
65A 841233 SCREW
-(Rewind Starter) (M6x10mm)
304 844153 1 HOUSING, Blower
-(Compatible On Engines Without Oil Cooler)
304A 84003968 1 HOUSING, Blower
-(Compatible On Engines With Oil Cooler)
305 692056 SCREW
-(Blower Housing) (M8x14mm)
305 692551 SCREW
-(Blower Housing) (1/4-20 X 1.16Lg)
305A 841233 SCREW
-(Blower Housing) (M6x10mm)
455 841794 1 CUP, Flywheel
456 845219 1 PLATE, Pawl Friction
459 845218 1 PAWL, Ratchet
493A 845729 BRACKET, Mounting
515 691528 2 SPRING, Pawl
563 841735 SCREW
-(Debris Screen Guard)
592 690939 NUT
-(Rewind Starter) (M6)
608 841729 1 STARTER, Rewind
949 845728 1 GUARD, Debris Screen
1004 842258 1 DUCT, Air
1046 692082 1 PLUG, Blower Housing
1046A 843068 1 PLUG, Blower Housing
1335 691029 NUT
-(Blower Housing) (1/4-20)
1392 690939 NUT
-(Rewind Guard) (M6)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025
Camshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, BreatherCamshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, BreatherCamshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, BreatherCamshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, Breather
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025

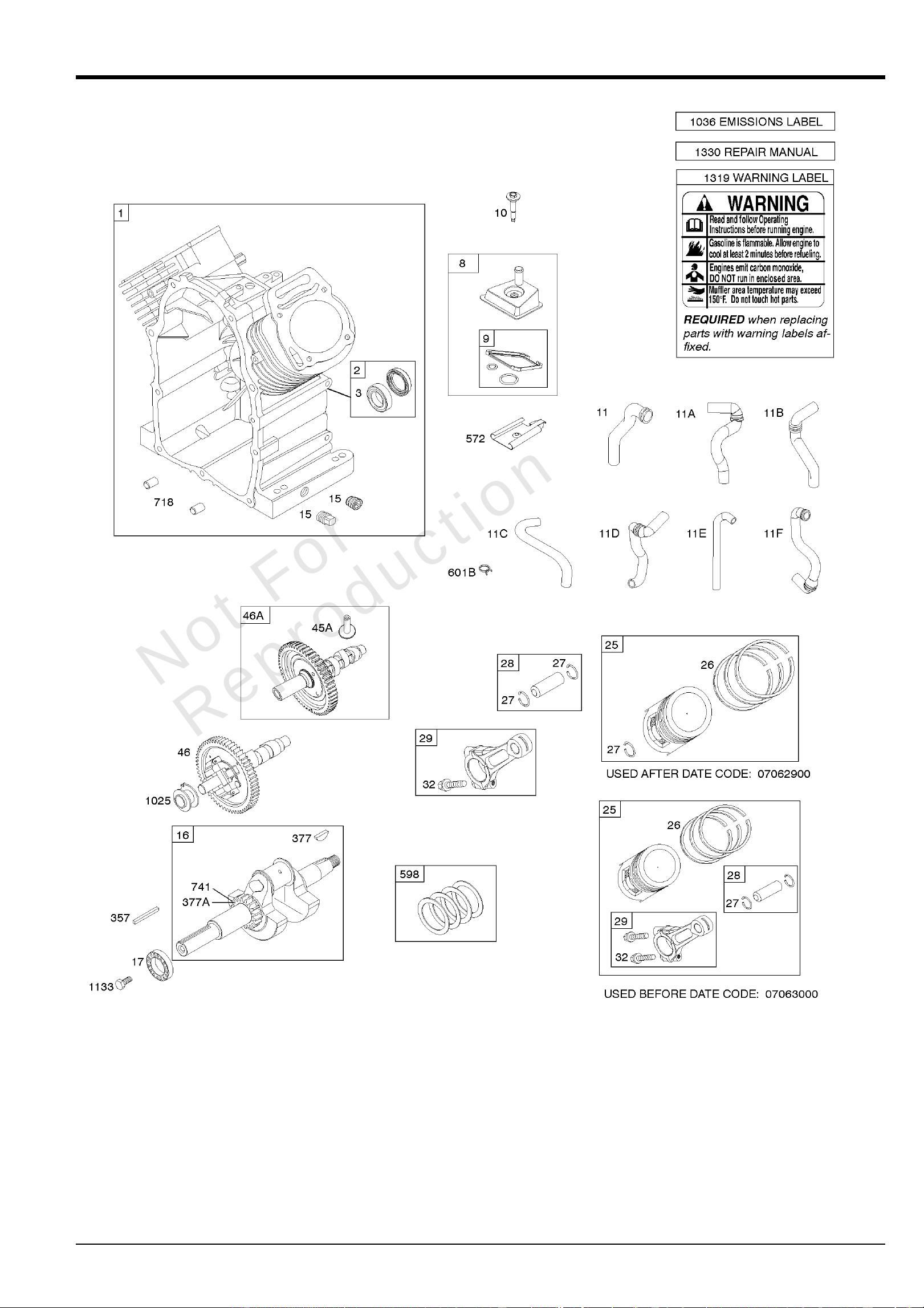

Camshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, BreatherCamshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, BreatherCamshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, BreatherCamshaft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, Breather
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 692544 CYLINDER ASSY
2 808534 KIT, Bushing/Seal
-(Magneto Side)
3 805101S SEAL, Oil
-(Magneto Side)
8 808984 BREATHER ASSEMBLY
9 844986 GASKET, Breather
10 690751 SCREW
-(Breather Assembly)
11 691556 TUBE, Breather
11A 844921 TUBE, Breather
-Used After Code Date 09122200
11B 806083S TUBE, Breather
-Used Before Code Date 09122300
15 690946 PLUG, Oil Drain
-(3/8"-18 NPTF-External 7/16" Sq)
15 691680 PLUG, Oil Drain
-(3/8"-18 NPTF - Internal 3/8" Sq)
16 843800 CRANKSHAFT
17 843827 BEARING, Ball
25 843821 PISTON ASSEMBLY
-(.020 Oversize)
25 844540 PISTON ASSEMBLY
-(Standard)
-Used Before Code Date 07063000
25 843792 PISTON ASSEMBLY
-(Standard)
-Used After Code Date 07062900
26 843793 SET, Ring
-(Standard)
26 843822 SET, Ring
-(.020 Oversize)
27 690683 LOCK, Piston Pin
28 844541 PIN, Piston
-(Standard)
29 807900S ROD, Connecting
-(Standard)
32 690698 SCREW
-(Connecting Rod)
46 845649 CAMSHAFT
357 691483 KEY, Drive Pulley
377 808095 KEY, Flywheel
377A 691639 KEY, Woodruff
572 690686 BAFFLE, Breather
598 807625 SHIM, End Play
-(Crankshaft or Camshaft Bearing)
601B 791850 CLAMP, Hose
718 806469 PIN, Locating
741 846085 GEAR, Timing
1025 690689 SPOOL, Governor
1036 ----- Label-Emissions
-(Available From A Briggs & Stratton Authorized Dealer)
1133 690342 SCREW
-(Crankshaft)
1319 ----- Label-Warning
1330 272144 MANUAL, Repair
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025

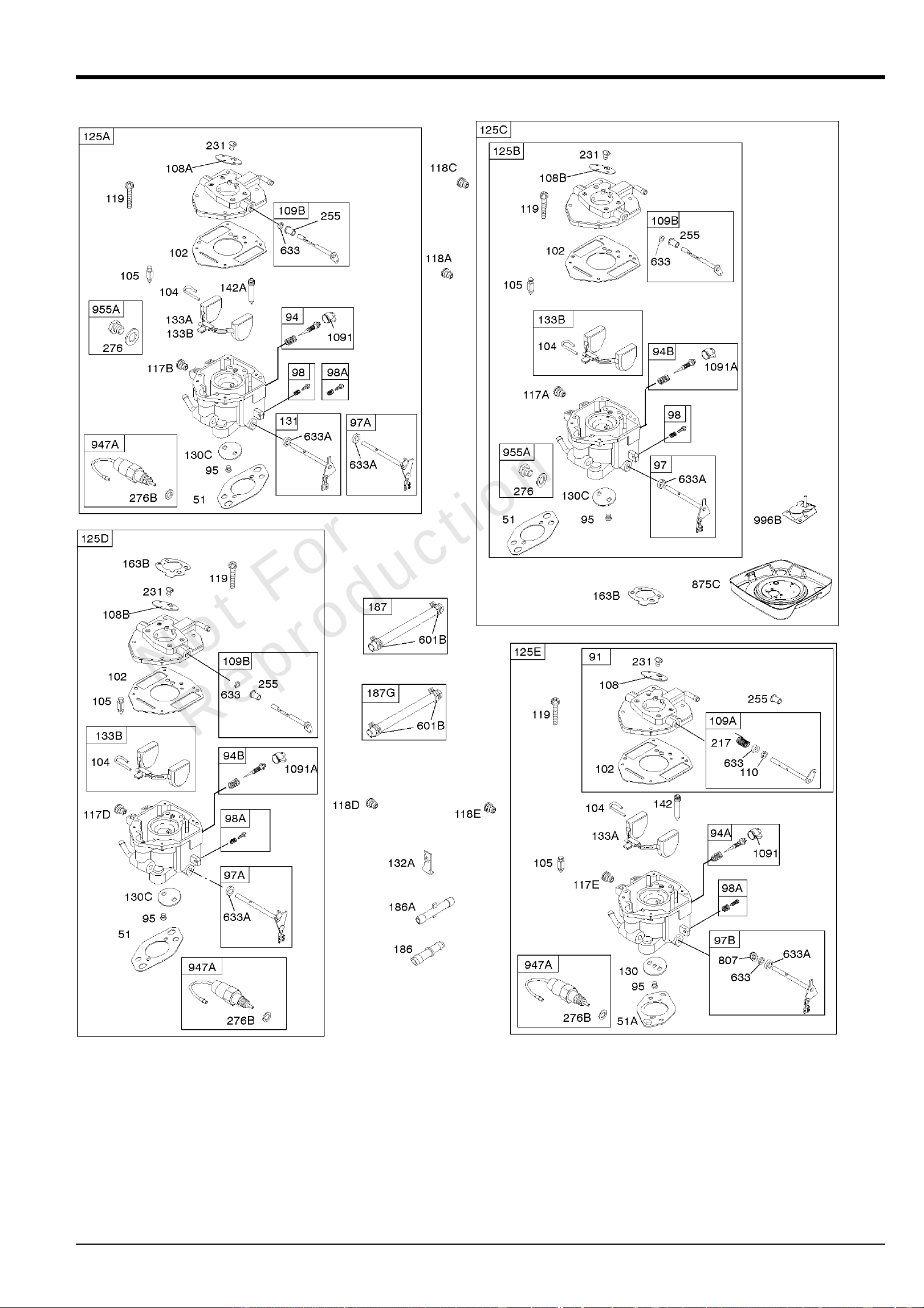

CarburetorCarburetorCarburetorCarburetor
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025

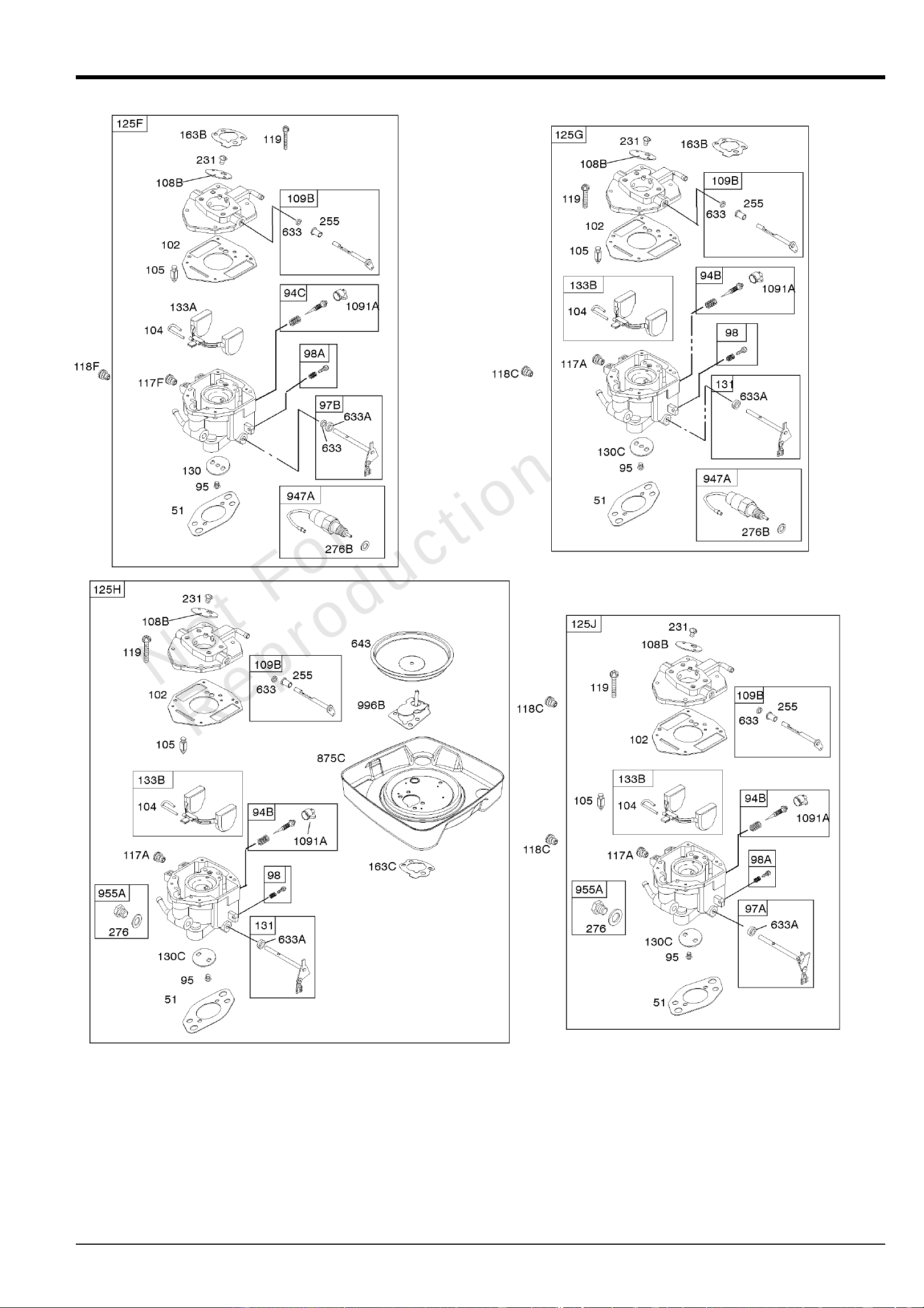

CarburetorCarburetorCarburetorCarburetor
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 691694 GASKET, Intake
-(Manifold To Carburetor)
51A 692035 GASKET, Intake
-(Manifold to Cylinder Head)
94 842880 KIT, Idle Mixture
94B 845021 KIT, Idle Mixture
95 690718 SCREW
-(Throttle Valve)
98 808177 KIT, Idle Speed
102 692077 GASKET, Carburetor Body
104 690723 PIN, Float Hinge
105 797410 VALVE, Float Needle
108A 806134 VALVE, Choke
108B 844989 VALVE, Choke
109B 843321 SHAFT, Choke
110 806861 WASHER
-(Choke Shaft)
117A 806373 JET, Main
-(Standard)
117B 806126 JET, MAIN
-(Standard)
118A 690880 JET, Main
-(High Altitude) (9000 Feet)
118A 809685 JET, Main
-(High Altitude) (5000 Feet)
118D 841670 JET, Main
-(High Altitude) (5000 Feet)
118C 842439 JET, Main
-(High Altitude) (5000 Feet)
118C 845903 JET, Main
-(High Altitude) (9000 Feet)
118D 690881 JET, Main
-(High Altitude) (9000 Feet)
118E 807012 JET, Main
-(High Altitude) (9000 Feet)
118E 809442 JET, Main
-(High Altitude) (5000 Feet)
119 690720 SCREW
-(Upper Carburetor Body to Lower Carburetor Body)
125B 845023 CARBURETOR
-(Carburetor Only)
125C 846109 CARBURETOR
-(Carburetor with Air Cleaner Base)
130C 806132 VALVE, Throttle
131 845022 KIT, Throttle Shaft
132A 690863 STOP, Throttle
133B 843320 FLOAT, Carburetor
142A 806128 NOZZLE, Carburetor
163B 844931 GASKET, Air Cleaner
186 844032 CONNECTOR, Hose
186A 845121 CONNECTOR, Hose
217 806862 SPRING, Choke Return
231 690718 SCREW
-(Choke Valve)
255 690721 BUSHING, Choke Shaft
276 690724 WASHER, Sealing
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
CarburetorCarburetorCarburetorCarburetor
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
CarburetorCarburetorCarburetorCarburetor
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
276B 806137 WASHER, Sealing
-(Solenoid)
601B 791850 CLAMP, Hose
633 690722 SEAL, Choke/Throttle Shaft
633A 806131 SEAL, Choke/Throttle Shaft
807 805557 SPACER
-(Throttle)
947A 692094 SOLENOID, Fuel
955A 807723 PLUG, Carburetor
1091 691516 CAP, Limiter
1091A 844448 CAP, Limiter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
CarburetorCarburetorCarburetorCarburetor
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
CarburetorCarburetorCarburetorCarburetor
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 691694 GASKET, Intake
-(Manifold To Carburetor)
94B 845021 KIT, Idle Mixture
95 690718 SCREW
-(Throttle Valve)
98 808177 KIT, Idle Speed
102 692077 GASKET, Carburetor Body
104 690723 PIN, Float Hinge
105 797410 VALVE, Float Needle
108B 844989 VALVE, Choke
109B 843321 SHAFT, Choke
117A 806373 JET, Main
-(Standard)
118C 845903 JET, Main
-(High Altitude) (9000 Feet)
118C 842439 JET, Main
-(High Altitude) (5000 Feet)
118F 844990 JET, Main
-(High Altitude) (5000 Feet)
119 690720 SCREW
-(Upper Carburetor Body to Lower Carburetor Body)
130C 806132 VALVE, Throttle
131 845022 KIT, Throttle Shaft
133B 843320 FLOAT, Carburetor
163B 844931 GASKET, Air Cleaner
163C 841823 GASKET, Air Cleaner
-(Air Cleaner)
231 690718 SCREW
-(Choke Valve)
255 690721 BUSHING, Choke Shaft
276 690724 WASHER, Sealing
276B 806137 WASHER, Sealing
-(Solenoid)
633 690722 SEAL, Choke/Throttle Shaft
633A 806131 SEAL, Choke/Throttle Shaft
947A 692094 SOLENOID, Fuel
955A 807723 PLUG, Carburetor
1091A 844448 CAP, Limiter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025

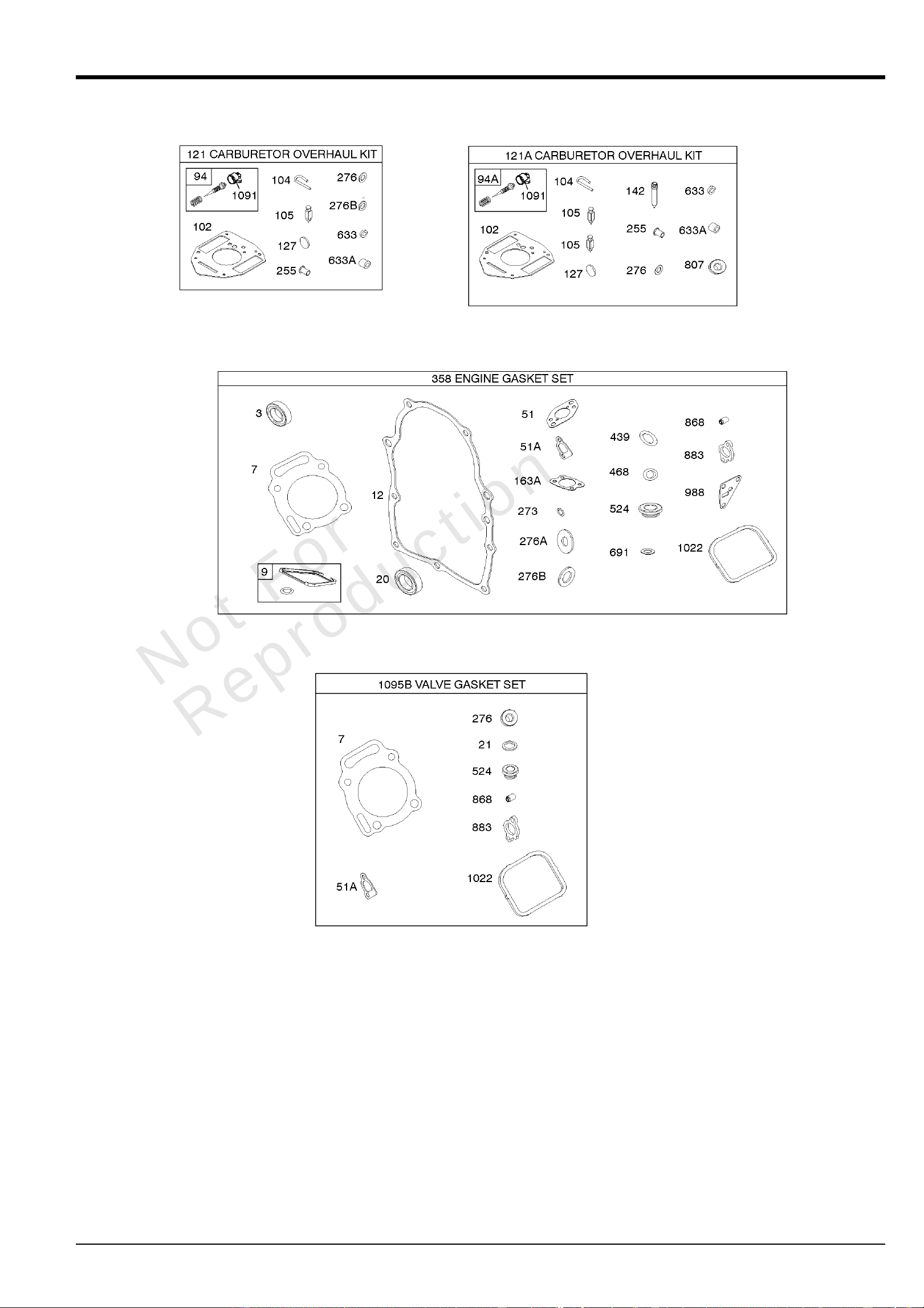

Carburetor Overhaul Kit, Engine & Valve SetCarburetor Overhaul Kit, Engine & Valve SetCarburetor Overhaul Kit, Engine & Valve SetCarburetor Overhaul Kit, Engine & Valve Set
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Carburetor Overhaul Kit, Engine & Valve SetCarburetor Overhaul Kit, Engine & Valve SetCarburetor Overhaul Kit, Engine & Valve SetCarburetor Overhaul Kit, Engine & Valve Set
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 805101S SEAL, Oil
-(Magneto Side)
7 845884 GASKET, Cylinder Head
-(Graphoil)
9 844986 GASKET, Breather
12 846487 GASKET, Crankcase
20 805049S SEAL, Oil
-(PTO Side)
21 809500 CAP, Oil Fill
51 691694 GASKET, Intake
-(Manifold To Carburetor)
51A 692035 GASKET, Intake
-(Manifold to Cylinder Head)
94 842880 KIT, Idle Mixture
102 692077 GASKET, Carburetor Body
104 690723 PIN, Float Hinge
105 797410 VALVE, Float Needle
121 842881 KIT, Carburetor Overhaul
127 690727 PLUG, Welch
163A 692081 GASKET, Air Cleaner
-(Air Cleaner)
255 690721 BUSHING, Choke Shaft
273 690681 SEAL, O-Ring
-(Oil Pump)
276 690724 WASHER, Sealing
276A 807085 WASHER, Sealing
-(Head)(Rocker Cover)
276B 806137 WASHER, Sealing
-(Solenoid)
358 841188 GASKET SET, Engine
439 692154 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
468 690690 SEAL, O-Ring
-(Oil Pump Screen)
524 693172 SEAL, O-Ring
-(Dipstick Tube)
633 690722 SEAL, Choke/Throttle Shaft
633A 806131 SEAL, Choke/Throttle Shaft
691 842826 SEAL, Governor Shaft
807 805557 SPACER
-(Throttle)
868 691963 SEAL, Valve
883 691613 GASKET, Exhaust
988 692063 GASKET, Oil Adapter
1022 806039S GASKET, Rocker Cover
1091 691516 CAP, Limiter
1095B 841191 GASKET SET, Valve
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025

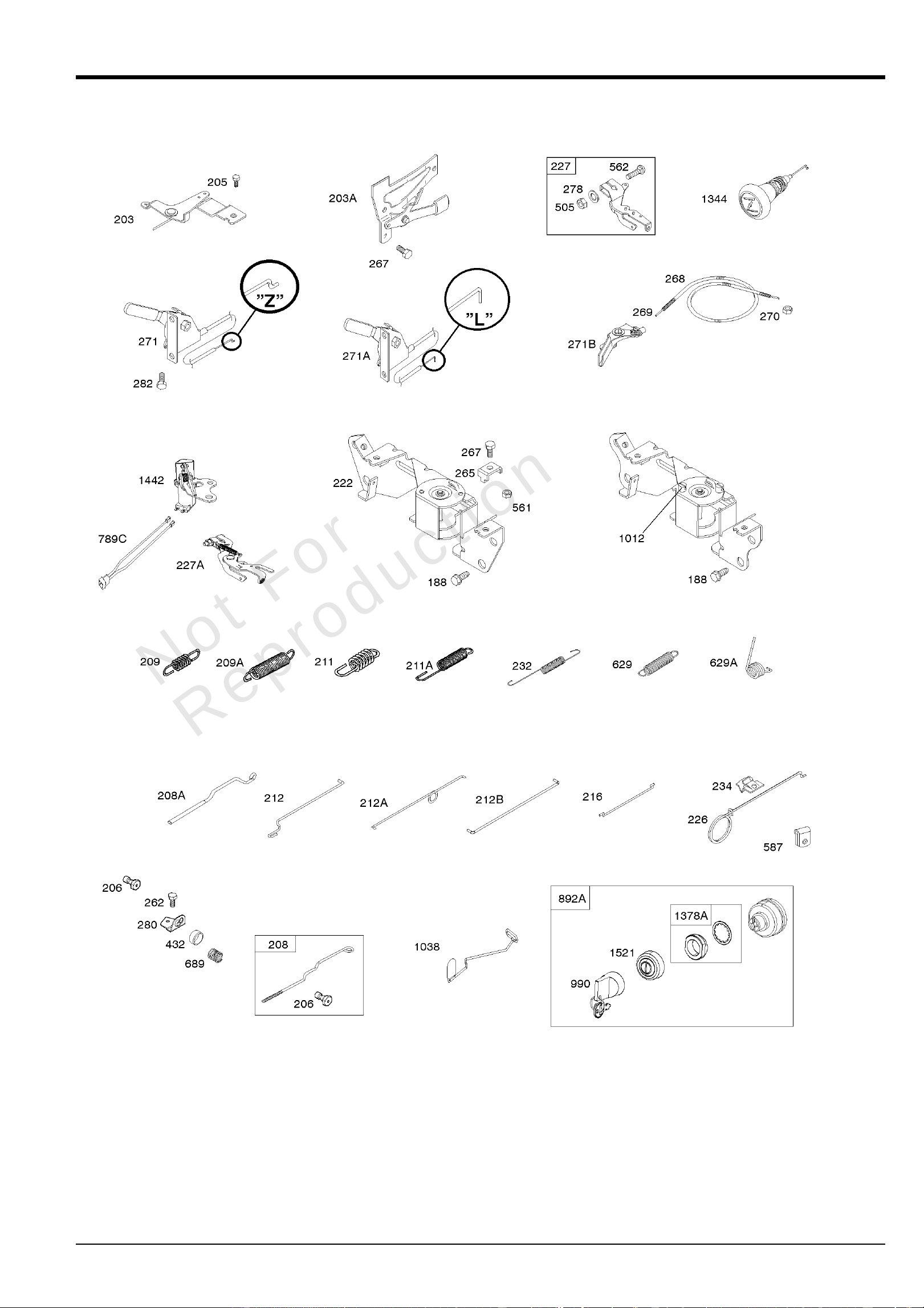

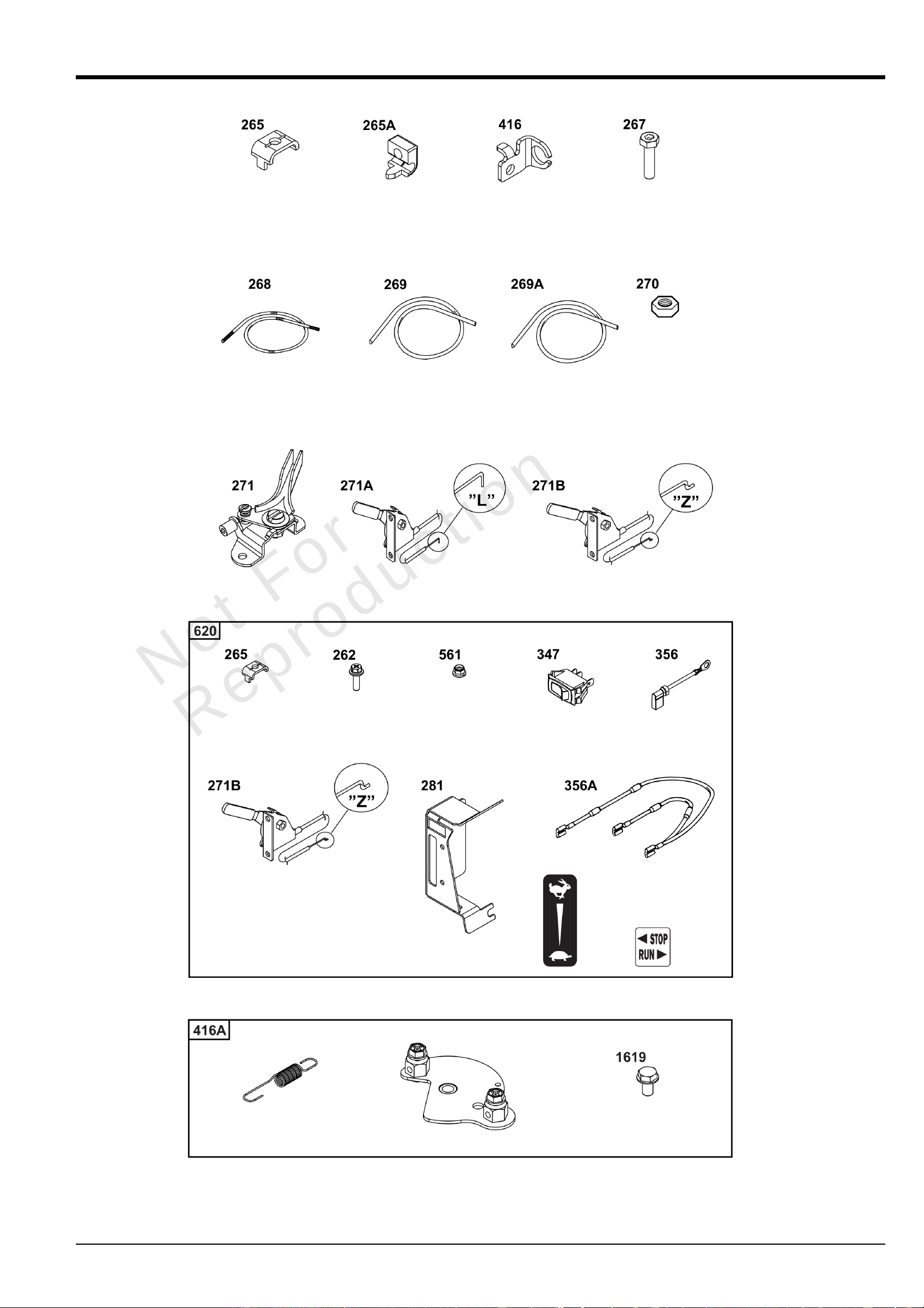

Controls, Governor SpringControls, Governor SpringControls, Governor SpringControls, Governor Spring
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025
Controls, Governor SpringControls, Governor SpringControls, Governor SpringControls, Governor Spring
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
188 692056 SCREW
-(Control Bracket) (M8x14mm)
188 845964 SCREW
-(Control Bracket) (M8x10mm)
203 690923 CRANK, Bell
205 692083 SCREW
-(Bell Crank)
206 691244 NUT, Governor Adjusting
208 808453 ROD, Governor Control
209 692070 SPRING, Governor
-(Main)
211 692069 SPRING, Governed Idle
-(Red)
212 847015 LINK, Throttle
212A 691519 LINK-THROTTLE
216 690705 LINK, Choke
222 845305 BRACKET, Control
-(Used With Control Lever And/Or Wire With Z Formed End)
226 692075 ROD, Choke
227 690236 LEVER, Governor Control
232 692073 SPRING, Governor Link
234 691723 CLIP, Control Rod
262 692083 SCREW
-(Rod Bracket) (M5x12mm)
262 841552 SCREW
-(Rod Bracket) (M5x20mm)
265 691024 CLAMP, Casing
267 841552 SCREW
-(Casing Clamp) (M5x20mm)
267 692083 SCREW
-(Casing Clamp)
268 691025 CASING, Control Wire
269 691026 WIRE, Control
270 691027 NUT
-(Control Wire Casing)
271 692541 LEVER, Control
271A 692105 LEVER, Control
271B 691028 LEVER, Control
278 842122 WASHER
-(Governor Control Lever)
280 691526 BRACKET, Fixed Speed
282 692083 SCREW
-(Control Lever)
432 691509 CAP, Spring
505 844752 NUT
-(Governor Control Lever)
561 690713 NUT
-(Control Bracket)
562 690239 BOLT
-(Governor Control Lever)
587 807116 CLAMP, Tube
629 806717 SPRING, Throttle Return
-(Throttle Return)
629A 806716 SPRING, Throttle Return
-(Throttle Return)
689 691272 SPRING, Friction
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
Controls, Governor SpringControls, Governor SpringControls, Governor SpringControls, Governor Spring
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
28 04-Sep-2025
Controls, Governor SpringControls, Governor SpringControls, Governor SpringControls, Governor Spring
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
990 691959 SET, Key
1012 690592 RETAINER, Link
1038 844555 ROD, Fuel Shut Off
1378A 847144 SET, Washer/Nut
1521 847150 CAP, Switch
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
29 04-Sep-2025

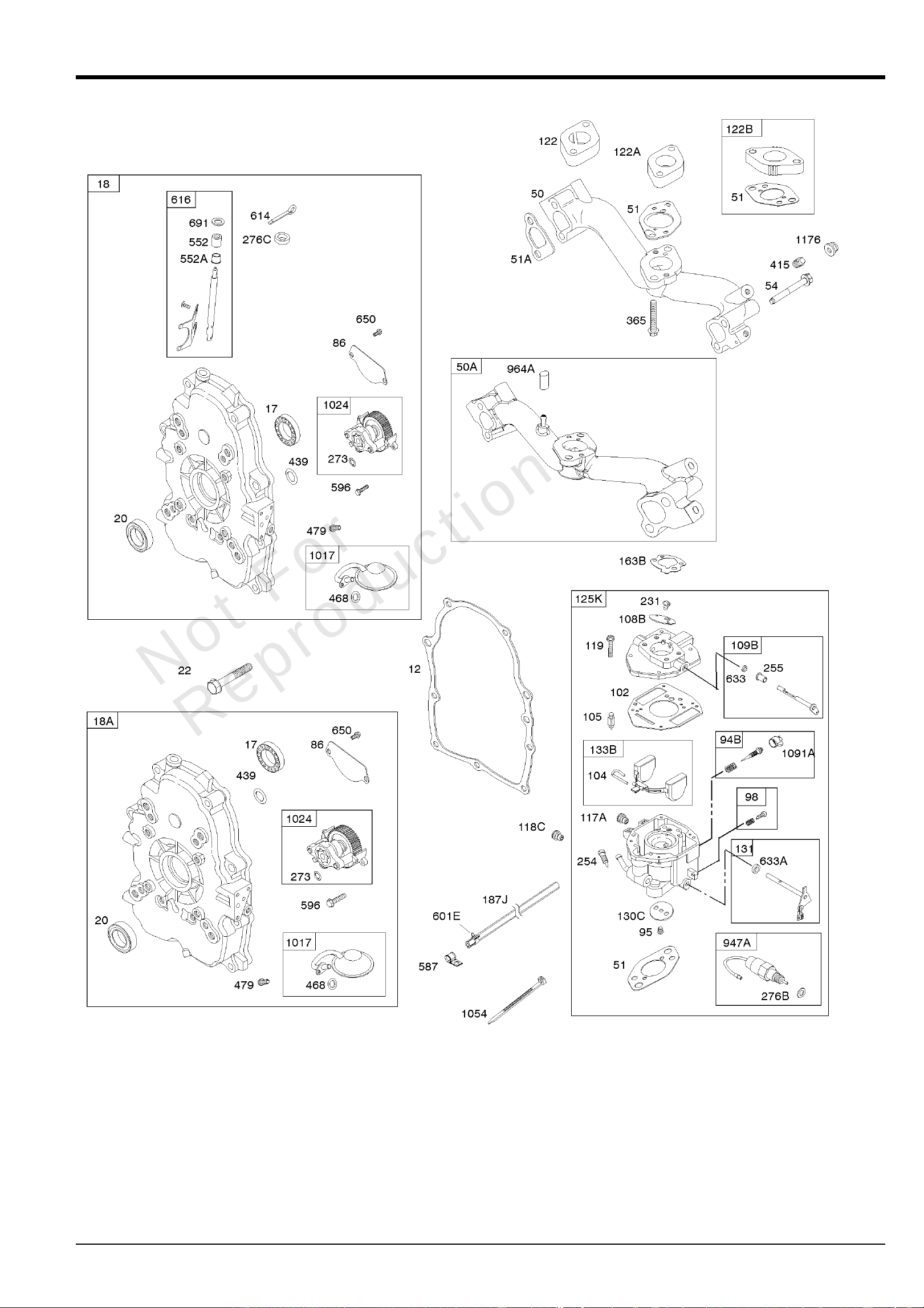

Crankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake Manifold
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
30 04-Sep-2025
Crankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake Manifold
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
12 846487 GASKET, Crankcase
17 843827 BEARING, Ball
18 844588 COVER, Crankcase
20 805049S SEAL, Oil
-(PTO Side)
22 807362 SCREW
-(Crankcase Cover/Sump)
50 690754 MANIFOLD, Intake
51 691694 GASKET, Intake
-(Manifold To Carburetor)
51A 692035 GASKET, Intake
-(Manifold to Cylinder Head)
54 846604 SCREW
-(Intake Manifold) (M8x67mm) (Dog Point)
86 690745 COVER, Gear
94B 845021 KIT, Idle Mixture
95 690718 SCREW
-(Throttle Valve)
98 808177 KIT, Idle Speed
102 692077 GASKET, Carburetor Body
104 690723 PIN, Float Hinge
105 797410 VALVE, Float Needle
108B 844989 VALVE, Choke
109B 843321 SHAFT, Choke
117A 806373 JET, Main
-(Standard)
118C 845903 JET, Main
-(High Altitude) (9000 Feet)
118C 842439 JET, Main
-(High Altitude) (5000 Feet)
119 690720 SCREW
-(Upper Carburetor Body to Lower Carburetor Body)
122A 690747 SPACER, Carburetor
130C 806132 VALVE, Throttle
131 845022 KIT, Throttle Shaft
133B 843320 FLOAT, Carburetor
163B 844931 GASKET, Air Cleaner
231 690718 SCREW
-(Choke Valve)
254 808178 DRAIN, Carburetor Bowl
255 690721 BUSHING, Choke Shaft
273 690681 SEAL, O-Ring
-(Oil Pump)
276B 806137 WASHER, Sealing
-(Solenoid)
276C 690704 WASHER
365 690711 SCREW
-(Carburetor/Throttle Body)
415 794903 PLUG
-(1/8"-27 NPTF - EXTERNAL SQ)
439 692154 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
468 690690 SEAL, O-Ring
-(Oil Pump Screen)
479 807084 SCREW
-(Oil Pump Screen)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
31 04-Sep-2025
Crankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake Manifold
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
32 04-Sep-2025
Crankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake ManifoldCrankcase Cover, Intake Manifold
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
552 690701 BUSHING, Governor Crank
-(Output End)
552A 806686 BUSHING, Governor Crank
587 807116 CLAMP, Tube
596 691492 SCREW
-(Oil Pump)
601E 593879 CLAMP, Hose
614 691550 PIN, Cotter
616 806685 CRANK, Governor
633 690722 SEAL, Choke/Throttle Shaft
633A 806131 SEAL, Choke/Throttle Shaft
650 841233 SCREW
-(Oil Deflector) (Oil Deflector)
691 842826 SEAL, Governor Shaft
947A 692094 SOLENOID, Fuel
964A 807468 CAP, Carburetor
1017 690900 SCREEN, Oil Pump
1024 ----- Pump-Oil
-(Oil Pump is No Longer Available) (See Reference 18 for correctreplacement
Crankcase Cover)
-Used Before Code Date 07101500
1024 843825 PUMP, Oil
-Used After Code Date 07101400
1054 280275 TIE, Cable
1091A 844448 CAP, Limiter
1176 842067 NUT
-(Exhaust Manifold)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
33 04-Sep-2025

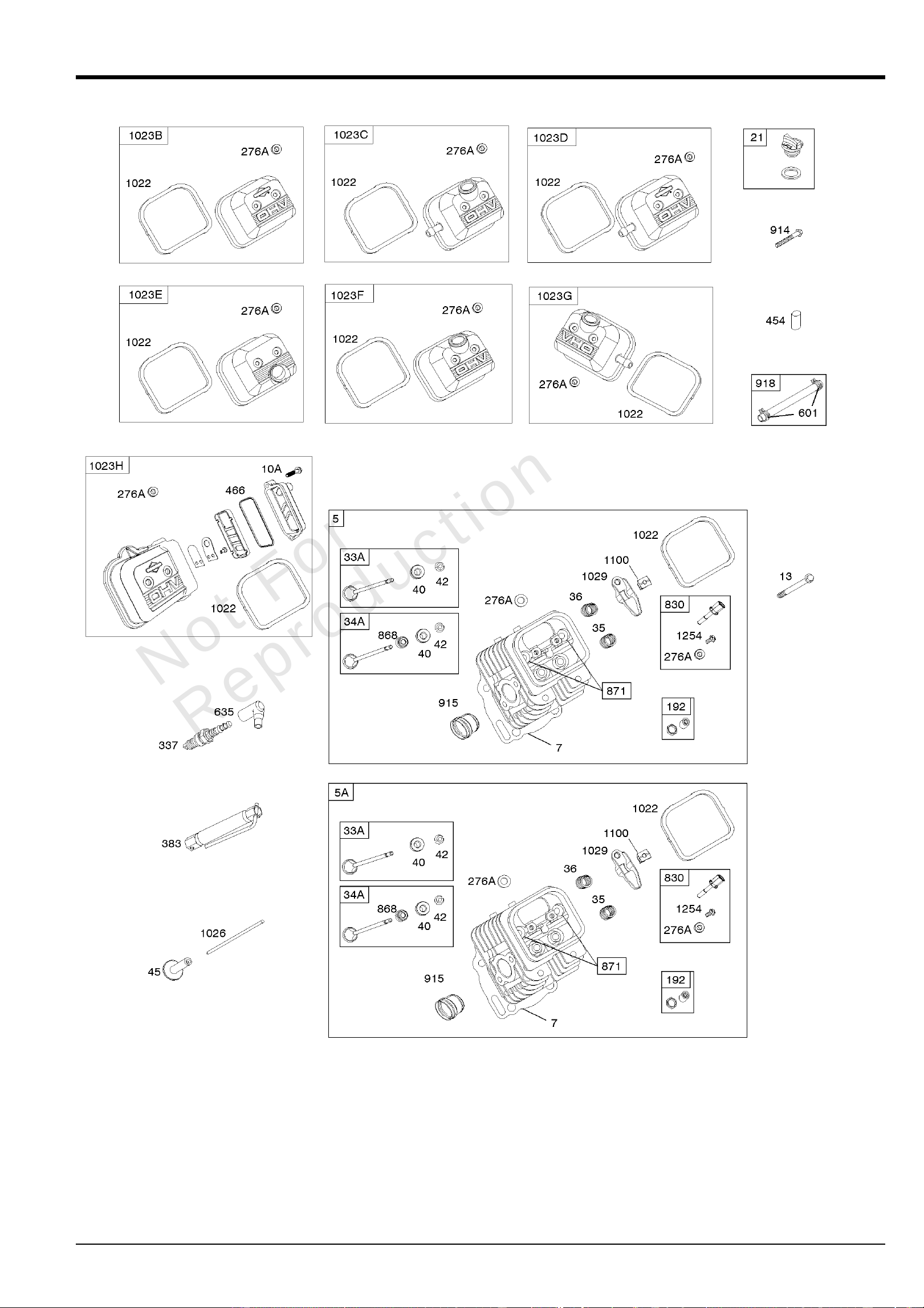

Cylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve Covers
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
34 04-Sep-2025
Cylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve Covers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
5 809185 HEAD, Cylinder
-(Cylinder 1)
5A 809186 HEAD, Cylinder
-(Cylinder 2)
7 845884 GASKET, Cylinder Head
-(Graphoil)
13 692059 SCREW
-(Cylinder Head)
21 809500 CAP, Oil Fill
33A 807681 VALVE, Exhaust
34A 807680 VALVE, Intake
35 692084 SPRING, Valve
-(Intake)
36 692084 SPRING, Valve
-(Exhaust)
40 692058 RETAINER, Valve
42 807683 KEEPER, Valve
45 843379 TAPPET, Valve
192 807623 ADJUSTER. Rocker Arm
276A 807085 WASHER, Sealing
-(Head)(Rocker Cover)
337 491055S PLUG, Spark
-(RC12YC - RESISTOR)
337 496018S PLUG, Spark
-(RC14YC - Resistor - Hot)
337 691043 PLUG, Spark
-(QC12YC) (EMS) (GOLD TERMINAL)
337 792015 PLUG, Spark
-(XC92YC - RESISTOR - EMS)
337 84007216 2 PLUG, SPARK
-(China Only)
383 19576S WRENCH, Spark Plug
601 691038 CLAMP, Hose
635 692076 BOOT, Spark Plug
830 809157 STUD, Rocker Arm
-(Rocker Arm)
868 691963 SEAL, Valve
871 692057 BUSHING, Valve Guide
914 807120 SCREW
-(Rocker Cover)
915 691493 LINER, Port
918 791880 HOSE, Vacuum
-(Cut To Required Length)
1022 806039S GASKET, Rocker Cover
1023B 691494 COVER, Rocker
1023C 690910 COVER, Rocker
-(Cylinder 1) (Fuel Pump)
1023D 691558 COVER, Rocker
1023G 842823 COVER, Rocker
1023H 843750 COVER, Rocker
1023E 691531 COVER, Rocker
1023F 843749 COVER, Rocker
1026 691836 ROD, Push
-(Steel)
1026 691758 ROD, Push
-(Exhaust)(Aluminum)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
35 04-Sep-2025
Cylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve Covers
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
36 04-Sep-2025
Cylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve CoversCylinder Head, Valves, Valve Covers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1029 807323 ARM, Rocker
1100 791959 PIVOT, Rocker Arm
1254 807084 SCREW
-(Rocker Arm Stud)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
37 04-Sep-2025

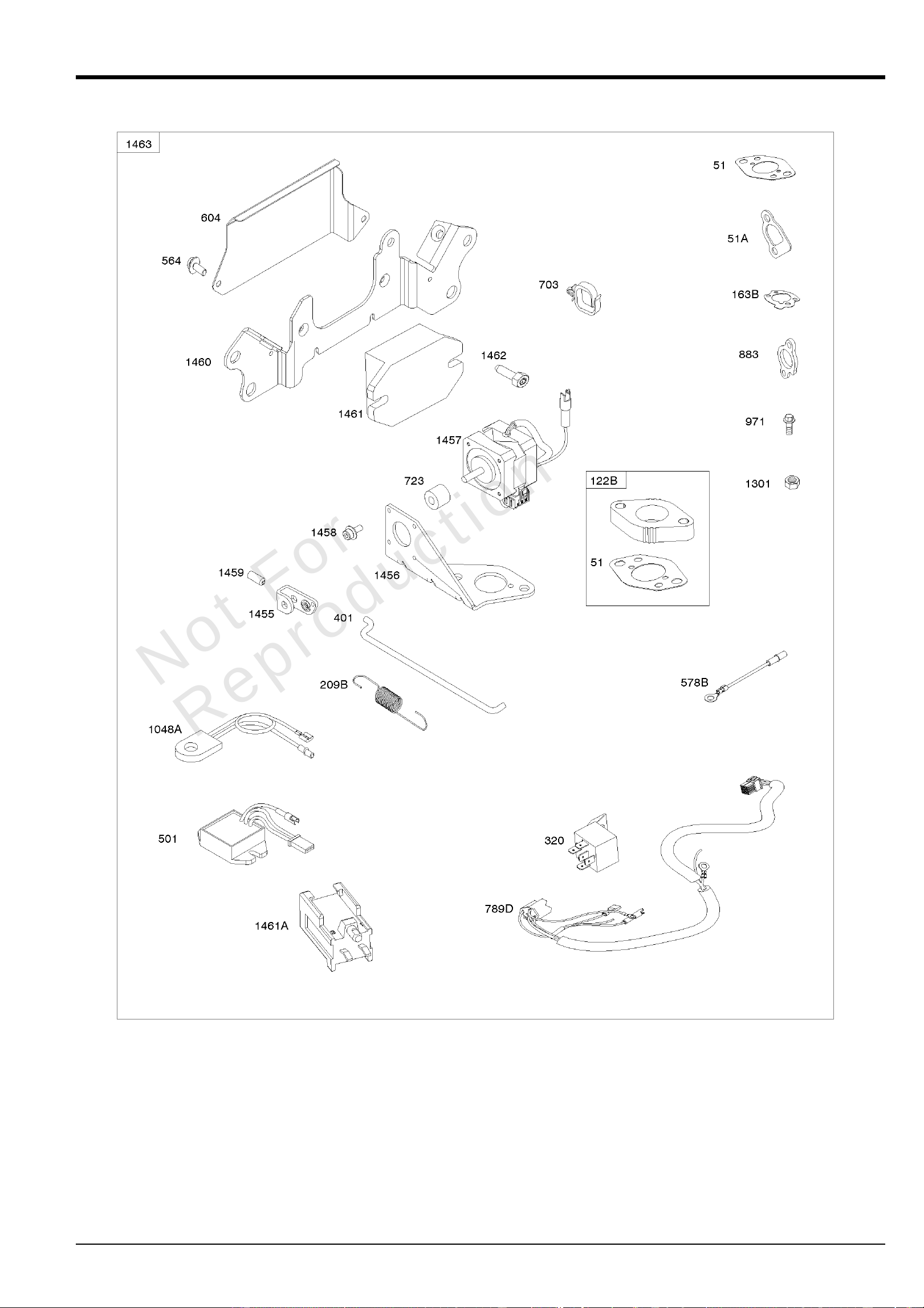

Electronic GovernorElectronic GovernorElectronic GovernorElectronic Governor
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
38 04-Sep-2025
Electronic GovernorElectronic GovernorElectronic GovernorElectronic Governor
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 691694 GASKET, Intake
-(Manifold To Carburetor)
51A 692035 GASKET, Intake
-(Manifold to Cylinder Head)
163B 844931 GASKET, Air Cleaner
501 845907 REGULATOR
564 690677 SCREW
-(Control Cover)
578B 845849 WIRE ASSEMBLY
883 691613 GASKET, Exhaust
971 807084 SCREW
-(Air Cleaner Base to Carburetor/Throttle Body) (M6x14mm)
1048A 845556 MODULE, Electronic Governor
1301 845823 NUT
-(Wiring Harness) (#8-32)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
39 04-Sep-2025

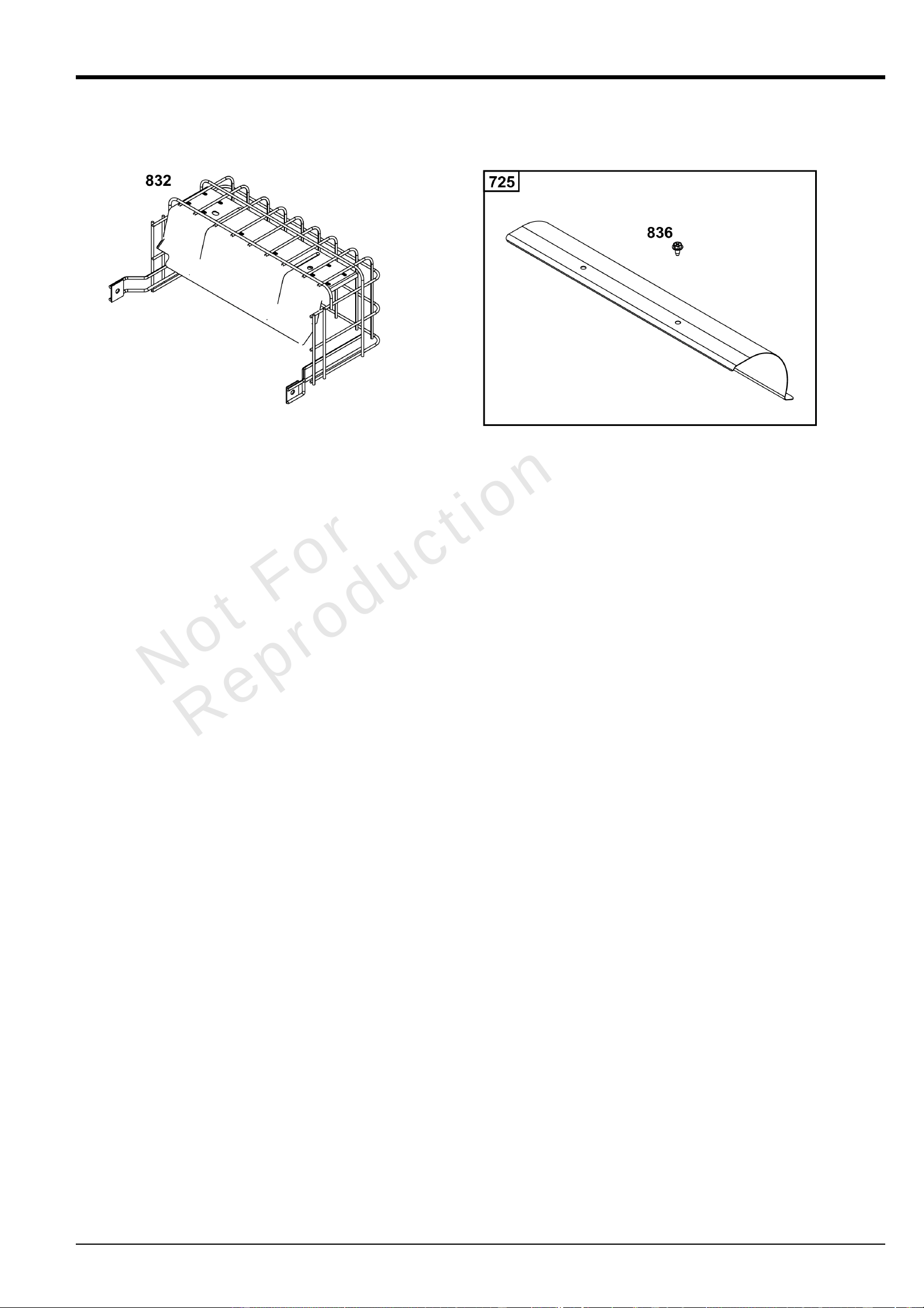

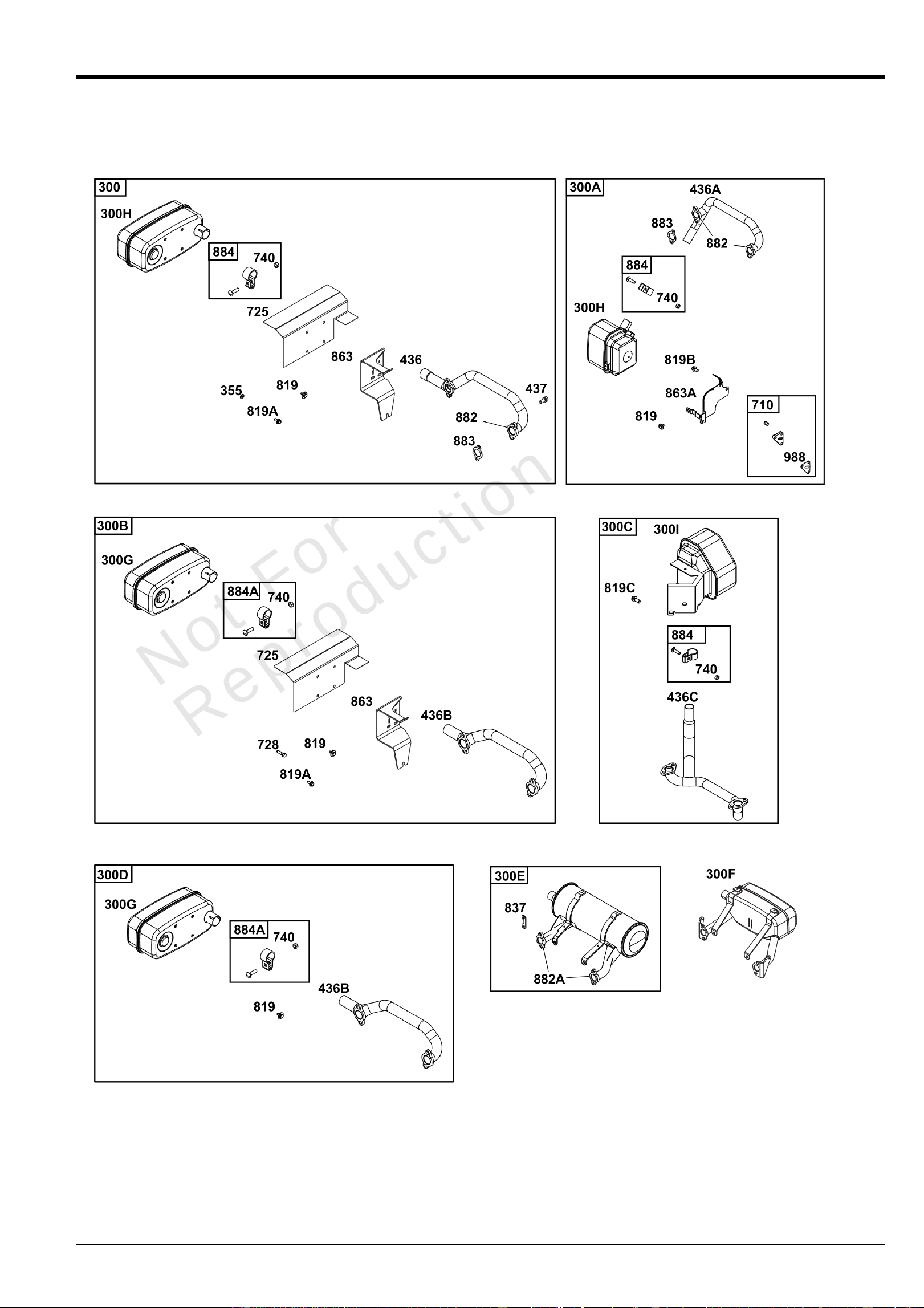

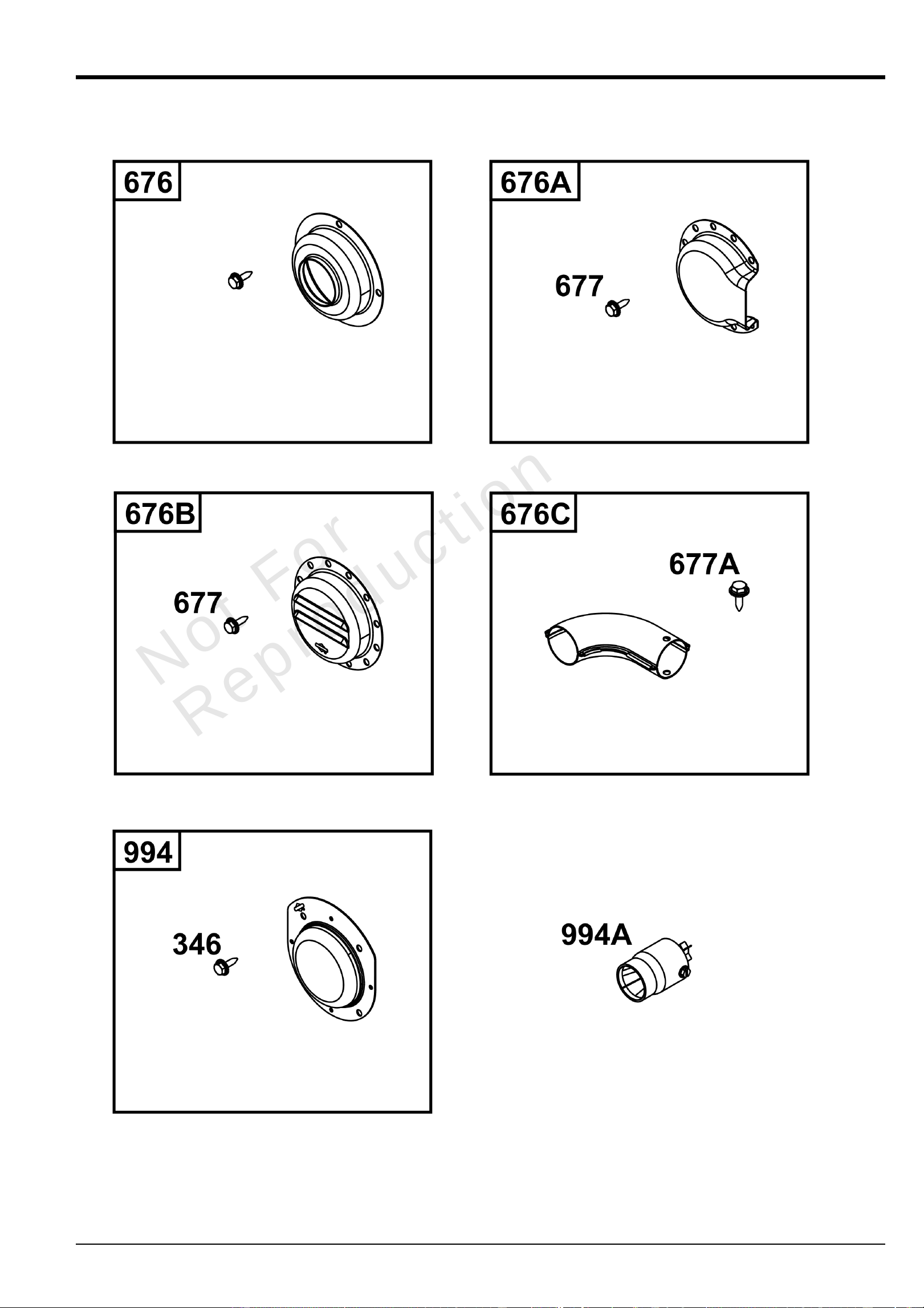

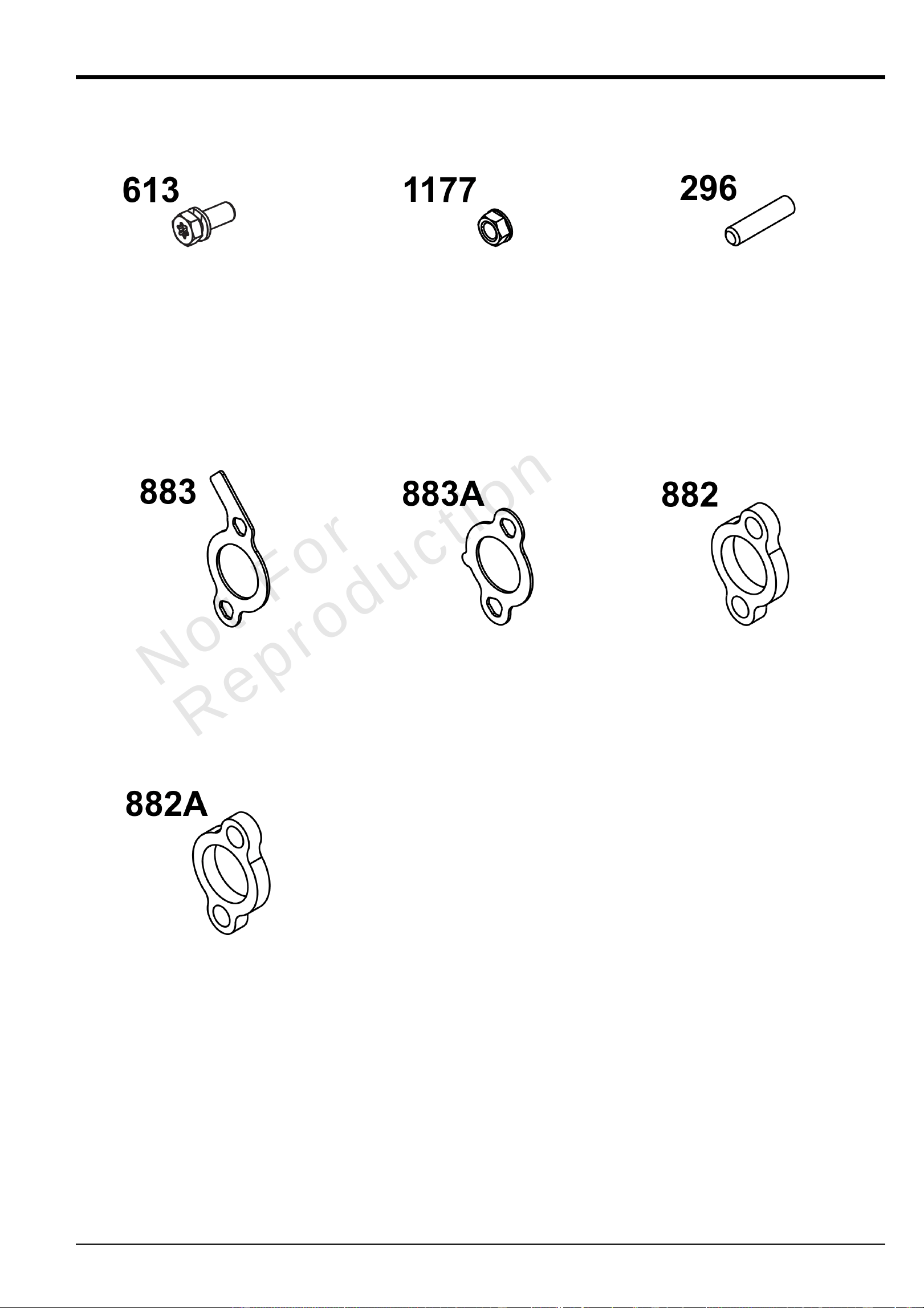

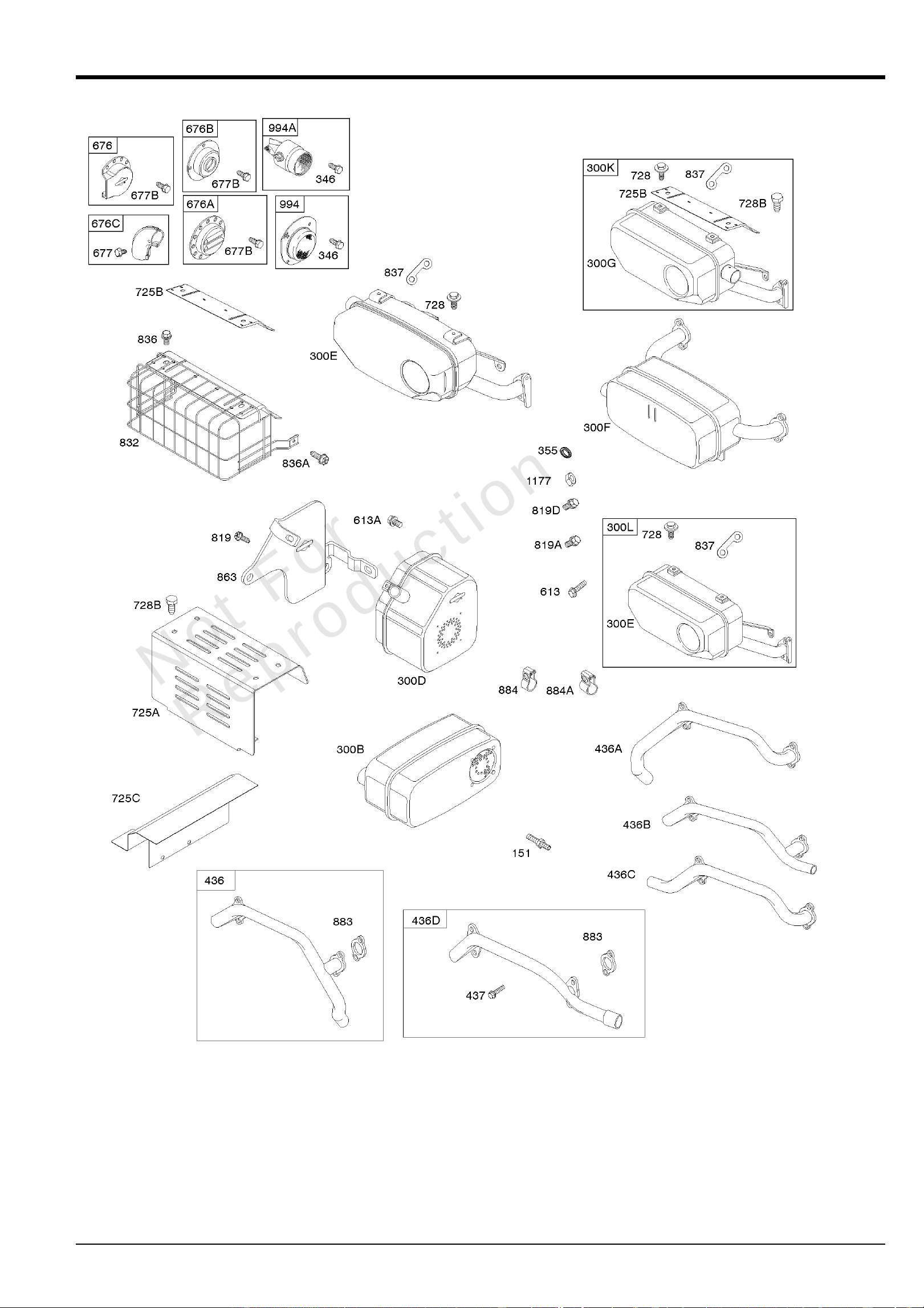

Exhaust SystemExhaust SystemExhaust SystemExhaust System
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
40 04-Sep-2025
Exhaust SystemExhaust SystemExhaust SystemExhaust System
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
151 841185 STUD
-(Exhaust Manifold)
300D 692099 MUFFLER
300E 690906 MUFFLER
300K 808379 MUFFLER
300L 808380 MUFFLER
346 690661 SCREW
-(Spark Arrestor) (#8-18 x 0.375 lg)
355 690944 WASHER
-(Muffler Bracket)
436 692061 MANIFOLD, Exhaust
-(Lo Mount)(Oil Filter Side)
436A 691499 MANIFOLD, Exhaust
-(Lo Mount)(Starter Motor Side)
436B 691501 MANIFOLD, Exhaust
436C 691502 MANIFOLD, Exhaust
-(Cylinder 1) (Side Outlet)
436D 805609 MANIFOLD, Exhaust
437 691902 SCREW
-(Exhaust Manifold) (M8x20mm)
613 691902 SCREW
-(Muffler) (M8x20mm)
613A 692067 SCREW
-(Muffler) (M6x12mm)
676 795036 DEFLECTOR, Muffler
676A 795038 DEFLECTOR, Muffler
676B 396903 DEFLECTOR, Muffler
676C 495518 DEFLECTOR, Muffler
677 810079 SCREW
-(Muffler Deflector)
677B 690661 SCREW
-(Muffler Deflector) (#8-18 x 0.375 lg)
725A 805702 SHIELD, Heat
725B 691498 SHIELD, Heat
725C 806102 SHIELD, Heat
728 691514 SCREW
-(Heat Shield)
728B 692067 SCREW
-(Heat Shield) (M6x12mm)
819 692056 SCREW
-(Muffler Bracket) (M8x14mm)
819A 690943 SCREW
-(Muffler Bracket) (M8x16mm)
819D 692062 SCREW
-(Muffler Bracket) (M8x18mm)
832 691571 GUARD, Muffler
836 691514 SCREW
-(Muffler Guard)
836A 692067 SCREW
-(Muffler Guard) (M6x12mm)
837 808085 SPACER, Muffler
-(Includes 2)
863 691513 BRACKET, Muffler
883 691613 GASKET, Exhaust
884 690898 CLAMP, Muffler
884A 691956 CLAMP, Muffler
994 794945 ARRESTOR, Spark
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
41 04-Sep-2025
Exhaust SystemExhaust SystemExhaust SystemExhaust System
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
42 04-Sep-2025
Exhaust SystemExhaust SystemExhaust SystemExhaust System
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
994A 808361 ARRESTOR, Spark
1177 845823 NUT
-(Muffler) (M8)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
43 04-Sep-2025

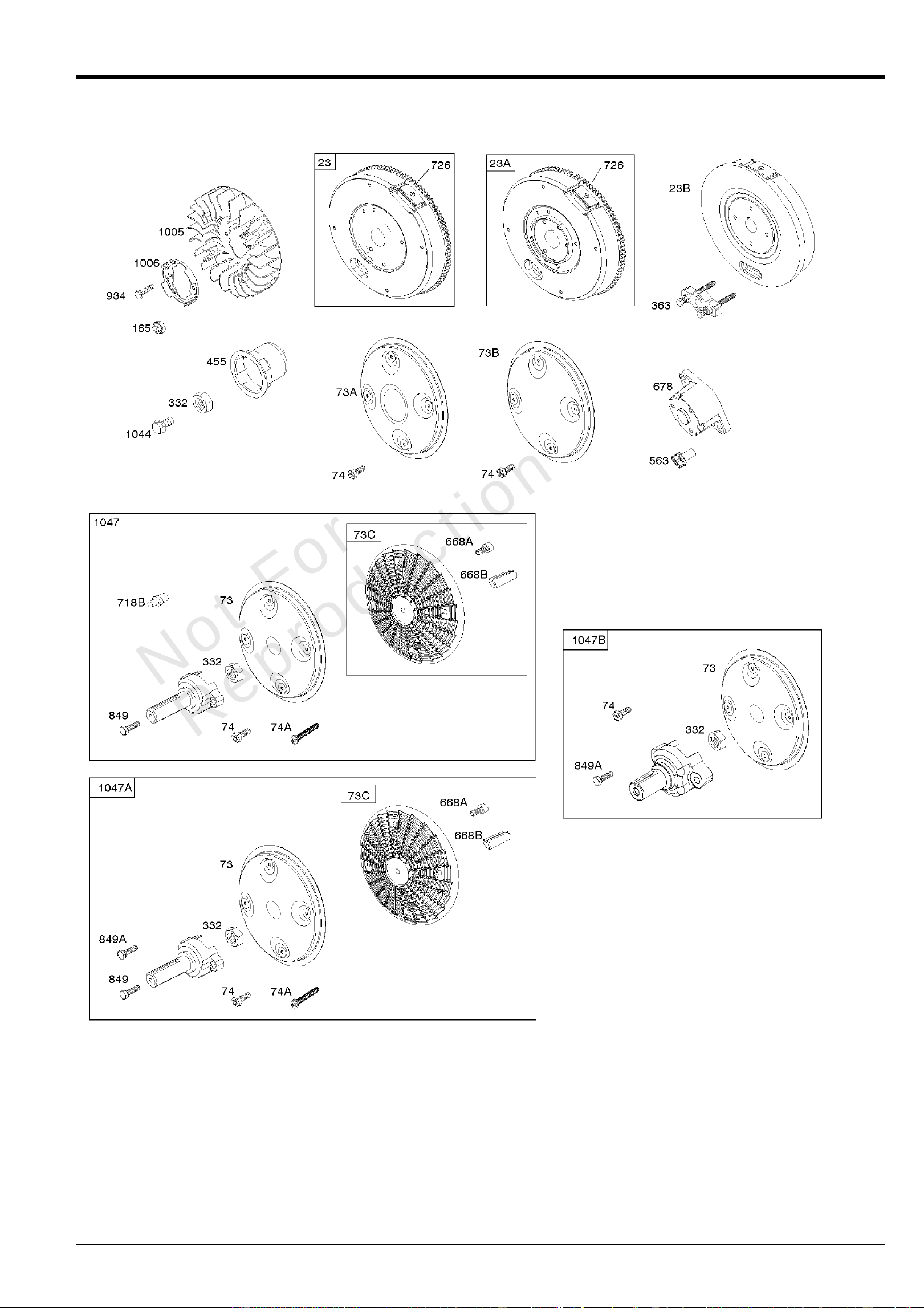

Flywheel, Rotating Screen, Stub ShaftFlywheel, Rotating Screen, Stub ShaftFlywheel, Rotating Screen, Stub ShaftFlywheel, Rotating Screen, Stub Shaft
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
44 04-Sep-2025
Flywheel, Rotating Screen, Stub ShaftFlywheel, Rotating Screen, Stub ShaftFlywheel, Rotating Screen, Stub ShaftFlywheel, Rotating Screen, Stub Shaft
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23B 841957 FLYWHEEL
73A 846079 SCREEN, Rotating
74 841441 SCREW
-(Rotating Screen) (M5x14mm)
165 693148 NUT
-(Ring Gear)
332 690887 NUT
-(Flywheel)
363 19203 PULLER, Flywheel
455 841794 CUP, Flywheel
563 841735 SCREW
-(Debris Screen Guard)
668A 691500 SPACER
668B 691215 SPACER
678 841730 SPACER
-(Rewind)
718B 841581 PIN, Locating
-Used After Code Date 04021500
718B 690740 PIN, Locating
-Used Before Code Date 04021600
726 ----- Gear-Ring
-(Steel)(See Reference 23 for Service)
849 691088 SCREW
-(Stub Shaft) (5/16-18x1.1)
849A 846236 SCREW
-(Stub Shaft) (M8x34mm)
934 691058 SCREW
-(Fan Retainer)
1005 841439 FAN, Flywheel
1006 690452 RETAINER, Fan
1044 692056 SCREW
-(Flywheel) (M8x14mm)
1047 841580 SHAFT, Stub
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
45 04-Sep-2025

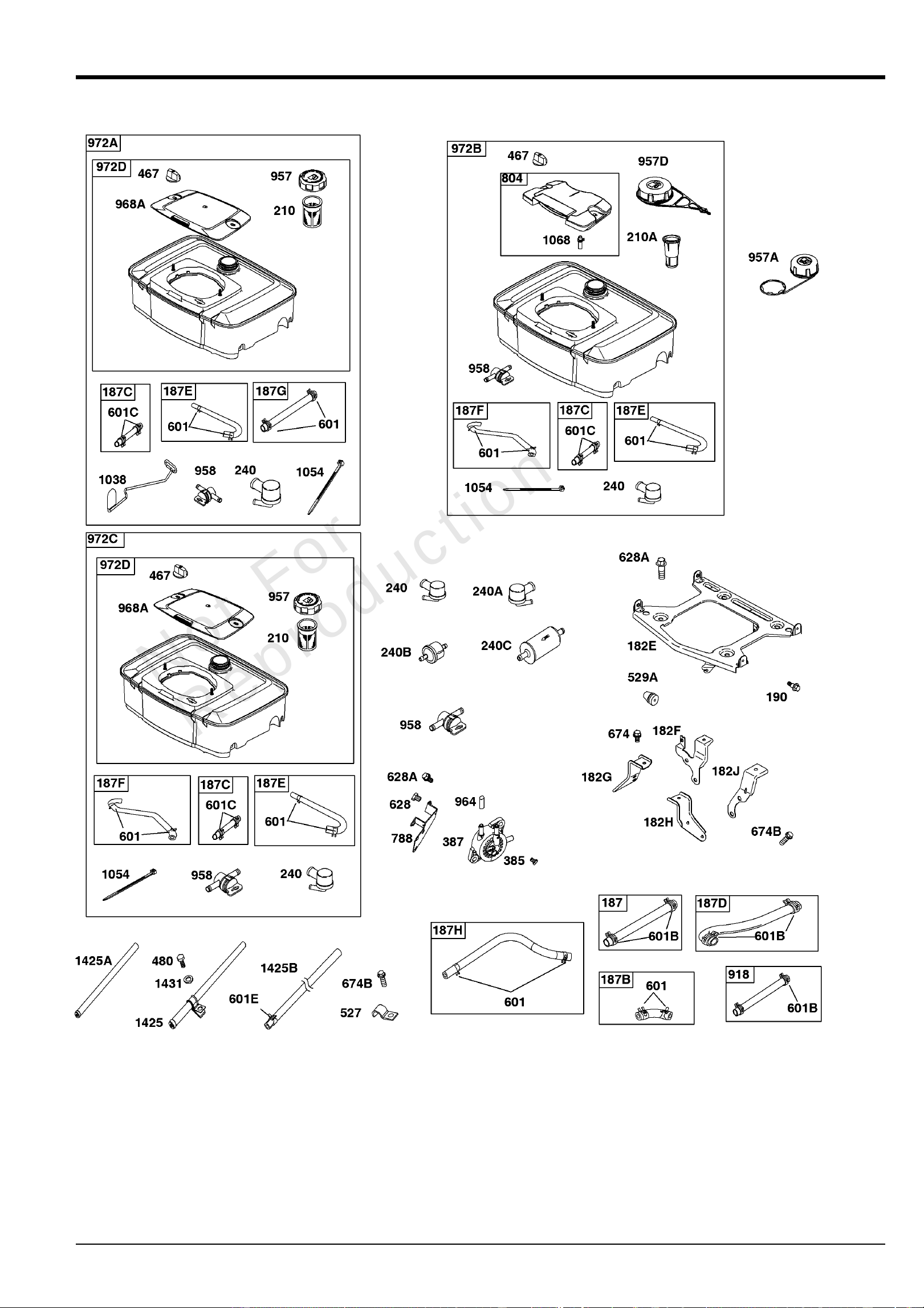

Fuel SupplyFuel SupplyFuel SupplyFuel Supply
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
46 04-Sep-2025
Fuel SupplyFuel SupplyFuel SupplyFuel Supply
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
182E 841601 BRACKET-FUEL TANK
182F 691520 BRACKET, Fuel Tank
182H 691524 BRACKET, Fuel Tank
182J 691525 BRACKET, Fuel Tank
182G 841600 BRACKET, Fuel Tank
187H 846318 LINE, Fuel
-Used After Code Date 15061600
190 692199 SCREW
-(Fuel Tank)
210A 845270 STRAINER, Fuel
240 844545 FILTER, Fuel
240A 808116S FILTER, Fuel
240B 84001895 FILTER, Fuel
240C 845125 FILTER, Fuel
385 807084 SCREW
-(Fuel Pump)
387 808656 PUMP, Fuel
467 691985 KNOB, Air Cleaner Cover
-Used Before Code Date 10040100
467 844618 KNOB, Air Cleaner Cover
-Used After Code Date 10033100
-Used Before Code Date 14102400
480 806660 SCREW
-(Tube Clamp) (M8x18mm)
527 690423 CLAMP, Tube
529A 691527 GROMMET
601 691038 CLAMP, Hose
601B 791850 CLAMP, Hose
601C 691522 CLAMP, Hose
601E 593879 CLAMP, Hose
628 806660 SCREW
-(Fuel Pump Bracket) (M8x18mm)
628A 692062 SCREW
-(Fuel Pump Bracket) (M8x18mm)
674 692056 SCREW
-(Fuel Tank Bracket) (M8x14mm)
674B 692062 SCREW
-(Fuel Tank Bracket) (M8x18mm)
788 691559 BRACKET, Fuel Pump
-(With Weld Nuts)
804 844727 CANISTER, Carbon
-(EVAP)
918 791880 HOSE, Vacuum
-(Cut To Required Length)
957 846987 CAP, Fuel Tank
-(Standard Grip)
957A 844728 CAP, Fuel Tank
-(Tethered Cap)
957D 847578 CAP, Fuel Tank
958 698183 VALVE, Fuel Shut Off
958 692008 VALVE, Fuel Shut Off
-(Used on models with Fuel Shut-off Rods ref #1038)
964 590799 CAP, Connector
972A 845137 TANK-FUEL
972D 844558 TANK, Fuel
1038 844555 ROD, Fuel Shut Off
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
47 04-Sep-2025
Fuel SupplyFuel SupplyFuel SupplyFuel Supply
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
48 04-Sep-2025
Fuel SupplyFuel SupplyFuel SupplyFuel Supply
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1054 280275 TIE, Cable
1068 845143 HOSE/CLAMP ASSEMBLY
1425 844712 HOSE, Purge Line
1431 844035 WASHER
-(Tube Clamp)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
49 04-Sep-2025

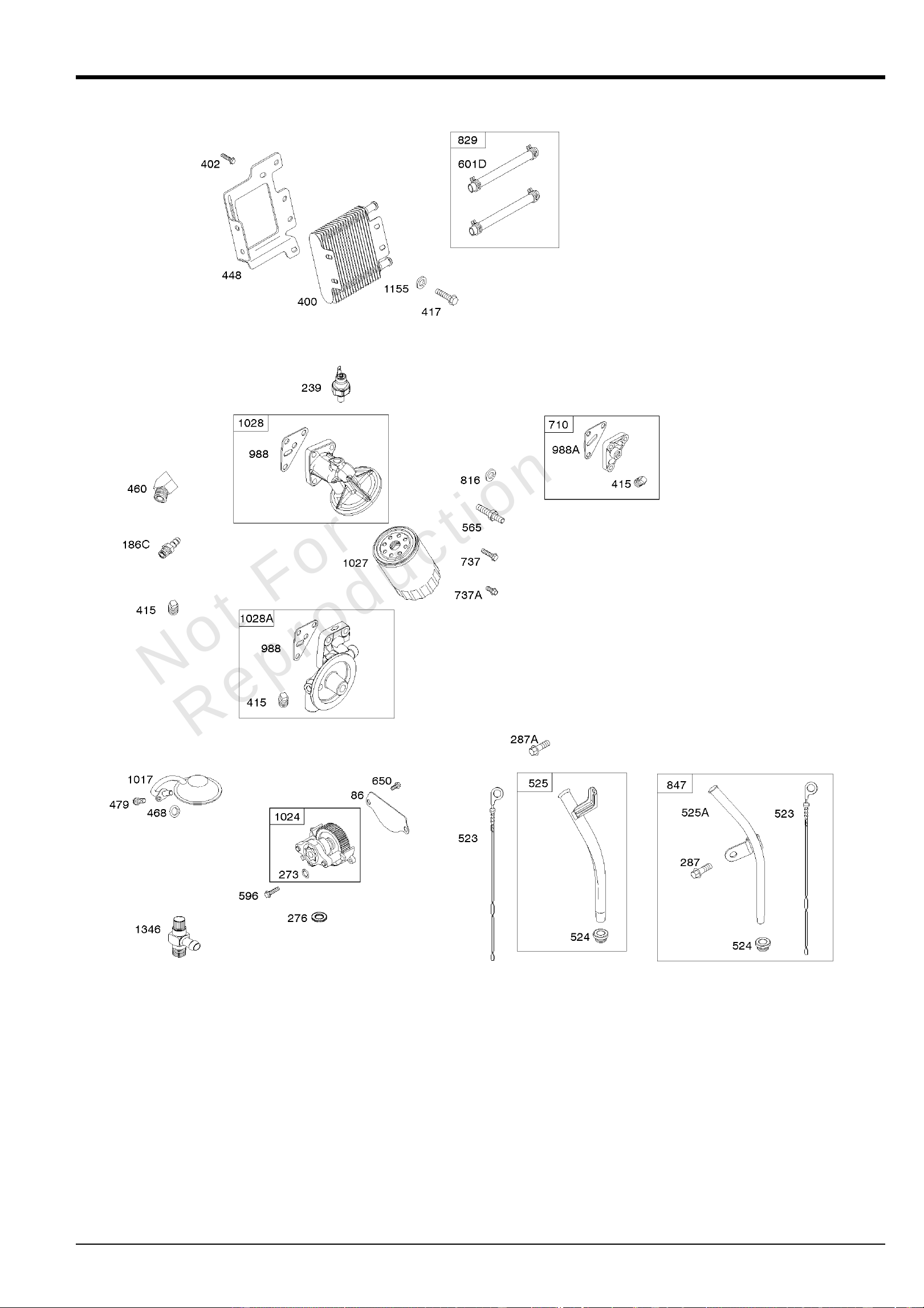

LubricationLubricationLubricationLubrication
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
50 04-Sep-2025
LubricationLubricationLubricationLubrication
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
86 690745 COVER, Gear
239 690233 SWITCH, Oil Pressure
273 690681 SEAL, O-Ring
-(Oil Pump)
276 690724 WASHER, Sealing
287 692062 SCREW
-(Dipstick Tube) (M8x18mm)
287A 806660 SCREW
-(Dipstick Tube) (M8x18mm)
402 690679 SCREW
-(Oil Filter Cover) (M6x21mm)
415 794903 PLUG
-(1/8"-27 NPTF - EXTERNAL SQ)
417 843345 SCREW
-(Oil Cooler)
468 690690 SEAL, O-Ring
-(Oil Pump Screen)
479 807084 SCREW
-(Oil Pump Screen)
523 693175 DIPSTICK
524 693172 SEAL, O-Ring
-(Dipstick Tube)
525 693174 TUBE, Dipstick
565 690682 STUD
-(Oil Filter Adapter)
596 691492 SCREW
-(Oil Pump)
650 841233 SCREW
-(Oil Deflector) (Oil Deflector)
710 807689 COVER, Oil Filter
737 690679 SCREW
-(Oil Filter Adapter) (M6x21mm)
737A 841233 SCREW
-(Oil Filter Adapter) (M6x10mm)
816 690706 WASHER
-(Oil Filter Adapter)
988 692063 GASKET, Oil Adapter
988A 690687 GASKET, Oil Adapter
1017 690900 SCREEN, Oil Pump
1024 ----- Pump-Oil
-(Oil Pump is No Longer Available) (See Reference 18 for correctreplacement
Crankcase Cover)
-Used Before Code Date 07101500
1024 843825 PUMP, Oil
-Used After Code Date 07101400
1027 842921 FILTER, Oil
1028 808235 ADAPTER, Oil Filter
1028A 808033 ADAPTER, Oil Filter
1346 492031 VALVE, Oil Drain Shut Off
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
51 04-Sep-2025
Replacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & Canada
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
----- Top No-Load Speed: 3600
-Trim: ALL
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
52 04-Sep-2025

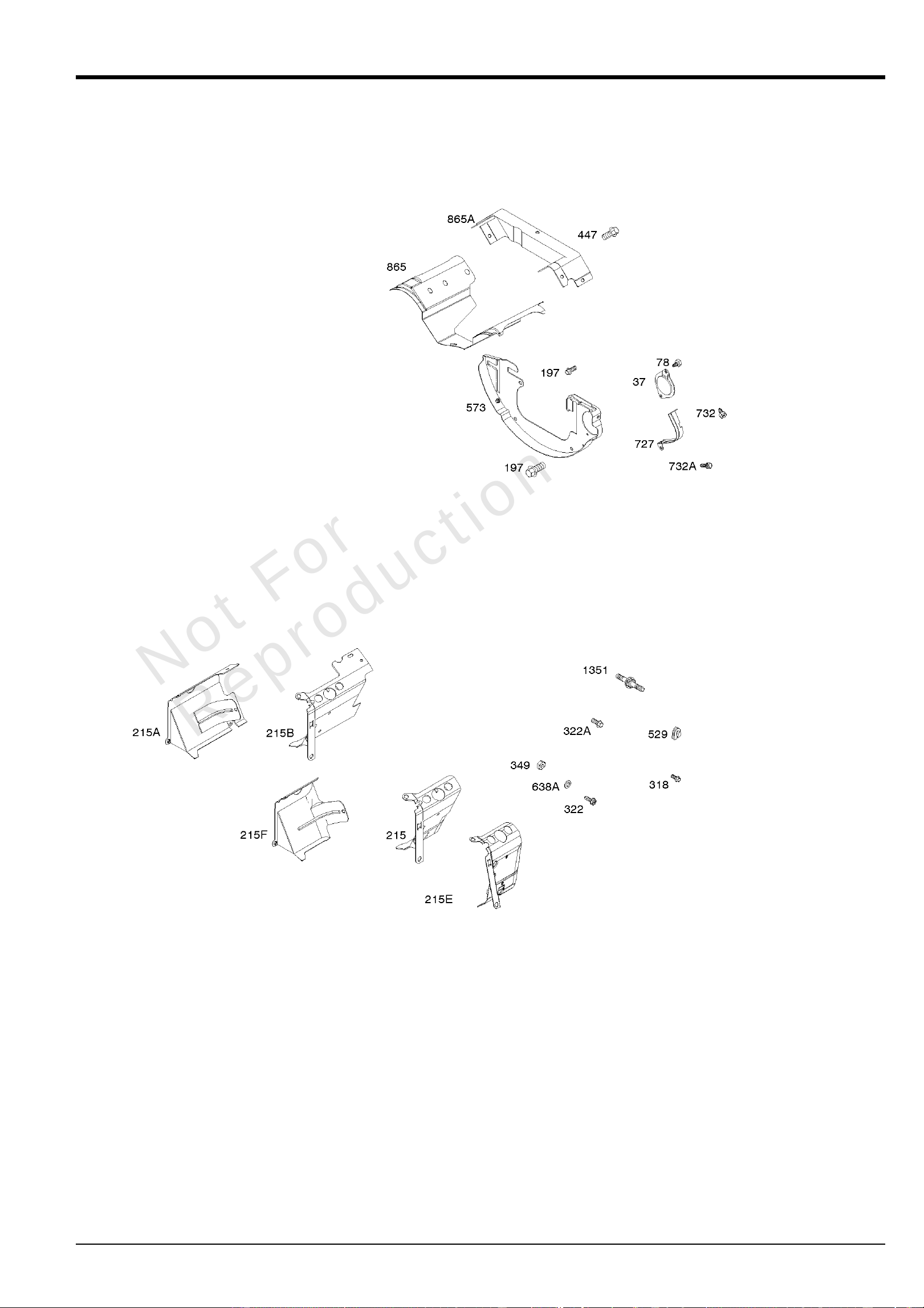

ShroudsShroudsShroudsShrouds
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
53 04-Sep-2025
ShroudsShroudsShroudsShrouds
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
37 841309 GUARD, Flywheel
78 690688 SCREW
-(Flywheel Guard)
197 807163 SCREW
-(Back Plate)
215 841183 GUIDE, Air
-(Cylinder 1)
215F 841182 GUIDE, Air
-(Cylinder 2)
318 690932 SCREW
-(Mounting Bracket)
322 841233 SCREW
-(Cylinder Head Cover)
349 690238 NUT
-(Cylinder Head Cover)
447 841233 SCREW
-(Air Guide Cover)
529 690744 GROMMET
573 841310 PLATE, Back
727 841313 COVER, Starter Drive
732 690688 SCREW
-(Starter Drive Cover)
732A 841233 SCREW
-(Starter Drive Cover)
865 843768 COVER, Air Guide
-(Black)
1351 690682 STUD
-(Cylinder Shield) (Cylinder Shield)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
54 04-Sep-2025
Starter - Electric #1Starter - Electric #1Starter - Electric #1Starter - Electric #1
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
55 04-Sep-2025

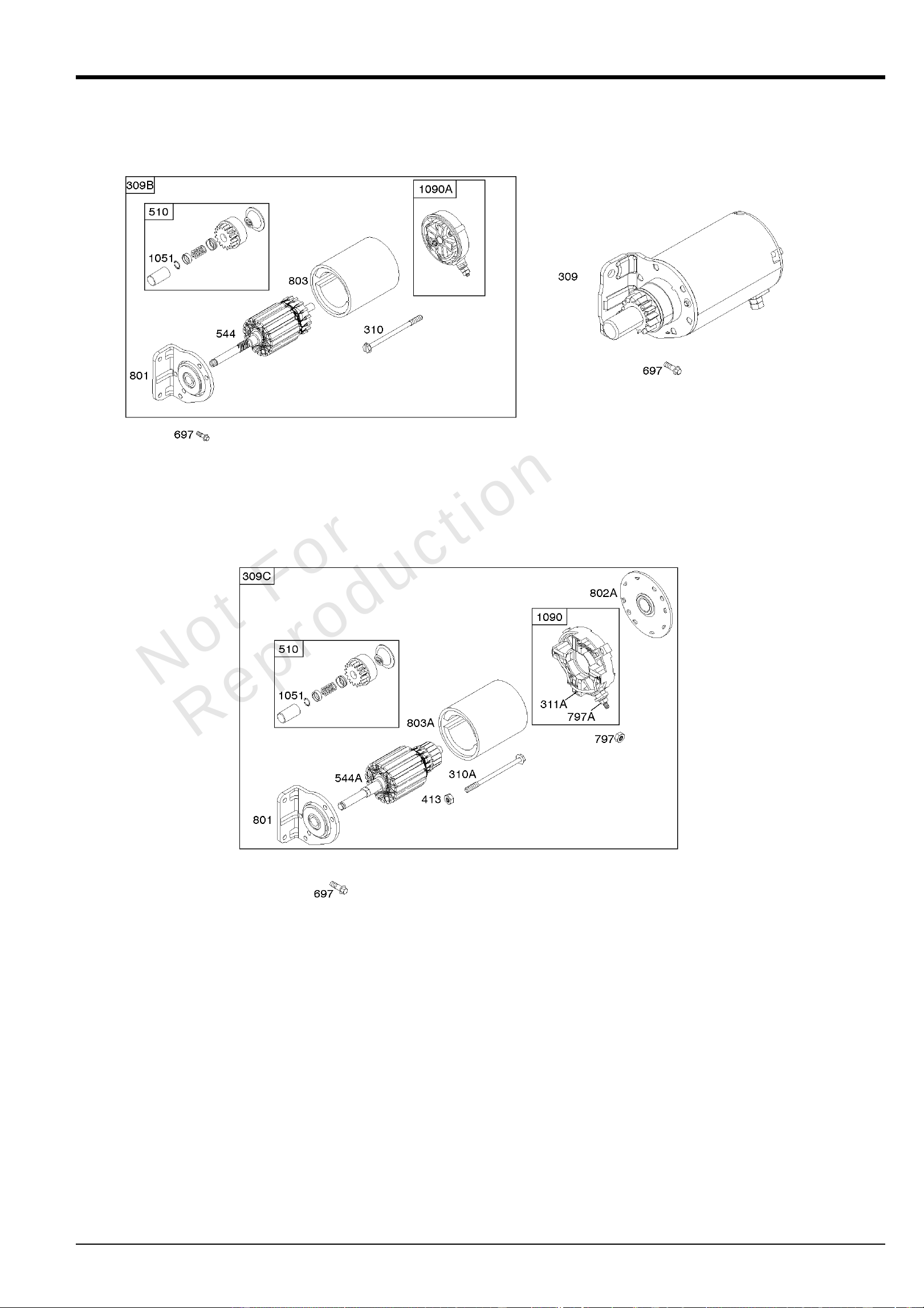

Starter - Electric #1Starter - Electric #1Starter - Electric #1Starter - Electric #1
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
309 846451 MOTOR, Starter
-(Steel Ring Gear Only)
309C ----- MOTOR, Starter
-(Replacement Starter Motor, Order Reference 309)
310 ----- Screw
-(Starter Motor) (NO LONGER AVAILABLE)
310A 690323 SCREW
-(Starter Motor)
311A 497608 SET, Brush
413 693587 NUT
-(Starter Motor)
510 496881 DRIVE, Starter
-(Steel Pinion Gear)
544 ----- MOTOR, Starter
-(Replacement Starter Armature, Order 691564 Starter Motor, Reference309)
544A ----- Armature-Starter
-(Service With 846451 Starter Motor Only)
697 692062 SCREW
-(Starter Motor) (Drive Cap)
697 691902 SCREW
-(Starter Motor) (Drive Cap) (M8x20mm)
797 691029 NUT
-(Brush Retainer)
797A 693167 NUT
-(Brush Retainer)
801 ----- Cap-Drive
-(For Replacement Starter Motor, Order Reference 309)
802A 691286 CAP, End
803 ----- Housing-Starter
-(For Replacement Starter Motor, Order Reference 309)
803A ----- Housing-Starter
-(For Replacement Starter Motor, Order Reference 309)
1051 691124 RING, Retaining
1090 691293 RETAINER, Brush
1090A 496813 RETAINER, Brush
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
56 04-Sep-2025

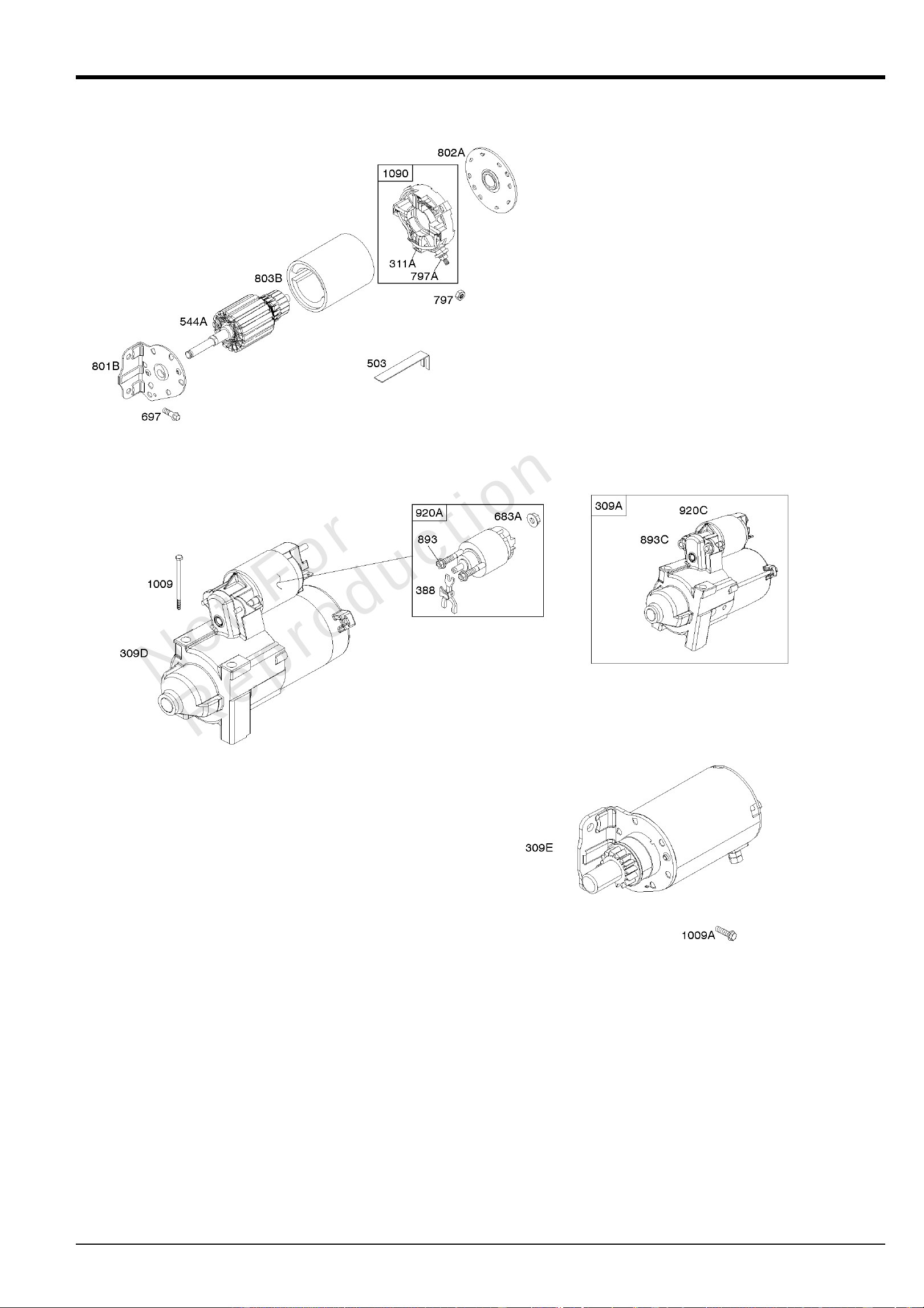

Starter - Electric #2Starter - Electric #2Starter - Electric #2Starter - Electric #2
Mfg. No: 356442-0028-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
57 04-Sep-2025
Starter - Electric #2Starter - Electric #2Starter - Electric #2Starter - Electric #2
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
309A 846407 MOTOR-STARTER
-Used After Code Date 10051700
309E 844717 MOTOR, Starter
311A 497608 SET, Brush
388 820799 LEVER, Pinion Drive
503 691532 STRAP, Starter
-(82mm Long)
544A ----- Armature-Starter
-(Service With 846451 Starter Motor Only)
683A 820809 NUT
-(Starter Solenoid)
697 691902 SCREW
-(Starter Motor) (Drive Cap) (M8x20mm)
697 692062 SCREW
-(Starter Motor) (Drive Cap)
797 691029 NUT
-(Brush Retainer)
797A 693167 NUT
-(Brush Retainer)
801B 691283 CAP, Drive
802A 691286 CAP, End
803B ----- Housing-Starter
-(For Replacement Starter Motor, Order Reference 309)
893 820805 NUT
-(Starter Solenoid)
893C 845758 NUT
-(Starter Solenoid)
920A 825418 SOLENOID, Starter
920C 845757 SOLENOID, Starter
1009 806474 SCREW
-(USE REFERENCE 697 ONLY) (M8X98mm)
1090 691293 RETAINER, Brush
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
58 04-Sep-2025
Model 29, 30, 35 & 38Model 29, 30, 35 & 38Model 29, 30, 35 & 38Model 29, 30, 35 & 38
Engine AccessoriesEngine AccessoriesEngine AccessoriesEngine Accessories
CatalogCatalogCatalogCatalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025

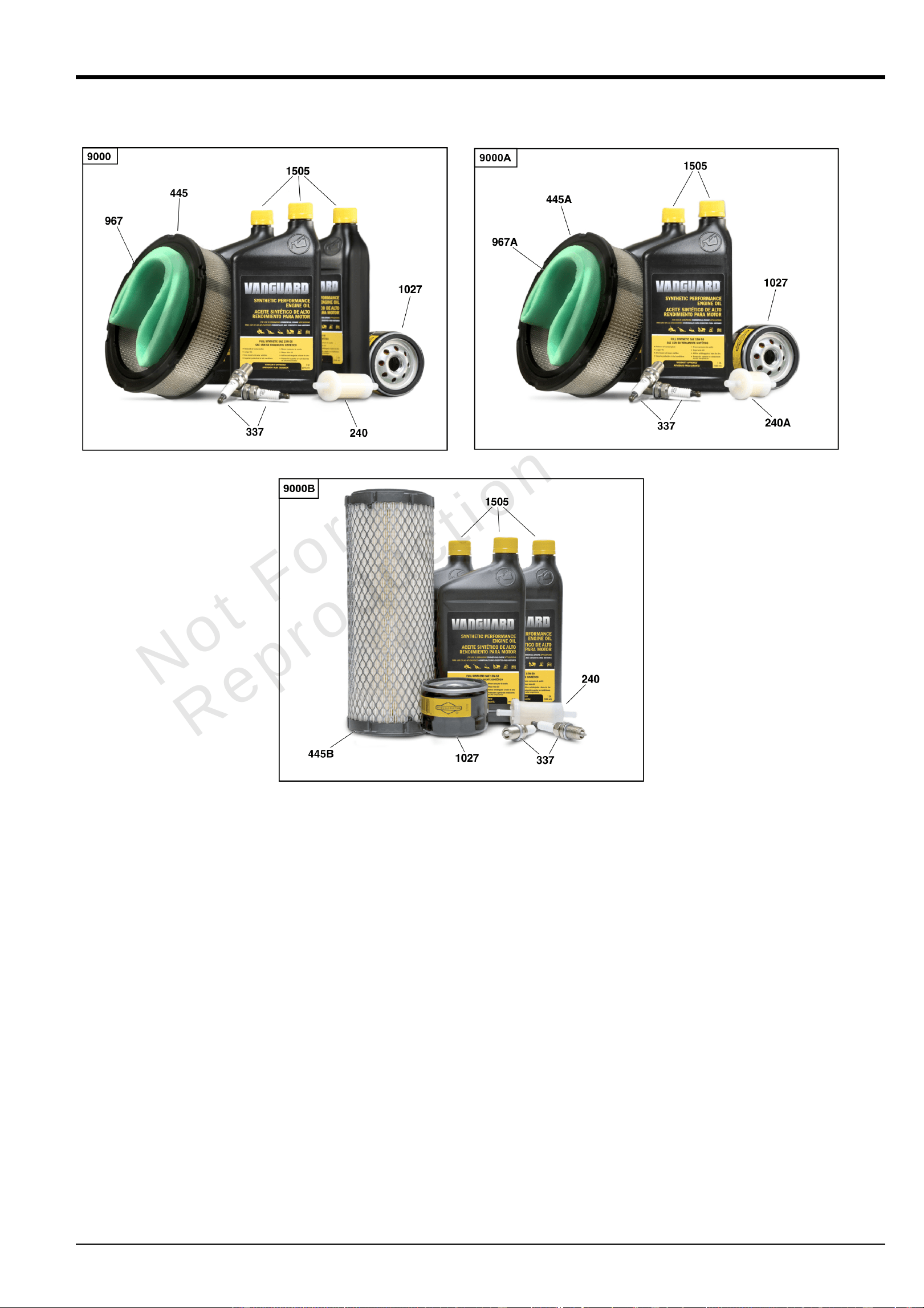

Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
60 04-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
9000 84004936 KIT, Maintenance
-(Non-Oil Guard™ Engines) (20 - 23 HP)
9000A 84004937 KIT, Maintenance
-(Non-Oil Guard™ Engines) (12.5 - 18 HP)
9000B 84002315 KIT, Maintenance
-(Non-Oil Guard™ Engines)
240 845125 1 FILTER, Fuel
240A 84001895 1 FILTER, Fuel
337 491055S 2 PLUG, Spark
337 84007216 2 PLUG, SPARK
-(China Only)
445 692519 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
445A 394018S 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
445B 841497 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
967 692520 1 FILTER, Pre Cleaner
967A 272490S 1 FILTER, Pre Cleaner
1027 842921 1 FILTER, Oil
-(Vanguard®)
1505 100169 OIL-1QT VANGUARD (CASE)
-(1 qt. Bottle)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
61 04-Sep-2025
LubricationLubricationLubricationLubrication
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
62 04-Sep-2025

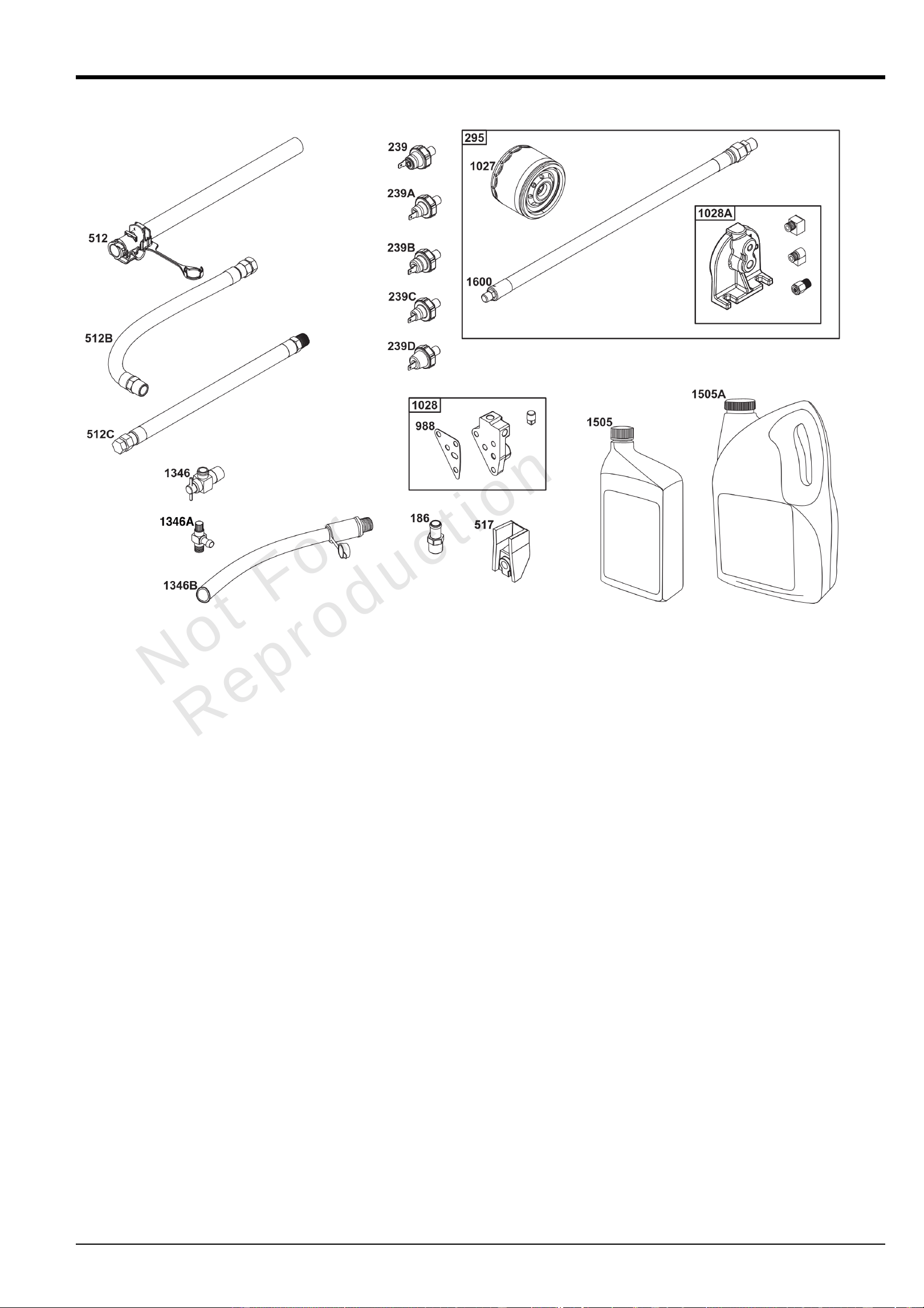

LubricationLubricationLubricationLubrication
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
186 796532 1 CONNECTOR, Hose
-(Threaded Engine Block Connector for EZ-Oil Drain Hose)(Order hose
separate)
239 690233 1 SWITCH, Oil Pressure
-(2-4 PSI Normally-Closed Switch)
239A 491657S 1 SWITCH, Oil Pressure
-(3-5 PSI Normally-Closed Switch)
239B 841281 1 SWITCH, Oil Pressure
-(7-10 PSI Normally-Closed Switch)
239C 694115 1 SWITCH, Oil Pressure
-(9-13 PSI Normally-Closed Switch)
239D 697049 1 SWITCH, Oil Pressure
-(3-6 PSI Normally-Open Switch)
295 492061 1 ADAPTER, Remote Oil Filter
-(Remote oil filter head with 18" (48 cm) hoses)
295 492062 1 ADAPTER, Remote Oil Filter
-(Remote oil filter head with 30" (76 cm) hoses)
512 594200 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 10.5")(Order threaded engine block connector separate)
512 593635 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 13.75")(Order threaded engine block connector separate)
512B 1723165SM 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
-(10.5")
512C 5048681SM 1 HOSE, OIL DRAIN
-(12.5")
517 593633 1 RETAINER, Oil Drain
988 692063 1 GASKET, Oil Adapter
1027 492932S 1 FILTER, Oil
1028 492687 1 ADAPTER, Oil Filter
-(Adapter Kit for mounting remote oil filter)
1028A 495244 1 ADAPTER-OIL FILTER
-(Remote oil filter mounting head with fittings)
1346 844802 1 VALVE, Oil Drain Shut Off
1346A 492031 1 VALVE, Oil Drain Shut Off
1346B 5401WEB 1 VALVE, Oil Drain Shut Off
-(1/4 Turn Oil Drain Valve with Hose)
1505 100169 OIL-1QT VANGUARD (CASE)
-(1 qt. Bottle)
1505A 100170 OIL-5QT VANGUARD (CASE)
-(5 qt. Bottle)
1600 494724 2 HOSE, Remote Oil Filter
-(Hoses only (2) 18" (48 cm))
1600 494725 2 HOSE, Remote Oil Filter
-(Hoses only (2) 30" (76 cm))
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
63 04-Sep-2025
Starter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet Mufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
64 04-Sep-2025

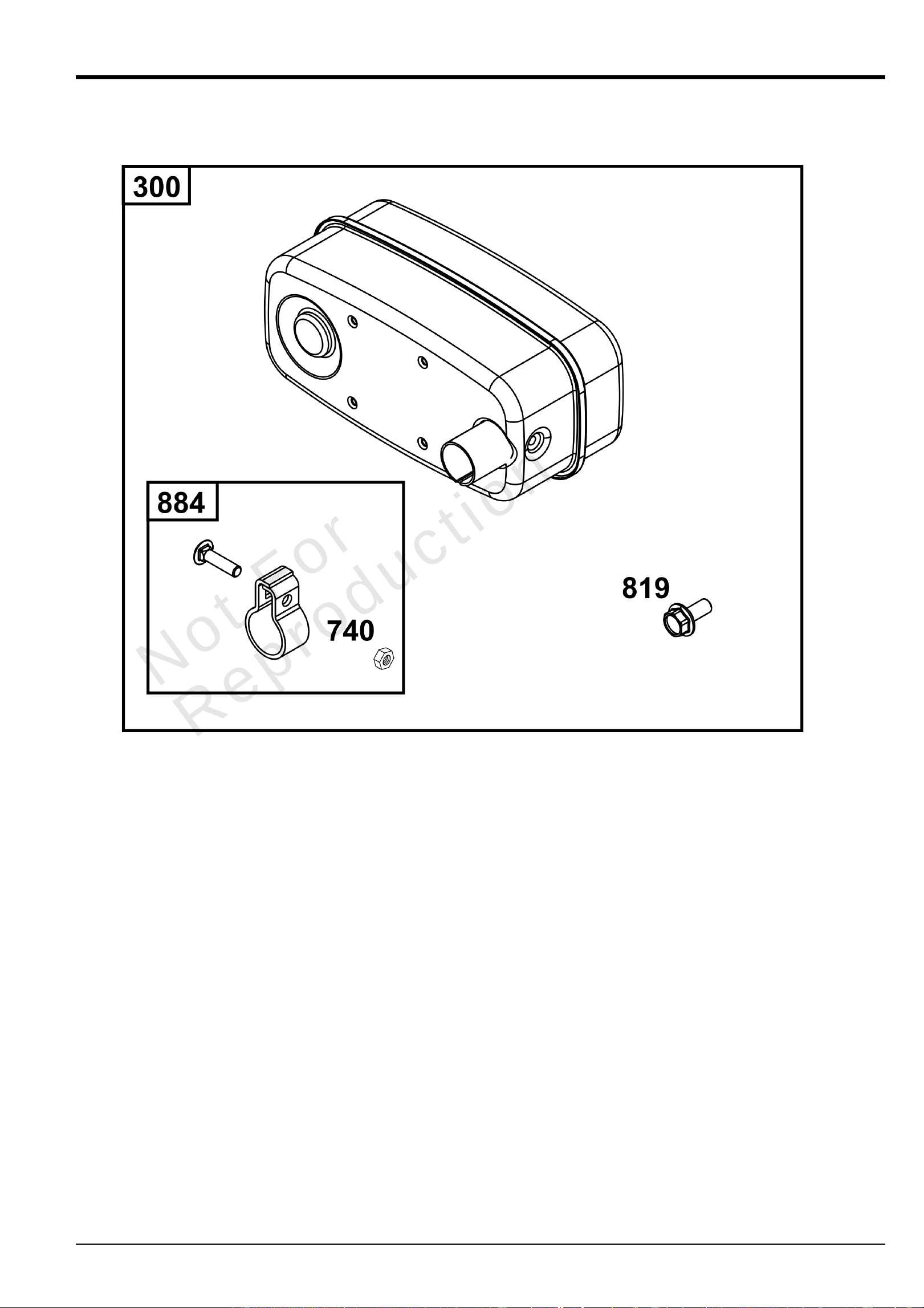

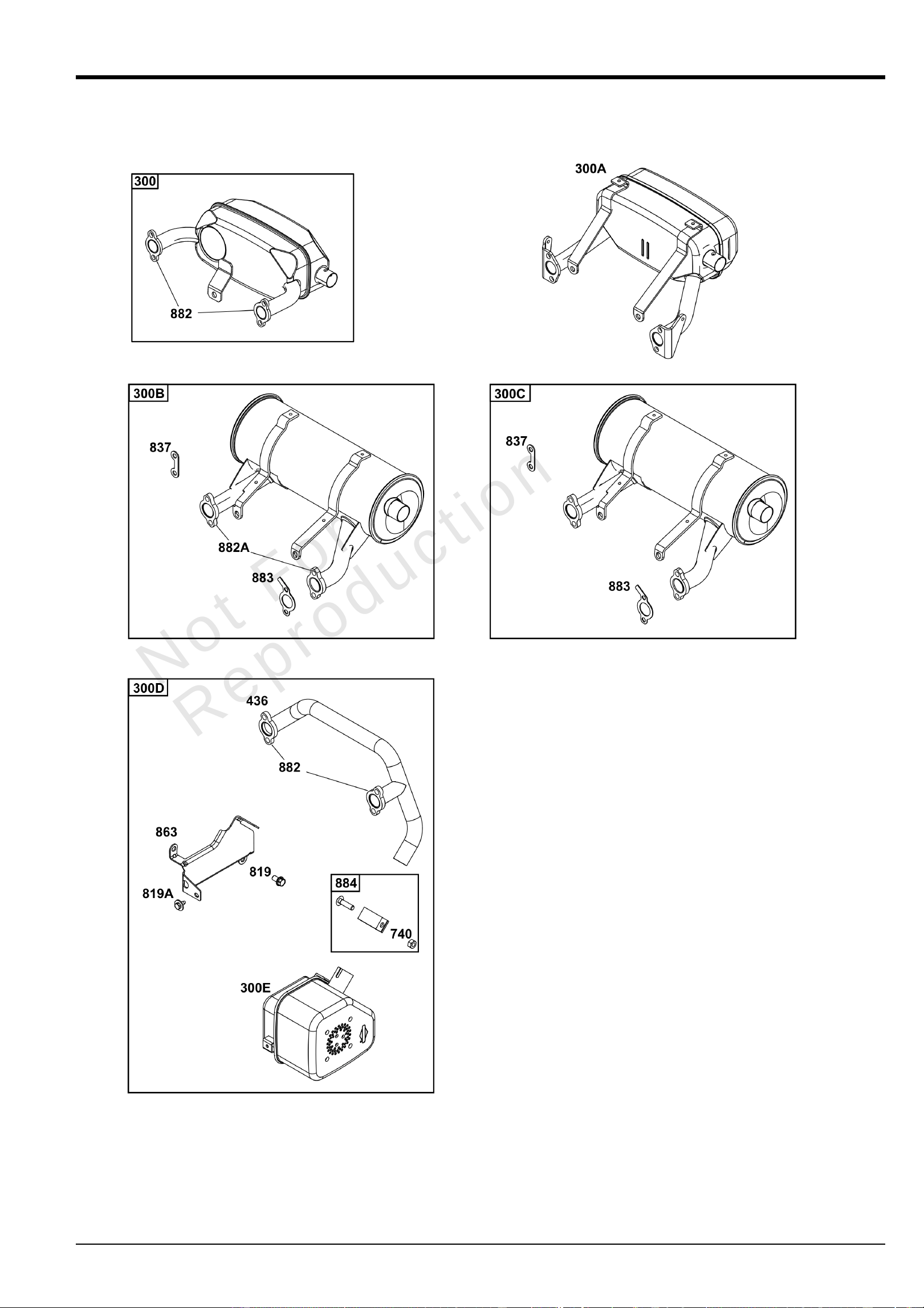

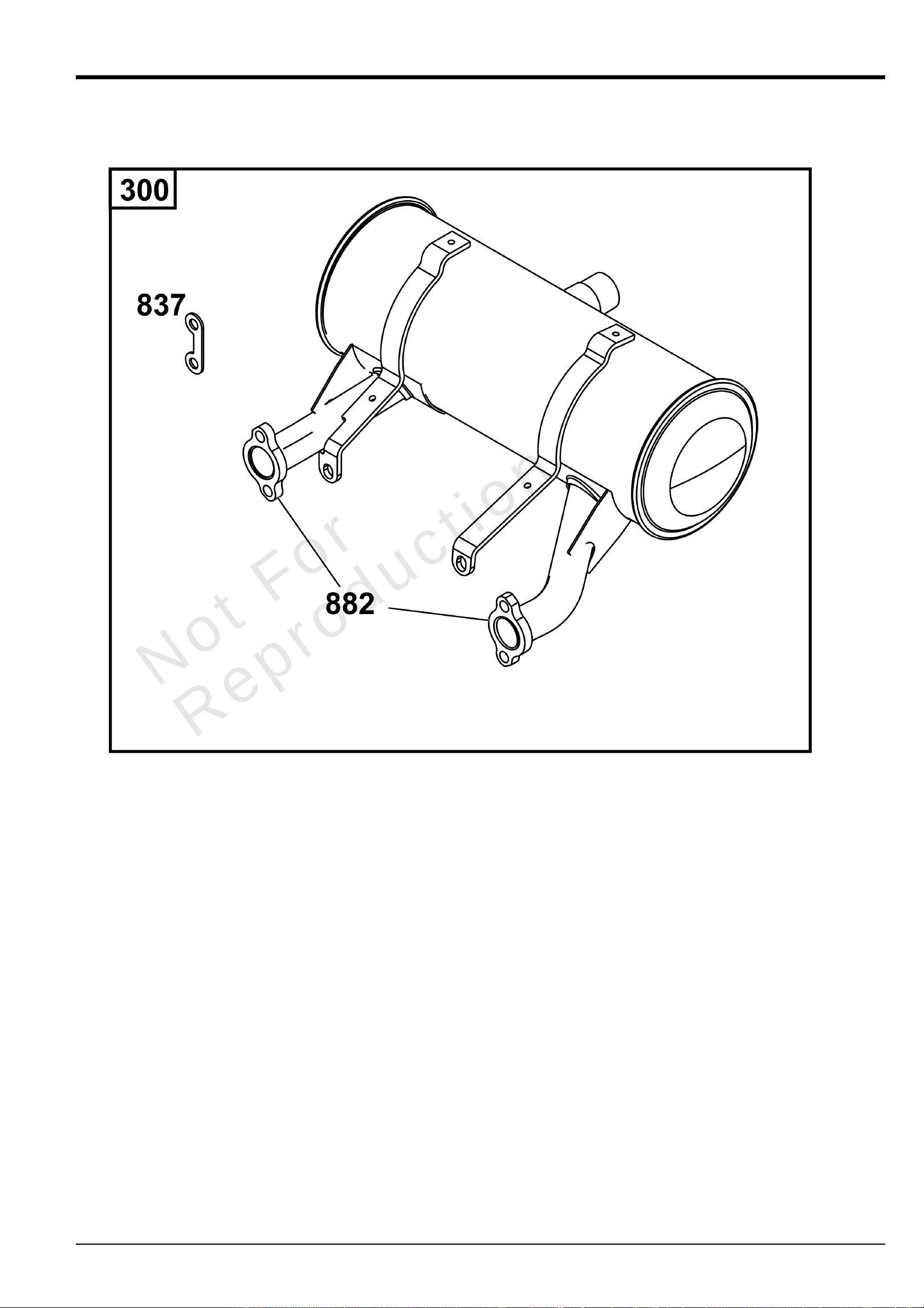

Starter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 690931 1 MUFFLER
-(Super Lo-Tone) (Horizontal: 3054, 3564)
300A 690906 1 MUFFLER
-(Super Lo-Tone) (Horizontal: 3054, 3564)
300B 808705 1 MUFFLER
-(5" Round) (Horizontal: 3854, 3864)
300C 845873 1 MUFFLER
-(5" Round, Stainless Steel) (Horizontal: 3854, 3864)
300D 995005 1 MUFFLER ASSY
-(Lo-Tone) (Horizontal: 3054, 3564)
300E 692099 1 MUFFLER
-(Lo Mount)
436 691499 1 MANIFOLD, Exhaust
-(Cylinder 1) (Side Outlet)
740 793859 1 NUT
819 692056 2 SCREW
-(Muffler Bracket) (M8x1.25)
819A 691514 2 SCREW
-(Muffler Bracket) (M6 X 1.0)
837 808085 2 SPACER, Muffler
-(Includes 2)
863 690756 1 BRACKET, Muffler
-(Cylinder 1) (Side Outlet)
882 692074 2 FLANGE, Exhaust
882A 806965 2 FLANGE, Exhaust
883 806425 2 GASKET, Exhaust
884 690898 1 CLAMP, Muffler
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
65 04-Sep-2025
Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
66 04-Sep-2025
Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 995002 1 HIGH MNT SPR LO-TONE OIL FLTR SIDE
-(Super Lo-Tone) (Horizontal: 3054, 3564) (Vertical: 3567)
300A 995000 1 OIL FILTER SIDE LO-MT
-(Lo-Tone) (Horizontal: 3054, 3564) (Requires 808033 Oil Filter Adaptor)
300B 995004 1 HI MNT SPR LO-TONE OIL FLT SIDE
-(Super Lo-Tone) (Horizontal: 3854, 3864) (Vertical: 3867)
300C 995009 1 COMMERCIAL MOWERS KIT
-(For Wide Area Walker) (Vertical: 3567)
300D 995010 1 COMMERCIAL MOWERS KIT
-(Vertical: 3867)
300E 808896 1 MUFFLER
300F 691562 1 MUFFLER
-(Super Lo-Tone) (Horizontal: 3054, 3564)
300G 498984S 1 MUFFLER
-(Super Lo Tone)
300H 692099 1 MUFFLER
-(Lo Mount)
300I 807953 1 MUFFLER
355 842122 2 WASHER
-(Muffler Bracket)
436 805609 1 MANIFOLD, Exhaust
-(Cylinder 2) (Side Outlet)
436A 692061 1 MANIFOLD, Exhaust
-(Cylinder 2) (Side Outlet)
436B 808916 1 MANIFOLD, Exhaust
-(Cylinder 2) (Side Outlet)
436C 805778 1 MANIFOLD, Exhaust
-(Wide Area Walker)
437 691902 4 SCREW
-(Exhaust Manifold)
710 807689 1 COVER, Oil Filter
725 806102 1 SHIELD, Heat
728 690297 2 SCREW
740 793859 1 NUT
819 691514 2 SCREW
-(Muffler Bracket) (M6 X 1.0)
819A 807084 2 SCREW
-(Muffler Bracket)
819B 692056 2 SCREW
-(Muffler Bracket) (M8x1.25)
819C 692062 2 SCREW
-(Muffler Bracket)
837 808085 2 SPACER, Muffler
-(Includes 2)
863 806759 1 BRACKET, Muffler
863A 691513 1 BRACKET, Muffler
882 692074 2 FLANGE, Exhaust
-(3054 & 3564)
882A 806965 2 FLANGE, Exhaust
883 691613 2 GASKET, Exhaust
884 690898 1 CLAMP, Muffler
884A 691956 1 CLAMP, Muffler
988 690687 1 GASKET, Oil Adapter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
67 04-Sep-2025

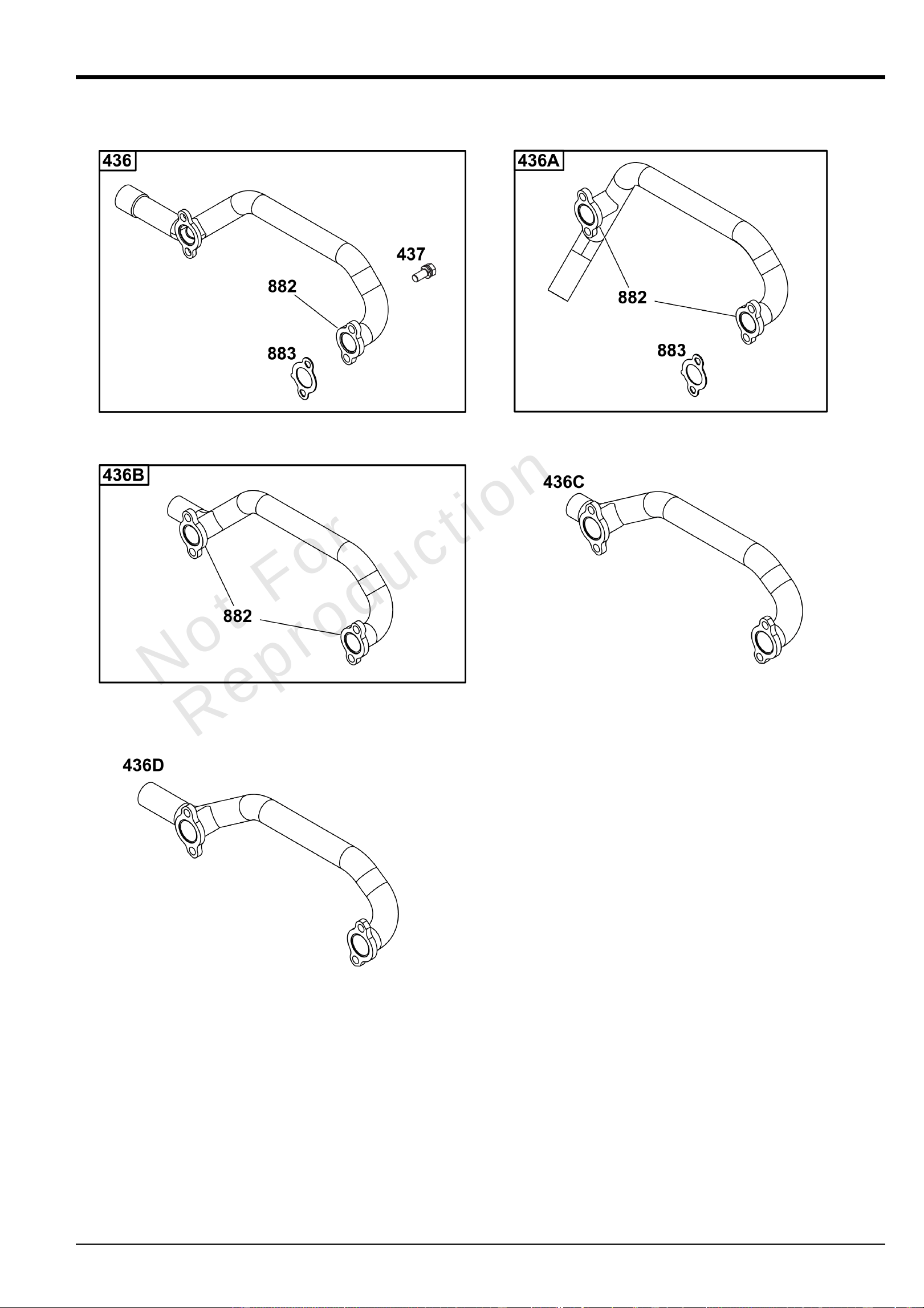

Oil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet Manifolds
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
68 04-Sep-2025
Oil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet Manifolds
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
436 805609 1 MANIFOLD, Exhaust
-(Vertical: 3567)
436A 692061 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436B 691501 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436C 808908 1 MANIFOLD, Exhaust
-(Horizontal: 3854, 3864)
436D 808916 1 MANIFOLD, Exhaust
-(Horizontal: 3854, 3864) (Vertical: 3867)
437 691902 4 SCREW
-(Exhaust Manifold)
882 692074 2 FLANGE, Exhaust
883 691613 2 GASKET, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
69 04-Sep-2025

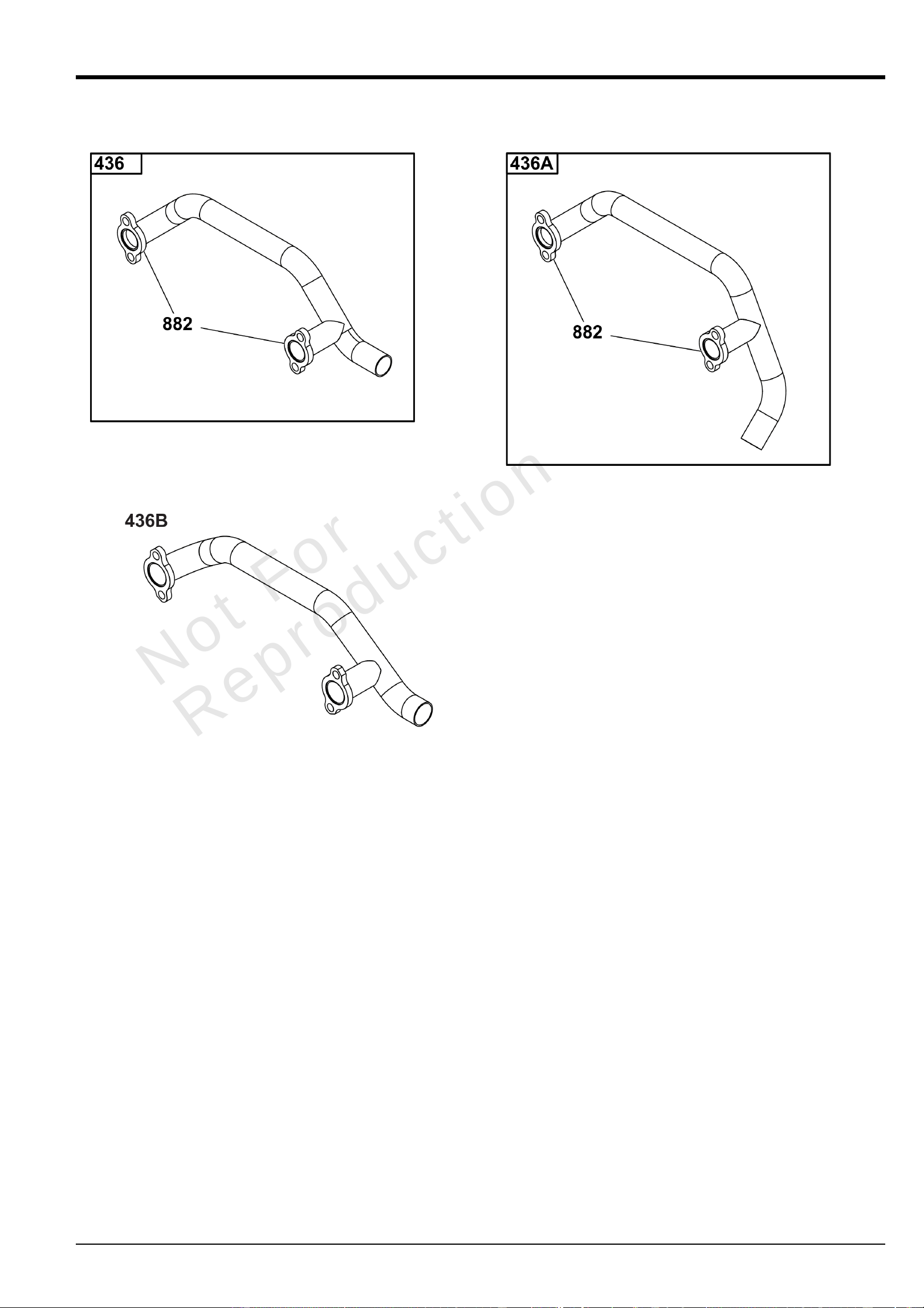

Starter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet Manifolds
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
70 04-Sep-2025
Starter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet Manifolds
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
436 691502 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436A 691499 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436B 808909 1 MANIFOLD, Exhaust
-(Horizontal: 3854, 3864) (Vertical: 3867)
882 692074 2 FLANGE, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
71 04-Sep-2025
MufflersMufflersMufflersMufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
72 04-Sep-2025
MufflersMufflersMufflersMufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 995018 1 MUFFLER
-(Inlet I.D. 1.14" (28.9mm))
740 793859 1 NUT
819 807084 4 SCREW
884 691956 1 CLAMP, Muffler
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
73 04-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
74 04-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 808911 1 MUFFLER
-(5" Round) (Horizontal: 3854, 3864)
837 808085 2 SPACER, Muffler
882 806965 2 FLANGE, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
75 04-Sep-2025
Muffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and Shields
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
76 04-Sep-2025
Muffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and Shields
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
725 846568 1 SHIELD, Heat
-(For 5" Round Mufflers) (Horizontal: 3854, 3864)
832 691571 1 GUARD, Muffler
-(Assembly for 690906 & 691562) (Horizontal: 3054, 3564)
836 692067 4 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
77 04-Sep-2025
Spark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and Deflectors
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
78 04-Sep-2025
Spark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and Deflectors
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
346 794845 4 SCREW
-(Spark Arrestor)
676 396903 1 DEFLECTOR, Muffler
-(Direct Outlet) (Face Mounting with 4 Screws)
676A 795036 1 DEFLECTOR, Muffler
-(Deflector 90 Degree) (Face Mounting with 4 Screws)
676B 795038 1 DEFLECTOR, Muffler
-(Deflector Louvered) (Face Mounting with 4 Screws)
676C 495518 1 DEFLECTOR, Muffler
-(Elbow for Muffler Assembly) (For Exit Pipe O.D. of 1.10" (28mm))
677 794845 4 SCREW
-(Muffler Deflector)
677A 810079 1 SCREW
-(Muffler Deflector)
994 794945 1 ARRESTOR, Spark
-(Spark Arrestor) (Face Mounting with 4 Screws)
994A 594562 1 ARRESTOR, Spark
-(Spark Arrester) (For Exit Pipe O.D. of 1.10" (28mm))
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
79 04-Sep-2025
Muffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting Hardware
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
80 04-Sep-2025
Muffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting Hardware
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
296 841185 4 STUD
-(Mounting Mufflers)
613 691902 4 SCREW
-(Mounting Mufflers)
882 692074 2 FLANGE, Exhaust
-(3054 & 3564)
882A 806965 2 FLANGE, Exhaust
-(3854 & 3864)
883 806425 2 GASKET, Exhaust
-(Horizontal: 3854, 3864) (Vertical: 3567)
883A 691613 2 GASKET, Exhaust
-(Horizontal: 3054, 3564) (Vertical: 3567)
1177 842067 4 NUT
-(Required if Using 841185)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
81 04-Sep-2025
Flywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake Guards
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
82 04-Sep-2025
Flywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake Guards
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
493 845729 4 BRACKET, Mounting
563 841441 4 SCREW
805 843024 1 MINDER, Filter
-(For Engines with Cyclonic Air Filter)
930 846284 1 GUARD, Flywheel Fan
949 845728 1 GUARD, Debris Screen
-(Vertical: 3867)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
83 04-Sep-2025

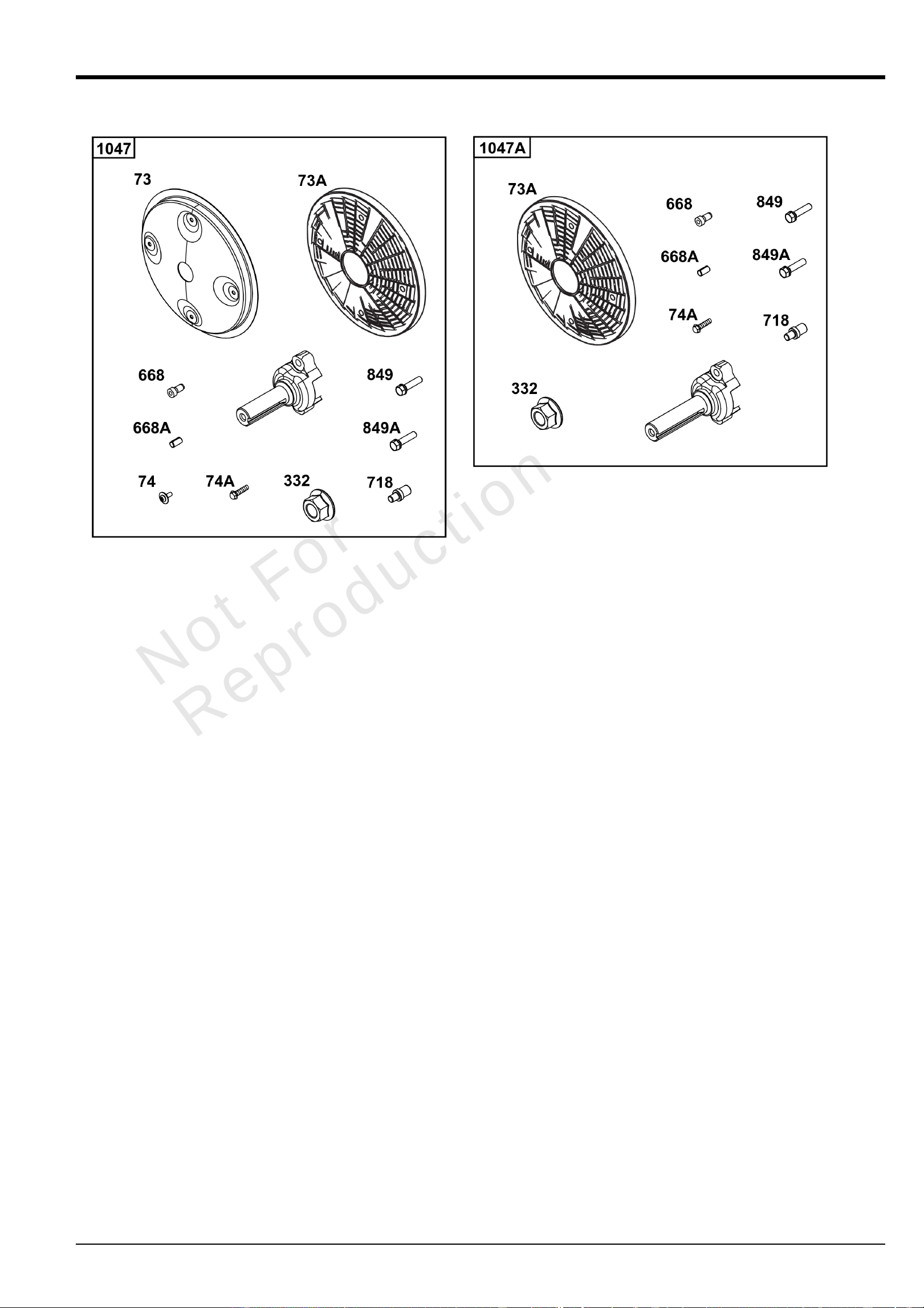

PTOPTOPTOPTO
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
84 04-Sep-2025
PTOPTOPTOPTO
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
73 841582 1 SCREEN, Rotating
73A 494439 1 SCREEN, Rotating
74 841441 4 SCREW
-(Rotating Screen)
74A 691647 4 SCREW
-(Rotating Screen)
332 690887 1 NUT
-(Flywheel)
668 691500 4 SPACER
-(Rotating Screen)
668A 691215 4 SPACER
-(Rotating Screen)
718 841581 1 PIN, Locating
-(32MM)
849 691088 2 SCREW
-(Stub Shaft)
849A 846236 2 SCREW
-(Stub Shaft)
1047 841580 1 SHAFT, Stub
-(1" Diameter) (4.75" Length)
1047A 842655 1 SHAFT, Stub
-(1" Diameter) (5.43" Length)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
85 04-Sep-2025

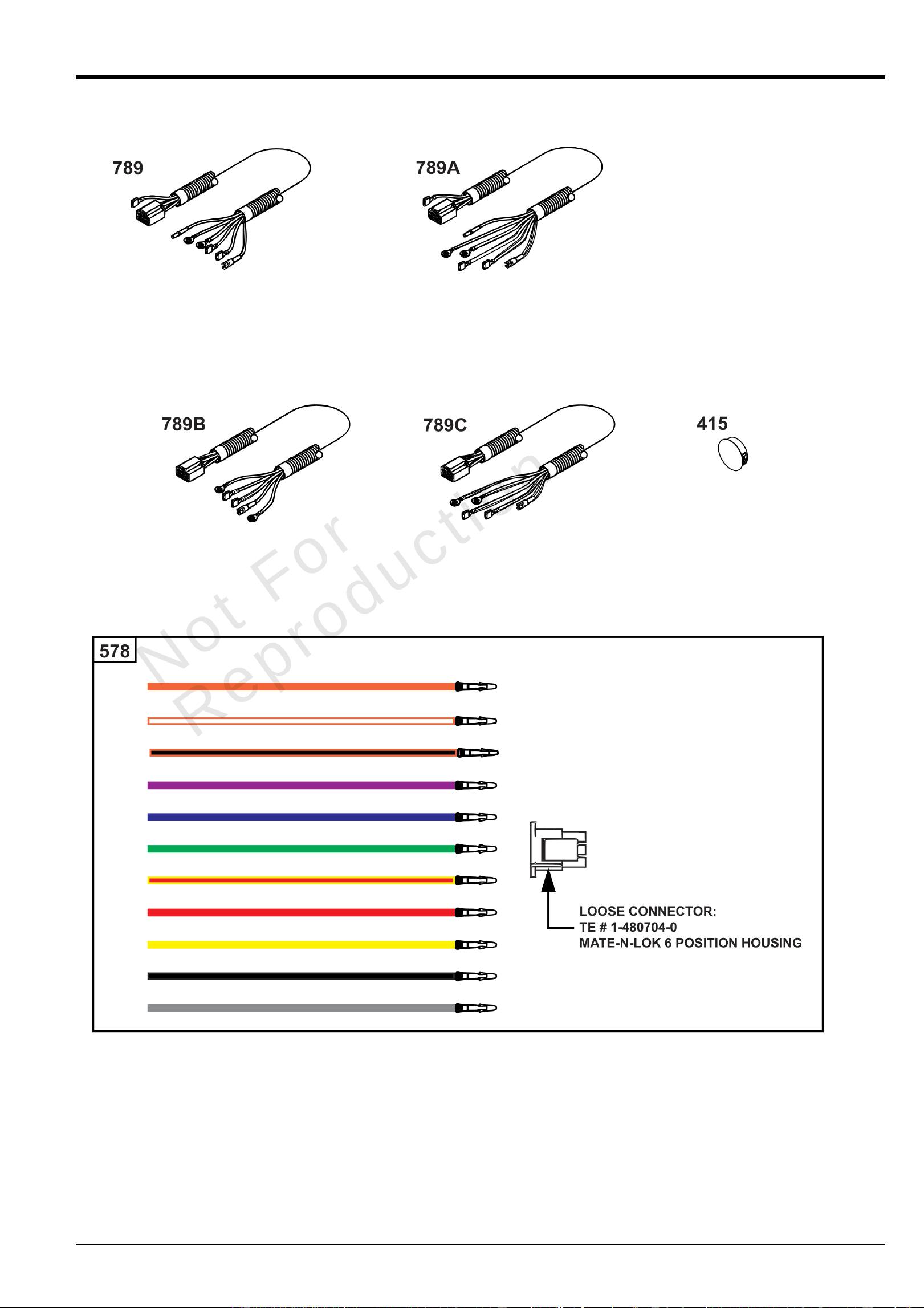

ElectricalElectricalElectricalElectrical
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
86 04-Sep-2025
ElectricalElectricalElectricalElectrical
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
415 1714480SM 1 PLUG
-(Plug for Ignition Switch Removal)
578 84007350 1 WIRE ASSEMBLY
-(Aids in Repowering Engine Application with 6-Pin Connector and Wires with
Terminals to Create Custom Adapter Configurations)
789 691996 1 HARNESS, Wiring
-(For 16 Amp Alternators)
789A 841318 1 HARNESS, Wiring
-(For 16 Amp Alternators with Solenoid Shift Starter)
789B 847601 1 HARNESS, Wiring
-(For 20 Amp Alternators)
789C 847602 1 HARNESS, Wiring
-(For 20 Amp Alternators with Solenoid Shift Starter)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
87 04-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
88 04-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
262 841552 1 SCREW
265 691024 1 CLAMP, Casing
-(Casing Clamp for Hard Casing)
265A 690798 1 CLAMP, Casing
-(Casing Clamp for Soft Casing)
267 792629 1 SCREW
-(Screw for Casing Clamp)
268 691025 1 CASING, Control Wire
-(Wire Casing 72")
269 26634 1 WIRE, Control
-(Control Wire 78")
269A 93907 1 WIRE, Control
-(Control Wire 100")
270 691027 1 NUT
-(Nut for Wire Casing)
271 691028 1 LEVER, Control
-(Speed Control Lever Assembly)
271A 692105 1 LEVER, Control
-(Speed Control Lever Assembly) ('L' Shaped End)
271B 692541 1 LEVER, Control
-(Speed Control Lever Assembly) ('Z' Shaped End)
281 690742 1 PANEL, Control
347 691995 1 SWITCH-ROCKER
356 690796 1 WIRE, Stop
356A 691999 1 WIRE ASSEMBLY
416 595196 1 BRACKET, Throttle Cable
-(Casing Clamp for Snap-In Casing)
416A 84006945 1 BRACKET, Throttle Cable
561 806447 1 NUT
620 494052 1 BRACKET, Control
-(Throttle Control for Vanguard V-Twin Horizontal Small Block)
1619 691693 1 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
89 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
