CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Op e r a t O r ’s Ma n u a l
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Form No. 769-05062
(November 17, 2009)
Tank M60-KW
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.cubcadet.com◊
Locate your nearest Cub Cadet Dealer at (877) 282-8684◊
Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
Thank you for purchasing a Cub Cadet Commercial Zero-Turn
tractor. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local Cub Cadet dealer or contact us directly. Cub
Cadet’s Customer Support telephone numbers, website address
and mailing address can be found on this page. We want to
ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. Pivot the seat
assembly forward to locate the model plate on the frame under
the seat. This information will be necessary, should you seek
technical support via our web site or with your local Cub Cadet
dealer.
MO d e l nu M b e r
se r i a l nu M b e r
To The Owner
1
2
Safe Operation Practices ........................................ 3

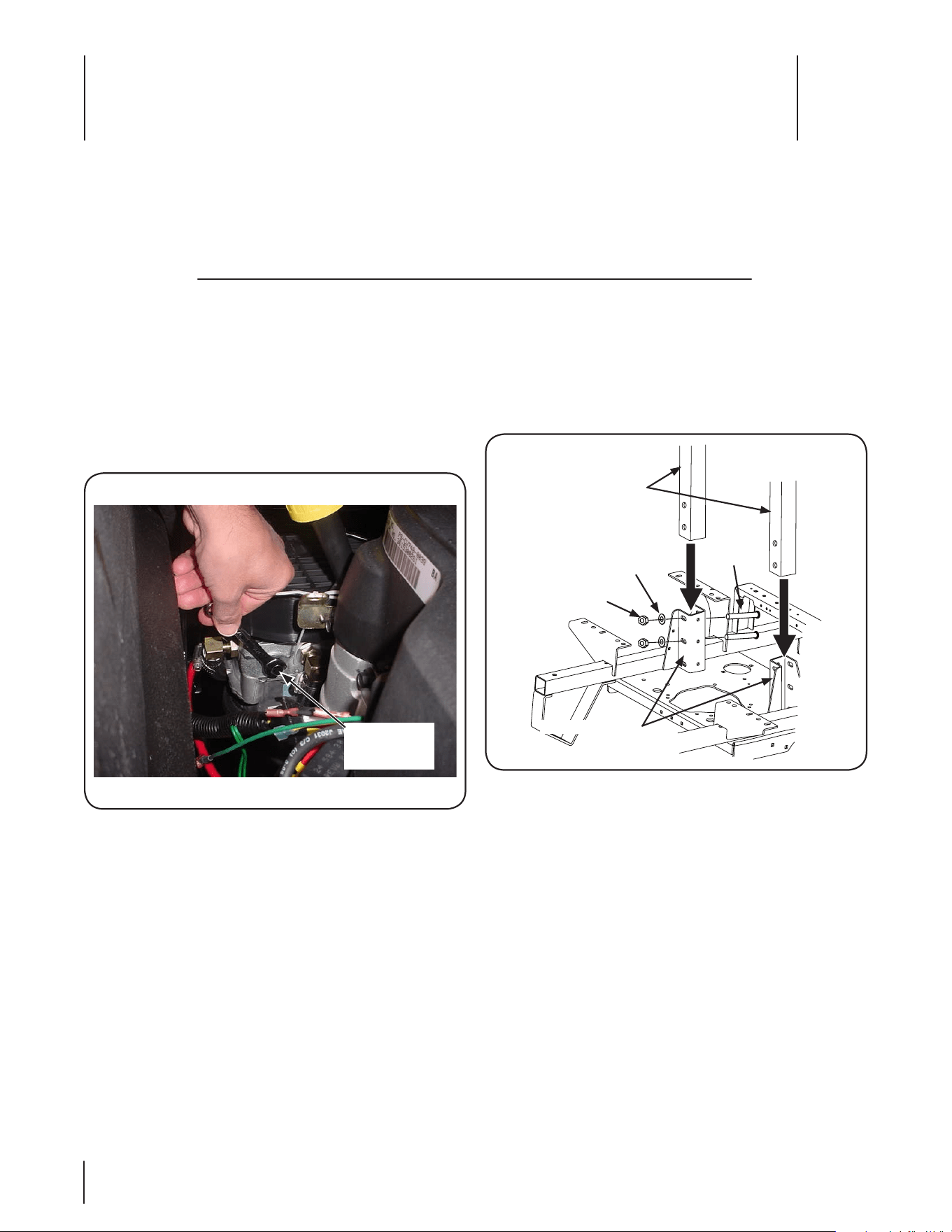

Assembly & Set-Up .................................................10

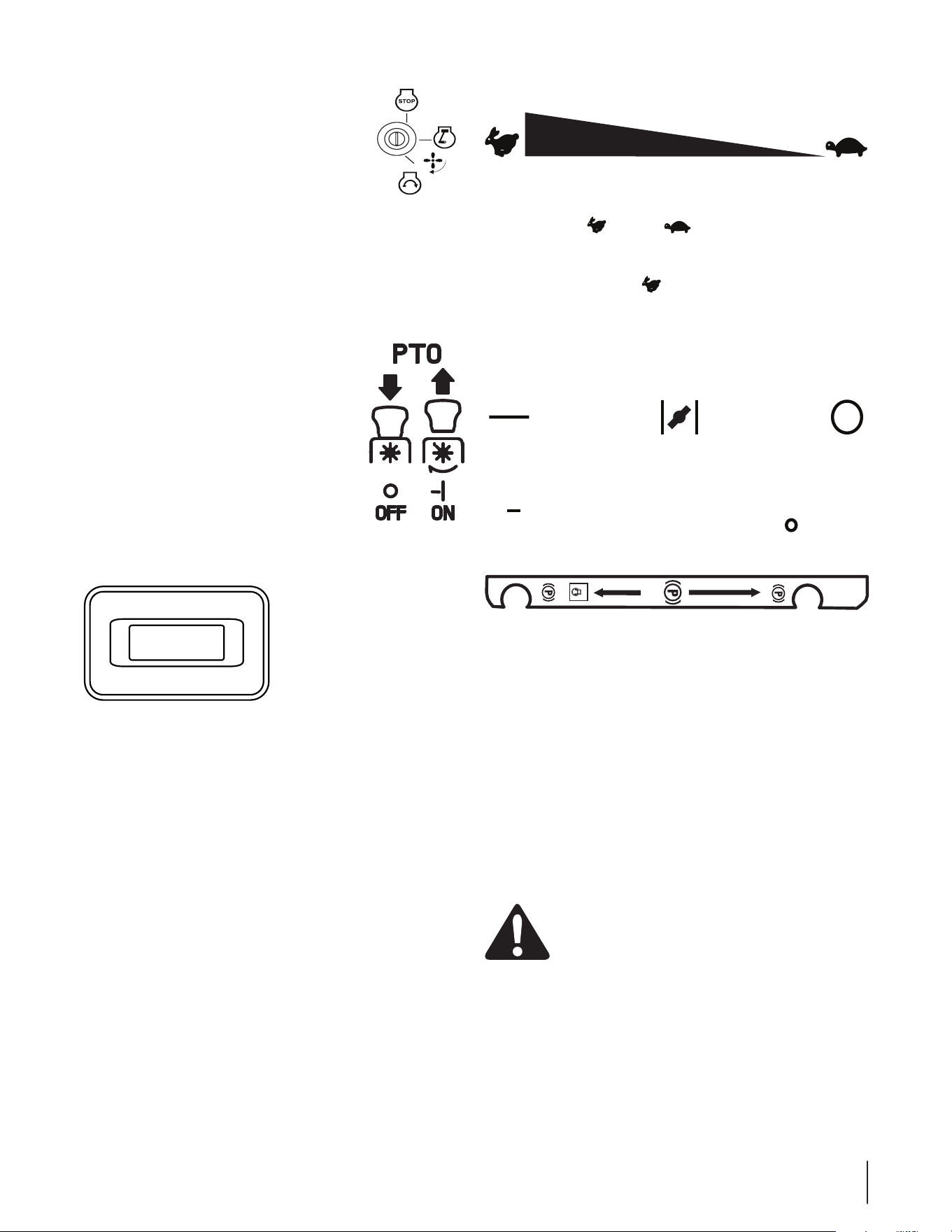

Controls & Features ................................................14
Operation ................................................................17
Maintenance & Adjustments ................................ 24
Service .................................................................... 35
Troubleshooting .................................................... 39

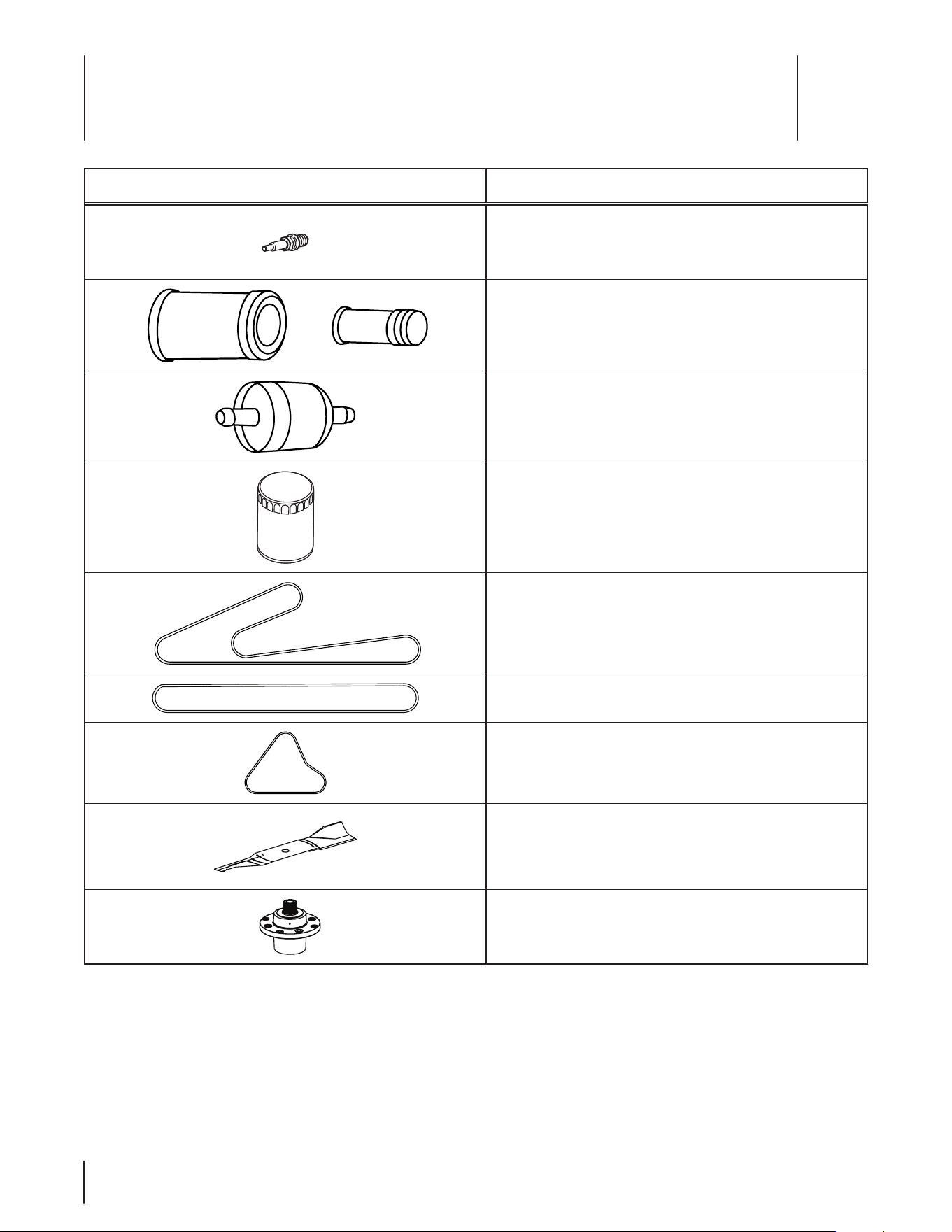

Replacements .........................................................41
Attachments & Accessories .................................. 43
Specications ......................................................... 44
Warranties ............................................................. 46
Table of Contents
Important Safe Operation Practices
2
3
General Operation
Read, understand, and follow all instructions on the 1.
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
B2. e familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
Do3. not allow anyone to operate or maintain this machine
who has not read the manual. Never permit children under
the age of 16 to operate this machine.
Do not remove any shields, guards, decals or safety devices. 4.
If a shield, guard, decal or safety device is damaged or
does not function, repair or replace it before operating the
machine.
To he5. lp avoid blade contact or a thrown object injury,
keep bystanders, helpers, children and pets at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
T6. horoughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
Plan your mowing pattern to avoid discharge of material 7.
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction
which may cause discharged material to ricochet back
toward the operator.
Al8. ways wear safety glasses, long pants, gloves, hearing
protection and safety shoes when operating or
maintaining this unit. Do not wear loose-fitting clothing
and do not operate the machine for more than 2 hours
without hearing protection.
Be 9. aware of the mower and attachment discharge direction
and do not point it at anyone. Do not operate the mower
without the discharge cover or entire grass catcher in its
proper place.
Do n10. ot put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate
hands and feet.
A missin11. g or damaged discharge cover can cause blade
contact or thrown object injuries.
Stop the 12. blade(s) when crossing gravel drives, walks, or
roads and while not cutting grass.
Watch fo13. r traffic when operating near or crossing
roadways. This machine is not intended for use on any
public roadway.
Do not operate the machine while under the influence of 14.
alcohol or drugs.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER! This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating hands and feet
and throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING! Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.

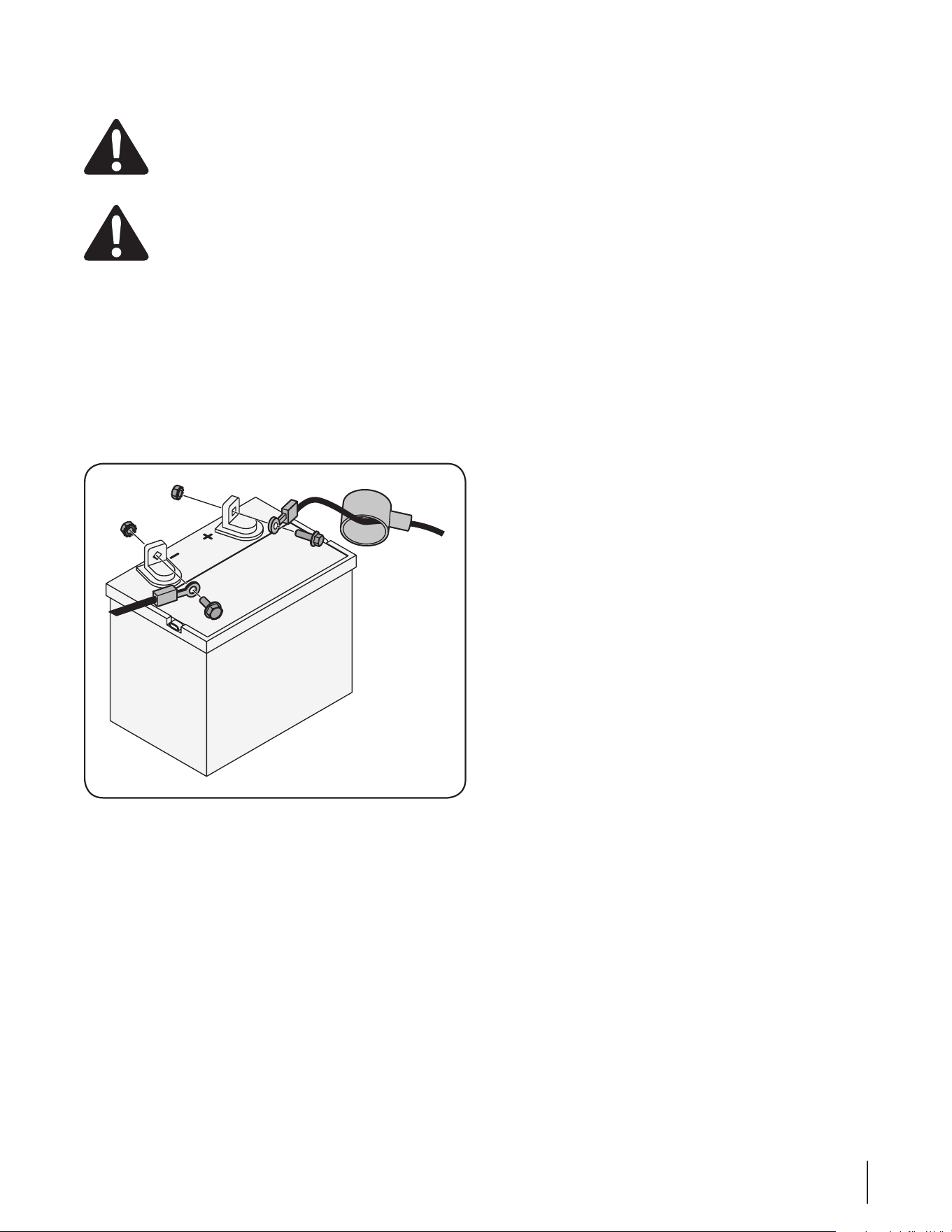

WARNING! Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling
4 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Mow only in daylight or good artificial light.15.
Never carry passengers.16.
Back up slowly. Always look down and behind before and 17.
while backing to avoid a back-over accident. Be aware
and pay attention to the safety system function that
stops power to the blades when driving in reverse. If not
fuctioning properly, contact an authorized dealer for safety
system inspection and repair.
Slow down before turning. Operate the machine smoothly. 18.
Avoid erratic operation and excessive speed.
Disengage blade(s), set parking brake, stop engine and wait 19.
until the blade(s) come to a complete stop before removing
grass catcher, emptying grass, unclogging chute, removing
any grass or debris, or making any adjustments.
Never leave a running machine unattended. Always turn off 20.
blade(s), place drive control levers in neutral, set parking
brake, stop engine and remove key before dismounting.
Use extra care when loading or unloading the machine into 21.
a trailer or truck. This machine should not be driven up or
down ramp(s), because the machine could tip over, causing
serious personal injury. The machine must be pushed
manually on ramp(s) to load or unload properly.
Muffler and engine become hot and can cause a burn. Do 22.
not touch.
Check overhead clearances carefully before driving under 23.
low hanging tree branches, wires, door openings etc.,
where the operator may be struck or pulled from the
machine, which could result in serious injury.
Disengage all attachment clutches, set the parking brake 24.
to the ‘On’ position and move the RH and LH drive
control levers fully outward to the neutral position before
attempting to start the engine.
Do not attempt to mow through unusually tall, dry grass 25.
(e.g., pasture) or piles of dry leaves. Dry grass or leaves may
contact the engine exhaust and/or build up on the mower
deck presenting a potential fire hazard.
Never attempt to operate the traction unit without the 26.
mowing deck attached.
Keep the machine and especially the engine/pump and 27.
hydraulic components clean and free of grease, grass and
leaves to reduce the potential for over heating and fire.
Use28. only accessories and attachments approved for this
machine by the machine manufacturer. Read, understand
and follow all instructions provided with the approved
accessory or attachment.
Data indicates that operators, age 60 years and above, are 29.
involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability
to operate the riding mower safely enough to protect
themselves and others from serious injury.
If situations occ30. ur which are not covered in this manual, use
care and good judgment. Contact your customer service
representative for assistance.
Do not o31. perate or start machines if there are fuel or oil
leaks or spillage. Clean it up.
Do not stop or park machine over dry leaves, grass, debris, 32.
etc. that could be combustible.
Do not operate machines that have been damaged or have 33.
not been properly maintained. If the machine has been
damaged, then have it repaired.
When looking for oil leaks, never run your hand over 34.
hydraulic hoses, lines or fittings. Never tighten or adjust
hydraulic hoses, lines or fittings while the system is under
pressure. If high-pressure oil penetrates the skin, the oil
must be removed within a few hours by a doctor familiar
with this form of injury or gangrene may result. Do not
check for hydraulic leaks with any part of the body.
When operating this machine in the forward direction, 35.
do not allow the ground speed control levers to return
to the neutral position on their own. Always maintain a
firm grip on the levers, operate them smoothly and avoid
any sudden movements of the levers when starting or
stopping.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. All slopes
require extra caution. If you cannot back up the slope or if you
feel uneasy on it, do not mow it.
For your safety, use the slope gauge included as part of this
manual to measure slopes before operating this machine on
a sloped or hilly area. If the slope is greater than 15 degrees as
shown on the slope gauge, do not operate this machine on that
area or serious injury could result.
Do:
Mow across slopes, not up and down. Exercise extreme 1.
caution when changing direction on slopes.
Watch for holes, ruts, bumps, rocks, or other hidden 2.
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
Use slow speed. Choose a low enough speed so that you 3.
will not have to stop while on the slope. Avoid starting
or stopping on a slope. If the tires are unable to maintain
traction, disengage the blades and proceed slowly and
carefully straight down the slope.
Follow the manufacturer’s recommendations for wheel 4.
weights or counterweights to improve stability.
Use extra care with grass catchers or other attachments. 5.
These can change the stability of the machine.
Keep all movement on the slopes slow and gradual. Do 6.
not make sudden changes in speed or direction. Rapid
acceleration or deceleration could cause the front of the
machine to lift and rapidly flip over backwards, which
could cause serious injury.
Do Not:
Do not turn on slopes unless necessary; then turn slowly 1.
uphill and use extra care while turning.
Do not mow near drop-offs, ditches or embankments. The 2.
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
Do not try to stabilize the machine by putting your foot on 3.
the ground.
Do not use a grass catcher on steep slopes. 4.
5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Do not mow on wet grass. Reduced traction could cause 5.
sliding.
Do not tow heavy pull behind attachments (e.g. loaded 6.
dump cart, lawn roller, etc.) on slopes greater than 5
degrees. When going down hill, the extra weight tends
to push the tractor and may cause you to loose control
(e.g. tractor may speed up, braking and steering ability are
reduced, attachment may jack-knife and cause tractor to
overturn).
Children
Tragic accidents can occur if the operator is not alert to the 1.
presence of children. Children are often attracted to the
machine and the mowing activity. They do not understand
the dangers. Never assume that children will remain where
you last saw them.
Keep children out of the mowing area and in a.
watchful care of a responsible adult other than the
operator.
Be alert and turn machine off if a child enters the b.
area.
To avoid back-over accidents, always look behind c.
and down for small children.
Never carry children, even with the blade(s) shut off. d.
They may fall off and be seriously injured or interfere
with safe machine operation.
Use extreme care when approaching blind corners, e.
doorways, shrubs, trees or other objects that may
block your vision of a child who may run into the
path of the machine.
Keep children away from hot or running engines. f.
They can suffer burns from a hot muffler.
Remove key when machine is unattended to g.
prevent unauthorized operation.
Ne2. ver allow children under 16 years of age to operate this
machine. Children 16 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
Towing
Tow only with a machine that has a hitch designed for 1.
towing. Do not attach towed equipment except at the
hitch point.
Follow the manufacturers recommendation for weight 2.
limits for towed equipment and towing on slopes.
Never allow children or others in or on towed equipment.3.
On slopes, the weight of the towed equipment may cause 4.
loss of traction and loss of control.
Travel slowly and allow extra distance to stop.5.
Do not shift to neutral and coast downhill.6.
Transporting Machines
Machines operated on public roads must comply with state 1.
& local ordinances, SAE J137, and AnSI/ASABE S279.
Use care when loading or unloading machines onto trailers 2.
and trucks.
If ramps are used, they must be full width, and secured to 3.
the trailer or truck.
Machines must be secured onto trailers and trucks with 4.
straps, chains, cables, ropes, or other means deemed
adequate for that purpose. The front and rear of the
machines must be secured to the trailer or truck in both the
lateral and vertical directions.
Operator Protective System (OPS)
This machine is equipped with an Operator Protective 1.
System (OPS), which includes:
A Roll Over Protective Structure (ROPS) or Operator a.
Protective Device (OPD) of the fixed or folding
configuration.
Seat belt assembly with retractable function.b.
ROPS and OPDs are structures designed to provide a 2.
crush-resistant space for the operator when properly
seat-belted within the designated seating area of the
machine in the event of a machine tip-over or roll-over.
Folding ROPS and OPDs shall be used in their fully upright
and locked configurations except in those circumstances
whereby they need to be momentarily folded-down to
avoid contact with items such as tree limbs, clothes lines,
guy wires, buildings, etc. At other times and conditions,
ROPS and OPDs shall be in their fully upright and locked
configurations.
DANGER: Damaged ROPS and OPDs must be
replaced prior to operator use!
Seat belts shall be used and shall be properly fastened 3.
about the operator’s waist at all times, except when the
ROPS or OPDs are:
Not properly installed and/or not properly secured a.
onto the machine.
Damaged in such manner that their structural b.
integrity has been compromised.
Not in their fully upright and locked position.c.
Seat belts are attached to the movable portion of the seat 4.
when suspension seats are utilized, and therefore the seat-
mounting base must be secured to its pivot means and the
pivot means latched to the frame of the machine. Seat belts
are attached to the seat or the frame of the machine when
non-suspension (standard) seats are provided, however, if
a suspension kit is added to a seat, the seat belt must be
attached to the movable portion of the seat or suspension
mechanism, the seat-mounting base must be secured to its
pivot means, and the pivot means be latched to the frame
of the machine.
DANGER: If ROPS and OPDs are folded down or
missing, seat belts shall not be fastened. Worn or
damaged seat belt assemblies must be replaced
prior to operator use.
Brush Guards and canopies can afford additional 5.
protection for the operator. The Brush Guard can deflect
tree limbs, clothes lines, and other obstacles that otherwise
6 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
could come in contact with the ROPS and OPDs. Contact
of ROPS and OPDs by items such as tree limbs, clothes
lines, guy wires, and buildings, could create hazardous
conditions whereby the machine could experience a tip-
over or roll-over. The canopy can provide protection for
the operator from some environmental exposure (sunlight,
rain, etc.). Work lights may be available.
The ROPS and seat belt are integral parts of this machine 6.
and should not be tampered with, modified in any manner,
or removed.
The ROPS extends above and behind the operator position, 7.
and therefore the operator must be aware of potential
contact of the ROPS with items such as trees, buildings,
doorways, clothes lines, utility wires, etc., that could cause
the machine to upset or rollover. Use caution in (or avoid)
areas where the ROPS could come in contact with any
structures, trees, etc.
The ROPS and seat belt add additional mass that elevates 8.
the machine’s Center of Gravity (C.G.) which negatively
affects the machine’s stability and traction. Use extra
caution when operating on slopes.
Inspect the ROPS and seat belt assemblies on a regular 9.
basis for damage and improper operation. Replace all
components that are damaged or are not functioning
properly with authorized replacement parts.
Fail10. ure to use the seat belt properly could result in serious
injury or death if an accidental overturn occurs. In order
for the ROPS to be effective, the seat belt must be securely
fastened around the operator at all times when the
operator is on the machine. Contact with the ROPS during
an overturn could cause serious injury or death.
The ROPS will not prevent the machine from upsets or roll 11.
overs.
Only approved attachments should be used on this 12.
machine.
Hydraulic Devices and Systems
Hydraulic fluid escaping under pressure may have sufficient force
to penetrate skin and to cause serious injury. If foreign fluid is
injected into the skin, it must be surgically removed within a few
hours by a doctor familiar with this form of injury, or gangrene
may result.
WARNING: Keep body and hands away from
pinholes or nozzles that could eject hydraulic fluid
under high pressure. Use paper or cardboard, not
hands, to search for leaks!
Safely relieve all pressure in the system before performing any
work on the system, and make sure that:
The ignition switch is OFF•
The key is removed•
The engine spark plug wire(s) removed•
All connections to the negative terminal of the battery are •
removed
The park brake is set•
All by-pass valves, if so equipped, are open•
Hydrau• lic controls are actuated to release pressure on
pumps, cylinders, etc. If “float” positions are available, they
should be used.
After the above operations are completed, it should be safe to
begin disconnecting the lines or components. It is still a good
idea to cover the connection with a cloth shield and then gently
loosen connections.
WARNING: Make sure all hydraulic fluid
connections are tight and all hydraulic hoses and
lines are in good condition before applying pressure
to the system.
Service
Safe Handling of Gasoline:
To av1. oid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.
Use only an approved gasoline container.a.
To prevent static discharge, never fill containers b.
inside a vehicle or on a truck or trailer bed with a
plastic liner. Always place containers on the ground
away from your vehicle before filling.
When practical, remove gas-powered equipment c.
from the truck or trailer and refuel it on the ground.
If this is not possible, then refuel such equipment on
a trailer with a portable container, rather than from a
gasoline dispenser nozzle.
To avoid static discharge, keep the nozzle in contact d.
with the rim of the fuel tank or container opening
at all times until fueling is complete. Do not use a
nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other e.
sources of ignition.
Never fuel machine indoors f. near an open flame,
spark or pilot light as on a water heater, space heater,
furnace, clothes dryer or other gas appliances.
If the fuelg. container spout will not fit inside the fuel
tank opening, use a funnel.
Never remove gas cap or add fuel while the engine h.
is hot or running. Allow engine to cool at least two
minutes before refueling.
never over fill fuel tank. Fill tank to no more than 1 i.
inch below bottom of filler neck to allow space for
fuel expansion.
Replace gasoline cap and tighten securely.j.
If gasoline is spilled, wipe it off the engine and k.
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
To reduce fire hazards, keep machine free of grass, l.
leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel soaked debris.
7se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Never operate/store the machine or fuel container m.
inside where there is an open flame, spark or pilot
light as on a water heater, space heater, furnace,
clothes dryer or other gas appliances.
Allow a machine to cool at least five minutes before n.
storing.
Do not use gasoline fuel classified above E-10 (I.E., o.
E-15 through E-85) as it could cause severe damage
to the engine and fuel system.
General Service
Never run an engine indoors or in a poorly ventilated area. 1.
Engine exhaust contains carbon monoxide, an odorless,
and deadly gas.
Before cleaning, repairing, or inspecting, make certain the 2.
blade(s) and all moving parts have stopped. Disconnect the
spark plug wires and remove the key from the ignition to
prevent unintended starting.
Periodically check to make sure the blades come to 3.
complete stop within approximately (5) five seconds after
operating the blade disengagement control. If the blades
do not stop within the this time frame, your machine
should be serviced.
Regularly check the safety interlock system for proper 4.
function, as described later in this manual. If the safety
interlock system does not function properly, have your
machine serviced.
Check the blade(s) and engine mounting bolts at frequent 5.
intervals for proper tightness. Also, visually inspect blade(s)
for damage (e.g., excessive wear, bent, cracked). Replace
the blade(s) with the original equipment manufacturer’s
(O.E.M.) blade(s) only, listed in this manual. “Use of parts
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”
Mower blades are sharp. Wrap the blade or wear gloves, 6.
and use extra caution when servicing them.
Keep all nuts, bolts, and screws tight to be sure the 7.
equipment is in safe working condition.
Never tamper with the safety interlock system or other 8.
safety devices. Check their proper operation regularly.
After striking a foreign object, stop the engine, disconnect 9.
the spark plug wire(s) and ground against the engine.
Thoroughly inspect the machine for any damage. Repair
the damage before starting and operating.
Never attempt to make adjustments or repairs to the 10.
machine while the engine is running.
Grass catcher components and the discharge cover are 11.
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
Do not change the engine governor settings or over-speed 12.
the engine. The governor controls the maximum safe
operating speed of the engine.
Maintain or replace safety and instruction labels, as 13.
necessary.
Observe proper disposal laws and regulations for gas, oil, 14.
etc. to protect the environment.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING! This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine’s
exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in
effective working order by the operator. In the State of California
the above is required by law (Section 4442 of the California
Public Resources Code). Other states may have similar laws.
Federal laws apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
8 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

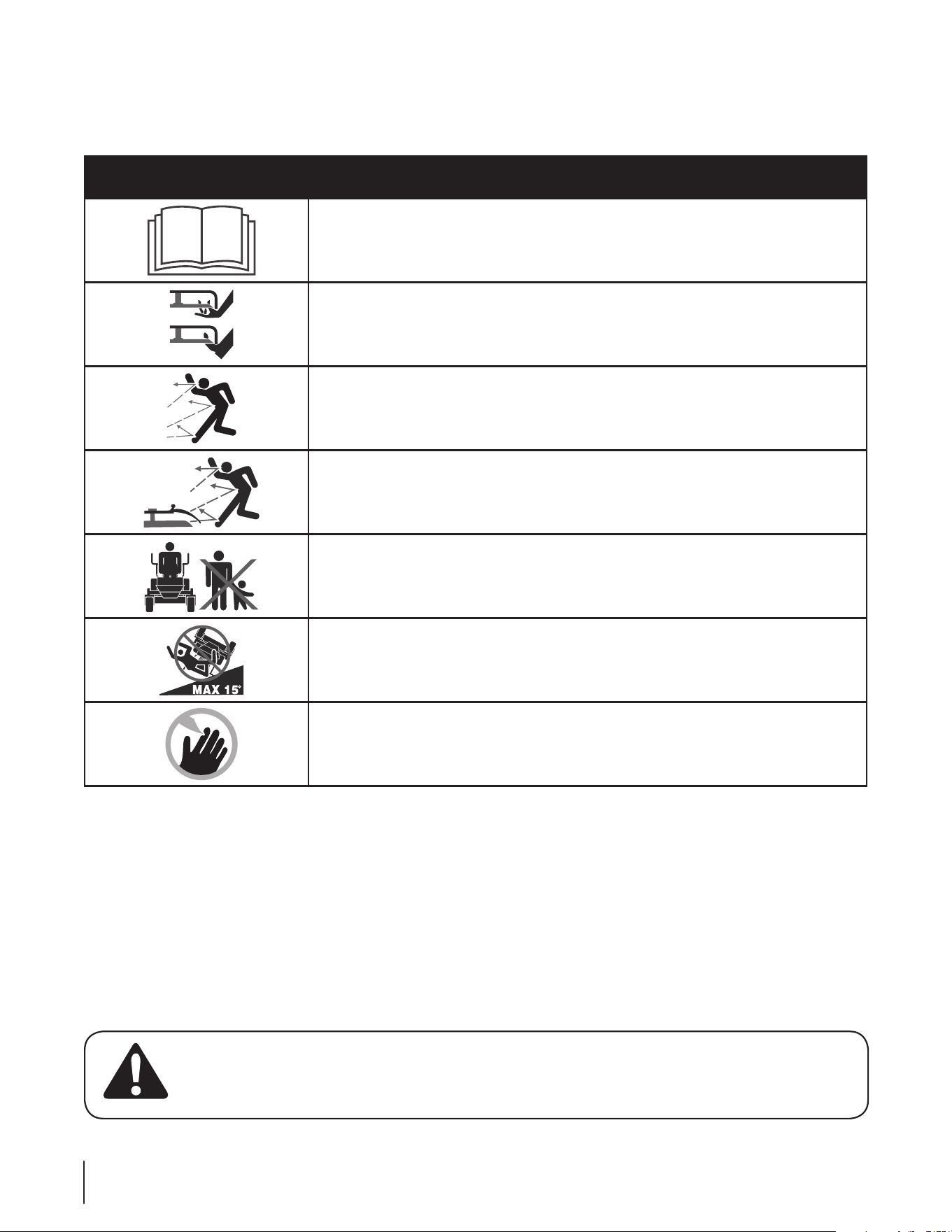

Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MAnUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
WARnInG— ROTATInG BLADES
Do not put hands or feet near rotating parts or under the cutting deck. Contact with the
blade(s) can amputate hands and feet.
WARnInG—THROWn OBJECTS
This machine may pick up and throw and objects which can cause serious personal injury.
WARnInG—THROWn OBJECTS
This machine may pick up and throw and objects which can cause serious personal injury.
BYSTAnDERS
Keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in
operation.
WARnInG— SLOPE OPERATIOn
Do not operate this machine on a slope greater than 15 degrees.
DAnGER — ROTATInG BLADES
To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover
or grass catcher is in its proper place. If damaged, replace immediately.
9se c t i O n 2 — sa f e Op e r a t i O n pr a c t i c e s
Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (represents a 15° slope)
15°
Use this page as a guide to determine slopes where you may not operate safely.
WARNING! Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees (a rise
of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. Operate riding mowers up and
down slopes, never across the face of slopes.
OPERATE TAnK zero turn tractors across the face of slopes rather than up and down. Begin with the first pass across the bottom of
the slope and turn uphill at the end of each pass whenever possible.
Assembly & Set-Up
3
10
Contents of Crate
One Lawn Tractor• One Tractor Operator’s •
Manual
One Deck Wash Hose Coupler •
One Engine Operator’s Manual•
Tractor Preparation
Remove the upper crating material from the shipping pallet, and
cut any bands or tie straps securing the tractor to the pallet.
Use the lift handle to raise the deck to its highest position. Locate
the valves on the hydraulic pump. Turn the valves counter-
clockwise (using a standard 7⁄16” wrench) one quarter turn to push
the unit off the crate. After pushing the mower to the desired
location, return both valves to the operating position by turning
the valve clockwise, but do not overtighten. See Fig. 3-1.
Remove the deck wash system nozzle adapter from the manual
bag and store for future use. Cut the wire tie holding the chute
deflector up and discard any packing material.
Transmission
Bypass
Valve
Figure 3-1
Install Roll Over Protective System (ROPS)
The Roll Over Protective System (ROPS) has not been installed
on your unit for shipping purposes. Using the hardware found in
the Roll Over Protective System container, install it on your unit
as follows:
Insert each of the lower section ROPS posts into the 1.
brackets welded to the main frame. See Fig. 3-2.
NOTE: The ROPS pivot holes should be positioned toward
the rear of the tractor.
Insert the carriage bolts (2. 1⁄2-13 x 3.00) (two per side) from
the front toward the rear. Alternately from the rear toward
the front if access is restricted.
NOTE: The mounting hardware is accessible from the rear
of the machine with the use of extensions. Also, access can
be gained by reaching in from the sides over the tires and
under the fuel tanks.
Three holes are provided on each side. Use the Upper hole 3.
and one of the other two remaining holes that is easily
accessible. Install the retaining nuts, but do not tighten.
ROPS Posts
Carriage
Bolts
Frame Brackets
Nut
Washer
Figure 3-2
11se c t i O n 2 — as s e M b l y & se t -up

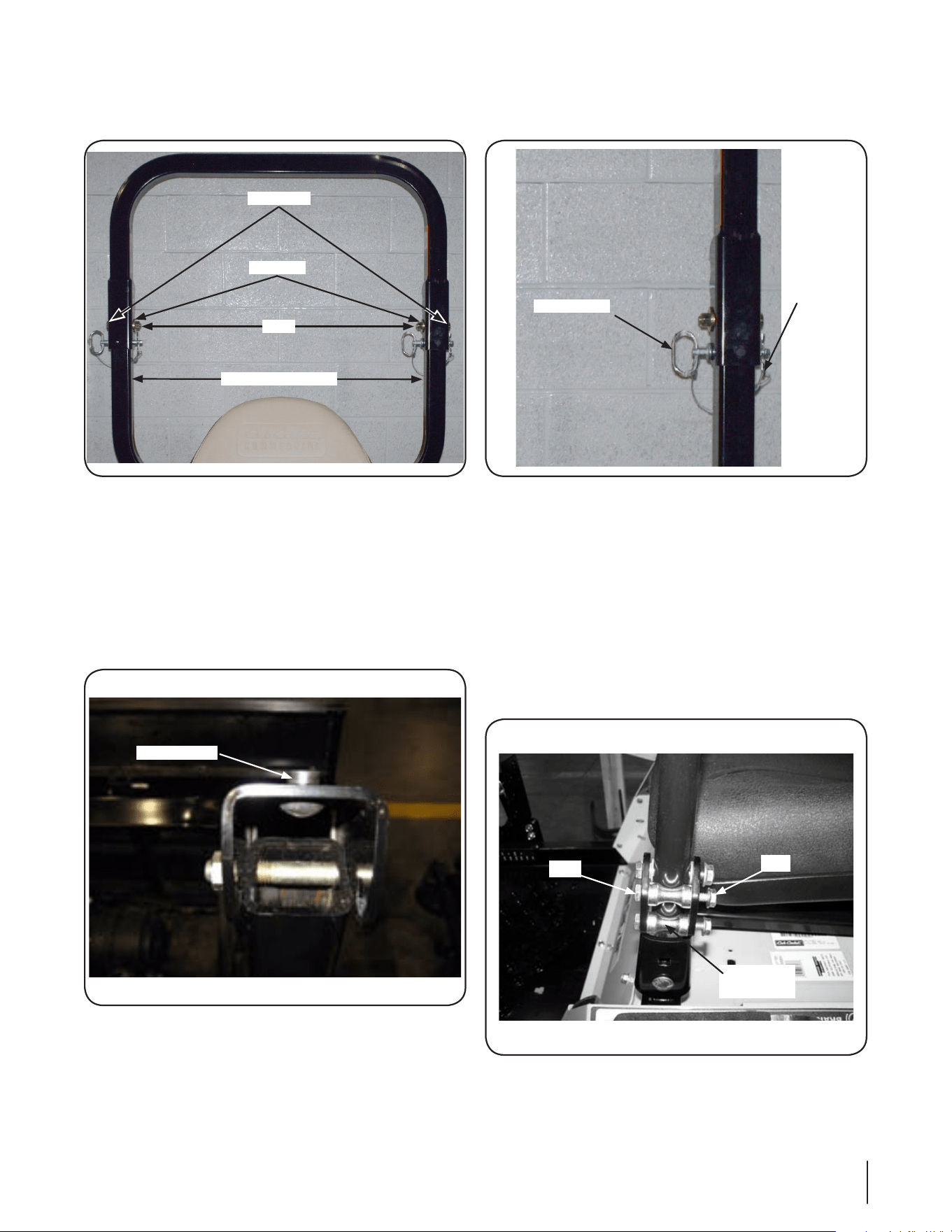

Install the upper ROPS section onto the lower ROPS “posts”. 4.
Install the (1⁄2-13 x 3.25) HHCS bolts, nuts and washers. See
Fig. 3-3.
Tighten Upper ROPS section bolts after both RH & LH 5.
hardware is installed.
Tighten the frame mounting hardware to 80-90 lb.-ft. 6.
torque. See Fig. 3-2.
NOTE: Make sure tubular upright posts are absolutely tight
within welded bracket.
Insert rubber plugs into each side of the upper ROPS. See 7.
Fig. 3-4.
Move the upper ROPS section to the upright position, and 8.
insert the locking pins with their retainer hairpin clips. See
Fig. 3-5.
Position Drive Control levers
The drive control levers of the tractor are lowered for shipping
purposes. Using the hardware found in the manual bag, the
control levers must be repositioned to operate the tractor. To
reposition the control levers for operation, proceed as follows:
Lift and swing the control levers up into the operating 1.
position.
From the outside, insert the bolts through the hourglass 2.
spacers and the holes of the pivot bracket. Secure with the
flange lock nuts. See Fig. 3-6.
Refer to “Adjusting Drive Control Levers” section for 3.
instructions on the final adjustment of the levers.
Hex Bolts
Washers
Nuts
Lower ROPS Posts
Figure 3-3
Rubber Plug
Figure 3-4
Locking Pin
Hairpin
Clips
Figure 3-5
Hourglass
Spacer
Nut
Bolt
Figure 3-6
12 se c t i O n 2— as s e M b l y & se t -up

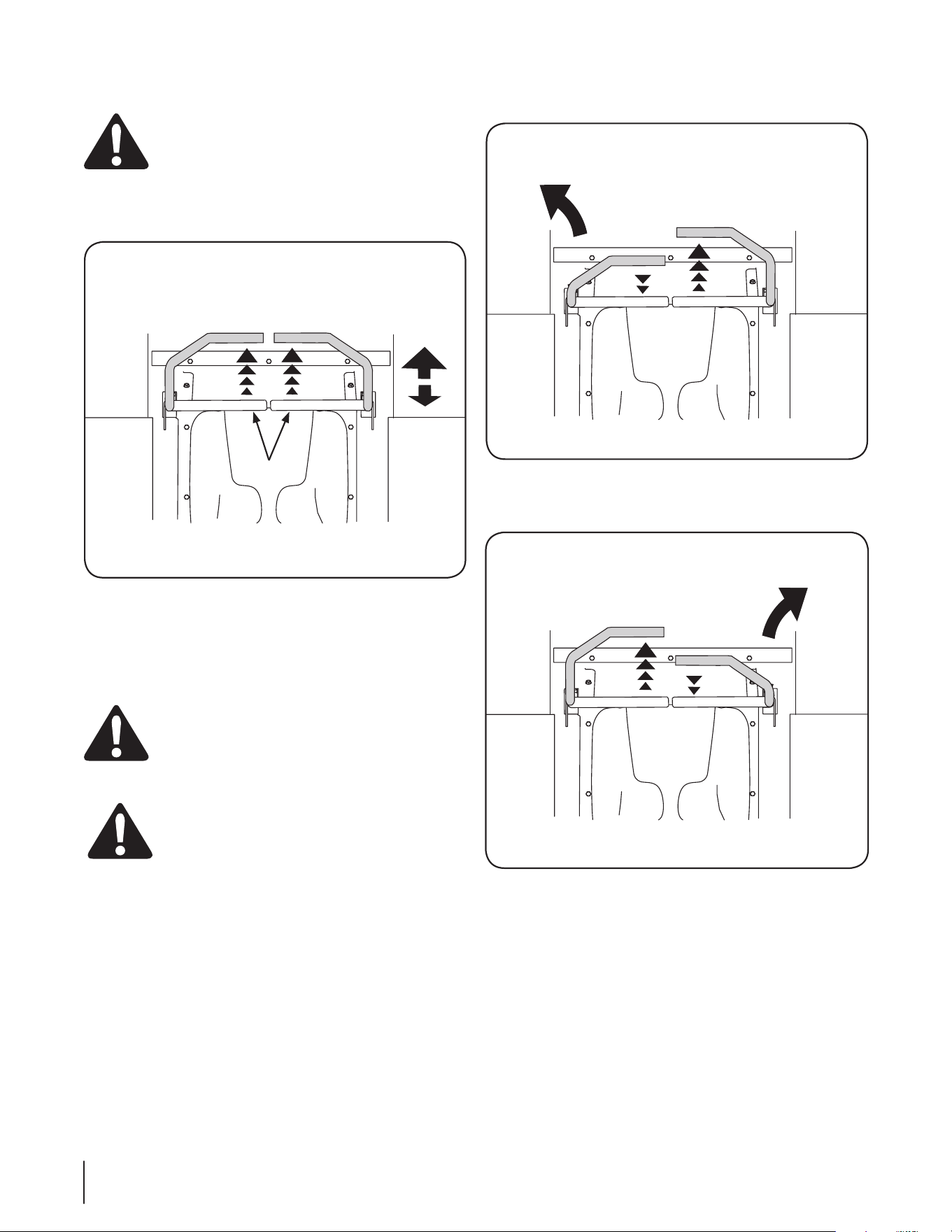

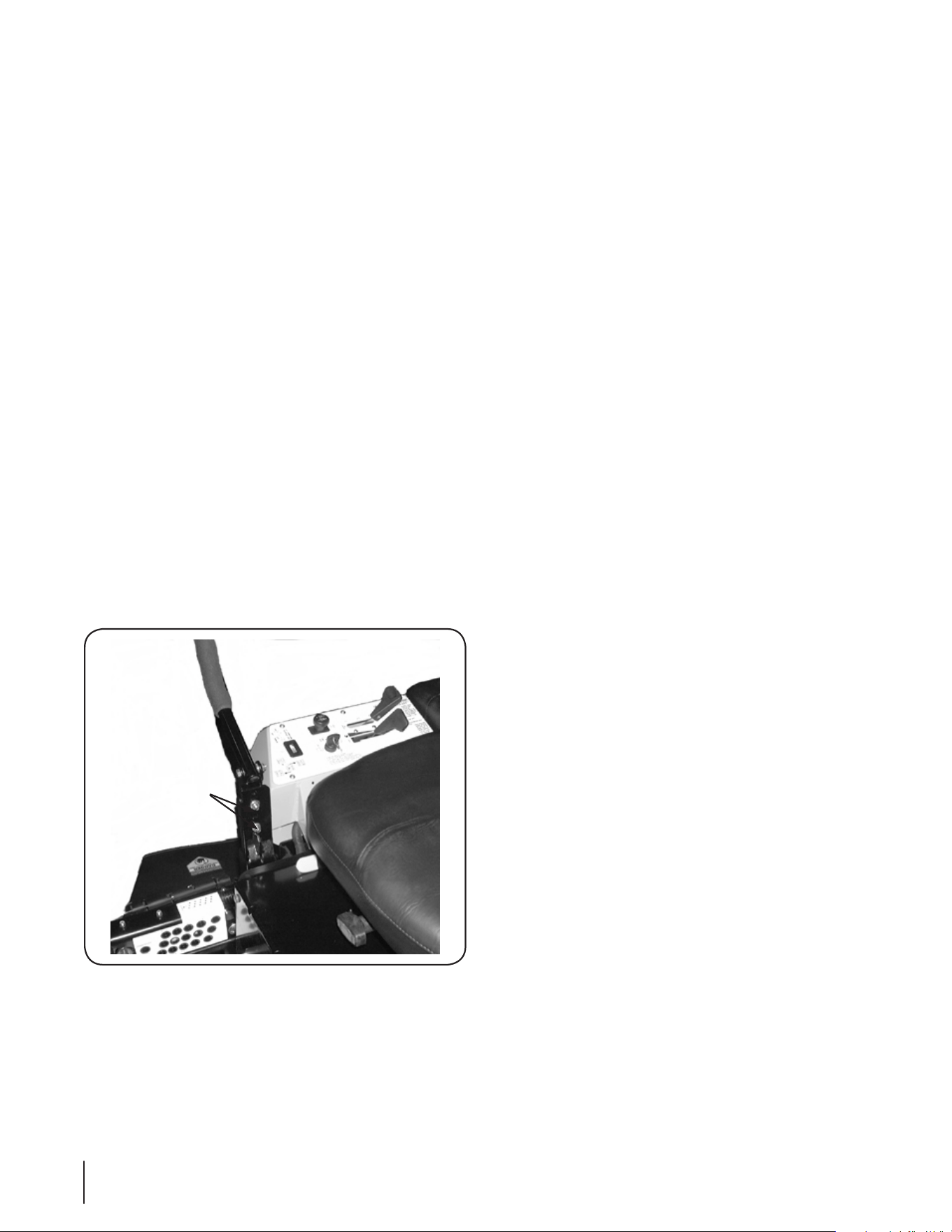

Adjusting Drive Control Levers
The RH and LH drive control levers can be adjusted up or down
and fore-and-aft for the comfort of the operator. Proper drive
control lever and seat adjustment will result in the following:
In the neutral position with hands on the control levers,
Operator’s upper arms should be relaxed and •
approximately vertical.
Operator’s forearms should be approximately horizontal.•
In the full forward position,
Operator’s back should stay in contact with the seat back.•
Control levers should not contact operator’s legs.•
In the full reverse position,
Control levers should not contact the operator’s legs or •
torso.
Set the seat to the preferred operating position.
Adjustment lever is located under the front edge of the •
seat.
The seat has five inches of front-to-rear adjustment •
available.
Check factory settings of control levers for the conditions listed
above.
NOTE: If control lever adjustments are required, height
adjustments should be made prior to angular adjustments.
To adjust the height of the drive control levers:
Remove the nuts from the control lever mounting bolts. 1.
See Fig. 3-7.
Remove the bolts and control lever and reposition to the 2.
second set of holes in the mounting block.
Reinstall the bolts and nuts, and tighten to 28-34 ft-lbs.3.
If angular adjustments are also required, nuts can be 4.
tightened until snug at this point.
The same adjustments should be made to both sides of the
mower.
To adjust the front-to-rear angle of the control levers:
Loosen the nuts on the control lever mounting bolts, 1.
leaving the bottom one fairly snug. The top hole is slotted,
allowing the control lever to pivot on the bottom bolt.
Move control lever to the desired angle and tighten the 2.
nuts to 28-34 ft-lbs.

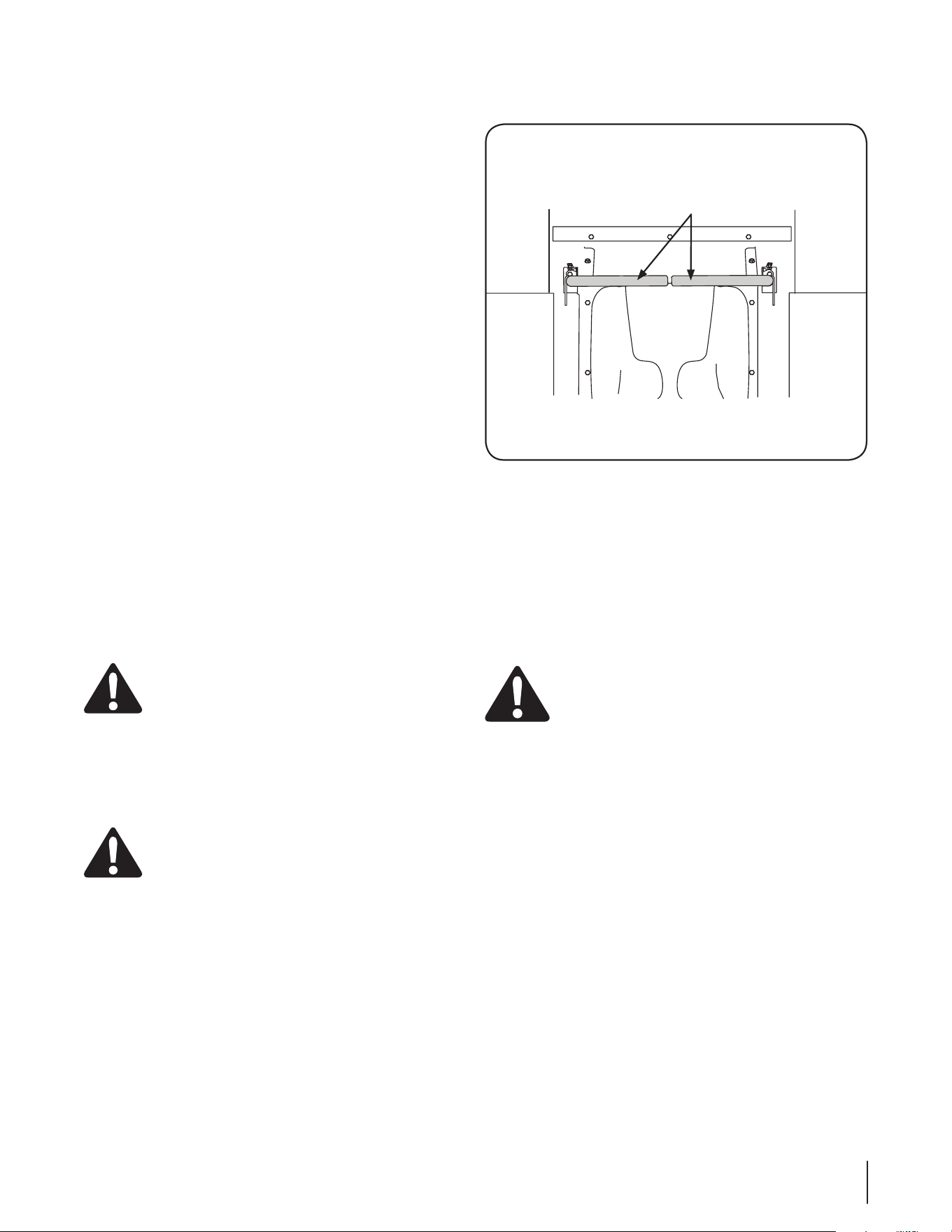

NOTE: In the neutral position, the handles of the control
levers should be aligned with approximately a one inch
gap between the tips. Widen the gap by adding shim
washers to the top mounting bolt between the lap bar and
the mounting block.
Check the results of any adjustments to the conditions 3.
described above. Repeat any adjustment procedures as
required until all conditions are met.
Suspension Seat
This unit is equipped with an adjustable suspension seat 1.
system, which includes a fold-forward seat with retractable
seat belt assembly, a low profile mechanical suspension,
and an Operator Presence Sensor (OPS).
The seat bottom is covered with a heavy-duty vinyl 2.
fabric and integrates the EVC cushion comfort system
that provides up to 1-3⁄8” dampered (for shock isolation)
suspension travel. An OPS in the form of a switch, is
integrated into the seat bottom and is connected to the
machine electrical system. The seat back is also covered
with a heavy-duty vinyl fabric, it adjusts to recline up to 16
degrees, and it will fold forward for transport or protection
from the elements of weather (lever actuated on operator’s
left side). The armrests are adjustable for operator comfort
(knob inside armrests actuated from the bottom). Roller
bearing single-locking tracks provide easy repositioning
fore/aft up to 5” (lever actuated on lower right).
A mechanical suspension mechanism incorporates weight/3.
ride adjustment controls for operators in the 125 to 275
lb. weight range (turn the knob on the front of the seat
clockwise to increase the weight capacity and counter-
clockwise to decrease. Self-lubricating bearings are utilized
throughout the suspension mechanism that provides an
additional 2” of suspension travel.
A retractable seat belt assembly with inertia-lock is 4.
attached to the “ride” portion of the seat frame. The seat
frame is attached to the mechanical suspension, which is
attached to the roller tracks that are bolted to the seat base
in one of the three (3) locations - the seat assembly can
be detached and re-installed 1” forward or 1” aft from the
factory installed position.

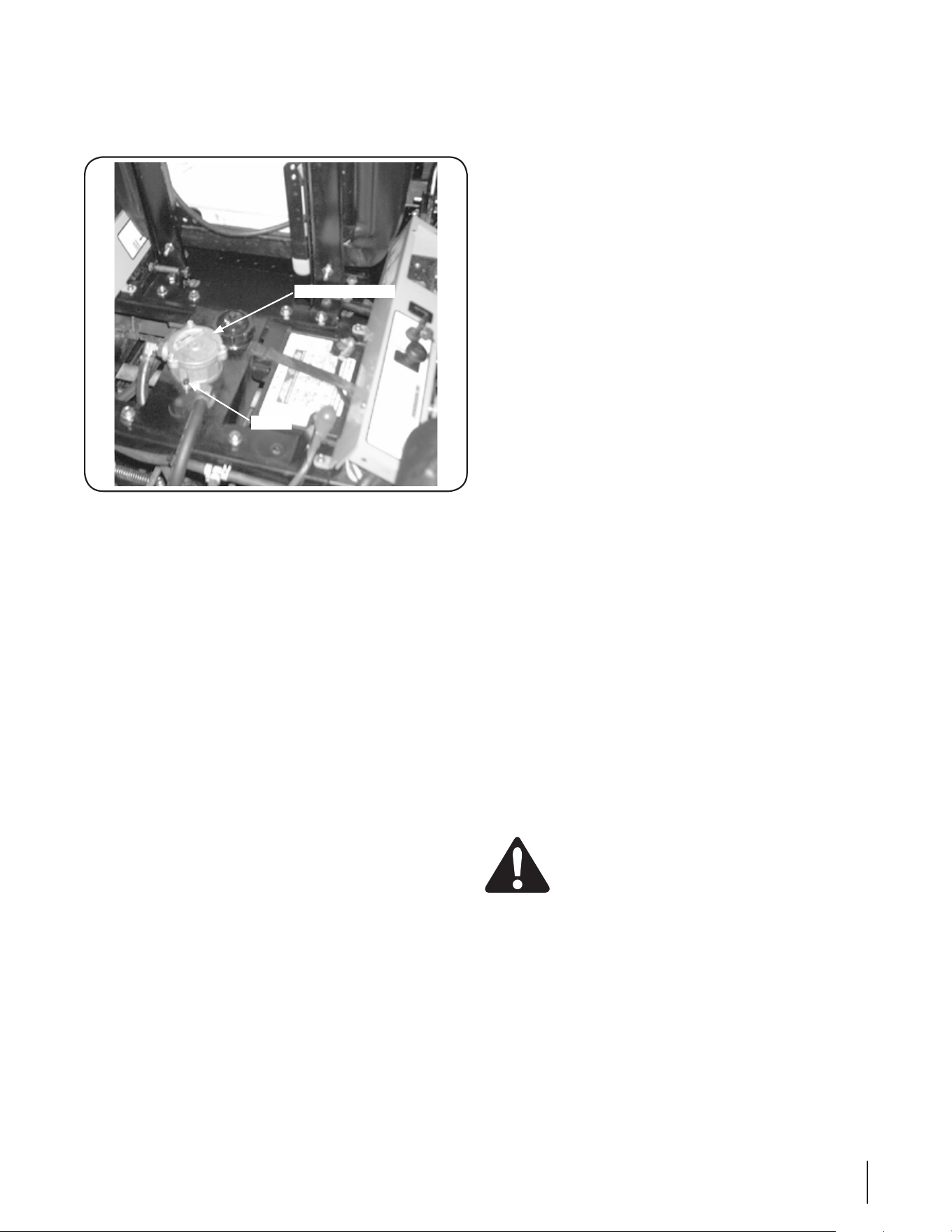

When the seat latch is released, the complete seat 5.
assembly and seat base can be pivoted forward onto the
foot platform - this provides access to the battery, hydraulic
reservoir and filter, as well as some of the electrical system
and control linkages. The seat base must be secured with
the latch prior to machine operation.
NOTE: The seat base must be secured by the latch, otherwise, the
seat assembly could tilt forward. The Operator Presence Sensor
must be connected to the electrical wiring harness.
Drive Control
Lever Mounting
Bolts & Nuts
Figure 3-7
13se c t i O n 2 — as s e M b l y & se t -up
Connecting the Battery Cables
CALIFORNIA PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
CAUTION! When attaching battery cables, always
connect the POSITIVE (Red) wire to its terminal first,
followed by the nEGATIVE (Black) wire.
For shipping reasons, both battery cables on your equipment
may have been left disconnected from the terminals at the
factory. To connect the battery cables, proceed as follows:
NOTE: The positive battery terminal is marked Pos. (+). The
negative battery terminal is marked Neg. (–).
NOTE: If the positive battery cable is already attached, skip
ahead to step 2.
Remove the plastic cover, if present, from the positive 1.
battery terminal and attach the red cable to the positive
battery terminal (+) with the bolt and hex nut. See Fig. 3-8.
Remove the plastic cover, if present, from the negative 2.
battery terminal and attach the black cable to the negative
battery terminal (–) with the bolt and hex nut. See Fig. 3-8.
Position the red rubber boot over the positive battery 3.
terminal to help protect it from corrosion.
NOTE: If the battery is put into service after the date shown
on top/side of battery, charge the battery as instructed in the
Maintenance section your Operator’s Manual prior to operating
the tractor.
Figure 3-8
Controls & Features
4
14

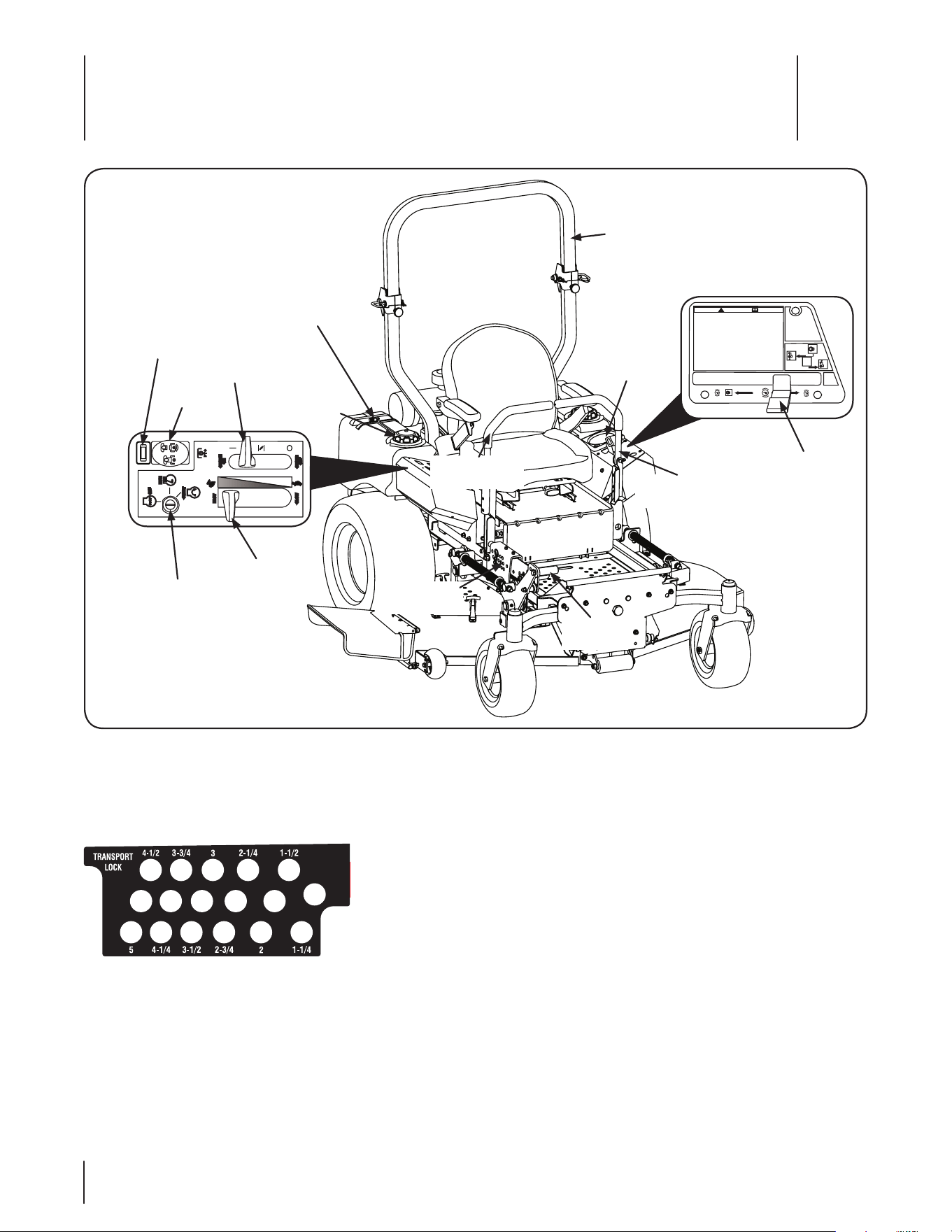

Figure 4-1
Parking Brake
Deck Height
Index
Deck Lift
Pedal
Fuel Tank Cap
Cup Holder
RH Drive
Control Lever
LH Drive
Control Lever
Fuel Shut-Off Valve
ROPS (Roll Over Protective System)
FAST
SLOW
CHOK
E
OF
F
CHOK
E
ON
OF
F
RU
N
ST
AR
T
START
POSITION
ON
PARK
BRAKE
REVERSE
FORWARD
START
“N”
NEUTRAL
WA RNIN
G
Ignition
Switch
Throttle
Control
Choke
Lever
PTO
Switch
Digital Tachometer
& Hour Meter
NOTE: References to LEFT, RIGHT, FROnT, and REAR indicate that
position on the tractor when facing forward while seated in the
operator’s seat.
Deck Height Index
The deck height index consists of several holes located on the
front/right of the foot platform. Each hole corresponds to a 1⁄2”
change in the deck height position ranging from 1” at the lowest
notch to 4” at the highest notch.
Cup Holder
The cup holder is located toward the rear of the LH console to
the left of the operator’s seat.
Deck Lift Pedal
The deck lift pedal is located on the right front corner of the foot
platform, and is used to raise and lower the mower deck.
To raise the mowing deck to the transport position, push the
upper part of the pedal all the way forward and place the clevis
pin in furthest hole from you and secure with the cotter pin.
To lower the deck, remove the clevis pin and reinsert it in the
desired cutting height and secure with cotter pin.

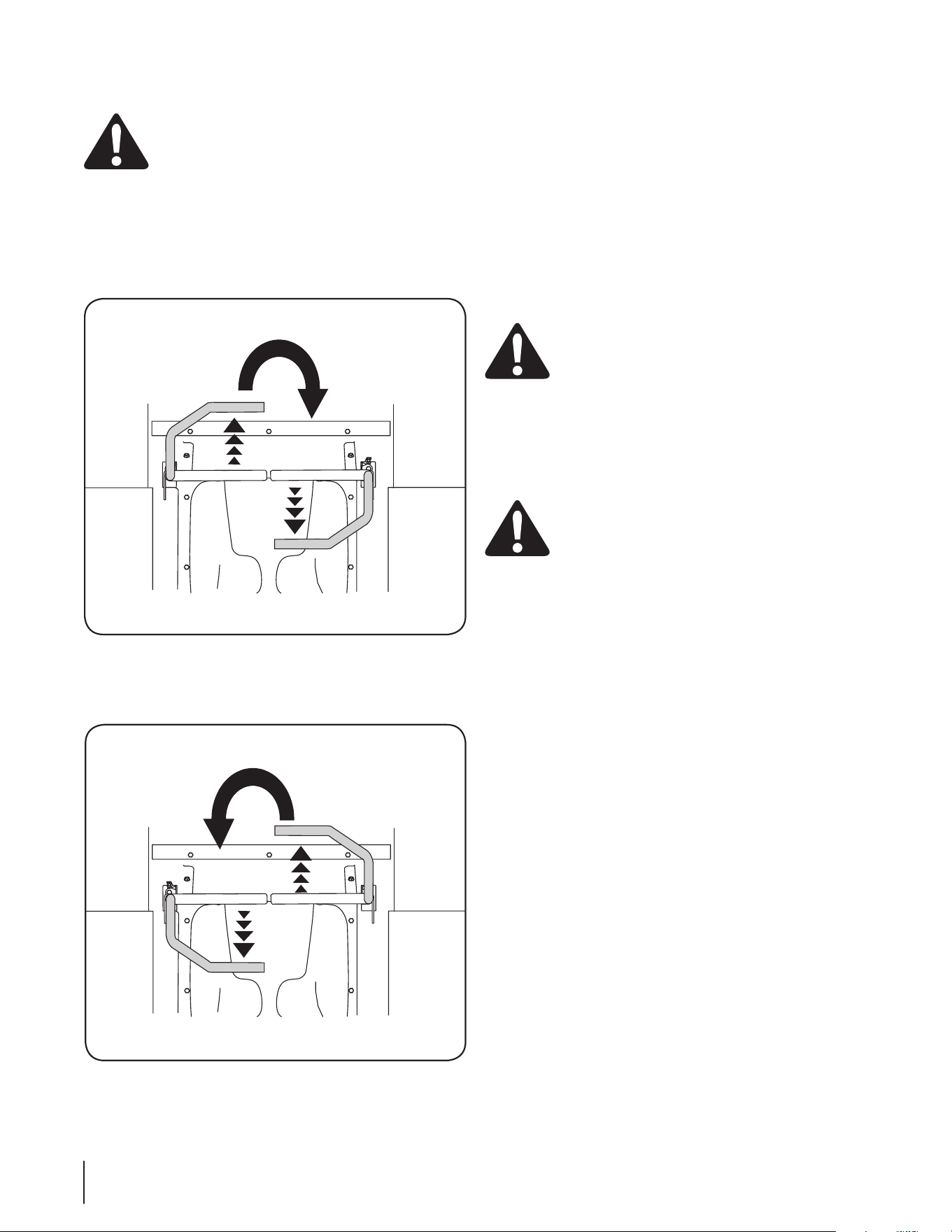

RH and LH Drive Control Levers
The RH and LH control levers are located on each side of the
operator’s seat. These hinged levers pivot outward to open
space to permit the operator to either sit in the tractor seat, or to
dismount the tractor. The levers must be fully opened out and in
the neutral position to start the tractor engine.
Each lever controls the respective RH or LH transmission.
Consequently, these levers control all of the movements of the
tractor. Driving and steering utilizing these control levers is
quite different from conventional tractors, and will take some
practice to master. Refer to Operation for instructions on using
the control levers.
15se c t i O n 4 — cO n t r O l s & fe a t u r e s
Throttle Control
The throttle control is located on the RH console to the right
of the operator’s seat. When set in a given position, a uniform
engine speed will be maintained. The trottle control moves
between the fast
and slow positions.
Push the throttle control handle forward to increase the engine
speed. The tractor is designed to operate with the throttle
control in the fast position
(full throttle) when the tractor is
being driven and the mower deck is engaged.
Pull the throttle control handle rearward to decrease the engine
speed.
Choke Lever
The Choke lever is located on the right side of the mower next
to the operator’s seat. The Choke is operated manually when the
lever is moved forward past the detent. Having the Choke in the
On position helps the engine to start during initial start-up.
During normal operation the Choke should be OFF .
Parking Brake Engagement Lever
START
POSITION
ON
PARK
BRAKE
The parking brake engagement lever is located on the LH
console to the left of the operator’s seat., and when pulled to the
rear, engages the parking brake.
NOTE: If the LH and RH drive control levers are not fully opened
out in the neutral position when engaging the parking brake,
the engine will stop. The parking brake must be placed in the
engaged position when starting the tractor engine.
Fuel Tank Cap
The fuel tank cap is located on top of the fuel tank(s). Turn the
fill cap approximately 1⁄4 turn and pull upward to remove. Do not
attempt to remove the cap from the tractor.
Push the cap downward on the fuel tank fill neck and turn
approximately 1⁄4 turn clockwise to tighten. Always re-install the
fuel cap tightly onto the fuel tank after removing.
WARNING! Never fill the fuel tank when the engine
is running. If the engine is hot from recently running,
allow to cool for several minutes before refueling.
Highly flammable gasoline could splash onto the
engine and cause a fire.
Ignition Switch
The ignition switch is located on the RH console
to the right of the operator’s seat. The ignition
switch has three positions as follows:
OFF - The engine and electrical system is
turned off.
RUN - The tractor electrical system is energized.
START - The starter motor will turn over the engine. Release the
key immediately when the engine starts
NOTE: To prevent accidental starting and/or battery discharge,
remove the key from the ignition switch when the tractor is not
in use.
Power Take-Off (PTO) Switch
The PTO switch is located on the RH console
to the right of the operator’s seat next to the
ignition switch.
The PTO switch operates the electric PTO
clutch mounted on the bottom of the engine
crankshaft. Pull the switch knob upward to
engage the PTO clutch, or push the knob
downward to disengage the clutch.
The PTO switch must be in the “disengaged”
position when starting the engine.
Digital Tachometer and Hour Meter
The tachometer/hour meter panel is located on the RH console
to the right of the operator’s seat. The hour meter records the
hours that the tractor has been operated in the digital display.
The tachometer provides engine speed (RPM), and service
reminders (oil, lube) in the digital display.
The tachometer/hour meter is activated whenever the ignition
switch is turned to the “On” position. Keep a record of the actual
hours of operation to assure all maintenance procedures are
completed according to the instructions in this manual and the
engine manual.
OFF
RUN
START
16 se c t i O n 4— cO n t r O l s & fe a t u r e s

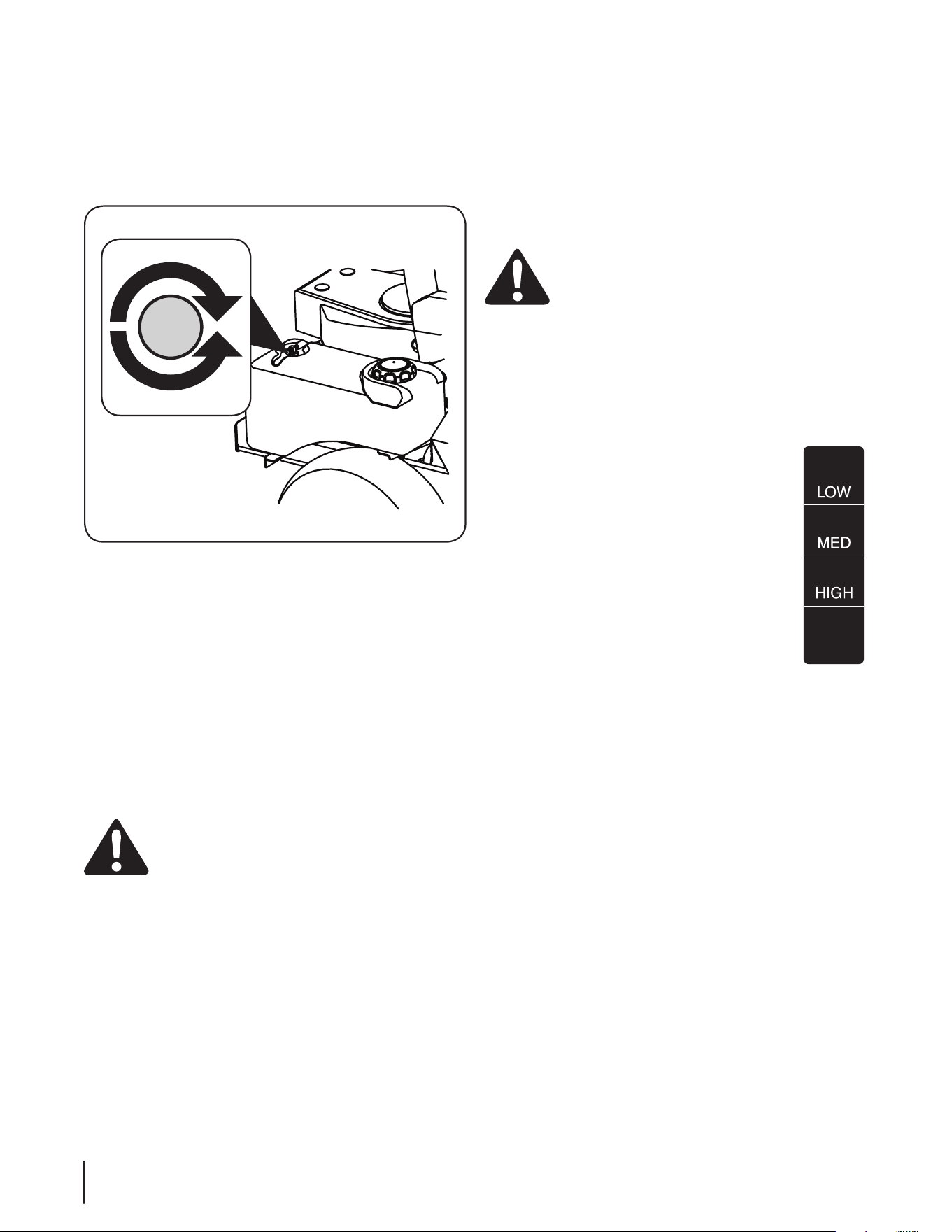

Fuel Shut-Off Valve
The fuel shut-off valve is located on top of the fuel tank(s). When
turned in a clockwise direction until it stops, it will shut off the
flow of fuel to the engine. When turned in a counterclockwise
direction it will open and allow fuel to flow to the engine. See
Fig. 4-2.
NOTE: Close this valve if you are not going to run the mower for a
period of 30 minutes or more to prevent flooding the engine.
Seat Adjustment Lever (Not Shown)
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position
of the operator’s seat. Refer to the Maintenance & Adjustments
section for instructions on adjusting the seat position.
Roll Over Protective System (ROPS)
The roll-over protection system is an integral part of you zero-
turn tractor. It is designed to create a crush-resistant space for
the operator in the event of a roll-over.
DANGER! The Roll Over Protection System should
not be tampered with, modified or removed. If the
system is damaged, it must be replaced prior to
operator use. Failure to us the Roll Over Protection
System and seat belt properly could result in serious
injury or death.
Transmission Bypass Valves (Not Shown)
The transmission bypass valves (one for each the RH and LH
transmission) are located just in front of the engine and just
behind the seat.
When engaged, the two valves open a bypass within the
hydrostatic transmissions, which allows the tractor to be pushed
short distances by hand. Refer to the Maintenance & Adjustments
section for instructions on using the bypass feature.
CAUTION: Never tow your tractor. Towing the
tractor with the rear wheels on the ground may
cause severe damage to the transmissions.
Hydrostatic Pumps and Motors
The pumps are located behind the seat and are the hardest-
working components in the hydraulic system. They are in
operation all the time the engine is running. The pumps and
motors serve as the sytem that propels the tractor’s drive system.
Front Skirts
The front skirts are located on the front of the deck
and help lift the grass for precision cutting or can be
raised to allow for the cutting of large volumes of
grass. See the Maintenance & Adjustments section for
more information on adjusting the front skirt.
CLOSE
OPEN
Figure 4-2
Operation
5
17
General Safety
RECEIVE InSTRUCTIOn — Entirely read this operator’s •
manual. Learn to operate this machine SAFELY. Do not risk
InJURY or DEATH. Allow only those who have become
competent in its usage to operate this tractor.
Before starting the engine or beginning operation, be •
familiar with the controls. The operator should be in the
operator’s seat. The PTO switch must be in the disengaged
position, the parking brake engaged, and the RH and LH
drive control levers moved fully outward in the neutral
position.
Keep all shields in place. Keep away from moving parts.•
nO RIDERS! Keep all people and pets a safe distance away. •
Look behind and down to both sides of the tractor before
and while backing up.
DO nOT direct the mower discharge at people. never •
walk or stand on the discharge side of the mower when
the engine is running. Turn off the PTO if another person
approaches while you are operating the mower.
Avoid slopes where possible. Never operate on slopes •
greater than 15°. Slopes with a greater incline present
dangerous operating conditions. Tractors can be rolled
over. Always mow across slopes, never up and down
the slope. Avoid turning downhill if possible, start at
the bottom and work up to the top. Use extra care and
go slowly when turning downhill. Control the speed
and direction of the zero turn machine “primarily” with
the speed/directional control (lap bar) of the downhill
side of the machine, i.e., maintain the uphill side lap bar
“essentially” in a fixed position.
Before leaving the operator’s seat: Shut off the PTO, move •
the RH and LH drive control levers fully outward in the
neutral position, engage the parking brake, shut off the
engine and remove the ignition key. Wait for all movement
to stop before servicing or cleaning.
When operating this mower, in the forward direction, do •
not allow the steering levers to return to neutral on their
own. Operate the drive control levers smoothly and avoid
any sudden movements of the levers when starting and
stopping. Keep a firm grip on the control levers.
Be careful when operating near gravel paths and roadways. •
Stop the blades and tractor motion and wait for vehicles to
pass before operating along the road.
Do not operate the tractor with the mower deck removed. •
Removal of the deck will change the balance of the tractor,
and could contribute to a tractor rollover.
Avoid operation on traction surfaces that are unstable; use •
extreme caution if the surface is slippery. Always remove
debris and other objects from the area to be mowed -
debris and loose grass will reduce traction.
Mow only in daylight or good artificial light.•
Watch for holes, sprinkler heads, and other hidden hazards.•
Avoid dr• iving too close to trees, creeks, ditches, sand traps,
and other obstacles.
Slow down bef• ore turning and come to a complete stop
before any zero turn maneuver.
If yo• u hit a solid object while mowing, turn off the PTO,
place the steering levers in the neutral, opened-out
position, move the throttle to slow, set the parking brake,
shut off the engine, and take the key from the ignition
switch. Inspect for damage. Repair the damage. Make sure
the blades are in good condition and that the blade bolts
are tight before restarting the engine.
Do not sto• p the tractor or park the tractor over
combustible materials such as dry grass, leaves, debris, etc.
Ke• ep the mower and especially the engine and hydraulic
components clean and free of grease, grass, and leaves to
reduce the chance of fire and permit proper cooling.
Do not • fill the fuel tank when the engine is running or
while the engine is hot. Allow the engine several minutes
to cool before refueling. Tighten the fuel cap securely.
Before Operating Your Tractor
Before you operate the tractor, study this manual carefully 1.
to familiarize yourself with the operation of all the
instruments and controls. It has been prepared to help you
operate and maintain your tractor efficiently.
Fill2. the fuel tank with only clean, fresh, unleaded gasoline
with a pump sticker octane rating of 87 or higher. When
the fuel reaches one inch from the top of the tank, stop. DO
nOT OVERFILL. Space must be left for expansion.
Check the engine oil level. Pull out the oil dipstick, wipe it 3.
off and reinsert it. Pull it out again and read the oil level. If
it is below the operating range, add oil through the fill tube
using a funnel to bring it up to the top of the operating
range.
Che4. ck the hydraulic oil level. The hydraulic oil tank is
located beneath the operator’s seat. Always wipe off the
area around the oil tank fill neck before checking the oil
level to prevent dirt from contaminating the oil. Remove
the cap and make sure the oil level is a 1/4” below the oil
tank fill neck. If the oil level is low, fill with Shell Rimula
15W40 or equivalent oil. Equivalent oil should meet GM
Allison C-4.
Check the tire inflation pressures - 8-10 psi for the rear tires, 5.
20-25 psi front caster tires.
NOTE: New tires are overinflated in order to properly seat
the bead to the rim.
Check that all nuts, bolts and screws are tight.6.
Check the tension of the deck drive belts.7.
Remove the deck covera.
The tension of the deck drive belts are maintained b.
by a spring mechanism that adjusts for wear and
stretch.
18 se c t i O n 5— Op e r a t i O n
Examine the belts for cuts, fraying, and excessive c.
wear. Replace if any of these are detected.
Replace the deck cover.d.
Check if deck is level. When correctly adjusted the mower 8.
deck should be level side to side, and the front of the deck
should be approximately 1⁄4” lower than the rear of deck.
If deck needs to be leveled, refer to the Maintenance &
Adjustments section.
Lubricate all pivot points listed in the Maintenance & 9.
Adjustments section.
Adjust the seat for operator’s maximum comfort, visibility 10.
and for maintaining complete control of the tractor.
Safety Interlock System
This tractor is equipped with a safety interlock system for the
protection of the operator. If the interlock system should ever
malfunction, do not operate the tractor. Contact your authorized
Cub Cadet Dealer.
The safety interlock system prevents the engine from •
cranking or starting unless the RH and LH drive control
levers are moved fully outward in the neutral position, the
parking brake is engaged, and the PTO is disengaged.
To avoid sudden movement when disengaging the parking •
brake, the safety interlock system will shut off the engine
if the RH and/or LH drive control levers are moved to a
position other than the fully out in the neutral position
when the parking brake is engaged.
The safety interlock system will shut off the engine if the •
operator leaves the seat before engaging the parking
brake.
The safety interlock system will shut off the engine if the •
operator leaves the seat with the PTO engaged, regardless
of whether the parking brake is engaged.
NOTE: The PTO switch must be moved to the “OFF”
position to restart the engine.
The safety interlock system will shut off the PTO and the •
mower blades will stop if both drive control levers are
moved into the reverse position. The PTO will re-engage
when one or both of the levers are moved back to the
neutral or forward position.
Starting the Engine
WARNING! This tractor is equipped with a safety
interlock system designed for the protection of the
operator. Do not operate the tractor if any part of
the interlock system is malfunctioning. Periodically
check the functions of the interlock system for
proper operation.
WARNING! For personal safety, the operator must
be sitting in the tractor seat when starting the
engine.
Open the fuel shut-off valve.1.
Operator must be sitting in the tractor seat with both drive 2.
control levers in the neutral/start position.
Engage the parking brake.3.
Make certain the PTO switch is in the disengaged (down) 4.
position.
Push the choke lever to the on position.5.
NOTE: If the engine is warmed up, it may not be necessary
to choke the engine.
Push the throttle control forward about halfway.6.
Turn the ignition key clockwise to the “START” position 7.
and release it as soon as the engine starts; however, do not
crank the engine continuously for more than 10 seconds
at a time. If the engine does not start within this time, turn
the key to “OFF” and wait at least 30 seconds to allow the
engine’s starter motor to cool. Try again after waiting. If
after a few attempts the engine fails to start, do not keep
trying to start it with the choke closed as this will cause
flooding and make starting more difficult.
Once the engine starts, push the choke on halfway and as 8.
the engine warms, push the choke off all the way.
Cold Weather Starting
When starting the engine at temperatures near or below
freezing, ensure the correct viscosity motor oil is used in the
engine and the battery is fully charged. Start the engine as
follows:
Be sure the battery is in good condition. A warm battery 1.
has much more starting capacity than a cold battery.
Use fresh winter grade fuel. Winter grade gasoline has 2.
higher volatility to improve starting. Do not use gasoline
left over from summer.
Follow the previous instruction for Starting the Engine.3.
Using Jumper Cables To Start Engine
WARNING! Batteries contain sulfuric acid and
produce explosive gasses. Make certain the area is
well ventilated, wear gloves and eye protection, and
avoid sparks or flames near the battery.
If the battery charge is not sufficient to crank the engine,
recharge the battery. If a battery charger is unavailable and
the tractor must be started, the aid of a booster battery will be
necessary. Connect the booster battery as follows:
Connect the end of one cable to the disabled tractor 1.
battery’s positive terminal; then connect the other end of
that cable to the booster battery’s positive terminal.
Connect one end of the other cable to the booster 2.
battery’s negative terminal; then connect the other end of
that cable to the frame of the disabled tractor, as far from
the battery as possible.
Start the disabled tractor following the normal starting 3.
instructions previously provided; then disconnect
the jumper cables in the exact reverse order of their
connection.
Have the tractor’s electrical system checked and repaired 4.
as soon as possible to eliminate the need for jump starting.
19se c t i O n 5 — Op e r a t i O n
Stopping the Engine
Place the PTO switch in the “OFF” position.1.
Move the RH and LH drive control levers fully outward in 2.
the neutral position.
Engage the parking brake. 3.
Move the throttle control to midway between the SLOW 4.
and FAST positions.
Turn the ignition key to the “OFF” position and remove the 5.
key from the ignition switch.
NOTE: Always remove the key from the ignition switch to prevent
accidental starting or battery discharge if the equipment is left
unattended.
Practice Operation (Initial Use)
Operating a zero-turn tractor is not like operating a conventional
type riding tractor. Although and because a zero turn tractor is
more maneuverable, getting used to operating the control levers
takes some practice.
We strongly recommend that you locate a reasonably large,
level and open “practice area” where there are no obstructions,
pedestrians, or animals. You should practice operating the
tractor for a minimum of 30 minutes.
Carefully move (or have moved) the tractor to the practice area.
When performing the practice session, the PTO should not be
engaged. While practicing, operate the tractor at approximately
1⁄2-3⁄4 throttle and at less than full speed in both forward and
reverse.
Use protective equipment for eyes, hands, hearing, feet, legs,
head and other areas of the body if needed — safety eye glasses,
gloves, earplugs, boots, hats, etc.
WARNING! Hearing Protection is required for all
operator exposure exceeding two (2) hours.
Carefully practice maneuvering the tractor using the instructions
in the following section “Driving the Tractor.” Practice until you
are confident that you can safely operate the tractor.
Driving the Tractor
WARNING! Avoid sudden starts, excessive speed
and sudden stops.
Adjust the operator’s seat to the most comfortable 1.
position that allows you to operate the controls. See seat
adjustment in the Maintenance & Adjustments section.
Release the parking brake.2.
Move the RH and LH drive control levers inward in the 3.
neutral position. Refer to Figure 5-2.
NOTE: If the control levers are not even in the neutral position,
refer to Maintenance & Adjustments for instructions to adjust the
levers so that they are even.
Move the throttle control lever forward to the full throttle 4.
position.
NOTE: Although the tractor’s engine is designed to run at
full throttle, when performing a practice session the tractor
must be operated at less than full throttle. This only applies
to practice.
WARNING! Always maintain a firm grip on the
control levers. DO nOT release the control levers to
slow or stop the tractor; move levers to neutral
position using your hands.
To drive the tractor, firmly grasp the respective drive 5.
control levers with your right and left hands and continue
with Driving the Tractor Forward on the following page.
Control Lever Moved
Inward and in Neutral
Figure 5-1
20 se c t i O n 5— Op e r a t i O n
Driving the Tractor Forward
WARNING! Keep all movement of the drive control
levers slow and smooth. Abrupt movement of the
control levers can affect the stability of the tractor
and could cause the tractor to flip over, which may
result in serious injury or death to the operator.
Slowly and evenly move both drive control levers forward. 1.
The tractor will start to move forward. See Fig. 5-3.
As the control levers are pushed farther forward the speed 2.
of the tractor will increase.
To slow the tractor move the controls lever rearward to 3.
attain the desired speed, or move the levers to the neutral
position to stop the tractor.
WARNING! Always maintain your grasp on the
drive control levers. Do not release the levers to slow
the tractor or to return to neutral.
Turning the Tractor While Driving Forward
WARNING! When reversing the direction of travel,
we recommend performing gradual ‘U’ turns where
possible. Sharper turns increase the possibility of
turf defacement, and could affect control of the
tractor. ALWAYS slow the tractor before making
sharp turns.
To turn the tractor while driving forward, move the control
levers as necessary so that one lever is rearward of the other. The
tractor will turn in the direction of the rearward control lever.
To turn to the left, move the left drive control lever 1.
rearward of the right lever. See Fig. 5-4.
To turn to the right, move the right drive control lever 2.
rearward of the left lever. See Fig. 5-5.
The greater the fore-to-aft distance between the two 3.
levers, the sharper the tractor will turn.
To execute a “pivot turn,” move the turn side drive control 4.
lever to the neutral position, while moving the other
control lever forward.
NOTE: Making a “pivot turn” on grass will greatly increase
the potential for defacement of the turf.

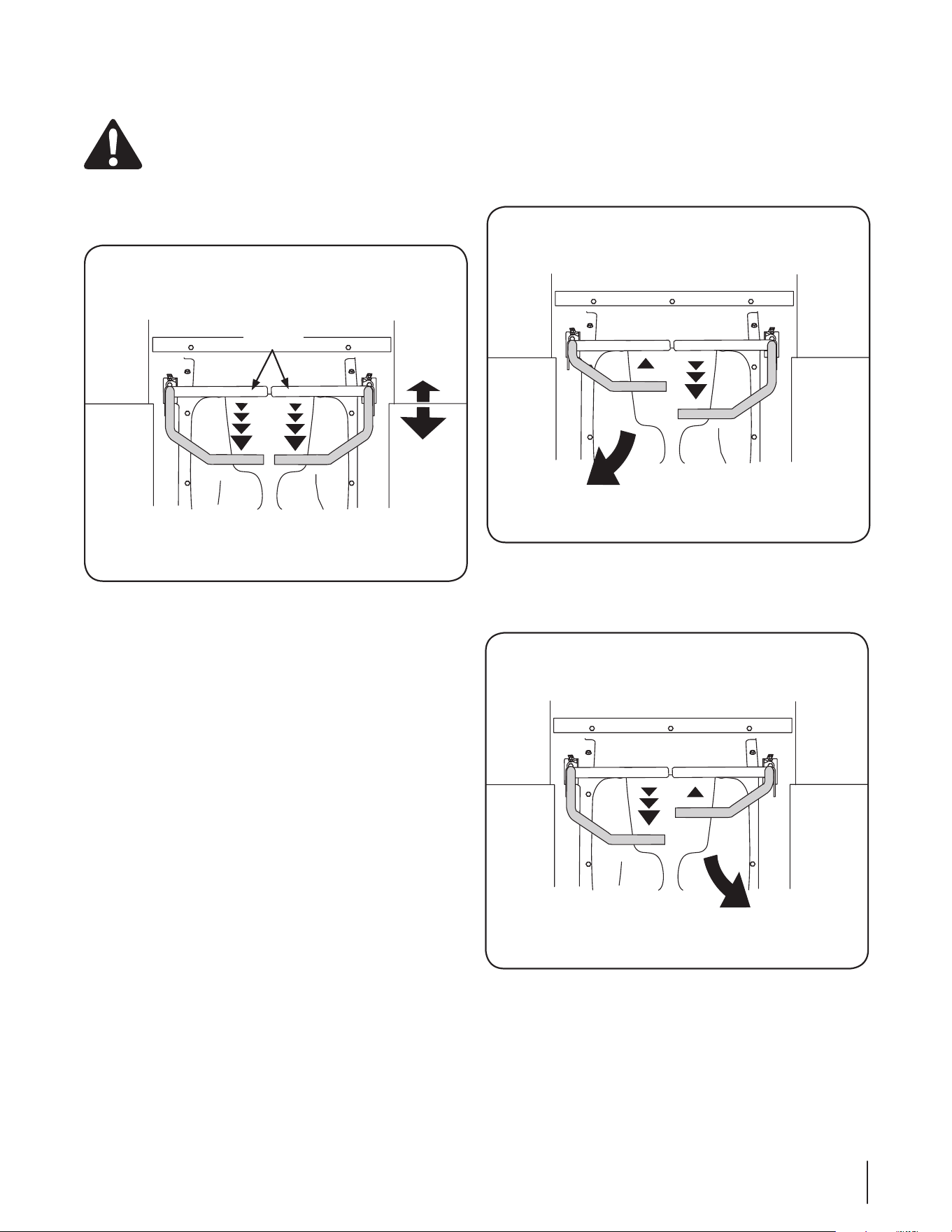

Driving Forward
Faster
Slower
Neutral
Position
Figure 5-2
Forward Left Turn
Figure 5-3
Forward Right Turn
Figure 5-4
21se c t i O n 5 — Op e r a t i O n
Driving the Tractor In Reverse
WARNING! Always look behind and down on both
sides of the tractor before backing up. Always look
behind while traveling in the reverse direction.
Slowly and evenly move both drive control levers rearward. 1.
The tractor will start to move in the reverse direction. See
Fig. 5-6.
As the control levers are pushed farther rearward the speed 2.
of the tractor will increase.
To slow the tractor move the controls lever forward to 3.
attain the desired speed, or move the levers to the neutral
position to stop the tractor.
Turning While Driving Rearward
To turn the tractor while driving rearward, move the control
levers as necessary so that one lever is forward of the other. The
tractor will turn in the direction of the forward control lever.
To turn to the left while traveling in reverse, move the left 1.
drive control lever forward of the right lever. See Fig. 5-7.
To turn to the right while traveling in reverse, move the 2.
right drive control lever forward of the left lever. See Fig.
5-8.
The greater the fore-to-aft distance between the two 3.
levers, the sharper the tractor will turn.
To execute a “pivot turn,” move the turn side drive control 4.
lever to the neutral position, while moving the other
control lever rearward.
NOTE: Making a “pivot turn” on grass will greatly increase
the potential for defacement of the turf.
Neutral
Position
Slower
Faster
Figure 5-5
Rearward Left Turn
Figure 5-6
Rearward Right Turn
Figure 5-7
22 se c t i O n 5— Op e r a t i O n
Executing a Zero Turn
WARNING! When executing a zero turn, the tractor
MUST BE STOPPED. Executing a zero turn while the
tractor is moving can significantly reduce your
control of the tractor and will cause severe turf
defacement to occur.
Stop the forward or reverse motion of the tractor by 1.
moving the two drive control levers to neutral.
To turn clockwise, move the left control lever forward while 2.
simultaneously moving the right control lever rearward.
See Fig. 5-9.
To turn counterclockwise, move the right control lever 3.
forward while simultaneously moving the left control lever
rearward. See Fig. 5-10.
Stopping the Tractor
Move both drive control levers to the neutral position to 1.
stop the motion of the tractor.
Push the PTO switch downward to the disengaged 2.
position.
Use the deck lift pedal to raise the deck to its highest 3.
position.
If dismounting the tractor, move the drive control handles 4.
fully outward in the neutral position, engage the parking
brake, move the throttle control lever to the fast position,
turn the ignition switch to “OFF’” and remove the key from
the switch.
WARNING! Do not leave the seat of the tractor
without disengaging the PTO, moving drive control
levers fully outward in the neutral position, and
engaging the parking brake. If leaving the tractor
unattended, turn the ignition key off and remove
key.
Driving On Slopes
Refer to the slope gauge in the Safe Operation Section to help
determine slopes where you may not operate safely.
WARNING! Do not operate on inclines with a slope
in excess of 15 degrees (a rise of approximately 2-1⁄2
feet every 10 feet). The tractor could overturn and
cause serious injury.
Always drive across slopes, never up and down. Control 1.
the speed and direction of the tractor using primarily the
control lever on the downhill side of the tractor, with the
uphill control lever remaining essentially in a fixed position.
Avoid turning downhill if possible. Start at the bottom of a 2.
slope and work upward. Always slow down before turning.
Use extra care and go slowly when turning downhill.3.
Operating The PTO
Operate the PTO clutch as follows:
Move the throttle control lever to approximately the mid 1.
throttle position.
Pull the PTO switch upward to the “EnGAGED” position. 2.
Advance the throttle lever to the operating speed (full 3.
engine speed).
The operator must remain in the tractor seat at all times. If 4.
the operator should leave the seat without turning off the
power take-off switch, the tractor’s engine will shut off.
Clockwise Zero Turn
Figure 5-8
Counterclockwise
Zero Turn
Figure 5-9
23se c t i O n 5 — Op e r a t i O n
Using the Mower Deck
WARNING! Make certain the area to be mowed is
free of debris, sticks, stones, wire or other objects
that can be thrown by the rotating blades.
NOTE: Do not engage the mower deck when lowered in grass.
Premature wear and possible failure of the ‘V” belt and PTO
clutch will result. Fully raise the deck or move to a non grassy
area before engaging the mower deck.
Mow across slopes, not up and down. If mowing a slope, 1.
start at bottom and work upward to ensure turns are made
uphill.
On t2. he first pass pick a point on the opposite side of the
area to be mowed.
En3. gage the PTO clutch using the PTO switch and move the
throttle control to the fast position.
Low4. er the mower deck to the desired height setting using
the deck lift pedal.
Slow5. ly and evenly push the RH and LH drive control levers
forward to move the tractor forward, and keep the tractor
headed directly toward the alignment point.
NOTE: The speed of the tractor will affect the quality of
the mower cut. Mowing at full speed will adversely affect
the cut quality. Control the ground speed with the control
levers.
W6. hen approaching the other end of the strip, slow down
or stop before turning. A U-turn is recommended unless a
pivot or zero turn is required.
Align the mower with an edge of the mowed strip and 7.
overlap approximately 3”.
Direct the tractor on each subsequent strip to align with a 8.
previously cut strip.
To prevent rutting or grooving of the turf, if possible, 9.
change the direction that the strips are mowed by
approximately 45° for the next and each subsequent
mowing.
WARNING! Be careful when crossing gravel paths
or driveways. Disengage the PTO and raise the deck
to the highest position before crossing.
NOTE: When stopping the tractor for any reason while on a grass
surface, always:
Place the shift lever in neutral, •
Engage the parking brake, •
Shut engine off and remove the key. •
Doing so will minimize the possibility of having your lawn •
‘‘browned’’ by hot exhaust from your tractor’s running
engine.
Checking the Safety Interlock Circuits
Periodically check the safety interlock circuits to ensure they are
working properly. If a safety circuit is not working as designed,
contact you Cub Cadet dealer to have the tractor inspected. DO
nOT operate the tractor if any safety circuit is not functioning
properly. To check the safety circuits, proceed as follows:
Sitting in the tractor seat with both drive control levers 1.
opened fully outward, disengage the parking brake and
momentarily turn the ignition switch to the start position.
The engine should not crank.
Engage the parking brake and pull the PTO switch upward 2.
to the engaged position. Momentarily turn the ignition
switch to the start position; the engine should not crank.
Push the PTO switch downward to the disengaged position 3.
and engage the parking brake. Start the engine and move
one of the drive control levers from the fully outward
neutral position. The engine should stop running. Repeat
the procedure with the opposite control lever.
Move both control levers fully outward in the neutral 4.
position and disengage the parking brake; then lift upward
from the operator’s seat. The engine should stop.
With both control levers fully outward in the neutral 5.
position and the parking brake engaged, engage the PTO.
Lift upward from the operator’s seat; the engine should
stop.
Mower Cutting Blades
The blades normally “factory installed” on a mower afford
the best grass cutting performance on the majority of grasses
and mowing conditions; however, there will be occasions
whereby the grass type, stage of grass growth, soil conditions,
and weather conditions will require different cutting blade
types. Since the mower decks are designed so that over-lap of
the cutting blades generally exceed 1.5”, there is no need for
orientation of one cutting blade to an adjacent blade (I.E., the
blades do not need to be “timed” nor synchronized).
Hi-lift — These are generally the best cutting blades for most
grasses and mowing conditions. These blades will provide extra
“lift” for the thinner leaf grasses, will handle lush grasses, and
will provide maximum grass and debris discharge. These blades
are generally required for material collection systems. More
horsepower is required for these blades when compared to
others, and they generally produce the highest noise levels.
Medium-lift — These blades require less horsepower than the
hi-lift, and they generally work well in wider leaf grasses and
some mulch applications.
Low-lift — These blades require less horsepower than hi-lift
and medium-lift blades, and they generally work best with wide
leaf grasses, sparse grass growth, and sandy soil conditions.
They generally produce the lowest noise levels. Bahia blades
are configured without offset, and with a maximum amount of
sharpened cutting edge.
Mulch- These blades are generally designed for use in cutting
decks equipped with mulch baffles. The shape of the blade
generally produces higher turbulence in order that the grass can
be repeatedly cut and re-cut into smaller pieces. These blades
generally require more horsepower than other blades. Mulch
blades work best when the grasses are cut at the highest levels,
minimal lengths of grasses are removed, and grass conditions are
generally dry.
NOTE: Refer to the attachment and accessories section for a list
of part numbers.
24 se c t i O n 5— Op e r a t i O n
Reconfigurable Mower
Front Skirt
Inner
Baffle
Discharge
Baffle
Cutting
Blades
Gauge
Wheels
Front
Roller
Rear
Rollers
Standard set-up Low Installed Installed Hi-lift
Low = 3
to 5”
Low = 3
to 5”
Low = 3
to 5”
Stems (Dandelion, Bahia,
Buckhorn, etc.)
Med Removed Installed Hi-lift
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
Very Lush &/or tall grass High Removed Installed Hi-lift
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
Low cut height (1 to 2”) Med Installed Installed Low-lift
High = 1 to
2-1⁄2”
High = 1 to
2-1⁄2”
High = 1 to
2-1⁄2”
Mulch Low Installed Removed
Hi-lift/
Mulch
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
Material collection Low Installed Installed Hi-lift
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
Abrasive (sandy), dry Low Removed Installed Low-lift
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
Wet Low Installed Installed Hi-lift
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
High = 1 to
2-1⁄2”
Low = 3
to 5”
Table Notes: This table is a general outline of suggested settings, mowing conditions may vary.
Front Skirts: When the front skirt is set to “low” the grass lift is increased for precision cutting. When the skirt is set to “high” the grass
can “rebound” and higher volumes of grass can be cut.
Inner Baffle: The inner baffle regulates grass discharge. Remove the inner baffle for high-volume grass and install the inner baffle for
precision cutting.
Discharge Baffle: The discharge baffle enhances the grass discharge pattern. The discharge baffle reduces clumping and should be
removed for mulching.
Gauge Wheels: The gauge wheels reduce scalping, help with precison cutting and reduce turf defacement during turns.
Rear Rollers: The rear rollers reduce scalping and gives grass a striped appearance.
Cutting Blades: The cutting blades cut grass, create grass lift and discharge grass through the discharge chute.
Discharge Chute: The discharge chute controls the mower deck discharge and enhances the discharge pattern
NOTE: To avoid damaging grass, no more than 1⁄3 of the grass height should be removed during a single cutting (i.e. if the grass is 6”
tall, cut it to 4”).
Maintenance & Adjustments
6
25
† After first 5 hours, change engine oil & filter. After first 50 hours, change hydrostatic fluid and filter in transaxles.
Change oil every 25 hours under heavy duty operation. * Perform more frequently under dusty conditions.
Maintenance Schedule
Before
Each use
Every
25 Hours
Every
50 Hours
Every
100 Hours
Every
500 Hours
After
Mowing
Yearly
Check Engine Oil/ Gasoline Level
P
Check Hydraulic Hoses For Leaks
P
Check Tires & Tire Pressure
P
Check Deck, Mower And Hydro Drive Belts
P
Check Blades And Blade Bolt Tightness
P
Check Safety Switches For Proper Operation
P
Check Fluid Level In Transaxle Expansion Reservoir
P
Check Engine Intake Screen/Cover
P
Clean Mower
P
Lubricate Wear Points (See Chart)
P P
Clean And Re-Oil Air Filter
P
Grease Three Spindle Bearings
P
Replace Air Filter *
P
Change Engine Oil† And Replace Oil Filter
P
Check Battery’s Electrolyte Level
P
Clean Engine Cooling Fins & External Surfaces*
P
Lubricate All Grease Fittings (See Chart)
P
Check Spark Plug Condition & Gap
P
Check Air Gap Pto Clutch
P
Change Hydrostatic Fluid & Filter In Transaxles †
P P
26 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s
number of Oil Points Description
DA ILY
4 Deck Suspension Pivots
4 Height Adjustment Turnbuckle Clevis Pin
2 Height Adjustment Handle Pivots
2 Height Adjustment Stop Pivots
2 Deck Lift Linkage Pivots
2 Transport Handle Pivots
1 Transport Handle Pin
2 Deck Frame Up-and-Down Pivots
WEEKLY
1 Seat Hinge
2 Steering Lever Linkage Rod End Bearings
2 Lever Return Assembly Rod End Bearings
2 Pump Control Lever Pivots
1 Brake Lever Pivot Clevis Pin
1 Brake Lever Control Rod Pivot
1 Brake Control Rod Swivel Joint
4 Brake Rod Clevis Pins
2 Brake Shaft Assembly Pivots
2 Grass Collection System Lid Hinges (If Mower is so equipped)
OIL CHART
Apply a few drops of SAE engine oil, grease, or use a spray lubricant. Apply the oil to both sides of pivot points. Wipe off any excess.
Start engine and operate mower briefly to insure that oil spreads evenly.
Engine Oil: Rimula 15W40 recommended or 10W40 engine oil rated SJ or higher.
Hydrostatic Fluid: Rimula 15W40 recommended.
Spindle Lubricant: Use only Shell Alvania RL 2 grease. This grease is an amber-colored grease designed for high speed bearing
applications. It has a base oil viscosity that reduces running losses, has been formulated for low noise, has excellent corrosion
protection, and has excellent bearing lubrication.
General Purpose Lubrication: Use any nLGI grade 2 multi-purpose grease. Shell Albida EP2 is recommended. Shell Albida EP 2
is a red-colored multi-purpose grease designed for heavy-duty bearing applications. It has high base oil viscosity for mechanical
stability, has been formulated for high load, low-speed applications, and has excellent lubrication and corrosion protection.
27se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
number of Grease Fittings Description
EVERY 25 HOURS
3 Blade Spindle Bearings
WEEKLY
2 Front Caster Wheels
2 Front Caster Wheel Spindles
2 Mower Deck Ball Wheels
number of Grease Points Description
WEEKLY
4 Mowing Deck Pivots
2 Deck Take-Up Idler Pivots
1 Axle Pivot
2 Steering Lever Pivots
1 Hydro Take-up Idler Pivot
1 Park Brake Pivot
LUBRICATION CHART
Use a grease-gun filled with nO. 2 Multipurpose Lithium Base Grease
Spindle Lubricant: Use only Shell Alvania RL 2 grease. This grease is an amber-colored grease designed for high speed bearing
applications. It has a base oil viscosity that reduces running losses, has been formulated for low noise, has excellent corrosion
protection, and has excellent bearing lubrication.
General Purpose Lubrication: Use any nLGI grade 2 multi-purpose grease. Shell Albida EP2 is recommended. Shell Albida EP 2
is a red-colored multi-purpose grease designed for heavy-duty bearing applications. It has high base oil viscosity for mechanical
stability, has been formulated for high load, low-speed applications, and has excellent lubrication and corrosion protection.
28 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s
Maintenance
WARNING! Before performing any maintenance or
repairs, disengage the PTO, move the drive control
levers fully outward in the neutral position, engage
the parking brake, stop the engine and remove the
key to prevent unintended starting.
Engine
Refer to the Kawasaki Owner’s Manual for all engine maintenance
intervals, procedures, specifications and instructions.
NOTE: Maintenance, repair, or replacement of the emission
control devices and systems which are being done at owner’s
expense may be performed by any engine repair establishment
or individual. Warranty repairs must be performed by a Cub
Cadet Dealer.
Changing the Engine Oil
WARNING ! If the engine has been recently run, the
engine, muffler and surrounding metal surfaces will
be hot and can cause burns to the skin. Exercise
caution to avoid burns.
Maintain oil level as instructed in engine manual. Change the
oil and filter after the first five hours. The oil filter should be
changed at every oil change interval. Be careful not to spill oil on
any of the belts.
Air Cleaner
Service the pre-cleaner and cartridge/air cleaner element as
instructed in the Kawasaki Owner’s Manual.
Spark Plug
The spark plugs should be cleaned and the gap reset once a
season. Refer to the Kawasaki Owner’s Manual for correct plug
type and gap specifications.
Hydraulic Oil
WARNING! Never overfill the hydraulic units.
Damage can occur if the oil level is not within the
proper operating range.
NOTE: When adding hydraulic oil, do so in small quantities and
recheck the oil level before adding more. It is important that you
do not overfill the reservoir.
Adding Hydraulic Oil (use SAE15W40)
Place the Machine on a level surface and engage the 1.
parking brake.
Stop the engine and remove the key from the ignition 2.
switch.
Clean the area around the Hydraulic Oil fill neck. 3.
See Fig. 6-1.
Remove the hydraulic fill cap and check the level. The 4.
correct level is up to the lowest hole of the oil tank fill neck.
Pour hydraulic oil into the reservoir up to the lowest hole in 5.
the oil tank fill neck, if necessary.
Draining Hydraulic Oil
NOTE: Used hydraulic oil must be disposed of properly. Do
not pour it down a drain or sewer, or dump it on open land,
this creates an environmental hazard. Please be aware of the
environment when disposing of used oil.
Place the Machine on a level surface and engage the 1.
parking brake.
Stop the engine and remove the key from the ignition 2.
switch.
Raise the seat forward to expose the hydraulic oil fill point.3.
Clean the area around the hydraulic fill oil cap.4.
Remove hydraulic fill oil cap.5.
Place a suitable container (at least 2 gallon) under the 6.
hydraulic reservoir and filter.
Remove the hydraulic filter to allow hydraulic oil to drain. 7.
Remove the drain plug from the bottom of the hydraulic oil
tank to drain. Replace the plug.

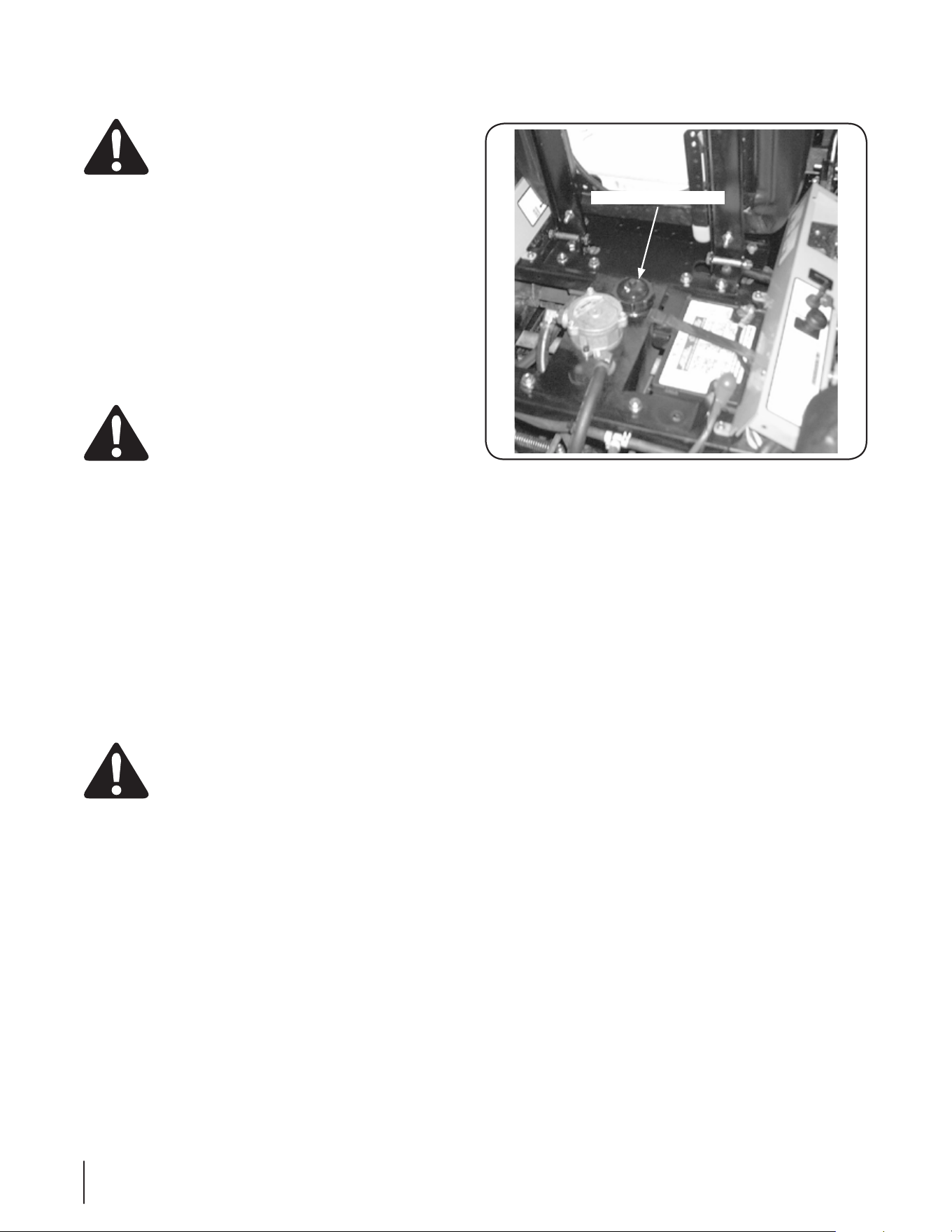

Hydraulic Oil Fill Cap
Figure 6-1
29se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
Place a small pan under the pump motor frame. Remove fill 8.
oil cap from hydraulic reservoir for faster drainage. Remove
nut caps and drain oil from both left and right pumps.
Replace and retighten nuts. See Fig. 6-2.
Remove the three screws from the top of the oil filter and 9.
replace the oil filter element. Coat the sealing surface
with Shell Rimula 15W40 oil or equivalent. Install the three
screws back into the oil filter.
Add proper amount of hydraulic oil to reservoir.10.
Run and purge pumps and motors. Check oil level.11.
Add proper amount of hydraulic oil to reservoir and repeat 12.
step 11.
Hydraulic System
Hoses
Check the hoses from the hydraulic oil tank to the oil filter to
the hydraulic lines daily for leaks or abrasion and replace any
damaged hoses. Make certain there are no kinks or twists in any
hose. Look for a flattened condition or any leaks and repair or
replace as necessary. A flattened or leaking suction hose will
permit cavitation to develop which can destroy the pumps in a
short time.
Hydraulic Oil Tank and Filter
NOTE: Change the hydraulic oil and the oil filter after the first 50
hours of operation.
To drain the hydraulic oil tank:
Place a 2 gallon drain pan under the drain plug on the 1.
bottom of the hydraulic oil tank.
Remove the drain plug, drain the tank, then replace the 2.
plug.
Place the drain pan under the filter and remove the filter by 3.
unscrewing in a counterclockwise direction. The filter will
be full of oil, so empty it into the drain pan. You don’t have
to drain the rest of the hydraulic system.
Fill the replacement filter with a good grade of 15W-40 oil 4.
and lubricate the sealing surface.
Screw the filter onto the filter base until it seats and then 5.
another one-half turn to seal.
NOTE: Always wipe off the hydraulic tank fill cap and the
area around it before removing the cap to prevent dirt
from contaminating the oil.
Remove the fill cap and fill the tank with the same 15W-40 6.
oil selected for the filter until the oil level is up to the level
of the second hole in the fill tube. Leave this air space for
expansion.
Start the engine and let it run at Lo-idle for about five 7.
minutes. Check the filter for leaks. Idling the engine and
the pumps in this way will purge any air from the system.
Shut off the engine and recheck the oil level in the tank. 8.
Top-off if necessary until the oil level is up to the second
hole in the fill tube.
NOTE: After unit is up to operating temperature, turn off
engine and re-check hydraulic oil. If oil appears foamy or
contains excessive air bubbles, DO nOT OPERATE UnIT.
Contact service technician.
Contaminants or foreign matter in the oil will also damage the
pumps . To prevent this:
Use a filter that captures particles as small as 30 microns or •
30 millionths of a meter in diameter.
Be very careful when you remove or repair a component in •
the hydraulic system. Thoroughly clean off any component
before you work on it.
Plug the ends of any hose or line you remove with a rubber •
or plastic plug.
Use plastic caps to seal off the ends of hydraulic fittings. •
Place any component you remove in a clean plastic bag so •
it can’t pick up dust or dirt.
Clean your hands frequently when working on the •
hydraulic components.
NOTE: The pumps are not owner-repairable. If a pump fails,
contact your Service Center. Do not disassemble the pump.
General Battery Information
WARNING!
Should battery acid accidentally splatter into •
the eyes or onto the skin, rinse the affected area
immediately with clean cold water. If there is any
further discomfort, seek prompt medical attention.
If acid spills on clothing, first dilute it with •
clean water, then neutralize with a solution of
ammonia/water or baking soda/water.
NEVER connect (or disconnect) battery •
charger clips to the battery while the charger is
turned on, as it can cause sparks.
Keep all sources of ignition (cigarettes, •
matches, lighters) away from the battery. The gas
generated during charging can be combustible.
Screw
Hydraulic Filter
Figure 6-2
30 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s
As a further precaution, only charge the battery in a well •
ventilated area.
Always shield eyes and protect skin and clothing when •
working near batteries.
Batteries contain sulfuric acid and may emit explosive •
gases. Use extreme caution when handling batteries. Keep
batteries out of the reach of children.
Battery Maintenance
The battery is filled with battery acid and then sealed at •
the factory. However, every 50 operating hours remove the
fill caps and check the level of the liquid electrolyte in the
battery. If the level in any of the six cells has dropped below
the bottom of the split ring inside the fill hole, refill the cell
with distilled water.
Spray the terminals and exposed wire with a battery •
terminal sealer, or coat the terminals with a thin coat of
grease or petroleum jelly, to protect against corrosion.
Always keep the battery cables and terminals clean and •
free of corrosion.
Avoid tipping. Even a sealed battery will leak electrolyte •
when tipped.
WARNING! Batteries contain sulfuric acid and may
emit explosive gases. Use extreme caution when
handling batteries. Keep batteries out of the reach
of children.
Tire Maintenance
Check the tire air pressure before each use. Inflation pressure
of the rear tires is important for stability while the mower is in
operation. If the tire diameter is not equal between the two tires,
the mower will pull to one side. Keep the tires inflated to the
recommended pressures. Improper inflation will shorten the tire
service life. See the tire side wall for proper inflation pressures.
Observe the following guidelines:
Do not inflate a tire above the maximum pressure shown •
on the sidewall of the tire.
Do not reinflate a tire that has been run flat or seriously •
under inflated. Have a qualified tire mechanic inspect and
service the tire.
Balance inflation pressure between the rear tires to help •
maintain straight travel (see tire side wall for proper
inflation pressure).
Keep the valve caps tightened to prevent air pressure loss.•
Inflation Pressure:
Traction Tires—20 psi max; 8-10 psi recommended
Front Caster Wheel—28 psi max; 20-25 psi recommended
Cutting Deck Ball Wheels—Solid Polyurethane
Leaking Tires
When a flat tire occurs, repair or replace immediately. The normal
procedure is to remove the wheel and replace it. If a tire is
getting soft, park the mower on the nearest level, paved area.
Rear Tire1.
Put blocks on each side of the opposite traction a.
wheel and jack up the tire that leaks about an inch
off the ground.
Loosen and remove the lug nuts and remove the b.
wheel.
Mount a wheel and tire, replace the lug nuts, and c.
using a torque wrench, tighten them to 60 ± 10
ft-lbs.
Front caster wheel2.
Block both traction wheels and raise the caster a.
wheel so that the tire is an inch off the ground.
Loosen and remove the locknut from the axle b.
assembly and pull the axle assembly from the caster
yoke. The wheel and two spacer sleeves will drop
free.
Slip the axle assembly through one side of the caster c.
yoke, through a spacer sleeve, a wheel, the other
spacer sleeve and finally through the other side of
the caster yoke.
Tighten the locknut on the end of the axle assembly.d.
Lower the mower off the jack and continue mowing. e.
The wheel with the leaking tire should be inflated to 20 psi and
the wheel placed in a large bucket of water. Carefully inspect the
tire, rim and valve for escaping air bubbles which indicate a leak.
Mark each leak with a yellow marking crayon and then deflate
the tire to 8 psi and repeat the inspection. If the leaks you find
are pin hole size to 1⁄16” diameter, the tire can be repaired. If the
leaks are larger than 1⁄16” diameter, the tire can be repaired. If the
tire bead is damaged, the tire can be repaired or the tire will have
to be replaced.
Lubrication
Using a pressure lubricating gun, lubricate all grease •
fittings and points as noted in the Lubrication Chart.
Lubricate all other pivot points with a quality lubricating oil •
as noted in the Oil Chart.
Using the Deck Wash System
WARNING! When using the deck wash system,
never engage the deck from any position other than
the operator’s seat of the tractor. Do not use an
assistant or engage deck in the presence of any
bystanders.
Use the Deck Wash System to rinse grass clippings from the
deck’s underside and prevent the buildup of corrosive chemicals.
Complete the following steps after each mowing:
NOTE: Make certain the machine’s discharge chute is directed
away from people, children, animals, and your house, garage,
parked cars, etc.
Attach the nozzle adapter to a standard garden hose 1.
connected to a water supply.
Move the tractor to an area within reach of the hose where 2.
the dispersal of wet grass clippings is not objectionable to
you. Disengage the PTO, engage the parking brake, and
stop the engine.
31se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
Using the Transmission Bypass Valves
If for any reason the tractor will not drive or you wish to move
the tractor, the two hydrostatic transmissions are equipped with
a bypass valve that will allow you to manually move the tractor
short distances.
WARNING! Do not tow the tractor, even with the
bypass rod engaged. Serious transmission damage
will result from doing so.
From just in front of the engine and just behind the seat, 1.
locate the transmission bypass valves. Refer to Fig. 6-4.
Using a standard 2. 7⁄16” wrench turn the valve counter-
clockwise one quarter turn.
Repeat the above procedure to engage the other bypass 3.
valve on the other side of the tractor.
After moving the tractor, return both valves to the 4.
operating position by turning the valve clockwise, but do
not overtighten.
NOTE: The tractor will not drive with the bypass valves in the
engage position.
Pull back the lock collar of the nozzle adapter and push the 3.
adapter onto one of the deck wash nozzles at either end of
the mower deck. Release the lock collar to lock the adapter
on the nozzle. See Fig. 6-3.
Turn on the water supply. 4.
From the tractor operator’s seat, start the engine and 5.
engage the PTO. Allow to run as needed. Disengage the
PTO and stop the engine.
Turn off the water supply. 6.
Pull back the lock collar of the nozzle adapter to disconnect 7.
the adapter from the nozzle.
Repeat the previous steps to clean the deck using the 8.
nozzle at the other end of the deck.
Cleaning the Spindle Pulleys
Once a month remove the belt covers to remove any
accumulation of grass clippings from around the spindle pulleys
and V-belt. Clean more often when mowing tall, dry grass.

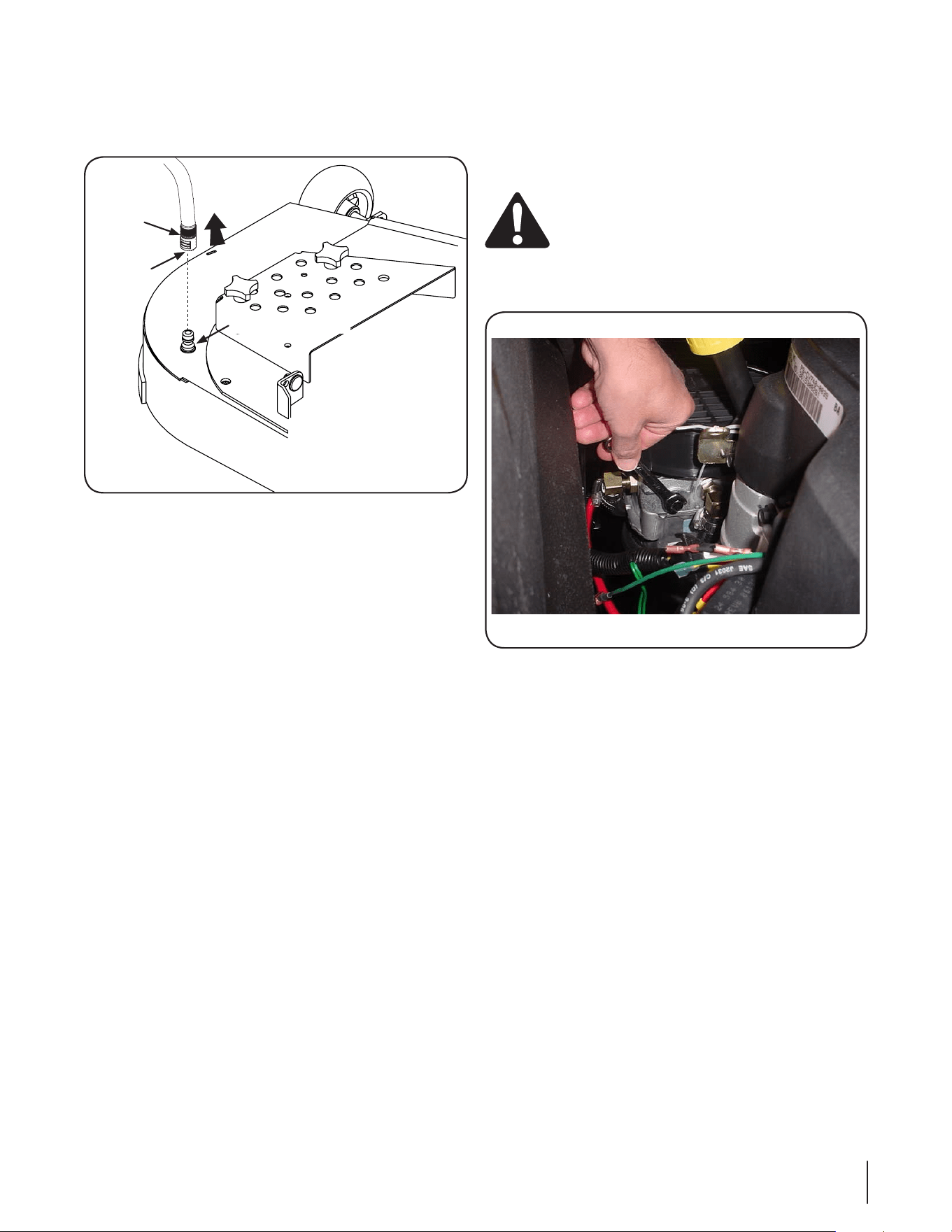

Nozzle
Adapter
Adapter
Lock Collar
Pull Lock
Collar Back
Deck Wash Nozzle
Figure 6-3
Figure 6-4
32 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s
Emptying the fuel system:c.
Prior to putting the tractor in storage, monitor •
fuel consumption with the goal of running
the fuel tank empty.
Close the fuel tank shutoff valve. Disconnect •
the fuel line from the carburetor and put the
end into an approved fuel container.
Open the fuel tank shutoff valve and drain the •
fuel tank and line into the approved container.
Reinstall the fuel line on the carburetor.
Start the engine and allow it to run out of fuel. •
This will prevent gum and varnish deposits
from forming. Replace the fuel filter.
Remove the spark plugs and pour approximately one 3.
ounce of oil into each cylinder. Crank the engine one or
two turns to spread the oil evenly on the cylinder walls.
Replace the spark plugs.
Clean the engine and the entire tractor thoroughly.4.
NOTE: Use of a pressure washer or garden hose is not
recommended to clean your tractor. They may cause
damage to electrical components, spindles, pulleys,
bearings or the engine. The use of water will result in
shortened life and reduce serviceability.
Sharpen the blades so that the mower will be ready to use 5.
when needed.
Protect the metal surfaces. Repair scratches with the 6.
appropriate touch-up spray paint. Brush a rust preventive
oil on any unpainted surfaces including the pulleys and
blades. (Be careful not to get any oil on the drive belts.)
Clean and fully charge the battery, then disconnect the 7.
negative cable at the battery to prevent possible discharge.
Recharge the battery periodically when in storage.
NOTE: Remove the battery if exposed to prolonged periods
of sub-freezing temperatures. Store in a cool, dry location
where temperatures are above freezing.
Lubricate all lubrication points.8.
Inspect the hydraulic hoses, lines and fittings. Replace as 9.
necessary.
Jack the mower up and store it on blocks to take the weight 10.
off of the tires.
Removing The Tractor From Storage
Check the battery. Charge if necessary.1.
Lower tractor off blocks, and inflate the tires to the 2.
recommended pressure.
Remove the spark plugs and wipe them off. Using the 3.
starter, crank the engine to pump the excess oil out of the
spark plug holes. Replace the spark plugs and the ignition
leads.
If drained before storing, fill the fuel tank with clean, fresh 4.
gasoline.
Check the level of the engine oil in the crankcase and the 5.
hydraulic reservoir tank.
Battery Storage
When storing the tractor for extended periods, disconnect 1.
the negative battery cable. It is not necessary to remove
the battery.
All batteries discharge during storage. Keep the exterior 2.
of the battery clean, especially the top. A dirty battery will
discharge more rapidly.
The battery must be stored with a full charge. A discharged 3.
battery can freeze sooner than a charged battery. A fully
charged battery will store longer in cold temperatures than
hot. Refer to chart below.
Specific Gravity Freezing Temp (°F)
1.265 -71
1.250 -62
1.200 -16
1.150 5
1.100 16
Recharge battery when ever the specific gravity value is 4.
less than 1.225.
Tractor Storage
If your tractor is not going to be operated for an extended period
of time (thirty days to approximately six months), the tractor
should be prepared for storage. Store the tractor in a dry and
protected location. If stored outside, cover the tractor (including
the tires) to protect it from the elements. The procedures
outlined below should be performed whenever the tractor is
placed in storage.
Change the engine oil and filter following the instructions 1.
provided in the engine manual packed with this manual.
WARNING! Never store the tractor with fuel in the
tank indoors or in poorly ventilated enclosures,
where fuel fumes may reach an open flame, spark or
pilot light as on a furnace, water heater, clothes
dryer, etc.
If storing the tractor for 30 days or more:2.
To prevent gum deposits from forming inside a.
the engine’s carburetor and causing possible
malfunction of the engine, the fuel system must be
either completely emptied, or the gasoline must be
treated with a stabilizer to prevent deterioration.
WARNING! Fuel left in the fuel tank deteriorates
and will cause serious starting problems.
Using a fuel stabilizer:b.
Read the product manufacturer’s instructions •
and recommendations.
Add to clean, fresh gasoline the correct •
amount of stabilizer for the capacity
(approximately 3 gallons) of the fuel system.
Fill the fuel tank with treated fuel and run the •
engine for 2-3 minutes to get stabilized fuel
into the carburetor.
33se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
The right front blade tip height is fixed so you must adjust 5.
the left front tip to match it. See Fig. 6-5.
Once the proper adjustment is made, re-tighten the lower 6.
jam nut.
Front to Back Leveling
Measure the blade-to-ground height at the right rear blade 1.
tip. Again be sure to measure at the blade tip at the rear of
the right blade when aligned along the mower centerline.
The blade-to-ground height at the rear of the blade tip
should be 1⁄8” to 1⁄4” higher than the front tip. This is referred
to as blade pitch. The same height difference should be
true for the left blade, measured front and back. The pitch
should not exceed 1⁄16” if cut height is below 1-1⁄2”.
Loosen the inner jam nuts at the rear left and right of the 2.
horizontal threaded rods. See Fig. 6-6.
Start the engine and allow to idle for a few minutes to 6.
ensure engine is operating properly.
Drive the tractor without a load to make certain all the 7.
tractor systems are functioning properly.
Adjustments
Adjusting the Seat
Refer to the Assembly & Set-Up section for instructions on
adjusting the seat.
Adjusting Drive Control Levers
Refer to the Assembly & Set-Up section for instructions on
adjusting the drive control levers.
Leveling the Mower Deck
When correctly adjusted the mower deck should be level side to
side, and the front of the deck should be approximately 1⁄4” lower
than the rear of deck.
NOTE: Check the tractor’s tire pressure before performing any
deck leveling adjustments. See the tire side wall for proper
inflation pressures.
Side to Side Leveling
Park the mower on a flat paved surface, engage the 1.
parking brake, shut off the engine, remove the key from the
ignition switch, disconnect the spark plug wires and using
the power implement lift, position the mowing deck into
the 4” height of cut position. (The 4” height of cut position
is recommended in order for one to see and obtain a
measurement. Any height of cut position is acceptable as
long as a proper measurement can be taken.)
Measure blade-to-ground height at the front tip of the 2.
right blade. To obtain an accurate measure, align blades in
parallel with mower centerline, (i.e. front to back).
Measure blade-to-ground height at the front tip of the left 3.
blade. Be sure to measure at the blade tip with the blades
arranged in proper position.
Adjust the eyebolt at the left front of the deck so that the 4.
blade-to-ground height at the right front blade tip matches
that of the left front blade tip. This is done by loosening the
jam nuts on the eyebolt and tightening the upper nut to
raise the deck and loosening the nut to lower the deck.

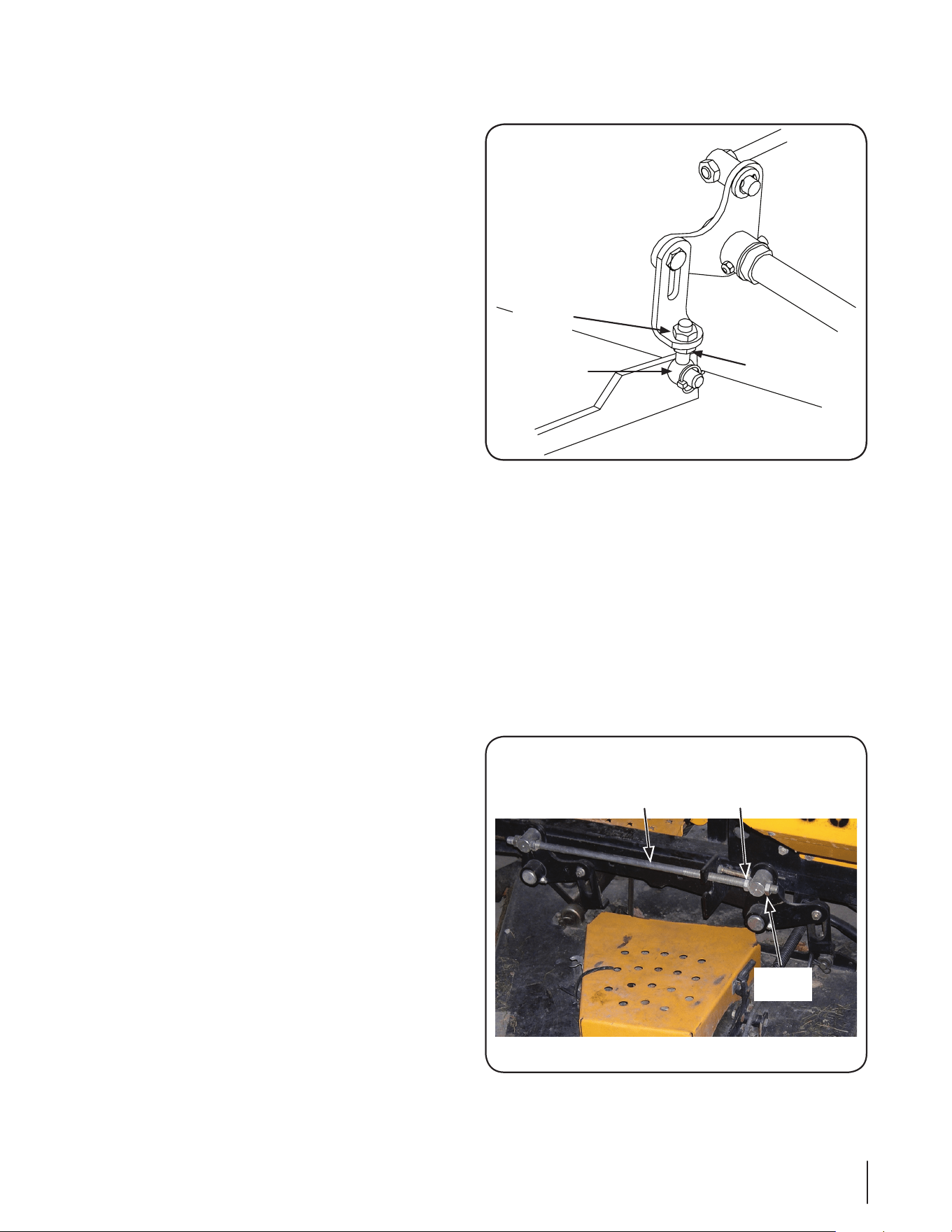

Left Front of the Deck
Eye Bolt
Upper
Jam Nut
Lower Jam Nut
Figure 6-5
Inner
Jam Nut
Outer
Jam Nut
Horizontal
Threaded Rod
Figure 6-6
34 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s

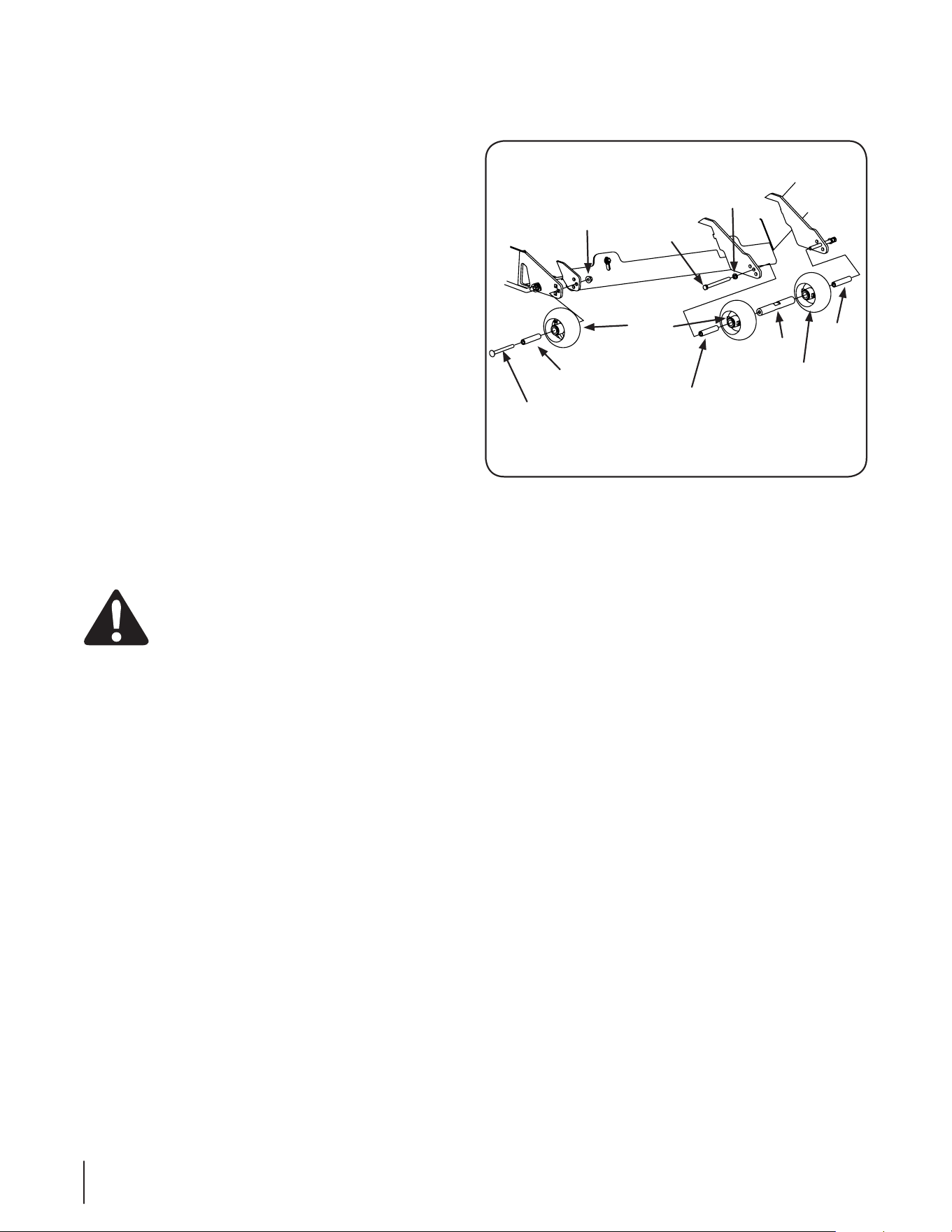

Remove the lock nut securing one of the front gauge wheel 2.
shoulder screws to the deck. Remove the gauge wheel and
shoulder screw. Refer to Fig. 6-7.
Insert the shoulder screw into the one of four index holes 3.
in the front gauge wheel bracket that will give the gauge
wheel a 1⁄4” to 1⁄2” clearance with the ground.
Note the index hole of the just adjusted wheel, and adjust 4.
the other gauge wheels into the respective index holes of
the other gauge wheel brackets on the deck.
Adjusting the Center Gauge Wheels
Adjust the center gauge wheels to the same height as the outer
gauge wheels. Be sure to insert the hex screw through the
washer, the wheel bracket, the spacer and wheel and then the
center shaft.
Adjusting the Rear Rollers
The rear rollers help prevent the scalping of high spots and
uneven terrain across the center section of the deck. The rollers
can be adjusted downward or upard 1”. Lowering the roller
will increase the striping effect left behind the mower. This
positioning of the rear roller will also help to filter the mulched
grass clippings into the turf.
NOTE: Roller should not be lowered if the cut height is set at 2-1⁄2”
or lower.
Brakes
The parking brake handle is an over center lever that should
engage with moderate force. To increase parking brake capacity,
adjust brake cables at the brake arms equally. Adjust the cable
housing nuts one full turn and check parking capacity. Repeat if
parking brake does not hold.
Repair: The mower is equipped with drum brakes and will not
normally require maintenance. If they are not working properly,
please contact your service center.
a.
Start at the rear right to raise the rear of the deck, tighten 3.
the rear outer jam nut to raise the deck or loosen the rear
outer jam nut to lower the rear of the deck.
Adjust the rear jam nut at the rear left to take the “slack” 4.
out of the threaded rod.
Tighten both inner jam nuts to secure the deck adjustment.5.
The final adjustment would be to take the “slack” out of 6.
the left rear linkage if the rear of the deck was raised by
adjusting the jam nuts on the eyebolt. Loosen the jam nuts
and tighten the upper nut to remove “slack”.
In many cases it will be necessary to adjust deck height 7.
using both eyebolt adjustments and pitch adjustment
to achieve the correct blade-to-ground heights. If you
remember that the front right blade tip adjustment is fixed
and you level to that height, adjusting the decks will be
simplified.
Once the deck is level one may find that the height of 5.
cut does not match the height of cut indicator. A final
adjustment may be made by lowering or raising the height
of cut link accordingly. To raise the deck: remove the
shoulder bolt mounting the height of cut link to the lift
handle and reassemble the shoulder bolt in the lowest of
the three holes. To lower the deck: remove the shoulder
bolts mounting the height of cut link, flip the height of cut
link around and reassemble the shoulder bolts in the top of
the set of three holes and the bottom hole.
Adjusting the Deck Corner Gauge Wheels
WARNING! Keep hands and feet away from the
discharge opening of the cutting deck.
NOTE: The deck gauge wheels are an anti-scalp feature of the
deck and are not designed to support the weight of the cutting
deck.
The mower deck cutting height can be set using the tractor’s
deck lift pedal. The deck heights range from 1” to 4”. The deck
gauge wheel position should be approximately 1⁄4 to 1⁄2” above
the ground when the deck is set in the desired height setting.
Using the lift pedal, set the deck in the desired height setting,
then check the gauge wheel distance from the ground below. If
necessary, adjust as follows:
Visually check the distance between the front gauge 1.
wheels and the ground. If the gauge wheels are near or
touching the ground, they should be raised. If more than
1⁄2” above the ground, they should be lowered.
Carriage
Bolt
Spacer
Gauge
Wheel
Spacer
Spacer
Shaft
Gauge
Wheel
Nut
Hex
Screw
Washer
Figure 6-7
35se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
Adjusting the Front Skirt
The front skirt can be raised or lowered depending on the
mowing conditions. The skirt has three settings; low, medium
and high. See the table on page 23 in the Operation section for
more information. Raise the skirt to cut higher volumes of grass
and lower the skirt to increase grass lift for precision cutting.
Loosen — but do not remove — the nuts securing the skirt, 1.
place in the proper position and then retighten the nut.
See Fig. 6-8.
Repeat on the other side and be sure that both skirts are in 2.
the same position.
Removing/Installing the Inner Baffle
The inner flow-control baffle can be removed depending on
the mowing conditions. The baffle controls discharge and can
be removed for high-volume grasses and installed for precision
cutting.
Remove the carriage bolts and flange lock nuts that 1.
secure the baffle to the deck to mow high-volume
grasses. See Fig. 6-9.
Re-install the inner baffle for precision cutting and make 2.
sure the baffle is properly secured.
Flange Lock Nuts
Front Skirts

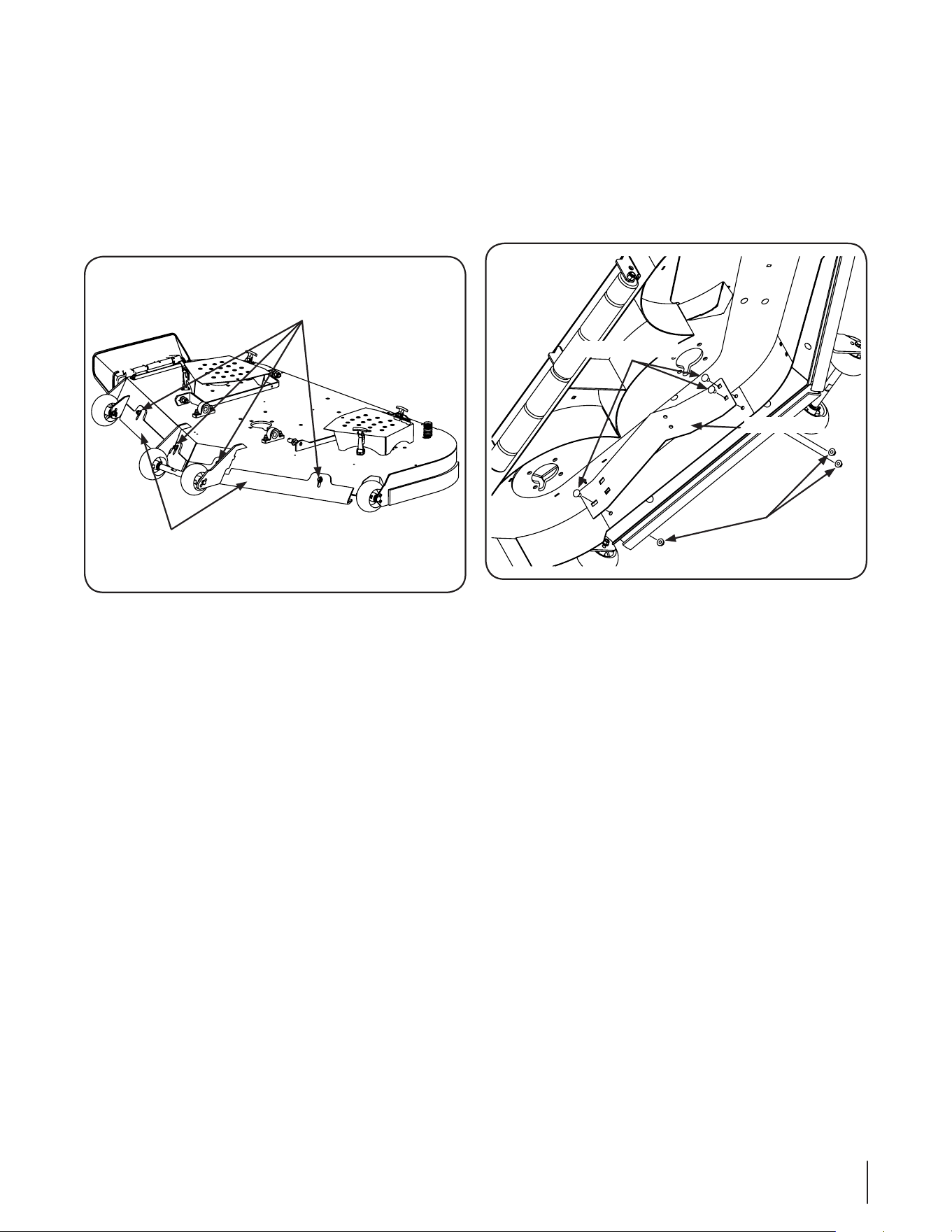

Figure 6-8
Flange
Lock
Nuts
Carriage Bolts
Inner Baffle
Figure 6-9
Service
7
36
Battery Removal
WARNING! Battery posts, terminals and related
accessories contain lead and lead compounds. Wash
hands after handling.
The battery is located on the right/rear of the tractor beneath the
seat box frame. To remove the battery:
Remove the hold down straps.1.
Remove the hex cap screw and sems nut securing the black 2.
negative battery lead to the negative battery post (marked
nEG). Move the cable away from the negative battery post.
Remove the hex cap screw and sems nut securing the red 3.
positive battery lead to the positive battery post (marked
POS).
Carefully lift the battery out of the tractor.4.
Install the battery by repeating the above steps in the 5.
reverse order.
WARNING! Always connect the positive lead to the
battery before connecting the negative lead. This
will prevent sparking or possible injury from an
electrical short caused by contacting the tractor
body with tools being used to connect the cables.
Charging the Battery
Test and, if necessary, recharge the battery after the tractor has
been stored for a period of time.
A voltmeter or load tester should read 12.6 volts (DC) or •
higher across the battery terminals. See Fig. 7-1.
Charge the battery with a 12-volt battery charger at a •
MAXIMUM rate of 10 amps.
Voltmeter
Reading
State of
Charge
Charging
Time
12.7 100% Full Charge
12.4 75% 90 Min.
12. 2 50% 180 Min.
12.0 25% 280 Min.
Jump Starting
WARNING!: Failure to use this starting procedure
can cause sparking, and the gases in the battery to
explode.
Attach the end of the red jumper cable to the positive 1.
terminal (+) of the charged battery.
Attach the other end of the red jumper cable to the 2.
positive terminal (+) of the low charge battery.
Attach the end of the black jumper cable to the negative 3.
terminal of the charged battery.
Attach the other end of the black jumper cable to the 4.
frame of the unit with the low charge battery.
Servicing Electrical System
Fuse
There is one fuse located in the wiring between the ignition start
switch and other electrical components. This is a standard plug-
in type automotive fuse rated at 20 amp. Always use the same
capacity fuse for replacement. If the electrical system does not
function, check for a blown fuse.
If you have a recurring problem with blown fuses, have the
tractor’s electrical system checked by your Cub Cadet Service
Dealer.
Safety Switch Operation Checks
The following operational checks should be made daily:
PTO Switch
Sit in the operator’s seat. With the speed control pedals 1.
in the neutral position and the parking brake engaged,
turn the PTO switch “On” and try to start the engine. The
engine should not start. If it does, the PTO switch must be
replaced. See an authorized service dealer.
If the engine does not start, turn the PTO switch “OFF” and 2.
start the engine. now turn the PTO switch “On” and the
blades should rotate.
If the blades do not turn, the PTO switch must be replaced, 3.
the seat switch must be replaced or the electric PTO clutch
must be repaired. See an authorized service dealer.
Parking Brake Switch
Sit in the operator’s seat. With the speed control pedals •
in the neutral position and the PTO switch “OFF”, release
the parking brake and try to start the engine. The engine
should not start.
If it does, the parking brake switch must be repositioned or •
perhaps replaced. See an authorized service dealer. If the
engine does not start, engage the parking brake and start
the engine.
Figure 7-1
37se c t i O n 7 — se r v i c e
Seat Switch
With the speed control pedals in the neutral position, the •
parking brake engaged and the PTO switch in the “OFF”
position, start the engine. Now release the parking brake,
hold down on the back of the operator’s seat against spring
pressure. Release the operator’s seat and the engine should
stop. If the engine does not stop, the seat switch must be
replaced. See an authorized service dealer.
With the speed control pedals in the neutral position, •
the parking brake engaged and the blade clutch switch
in the “OFF” position, sit in the operator’s seat and start
the engine. Turn the PTO switch to the “On” position and
the blades should start to rotate. Raise up slightly off the
operator’s seat and the blades should stop. If the blades do
not stop when you dismount from the operator’s seat, the
seat switch must be replaced. See an authorized service
dealer.
Electric PTO Clutch
This clutch operates when the engine is running, the operator is
in the operator’s seat and the blade clutch switch is turned on.
This electric clutch is a fairly trouble free device. If a problem
develops and the blades do not turn, first check the 20 amp
fuse in the yellow, 16-gauge wire between terminal “L” on the
ignition switch and the hour meter and then investigate the
wiring harness and the connections to the seat switch, the blade
clutch switch and the electric blade clutch. Then check the seat
switch, the PTO switch and finally the electric blade clutch. If the
PTO clutch is still not working properly, see an authorized service
dealer.
Deck Removal
Remove the mower deck from the tractor as follows:
Lower the deck to the ground. Capture the deck lift by 1.
placing the clevis pin behind the lowest position.
Apply the parking brake. Remove ignition key and both 2.
spark plug caps.
Remove tension off the PTO belt by moving the belt 3.
tensioning rod. See Fig. 7-2.
NOTE: There is a certain amount of spring tension due to
the weight of the deck. When removing the lift linkage
from the deck the tension of the springs will go from the
deck to the deck lift pedal. Not capturing the deck lift pedal
while removing the lift linkage from the deck will cause it
to snap back.
Detach the mower drive belt.4.
Remove the six linch pins from the right and left side of the 5.
mower and from the front of the mower.
Turn front wheels as if to make a pivot turn.6.
Shift the deck toward the operator’s left side of the mower 7.
and remove.
To install reverse the process.8.
WARNING! The muffler at the rear of the tractor
may be extremely hot, and could cause serious
burns. Use extreme caution when near the muffler.
Allow the muffler to fully cool before removing the
belt from the PTO pulley.
Replacing the Deck Belt
Set the parking brake. Remove ignition key and both spark 1.
plug caps.
Pull the four draw latches up and away from the deck 2.
covers to unlatch and remove both covers.
Using a 3. 1⁄2” socket breaker bar or socket ratchet insert the
male end into the 1⁄2” square opening in the lower idler
arm assembly and pull the idler arm clockwise. See Fig. 7-3.
While holding the idler arm back, loosen the deck belt from
the pulley and slide the belt away from the pulley.
Remove tension of the PTO belt by moving the belt 4.
tensioning rod. See Fig. 7-2. Loosen the belt retaining bolt.
Pull the tensioner pulley away from the belt and remove 5.
the PTO belt then remove the deck belt.
Reverse the process to install the belt.6.
NOTE: When replacing belts do not overtighten. Adjust
the idler pulley so that a ten-pound pull with a spring scale
between two pulleys deflects the belt about 1⁄2”.
Idler Arm Lever

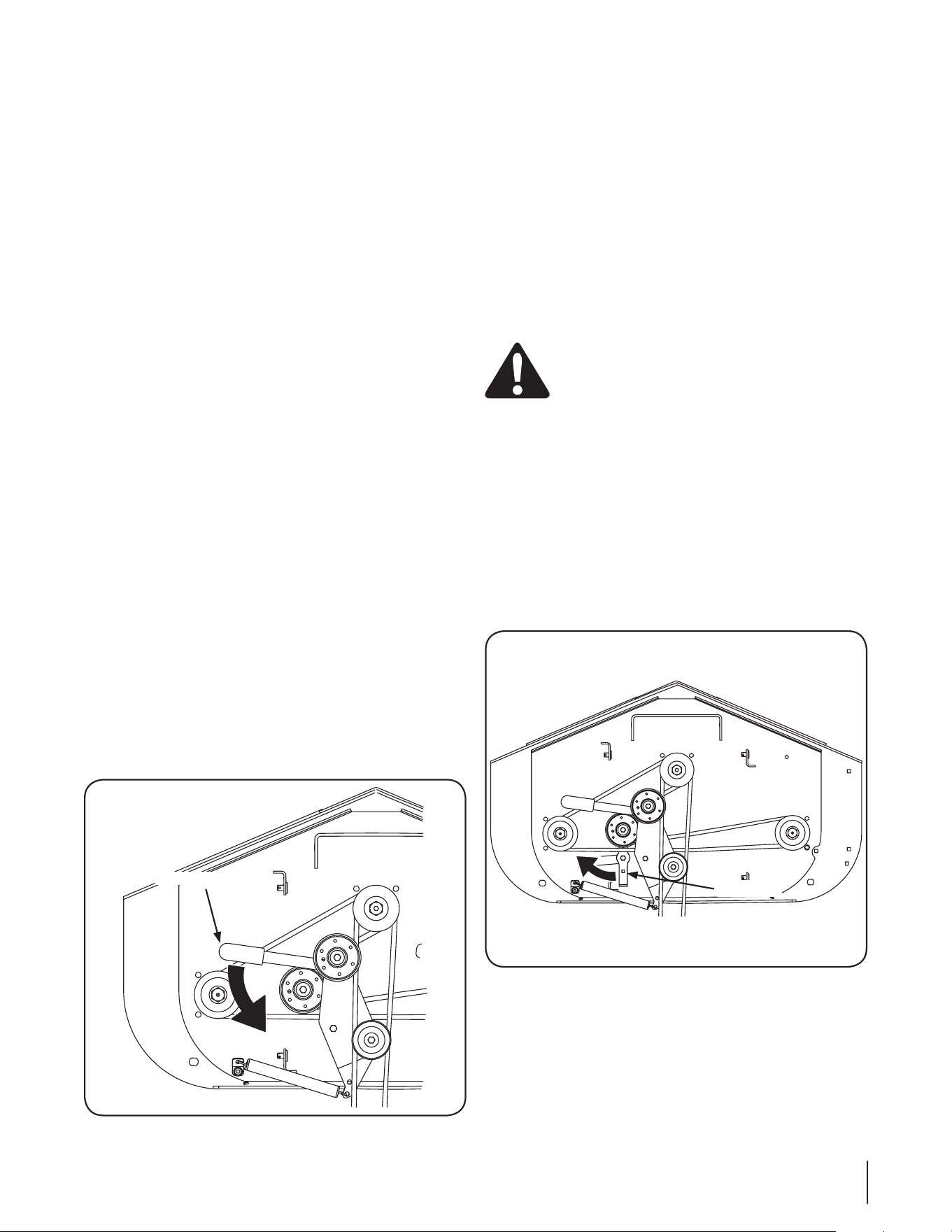

Figure 7-2
Idler Arm
Figure 7-3
38 se c t i O n 7— se r v i c e
Use a 1-4. 1⁄8” socket wrench on the pulley side of the spindle
bolt. See Fig. 7-5.
Remove the hex nut at the blade using a 1-5. 1⁄8” wrench.
Remove the blade.6.
To replace the blade reverse the above process and tighten 7.
nut to 100-120 lb ft.
NOTE: Add a small amount of multi-purpose grease to the
bolt threads to avoid corrosion and galvenic action.
WARNING! never mow with dull blades. Blades
that are bent should be replaced. The cutting blades
are sharp and can cause severe injury. Wrap the
cutting surface of the blade with a rag to avoid
injury.
Sharpening the Blades
Set the parking brake.1.
Clean any debris from the blades. Keep blades sharp and 2.
free of build up at all times.
Sharpen blades evenly at the original 30° angle to maintain 3.
balanced cutting blades. Do not sharpen the underside of
the blades. Use a electric blade sharpener, a conventional
electric grinder or a hand file to sharpen the blades.
Replace any blade with severe nicks or dents that cannot 4.
be removed by filing.
Check the balance of the blade after sharpening by placing 5.
it on a blade balancer. Do not use un-balanced blades.
If the blade dips on one end, file stock off of the cutting 6.
surface on that end.
NOTE: Replace any blades that cannot easily be balanced.
Replacing the Blades
WARNING! Before performing any maintenance,
place the PTO switch in the “OFF” position, engage
the parking brake lever, turn the ignition key to the
“OFF” position and remove the key from the switch.
Protect your hands by using heavy gloves when
handling the blades. When servicing the mower
deck, be careful not to cut yourself on the
sharpened blades.
Remove the key from the ignition and disconnect the spark 1.
plugs.
Jack up the front of the mowing deck about one foot and 2.
block it in that position.
Wrap a rag around one end of the blade and grasp it to 3.
prevent it from turning, or secure the blade by placing a
block of wood between the blade and the deck housing.
See Fig. 7-4.

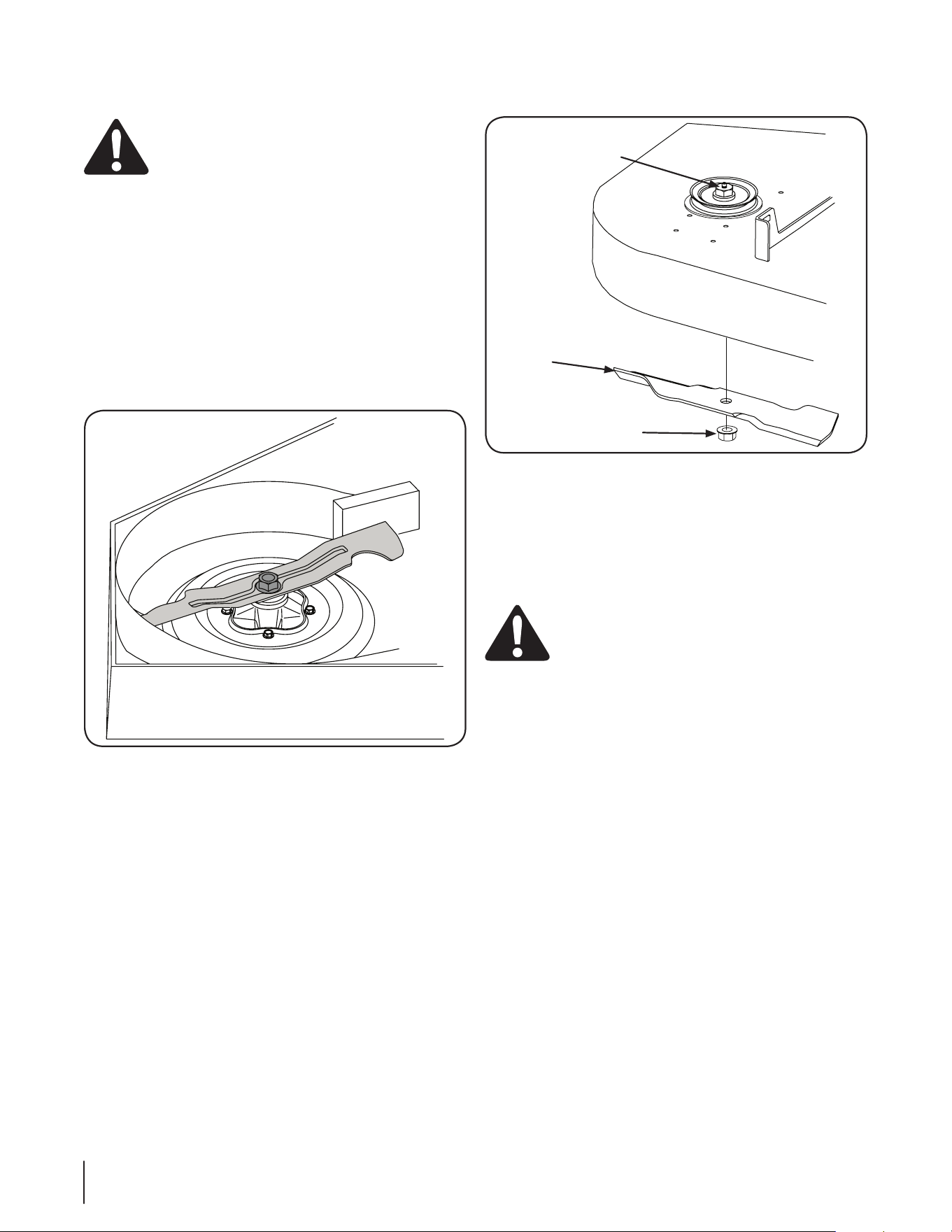

Figure 7-4
Flange Lock Nut
Blade
Hex Screw
Figure 7-5
39se c t i O n 7 — se r v i c e
Changing the Spindle Assembly
Jack up the front of the mowing deck about one foot and 1.
block it in that position.
Make sure the blade clutch is disengaged.2.
Remove the deck cover. 3.
Remove the drive belts. (See Replacing the Deck belt.)4.
Remove the blade. (See Replacing the Blades)5.
Using a wrench or socket ratchet remove flange lock 6.
nuts, and the four hex flange bolts. Remove the spindle
assembly. See Fig. 7-6.
Reverse the process to install the spindle assembly.7.
Tractor Creeping
Creeping is the slight forward or backward movement of the
mower when the throttle is on and the speed control pedals are
in the neutral position. If your mower creeps, see an authorized
service dealer.
Spindle Assembly
Blade
Flange Lock Nut
Spacer
Hex Flange Bolt
Support Plate
Flange Lock Nut
Hex Screw

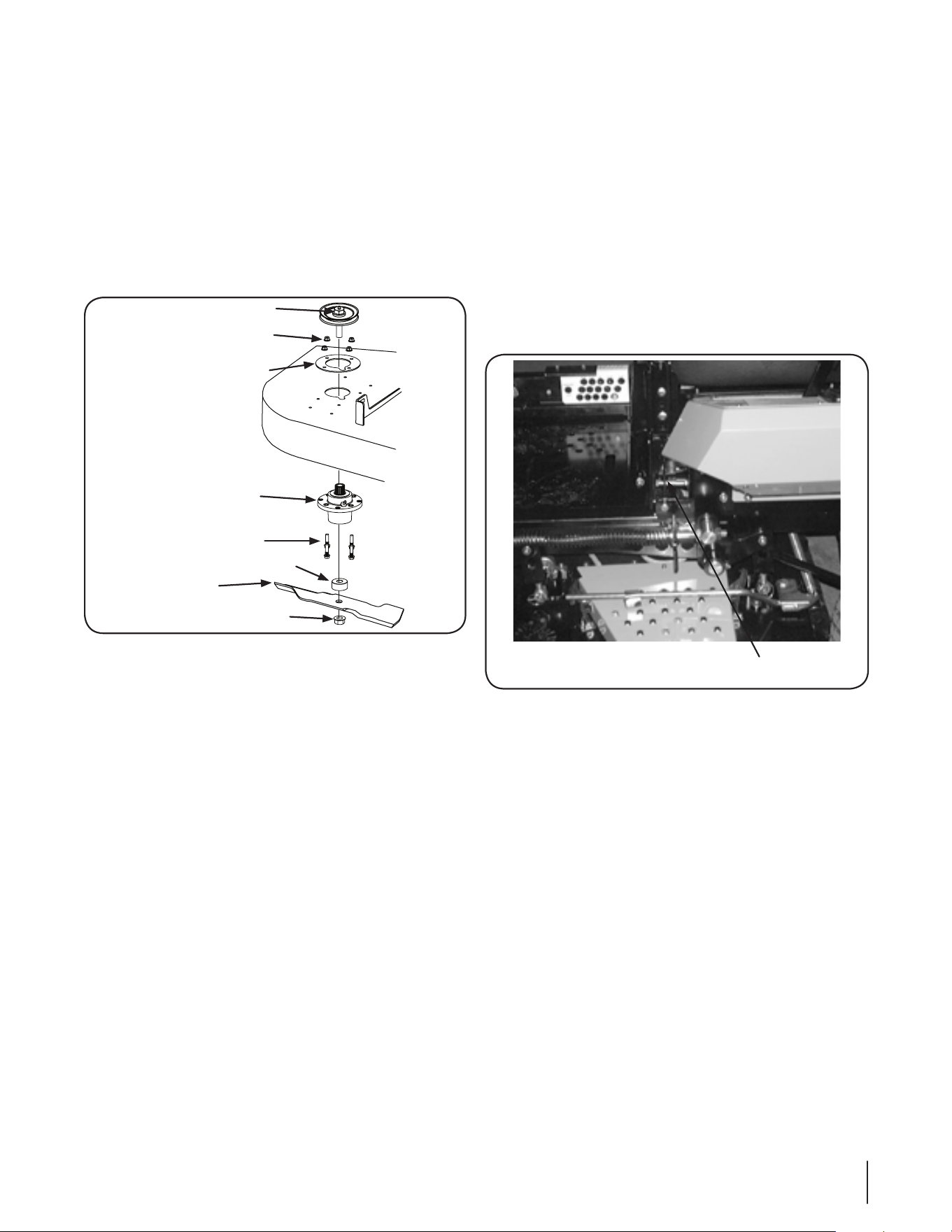

Figure 7-5
Tractor High Speed Tracking
If the tractor tracks to one side with both drive control levers fully
forward, adjust the control levers as follows:
Check for proper and balanced air pressure in both front 1.
and rear tires. Refill tires if necessary.
Check hydraulic fluid level (Ref. Engine owner’s manual)2.
Perform the steps in the previous section, Tractor Creeping, 3.
to verify that the tractor is not creeping.
Recheck the tracking after making any adjustments to the 4.
transmission control rods.
If uneven tracking persists, adjust as follows:5.
If the tractor tracks to the right, adjust the left a.
control lever stop bolt to make it longer. See Fig. 7-6.
If the tractor tracks to the left, adjust the right b.
control lever stop bolt to make it longer.
Recheck the tracking and fine tune the adjustment as 5.
necessary.
NOTE: If the stop bolt is adjusted too far, the tracking
problem will change sides. Make fine tuning adjustments
by shortening the same bolt.
Lap Bar Stop Bolt
Figure 7-6
Troubleshooting
9
40
Problem Cause Remedy
Engine fails to start PTO/Blade Engage knob engaged.1.
Parking brake not engaged. 2.
Drive control levers not fully outward in 3.
neutral position.
Spark plug wire(s) disconnected. 4.
Throttle control lever not in correct starting 5.
position.
Choke not activated.6.
Fuel tank empty, or stale fuel. 7.
Blocked fuel line. 8.
Faulty spark plug(s). 9.
Engine flooded. 10.
Place knob in disengaged (OFF) position. 1.
Engage parking brake. 2.
Move drive control levers fully outward in 3.
neutral position.
Connect wire(s) to spark plug(s). 4.
Place throttle lever in the fast position. 5.
Pull choke control into full choke position. 6.
Fill tank with clean, fresh (less than 30 days 7.
old) gas.
Clean fuel line and replace fuel filter. 8.
Clean, adjust gap or replace plug(s). 9.
Crank engine with throttle in FAST position. 10.
Engine runs erratic Tractor running with CHOKE activated. 1.
Spark plug wire(s) loose. 2.
Blocked fuel line or stale fuel. 3.
Vent in gas cap plugged. 4.
Water or dirt in fuel system. 5.
Dirty air cleaner. 6.
Push the choke control into the choke off 1.
position.
Connect spark plug wire(s). 2.
Clean fuel line; fill tank with clean, fresh 3.
gasoline and replace fuel filter.
Clear vent or replace cap if damaged. 4.
Drain fuel tank. Refill with clean, fresh 5.
gasoline.
Replace air cleaner paper element or clean 6.
foam pre-cleaner.
41se c t i O n 9 — tr O u b l e s h O O t i n g
Problem Cause Remedy
Engine overheats Engine oil level low. 1.
Air flow restricted. 2.
Fill crankcase with proper amount and 1.
weight of oil.
Clean grass clippings and debris from around 2.
the engine’s cooling fins and blower housing.
Engine hesitates at high
RPM
Spark plug(s) gap too close. 1. Remove spark plug(s) and reset the gap. 1.
Engine Idles rough Spark plug(s) fouled, faulty or gap too wide. 1.
Dirty air cleaner. 2.
Replace spark plug(s). Set plug gap. 1.
Replace air cleaner element and/or clean 2.
pre-cleaner.
Excessive vibration Cutting blade loose or unbalanced. 1.
Damaged or bent cutting blade. 2.
Tighten blade and spindle. 1.
Replace blade. 2.
Uneven cut Deck not leveled properly. 1.
Dull blade. 2.
Uneven tire pressure. 3.
Perform side-to-side deck adjustment. 1.
Sharpen or replace blade. 2.
Check tire pressure in all four tires. 3.
Mower will not mulch grass
(If Equipped w/Mulching Kit)
Engine speed too low. 1.
Wet grass. 2.
Excessively high grass. 3.
Dull blade. 4.
Place throttle in FAST (rabbit) position.1.
Do not mulch when grass is wet. 2.
Mow once at a high cutting height, then 3.
mow again at desired height or make a
narrower cutting swath.
Sharpen or replace blade. 4.
Replacement Parts
10
42
Component Part Number and Description
KM-BPR4ES Spark Plug
KM-11013-7020 Outer Air Filter
KM-11013-7019 Inner Air Filter
KM-49019-7001 Fuel Filter
KM-49065-2078 Oil Filter
01005376 Deck Belt
00068079 PTO Belt
01007015 Drive Belt
02005019 Hi-Lift Blade, 21.0
01003532 Deck Spindle
43se c t i O n 10 — re p l a c e M e n t pa r t s

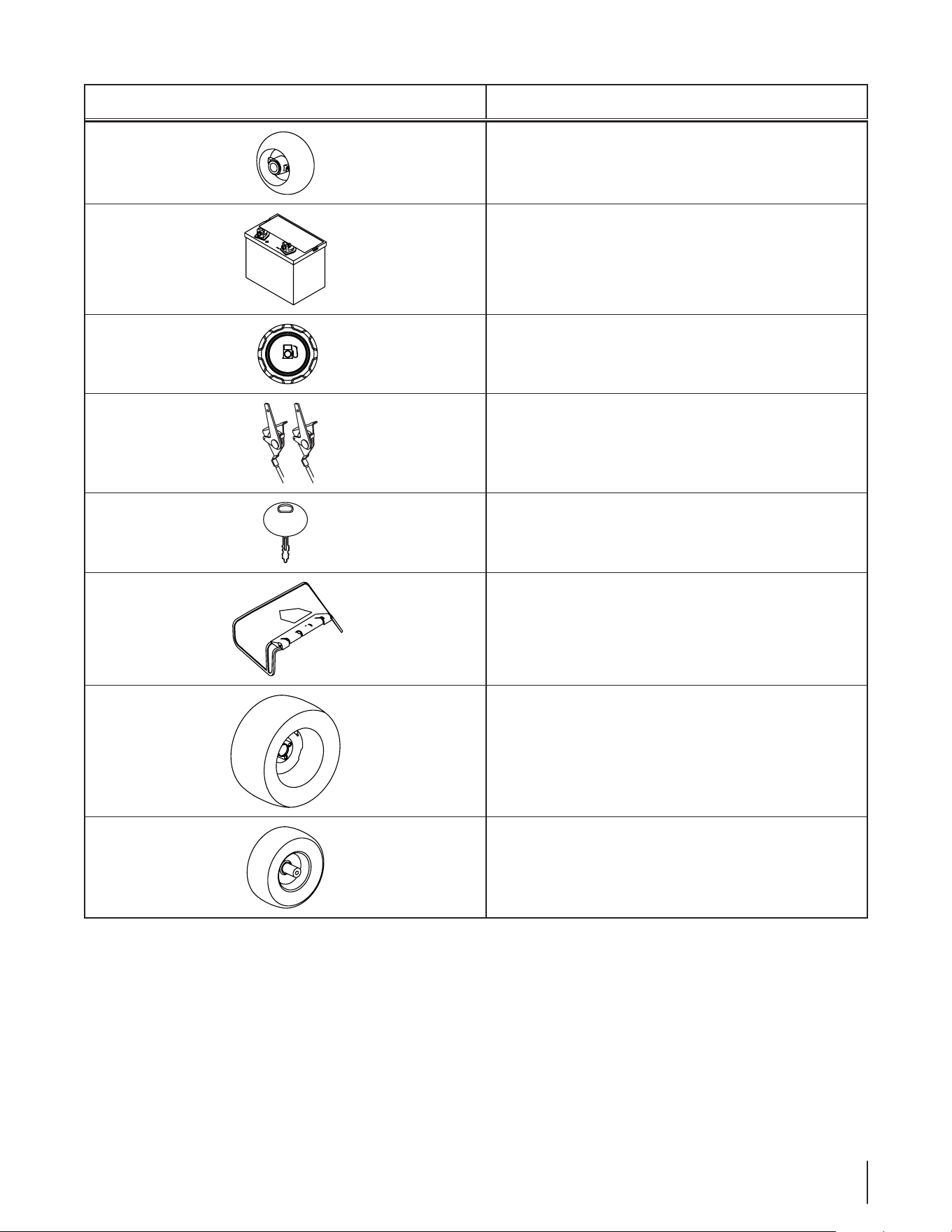

Component Part Number and Description
634-3159 Deck Wheel
925-1707D Battery
951-3124E Gas Cap
02003421 Throttle Control
02003422 Choke Control
725-1341B Ignition Key
01006693 Discharge Chute Assembly
02002668 Wheel Assembly
02002821 Caster Wheel Assembly
Attachments & Accessories
11
44
The following attachments and accessories are compatible with your TAnK tractor. See your dealer or the retailer from which you
purchased your tractor for information regarding price and availability.
Part Number Part
59A30019150 Striper Kit
59A30020150 Snow Blade Kit
59A 30 017150 Spreader Kit
59A30021150 12 Volt Outlet Kit
59A30018150 Caster Wheel Kit
59A30006150 60” Bagger Power Assist Kit
59A30004150 12 Bushel Dump Hopper Kit
59 A 3 0 0115 0 12 Bushel Triple Bagger Kit
59A30030150 60” Mulch Kit
590-488-150 All Trail Tires
590-851-150 Discharge Restrictor Kit
59 A 3 0 01115 0 Light Kit
01008246 21” Bahia Blades (Low Lift)
Specifications
12
45
NOTE: Specifications subject to change without notice.
* As rated by engine manufacturer
Engine: 31HP Kawasaki
Type: Vertical air cooled V-Twin
Air Cleaner: Dual Paper element with rain cap
Lube System: Pressurized with oil filter
Hydraulic System: In tank filter, 3 quart capacity
Starter: 12-volt electric
Traction Drive: Engine to two variable-output hydraulic pumps each connected to individual wheel motors
Cutter Deck Drive: 60” belt driven
Clutch: Electric
Deck Lift: Foot Pedal with pin lock for height adjustment at 1⁄4” increments
Cutting Height: 1” to 5”
no. of Blades: 3, belt-driven, power take-off from engine
Controls: Engine ignition and start switch; throttle; choke; left and right steering levers; electric blade clutch switch;
parking brake; mower deck lift
Parking Brake: Mechanical linkage brake handle to internal drum brakes
Front Caster Wheels: 13 x 6.50 - 6
Tire Pressure: 8-10 psi rear, 20-25 psi front caster
Drive Wheels: 24 x 12.00-12
Frame: 2” Steel structural tube and plate, all welded construction
Seat: Adjustable seat. 5” Adjustment, w/ arm rests
Fuel Tank: Two 6.5 gallon with individual shut off valves
Ground Speed: 0-12 + MPH forward & 0-5 MPH reverse
Instrumentation: Hour meter, Tachometer, Maintenance-Minder
Net Weight: 1220 lbs
FEDERAL and/or CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
MTD Consumer Group Inc, the United States Environmental Protection Agency (EPA), and, for those products certified for sale in the state of California, the
California Air Resources Board (CARB) are pleased to explain the emission (evaporative and/or exhaust) control system (ECS) warranty on your outdoor 2006
and later small off-road spark-ignited engine and equipment (outdoor equipment engine) In California, new outdoor equipment engines must be designed, built and
equipped to meet the State’s stringent anti-smog standards (in other states, 1997 and later model year equipment must be designed, built, and equipped to meet
the U.S. EPA small off-road, spark ignition engine regulations. MTD Consumer Group Inc must warrant the ECS on your outdoor equipment engine for the period of
time listed below provided there has been no abuse, neglect or improper maintenance of outdoor equipment engine.
Your ECS may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines, fuel caps, valves, canisters,
filters, vapor hoses, clamps, connectors, and other associated emission-related components.
Where a warrantable condition exists, MTD Consumer Group Inc will repair your outdoor equipment engine at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This emission control system is warranted for two years. If any emission-related part on your outdoor equipment engine is defective, the part will be repaired or
replaced by MTD CONSUMER GROUP INC.
OWNER’S WARRANTY RESPONSIBILITIES:
As the outdoor equipment engine owner, you are responsible for performance of the required maintenance listed in your owner’s manual. MTD Consumer Group
Inc recommends that you retain all receipts covering maintenance on your outdoor equipment engine, but MTD Consumer Group Inc cannot deny warranty solely
for the lack of receipts.
As the outdoor equipment engine owner, you should however be aware that MTD Consumer Group Inc may deny you warranty coverage if your outdoor equipment
engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
You are responsible for presenting your outdoor equipment engine to MTD Consumer Group Inc’s distribution center or service center as soon as the problem
exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage,
you should contact the MTD Consumer Group Inc Service Department at 1-800-800-7310 or via email at http://support.mtdproducts.com
GENERAL EMISSIONS WARRANTY COVERAGE:
MTD Consumer Group Inc warrants to the ultimate purchaser and each subsequent purchaser that the outdoor equipment engine is: Designed, built and equipped
so as to conform with all applicable regulations; and free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all
material respects to that part as described in MTD Consumer Group Inc’s application for certification.
The warranty period begins on the date the outdoor equipment engine is delivered to an ultimate purchaser or first placed into service. The warranty period is two
years.
Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:
Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the warranty period 1.
stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by MTD Consumer Group Inc according to subsection
(4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated above. Any such 2.
part repaired or replaced under warranty will be warranted for the remaining warranty period.
Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied is warranted for the period of time before the 3.
first scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by MTD Consumer
Group Inc according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the
first scheduled replacement point for the part.
Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner.4.
Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution centers that are franchised to service the subject 5.
engines or equipment.
The outdoor equipment engine owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission-related war-6.
ranted part, provided that such diagnostic work is performed at a warranty station.
MTD Consumer Group Inc is liable for damages to other engine or equipment components proximately caused by a failure under warranty of any warranted 7.
part.
Throughout the off-road engine and equipment warranty period stated above, MTD Consumer Group Inc will maintain a supply of warranted parts sufficient to 8.
meet the expected demand for such parts.
Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will 9.
not reduce the warranty obligations of MTD Consumer Group Inc.
Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the 10.
ultimate purchaser will be grounds for disallowing a warranty claims. MTD Consumer Group Inc will not be liable to warrant failures of warranted parts caused
by the use of a non-exempted add-on or modified part.
GDOC-100223
WARRANTED PARTS:
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if MTD Consumer Group
Inc demonstrates that the outdoor equipment engine has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper mainte-
nance was the direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed,
and properly operating, adjustment limiting device is still eligible for warranty coverage. Further, the coverage under this warranty extends only to parts that were
present on the off-road engine and equipment purchased.
The following emission warranty parts are covered (if applicable):
(1) Fuel Metering System
Cold start enrichment system (soft choke)•
Carburetor and internal parts (or fuel injection system)•
Fuel pump•
Fuel tank•
(2) Air Induction System
Air cleaner•
Intake manifold•
(3) Ignition System
Spark plug(s)•
Magneto ignition system•
(4) Exhaust System
Catalytic converter•
SAI (Reed valve)•
(5) Miscellaneous Items Used in Above System
Vacuum, temperature, position, time sensitive valves and switches•
Connectors and assemblies•
(6) Evaporative Control
Fuel hose•
Fuel hose clamps•
Tethered fuel cap•
Carbon canister•
Vapor lines•
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY FOR
TANk ZERO-TURN COMMERCIAL RIDING MOWER
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: 1-877-282-8684
MTD Products Limited, kitchener, ON N2G 4J1, Phone: 1-800-668-1238
GDOC-100212 REV. A
IMPORTANT: To obtain warranty coverage owner must present an
original proof of purchase and applicable maintenance records to the
servicing dealer. Please see the operator’s manual for information on
required maintenance and service intervals.
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the
United States and/or its territories and possessions, and by MTD
Products Limited with respect to new merchandise purchased or
leased and used in Canada and/or its territories and possessions
(either entity respectively, “Cub Cadet”).
Cub Cadet warrants this product (excluding its Normal Wear Parts,
Engines, Batteries and Attachments as described below) against
defects in material and workmanship for a period of three (3) years
commencing on the date of original retail purchase or lease and will,
at its option, repair or replace, free of charge, any part found to be
defective in materials or workmanship.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days or one hundred
(100) operation hours, whichever comes first, commencing on the
date of original retail purchase or lease. Normal wear parts include,
but are not limited to items such as: belts, blades, blade adapters,
grass bags, rider deck wheels, seats, and tires.
Engines are warranted to be free from defects in material and
workmanship for a period of two (2) years commencing on the date of
original retail purchase or lease.
Batteries have a one-year prorated limited warranty against defects
in material and workmanship, with 100% replacement during the
first three months. After three months, the battery replacement
credit is based on the months remaining in the twelve (12) month
period dating back to the original date of original sale or lease. Any
replacement battery will be warranted only for the remainder of the
original warranty period.
Attachments — Cub Cadet warrants attachments for this product
against defects in material and workmanship for a period of one (1)
year, commencing on the date of the attachment’s original purchase
or lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse,
abuse, neglect, accident, improper maintenance, alteration,
vandalism, theft, fire, water, or damage because of other peril or
natural disaster. Damage resulting from the installation or use of any
part, accessory or attachment not approved by Cub Cadet for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage. In addition, Cub Cadet may deny warranty
coverage if the hour meter, or any part thereof, is altered, modified,
disconnected or otherwise tampered with.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE AND APPLICABLE MAINTENANCE RECORDS,
through your local authorized service dealer. To locate the dealer in
your area:
In the U.S.A.:
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box
361131, Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.
In Canada:
Contact MTD Products Limited, Kitchener, ON N2G 4J1, call 1-800-
668-1238 or log on to our website at www.mtdcanada.com.
Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:
a. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
b. Service completed by someone other than an authorized service
dealer.
c. Cub Cadet does not extend any warranty for products sold or
exported outside of the United States and/or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of export distribution.
d. Replacement parts and\or accessories that are not genuine Cub
Cadet parts.
e. Transportation charges and service calls.
There are no implied warranties, including without limitation any
implied warranty of merchantability or fitness for a particular
purpose. No warranties shall apply after the applicable period
of express written warranty above. No other express warranties
beyond those mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind Cub Cadet. The exclusive remedy is repair or replacement of
the product as set forth above. The terms of this warranty provide
the sole and exclusive remedy arising from the sale and/or lease
of the products covered hereby. Cub Cadet shall not be liable for
any incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the above exclusions or limitations may not
apply to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights that vary in different jurisdictions.
