Installation Manual
Additional Digital Cordless Handset
Model No. KX-TGDA63
KX-TGDA66
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
– KX-TGD610/KX-TGD630/KX-TGD660
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used. This
installation manual describes only the steps needed to register and begin using
the handset. Please read the base unit’s operating instructions for further details.
Please read this installation manual before using the unit and save it for future
reference.
For assistance, visit our Web site: http://shop.panasonic.com/support
for customers in the U.S.A.
Printed in Malaysia
PNQX9174ZA
PP0521YL0
Accessory information
Supplied accessories
Accessory item/Part number Quantity
Charger
*1
1
Rechargeable batteries/HHR-4DPA 2
Handset cover
*2,
*3
1
*1 PNLC1077ZB (Black), PNLC1077ZW (White)
*2 The handset cover comes attached to the handset.
*3 PNYNTGDA66MR (Black), PNYNTGDA63WR (White)
Note:
R Please read the base unit’s operating instructions for additional/replacement
accessories.
R Please read “Graphical symbols for use on equipment and their descriptions” of
the base unit’s operating instructions.
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
R Completely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
R Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
R Unplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact us at
http://shop.panasonic.com/support
2
For assistance, please visit http://shop.panasonic.com/support
Installation
Installation
R To prevent the risk of fire or electrical shock, do not expose the product to rain
or any type of moisture.
R Do not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
R Do not place the handset on the base unit when battery cover is removed.
CAUTION
Installation and location
R The AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
R The product is only use for mounting at heights £ 2 m.
Note:
R This height is not guaranteed for product reliability.
R To prevent serious injuries due to the product unexpectedly falling, the
product must be installed at a height of 1.5 m or lower.
Battery
R We recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
R Do not mix old and new batteries.
R Do not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
R Exercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
R Charge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
R Only use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
R Avoid the use in the following conditions:
– High or low extreme temperatures during use, storage or transportation.
– Replacement of a battery with an incorrect type that can defeat a safeguard.
– Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion.
For assistance, please visit http://shop.panasonic.com/support
3
Installation
– Extremely high temperature and/or extremely low air pressure that can result
in an explosion or the leakage of flammable liquid or gas.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY
(1-800-822-8837) for information on how
to recycle this battery.
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
R The applied nameplate is located at the bottom or rear of the product.
R Operating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions.
Routine care
R Wipe the outer surface of the product with a soft moist cloth.
R Do not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
R This product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
4
For assistance, please visit http://shop.panasonic.com/support
Installation
Specifications
R Standard:
Bluetooth wireless technology 4.2
– Hands Free Profile (HFP)
– Headset Profile (HSP)
– Phone Book Access Profile (PBAP)
– Object Push Profile (OPP)
– Serial Port Profile (SPP)
– Message Access Profile (MAP)
R Frequency range:
1.92 GHz to 1.93 GHz (DECT)
2.402 GHz to 2.48 GHz (Bluetooth)
R RF transmission power:
115 mW (max.)
R Power source:
120 V AC, 60 Hz
R Power consumption:
Standby: 0.1 W
Maximum: 1.8 W
R Operating conditions:
0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry)
Setting up
Connections/Wall mounting
Connect the AC adaptor to the power outlet.
Drive the screws (
1
) (not supplied) into the wall, if necessary.
2
27.2 mm (1
1
/16 inches)
1
2
1
2
Note:
R The AC adaptor must remain connected at all times. (It is normal for the adaptor
to feel warm during use.)
For assistance, please visit http://shop.panasonic.com/support
5
Installation
R Make sure that the wall and the fixing method are strong enough to support the
weight of the unit.

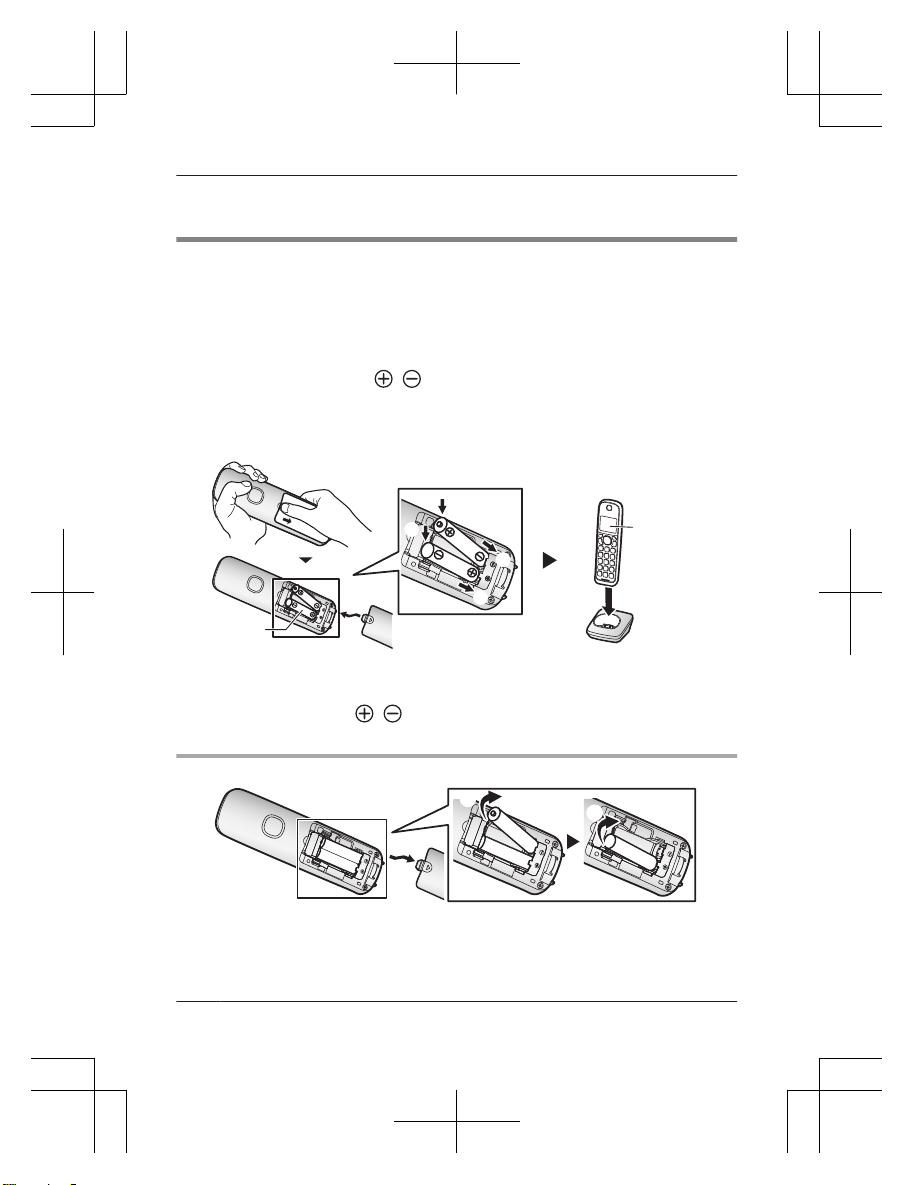

Battery installation/Battery charging
Important:
R Use the supplied rechargeable batteries. For replacement, we recommend using
the Panasonic rechargeable batteries noted on page 2.
R USE ONLY rechargeable Ni-MH batteries AAA (R03) size (
1
).
R Do NOT use alkaline/manganese/Ni-Cd batteries.
R Confirm correct polarities ( , ).
Charge for about 7 hours.
R Confirm “Charging” is displayed (
2
).
R When the batteries are fully charged, “Fully charged” is displayed.
2
1
4
2
3
1
Note:
R If the batteries are fully charged, but the operating time seems to be shorter,
clean the battery ends ( , ) and the charge contacts with a dry cloth and
charge again.
Removing the battery
1
2
6
For assistance, please visit http://shop.panasonic.com/support
Installation

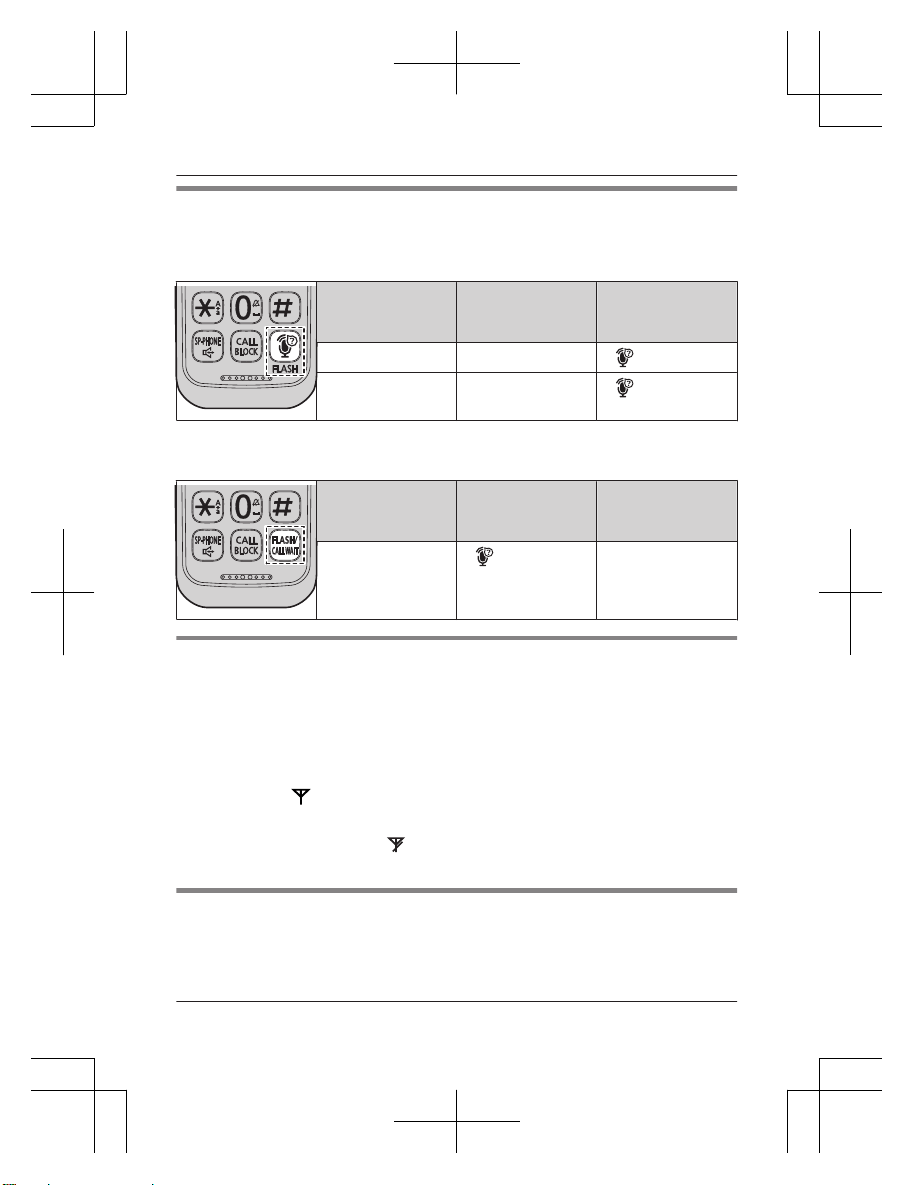

Handset key print
For the following function, the key prints are different for the supplied handset and
optional handset.
n KX-TGDA66: For KX-TGD610/KX-TGD630 series users
Function Supplied
handset
Optional
handset
(KX-TGDA66)
Flash MFLASHN
M N
*1
/MFLASHN
Call waiting MCALL WAITN
M N
*1
/MFLASHN
*1 The remote voice assist feature is only available for KX-TGD660 series.
n KX-TGDA63: For KX-TGD660 series users
Function Supplied
handset
Optional
handset
(KX-TGDA63)
Remote voice
assist
M N
MFLASHN/
MCALL WAITN
Registering a handset to a base unit
1 Base unit:
Press and hold MLOCATORN for about 5 seconds.
R If all registered handsets start ringing, press MLOCATORN again to stop,
then repeat this step.
2 Handset:
Place the handset on the base unit or charger, then wait until a long beep
sounds and is displayed.
Note:
R If an error tone sounds, or if
is displayed, register the handset according to
the base unit’s operating instructions.
Display language
1 MMENUN#110
2 MbN: Select the desired setting. a MSAVEN a MOFFN
For assistance, please visit http://shop.panasonic.com/support
7
Installation
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section
68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
8
For assistance, please visit http://shop.panasonic.com/support
Installation
FCC RF Exposure Warning:
R This product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
R This handset may not be collocated or operated in conjunction with any other
antenna or transmitter.
R For body-worn operation, the handset must be used only with a non-metallic
accessory. Use of other accessories may not ensure compliance with FCC RF
exposure requirements.
Notice:
R FCC ID can be found inside the battery compartment or on the bottom of the
unit.
Compliance with TIA-1083 standard
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Telephone handsets identified with this logo have reduced
noise and interference when used with T-Coil equipped
hearing aids and cochlear implants.
Notice:
LThis product is designed for use in the United States of America. Sale or use
of this product in other countries may violate local laws.
LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente
ou l’emploi de cet appareil dans certains autres pays peut constituer une
infraction à la législation locale.
LEste producto está diseñado para usarse en los Estados Unidos de América.
La venta o el empleo de este producto en ciertos países puede constituir
violación de la legislación local.
Lҏࠢட࣏ٺҢՄ೩Ȅӵڏтড়୵ܖٺҢȂџོႂІ࿋ӴݲٽȄ
Lߎߩຠߪޔᣣᧄ࿖ᄖߢߩ↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ
↪ߪᴺᓞ㆑ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅ߡߪේೣߣߒ
ߡୃℂߥߤߩࠨࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ
For assistance, please visit http://shop.panasonic.com/support
9
Installation
Customer services
Accessories!
hp://shop.panasonic.com/support
Customer Services Directory
Shop
for all your Panasonic gear
Go to
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Baeries,
Backup Chargers & more…
For Product Informa!on, Opera!ng Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to hp://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
10
For assistance, please visit http://shop.panasonic.com/support
Appendix
Limited Warranty (ONLY FOR U.S.A.)
Limited Warranty Coverage (For USA Only)
Labor
One (1) Year
Parts
One (1) Year
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
Panasonic Products Limited Warranty
Online Repair Request
Mail-In Service--Online Repair Request
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. This Limited Warranty excludes both
parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the United States.
This warranty is extended only to the original purchaser of a new product which was
not sold “as is”.
Telephone
When shipping the unit, carefully pack, include all supplied accessories listed in the
Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box.
When shipping Lithium Ion batteries please visit our Web Site at
http://shop.panasonic.com/support as Panasonic is committed to providing the most up to
date information. Include a letter detailing the complaint, a return address and provide a
daytime phone number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Product or Part Name
For assistance, please visit http://shop.panasonic.com/support
11
Appendix
Limited Warranty Limits and Exclusions
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of or damage to media or images, data or other memory or recorded content.
The items listed are not exclusive, but for illustration only.)
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business
or rental use of the product, or service by anyone other than a Factory Service Center
or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY.
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty period,
you may contact your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to:
Panasonic Corporation of North America
Consumer Affairs Department 8th FI.
Two Riverfront Plaza
Newark NJ 07102-5490
As of January 2020
12
For assistance, please visit http://shop.panasonic.com/support
Appendix
1 Reconnect AC adaptor to the base unit.
2 Check if telephone line cord is connected.
3 Use rechargeable Ni-MH batteries.
(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.)
4 Read troubleshooting page in the base unit’s
Operating Instructions.
IMPORTANT!
If your product is not working properly. . .
Visit our Web site: http://shop.panasonic.com/support
LFAQ and troubleshooting hints are available.
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic Corporation 2021
For assistance, please visit http://shop.panasonic.com/support
13
Appendix
14
Notes
6
Notas
n KX-TGDA63: Para los usuarios de la serie KX-TGD660
Función Auricular propor-
cionado
Auricular opcional
(KX-TGDA63)
Asistente de voz re-
moto
M N
MFLASHN/
MCALL WAITN
Cómo registrar un auricular a una unidad base
1 Unidad base:
Oprima y mantenga oprimido MLOCATORN durante aproximadamente 5 segundos.
R Si todos los auriculares registrados comienzan a timbrar, oprima MLOCATORN de
nuevo para detenerlos y después repita este paso.
2 Auricular:
Coloque el auricular en la unidad base o cargador, y después espere hasta que suene
un pitido largo y aparezca .
Nota:
R Si suena un tono de error, o si se muestra , registre el auricular de acuerdo con las
instrucciones de operación de la unidad base.
Idioma de la pantalla
1 MMENUN#110
2 MbN: Seleccione la configuración deseada. a MGUARDARN a MOFFN
5
Instalación
R Una vez que las baterías están completamente cargadas, aparece “Carg. comp.”.
2
1
4
2
3
1
Nota:
R Si las baterías están completamente cargadas pero el tiempo de funcionamiento parece
ser más corto, limpie los extremos de las baterías ( , ) y los contactos de carga con
un paño seco y cárguelas de nuevo.

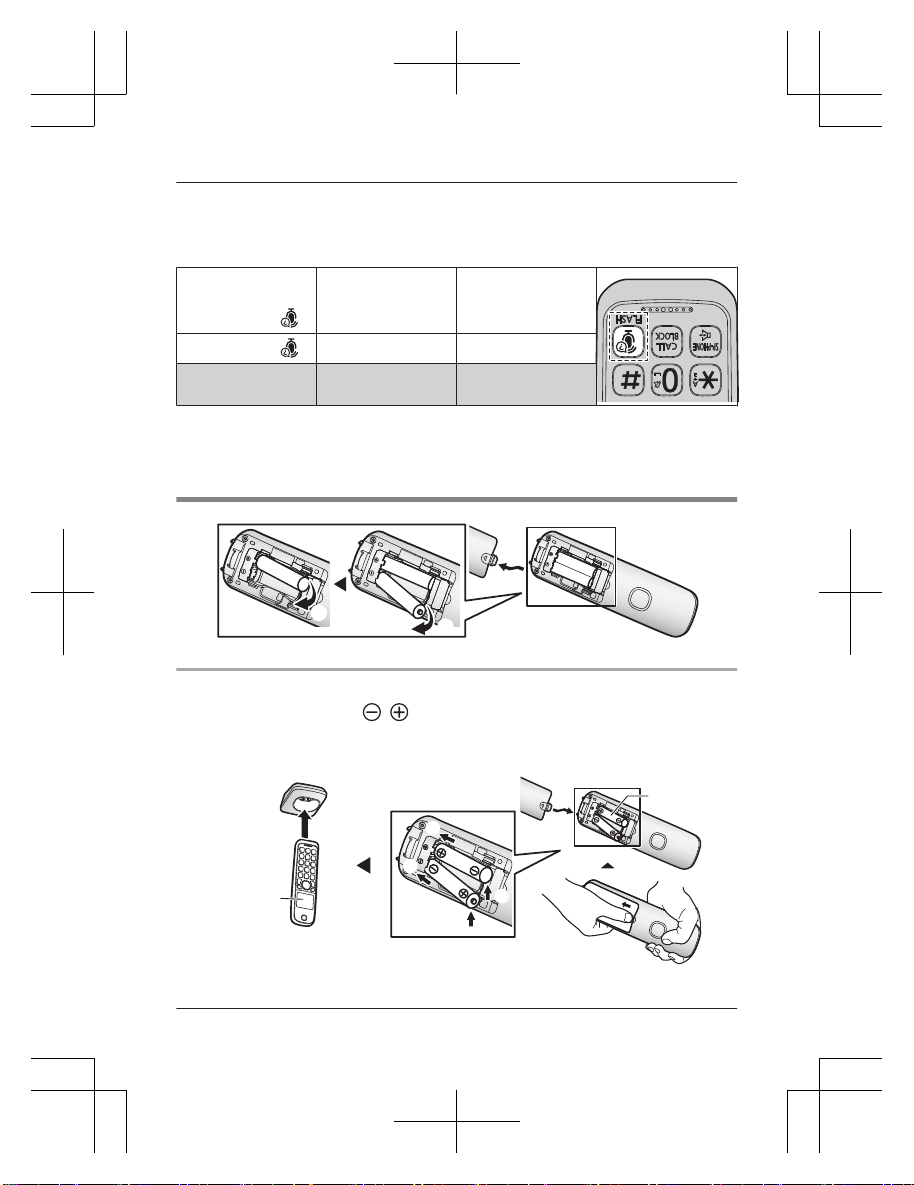

Extracción de la batería
1
2
Símbolo en teclas del auricular
Para la siguiente función, las teclas son diferentes para el auricular suministrado y el
opcional.
n KX-TGDA66: Para los usuarios de la serie KX-TGD610/KX-TGD630
Función Auricular propor-
cionado
Auricular opcional
(KX-TGDA66)
Flash MFLASHN
M N
*1
/MFLASHN
Llamada en espera MCALL WAITN
M N
*1
/MFLASHN
*1 La función asistente de voz remoto solo está disponible para la serie KX-TGD660.
4
Instalación
Instalación
Conexiones/Montaje en la pared
Conecte la clavija del adaptador de corriente a la toma de corriente.
Si lo requiere, inserte los tornillos (
1
) (no se suministran) en la pared.
2
27.2 mm (1
1
/16 pulgadas)
1
2
1
2
Nota:
R El adaptador de corriente debe permanecer conectado en todo momento (es normal que
el adaptador se caliente durante su uso).
R Asegúrese de que la pared y el método de colocación sean lo suficientemente
resistentes para soportar el peso de la unidad.
Instalación y carga de la batería
Importante:
R Utilice las baterías recargables que se suministran. Para reemplazarlas, recomendamos
el uso de las baterías recargables Panasonic que se especifican en la página 2.
R USE SÓLO baterías Ni-MH recargables tamaño AAA (R03) (
1
).
R NO utilice baterías alcalinas, de manganeso ni de Ni-Cd.
R Confirme que las polaridades estén correctas ( , ).
Cargue aproximadamente durante 7 horas.
R Confirme que se muestre “Cargando” (
2
).
3
Instalación
Información de los accesorios
Accesorios que se suministran
Accesorio/Pieza número Cantidad
Cargador
*1
1
Baterías recargables/HHR-4DPA 2
Cubierta del auricular
*2,
*3
1
*1 PNLC1077ZB (Negro), PNLC1077ZW (Blanco)
*2 La tapa del auricular viene unida a él.
*3 PNYNTGDA66MR (Negro), PNYNTGDA63WR (Blanco)
Nota:
R Lea las instrucciones de operación de la unidad base para obtener información sobre
accesorios adicionales o de repuesto.
R Lea la sección “Símbolos gráficos para utilizar en el equipo y sus descripciones” de las
instrucciones de operación de la unidad base.
Especificaciones
R Estándar:
Tecnología inalámbrica Bluetooth 4.2
– Perfil de manos libres (HFP)
– Perfil del audífono (HSP)
– Perfil del acceso a la guía telefónica (PBAP)
– Perfil de carga de objetos (OPP)
– Perfil de puerto serie (SPP)
– Mensaje del perfil de acceso (MAP)
R Rango de frecuencia:
1.92 GHz a 1.93 GHz (DECT)
2.402 GHz a 2.48 GHz (Bluetooth)
R Potencia de transmisión de RF:
115 mW (máx.)
R Alimentación eléctrica:
120 V CA, 60 Hz
R Consumo de energía:
Modo de espera: 0.1 W
Máximo: 1.8 W
R Condiciones de funcionamiento:
0 °C a 40 °C (32 °F a 104 °F), 20% a 80% de humedad relativa (seco)
2
Instalación
Manual de instalación
Auricular Inalámbrico Digital Adicional
Modelo n° KX-TGDA63
KX-TGDA66
Gracias por adquirir un producto Panasonic.
Esta unidad es un auricular adicional compatible con la siguiente serie de teléfonos ina-
lámbricos digitales Panasonic:
– KX-TGD610/KX-TGD630/KX-TGD660
(Los modelos correspondientes están sujetos a cambio sin previo aviso.)
Debe registrar este auricular en su unidad base antes de poder usarlo. Este manual de
instalación solo describe los pasos necesarios para registrar y comenzar a usar el auri-
cular. Lea las instrucciones de operación de la unidad base para obtener más detalles.
Lea este manual de instalación antes de usar la unidad y guárdelo para consultarlo en el
futuro.
Para obtener ayuda, visite nuestro sitio web: http://shop.panasonic.com/support
para clientes en los EE. UU. (solo en inglés).
