Operating Instructions
1200W Radiant Wall Heater
Model: GBR100
CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal safety device, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this appliance. Covering this appliance
presents fire risk and will activate the safety device; permanently disabling the
unit.
WARNING: Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on their own, unless
constant supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
General Care and Safety Guide
• Use only the voltage specified on the rating label of the appliance.
• Keep all objects at least 1 metre from the front and sides of the appliance.
• This appliance is intended for household use only and not for commercial or
industrial use.
• Indoor use only.
• Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or
injury.
• Do not use the appliance if it has been dropped or damaged.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
• Never use the appliance to dry clothes.
• Always unplug appliance when not in use.
• When the appliance has been unpacked, check it for transport damage and
ensure all parts have been delivered. If parts are missing or the appliance has
been damaged, contact the Customer Services Team.
• Do not use if there are visible signs of damage to the appliance.
• Do not connect the appliance to mains supply until completely assembled and
adjusted.
• Ensure hands are dry before handling the plug or main unit.
• Ensure appliance is on a flat, stable, heat-resistant surface.
• Do not operate with cord set coiled up as a heat build up is likely, which could
be sufficient to become a hazard.
• Carry out regular checks of the supply cord to ensure no damage is evident
• Do not operate this appliance with a damaged cord, plug or after the appliance
malfunctions or has been dropped or damaged in any manner. Take to a
qualified electrical person for examination, electrical service or repair.
• Do not twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed
from any cord storage area and is unrolled before use.
• It is recommended that this appliance is plugged directly into the wall socket.
Power boards are not rated to supply power to high wattage appliances.
• A correctly specified, undamaged extension cord may be used with this
appliance provided it is used in a safe manner.
• Do not remove plug from power socket until the appliance has been switched
off.
• Do not remove plug from power socket by pulling cord; always grip plug.
• Don’t place appliance on bedding or on thick & long carpet where the openings
may get blocked.
• Switch off when moving
• Do not place appliance close to radiant heat source.
• Do not insert or allow foreign objects to enter any ventilation or exhaust
opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not sit on the appliance.
• Always remove plug from the mains supply before cleaning. Do not use abrasive
cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in
hot soapy water only.
• Do not operate in areas where petrol, paint or other flammable liquids are used
or stored.
• Do not use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids.
General Care and Safety Guide
• The appliance must not be immersed in any liquids.
• There are no user serviceable parts installed in the unit.
• Do not operate the unit in wardrobes or other enclosed spaces as this may
cause fire hazards.
• This unit is not supposed to be used in or around locations where foodstuffs,
works of art or delicate articles of science, etc. are stored.
• If your appliance does not work, or is not working properly, contact the place of
purchase or the Customer Services Team.
General Care and Safety Guide
Installing your Appliance
Always choose a safe location for the heater, keeping in mind the safety
precautions outlined. Ensure all packaging has been removed from the unit
before use.
BEFORE USING THIS APPLIANCE, IT MUST BE WALL MOUNTED.
WALL MOUNTED HEATERS ARE ONLY TO BE MOUNTED ON HEAT RESISTANT
WALLS THAT COMPLY WITH CURRENT AS/NZS SPECIFICATIONS & BUILDING
REGULATIONS
CAUTION: Do not run the power cord behind the heater.
CAUTION:Do not mount directly under or over an electrical power socket.
It is recommended to install the heater to the side of the power socket.
The cord length is 1.5m, an electrician may be required to install a power
socket nearer to the appliance.
Decorating tip: All wall mounted heaters may cause paint to discolour or
wallpaper to lift.
LOCATION
The heater must be located with at least 1 metre clearance to anything in
front of the heater.
NOTE: Your Goldair Ceramic Wall Heater must be installed with
• at least 1.8m clearance from the floor
• at least 500mm clearance from the ceiling
• 300mm clearance from the sides
• 300mm from the bottom of the heater including to other appliances,
shelves and pictures.
• At least min 1000mm clearance from any flammable material including
textiles, curtains and soft furnishings.
Do not mount anything within 300mm below the heater.
Do not mount the heater above a door.
See mounting instruction on next page
Installing your Appliance
When positioning and connecting the heater, make sure that your hands do not
touch the heating elements. This is because traces can be left behind which,
afterwards, will have a negative effect on the radiated heat.
For use with a plug, the following applies: do not use extension leads and do not
connect any other equipment next to the heater in the same socket!
Position the mounting bracket with the long side and 2 holes against the wall in
the required position, then mark the drill holes. Make sure that the drill holes are
positioned at the same height. Remove the bracket and drill 2 holes in the spots
marked. Knock in the raw plugs, position the bracket over the top and screw it
firmly into the wall using the screws supplied.
Place the heater over the bracket with the cord down and large holes positioned
over large holes. Screw securely using the bolts, rings and nuts supplied (1).

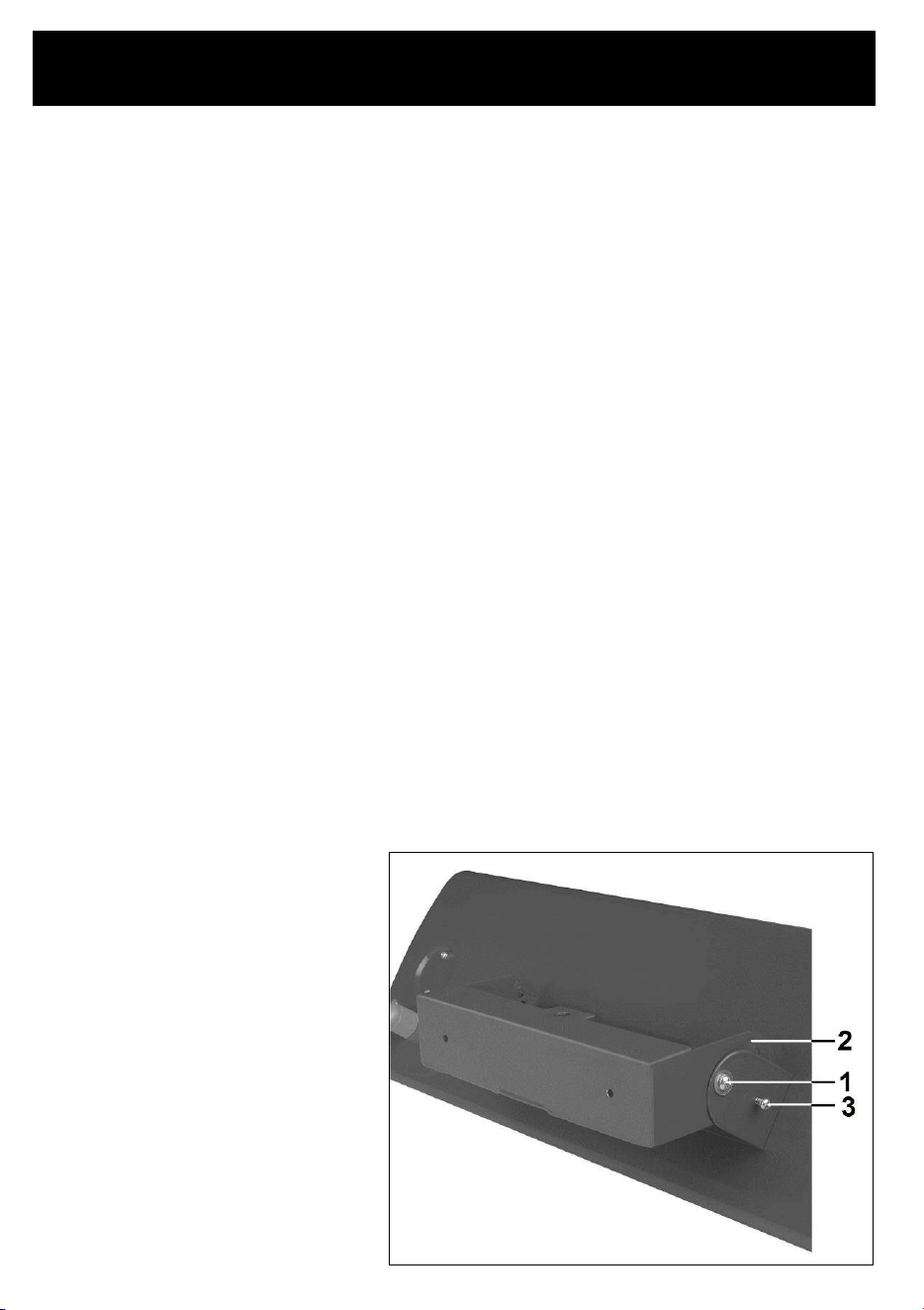

Adjust the heater to the required position. The body of the heater can be adjusted
to 5 positions (small heater holes (3) over small bracket holes (2)). The mid
position is horizontal to the room. The two positions which are directed
upwards will only be used in exceptional cases and require a greater distance to
the ceiling (2 metre). Finally, the heater has two positions which are directed
downwards. These are the standard positions. Secure the heater at the required
angle by screwing both of the small screws into the double holes.
The heater is now ready for use.
Operating Your Heater
WARNING:In order to avoid overheating or fire, DO NOT COVER the heater.
WARNING: Keep all objects at least 1 metre from the front and 300mm from
the sides of the appliance.
WARNING: Do not use this heater with a programmer, separate timer,
remote-control system or any other device that switches the heater on
automatically, as a fire risk exists if the heater is covered or positioned
incorrectly.
WARNING:Never leave this heater unattended when in use.
WARNING: This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are occupied by
persons not capable of leaving the room on their own, unless constant
supervision is provided.
Ensure heater is mounted on a flat, stable, heat-resistant wall.
Once the heater is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet and switch on.
CAUTION: Ensure the power cord is not tight because if pulled it may partially
pull the plug from the socket. A partially inserted plug will overheat the plug and
socket and could result in fire.
Note: When the appliance is turned on for the first time, it may release a slight
odour or smoke. This odour or smoke is a normal occurrence caused by the initial
heating of the internal heating elements and should not occur again.
The control switch positions are:
“0” = OFF
“I” = Low Heat (600W)
“II” = High Heat (1200W)
To operate the heater, pull the pull switch. Each time you pull the pull switch, the
heater will change to the next setting. You are able to view your heater’s setting
through the window.
Operating Your Heater
Cool Down Period - To assist in protecting the internal components, when the unit is
turned Off the fan will continue to blow room temperature air for a period of 30-60
seconds before shutting down to standby. DO NOT TURN OFF AT THE WALL DURING
THIS TIME.
SAFETY DEVICES
This appliance has two protection devices:
• Resettable Thermal Link - this will automatically disconnect the power to the
element at a pre-set overheat temperature. After cooling down it will reset and
power on again. If this occurs, investigate what is causing the appliance to
overheat.
• Thermal Fuse - this disconnects the appliance permanently in case of overheating.
(It is non resettable).
CAUTION: The appliance generates heat during use. Precautions must be
taken to prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
The heater requires regular cleaning to ensure trouble free operation:
• Do not attempt to dismantle the heater.
• There are no user serviceable parts. For service or repair, contact an authorised
electrical service technician.
• Unplug the heater from the mains supply before cleaning.
• Ensure that the heater has been allowed to cool down completely before cleaning.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
• Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and
dirt.
• Never use solutions such as petrol, thinners or polishing agents.
• Ensure the heater is dry before plugging back into the mains supply.
SUPPORT AND TECHNICAL ADVICE
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase.
Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Two Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair – New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland
Phone +64 (0)9 917 4000
Phone 0800 232 633
www.goldair.co.nz
Goldair – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone +61 (0)3 9365 5100
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
