INSTALLATION AND USER MANUAL
COOKER HOOD
Please read this manual before using or installing the cooker hood and
keep it safe for future reference.
Visit our page
www.electriQ.co.uk for our entire range of electricals
60cm hood
90cm hood
Stainless steel
eiQCURV60SC
eiQCURV90SC
Black
eiQCURV60BL
eiQCURV90BL
white
eiQCURV60WH
eiQCURV90WH
2
CONTENTS
SAFETY
3
PARTS LIST
5
INSTALLATION
6
EXHAUST DUCT INSTALLATION
11
OPERATION
12
BULB REPLACEMENT
13
FILTER INFORMATION
14
GLASS CANOPY MAINTENANCE
15
CLEANING AND MAINTENANCE
16
TROUBLESHOOTING
17
TECHNICAL SPECIFICATION
18
SUPPORT
19
PRODUCT FICHE
20
3
IMPORTANT SAFETY INFORMATION
Please read this instruction manual carefully and retain for future
reference. It contains important information concerning the safe
operation, installation and maintenance of the appliance.
• There must be adequate ventilation of the room when the
hood is used at the same time as appliances burning gas or
other fuels.
• This cooker hood is only designed for domestic use, and
should not be used in a commercial environment.
• Never use the hood for any purpose other than its intended
use.
• Do not check the status of the filters during operation of the
cooker hood.
• Do not touch the light bulb within 30 minutes of use.
• Do not flambé or excessively flame under the hood.
• Never leave frying food unattended as it can be a serious fire
hazard.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person
in order to avoid a hazard.
• The socket outlet for the hood must be located so it is easily
accessible for the user after installation.
• Ensure the mains supply voltage corresponds with that of the
appliance.
• There is a fire risk if cleaning is not carried out in accordance
with the instructions.
• Ensure that the socket used provides adequate earthing of the
appliance, if unsure professional advice must be sought.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
4
• Cleaning and user maintenance must not be carried out by
children without supervision.
• When the hood is being maintained, cleaned or filters
changed, make sure it is switched off at the mains supply.
• The exterior of the hood should be cleaned with mild detergent
on a warm damp sponge or cloth.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels.
• Regulations concerning the discharge of air have to be
fulfilled.
• The minimum distance between the supporting surface for the
cooking vessels on the hob and the lowest part of the hood
must be at least 65 cm.
• When the cooker hood is used in conjunction with appliances
supplied with energy other than electric, the negative pressure
in the room must not exceed 0,04 mbar to prevent fumes
being drawn back into the room by the cooker hood.
• Failure to install the hood in accordance with these
instructions may result in electrical hazards.
CAUTION:
Accessible parts may become hot when used with cooking
appliances.
Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames
5

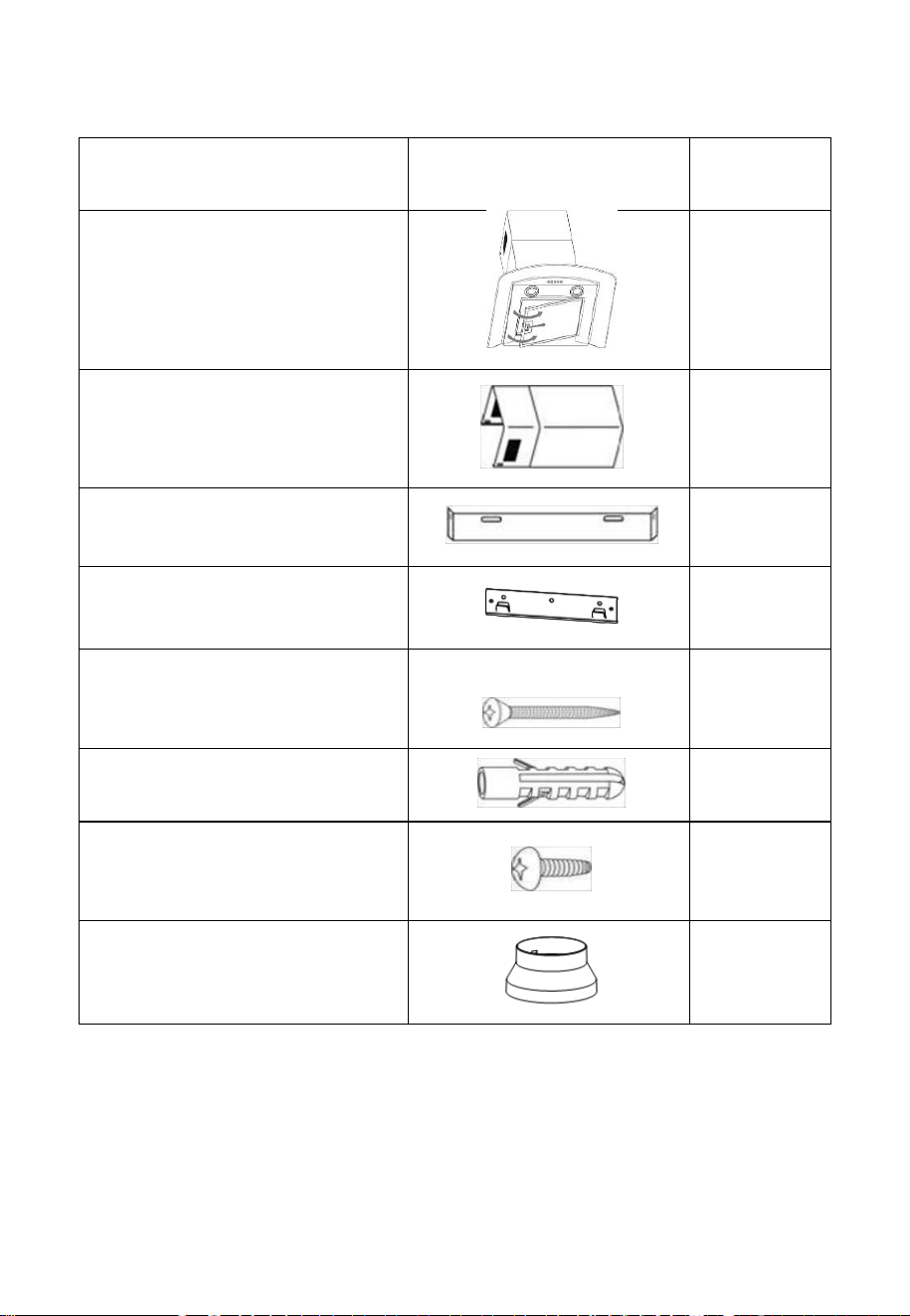

PARTS
DESCRIPTION
ILLUSTRATION
QTY
Cooker Hood
1
Chimney Sections
2
Chimney bracket
2
Hood Installation Plate
1
Screw (ST5*50)
7
Wall plug
7
Screw (ST4.2*9.5)
6
Exhaust adaptor
1
6
INSTALLATION DIAGRAM
Upper
Chimney
Bracket
Lower
Chimney
Bracket
Hood
Installation
Plate
7

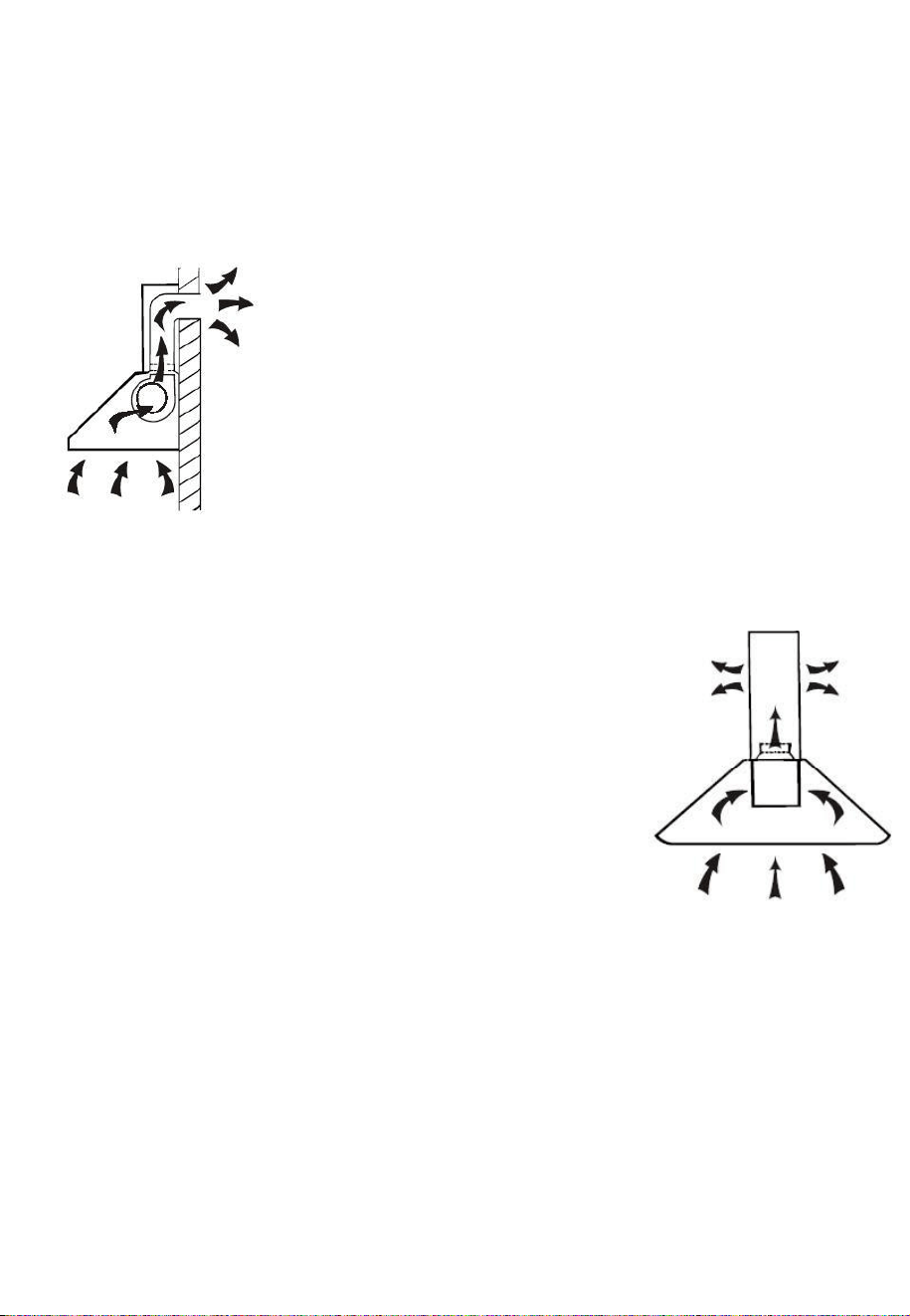

OPTIONS FOR VENTILATION
This hood can be set up for either external venting or recirculation of the
air. The type of setup should be decided before commencing installation.
EXTERNAL VENTING
A 150mm diameter flexible pipe is provided which
allows the cooking odours to be extracted outside.
If this is the chosen installation method
consideration to the route of the vent pipe should
be made. The unit is also provided with an adaptor
allowing pre-existing 120mm ducting to be used to
vent the unit.
RECIRCULATION
This Cooker hood also supports the recirculation of
the air once it has passed through the filters. The
filtered air is then expelled through the vent holes in
the side of the chimney.
When setting the unit up in this configuration, carbon
filters should also be used to remove odours from
the air. Details of sourcing and fitting the filters can
be found in the Carbon filter section.
8
INSTALLATION
BEFORE INSTALLING YOUR HOOD:
• Unpack the hood and check that all functions are working. Ensure that the
voltage (V) and the frequency (Hz) indicated on the serial plate match the
voltage and frequency at the installation site.
• Check that the area behind the installation surface to be drilled is clear of
any electrical cables or pipes, etc.
• The surfaces of the hood are very easily damaged during installation if
grazed or knocked by tools. Please take care to protect the surfaces
during installation.
• Protect the hob surface with cardboard, or similar, to prevent damage
occurring whilst the hood is being installed above.
• The manufacturer shall not be liable for any failure to observe all safety
regulations in force for the correct and normal operation of electrical
products.
• Ensure the wall is level and the installation plates are horizontal to
prevent grease from accumulating within the hood.
• Ensure the power has been turned off at the mains before starting
installation.
• Connection to the mains supply must be in an accessible location.
• You may need the following tools to complete this installation:
• Drill appropriate for your wall
• Phillips Screwdriver
• Tape Measure
• Hand Saw or Jig Saw
• Electrical wiring must be done by a qualified person in accordance with all
applicable codes and standards, including fire rated construction.
INFORMATION
• Sufficient air is needed for proper combustion and exhaustion of gases
through the flue (chimney) for fuel burning equipment to prevent back
drafting. Ductless fans must always be vented to the outdoors.
• When assessing the air pressure, the entire ventilation system in the
house/apartment must be taken into account.
• All legal regulations must be observed for the conveyance of exhaust air.
If the extractor hood is used in recirculating mode with the optional carbon
filter, there are no operating restrictions.
9
1. Before installation, ensure you have not connected the appliance to the
mains supply.

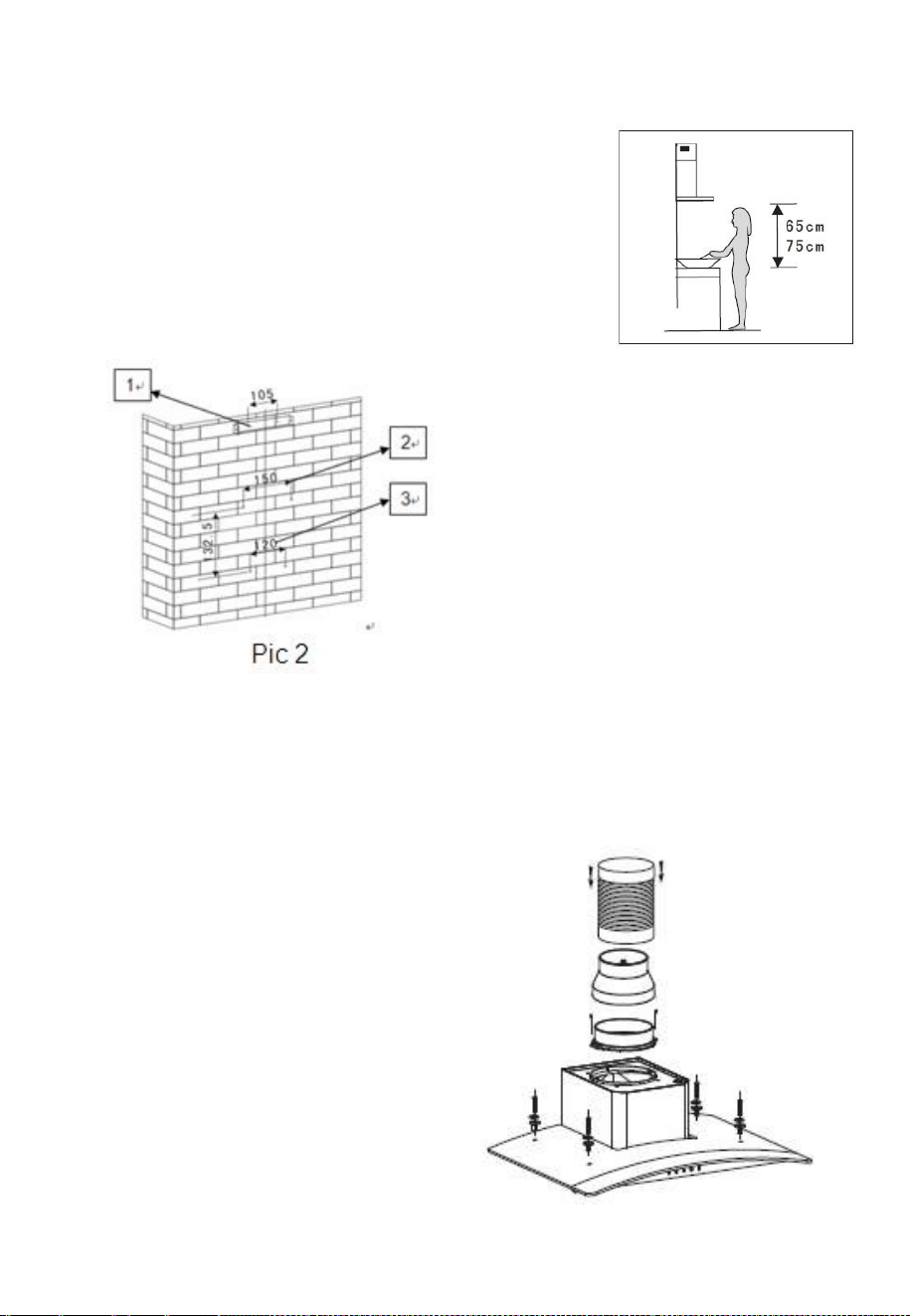

2. The cooker hood should be placed at a
distance of 65~75cm above the cooking plane
for best effect.
• After confirming the cooker
hood height, measure the position of
the holes for hanging the hood and
inside chimney bracket. Drill 4 φ8
holes, 2 for inside chimney bracket
and 2 for hanging the hood, and
keep the hood level. The chimney
bracket should be secured at the
highest place of chimney.
• Screw two 4 x 30mm screws on the wall
with wall plugs to fix the hood, then use two
4mm x 40mm screws to fix the inside
chimney bracket. See Pic 2.
• Put the glass according to
the lead direction and way on
the cooker hood, and then
use the screws to fix the
glass. Install the outlet onto
the hood.
• Then attach the outlet,
converter and expansion
pipe (IF USING) as shown
below, and fix the pipe on the
converter by cable tie, then
lead the expansion pipe to
the wall outlet. See pic 3.
10

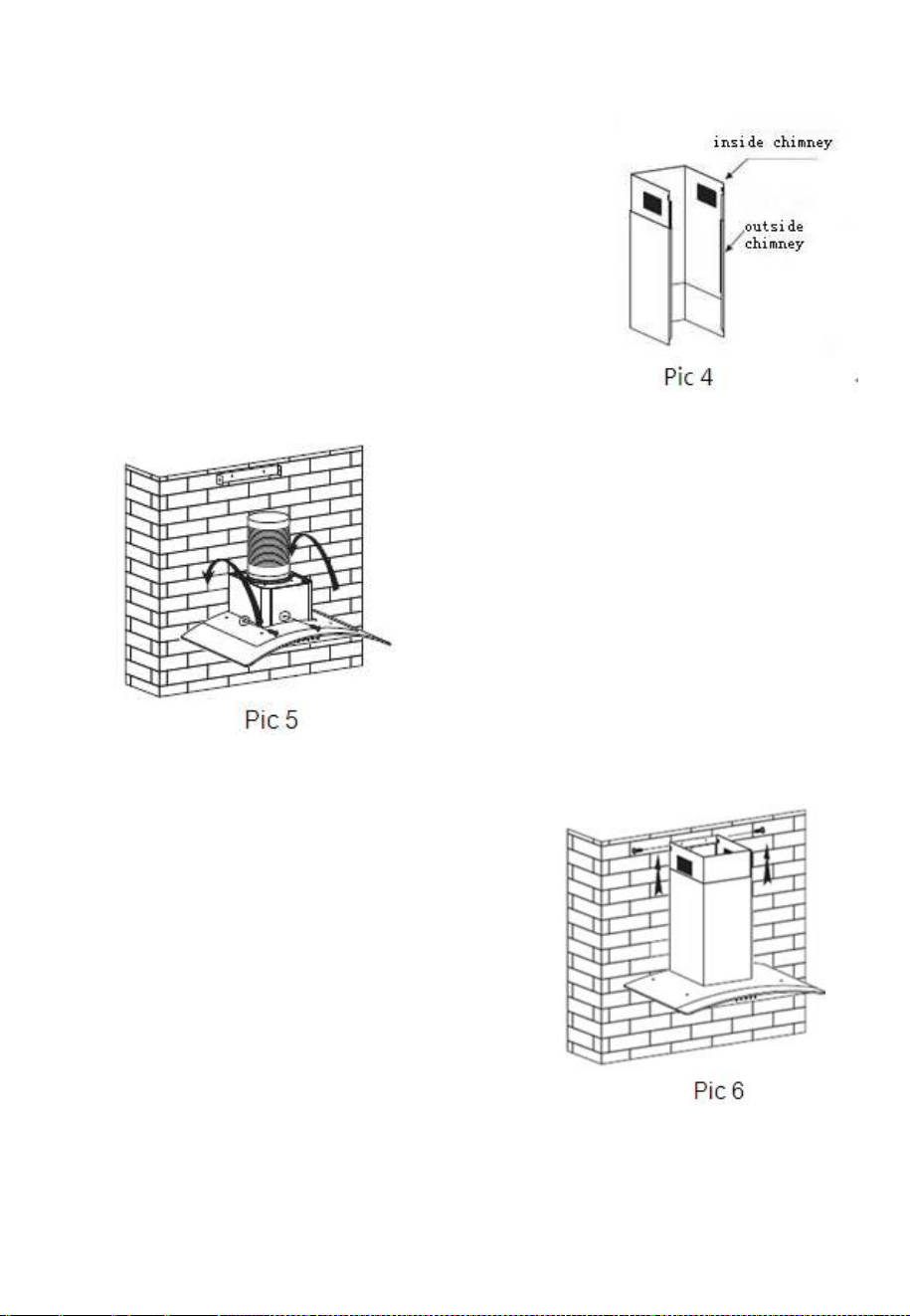

• Dress the inside chimney into the outside
chimney. See Pic 4.
• Make the hood hang on the wall in the
fixed position, adjusting the cooker hood
position, fix the cooker hood with safety
screws.
• The two safety vents are positioned
on the back housing, with diameter of
6mm.See Pic 5.
• Put the two chimneys together onto
the cooker hood body, meanwhile
adjust the height of the inside
chimney into the suitable height,
and fix the inside chimney to the
inside chimney bracket by screw,
here should be sure the inside
chimney can be flexed freely. See
Pic 6.
11
EXHAUST DUST INSTALLATION
The following rules must be strictly followed to obtain optimal air
extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to
minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance
and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or
competent person.
• Do not connect the ducting system of the hood to any existing
ventilation system which is being used for any other appliance, such as
warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than
120º; you must direct the pipe horizontally, or, alternatively, the pipe
should go up from the initial point and should be led to an outer wall.

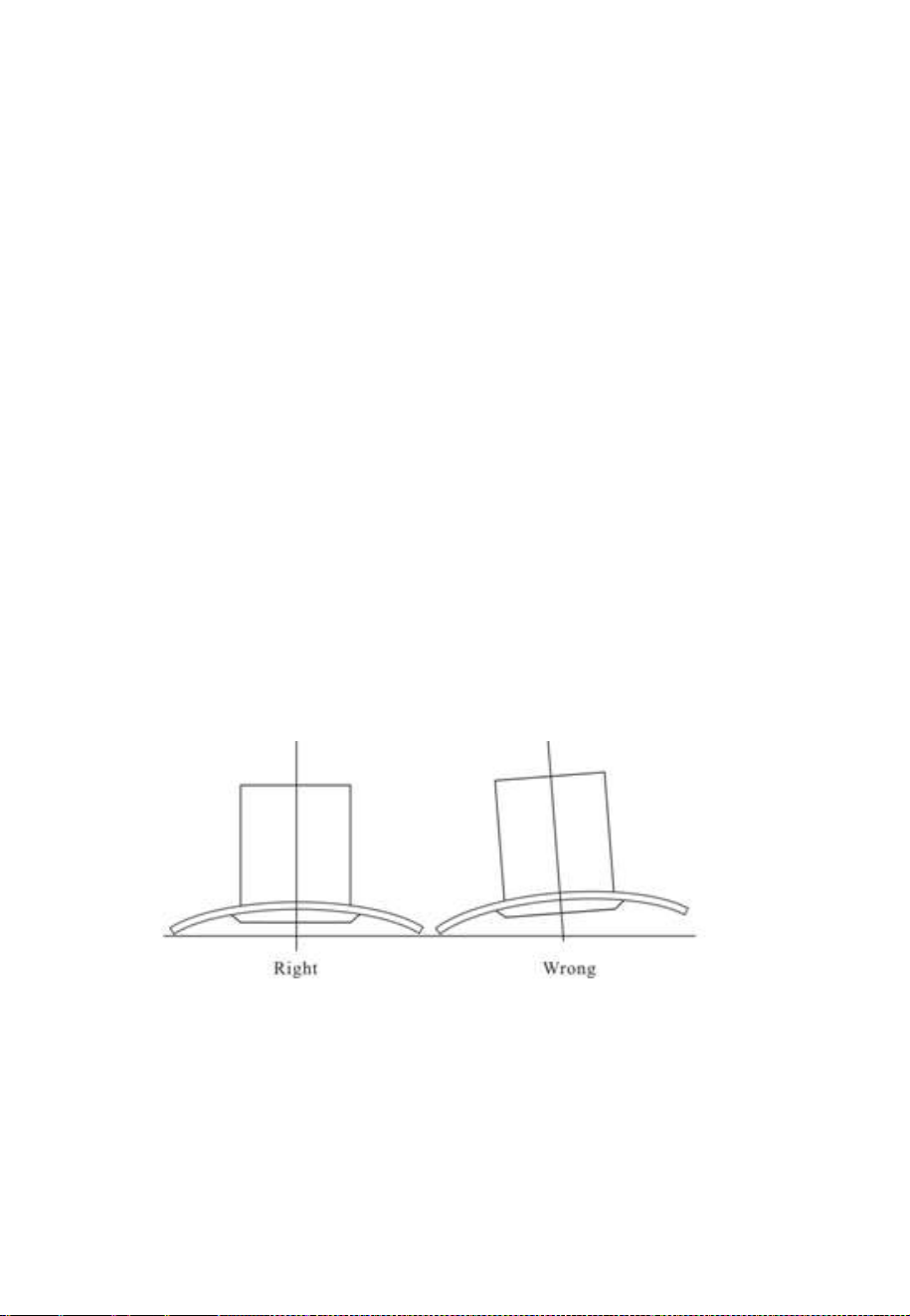

• After the installation, make sure that the cooker hood is level to avoid
grease collection at on end.
• Ensure the expansion pipe selected for installation complies with
relevant standards and is fire retardant.
12

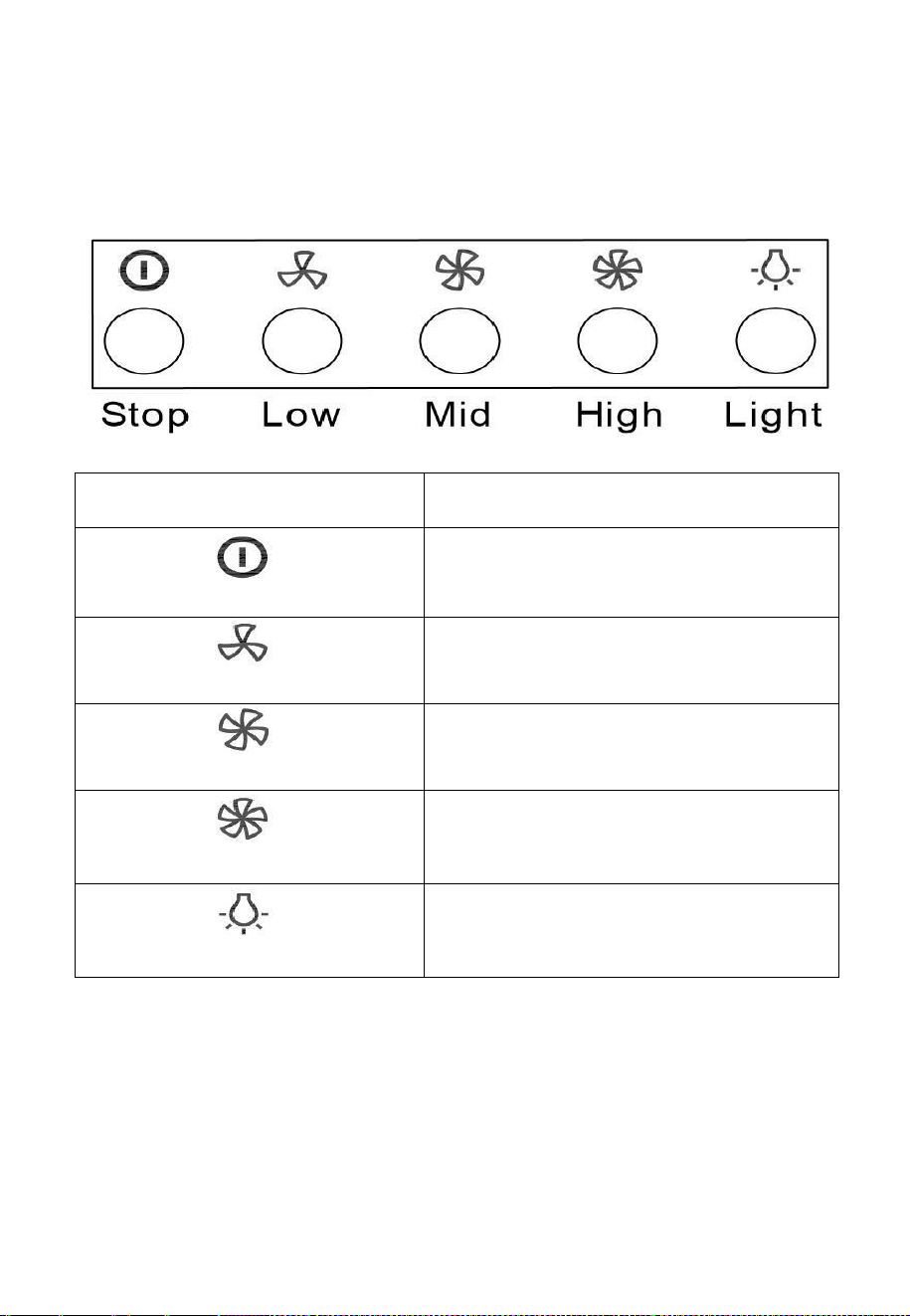

OPERATION
Operation of your hood is extremely simple. There are essentially 3 controls:
Power Off; Fan Speed (3 separate buttons) and Illumination.
BUTTON
OPERATION
Stop
Stops operation of the currently
selected fan speed
Low
Fan will run at low speed
Mid
Fan will run at medium speed
High
Fan will run at high speed
Light
To turn the lights On and Off
13
REPLACING THE BULB
This hood is fitted with an LED light unit, which under normal operation
can last the lifetime of the hood. In the event that it does fail,
replacement light units are available from the same retailer the hood was
purchased from.
Before changing the fitting, ensure the hood is turned off and the power is
removed by either unplugging the unit or switching off at the pole switch
(if installed) before attempting to change the bulb. Wait until the bulb has
cooled down before commencing replacement.

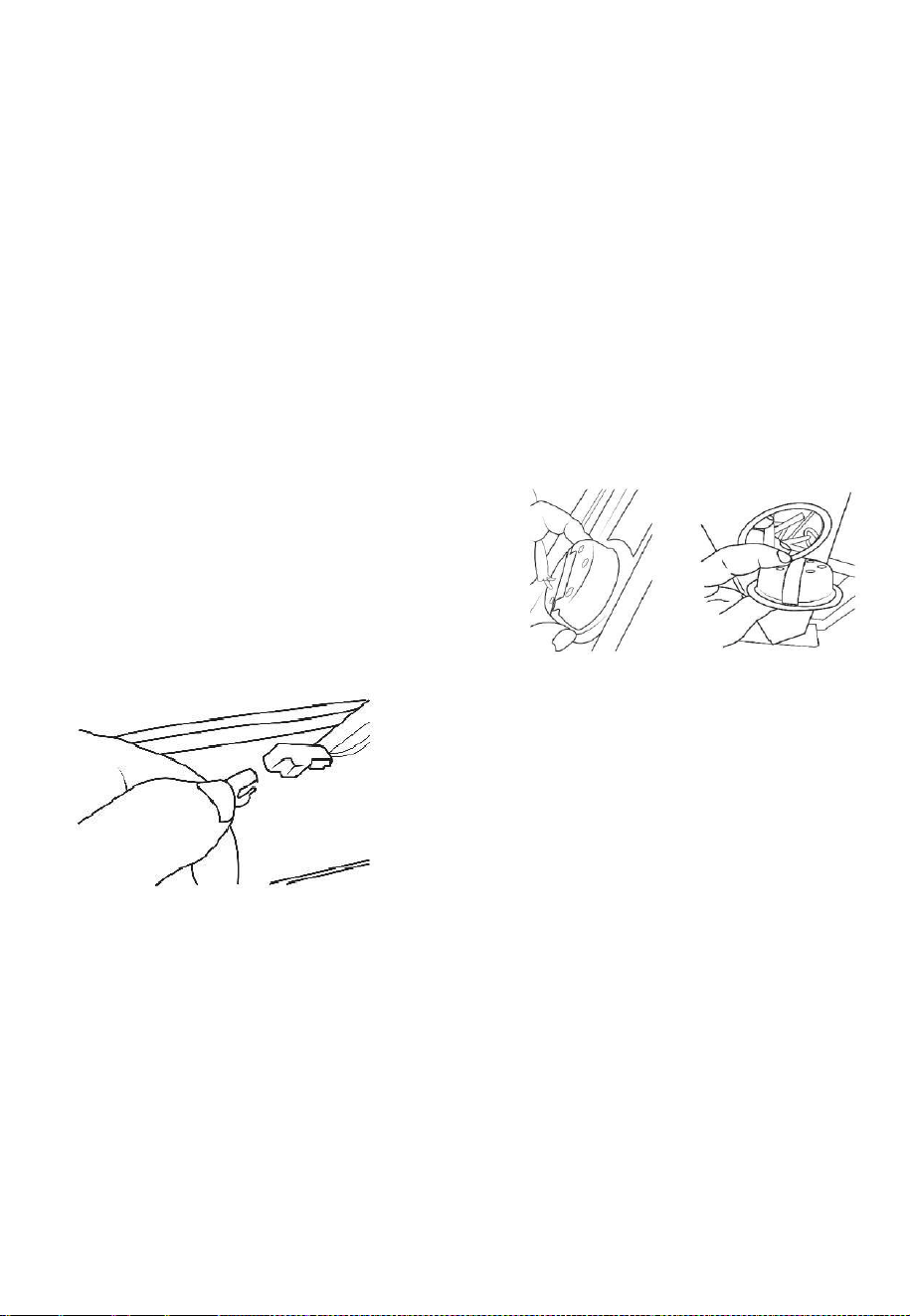

1. Remove the glass canopy from the top of the hood, following the
Removal and refitting of the glass canopy section.
2. Locate the top of the light fitting and
squeeze the spring clips, while
pushing the fitting out of the base of
the hood.
3. Follow the wire from the light unit
and find the power connector on the
lead.
4. Disconnect the power connector
from it, ensuring the light fitting is not
allowed to fall from the unit
5. Replace with a new light unit, which after connecting the electrical
connection, should be pushed into position on the base of the hood.
6. Refit the glass canopy.
• If a bulb is found to be defective, it should be replaced
immediately.
• Always switch off the electricity supply before carrying out any
operations on the appliance. When handling the bulb, make sure it
has completely cooled down before any direct contact to hands.

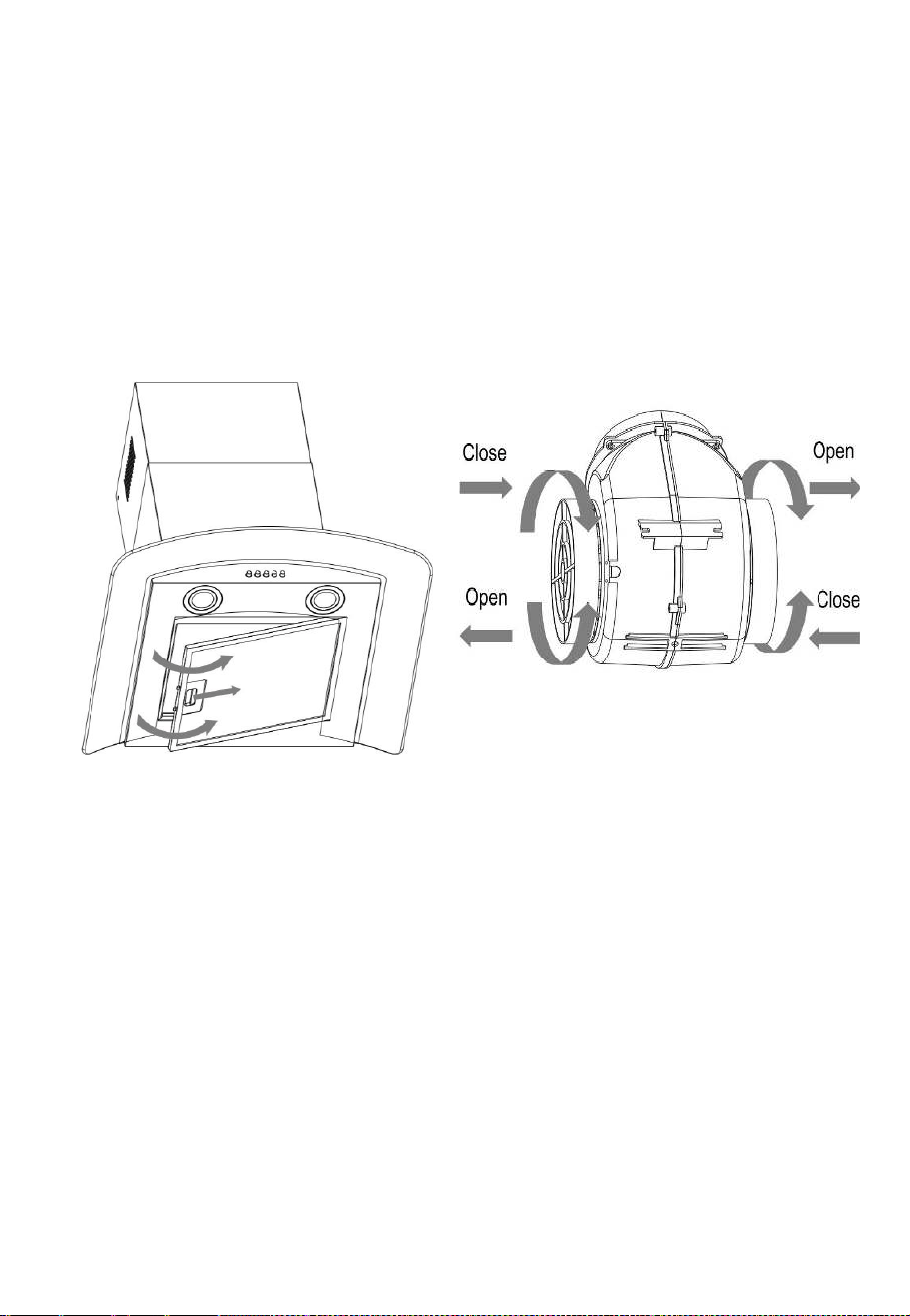

14
INSTALLING THE CARBON FILTER (OPTIONAL)
1. Remove the grease filters from the underside of the hood.
2. The carbon filters are located at either end of the motor.
TO FIT: Locate the filter on the peg on the side of the motor. Rotate the
filter clockwise onto the motor housing;
TO REMOVE: Rotate the filter anti-clockwise until it is unscrewed.
WARNING: The carbon filter cannot be washed or recycled. It should be
replaced after approximately 2-3 months of use.
When the activated carbon filters are attached, the suction power will be
reduced.
NOTE: The optional carbon filter is available from the hood
supplier/manufacturer under the following stock code: eiQMIDCARBON
15
REMOVAL AND REFITTING OF THE GLASS
CANOPY
WARNING: Components within the appliance may
have sharp edges. When attempting to remove or
refit the glass, gloves should be worn to avoid
scratches and cuts.

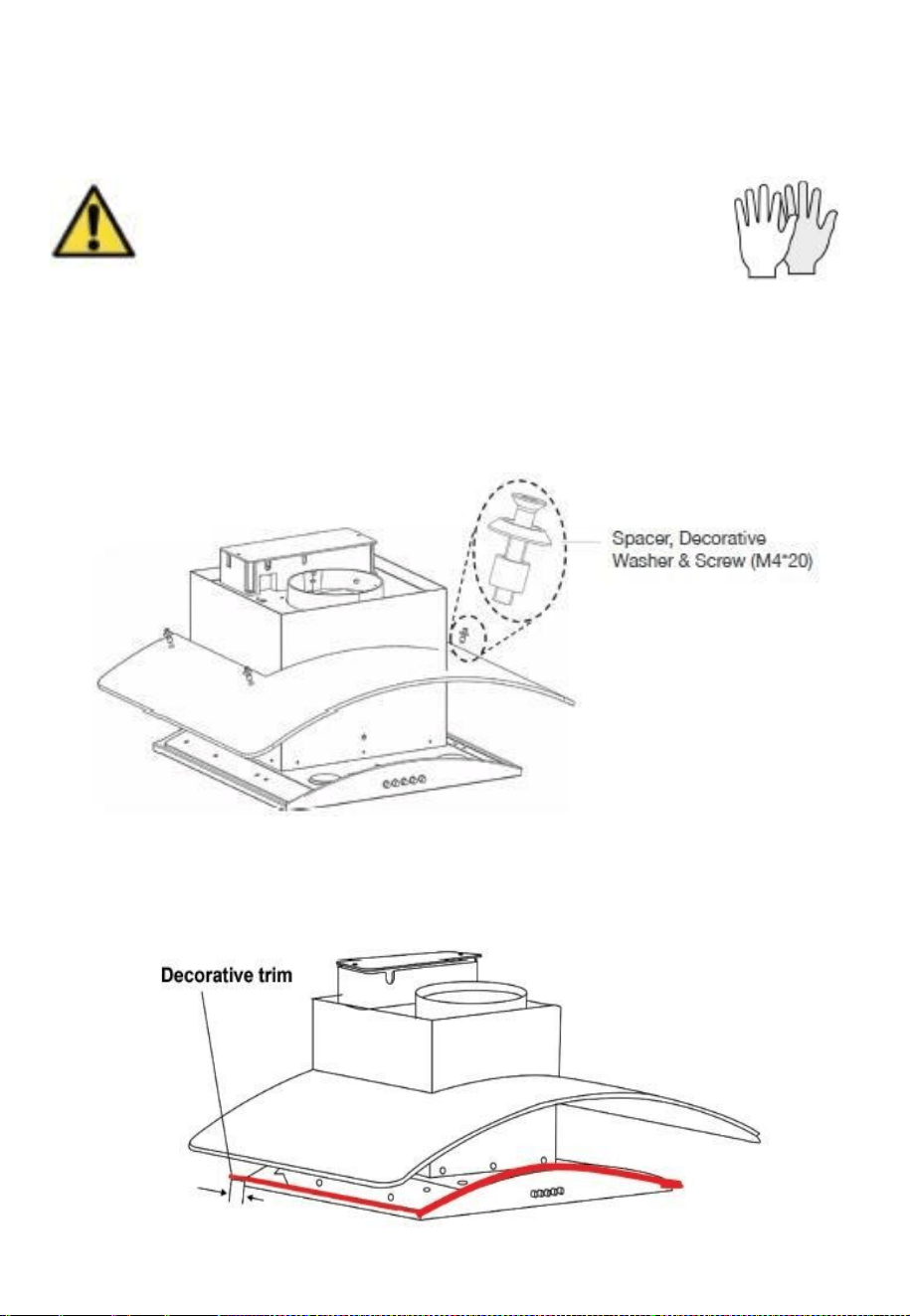

The glass canopy is held into position using four screws, spacers and
decorative washers. Remove the four screws, spacers and decorative
washers from the glass canopy, ensuring the canopy is suitably
supported. Two people should then lift the canopy off the hood, retaining
the fittings removed for re fitting.
Refitting is the reverse of removal. Before refitting the hood, please
ensure the decorative trim is correctly located, and has not become
detached or displaced during disassembly.
16
CLEANING AND MAINTENANCE
Disconnect range hood from power supply before cleaning or
servicing.
1. Clean the hood surface frequently using mild detergent and a
warm damp sponge or cloth.
2. Do not use harsh alkalis or abrasives.
3. Avoid the use of scouring powers or dishwasher compounds.
4. If the optional carbon filter is being used, these cannot be
cleaned and require replacing every 2-3 months depending
on frequency of use. They are available from the retailer who
supplied your hood.
Information
Cleaning water must be kept away from the motor, control switch
and all electrical components.
GREASE FILTERS
It is recommended that the grease filter is cleaned every two to
three months by carrying out the following instruction:
1. Remove the grease filter from the cooker hood and wash it in
a solution of warm water and neutral liquid detergent, leaving
to soak.
2. Rinse thoroughly with warm water and allow to dry thoroughly
before refitting.
3. The metallic filter may alter in colour after several washes.
There is a fire risk if cleaning is not carried out in accordance
with the instructions.
Replacement grease filters are available under the following
codes:
HOOD
GREASE FILTER
60cm Hoods
eiQM60CGFILTER
90cm Hoods
eiQM60CGFILTER
17
TROUBLESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit. Repair to
be carried out by qualified
service personnel only.
The motor is
damaged.
Both light
and fan do
not work
Power cord loose
Plug in to the power supply
again.
Excessive
Vibration
The fan blade is
damaged.
Switch off the unit. Repair to
be carried out by qualified
service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit. Repair to
be carried out by qualified
service personnel only.
The unit is not hung
properly on the
bracket.
Take down the unit and
check whether the bracket is
in proper location.
Suction
performance
not good
1. Grease filters
clogged
2. Distance between
the unit and the
cooking plane too
great.
1 Clean or replace grease
filters.
2 Adjust the distance to
between 70cm and 80cm.
18
SPECIFICATION
Voltage
220-240V~50Hz
Rated Power
108W
Lighting Power
2 X 1.5W
Motor Power
105W
Diameter of air tube
150mm
Air flow
400m /h
3
Noise
≤6 dB5
The following shows how to reduce total environmental impact (e.g.
energy use) of the cooking process).
(1) Install the cooker hood in a proper place where there is efficient
ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user
manual. The appliance could not be dismantled by user. At the end of
life, the appliance should not be disposed of with household waste.
Check with your Local Authority or retailer for recycling advice.
19
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0871 984 4416
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers
at which you can deposit your old electrical products.
Customers will be able to take any old electrical
equipment to participating sites run by their local
councils. Please remember that this equipment will be
further handled during the recycling process, so
please be considerate when depositing your
equipment. Please contact the local council for details of your local
household waste recycling centres.
20
PRODUCT FICHE
Model Identification
eiQCURV60SC eiQCURV60BL
eiQCURV90SC eiQCURV90BL
eiQCURV60WH eiQCURV90WH
Symbol
Value
Unit
Annual Energy Consumption
AEChood
53.2
kWh/A
Standard Annual Energy
Consumption
SAEChood
65.0
kWh/a
Time increase factor
F
1.6
Fluid Dynamic Efficiency
FDEhood
11.0
Energy Efficiency Index
EEIhood
81.8
Measured air flow rate at
best efficiency point
QBEP
244.2
m
3
/h
Measured air pressure at
best efficiency point
PBEP
142
Pa
Maximum air flow
Qmax
423.6
m
3
/h
Measured electric power
input at best efficiency point
WBEP
87.4
W
Nominal power of the
lighting system
WL
1.5W x 2
W
Measured power of the
lighting system
WL
3.0
W
Measured value of the
Lighting Efficiency
LEhood
59
Lux/W
Average illumination of the
lighting system on the
cooking surface
Emiddle
177
lux
Measured power
consumption in standby
mode
Ps
--
W
Measured power
consumption off mode
Po
0
W
Tested according to EN 50564:2011
Sound power level
LWA
Minimum
speed:57
Maximum
speed: 65
dB
Tested according to EN 60704-2-13:2011, EN 60704-1:2010 + A11:2012
