Multi-Purpose Oscillating Tool
Outil oscillant à usages multiples
Herramienta oscilante multiuso
GMT15A
Operator’s Manual
Manuel d’utilisation
Manual del Operario
888-552-8665
TOLL FREE
HELP LINE:
WEBSITE:
www.genesispowertools.com
English
Multi-Purpose Oscillating Tool
Operator’s Manual GMT15A
MULTI-PURPOSE OSCILLATING TOOL
Operator’s Manual
SPECIFICATIONS
• Model: ------------------------ GMT15A
• Rated Power: ----------------- 120V~, 60Hz, 1.6A
• No-Load Speed: -------------- 21,000 /min (OPM)
• Net Weight: ------------------- 2.5 Lbs
Includes Oscillating Tool, Hook & Loop Sanding Pad, Assorted Sandpaper, Rigid Scraper Blade, 1-3/16" (30mm)
Flush Cut Saw Blade, HSS Segmented Saw Blade 3-1/8", Wrench, Accessory Adaptor and Accessory Storage
Case.
WARNING: To reduce the risk of injury, user must read and understand this
operator’s manual before operating this tool. Save this Manual for future reference.
Toll-Free Help Line: 1-888-552-8665
WARNING: The Operation of any power tool can result in foreign
objects being thrown into your eyes, which can result in severe eye damage.
Before beginning tool operation, always wear safety goggles or safety glasses
with side shields and a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side
shields. Always wear eye protection which is marked to comply with ANSI Z87.1.
Look for this symbol to point out important safety
precautions. It means attention!!! Your safety is
involved.
GENERAL SAFETY RULES
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks and cement and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.
WARNING: Read and understand all warnings, cautions and operating
instructions before using this equipment. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WeAR YOuR
FOReSIGHT IS BeTTeR
THAN NO SIGHT
SAFeTY GLASSeS
3
English
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
•
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
•
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adaptor plugs in any earthed (grounded) power tools. Double insulated tools are equipped with a polarized
plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not
fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized
outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded
power cord and grounded power supply system.
•
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
•
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is
grounded.
•
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged cords increase the risk of electric shock.
•
When operating a power tool outside, use an extension cord suitable for
outdoor use. These cords are rated for outdoor use and reduce the risk of electric shock.
•
Do not use AC only rated tools with a DC power supply. While the tool may appear to
work. The electrical components of the AC rated tool are likely to fail and rate a hazard to the operator.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
•
Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection for appropriate conditions will reduce personal injuries.
•
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. Air vents may cover moving
parts and should be avoided.
•
Avoid accidental starting. ensure the switch is in the off position before plugging in. Carrying power
tool with your finger on the switch or plugging in power tools that have the switch on invites accidents.
•
Remove any adjusting keys or wrenches before turning the power tool on. A
wrench or key that is left attached to a rotating part of the tool may result in personal injury.
•
Do not overreach. Maintain proper footing and balance at all times. Loss of balance can cause an injury
in an unexpected situation.
•
If devices are provided for connection of dust extraction and collection
facilities, ensure these are connected and properly used. use of these devices can
reduce dust related hazards.
•
Do not use a ladder or unstable support. Stable footing on a solid surface enables better
control of the tool in unexpected situations.
•
Keep tool handles dry, clean and free from oil and grease. Slippery handles cannot
safely control the tool.
TOOL USE AND CARE
• Secure the workpiece. use clamp or other practical way to hold the workpiece to a stable platform.
Holding the workpiece by hand or against your body is unstable and may lead to loss of control.
English
Multi-Purpose Oscillating Tool
Operator’s Manual GMT15A
• Do not force the power tool. The tool will perform the job better and safer at the feed rate for
which it is designed. Forcing the tool could possibly damage the tool and may result in personal injury.
•
Use the correct power tool for the job. Don’t force the tool or attachment to do a job for
which it is not designed.
•
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled
with the switch is dangerous and must be repaired or replaced by an authorized service center.
•
Turn power tool off, and disconnect the plug from the power source and/or battery pack
from the power tool before making any adjustments, changing the accessories, or storing the tools. Such
preventive safety measures reduce the risk of an accidental start up which may cause personal injury.
•
Store idle tool out of reach of children and other inexperienced persons. It is
dangerous in the hand of untrained users.
•
Maintain power tools with care. Check for proper alignment and binding of moving parts,
component breaks, and any other conditions that may affect the tool’s operation. A guard or any other part that
is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal
injury.
•
Use recommended accessories. using accessories and attachments not recommended by the
manufacturer or intended for use on this type tool may cause damage to the tool or result in personal injury to
the user. Consult the operator’s manual for recommended accessories.
•
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
•
Feed the workpiece in the correct direction and speed. Feed the workpiece into a
blade, cutter, or abrasive surface against the direction of the cutting tool’s direction of rotation only. Incorrectly
feeding the workpiece in the same direction may cause the workpiece to be thrown out at high speed.
•
Never leave the tool running unattended, turn the power off. Do not leave the tool
until it comes to a complete stop.
WARNING: USE OF THIS TOOL CAN GENERATE AND DISBURSE DUST OR
OTHER AIRBORNE PARTICLES, INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST
AND ASBESTOS. Direct particles away from face and body. Always operate tool in a well-
ventilated area and provide for proper dust removal. Use dust collection system wherever
possible. Exposure to the dust may cause serious and permanent respiratory or other
injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the
dust, and avoid prolonged contact with the dust. Allowing dust to get into your mouth or
eyes, or lay on your skin may promote absorption of harmful material. Always use properly
fitting NIOSH/OSHA approved respiratory protection appropriate for dust exposure, and
wash exposed areas with soap and water.
SERVICE
• Have your power tool serviced by a qualified repair person using
only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
•
Service your power tool periodically. When cleaning a tool, be careful not to disassemble any
portion of the tool since internal wires may be misplaced or pinched.
SAVE THESE INSTRUCTIONS
5
English
EXTENSION CORDS
Grounded tools require a three wire extension cord. Double insulated tools can use
either a two or three wire extension cord. As the distance from the power supply outlet increases, you must use a
heavier gauge extension cord. using extension cords with inadequately sized wire causes a serious drop in voltage,
resulting in loss of power and possible tool damage. Refer to the table shown below to determine the required
minimum wire size.
The smaller the gauge number of the wire, the greater the capacity of the cord. For example: a 14-gauge cord
can carry a higher current than a 16-gauge cord. When using more than one extension cord to make up the total
length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for
more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size.
Guidelines for Using Extension Cords
• If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to
indicate that it is acceptable for outdoor use.
• Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it.
• Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
SPECIFIC SAFETY RULES FOR MULTI-PURPOSE
OSCILLATING TOOLS
WARNING: DO NOT LET COMFORT OR FAMILIARITY WITH PRODUCT (GAINED
FROM REPEATED USE) REPLACE STRICT ADHERENCE TO PRODUCT SAFETY RULES. If
you use this tool unsafe or incorrectly, you can suffer serious personal injury!
WARNING: Hold tool by insulated gripping surfaces when performing an
operation where cutting tools may contact hidden wiring or its own cord. Contact with a
“live” wire will make exposed metal parts of the tool “live” and shock the operator!
•
Always wear safety glasses or goggles. Normal prescription eye or sunglasses are not
safety glasses.
•
Hold the Oscillating Tool by its insulated gripping surfaces to avoid electrical shock
from unseen “live” wires.
•
Always hold the tool firmly. DO not leave the tool running unless hand held.
•
Check your work area for proper clearances before cutting. This will avoid cutting
into your workbench, the floor, etc.
•
DO not cut nails or screws unless you are using a blade specifically designed for this purpose.
Inspect your material before cutting.
•
Before switching on the tool, be sure the blade is not contacting the work piece.
•
Do not use tool if switch does not turn it on or off. Any tool which can not be controlled
by the switch is dangerous and must be repaired.
•
Wear cushioned protective gloves to minimize the vibration. excessive vibration
may cause personal injury.
Recommended Minimum Wire Gauge for Extension Cords (120 Volt)
Nameplate
Amperes
(At Full Load)
Extension Cord Length
25 Feet 50 Feet 75 Feet 100 Feet 150 Feet 200 Feet
0–2.0 18 18 18 18 16 16
2.1–3.4 18 18 18 16 14 14
3.5–5.0 18 18 16 14 12 12
5.1–7.0 18 16 14 12 12 10
7.1–12.0 18 14 12 10 8 8
12.1–16.0 14 12 10 10 8 6
16.1–20.0 12 10 8 8 6 6
English
Multi-Purpose Oscillating Tool
Operator’s Manual GMT15A
• Do not wet-sand with this tool. Water or moisture entering the motor housing can cause
electric shock and serious personal injury.
•
Always be sure that the tool is switched off and unplugged before adjusting, adding
accessories, or checking a function on the tool.
WARNING: Read and understand all warnings, cautions and operating
instructions before using this equipment. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS

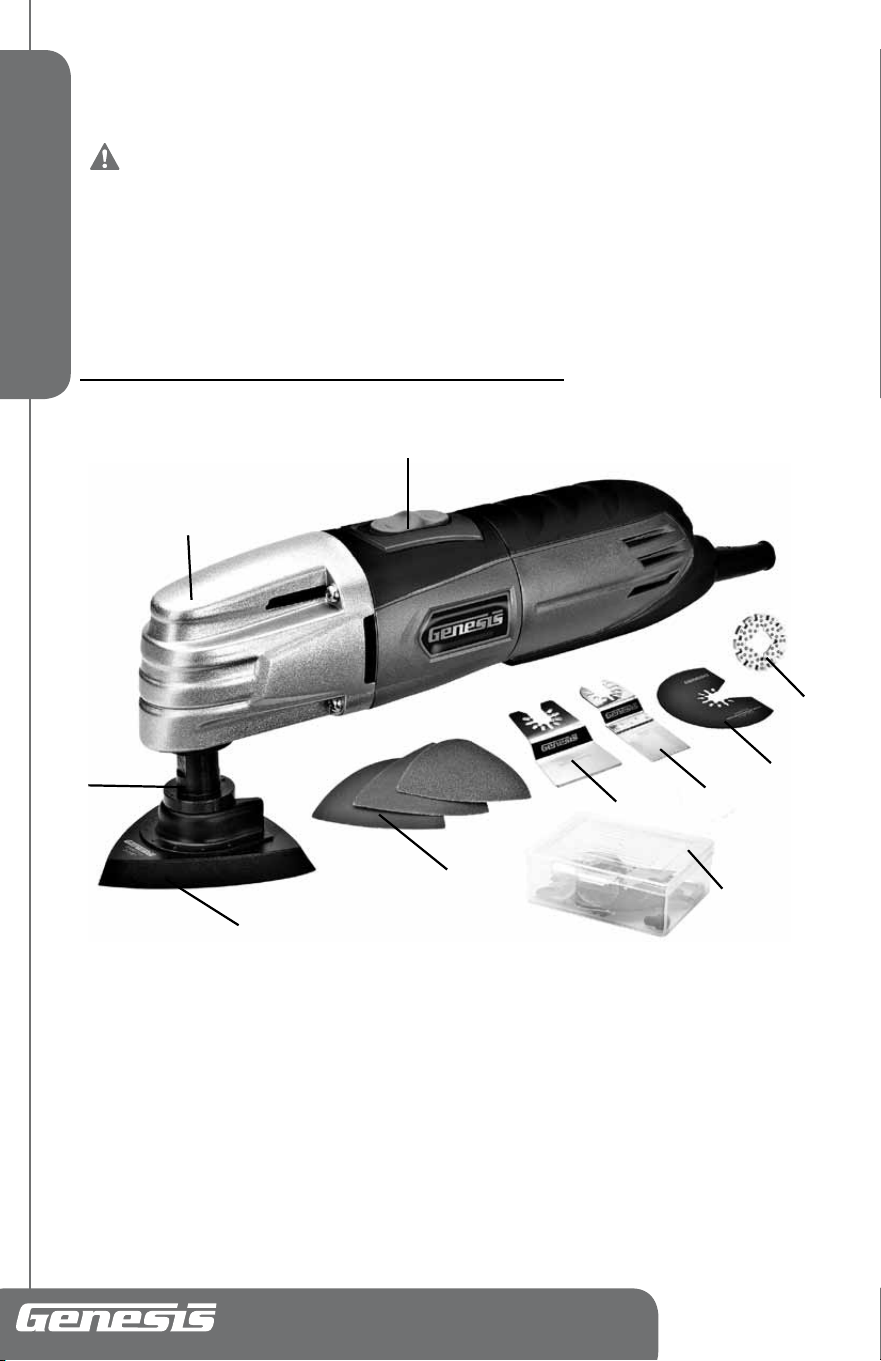

KNOWING YOUR OSCILLATING TOOL
1. ON/OFF Switch
2. Cast Aluminum Gear Head
3. Oscillating Spindle and Blade holder
4. Flush Cutting Blade 1-3/16”
5. HSS Segmented Saw Blade 3-1/8"
6. Rigid Scraper blade
7. Hook & Loop Sanding Pad
8. Sandpaper
9. Accessory Adaptor
10. Storage Box
FIG 1
5
2
4
5
9
8
7
3
1
6
10
7
English
UNPACKING AND CONTENTS
IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is
faulty or that a part is missing. If you find anything wrong, do not operate the tool until the
parts have been replaced or the fault has been rectified. Failure to do so could result in
serious personal injury.

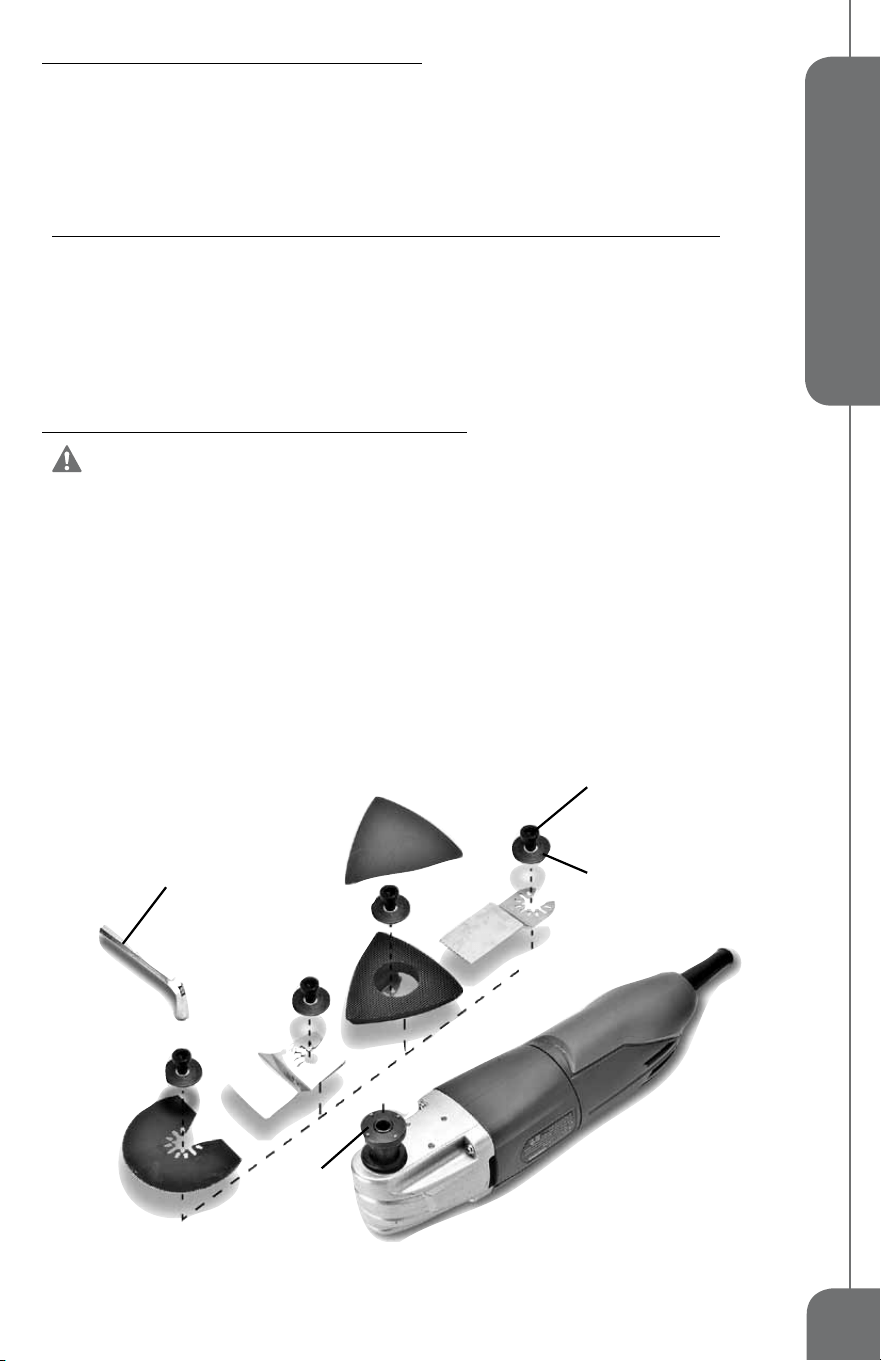

CONTENTS IN PACKAGE
Description Q'ty Description Q'ty
ASSEMBLY AND ADJUSTMENTS
WARNING: Always be sure that the tool is switched off and unplugged before
adjusting, adding accessories, or checking a function on the tool.

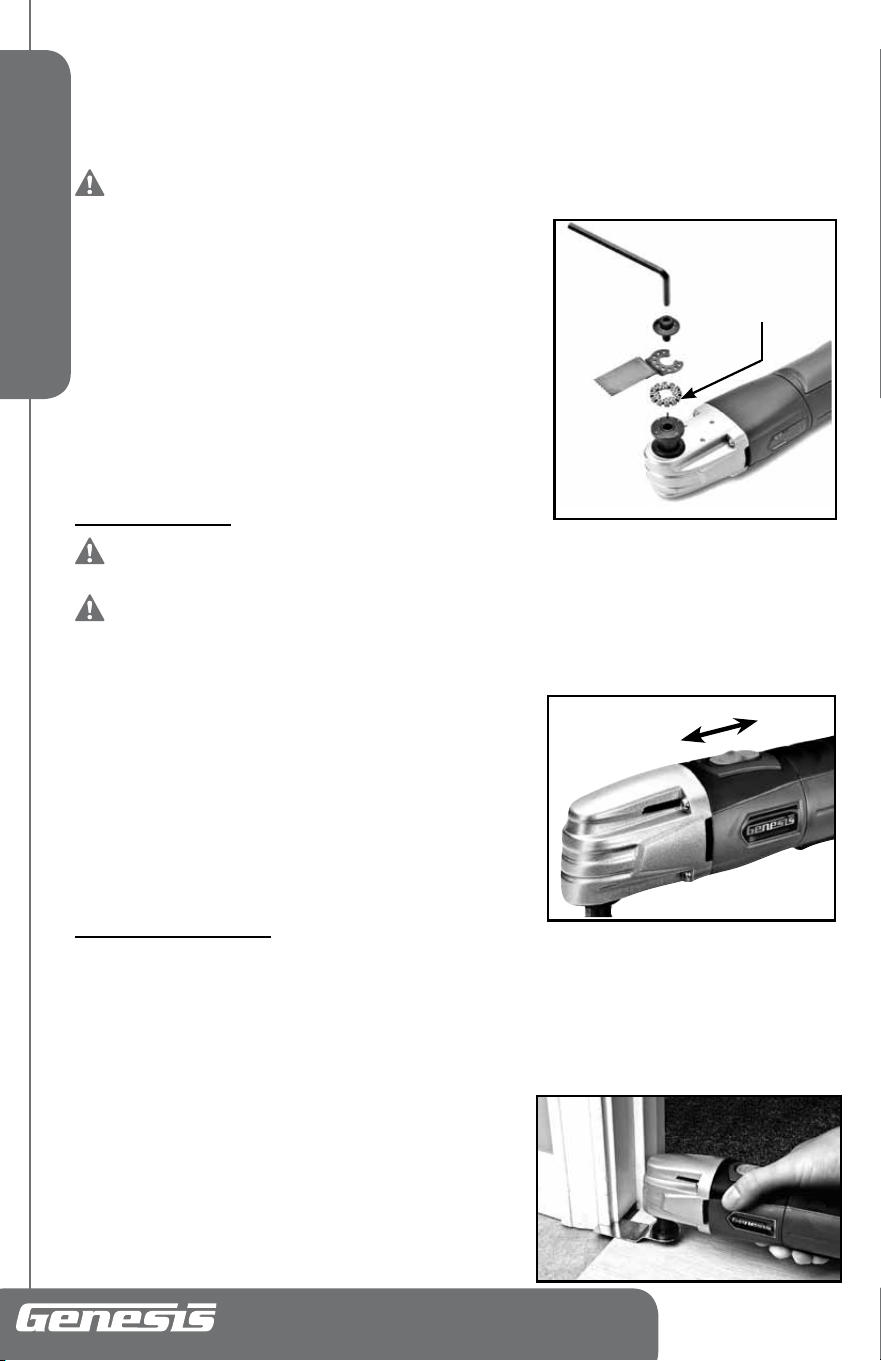

To Install the Accessories (FIG 2)
Your tool comes with a set of GeNeSIS™ universal Quick Fit accessories which can be installed without
completely removing the cap screw and the blade washer.
1. Loosen the cap screw (a) using Allen wrench provided.
2. Slide the open-end of the accessory into the gap between the blade washer (d) and the shaft flange (b).
Place the accessory over the shaft flange (b). The shaft flange of this tool comes with a 4-pin design. Make
sure the holes on the accessory properly engage 3 of those 4 pins and the accessory is flush against the
shaft flange.
3. Make sure the concave side of the large blade washer is facing the accessory. Tighten the cap screw
securely using Allen wrench (c) provided. (See FIG 2)
a
c
b
d
FIG 2
Oscillating Tool 1
1-3/16” Flush Cutting Saw Blade 1
3-1/8" HSS Segmented Saw Blade 1
Rigid Scraper Blade 1
Hook & Loop Sanding Pad 1
Sandpapers 3
Allen Wrench 1
Cap Screw and Washer 1
Accessory Adaptor 1
Storage Case 1
Operator’s Manual 1
English
Multi-Purpose Oscillating Tool
Operator’s Manual GMT15A
NOTE: Some accessories, such as a saw blade, may be mounted either straight
on the tool, or at an angle to enhance usability. Always make sure 3 of the 4 pins are
engaged as described in step 2 above.
NOTE: For maximum sandpaper life, rotate the pad or sandpaper 120 degrees when
tip of sandpaper becomes worn.
WARNING: DO NOT tighten the cap screw unless the accessory is properly
seated on the shaft flange.
To Remove Accessories From the Tool, loosen the
cap screw and pull the accessory off the tool.
ACCESSORY ADAPTOR (FIG 3)
A universal accessory adaptor is included to allow use with other
brands’ accessories. (Fein®, Bosch®, Dremel®, and Rockwell®).
See FIG 3 for how to use that adapor.
NOTE: Fein is a registered trademark of C. &e Fein GmbH. Bosch is
a registered trademark of Robert Bosch GmbH. Dremel is a registered
trademark of Credo Technology Corp. Rockwell is a registered trademark of
Positec Group Limited.
OPERATION
WARNING:
To reduce the risk of serious personal injuries, read and follow all
important safety warning and instructions before using this tool.
WARNING: Always be sure the tool is disconnected from the power source
before making any adjustments or setting up prior to cutting. Failure to disconnect or
unplug the tool may cause accidental starting, resulting in serious personal injury.
NOTE: Always Check that the power supply
corresponds to the voltage on the ratings plate.
STARTING AND STOPPING THE
OSCILLATING TOOL (FIG 4)
To Start the Oscillating Tool, slide the ON/OFF switch forward to
ON position.
To Stop the Oscillating tool, slide the ON/OFF switch backward to
OFF position.
APPLICATIONS
NOTE: Recommended oscillating tool accessories for this tool are the GENESIS™
oscillating tool accessories. Please refer to "Genesis Oscillating Tool Accessory
Reference Guide" Sheet enclosed for details.
This multi-purpose oscillating tool is intended for cutting and sanding wood, plastic, plaster and non-ferrous metals.
It is especially suitable for cutting in tight spaces and for flush cutting
. Following are a few typical uses.

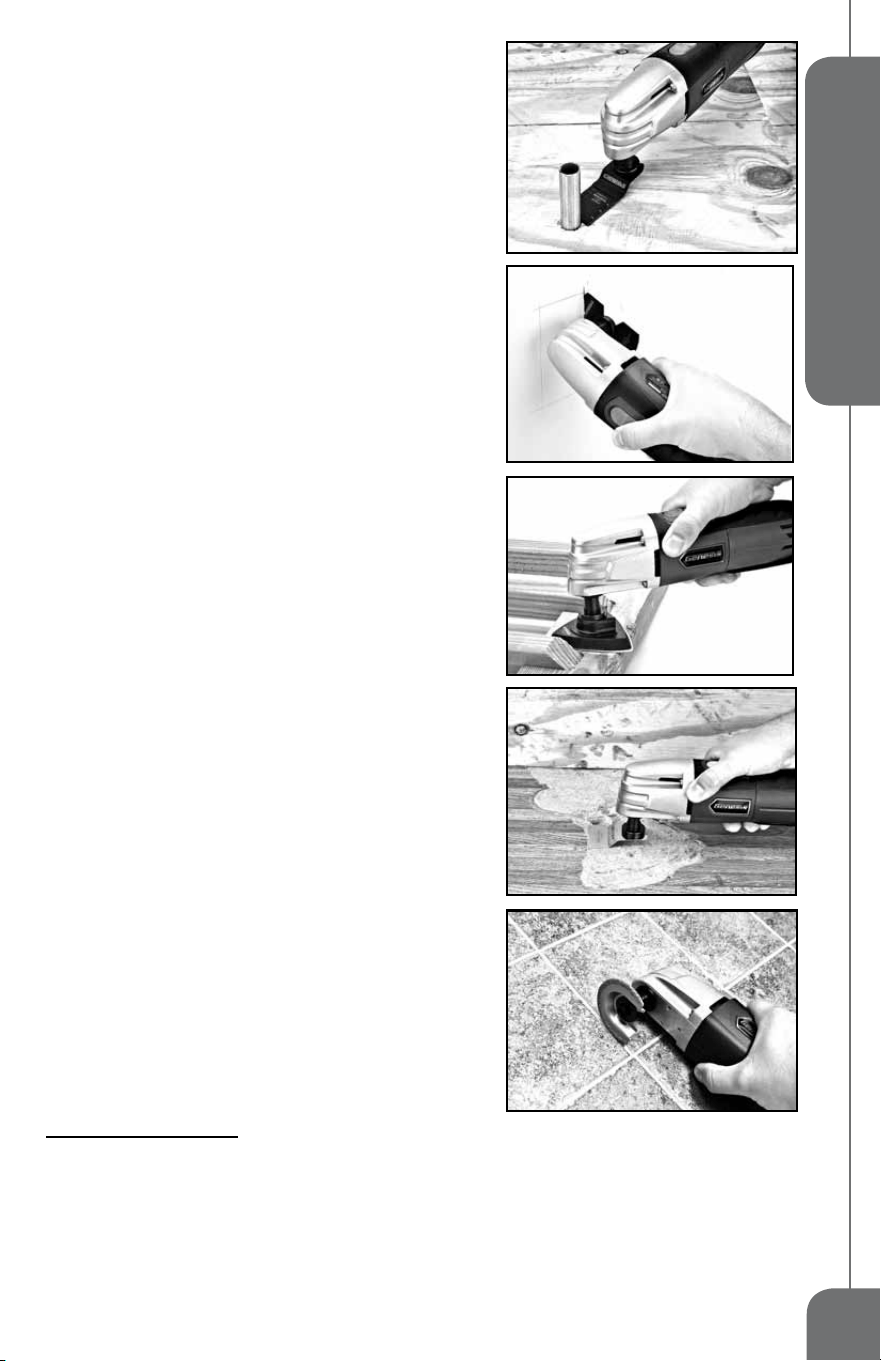

CUTTING (FIG 5,6,7)
use a flush cutting saw blade (or “e-cut blade”) for making precise
cuts in tight areas, close to edges, plunge or flush to a surface.
It is important not to force the tool during the flush cutting. If you
are experiencing a strong vibration in your hand during the cut, it
indicates too much pressure on the tool. Back off on the pressure
and let the speed of tool do the work. See FiG 5, 6 for typical uses
for flush cutting saw blade.
ACCESSORY
ADAPTOR
FIG 3
ON
OFF
FIG 4
FIG 5
9
English
NOTE: It is suggested that you have a piece of
scrap material supporting the blade when making a
flush cut. If you need to rest the blade on a delicate
surface, you need to use cardboard or masking tape
to protect the surface.
use the segmented saw blade for making continuous precise cuts
in wood, plaster or drywall material. Applications include cutting
openings for electrical boxes, repairing flooring, cutting flooring for
venting, and more. See FIG 7 for how to use of the segmented
saw blade.
SANDING (FIG 8)
With sanding accessories, this tool is a detail sander. It is suitable
for dry sanding of wood, plastic, and metal surfaces, especially in
corners, edges and hard to reach areas. See FIG 8.
Tips:
1. Work with the complete surface of the sandpaper, not only with
the tip.
2. Sand with continuous motion and light pressure. Do not apply
excessive pressure. Let tool do the work.
3. Always secure small work pieces.
4. Select suitable abrasive paper for best results.
SCRAPING (FIG 9)
Scraper blades are suitable for removing vinyl, varnish, paint layers,
carpeting, caulk and other adhesives.
use a rigid scraper blade to remove harder materials, such as vinyl
flooring, carpeting and tile adhesives in a large area.
use a flexible scraper blade (not included) to remove softer material
such as caulk.
Tips:
1. When removing strong, tacky adhesive, grease the scraper
blade surface to reduce gumming up.
2. Begin with light pressure. The oscillating motion of accessory
only occurs when pressure is applied to the material to be
removed.
3. If you are removing caulk from a delicate surface, such as a
bath tub or tile back splash, we recommend taping to protect
the surface that the blade will rest on.
GROUT REMOVAL (FIG 10)
use a grout removal blade (not included) to remove damaged or
cracked grout, or in order to replace a damaged or broken tile.
To remove the grout, use a back and forth motion, making several
passes along the grout line. Be careful not to apply too much side
pressure on the grout blade. See FIG 10.
ACCESSORIES
Recommended oscillating tool accessories for this tool are the GENESIS™ oscillating
tool accessories. Please refer to "Genesis Oscillating Tool Accessory Reference Guide"
sheet enclosed for details.
FIG 6
FIG 7
FIG 8
FIG 9
FIG 10
English
Multi-Purpose Oscillating Tool
Operator’s Manual GMT15A
MAINTENANCE
CLEANING
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc., come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated
wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings,
brushes, commutators, etc. Consequently, we do not recommended using this tool for extended work on these
types of materials. However, if you do work with any of these materials, it is extremely important to clean the tool
using compressed air.
LUBRICATION
This tool is permanently lubricated at the factory and requires no additional lubrication.
TWO-YEAR WARRANTY
This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This
limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser
is covered by this warranty and it is not transferable. Prior to returning your tool to store location of purchase,
please call our Toll-Free Help Line for possible solutions.
THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.
ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY.
TOLL-FREE HELP LINE
For questions about this or any other GeNeSIS™ Product, please call Toll-Free: 888-552-8665.
Or visit our web site: www.genesispowertools.com
©Richpower Industries, Inc. All Rights reserved
Richpower Industries, Inc.
736 Hampton Road
Williamston, SC 29697
Printed in China, on recycled paper
Richpower Industries, Inc.
736 Hampton Road
Williamston, SC USA
www.genesispowertools.com
2013.08, V03
