1 06-82-5316 8-32 x 1-1/2" Slt. Pan Hd.Taptite T-20 (2)
2 06-82-7270 8-16 x 5/8" Slt. Pan Hd. Plastite T-20 (5)
3 31-44-1651 Right Handle Half (1)
4 06-95-0075 6-32 x 3/8" Truss Hd. Taptite (2)
5 22-22-1380 Brush Holder Assembly (1)
6 23-44-0190 Brush Retaining Cap (2)
7 36-66-2811 Intermediate Shaft (1)
8 22-18-0910 Carbon Brush Assembly (2)
9 31-55-0190 Coil Shield (1)
10 31-12-0196 Switch Cap (1)
11 14-20-0357 Switch Assembly (1)
12 06-95-5150 6-32 x 1/4" Hex Hd. Taptite Sems (1)
13 06-81-1060 8-32 x 2-1/4" Field Bolt (2)
14 06-82-7270 8-16 x 5/8" Slt. Pan Hd. Plastite T-20 (1)
15 23-66-1965 On-Off Switch (1)
16 31-44-1656 Left Handle Half (1)
17 06-72-1720 Nameplate Rivet (2)
18 12-99-1750 Service Nameplate (1)
19 02-04-0640 Ball Bearing (1)
20 02-04-0845 Ball Bearing (1)
21 06-57-2975 8-32 Hex Nut (2)
22 23-16-0456 Field Insulator (1)
23 18-31-0600 120 Volt Field - Auto Assembly (1)
24 28-50-6220 Motor Housing (1)
25 31-05-0055 Baffl e (1)
26 16-30-0226 120 Volt Armature (1)
27 22-84-0531 Fan Assembly (1)
28 02-04-0911 Ball Bearing (1)
29 44-76-0210 Cord Protector (1)
30 22-64-3190 Cord Set (1)
31 48-66-4040 Key Holder (1)
32 28-28-0611 Diaphragm (1)
33 02-50-2440 Needle Bearing (1)
34 32-75-2066 Spindle Gear (1)
35 34-60-1200 Retaining Ring (1)
36 02-50-1640 Needle Bearing (2)
37 32-75-2051 2nd Intermediate Gear (1)
38 06-42-0800 Woodruff Key (2)
39 36-66-4012 2nd Intermediate Shaft (1)
40 02-04-0820 Ball Bearing (1)
41 28-14-1922 Gear Case (1)
42 02-04-1536 Ball Bearing (1)
43 34-80-2500 Retaining Ring (1)
44 06-82-5532 8-32 x 2-1/2" Slt. Pan Hd. Taptite T-20 (2)
45 06-82-5432 8-32 x 1-5/8" Slt. Pan Hd. Taptite T-20 (1)
46 06-42-2000 Woodruff Key (1)
47 38-50-5475 Spindle (1)
48 06-75-3150 1/4-20 x 1" L.H. Skt. Cap Screw (1)
49 48-66-1360 1/2" Chuck (1)
50 48-66-3280 Chuck Key (1)
51 43-62-1265 Side Handle (1)
52 14-46-1001 Foam Slug Kit-(10 Slugs) (1)
53 43-62-1170 Side Handle Extension (1)
54 43-72-0176 Heat Sink Holder (1)
56 32-40-1251 Intermediate Gear (1)
FIG. LUBRICATION
41 3-3/4 Oz. Type "A" Grease, 49-08-0800.
FIG. NOTES:
51 Apply Red Loctite To Threads Of Side Handle.
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
54-08-1154
54-08-1153
Jan. 2013
DATE
WIRING INSTRUCTION
58-01-0297
491D
1001-1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

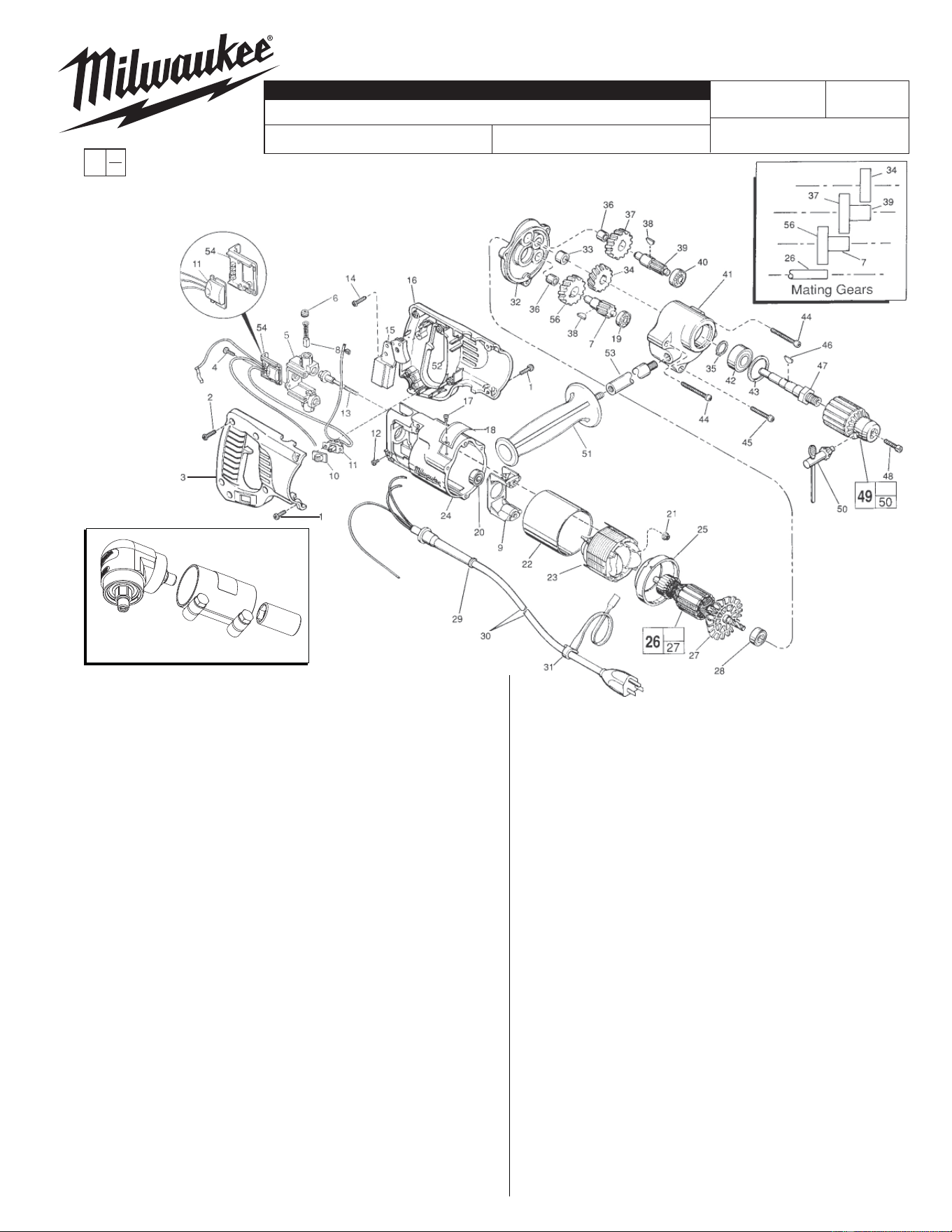

1/2" REVERSING DRILL
STARTING
SERIAL NO.
CATALOG NO.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
RIGHT ANGLE DRIVE
Cat. No. 48-06-2871
See Service
Parts List Bulletin
No. 54-36-0602
