! WARNING !
Exercise can present a health
risk. Consult a physician
before beginning any exercise
program with this equipment.
If you feel faint or dizzy,
immediately discontinue use
of this equipment. Serious
bodily injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur if
all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
tightened prior to each use.
Follow all safety instructions in
this manual.
When calling for parts or
service, please specify the
following number.
15- 7500
STAMINA PRODUCTS
MADE IN CHINA
Product May Vary Slightly
From Pictured.
CAUTION:
Weight on this product should not exceed 250 lbs.
Owner's Manual
2004, 03
2040 N. Alliance, Springfield, MO 65803
Customer Service Number
1 (800) 375-7520
www.staminaproducts.com
This Product is Produced Exclusively by
2004 Stamina Products, Inc.
TABLE OF CONTENTS
2
Maintenance 12
Conditioning Guidelines 13
Warm-up and Cool-Down 14
Warranty 15

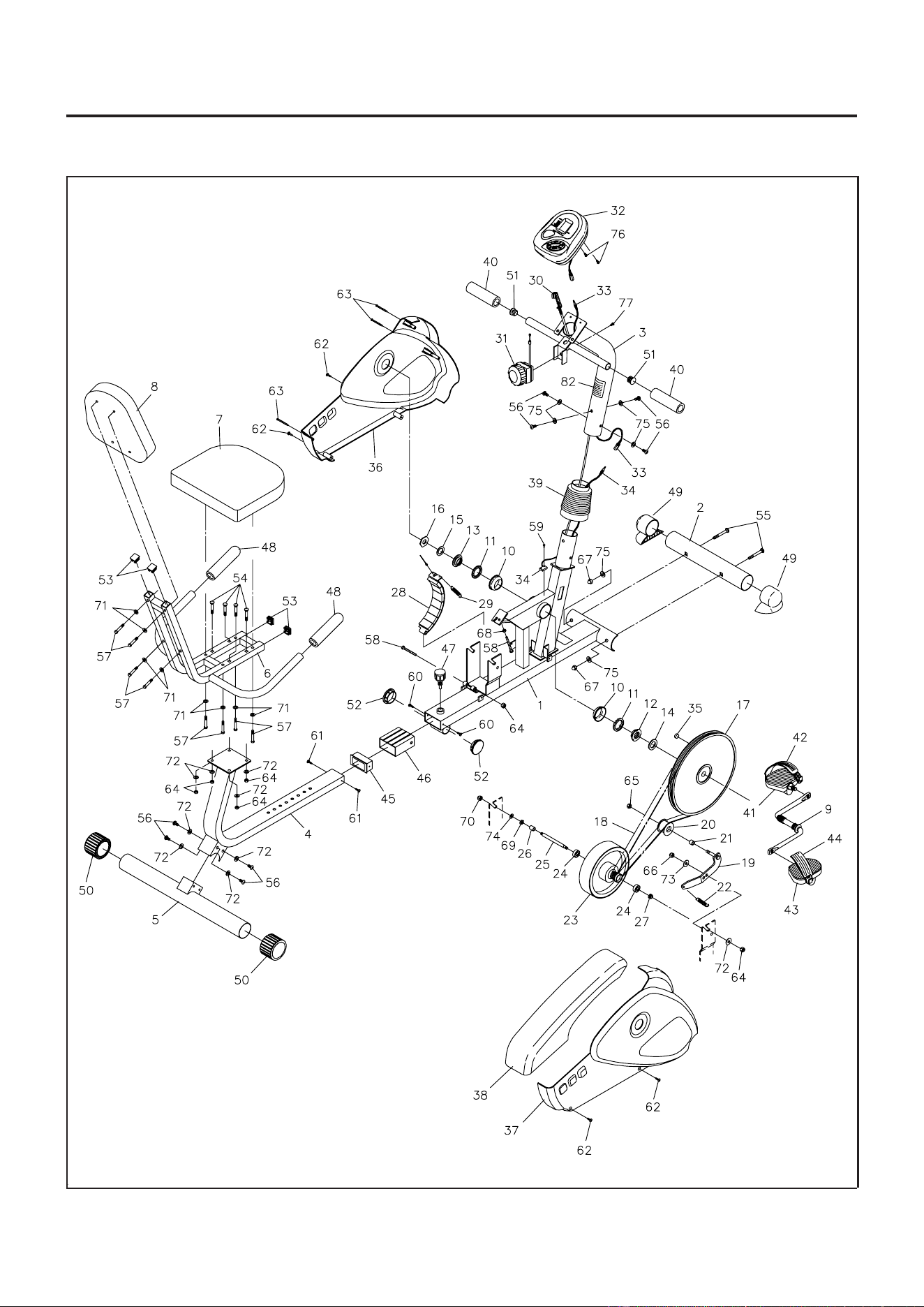

Product Parts Drawing 16
Parts List 17
Notes 19
Fax/Mail Ordering Form 22
Page Page
Safety Instructions 2
Before You Begin 4
Hardware Illustrations 5
Assembly Instructions 6
Set Up Instructions 9
Operational Instructions 10

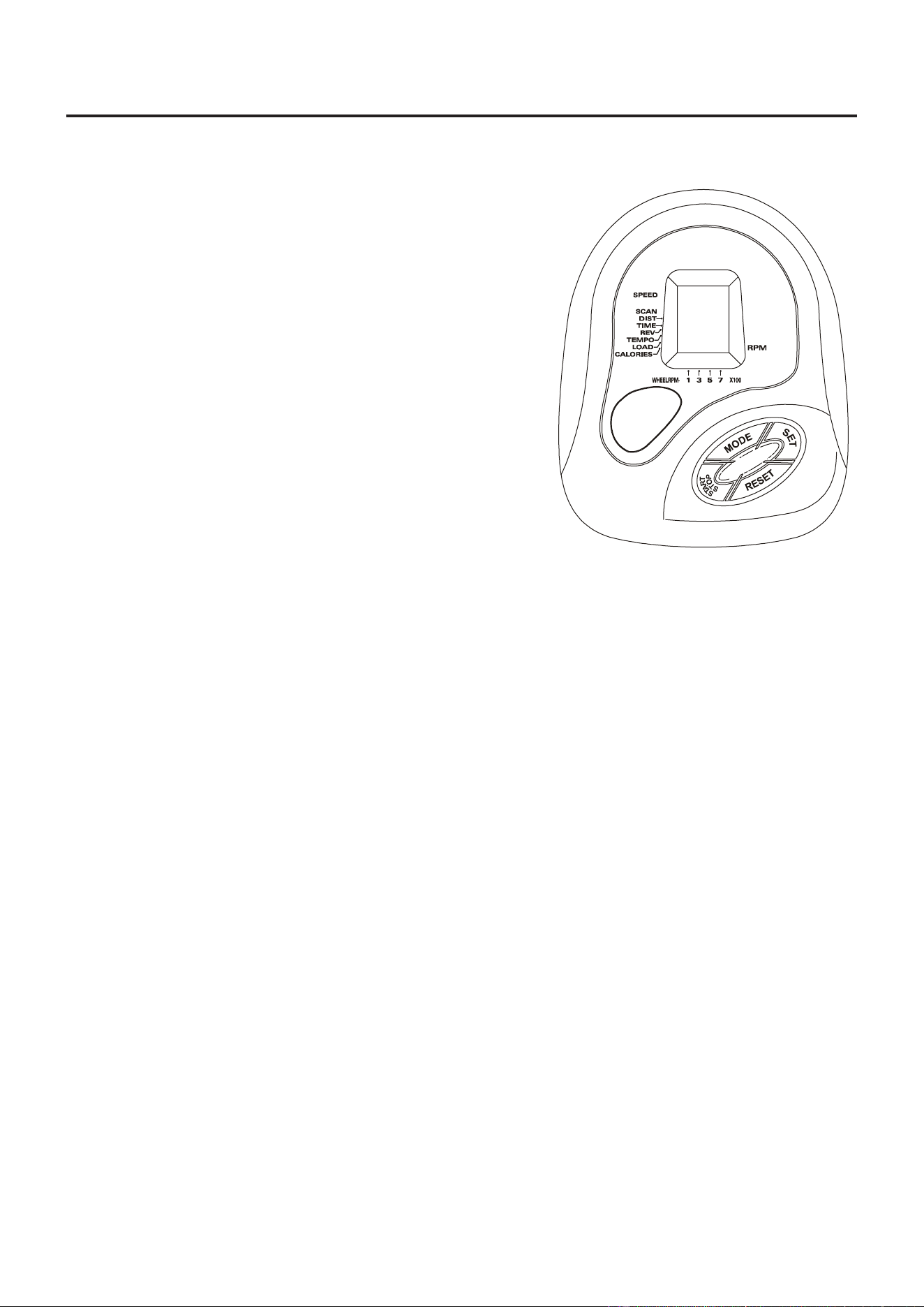

Using The Electronic Meter 11
Storage 12
Before starting any exercise or conditioning program you should consult with your personal
physician to see if you require a complete physical exam. This is especially important if you
are over the age of 35, have never exercised before, are pregnant, or suffer from any
illness. READ AND FOLLOW THE SAFETY PRECAUTIONS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN SERIOUS BODILY INJURY.
WARNING:
SAFETY INSTRUCTIONS
WARNING: To reduce the risk of serious injury, read the following Safety Instructions before
using th
e 7500 EMR Premium Recumbent Bike.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Read all warnings posted on the 7500 EMR Premium Recumbent Bike.
Read this Owner's Manual and follow it carefully before using the 7500 EMR Premium Recumbent
Bike. Make sure that it is properly assembled and tightened before use.
Keep children away from the 7500 EMR Premium Recumbent Bike. Do not allow children to use
or play on the 7500 EMR Premium Recumbent Bike. Keep children and pets away from the 7500
EMR Premium Recumbent Bike when it is in use.
Set up and operate the 7500 EMR Premium Recumbent Bike on a solid level surface. Do not
position the 7500 EMR Premium Recumbent Bike on loose rugs or uneven surfaces.
Inspect the 7500 EMR Premium Recumbent Bike for worn or loose components prior to use.
Tighten/replace any loose or worn components prior to using the 7500 EMR Premium Recumbent
Bike.
Consult a physician prior to commencing an exercise program. If, at any time during exercise, you
feel faint, dizzy, or experience pain, stop and consult your physician.
Follow your physician's recommendations in developing your own personal fitness program.
Always choose the workout which best fits your physical strength and flexibility level. Know your
limits and train within them. Always use common sense when exercising.
Do not wear loose or dangling clothing while using the 7500 EMR Premium Recumbent Bike.
Never exercise in bare feet or socks; always wear correct footwear, such as running, walking, or
crosstraining shoes. Be sure that they fit well, provide foot support and feature non-skid rubber soles.
Be careful to maintain your balance while using, mounting, dismounting, or assembling the 7500
EMR Premium Recumbent Bike, loss of balance may result in a fall and serious bodily injury.
The 7500 EMR Premium Recumbent Bike should not be used by persons weighing over 250
pounds.
The 7500 EMR Premium Recumbent Bike should be used by only one person at a time.
Always make sure that the SPRING PIN KNOB(47) is inserted into one of the adjustment holes in
the REAR FRAME(4). The SPRING PIN KNOB(47) should be securely tightened prior to use.
Each user should adjust the seat per instructions on page 10.
Do not attempt to adjust the seat while you are on the 7500 EMR Premium Recumbent Bike.
The 7500 EMR Premium Recumbent Bike is for consumer use only. It is not for use in public or
semipublic facilities.
CALL US FIRSTCALL US FIRST
CALL US FIRSTCALL US FIRST
CALL US FIRST
THANK YOU FOR PURCHASING THE
TRANSFORMER
TM
1000
To help you get started, we have pre-assembled most of your
TRANSFORMER
TM
1000 at the factory with the exception
of those few parts left unassembled for shipping purposes.
Simply follow the few assembly instructions set forth in this manual.
Within a few minutes you will be getting your body into shape and on your
way to achieving a happier and healthier lifestyle.
Should you have any questions,
please call our Customer Service Department toll-free number,
1 (800) 375-7520
Monday - Friday, 8:00 A.M. - 5:00 P.M., Central Time.
3
BEFORE YOU BEGIN
4
Thank you for choosing the
7500 EMR Premium
Recumbent Bike. We take great pride in producing
this quality product and hope it will provide many
hours of quality exercise to make you feel better, look
better and enjoy life to its fullest.
Yes, it's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our time
and opportunity to exercise. The
7500 EMR
Premium Recumbent Bike provides a convenient
and simple method to begin your assault on getting
your body in shape and achieving a happier and
healthier lifestyle.

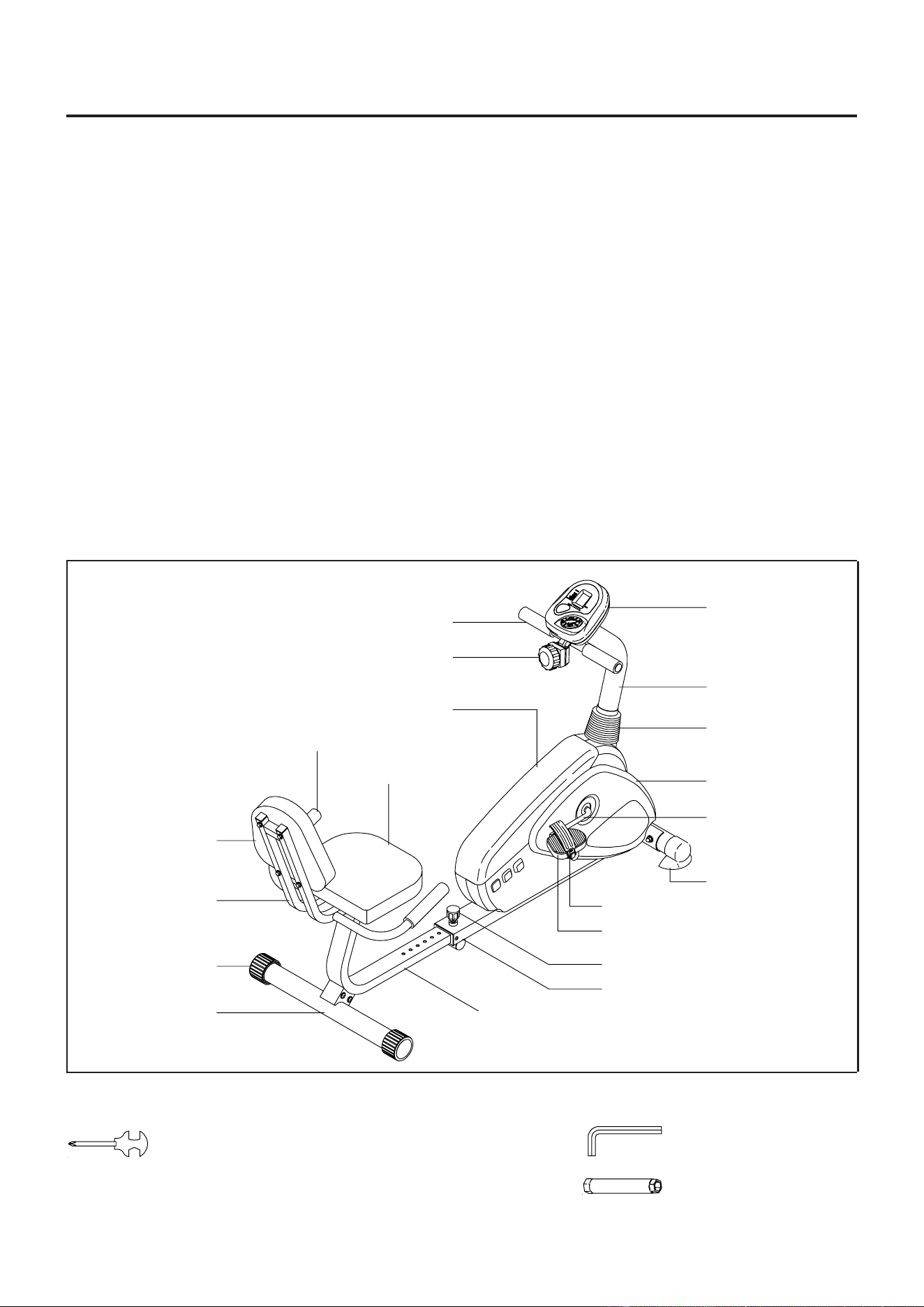

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Read this manual carefully before using the
7500
EMR Premium Recumbent Bike.
Although Stamina tries to manufacture its products
with the finest materials and uses the highest
standards of manufacturing, occasionally a part that
does not fit, is the incorrect size, or is otherwise
inappropriate is found. Even with the highest
inspection and quality controls in place these things
will happen occasionally. Please do not return the
product. For your convenience, Stamina has a
Customer Service Department with a toll-free
number. If a part is missing, does not fit, is the
incorrect size, or is otherwise inappropriate, please
call 1 (800) 375-7520 (in the U.S.) between 8:00 A.M.
and 5:00 P.M. Central Time, Monday through Friday.
Our operators will be able to assist you with your
problem and the parts will be mailed directly to your
house.
THE FOLLOWING TOOLS ARE REQUIRED FOR ASSEMBLY :
Combination Wrench (13mm and 15mm) Allen Wrench (5mm)
Socket Wrench
Seat
Rear Stabilizer
Hand Grip
Rear Frame
Stand Cap
Meter
Crank
Right Cover
Upright
Back Cushion
Seat Frame
Wheel Cap
Main Frame
Spring Pin Knob
Right Pedal
Right Pedal Strap
Tension Knob
Foam Grip
Top Cover
Upright Sleeve

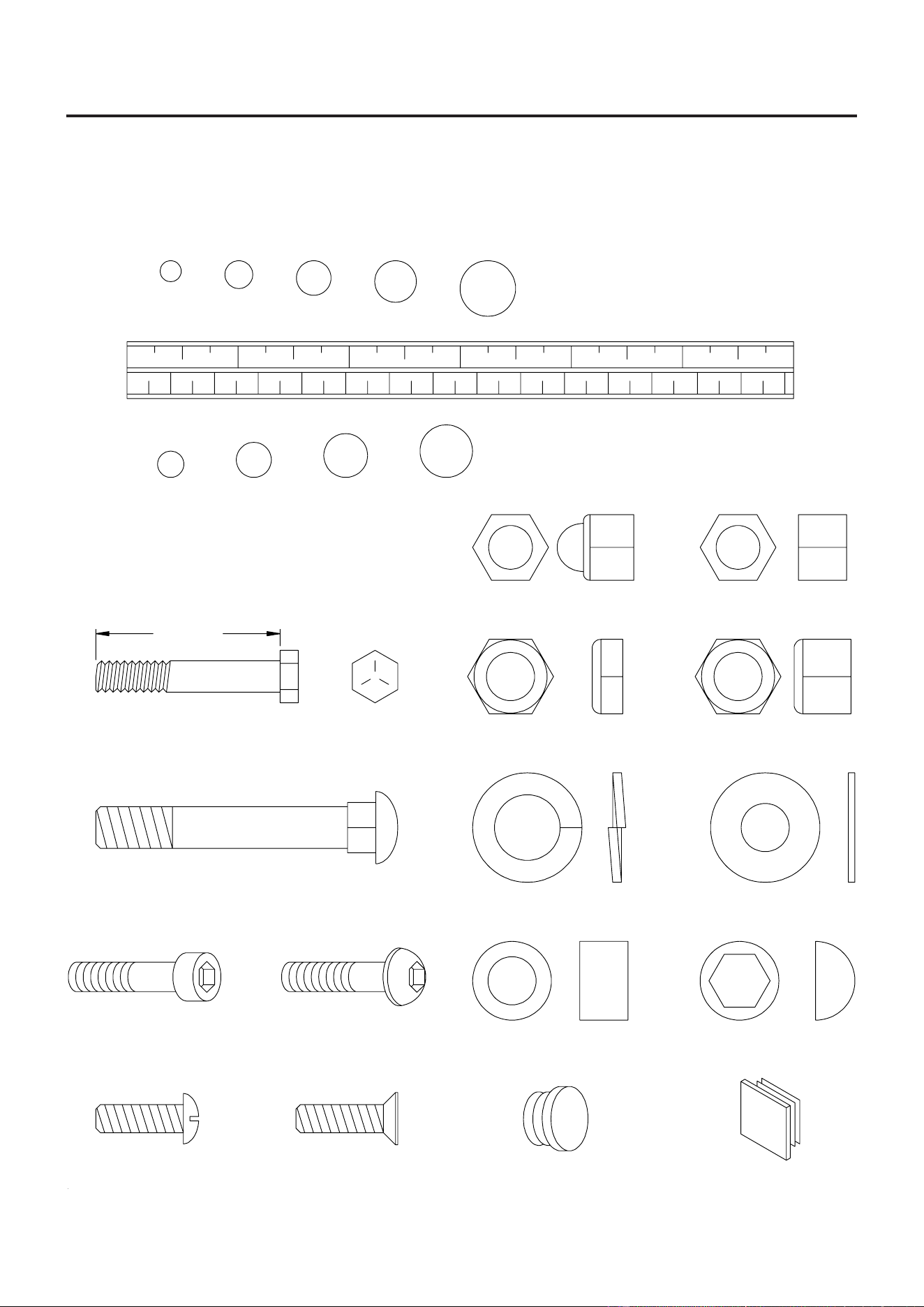

HARDWARE ILLUSTRATIONS
5
Place washers, the end of bolts or screws on the
circles to check for the correct size. Use the small
scale to check the sizes of bolts and screws.
INCHES
MILLIMETERS
mm.
in.
0 1/2 1/2 1/2 1/21/2 1/2123456
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
108126
3/16" 1/4" 5/16" 3/8" 1/2"
Flat Head Screw
Standard NutAcorn Nut
Thin Nylock Nut Nylock Nut
Flat WasherLock Washer
Nut CapSpacer
Round Plug Square Plug
Hex Head Bolt
Length
Carriage Bolt
Socket Head Screw Button Head Screw
Round Head Screw
This chart is provided to help identify some of the small parts used in the assembly of this product. This
sheet may not include all the hardware needed to assemble your product. It is intended to be used as a
guide to help simplify your assembly process.
ASSEMBLY INSTRUCTIONS
6
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520 or e-mail us at:
parts@staminaproducts.com

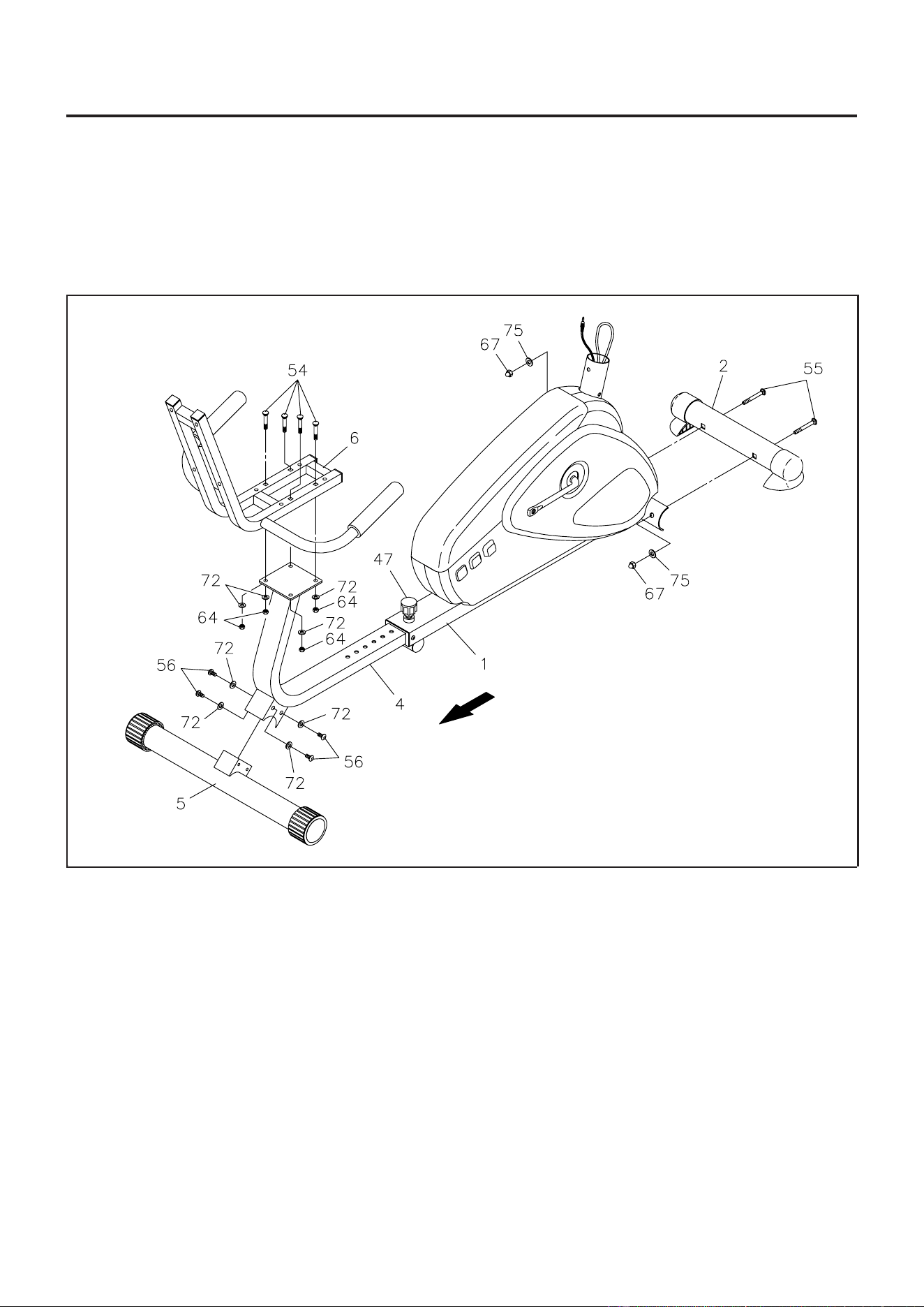

STEP 1
Attach the FRONT STABILIZER(2) onto the MAIN FRAME(1) with CARRIAGE BOLTS(M8 x 70mm)
(55), ARC WASHERS(M8)(75), and ACORN NUTS(M8)(67).
STEP 2
Loosen and pull the SPRING PIN KNOB(47) on the MAIN FRAME(1). Slide the REAR FRAME(4)
backward and secure with the SPRING PIN KNOB(47). Attach the REAR STABILIZER(5) onto the
REAR FRAME(4) with BUTTON HEAD BOLTS(M8 x 15mm)(56) and WASHERS(M8)(72).
STEP 3
Attach the SEAT FRAME(6) onto the REAR FRAME(4) with CARRIAGE BOLTS(M8 x 40mm)(54),
NYLOCK NUTS(M8)(64), and WASHERS(M8)(72).
ASSEMBLY INSTRUCTIONS
7

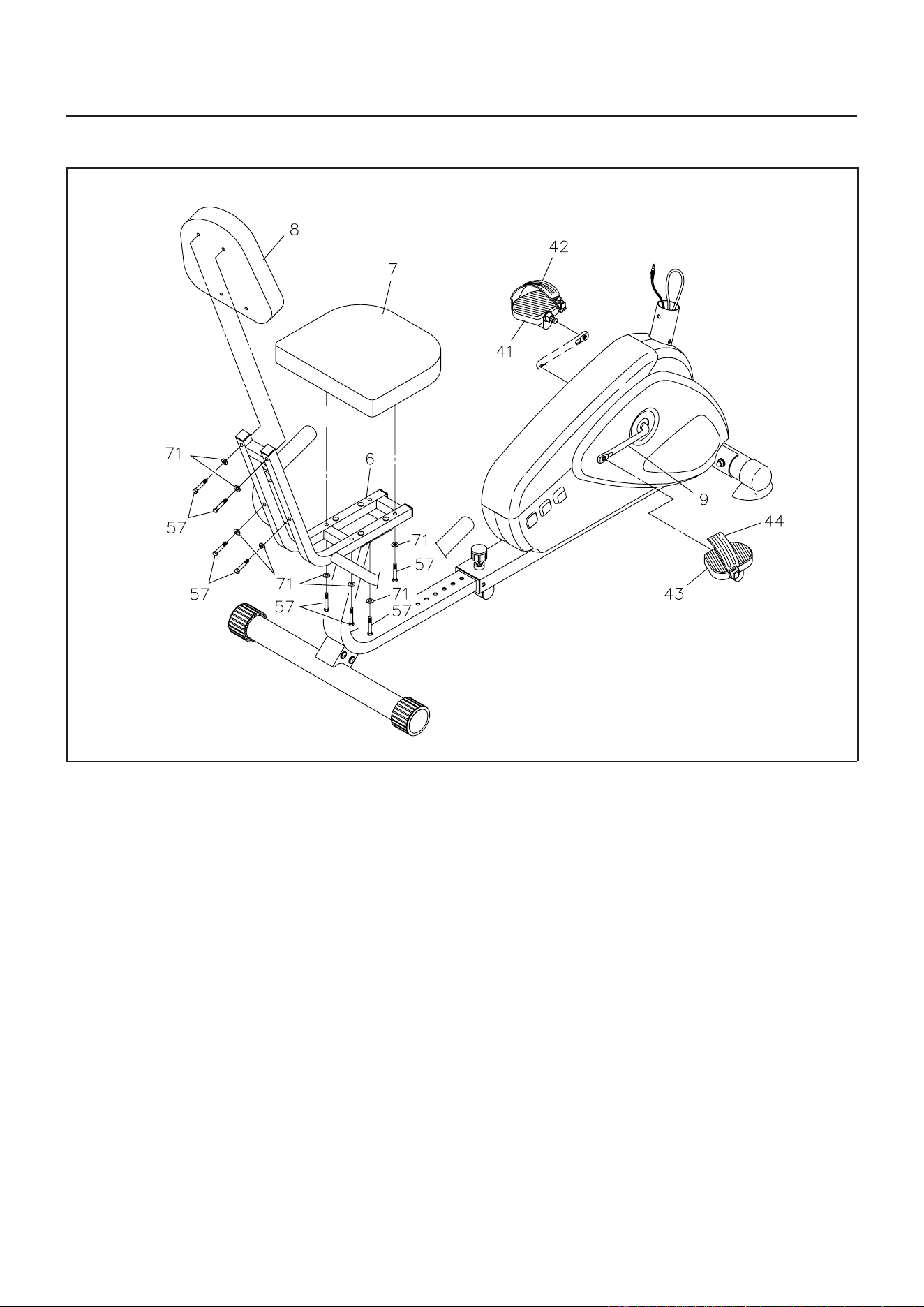

STEP 4
Attach the SEAT(7) onto the SEAT FRAME(6) with BOLTS(M6 x 40mm)(57) and WASHERS
(M6)(71). Attach the BACK CUSHION(8) onto the SEAT FRAME(6) with BOLTS(M6 x 40mm)(57)
and WASHERS(M6)(71).
STEP 5
NOTE:
Thread
RIGHT PEDAL(43) into the right side of the CRANK(9) as shown. Use a wrench to tighten the
pedal securely. Select the
RIGHT PEDAL STRAP(44) which has R marked on the bottom side of the
strap. Snap the three hole end onto the inside edge of the
RIGHT PEDAL(43). Snap the other end onto
the outside edge of the
RIGHT PEDAL(43) with the R mark on the bottom of the RIGHT PEDAL
STRAP(44). Select adjustment holes which allow your foot to be easily removed from the pedals.
Use the same procedure to attach the
LEFT PEDAL(41) to the left side of the CRANK(9) and snap the
LEFT PEDAL STRAP(42) onto the LEFT PEDAL(41).
The RIGHT PEDAL(43) has R stamped on the end of the pedal shaft. The RIGHT PEDAL(43)
has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(41) has L stamped
on the end of the pedal shaft. The
LEFT PEDAL(41) has left hand threads and is tightened by
turning counter clockwise.
ASSEMBLY INSTRUCTIONS
8
CABLE END
SPRING HOOK
BRACKET
( FEMALE END )
METAL FITTING

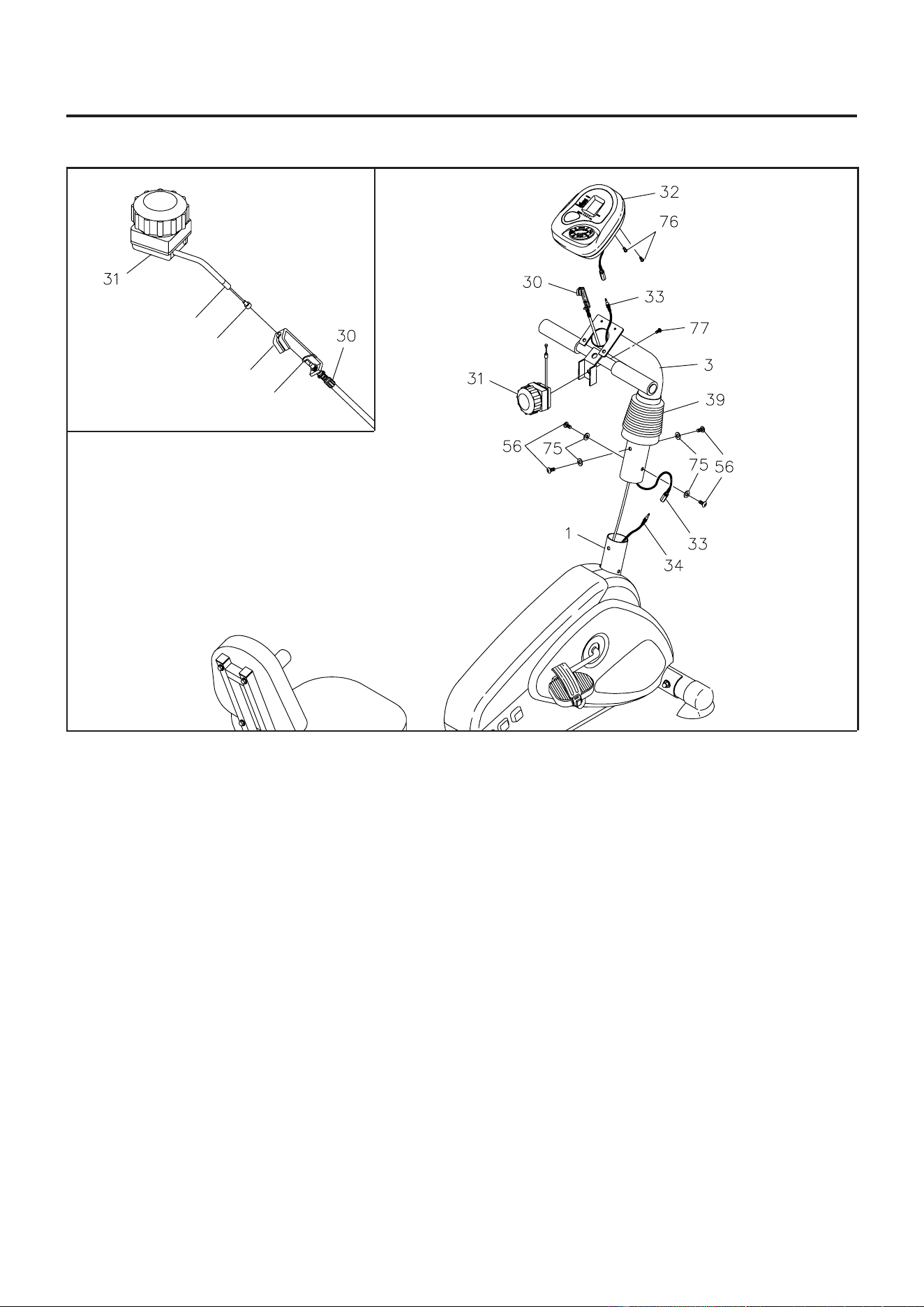

STEP 6: Pull the ends of the TENSION CABLE(30) and SENSOR WIRE(34) out of the MAIN
FRAME(1). Slide the UPRIGHT SLEEVE(39) onto the UPRIGHT(3). Insert the female end of the
CONNECTION WIRE(33) into the UPRIGHT(3) from the top end and connect it to the SENSOR
WIRE(34). Slide the TENSION CABLE(30) into the bottom end of the UPRIGHT(3). NOTE: Be
careful not to damage the
SENSOR WIRE(34). Insert the UPRIGHT(3) onto the MAIN FRAME(1) and
secure with
BUTTON HEAD BOLTS(M8 x 15mm)(56) and ARC WASHERS(M8)(75). Slide the
UPRIGHT SLEEVE(39) down to cover the bolts on the UPRIGHT(3).
NOTE:
STEP 7: Turn the TENSION KNOB(31) counterclockwise to fully extend the CABLE END. Connect
the
CABLE END on the TENSION KNOB(31) to the SPRING HOOK on the end of the TENSION
CABLE(30). Pull on the TENSION KNOB(31) firmly so that enough cable is available to insert the cable
through the slot in the
BRACKET. Then insert the metal fitting on the TENSION KNOB(31) into the hole
at the end of the slot in the
BRACKET. Attach the TENSION KNOB(31) onto the bracket on the
UPRIGHT(3) with SCREW(M5 x 15mm)(77).

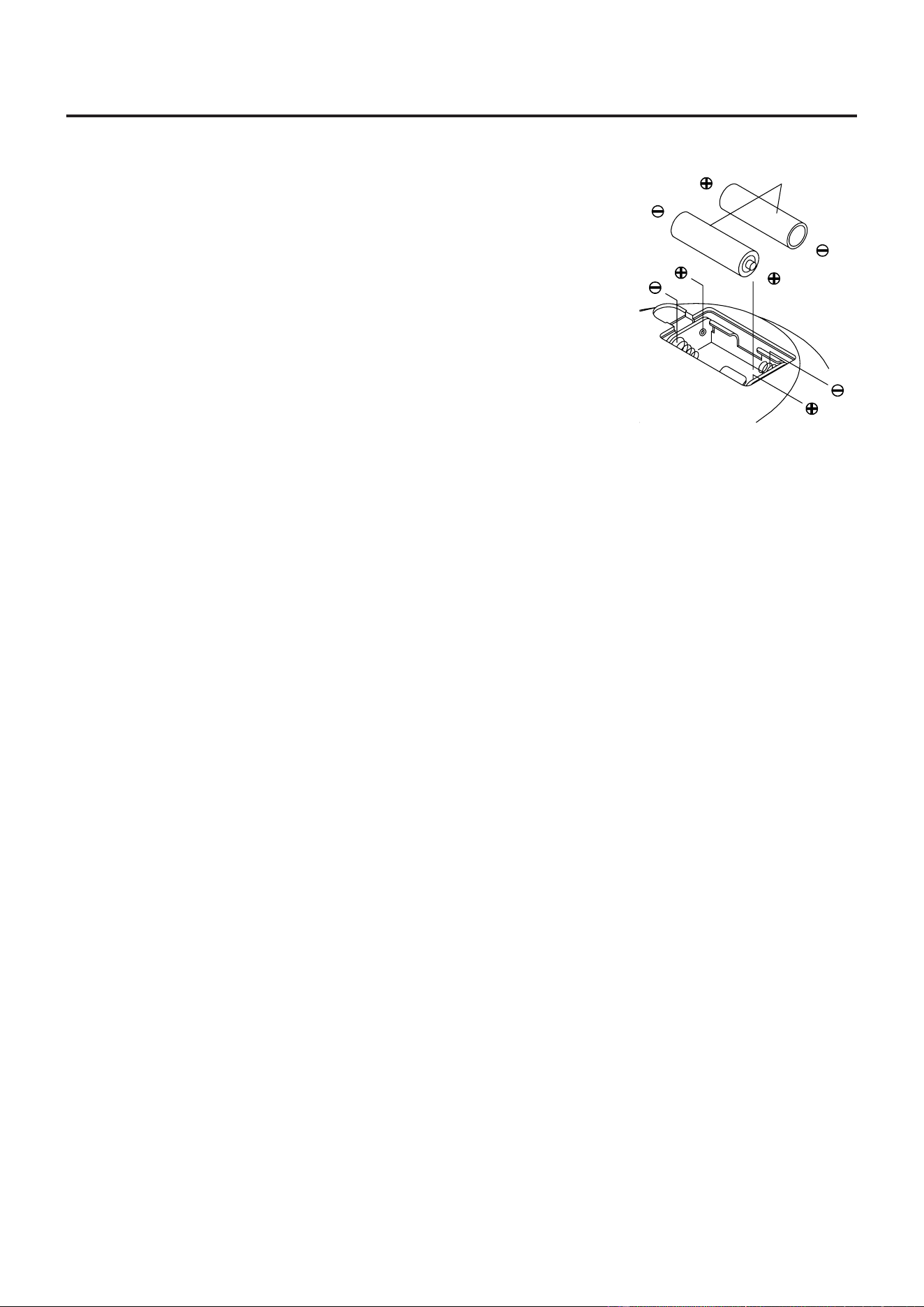

STEP 8: Install two "AA" batteries into the METER(32), two batteries included. Plug the CONNECTION
WIRE(33) into the METER(32). Slide the METER(32) onto the plate on the UPRIGHT(3) and secure
with
SCREWS(M5 x 10mm)(76).
NOTE: Be careful not to damage the wires when sliding the METER(32).
Be careful not to damage the WARNING LABEL(82) placed on the UPRIGHT(3) when sliding
the
UPRIGHT SLEEVE(39).
SET UP INSTRUCTIONS

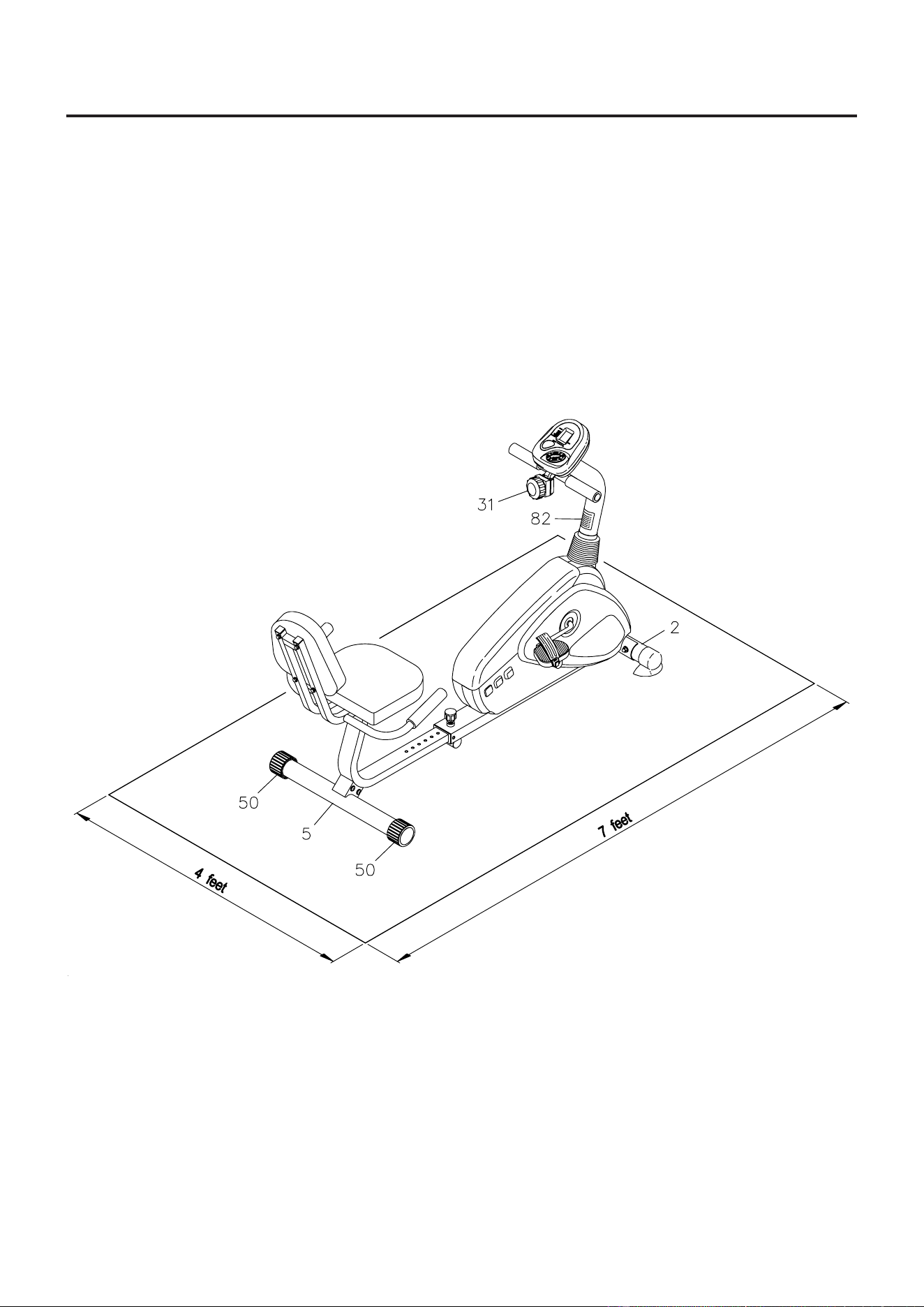

Place the 7500 EMR Premium Recumbent Bike in the area where it will be used. The 7500 EMR
Premium Recumbent Bike is approximately 62" long (max.) x 25 1/4" wide x 43 1/2" tall. (These dimensions
may vary up to one inch.) An area 4 feet wide x 7 feet long is required for safe operation of the 7500 EMR
Premium Recumbent Bike. Make sure that adequate space is available for access to and passage
around the 7500 EMR Premium Recumbent Bike.
9

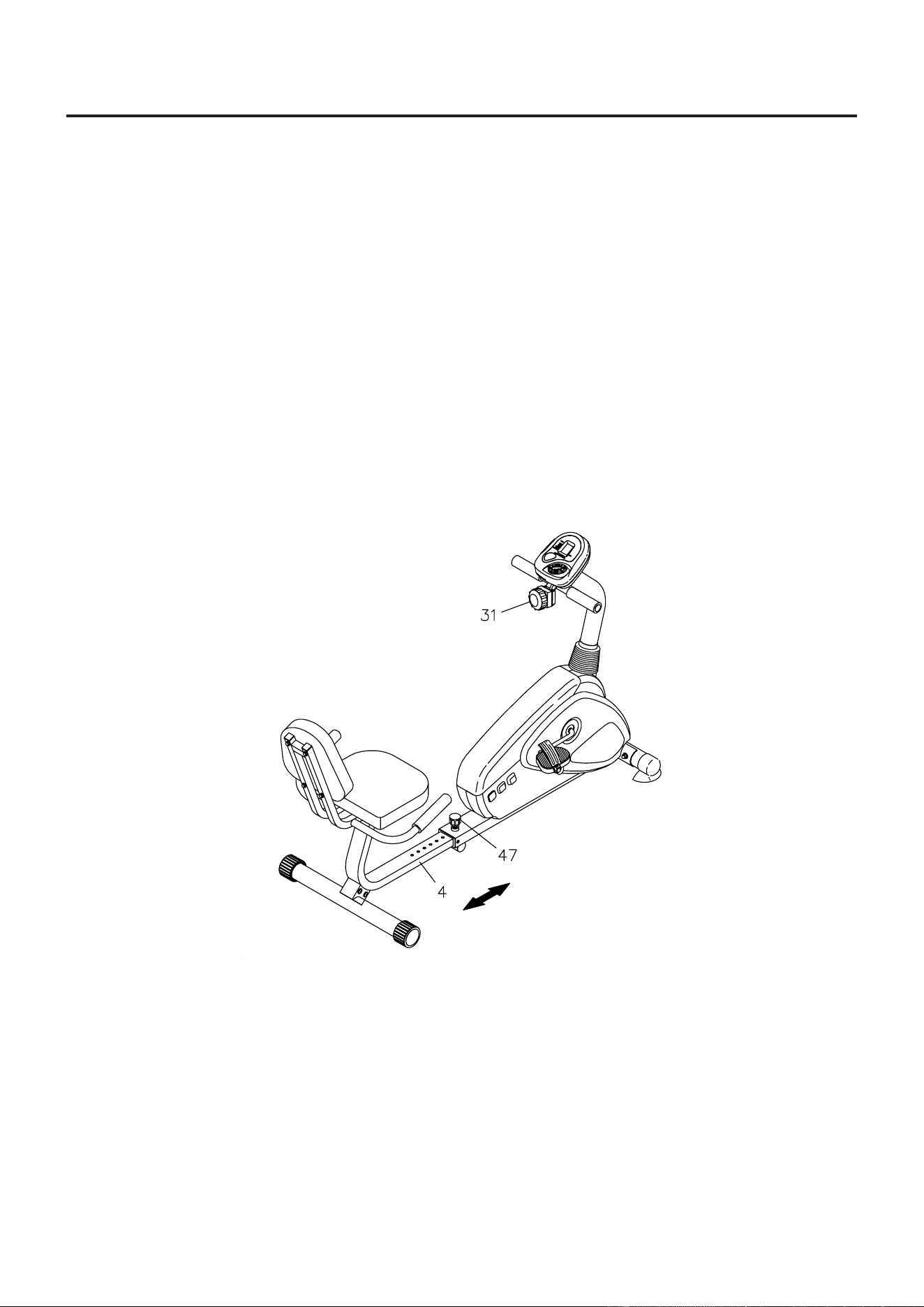

Adjust the location of 7500 EMR Premium Recumbent Bike on the floor to make the
recumbent bike sets on the floor without rocking.
The
7500 EMR Premium Recumbent Bike has a pair of transport WHEEL CAPS(50)
built into the REAR STABILIZER(5). Lift up the 7500 EMR Premium Recumbent Bike
from the FRONT STABILIZER(2) and move slowly.
LEVELING:
MOVING:
FUNCTION INSPECTION:
Visually inspect the 7500 EMR Premium Recumbent Bike to verify that assembly is as shown in the
above illustration. Check the function of the 7500 EMR Premium Recumbent Bike. Turn the crank
slowly through one complete revolution to verify that the drive train functions properly. Adjust the
TENSION
KNOB(31) and verify that it functions properly.
CAUTION:
Locate and read the WARNING LABEL(82) on the 7500 EMR Premium Recumbent
Bike. Make sure that all users read the WARNING LABEL(82).
OPERATIONAL INSTRUCTIONS
10
SEAT ADJUSTMENT
LOAD ADJUSTMENT
To increase the load, turn the TENSION KNOB(31) clockwise. To decrease the load, turn the TENSION
KNOB(31) counterclockwise. There are eight levels for the load adjustment.
CAUTION:
1.
2.
Loosen and pull the
SPRING PIN KNOB(47), then slide the REAR FRAME(4) to adjust the seat.
Tighten the
SPRING PIN KNOB(47) after adjusting the seat to a new position.
Sit on the seat and place your feet on the pedals. You should be able to move through a complete pedal
stroke without locking your knees or shifting your hips on the seat. The seat is too close to the pedals if
you have more than a slight bend in your knees at the bottom of the pedal stroke. The seat is too far from
the pedals if you have to completely straighten your knees at the bottom of the pedal stroke. Refer to the
illustration below.
1.
2.
Proper seat adjustment is important.
Do not attempt to adjust the seat while you are on the
7500 EMR Premium Recumbent Bike.
Always make sure that the SPRING PIN KNOB(47) is inserted into one of the adjustment holes in the
REAR FRAME(4).
USING THE ELECTRONIC METER
11
BUTTONS:
POWER ON :
Pedal movement or push any BUTTON.
Automatic shut off after 4 minutes of inactivity.
POWER OFF :
Press to stop lower display functions and go to
SET mode. SET must be displayed to preset TIME,
REV, LOAD, and TEMPO values. Press START/
STOP button again to remove SET from display
and start lower display functions.
Press to select lower display functions. Lower
display functions include SCAN, DISTANCE,
TIME, REV, LOAD, TEMPO, and CALORIES.
Press to preset values for TIME, REV, LOAD, and
TEMPO. Press START/STOP button to go to SET
mode, select function with MODE button, and set
value with SET button. Hold the button down for
fast advance.
Press to reset TIME, REV, or TEMPO to zero.
Computer must be in SET mode to RESET any
function.
START/STOP :
MODE :
SET :
RESET :
Displays speed in miles per hour on upper display.
Lower display automatically scans DISTANCE, TIME, REV, TEMPO, LOAD, and CALORIES with a
change every four seconds.
Displays distance up to 999.9 miles in increments of 0.1 miles. Counts down from preset value.
Displays time in minutes and seconds up to 99 minutes, 59 seconds. Counts down from preset value.
Displays total crank revolutions up to 9999 revolutions. If REV is preset, it counts down in increments
of one revolution.
The tempo is an audible pulse that can set to beep at time intervals from 0.125 seconds to 9.875
seconds by pressing the SET button.
NOTE: To stop the tempo function, simply set the tempo value to zero or press RESET button.
The LOAD level can be set from 1 to 5. The setting will affect the CALORIE display. Check the setting
on the TENSION KNOB(31) and refer to the information below to set the LOAD level on the Electronic
Meter.
FUNCTIONS:
SPEED:
SCAN:
REV:
TIME:
DISTANCE:
LOAD:
TEMPO:
The meter will shut off automatically after 4 minutes of inactivity. All function values will be kept. Push
the RESET button to reset the functions to zero.
If the display is illegible or only partial segments appear, remove batteries and wait for 15 seconds
then reinstall batteries.
NOTE:
1.
2.
RPM:
CALORIE:
Load Level 1 Tension setting: 1 & 2
Load Level 2 Tension setting: 3 & 4
Load Level 3 Tension setting: 5 & 6
Load Level 4 Tension setting: 7
Load Level 5 Tension setting: 8
Displays estimated Calories up to 9999 Kcal.
NOTE: The CALORIE readout is an estimate for an average user. It should be used only as a
comparison between workouts on this unit.
A bar graph across the bottom displays crank RPM (revolutions per minute) in hundreds.
NOTE: This reading will normally be very low on the 7500 EMR Premium Recumbent Bike.
12
USING THE ELECTRONIC METER
HOW TO INSTALL AND REPLACE BATTERY:
1.
2.
Do not mix a new battery with an old battery.
Use the same type of battery. Do not mix an alkaline battery with
another type of battery.
Rechargeable batteries are not recommended.
1.
2.
3.
NOTE:
Open the Battery Door on the back of the meter.
The meter operates with two AA batteries, two batteries included.
Refer to the illustration to install or replace the batteries.
STORAGE
1.
2.
3.
4.
To store the
7500 EMR Premium Recumbent Bike simply keep it in a clean dry place.
Adjust the
REAR FRAME(4) into the MAIN FRAME(1) to the shortest position. The 7500 EMR
Premium Recumbent Bike is approximately 53 1/2" long (min.) x 25 1/4" wide x 43 1/2" tall. These
dimensions will vary. Please measure your
7500 EMR Premium Recumbent Bike if exact dimensions
are needed.
Moving the
7500 EMR Premium Recumbent Bike with the transport wheels on the REAR
STABILIZER(5). Lift up the 7500 EMR Premium Recumbent Bike from the FRONT
STABILIZER(2) and move slowly.
To avoid damage to the electronics, remove the batteries before storing the
7500 EMR Premium
Recumbent Bike for one year or more.
MAINTENANCE
The safety and integrity designed into the 7500 EMR Premium Recumbent Bike can only be maintained
when the
7500 EMR Premium Recumbent Bike is regularly examined for damage and wear. Special
attention should be given to the following:
Adjust the
TENSION KNOB(31) and verify that the Magnetic System provides tension. The Magnetic
System should provide many years of use.
Use a wrench to verify that the pedals are tightened securely. If tightening is required, remember that the
left pedal has left hand threads and is tightened by turning counterclockwise.
Verify that the Warning Label is in place and easy to read. Call Stamina Products immediately
(1-800-375-7520) for a replacement Warning Label if the Warning Label is missing or damaged.
It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
Worn or damaged components shall be replaced immediately or the
7500 EMR Premium Recumbent
Bike removed from service until repair is made.
Only Stamina Products supplied components shall be used to maintain/repair the
7500 EMR Premium
Recumbent Bike.
Keep your 7500 EMR Premium Recumbent Bike clean by wiping with an absorbent cloth after use.
1.
2.
3.
4.
5.
6.
7.
AA Batteries
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years, or are severely overweight, you must start slowly and increase your time on the
7500 EMR
Premium Recumbent Bike gradually: a few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic
fitness will improve over the next six to eight weeks. Don't be discouraged if it takes longer. It's important to
work at your own pace. Ultimately, you'll be able to exercise continuously for 30 minutes. The better your
aerobic fitness, the harder you will have to work to stay in your target zone. Please remember these
essentials:
Have your doctor review your training and diet programs to advise you of a workout routine you
should adopt.
Begin your training program slowly with realistic goals that have been set by you and your doctor.
Monitor your pulse frequently. Establish your target heart rate base on your age and condition.
Set up your
7500 EMR Premium Recumbent Bike on a flat, even surface at least 3 feet from
walls and furniture.

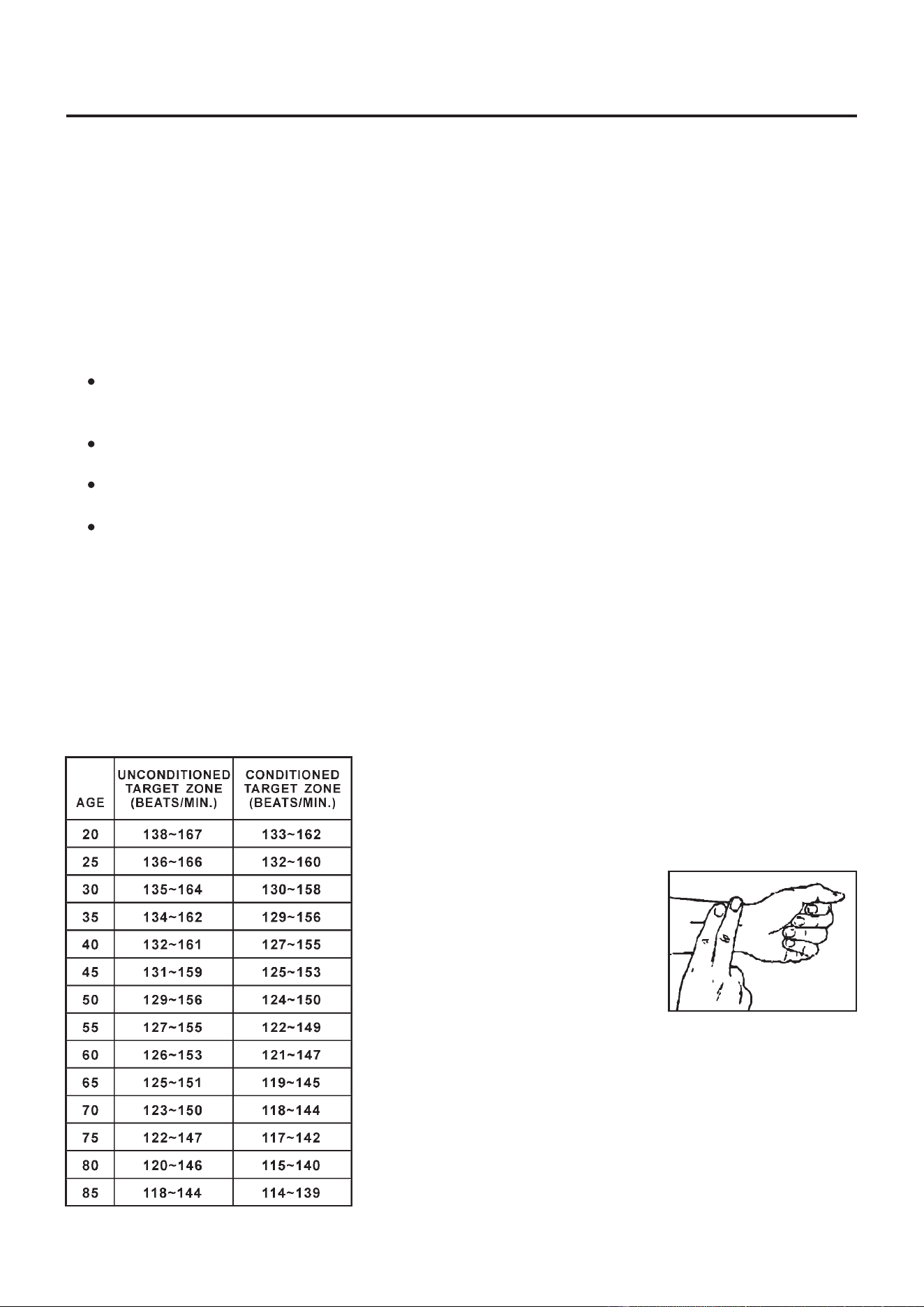

CONDITIONING GUIDELINES
13
To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper
intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart
rate should be maintained at a level between 70% and 85% of your maximum heart rate as you exercise.
This is known as your target zone. You can find your target zone in the table below. Target zones are listed
for both unconditioned and conditioned persons according to age.
EXERCISE INTENSITY
During the first few months of your exercise program, keep your
heart rate near the low end of your target zone as you exercise.
After a few months, your heart rate can be increased gradually
until it is near the middle of your target zone as you exercise.
To measure your heart rate, stop
exercising but continue moving your
legs or walking around and place two
fingers on your wrist. Take a six-
second heartbeat count and multiply
the results by 10 to find your heart
rate. For example, if your six-second
heartbeat count is 14, your heart rate
is 140 beats per minute. (A six-second count is used because
your heart rate will drop rapidly when you stop exercising.) Adjust
the intensity of your exercise until your heart rate is at the proper
level.
14
WARM-UP and COOL-DOWN
Warm-up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm
up for two to five minutes before strength-training or aerobic exercising. Perform activities that raise your
heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump
rope, and running in place
Stretching Stretching while your muscles are warm after a proper warm-up and again after your strength
or aerobic training session is very important. Muscles stretch more easily at these times because of their
elevated temperature, which greatly reduces the risk of injury. Stretches should be held for 15 to 30 seconds.
Do not bounce.
Suggested Stretching Exercises
Remember always to check with your physician before starting any exercise program.
Cool-Down The purpose of cooling down is to return the body to its normal, or near normal, resting state
at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to
return to the heart. Your cool-down should include the stretches listed above and should be completed after
each strength-training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessen, try a lower
position gradually.
Floor Stretch
While sitting on the floor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to the
left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the floor,
have legs apart one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
Stamina Products, Inc. warrants that this product will be free from defects in materials and workmanship
under normal use, service and proper operation for a period of 90 days on the parts and three years on the
frame from the date of the original purchase from an authorized retailer. THIS WARRANTY SHALL NOT
APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE, ABUSE, MISUSE,
ALTERATION OF ANY TYPE OR CAUSE OR TO ANY DEFECT OR DAMAGE CAUSED BY REPAIR,
REPLACEMENT, SUBSTITUTION OR USE WITH PARTS OTHER THAN PARTS PROVIDED BY STAMINA
PRODUCTS, INC. Commercial use includes use of the product in athletic clubs, health clubs, spas,
gymnasiums, exercise facilities, and other public or semipublic facilities whether or not the product's use is
in furtherance of a profit making enterprise, and all other use which is not for personal, family, or household
purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase and
a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield
Missouri, USA, 65801-1071 or call us at 1 (800) 375-7520. If the defect is covered under this limited
warranty, you will be requested to return the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE THAN ONE
(1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE BEEN DISCOVERED.
NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY MAY BE COMMENCED MORE THAN ONE
(1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. This limited warranty is not
transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY AVAILABLE TO YOU. In the event that the purchaser makes any claim under this
limited warranty or any implied warranty, the Warrantor reserves the right to require the product to be returned
for inspection, at the purchaser's expense, to the Warrantor's premises in Springfield, Missouri. Return of
the enclosed warranty registration card is not required for warranty coverage, but is merely a way of
establishing the date and place of purchase.
Stamina Products, Inc. SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF
TIME, INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL,
SPECIAL OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
This limited warranty is the only written or express warranty given by Stamina Products, Inc. This warranty
gives you specific legal rights, and you may also have other legal rights which vary from state to state.
ANY OTHER RIGHT WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY.
The laws in some jurisdictions restrict the rights of manufacturers and distributors of consumer goods to
disclaim or limit implied warranties and consequential and incidental damages with respect thereto. If any
such law is found to be applicable, the foregoing disclaimers and limitations of and on implied warranties and
consequential and incidental damages with respect thereto shall be disregarded and shall be deemed not to
have been made to the extent necessary to comply with such legal restriction.
21
WARRANTY
LIMITED WARRANTY
MODEL 15-7500
PRODUCT PARTS DRAWING
FRONT
16
BACK
17
PARTS LIST
DIAGRAM# PART NAME QTY
1 Main Frame 1
2 Front Stabilizer 1
3 Upright 1
4 Rear Frame 1
5 Rear Stabilizer 1
6 Seat Frame 1
7 Seat 1
8 Back Cushion 1
9 Crank 1
10 Bearing Housing 2
11 Ball Bearing 2
12 Inside Bearing Collar 1
13 Outside Bearing Collar 1
14 Bearing Washer 1
15 Bearing Snap Washer 1
16 Bearing Nut 1
17 Pulley 1
18 V-Ribbed Belt (440J6) 1
19 Idler Arm 1
20 Idler Wheel 1
21 Idler Wheel Spacer 1
22 Tension Spring 1
23 Magnetic Flywheel 1
24 Bearing (6000 zz) 2
25 Flywheel Shaft 1
26 Spacer 1
27 Bushing Spacer 1
28 Magnetic Brake 1
29 Return Spring 1
30 Tension Cable 1
31 Tension Knob 1
32 Meter 1
33 Connection Wire 1
34 Sensor Wire 1
35 Magnet 1
36 Left Cover 1
37 Right Cover 1
38 Top Cover 1
39 Upright Sleeve 1
40 Foam Grip 2
41 Left Pedal 1
42 Left Pedal Strap 1
43 Right Pedal 1
44 Right Pedal Strap 1
45 Bushing 1
PARTS LIST
DIAGRAM# PART NAME QTY
18
46 Bushing Stopper 1
47 Spring Pin Knob 1
48 Hand Grip 2
49 Stand Cap (60mm) 2
50 Wheel Cap (60mm) 2
51 Round Plug (25mm) 2
52 Round Plug (38mm) 2
53 Square Plug (25mm) 4
54 Carriage Bolt (M8 x 1.25 x 40mm) 4
55 Carriage Bolt (M8 x 1.25 x 70mm) 2
56 Bolt, Button Head (M8 x 1.25 x 15mm) 8
57 Bolt, Hex Head (M6 x 1 x 40mm) 8
58 Bolt, Hex Head (M8 x 1.25 x 60mm) 2
59 Screw, Round Head (M3 x 8mm) 1
60 Screw, Round Head (M4 x 8mm) 2
61 Screw, Round Head (M4 x 11mm) 2
62 Screw, Round Head (M4 x 25mm) 4
63 Screw, Round Head (M4 x 65mm) 3
64 Nylock Nut (M8 x 1.25) 6
65 Nylock Nut (M10 x 1.5) 1
66 Nylock Nut (3/8" - 16) 1
67 Acorn Nut (M8 x 1.25) 2
68 Nut (M8 x 1.25) 1
69 Thin Nut (3/8" - 26 x 5/32" thick) 1
70 Flange Nut (3/8" - 26) 1
71 Washer (M6) 8
72 Washer (M8) 9
73 Washer (3/8" x 1" x 0.08" thick) 1
74 Washer (3/8" x 3/4" x 0.06" thick) 1
75 Arc Washer (M8) 6
76 Screw, Round Head (M5 x 0.8 x 10mm) 2
77 Screw, Round Head (M5 x 0.8 x 15mm) 1
78 Allen Wrench (5mm) 1
79 Combination Wrench (13mm and 15mm) 1
80 Socket Wrench 1
81 Manual 1
82 Warning label 1
19
NOTES
20
NOTES
21
NOTES
IMPORTANT : Before filling out the form below make sure you have the right information.
Refer to the parts list to make sure you're ordering the right parts!
Detach and Mail or Fax the Form Below
Stamina Products, Inc.
P.O. Box 1071
Springfield, MO 65801-1071
IMPORTANT : We must have your phone number in order to process the order!
FAX/MAIL ORDERING FORM
Please do not return the product. For your convenience, Stamina has a Customer Service Department with
a toll-free number. Should a part be missing or a defective part found, please call 1 (800) 375-7520
(in the U.S.) between 8:00 A.M. and 5:00 P.M. Central Time, Monday through Friday or fill out the fax sheet
ordering form below and fax it to (417) 889-8064. Our Customer Service Department will be able to assist
you with your problem and the part will be mailed directly to your house.
TELEPHONE
CUSTOMER SERVICE
Tel: 1 (800) 375-7520
FAX
CUSTOMER SERVICE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Service
P.O. Box 1071
Springfield, MO. 65801-1071
ONLINE
CUSTOMER SERVICE
parts@staminaproducts.com
www.staminaproducts.com
Mr./Ms:
Address: Apt. #:
City: State: Zip Code:
Phone #: ( ) Work Phone #: ( )
Date Purchased:
Model #:
Purchased From:
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
