ET60
DC Voltage Circuit Test Kit
2
I
ntroduction
Thank
you
for
purchasing
the
Triplett ET60 DC Voltage Circuit Test Kit. This
meter
is
user-
friendly and
reliable.
Please
read
this
manual
thoroughly
before
operation.
The ET60
Digital Circuit Tester Kit is designed for tesng 6V, 12V, 24V, and
48V DC systems. This instrument is compable with all vehicle voltages,
including those in computerized engines. It allows users to quickly and
safely measure accurate voltage values. The digital display provides clear
polarity indicaon with two disnct colors: red for posive polarity and
green for negave polarity.
For enhanced usability, the tester features a exible coil cord that extends
up to 12 feet, making it suitable for a wide range of tesng applicaons.

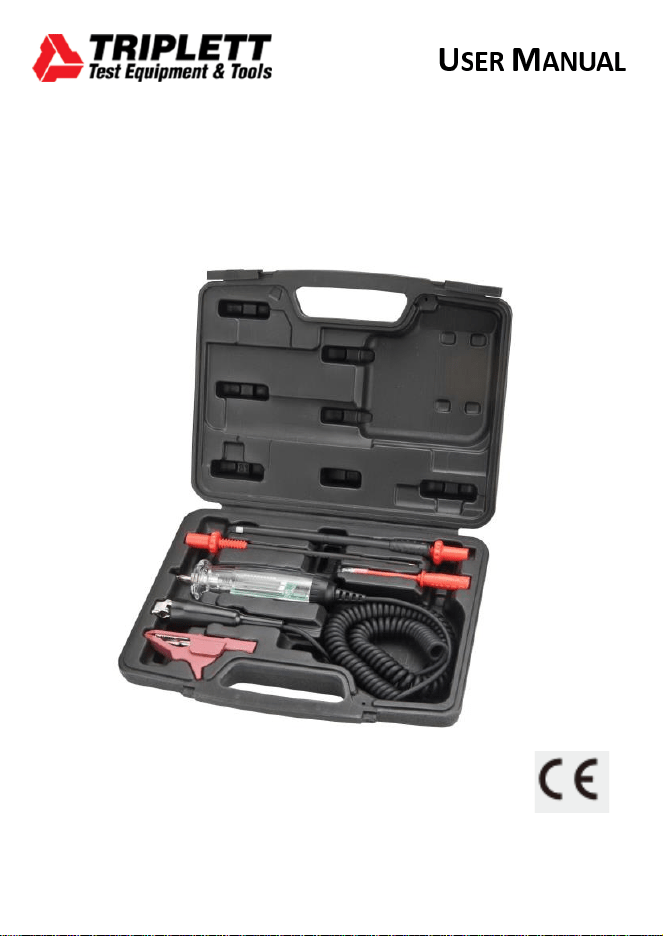

Kit Components:
The ET60 kit includes four essenal accessories to accommodate
various tesng scenarios:
•
Standard Probe & Alligator Clip
–
Ideal for general tesng
applicaons.
•
Long Tesng Probe
–
Suitable for hard
-to-
reach tesng points.
•
Wire Piercing Probe
–
Designed for situaons where the
electrical source is not easily accessible.
•
4mm Banana Jacks
–
Ensuring compability with most circuit
tesng equipment and meters.
3
Operang Instrucons:
1. Connect the black alligator clip to the negave terminal of the
vehicle baery.
2. Connect the red alligator clip to the tesng point.
3. When the circuit is live, the voltage value and polarity will be
displayed on the LCD screen.
Component Tesng Procedure:
1. Aach the crocodile clip to a good grounding point, preferably
the negave terminal of the baery or the vehicle chassis.
2. Use the probe p to complete the circuit by touching the
electrical connector or piercing the insulaon of the posive wire
(ensure any wire damage is repaired aer tesng).
3. If the tester's display does not illuminate, the circuit may not be
receiving power and further diagnoscs will be required.
Technical Specifications:
• Compable with 6V, 12V, 24V, and 48V DC systems.
• Voltage measurement range: 4V – 60V DC.
• Flexible coil cord extends up to 12 feet.
• Maximum tesng current: <10mA.
• Display: LCD screen.
• Polarity Indicaon:
4
o Red Display: Posive polarity.
o Green Display: Negave polarity.
• Suitable for automove electrical circuits only (6V, 12V, and 48V
DC systems).
• Not intended for AC circuit tesng.
Included Accessories:
• Standard Probe
• Long Probe
• Wire Piercing Probe
• Small Probe
• Red Alligator Clip
