INFRERED MOTION SENSOR
TECHNICAL DATA
INPUT VOLTAGE
220-240V/AC
SKU 24111
MODEL VT-81008
POWER FREQUENCY
50/60Hz
AMBIENT LIGHT
<3-2000 LUX (Adjustable)
TIME DELAY
Min. 10sec±3sec
Max. 15min±2min
RATED LOAD
2000W
1000W
DETECTION RANGE 240°
DETECTION DISTANCE 8-14m (<24°C) adjustable
WORKING TEMPERATURE -20~+40°C
WORKING HUMIDITY <93%RH
INSTALLATION HEIGHT 1.8 - 2.5m
POWER CONSUMPTION < 0.5W
DETECTION MOTION SPEED
0.6 - 1.5m/s
DIMENSION
100.3x62x75mm
WEEE Number: 80133970
COMPATIBLE WITH
V-TAC LED
RANGE [UPTO 1000W]
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation should only be done by a certified electrician.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only.
[Traditional Lighting]
[LED Lighting]
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
CONNECTION
INSTALLATION ADVICE
• Can identify day and night: The consumer can adjust working state in dierent ambient light. It can work
in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient
light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please
refer to the testing pattern.
• SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity
could be only 8m and high sensitivity could be 14m which fits for large room.
• Time-Delay is added continually: When it receives the second induction signals within the first induction,
it will restart to time from the moment.
• Switch o the power.
• Loosen the screw on the bottom and unload the bottom (refer to figure 1&2).
• Open the wire hole in the bottom and pass the wire through the hole.
• Connect the power into the connection-wire column according to the Connection-wire Diagram.
• Fix the bottom with the inflated screws on the selected position (refer to figure 3).
• Install back the sensor on the bottom, tighten the screw. Switch on the power and then you can test it.

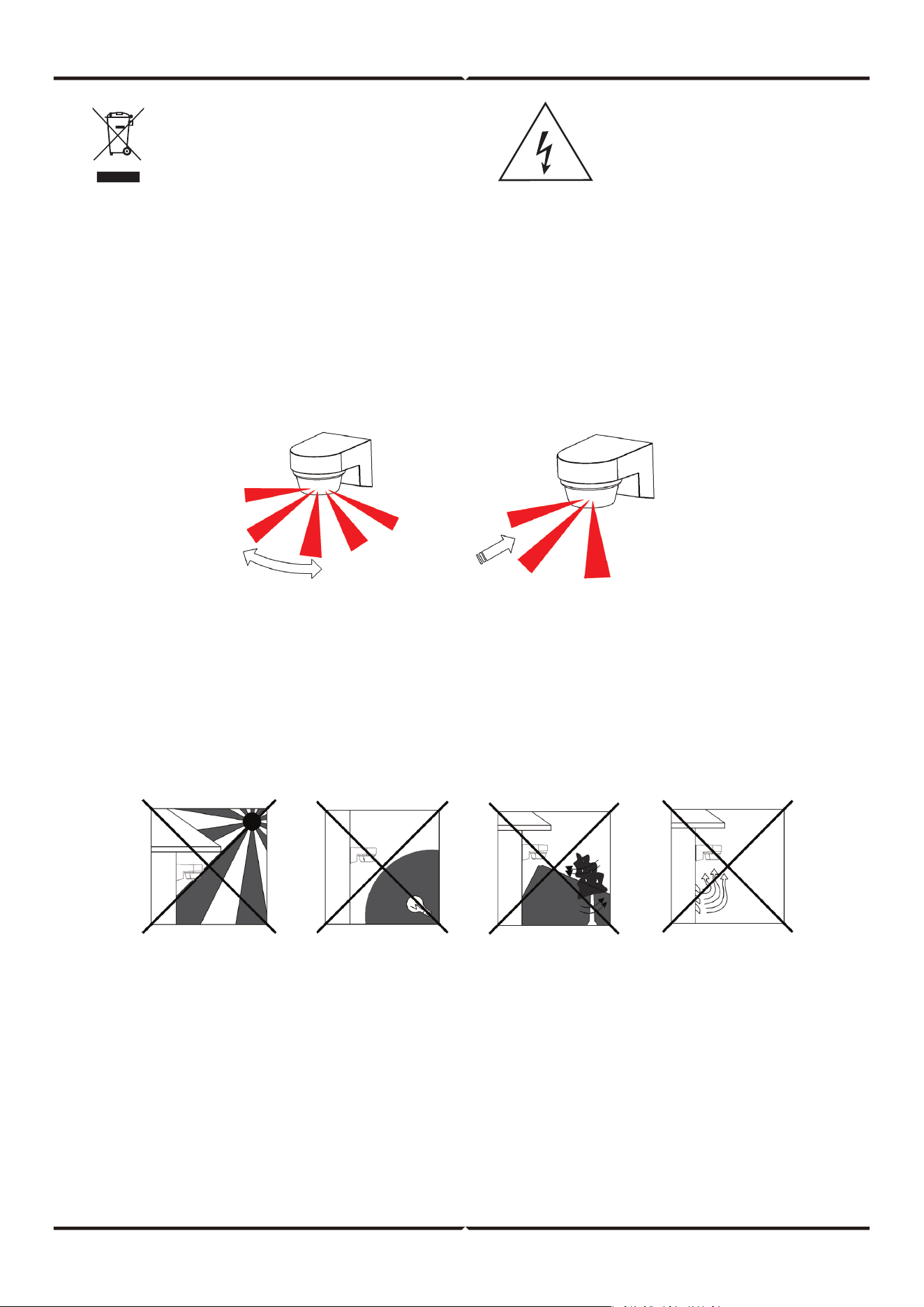

As the detector responds to changes in temperature, avoid the following situations
• Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.
• Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.
• Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
Good sensitivity Poor sensitivity
FUNCTION
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
• Turn the LUX knob clockwise on the maximum (sun). Turn the
SENS knob clockwise on the maximum (+). Turn the TIME
knob anti-clockwise on the minimum (10s).
• Switch on the power; the sensor and its connected lamp will
have no signal at the beginning. Aer Warm-up 30sec, the
sensor can start work. If the sensor receives the induction
signal, the lamp will turn on. While there is no another
induction signal any more, the load should stop working
within 10sec±3sec and the lamp would turn o.
CONNECTION-WIRE DIAGRAM
SENSOR INFORMATION
TEST
Note: when testing in daylight, please turn LUX knob to ☼ (sun) position, otherwise the sensor
could not work!

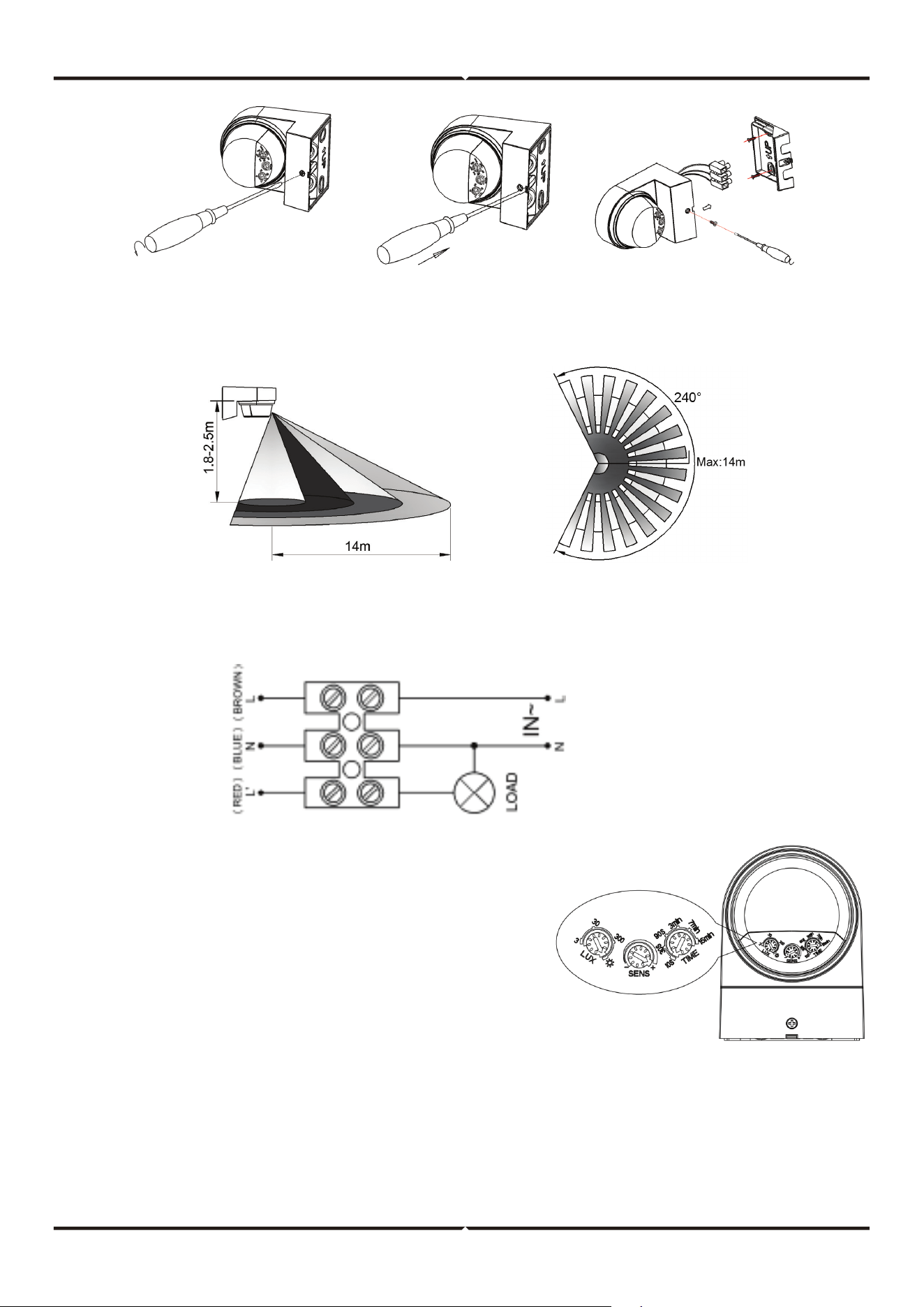

Figure1
Height of installation: 1.8 - 2.5m Detection Distance: Max.14m
Figure 2 Figure 3
• Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3LUX, the sensor
would not work and the lamp stop working too. If the ambient light is less than 3LUX (darkness), the
sensor would work. Under no induction signal condition, the sensor should stop working within
10sec±3sec.
TROUBLESHOOTING
• The load does not work
a. Please check if the connection of power source and load is correct.
b. Please check if the load is good.
c. Please check if the settings of working light correspond to ambient light.
• The sensitivity is poor
a. Please check if any hindrance in front of the detector to aect it to receive the signals.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height required.
e. Please check if the moving orientation is correct.
• The sensor can not shut o the load automatically
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position.
c. Please check if the power corresponds to the instruction.
