Features:
•
Individually rotating fans adjust for ideal
comfort, or rotate to reverse airow.
•
Rotating Dial with 2 Speed Settings
•
Auto Locking Expander Plus 2 Extension Panels
(Expandable from 21.65" to 33.27”)
•
Can be installed horizontally or vertically for sliding windows
•
Turbo Fan Blades Designed for Maximum Air Movement
•
Removable feet for table-top use
•
Removable bug screen
•
120V A.C. / 60Hz.
CZ329 Series
Dual Window Fan with
180º Rotating Fans
2
2
www.comfortzoneproducts.com
INTENDED USE:
This product is intended for indoor residential and ofce use only,
not for industrial or other commercial applications. Use only with
electrical wiring that is in good working order and that meets
applicable codes and ordinances. If you have any questions
whether your wiring is adequate, consult a qualied electrician.
While using your fan, you should follow the IMPORTANT
INSTRUCTIONS listed below. As part of those instructions, we
have used the word "WARNING" to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided, could result
in injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety precautions should
always be followed to reduce the risk of electric shock, re, or
injury to persons, including the following precautions:
• Read all the instructions before using this fan.
• Use this fan only as described in this manual. Any other use not
recommended by the manufacturer may cause electrical shock,
re or injury to persons.
• Do not operate the fan with a damaged power cord or after the
fan malfunctions or has been dropped in any manner.
• Use of extreme caution is necessary when any fan is used by or
near children, disabled persons or pets and whenever the fan is
left operating unattended.
• Do not place the fan on a small, unlevel, uneven or any surface
which might allow fan to tip or fall.
• For proper operation, fan should be placed on a smooth,
non-combustible, level surface.
• Always unplug fan when not in use, when moving from place
to place, when assembling or disassembling parts, and before
cleaning.
• The use of attachments, not recommended or sold by the
manufacturer, may cause hazards.
• Do not use outdoors.
• Do not use fan in window. Rain may cause electrical hazard
(for non-window models).
• Do not operate the fan with blade guards or any safety device
removed.
• Avoid the use of extension cords due to risk of re. If an
extension cord must be used, the cord must be minimum
14 AWG and rated not less then 1875 watts.
• Do not run power cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from trafc
area where it will not be tripped over.
• Do not insert or allow any object to enter any openings on the
fan. Doing so may cause electric shock and/or re hazard.
Avoid contact with moving parts.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with
the appliance.
READ & SAVE THESE
INSTRUCTIONS
WARNING: SHOCK HAZARD
Use your fan only in dry environments. This fan is not intended
for use in a bathroom, laundry area, or similar locations, or near
sinks, washing machines, swimming pools or other sources of
water. Never locate fan where it may fall into a bathtub or other
water receptacle. Do not use in damp environments such as
ooded basements.
WARNING: HOT SURFACES
Do not touch fan motor when in use. This motor is hot when in
use, to avoid burns, do not let bare skin touch hot surfaces.
WARNING: FIRE HAZARD
Fans have arcing or sparking parts inside. Do not use near
combustible materials or ammable gases or sources of heat.
DO NOT USE in areas where gasoline, paint or ammable
materials are used or stored. To prevent a possible re, do not
block air intakes or exhaust in any manner. Do not insert or allow
foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock, re, or damage the fan.
WARNING: ELECTRICAL SHOCK HAZARD
Do not use with damaged cord or plug. Use with adequate
electrical system that is up to code.
CAUTION: TO PREVENT ELECTRIC SHOCK,
this product has a polarized two prong plug (one blade is wider
than the other) that must be fully inserted in to a matching
properly grounded outlet. This plug is designed to t a polarized
outlet only one way. If the plug does not t fully into the outlet,
reverse the plug. If the plug still does not t, contact a qualied
electrician. Do not attempt to defeat this safety feature
CAUTION: To reduce risk of re and to properly exhaust air,
be sure to duct air outside – Do not vent exhaust air into spaces
within walls or ceilings or into attics, crawl spaces, or garages.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, do not use this product with any
solid-state speed control device.
DO NOT operate any fan with a damaged cord or plug or after
fan malfunctions, has been dropped or damaged in any manner.
Do not operate fan with a broken blade, safety cage or any visual
imperfections. Disconnect power before servicing. For repairs
covered under warranty, see warranty statement. For all other
repairs contact Comfort Zone
®
Customer Service by telephone or
mail for information and assistance.
DO NOT run power cord under carpeting. DO NOT cover cord
with throw rugs, runners or the like. Arrange cord away from
trafc area where it will not be tripped over. Avoid the use of
extension cords due to risk of re. If an extension cord must
be used, the cord must be minimum 14 AWG and rated not
less then 1875 watts. Do not use an extension cord unless the
plug can be completely inserted into its receptacle. Unplug
the fan when not in use. Do not operate fan with its ventilation
obstructed.
3
3
www.comfortzoneproducts.com
Installation for Sliding (Casement) windows
1. This fan has been designed for a sliding (casement) window
with minimum opening of 22-1/2" high x 11-1/8" wide. The fan
will be positioned vertically in the window opening, with the rigid
panels (if needed) at the bottom.
2. Open window and place the fan in the opening.
3. There is an accordion style expanding side panel on one side
of the fan, leave this retracted for this step. The other side has
2 rigid extension panels that slide onto the fan to give you
more room for expansion. Check the t of the window fan in
the window opening and attach as many of the rigid side
panels as will t in the window opening.
4. Position the fan in the window so that the Speed
Selector knob is facing toward the inside of the
room. With power cord aligned in its slot and
coming inside the house, place the bottom of
the fan against the side of the window frame.
5. Extend the accordion side panel until the space
on both sides of the fan are fully blocked.
6. Slide the window closed, making rm contact
with the top of the fan (See Fig. 2). Secure
window in position tight against the fan top.
Note: It is the customer's responsibility to be sure the fan is
secure in the window. If the fan does not t securely into window,
pull out the Built-In Extender Panel to achieve a secure t.
CAUTION: Fan will not stop a child from falling out of the window.
Keep children away from open windows.
Instructions for Floor or Table Use:
Simple assembly is required to use this fan on a table or oor. Locate
4 slots on the base of fan (See Fig. 3). Push fan leg into slot to lock in
place. Repeat this action on the other leg.
Adjustable Fan Head Angles:
Fan heads rotate individually to adjust the direction of air ow. Push
the fan heads in either direction to adjust the direction of airow for
comfort and circulation. Each fan head can be rotated completely
around to reverse the air ow. Push the right side of each fan until it
rotates 180° and blows in the opposite direction. (See Fig. 4).
USAGE:
Fan Operation: Always operate the fan following all instructions
and recommendations listed in this manual. This fan can be
used horizontally in double-hung windows, or vertically in sliding
(casement) windows.
Fan Location: Place the fan in the area of the room that will provide
proper fan cooling. This fan can be placed in a window to blow
air into the room from the outside, or it can blow room air outside,
or it can circulate air by blowing both inward and outward at the
same time.
Fan Connection: Plug fan directly into 120 volt A.C., 60 Hz wall
outlet. Be sure plug ts tightly in outlet. A loose connection may
cause overheating and damage to the plug or fan.
Note: To prevent overloading a circuit, do not plug the fan into a
circuit that is servicing other electrical needs.
Turning Fan On/Off: To start the fan, rotate Control Dial from 0
position to desired fan speed (I or II). Rotate dial to 0 to discontinue
use. Unplug fan when not in use.
INSTALLATION:
This window fan has been designed to t either double-hung or
sliding (casement) windows. If space allows, window screens
can be left in place.
Your fan comes fully assembled and is ready for window installation.
Do not use the optional feet when installing in a window.
Installation for Double-hung windows
1. This fan has been designed for a double hung window with
minimum openings of 22-1/2" wide x 11-1/8" high.
2. Open window and place the fan in the opening.
3. There is an accordion style expanding side panel on one side of
the fan, leave this retracted for this step. The other side has 2 rigid
extension panels that slide onto the fan to give you more room for
expansion. Check the t of the window fan in the window opening
and attach as many of the rigid side panels as will t in the window
opening.
4. Position the fan in the window so that Speed Selector knob is
facing toward the inside of the room. With power cord aligned in
its slot and coming inside the house, place the bottom of the fan
over the sill cap of the window.
5. Extend the accordion side panel until the spaces on both sides of
the fan are fully blocked.
6. Lower the window sash down, making rm contact with the top of
the fan (See Fig. 1). Secure window sash tight against the fan top.
Note: It is the customer's responsibility to be sure the fan is secure in
the window. If the fan does not t securely into window, pull out the
Built-In Extender Panel to achieve a secure t.

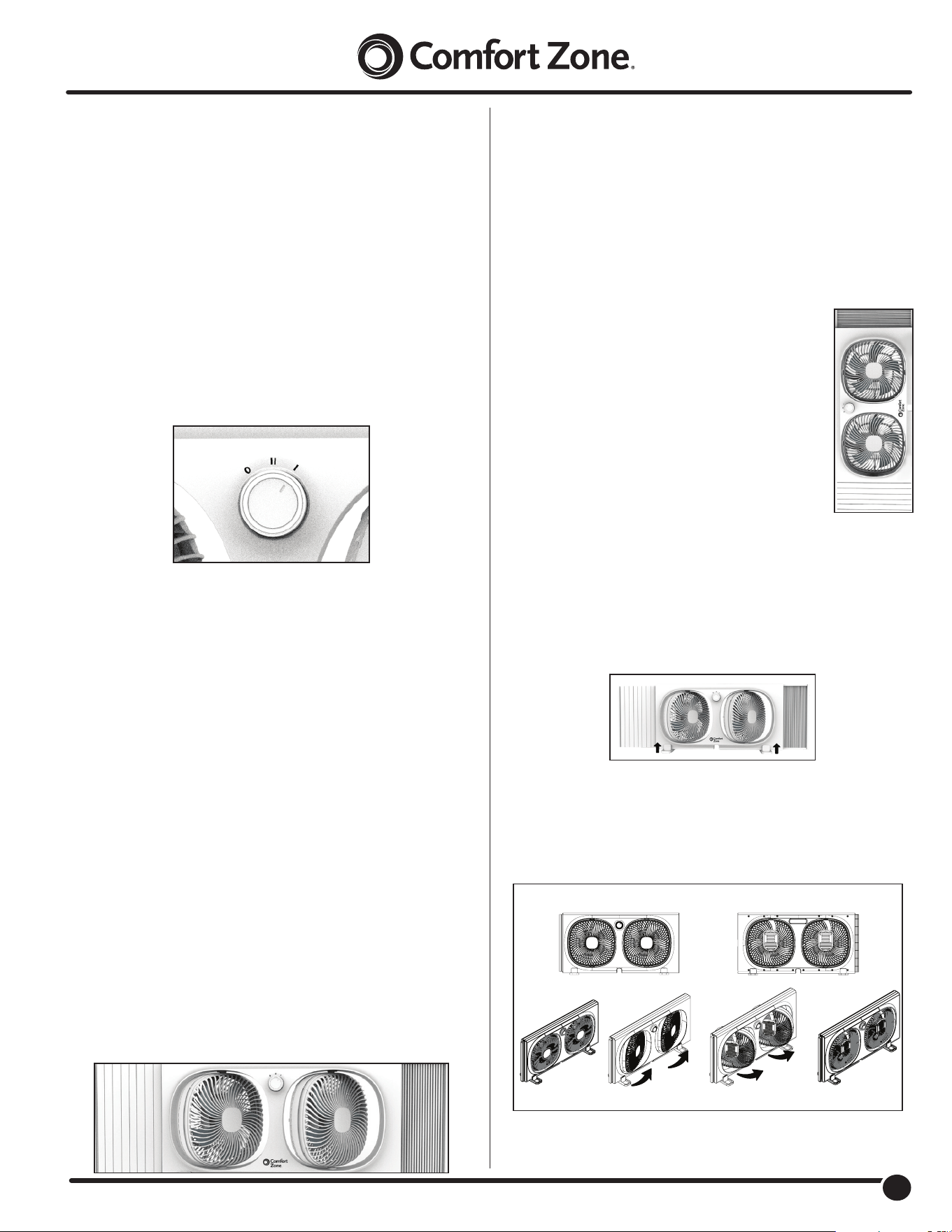

Fig. 3
Control Dial
Fig. 1
Fig. 2
Fig. 4
Front Back
180° Rotation
4
4
www.comfortzoneproducts.com
LIMITED WARRANTY
Bug Screen Covers: The bug screens
have plastic frames that simply snap
on to the fan, on either side of the fan
head (inside or outside). Push gently
and you will hear them click in place.
(See Fig. 5).
Note: Air ow may be reduced when the
cover is in place.
Care and Maintenance
Cleaning: CAUTION-Before cleaning the fan be sure to
disconnect power cord from the plug. Clean the grille surface
with a clean damp cloth. Do not use harsh chemical or abrasive
cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN
WATER. Allow fan to dry completely before use. Periodic grille
cleaning with a vacuum will prevent dust build up.
Maintenance: The internal motor bearings are permanently
lubricated at the factory and do not require any additional
lubrication.
Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN
PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR
BECOME DAMAGED IN ANY WAY
Storage: Keep original carton for storage of the fan. Coil and tie
the power cord to avoid damage during storage.
Note: Some models come with a plug where you can replace a
fuse. If your model has this, please read and follow the below
instructions to replace the fuse.
This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per
the user servicing instructions (follow product marking for
proper fuse rating) and check the product. If the replacement
fuse blows, a short-circuit may be present and the product
should be discarded or returned to an authorized service facility
for examination and/or repair.
Fuse Replacement:
1. Grasp plug and remove from the receptacle or other outlet
device. Do not unplug by pulling on cord.
2. Open fuse cover by sliding open fuse access cover on top of
attachment plug towards blades. See Fig. 2.
3. Remove fuse carefully. Use a small tool to pry the end of the
fuse from holder cavity. Be careful not to break glass window.
4. Replace fuse. WARNING: Risk of re. Replace fuse only with
identical 2.5 or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm).
Besure fuse is properly seated within its cavity.
5. Close fuse cover by sliding it back to its original closed
position.
Fig 1 Fig 2 Fig 3
Slide Cover to Open
Fig. 5
