BLUEPRINT STORAGE
MODEL: TFLT052
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: TFLT052
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
BLUEPRINT STORAGE
- 2 -
WARNING & PRECAUTIONS
WARNING：
1、Wear protective gloves when using tools to install fixed signposts, or use
two people to assist with the installation.
2、When using, please read this manual first, and it is recommended to
keep it well for subsequent use to view.
PRODUCT DESCRIPTION
Model
TFLT052
Color
Black
Material
Metal(Q195)
Number of slots
20 slots
Slots size
90*90mm
Packing size
520*440*100mm
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
- 3 -
PART LIST
ASSEMBLY INSTRUCTIONS
Unpack and take out the part of blueprint storage and a bundle of
Screw accessories.

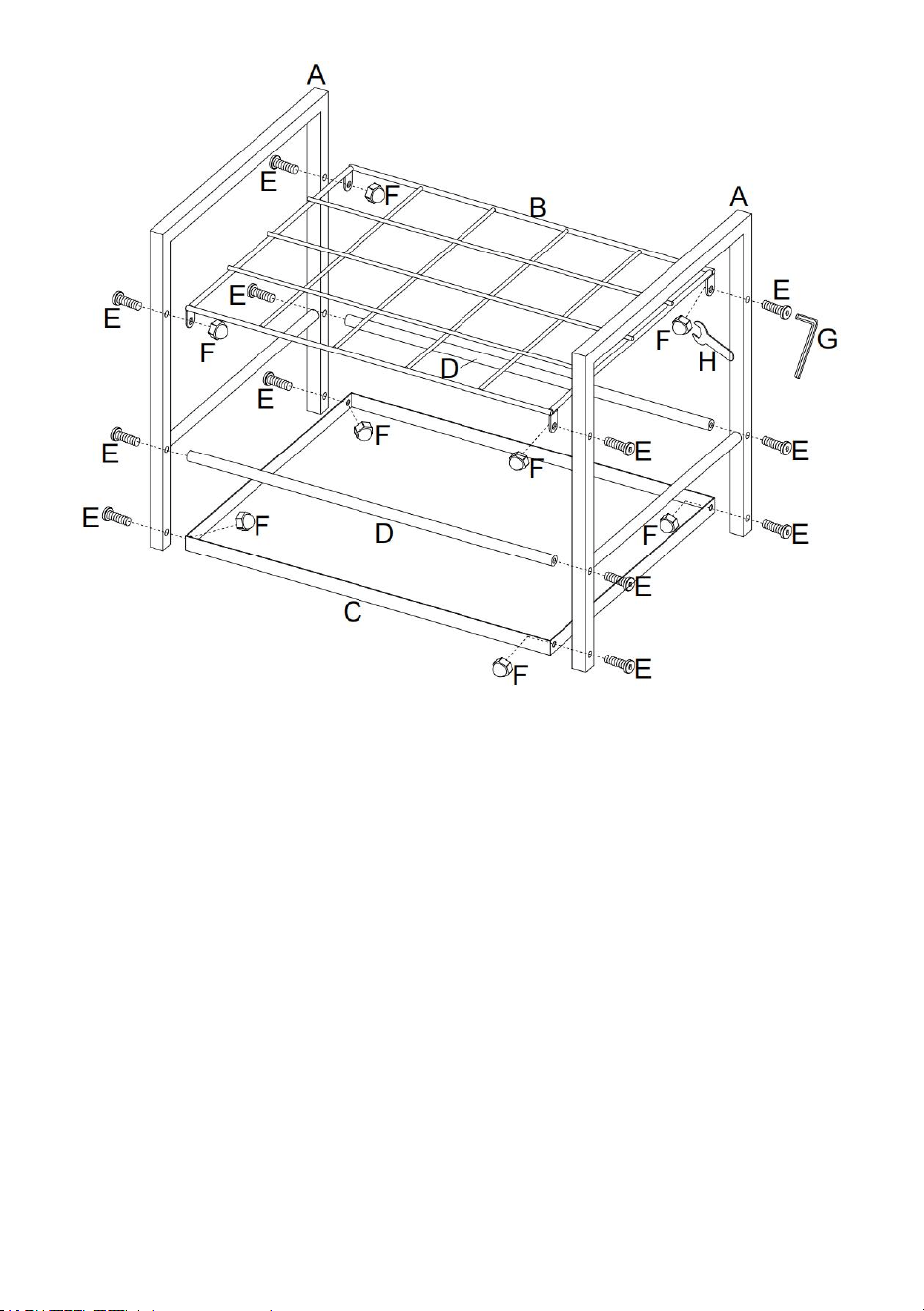

Step 1: Secure the both side(A), iron grid (B&D) and pallet(C) with screws.
- 4 -

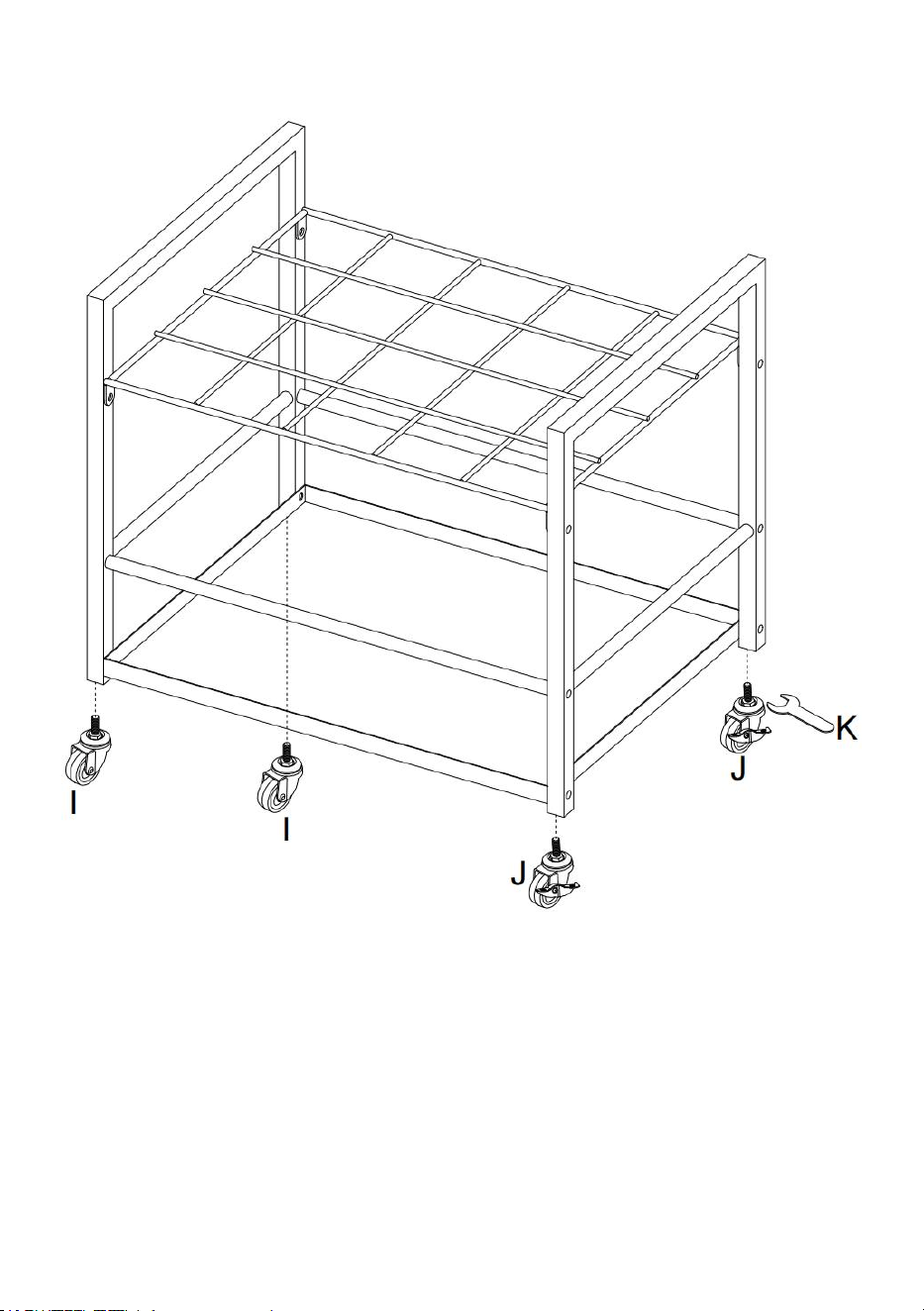

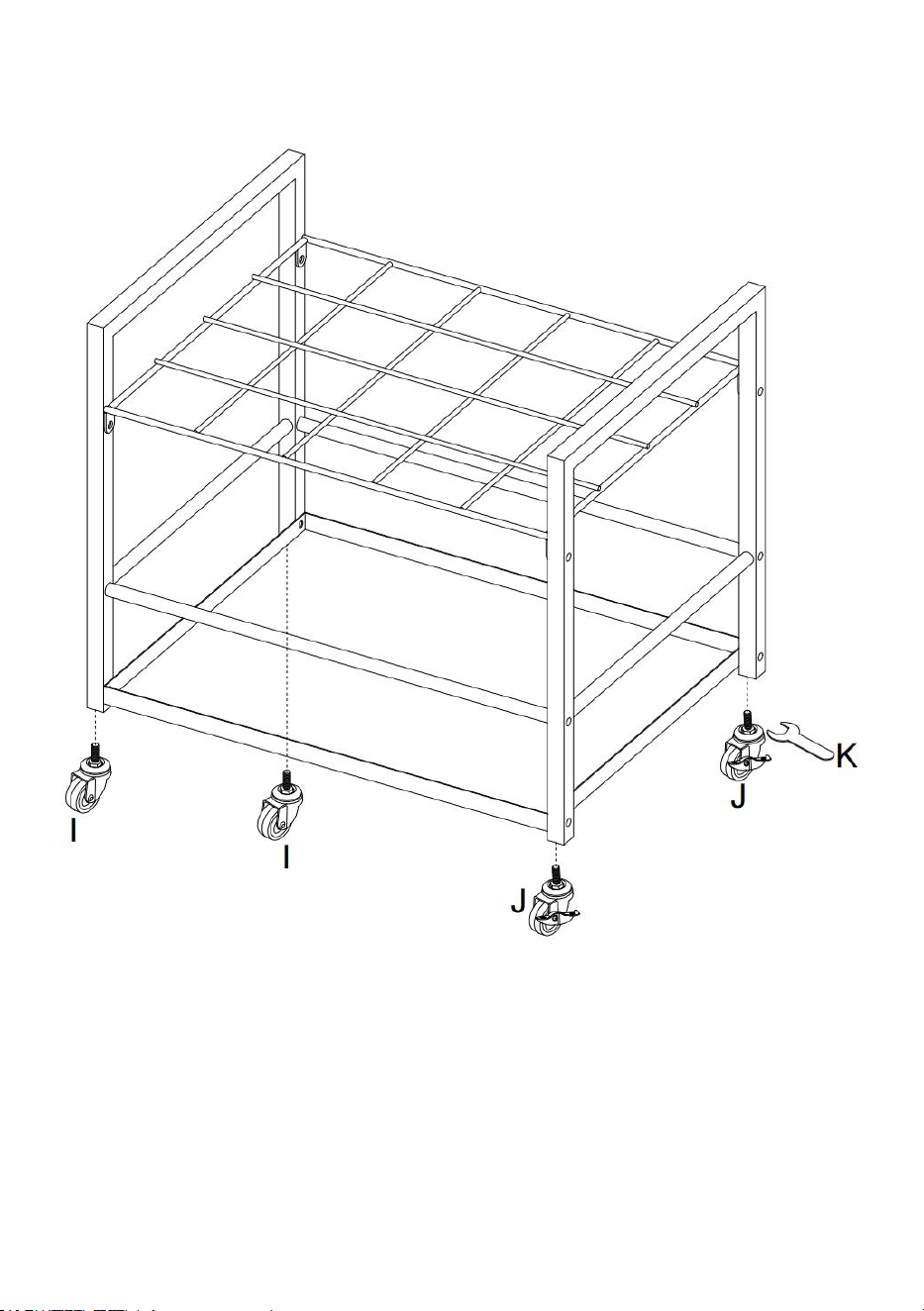

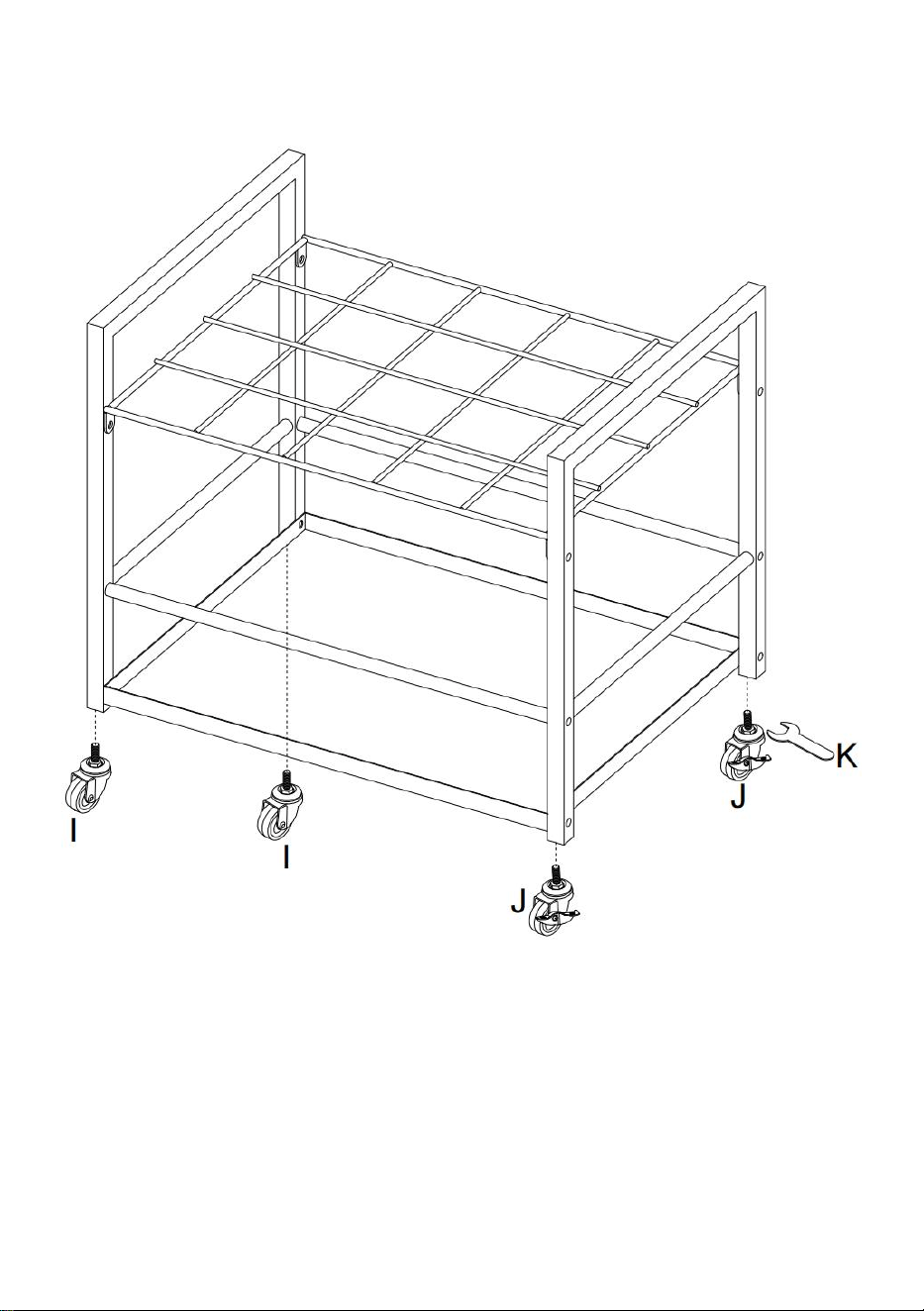

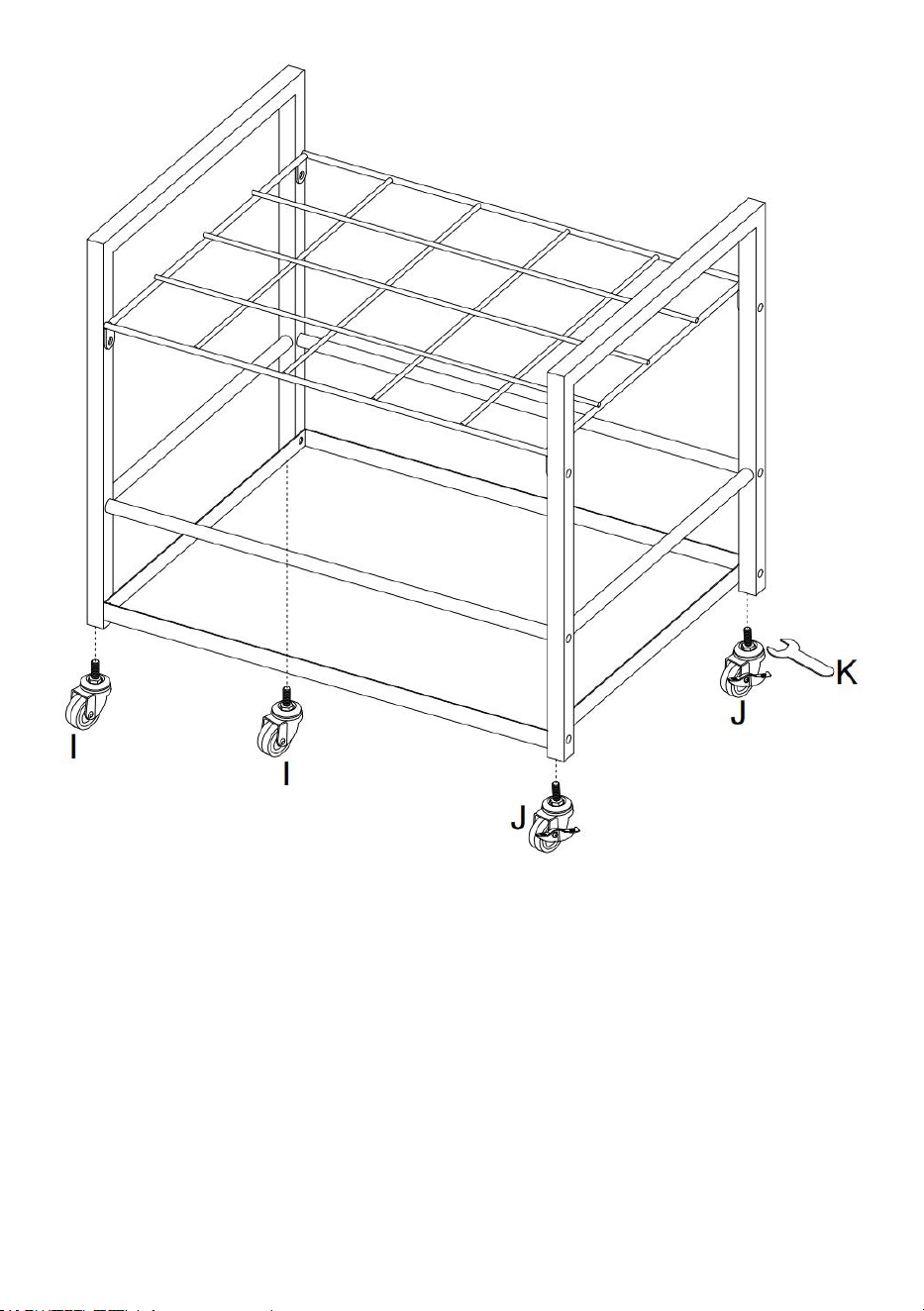

STEP2: Lay the shelf on its side for installing the four wheels (I&J), so the
blueprint storage is mounted and ready to use.
- 5 -
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
EC
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
REP
UK
YH CONSULTING LIMITED.
C/0 YH Consulting Limited Office 147, Centurion
House, London Road, Staines-upon-Thames,
Surrey, TW18 4AX
