Midea MAW18R2BWT 18,000 BTU DOE Window Air Conditioner, User Manual

MODEL NUMBER:

MAW18R2BWT

MAW25R2BWT

USER MANUAL

WINDOW AIR CONDITIONER

Warning notices: Before using this product, please read this manual and SAFETY

MANUAL(if any)carefully and keep it for future reference. The design and

specifications are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

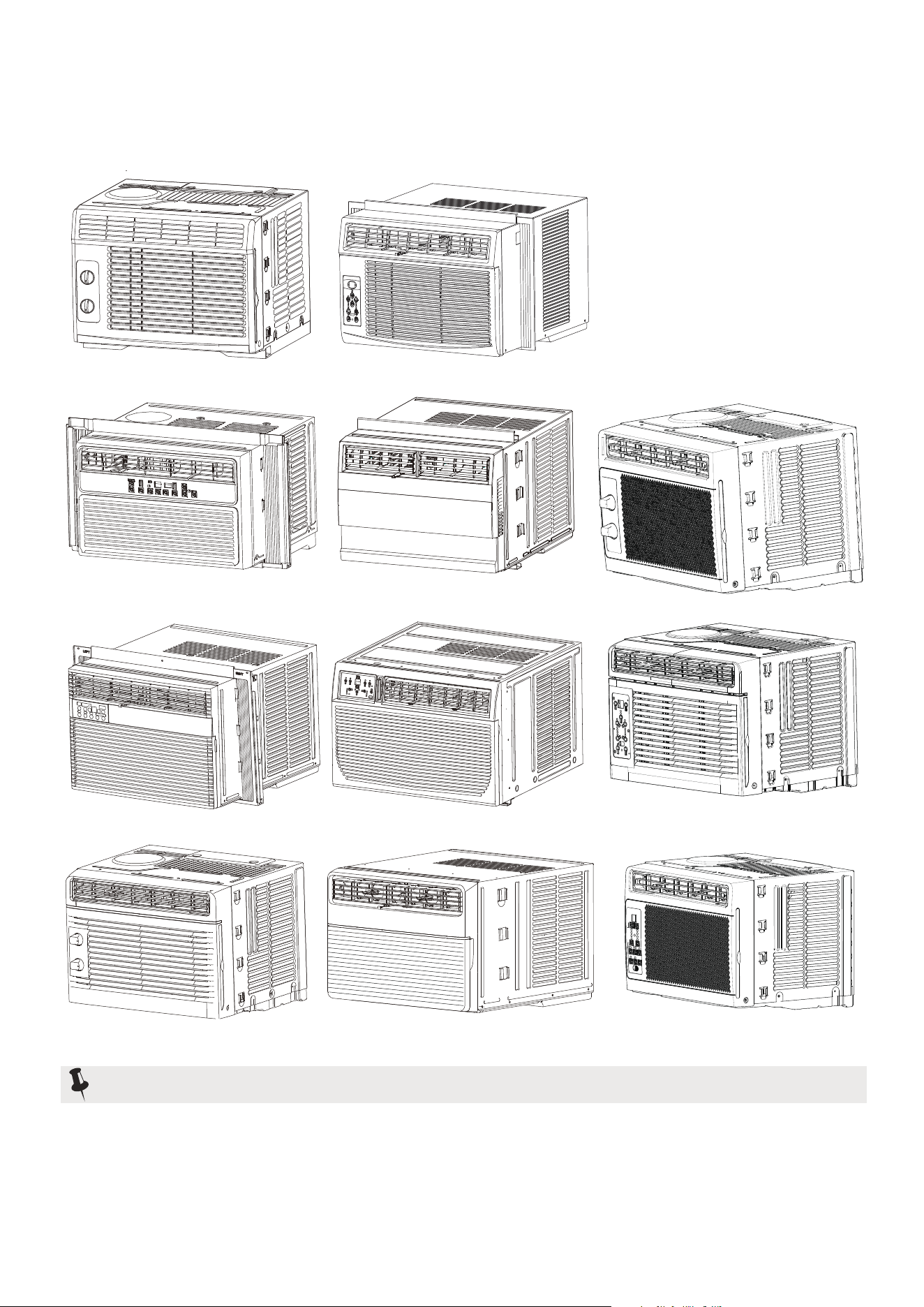

The diagram above is just for reference. Please take the appearance of the actual

product as the standard.

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please

read this manual thoroughly to ensure that you know how to operate the

CONTENTS

THANK YOU LETTER

IMPORTANT SAFETY INSTRUCTIONS

SPECIFICATIONS

NORMAL SOUNDS

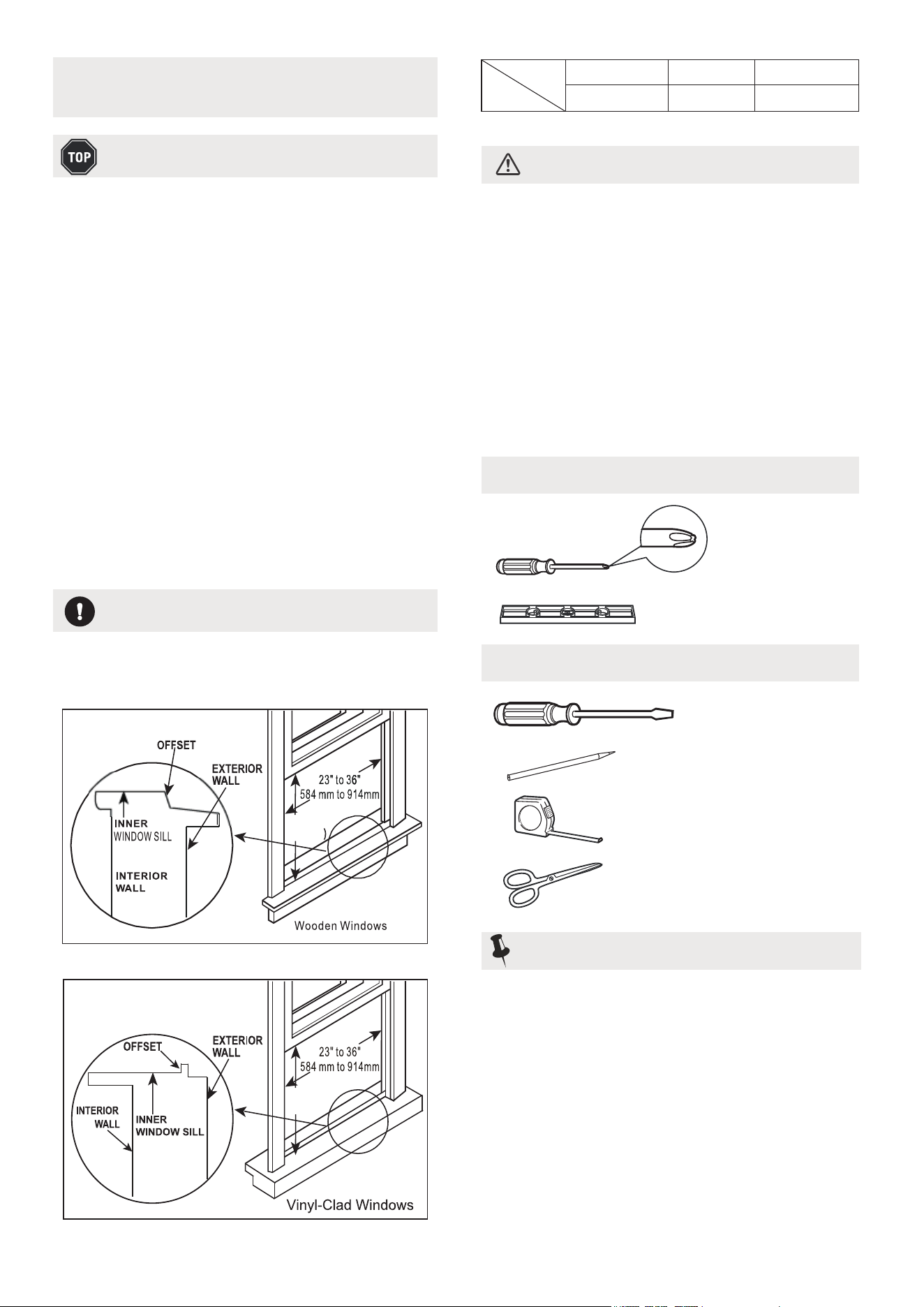

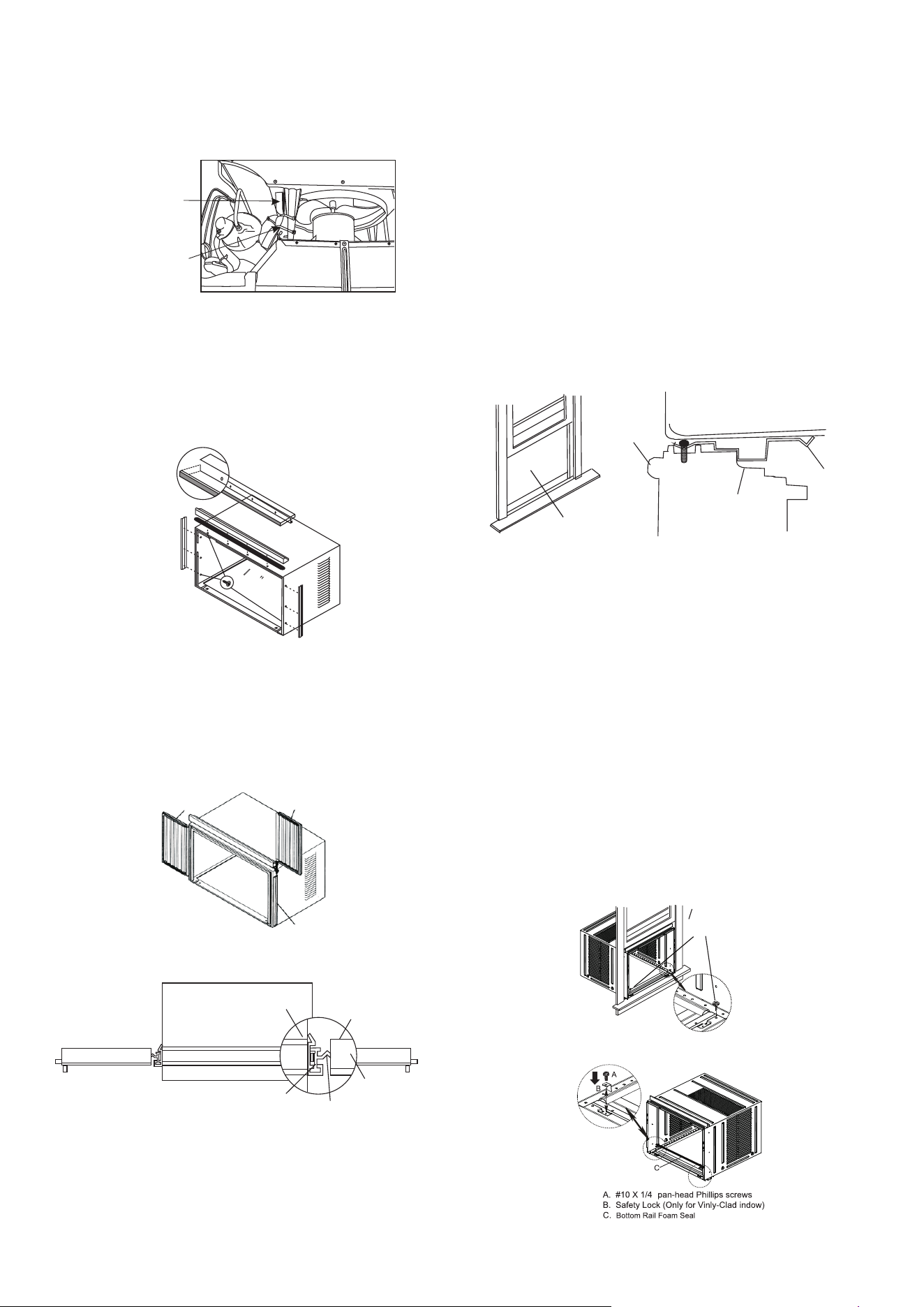

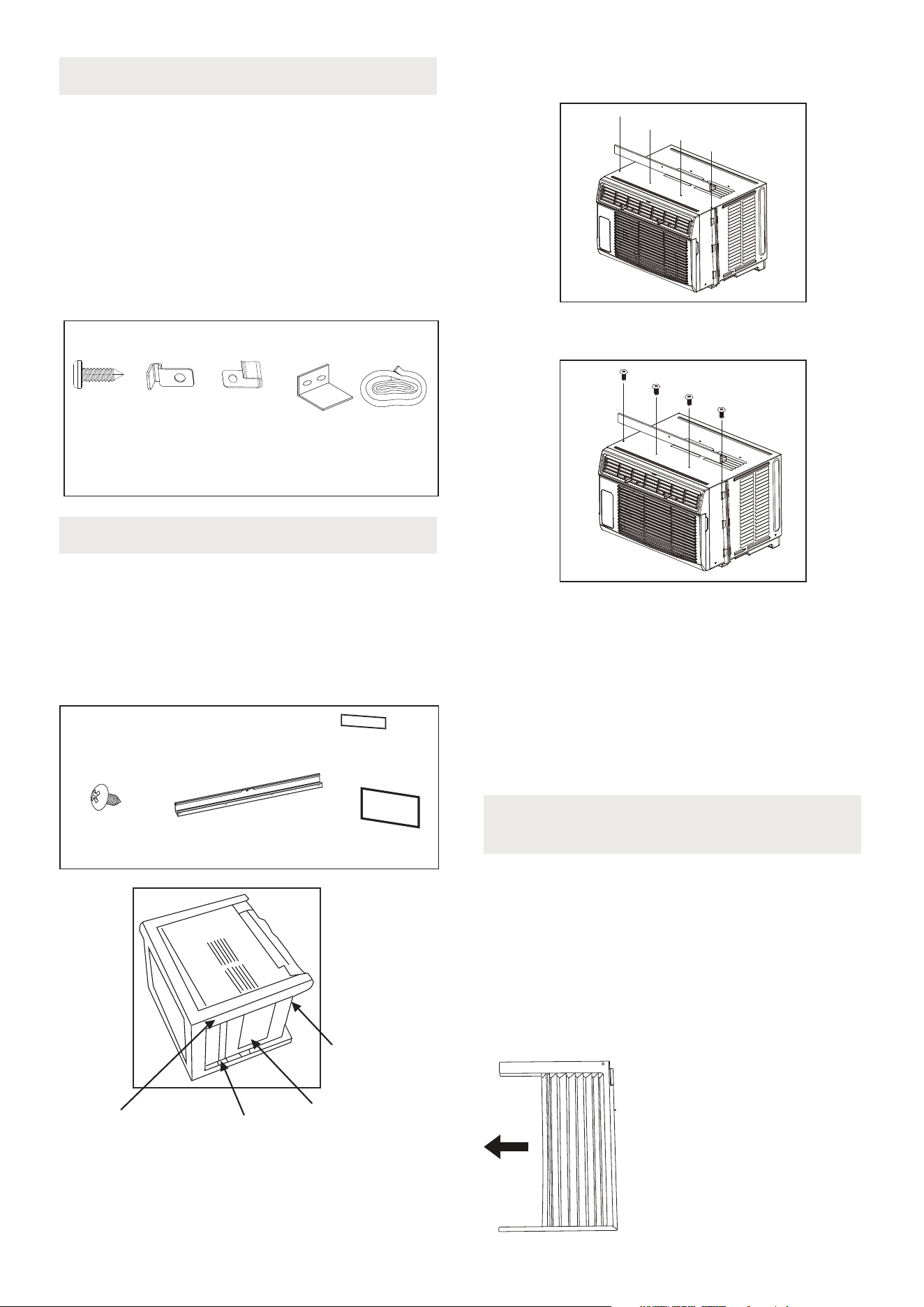

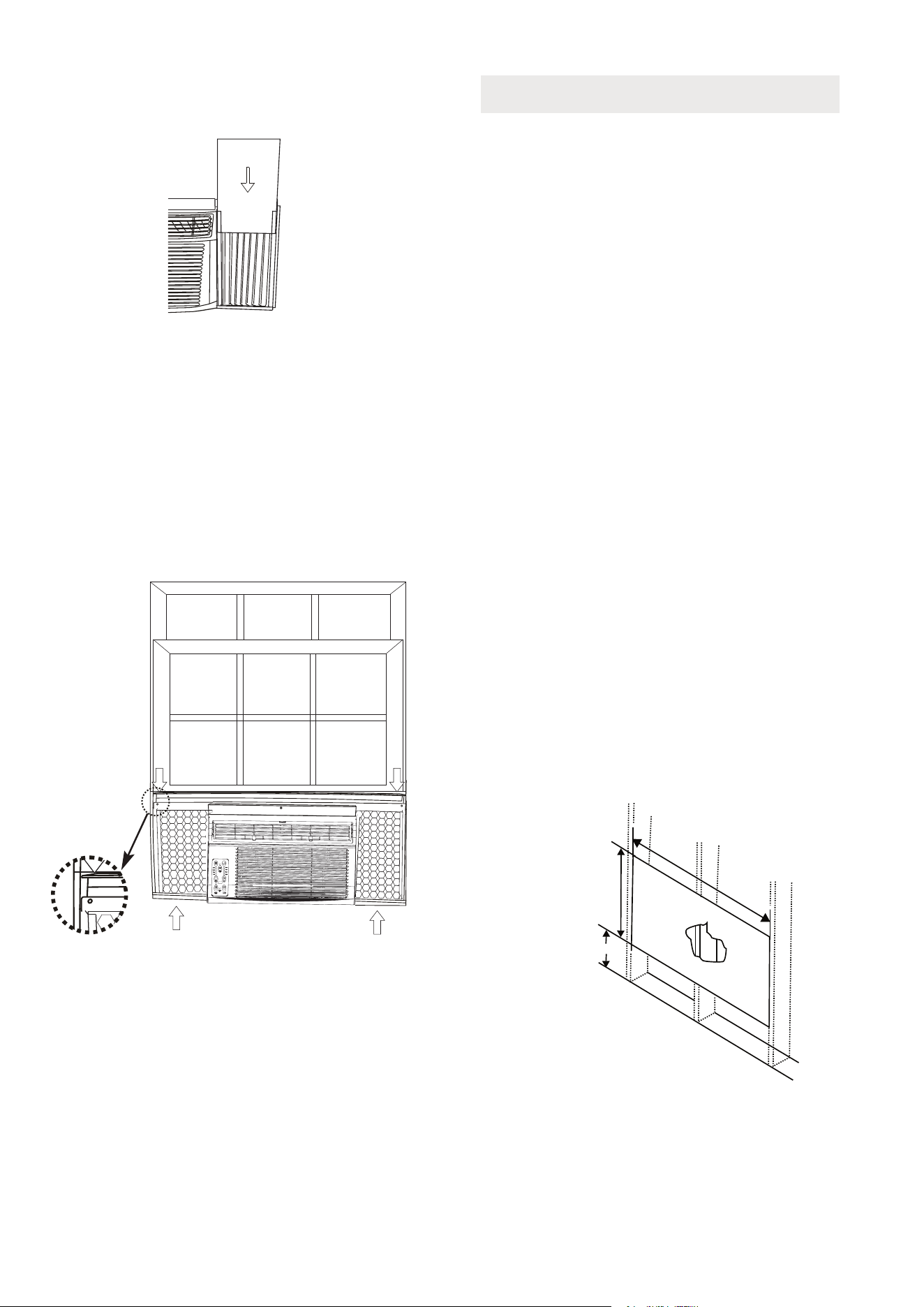

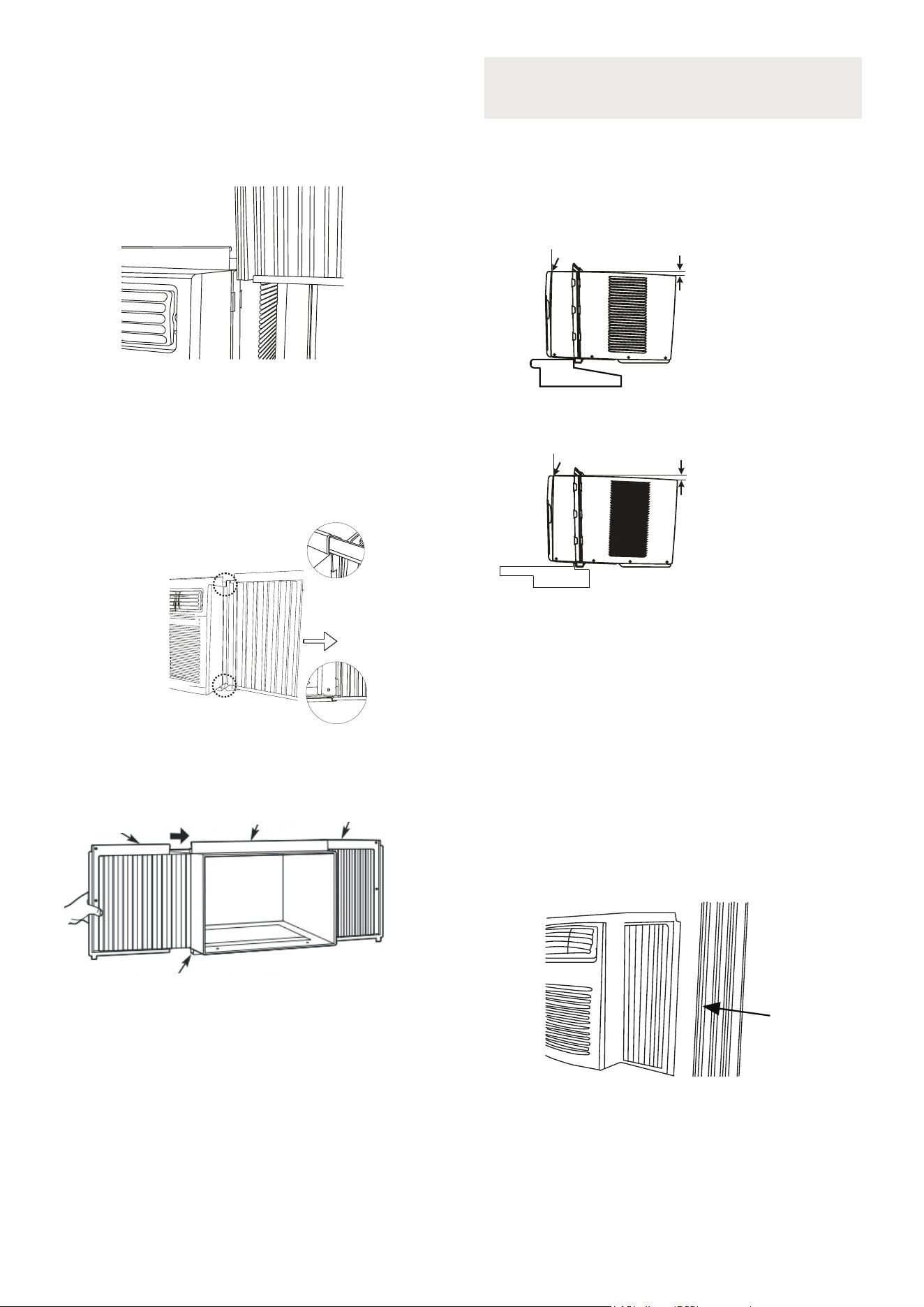

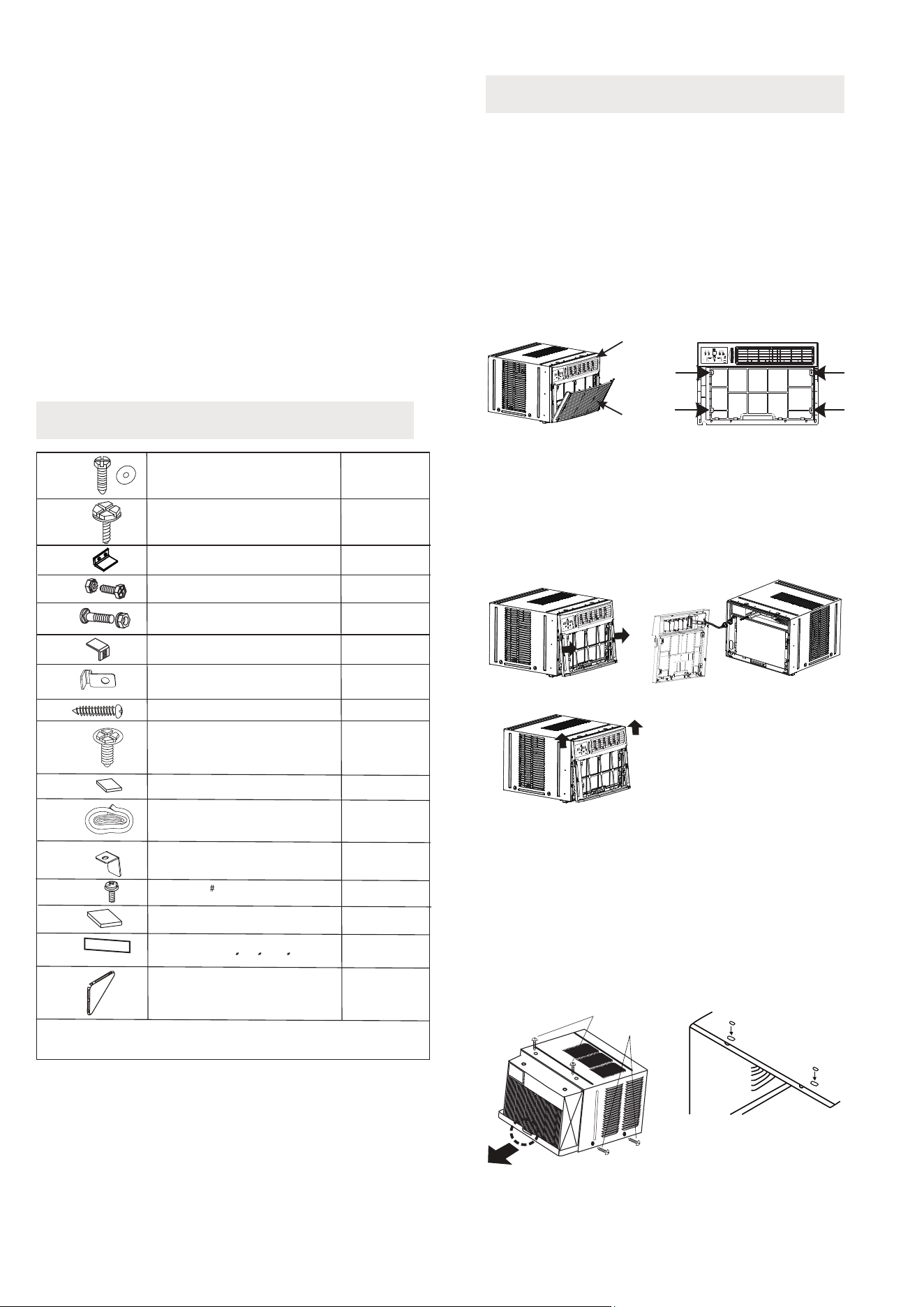

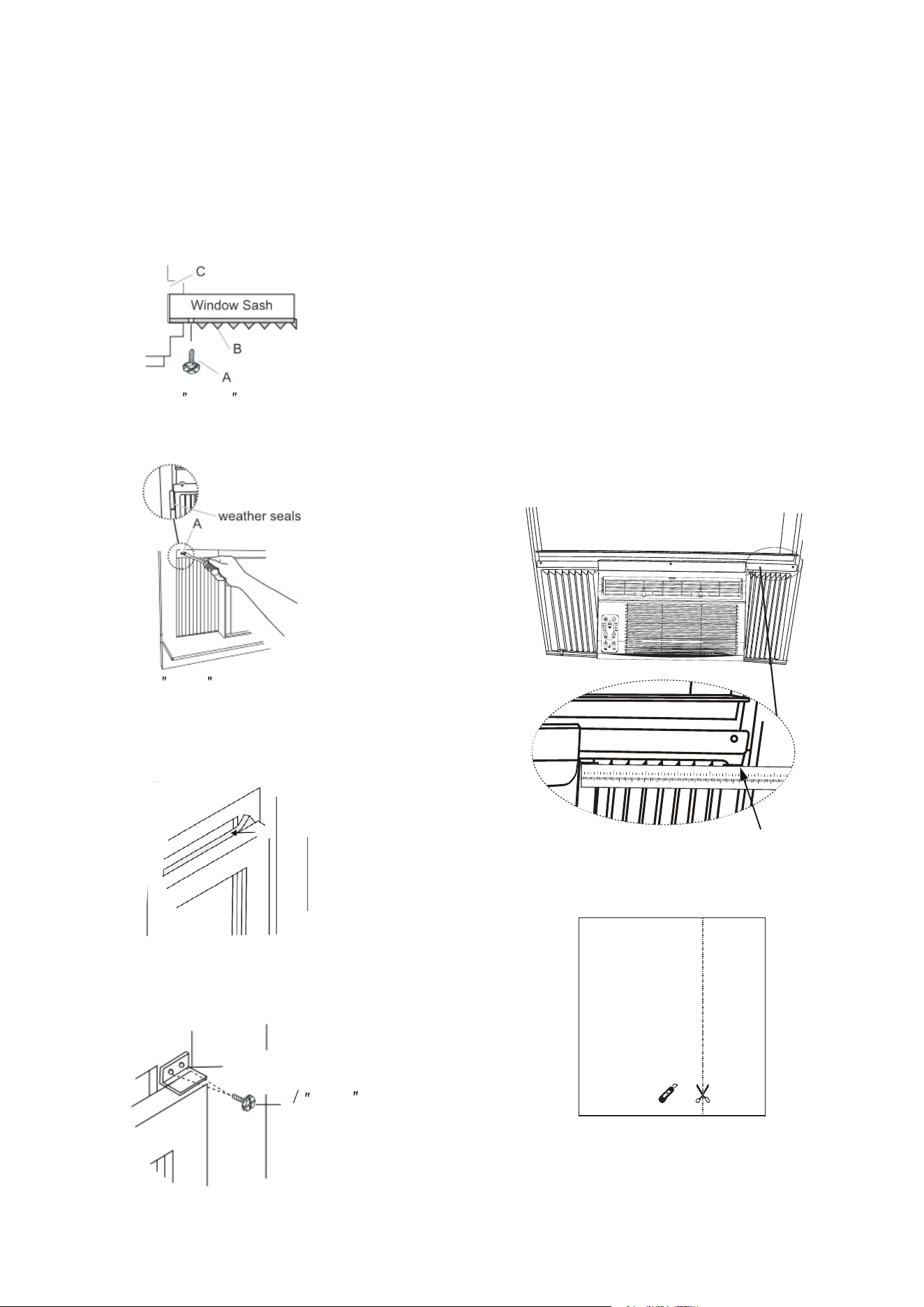

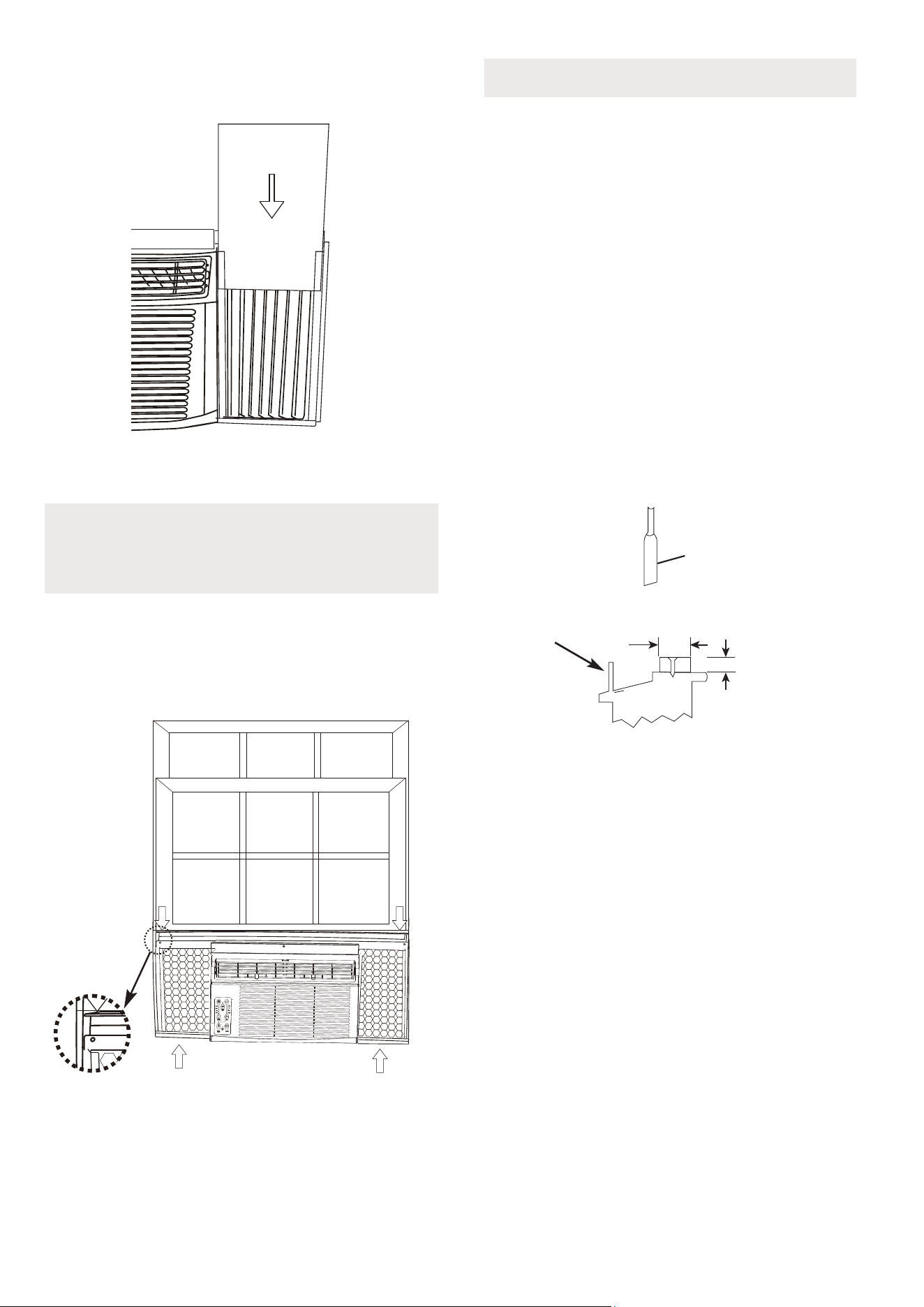

INSTALLATION INSTRUCTIONS

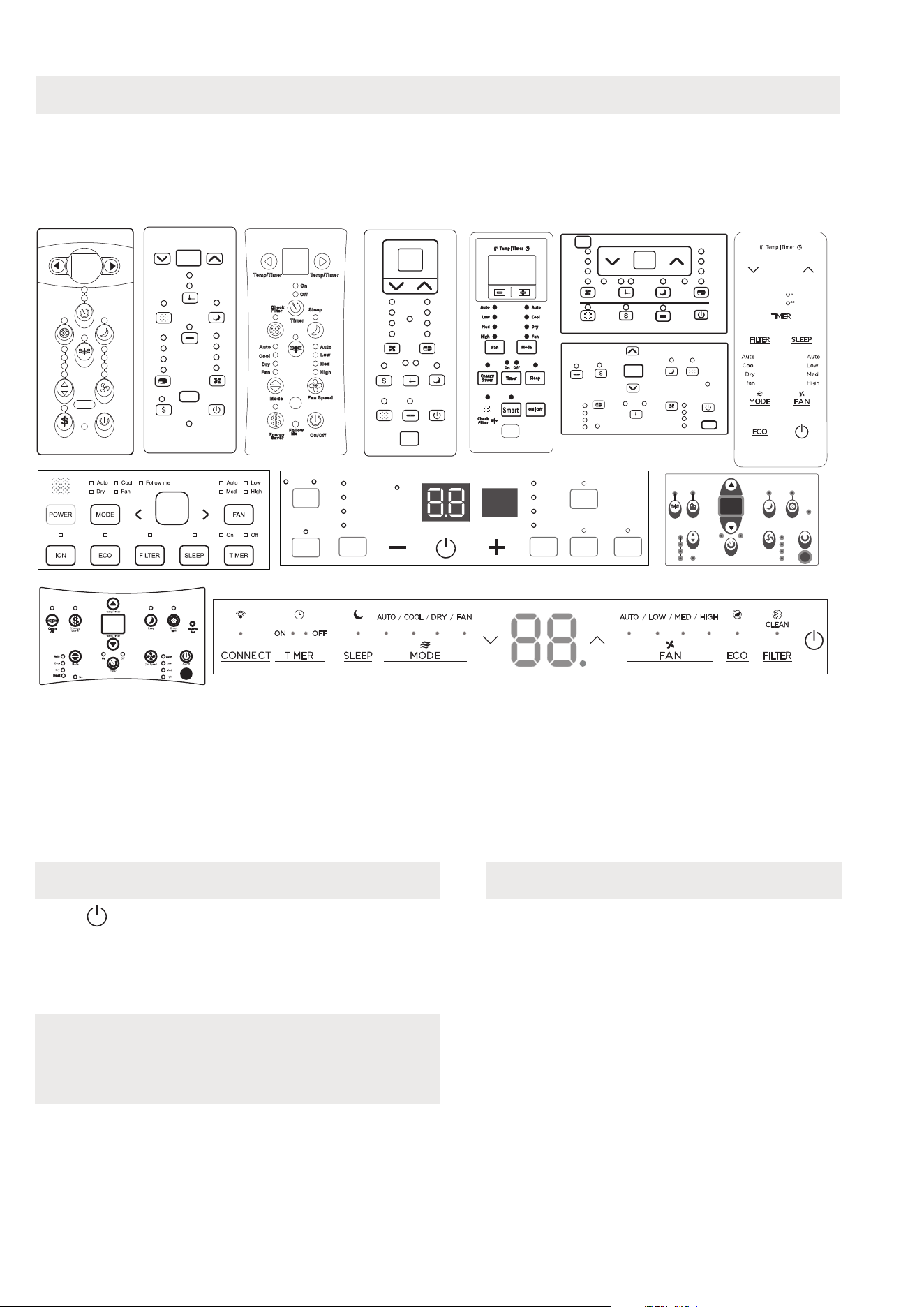

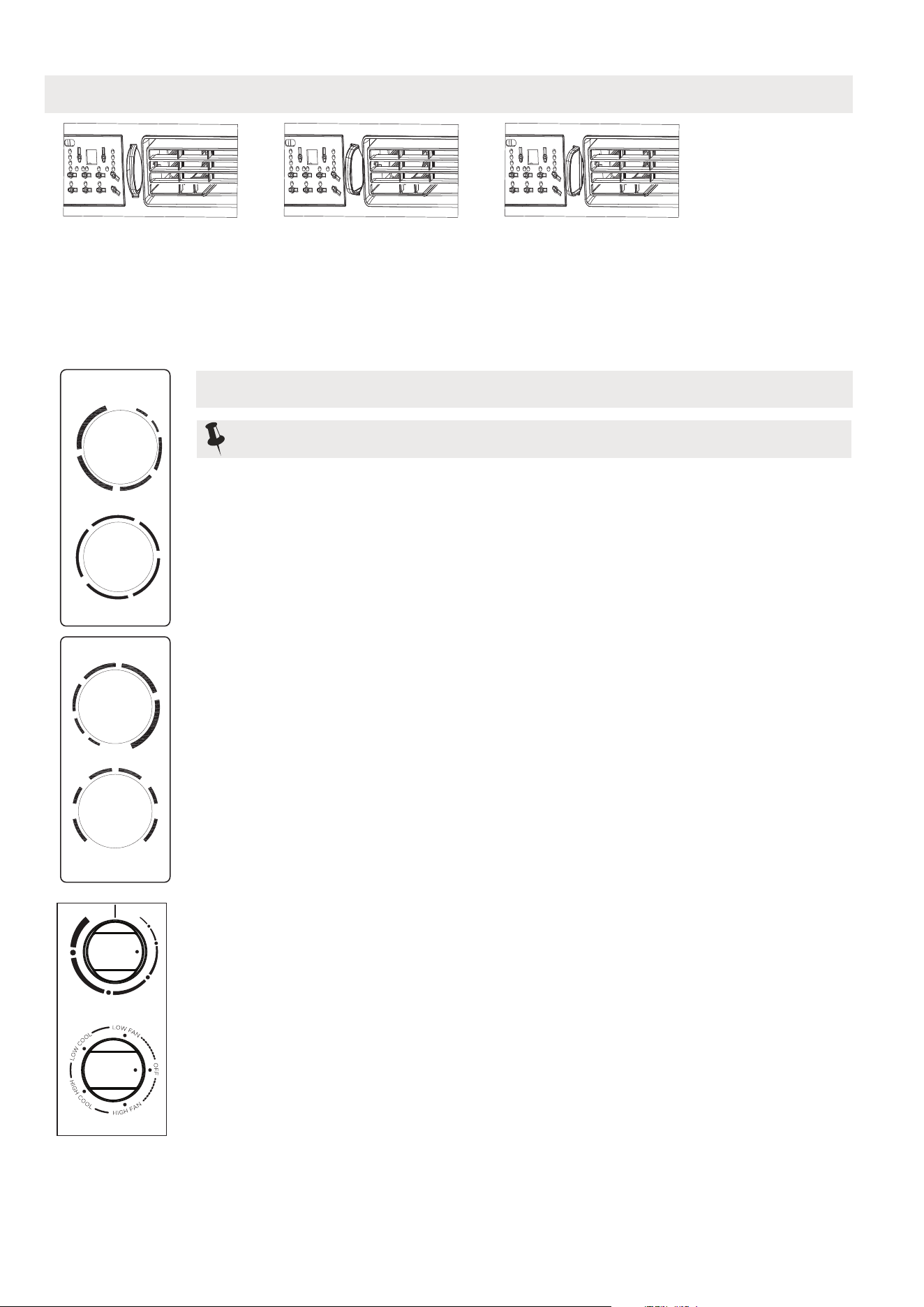

AIR CONDITIONER FEATURES

CARE AND CLEANING

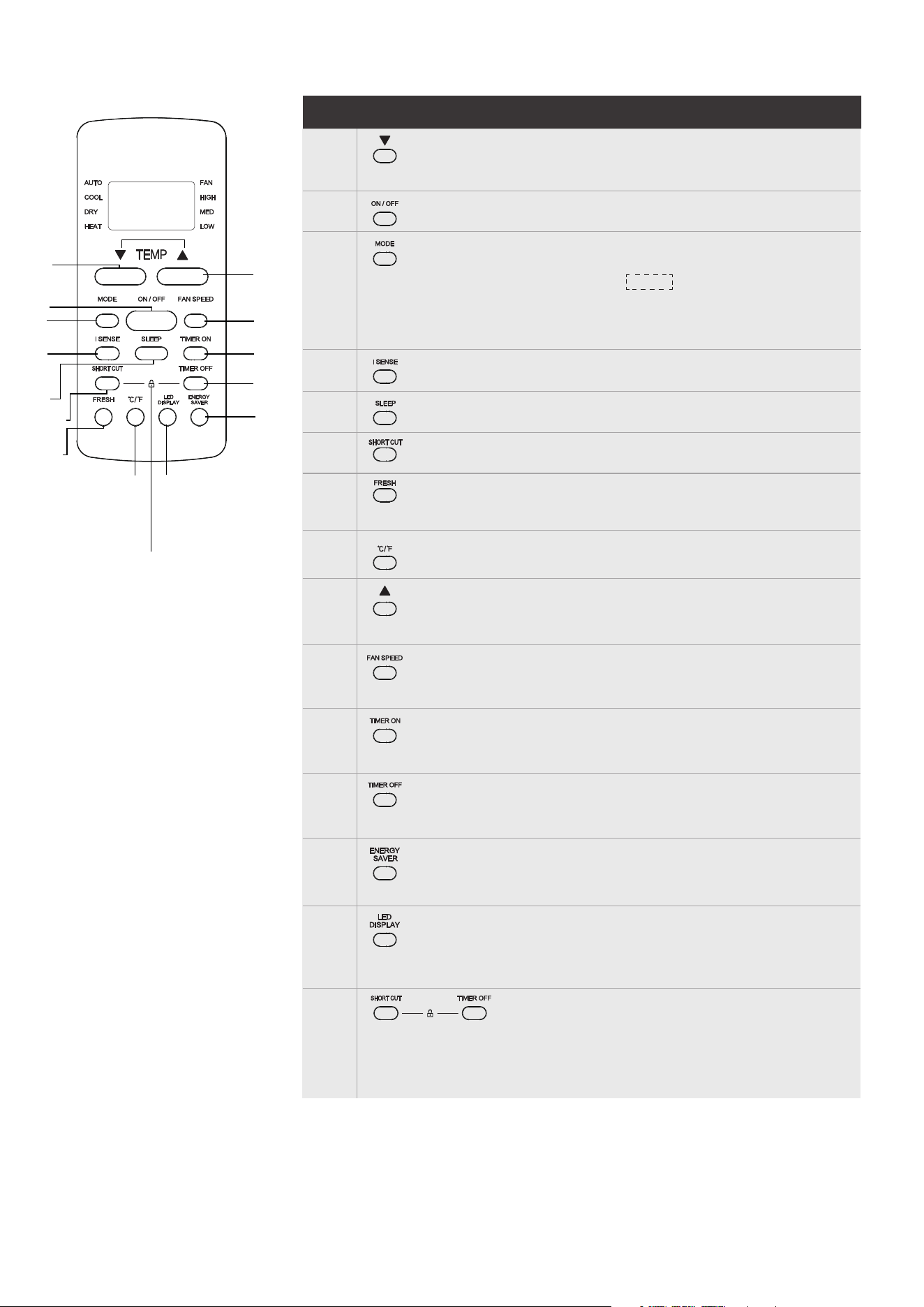

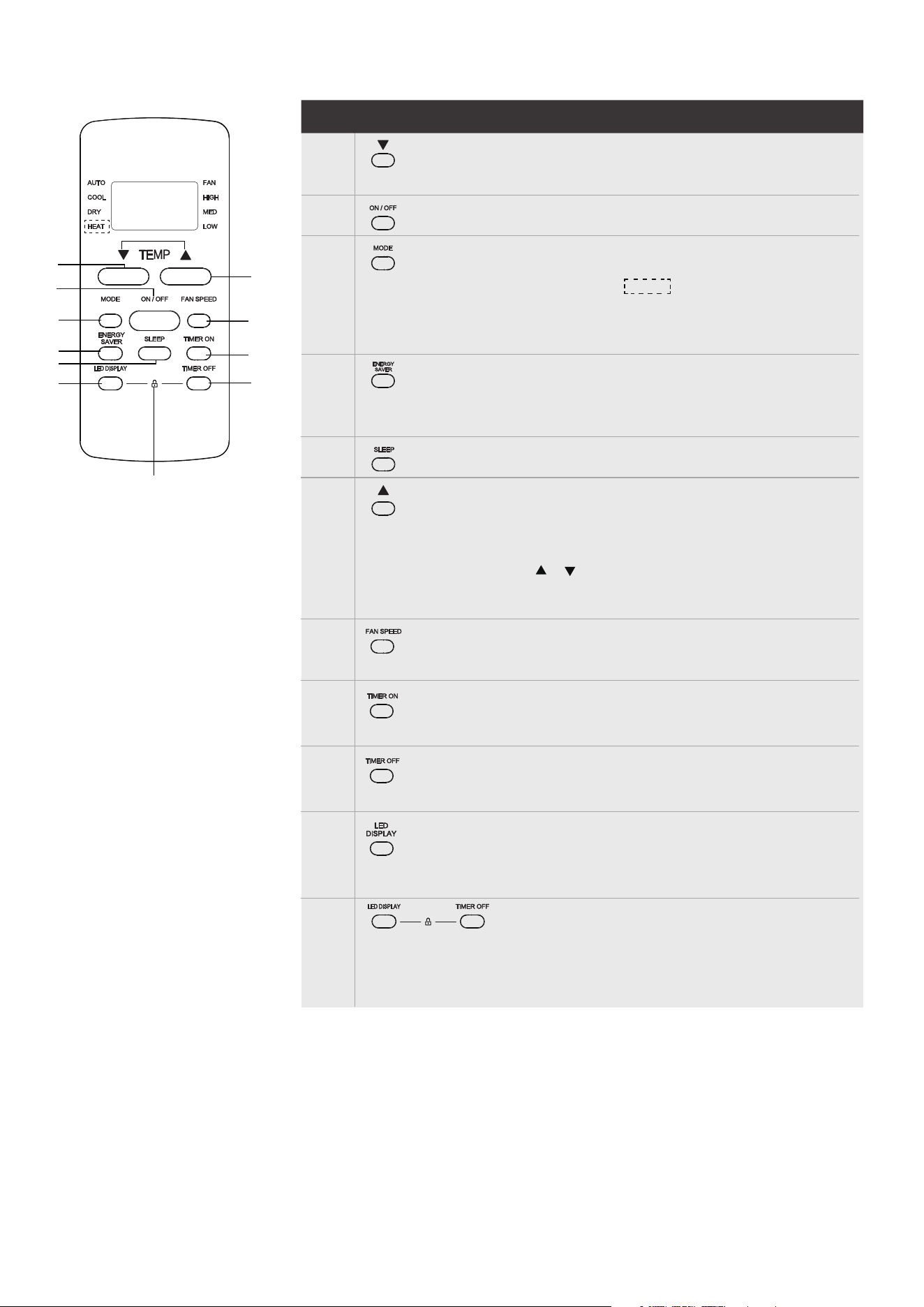

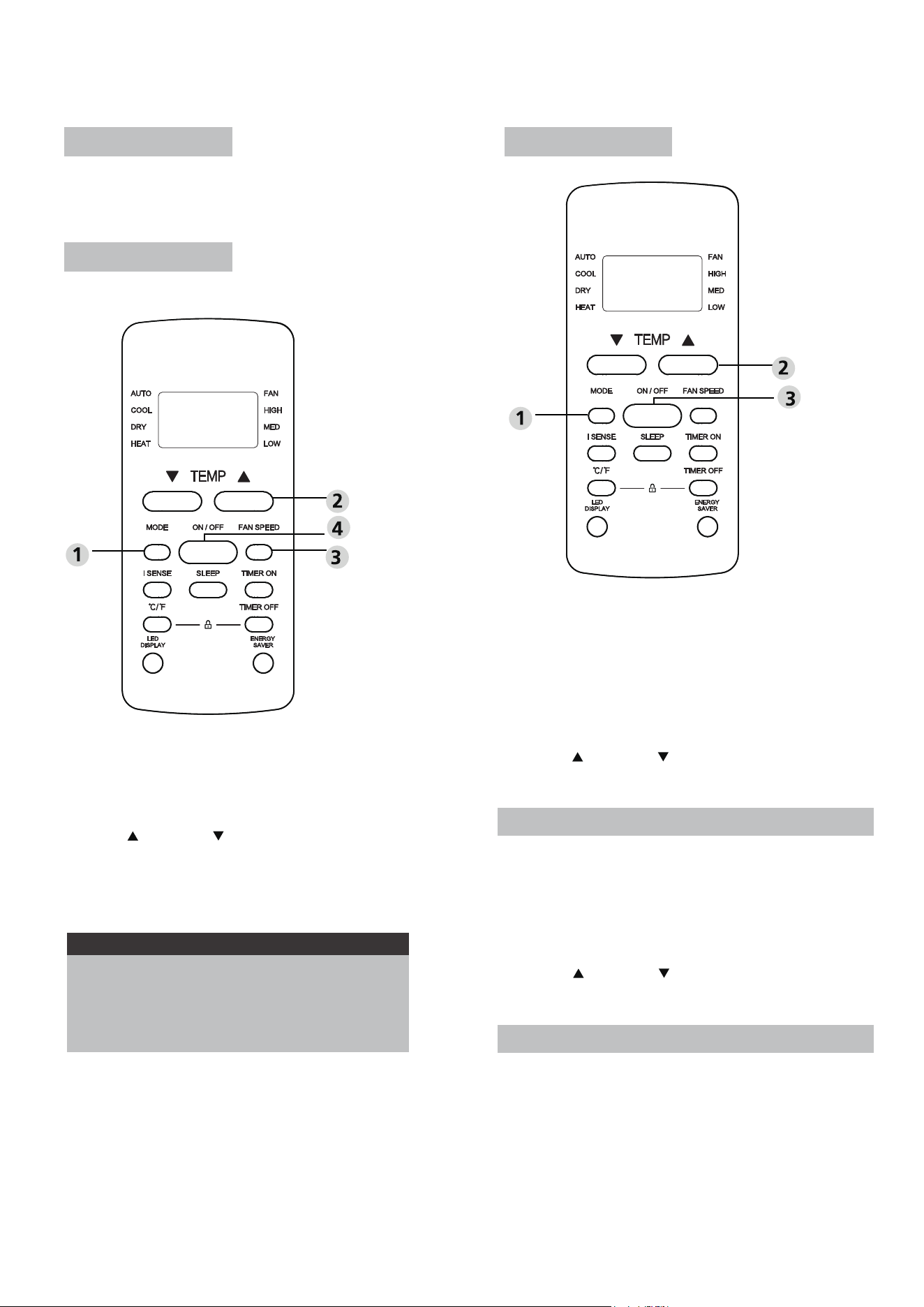

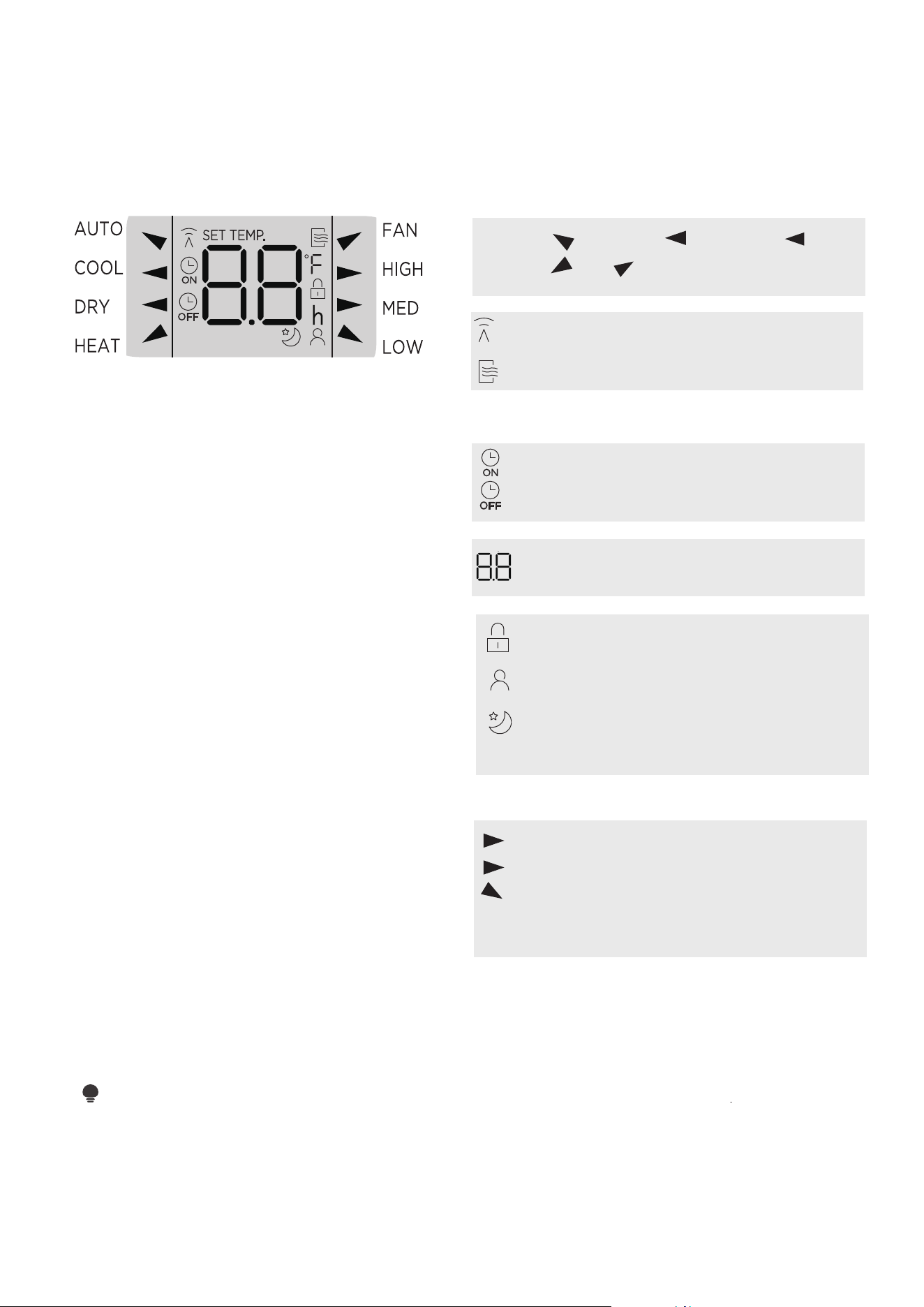

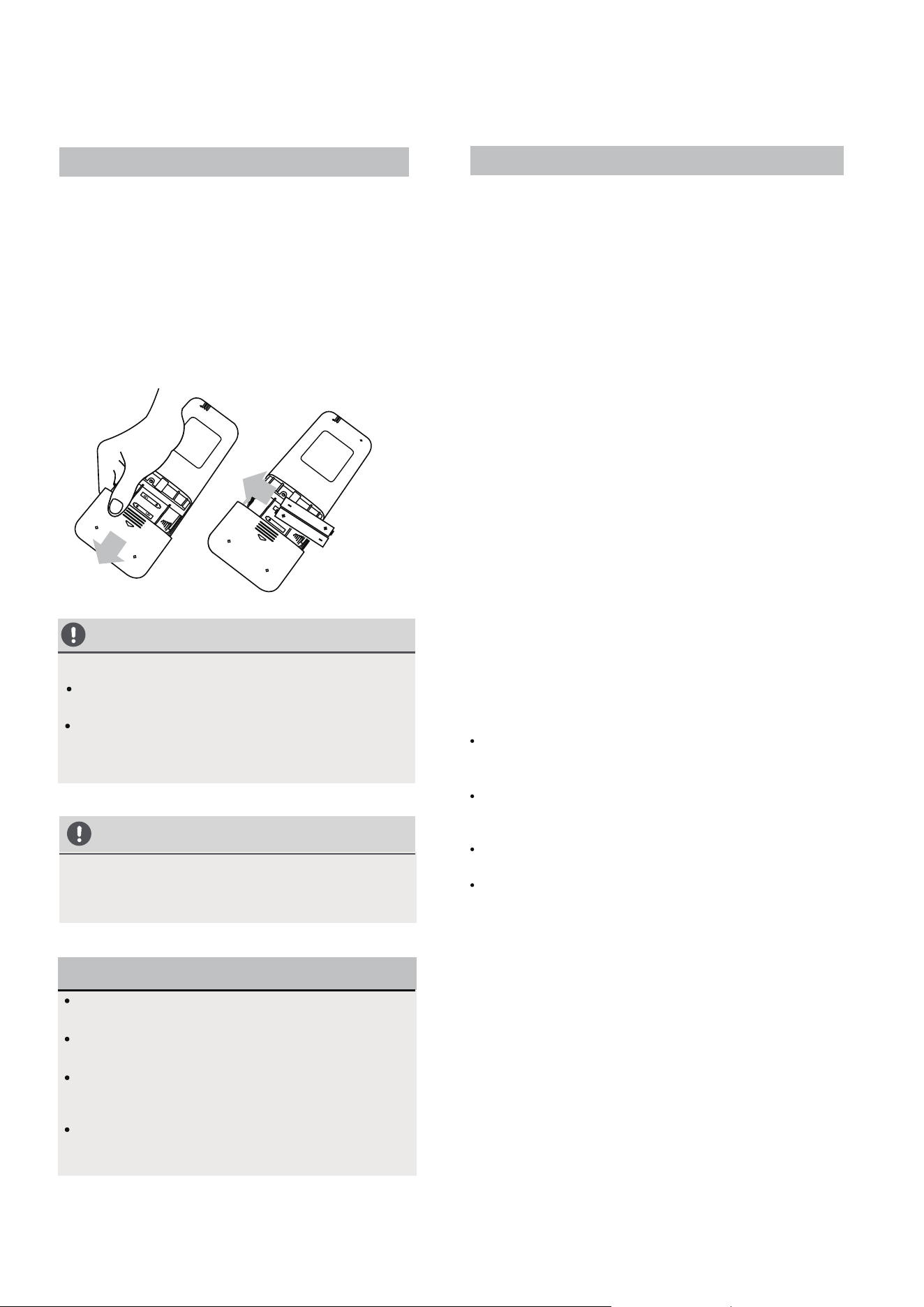

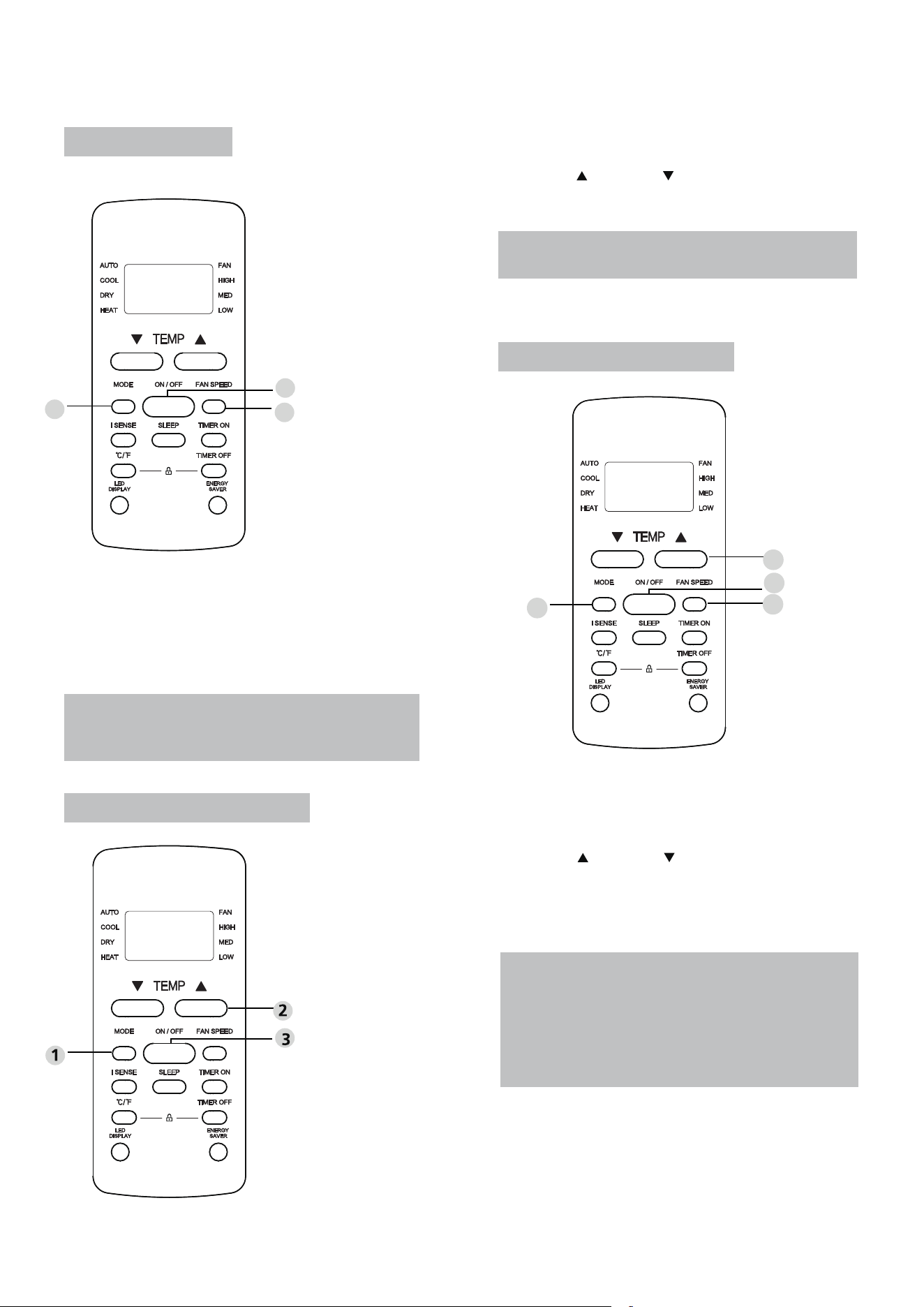

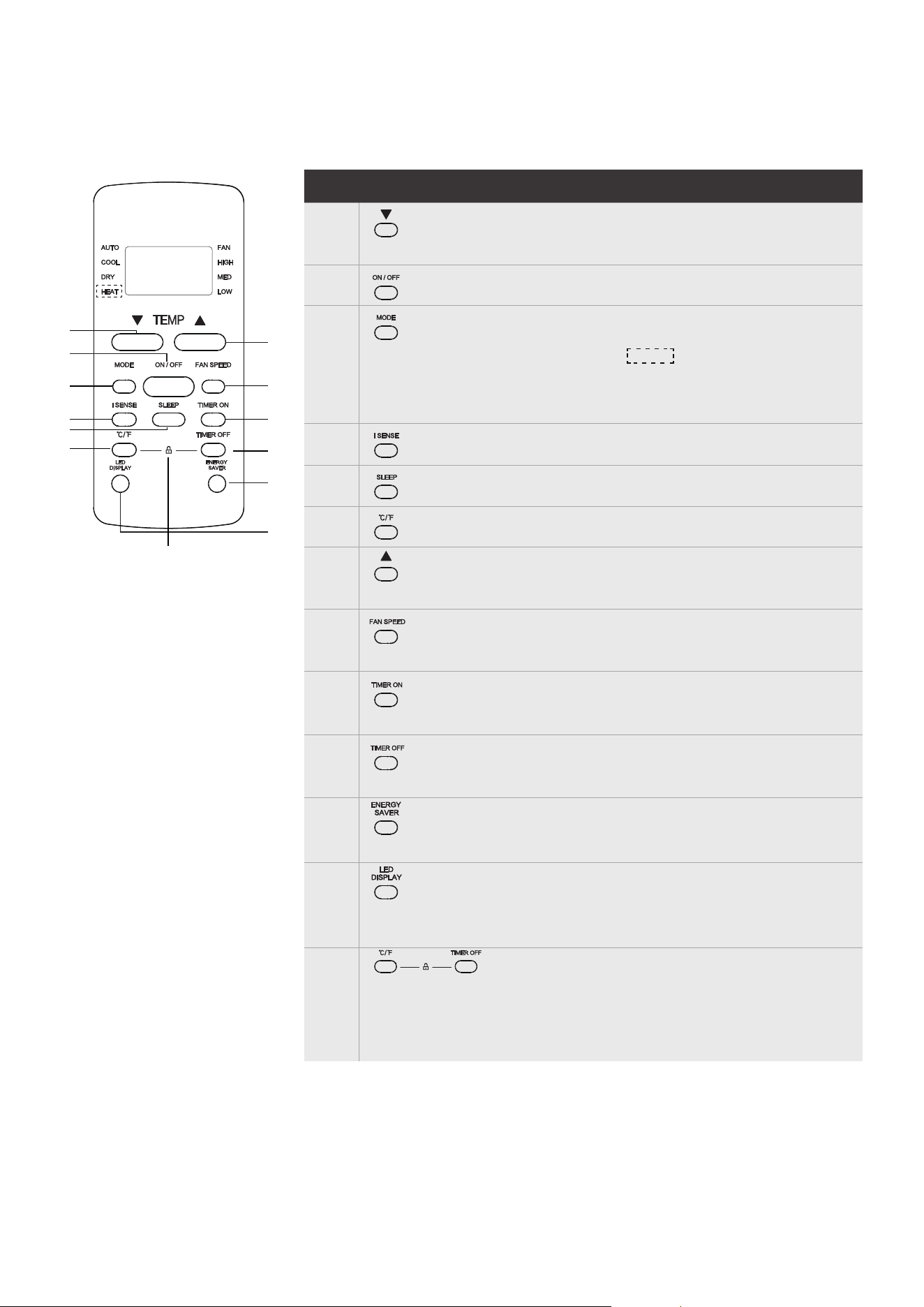

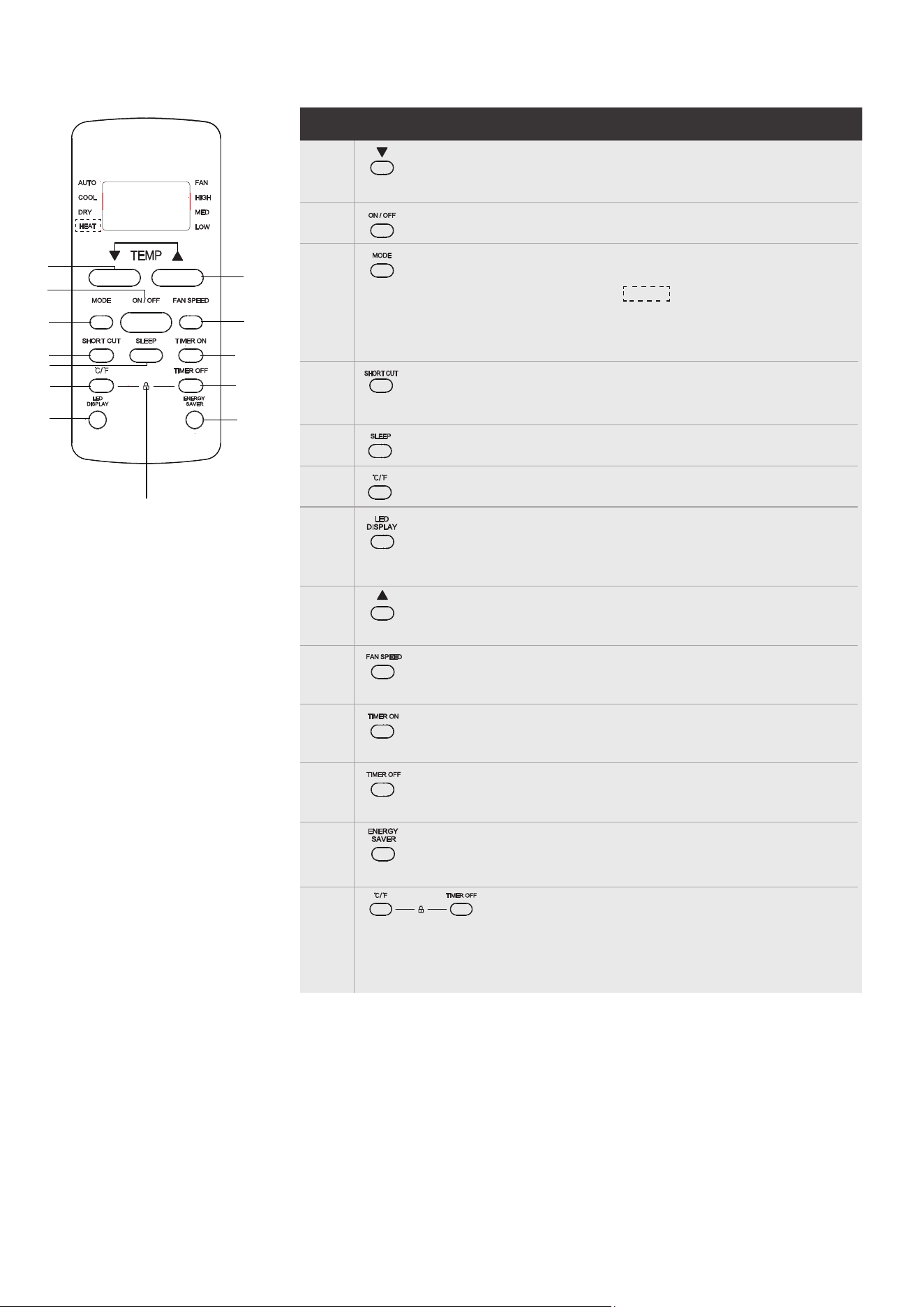

Remote Controller Specifications

TROUBLESHOOTING TIPS

WARRANTY

Inside you will find many helpful hints on how to use and maintain your air

conditioner properly. Just a little preventive care on your part can save you a great

deal of time and money over the life of your air conditioner. You'll find many answers

to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

To prevent injury to the user or other people and property damage, the following

instructions must be followed. Incorrect operation due to ignoring of instructions

may cause harm or damage. The seriousness is classified by the following indications.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Never do this. Always do this.

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to property.

READ THIS MANUAL

Plug in power plug properly. Otherwise, it may cause electric shock or fire due to

excess heat generation. Do not operate or stop the unit by inserting or pulling out

the power plug.It may cause electric shock or fire due to heat generation. Do not

damage or use an unspecified power cord.It may cause electric shock or fire. If

the power cord is da- maged, it must be replaced by the manufacturer or an

authorised service centre or a similarly qualified person in order to avoid a hazard.

WARNING

Always install circuit breaker and a dedicated power circuit. Incorrect installation

may cause fire and electric shock. Do not operate with wet hands or in damp

environment. It may cause electric shock . Do not direct airflow at room

occupants only. This could damage your health.

Always ensure effective grounding.Incorrect grounding may cause electric shock.

Do not allow water to run into electric parts.It may cause failure of machine of

electric shock. Do not modify power cord length or share the outlet with other

appliances. It may cause electric shock or fire due to heat generation.

Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause fire

and electricshock. Do not use the socket if it is loose or damaged. It may cause

fire and el- ectric shock. Do not open the unit during operation. It may cause

electric shock.

Keep firearms away. It may cause fire. Do not use the power cord close to heating

appliances.It may cause fire and electric shock. Do not use the power cord near

flamma- ble gas or combustibles, such as gasoline, benzene, thinner, etc. It may

cause an explosion or fire.

Ventilate room before operating air conditioner if there is a gas leakage from

another appliance. It may cause explosion, fire and, burns. Do not disassemble or

modify unit. It may cause failure and electric shock.

When the air filter is to be removed, do not touch the metal parts of the unit.

It may cause an injury. Do not put a pet or house plant where it will be exposed

to direct air flow. This could injure the pet or plant. Ventilate the room well

when used together with a stove, etc. An oxygen shortage may occur.

Do not use strong detergent such as wax or thinner but use a soft cloth.

Appearance may be deteriorated due to change of product color or scratching

of its surface. Do not clean the air conditioner with water. Water may enter the

unit and degrade the insulation. It may cause an electric shock. Do not use for

special purposes. Do not use this air conditioner to preserve precision devices,

food, pets, plants, and art objects. lt may cause deterioration of quality, etc.

Stop operation and close the window in storm or hurricane. Operation with

windows opened may cause wetting of indoor and soaking of household furniture.

When the unit is to be cleaned, switch off, and turn off the circuit breaker.Do not

clean unit when power is on as it may cause fire and electric shock, it may cause

an injury.

Ensure that the installation bracket of the outdoor appliance is not damaged due

to prolonged exposure.

If bracket is damaged, there is concern of damage due to falling of unit.

Always insert the filters securely. Clean filter once every two weeks. Operation

without filters may cause failure. Hold the plug by the head of the power plug

when taking it out. It may cause electric shock and damage. Turn off the main

power switch when not using the unit for a long time. It may cause failure of

product or fire.

Do not place obstacles around air-inlets or inside of air-outlet. It may cause

failure of appliance or accident. Do not place heavy object on the power cord

and ensure that the cord is not compressed. There is danger of fire or electric

shock. Do not drink water drained from air conditioner. It contains contaminants

and could make you sick.

Use caution when unpacking and installing. Sharp edges could cause injury.

If water enters the unit, turn the unit off at the powei outlet and switch off the

circuit breaker. Isolate supply by taking the power-plug out and contact a

qualified service technician.

This appliance is not intended for use by persons (including children) with

reduced physical ,sensory or mental capabilities or lack of experience and

knowledge, unless they have beengivensu pervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

The appliance shall be installed in accordance with national wiring regulations.

Do not operate your air conditioner in a wet room such as a bathroom or laundry

room.

The appliance with electric heater shall have at least 1meter space to the

combustible materials.

Contact the authorised service technician for repair or maintenance of this unit.

Contact the authorised installer for installation of this unit.

Do not operate the louvers with your hands, it may cause an injury.

CAUTION

Be sure the electrical service is adequate for the model you have chosen.

This information can be found on the serial plate, which is located on the side of

the the cabinet and behind the grille.

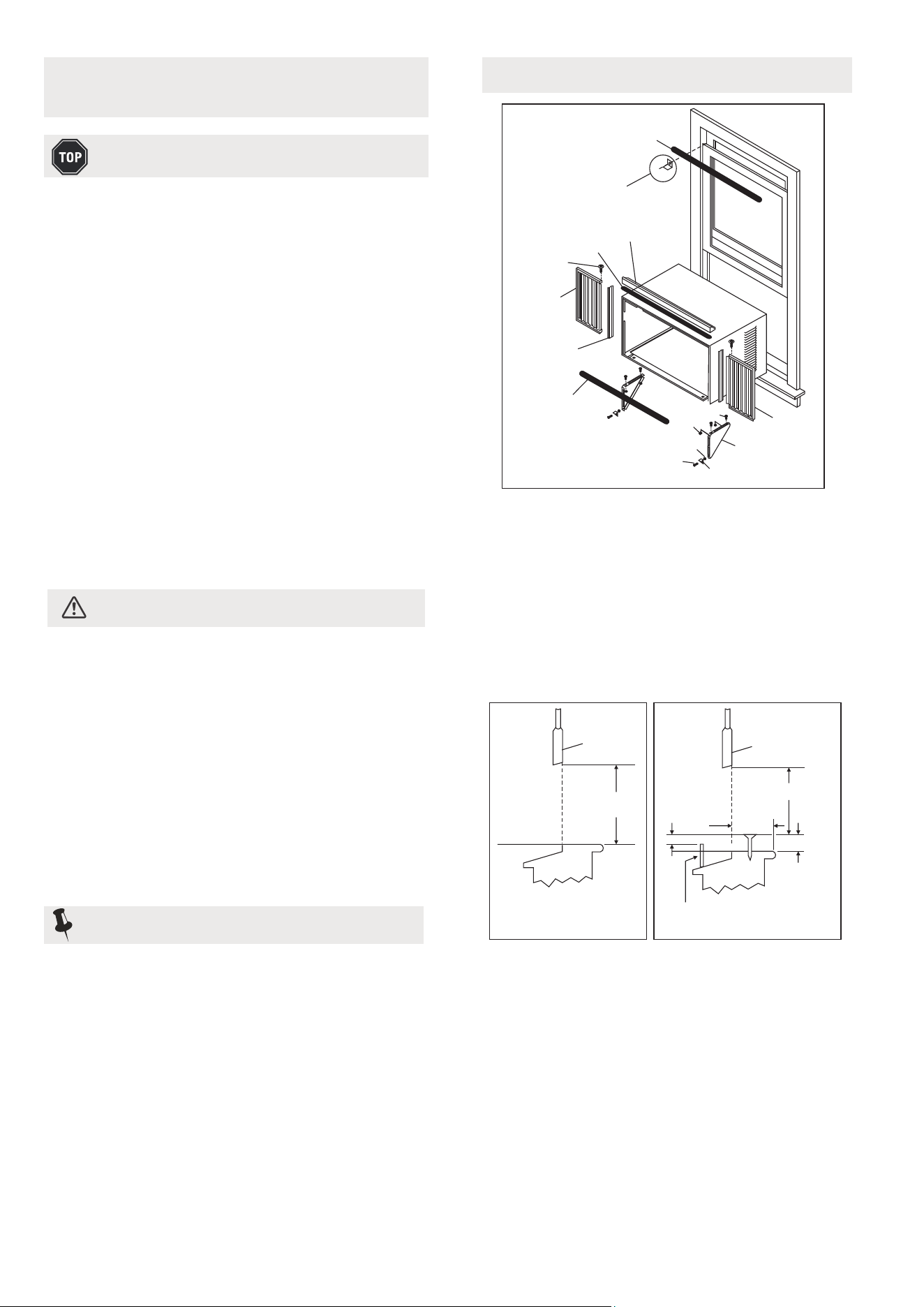

If the air conditioner is to be istalled in a window,you will probably want to clean

both sides of the glass first. If the window is a triple-trackty pew it has creen

panel included, remove the screen completely before installation.

Be sure the airconditionerh as been securely and correctly in stalled accordingto

the installation instructions in this manual. Save this manual for possible future

use in removing or installing this unit. When handling the air conditioner, be

careful to avoid cutsf romsnarpm etalf ins on front and rear coils.

Be sure the air conditioner is properly grounded. To minimize shock and fire

hazards, proper grounding is important. The power cord is equipped with a

three-prong grounding plug for protection against shock hazards.

Your air conditioner must be used in a properly grounded wall receptacle. If the

wall receptacle you intend to use is not adequately grounded or protected by a

time delay fuse or circuit breaker, have a qualified electrician install the proper

receptacle. Ensure the receptacle is accessible after the unit installation.

Do not run air conditioner without side protective cover in place.This could

result in mechanical damage within the air conditioner.

Do not use an extension cord or an adapter plug.

WARNING

NOTE

The power supply cord with this air conditioner contains a current detection device

designed to reduce the risk of fire. Please refer to the section Operation of Current

Device for details.In the event that the power supply cord is damaged, it cannot be

repaired-it must be replaced with acord from the Product Manufacturer.

Avoid fire hazard or electric shock.

Do not use an extension cord or an

adaptor plug.

Do not remove any prong from the

power cord.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

WARNING

For Your Safety

To reduce the risk of fire, electrical shock, or injury to persons when using your air

conditioner, follow basic precautions, including the following:

Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air

conditioner, follow basic precautions, including the following:

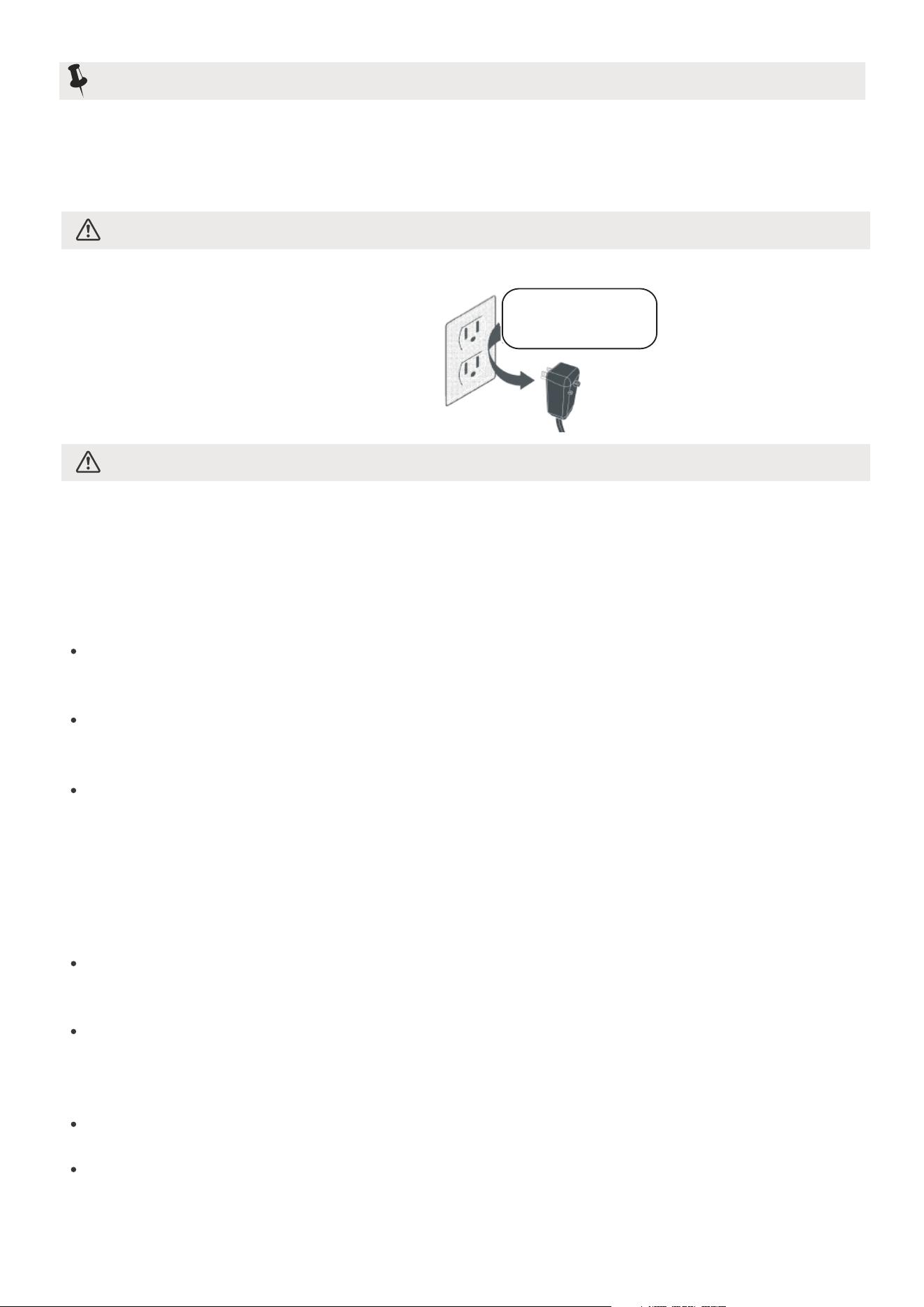

Electrical Information

Grounding type wall receptacle

Do not, under any

circumstances, cut,

remove, or bypass

the grounding prong.

Power supply cord

with 3-prong grounding

plug and current

detection device.

Do not use this device to turn the unit on or off.

Always make sure the RESET button is pushed in for correct operation.

If power supply cord is damaged, it cannot be repaired. It MUST be replaced by

one obtained from the product manufacturer.

NOTE: This air conditioner is designed to be operated under condition as follows:

Note: Performance may be reduced outside of these operating temperatures.

Cooling

operation

Outdoor temp:

64-109°F/18-43°C (64-125°F/18-52°C

for special tropical models)

62-90°F/17-32°C

23-76°F/-5-24°C

32-80°F/0-27°C

Indoor temp:

Outdoor temp:

Indoor temp:

Heating

operation

The power supply cord contains a current device that senses damage to the power

cord.

To test your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head. Press the TEST

button, you will notice a click as the RESET button pops out.

3. Press the RESET button, again you will notice a click as the button engages.

4. The power supply cord is now supplying electricity to the unit. (On some

products this it also indicated by a light on the plug head.)

Operation of Current Device

(Applicable to the unit adopts current detection device only)

NOTE

Electronic Work

WARNING:

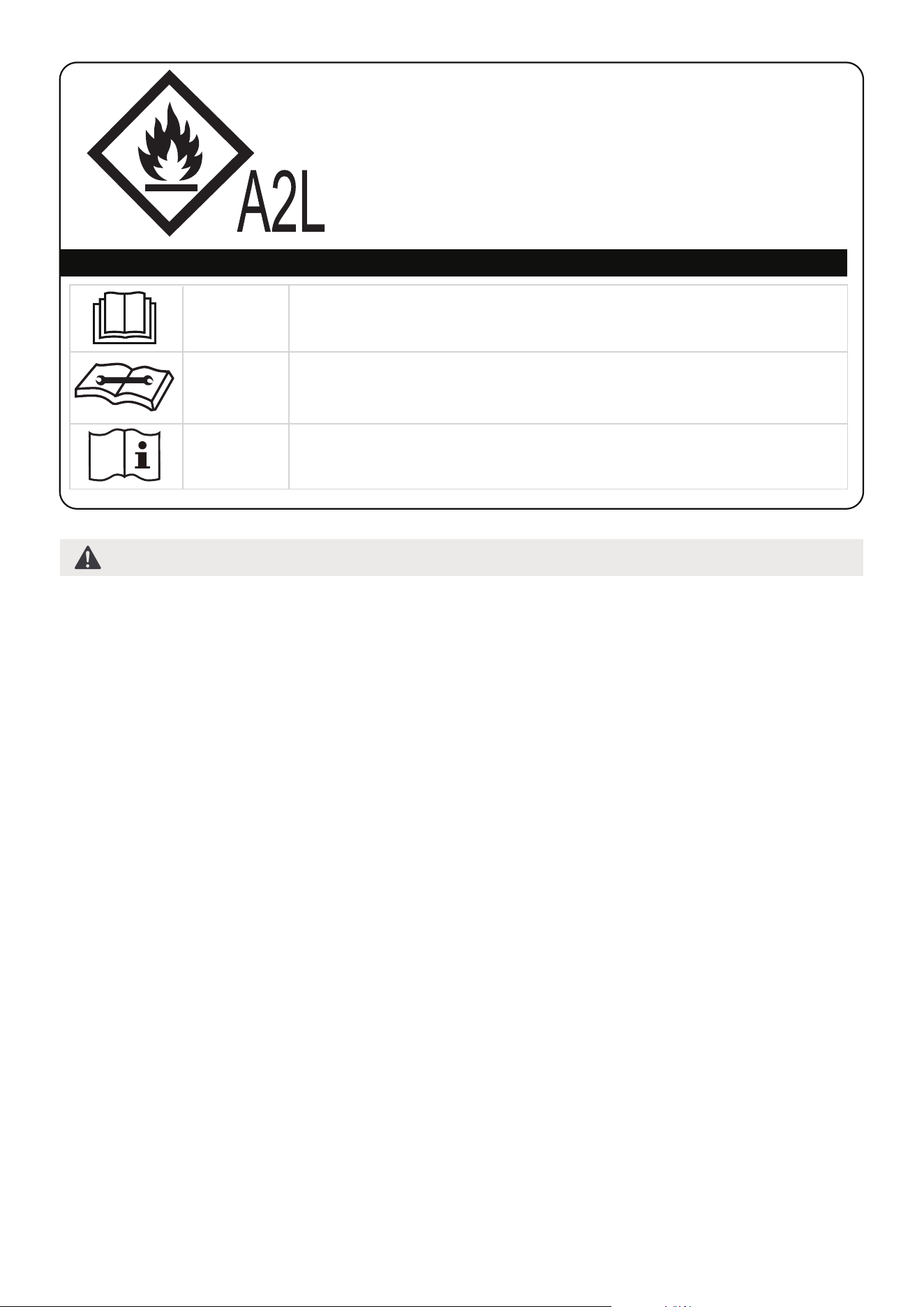

WARNING for Using R32 Refrigerant

Do not use means to accelerate the defrosting process or to clean, other than those

recommended by the manufacturer.

The appliance shall be stored in a room without continuously operating ignition

sources (for example: open flames, an operating gas appliance or an operating

electric heater).

Do not pierce or burn.

Be aware that the refrigerants may not contain an odour.

Appliance should be installed, operated and stored in a room with a floor area

according to the amount of refrigerant to be charged. For specific information on

the type of gas and the amount, please refer to the relevant label on the unit itself.

When there are differences between the lable and the manual on the Min. room area

description, the description on label shall prevail.

Appliance shall be installed, operated and stored in a room with a floor area larger

than 4 m

Appliance shall not be installed in an unvertilated space, if that space is smaller

than 4 m

No open fire or device like switch which may generate spark/arcing shall be around

appliance to avoid causing ignition of the flammable refrigerant used.

Please follow the instructions carefully when storing or maintaining the appliance

to prevent mechanical damage from occurring.

BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN

OFF THE MAIN POWER TO THE SYSTEM.

Main Control

Compressor

Fan Motor

Display

Power

Supply

L/AC L/L1/L-IN

N/AC N/L2/N-IN

Other

Electronic Type

NOTICE:

Please strictly follow the wiring label attached to the machine for all wiring connections.

The wiring diagram may vary for dierent unit. Please refer to the wiring diagram on

the machine you have purchased. The above wiring diagram is a simpliﬁed version for

preliminary illustration purposes only.

WARNING for Using R32 Refrigerant

- Servicing shall only be performed as recommended by the equipment manufacturer.

Maintenance and repair requiring the assistance of other skilled personnel shall be

carried out under the supervision of the person competent in the use of flammable

refrigerants.

- DO NOT modify the length of the power cord or use an extension cord to power the

unit.

- DO NOT share a single outlet with other electrical appliances. Improper power

supply can cause fire or electrical shock.

- Please follow the instruction carefully to handle, install, clear, service the appliance

to avoid any damage or hazard.

- When maintaining or disposing the appliance, the refrigerant shall be recovered

properly, shall not discharge to air directly.

- Compliance with national gas regulations shall be observed.

- Keep ventilation openings clear of obstruction.

- The appliance shall be stored so as to prevent mechanical damage from occurring.

- A warning that the appliance shall be stored in a well-ventilated area where the

room size corresponds to the room area as specified for operation.

- Any person who is involved with working on or breaking into a refrigerant circuit

should hold a current valid certificate from an industry-accredited assessment

authority, which authorises their competence to handle refrigerants safely in

accordance with an industry recognised assessment specification. All training shall

follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.

Examples for such working procedures are:

• breaking into the refrigerating circuit;

• opening of sealed components;

• opening of ventilated enclosures.

CAUTION:

Risk of ﬁre

ﬂammable materials

Explanation of symbols displayed on the unit

CAUTION

This symbol shows that the operation manual should be

read carefully.

CAUTION

This symbol shows that a service personnel should be

handling this equipment with reference to the

installation manual.

CAUTION

This symbol shows that information is available such as

the operating manual or installation manual.

See transport regulations.

1. Transport of equipment containing ﬂammable refrigerants

See local regulations.

2. Marking of equipment using signs

See national regulations.

3. Disposal of equipment using ﬂammable refrigerants

4. Storage of equipment/appliances

Storage package protection should be constructed such that mechanical

damage to the equipment inside the package will not cause a leak of the

refrigerant charge. The maximum number of pieces of equipment permitted to

be stored together will be determined by local regulations.

5. Storage of packed (unsold) equipment

1) Checks to the area

Prior to beginning work on systems containing ﬂammable refrigerants, safety

checks are necessary to ensure that the risk of ignition is minimised. For repair

to the refrigerating system, the following precautions shall be complied with

prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk

of a ﬂammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance sta and others working in the local area shall be instructed on

the nature of work being carried out. Work in conﬁned spaces shall be avoided.

The area around the workspace shall be sectioned o. Ensure that the conditions

within the area have been made safe by control of ﬂammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerating detector prior to and

during work, to ensure the technician is aware of potentially ﬂammable

atmospheres. Ensure that the leak detection equipment being used is suitable

for use with ﬂammable refrigerants, i.e. non-sparking, adequately sealed or

intrinsically safe.

5) Presence of ﬁre extinguisher

If any hot work is to be conducted on the refrigeration equipment or any

associated parts, appropriate ﬁre extinguishing equipment shall be available to

hand. Have a dry powder or CO

ﬁre extinguisher adjacent to the charging area.

6) No ignition sources

No person carrying out work in relation to a refrigerating system which involves

exposing any pipe work that contains or has contained ﬂammable refrigerant

shall use any sources of ignition in such a manner that it may lead to the risk of

ﬁre or explosion. All possible ignition sources, including cigarette smoking,

should be kept suciently far away from the site of installation, repairing,

removing and disposal, during which ﬂammable refrigerant can possibly be

released to the surrounding space. Prior to work taking place, the area around

the equipment is to be surveyed to make sure that there are no ﬂammable

hazards or ignition risks. No Smoking signs shall be displayed.

6. Information on servicing

The storage of the appliance should be in accordance with the applicable

regulations or instructions, whichever is more stringent.

7. Sealed electrical components shall be replaced.

8. Intrinsically safe components must be replaced.

7)ventilated area

Ensure that the area is in the open or that it is adequately ventilated before

breaking into the system or conducting any hot work. A degree of ventilation

shall continue during the period that the work is carried out. The ventilation

should safely disperse any released refrigerant and preferably expel it externally

into the atmosphere.

8)Checks to the refrigerating equipment

Where electrical components are being changed, they shall be ﬁt for the purpose

and to the correct speciﬁcations. At all times the manufacturer's maintenance

and service guidelines shall be followed. If in doubt consult the manufacturer's

technical department for assistance. The following checks shall be applied to

installations using ﬂammable refrigerants: the actual refrigerant charge is in

accordance with the room size within which the refrigerant containing parts are

installed; the ventilation machinery and outlets are operating adequately and are

not obstructed; if an indirect refrigerating circuit is being used, the secondary

circuit shall be checked for the presence of refrigerant; marking to the

equipment continues to be visible and legible.

Markings and signs that are illegible shall be corrected; and refrigerating pipe or

components are installed in a position where they are unlikely to be exposed to

any substance which may corrode refrigerant containing components, unless the

components are constructed of materials which are inherently resistant to being

corroded or are suitably protected against being so corroded.

9)Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety

checks and component inspection procedures. If a fault exists that could

compromise safety, then no electrical supply shall be connected to the circuit

until it is satisfactorily dealt with. If the fault cannot be corrected immediately

but it is necessary to continue operation, an adequate temporary solution shall

be used.

This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include: That capacitors are discharged: this shall be

done in a safe manner to avoid possibility of sparking; that there no live electrical

components and wiring are exposed while charging, recovering or purging the

system; that there is continuity of earth bonding.

Check that cabling will not be subject to wear, corrosion, excessive pressure,

vibration, sharp edges or any other adverse environmental eects. The check

shall also take into account the eects of aging or continual vibration from

sources such as compressors or fans.

9. Cabling

Under no circumstances shall potential sources of ignition be used in the

searching for or detection of refrigerant leaks. A halide torch (or any other

detector using a naked ﬂame) shall not be used.

The following leak detection methods are deemed acceptable for systems

containing ﬂammable refrigerants. Electronic leak detectors shall be used to

detect ﬂammable refrigerants, but the sensitivity may not be adequate, or may

need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free

area.) Ensure that the detector is not a potential source of ignition and is suitable

for the refrigerant used. Leak detection equipment shall be set at a percentage

of the LFL of the refrigerant and shall be calibrated to the refrigerant employed

10. Detection of ﬂammable refrigerants

Before carrying out this procedure, it is essential that the technician is completely

familiar with the equipment and all its detail. It is recommended good practice

that all refrigerants are recovered safely.

and the appropriate percentage of gas (25 % maximum) is conﬁrmed. Leak

detection ﬂuids are suitable for use with most refrigerants but the use of

detergents containing chlorine shall be avoided as the chlorine may react with

the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked

ﬂames shall be removed/ extinguished. If a leakage of refrigerant is found which

requires brazing, all of the refrigerant shall be recovered from the system, or

isolated (by means of shut o valves) in a part of the system remote from the

leak. Removal of refrigerant shall be according to Removal and evacuation.

When breaking into the refrigerant circuit to make repairs—or for any other

purpose - conventional procedures shall be used. However, for ﬂammable

refrigerants it is important that best practice be followed, since ﬂammability is

a consideration. The following procedure shall be adhered to:

-Safely remove refrigerant following local and national regulations;

-Evacuate;

-Purge the circuit with inert gas (optional for A2L);

-Evacuate (optional for A2L);

-continuously ﬂush or purge with inert gas when using ﬂame to open circuit; and

-open the circuit.

The refrigerant charge shall be recovered into the correct recovery cylinders if

venting is not allowed by local and national codes. For appliances containing

ﬂammable refrigerants, the system shall be purged with oxygen-free nitrogen to

render the appliance safe for ﬂammable refrigerants. This process might need to

be repeated several times.compressed air or oxygen shall not be used for

purging refrigerant systems.

For appliances containing ﬂammable refrigerants, refrigerants purging shall be

achieved by breaking the vacuum in the system with oxygen-free nitrogen and

continuing to ﬁll until the working pressure is achieved, then venting to

atmosphere, and ﬁnally pulling down to a vacuum (optional for A2L).

This process shall be repeated until no refrigerant is within the system (optional

for A2L). When the ﬁnal oxygen-free nitrogen charge is used. the system shall be

vented down to atmospheric pressure to enable work to take place. The outlet

for the vacuum pump shall not be close to any potential ignition sources, and

ventilation shall be available.

11. Removal and evacuation

In addition to conventional charging procedures, the following requirements shall

be followed.

Ensure that contamination of dierent refrigerants does not occur when using

charging equipment.

Hoses or lines shall be as short as possible to minimise the amount of refrigerant

contained in them.

Cylinders shall be kept in an appropriate position according to the instructions.

Ensure that the refrigeration system is earthed prior to charging the system with

refrigerant. Label the system when charging is complete (if not already). Extreme

care shall be taken not to overﬁll the refrigeration system. Prior to recharging the

system it shall be pressure tested with OFN. The system shall be leak tested on

completion of charging but prior to commissioning. A follow up leak test shall be

carried out prior to leaving the site.

12. Charging procedures

13. Decommissioning

Prior to the task being carried out, an oil and refrigerant sample shall be taken in

case analysis is required prior to re-use of reclaimed refrigerant. It is essential

that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.

b) Isolate system electrically.

c) Before attempting the procedure ensure that: Mechanical handling equipment

is available, if required, for handling refrigerant cylinders;all personal protective

equipment is available and being used correctly; the recovery process is

supervised at all times by a competent person; recovery equipment and

cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be

removed from various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the recovery machine and operate in accordance with manufacturer's

instructions.

h) Do not overﬁll cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been ﬁlled correctly and the process completed, make

sure that the cylinders and the equipment are removed from site promptly and

all isolation valves on the equipment are closed o.

k) Recovered refrigerant shall not be charged into another refrigeration system

unless it has been cleaned and checked.

Equipment shall be labelled stating that it has been de-commissioned and

emptied of refrigerant. The label shall be dated and signed. Ensure that there are

labels on the equipment stating the equipment contains ﬂammable refrigerant.

14. Labelling

When removing refrigerant from a system, either for servicing or decommissioning,

it is recommended good practice that all refrigerants are removed safely. When

transferring refrigerant into cylinders, ensure that only appropriate refrigerant

recovery cylinders are employed. Ensure that the correct number of cylinders for

holding the total system charge is available. All cylinders to be used are designated

for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders

for the recovery of refrigerant). Cylinders shall be complete with pressure relief

valve and associated shut-o valves in good working order. Empty recovery

cylinders are evacuated and, if possible, cooled before recovery occurs. The

recovery equipment shall be in good working order with a set of instructions

concerning the equipment that is at hand and shall be suitable for the recovery of

the ﬂammable refrigerant. If in doubt, the manufacturer should be consulted. In

addition, a set of calibrated weighing scales shall be available and in good working

order. Hoses shall be complete with leak-free disconnect couplings and in good

condition.

The recovered refrigerant shall be processed according to local legislation in the

correct recovery cylinder, and the relevant waste transfer note arranged. Do not

mix refrigerants in recovery units and especially not in cylinders. If compressors or

compressor oils are to be removed, ensure that they have been evacuated to an

acceptable level to make certain that ﬂammable refrigerant does not remain within

the lubricant. The compressor body shall not be heated by an open ﬂame or other

ignition sources to accelerate this process. When oil is drained from a system, it

shall be carried out safely.

15.Recovery

SPECIFICATIONS

MAW18R2BWT

Product Model

Power source

Cooling capacity

Heating capacity

Rated current

Rated power input

OUTSIDE

RESISTANCE CLASS

18000/17700 Btu/h

11.5A

2150W

MAW25R2BWT

25000/24700 Btu/h

16.8A

3300W

230/208V, 60Hz 1Ph

IPX4

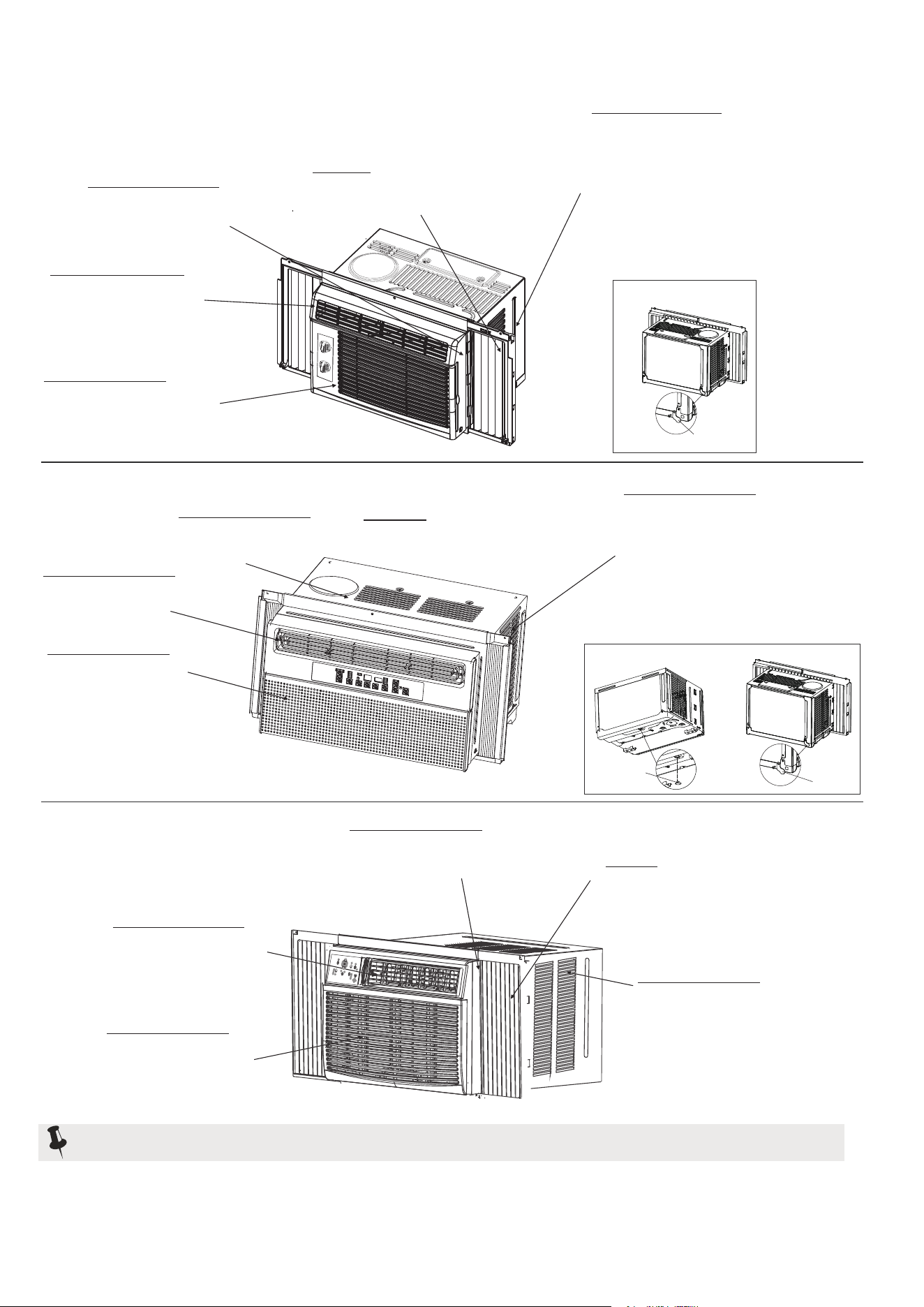

NOTE: The unit you purchased may be look like one of the followings:

INSTALLATION INSTRUCTIONS

NOTE

All the illustrations in this manual are for explanation purpose only.

The air conditioner you have may be slightly different. The actual shape shall

prevail.

Read these instructions completely and carefully.

MPORTANT-Save these instructions for local

inspector’s use.

IMPORTANT-Observe all governing codes

and ordianaces.

Note to Installer- Be sure to leave these

instructions with the Consumer.

Note to Consumer- Keep these instructions for

futrue reference.

Skill level- Installatio of this appliance requires

basic mechanical skills.

Completion time- Approximately 1 hour.

We recommend that two people install this

product.

Proper installation is the responsibility of the

installer.

Product failure due to improper installation is not

covered under the Warranty.

You MUST use all supplied parts and use proper

installation procedures as described in these

instructions when installing this air conditioner.

Your air conditioner is designed to install in

standard double hung windows with opening

widths of 23 to 36 inches (584mm to 914mm).

Table 1

Installation Instructions

(for 5000 to 14500Btu/h)

BEFORE YOU BEGIN

NOTE

WINDOW REQUIREMENTS

Model

6000~8000Btu/h

10000~14500Btu/h

”

(356mm)

15-1/2” (394mm)

5000~6000Btu/h

”

(330mm)

CAUTION

TOOLS YOU WILL NEED

TOOLS YOU MAY USE

Do not, under any circumstances, cut

or remove the third (ground) prong

from the power cord.

Do not change the plug on the power

cord of the air conditioner.

Aluminum house wiring may present

special problems- consult a qualified

electircian.When handling unit, be

careful to avoid cuts from sharp metal

edges and aluminum fins on front and

rear coils.

Save Carton and these Installation

Instructions for future reference.

The carton is the best way to store

unit during winter, or when not in use.

Screwdriver

Level

Screwdriver

Pencil

Ruler or tape

measure

Scissors or knife

Lower sash must open sufficiently to allow a

clear vertical opening. The window opening

height shall be based on the different Models:

13inches/330mm (5k~6k units), 14inches/356mm

(6k~8k units), 15-1/2inches/394mm (10k~12k

units).

Side louvers and the rear of the AC must have

clear air space to allow enough airflow through

the condenser, for heat removal. The rear of the

unit must be outdoors, not inside a building or

garage.

1. PREPARE THE WINDOW

A: Remove the air conditioner from the carton

and place on a flat surface.

B: Remove top rail and R1 hardware and weather

stripping from the packaging material as

shown in Fig. A(R1 hardware and weather

stripping are only available for≥15000Btu/h

Energy star models).

A.Place unit on floor, a bench

or a table. Hold the Accordion

Panel in one hand and gently

pull back the center to free

the open end. See Fig.1

C: Align the hole in the top rail with those in the

top of the unit as shown in Fig.B

D: Secure the top rail to the unit with the 3/8"

Screws as shown in Fig.C.

2. PREPARE AIR CONDITIONER

3. INSTALL THE ACCORDION

PANELS

NOTE: For safety reasons, all four (4)

screws MUST be securely fastened.

NOTE: The top rail hardware and the

Fig.A, Fig.B and Fig.C are not applicable

to the units more than 10000Btu/h.

Before installing unit, the top rail must

be assembled on the unit

(For <10000Btu/h models only).

NOTE: Top rail and Sliding Panels at

each side are offset to provide the

proper pitch to the rear of (5/16").

This is necessary for proper condensed

water utilization and drainage. If you

are not using the Side Pa-nels for any

reason, this pitch to the rear must be

maintained.

Mounting Hardware

Top Rail Hardware

Fig.A

(For Wooden

windows)

3/4”(or 1/2”)

Screws (7)

Lock Frame

(2)

Lock Frame

(2)

Sash Lock

(1)

Window sash

seal foam

(1)

(For Vinyl-Clad

windows)

(on some models)

Weather stripping

(10”*3/4”*1/12”)

3/8”Screws

Packaging Top Rail R1 hardware

R1 hardware

Top Rail

R1 hardware

Fig.B

Fig.C

Fig.1

B. Slide the free end " I" section of the panel

directly into the cabinet as shown in Fig. 2.

Slide the panel down. Be sure to leave enough

space to slip the top and bottom of the frame

into the rails on the cabinet.

C. Once the panel has been installed on the side

of the cabinet, make sure it sits securely inside

the frame channel by making slight adjustments.

Slide the top and bottom ends of the frame into

the top and bottom rails of the cabinet. Fig .3.

D. Slide the panel all the way in and repeat on

the other side.

Fig.2

"Ⅰ"section

A. Keep a firm grip on the air conditioner,

carefully place the unit into the window

opening so the bottom of the air conditioner

frame is against the window sill (Fig.5A and

Fig.5B). Carefully close the window behind

the top rail of the unit.

B. Extend the side panels out against the

window frame(Fig.6).

4. SECURE THE ACCORDION

PANELS

NOTE: If storm window blocks AC,

see Fig. 11.

NOTE: Check that air conditioner is

tilted back about H (Fig.5A and

Fig.5B) (tilted about 3°to 4°

downward to the outside).

After proper installation, condensate

should not drain from the overflow

drain hole during normal use, correct

the slope otherwise.

Top Rail

Bottom Rail

Top Rail

Bottom Rail

Top left

Top right

Wooden Windows

INSIDE

OUTSIDE

Fig.5A

Fig.5B

H:About 3/4” to 1” (for 5 to 8K);

H:About 1” to 1⅜” (for 10 to12K);

H:About 3/4” to 1” (for 5 to 8K);

H:About 1” to 1⅜” (for 10 to12K);

Measure from the cabinet edge

Vinyl-Clad Windows

INSIDE

OUTSIDE

Measure from the cabinet edge

Fig.6

window

frame

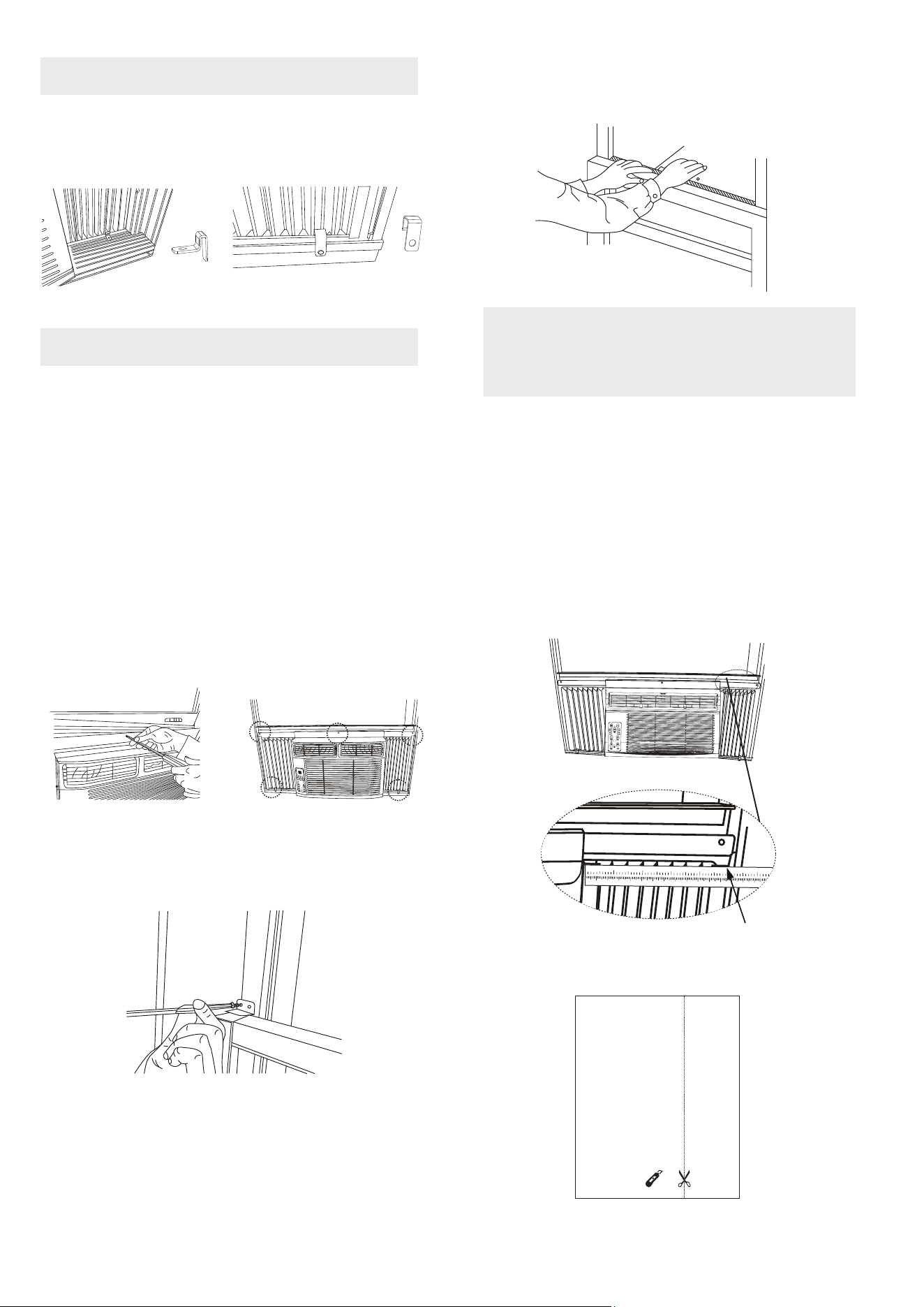

A. Place the frame lock between the frame

extensions and the window sill as shown

(Fig.7A for Wooden windows), (Fig.7B for

Vinyl-Clad windows).

A: For wooden windows:

Drive 1/ 2" (12.7 mm) locking screws through the

frame lock and into the sill (Fig.8A).

NOTE: To prevent window sill from splitting, drill

1/8 " (3mm) pilot holes before driving screws.

Drive 1/ 2" (12.7mm) locking screws through

frame holes into window sash (Fig.8B).

B: For Vinyl-Clad windows:

Drive 1/ 2" (12.7 mm) locking screws through

the frame lock and into the window sashl (Fig.8B).

NOTE: Before driving the screws, use a

drill to drill 5 holes through the holes in

the frame lock and frame extensions

into the windows sash as shown

(Fig. 8B).

C. To secure lower sash in place, attach right angle

sash lock with 3/4" (19mm) or 1/2" (12.7mm)

screw as shown(Fig.9).

D. Cut window sash seal foam and insert it in

the space between the upper and lower

sashes (Fig. 10).

In order to minimize air leaks and ensure

optimal insulation, it is necessary to install the

included R1 hardware to the side curtain.

Follow the instructions below.

Step 1. After the unit is installed to the window,

measure the inner width of the side curtain as

shown (Fig.11).

Step 2. Remark a line on the provide R1

insulation panel according to a length 1/8”

(3mm) less than the measured width in step 1,

then cut the R1 insulation panel along the line

(Fig .12).

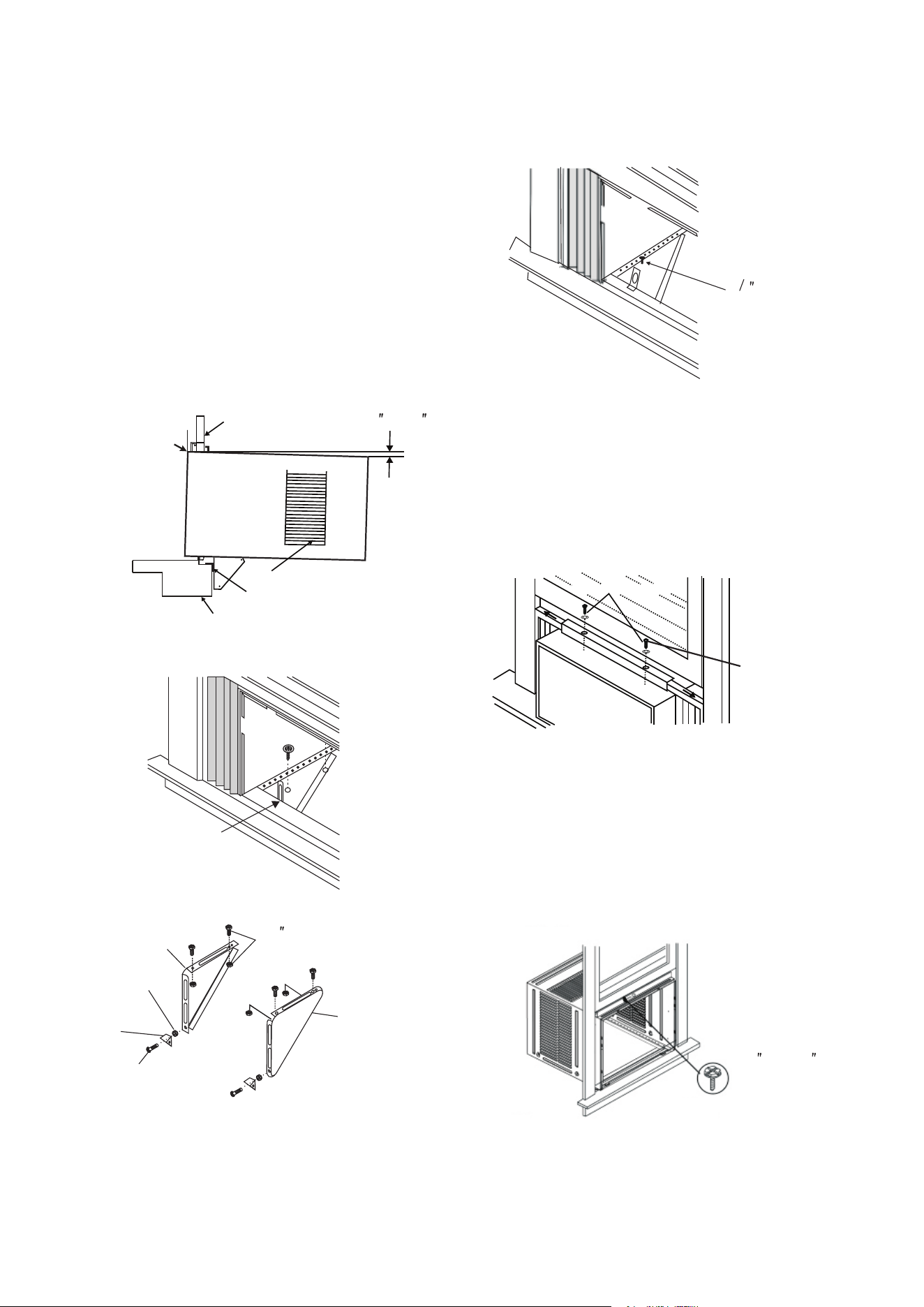

5. INSTALL SUPPORT BRACKET

7. INSTALL R1 HARDWARE

(only applicable to ≥15000Btu/h

Energy star models )

6. DRIVE LOCKING SCREWS

Fig.7A Fig.7B

Fig.8A

Fig.9

Fig.8B

Fig.10

FOAM SEAL

Measure the inner width

of the side curtain

1 2

12 13

3 4

Fig.11

Fig.12

Step 3. Slide the R1 insulation panel into the side

curtain, the side with pattern should facing the

indoor side.(Fig.13)

Add wood as shown in Fig.15, or remove

storm window before air conditioner is

installed.

If Storm Window Frame must remain, be sure

the drain holes or slots are not caulked or

painted shut. Accumulated Rain Water or

Condensation must be allowed to drain out.

Turn AC off, and disconnect power cord.

Remove sash seal from between windows, and

unscrew safety sash lock.

Remove screws installed through frame and

frame- lock.

Remove the R1 Panel and close (slide) side

panels into frame.

Keeping a firm grip on air conditioner, raise

sash and carefully remove.

Be carefully not to spill any remaining water

while lifting unit from window. Store parts

WITH air conditioner.

Removing AC From Window

In order to minimize air leaks between the room

air conditoner and the window opening, trim the

weather stripping with a proper length, peel off

the protective backing and plug any gaps if

needed (Fig .14).

Step 4. Repeat on the other side.

If AC is Blocked by Storm Window

8. INSTALL WEATHER STRIPPING

(only be applicable to Energy star

models)

Fig.13

Fig.14

Board

thickness

as required,

for proper

pitch to rear,

along entire

sill. Fasten

with nails or

screws.

Storm window

frame or other

obstruction.

SASH

1-1/2"min

(38 mm)

Fig.15

Read these instructions completely and carefully.

IMPORTANT-Save these instructions for local

inspector’s use.

IMPORTANT-Observe all governing codes and

ordianaces.

Note to Installer- Be sure to leave these

instructions with the Consumer.

Note to Consumer- Keep these instructions for

futrue reference.

Skill level- Installation of this appliance requires

basic mechanical skills.

Completion time- Approximately 1 hour.

We recommend that two people install this

product.

Proper installation is the responsibility of the

installer.

Product failure due to improper installation is not

covered under the Warranty.

You MUST use all supplied parts and use proper

installation procedures as described in these

instructions when installing this air conditioner.

Do the following before starting to install unit.

See illustrations below.

Check dimensions of your unit to determine

model type:

Unit Height:

Unit Width:

Min. Window Opening:

Min. Window Width:

Max. Window Width:

1 .Check window opening size-- the moun-

ting parts furnished with this air conditioner

are made to install in a wooden sill double-hung

window. The standard parts are for window

dimensions listed above. Open sash to a mini-

mum of 19 inches(483mm). See Fig.D.

2.Check condition of window-- all wood

parts of window must be in good shape and

able to firmly hold the needed screws. If not,

make repairs before installing unit.

Installation Instructions

(for 15000 to 28500Btu/h)

Preliminary Instructions

BEFORE YOU BEGIN

CAUTION

Do not, under any circumstances, cut

or remove the third (ground) prong

from the power cord.Do not change

the plug on the power cord of the air

conditioner.

Aluminum house wiring may present

special problems- consult a qualifed

electircian.When handling unit, be

careful to avoid cuts from sharp metal

edges and aluminum fns on front and

rear coils.

NOTE

Save Carton and these Installation

Instructions for future reference.

The carton is the best way to store

unit during winter, or when not in use.

Window Sash Seal

Safety Lock and

3 /4

” (or1/2”) Long

Hex Head Screw

Top Angle

Foam Gasket

Washer Head

Locking screw

Frame

Assembly

(Left)

Side Retainer

Bottom rail

seal to Unit

1 /2” Long

Screw and

Locknuts

Locknut

3 /4” Long

Flat Head

Bolt

Sill Angle

Bracket

Window Support

Bracket

Frame

Assembly

(Right)

18⅝” 17⅝”

26½” 23⅝”

19½” 18½”

31” 28”

42” 40½”

SASH

19” MIN.

indow Frame or

bstruction

Storm Window

Frame or Other

Obstruction

Board

Thickness

As Required,

Along Entire

Sill. Fasten

With Two Nails

Or Screws.

/2” MIN.

19” MIN.

SASH

Fig.D Fig.E

NOTE: Remove any packaging

material from cabinet exterior.

3. Check your storm windows-- if your storm window

frame does not allow the clea-rance required, correct

by adding a piece of wood as shown in Fig.E,or by

removing storm window while room air conditioner

is being installed.

4. Check for anything that could block airflow-

check area outside of window for things such as

shrubs, trees, or awnings. Inside, be sure furniture,

drapes, or blinds will not stop proper airflow.

5. Check the available electrical service- Power

supply must be the same as that shown on the unit

serial nameplate. Power cord is 48 inches long. Be

sure you have an outlet near.

6. Carefully unpack air conditioner- Remove all

packing material. Protect floor or carpet from

damage. Two people should be used to move and

install unit.

1. Pull down front grille and remove filter.

(See Fig.1).

2. Lift front grille upwards and place to one

side.

3. Locate the four front screws and remove.

These screws will be needed to re-install

the front panel (see Fig.2).

4. Push metal cabinet side to release plastic

tabs on each side of front panel (see Fig.3).

5. Gently lift front panel off unit(see Fig.3A).

6. Disconnect the connector plug of the

display panel from the unit and place front

panel to one side(see Fig.4).

7. Remove shipping screws from top of unit

and also on the side by the base if installed

(see Fig.5).

8. Hold the cabinet while pulling on the base

pan handle, and carefully remove the unit.

9. Add two foam inserts to holes in top of

cabinet where shipping screws were

removed from (see Fig .6)

1. Remove Air Conditioner from Cabinet

Tools Required

A large flat blade screwdriver; Tape measure;

Adjustable wrench or pliers; Pencil; Level Socket

wrenches; Phillips Screwdriver.

Hardware(Packed with the unit)

A. Window Mounting

Locking screw 10X 1/ 4 panhead

screws (for Vinyl-Clad window)(on some models)

Phillips

7/16 inch Locking screw and

Flat washer for window panels

3 / 4

(

or 1/2)inch Long

Hex-head Screw

Safety Lock

1 / 2 inch Long screw and Locknut

3 / 4 inch Long Flat Head

Bolt and Locknut

Sill Angle Bracket

Long hex-head locking

screw for top angle, side

retainer 5 /16 inch Long

2ea.

4ea.

2ea.

Foam insert

Window sash

seal foam

R1 hardware

(10 *3/4 *1/12 )

NOET: R1 hardware and Weather stripping is only for

Energy star models(for ≥ 15000Btu/h models only).

Weather stripping

Safety Lock

(for Vinyl-Clad window)(on some models)

Lock Frame(For Wooden

windows)(on some models)

3 / 4 inch Long Screw(on some models)

Sill angle bracket

(on some models)

Front Grille

Front Panel

Fig.1 Fig.2

Fig.3

Fig.3A

Fig.4

shipping

screws

Fig.5

Fig.6

10. Your unit may come with internal packaging.

This packaging must be removed prior to

installing the air conditioner back into the

cabinet.(see Fig .7).

1. Attach foam gasket to top angle above holes as

shown in Fig.6.

2. Install top angle and side retainers to cabinet as

shown in Fig.8(10 screws).

1. Place cabinet on floor, a bench, or a table.

2. Slide "I " section of window filler panel into side

retainer on the side of the cabinet (see Fig.9 &

Fig.10).

Do both sides.

3. Insert top and bottom legs of window filler

panel frame into channel in the top angle

and bottom rail. Do both sides.

4. Insert washer head locking 7/16” screws (2)

into holes in top leg of filler panel frame

(see step 6). Do not totally tighten. Allow

leg to slide freely. Screwswill be tightened

after section 6.

1. Open window and mark center of window

inner sill as shown(Fig.11).

2. Place cabinet in window with bottom sill

angle firmly seated over window sill as

shown. Bring window down temporarily

behind top angle to hold cabinet in place

(Fig.12).

3. Shift cabinet left or right as needed to line

up center of cabinet on center line marked

on inner sill.

4. For wooden window: Fasten cabinet to

window inner sill with two screws into holes

(Fig.13) (You may wish to pre-drill pilot

holes).

For Vinyl-Clad window: Place two safety

locks into the holes located in the bottom of

the cabinet and drive two #10X1/4" pan-

head Phillips locking scr- ews through the

safety locks into the cabinet as shown

(Fig.13B).

5. Remove protective strip from adhesive side

of Bottom Rail Foam Seal.

Apply Seal over screws fastening bottom

rail to window inner sill.

Fig.7

2. Install top angle and side Bracket

3. Assemble Window Filler Panels

4. Place Cabinet in window

Shipping Packaging

Plastic tie

5 16 long

hex-he

Fig.8

Plastic

Frame

Window Filler

Panel

Side Retainer

Fig.9

Fig.10

Top

View

Air Conditioner

Cabinet

Plastic

Frame

"Ⅰ" Section

Window

Filler

Panel

Locking

Screw

Hole

Window

inner Sill

Sill

Angle

Window

outer Sill

Fig.11 Fig.12

3 4” ( or1 )Long

Hex-head Screw

/2”

Fig.13

Fig.13B

1. Hold each support bracket flush against outside

of sill, and tight to bottom of cabinet as shown in

Fig.15A. Mark brackets at top level of sill and

remove.

2. Assemble sill angle bracket to support brackets

at the marked position(Fig.15B).

Hand tighten, but allow for any changes later.

3. Install support brackets(with sill angle

brackets attached) to correct hole in bottom

of cabinet as shown in Fig.16.

4. Tighten all 6 bolts securely.

1. Carefully raise window to expose filler panel

locking screws. Loosen screws so filler panels

slide easily.

2. Extend panels to fill window opening

completely. Tighten locking screws on top

(Fig.17).

3. Close window behind top angle.

4. Attach the top angle to window frame: Use

a 3/32" drill bit to drill one hole through the

hole in the middle of top angle into the

window frame, and drive one 3/4" (or 1/2'' )

HEX-HEAD locking screw through hole in the

middle of top angle into the window frame

as shown (Fig.17A)

NOTE: Check that air conditioner is tilted

back about 1¼”to 1⅝”(tilted about 3° to

4°downward to the outside). After

proper installation, condensate should

not drain from the overflow drain hole

during normal use,correct the slope

otherwise (Fig .14).

5. Install Support Bracket

6. Extend Window Filler Panels

Mark

Side Louvers

Window Sash

Window Sill

Sill Angle Bracket

1 5

About1 / to1 /

4 8

Measure from

the cabinet edge.

Fig.14

Fig.15A

1 2 Long Screws

And Locknuts

Left

Right

Sill Angle

Bracket

Flat Head

Bolt

2 Each Required For

Each Support Bracket

Locknut

Fig.15B

1 2 Long Screws

and Locknuts

Fig.16

Locking Screw

7/16"Locking Screw

and Washer

Fig.17

Fig.17A

3/ 4 (or 1/ 2 ) long

HEX-HEAD

SCREW

1. Extend the window filler panels out against

the window frame.

2. Use a 1/8" drill bit to drill a starter hole

through the hole in the top leg of each window

filler panel and into the window sash (Fig. 18A

and Fig. 18B). Connect with one 3/4" (or 1/2")

long hex head screw.

1. Lift air conditioner and carefully slide into

cabinet leaving 6 inches protruding.

2. DO NOT push on controls or finned coils.

3. Be sure chassis is firmly seated towards rear of

cabinet.

4. Installation of front is the reverse of removal

outlined in Section 1.

In order to minimize air leaks and ensure optimal

insulation, it is necessary to install the included R1

hardware to the side curtain. Follow the

instructions below.

Step 1. After the unit is installed to the window,

measure the inner width of the side curtain as

shown (Fig.20).

Step 2. Remark a line on the provided R1

insulation panel according to a length 1/8" (3mm)

less than the measured width in step 1, then cut

the R1 insulation panel along the line (Fig. 12).

1. Trim sash seal to fit window width. Insert

into space between upper and lower sashes

(Fig.18).

7. Attach Window Filler Panels to Window

Frame

9. Install Chassis into Cabinet and Install

Front to Unit

10. NSTALL R1 HARDWARE (only applicable

to ≥15000Btu/h Energy star models)

8. Install Window Sash Seal and Safety Lock

A.3/ 4 (or 1/2 ) long hex head screw

B. Left-hand Window Filler

Panel Top Leg

C. Window channel

Fig.18B

Fig.18A

A.3/ 4 (or1/2 ) long hex head screw

Window Sash Seal

Safety Lock

3 4 (or1 )Long

Hex-head Screws

2. Attach right angle safety lock (Fig. 19).

Fig.18

Fig.19

Measure the inner width

of the side curtain

3 4

5 6 7

9 10 11

13 14

16 17

Fig.20

Fig.21

Step 3. Slide the R1 insulation panel into the side

curtain, the side with pattern should facing the

indoor (Fig. 22).

The air conditioner has a slide-out chassis, so

that it can be installed through an outside wall

as specified below:

Max. Wall thickness: 12" or 10"

IMPORTANT: Side louvers must never be blocked.

Select a wall surface that:

1. does not support major structural loads such

as the frame construction at ends of windows,

and under truss-bearing points, etc.

2. does not have plumbing or wiring inside.

3. is near existing electrical outlets or where

another outlet can be installed.

4.is not blocked to the area to be cooled.

5. allows unblocked airflow from rear sides and

end(outside) of installed air conditioner.

1. Prepare wall in frame construction (including

brick and stucco veneer). Working from inside

the room, find wall stud nearest the center of

area where air conditioner will be installed (by

sounding wall or by magnetically finding nails).

2. Cut or knock out a hole on each side of center

stud.

3. Measure between inside edges of every other

stud as shown in Fig.1.

Carefully measure and cut an opening with the

following dimensions depending on your model.

See Fig.1 and Fig.2.

Step 4. Repeat on the other side.

In order to minimize air leaks between the room

air conditoner and the window opening, trim the

weather stripping with a proper length, peel off

the protective backing and plug any gaps if

needed (Fig.23).

NOTE: Consult local building codes

prior to installation or a qualified

carpenter.

NOTE: All parts needed for Thru-The-

Wall Installation are provided, except a

wood frame, shims, and 10 wood

screws(#10-1" long minimum).

11. INSTALL WEATHER STRIPPING (only

applicable to Energy star models)

1. Select Wall Location

2. Prepare Wall

Fig.22

Fig.23

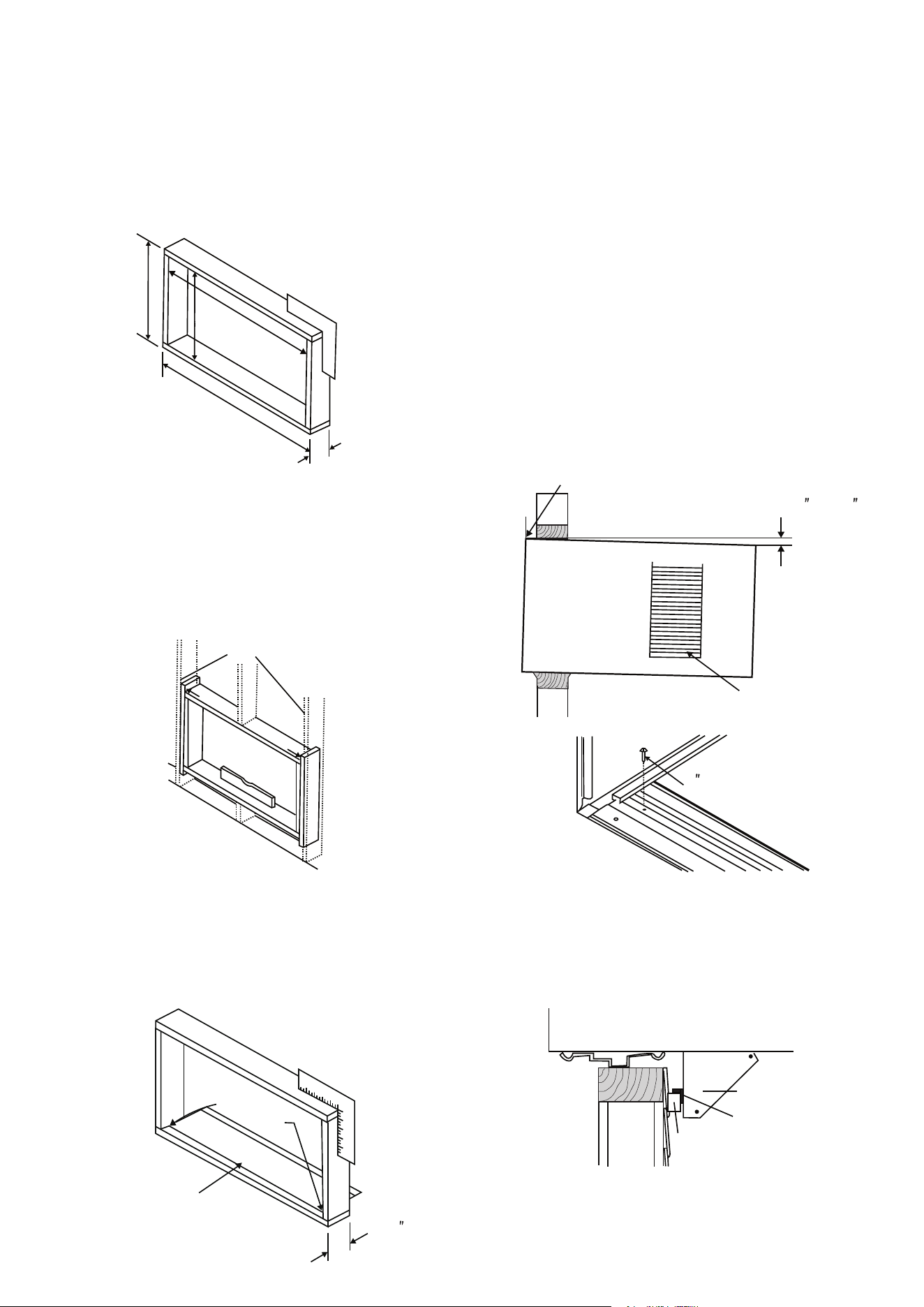

B. Thru-The-Wall Installation

3-3/8" MIN

(8.6 cm)

Fig.1

WIDTH " X"= inside model width plus twice the

thickness of framing material used.

HEIGHT '' Y " = inside model height plus twice

the thickness of framing material used.

Inside Frame Height: 18-7/8"(47.9cm) or

18"(45.7cm)

Inside Frame Width: 26-3/4"(67.9cm) or

23-7/8"(60.6cm)

1. Slide chass is from cabinet. Refer back to

Step one of Window Mounting.

2. Place cabinet into opening with bottom

rail resting firmly on bottom board of wooden

frame.

3. Position cabinet to achieve proper slope for

water removal.(See Fig.5 below.)

4. Secure bottom rail to wood frame with two

large wood screws 1"(2.5cm) long using the

two holes in the bottom of the channel resting

on frame.(See Fig.6 ).

Refer to Step 5 of Window Mounting for

assembly of support brackets. A wooden strip

nailed to the outside wall should be used in

conjunction with sill support angle brackets.

4. Build a wooden frame with the INSIDE dim-

ensions of your model listed above. (Remember

to measure twice). Frame depth should be the

same as wall thickness. Fill in the space from

the opening to the studs with wood spacers,

as shown.

5. Nail frame to spacers to spacers with front

flush with drywall.

NOTE: If wall thickness is 8-1/2"

or more, add aluminum flashing over

bottom of frame opening to assure no

water can enter area between inner

and outer wall.

NOTE: Check that air conditioner is

tilted back about 1¼"to 1⅝"(tilted about

3° to 4° downward tothe o utside).

After proper installation, condensate

should not drain from the overflowdrain

hole duringnormal use, correctthe slope

otherwise (Fig.14).

3. Prepare and Install Cabinet

Frame

Height

Inside

Frame

Inside

Width

Up to 8-1/2"

Fig.2

NAIL SPACERS

TO STUDS

LEVEL

Fig.3

Caulks

Required

Aluminum Flashing

Over Bottom Of Frame

Over

8-1/2

Fig.4

1 Long Wood

Screw

Side Louvers

1 5

About1 / to 1 /

4 8

Measure from

the cabinet edge.

Fig.5

Fig.6

Support bracket

Sill angle bracket

Wooden strip

Fig.7

5. Screw or nail cabinet wooden frame using shims

if frame is oversized to eliminate distortion. See

Fig.8.Remember to maintain proper slope as

described in Step 3.

1. Cut or build a wall opening in the masonry

wall similar to the frame construction (refer to

Step 2 of Thru-the-wall Installation for a wall

thickness greater than 8-1/2 " ).

2. Secure cabinet in place using masonry nails,

or the right masonry anchor screws. (Another

way to secure cabinet is to build a frame in the

masonry wall such as the one shown in Fig. 3

of Step 2 Prepare Wall. Securely anchor frame

to masonry wall. This way gives very good louver

clearance on either side of cabinet.)

3. Install a lintel to support masonry wall above

cabinet. Existing holes in cabinet can be used

and/or additions holes can be drilled to fasten

cabinet at various positions. Be sure that side

louver clearance is in accordance with Step 1

Select Wall Location.

4. Install exterior cabinet support brackets as

shown in Step 2 of Thru-the-wall installation.

Caulk or flash if needed, to provide a weather-

tight seal around top and sides of cabinet.

5. To complete installation, apply wood trim

molding around room side projection of cabinet.

6. Install chassis into cabinet by followings all

steps in Steps 8 of Window Mounting.

OPTIONAL: Caulking and installation of

trim on nterior wall may be done. You

can buy wood from your local lumber or

hardware supply. On the outside, caulk

openings around top and sides of

cabinet, and all sides of wood sleeve to

the opening.

NOTE: See Step 5, Item 3 of Window

Mounting Instructions for bottom rail seal

location.

C. Masonry Construction

Fig.8

NORMAL SOUNDS

NOTE

All the illustrations in this manual are for explanation purpose only.

The air conditioner you have may be slightly different. The actual shape shall

prevail.

Sleep

eck

Auto

Fan

Med

Low

Energ

Save

off

Time

Auto

Fan

Cool

Mod

TEMP/TIMER

Heat

High Pitched Chatter

Sound of Rushing Air

Vibration

High efficiency compressors

may have a high pitched chatter

during the cooling cycle.

Unit may vibrate and make noise

because of poor wall or window

“construction or incorrect ”installation.

Droplets of water hitting condenser during

normal operation may cause “pinging or

swishing” sounds. This noise can be reduce

by removing the water plug at the bottom

of unit's rear as shown below. Removing this

plug will lower the Energy Efficiency of your

unit.

Note: Don't try to drill any holes on the base

pan to eliminate the normal sounds,

otherwise it will void the warranty.

At the front of the unit,

you may hear the sound

of rushing air being

moved by the fan.

“Gurgling or hissing” noise

may be heard due to

refrigerant passing through

evaporator during normal

operation.

“Gurgling or hissing”

noise may be heard due

to refrigerant passing

through evaporator

during normal operation.

“Gurgling or hissing” noise

may be heard due to

refrigerant passing through

evaporator during normal

operation.

At the front of the unit,

you may hear the sound

of rushing air being

moved by the fan

High efficiency compressors

may have a high pitched

chatter during the cooling

cycle.

Unit may vibrate and make noise

because of poor wall or window

installation.

Droplets of water hitting condenser

during normal operation may cause

pinging or switching sounds.

At the front of the unit,

you mayhear the sound

of rushing air being

moved by the fan

High efficiency compressors

may have a high pitched

chatter during the

cooling cycle.

Unit may vibrate and make noise

because of poor wall or window

construction or incorrect installation.

Droplets of water hitting condenser

during normal operation may cause

“pinging or swishing” sounds. This noise

can be reduce by removing the water

plug at the bottom of unit’s rear as shown

below. Removing this plug will lower the

Energy Efficiency of your unit.

Note: Don’t try to drill any holes on the

base pan to eliminate the normal sounds,

otherwise it will void the warranty.

Gurgle/Hiss

Sound of Rushing Air

Gurgle/Hiss

Sound of Rushing Air

High Pitched Chatter

Vibration

Pinging or Switching

High Pitched Chatter

Vibration

Pinging or Switching

Water plug

Model A Model B

Water plug

For some models

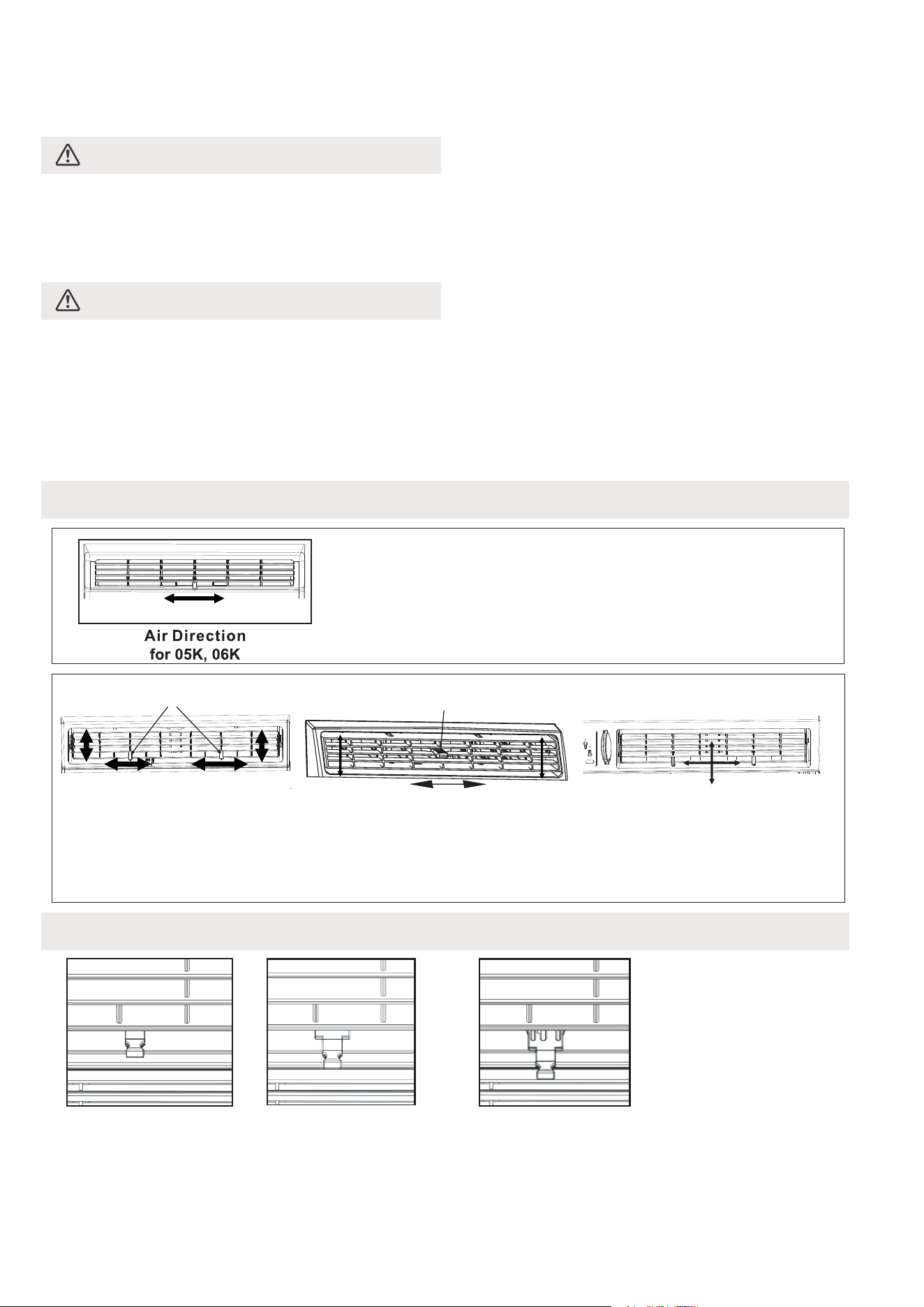

AIR CONDITIONER FEATURES

WARNING

Air Directional Louvers

Fresh Air Vent Control (for 10-14.5K MODELS)

To reduce the risk of fire, electric shock,

or injury to persons, read the

IMPORTANT SAFETY INSTRUCTIONS

before operating this appliance.

To begin operating the air conditioner,

follow these steps:

1. Set the thermostat to the highest number

(coldest or cooler setting).

2. Set the selector control to the highest COOL

setting.

3. Adjust the louver for comfortable air flow

(see Air Directional Louvers).

4. Once the room has cooled, adjust the

thermostat to the setting you find most

comfortable.

5. Make sure that the air flow inside and outside

are not obstructed by anything.

The louvers will allow you to direct the air flow Left or Right

throughout the room as needed.

Move the Levers from side to side until the desired Left/Right

direction is obtained.

The Fresh Air Vent allows the air conditioner to:

1. Recirculate inside air - Vent Closed (See Fig.A)

2. Draw fresh air into the room- Vent Open (see Fig.B)

3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig.C)

for 06K, 08K, 10K, 12K, 14.5K, 15K, 18K, 25K,28.5K

The louvers will allow you to direct the air flow Up or Down(on some models) and Left or Right

throughout the room as needed. Pivot horizontal louvers until the desired Up/Down direction is

obtained. Move the Lever (s) from side to side until the desired Left/Right direction is obtained.

CAUTION

Please always wait 3 minutes when

turning unit of then on again, and when

changing from cool to fan and back to

cool. This prevents compressor from

overheating & possible circuit breaker

tripping.

Lever

Levers

Air Direction

Levers

Air Direction

Air Direction(4- way)

Levers

Fig. A

(VENT CLOSED)

cord.

Fig. B (VENT OPEN)

Fig. C (VENT & EXHAUST OPEN)

NOTE

The controls featured in this manual are representative of many

available models. Your model may offer slightly different features.

Fresh Air Vent Control (on 15~28.5K models):

MECHANICAL CONTROL OPERATING INSTRUCTIONS

Cool Mode

Fan Mode

Thermostat

The Fresh Air Vent allows the air conditioner to:

1. Recirculate inside air - Vent Closed (See Fig.A)

2. Draw fresh air into the room- Vent Open (see Fig.B)

3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig.C)

The desired cool setting is selected by rotating the knob to the right to the

appropriate location.

HI COOL(HIGH COOL) has maximum cooling effect and airflow.

LO COOL(LOW COOL) has minimum cooling effect and airflow.

MED COOL has the intermediate cooling effect and airflow(on some models).

OFF will completely shut off the unit.

Rotate the knob to the left to select your choice of fan speeds for air circulation.

The thermostat i s used to s et the desired room temperature when the unit is

being operated in the COOL MODE.

To set the desired room temperature, rotate the thermostat switch to the desired

setting. After the set temperature is achieved the thermostat will automatically

start and stop the compressor in order to maintain the desired set temperature.

Rotate the thermostat selector clockwise for higher cool settings. Higher cool

settings will provide lower room temperature. Rotate the thermostat selector

counter clockwise for lower cool settings. Lower cool settings will provide higher

room temperature.

NOTE: If your unit is equipped with a vent handle, keep it closed

for maximum efficiency.

NOTE: When selecting a fan speed, the compressor will not run.

On models with a vent control, this mode can be used to remove

stale air from the room, or to draw fresh air into the room.

Check the section “ Fresh Air Vent Control”.

Fig. A

(VENT CLOSED)

Fig. B (VENT OPEN)

Fig. C (VENT & EXHAUST OPEN)

TEMPERATURE

COOLING

fan

ool

fan

TEMPERATURE

MIN

COOL

MAX

COOL

FAN

MED

FAN

MED

COOL

FAN

OFF

COOLING

NOTE: Different models have different control buttons and indicator lights. Not all

the control buttons and indicator lights describing below are available for the unit

you purchased. Please check the control panel of the unit you purchased. The unit

can be controlled by the unit control alone or with the remote.

NOTE: Ion or clear air may be instead of SMART or WIRELESS or CONNECT for

some models. Heat, clean air, ion, smart, Wireless, Connect and follow me features

are optional.Ion, clean air is not applicable for R32/R290 units. Ion, clean air, smart,

wireless and connect features may be not applicable for some models.

NOTE: The outline of the operation panel is based on typical model, the function is

thesame with your air conditioner while some difference may exist in appearance.

NOTE: The unit will initiate automatically

the Energy Saver function under Cool,

Dry and Auto modes.

NOTE: Press or hold either UP or

DOWN button until the desired

temperature is shown on the display.

Press POWER button to turn unit on or off.

Press Clean Air(ION) button,the ion generator is

energized and will help to remove pollen and

impurities from the air, and trap them in the filter.

Press SMART(WIRELESS or connect) button for 3

seconds to turn off the unit and initiate SMART

(WIRELESS or connect)connection mode.

ELECTRONIC CONTROL OPERATING INSTRUCTIONS

TO TURN UNIT ON OR OFF:

Press UP/DOWN buttonto

changetemperature setting.

This temperature will be automatically

maint- ained anywhere between 62°F (17°C)

and 86°F (30°C).

If you want the display to read the actual

room temperature, see “To Operate on Fan

Only’’ section.

TO CHANGE TEMPERATURE SETTING:

CLEAN AIR(ION)/SMART

(WIRELESS or CONNECT)

FEATURE: (on some models)

Auto

Low

Med

High

Auto

Cool

Dry

Fan

Heat

TEMP/TIMER

On Off

Slee p

Tim er

Mode

Check

Filter

Energy

Saver

Ion

Fan

Fol low

Auto

Low

Med

High

Foll ow M e

Auto

Cool

Dry

Fan

Mode

Fan

Energy

Saver

Check

Filter

Off

Slee p

Tim er

Ion

TEMP/ TIM ER

Low

Auto

Med

High

TEMP /TI MER

Auto

Cool

Dry

Fan

Mode

Off

Slee p

Tim er

Check

Filte r

Energy

Saver

Foll ow

Ion

Temp Temp

Timer

Off

Slee p

Check

Filter

Tim er

Auto

Cool

Dry

Fan

Low

Auto

Med

High

Clean

Air

Fan

Mode

Foll ow

Ener gy

Saver

On/O ff

Sle ep

Che ck

Fil ter

Aut o

On/ Off

Fan

Hig h

Med

Low

Ene rgy

Sav er

Off

Time r

Aut o

Fan

Coo l

Dry

Mod e

TEM P/TIM ER

Hea t

Fol low

Cle an

Air

Clea n

Air

TEMP/TI MER

Fan

Mode

Sleep

Tim er

Check

Filter

Energy

Saver

Ion

Auto

High

Med

Low

Off

Auto

Fan

Cool

Dry

TEMP/TI MER

Heat

Ene rgy

Sav er

Sle ep

Che ck

Fil ter

Time r

Off

Hig h

Aut o

On/ Off

Low

Fan S peed

Mod e

Dry

Aut o

Coo l

Fan

Temp/ Timer

Fol low

Med

Cle an

Air

TIMER

ECO

MODE

FILTER

FAN SLEEP ION

On Off

Auto

Cool

Dry

Fan

Follow me

Auto

High

Med

Low

Choose Cool Mode to set the cooling

function.

Use the Up and Down buttons to choose

the desired temperature. When Cool Mode

is selected, the fan speed can be adjusted

by pressing the fan button.

Choose Heat Mode to set the heating

function.

Use the Up and Down buttons to choose

the desired temperature .When heat Mode

is selected, the fan speed can be adjusted

by pressing the fan button.

NOTE: For some models, the fan

speed can not be adjusted under

HEAT mode.

SLEEP FEATURE:

Press Sleep button to initiate the sleep mode.

In this mode the selected temperature will increase

(cooling) or decrease (heating) by 2°F/1 (or 2)°C

30 minutes after the mode is selected.

The temperature will then increase (cooling) or

decrease (heating) by another 2°F/1 (or 2)°C after

an additional 30 minutes. This new temperature will

be maintained for 6 or 7 hours before it returns to

theoriginally selected temperature. This ends the

Sleep mode and the unit will continue to operate

as originally programmed. The Sleep mode program

can be cancelled at any time during operation by

pressing the Sleep button again.

TO ADJUST FAN SPEEDS:

Press Fan button to select the Fan Speed in four

steps-Auto, Low, Med or High. Each time the

button is pressed, the fan speed mode is shifted.

For some models, the fan speed can not be

adjusted.

CHECK FILTER FEATURE:

Press Check filter button to initiate theis feature.

This feature is a reminder to clean the Air Filter

for more efficient operation. The LED (light) will

illuminate after 250 hours of operation. To reset

after cleaning the filter, press the Check Filter

button and the light will go off.

TO SELECT THE OPERATING MODE:

To choose operating mode, press Mode button.

Each time you press the button, a mode is

selected in a sequence that goes from Auto,

Cool, Dry ,heat (cooling only models without)

and Fan. The indicator light beside will be

illuminated and remained on once the mode

is selected.

The unit will initiate automatically the Energy

Saver function under Cool, Dry, Auto (only

Auto-Cooling and Auto-Fan) modes.

To operate on COOL mode:

To operate on HEAT mode (cooling only

models without):

When you set the air conditioner in AUTO

mode, it will automatically select cooling,

heating (cooling only models without), or

fan only operation depending on what

temperature you have selected and the

room temperature.

The air conditioner will control room

temperature automatically round the

temperature point set by you.

In this mode, the fan speed cannot be

adjusted, it starts automatically at a

speed according to the room temperature.

To operate on Auto feature:

ENERGY SAVER FEATURE:

FOLLOW ME FEATURE:

(on some models)

Press Energy saver button to initiate this function.

This function is available on COOL, DRY, AUTO

(only AUTO-COOLING and AUTO-FAN) modes.

The fan will continue to run for 3 minutes after

the compressor shuts off.The fan then cycles on

for 2 minutes at 10 minute intervals until the

room temperature is above the set temperature,

at which time the compressor turns back on and

Cooling Starts.

This feature can be activated from the remote

control ONLY. The remote control serves as a

remote thermostat allowing for the precise

temperature control at its location.

To activate the Follow Me feature, point the

remote control towards the unit and press the

Follow Me button. The remote display is actual

temperature at its location. The remote control

will send this signal to the air conditioner every

3 minutes interval until press the Follow Me

button again.If the unit does not receive the

Follow Me signal during any 7 minutes interval,

the unit will beep to indicate the Follow Me

mode has ended.

Light flashes or

illuminates

NOTE: " • " is displayed as shown in

the obove picture.

NOTE: When error occurs,unplug the

unit and plug it back in.If error

repeats, call for service.

ADDITIONAL THINGS YOU SHOULD KNOW

DISPLAYS:

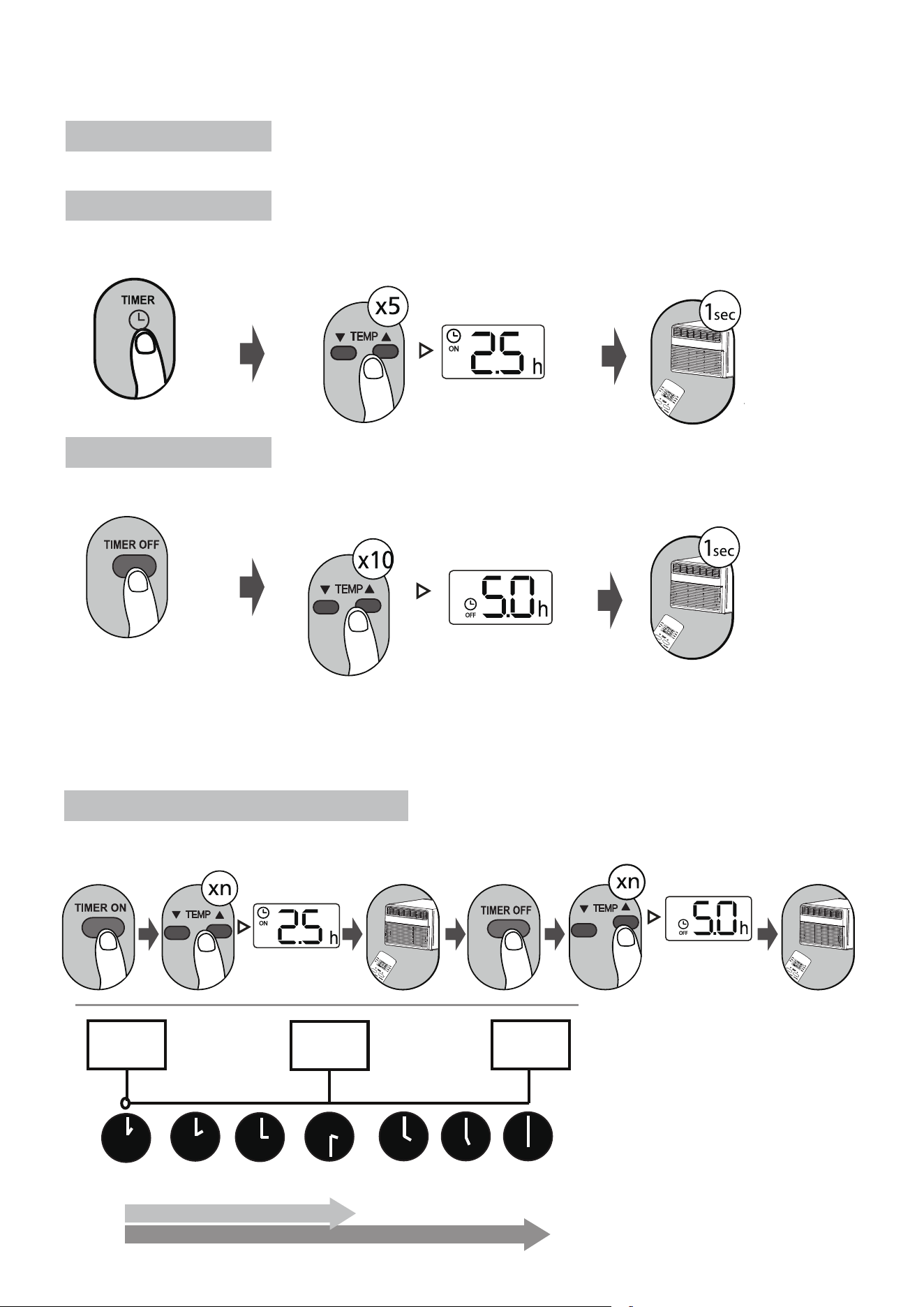

TIMER: AUTO START/STOP FEATURE:

Now that you have mastered the operating

procedure, here are more features in your

control that you should become familiar with.

Use this function only when cooling is not

desired,such as for room air circulation or to

exhaust stale air (on some models). (Remember

to open the vent during this function, but keep

it closed during cooling for maximum cooling

efficiency.) You can choose any fan speed you

prefer.

During this function, the display will show the

actual room temperature, not the set

temperature as in the cooling mode.

In Fan only mode ,the temperature is not

adjusted.

To operate on Dry mode:

In this mode, the air conditioner will generally

operate in the form of a dehumidifier. Since the

conditioned space is a closed or sealed area,

some degree of cooling will continue. On Dry

mode,the fan speed is controlled at Low

automatically.

Press Timer button, the TIMER ON or TIMER OFF

indicator light illuminates. It indicates the Auto

Start or Auto Stop program is initiated. For some

units, keep pressing the Timer button will cancel

the timer settings.

The Cool circuit has an automatic 3 minutes

time delayed start if the unit is turned off

and on quickly.

This prevents overheating of the compressor

and possible circuit breaker tripping.The fan

will continue to run during this time.

The control is capable of displaying

tempera-ture in degrees Fahrenheit or

degrees Celsius.

To convert from one to the other, press and

hold the Up and Down buttons at the same

time for 3 seconds.

Press or hold the UP or DOWN button to change

the Auto time by 0.5 hour increments, up to 10

hours,then at 1 hour increments up to 24 hours.

The control will count down the time remaining

until start.

The selected time will register in 5 seconds, and

the system will automatically revert back to

display the previous temperature setting or room

temperature when the unit is on.(when the unit

is off,there is no display.)

Turning the unit ON or OFF at any time or a

djusting the timer setting to 0.0 will cancel the

Auto Start/Stop timed program.

To operate on Fan Only:

Shows the set temperature in ” °C" or ” °F" and

the Auto-timer settings.While on Fan only mode,

it shows the room temperature. If the room

temperature is too high or low, it will display

" HI" or " LO".

Error codes:

AS - Room temperature sensor error

ES -Evaporator temperature sensor error

HS -Electric heating sensor error(on some

models);

CS -Condenser temperature sensor error

(on some models);

OS -Outside temperature sensor error

(on some models);

E7 -Unit malfunction (on some models).

Displays

NOTE

If the unit breaks off unexpectedly

due to the power cut, it will restart

with the previous function setting

automatically when the power

resumes.

Remote Controller Specifications

Model

Rated Voltage

3.0V( Dry batteries R03/LR03×2)

Environment

Signal Receiving Range

23°F~140°F (-5°C~60°C)

NOT SURE WHAT A FUNCTION DOES?

Refer to the How to Use Basic Functions and How to Use Advanced Functions sections

of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

Button designs on your unit may differ slightly from the example shown.

If the indoor unit does not have a particular function, pressing that function’s button on

the remote control will have no effect.

When there are wide differentces between “Remote controller Manual” and “USER’S

MANUAL” on function description, the description of “USER’S MANUAL” shall prevail.

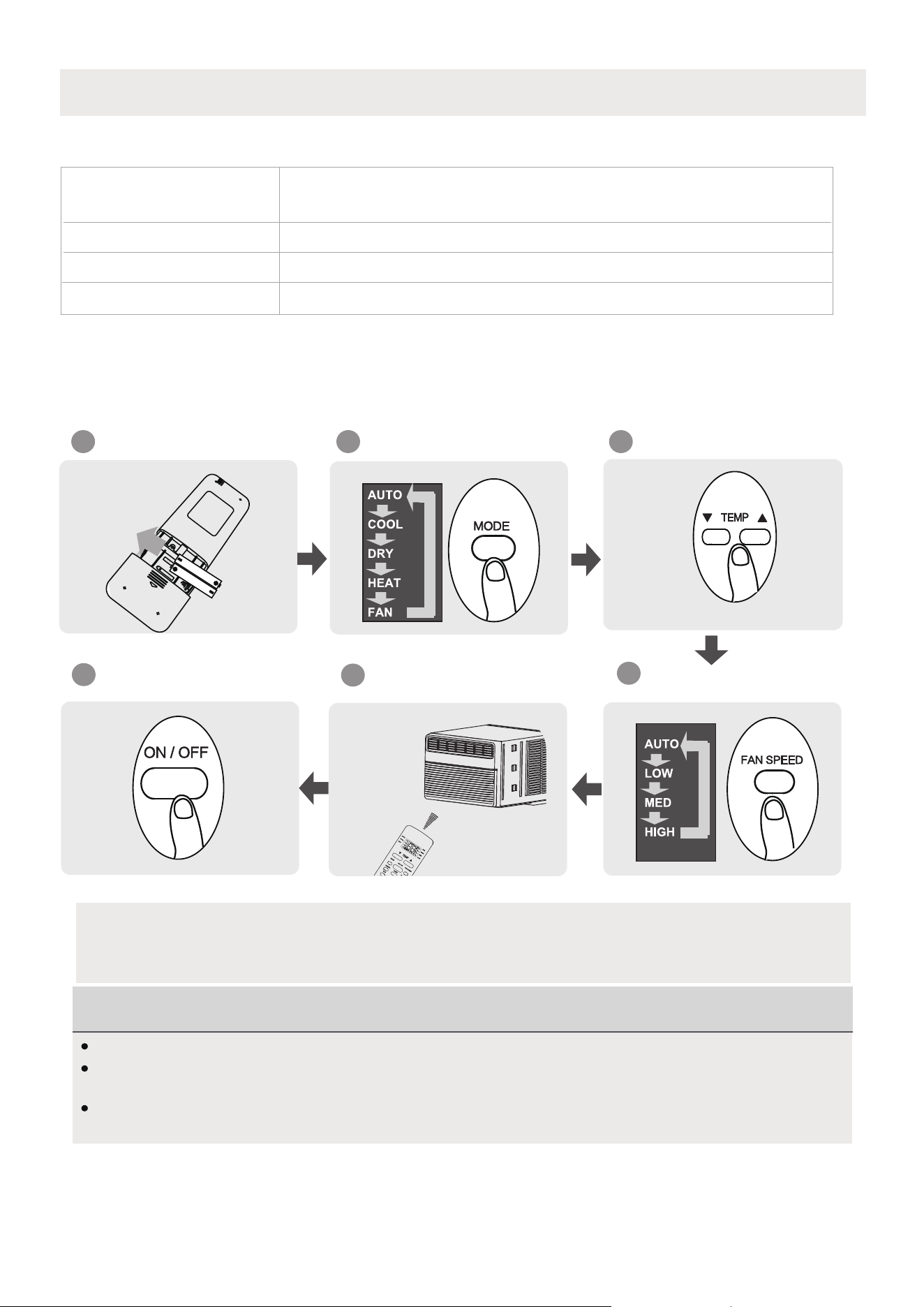

Quick Start Guide

FIT BATTERIES

POINT REMOTE TOWARD UNITPRESS POWER BUTTON

SELECT MODE

SELECT TEMPERATURE

SELECT FAN SPEED

RG51G(1)/CEFU1,RG51G(1)/EFU1,RG51G1(1)/EFU1,

RG51G4(1)/EU1,RG51G5(1)/EU1 , RG51G4(1)/CEU1

RG51G5(1)/CEU1

Handling the Remote Controller

TIPS FOR USING REMOTE CONTROL

The remote control must be used within 8

meters of the unit.

The unit will beep when remote signal is

received.

Curtains, other materials and direct sunlight

can interfere with the infrared signal

receiver.

Remove batteries if the remote will not be

used more than 2 months.

Inserting and Replacing Batteries

Your air conditioning unit may come with two

batteries(some units). Put the batteries in the

remote control before use.

1. Slide the back cover from the remote control

downward, exposing the battery compartment.

2. Insert the batteries, paying attention to match

up the (+) and (-) ends of the batteries with

the symbols inside the battery compartment.

3. Slide the battery cover back into place.

BATTERY NOTES

For optimum product performance:

Do not mix old and new batteries, or

batteries of different types.

Do not leave batteries in the remote control

if you don’t plan on using the device for

more than 2 months.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted

municipal waste. Refer to local laws for

proper disposal of batteries.

NOTES FOR USING REMOTE CONTROL

The device could comply with the local national

regulations.

In Canada, it should comply with

CAN ICES-3(B)/NMB-3(B).

In USA, this device complies with part 15 of

the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful

interference, and

(2) this device must accept any interference

received, including interference that may

cause undesired operation.

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the

equipment and receiver.

Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced

radio/TV technician for help.

Changes or modifications not approved by

the party responsible for compliance could

void user’s authority to operate the

equipment.

•

Buttons and Functions

Model:

RG51G(1)/CEFU1

RG51G(1)/EFU1

NOTE: Model RG51G(1)/CEFU1

does not have HEAT feature.

Description

TEMP

No.1

No.4

Decreases temperate in1°F (1°C) increments.

Min. temperature is 62°F(17°C).

TEMP

No.7

Increases temperate in1°F (1°C) increments.

Max. temperature is 86°F(30°C).

FAN SPEED

No.8

Selects fan speeds in the following order:

I SENSE

Press this button to activate the I SENSE mode.

ON/OFF

No.2

Turns the unit on or off.

MODE

AUTO COOL DRY HEAT FAN

No.3

Scrolls through operation modes as follows:

NOTE: Please do notselect HEAT mode if the machine

you purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

   

AUTO LOW MED HIGH

  

No.5

SLEEP

Saves energy during sleeping hours.

No.6

°C/°F

The temperature display between the °C & °F.

TIMER ON

No.9

Sets timer to turn unit on (see How to Use Basic

Functions for instructions).

TIMER OFF

No.10

Sets timer to turn unit off (see How to UseBasic

Functions for instructions).

ENERGY SAVER

No.11

Press this button to activate the Energy saving mode.

Press it again to stop the funtion.

LED DISPLAY

No.12

Turns indoor unit’s LED display and air conditioner

buzzer on and off (model dependent), which create

a comfortable and quiet environment.

No.13

Press together °C/°F & TIMER OFF buttons

simultaneously for 5 seconds to lock the keyboard.

Press together the two buttons for 2 seconds to unlock

the keyboard.

Before you begin using your new air conditioner, make sure to familiarize yourself with its

remote control. The following is a brief introduction to the remote control itself. For instructions

on how to operate your air conditioner, refer to the How to Use Basic Functions section of this

manual.

LOCK

Description

TEMP

No.1

No.4

Decreases temperate in1°F (1°C) increments.

Min. temperature is 62°F(17°C).

TEMP

No.7

Increases temperate in1°F (1°C) increments.

Max. temperature is 86°F(30°C).

No.8

I SENSE

SHORT CUT

FRESH

Press this button to activate the I SENSE mode.

ON/OFF

No.2

Turns the unit on or off.

MODE

AUTO COOL DRY HEAT FAN

No.3

Scrolls through operation modes as follows:

NOTE: Please do notselect HEAT mode if the machine

you purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

   

 

No.5

SLEEP

Saves energy during sleeping hours.

No.6

FAN SPEED

Selects fan speeds in the following order:

AUTO LOW MED HIGH



TIMER ON

No.9

Sets timer to turn unit on (see How to Use Basic

Functions for instructions).

TIMER OFF

No.10

Sets timer to turn unit off (see How to UseBasic

Functions for instructions).

ENERGY SAVER

No.11

Press this button to activate the Energy saving mode.

Press it again to stop the funtion.

LED DISPLAY

No.12

Turns indoor unit’s LED display and air conditioner

buzzer on and off (model dependent), which create

a comfortable and quiet environment.

No.13

No.14

No.15

RG51G1(1)/EFU1

Sets and activates your

favorite pre-settings.

Press this button to

activate the FRESH function.

Press it again to stop the funtion.

°C/°F

The temperature display between the °C & °F.

Buttons and Functions

Press together SHORT CUT & TIMER OFF buttons

simultaneously for 5 seconds to lock the keyboard.

Press together the two buttons for 2 seconds to unlock

the keyboard.

LOCK

Description

TEMP

No.1

No.4

Decreases temperate in1°F (1°C) increments.

Min. temperature is 62°F(17°C).

No.6

ON/OFF

No.2

Turns the unit on or off.

MODE

AUTO COOL DRY HEAT FAN

No.3

Scrolls through operation modes as follows:

NOTE: Please do notselect HEAT mode if the machine

you purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

   

 

ENERGY

SAVER

No.5

FAN SPEED

Selects fan speeds in the following order:

AUTO LOW MED HIGH



TIMER ON

No.7

Sets timer to turn unit on (see How to Use Basic

Functions for instructions).

TIMER OFF

Sets timer to turn unit off (see How to UseBasic

Functions for instructions).

No.8

No.9

LED DISPLAY

Turns indoor unit’s LED display and air conditioner

buzzer on and off (model dependent), which create

a comfortable and quiet environment.

No.11

No.10

TEMP

NOTE

Increases temperate in1°F (1°C) increments.

Max. temperature is 86°F(30°C).

SLEEP

Saves energy during sleeping hours.

Model RG51G4(1)/CEU1

does not have HEAT feature.

Press together

& buttons at the

same time for 3 seconds

will alternatethe

temperature display

between the °C & °F.

Model:

RG51G4(1)/CEU1

RG51G4(1)/EU1

NOTE:

Press this button to

activate the Energy

saving mode. Press

it again to stop the

funtion.

Buttons and Functions

Press together LED DISPLAY & TIMER OFF buttons

simultaneously for 5 seconds to lock the keyboard.

Press together the two buttons for 2 seconds to unlock

the keyboard.

LOCK

Description

TEMP

No.1

No.4

Decreases temperate in1°F (1°C) increments.

Min. temperature is 62°F(17°C).

TEMP

No.7

Increases temperate in1°F (1°C) increments.

Max. temperature is 86°F(30°C).

No.8

SHORT CUT

ON/OFF

No.2

Turns the unit on or off.

MODE

AUTO COOL DRY HEAT FAN

No.3

Scrolls through operation modes as follows:

NOTE: Please do notselect HEAT mode if the machine

you purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

   

 

No.5

No.6

°C/°F

The temperature display between the °C & °F.

FAN SPEED

Selects fan speeds in the following order:

AUTO LOW MED HIGH



TIMER ON

No.9

Sets timer to turn unit on (see How to Use Basic

Functions for instructions).

TIMER OFF

No.10

Sets timer to turn unit off (see How to UseBasic

Functions for instructions).

ENERGY SAVER

No.11

Press this button to activate the Energy saving mode.

Press it again to stop the funtion.

No.12

No.13

LED DISPLAY

Turns indoor unit’s LED display and air conditioner

buzzer on and off (model dependent), which create

a comfortable and quiet environment.

Model RG51G5(1)/CEU1

does not have HEAT feature.

Model:

RG51G5(1)/EU1

RG51G5(1)/CEU1

NOTE:

SLEEP

Saves energy during sleeping hours.

Buttons and Functions

Used to restore the current settings or resume previous

settings.

LOCK

Press together °C/°F & TIMER OFF buttons

simultaneously for 5 seconds to lock the keyboard.

Press together the two buttons for 2 seconds to unlock

the keyboard.

Mode display

Fan speed indication

1. All indicators shown in the ﬁgure are for the purpose of clear presentation. But during the actual

operation, only the relative function signs are shown on the display window.

NOTE

Remote Screen Indicators

Information are displayed when the remote controller is power up.

Timer setting

Displays

Displayed when data transmitted.

Displayed when remote controller is ON.

Low speed

NO display

Medium speed

High speed

Auto fan speed

Displayed when TIMER ON time is set

Displayed when TIMER OFF time is set

Indicated all the current settings are locked

Shows set temperature or room

temperature, or time under TIMER setting

HIGH

MED

LOW

AUTO

HEAT

COOL

FAN

DRY

Displayed when Follow Me feature is

Displayed when SLEEP feature is activated

activated(some units)

How to Use Basic Functions

Basic operation

ATTENTION! Before operation,

please ensure the unit is plugged

in and power is available.

COOL Mode

1. Press the MODE button to select COOL

mode.

2. Set your desired temperature using the

TEMP or TEMP button.

3. Press FAN button to select the fan speed:

AUTO, LOW, MED or HIGH.

4. Press the ON/OFF button to start the unit.

The operating temperature range for

units is 62-86°F(17-30°C ). You can

increase or decrease the set temperature

1 °F(1°C) increments.

SETTING TEMPERATURE

AUTO Mode

In AUTO mode, the unit will automatically

select the COOL, FAN, or HEAT operation

based on the set temperature.

1. Press the MODE button to select AUTO.

2. Set your desired temperature using the

TEMP or TEMP button.

3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED can’t be set in AUTO mode.

In AUTO mode, the unit will automatically

select the COOL, FAN, HEAT or DRY function

based on the set temperature.

1. Press the MODE button to select AUTO.

2. Set your desired temperature using the

TEMP or TEMP button.

3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED can’t be set in AUTO mode.

How to Use Basic Functions

FAN Mode

DRY Mode (dehumidifying)

1. Press the MODE button to select FAN mode.

2. Press FAN button to select the fan speed:

AUTO, LOW, MED or HIGH.

3. Press the ON/OFF button to start the unit

NOTE:You can’t set temperature in FAN

mode. As a result, your remote control’s

LCD screen will not display temperature.

1. Press the MODE button to select DRY.

2. Set your desired temperature using the

TEMP or TEMP button.

3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED cannot be changed in

DRY mode.

1. Press the MODE button to select HEAT

mode.

2. Set your desired temperature using the

TEMP or TEMP button..

3. Press FAN button to select the fan speed:

AUTO, LOW, MED or HIGH.

4. Press the ON/OFF button to start the unit.

NOTE: As outdoor temperature drops,

the performance of your unit’s HEAT

function may be affected. In such

instances, we recommend using this air

conditioner in conjunction with other

heating appliances.

HEAT Mode (some models)

Setting the TIMER

TIMER ON setting

TIMER OFF setting

TIMER ON & OFF setting(example)

TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.

Press TIMER button to initiate

the ON time sequence.

NOTE:

Current

time 1PM

2:00PM 3:00PM

4PM 5PM

6PM

Timer starts

Unit turns

OFF

2.5 hours later

5 hours later

3:30PM

Example: If current timer is 1:00PM,

to set the timer as above steps, the

unit will turn on 2.5h later (3:30PM)

and turn off at 6:00PM.

Keep in mind that the time periods you set for both functions refer to hours after the current time.

Press Temp. up or down button for

for multiple times to set the desired

time to turn off the unit.

1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments

with each press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour

increments. (For example, press 5 times to get 2.5h, and press 10 times to get 5h,) The timer

will revert to 0.0 after 24.

2. Cancel either function by setting its timer to 0.0h.

Press Temp. up or down button for

for multiple times to set the desired

time to turn on the unit.

Point remote to unit and wait

1sec, the TIMER ON will be

activated.

Point remote to unit and wait

1sec, the TIMER OFF will be

activated.

Press TIMER OFF button to

initiate the OFF time sequence.

How to Use Basic Functions

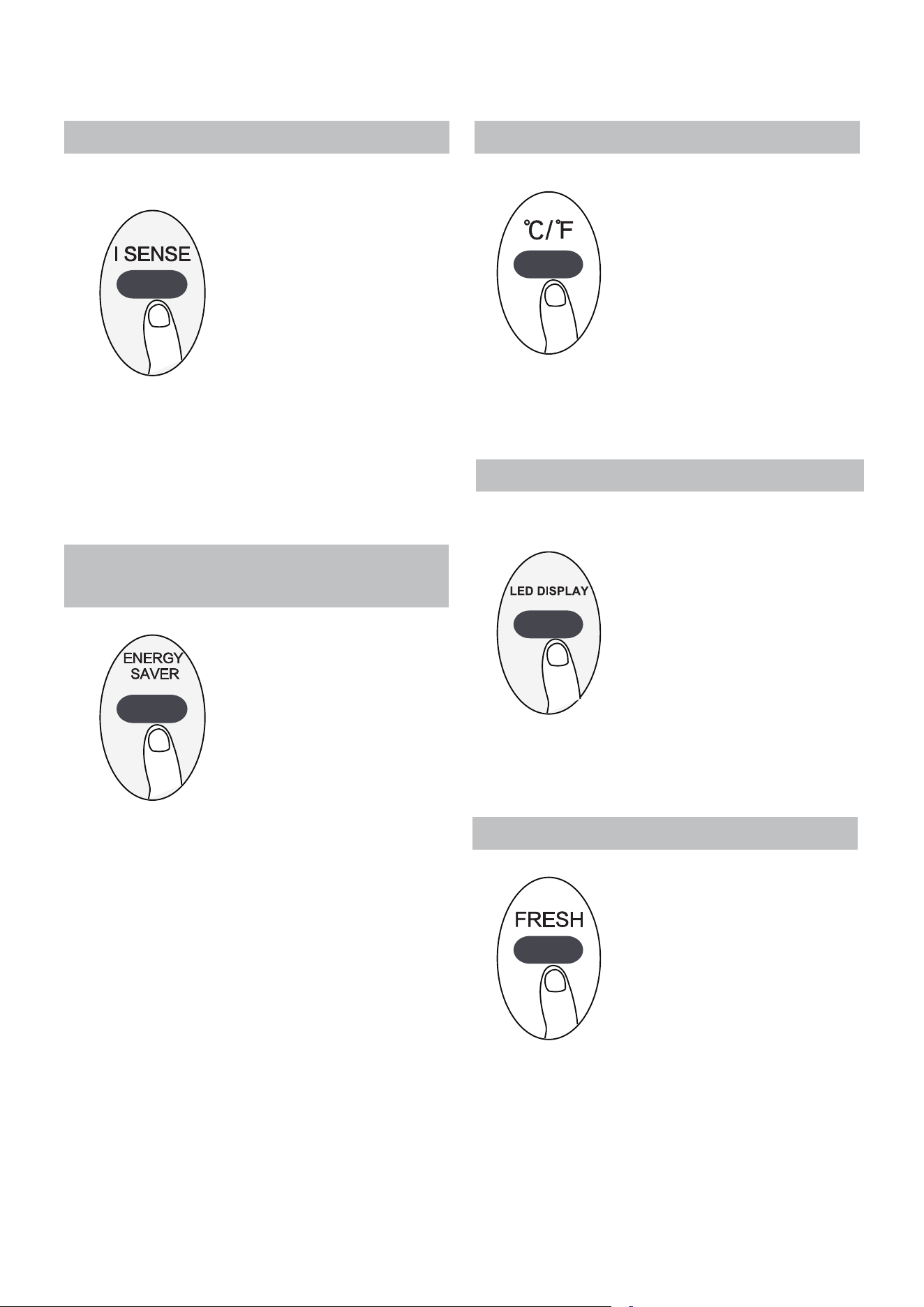

I SENSE (some models)

FRESH (some models)

When the FRESH function is initiated, the

Ionizer/Plasma Dust Collector(depending on

models) is energized and will help to remove

pollen and impurities from the air.

Press this button will alternate the temperature

display between the °C & °F.

°C/°F (some models)

ENERGY SAVER function

(some models)

LED DISPLAY

Press I SENSE button

When the I SENSE function is activated, the

remote display is actual temperature at its

location. The remote control will send this

signal to the air conditioner every 3 minutes

interval until press the I SENSE button again.

Press Energy saver button to initiate this

function.

This function is available on COOL, DRY,

AUTO (only AUTO-COOLING and AUTO-FAN)

modes.

Press this button to turn on and turn off the

display on the indoor unit.

Press LED button

How to Use Advanced Functions

SHORTCUT function(some models)

SLEEP function

Used to restore the current settings or

resume previous settings.(For some models)

Push this button when remote controller is

on, the system will automatically revert back

to the previous settings including operating

mode, setting temperature, fan speed level

and sleep feature(if activated).

If pushing more than 2 seconds, the system

will automatically restore the current

operation settings including operating mode,

setting temperature, fan speed level and

sleep feature (if activated ).

The SLEEP function is used to decrease

energy use while you sleep (and don t need

the same temperature settings to stay

comfortable). This function can only be

activated via remote control.

The sleep function is not available in Fan or

Dry mode.Please refer to the OWNER’S

MANUAL for more details.

How to Use Advanced Functions

NOTE: Never use hot water over 40°C

(104°F) to clean the air filter. Never

attempt to operate the unit without the

air filter.

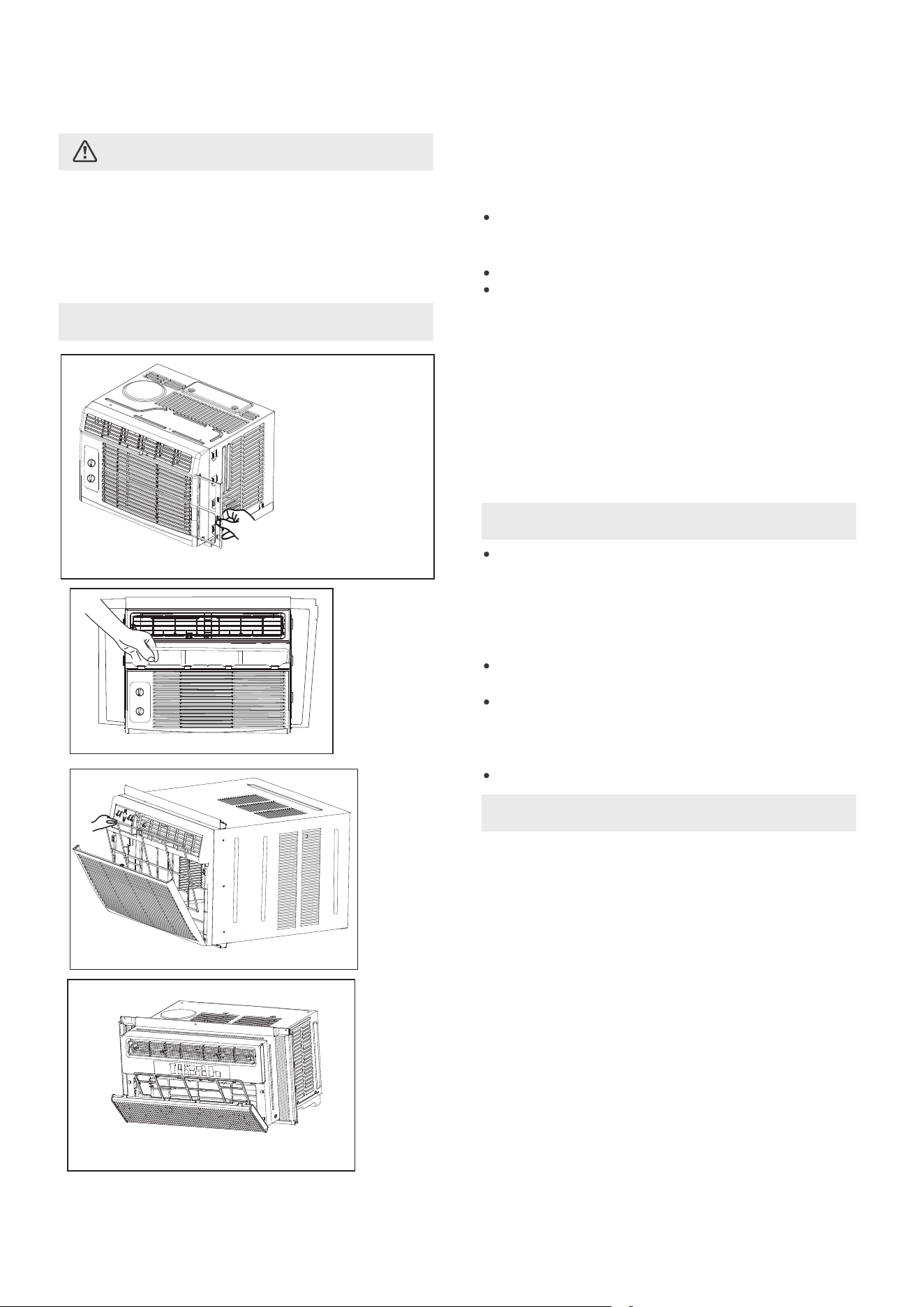

CARE AND CLEANING

The air filter should be checked at least once a

month to see if cleaning is necessary. Trapped

particles in the filter can build up and cause an

accumulation of frost on the cooling coils.

If you plan to store the air conditioner during

the winter, remove it carefully from the window

according to the installation instructions. Cover

it with plastic or return it to the original carton.

CAUTION

Air Filter Cleaning

Cabinet Cleaning

Clean your air conditioner

occasionally to keep it looking new.

Be sure to unplug the unit before

cleaning to prevent chock or fire

hazards.

For 5000 to 6000 Btu/h

For 6000 to 12000 Btu/h

For 15000 to 28500 Btu/h

For 6000 to 8000 Btu/h

Remove the filter by

sliding out from the

right-hand side.

Push the vent handle to the Vent Closed

position (where applicable). Open the front

panel.

Take the filter by the center and pull up and out.

Wash the filter using l iquid dishwashing

detergent and warm water. Rinse filter

thoroughly. Gently shake excess water from the

filter. Be sure the filter is thoroughly dry before

replacing. Instead of washing, you may vacuum

the filter clean.

Be sure to unplug the air conditioner to

prevent shock or fire hazard. The cabinet and

front may be dusted with an oil-free cloth or

washed with a cloth dampened in a solution

of warm water and mild liquid dishwashing

detergent. Rinse thoroughly and wipe dry.

Never use harsh cleaners, wax or polish on

the cabinet front.

Be sure to wring excess water from the cloth

before wiping around the controls.

Excess water in or around the controls may

cause damage to the air conditioner.

Plug in air conditioner.

TROUBLESHOOTING TIPS

Before calling for service, review this list. It may save your time and expense. This list includes common

occurrences that are not the result of defective workman-ship or materials in this appliance.

Air conditioner

does not start

Wall plug disconnected. Push plug firmly into wall outlet.

House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset

circuit breaker.

Plug Current Device Tripped. Press the RESET button.

Power is OFF. Turn power ON.

Air from unit does

not feel cold

enough

Room temperature below 62°F(17°C). Cooling may not occur until room temperature rises

above 62°F(17°C).

Temperature sensing behind air filter element touching cold coil. Keep it from the cold coil.

Set to a Lower temperature.

Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL mode.

Air conditioner

cooling, but room

is too warm- ice

forming on cooling

coil behind

decorative front.

Outdoor temperature below 64°F(18°C). To defrost the coil, set FAN ONLY mode.

Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to

FAN ONLY mode.

Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode.

Then, set temperature to a Higher setting.

Problem Solution

Air conditioner

cooling, but room

is too warm- NO

ice forming on

cooling coil behind

decorative front.

Air conditioner

turns on and off

rapidly

Noise when unit is

cooling

Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.

Temperature is set too High, set temperature to a Lower setting.

Air directional louvers positioned improperly. Position louvers for better air distribution.

Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear

blockage in front of unit.

An open doors, windows,or register may allow cold air to escape. Close any doors, winows,

or registers.

The room may be too warm. Allow additional time to remove “Stored heat” from walls,

ceiling, floor and furniture.

Dirty air filter- air restricted. Clean air filter.

Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past

cooling coils more frequently.

Air movement sound. This is

normal . If too loud, set to a slower FAN setting.

Window vibration - poor installation. Refer to installation instructions or check with installer.

Water dripping

INSIDE when unit

is cooling.

Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.

Refer to installation instructions - check with installer.

Water dripping

OUTSIDE when

unit is cooling.

Unit removing large quantity of moisture from humid room. This is normal during

excessively humid days.

Remote Sensing

Deactivating

Prematurely

(some models)

Remote control not located within range. Place remote control within 20 feet and pointed

in the general direction of the air conditioner unit.

Remote control signal obstructed. Remove obstruction.

Problem Solution

Room too cold

Set temperature too low. Increase set temperatur

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Unique Identiﬁer:

Midea brand,RG51G5(1)/CEU1

Responsible Party U.S. Contact Information

Midea America Corporation

300 Kimball Dr

Parsippany NJ

07054

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Telephone number or internet contact information: Midea.com/us

FCC Compliance Statement ( products subject to Part 15)

WARRANTY

Air Conditioner Limited Warranty

Your product is protected by this Limited Warranty:

Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.

Warranty

• One Year full warranty from the date of delivery or the purchase date, whichever is later.

• The date of delivery establishes the warranty period, should service be required.

Midea, through its authorized servicers will:

• Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials or

workmanship.

Consumer will be responsible for:

• Diagnostics, removal, transportation and reinstallation cost required because of service.

• Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER**

Midea replacement p

arts shall be used and will be warranted only for the original warranty.

NORMAL RESPONSABILITIES OF THE CONSUMER**

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items

listed below:

1. Proper use of the appliance in acordance with instructions provided with the product.

2. Routine maintenance and cleaning necessary to keep the good working condition.

3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and

accordance with all local plumbing, electrical and/or gas codes.

4. Proper connection to a grouded power supply of sufﬁcient voltage, replacement of blown fuses, repair of loosen

connections or defects in house wiring.

5. Expenses for making the appliance accessible for servicing.

6. Damages to ﬁnish after installation.

EXCLUSIONS

This warranty does not cover the following:

1) Failure caused by damage to the unit while in your possesion (other than damage caused by defect or

malfunction), by its improper installa

tion, or by unreasonable use of the unit, including without limitation, failure to

provide reasonable and necessary maintenance or to follow the written Installation and Operating Instructions.

2) Damages caused by serviced performed by persons other than those authorized by Midea customer service; or

external causes such as abuse, misuse, inadequate power supply or acts of God.

3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make

no warranties, express or implied, including but not limited to, any implied warranty of merchantability or ﬁtness

for use or purpose.

4) Products without original serial numbers or products that have serial numbers which have been altered or cannot

be readily determined.

NOTICE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this

limitation or exclusion may not apply to you.

IF YOU NEED SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment Record.

The date on the bill establishes the warranty period, should service be required.

If service is performed, its your best interest to obtain and keep all receipts.

This written warranty gives you speciﬁc

legal rights. You may also have other rights that vary from state to state.

Service under this warranty must be obtained by following these steps, in order:

1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.

2) If there is a question as to where to obtain service, contact our consumer relations Departament.

16120300A34241

Midea MAW18R2BWT 18,000 BTU DOE Window Air Conditioner, for spaces up to 1,000 sq. ft.

Product's Documents

User Manual

Specifications

Midea MAW18R2BWT Questions and Answers
