JVC LT-24C360 24” HD-Ready LED TV User Manual

Instruction Manual

24” HD-Ready LED TV

LT-24C360(B)

LT-24C360(B)_IB.indd 1 17/10/2016 14:53

Contents

1 Safety Warnings ...........................................................................................................................................................................5

2 Preparation ...................................................................................................................................................................................8

Unpacking the TV ...............................................................................................................................................................................................................8

Installing / Removing the Base Stand .........................................................................................................................................................................9

Mounting the TV to a Wall ...............................................................................................................................................................................................9

Front View ...........................................................................................................................................................................................................................10

Rear View and Sockets ....................................................................................................................................................................................................11

Installing Batteries in the Remote Control ..............................................................................................................................................................12

Remote Control Operation Range ..............................................................................................................................................................................12

Remote Control .................................................................................................................................................................................................................13

3 Initial Setup ................................................................................................................................................................................15

Turning the TV On for the First Time .........................................................................................................................................................................15

− Choose Region.......................................................................................................................................................................................................16

− Connecting an Analogue Device ....................................................................................................................................................................17

− Channel Selection ...............................................................................................................................................................................................17

− Display Channel Information ...........................................................................................................................................................................17

− Volume Adjustment ............................................................................................................................................................................................. 17

4 Customising TV Settings ...........................................................................................................................................................18

Adjusting the Picture Settings .....................................................................................................................................................................................18

− Aspect Ratio ............................................................................................................................................................................................................19

Adjusting the Sound Settings ......................................................................................................................................................................................19

Editing the Channel List ................................................................................................................................................................................................ 20

Creating a Favourite Channel List .............................................................................................................................................................................. 20

− Activate your favourite channel list .............................................................................................................................................................. 20

Saving a Channel/Source to the My Buttons (

/ ) ..........................................................................................................................21

5 Using the Features .....................................................................................................................................................................22

Programme Guide ........................................................................................................................................................................................................... 22

− Switch On / O Programme Guide ............................................................................................................................................................... 22

− Select a Programme ........................................................................................................................................................................................... 22

Time Shift Recording onto a USB Storage Device ............................................................................................................................................... 24

Recording DTV Programmes onto a USB Storage Device ................................................................................................................................ 25

Timer Programming ....................................................................................................................................................................................................... 26

Recording Conguration .............................................................................................................................................................................................. 27

Playing Recorded Programmes .................................................................................................................................................................................. 28

Red Button + (Interactive services) ........................................................................................................................................................................... 29

− Accessing the Information ............................................................................................................................................................................... 29

Listening to the Radio .................................................................................................................................................................................................... 29

6 Other Information ......................................................................................................................................................................30

CI (Common Interface) (DTV Mode) .......................................................................................................................................................................... 30

Time Settings......................................................................................................................................................................................................................31

Other Settings ................................................................................................................................................................................................................... 32

Language Settings .......................................................................................................................................................................................................... 33

Sources................................................................................................................................................................................................................................. 33

Resetting your TV ............................................................................................................................................................................................................ 34

Parental Settings .............................................................................................................................................................................................................. 35

7 Entertainment ............................................................................................................................................................................36

Connecting a USB Storage Device ............................................................................................................................................................................. 36

Viewing Videos ................................................................................................................................................................................................................. 37

Viewing Photos ................................................................................................................................................................................................................. 38

Listening to Music ............................................................................................................................................................................................................ 39

LT-24C360(B)_IB.indd 2 17/10/2016 14:53

8 Technical Information and Help ...............................................................................................................................................40

Maintenance ...................................................................................................................................................................................................................... 40

Hints and Tips .....................................................................................................................................................................................................................41

Remote Control Codes ................................................................................................................................................................................................... 42

− Sky Codes ............................................................................................................................................................................................................... 42

− Virgin Media Codes (TiVo box) ....................................................................................................................................................................... 42

− BT Vision .................................................................................................................................................................................................................. 42

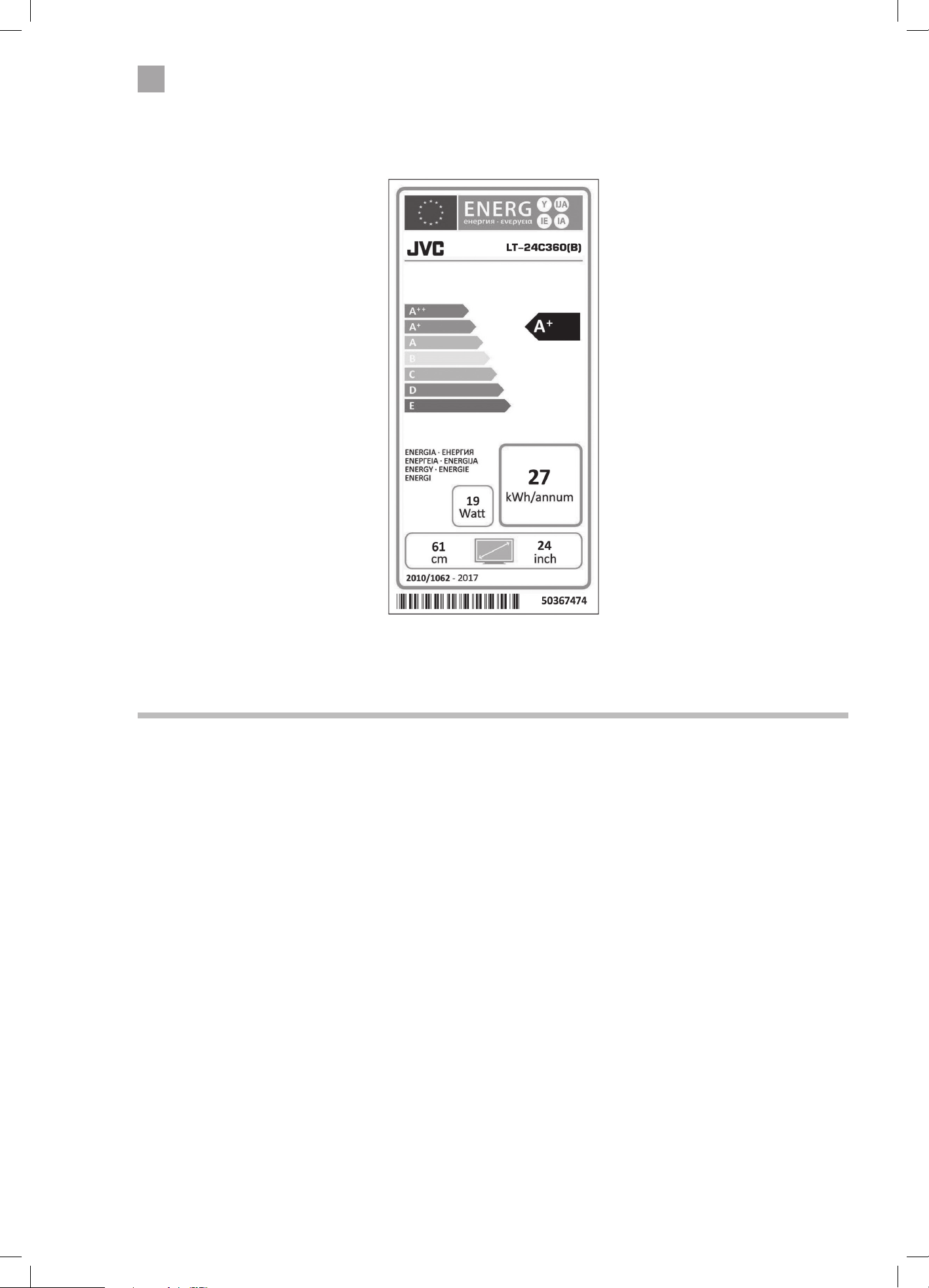

Product Fiche and Specications ............................................................................................................................................................................. 43

License Information used with JVC Televisions ....................................................................................................................................................44

LT-24C360(B)_IB.indd 3 17/10/2016 14:53

WE KNOWHOW

TO HELP YOU

WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to

helping you get the most out of your new purchase. And in the unlikely event your TV lets you down, we

can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at www.knowhow.com or call

us on: 0344 561 1234

TV SET UP & DEMO

We’ll assemble the stand and connect your new TV to the existing equipment. We’ll tune your TV so it’s

ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We’ll ﬁ x your TV to a suitable position on the wall and connect your existing equipment, so it’s all ready

to go. We’ll use neat wire management so you don't have to look at any untidy cabling and to complete

your fuss-free installation, we'll test and demonstrate your TV's functions.

FREESAT INSTALLATION

We’ll set up the Freesat receiver and connect it to your existing dish, TV and cabling. We'll then tune in

all available channels.

AERIAL INSTALLATION

We'll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV.

Then we'll scan and tune in all available digital channels.

HOME CINEMA OR SOUNDBAR INSTALLATION

We’ll un-box, connect and set up your new and existing equipment. We’ll then conﬁ gure, calibrate and

optimise the equipment. To avoid ugly trailing cables, we’ll clip them to your skirting board, if you’d like

us to. Then we’ll give you a demonstration.

FAULT & FIX SERVICES

With our Fault & Fix services we can repair a wide range of products at our new state-of-the-art repair

lab. This service is available for:

• Computer desktops • Laptops

• Netbooks • TVs

LT-24C360(B)_IB.indd 4 17/10/2016 14:53

1 Safety Warnings

Chapter

WE KNOWHOW

TO HELP YOU

WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to

helping you get the most out of your new purchase. And in the unlikely event your TV lets you down, we

can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at www.knowhow.com or call

us on: 0344 561 1234

TV SET UP & DEMO

We’ll assemble the stand and connect your new TV to the existing equipment. We’ll tune your TV so it’s

ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We’ll ﬁ x your TV to a suitable position on the wall and connect your existing equipment, so it’s all ready

to go. We’ll use neat wire management so you don't have to look at any untidy cabling and to complete

your fuss-free installation, we'll test and demonstrate your TV's functions.

FREESAT INSTALLATION

We’ll set up the Freesat receiver and connect it to your existing dish, TV and cabling. We'll then tune in

all available channels.

AERIAL INSTALLATION

We'll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV.

Then we'll scan and tune in all available digital channels.

HOME CINEMA OR SOUNDBAR INSTALLATION

We’ll un-box, connect and set up your new and existing equipment. We’ll then conﬁ gure, calibrate and

optimise the equipment. To avoid ugly trailing cables, we’ll clip them to your skirting board, if you’d like

us to. Then we’ll give you a demonstration.

FAULT & FIX SERVICES

With our Fault & Fix services we can repair a wide range of products at our new state-of-the-art repair

lab. This service is available for:

• Computer desktops • Laptops

• Netbooks • TVs

10 cm 10 cm

20 cm

10 cm

• Read all the instructions carefully before using the unit

and keep them for future reference.

• Retain the manual. If you pass the unit onto a third

party make sure to include this manual.

• Check that the voltage marked on the rating label

matches your mains voltage.

• WARNING: Never let people (including children) with

reduced physical, sensory or mental capabilities or lack

of experience and / or knowledge use electrical devices

unsupervised.

• To avoid danger of suffocation, keep plastic bags out of

reach of babies, children and domestic animals.

• Carefully attach the stand to the TV. If the stand is

provided with screws, tighten the screws firmly to

prevent the TV from tilting. Do not over tighten the

screws and mount the stand rubbers properly.

Damage

• Please inspect the unit for damage after unpacking.

• Do not continue to operate the unit if you are in any

doubt about it working normally, or if it is damaged

in any way - switch off, withdraw the mains plug and

consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and

should not be subjected to vibrations.

• Do not place the unit on sloped or unstable surfaces

as the unit may fall off or tip over causing serious

personal injury or death.

• The mains socket must be located near the unit and

should be easily accessible.

• This unit is designed for indoor, domestic use only.

• Use this TV set at an altitude of less than 2000 meters

above sea level, in dry locations and in regions with

moderate or tropical climates.

Many injuries, particularly to children, can be avoided by

taking simple precautions such as;

• Using cabinets or stands recommended by the

manufacturer of the television set.

• Only use furniture that can safely support the

television set.

• Ensuring the television set is not overhanging the edge

of the supporting furniture.

• Not placing the television set on tall furniture (for

example, cupboards or bookcases) without anchoring

both furniture and the television set to a suitable

support.

• Not standing the television set on cloth or other

materials placed between the television and

supporting furniture.

• Educating children about the dangers of climbing

on furniture to reach the television set or its controls.

If your existing television set is being retained and

relocated, the same considerations as above should be

applied.

Wall Mounting

• Read the TV and wall mount instructions before

mounting your TV on the wall.

• For TVs over 40" in size, wall mounting requires 2

people to lift and position the TV on to the wall mount.

• The wall mount bracket is not supplied, they can be

purchased from your dealer.

• Do not install the TV on a ceiling or an inclined wall.

• Only use the screws supplied with the wall mount

bracket when attaching the TV to the bracket. See your

TV instructions for screw type.

• Tighten the wall mount screw firmly to prevent the TV

from falling. Do not over tighten the screws.

• If you are in any doubt how to mount your TV, contact

a professional.

Temperature

• Avoid extreme degrees of temperature, either hot or

cold. Place the unit well away from heat sources such

as radiators or gas / electric fires.

• Avoid exposure to direct sunlight and other sources of

heat.

Naked Flames

• Never place any type of candle or naked flame on the

top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product

damage, do not expose this unit to rain, moisture,

dripping or splashing. No objects filled with liquids,

such as vases, should be placed on the unit.

• If you spill any liquid into the unit, it can cause serious

damage. Switch it off at the mains immediately.

Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard

due to overheating, ensure that curtains and other

materials do not obstruct the ventilation vents.

• Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure the unit is

well ventilated.

• Make sure that there is a gap of at least 10 cm on both

sides and a gap of 20 cm at the top.

Safety

• Always disconnect the unit from the mains supply

before connecting / disconnecting other devices or

moving the unit.

• Unplug the unit from the mains socket during a

lightning storm and long inactivity periods (going on

holiday).

LT-24C360(B)_IB.indd 5 17/10/2016 14:53

Safety Warnings

Mains Cable

• Make sure the unit or unit stand is not resting on top of

the mains cable, as the weight of the unit may damage

the mains cable and create a safety hazard.

• A damaged power cord/plug can cause fire or give

you an electric shock. Handle the power cord by the

plug, do not unplug the TV by pulling the power cord.

Never touch the power cord/plug with wet hands

as this could cause a short circuit or electric shock.

Never make a knot in the power cord or tie it with

other cords. If the mains cable is damaged it must be

replaced by the manufacturer, its service agent, or

similarly qualified persons in order to avoid a hazard.

Interference

• Do not place the unit on or near appliances which may

cause electromagnetic interference. If you do, it may

adversely affect the operating performance of the unit,

and cause a distorted picture or sound.

Optimum viewing

• View the unit in moderate light to prevent eye strain. It

is recommended to watch the unit from a distance

3-7 times that of the screen height.

LCD screen

• The LCD screen is manufactured using high-precision

technology. However, some tiny black points and /

or bright points (red, blue or green in colour) may

constantly appear on the LCD screen. These points

are generated in the manufacturing process and are

normal.

Screen Burn

• A characteristic of Plasma and TV Panels is that

displaying the same image for a long time may cause

a permanent after-image to remain on the screen. This

is called screen burn. Most pictures shown on the unit

will be constantly moving and fill the screen.

• Examples of images that you need to watch out for are

as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or

top / bottom of the screen, it is recommended to

change the format so that the picture fills the entire

screen.

2. TV Channel Logos: e.g. Shopping channel logos

and pricing displays - especially if they are bright

and stationary. Moving or low-contrast graphics are

less likely to cause ageing of the screen.

3. Time Displays

4. Teletext: Do not view a stationary page for long

periods of time.

5. TV Menus

6. Pause Mode: Do not leave the screen in pause

mode for long periods of time, e.g. when watching

videos.

• To prevent screen burn if viewing any of the above for

long periods of time, reduce contrast and brightness

when viewing. Once burn-in occurs it will never

disappear completely.

Earphones

• Listening to loud sounds for prolonged periods of time

may permanently damage your hearing.

• Before putting on earphones, turn the volume down

then put the earphones on and slowly increase the

volume until you reach a comfortable listening level.

Standby

• The

button on the remote control does not switch

off the unit completely. The unit will continue to draw

electricity from the mains supply while in standby. In

the interests of safety and to avoid unnecessary energy

consumption, never leave the unit in standby while

unattended for long periods of time, e.g. overnight,

while on holiday or while out of the house. Disconnect

the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit

are easily swallowed by young children and this is

dangerous.

• Keep loose batteries away from young children and

make sure that the battery holder tray is secure in the

remote control. Seek medical advice if you believe a

cell has been swallowed.

• Please dispose of batteries correctly by following the

guidance in this manual.

• Do not dispose of batteries in fire or with hazardous or

flammable materials.

• The batteries shall not be exposed to excessive heat

such as sunshine, fire or the like.

Supervision

• Children should be supervised to ensure that they do

not play with the unit and the remote control.

• Never let anyone especially children push anything

into the holes, slots or any other openings in the case -

this could result in a fatal electric shock.

Earthing

• Apparatus connected to the protective earthing of the

building installation through the MAINS connection

or through other apparatus with a connection to

protective earthing - and to a television distribution

system using coaxial cable, may in some circumstances

create a fire hazard. Connection to a television

distribution system has therefore to be provided

through a device providing electrical isolation below a

certain frequency range (galvanic isolator,

see EN 60728-11)

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the unit’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

manual accompanying the unit.

LT-24C360(B)_IB.indd 6 17/10/2016 14:53

Safety Warnings

Service

• To reduce the risk of electric shock, do not remove

screws. The unit does not contain any user-serviceable

parts. Please leave all maintenance work to qualified

personnel.

• Do not open any fixed covers as this may expose

dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before

cleaning.

• Do not use any type of abrasive pad or abrasive

cleaning solutions as these may damage the unit’s

surface.

• Do not use liquids to clean the unit.

• The wall socket plug is used as a disconnect device, the

disconnect device should be readily accessible.

•

This equipment is a Class II or double insulated

electrical appliance. It has been designed in such

a way that it does not require a safety connection

to electrical earth.

To prevent the spread of fire,

keep candles or other open

flames away from this product

at all times.

LT-24C360(B)_IB.indd 7 17/10/2016 14:53

2 Preparation

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Thank you for purchasing your new JVC TV.

Your new TV has many features and incorporates the latest technology to enhance your viewing

experience. We recommend that you spend some time reading this instruction manual so that you fully

understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Chapter

Instruction Manual Quick Start Guide

Instruction Manual

24” HD-Ready LED TV

LT-24C360(B)

• Donot connecttheTVtothemainssupplyuntilyouhavecompletedalltheconnections.

• Alway sdisconnecttheTVfromthemainssocketwhennotinuseforalongperiodoftime.

• The

buttonontheremotecontrolisonlyusedforswitchingtheTVintostandby,itdoesnotdisconnec ttheTVfromthemainspower.

Tocompletelydisconnectthemainspower,pleaseremovethemainsplug fromthemainssocket.

TheLCDdisplayisveryfragile,and mustbeprotectedatalltimeswheninstallingandremovingthebasestand.Besurethatnohardor sharpobject,

oranythingthatcouldscratchordamagetheLCDdisplay,comesinto contactwithit.DONOTexertpressureonthefrontof theTVatanytimebecause

thescreencouldcrack.

Removeallpackagingfromtheunit.Retainthepackaging.

Ifyoudisposeofitpleasedosoaccordingtoanylocalregulations.

 TV

 TVStand

 RemoteControl/

AAABatteriesx2

 InstructionManual

 QuickStartGuide

Unpacking

1. ConnectoneendoftheRFcoaxialcabletotheaerialsocketonthewallandtheotherendofthecabletotheANTsocketon

thebackofyourTV.

2. PlugtheTVintoamainssocketandswitchonatthemains.

3. Instandbymode,pressthe

buttonontheremotecontroltoturntheTVon.TheredLEDindicatorwillashforafew

secondsthentheTVwillswitchon.

Connecting the Aerial and Turning on the TV

1. EnsuretheTVisswitchedoffandnotconnectedtothemainspowersupply.

2. LaytheTVdownonaflatsurfaceideallyontheedge ofatablesothebaseoftheTVslightlyoverhangstheedgeofthetable,withthebackside

facingup.Pleasemakesureasoftcushionedmaterial(such asadrybathtowelorthickpieceoffoam)isplacedbeneaththescreen.

3. ToinstalltheTVstand,slidetheTVstandintotheslotonthe bottomoftheTV.Make sure it clicks into position.

ForwallmountinginstructionspleaserefertoyourInstruction Book.

Installing the Base Stand

1. Removethescrewandopenthebatterycompartment.

Operating Your Remote Control

Thank youforpurchasingyournewJVCTV.

YournewTVincorporatesthelatesttechnologytoenhanceyour

viewingexperience.Wewouldsuggestthatyouallowabout20mins

forinitialsetup.

Pleasefollowthisguideforasuccessfulrsttimeinstallation.

Thelatesteco-friendlypower-savingtechnologywillswitcho

theTVifdeviceisleftonandidlefor4hours.Pleasereferto“Auto

Standby”underthe“TimeSettings”sectionoftheinstruction

manualformoredetail.

Quick Start Guide

24" HD-Ready LED TV

LT-24C360(B)

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

RF coaxial cable

(not included)

2. InserttwoAAAsizebatteries.Makesuretomatch

the(+)and(-)endsofthebatterieswiththe(+)and

(-)endsindicatedinthebatterycompartment.

3. Replacethebatterycompartmentco ver,makesureit

clicksintoplacethenreplacethescrew.

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

Cushioned

material

Table

LT-24C360(B)_QSG.indd 1 17/10/2016 12:40

LANG.

BACK EXIT

Q.MENU

77 8

.,/@

777

RM-C3182

TV TV Stand Remote Control /

AAA Batteries x 2

LT-24C360(B)_IB.indd 8 17/10/2016 14:53

Preparation

Installing / Removing the Base Stand

The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that

no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert

pressure on the front of the TV at any time because the screen could crack.

1. Ensure the TV is switched off and not connected to the mains power supply.

2. Lay the TV down on a flat surface ideally on the edge of a table so the base of the TV slightly overhangs the edge of the table,

with the back side facing up. Please make sure a soft cushioned material (such as a dry bath towel or thick piece of foam) is

placed beneath the screen.

3. To install, slide the TV stand into the slot on the bottom of the TV. Make sure it clicks into position.Press the button in the

middle of the stand neck and gently pull the stand away from the TV.

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

Table

Cushioned

material

Remove the stand assembly before mounting the TV onto the wall.

1. Press the button in the middle of the stand neck and gently pull

the stand away from the TV.

Mounting the TV to a Wall

2. This TV is designed to be wall-mounted with a

standard 75 mm x 75 mm mounting kit (sold

separately) designed for flat-panel TVs. Mount

this TV according to the instructions included

in the mounting kit. Use a mounting screw with

the maximum length of 14mm. Due to space

restrictions, we recommend that you make all

connections before mounting on to the wall.

• If you are wall mounting your TV you may wish to buy a 90° HDMI adapter. This will help with your cable management.

• Please read this instruction manual carefully while setting up your TV.

• If you require additional assistance please call our Call Centre on 0344 561 1234. Our Customer Contact Centre is open 24/7.

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

75mm

Four mounting holes

(size M4 screw)

75mm

5-8mm

LT-24C360(B)_IB.indd 9 17/10/2016 14:53

Preparation

Front View

Item Description

1 POWER LED

Illuminates when the TV is in standby mode. The LED will blink confirming that a timer

recording programme has started in the standby mode.

2 IR (Infrared Receiver)

Receives IR signals from the remote control.

Do not put anything near the sensor, as its function may be affected.

1 2

LT-24C360(B)_IB.indd 10 17/10/2016 14:53

Preparation

COMMON INTERFACE

USB

5Vdc

Max. 500mA

MODE - / I

- +

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

Rear View and Sockets

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

Item Description

1 HDMI 1 & 2

Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray

disc player or AV receiver.

2 SPDIF COAX audio out (Digital) - Connects to an audio device via a coax cable.

3 VGA/YPbPr

Connects to a computer or other devices with a VGA interface.

The VGA input is also used for component input via a VGA to component cable (not

supplied).

4 SCART (S-Video)

Connects to a VCR, DVD Player, or other AV device with a SCART output socket.

Select SCART 1 (S-VIDEO) when connecting to a device using S-VIDEO.

5 ANT Connects to the aerial socket on the wall with the RF coaxial cable.

6 COMMON INTERFACE Allows the insertion of a Common Access Module.

7 USB

Allows the insertion of a USB storage device to play video, audio, photo and text files

(USB mode) and record DTV programmes on to a USB storage device.

8 CVBS/AUDIO IN (L/R)

(audio L/R also used for YPbPr and VGA)

Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video

devices.

Connects to the headphones.

10 MULTI FUNCTION SWITCH Switches the TV into standby and on. Selects modes (channel,volume, and source).

SCART

SPDIF

COMMON INTERFACE

USB

5Vdc

Max. 500mA

VGA

ANT.

HDMI 1

HDMI 2

MODE - / I

- +

LT-24C360(B)_IB.indd 11 17/10/2016 14:53

Preparation

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the

remote control sensor on the TV and within 60° in front of the TV.

The operating distance may vary depending on the brightness of

the room.

Installing Batteries in the Remote Control

30° 30°

Handling the Batteries

• Improper or incorrect use of batteries may cause

corrosion or battery leakage, which could cause

fire, personal injury or damage to property.

• Only use the battery type indicated in this manual.

• When the batteries are exhausted, the remote will

not function. Replace both batteries at the same

time with new ones.

• Do not install new batteries with used ones and do

not mix different types of batteries.

• Do not dispose of used batteries as domestic

waste. Dispose of them in accordance with local

regulations.

Handling the Remote Control

• Take care of your fingernails when you press and

hold the battery release tab.

• Do not drop or cause impact to the remote control.

• Do not spill water or any liquid on the remote

control.

• Do not place the remote control on a wet object.

• Do not place the remote control under direct

sunlight or near sources of excessive heat.

• Remove the battery from the remote control

when not in use for a long period of time, as it

could cause corrosion or battery leakage and may

result in physical injury and/or property damage

including fire.

1. Remove the screw and open the battery

compartment.

2. Insert two AAA size batteries. Make sure to match

the (+) and ( - ) ends of the batteries with the (+)

and ( - ) ends indicated in the battery compartment.

3. Replace the battery compartment cover, make sure

it clicks into place then replace the screw.

LANG.

BACK EXIT

Q.MENU

77 8

.,/@

777

RM-C3182

LT-24C360(B)_IB.indd 12 17/10/2016 14:53

Preparation

LANG.

BACK EXIT

Q.MENU

77 8

.,/@

777

RM-C3182

Remote Control

Switch the TV between on and standby mode.

2. SOURCE

Press to change the source you are viewing.

TV - SCART 1 - SCART 1 (S-VIDEO) - SIDE AV - HDMI 1 -

HDMI 2 - YPbPr - VGA/PC.

3. 0-9 Number Button

• Press to select a programme. (TV / RADIO mode)

4. TV

• Press to enter TV mode when viewing other sources.

• Press to view the channel list when in TV mode.

(Previous programme/source)

• Press to switch between the previous programme or source

that was selected.

(Mute)

Mute and restore the sound.

7. P+ / P-

Press to select the next channel up or down the channel list.

8. VOL + / –

Adjust the volume.

No function.

10. MENU

Display the main menu.

11. Q. MENU

Press the select the Settings menu.

12.

/ OK

• Allow you to navigate the OSD menus and adjust the system

settings to your preference.

• Press OK to select or save a setting.

13. BACK

Press to move backwards through menus.

14. EXIT

Press to exit a menu.

LT-24C360(B)_IB.indd 13 17/10/2016 14:53

Preparation

LANG.

BACK EXIT

Q.MENU

77 8

.,/@

777

RM-C3182

15. i (info)

Press to see programme information in TV mode.

16.

(Media Browser)

Press to enter the media browser menu, a hard drive will

need to be attached to the USB port.

17.

(Programme Guide)

Press to view the Programme Guide.

18.

Press to enter teletext if available.

19.

(My Button 1)

• Press and hold for 5 seconds to set a favourite channel/

source.

20.

(My Button 2)

• Selects the Channel Network Type menu in TV mode.

• Press and hold for 5 seconds to set a favourite channel/

source, this will then remove the Channel Network Type

menu.

21. COLOURED BUTTONS

Access the TELETEXT items ( TV mode) or menu

options.

22. LANG.

Selects the Current Language menu.

23.

(Subtitles)

Press to switch subtitles on and o.

24.

(Aspect ratio)

Press to adjust the aspect ratio of the picture.

AUTO - 16:9 - Subtitle - 14:9 - 14:9 Zoom - 4:3 - Cinema.

25. PLAYBACK and RECORD buttons

•

searches forwards and backwards when

viewing a recording.

• pauses a recording and starts timeshifting in TV mode

if you have a hard drive attached to the USB port.

• plays a recording.

• stops a recording.

• starts a recording, continue to press will add more

recordings.

LT-24C360(B)_IB.indd 14 17/10/2016 14:53

3 Initial Setup

Turning the TV On for the First Time

1. Connect one end of the RF coaxial cable to the aerial

socket on the wall and the other end of the cable to

the ANT socket on the back of your TV.

2. Plug the TV into a mains socket and switch on at the

mains.

3. In standby mode, press the

button on the remote

control to turn the TV on. The LED indicator will flash

for a few seconds then the TV will switch on.

4. The first time you turn the TV on, it will go straight

into the First Time Installation menu. Please ensure

the aerial is plugged in.

Press the

buttons to highlight your language

then press OK.

First time installation

Welcome please select your language! English

Bienvenue ! Veuillez choisir une langue. Francais

Willkommen, Wahlen Sie bitte lhre Sprache aus! Deutsch

Benvenuti, Selezionate la vostra lingua! Italiano

Bienvenido, seleccione un idioma Espanol

Hos geldiniz, lutfen dil secimini yapiniz! Turkce

Dobrodosli, izberite vas jezik! Slovenski

Valkommen, valj ditt sprak! Svenska

Udvozoljuk, kerjuk valassza ki a nyelvet! Magyar

Bem-vendo, favor selectionar seu idioma Portugues

Tervetuloa, valitse kielesi! Suomi

Select Language Set Language

If the TV is to be used in a store, please select the Store Mode. For domestic use,

Home Mode is recommended.

Store ModeHome Mode

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

RF coaxial cable

(not included)

SCART

SPDIF

VGA

ANT.

HDMI 1

HDMI 2

5. Press the buttons to select your country.

6. Press the

button to highlight Search Type, then

press the

buttons to select Digital Only. This will

only search for the digital channels.

7. Press the

button to highlight Teletext Language,

then press the

buttons to select your language.

The majority of people will want this set to West.

8. Press the

button to highlight Scan Encrypted (pay-

per-view) Channel, then press the

buttons to

select Yes or No.

9. Confirm these settings by pressing OK.

10. Press the

buttons to highlight Home Mode then

press OK.

First time installation

Welcome!

Country

Search Type

Teletext Language

Scan Encrypted Channels

Digital only

West

Yes

< >

Select Language Start search

Choose your country

Please ensure your aerial is plugged in before tuning in your TV

Do not connect the TV to the mains supply until you have

completed all the connections.

• Always disconnect the TV from the mains socket when not in use for a long period of time.

• The

button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the

mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket.

Chapter

LT-24C360(B)_IB.indd 15 17/10/2016 14:53

Initial Setup

Do you want to start an automatic

channel

NoYes

Automatic channel scan (Retune)

Cambs & Beds: BBC TWO HD

Cambs & Beds: Channel 4 HD

Cambs & Beds: BBC ONE HD

Cambs & Beds: ITV HD

Cambs & Beds: BBC THREE HD

Cambs & Beds: CBBC HD

Please wait. This will take a few minutes. Scanning digital channels: UHF 22

Channels Found : 6

Cancel scan

Automatic channel scan (Retune)

Cambs & Beds: BBC TWO HD

Cambs & Beds: Channel 4 HD

Cambs & Beds: BBC ONE HD

Cambs & Beds: ITV HD

Cambs & Beds: BBC THREE HD

Cambs & Beds: CBBC HD

Please wait. This will take a few minutes. Scanning digital channels: UHF 22

Channels Found : 6

Cancel scan

Country

Primary region

Secondary region

Tertiary region

Choose region

Any

Multiple regional variants have been detected.

Please choose your preferred region.

11. You will now be asked if you want to start the

automatic channel scan. Press the

buttons to

highlight Yes and press OK.

Choose Region

During tuning, your TV may have received signals from more than one

transmitter. If this has occurred the Choose Region screen will be displayed.

This will enable you to select the correct regional transmission for the local

news service that you require.

• Press the

button to highlight Primary region, then press the

buttons to select your Primary Region e.g. England.

• Press the

button to highlight Secondary region, then press the

buttons to select your Secondary Region e.g. London.

• Press the

button to highlight Tertiary region, then press the

buttons to select your Tertiary Region e.g. Greater London.

• Press the

button to highlight OK then press OK.

Your TV is now fully tuned in.

Country Code This will be shown as UK.

Primary Region

This will show the regional country (England, Wales,

Scotland, NI).

Secondary Region

This will allow you to set the region for your local

news service on BBC and ITV (London, Beds and

Cambs etc).

Tertiary Region

You may receive signals from more than one

transmitter within the Secondary Region, (e.g Beds

and Cambs may have Luton or Sandy Heath).

The Edit Channel list will appear, press the EXIT button to remove this. Your

TV is now fully tuned in and ready to use.

Edit Channel List

1. BBC ONE Lon

2. BBC TWO

3. ITV

4. Channel 4

5. Channel 5

6. ITV2

7. BBC THREE

9. BBC FOUR

10. ITV3

Cancel scan

DTV TV

OK Move Delete Edit name Lock

Function

Back

RET.BACK

Navigate

Jump

0....9 P+

P-

Filter

Page UP/DOWN

Watc h

LT-24C360(B)_IB.indd 16 17/10/2016 14:53

Initial Setup

Connecting an Analogue Device

If you have connected an analogue device such as a Sky box or video recorder

via the aerial socket on your TV you will have to tune it in using Analogue

mode. Ensure the device is switched on before you start the tuning process.

1. Press the MENU button, press the

buttons to select INSTALL AND

RETUNE and press OK.

2. Select AUTOMATIC CHANNEL SCAN (RETUNE) and press OK.

3. Press the

buttons to select ANALOGUE and press OK.

4. Press the

buttons to select YES then press OK. The search will

automatically start, this will not delete your Digital channels, so don't worry!

5. When the search has finished the EDIT CHANNEL LIST will appear. Your

analogue channel will be at the end of the channel list.

Autoimatic channel scan (Retune)

Manual channel scan

Analogue ne tune

First time installation

Install and Retune

Digital

Analogue

Full

Auto channel scan (Retune)

• If a locked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the

channel will then be unlocked (refer to Locking Channel for details).

• Press the

button to return to the previously viewed channel.

Display Channel Information

• Press the INFO button to view the current information.

Volume Adjustment

• Press the V + or – button on the remote control or rotate the multi-function

switch up or down on the back of the TV.

• If you wish to switch the sound off, press the

button. Press the

button again or the VOL + or – button to resume listening.

Channel Selection

• Press the P + / – buttons on the remote control repeatedly or the 0-9 buttons to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the buttons to highlight and select the channel.

Press the OK button to view the selected channel.

Press the i (info) button then the

buttons to search for a channel you wish to watch then press OK.

LT-24C360(B)_IB.indd 17 17/10/2016 14:53

4 Customising TV Settings

2. Press the buttons to select the following picture options and then

press the OK button.

• Press the

buttons to adjust the levels in the menus.

Adjusting the Picture Settings

Allows you to set your preferred picture mode.

1. Press the MENU button and then press the

buttons to select the

PICTURE and then press the OK button.


Navigate Change value Back

Exit

RET/BACK

Mode

- Contrast

- Brightness

- Sharpness

- Colour

Power Save Mode

Backlight

Noise Reduction

Advanced Settings

Reset

Picture Settings

Eco

High

Low

< >

Picture Mode Your TV has some pre-set picture modes: Dynamic - Natural - Cinema - Game. The default setting

is Standard. You can also manually adjust each mode.

Contrast Adjusts the difference between light and dark levels in the picture.

Brightness Increases or decreases the picture brightness.

Sharpness Adjusts the level of crispness in the edges between light and dark areas of the picture.

Colour Controls the colour intensity.

Power Save

Mode

The power save mode can be switched off (Disabled), to Eco or to screen off. Adjusting this

setting will reduce the power consumption of your TV.

Backlight Adjusts the backlight setting. Low - Medium - High - Auto.

Noise Reduction Reduces the noise level of the connected device: Off / Low / Middle / High.

Advanced

Picture Settings

Select to have more advanced adjustments to your TVs picture.

Dynamic

Contrast

Adjusts the contrast to pre-set levels.

OFF - LOW - MEDIUM -HIGH

Navigate Change value Back

Exit

RET/BACK

Dynamic Contrast

Colour Temp

Picture Zoom

Film Mode

Skin Tone

Colour Shift

RGB Gain

Advanced Picture Settings

O

Normal

Auto

< >

5-5

Colour

Temp

Adjusts the colour temperature.

NORMAL - WARM - COOL


Zoom

Adjusts the aspect ration of the

picture. AUTO - 16:9 - SUBTITLE - 14:9

- 14:9 Zoom - 4:3 - CINEMA.

Film Mode Film mode can be switched to AUTO

or OFF. Auto mode will adjust the

frame rate to produce the clearest

motion.

Skin Tone Adjusts the skin tone from -5 to 5.

Colour

Shift

Adjusts the colour tint from red to

green.

RGB Gain Press to adjust the Red, Green and

Blue colour in the picture.

3. Press the BACK button to return to the previous menu.

4. Press the EXIT button to exit the menu.

Chapter

LT-24C360(B)_IB.indd 18 17/10/2016 14:53

Customising TV Settings

Aspect Ratio

Allows you to watch the screen in various picture formats: Auto / 16:9 / Subtitle / 14:9 / 14:9 Zoom / 4:3 / Cinema.

The default setting is AUTO.

1. Press the

button to scroll through the aspect rations.

The aspect Ratio can also be adjusted in the PICTURE ZOOM section of

the Advanced Picture settings menu.

Simply adjust the aspect ratio until you see a picture format you are happy

with. This may need to be adjusted when viewing a 4:3 transmission, if you

want to fill the screen.

LANG.

BACK EXIT

Q.MENU

77 8

.,/@

777

RM-C3182

2. Press the buttons to select the following sound options and then

press the OK button to select or press the

buttons to adjust each

option’s setting.

Adjusting the Sound Settings

Allows you to adjust the sound settings on your TV.

1. Press the MENU button and then press the

buttons to select

SOUND and then press the OK button.

Sound

Navigate Change value

Exit

Back

RET/BACK

Volume

Equalizer

Balance

Headphone

Sound Mode

AVL

DTS TruSurround HD

Digital Out

Sound Settings

Stereo

O

PCM

User

Volume Adjusts the volume level.

Equalizer Selects pre-set equalizer modes. Highlight the equalizer mode then press OK to enter the EQUALIZER

SETTINGS menu. The equalizer modes are: MOVIE - SPEECH - FLAT - CLASSIC - USER - MUSIC.

Balance Adjusts the sound level from the left and right speakers.

Headphone Adjusts the volume level when listening to the TV with headphones. To prevent damaging your hearing

set the volume level low and gradually increase the level until you're happy.

Sound Mode Selects the sound modes. STEREO - DUAL I - DUAL II.

AVL (Automatic

volume limiting)

AVL will set the sound level so that its the same across all programmes. So when you change channels

the sound level won't change. Set AVL to ON or OFF.

DTS TruSurround

Surround Sound can be switched ON or OFF. When switched on you will hear a more spacious sound, to

make you feel more immersed in the action on your TV.

Digital Out Sets the digital audio out type to PCM or COMPRESSED.

3. Press the BACK button to return to the previous menu.

4. Press the EXIT button to exit the menu.

LT-24C360(B)_IB.indd 19 17/10/2016 14:53

Customising TV Settings

Editing the Channel List

You can move, delete, edit the name of or lock channels in the EDIT CHANNEL LIST menu.

1. Press the MENU button and then press the

buttons to select

Channel List and then press the OK button.

2. Press the

buttons to select EDIT CHANNEL LIST then press the OK

button.

Edit Channel List

1. BBC ONE Lon

2. BBC TWO

3. ITV

4. Channel 4

5. Channel 5

6. ITV2

7. BBC THREE

9. BBC FOUR

10. ITV3

Cancel scan

DTV TV

OK Move Delete Edit name Lock

Function

Back

RET.BACK

Navigate

Jump

0....9 P+

P-

Filter

Page UP/DOWN

Watc h

Move 1. Press the buttons to select the channel that you wish to move.

2. Press the

buttons to select MOVE then press OK.

3. Press the NUMBER buttons to enter the channel number that you want to move the channel to,

then press OK.

4. Select YES and press OK. The channel will now have moved positions in the channel list.

Delete 1. Press the

buttons to select the channel that you wish to delete.

2. Press the

buttons to select DELETE then press OK.

3. Select YES and press OK. The channel will be deleted. To get the channel back you will need to tune

your TV in again.

Edit name 1. Press the

buttons to select the channel that you wish to change the name of.

2. Press the

buttons to select EDIT NAME then press OK.

3. Press the NUMBER buttons and

buttons to enter the new name of the channel, then press OK.

Lock 1. Press the

buttons to select the channel that you wish to lock.

2. Press the

buttons to select LOCK then press OK.

3. Press the NUMBER buttons to enter your PIN number. The lock symbol will appear next to the

channel. To view the locked channel you will now have to enter your PIN number.

Creating a Favourite Channel List

You can select your favourite channel that you watch the most and create a channel list of just your favourites.

1. Press the MENU button and then press the

buttons to select Channel List and then press the OK button.

2. Press the

buttons to select FAVOURITES then press the OK button.

3. Press the

buttons to select a channel you wish to add to the list then press the OK button. A pink star will appear next to

the channel. Select as many channels as you like.

Activate your favourite channel list

1. Press the MENU button and then press the buttons to select Channel List and then press the OK button.

2. Press the

buttons to select ACTIVE CHANNEL LIST then press the OK button.

3. Press the

buttons to select FAVOURITES then press the OK button. A tick will appear next to favourites.

4. Exit the menu and press the OK button. You will now see your Favourite channel list.

5. If you want to go back to the full list of channels go back into the ACTIVE CHANNEL LIST and select SHOW ALL.

LT-24C360(B)_IB.indd 20 17/10/2016 14:53

Customising TV Settings

Saving a Channel/Source to the My Buttons ( / )

You can save your favourite TV channel or source to both of the My Buttons.

1. Select the channel or source that you want to save to the My Button.

2. Press are hold

or for 5 seconds. The message 'My Button Set' will

appear on the screen when the channel/ source is stored.

My Button is set

• When you set the button the Channel Network Type menu will

disappear. These settings can still be found in the channel list.

• If you perform a first time installation at any time the My Buttons

will be reset to youtube for button 1 and Channel Network type for

button 2.

LT-24C360(B)_IB.indd 21 17/10/2016 14:53

5 Using the Features

Chapter

Programme Guide

This system has a Programme Guide to help you navigate through all the possible viewing options.

The Programme Guide supplies information such as programme listings, start and end times for all available services. In addition,

detailed information about the programme is often available in the Programme Guide (the availability and amount of programme

information will vary, depending on the particular broadcaster).

This function can be used only when the Programme Guide information is broadcast by broadcasting companies.

The Programme Guide displays the programme details for the next 7 days.

Switch On / Off Programme Guide

1. Press the button to view the Programme Guide.

2. Press the

button or the EXIT button again to switch off Programme Guide and return to normal TV viewing.

Select a Programme

Press the buttons to select the desired channel and then press the buttons to select the desired programme. Press the

OK button to confirm.

Button Functions in a 7-Days Guide

Remote Control Button Function

RED (Previous Day) Press the RED button to view the previous days programmes.

GREEN (Next Day)

Press the GREEN button to view the next days programmes. Up to 7 days.

YELLOW (Zoom)

Press the YELLOW button to condense the programme information so you can see more

programmes for your selected day.

BLUE (Filter)

Press the BLUE button to select the CHANNEL LIST FILTER.

Here you can filter the Programme Guide to make it easier

to find your programmes.

• TV/Radio - Filter ALL - TV ONLY - RADIO ONLY - TEXT ONLY.

• Free/CAS - Filter ALL - FREE - ENCRYPTED

• A-Z - Filter using the first letter of the programme A - B - C...

• Sort - Filter NUMERIC or ALPHABETIC

• HD/SD - Filter for High Definition or Standard Definition.

(Select Genre)

• Press the

button to select a Genre. Once a Genre

is selected the programmes in that Genre will be

highlighted in grey. Press the

until you see the

highlighted programmes.

Example of

Drama selected.

TV/Radio

Free/CAS

A-Z

Sort

HD/SD

Channel list lter

All

Numeric

All

< >

Programme Guide

1. BBC ONE Lon

2. BBC TWO

3. ITV

4. Channel 4

5. Channel 5

6. ITV2

7. BBC THREE

8. London Live

9. BBC FOUR

10. ITV3

11.Pick

Fri 07/03 18:00 19:00 20:00

Jump

0.....9

BBC News at Six BBC London News The One Show

Revenge of the Eggh Sport Relief’s Top D Athletics: World Indoor Championships

Emmerdale Coronation Street

Channel 4 News Crufts 2014

New: The Gadget Show 5 New

You’ve Been Framed You’ve Been Framed

Great Movie Mistake Doctor Who

World News Today

Murder She Wrote

Futurama Futurama

Options Search

Now Rec./Stop

Filter Select Genre Event DetailsPrev day Next day Zoom

A Question of Sport

ITV News London ITV News & Weather

Paralympics Winter Hollyoaks

Home and Away NewsTalk Live

Dinner Date

This is BBC Three

This is BBC Four

Heartbeat

Animal Emergency Animal Emergency

London Live - Coming Soon

Fri 07/03 19:00

current date and time

current programme title

channel no. and

channel name

No Genre

Culture

Children’s

Drama

Education

Edu./Sci./Fac.

Entertainment

Select Genre

Programme Guide Fri 07/03 19:00

1. BBC ONE Lon

2. BBC TWO

3. ITV

4. Channel 4

5. Channel 5

6. ITV2

7. BBC THREE

8. London Live

9. BBC FOUR

10. ITV3

11.Pick

Fri 07/03 18:00 19:00 20:00

Jump

0.....9

BBC News at Six BBC London News The One Show

Revenge of the Eggh Sport Relief ’s Top D Athletics: World Indoor Championships

Channel 4 News Cruf ts 2014

New: The Gadget Show 5 New

You’ve Been Framed You’ve Been Framed

Great Movie Mistake

World News Today

Futurama Futurama

Options Search

Now Rec./Stop

Filter Select Genre Event DetailsPrev day Next day Zoom

A Question of Sport

ITV News London ITV News & Weather

Paralympics Winter Hollyoaks

Home and Away NewsTalk Live

Dinner Date

This is BBC Three

This is BBC Four

Heartbeat

Animal Emergency Animal Emergency

London Live - Coming Soon

Murder She Wrote

Doctor Who

Emmerdale Coronation Street

LT-24C360(B)_IB.indd 22 17/10/2016 14:53

Using the Features

i (information) Press i to see a brief description of the selected programme.

0....9 (Jump)

Press the number buttons to jump to that channel number or the nearest number in the list.

OK (Options)

When a programme is highlighted press the OK button to

see the EVENT OPTIONS menu.

• Select Channel - Select this option to view the selected

programme.

• Record - Select this option to set the selected programme

to automatically record. The programme will be

highlighted in red to show a recording is set.

• Set Timer on Event - Select this option to set the

selected programme to switch on when the programme

starts. The programme will be highlighted in yellow to

show a 'timer on event' is set.

Not all of the event options may be available, it depends if a programme has started

and it a USB storage device is connected.

(Search)

Press the

button to enter the GUIDE SEARCH menu. Use this menu to search the Programme

Guide for a specific programme or type of programme on a particular day.

• Search - This is the field that you wish to search though.

Select ALL CHANNELS - ALL TV CHANNELS - ALL RADIO

CHANNELS - CURRENT CHANNEL LIST - SINGLE CHANNEL.

• Channel - If you have selected SINGLE CHANNEL you can

now select the channel you wish to search.

• From - Select the day you want to search from. To select

from your current day select TODAY.

• Until - Select the day you want to search until. Make sure

this day is after the 'FROM' day.

• Search By - Select GENRE to search by genre or select

NAME MATCH to manually type in the name of the

programme you are searching for.

• Match on - If you selected GENRE above, press OK to

open the SELECT GENRE menu. If you selected NAME

MATCH above then press the NUMBER buttons to enter

the name of the programme you are searching for.

• Start search - Select START SEARCH and then press OK

to start searching. A list of search results will appear on

screen, this may take a few seconds to generate.

(Now) Press the button to automatically go back to the programme that is on now.

(Record/Stop)

Press the

button to record the selected programme, to show a recording is set it will be

highlighted red. To remove the record function, highlight the programme then press

Programme Guide

BBC News at Six 18:00 - 18:30

Fri 07/03 19:00

1. BBC ONE Lon

2. BBC TWO

3. ITV

4. Channel 4

5. Channel 5

6. ITV2

Fri 07/03 18:00 19:00 20:00

Jump

0.....9

BBC News at Six

(News and Factual) The latest national and international news stories from the BBC News team, followed by the weather.

Also in HD.

[S]

BBC London News The One Show

Revenge of the Eggh Sport Relief ’s Top D Athletics: World Indoor Championships

Emmerdale Coronation Street

Channel 4 News Cruf ts 2014

New: The Gadget Show 5 New

You’ve Been Framed You’ve Been Framed

Options Search

Now Rec./Stop

PR+ PR-

Filter Select Genre Close Event Details

More Event Info

Prev day Next day Zoom

A Question of Sport

ITV News London ITV News & Weather

Paralympics Winter Hollyoaks

Home and Away NewsTalk Live

Dinner Date

Navigate Change value

Back

Channel

From

Until

Search By

Match on

Guide search

Current channel list

Today

Genre

Undened

Start search...

< >

RET/BACK

Guide search

Top Gear Today 14:00 - 15:00 Dave

Top Gear Today 18:00 - 19:00 Dave

Top Gear Thu 09:00 - 10:00 Dave

Top Gear Thu 10:00 - 11:00 Dave

Top Gear Thu 13:00 - 14:00 Dave

Top Gear Thu 14:00 - 15:00 Dave

Top Gear Thu 17:00 - 18:00 Dave

Top Gear Thu 18:00 - 19:00 Dave

Search:

Total 8 Matches

Wed 12/03 12:06

All channels, Today -> Thursday, Contains “TOP GEAR”

Options

Event DetailsPrev day

Back

RET/BACK

Exit

Event Options

Select Channel

Record

Set Timer on Event

Search Results

LT-24C360(B)_IB.indd 23 17/10/2016 14:53

Using the Features

Time Shift Recording onto a USB Storage Device

This function allows you to pause live TV. The picture will pause and the programme will begin recording so you don't miss any of

the programme. You will have to have a USB storage device attached to the USB socket for Time Shift Recording to work.

Using the Remote Control

You can shift playback to any point of the virtually recorded programme.

or When playing,

• Press the

button repeatedly to speed up - x 2 / x 4 / x 8 / x 16 / x 32.

• During fast forward press the

(PLAY) button to return to normal playback.

When paused

• Press the

button repeatedly to view in slow motion - x 1/4 / x 1/2 / x 1 (normal playback).

• During playback, press the button to display a still screen and then press the button again or

the

(PLAY) button to resume playback.

OK When timeshifting press the OK button to play or pause the recording.

If you want to exit timeshifting, press the button.

The ‘PVR Time Shift Progress Bar’

1 Indicates the status of the currently

displayed video (

/ / / )

2 Channel name being recorded.

3 Programme name being recorded.

4 Indicates the amount of time

recorded.

3 4

Timeshifting...

Timeshift

00m01s

BBC One Lon

Place in the Sun

12:56

While watching your TV, you may press the button to pause the live programme if you want to go out for a while (e.g. going to

the bathroom / kitchen). "

" will show on the screen.

When you have returned, press the

(PLAY) button to play the missed broadcast programme. " " will briefly show on the

screen.

The video and sound may have a little bit of delay or be out-of-sync for a few seconds when the unit starts to playback the missed

programme. It will soon turn to normal.

If the transfer rate of the USB storage device is too slow for

recording or time shift function, a warning statement will be

shown on the screen. If this happens, please upgrade your USB

storage device. The minimum transfer speed is 5MB/s.

• Time Shift Mode and Recording functions may

not work if the signal strength is weak.

• Stop the time shift function before switching to

another input source.

LT-24C360(B)_IB.indd 24 17/10/2016 14:53

Using the Features

Recording DTV Programmes onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save it for future viewing.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast

programme.

Please make sure the USB device is inserted. If not, a warning message will pop up. You can only record the programme that you

are currently watching.

1. Press the

button to record the programme that you are currently

watching.

Recording BBC One Lon

20mins

Place in the Sun

Press record to add more events.

12:56

2. If you want to record the next programme on the selected channel press

the

button again and the next programme will be added. This will

only work while the recording screen is still on the screen.

3. To stop a recording press the

button, then select YES and press OK.

Recording will stop automatically when the disk is full.

The recording screen will briefly appear. It will display the channel and

programme name and the minutes of that programme left.

You can turn off the TV while recording. Press the button. The standby indicator light will flash to show the TV is still

recording.

LT-24C360(B)_IB.indd 25 17/10/2016 14:53

Using the Features

3. Press the YELLOW button to add a timer. The ADD TIMER menu will be

displayed.

4. Adding the timer

Press the

to select each setting below.

Timer Type Press the buttons to select RECORD or TIMER.

RECORD - Will record a programme

TIMER - Will automatically switch to the selected

programme when it starts.

Channel Press the

buttons to select the channel.

Record Type Not adjustable.

Date Press the

buttons and the NUMBER buttons to

set the date.

Start Press the

buttons and the NUMBER buttons to

set the start time.

End Press the

buttons and the NUMBER buttons to

set the end time.

Duration Set automatically.

Repeat Press the buttons to set the recording to record

ONCE - DAILY - WEEKLY or just WEEKDAYS.

Change/Delete Press the

buttons to select ALLOWED or

DISALLOWED

ALLOWED - You allow anyone to change or delete the

recording.

DISALLOWED - You will have to enter the PIN code to

change or delete the recording.

Playback Press the

buttons to select USE PARENTAL

SETTINGS, DISALLOWED or ALLOWED. You will

need to enter the PIN number if you want to play a

recording when you select 'use parental settings and

disallowed'.

2. Press the

to highlight TIMERS then press OK.

Timer Programming

This function is used to perform scheduled recordings or timers (will switch the programme on when it starts).

The recording from timers or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the MENU button then press the

buttons to select SETTINGS and

press OK.

Conditional Access

Language

Parental

Timers

Recording Confuguration

Date/Time

Sources

Other Settings

Settings

Back

Name

Used: 9929 MB Reserved:1440 MB Free space: 942032 MB

Start Length Repeat

Sleep Timer

Timers Thu 13/03 15:24

RET/BACK

O

Change value

Add Timer

Exit

Save

Discard

Timer Type

Channel

Record Type

Date

Start

End

Duration

Repeat

Change/Delete

Playback

Timer More 4

Add timer Thu 13/03 15:24

Record

14 - More 4

Time

13/03/2014

15:21

16:21

60 min

Once

Allowed

Use parental settings

< >

RET/BACK

Settings

• When the preset time is reached, the

TV will start recording automatically.

• If a programme recording starts

when the TV is in standby mode, the

LED indicator will flash.

LT-24C360(B)_IB.indd 26 17/10/2016 14:53

Using the Features

Recording Configuration

The recording configuration menu allows you to adjust the recording setting. You can add time to the start and end of each

recording and set and maximum recording time for timeshifting.

You can also select how you want your TV to automatically delete your recordings so you won't run out of space on your USB

storage device.

1. Press the MENU button then press the

buttons to select SETTINGS and

press OK.

2. Press the

to highlight RECORDING CONFIGURATION then press OK. The

Recording configuration menu will be displayed.

3. Press the

to select each setting below.

Start early Press the buttons to select an amount of time

you would like the recording to start before the

programme starts (max 10 mins).

End late Press the

buttons to select an amount of

time you would like the recording to end after the

programme finishes (max 10 mins).

Max Timeshift Press the

buttons to select a maximum amount

of time you would like the timeshift recording to

record (from 10 mins to 2 hours).

Auto discard

- Discard

Press the

buttons to select the recording that

you want to automatically delete when the USB

storage device is full.

NONE - OLDEST - LONGEST - SHORTEST

Auto discard

- Unplayed

Press the

buttons to select to delete the played

or unplayed recordings.

Hard disk

information

Select to see the Hard disk information.

Format Disk Select to format the USB storage device, you will

need to enter your PIN number. Any previous

recordings will be deleted.

Settings

Conditional Access

Language

Parental

Timers

Recording Confuguration

Date/Time

Sources

Other Settings

Settings

Start early

End late

Max Timeshift

Auto discard

- Discard

- Unplayed

Hard disk information

Format Disk

Recording Conguration

0 min

30 min

Oldest

Excluded

Select

< >

Back

RET/BACK

Select Setting

Select Start Early Option

Exit

LT-24C360(B)_IB.indd 27 17/10/2016 14:53

Using the Features

Playing Recorded Programmes

All of your recording are stored in the Media Browser, in the

1. Press the MENU button, then press the

buttons to select MEDIA

BROWSER then press OK.

Recordings Library Controls

RED button

(Delete)

• Press the

buttons to select the recording that you wish to delete then press the RED button.

You will be asked if you want to delete the recording, select YES then press OK.

GREEN button

(Edit)

• To edit the recording permissions press the GREEN button. You can allow or disallow the

recording to be deleted or played back.

BLUE button

(Sort)

• Press the BLUE button to see the SORT BY menu. Press the

buttons to select your sorting

option then press OK.

NAME - NAME, REVERSED - START, OLDEST FIRST - START, NEWEST FIRST - LENGTH, SHORTEST FIRST -

LENGTH, LONGEST FIRST - UNVIEWED FIRST - VIEWED FIRST.

(Play Options)

• Press the

buttons to select the recording that you wish to play then press OK. The PLAY

OPTIONS menu will be displayed.

PLAY FROM START - This option will play the recording from the start.

RESUME - This option with play the recording from the point you last watched the recording.

PLAY FROM OFFSET - This option allows you to select a start point into the recording.

(Play) Press the (play) button to play the recording.

i Press the i button to see information about the recorded programme.

Media Browser

Navigate Exit

Select

Media Browser

Recordings Library

Recordings Library Fri 14/03 14:31

TopGear

Doctor Who

Eastenders

Who do you think you are

13/03/14 13:00

13/03/14 18:00

14/03/14 16:00

14/03/14 22:00

60m 03s

60m 04s

30m 05s

45m 03s

Play OptionsDelete

Used: 9929 MB

Name Start Length

Reserved:1440 MB Free space: 942032 MB

Edit Sort Resume Details

2. Press the buttons to select RECORDINGS LIBRARY then press OK.

3. The RECORDING LIBRARY menu will be displayed. Press the

buttons

to select the recording that the want to watch then press

(PLAY).

LT-24C360(B)_IB.indd 28 17/10/2016 14:53

Using the Features

Red Button + (Interactive services)

Red button + services are available on BBC TV and Radio channels. You will need to turn off Subtitle Function before using Red

button + services.

Accessing the Information

1. In DTV mode press the button to display teletext page.

2. Follow the instructions on digital teletext page and move around the page

by pressing

, OK, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.

To change digital teletext services, you will need to exit the current text service

and change channels. Then enter the text service on the newly selected channel.

Alternative

You may press the RED button to display the teletext information when you see a red "press " logo in the top right corner

of the screen (e.g. BBC services). This will now display the teletext menu and available information categories.

To access the pages, use navigation buttons to highlight item required and press the OK button to select.

Follow on screen prompts for other functions.

3. Press the

button to exit.

Listening to the Radio

You can listen to radio stations through your TV.

1. Press the

button to select the PROGRAMME GUIDE.

2. Press the BLUE button to select the filter.

3. Press the

buttons to select RADIO ONLY then press OK.

4. Press the

buttons to select your desired radio station then press OK to

listen to it.

Scott Mills

13.00 - 16.00

For programme info,

events & news, press RED

Now Playing: 22 by Taylor

Swift

RADIO

B B C

Programme Guide Fri 14/03 19:00

Fri 07/03 17:00 18:00 19:00

Jump

0.....9

Greg James Newsbeat

Charlie Sloth Newsbeat Charlie Sloth

Composer of the week

Options Search

Now Rec./Stop

Filter Select Genre Event DetailsPrev day Next day Zoom

Simon Mayo

In Tune

Horse Racing

Smelling of Roses

Asian Network Report

The Newsroom World business rep

Steve Lamacq

700. BBC Radio 1

701. BBC R1X

702. BBC Radio 2

703. BBC Radio 3

704. BBC Radio 4

705. BBC R5L

706. BBC R5SX

707. BBC 6 Music

708. BBC Radio 4 Ex

709. BBC Asian Net.

710. BBC World Sv.

Dance Anthems with Greg James

Six O’Clock News The News Quiz

Drive

Coming up on 5 Live sports extra

A call from the dead

Bobby Friction

World have your say

5. The radio stations are from channel position 700, you can also select them

using the P+/P- buttons or the NUMBER buttons.

LT-24C360(B)_IB.indd 29 17/10/2016 14:53

This feature is not available in all countries.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is

switched off and the viewing card is inserted in accordance with the

Service Provider’s instructions.

2. Insert the Common Access Module into the slot. Flip it to the other side

and try again if you feel resistance.

3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is

switched off at the mains.

2. Pull the Common Access Module from the slot.

3. Switch the TV on.

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay-per-view) services.

These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained

from the service provider.

CI CARD IN

Common Access

Module

Rear Left Side View of TV

CI (Common Interface)

Allows the Common Access Module to be

inserted and access the content that has

been encrypted.

3. The CONDITIONAL ACCESS menu will pop up.

4. Press the OK to view the MAIN MENU of the common interface card,

menu items my differ depending on the type of card.

5. Press the BACK button to exit the menu.

2. Press the

buttons to select CONDITIONAL ACCESS and then press

the OK button.

Settings

Conditional Access

Language

Parental

Timers

Recording Confuguration

Date/Time

Sources

Other Settings

Settings

Module information

Smart card information

Language

Software Download

Press OK to select, or Exit to quit

Main menu

CancelOK

To view the module information

1. Press the MENU button and then press the buttons to select the

SETTINGS and then press the OK button.

Conditional Assess

Top Up TV

SCART

SPDIF

COMMON INTERFACE

USB

5Vdc

Max. 500mA

VGA

ANT.

HDMI 1

HDMI 2

MODE - / I

- +

Do not repeatedly insert or remove the

Common Access Module as this may damage

the interface and cause a malfunction.

This screen is for illustration only.

6 Other Information

Chapter

LT-24C360(B)_IB.indd 30 17/10/2016 14:53

Other Information

Conditional Access

Language

Parental

Timers

Recording Confuguration

Date/Time

Sources

Other Settings

Settings

Time Settings

The time and date are set automatically. You can manually change the time zone if required.

1. Press the MENU button and then press the

buttons to select the

SETTINGS and then press the OK button. The SETTINGS menu will be

displayed.

2. Press the

buttons to select DATE/TIME and then press the OK

button.

3. Press the

buttons to select TIME SETTING MODE and then press the

buttons to select MANUAL.

4. Press the

buttons to select TIME ZONE then press the buttons to

select your desired time zone.

5. Press the MENU button to exit the menu.

Change value

Exit

Back

RET/BACK

Date

Time

Time Setting Mode

Time Zone

17/03/2014

10:02

Auto

GMT + 00:00

Date/Time Setting

< >

LT-24C360(B)_IB.indd 31 17/10/2016 14:53

Other Information

Other Settings

The Other Settings menu has more advanced setting that you can adjust, these are not everyday setting.

1. Press the MENU button and then press the

buttons to select the

SETTINGS and then press the OK button. The SETTINGS menu will be

displayed.

2. Press the

buttons to select OTHER SETTINGS and then press the OK

button.

Navigate

Change value

Back

Menu Timeout

Scan Encypted Channels

Blue Background

Software upgrade

Application Version

Hard of Hearing

Audio Description

Auto TV OFF

Store Mode

Power Up Mode

Other Settings

O

Yes

O

V.0.7.7d

V.0.1.2

O

4 Hours

Disabled

Standby

< >

Menu Timeout You can select a time that your TV menus will be displayed. If you select OFF the menu will

remain on the screen until you press a button to remove it.

OFF - 15 Sec - 30 Sec - 60 Sec.

Scan Encrypted Channels To can select your TV to scan encrypted channels or not. Select YES or NO.

Blue Background You can set your TV to show a blue screen is not signal is detected. Select ON or OFF.

Software upgrade Select SOFTWARE UPGRADE then press OK. The Upgrade Options menu will appear. Select OK

then press OK to start searching for new software. This may take a while.

If you want to cancel the search press BACK then select YES and press OK.

Application Version No function, this shows the latest application version code.

Hard of Hearing Hard of Hearing will enhance the dialogue to make it easier to hear. Select ON or OFF.

Audio Description Audio description describes the action when

people aren't speaking.

• Select AUDIO DESCRIPTION then press the

OK button.

• If any available languages are available

then press the

to select your desired

language.

• Press the to select your preferred

language.

• Press the

to set your desired volume of

the audio description.

Auto TV OFF Select a time that you would like your TV to switch off if no buttons are pressed for a certain

amount of time.

OFF - 1 HOUR - 2 HOURS - 3 HOURS - 4 HOURS - 5 HOURS - 6 HOURS

Store Mode

Press the

to enable or disable store mode. Store mode will brighten the display.

Power Up Mode

Press the

to select STANDBY or LAST STATE. If you choose LAST STATE, and switch your

TV off and back on again at the mains it will switch on at its last state. Its best to leave it as

STANDBY, otherwise your TV may switch on after a power cut.

Audio Description

Available Languages

Preered Language

Relative Volume

Audio Description

O

English

< >

LT-24C360(B)_IB.indd 32 17/10/2016 14:53

Other Information

Language Settings

Allows you to select your desired language settings for your TV.

1. Press the MENU button and then press the

buttons to select the

SETTINGS and then press the OK button. The SETTINGS menu will be

displayed.

2. Press the

buttons to select LANGUAGE and then press the OK

button.

Preferred

Audio

Subtitles

Teletext

Guide

Current

Audio

Subtitle

English

West

England

English

None

< >

Navigate

Set the language used in menus

Exit

Language Setting

Navigate

Change value

Back

SCART 1

SCART (S-VIDEO)

SIDE AV

HDMI1

HDMI2

YPbPr

VGA/PC

Source Settings

Enabled

< >

Back

RET/BACK

Edit name

Menu Press the buttons to select your desired menu language.

Preferred

Audio Press the

buttons to select your preferred audio language.

Subtitle Press the

buttons to select your preferred subtitle language.

Teletext Press the

buttons to select your preferred teletext language.

Guide Press the

buttons to select your preferred guide language.

Current

Audio Shows the current audio language, this may not be able to be changed.

Subtitle Shows the current subtitle language. Press the

buttons to select a different subtitle

language.

Sources

In the SOURCE SETTING menu you can decide to switch each input source on or off, by selecting ENABLED or DISABLED.

1. Press the MENU button and then press the

buttons to select the

SETTINGS and then press the OK button. The SETTINGS menu will be

displayed.

2. Press the

buttons to select SOURCES and then press the OK button.

3. Press the

buttons to select a source then press the buttons to

select ENABLED or DISABLED.

LT-24C360(B)_IB.indd 33 17/10/2016 14:53

Other Information

Resetting your TV

Restores all settings to the factory defaults and will delete all channels you currently have stored.

1. Press the MENU button and then press the

buttons to select the

INSTALL AND RETUNE and then press the OK button. The INSTALL AND

RETUNE menu will be displayed.

Install and Retune

Autoimatic channel scan (Retune)

Manual channel scan

Analogue ne tune

First time installation

Install and Retune

Do you want to delete all channels and

settings for rst time installation?

Your recordings will be preserved.

NoYes

2. Press the buttons to select FIRST TIME INSTALLATION and then press

the OK button.

3. Press the

buttons to select YES the press OK. The screen will

turn black and then in a few seconds you will see the FIRST TIME

INSTALLATION MENU.

All channel and user settings will be lost and the TV will revert to

"First Time Installation".

LT-24C360(B)_IB.indd 34 17/10/2016 14:53

Other Information

Parental Settings

To access the PARENTAL SETTINGS menu options, you must enter the password. Enter the default password “0000” for first time

use. To change the password, select SET PIN.

1. Press the MENU button and then press the

buttons to select the

SETTINGS and then press the OK button. The SETTINGS menu will be

displayed.

Settings

2. Press the buttons to select PARENTAL and then press the OK button.

Conditional Access

Language

Parental

Timers

Recording Confuguration

Date/Time

Sources

Other Settings

Settings

Enter PIN

3. Press the NUMBER buttons to enter your PIN number. The PARENTAL

SETTINGS menu will appear on screen.

Menu Lock You can lock all of the menus or just the installation menus.

Press the

buttons to select ALL MENUS - INSTALLATION MENUS - OFF.

If you choose to lock the menus you will have to enter your PIN number to enter the selected

menu.

Child Lock The child lock will prevent the buttons working on your TV, to stop children from accidentally

changing any of the settings.

Press the

buttons to set the child lock to ON or OFF.

Set PIN • Press the

buttons to select SET PIN.

• Press OK.

• Press the NUMBER buttons to enter and NEW PIN

• Press the NUMBER buttons to CONFIRM the new pin. The words 'PIN CHANGED' will briefly

appear on the screen.

Don't forget to make a note of your new PIN number.

The default password is “0000”.

If you change the password, be sure to remember the new password!

LT-24C360(B)_IB.indd 35 17/10/2016 14:53

Connecting a USB Storage Device

Rear Left Side View of TV

USB Cable

(not included)

Adapter

Portable

hard Disk

USB Hub

USB

SCART

SPDIF

COMMON INTERFACE

USB

5Vdc

Max. 500mA

VGA

ANT.

HDMI 1

HDMI 2

MODE - / I

- +

1. Switch off the TV before connecting any USB

storage device.

2. Connect your USB storage device to the USB port

of your TV. If your USB device is powered by the

main, plug the connected devices into the mains

socket and switch on.

3. Press the

button on the remote control to turn

on your TV.

4. Press the

button on the remote control to

enter MEDIA BROWSER mode.

You must use a USB storage device with a minimum of 2GB of storage space.

• Some versions of portable hard disk may require more power than the TV USB socket can provide. To ensure correct

operation please use the power adapter for that device.

• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may

exceed 500mA.

• The file system only supports FAT32 format.

• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less

than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown

on the screen. If this happens, please upgrade your USB storage device.

• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal

and the starting time may vary depending on the brand and the memory size of the connected hard disk.

• Disconnect the USB storage device if it is not in use.

7 Entertainment

Chapter

LT-24C360(B)_IB.indd 36 17/10/2016 14:53

Entertainment

2. Press the buttons to select VIDEOS and then press the OK button.

• NUMBER Buttons - Jump to a video in the list.

• OK Button - Plays the selected video.

• PLAY button - Plays the selected video.

• GREEN button - Repeats or shuffles your videos.

• YELLOW button - Changes the menu style.

• LANG button - Plays a preview of the selected video.

• BLUE button - Changes to another media.

Viewing Videos

1. Press the button on the remote control. The MEDIA BROWSER will be

displayed.

Videos

0001. Shark Tale.avi

0002. Star Wars.mkv

0003. Matrix Reloaded.vob

Q.Menu

Q.MENU

Play Preview

LANG

Navigate

Jump

0....9

Sort by Name

Loop/Shue Toggle View St yle Change Media

Play

Play This

Shark Tale.avi

No File Name

Navigate Exit

Select

Media Browser

Videos

3. Press the buttons to select the video you wish to play, then press

the OK button. The video will start to play.

•

buttons - Plays the next or previous video

•

button - Stops the video.

• LANG button - Shows the Subtitle/Audio menu

•

button - Pauses the video, press again to resume playback.

• BACK button - Returns back to the video menu.

•

buttons - Rewind and fast forward the video 2x - 4x - 8x.

• GREEN button - Press to jump to a selected time in your video.

• YELLOW button - Press to see the SUBTITLE TIME CORRECTION menu, where you can adjust the time delay of the subtitles to

match the action in the video.

Finding Nemo.vob

Select

Play

x1 00:00:02 00:16:56

Stop

Subtitle/Audio

LANG

Pause

Back

RET/BACK

Jump

Rewind

Subtitle Time Correction

Forward

• Supported file formats: MPEG1 & 2, VOB, and MKV.

LT-24C360(B)_IB.indd 37 17/10/2016 14:53

Entertainment

Viewing Photos

1. Press the button on the remote control. The MEDIA BROWSER will be

displayed.

2. Press the

buttons to select PHOTOS and then press the OK button.

• NUMBER Buttons - Jump to a photo in the list.

• OK Button - Press to view the selected photo on the full screen.

• PLAY button - Plays a slide show of all the photos in the list.

• GREEN button - Shows thumbnail images of the photos in the list.

• RED button - Sorts the photos by date.

• YELLOW button - Changes the menu style.

• BLUE button - Changes to another media.

Photos

No File Name Date

0001 Holiday 1 09/03/14

0002 Holiday 2 09/03/14

0003 Holiday 3 09/03/14

0004 Holiday 4 09/03/14

0005 Holiday 5 09/03/14

0006 Holiday 6 09/03/14

0007 Holiday 7 09/03/14

0008 Holiday 8 09/03/14

Navigate

Thumbnails

Jump

0....9

Sort by Date

Q.Menu

Q.MENU

Change Media

Slideshow

Toggle View Style

View in full screen

Holiday 1

155x948

1/300

27KB

Navigate Exit

Select

Media Browser

Photos

3. Press the buttons to select the photo you wish to view, then press

the OK button. The photo will now be displayed on the full screen.

• PLAY button - Plays a slide show of all the photos in the list.

•

button - Pauses the slide show.

• BACK button - Returns back to the photo menu.

• RED button - Zooms into the photo 150% - 200% - 300% - 400% - 50%.

When zoomed in press the

buttons to move around the photo.

•

button - Press to rotate the photo.

•

button - Press to see the next or previous photo in the list.

• i button - Press to see the information bar.


Start Slideshow

Helpi

1/4

Back to le list

RET/BACK

Jump

Rotate Previous/Next

• Supported file formats: JPEG and BMP.

LT-24C360(B)_IB.indd 38 17/10/2016 14:53

Entertainment

Music

0001. Mumford and Sons – Little Lion Man.mp3

0002. Stereophonics – Dakota.mp3

0003. Achilles Heel – Toploader.mp3

0004. Good Girl Down – Morcheeba.mp3

005. Stanley Road – Paul Weller.mp3

006. Little by Little – Groove Armada.mp3

usb1

Navigate

Loop/Shue

Jump

0....9

Play

Q.Menu

Q.MENU

Play This

Mumford and Sons – Little Lion Man.mp3

04.18

Sort

Stop

Toggle View Style

Pause

Change Media

Previous/Next

Navigate Exit

Select

Media Browser

Music

Navigate Exit

Select

Media Browser

Settings

Navigate

Flat view style displays all les in removable device. Folder view style displays les in selected folder.

Select

Back

RET/BACK

Exit

View Style

Slideshow Interval

Show Subtitle

Subtitle Language

Subtitle Position

Subtitle Font Size

Settings

Folder

5 sec.

English

Down

44 pt.

< >

Listening to Music

1. Press the button on the remote control. The MEDIA BROWSER will be

displayed.

2. Press the

buttons to select Music and then press the OK button.

• NUMBER Buttons - Jump to a track in the list.

• OK Button - Press to play the selected track.

• PLAY button - Press to play the selected track.

• GREEN button - Press to repeat or shuffle the tracks.

• RED button - Sorts the tracks by Title - Artist - Album.

• YELLOW button - Changes the menu style.

• BLUE button - Changes to another media.

•

button - Pauses the track, press again to resume playback.

•

button - Stops the track.

Media Browser Settings

1. Press the button on the remote control. The MEDIA BROWSER will be

displayed.

2. Press the

buttons to select Settings and then press the OK button.

In the SETTINGS menu you can adjust the settings for your slideshows and

subtile settings for when you are watching a video.

• Supported file formats: MP3 and WMA /ASF.

LT-24C360(B)_IB.indd 39 17/10/2016 14:53

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.

2. If the surfaces are extremely dirty, clean the TV with a damp cloth.

3. Ensure there is no excess water on the screen. Allow any water or dampness to

evaporate before switching the TV on.

Maintenance

Careful and regular cleaning can prolong the life of your TV.

Be sure to press the button on the remote control and disconnect the

mains cable from the mains socket before any cleaning.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals.

Do not use compressed air to remove dust.

8 Technical Information and Help

Chapter

LT-24C360(B)_IB.indd 40 17/10/2016 14:53

Technical Information and Help

Hints and Tips

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance

please call our UK Call Centre on 0344 561 1234. Our UK Customer Contact Centre is open 24/7.

The TV does not operate properly.

The TV does not respond when

pressing any buttons

• The TV may freeze up during use. Switch the TV off at the mains for a few minutes.

Switch on again and try to operate it again as usual.

TV cannot be switched on

• Check that the TV is connected to the mains supply and switched on.

• Make sure all connected AV devices are switched off before switching on your TV.

The remote control does not work

• Check to see if there are any objects between the TV and the remote control

causing an obstruction. Ensure that you are pointing the remote control directly at

the TV.

• Ensure that the batteries are installed with the correct polarity (+ to +, - to -).

• Install new batteries.

Power is suddenly turned off

• Check the TV has power to it. The mains supply maybe interrupted.

• Check if the sleep timer is set.

• Check whether the Auto Standby is activated.

The video function does not work.

No Picture & No Sound

• Check whether the TV is switched on.

• Try another channel. The problem may be caused by the broadcaster.

Picture appears slowly after

switching on

• This is normal, the image is muted during the TV startup process. Please contact

your service centre, if the picture has not appeared after five minutes.

No or poor colour or poor picture

• Adjust the settings in the PICTURE menu.

• Try another channel. The problem may be caused by the broadcaster.

• Check if the video cables are connected properly.

Horizontal / Vertical bar or picture

shaking

• Check for local interference such as an electrical appliance or power tool.

Poor reception on some channels

• Station or cable channel may be experiencing problems, tune to another station.

• Station signal is weak, reposition the aerial for better reception.

• Check for sources of possible interference.

Lines or streaks in pictures • Check aerial (Change the position of the aerial.)

No pictures when connecting HDMI • Check if the input source is HDMI or HDMI2.

Picture appears in wrong ratio

• Adjust the Aspect Ratio. Press the

(ASPECT) button on the remote control.

The audio function does not work.

Picture OK but no sound

• Press the VOL + / – buttons.

• Sound muted? Press the

button.

• Try another channel. The problem may be caused by the broadcaster.

No output from one of the speakers • Adjust the Balance settings in the SOUND menu.

Unusual sound from inside the TV

• A change in ambient humidity or temperature may result in an unusual noise when

the TV is switched on or off and does not indicate a fault with the TV.

No sound when connecting HDMI • Check if the input source is HDMI1 or HDMI2.

Audio noise • Keep the RF coaxial cable away from other connected cables.

Password

Lost password

• Select the Set Password setting in the LOCK menu, then enter the following master

password “4725”. The master password clears your previous password and allows

you to enter a new password.

LT-24C360(B)_IB.indd 41 17/10/2016 14:53

Technical Information and Help

There is a problem in PC mode.

The signal is out of range (Invalid

format)

• Adjust the resolution, horizontal frequency, or vertical frequency.

Vertical bar or stripe on background

& horizontal noise & incorrect

position

• Use Auto configure or adjust clock, phase, or H/V position.

Screen colour is unstable or shows a

single colour

• Check the signal cable.

• Reinstall the PC video card.

FAQs (Frequently Asked Questions)

Why have I lost some / all of my

channels?

• It happens sometimes if you have a weak signal. Usually it just means you’ll need to

re-tune your TV. Don’t worry, it is easy to do. And once you’ve done it, you should

get all the Freeview channels available to you. If problems persist you may need to

get your aerial checked. Talk to your retailer or contact your local aerial installer.

Why do I get ‘blocking’ on my digital

picture?

• In most cases, blocking is caused by a reception problem – either the signal is too

weak or there is some kind of interference. Talk to your retailer or contact your local

aerial installer.

• Blocking can also be caused by a digital signal that is too strong. If you are still

experiencing blocking and the signal is strong, consult your local aerial installer

for advice.

Can I watch Freeview using a

portable set-top aerial?

• Some, but only a few, homes may be able to use a set top aerial. However, for a

much better reception, we strongly recommend that you use a rooftop aerial.

• If you do not have access to a rooftop aerial – for example, if you rent a flat and

the aerial is the responsibility of your landlord, or if you’re using a second TV in

the bedroom and don’t want the hassle and expense of using extension cables,

a set top aerial may be your only option.

What type of aerial do I need?

• If you are installing a new aerial, we recommend a wideband rooftop aerial rather

than a loft aerial. Loft aerials generally receive a weaker digital signal and are more

likely to get interference from other electrical devices at home. We suggest you

have an aerial survey done before getting an aerial upgrade.

• Talk to your retailer or contact your local aerial installer.

Remote Control Codes

Sky Codes

The code for controlling your TV using a Sky Remote Control is 0065. For instruction on how to use the code see your Sky

instruction manual.

Virgin Media Codes (TiVo box)

The codes for controlling your TV using a Virgin Media Remote Control are 0044, 0049, 0101, 0107, 0125, 0152, 0166, 0379,

0654. For instruction on how to use the code see your Virgin Media instruction manual.

BT Vision

The codes for controlling your TV using a BT Vision Remote Control are 0000, 0019, 0725, 0669, 0016, 0152, 0184, 0197, 0198,

0225, 0244, 0324, 0325, 0339, 0319. For instruction on how to use the code see your BT Vision instruction manual.

LT-24C360(B)_IB.indd 42 17/10/2016 14:53

Technical Information and Help

Product Fiche and Specifications

Brand JVC

Model LT-24C360(B)

Energy Efficiency Class A+

Screen Size (measured diagonally) 24" - 61cm

Power Consumption (In HOME mode) 19W

Average Annual Energy Consumption ** 27 kWh / annum

Standby Power Consumption 0.5W

Display Resolution 1366 pixels (horizontal) x 768 pixels (vertical)

Panel System 24 inch LED Panel

Television System

PAL I / BG / DK

DVBT (VIDEO: MPEG-2 MP@ML,

SOUND: MPEG-1 LAYER 1/2, MPEG-2 LAYER 2)

Brightness 220 cd/m

Contrast Ratio 3000 : 1

Power Source 220-240V ~50Hz

Operating Temperature 0°C – 40°C

Operating Humidity 80% (max)

Mercury Content (mg) X

Presence of Lead √*

Reference Period 2010/1062 - 2017

Speaker Power 2 x 2.5W

Dimension( W x H x D) with base 554(W) x 370(H) x 134(D)

Weight (Net) 3.8kg

Inputs / Output

SCART (S-VIDEO) 1

HDMI 2

PC-RGB (VGA) 1

SIDE AV (L & R) 1

YPbPr via VGA 1

Common Interface 1

USB 1

ANT. (Aerial socket) 1

SPDIF (Coaxial) 1

Headphone 1

Features and specifications are subject to change without prior notice.

*This television contains lead in certain parts or components where no technology alternatives exist in accordance with existing

exemption clauses under the RoHS Directive.

**Energy consumption 27 kWh per year, based on the power consumption of the television operating 4 hours per day for 365

days. The actual energy consumption will depend on how the television is used.

LT-24C360(B)_IB.indd 43 17/10/2016 14:53

Technical Information and Help

License Information used with JVC Televisions

The software pre-installed in the JVC Digital Televisions consists of multiple, independent software components. Each software

component is copyrighted by JVC or a third party. The JVC Digital Televisions uses software components that are distributed as

freeware under a third-party end-user license agreement or copyright notice (hereinafter referred to as a "EULA"). Some EULAs

require that the source code of the applicable component be disclosed as the condition for distributing the software component

in executable format. The JVC warranty provided in respect of the Digital TV is the only warranty provided and no additional

warranties are provided in respect of the software components subject to EULAs. Some of the software components distributed

under EULAs are made available for use by the user on the premise that they are not copyrighted or warranted by JVC or any

third party. These software components are licensed to the user free of charge and therefore not covered by any warranty within

the scope of the applicable laws. These software components are provided in "as is" condition without any warranty, whether

express or implied. "Warranty" here includes, but not limited to, an implied warranty for marketability or fitness for specific uses.

All risks associated with the quality or performance of these software components are assumed by the user. JVC shall not be

liable whatsoever for any cost of repair or correction or other incidental expense incurred in connection with a defect found in

any of these software components. Unless specified under the applicable laws or in a written agreement, a party who changes

or redistributes the software with consent from the copyright holders or based on the aforementioned licenses shall not be held

liable whatsoever for any loss arising from the use of or inability to use such software components. The same applies even when

the copyright holders or relevant third parties have been informed of the possibility of such loss. "Loss" here includes normal,

special, incidental and indirect loss (including, but not limited to, the loss of data or its accurary; loss incurred by the user or any

third party; and interface incompability with other software).

Please read each EULA for details on the use conditions and items that must be observed regarding these software components.

For details of software components covered by "GPL", please visit the following website:

http://www.currys.co.uk/compliance

LT-24C360(B)_IB.indd 44 17/10/2016 14:53

The product is distributed and warranted exclusive by DSG Retail Ltd.

“JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over

1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.

For general information about this appliance and handy hints

and tips, please visit www.knowhow.com/knowledgebank

or call (UK) 0344 5611234.

The symbol on the product or its packaging indicates that this product must not be disposed of with your

other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over

to a designated collection point for the recycling of waste electrical and electronic equipment. The separate

collection and recycling of your waste equipment at the time of disposal will help conserve natural resources

and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority,

or where you purchased your product.

MPEG-2 NOTICE

Any use of this product in any matter other than personal

use that complies with the MPEG-2 standard for encoding

video information for packaged media is expressly prohibited

without a license under applicable patents in the MPEG-2

Patent Portfolio, which license is available from MPEG LA, LLC,

6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village,

Colorado, 80111 U.S.A.

Rovi Proprietary Rights

This item incorporates copy protection technology that is

protected by U.S. patents and other intellectual property

rights of Rovi Corporation. Reverse engineering and

disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in

this product must be authorised by Rovi Corporation and is

intended for home and other limited viewing uses only unless

otherwise authorised by Rovi Corporation. The names “Rovi

Corporation” and “Macrovision” are protected by trademarks.

Dolby Digital

Manufactured under license from Dolby Laboratories. Dolby,

Dolby Audio and the double-D symbol are trademarks of

Dolby Laboratories.

Freeview

The Freeview service and channels are subject to coverage

and may be changed from time to time. Aerial upgrade and/

or receiver may be required. Visit freeview.co.uk/availability.

The FREEVIEW words and logos are trade marks of DTV

Notes for battery disposal

The batteries used with this product contain chemicals that

are harmful to the environment. To preserve our environment,

dispose of used batteries according to your local laws

or regulations. Do not dispose of batteries with normal

household waste.

For more information, please contact the local authority or

your retailer where you purchased the product.

The terms HDMI and HDMI High-Definition Multimedia

Interface, and the HDMI logo are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and

other countries.

For DTS patents, see http://patents.dts.com. Manufactured

under license from DTS Licensing Limited. DTS, the Symbol, &

DTS and the Symbol together are registered trademarks, and

All trademarks are the property of their respective owners and

all rights are acknowledged.

LT-24C360(B)_IB.indd 45 17/10/2016 14:53

LT-24C360(B)_IB.indd 46 17/10/2016 14:53

LT-24C360(B)_IB.indd 47 17/10/2016 14:53

(IB-LT-24C360(B)-161017V1)

The product is distributed and warranted exclusive by DSG Retail Ltd.

“JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license.

Dear Customer,

This apparatus is in conformance with the valid European directives compatibility and electrical

safety.

European representative of the manufacturer is:

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

For Help and Support Call

UK: 0344 561 1234

LT-24C360(B)_IB.indd 48 17/10/2016 14:53

JVC LT-24C360 24” HD-Ready LED TV

Product's Documents

User Manual

Specifications

JVC LT-24C360 Questions and Answers
