Technical data
Frequency response
110 Hz - 15,000 Hz
Impedance
4 Ω
Ambient temperature range
-40 °C to +105 °C
Air humidity
Max. 93 %
Total weight
118 g
Scope of delivery
1 x CiX E50-S4
1 x Connection cable
1 x Mounting material
1 x Adhesive pad
Are you happy with your purchase?
If so, why not spread the joy?
Leave a positive review!
Not completely satised?
We‘re here to help!
Contact our Support Team:
Web: www.audiotec-scher.com
Mail: contact@audiotec-scher.com
Your feedback is invaluable in making things
right! Thank you for choosing a HELIX product.
Your opinion matters!
Your feedback helps us grow!
@audiotecfischer
Follow usReview us
on
Ø52.1 mm
Ø2.05“
38.2 mm
1.50“
38.2 mm
1.50“
Ø3.2 mm
Ø0.13“
18.5 mm
0.73“
66.8 mm
2.63“
Smooth, dust and
grease-free surface

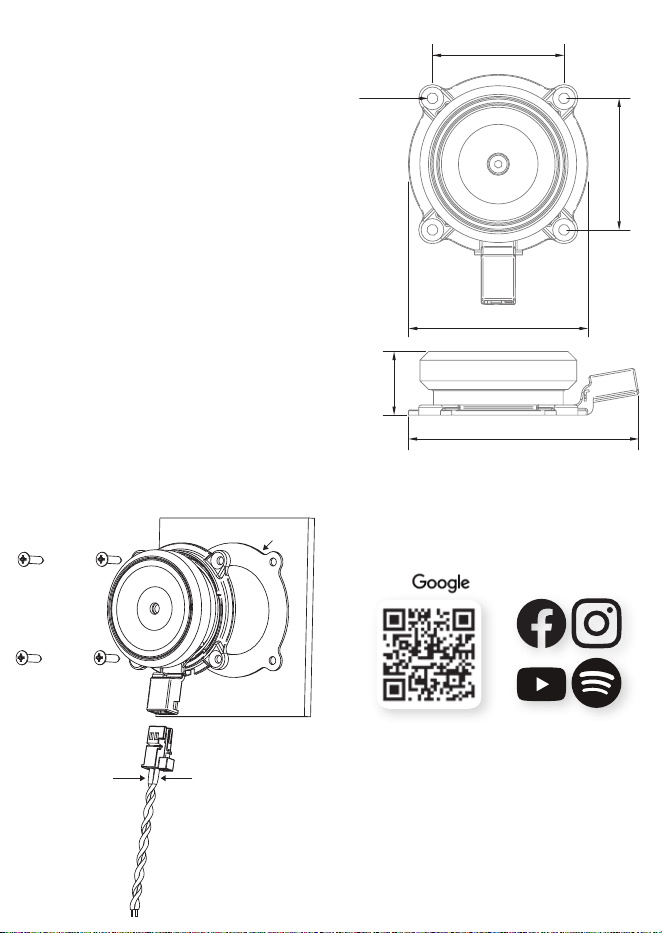

Mounting and wiring
Dimensions
Positive
(+ / red)
Negative
(- / black)
Optional:
adhesive pad
CiX E50-S4
USER MANUAL
ENGINEERED IN GERMANY
Go to
www.audiotec-fischer.com/compose
to explore the whole
HELIX COMPOSE platform
Create your composition
AUDIOTEC FISCHER GmbH
Hünegräben 26 - 28
57392 Schmallenberg
Germany
Warranty disclaimer
The warranty service is based on the statutory regulations. Defects
and damage caused by overload or improper handling are excluded
from the warranty service. Any return can only take place following
prior consultation, in the original packaging together with a detailed
description of the error and a valid proof of purchase. Technical
modications, misprints and errors excepted! For damages on the
vehicle and the device, caused by handling errors of the device, we
can’t assume liability.
This symbol means the product must not be discarded
as household waste, and should be delivered to an
appropriate collection facility for recycling. Follow local
rules and never dispose of the product with normal
household waste. Correct disposal of old products helps
prevent negative consequences for the environment
and human health.
This product has been issued an UKCA marking. This
means that the device is certied for use in vehicles
within the United Kingdom.
This product has been issued a CE marking. This
means that the device is certied for use in vehicles
within the European Union (EU).
This product has been issued an EAC marking. This
means that the device is certied for use in vehicles
within the Eurasian Customs Union.
General instructions for installing HELIX loudspeakers
To prevent damage to the speakers and possible injury, read this
manual carefully and follow all installation instructions.
This product has been checked for proper function prior to shipping
and is guaranteed against manufacturing defects.
For a proper performance and to ensure full warranty coverage, we
strongly recommend to get this product installed by an authorized
HELIX dealer.
If you choose to perform your own installation read the following
information and precautions carefully.
Failure to follow the stated precautions may result in personal injury
and / or damage to the audio system or vehicle.
• Always make sure that the speaker will t into the intended mount-
ing location and that there is adequate depth for the magnet sys-
tem.
• Take care that the mounting surface is smooth, dry, clean and
grease-free.
• Ensure that the loudspeaker is correctly connected in polarity. The
positive lead of the loudspeaker is marked red.
• Make sure that all speaker wiring is fully protected from cutting or
wear at sharp edges, which can lead to short circuits that may dam-
age your head unit, amplier and / or speaker system.
• Make sure that all components are mounted properly.
• Do not mount the speaker where water may splash on them.
• The quality of the installation has a signicant eect on the overall
performance of the speaker.
