Operating and Installation
Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 11 743 200
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Caring for the environment .............................................................................. 13

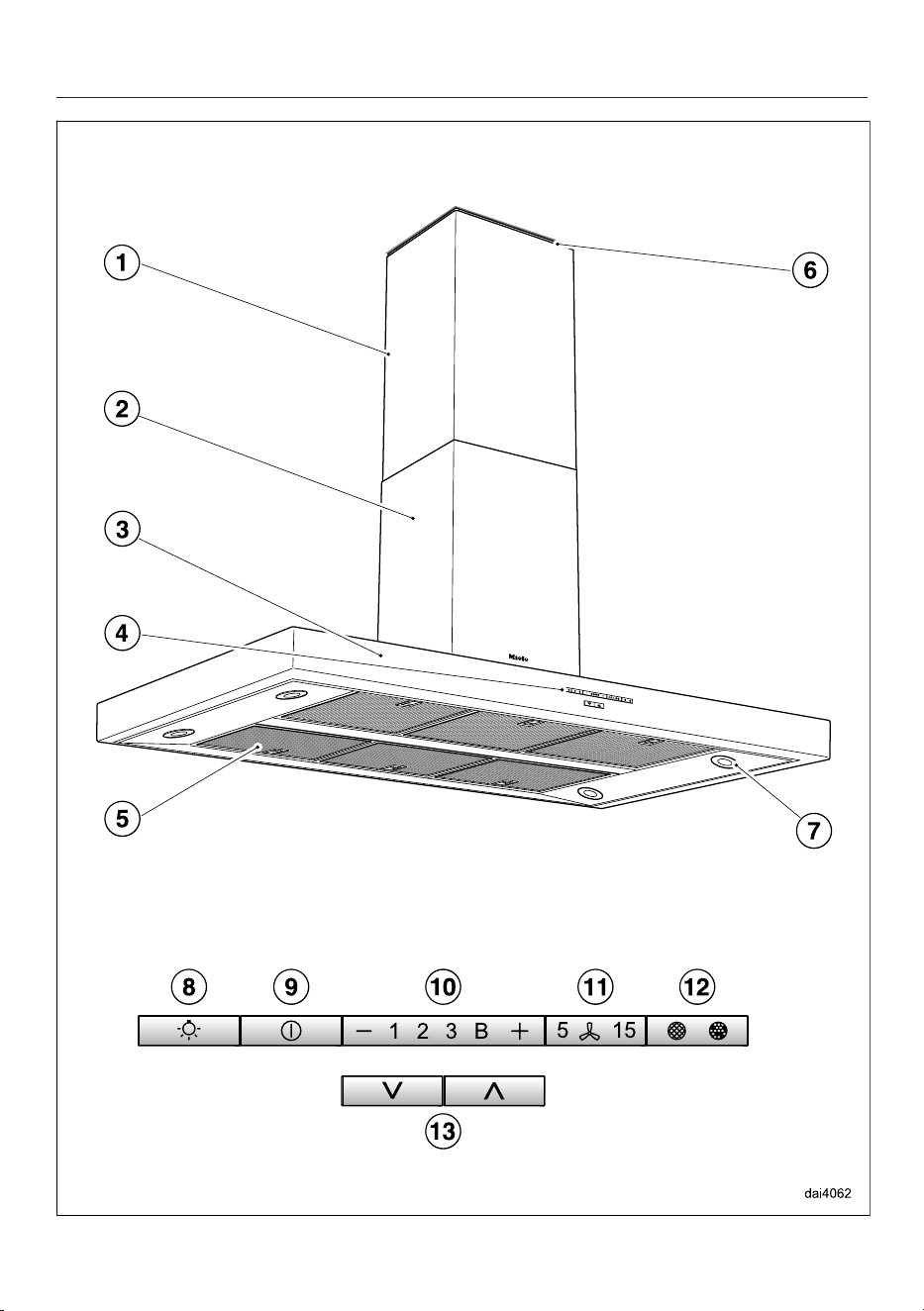

Guide to the ventilation hood ........................................................................... 14
Description of functions ................................................................................... 16
Before using for the first time .......................................................................... 17
Selecting extraction mode................................................................................... 17
Setting up Miele@home ...................................................................................... 17

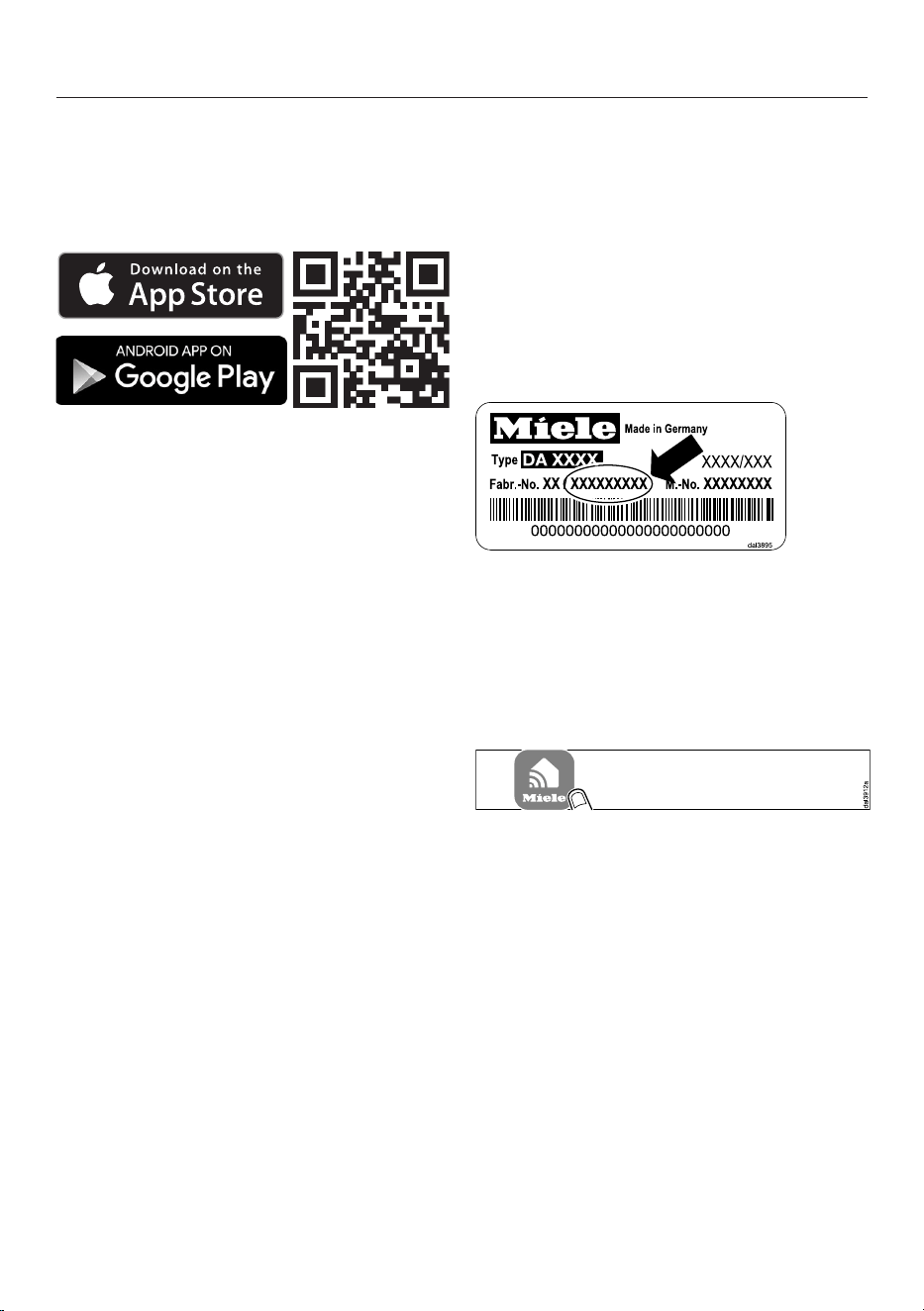

Connecting via the app .................................................................................. 18

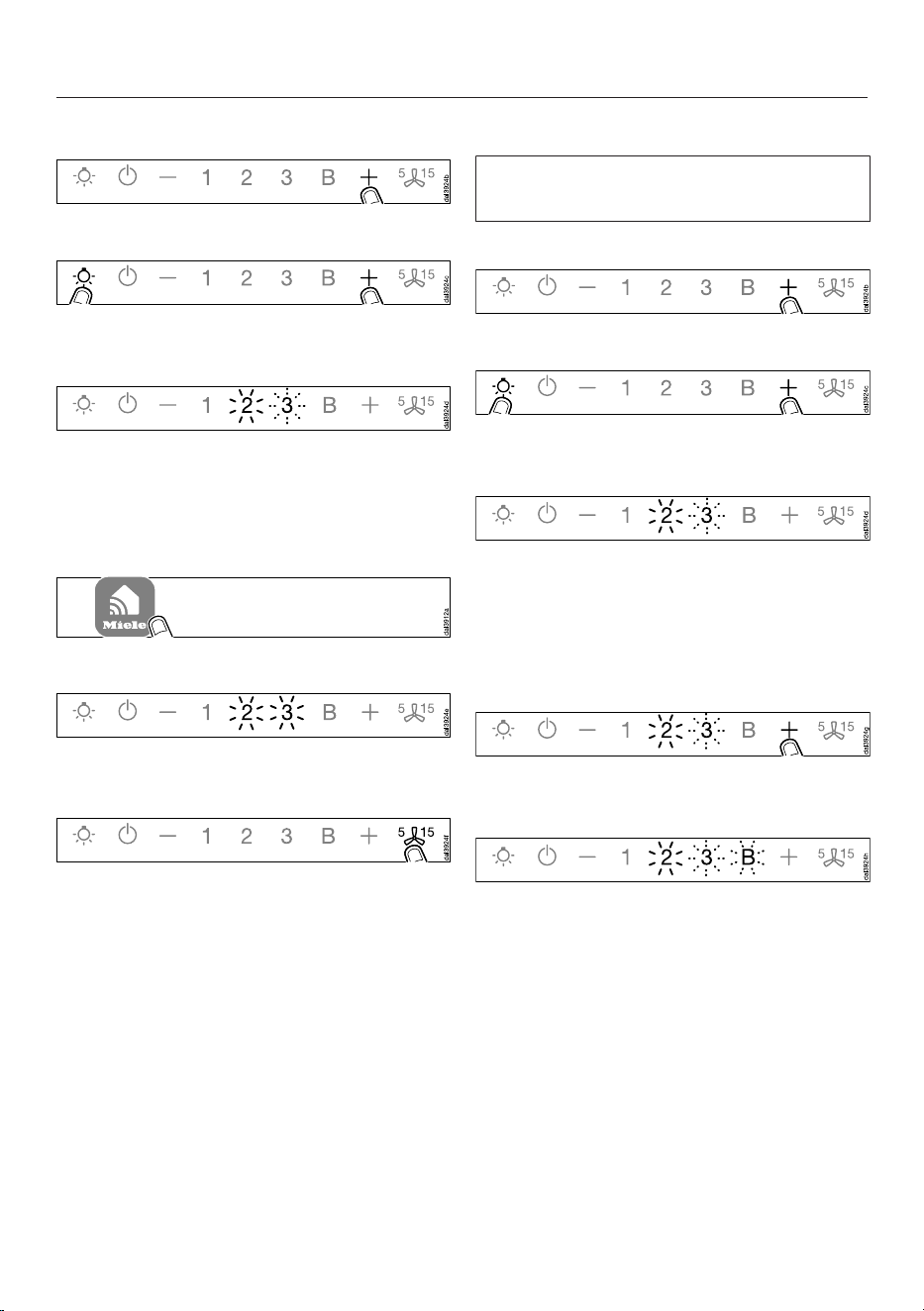

Connecting via WPS ...................................................................................... 19
Signing out of WiFi (reset to factory settings) ................................................ 20
Setting up Con@ctivity ........................................................................................ 21
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 22
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) ........................... 22
Reattempting the connection......................................................................... 23

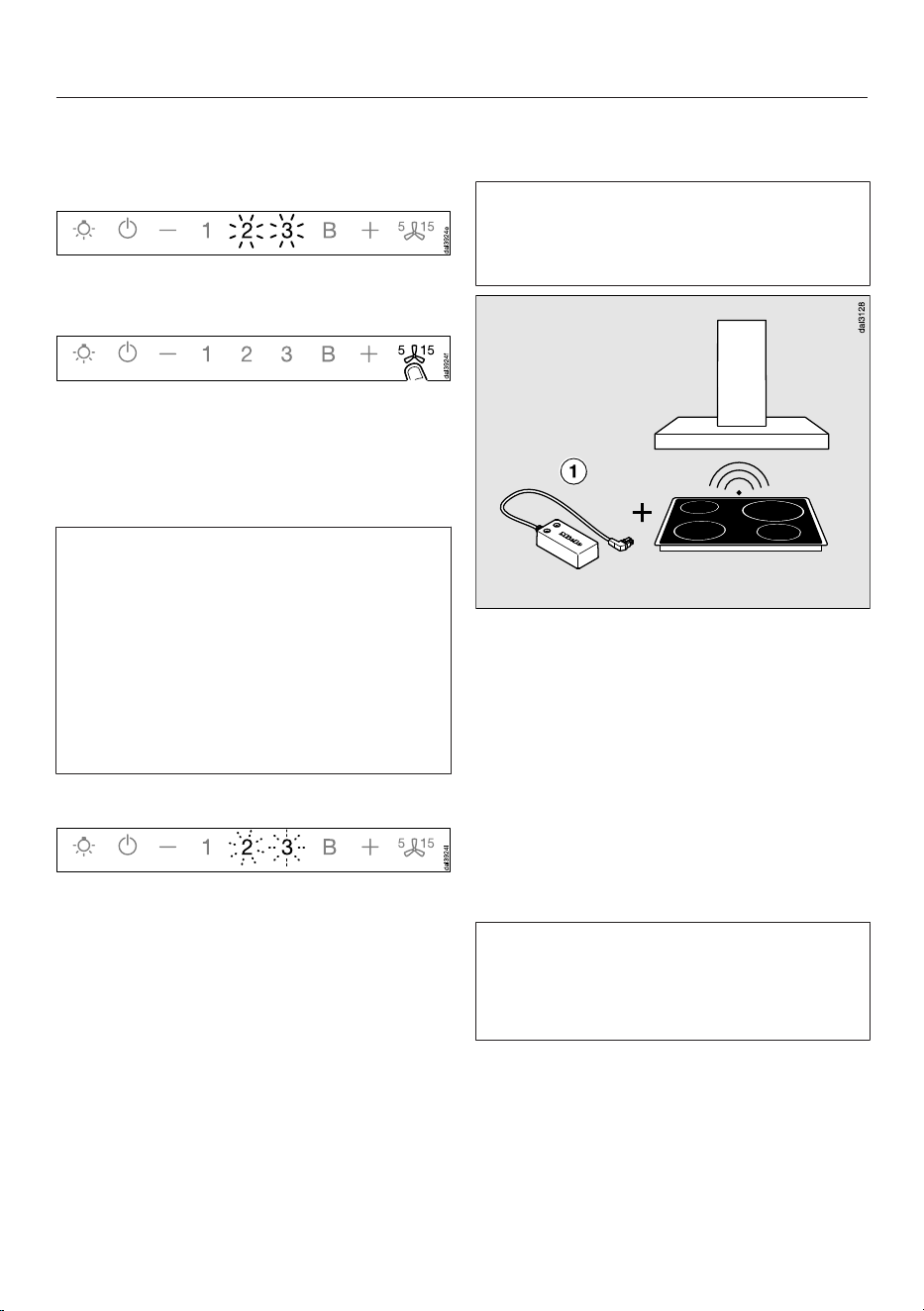

Con@ctivity with direct wireless connection (Con@ctivity 2.0) ...................... 23
Operation (Automatic mode) ............................................................................ 27
Cooking with Con@ctivity (Automatic mode) ...................................................... 27
Cooking process ................................................................................................. 28
Temporarily exiting Automatic mode................................................................... 29
Resuming Automatic mode............................................................................ 29
Operation (Manual mode) ................................................................................. 30
Cooking without Con@ctivity (Manual mode) ..................................................... 30
Turning on the blower.......................................................................................... 30
Selecting the power level .................................................................................... 30
Selecting the delayed shutdown time ................................................................. 30
Turning off the blower.......................................................................................... 30
Dimming/switching the overhead lighting on/off................................................. 31
Power management ............................................................................................ 31
Safety shut-off..................................................................................................... 32
Operation (Automatic and Manual modes) ..................................................... 33

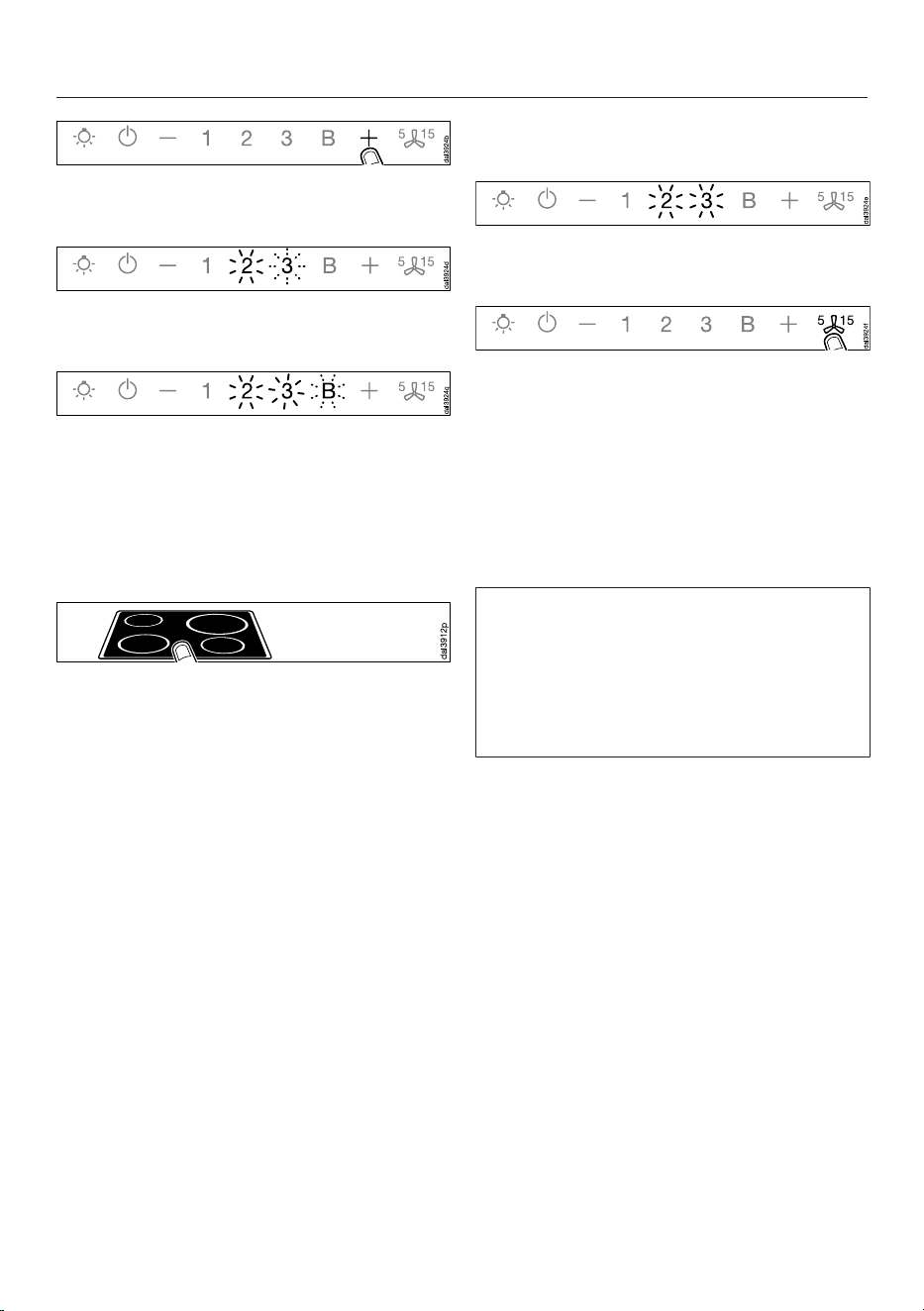

Filter saturation indicator..................................................................................... 33

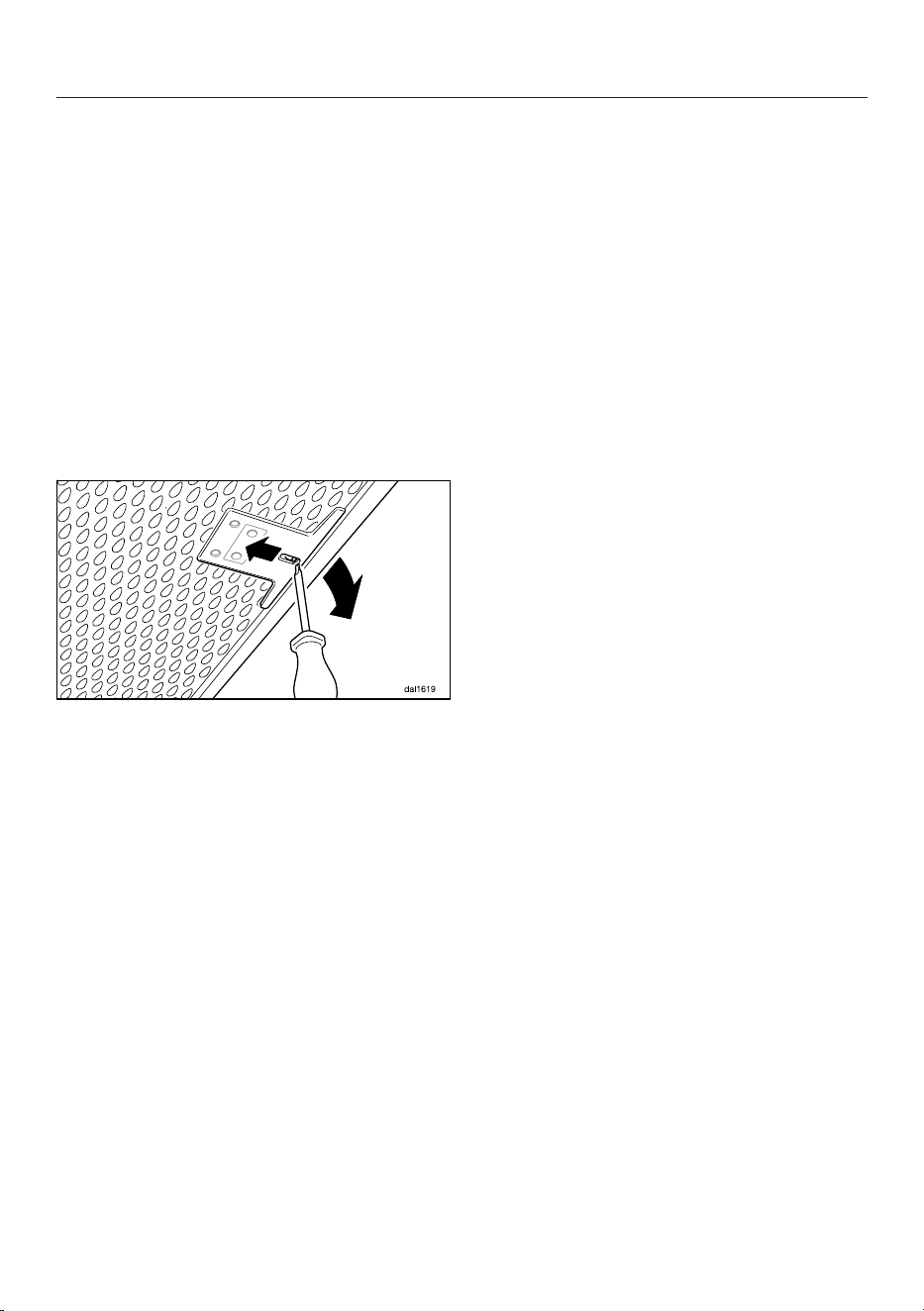

Adjusting the grease filter filter saturation indicator ....................................... 33
Adjusting or deactivating the filter saturation indicator for the charcoal filter 34
Checking the filter saturation indicator........................................................... 34
Adjusting the height of the canopy ..................................................................... 35
Energy-saving tips............................................................................................. 36
Contents
3
Cleaning and care ............................................................................................. 37
Stainless steel housing........................................................................................ 37
Important information for appliances with lacquered casing......................... 37

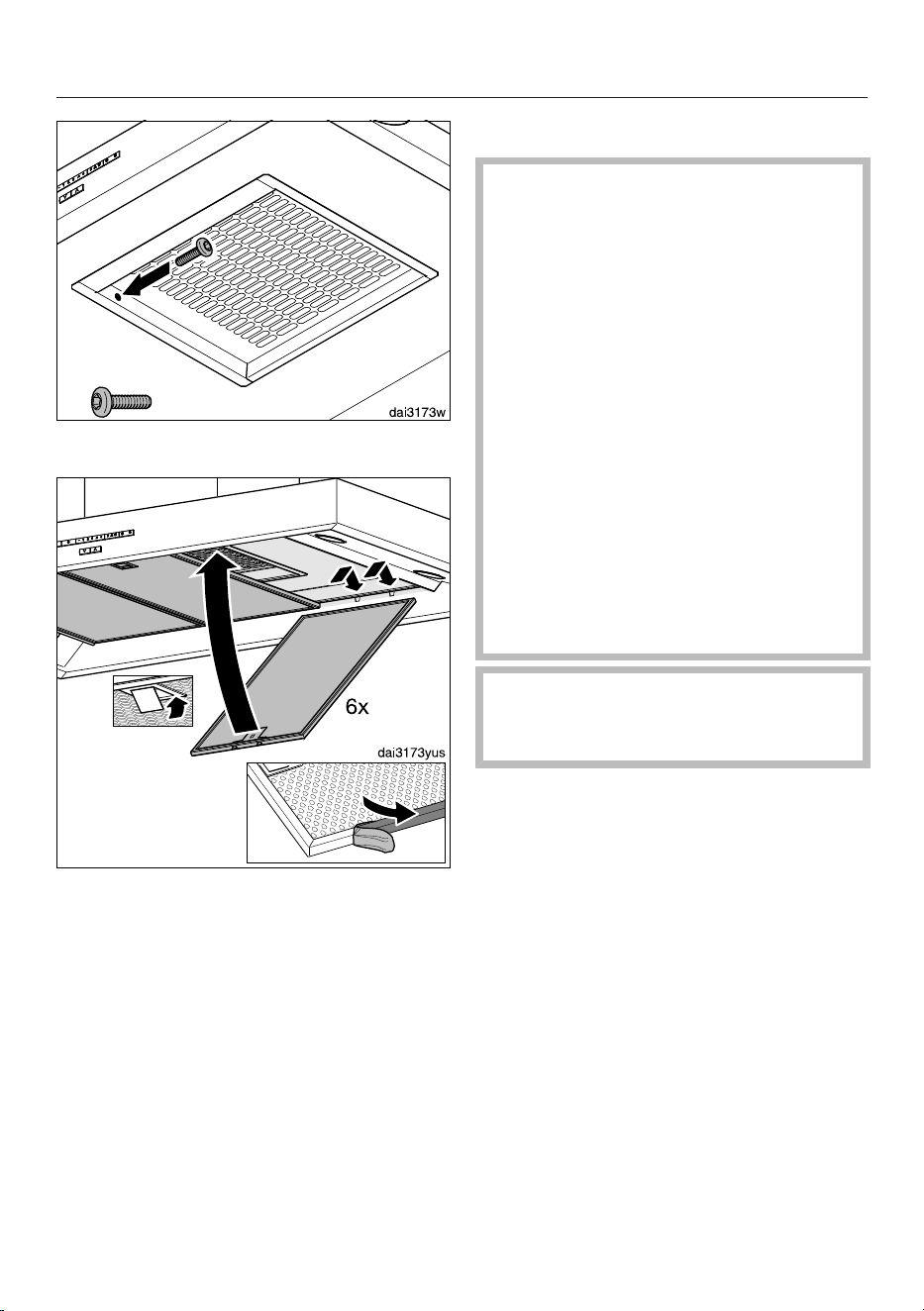

Grease filters ....................................................................................................... 38

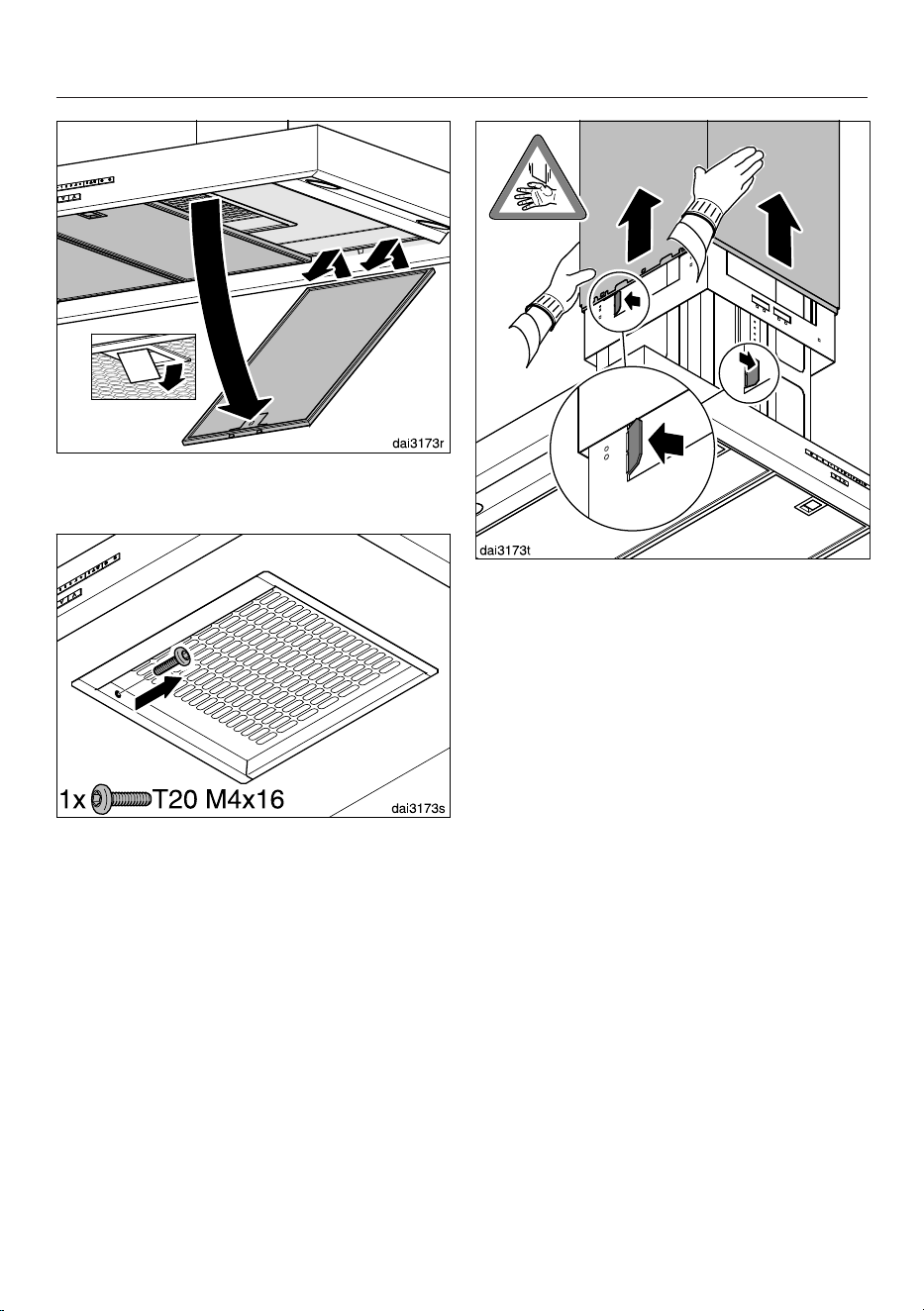

Replacing the grease filter.............................................................................. 40

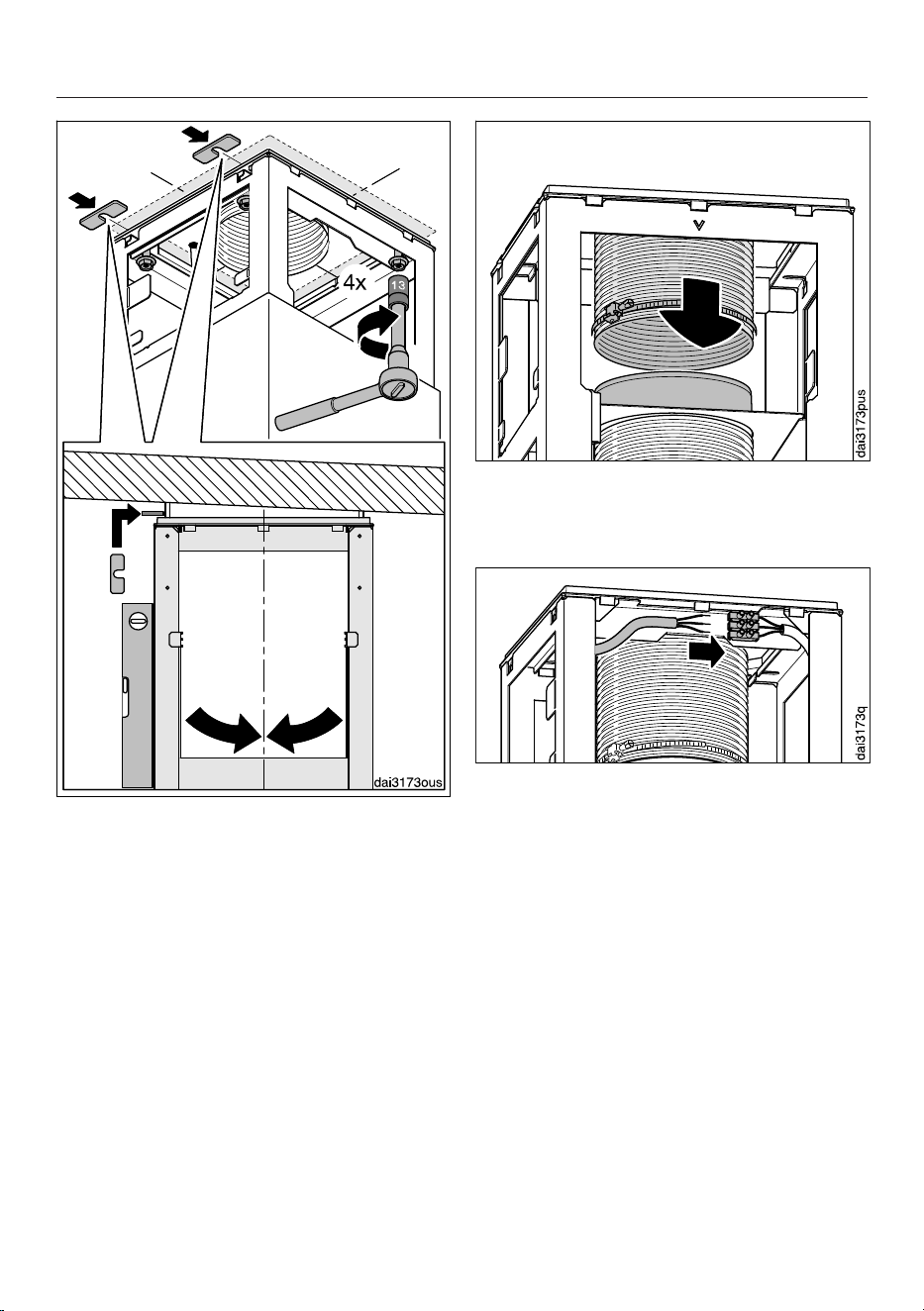

Installation.......................................................................................................... 41
Before installation................................................................................................ 41

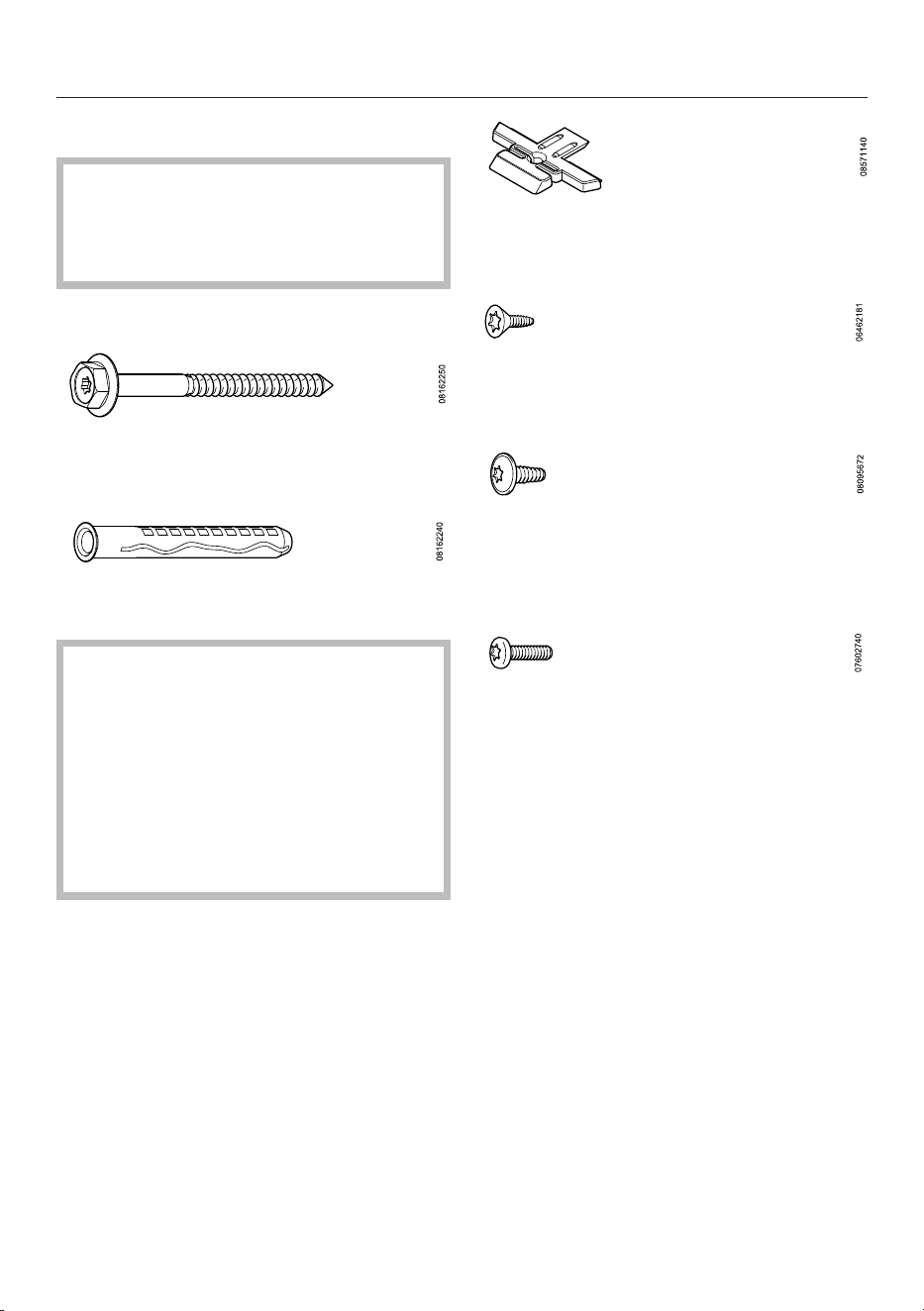

Installation parts .................................................................................................. 41
Appliance dimensions ......................................................................................... 42
Distance between cooktop and ventilation hood (S)........................................... 43
Installation recommendations ............................................................................. 44
Structural support ............................................................................................... 44
Removing the protective film............................................................................... 44

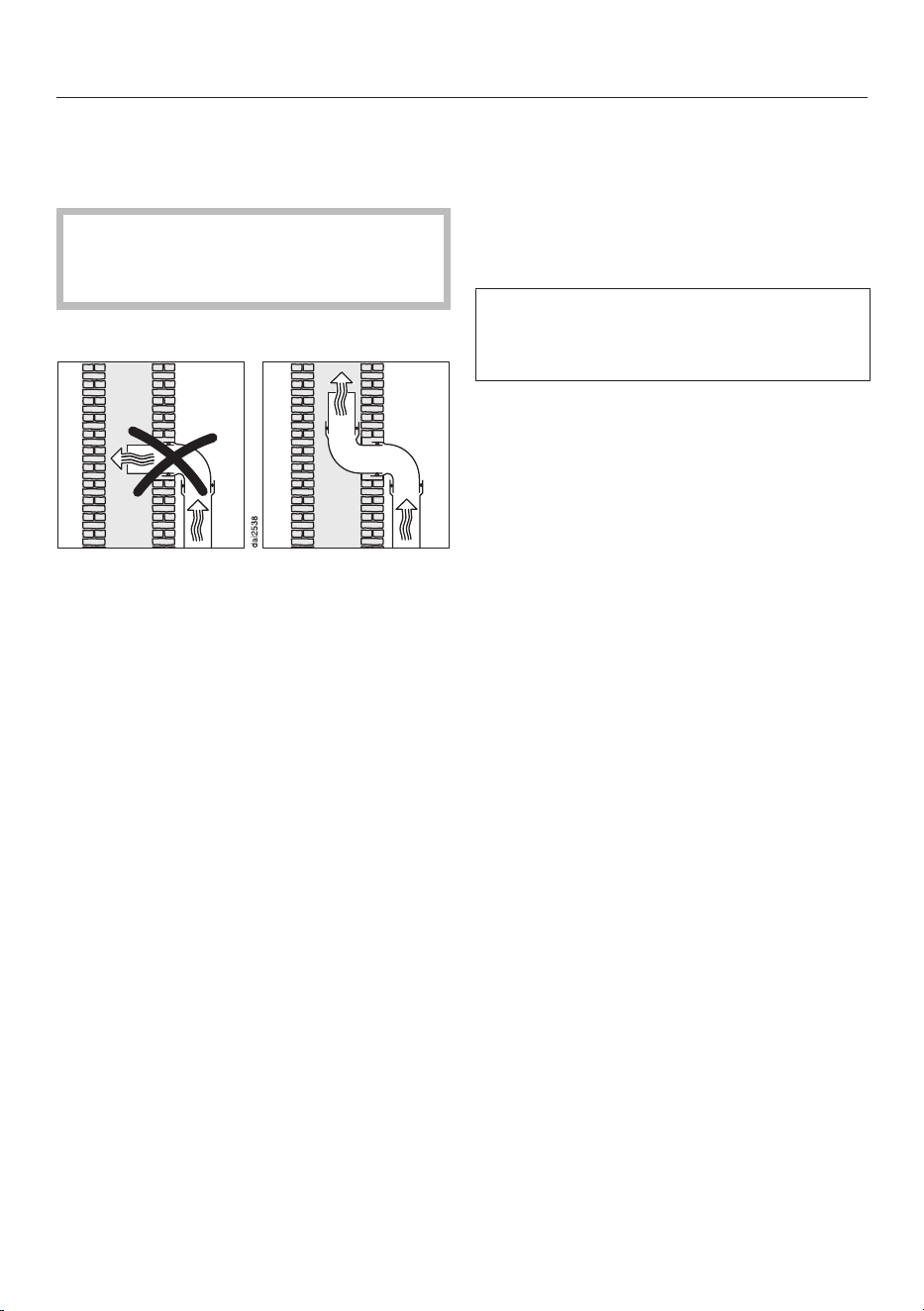

Air venting ........................................................................................................... 53
Non-return flap ............................................................................................... 54
Condensate .................................................................................................... 54

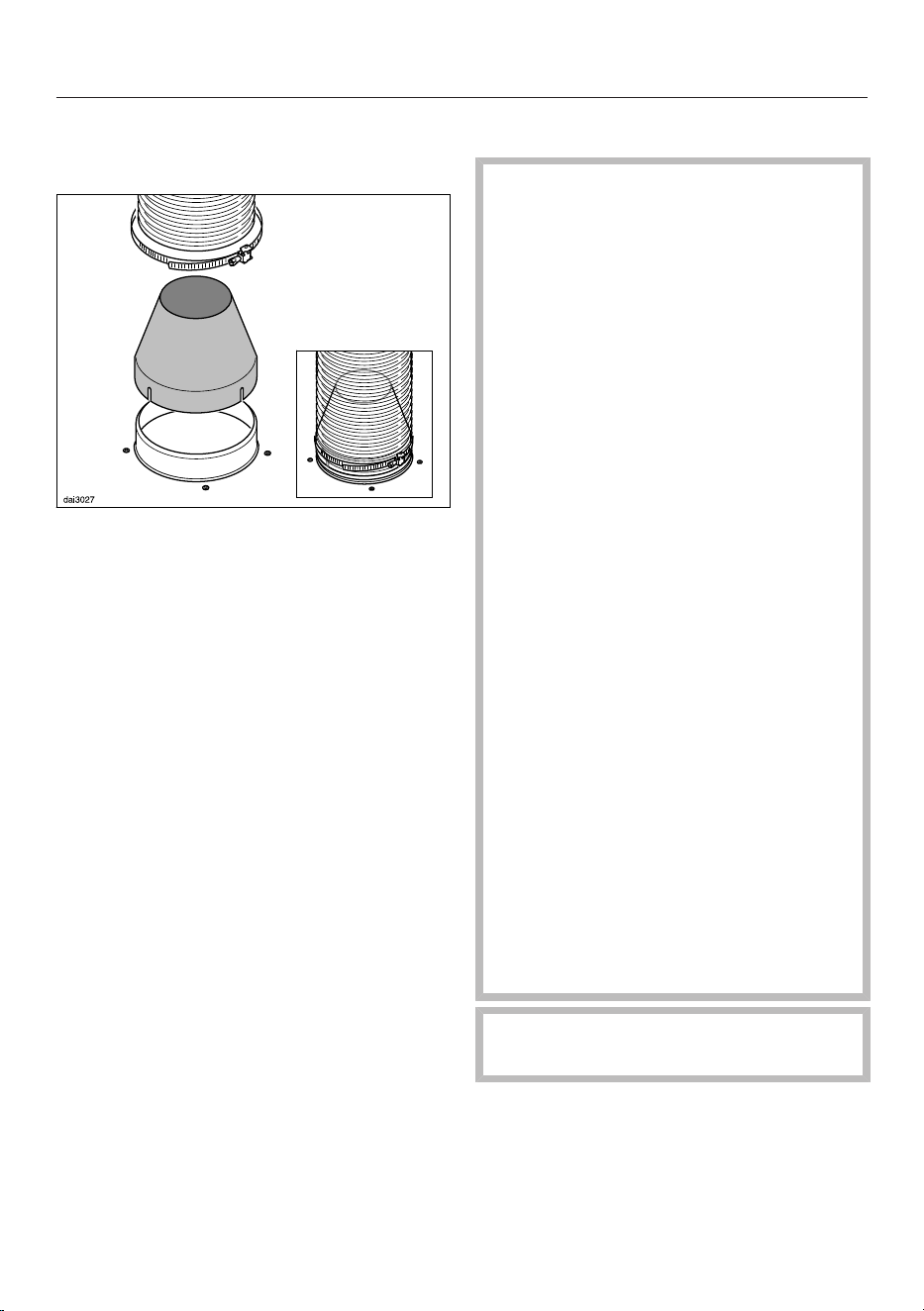

Reducing Collar ............................................................................................. 55
Electrical connection ........................................................................................... 55
Grounding Instructions................................................................................... 56
Customer Service.............................................................................................. 57
Contact in the event of a fault ............................................................................. 57
Location of the data plate ................................................................................... 57
Appliance warranty and product registration ...................................................... 57
Technical data................................................................................................... 58
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Avoid looking directly into the light for prolonged periods of time.
Danger of suffocation. While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
IMPORTANT SAFETY INSTRUCTIONS
6
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
IMPORTANT SAFETY INSTRUCTIONS
7
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not
permitted. To avoid the danger of fire, do not flambé or grill over an
open flame. When switched on, the ventilation hood could draw
flames into the filter. Fat deposits could ignite, presenting a fire
hazard.
IMPORTANT SAFETY INSTRUCTIONS
8
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
9
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance’s manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.

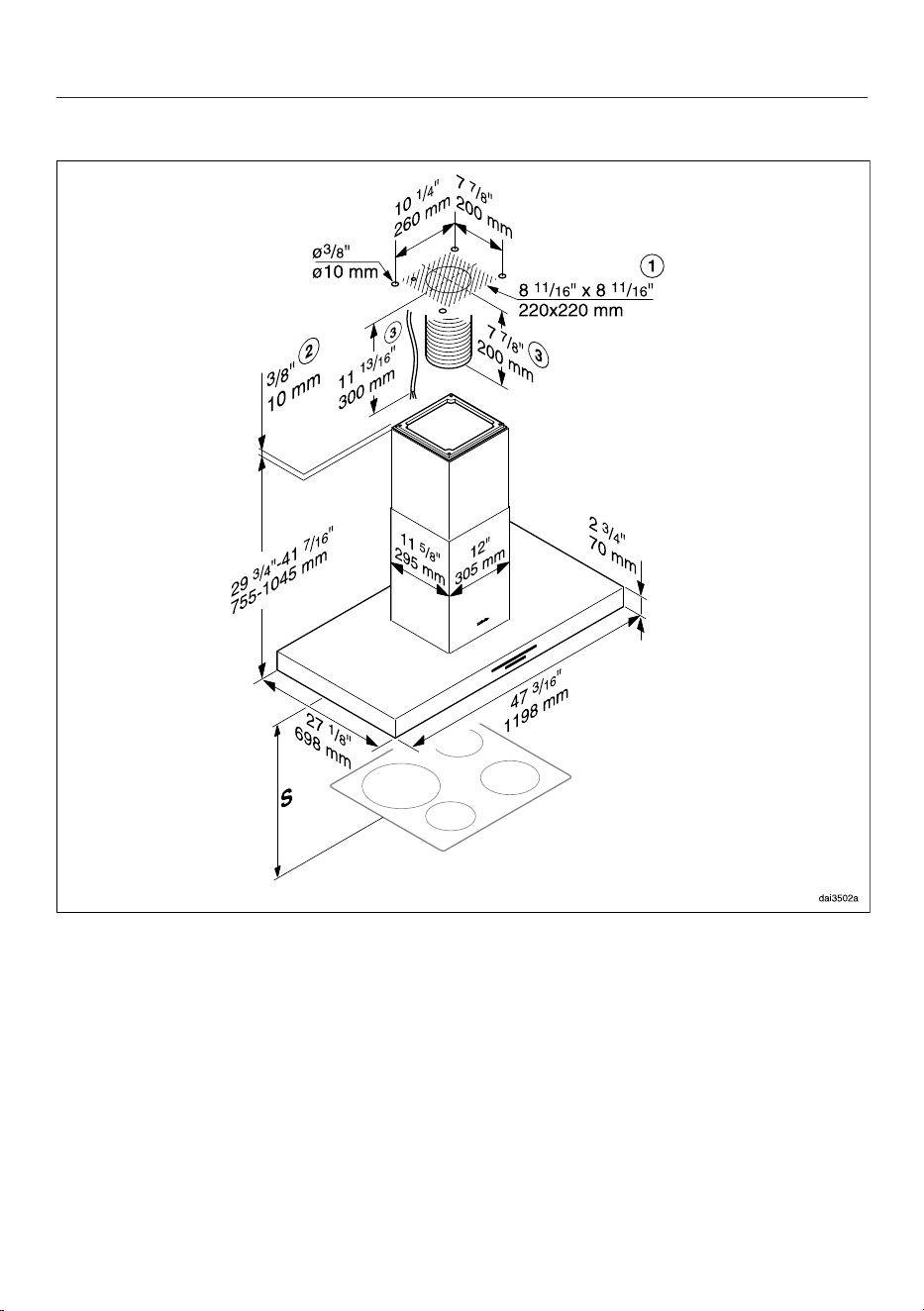

The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this manual must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
The information provided in “Installation” must be observed when
installing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service. Always observe local building
code requirements when selecting duct material.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become void.
IMPORTANT SAFETY INSTRUCTIONS
12
FCC Declaration of Conformity
These devices comply with FCC Rules Part 15. This equipment
has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20cm) between
the radiator and your body.
Industry Canada Statement
This digital apparatus does not exceed the Class B limits for
Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
Caring for the environment
13
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Guide to the ventilation hood
14
Guide to the ventilation hood
15
a
Telescopic extension piece
b
Duct cover
c
Height-adjustable canopy
d
Controls
e
Grease filter
f
Spacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The ventilation hood can be installed with or without the spacer frame.
g
Overhead lighting
h
Control for switching the lighting on and off and for dimming the lighting
i
Control for switching the blower on and off
j
Controls for setting the blower power
k
Control for the delayed shutdown function
l
Control for the filter saturation indicator
m
Controls for raising and lowering the canopy
Description of functions
16
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Before using for the first time
17
Selecting extraction mode
This ventilation hood must be set to
extraction mode. The power of the
blower is adapted to suit the selected
mode of operation.

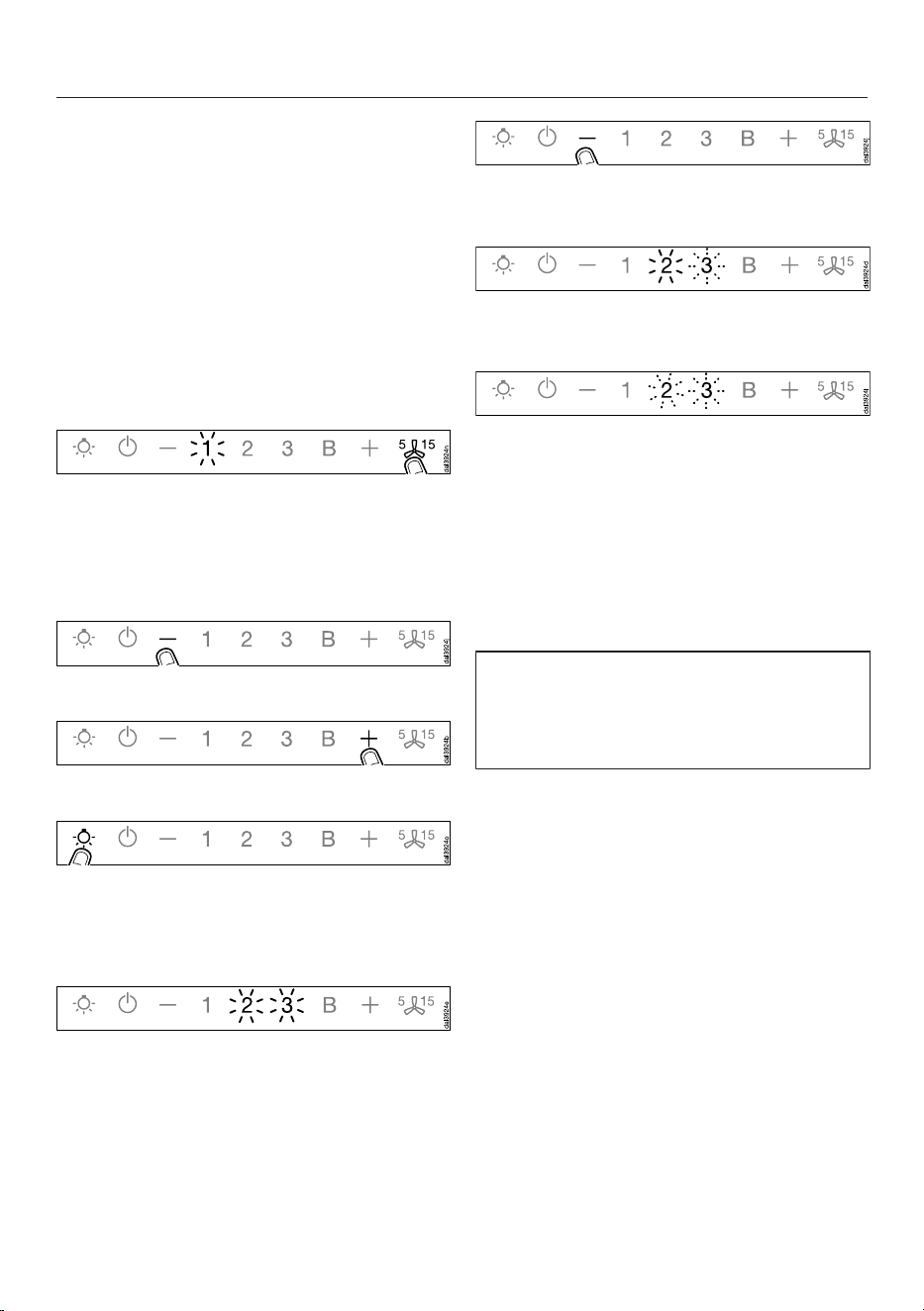

Switch off the blower and the lighting.
Press the control and the filter
saturation indicator at the same
time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
Press and hold the control until the
B indicator lights up.
Confirm the selection by pressing the
filter saturation indicator.
All the indicator lights will go out.
Extraction mode has now been set.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Setting up Miele@home
Required:
- a WiFi network
- the Miele app
- a Miele user account. You can
create a user account via the Miele
app.
Your ventilation hood is equipped with
an integrated WiFi module. Connect the
ventilation hood to your household WiFi
network. You will then be able to
operate the ventilation hood via the
Miele app.
If your Miele cooktop is connected to a
home WiFi network, you can control the
ventilation hood automatically via the
Con@ctivity function.
Before installing the ventilation hood
in its final location, ensure that the
signal of your WiFi network is strong
enough.
Please note that you cannot set up a
WiFi connection at the same time as a
wireless connection (Con@activity 2.0,
remote control).
You can connect to the household WiFi
network via the Miele app or via WPS.
Before using for the first time
18
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Connecting via the app
The Miele app can be used to connect
to your network.
Install the Miele app on your mobile
device.
To log in you will need:
1. your WiFi network password
2. your ventilation hood password
The password for your ventilation hood
consists of the last 9digits of the serial
number. This can be found on the
appliance’s data tag.
The data plate is visible once you have
removed the grease filters.
Start signing the appliance on in the
app. Follow the signing in
instructions.
If requested to activate WiFi on the
ventilation hood, proceed as follows:
Before using for the first time
19
Switch the ventilation hood off.
Press and hold the control.
Press the lighting control at the
same time.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood will be ready for
connection in the next 2minutes.
Follow the instructions in the app.
When successfully connected, 2 and 3
will light up constantly.
Exit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Switch the ventilation hood off.
Press and hold the control.
Press the lighting control at the
same time.
2 will light up constantly, 3 will flash on
and off.
The WiFi connection must be started on
the ventilation hood at the same time as
on the WiFi router.
Press the control on the ventilation
hood after a few seconds.
After a short while, 2 will light up
constantly, and 3 and B will flash on
and off.
The ventilation hood is ready for
connection in the next two minutes.
Before using for the first time
20
Start the WiFi connection on your
router.
When successfully connected, 2 and 3
will light up constantly.
Exit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
If the connection fails, you have
probably not connected WPS to your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the Miele app.
Signing out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the ventilation hood off.
Press and hold the control.
Touch the lighting control at the
same time.
With an existing WiFi connection, 2 and
3 will light up constantly.
The ventilation hood will be ready for
disconnection in the next 2minutes.
Before using for the first time
21
Touch the control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Exit disconnection mode on the
ventilation hood by pressing the
delayed shutdown control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Setting up Con@ctivity
Con@ctivity is the direct communication
system between an induction Miele
cooktop and a Miele ventilation hood. It
enables the ventilation hood to operate
automatically depending on the
operational state of a Miele cooktop
with onset controls.
- When a burner is turned on, the
overhead lighting on the hood turns
on automatically. After a brief delay,
the ventilation hood blower also
comes on.
- The ventilation hood selects the
power setting automatically during
cooking. The power level selected by
the ventilation hood depends on the
number of cooking zones being used
and their power levels.
- After switching the cooktop off, the
blower and the overhead lighting will
switch off automatically after a
specified period of time.
Detailed information about this function
can be found under “Operation”.
Before using for the first time
22
This ventilation hood can be operated
with the Con@ctivity function via a
WiFi connection (Con@ctivity 3.0) or
via a wireless connection (Con@ctivity
2.0).
Con@ctivity via the home WiFi
network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele cooktop
Connect the ventilation hood and
cooktop to your home WiFi network
(see “Setting up Miele@home”).
The Con@ctivity function will be
activated automatically.
Con@ctivity via a direct WiFi
connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele cooktop
If you do not have a home network, you
can establish a direct connection
between the cooktop and the
ventilation hood.
Switch the ventilation hood off.
Press and hold the control.
Press the control at the same time.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood will be ready for
connection in the next 2minutes.
Before using for the first time
23
Start the WiFi connection on the
cooktop. For more details, see the
cooktop operating instructions.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
Con@ctivity has now been activated.
With a direct WiFi connection, it is not
possible to connect the cooktop and
the ventilation hood to a home
network. Should this be required at a
later date, the direct WiFi connection
between the cooktop and the
ventilation hood must be
disconnected first (see “Signing out of
WiFi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the ventilation hood cancels the
process.
Disconnect the connection to the
ventilation hood (see “Signing out of
WiFi”) and to the cooktop.
Attempt to make the connection
again.
Con@ctivity with direct wireless
connection (Con@ctivity 2.0)
Required:
- Con@ctivity 2.0 enabled Miele
induction cooktop
This ventilation hood is supplied with a
Con@ctivity 2.0 wireless stick .
The wireless stick can only be used
with cooktops that are fitted with a slot
for the wireless stick to operate the
Con@ctivity function.
Check the installation instructions for
the Con@ctivity 2.0 stick to ensure
that it is compatible with your
cooktop.
Please note that you cannot set up a
WiFi connection at the same time as a
wireless connection (Con@activity 2.0,
remote control).
Before using for the first time
24
Installing the Con@ctivity 2.0 stick
See the relevant installation
instructions provided with the
Con@ctivity 2.0 stick.
Activating the wireless connection
The ventilation hood and the cooktop
must be installed and operational.
The wireless connection must be
activated on the ventilation hood and
the cooktop at the same time.
Activation on the ventilation hood is
described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.
Activating the ventilation hood
The cooktop and ventilation hood
must be switched off.
Press the delayed shutdown
control for approx. 10seconds
until 1 lights up.
Then press in order:
- the control,
- then the control,
- then the lighting control.
The ventilation hood is now in signing
on/off mode.
If a wireless connection has not yet
been established, 2 and 3 will flash at
the same time.
If a wireless connection has already
been established, 2 and 3 will light up
constantly (Con@ctivity 2.0 is already
activated or a remote control is signed
on).
Before using for the first time
25
To activate Con@ctivity 2.0, press the
control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will light
up constantly, B will flash on and off.
The search for a wireless connection
will start.
Activating the cooktop
While the ventilation hood is
searching for a signal, start activating
the cooktop.
For more details, see the cooktop
operating instructions.
When the cooktop registers that a
connection has been established, exit
activation on the cooktop.
Finishing activation on the ventilation
hood
When successfully connected, B will go
out, and 2 and 3 will light up constantly.
Confirm activation with the delayed
shutdown control. All the
indicator lights will go out.
The Con@ctivity function is now ready
for use.
If you do not confirm within 4minutes,
activation will be canceled.
You only need to complete the
activation procedure once. If the
appliances are disconnected from the
electrical supply, for example during a
loss of power, they will still remain
activated.
Before using for the first time
26
Activation failed
If a wireless connection cannot be
established despite activation of the
Con@ctivity function on the ventilation
hood and cooktop, the function must
first be deactivated and then
reactivated on both appliances.
Deactivating the wireless connection
The cooktop and ventilation hood
must be switched off.
Press the delayed shutdown
control for approx. 10seconds
until 1 lights up.
Then press in order:
- the control,
- then the control,
- then the lighting control.
The ventilation hood is now in signing
on/off mode.
If a wireless connection has already
been established, 2 and 3 will light up
constantly.
Press the control to deactivate
Con@ctivity 2.0.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will start
flashing on and off.
The wireless connection has now been
deactivated.
Deactivate the wireless connection on
the cooktop. See the operating
instructions for more information.
Disabling the connection will also
disable any remote control function in
use. The remote control will have to be
reactivated.
Operation (Automatic mode)
27
When Con@ctivity is active, the
ventilation hood always operates in
automatic mode (see “Before using for
the first time – Setting up
Con@ctivity”).
If you wish to operate the ventilation
hood manually; see “Operation
(Manual mode) – Cooking without
Con@ctivity”.
Cooking with Con@ctivity
(Automatic mode)
Turn on a burner to the desired power
setting.
The overhead lighting will come on.
After a few seconds, the blower will
come on, briefly operating at power
level 2 before immediately switching to
level 1.
The ventilation hood selects the power
level automatically during cooking.
This level is determined by the total
output of the cooktop, i.e., the number
of burners in operation and the power
levels selected.
If you select a higher power level on the
cooktop or switch on multiple burners,
the ventilation hood will switch to a
higher blower level.
If you select a lower power level on the
cooktop or turn off a burner, the
ventilation hood will accordingly switch
to a lower blower level.
Examples for power levels 1 to B
Reaction time
Changing the power setting on the
cooktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the cooktop transmits the information to
the hood in intervals.
The reaction time can vary from a few
seconds to a couple of minutes.
Operation (Automatic mode)
28
Cooking process
For example, you switch on a burner
at the highest power level to heat
cookware for frying. After approx.
10seconds to 4minutes, you then
reduce the power level (60seconds
to 5minutes for a HiLight cooktop).
The ventilation hood recognizes a
cooking process.
The ventilation hood turns itself on and
when the cooktop power level has been
reduced, the ventilation hood switches
to power level 3 and remains at that
level for approx. 5minutes.
After this, the blower level is once again
determined by the Con@ctivity function.
You can also manually select a different
blower level before then.
Switching off
Turn off all burners.
Over the next few minutes, the
ventilation hood blower setting will
decrease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air.
- From the Booster setting, the blower
switches immediately to level3.
- From level 3, it will switch to level 2
after approx. 1minute.
- From level 2, it will switch to level 1
after 2minutes.
- After 2minutes at level 1, the blower
automatically turns off.
- After another 30seconds, the
overhead lighting turns off.
The cooking process is then finished.
Operation (Automatic mode)
29
Temporarily exiting Automatic
mode
To temporarily exit Automatic mode
when cooking:
Manually select a different blower
level; or
Manually turn the ventilation hood off;
or
Activate the delayed shutdown
function on the ventilation hood.
The blower will switch itself off after
the selected run-on time, and the
lighting will remain on.
The ventilation hood functions are now
operated manually (see “Operation
(Manual mode)”).
Resuming Automatic mode
The ventilation hood resumes
Automatic mode:
- If the ventilation hood has not been
used for a period of approx.
5minutes after the manual selection
of a blower level; or
- If the manually selected blower level
once again matches the automatic
setting; or
- The ventilation hood blower and the
cooktop have been switched off for
at least 30seconds.
Automatic mode will resume next
time the cooktop is switched on.
You can also operate the ventilation
hood manually for a complete cooking
process.
To do so, switch the ventilation hood
blower on before the cooktop.
If the ventilation hood and the cooktop
have been switched off for at least
30seconds after cooking, Automatic
mode will resume next time the cooktop
is switched on.
Operation (Manual mode)
30
Cooking without Con@ctivity
(Manual mode)
The ventilation hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Automatic mode) – Temporarily
exiting Automatic mode”).
Turning on the blower
Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.
Press the On/Off control.
The blower turns on at level 2. The
symbol and 2 will light up in the blower
level display.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Select the power level you want by
pressing the or control.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the blower
automatically switches back to level 3
after 5minutes.
Selecting the delayed
shutdown time
It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.
It also reduces the risk of odors and
residues accumulating in the ventilation
hood.
The delayed shutdown function enables
the blower to continue running for a
pre-determined time before switching
itself off automatically.
After you have finished cooking,
press the delayed shutdown
control while the blower is still
running.
- Once: blower turns off after
5minutes (5 lights up).
- Twice: blower turns off after
15minutes (15 lights up).
- If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).
Turning off the blower
Press the On/Off control to turn
the blower off.
The symbol will go out.
Operation (Manual mode)
31
Dimming/switching the
overhead lighting on/off
The overhead lighting can be switched
on and off and dimmed independently
of the blower.
Press the lighting control briefly to
switch it on or off.
The lighting will switch on at maximum
brightness.
With the lighting switched on, press
and hold the lighting control. The
brightness will gradually dim until you
release the control.
To increase the brightness, press and
hold the lighting control again until
the desired level has been reached
and then release it.
Power management
The ventilation hood is equipped with a
power management system. Power
management helps to save energy. It
ensures that the blower power level is
reduced automatically and that the
lighting is switched off.
- If the booster level is selected, the
blower automatically switches to
level 3 after 5 minutes.
- If the blower is set to level 3, 2, or 1,
it switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.
- The overhead lighting will switch off
automatically after 12hours.
You can deactivate power
management.
Keep in mind that this may increase
energy consumption.
Operation (Manual mode)
32
Activating/deactivating power
management
Switch off the blower and the lighting.
Press the delayed shutdown
control for approx. 10seconds
until the 1 indicator appears in the
blower level display.
Then press, in turn:
- the lighting control,
- the control, and then
- the lighting control.
When power management is turned on,
the 1 and B indicators will be
continuously lit.
When it is turned off, the 1 and B
indicators will flash.
Press the control to deactivate
power management.
The 1 and B indicators will flash.
Press the control to activate power
management.
The 1 and B indicators will be
continuously lit.
Confirm the setting by pressing the
delayed shutdown control.
All the indicator lights will go out.
If you do not confirm the new setting
within 4minutes, the ventilation hood
will revert to the previous setting.
Safety shut-off
If power management has been
deactivated, the ventilation hood will
switch itself off automatically after
12hours if it has been left on (blower
and overhead lighting).
To switch it back on, press the On/
Off control or the lighting
control.
Operation (Automatic and Manual modes)
33
Filter saturation indicator
The ventilation hood registers the length
of time it has been operated.
The filter saturation indicators show
when the filters need to be cleaned or
changed by lighting up the grease filter
symbol or charcoal filter symbol .
Additional information on cleaning and
changing the filters and resetting the
filter saturation indicators can be found
under “Cleaning and care”.
Adjusting the grease filter filter
saturation indicator
The filter saturation indicator can be set
to suit the customer’s cooking habits.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter interval of 20hours if
food is fried regularly.
- A shorter cleaning interval is also
recommended if the customer only
cooks occasionally. This will prevent
grease buildup from hardening and
making cleaning more difficult.
- Select a longer cleaning interval of 40
or 50hours if the customer uses very
little fat when cooking.
Switch off the blower and the lighting.
Press the delayed shutdown
control and the filter saturation
control at the same time.
The grease filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1............................................... 20hours
2............................................... 30hours
3............................................... 40hours
B .............................................. 50hours
Press the control for a shorter
duration, or for a longer duration.
Confirm the selection by pressing the
filter saturation indicator.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Operation (Automatic and Manual modes)
34
Adjusting or deactivating the filter
saturation indicator for the charcoal
filter
The charcoal filter is needed for
recirculation mode.
The filter saturation indicator can be set
to suit the customer’s cooking habits.
It has to be deactivated for vented
mode.
The factory default setting is an interval
of 180hours.
Switch off the blower and the lighting.
Press the “” button and the
operating-hours button at the
same time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
Indicator 1 ............................. 120hours
Indicator 2 ............................. 180hours
Indicator 3 ............................. 240hours
B ......................................... Deactivated
Press the “” or “” button to select
the required duration.
Confirm the selection by pressing the
operating-hours button.
All the indicator lights will go out.
If the selection is not confirmed within
4minutes, the system will revert to the
previous setting.
Checking the filter saturation
indicator
Before the set operating time has run
out, you can check what percentage of
the time has elapsed.
Press the On/Off control to turn the
blower on.
Press and hold the filter saturation
indicator.
- Once, to check the grease filter
operating time. The grease filter
symbol lights up.
- Twice, to check the charcoal filter
operating time. The charcoal filter
symbol lights up.
One or more of the blower power level
indicators will flash simultaneously.
The number of flashing indicators
shows the elapsed operating time as a
percentage.
Indicator 1 .................................... 25%
Indicators 1 and 2 ......................... 50%
Indicators 1 to 3 ........................... 75%
Indicators 1 toB ......................... 100%
The number of elapsed operating
hours remains stored in memory when
the ventilation hood is turned off or if
there is a power outage.
Operation (Automatic and Manual modes)
35

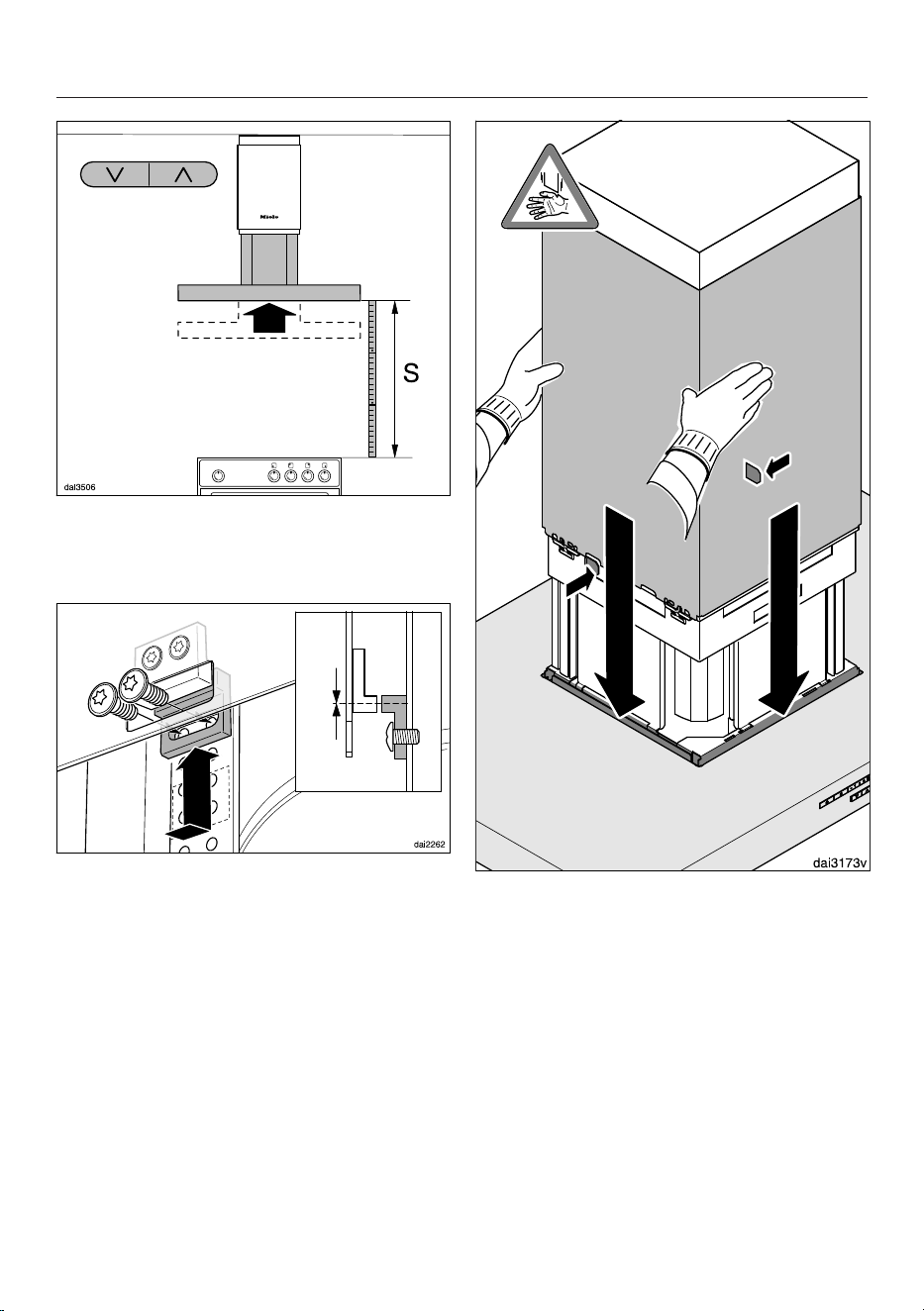

Adjusting the height of the
canopy
The height adjustment feature on the
canopy can be used to:
- adapt the height of the hood to suit
the installation conditions.
- adjust the working area underneath
the hood to the height of the user.
- maximize vapor extraction by
lowering the canopy during
particularly intensive cooking.
- create more working space above the
cooktop by raising the canopy when
required.
The canopy can be raised or lowered
by pressing the controls briefly.
Pressing one of the controls again
stops the canopy.
If it is not stopped, the canopy will
automatically be raised or lowered to its
fullest extent.
Repeated use of the height
adjustment feature over several
minutes will cause it to cut out.
It can be used again after a pause.
Energy-saving tips
36
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
ventilation hood will switch on and off
automatically. The ventilation hood
will select the optimum power level
for the cooking you are doing, which
ensures low energy consumption.
- If you are operating the ventilation
hood manually, please note the
following:
– Check the power level selected on
the ventilation hood. A low power
level is usually sufficient. Only use
the Booster setting when
necessary.
– When a large volume of cooking
vapors are being produced, switch
to a high power level in good time.
This is more efficient than
operating the hood for longer to try
to capture cooking vapors that
have already been distributed
throughout the kitchen.
– Make sure that you switch off the
hood after use.
If cooking vapors and odors still
need to be removed from the
kitchen air after cooking, use the
delayed shutdown function. The
blower will switch off automatically
after the selected delayed
shutdown time.
Cleaning and care
37
Before proceeding with any
maintenance or cleaning task, the
ventilation hood must be
disconnected from the power supply,
see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride, or
solvent.
Do not use any abrasive cleaning
agents, e.g., powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents
Moisture in the ventilation hood
can cause damage.
Make sure that water does not get
into the ventilation hood.
Clean all surfaces and control buttons
using a small amount of warm water
and liquid dish soap. Apply with a
sponge cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered casing
(Customization on request)
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Cleaning and care
38
Important information for the
controls
If soiling is not removed promptly, it
could cause the control elements to
alter or discolor.
Remove soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.
Grease filters
Risk of fire
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the
ventilation hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the ventilation hood
and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
The filter saturation indicator reminds
you to regularly clean the grease filters
by illuminating the grease filter
symbol.
You can adjust the interval for the filter
saturation indicator to match your
cooking habits (see “Operation
(Automatic and Manual modes)”).
Cleaning and care
39
Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.

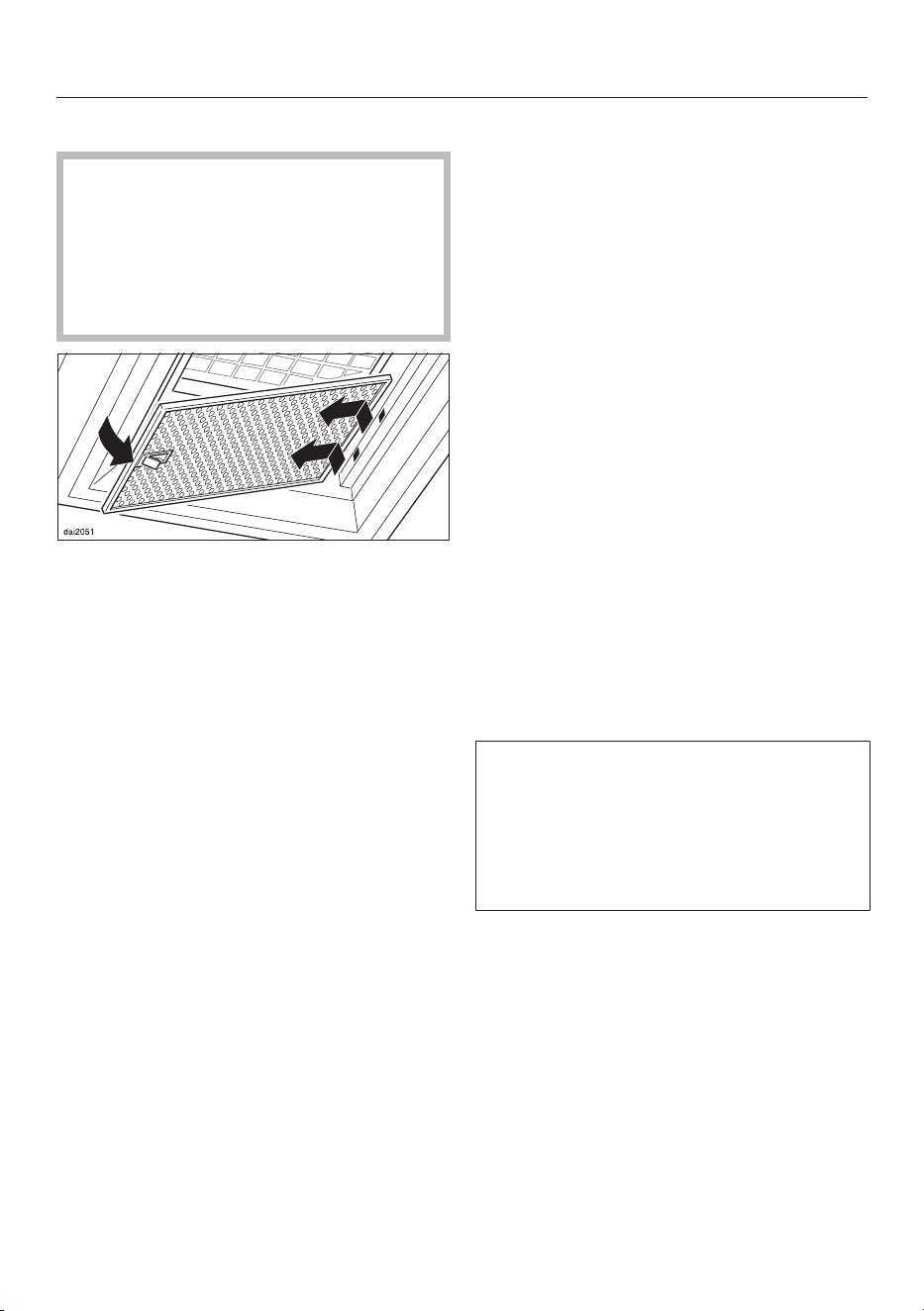

To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning the grease filters in a
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filters in any way.
Cleaning and care
40
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Reinsert the grease filters. When
inserting the grease filters, make sure
that the locking clip is facing
outward.
If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Resetting the filter saturation
indicator for the grease filters
Once cleaning is complete, the filter
saturation indicator must be reset.
While the blower is turned on, press
the filter saturation indicator for
approx. 3seconds until 1 is the only
indicator flashing.
The grease filter symbol goes out.
When cleaning the grease filters before
the full operating time has elapsed:
Press the filter saturation
indicator for approx. 6seconds
until 1 is the only indicator flashing.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
Miele Customer Service (see end of
these operating instructions for contact
details) or from your Miele dealer.
Installation
*INSTALLATION*
41
Before installation
Before installation, it is important
to read the information contained in
this chapter and in the “IMPORTANT
SAFETY INSTRUCTIONS” chapter.
Installation parts
4 screws, 7x110mm and
4 plugs, 10x80mm
for securing the hood to the ceiling.
The screws and plugs are designed
for use in solid ceilings only.
The plugs must only be used
together with the included
7x110mm screws. For other types
of ceiling construction, alternative
fixings will be required. Make sure
the ceiling is able to take the weight
of the hood.
4 telescopic extension piece holders
for aligning and securing the telescopic
chimney
4 screws M4x8.5mm
for securing the telescopic extension
piece holders.
14 screws M4x8mm
for securing the spacer frame and
securing the hood to the installation
frame.
1 screw M4x16mm
for securing the chimney.
Installation
*INSTALLATION*
42
Appliance dimensions
a
Mounting area for the exhaust ducting and power cable.
b
Alternative installation with spacer frame
c
A power cord is required to connect the hood to the outlet in the ceiling. A
flexible ducting is also required.
Exhaust connection 6" (150mm)
Installation
*INSTALLATION*
43
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660mm) 30" (760mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660mm) 30" (760mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
The fully lowered canopy must not go below the minimum distances given.
The height range for the appliance can be extended or limited by moving the
limit switch (see “Installation”).
Installation
*INSTALLATION*
44
Installation recommendations
- When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
- Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
- To achieve optimum vapor extraction,
the ventilation system must be
centered over the cooktop, not to the
side or behind.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.

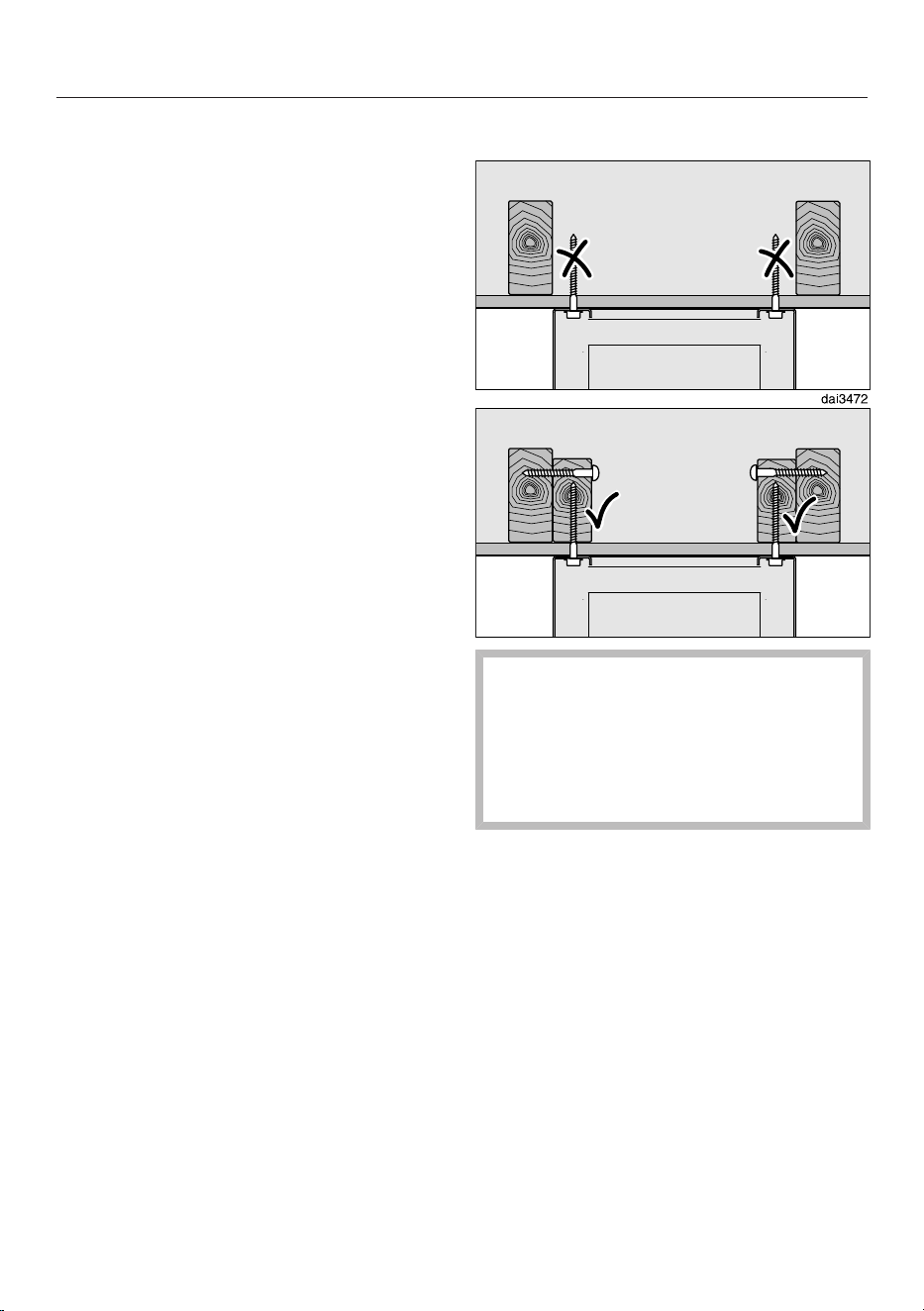

Structural support
The hood must be attached to rigid
structural framing that is supported
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from damage during transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation
*INSTALLATION*
45
8
5
/
8
"
220 mm
8
5
/
8
"
220 mm
dai3435aus

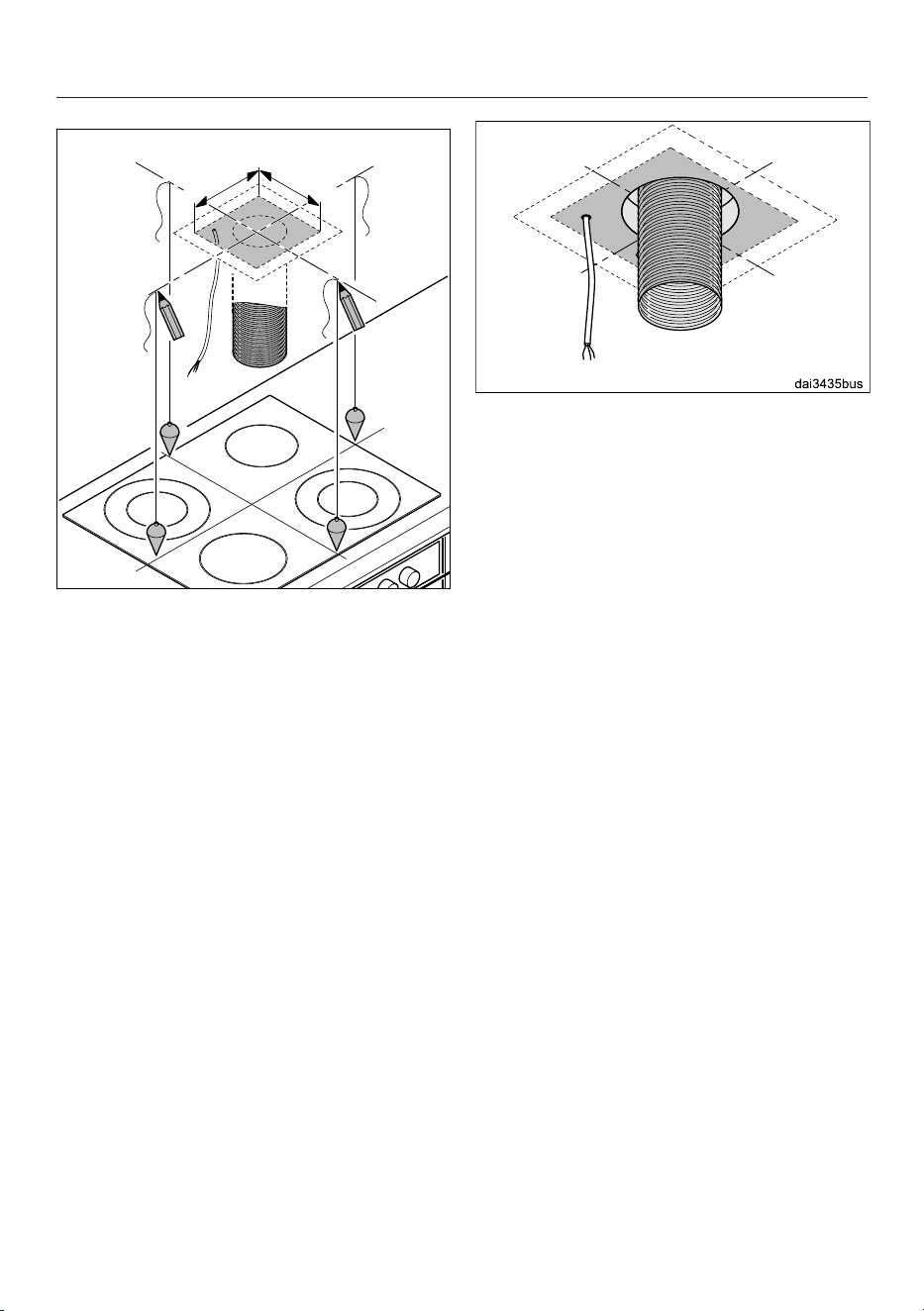

Draw two intersecting lines on the
ceiling.
Place a section of the exhaust
ducting in the ceiling and feed it
down through the cross-sectional
area as illustrated. Exhaust ducting of
approx. 8" (200 mm) length is
required between the ceiling and the
hood exhaust socket.
Place the power cord and guide it
through the ceiling in the area shown.
A power cord approx. 12" (300 mm)
in length is required between the
ceiling and the hood connectors.
Installation
*INSTALLATION*
46

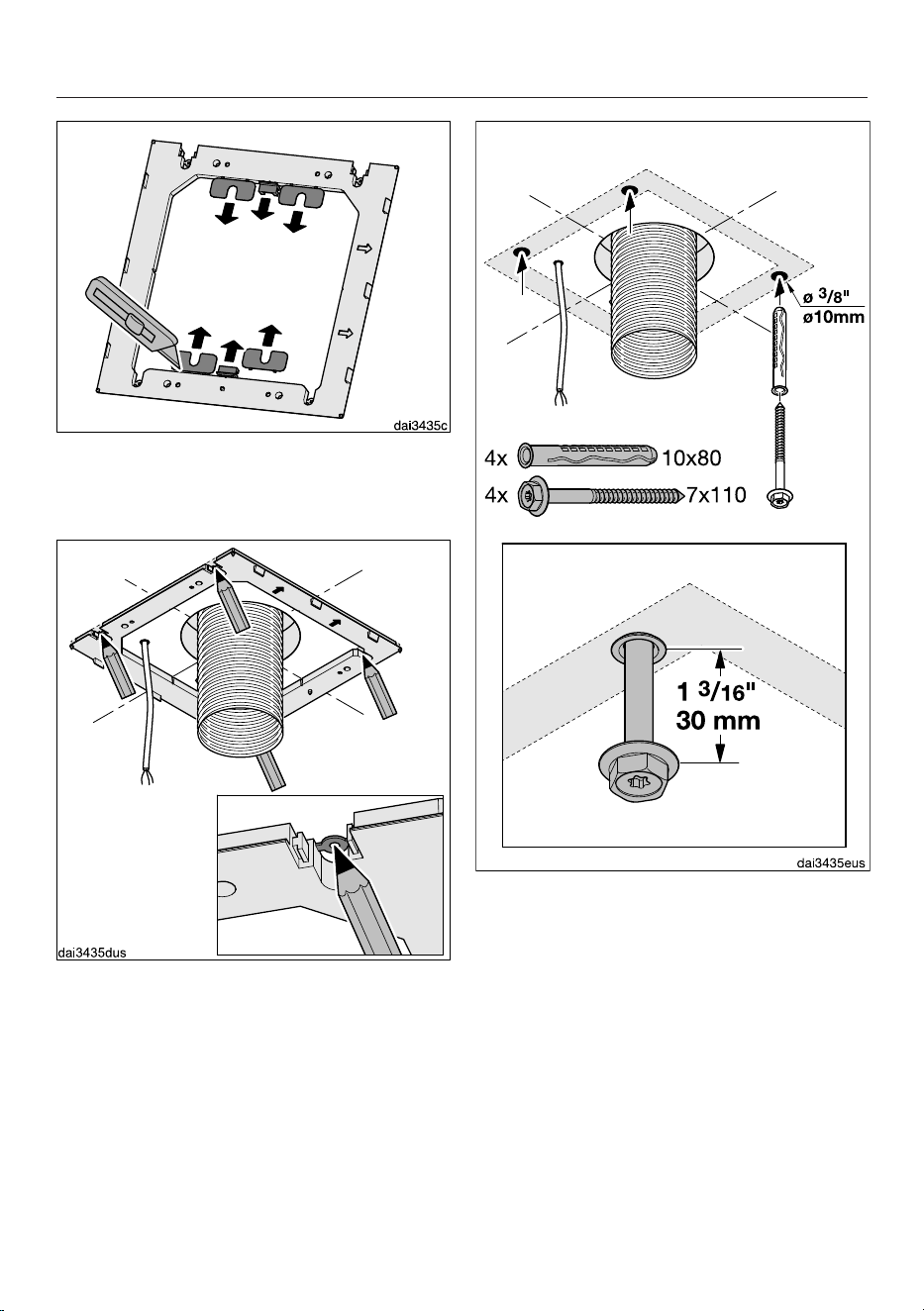

Use a knife to release the four
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
Drill four holes ³/₈“ (10mm),
approx. 4 ¹/₂” (115mm) deep for the
plugs supplied.
Place the four plugs in the holes and
screw in the four screws so that they
protrude by approx. 1 ³/₁₆" (30mm).
Installation
*INSTALLATION*
47

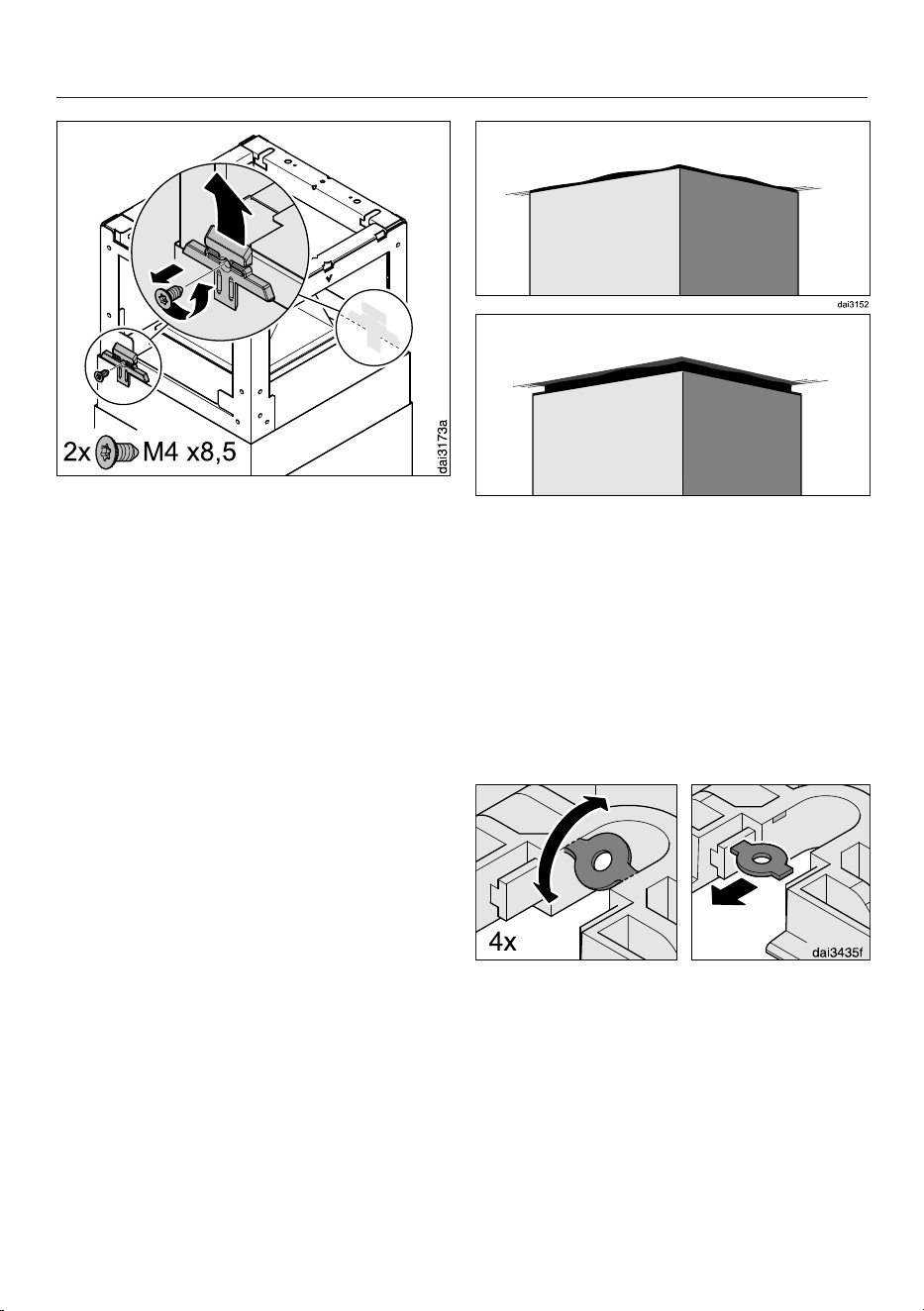

Loosen the two telescopic extension
piece holders from the installation
frame.
The spacer frame can be installed
between the chimney and the ceiling.
This creates a shadow which gives the
illusion of a gap between the ceiling and
the chimney. This is useful if the ceiling
is not level or is uneven. The hood is
aligned vertically with the spacers
supplied. Visual irregularities between
the chimney and the ceiling are then
concealed by the shadow.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
Installation
*INSTALLATION*
48

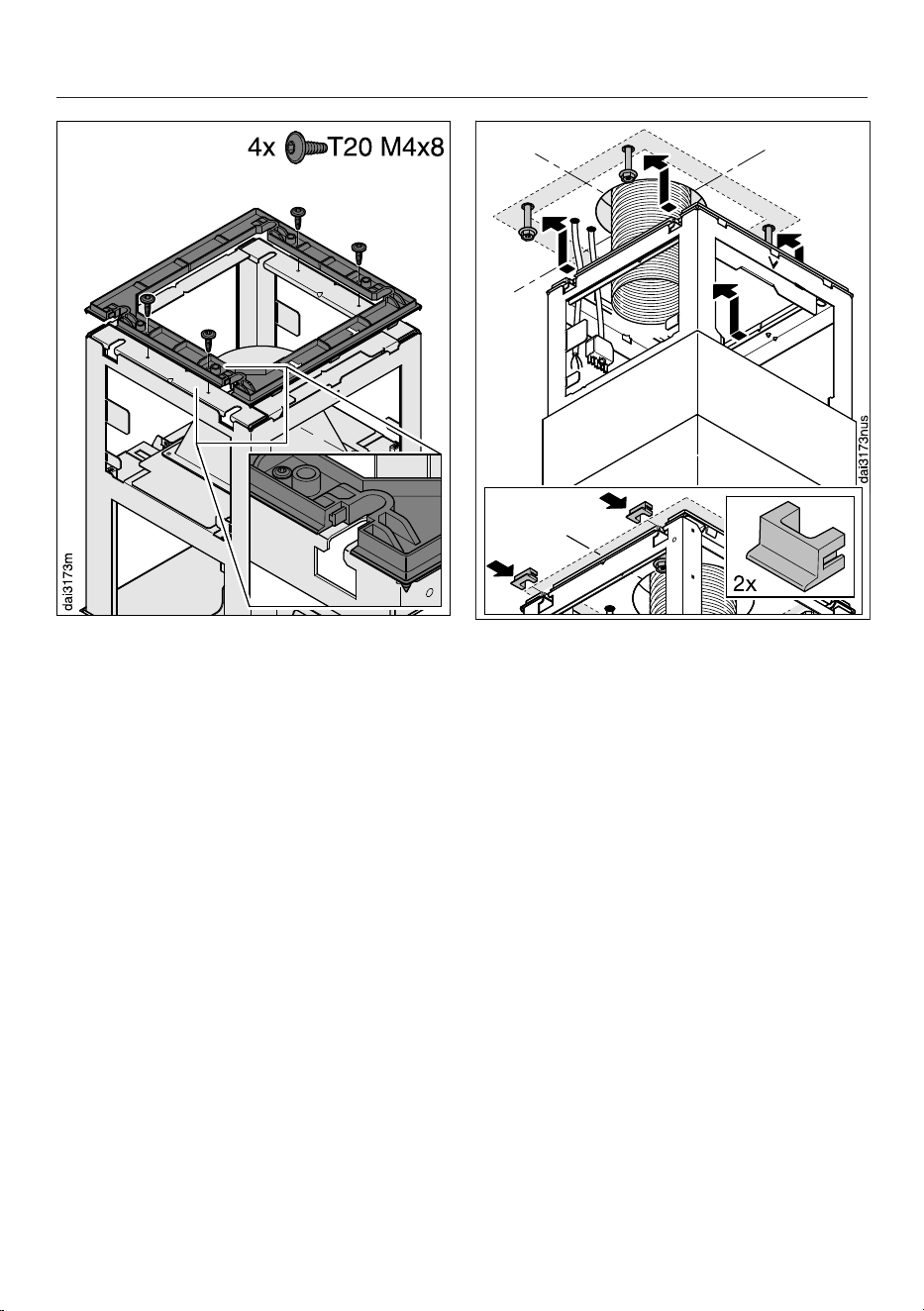

Mount the spacer frame onto the
installation frame.
Hang the hood on the four screws,
making sure the controls are at the
front.
If using the spacer frame, place the
two covers into the fixing holes.
Installation
*INSTALLATION*
49
Align the installation frame and
secure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood
vertically.
Slide the vent duct onto the vent
socket and secure it (using a hose
clip, for example).
Connect the power cord. See
“Electrical connection.”
Installation
*INSTALLATION*
50
Remove the grease filters from the
hood.
Remove the safety screw for the
tower on the inside of the frame.
Push the tower and the telescopic
extension piece upwards and bend
the retaining tabs outwards again to
prevent the tower and telescopic
extension piece from slipping down
again.
Installation
*INSTALLATION*
51

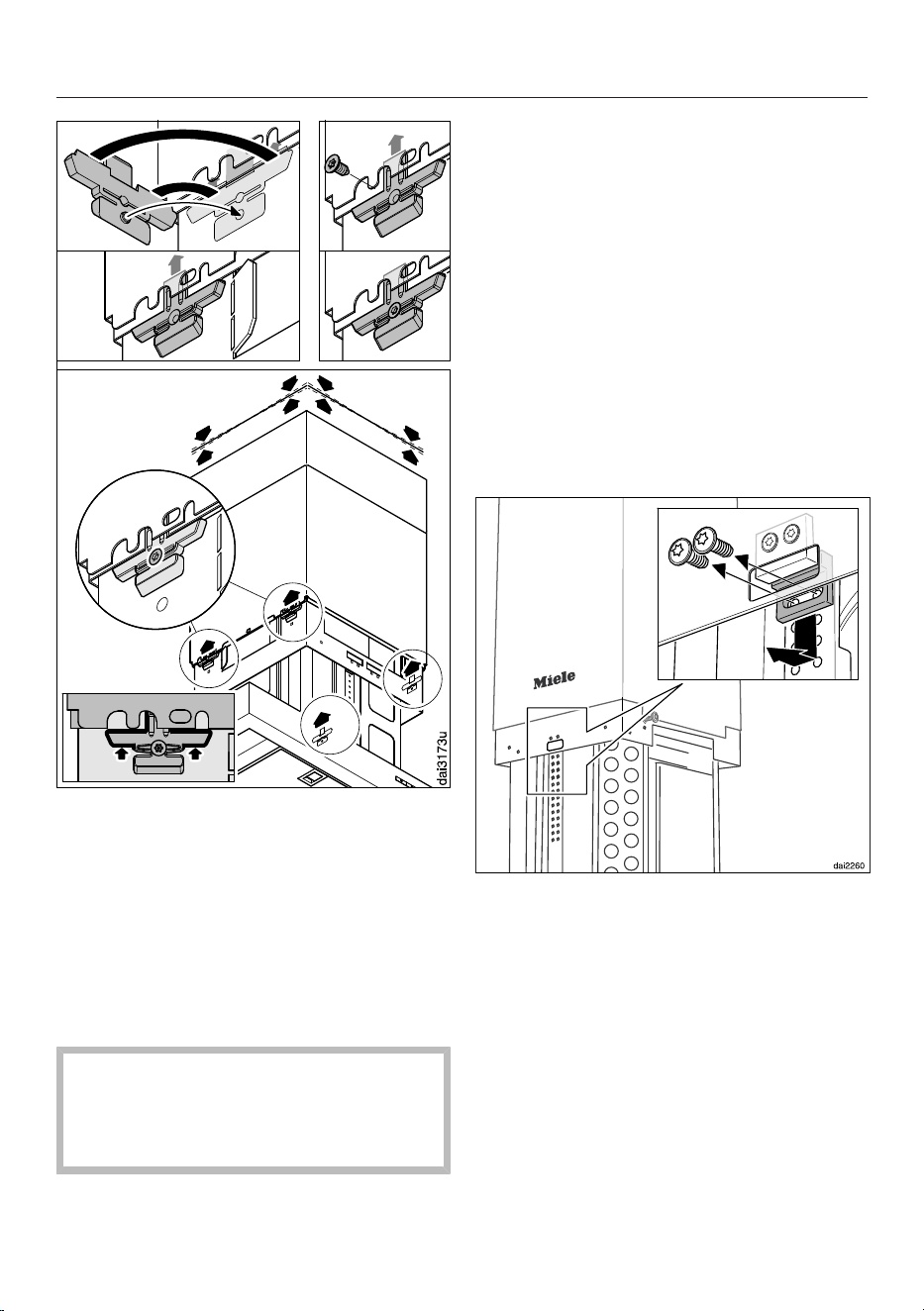

Fit the four telescopic extension
piece holders between the tower and
the telescopic extension piece. The
internal telescopic extension piece
rests on the clamps. When the
screws are tightened, the telescopic
extension piece holders spread out
and push the telescopic extension
piece upwards.
Tighten the screws only until the top
edge of the telescopic extension
piece is evenly aligned with the
ceiling or the spacer frame.
When the canopy is lowered, the safety
distance to the cooker may not be
exceeded (see “Appliance dimensions”).
The height range for the appliance can
be extended or limited by moving the
limit switch.
Press the button.
The canopy will be lowered to its fullest
extent.
Check the distance to the cooker.
If the safety distance is undershot, the
limit switch must be readjusted.
Loosen the top limit switch.
Installation
*INSTALLATION*
52
Move the canopy to the required
height by pressing the button and
stop it by pressing the or button.
Screw on the limit switch opposite
the guide.
Hold the chimney securely, bend
back the retaining tabs and carefully
lower it.
The chimney will locate in the cut-out in
the canopy.
Installation
*INSTALLATION*
53
1x T20 M4x16
Insert the safety screw on the inside.
Carefully remove the protective foil
from the grease filters.
Reinsert the grease filters.
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk of
personal injury. Follow all local building
codes when installing the hood.
Only use smooth pipes or flexible
ducting made from approved non-
flammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting
must not be smaller than the cross-
section of the vent collar (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
Installation
*INSTALLATION*
54
- If the ducting has flaps, these must
be opened whenever the ventilation
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Ventilation stack
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
The ventilation hood has a built-in non-
return flap.
Condensate
If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.
If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per meter.
This is to ensure that condensate
cannot drain back into the ventilation
hood.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.
Installation
*INSTALLATION*
55
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Installation
*INSTALLATION*
56
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short
circuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the
electrical system of the house
checked by a qualified electrician.
To increase security before the
machine is installed, it is
recommended to install a protective
switch (30 mA).
The hood must be hard wired
accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
Customer Service
57
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/
service.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Appliance warranty and
product registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Technical data
58
Fan motor 350W
Height adjustment motor 150W
LED cooktop lighting 4 x 3W
Total connected load 512W
Voltage, frequency 120V AC, 60Hz
Fuse rating 15A
Weight 107.8lbs (49kg)
WiFi module
Frequency range 2.400–2.4835GHz
Maximum transmission power < 100mW
ZigBee® module
Frequency band 2.405–2.48GHz
Maximum transmission power < 10mW
WiFi module EK037
FCC ID: 2ACUWEK037
IC: 5669C-EK037
ZigBee® module EK038
FCC ID: 2ACUWEK038
IC: 5669C-EK038
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 743 200 / 01en-US
DA 4248V D
