1. Safety Information
Warning
Pay special attention to use of this instrument, for
improper use may cause electric shock or damage to
instrument.
During use, observe usual safety regulations
and observe safety measures regulated in use manual.
In order to make full use of instrument functions and
guarantee safe operation, please careful
ly read and
observe use methods in this manual.
Instrument complies with safety requirements on
electronic measuring instrument of EN-61010-1,
EN-61010-2-030 and EN-61010-2-032, level II pollution,
and over-voltage standard is CAT
600V.
Please observe safety operation guide, and guarantee
to use instrument in a safe manner.
1.1 Preparation
1.1.1 When using this instrument, users must observe
standard safety rules:
- General electric shock prevention.
- Prevention of misuse of instrument.
1.1.2 After receiving the instrument, check whether it is
damaged during transportation.
1.1.3 After storing and shipping under adverse conditions,
check whether the instrument has been damaged.
1.1.4 Pens of the instrument must be in good
condition.
Before use, check whether insulation of pens is
damaged, and whether metal wire is exposed.
1
1.2 Symbol
Note (refer to use manual for important safety
information)
Able
to be used on dangerous electrified
conductors.
Dual-insulation protection (Category II)
Over-voltage according to IEC-61010-1 standard
(installation), level II, pollution degree 2 refers
to protection level of pulse withstand voltage
provided.
Comply with EU standard.
Grounded
1.3 Maintenance
1.3.1 Do not try to open bottom case to adjust or repair
instrument, for such operation could only be
conducted by technicians fully understanding the
instrument and electric shock danger.
1.3.2 Before opening instrument bottom case or battery
cover, remove the pens from the wire being
measured.
1.3.3 In order to avoid electric shock possibly caused by
error reading, when symbol " " displays on
instrument, replace battery immediately.
1.3.4 Use wet cloth and gentle detergent to clean the
instrument, and do no use any abrasive or solvent.
1.3.5 Power off when the instrument is not used, and rotate
range switch to OFF position.
1.3.6 If the instrument is not used for a long time, take out
the battery to avoid any damage to the instrument.
2
2. Description

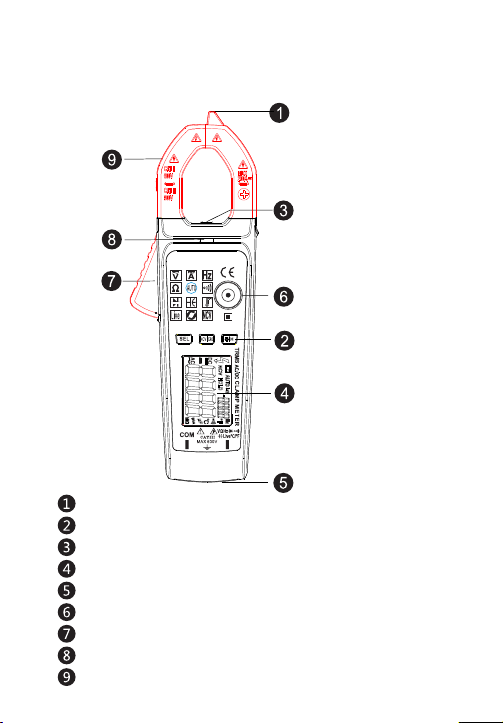

2.1 Part name
Non-contact voltage detecting & inducing area
Current clamp: Used in current measurement
Liquid crystal display (LCD)
Trigger
alarm light
electric torch
Function key
Trigger
On/off key
3
AC & DC
Connection/Disconnection indication
Automatic range mode
Automatic shutdown indication
Low battery
Reading hold state
Volt (voltage), ampere (current)
Ohm
kilohm and megohm (resistance)
hertz
Microfarad
Centigrade and Fahrenheit
LCD display
DIODE
4
3. Specification
The instrument specifies one year as a cycle, and shall
be re-calibrated under 18℃ ～ 28℃, with relative humidity
less than 75%.
3.1 Overview
●
Select measurement function and range automatically.
● Overload protection throughout the range.
● Max. voltage between measurement terminal and
ground: 600V
DC or 600V AC
● Operating height: Max. 2000m
● Display: LCD
● Max. display value: 6000 digit.
● Polarity indication: Automatic indication, and ‘
-
’
indicates negative.
● Over range display: ‘0L’ or ‘-0L’.
● Sampling time: About 3 times/second.,bargraph 10
times/second
● Unit display: Function and electricity quantity unit
display.
● Automatic shutdown time: 15 minutes
● Power supply: 1.5V AAA battery × 2
● Battery under-voltage indication: LCD display
symbol
● Temperature coefficient: Less than 0.1×accuracy/℃.
● Operating temperature: 18℃ ～ 28℃.
● Storage temperature: -10℃ ～ 50℃.
5
3.2 Technical indexes
3.2.1 AC current
Range
Resolution
Accuracy
60A
0.01A
± (2.5% reading + 8 digits)
200A
0.1A
- Min. input current: 0.2A AC current.
- Max. input current: 200A
AC current.
- Frequency range: 40～ 1000 Hz;
3.2.2 DC current(Optional features)
Range
Resolution
Accuracy
60A
0.01A
± (2.5% reading + 8 digits)
200A
0.1A
- Min. input current: 0.2A DC current
- Max. input current: 00A DC current
3.2.3 DC voltage
Range
Resolution
Accuracy
± (0.5% reading + 3
digits)
6V 0.001V
60V
0.01V
600V
0.1V
- Min. input voltage 0.5 V DC
- Max. input voltage: 600V DC
2
6
3.2.4 AC voltage
Range
Resolution
Accuracy
6V
0.001V
±( 0.8% reading + 5 digits) 60V
0.01V
600V
0.1V
-
Min. input voltage:
0.5
V AC
- Max. input voltage: 600V AC (valid value)
- Frequency range: 40 ~ 1000Hz
3.2.5
7
Line on-off test
Range
Resolution
Function
1Ω
If resistance of the line
being measured is less than
50Ω
, buzzer in instrument
will make continuous
alarming sounds.
- Overload protection: 6000V DC or AC (valid value)
3.2.6 Resistance
Range
Resolution
Accuracy
600Ω 0.1Ω
± (0.8% reading + 3 digits)
6kΩ 0.001kΩ
60kΩ
0.01kΩ
600kΩ 0.1kΩ
6MΩ
0.001MΩ
60MΩ
0.01MΩ
Overload protection: 600V DC or AC (valid value)
3.2.8 Capacitor
Range
Resolution
Accuracy
60.00nF
0.01nF
±( 2.5%
reading
+20
digits)
600.0nF
0.1nF
6.000uF
1nF
60.00uF
10nF
600.0uF
100nF
6.000mF
1μF
60.00mF
10μF
- Overload protection: 250V DC or AC (valid value)
3.2.9 Temperature
Range
Resolution
Accuracy
-50~1300 ℃ 1℃ ± (1%
reading
+3℃)
（-58~2372 ℉）
1℉ ± (1%
reading +3℉)
- Overload protection: 250V DC or AC (valid value)
The precision does not include the error of the thermocouple probe
8
Clamp frequency measurement (via
gear A):
-
Measurement range: 40Hz ~ 1000Hz
- Input signal range: ≥ 1/4
Full- scale Value
Via gear V:
-
Measurement range: 40Hz ~ 1000Hz
- Input signal range: ≥ 0.8
AC voltage (valid value)
Frequency
Range Resolution Accuracy
Range
Resolution
Accuracy
reading
reading
digits
digits
4. Operation guide
4.1 Reading hold
During measurement, if it is required to hold
reading,
touch
button,
value on display
will be locked, touch
button again, to cancel reading hold.
4.2 Backlight/Light
1)
During measurement, if environment light is too dark,
causing it difficult to read, you could press
key
for more than 2 seconds, to open backlight or light,
which will turn off in about 15 seconds
automatically.
9
3
)

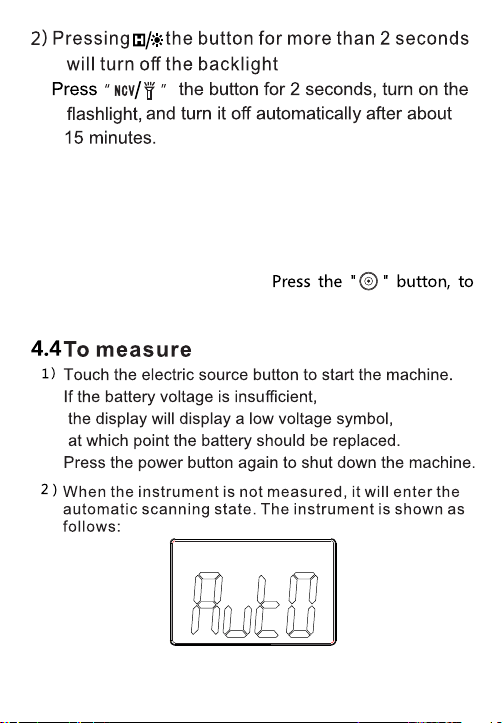

4.3 Automatic shutdown
1) If there's no operation within 15 minutes after start,
instrument will enter standby state, and shut down to
save energy.
2) After automatic shutdown,
wake the instrument enter work state.
10
4.5 NCV (Non -contact voltage detection)
Switch the rotation switch to any gear, hold down the
"NCV" key to display EF, and bring the NCV sensor close to
the conductor under test, instrument could detect whether
the lead being measured is >90V AC voltage. When
instrument detects AC voltage, instrument buzzer will
alarm and NCV alarm light will flash.
Note:
1)
Even if there’s no alarm indication, voltage may still
exist. Do not depend on non-contact voltage detector
to judge whether there's voltage in the lead. Detection
operation may be impacted
by factors like different
socket designs and insulation thickness types etc.
11
(

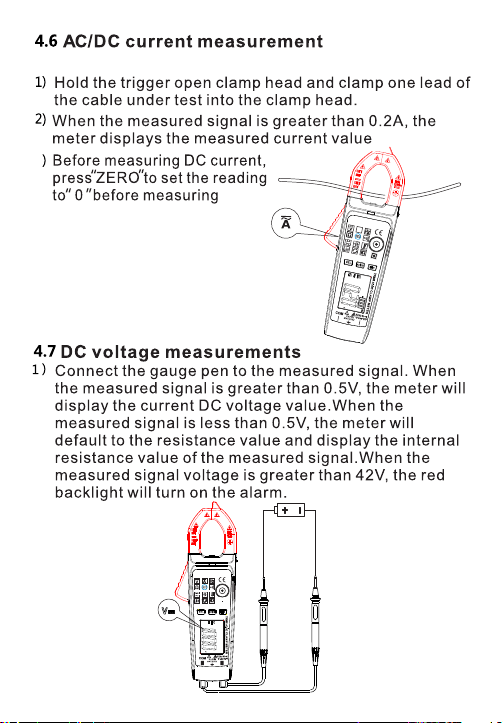

Dc current optional
)
12

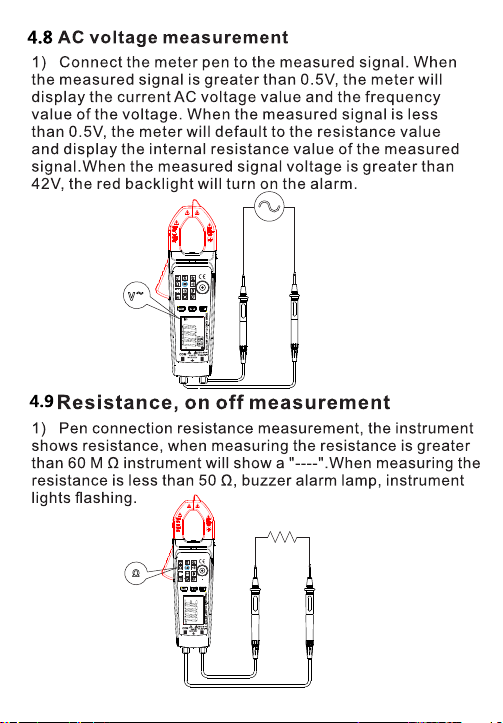

3
13

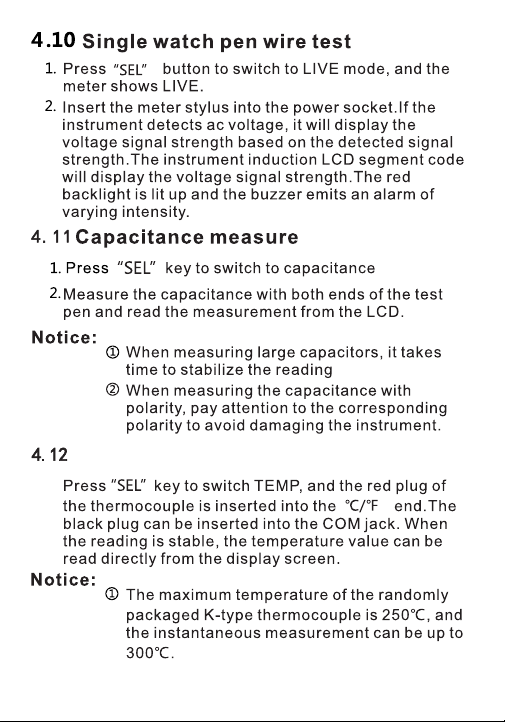

Temperature measurement
14
5. Maintenance
5.1 Change battery
Warning
Before opening battery cover of the
instrument, remove the pens from the circuit being
measured, to avoid electric shock.
1) If symbol "
" appears, it indicates to change the
battery.
2) Unfasten bolts on battery cover of instrument and
remove the cover.
3) Change the old battery.
4) Place the battery cover.
Do not reverse battery polarity.
5.2 Change pens
Warning
When changing the pen, it is required to
replace with an identical pen or a pen of the same
level.
The pen must be in good condition, and level
of the pens is: 1000V 10A.
If insulation layer of the pen is damaged, or metal wire
of the lead exposes, it is required to change the pen.
6. Accessories
1)
Pens
Level: 1000V 10A
2)
Use Manual
3)
Battery
1.5V AAA battery
4) Cloth bag
5) K-Type
Optional function
accessories
2PCS
1PCS
1PCS
15
