2231-20
4-20 MILLIAMP CLAMP METER
Mar. 2012
54-07-2350
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
E24A

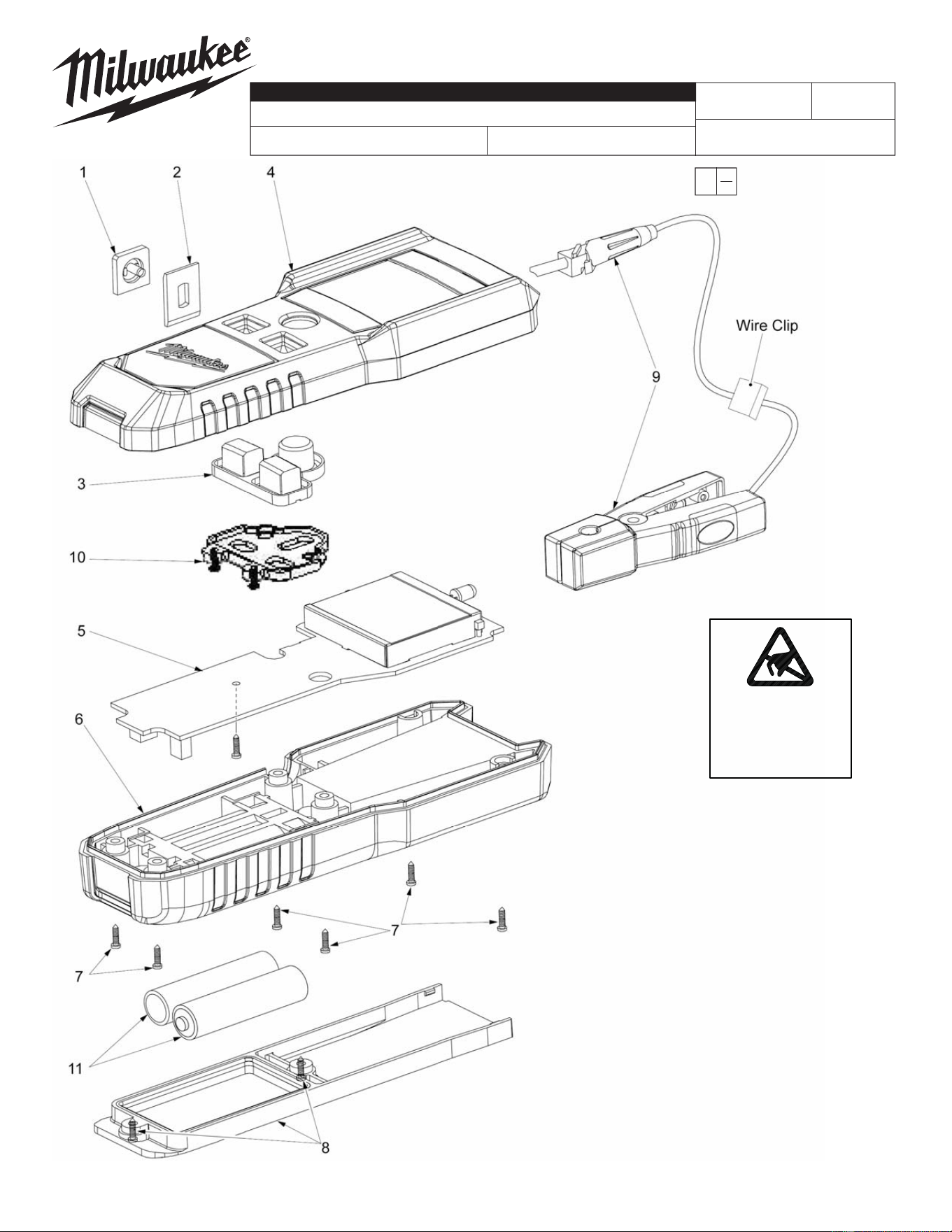

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 42-42-0145 Lamp Button (1)
2 31-10-0070 Lamp Button Bracket (1)
3 42-42-0155 Top Key Pad (1)
4 31-50-0565 Top Case (1)
5 22-06-0075 Main PCBA with One Screw (1)
6 31-50-0575 Bottom Case (1)
7 05-81-0215 Pan Hd. Plastite Phillips Screw (6)
8 31-21-0075 Battery Door with Two Screws (1)
9 45-67-0100 Clamp and Wire with Wire Clip (1)
10 31-10-0100 Top Key Pad Support with Two Screws (1)
11 --------------- AA Battery (2)
12 48-55-0175 Soft Carrying Case, Optional (1)
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
