10
14
12
13
11
14
6
7
8
9
3 1
2
4
5
15
16
2235-20
400 AMP CLAMP METER (Light Commercial)
Oct. 2010
54-07-2295
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

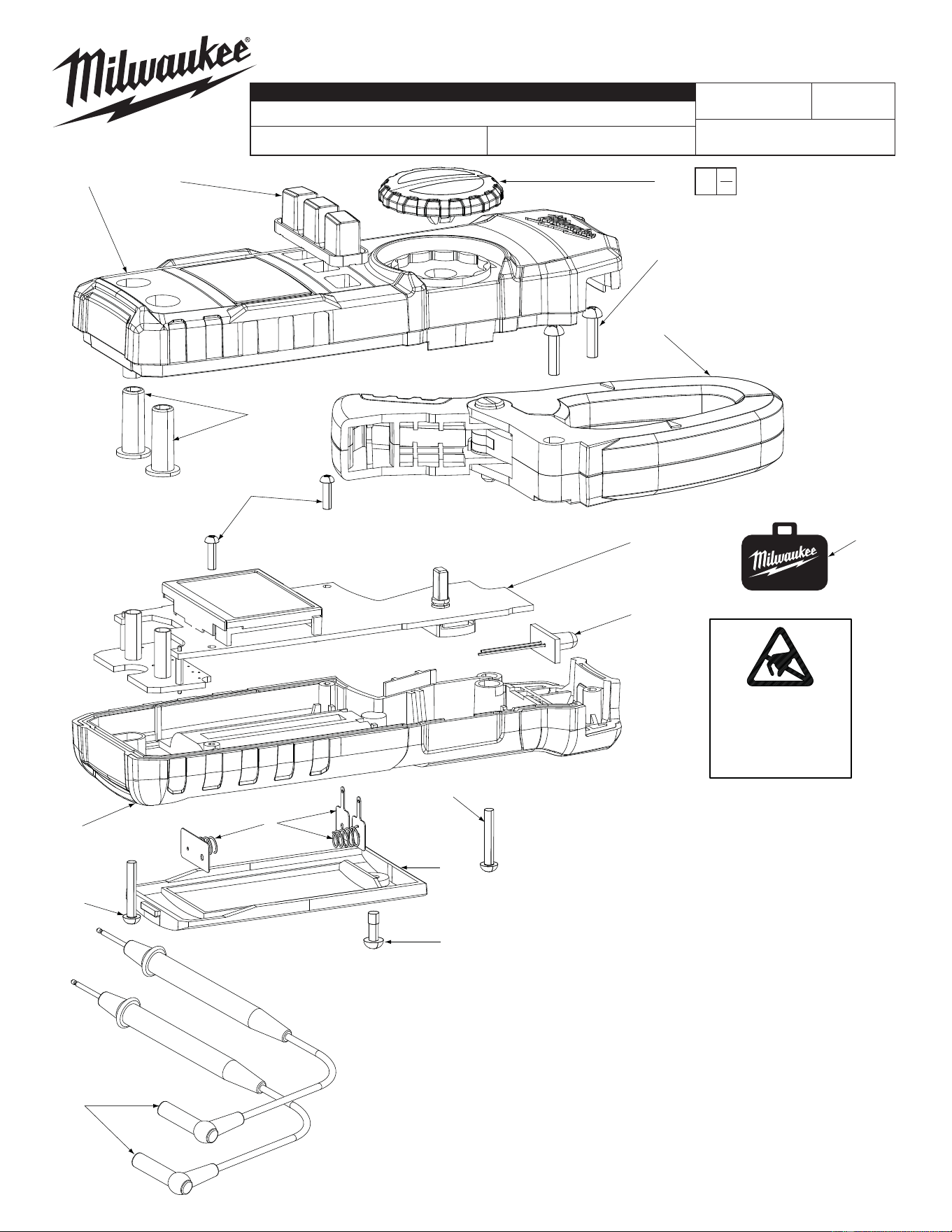

Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
C90A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 42-42-0055 Key Pad (1)
2 23-66-0615 Rotary Switch (1)
3 31-50-0110 Case Top (1)
4 05-81-0070 M3 x 12 Clamp Screw (2)
5 30-55-0030 Clamp (1)
6 22-58-0040 Outlet (one red, one black) (1)
7 05-81-0325 M2.3 x 8 Screw - Main PCB (2)
8 22-06-0025 Main PCB (1)
9 22-06-0035 Torch Light - Main PCB (1)
10 22-58-0045 Battery Contact (1)
11 31-50-0265 Case bottom (1)
12 31-21-0060 Battery Cover (1)
13 05-81-0075 M3 x 8-L3 Screw - Battery Cover (1)
14 05-81-0080 M2.6 x 16 Screw - Case Bottom (2)
15 49-77-1001 Test Lead Set (1)
16 48-55-0175 Soft Carrying Case, Optional (1)
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
