HWD80-B14959EU1
User manual
Washer-dryer
EN
Thank you
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
offi ce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suff ocation!
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.
WARNING!
The appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by a utility.
EN
Content
3
1-Safety information ......................................................................................................................... 4
2-Product description ...................................................................................................................... 8
3-Control panel .................................................................................................................................. 9
4-Programmes .................................................................................................................................14
5-Consumption ................................................................................................................................15
6-Daily use .........................................................................................................................................16
7-hOn...................................................................................................................................................21
7-Eco friendly use............................................................................................................................. 24
8-Care and cleaning ........................................................................................................................25
9-Troubleshooting ...........................................................................................................................28
10-Installation ...................................................................................................................................32
11-Technical data.............................................................................................................................36
12-Customer service ......................................................................................................................37
1-Safety information
EN
4
Before switching on the appliance for the fi rst time read the follow-
ing safety hints!:
WARNING!
Before fi rst use
▶ Make sure there is no transport damage.
▶ Make sure all transport bolts are removed.
▶ Remove all packaging and keep out of children´s reach.
▶ Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶ This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶ Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶ Children shall not play with the appliance.
▶ Do not let children or pets come close to the appliance when the
door is open.
▶ Store washing agents out of reach of children.
▶ Pull up zips, fi x loose threads and take care for small items to
prevent laundry from being entangled. If necessary, use an ap-
propriate bag or net.
▶ Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶ Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶ Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶ Do not use or store flammable detergent or dry cleaning agent
in close vicinity to the appliance.
▶ Do not use any fl ammable sprays in close vicinity to the appliance.
▶ Do not wash any garments treated with solvents in the appli-
ance without having dried them previously in the air.
▶ Do not remove or insert the plug in the presence of flammable gas
EN
1-Safety information
5
WARNING!
Daily use
▶ Do not hot wash foam rubber or sponge-like materials.
▶ Do not wash any laundry which is polluted with fl our.
▶ Do not open detergent drawer during any wash cycle.
▶ Do not touch the door during the washing process, it gets hot.
▶ Do not open the door if the water level is visibly over the porthole.
▶ Do not force the door to open. The door is fitted with a self-lock
device and will open shortly after the washing procedure is ended.
▶ Switch off the appliance after each wash programme and before
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do make sure the room is dry and well ventilated. The ambient
temperature should be between 5 °C and 35 °C.
▶ Do not cover any ventilation openings in the base by a carpet or
similar object.
▶ Keep the area around the appliance free of dust and lint.
▶ Do make sure that there is only laundry inside the appliance and
no pets or children before you use it.
▶ Only dry textiles washed in water.
▶ Do make sure not to load more than nominal load.
▶ Remove all items such as lighters and matches from pockets.
▶ Use fabric softeners or similar products as specifi ed by the
manufacturer´s packaging.
▶ Notice that the last part of the drying cycle occurs without heat
(cool down cycle) to ensure the remaining garments are at a
temperature which does not damage them.
▶ Do not leave the appliance unattended during run time for some
time. If a long absence is intended, the drying cycle has to be
interrupted by switching off the unit and unplugging the mains.
▶ Do not switch off the appliance except drying cycle is fi nished,
unless all items are quickly removed and spread out that the
heat can be released.
1-Safety information
EN
6
WARNING
Daily use
Do not dry following items in the appliance:
▶ Items which are unwashed.
▶ Items which have been contaminated with infl ammable sub-
stances such as cooking oil, acetone, alcohol, benzine, petrol,
kerosene, spot removers, turpentine, waxes, wax removers or
other chemicals. The fumes can cause a fi re or explosion. These
items must always be washed fi rst by hand in hot water with an
extra amount of detergent and then be dried in the open air be-
fore drying in the applinance.
▶ Items which contain padding or fi llings (e.g. pillows, jackets,) as
the fi lling can get out with the risk of igniting in the appliance.
▶ Items which contain a large proportion of rubber, foam rubber
(latex foam) or rubber like materials such as shower caps, wa-
terproof textiles, rubberised articles and items of clothing and
pillows with foam rubber fi lling.
Switch off the appliance after each drying programme to save
electricity and for safety.
Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and
maintenance.
▶ Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶ Keep the lower part of the porthole clean and open door and
detergent drawer if appliance is not in use to prevent odours.
▶ Do not use water spray or steam to clean the appliance.
▶ Replace a damaged supply cord only by the manufacturer, its ser-
vice agent or similarly qualifi ed persons in order to avoid a hazard.
▶ Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶ Ensure a location which allows opening the door fully. Do not in-
stall the appliance behind a lockable door, a sliding door or a door
with hinges on the opposite side of the appliance door as this
limits the full opening of the appliance door.
EN
1-Safety information
7
WARNING
▶ The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶ Never install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak cut power supply and allow
the machine to dry naturally.
▶ Install or use the appliance only where the temperature is above 5 °C.
▶ Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶ Do not expose the appliance to any frost, heat or direct sunlight
or in the near of heat sources(e.g. stoves, heaters).
▶ Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electrician.
▶ Do not use multi-plug adapters and extension cables.
▶ Make sure only the delivered electric cable and hose set are used.
▶ Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶ For the power supply, use a separate earthed socket which
is easily accessible after installation. The appliance must be
earthed.
Only for UK: The appliance’s power cable is fi tted with 3-cord
(grounding) plug that fi ts a standard 3-cord (grounded) socket.
Never cut off or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.
▶ Make sure the hose joints and connections are fi rm and there is
no leakage.
Intended use
This appliance is intended for washing machine-washable laundry only. Anytime
follow the instructions given on the label of each garment label. It is designed
exclusively for domestic use inside the house. It is not intended for commercial
or industrial use.
Changes or modifi cations to the device are not allowed. Unintended use may
cause hazards and loss of of all warranty and liability claims.
2-Product description
EN
8
2.1 Picture of appliance

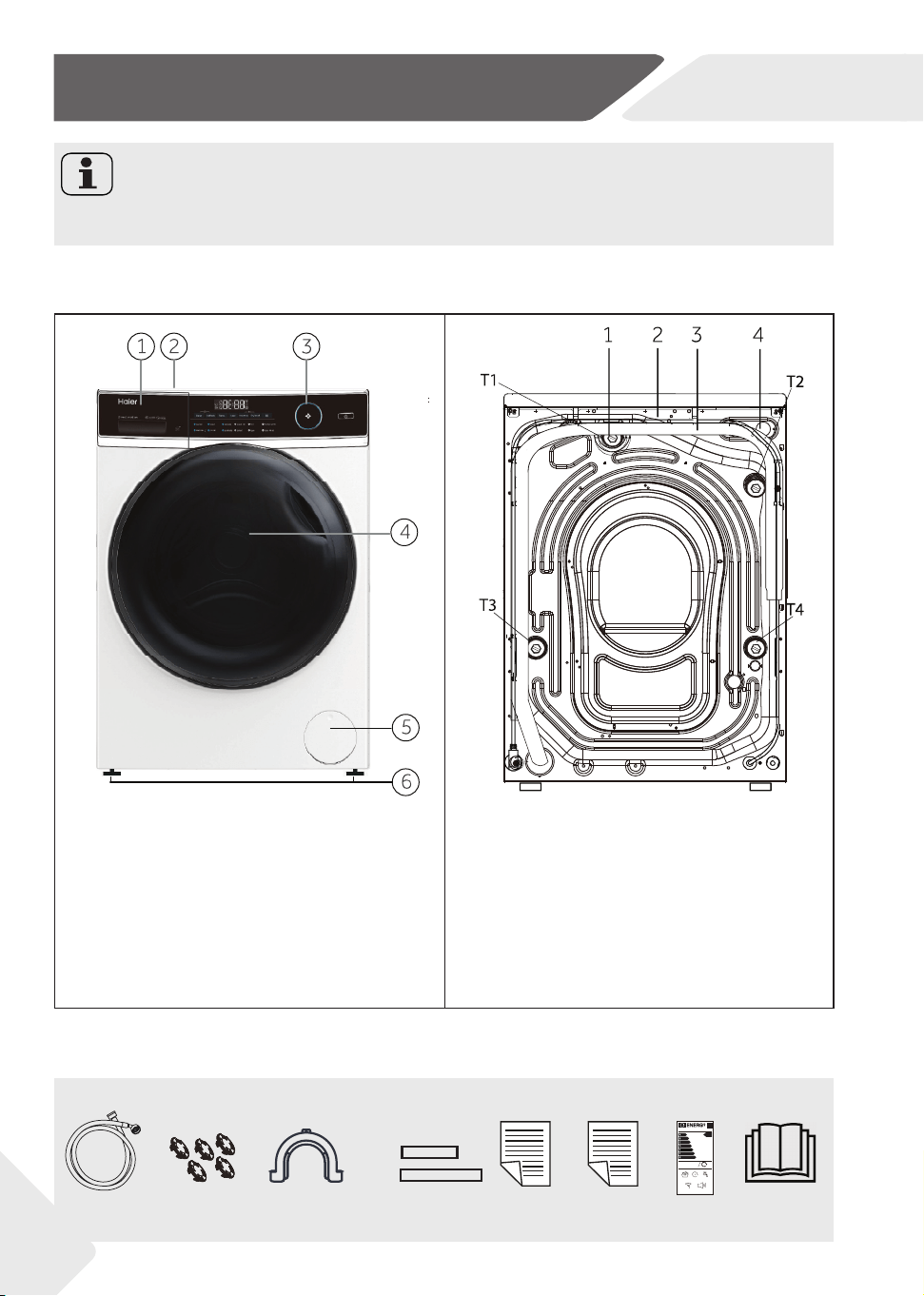

Front (Fig. 2-1):
Note: Deviations
Due to technical changes and diff erent models, the illustrations in the following chap-
ters may diff er from your model.
1 Detergent / Softener drawer
2 Worktop
3 Control panel
4 Washer door
5 Filter cover
6 Adjustable feet

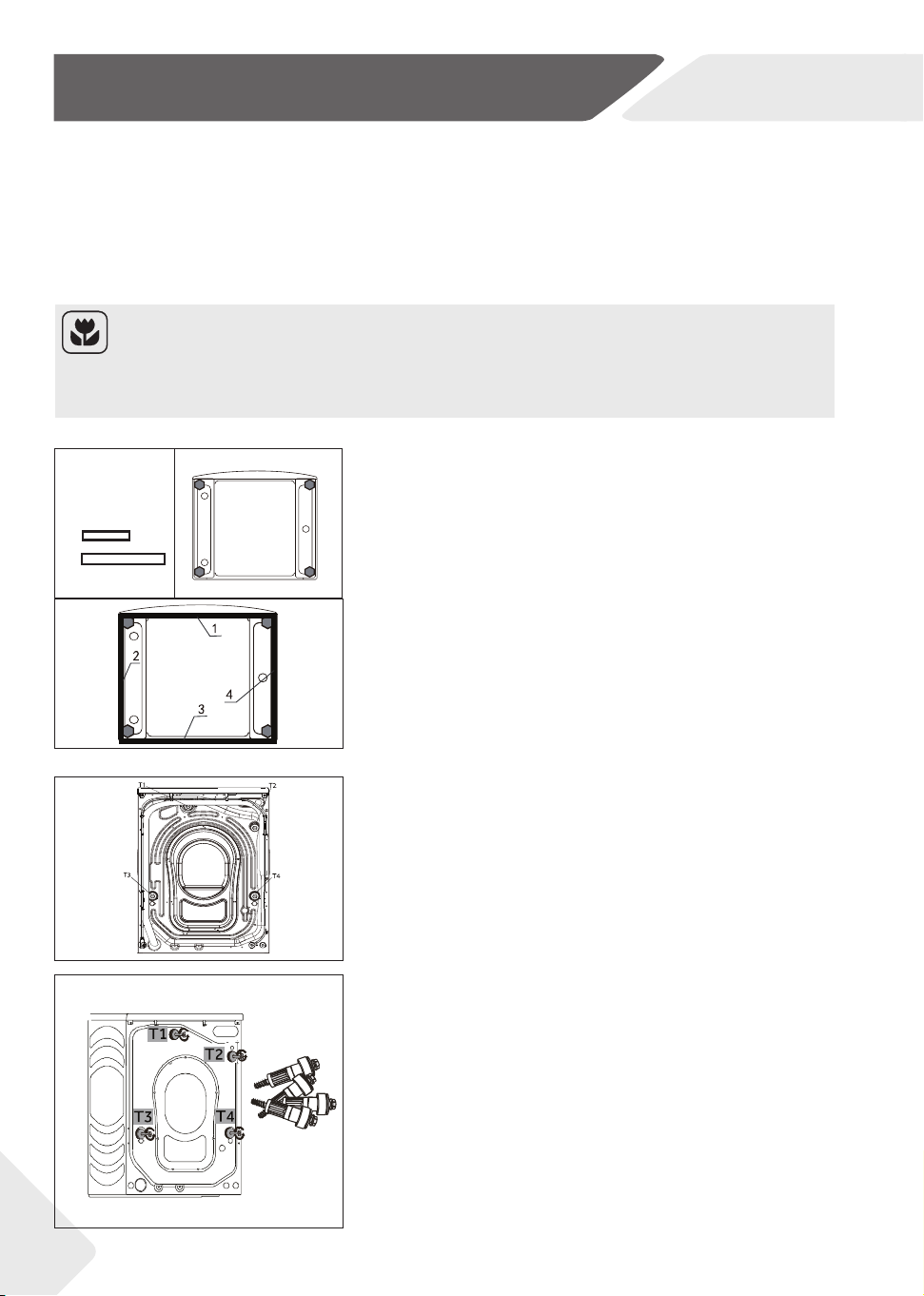

1 Transportation bolts (T1-T4)
2 Power cord
3 Drain hose
4 Water inlet valve
2-2
Rear side (Fig. 2-2):
2-1
Inlet hose 5 Blanking plugs
Drain hose
bracket
Noise
reduction pads
User manualEnergy
label
Warranty
card
10 Years Parts
Guarantee
2x
2x
HW110-B14979U1
Haier
A
54
kWh
100
11,0
kg
3:58 56
L
A
B
CDEFG
70
dB
A
BCD
2019/2014
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig. 2-3)
2-3
EN
3-Control panel
9
3-1

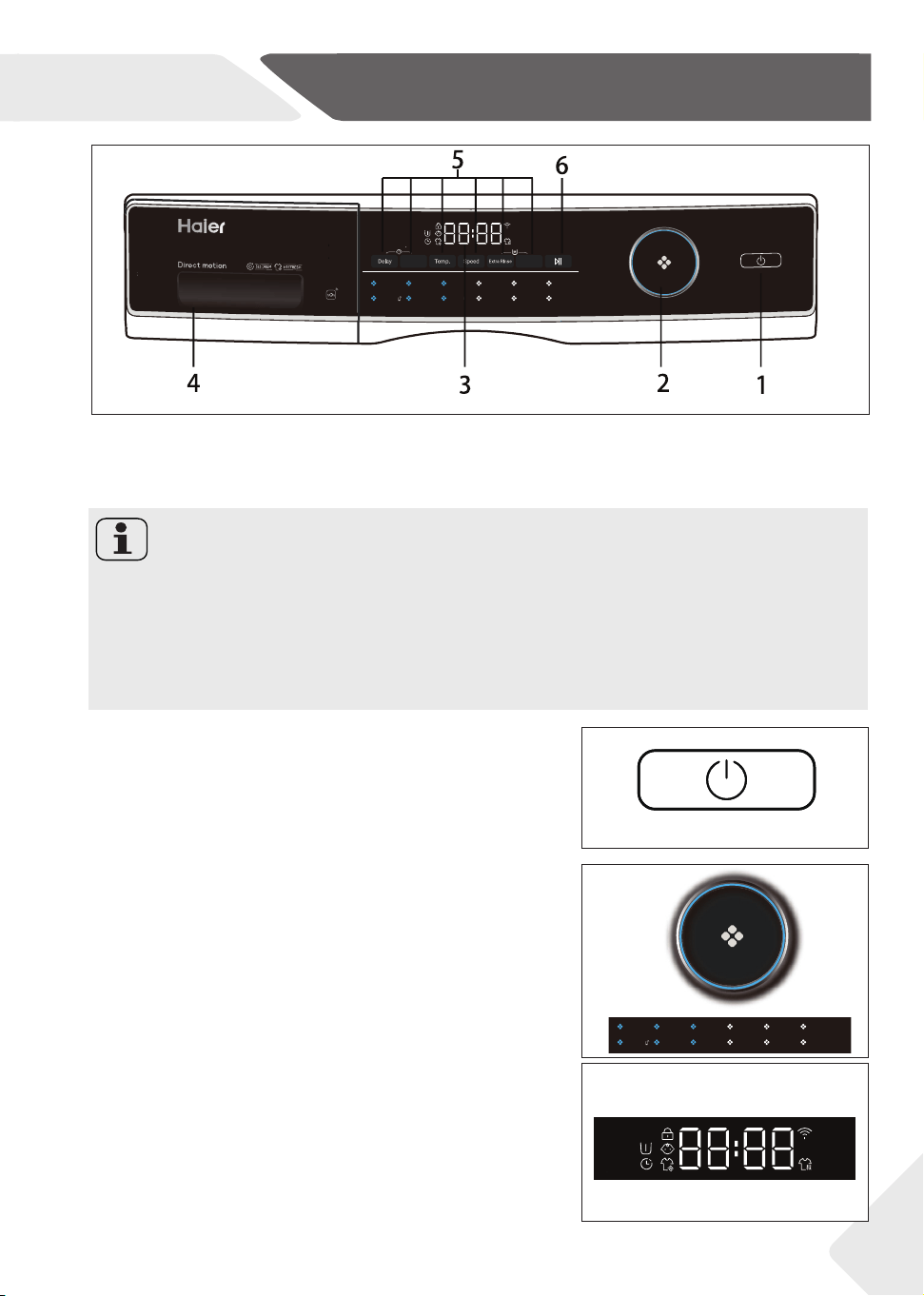

Smart
Dry Cotton 20°C
Spin
I-refresh
Eco 40-60
Synthetics
Quick 15’DelicateWool
Duvet
Remote
Cotton
Dry level
1 “Power” button
2 Programme selector
5 Function buttons
6 “Start/Pause” button
3 Display
4 Detergent/
Softenener drawer
Note: Acoustic signal
In following cases, an acoustic signal is no sounds by default:
▶ when pressing the button
▶ when turning the programme selector
▶ at the end of programme
The acoustic signal can be selected if necessary: see DAILY USE (P20, 6.13)

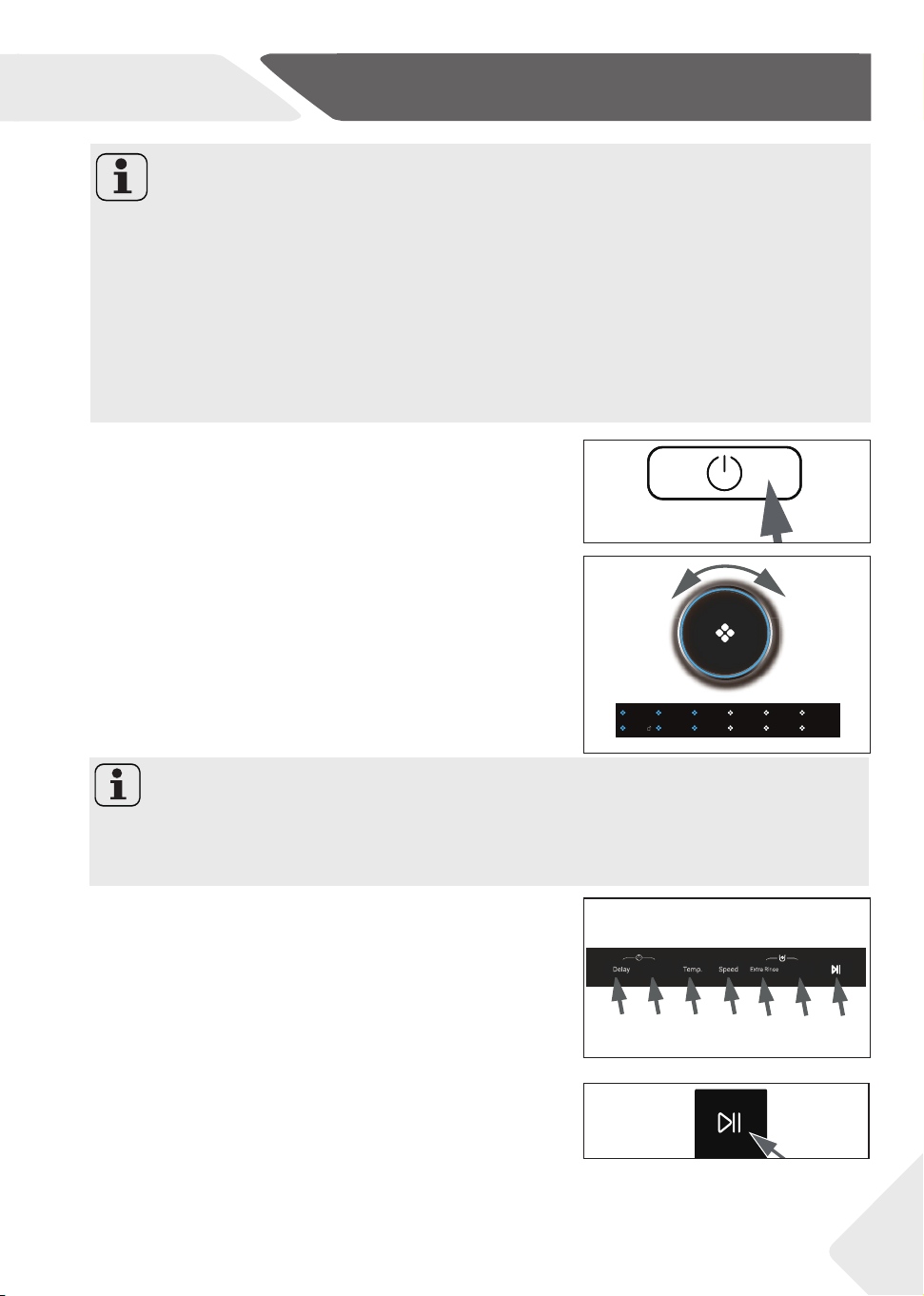

3.1 “Power”button
Touch this button (Fig. 3-2) gently to switch on, the
display is shining, the indicator of the “Start/Pause”
button is fl ashing. Touch it again for about 2 sec. to
switch off . If no panel element or programme is ac-
tivated after a while machine will shut down auto-
matically.
3.2 Programme selector
By turning the knob (Fig. 3-3) one of 12 pro-
grammes can be selected, related LED will light
up, its default settings will be displayed.
Smart
Dry Cotton 20°C
Spin
I-refresh
Eco 40-60
Synthetics
Quick 15’DelicateWool
Duvet
Remote
Cotton
Dry level
3-2
3-3
3-4
3.3 Display
The display (Fig. 3-4) shows following information:
▶ Washing/Drying time
▶ End time delay
▶ Error codes and service information
▶ Display symbols
▶ Speed, Temperature, etc.
3-Control panel
EN
10
3.4 Function buttons
The function buttons (Fig. 3-5) enables additional options
in the selected programme before programme starts. The
related indicators are displayed. By switching off the appli-
ance or setting a new programme, all options are disabled.
If a button has multiple options, the desired option can be
selected by pressing the button sequentially.
3-5
Note: Factory settings
If there is no special requirement default settings are recommended.
3.4.1-Function button “Delay“
Press this button (Fig. 3-6) to start the programme with
a delay. End time delay could be increased in steps of 30
minutes from 0,5-24h (End time will be longer than origi-
nal programme time). For example display off 6:30 means
end of programme cycle will be in 6 hours and 30 minutes.
Touch “Start/Pause” button to activate the time delay. It is
not applicable to programme “Spin“, „Remote“ and “Dry“.
3-6
3-8
3-7
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.4.2-Function button “i-Refresh“
Touch this button (Fig. 3-7) the programme can be
selected, i-Refresh icon will light up. It is used for fresh
odour removal, dust removal, mites removal and mois-
ture removal.

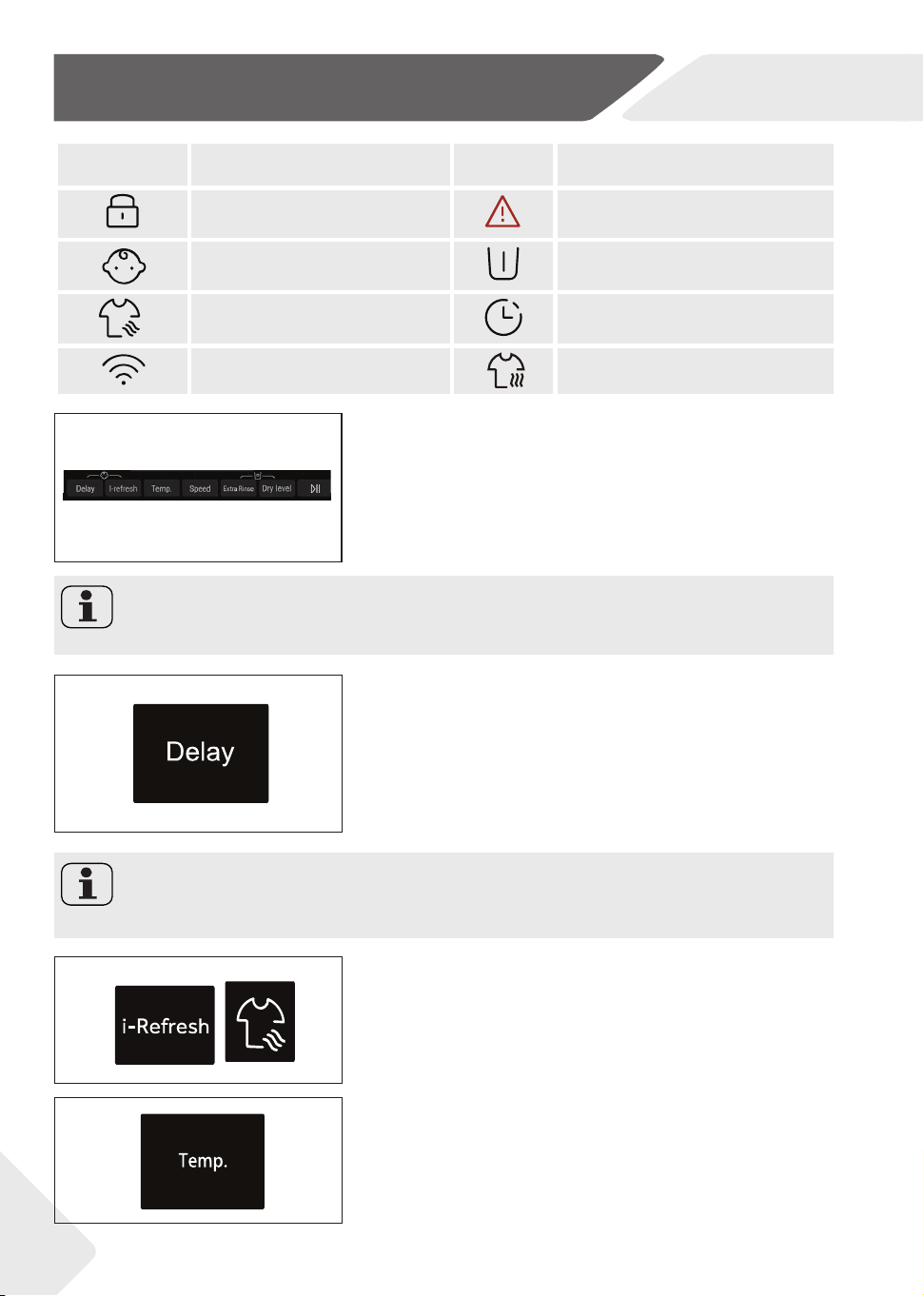

Symbols Meaning Symbols Meaning
Drum door is locked Alarm
Control panel is locked Pre-wash
i-refresh Delay
Appliance is connected to WiFi Dry
3.4.3 Function button“Temp.“
Press this button (Fig. 3-8) to change the washing tem-
perature of the programme. If no value is illuminated
(the display”-- “) the water will not heated.
EN
3-Control panel
11
3-9
3-10
3-11
3.4.5 Function button “Extra Rinse”
Press this button (Fig. 3-10) to rinse the laundry more
intense with fresh water. This is recommended for peo-
ple with sensitive skin. By touching the button several
times zero to three additional cycles can be selected.
They appear in the display with P--0/P--1/P--2/P--3.
Diff erent programme options are diff erent.
3.4.4 Function button“Speed“
Press this button (Fig. 3-9) to change or deselect the
spin of the programme. If no value is illuminated (the
display“ “) the laundry will not spin.
3.4.6 Function button“Dry Level“
Touch this button (Fig. 3-11) to change or deselect the
drying level of the programme according to the needs.
DL-1: Iron dry, fabrics suitable for ironing in order to
avoid creasing. Garments can be additionally hung up
to dry.
DL-2: Cupboard dry, for single-layer fabrics. Garments
can be stored directly after drying. It is the standard
drying target mode.
DL-3: Extra dry for fabrics made of thick, multilayered
items of clothing, which need to be dried long-
er. Garments can be stored directly after drying.
By touching the button sequentially, drying time can be
set 30, 60, 90 minutes. If the display shows "” or no
value, the drying function is deactivated.
Note: i-Refresh tips
▶ Please button and zip the clothes before i-Refresh. Clothing with adhesive lining, de-
coration (PU trim, diamond, buckle, buckle, pin, metal decorations, coating, pendants,
etc.), adhesive, finalize the design of metal objects, please be careful.
▶ i-Refresh care clothing should be dry clothing, if the clothes are wet or soaked, please
air dry before i-Refresh care, such as i-Refresh wet clothes directly , there is a risk of
shrinkage, deformation.
▶ Please use soft cloth to protect the embroidery and decorations on the clothing sur-
face in advance to avoid scratching the clothing surface.
▶ Clothing with support (such as the skirt of wedding dress fabric) please take out the
support before air washing care.
▶ i-Refresh has the function of removing smell, please do not spray perfume, freshener, etc.
▶ Please do not place too many clothes. Single care is recommended for best results.
▶ Dust may remain on the door and window mat after i-Refresh. Please wipe the inter-
layer of the window mat and the door glass in time.
▶ Not suitable for large, coated down jackets; Suitable for small, short down jacket care.
3-Control panel
EN
12
3-12
3-13
3-15
3-14
3.6 “Child lock“
Choosing a programme and then start, touch but-
ton “Delay” and “i-Refresh” (Fig. 3-13) for 3 seconds
simultaneously to block all panel elements against ac-
tivation, panel displays . For unlocking, please touch
again the two buttons. The child lock indicator lights up
when the child lock works. Feature is optional when the
machine is running.
The display shows - (Fig. 3-14) if a button will be
pressed, when the child lock is activated. The change
is not running.
3.5 “Start/Pause“ button
Touch this button (Fig. 3-12) gently to start or inter-
rupt the currently displayed programme. During pro-
gramme setting and during programme run the LED
above the button is shining, or if interrupted blinking.
Note: Child lock
▶ The child lock which is set up manually must be cancelled manually or will be cancelled
automatically at the end of the programme. Power off and error information won’t
cancel child lock. It still works when the appliance is powered on next time.
▶ If you use the cild lock, fi rst press the programme key, then the child lock will be on.
▶ Hold it for 3 seconds, the child lock will turn to full light and the child lock will be activated.
▶ Child lock can’t be set up or cancelled through hOn App.
3.7 Self clean “ “
After execution of “Dry” and “i-Refresh” programmes,
there may be some residual fl uff , dust or other sub-
stances released by the laundry in the bellow or drum.
This do not represent a problem of the product and it is
recommended to clean it up. Product is equipped with
a special programme for this cleaning. Do not use de-
tergent and ensure that laundry is not inside the drum.
For any programme in stand by mode, long press “Ex-
tra Rinse” + “Dry Level” to bring out the cantilever for
self-cleaning. First display the letter “” code about
2 seconds, then display :. Press “Start” to start the
countdown, then display “” when the programme is
fi nished.
After cleaning, open the door slightly and keep it open.
EN
3-Control panel
13
3-16

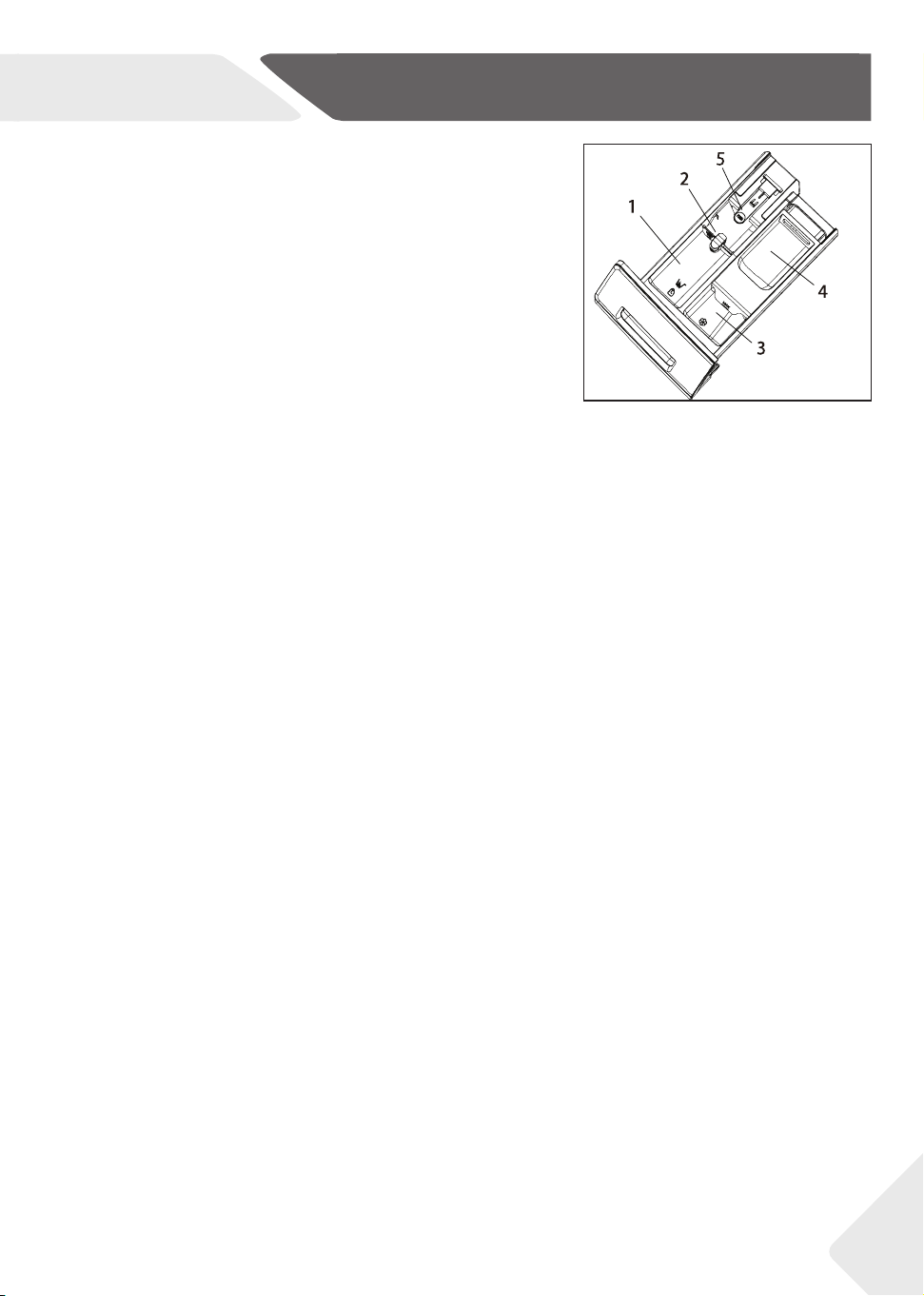

3.8 Detergent drawer
Open dispenser drawer, the following components
can be seen (Fig. 3-16):
1: The main washing compartment for powder or
liquid detergent.
2: Detergent flap slector, lift it up for powder deter-
gent, keep it down for liquid detergent.
3: Compartment for softener.
4: Pre-wash compartment for a small amount of pow-
der detergent.
5: Lock tab, press it down to pull out dispenser drawer.
The recommendation on the type of detergents i suit-
able for the various washing temperatures, please refer
to the manual of detergent.
EN
4-Programmes
14

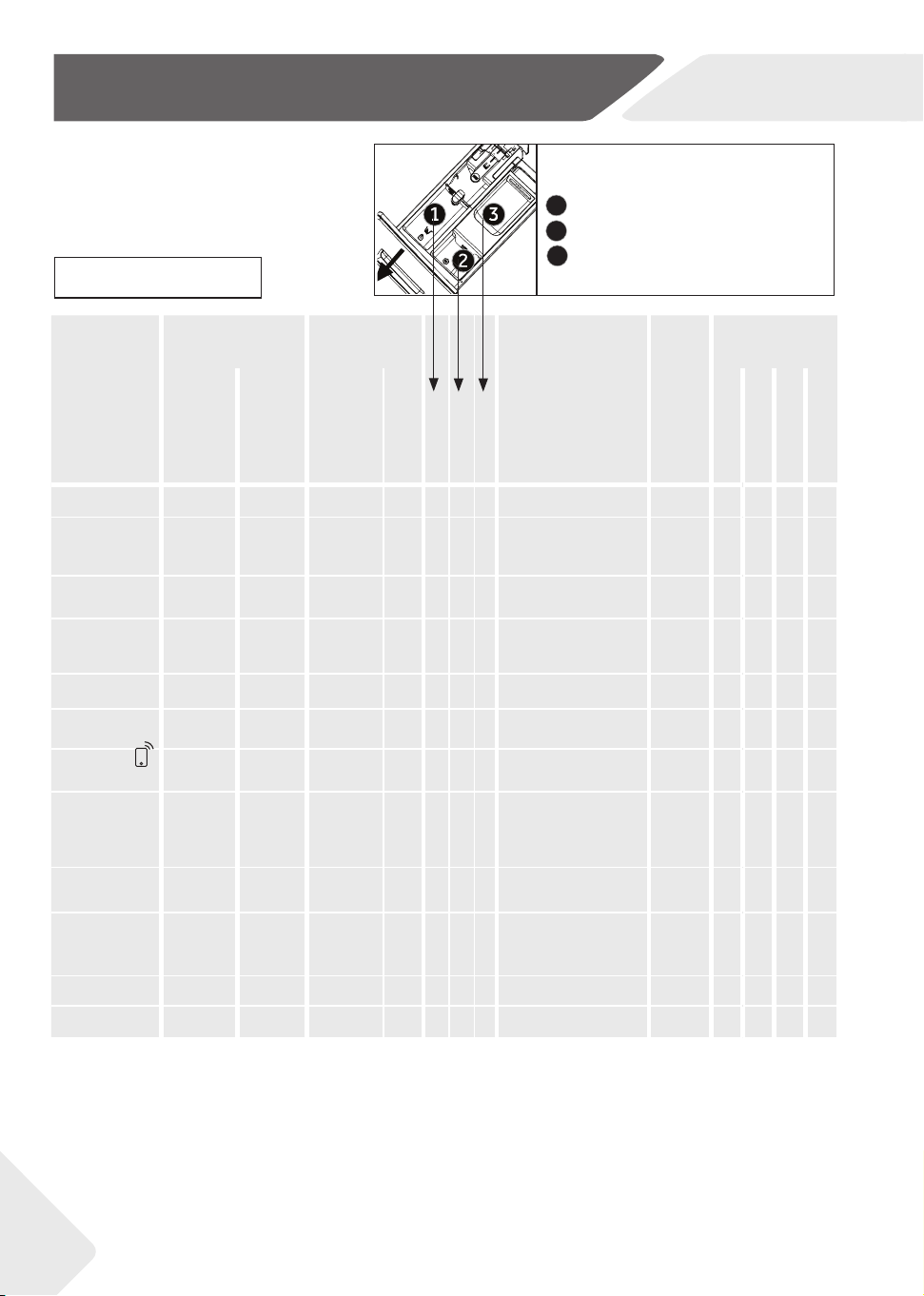

* Water is not heated up.
1)
Choose 90 °C wash temperature only for special hygienic requirements.
2)
Reduce detergent amount because programme duration is short.
3)
No or a small amount of powder detergent.
4)
Relating to dry laundry.
The design and specifications are subject to change without notice for quality improvement purposes.
User shall not add any sanitizer, detergent or softener to the i-Refresh function.
Max. load
4)
in kg
Tempera-
ture
Preset
spin
speed
in rpm
Function
washing
in kg
drying
in kg
in °C
1)
Preset
Delay
i-Refresh
Extra Rinse
Dry level
Programme
select
able
range 1 2 3 Fabrics type
Cotton
8
6 * to 90 40
•
º º
Cotton
1400
• • • •
Wool
1
/
* to 40
*
•
º º
Machine-washable
fabric made of wool
or with wool content
800
• • •
/
Delicate 2.5 / * to 30 30
•
º º
Delicate laundry
and silk
600
• • •
/
Quick 15
2)
1 1 * to 40 *
•
º
/
Cotton/Synthetics 1000
•
/
• •
Dry
/
6
/ / / / /
Cotton/Synthetics
/
/ / /
•
Cotton 20°C
8
6
/ /
•
º º
Cotton 1000
•
/
• •
Remote
/ / / / / / / / / /
/
/ /
Duvet
2.5
/
*to 40 30
•
º º
Cotton 800
• • •
/
Synthetics
4 3 * to 60 40
•
º º
Synthetics or
mixed fabric
1200
• • • •
Smart
8 6 * to 60 30
•
º
/
Lightly soiled mixed
laundry of cotton
and synthetics
1000
•
/
• •
Spin
8 6
/ / / / /
Non-fragile fabric 1000
/ / /
•
ECO-40-60
8 6
/ /
•
º
/ / /
•
/ /
•
•
Yes,
º
Optional, / No
Detergent compartment for:
1
Detergent
2
Softener or care product
Detergent
3)
3
EN
5-Consumption
15
Scan QR code on energy label for energy consumption information.
The actual energy consumption may diff er from the declared one according to local
conditions.
Enter the European standard test procedure:
1. Select “Eco 40-60”, then touch the “Start” button, enter the washing performance
programme.
2. Select “Eco 40-60”, touch the “Dry level” button, then touch the “Start” button, enter
the drying performance programme.
Note: Auto Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programmes.
The display default time may vary depending on the load weight, involving the “Smart,
Synthetics, Cotton, Cotton 20° C, Eco 40-60” programme.
Indicative information(as per Commission Regulation (EU) 2019/2023):
Rated
Capacity
Programme
(kg) (HH:MM) (kWh/cycle)
(L/cycle)
Max.
Temperature
(°C)
Eff ective
Speed
(RPM)
Residual
Moisture (%)
8 kg
Eco 40-60 8.0 3:48 0:750 68.0 30 1330 52.0
Eco 40-60 4.0 2:52 0:510 40.0 30 1330 52.0
Eco 40-60 2.5 2:45 0:265 32.0 25 1330 55.5
Eco 40-60+
Dry level
Eco 4
6.0 8:50 3:820 98.0 26 - 0.0
Eco 40-60+
Dry level
Eco 4
3.0 5:20 1:960 66.0 25 - 0.0
Cotton 20°C 8.0 0:53 0:330 80.0 20 1000 65.0
Cotton 60°C 8.0 1:57 2:000 80.0 57 1400 55.0
Wool 30°C 1.0 0:45 0:380 40.0 30 800 37.0
Express15’ 30°C 1.0 0:23 0:380 40.0 30 1000 65.0
The values given for programmes other than the Eco 40- 60 programme and the dry cycle are indicative only.
Residua
EN
6-Daily use

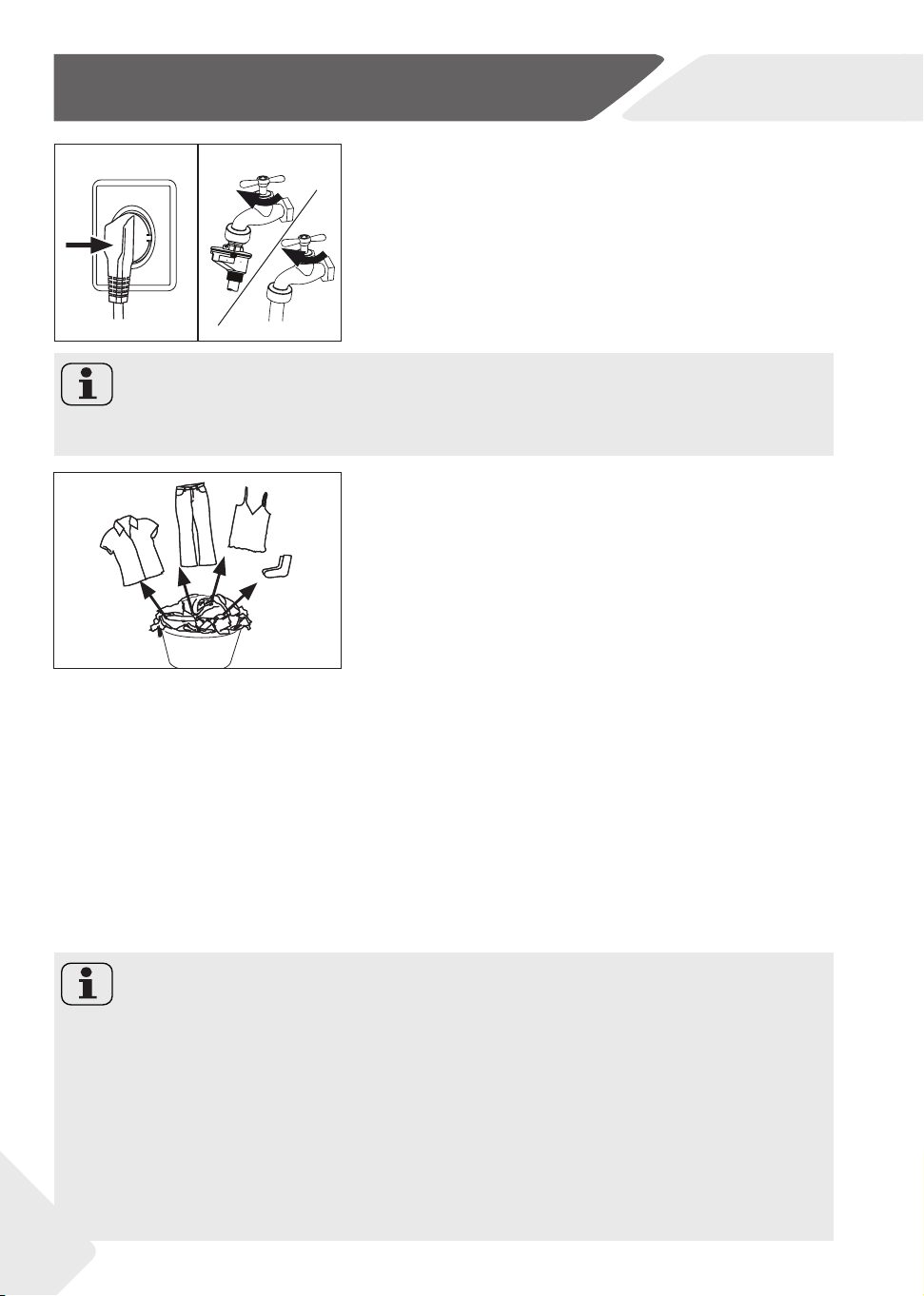

6.3 Preparing laundry
▶ Sort out clothes according to fabric (cotton, synthet-
ics, wool or silk) and to how dirty they are (Fig. 6-3). Pay
attention to the care labelling of washing labels.
▶ Separate white clothes from coloured ones.
Wash coloured textiles fi rst by hand to check if
they fade or run.
▶ Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
▶ Garments without hems, delicates and fi nely wo-
ven textile such as fi ne curtains are to be put into
a wash bag to care for this delicate laundry (hand
or dry cleaning would be better).
▶ Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
▶ Place sensitive items like laundry without fi rm
hem, delicate underwear (Dessous) and small
items such as socks, belts, bras, etc. in a wash bag.
▶ Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
▶ Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash separately.
6.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 6-1). Please refer also to
section INSTALLATION (see P28).
6.2 Water connection
▶ Before connecting check the cleanliness and clar-
ity of the water inlet.
▶ Tun on the tap (Fig.6-2).
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning
on the tap.
6-1 6-2
8-7
Note: Special hints for drying
▶ Sort clothes according to fabric(cotton, synthetics, etc.) desired dry level and equal
residual moisture. Follow the instructions on the laundry label and dry only machine-
dryable garments
▶ Spin the laundry with the maximum spin speed before drying.
▶ Do not exceed the max. load.
▶ Extra large pieces tend to wind up. If the laundry has not been suffi ciently dry, loosen
up the laundry and dry again with programme DRY.
▶ Especially delicate fabrics which can easily shrink or lose their shape, as well as e.g. silk
stockings, lingerie etc. should not be dried with the appliance. Put delicate garments
inside a laundry bag and avoid overdrying them.
▶ Jersey and knitwear should not be dried to avoid shrinkage.
6-3
16
EN
6-Daily use
17

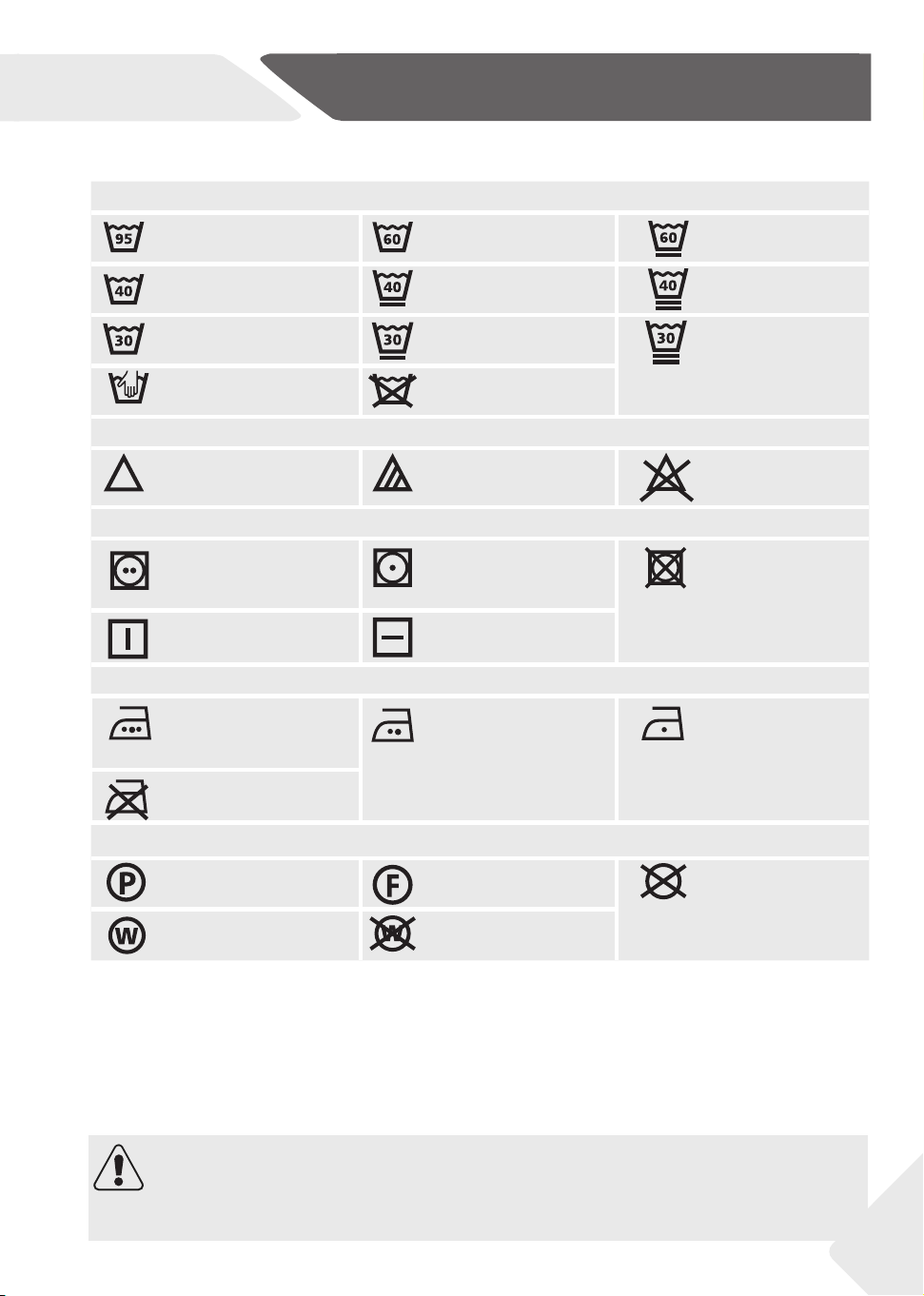

6.4 Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dryr
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
6.5 Loading the appliance
▶ Put in the laundry piece by piece into the drum.
▶ Don‘t overload. Note the diff erent maximum load according to programmes.
Check if you can put a hand upright on top of the load.
▶ Close the door carefully. Make sure that no pieces of laundry are pinched.
Not all of these symbols are displayed in the appliance menu.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
EN
6-Daily use
18

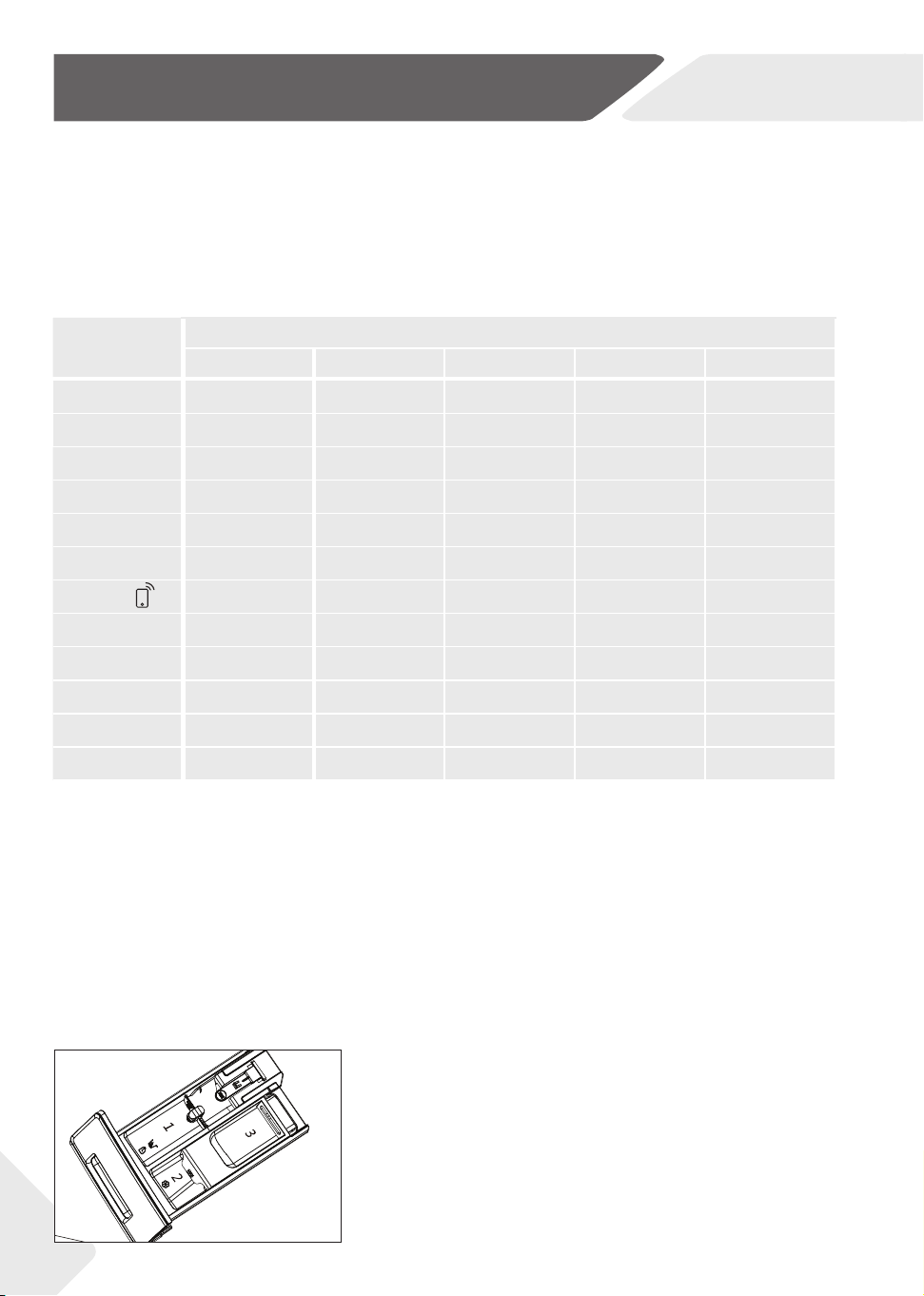

Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton L/P L/P - - o
Wool
- - L/P L/P o
Delicate
- - L/P L/P o
Quick 15’ L L - - o
Dry - - - - -
Cotton 20°C
L/P L/P - - o
Remote
L/P L/P - L -
Duvet - - L L/P -
Synthetics
- L/P - - o
Smart
L/P L/P - - o
Spin - - - - -
Eco 40-60
L/P L/P - - o
L = gel-/liquid detergent
P = powder detergent
O = optional
_
= no
If using liquid detergent, it is not recommended to activate the time delay.
*Choose 90°C wash temperature only for special hygienic requirements.
We recomment by using:
▶ Laundry powder: 20°C to 90°C* (best use: 40-60°C)
▶ Color detergent: 20°C to 60°C (best use: 30-60°C)
▶ Wool/delicate detergent: 20°C to 30°C (= best use: 20°C to 30°C)
6.6 Selecting detergent
▶ Washing effi ciency and performance is determined by used detergent quality.
▶ Use only machine wash approved detergent.
▶ If needed use specifi c detergents, e.g. for synthetic and woolen fabric.
▶ Mind always detergent manufacturer recommendations.
▶ Do not use dry cleaning agents such as trichloroethylene and similar products.
6-4

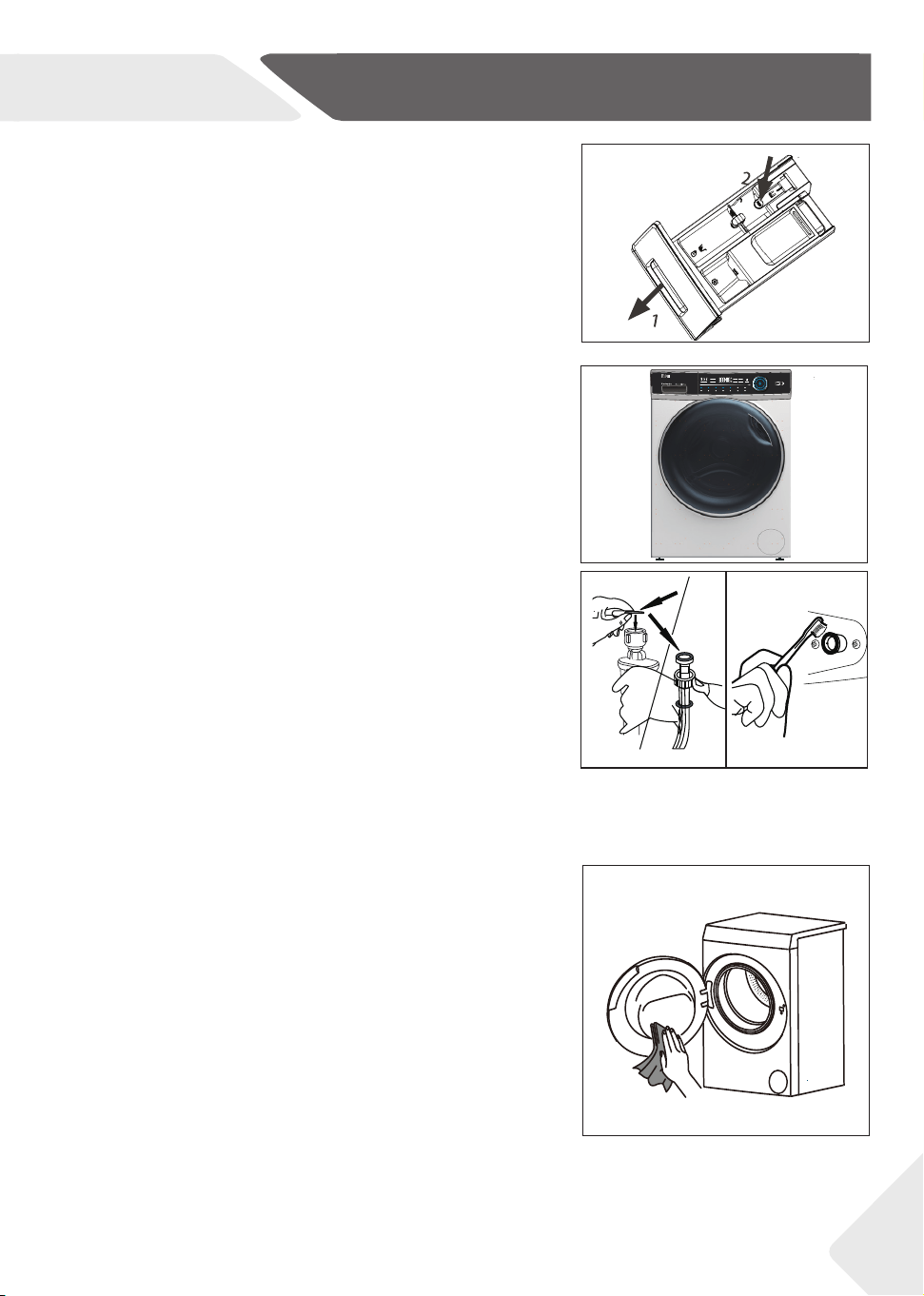

6.7 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 6-4)
3. Push back the drawer gently.
EN
6-Daily use
19
Note:
▶ Remove detergent residues before next wash cycle from the detergent drawer.
▶ Do not overuse detergent or softener.
▶ Please follow the instruction on the detergent package.
▶ Always fi ll the detergent just before the beginning of the wash cycle.
▶ Concentrated liquid detergent should be diluted before adding.
▶ Do not use liquid detergent if “Delay“ is selected.
▶ Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
6.8 Switch on the appliance
Touch the “Power“- button to switch on the appli-
ance (Fig. 6-5). The LED of the “Start/Pause“ button
is fl ashing.
6-5
6.9 Select a programme
To get the best washing results, select a programme
which fi ts the degree of soiling and sort of laundry
type.
Turn the programme knob (Fig. 6-6) to select the
right programme. Related programme LED lights up
and the default settings are displayed.
Smart
Dry Cotton 20°C
Spin
Eco 40-60
Synthetics
Quick 15’
DelicateWool
Duvet
Remote
Cotton
6-6
Note: Odor removal
Before fi rst use we recommended to run programme “Self clean” (“Dry level” + “Extra
Rinse”) with no load and small amount of detergent in washing agent compartment (2)
or special machine cleaner to remove possibly corruptive residues.
6.10 Add individual selections
Select required options and settings (Fig. 6-7); refer to
CONTROL PANEL.
I-refresh
Dry level
6-7
6.11 Start wash programme
Touch “Start/Pause“ button (Fig. 6-8) to start. The LED
of the “Start/Pause“ button stops fl ashing and lights
up continuously
Appliance operates according to present settings.
Changes are only possible by cancelling the pro-
gramme.
3-14
6-8
EN
6-Daily use
20
1. At programme cycle end is displayed.
2. The appliance switches off automatically.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4. Turn off the water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not
used.
7. Small clothes are easy to stick to the wall after high-speed swing drying, please do
not omid when opening the door to pick up clothes.
6.14 Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the “Spin” programme.
3. Touch the “i-Refresh“ button and “Speed” button at the same time for about 3 sec-
onds. “ ” will be displayed and the buzzer will be activated. For deactivating the
buzzer press these two buttons at the same time again. “ ” will be displayed.
Note: Door lock
▶ For safety reasons the door is locked partially during the washing cycle. It is only pos-
sible to open the door at the end of the programme or after the programme was can-
celled correctly (see description above).
▶ In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door; is displayed
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby-mode if it will not be activated within 2
minutes before starting the program or at the end of program. The display switches off .
This saves energy. To interrupt the standby mode push “Power“ button.
Note: Cool down cycle for drying cycle
The last part of the drying cycle occurs without heat to ensure remaining the garments
at a temperature which does not damage them.
6.13 After washing
6.12 Interrupt / cancel wash programme
To interrupt a running programme press gently “Start/Pause“. The LED above the button
is fl ashing. Press it again to resume operation.
To cancel a running programme and all its individual settings
1. Touch “Start/Pause” button to interrupt the running programme.
2. Turn the knob directly to select a new programme and start it.
3. When the water level is lower than the water level set by the new programme, water
will enter.
EN
7-hOn
21
7.2 Requirements
1. One wireless router (802.11b/g/n protocol) which supports only the frequency band
of 2.4 GHz. Length of Router SSID is 1-31 characters(including 1 and 31), and pass-
word is 8-64 characters. Minimum length of password must be 8 characters. Router
encryption methods include open, WPA-PSK and WPA2-PSK.
2. The App is available for devices running Android, Huawei or iOS, both for tablets and
for smartphones.
3. The appliance shall be installed in a position where it can receive a strong Wi-Fi signal.
Once the appliance has been correctly associated with the APP, if it’s not properly
connected to the wireless router, no Wi-Fi icon appears on the display
Note: Deviations
Due to constant updates of hOn, the functions and the display interface of the APP
may diff er from the following description.
7.1 General
This appliance is Wi-Fi enabled. With hOn APP you can use your smartphone to control
the program.
7.3 Download and installation of hOn APP:
Download the hOn App on your device by framing the following QR code:
or by the link: go.haier-europe.com/download-app
WARNING!
Please observe the safety precautions in this user manual and make sure that these
are complied with even when operating the appliance via the hOn APP while you are
away from home. You must also follow the instructions in the hOn.
Note: Registration
Registration is required when fi rst time to use or the formal account has been deleted/
closed. For further use, you need to enter user name and password after you log in.
Frequency rate (OFR)
2400 MHz - 2483,5 MHz
Max. power (ERP)
20dBM
Wireless standard
IEEE802.11b/g/n & BLE V4.2
Download the hOn App on your device
go.haier-europe.com/download-app
EN
7-hOn
22
Note: Wi-Fi Network
It is not possible to connect the appliance to a public Wi-Fi network. It may cause
malfunction.
Note: Use same Wi-Fi
Connect with your smartphone to the network you want to connect the product to.
Note: Remote control expiration
Once the remote control is activated, if the end user doesn’t start any cycle from app in
10 minutes, the appliance will go to Networked Delay Start Mode, and keeps remote
control up to 24 hours, then shut off .
7.4 Registration and App Pairing
1. Connect the smartphone to the home Wi-Fi network you want to connect the product to.
2. Open the App.
3. Create the user profi le (or log-in if it is already created previously)
4. Close the door
5. Pairing the appliance following the instructions on the device display.
7.5 Enable Remote Control
1. Check that the router is switched on and connected to the Internet.
2. Load the laundry and close the door.
3. Select the “Remote” programme, the door locks.
4. Start the cycle using the app, control panel will be disabled except for “Power” and
“Start/Pause” button.
5. Once the cycle has been completed, the door unlocks and the remote control turns off .
6. After 2 minutes the appliance goes to off mode.
7.6 Disable Remote Control
1. To exit remote control while a cycle is running, press “Start/Pause” button on the
control panel. The cycle will pause and “Remote” will blink.
2. If conditions permit, the door will unlock.
3. To resume the cycle, close the door and press “Start/Pause” button. The remote
control will be reactivated and “Remote” will be fi xed.
4. Control the appliance using the app.
7.7 End of Cycle With Remote Control On
1. At the end of the cycle, the door will unlock and the remote control will deactivate.
2. After 2 minutes the appliance will automatically switch off .
EN
7-hOn
23
7.8 Network credentials cancellation
1. Select “Remote” programme;
2. “”/”” displayed;
3. Long press “Delay” button for 5 seconds till “” displayed.
4. Confi guration information is deleted and reset confi guration. Rotate the knob to
select other programme or shut down to exit.
Note: Network credentials cancellation/reset
Follow this procedure only if you are going to sell your washer.
EN
8-Eco-friendly use
24
Environmentally responsible use
Washing
▶ To achieve best use of energy, water, detergent and time you should use the recom-
mended maximum load size.
▶ Do not overload (hand width clearance above laundry).
▶ For slightly soiled laundry select the Quick 15’ programme.
▶ Apply exact dosages of each washing agent.
▶ Choose the lowest adequate washing temperature - modern detergents are ef-
fi ciently cleaning below 60°C.
▶ Raise default settings only due to heavy staining.
▶ Spin the laundry with the maximum spin speed if you want to use a drying pro-
gramme afterwards.
Drying
▶ Use the maximum fi lling amount of about 6kg.
▶ Loosen up the laundry before starting the drying programme.
▶ Do not use softener when washing, because the laundry will become fl uff y and soft in
the dryer programme.
Note: General information:
▶ The “Eco 40-60” programme is able to clean normally soiled cotton laundry declared
to be washable at 40°C or 60°C, together in the same cycle, and that this programme
is used to assess the compliance with the EU ecodesign legislation;
▶ The most effi cient programmes in terms of energy consumption are genereally those
that perform at lower temperatures and longer duration;
▶ Noise and remaining moisture content are infl uenced by the spinnig speed:
the higher the spinning speed in the spinning phase, the higher the noise and the
lower the remaining moisture content.
EN
9-Care and Cleaning
25
9-5
9-1
9-2
8kg 1400 HW80-BP14979
rpm
8kg 1400 HW80-BP14979
rpm
°C
60
°C
40
8kg 1400 HW80-BP14979
rpm
°C
60
°C
40
Stain removal
Delay
Steam Extra R i nse Speed
Temp.
Spin
Drum Clean
Hypoallergi c
Cotton
Daily
Synthetic s
Wool Refresh
Mix
Babycare
UV Sanitiz e
Duvet
Quick 15’Delicat e
Stain removal
Dry Level Delay
i-Refresh
Extra Rinse Speed
Temp.
Spin
Smart
Cotton
Synthetics
Wool
DryFast
Wash and Dry
MixBabycare
Duvet
Eco 40-60Express 15
Delicate
Stain removal
Dry Level
Delay
i-Refresh
Extra Rinse
Speed
Temp.
Spin
Cotton
Synthetics
Wool Dry
Fast
Mix
Babycare
Duvet
Eco 40-60
Cotton 20
Express 15’
Delicate
Wash & Dry
i-REFRESH
525 DRUM
9-3 9-4
9.3 Water inlet valve and inlet valve fi lter
To prevent blockage of water supply by solid substanc-
es like lime clean regularly the inlet valve fi lter.
▶ Unplug the power cord and turn off the water
supply.
▶ Unscrew the water inlet hose at the back (Fig.
9-3) of the appliance as well as on the tap.
▶ Flush the fi lters with water and a brush (Fig. 9-4).
▶ Insert the fi lter and install the inlet hose.
▶ Turn on the tap to see if it leaks.
9.4 Cleaning the drum
▶ Remove accidentally washed items, especially metal
parts such as pins, coins, etc. from the drum and the
groove of the door gasket (rubber ring) because
they cause rust stains and damage.
▶ Use a non-chloride cleaner for removing rust
stains. Observe the warning hints of the cleaning
agent manufacturer.
▶ Do not use any hard objects or steel wool for
cleaning.
▶ After the procedure, open the door, use a towel to
clean the stains and foam around the gasket, and
keep the inside and outside of the gasket clean
(Fig. 9-5).
9.1 Cleaning the detergent drawer
Take always care there are no detergent residues.
Clean the drawer regularly (Fig. 9-1):
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean
and insert the drawer back in the appliance.
9.2 Cleaning the machine
▶ Unplug the machine during cleaning and mainte-
nance.
▶ Use a soft cloth with soap liquid to clean the ma-
chine case (Fig. 9-2) and rubber components.
▶ Do not use organic chemicals or corrosive sol-
vents.
EN
9-Care and Cleaning
8-7
1. Turn off and unplug the machine (Fig. 9-8).
2. Open service fl ap. You can either use a coin or a
screwdriver (Fig. 9-9).
3. Provide a fl at container to catch leach water
(Fig. 9-10). There could be bigger amounts!
4. Pull the drainhose out and hold its end above the
container (Fig. 9-10).
5. Take the sealing plug out of the drainhose (Fig.
9-10).
6. After complete drainage close drainhose
(Fig. 9-11). and push it back into the machine.
7. Unscrew and remove counter clockwise the
pump fi lter (Fig. 9-12).
8. Remove contaminants and dirt (Fig. 9-13).
9.5 Long periods of disuse
If the appliance is left idle for a longer period:
1. Pull out the electrical plug (Fig. 9-6).
2. Turn off water supply (Fig. 9-7).
3. Open the door to prevent formation of moisture
and odours. Let door open while not used.
Before next usage check carefully power cord, water
inlet and drain hose. Make sure everything is properly
installed and without leackage.
WARNING!
Scalding Risk! Water in the pump fi lter can be very hot! Before any action please ensure
water has cooled down.
9.6 Pump fi lter
Clean the fi lter once a month and check the pump fi lter
for instance if the appliance:
▶ Doesn´t drain the water.
▶ Doesn´t spin.
▶ Cause unusual noise while running.

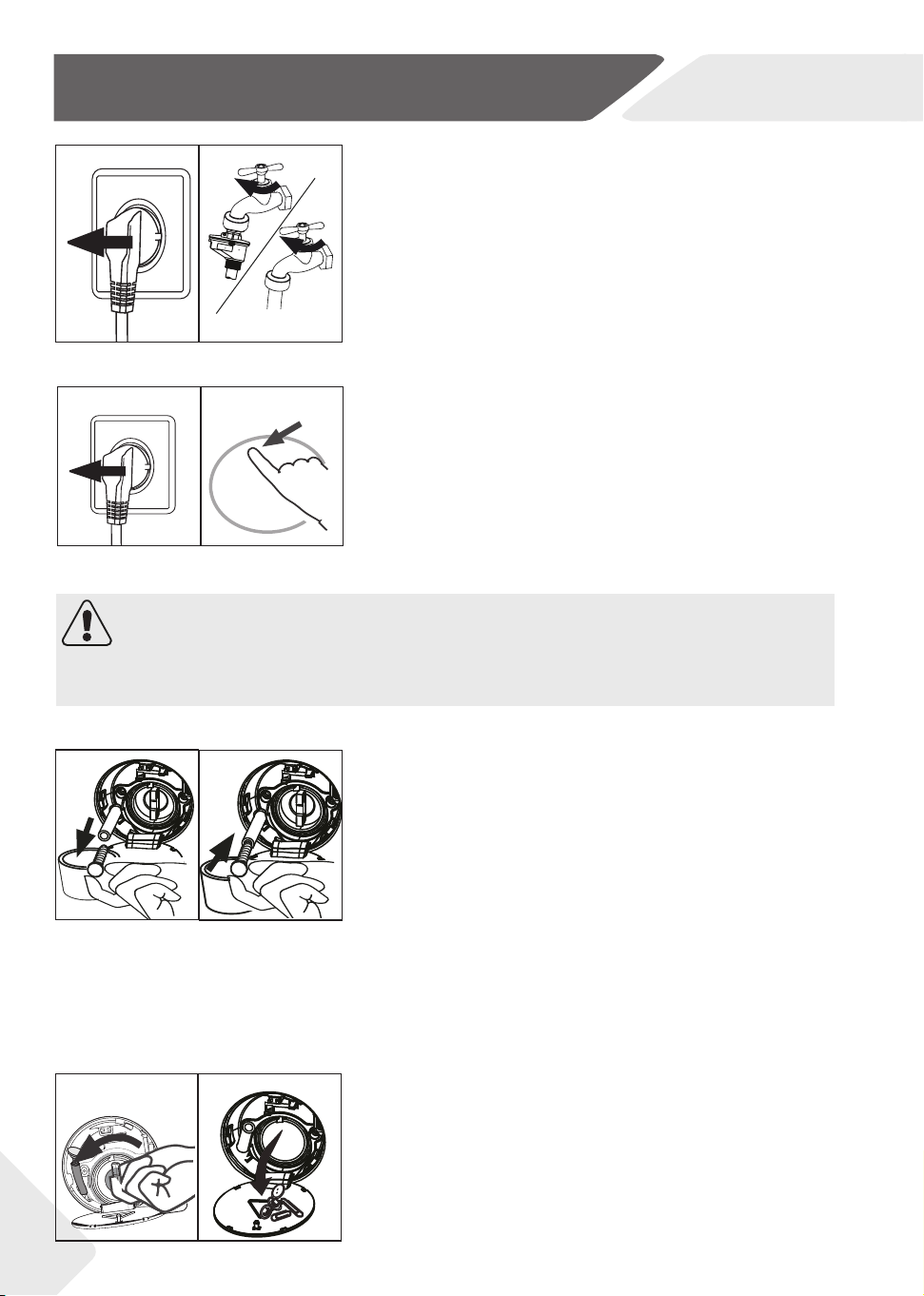

9-6 9-7
8-11
8-10
9-10
9-11
8-12
9-12
9-13
9-8 9-9
26
EN
9-Care and Cleaning
CAUTION!
▶ Pump fi lter sealing has to be clean and unhurt. If the lid is not full tightened,
water can escape.
▶ The fi lter must be in place, or it may lead to leakage.

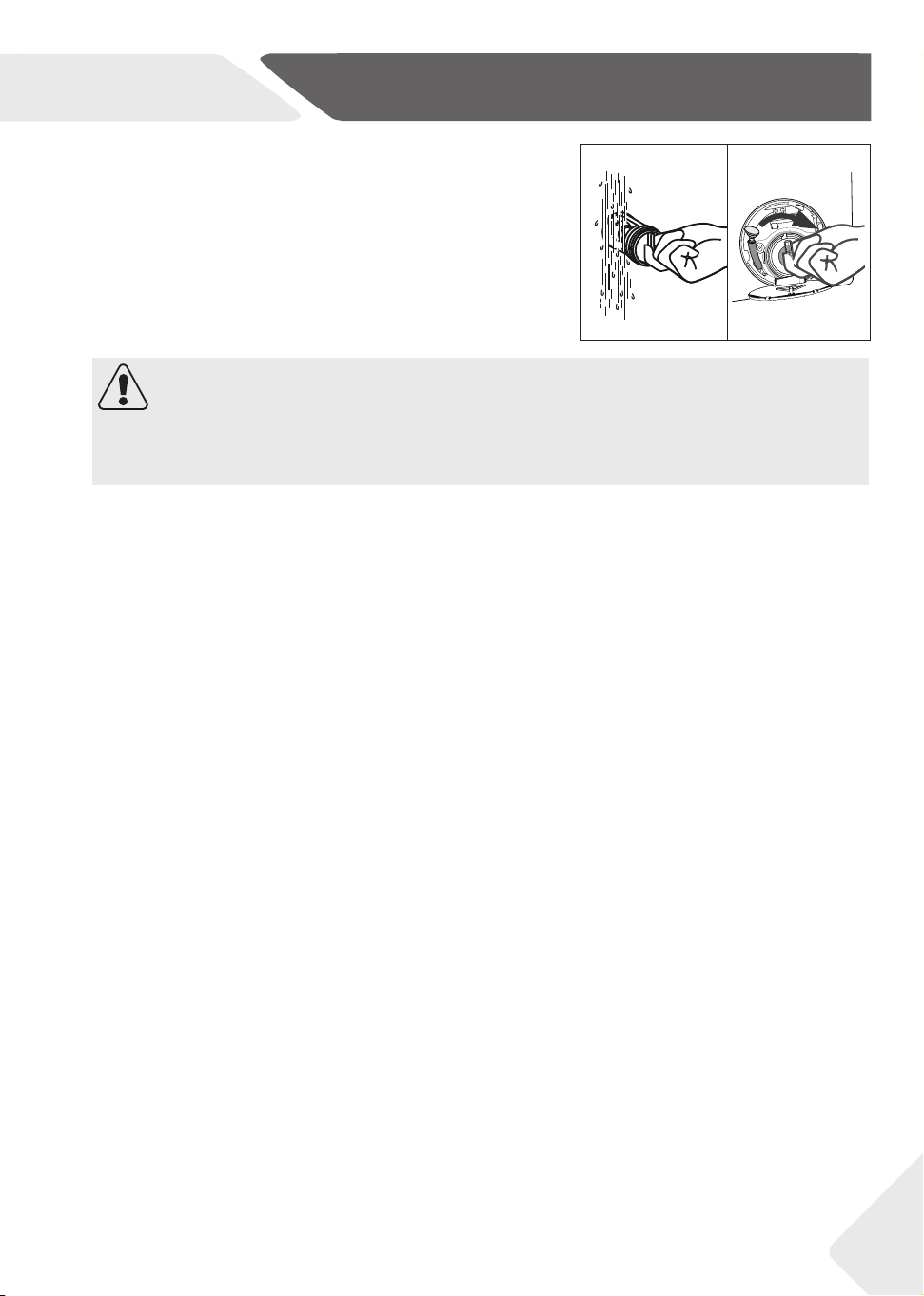

9-14 9-15
9. Clean carefully pump fi lter, e.g. using running water
(Fig. 9-14).
10. Refi x it thoroughly (Fig. 9-15).
11. Close service fl ap.
27
EN
10-Troubleshooting
28
10.2 Troubleshooting with display code
Problem Cause Solution
• Drainage error, water is not fully drained
within 6 minutes.
• Clean pump fi lter.
• Check drain hose installation.
• Lock error
• Shut the door properly.
• Water level not reached after 8 minutes.
• Drain hose is self-syphoning.
• Make sure that tap is fully opened and
water pressure is normal.
• Check drain hose installation.
• Water protective level error.
• Contact the After sales service.
• Drying temperature is too high • When temperature exceeds 80°C the drying
alarm, when less than 80°C the automatic lift-
ing of the alarm.
Many occuring problems could be solved by yourself without specifi c expertise. In case
of a problem please check all shown possibilities and follow below instructions before you
contact an after sales service. See CUSTOMER SERVICE.
WARNING!
▶ Before maintenance, deactivate the appliance and disconnect the mains plug from
the mains socket.
▶ Electrical equipment should be serviced only by qualifi ed electrical experts, because
improper repairs can cause considerable consequential damages..
▶ A damaged power cable should only be replaced by the manufacturer, its service
agent or similarly qualifi ed persons in order to avoid a hazard.
10.1 Information codes
Following codes are displayed only for information referring to the washing cycle. No
measures must be performed.
Code Message
:
The remaining wash cycle time will be 1 hour and 25 minutes
:
The remaining wash cycle time including chosen end-time delay will be 6 hours and
30 minutes
The washing cycle is fi nished. The appliance shuts off automatically.
The function child lock is activated.
Door is closed because of high water level, high water temperature or spinning cycle.
The buzzer is deactivated
The buzzer is activated
EN
10-Troubleshooting
10.3 Troubleshooting without display code
29
Problem Cause Solution
• Temperature sensor error. • Contact the After sales service.
• Heating error.
• Contact the After sales service.
• Motor error • Contact the After sales service
• Dry temperature sensor error.
• Contact the After sales service.
• Water level sensor error. • Contact the After sales service.
or
• Abnormal communication error. • Contact the After sales service.
• Dry heating element-error • Contact the After sales service
• The load is attached to the cylinder
wall.
• Open the door, shake off the load cloth and put it
back into the inner cylinder to start the machine.
• Drying motor error.
• Contact the After sales service
• Drying water level is too high. • Contact the After sales service
• Water overfl owed abnormally • Contact the After sales service
• Drainage error. Water is not fully drained
within 1 minutes.(i-Refresh programme
• Clean pump filter.
• Check drain hose installation.
Problem Cause Solution
Appliance fails to op-
erate.
• Programme is not yet started. • Check programme and start it.
• Door is not properly closed. • Close the door properly.
• Machine has not been switched on. • Switch the machine on.
• Power failure. • Check power supply.
• Child lock is activated. • Deactivate child lock.
Appliance will not be
fi lled with water.
• No water. • Check water tap.
• Inlet hose is kinked. • Check inlet hose.
• Inlet hose fi lter is blocked. • Unblock inlet hose fi lter.
• Water pressure is less than 0.03 MPa.
• Check water pressure.
• Door is not properly closed. • Close the door properly.
• Water supply failure. • Ensure the water supply.
Appliance is draining
while being fi lled.
• Height of drain hose is below 80 cm.
• Make sure that drain hose is
properly installed.
• Drain hose end could reach into
water.
• Make sure the drain hose is not
in water.
Drainage failure. • Drain hose is blocked. • Unblock drain hose.
• Pump fi lter is blocked. • Clean pump fi lter.
• Drain hose end is higher than 100 cm
above fl oor level.
• Make sure that drain hose is
properly installed.
EN
10-Troubleshooting
30
Should the error messages reappear even after the taken measures, switch off the appli-
ance, disconnect the power supply and contact the customer service.
Note: Foam formation
If too much foam is inspected during spin cycle, motor stops and drain pump will be ac-
tivated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends
without spinning.
Problem Cause Solution
Strong vibration while
spinning.
• Not all transportation bolts have
been removed.
• Remove all transportation bolts
.
• Appliance has no solid position.
• Ensure solid ground and a levelled
position.
• Machine load is not correct. • Check load weight and balance.
Operation stops
before completing
wash cycle.
• Water or electric failure. • Check power and water supply.
Operation stops for
a period of time.
• Appliance displays error code. • Consider display codes.
• Problem due to load pattern. • Reduce or adjust load.
• Programme performs soaking cycle.
• Cancel programme and restart.
Excessive foam fl oats
drum and/or deter-
gent drawer.
• Detergent is not a appropriate. • Check detergent recommen-
dations.
• Excessive use of detergent. • Reduce amount of detergent.
Automatic adjust-
ment of washing time.
• Washing programme duration will
be adjusted.
• This is normal and doesn‘t af-
fect functionality.
Spinning fails. • Unbalance of laundry. • Check machine load and laundry and
run a spinning programme again.
Unsatisfactory wash-
ing result.
• Degree of pollution does not agree
with selected programme.
• Select an other programme.
• Detergent quantitiy was not suf-
fi cient.
• Choose the detergent acc. to
the degree of pollution and acc.
to manufaturer specifi cations.
• Maximum load has been exceeded. • Reduce loading.
• Laundry was unevenly distributed
in the drum.
• Loose the laundry.
Washing powder
residues are on the
laundry.
• Insoluble particles of detergent can
remain as white spots on the laun-
dry.
• Perform extra rinse.
• Try to brush the points from
the dry laundry.
• Choose an other detergent.
Laundry has grey
patches.
• Caused by fats such as oils, creams
or ointments.
• Pretreat the laundry with a
special cleaner.
EN
10-Troubleshooting
31
Note: Unlock the door
When the washing machine in a safe state (under the water level below the window
along a certain distance, barrel temperature below 55 °C, the inner barrel did not turn),
may unlock the doors of the machine operation.
Note: Counter function
By selecting”Spin” programme, press “i-Refresh” and “Extra Rinse” buttons at the same
time above 3 sec. the display will show the numbers of fully dycle used in 2 sec. then
back to normal.

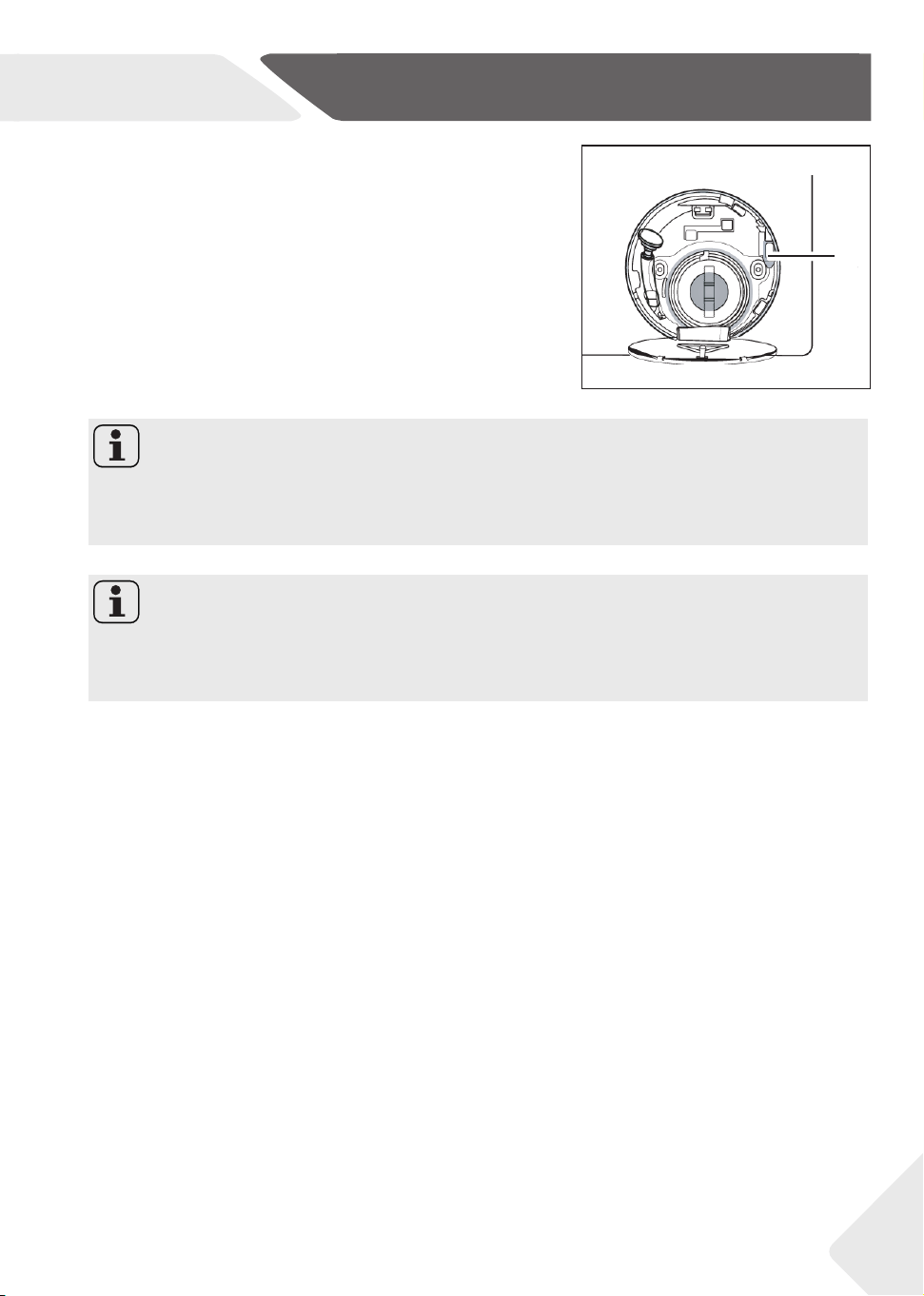

10.4 In case of power failure
The current programme and its setting will be saved.
When power supply is restored operation will be re-
sumed.
If a power failure cuts an operating wash programme
door opening is mechanically blocked. To get out any
laundry water level should not be seen in the glassy
porthole of the door - Danger of burns! Water level has
to be lowered as described in “Pump fi lter”. Not till then
pull lever (A) beneath service fl ap (Fig. 10-1) until door
is unlocked by a gentle click. Afterwards refi x all parts.
10-1
A
EN
11-Installation
32
11.1 Preparation
▶ Take the appliance out of the packaging.
▶ Remove all packaging material including polystyrene base, keep them out of childrens
reach. While opening the package, water drops may be seen on plastic bag and port-
hole. This normal phenomenon results from water tests in the factory.
11.2 OPTIONAL: Install noise reduction pads
1. When opening the shrink package, you will fi nd
some noise reduction pads.These are used for re-
ducing noise. (Fig. 11-1)
2. Lay the washing machine down to its side, porthole
pointing upwards, bottom side towards operator.
3. Take out the noise reduction pads and remove
the double-sided adhesive protective film;paste
around the bottom; the noise reduction pads un-
der the w- ashing machine cabinet as shown in
Figure 3 (two longer pads in position 1 and 3, two
shorter pads in position 2 and 4). Finally set the
machine upright again.
Note: Packaging disposal
Keep all packaging materials out of children´s reach and dispose them in an environ-
mentally friendly manner.
11.3 Dismantle the transportation bolts
The transport protection on the rear side is designed
for clamping anti-vibration components inside the ap-
pliance during transportation to prevent inner dam-
age. All elements (I, R, S and T , Fig 11-2) must be re-
moved before use.
1. Remove all 4 bolts (T1 - T4) (Fig. 11-3).
2x
3.
2x
11-2
11-1
1.
2.
2.
10-1
11-3
EN

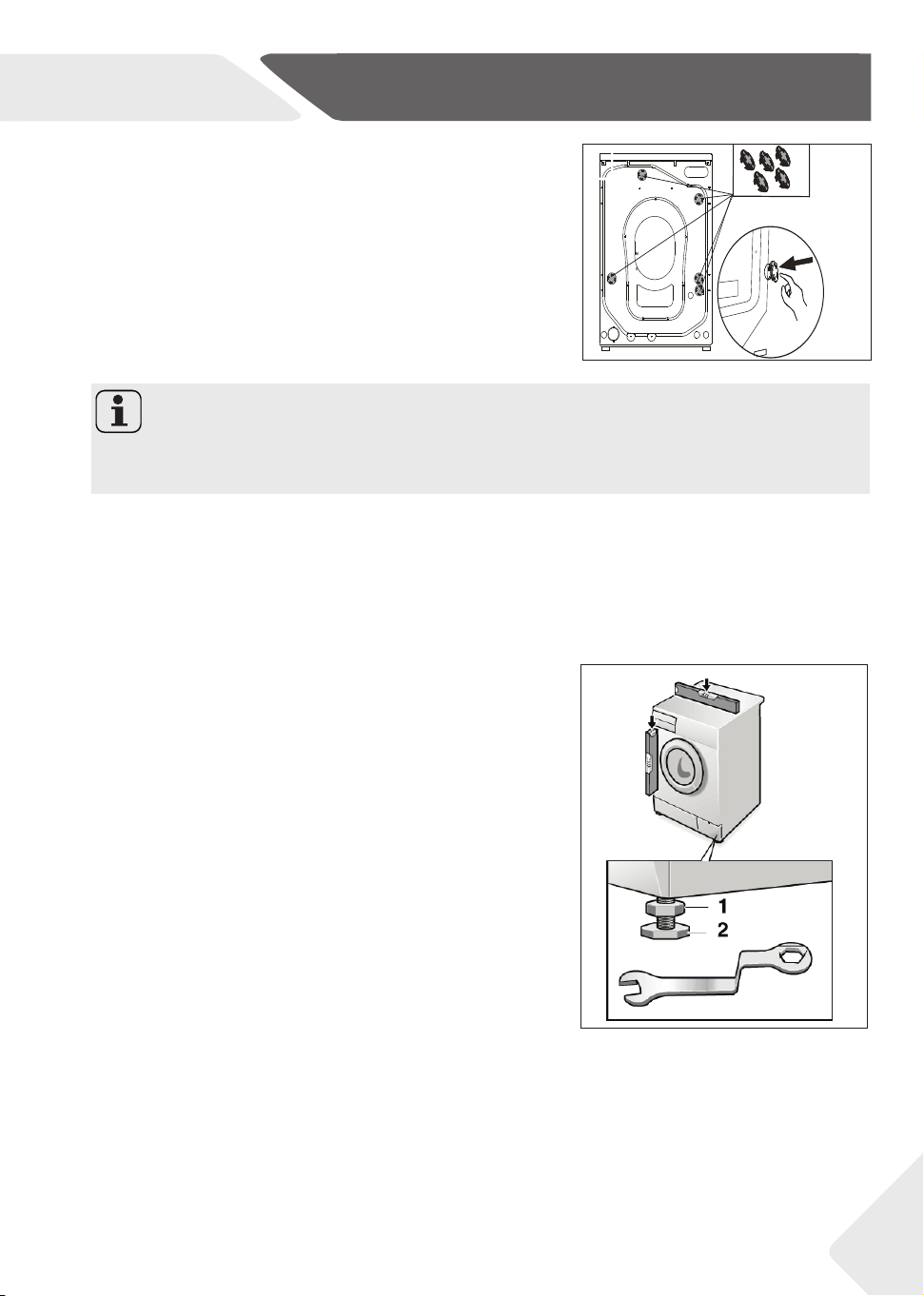

11-Installation
11.5 Aligning the appliance
Adjust all feet (Fig. 11-5) to achieve a complete level
position. This will minimize vibrations and thus noise
during use. It will also reduce wear and tear. We recom-
mend to use a spirit level for adjustment. Floor should
be as stable and fl at as possible.
1. Loose the locknut (1) by using a wrench.
2. Adjust the high by turning the foot (2).
3. Tighten lock ut (1) against the housing.
11.4 Moving the appliance
If the machine is to be moved to a distant location, re-
place the transportation bolts removed before instal-
lation to prevent damage:
Note: Keep in safe place
Keep the transportation bolts in a safe place for later use. Whenever the appliance is to
be moved at fi rst reinstall the bolts.
11-5
11-4
33
2. Fill the 5 left holes with blanking plugs (Fig. 11-4).
EN

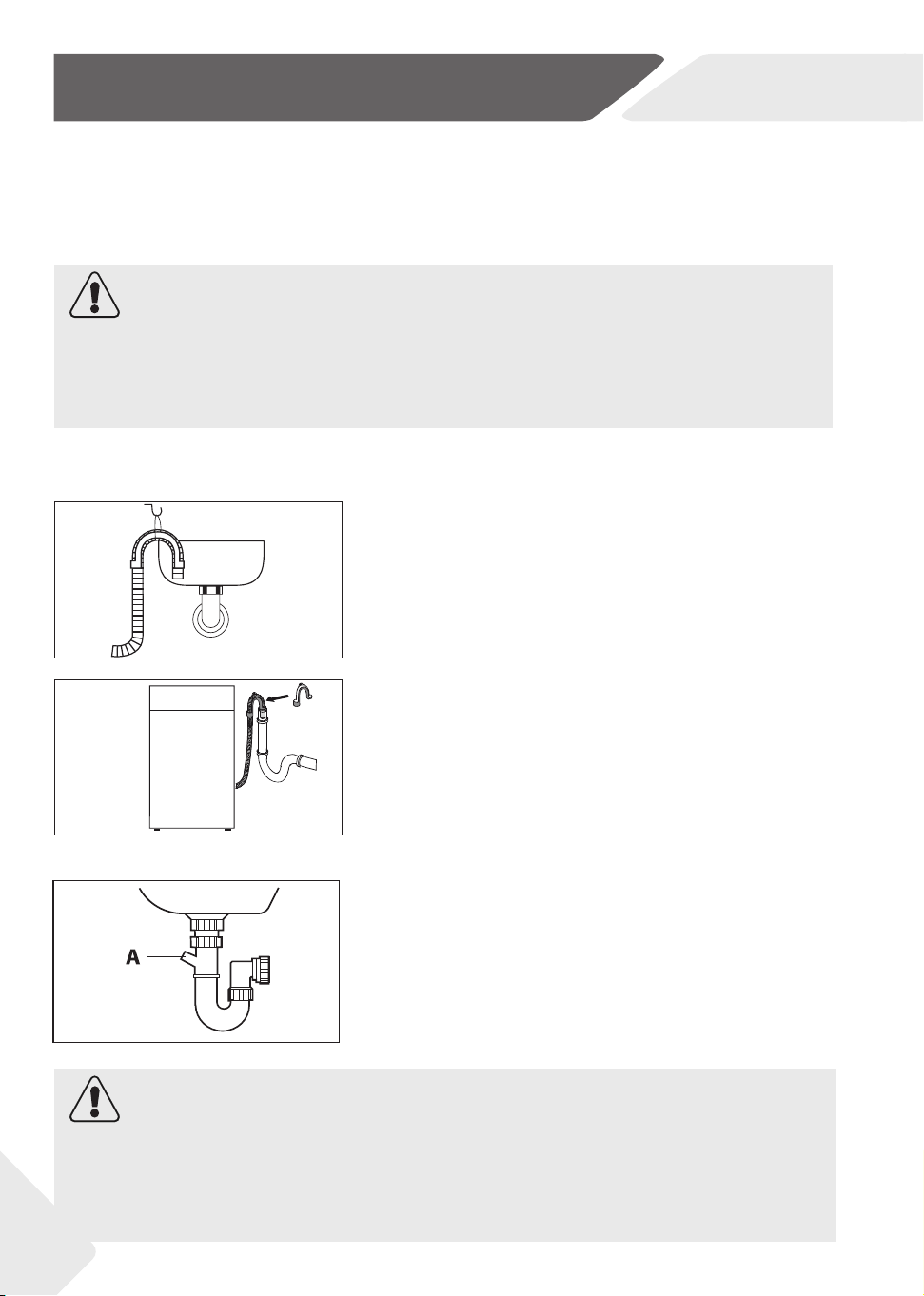

11-Installation
34
Following connections are possible:
11.6.1 Drain hose to sink
▶ Hang the drain hose with the U-support over the
edge of a sink with adequate size (Fig. 11-6).
▶ Protect the U-support suffi ciently against slip-
ping.
11.6.2 Drain hose to waste water connection
▶ The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
▶ Put the drain hose for approx. 80-100 mm in the
wastewater pipe.
11.6 Drain Water Connection
Fix the water drain hose properly to the piping. The hose has to reach at one point a height
between 80 and 100 cm above the appliance bottom line! If possible keep always drain
hose fi xed to the clip at the appliance back.
WARNING!
▶ Use only the supplied hose set for the connection.
▶ Never reuse old hose sets!
▶ Only connect to cold water supply.
▶ Before connection, check whether the water is clean and clear.
CAUTION!
▶ The drain hose should not be submerged in water and should be securely fixed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being filled (self-si-
phoning).
▶ Drain hose is not to be extended. If necessary contact after sales service.
▶ Attach the U-support and secure it suffi ciently
(Fig. 11-7).
11.6.3 Drain hose to sink connection
▶ The junction must lie above the siphon
▶ A spigot connection is usually closed by a pad (A).
That must be removed to prevent any disfunc-
tion (Fig. 11-8).
▶ Secure the drain hose with a clamp.
11-7
11-6
11-8
EN

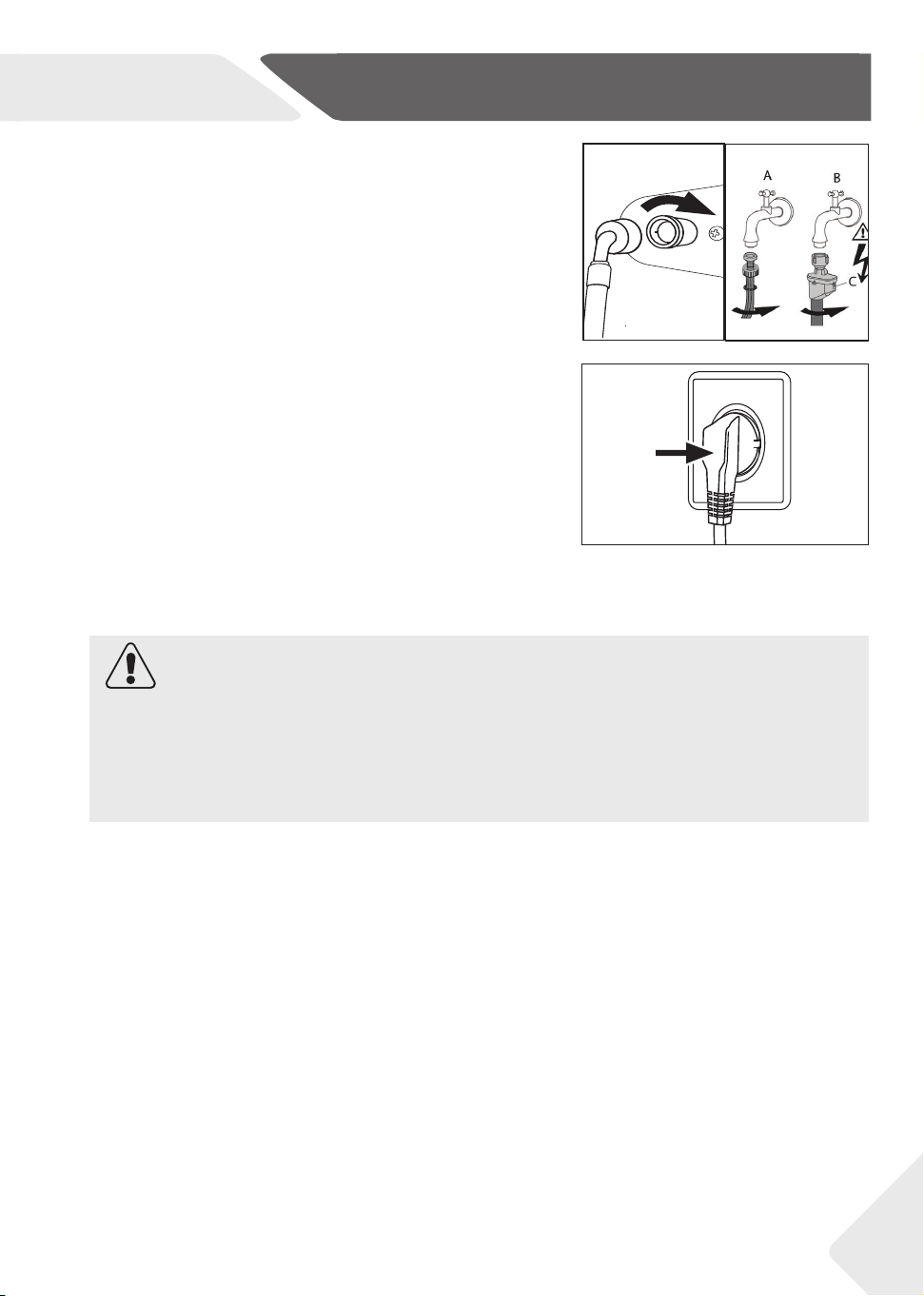

11-Installation
11.8 Electrical Connection
Before each connection check if:
▶ power supply, socket and fusing are appropriate to
the rating plate.
▶ the power socket is earthed and no multi-plug or
extension are used.
▶ the power plug and socket are strictly according.
▶ Only UK: The UK plug meets BS1363A standard.
Put the plug into the socket (Fig. 11-11).
WARNING!
▶ Ensure always that all connections (power supply, drain and fresh water hose) are fi rm,
dry and leack free!
▶ Take care these parts are never to be crushed, kinked, or twisted
▶ If the supply cord is damaged, it must be replaced by the service agent (see warranty
card) in order to avoid a hazard. .
11-11
11.7 Fresh Water Connection
Make sure that the gaskets are inserted.
1. Connect the water inlet hose with the angled
end to the appliance (Fig. 11-9. Tighten the
screw joint by hand.
2. The other end connect to a water tap with a
3/4“ thread (Fig. 11-10).
11-10
11-9
35
EN

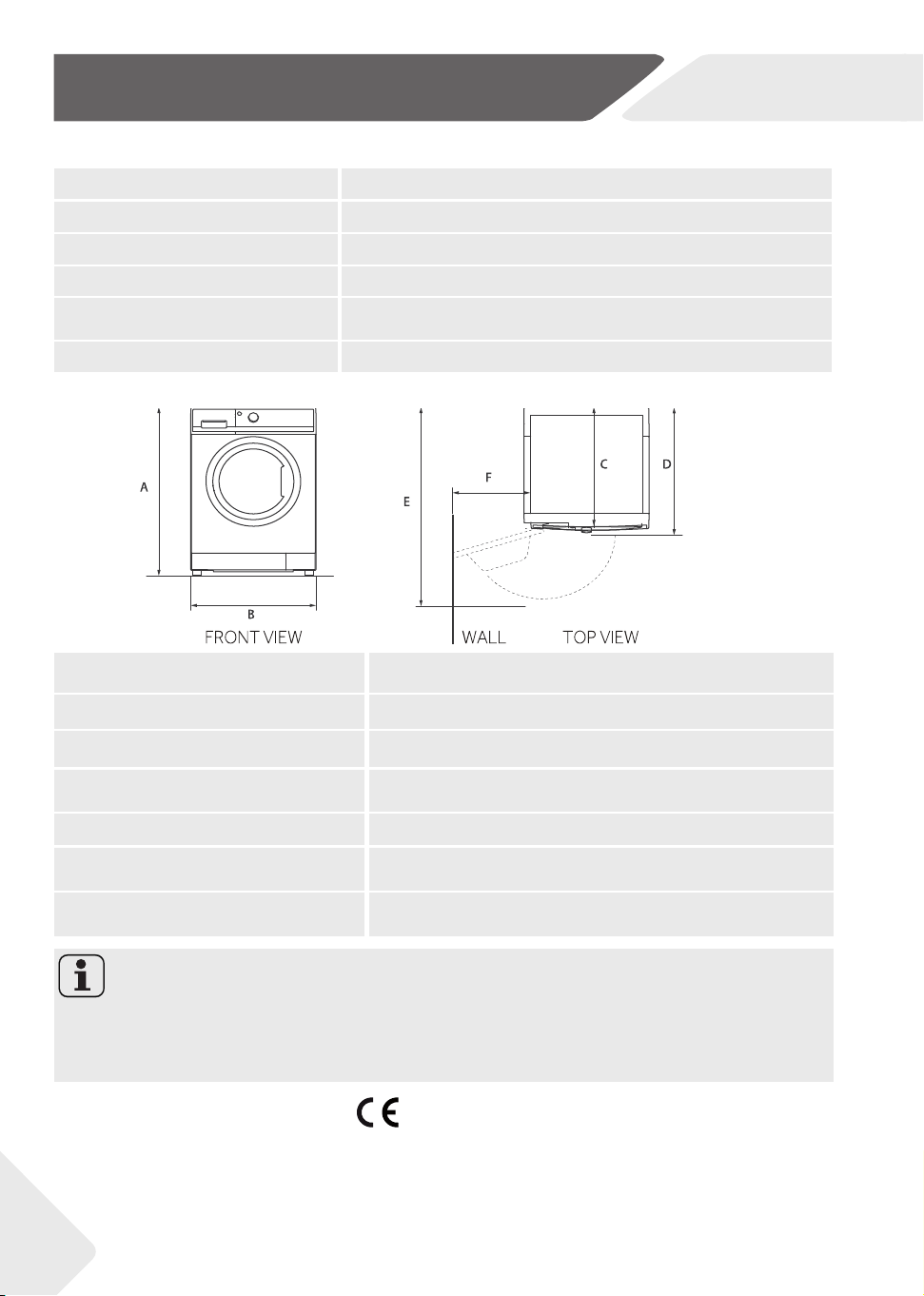

12-Technical data
36
12.1 Additional technical data
12.2 Product dimensions
12.3 Standards and Directives
This product meets the requirements of all applicable EC directives with the correspon-
ding harmonised standards, which provide for CE marking.
Hereby, Haier declares that the radio equipment type is in compliance with Directive
2014/53/EU.The full text of the EU declaration of conformity is available at the following
internet address: www.haier.com.
PRODUCT DIMENSIONS HWD 80
A
Overall height of product mm
850
B
Overall width of product mm
595
C
Overall depth of product
(To main control board size) mm
530
D
Depth of door open mm
610
E
Minimum door clearance
to adjacent wall mm
1085
F
Overall depth of product ( Including
the thickness of the door) mm
230
Hinweis: Exact height
The exact height of your washer is dependent on how far the feet are extended from the
base of the machine. The space where you install your washer needs to be at least 40mm
wider and 20mm deeper than its dimensions.
HWD80
Voltage in V 220-240 V~/50Hz
Current in A 10
Max. power in W 2000
Water pressure in MPa 0,03-≤P≤1
Netto weight in kg 74
EN
13-Customer service
We recommend our Haier Customer Service and the use of original spare parts, and the
minimum period during which the spare parts for the household washing machine is 10
years.
If you have a problem with your appliance, please fi rst check section TROUBLESHOOTING.
If you cannot fi nd a solution there, please contact
▶ your local dealer.
▶ the Service & Support area at www.haier.com where you can fi nd telephone numbers
and FAQs and where you can activate the service claim.
For specifi c product information, please login to the Haier offi cial website https://www.
haier-europe.com/en_GB/technical-assistance/ and search the model you use, click
the product to go to the detail page then click “documents” to fi nd the user manual to
download it.
You can also fi nd the product information in this page.
Model information is available in the product database at https://eprel.ec-europa.eu/
by searching for the model identifi er reported on the product label.
To contact our Service, ensure that you have the following data available.
The information can be found on the rating plate.
Model ____________________ Serial No. _____________________
Also check the Warranty Card supplied with the product in case of warranty.
For general business enquiries please fi nd below our addresses in Europe:
European Haier addresses
Country* Postal address Country* Postal address
Italy
Haier Europe Trading SRL
Via De Cristoforis, 12
21100 Verese
ITALY
France
Haier France SAS
53 Boulevard Ornano –
Pleyad 3
93200 Saint Denis
FRANCE
Spain
Portugal
Haier Iberia SL
Pg. Garcia Faria, 49-51
08019 Barcelona
SPAIN
Belgium-FR
Belgium-NL
Netherlands
Luxembourg
Haier Benelux SA
Anderlecht
Route de Lennik 451
BELGIUM
Germany
Austria
Haier Deutschland GmbH
Konrad-Zuse-Platz 6
81829 München
GERMANY
Poland
Czechia
Hungary
Greece
Romania
Russia
Haier Poland Sp. zo.o.
Al. Jerozolimskie 181B
02-222 Warszawa
POLAND
United
Kingdom
Haier Appliances UK Co.Ltd.
One Crown Square
Church Street East
Woking, Surrey, GU21 6HR
UK
*For more information please refer to www.haier.com
37
HWD80-B14959EU1_EN
