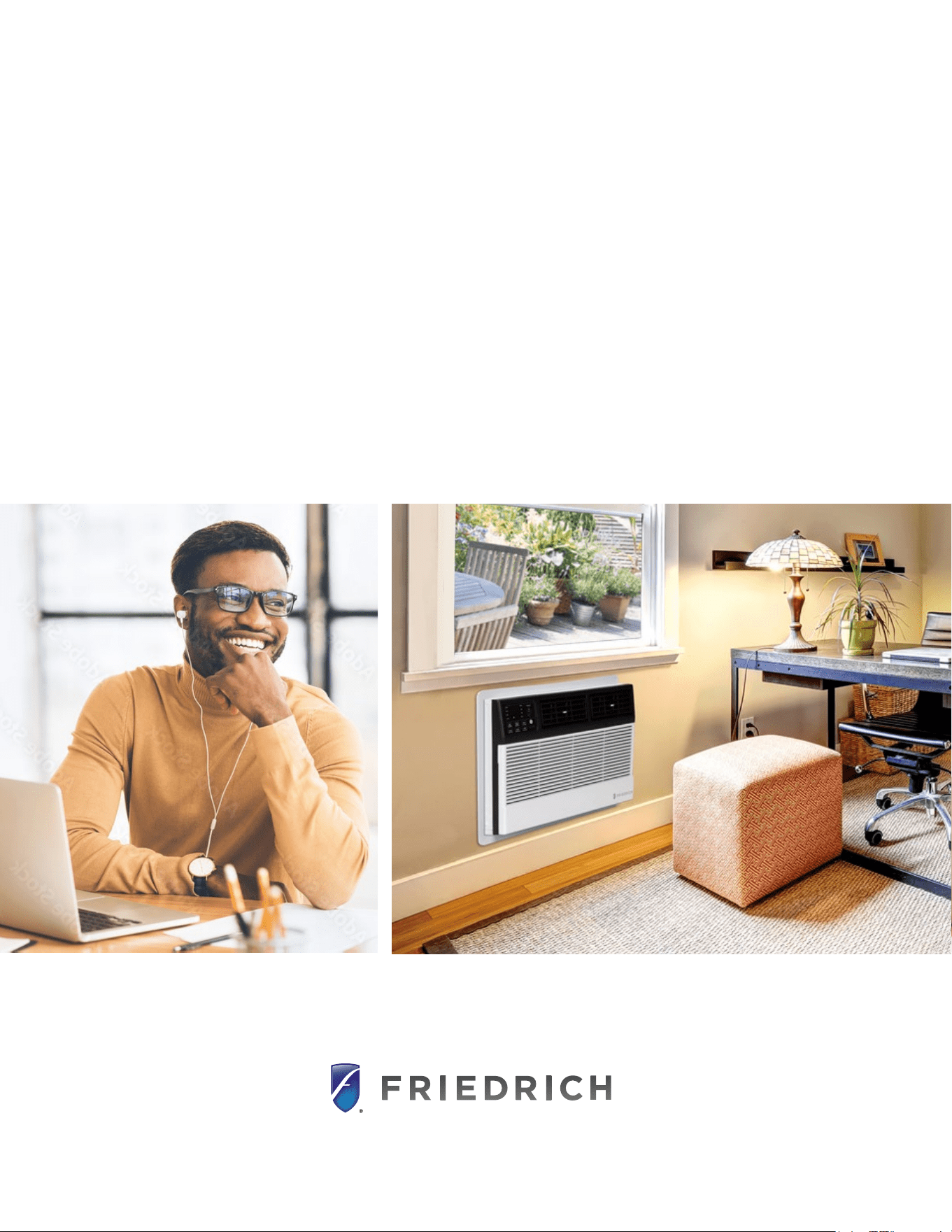

SMART. QUIET. COOL.
Friedrich Uni-Fit
®
Series
Thru-the-wall Air Conditioners
THE EXPERTS IN ROOM AIR CONDITIONING
Connect in minutes
It’s easy with our simplified set up process
Easily set your home, away, and night
time preferences
Create a custom cooling schedule that fits your
lifestyle
You’re in control anytime, anywhere
Power your unit on and off, change temperature,
system mode,
and adjust fan speeds no matter where you are
Why FriedrichGo
™
?
By maintaining even temperatures with centralized
controls, you reduce wasted energy and lower utility
and maintenance costs while extending the life of
your equipment.
Google is a registered trademark of Google LLC.
HOME OR AWAY, YOU’RE IN CONTROL WITH THE FRIEDRICHGO™ APP.
Integrated Wi-Fi control from your smartphone. Also compatible with Amazon Alexa
or Google Home.
Uni-Fit
®
|
Smart Thru-the-wall Air Conditioners
CONTROL
BY VOICE
ADJUST
TEMPS
SET/ADJUST
SCHEDULES
S
MART
H
OME
READY
QuietMaster
®
technology
Building the quietest air conditioners begins with the design process
and continues through the selection of superior components and
materials.
It is shaped by skilled manufacturing and rened through on-going
product testing in our engineering lab.
The result is a noticeably quieter cooling and heating experience, as
much as 25% quieter than competitor’s products.
UP TO 25% QUIETER* THAN COMPETITOR’S ROOM AIR CONDITIONERS
UNIVERSAL FIT FOR INSTALLATION IN YOUR EXISTING WALL SLEEVE
Fits in many competitor’s wall sleeves from
24
1
/2 to 27 inches
If your current wall sleeve is in good condition you may be able to keep
it. Uni-Fit can be installed directly into many competitor’s existing wall
sleeves. The included decorative trim ring (shown in the photo below)
will cover any gap between the chassis and wall sleeve.
NOTE: Chassis requires USC sleeve for new installations (sold and shipped separately).
*Based on testing conducted at Friedrich’s Design and Development Center in comparison to leading rotary compressor models.
Control Features
Built-in Wi-Fi control on the go with
the FriedrichGo app
Smart home / voice command device
compatability (Amazon Alexa or
Google Home)
24-hour timer
• Remote control
QuietMaster
®
Technology
• Solid-steel inner wall
• Advanced airflow design
• High density insulation and foam for
sound absorption
• Aesthetically engineered to block
indoor noise
• Counterweights for vibration
dampening
Installation Features
• Universal fit decorative trim ring
• Chassis designed to fit multiple
existing sleeves from 24
1
/
2
” to 27”
Comfort & Convenience
• 3 cooling and fan-only speeds
Sleep setting
• Auto restart if power is interrupted
• 8-way air flow control
• Washable air filter
Earth Friendly
ENERGY STAR
®
qualified models
Money Saver
®
setting saves money by
operating the fan only when cooling
R-32 refrigerant with low Global
Warming Potential on select models
Reliable Construction
• Both the indoor and outdoor coils are
corrosion protected for a
longer life cycle
FEATURES
Quietmaster
technology
LIMITED
WARRANTY
LIMITED
WARRANTY
BR_UNI-FIT_2023 (Rev. 2-19-23)
Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 877.599.5665 l www.friedrich.com
Need a Friedrich model that heats and cools?
Here are some things to consider.
Uni-Fit
®
Electric Heat models utilize an electric heat strip that provides
warm air quickly. They can be used for primary heating in moderate
climates and as supplemental heating in colder climates.
They are ideal for rooms that are always ‘too cold in winter’.
Your Friedrich Dealer can assist you in selecting the right
Uni-Fit
®
Electric Heat for your local climate and application.
COOLING SIZING GUIDE
AREA TO BE
CONDITIONED
IN SQ. FT.
APPROXIMATE
COOLING BTU
REQUIRED
100 - 150 5000
150 - 250 6000
250 - 300 7000
300 - 350 8000
350 - 400 9000
400 - 450 10000
450 - 550 12000
550 - 700 14000
700 - 1000 18000
1000 - 1200 21000
1200 - 1400 23000
1400 - 1500 24000
1500 - 2000 30000
2000 - 2500 34000
Guide based on normal room
insulation, average number of sun
exposed windows and two person
occupancy
.
1. If heavily shaded, reduce cooling
Btus required by 10%
2. If very sunny, increase cooling
Btus required by 10%
3. Add 500 Btus per person over 2
people
4. Add 4,000 Btus if the area is a
kitchen
THE EXPERTS IN ROOM AIR CONDITIONING
Friedrich Uni-Fit
®
Series
Thru-the-wall Air Conditioners
FEATURES
COOL ONLY
115 volt- 8,000 to 12,000 Btu
230 volt- 14,000 to 16,000 Btu
EFFICIENCY: EERs up to 10.7 CEER up to 10.6
ELECTRIC HEAT MODELS
115 volt- 8,000 Btu COOLING
4,200 Btu HEATING
EFFICIENCY: EER 9.7
230 volt- 10,000 to 14,000 Btu COOLING
10,600 Btu HEATING
EFFICIENCY: EERs up to 9.7 CEER up to 9.6
Built-in Wi-Fi control on the go with the
FriedrichGo™ app
Smart home / voice command device
compatability (Amazon Alexa or Google
Home)
24-hour timer
• Remote control
• Solid-steel inner wall
• Advanced airflow design
• QuietMaster® technology for up to 25%
quieter operation*
• High density insulation and foam for
sound absorption
• Aesthetically engineered to block indoor
noise
• Counterweights for vibration dampening
• Universal fit decorative trim ring
• Chassis designed to fit multiple existing
sleeves from 24
1
/
2
” to 27”
• 3 cooling and fan-only speeds
Sleep setting
• Auto restart if power is interrupted
• 8-way air flow control
• Washable air filter
ENERGY STAR® qualified models
Money Saver® setting saves money by
operating the fan only when cooling
R-32 refrigerant with low global
warming potential (GWP) on select
models
• Both the indoor and outdoor coils are
corrosion protected for a longer life
cycle
LISTED
ROOM AIR CONDITIONERS
183H
*Based on testing conducted at the Friedrich Design and Development Center in comparison to leading
rotary compressor models
SPECIFICATIONS
ENERGY STAR
®
models
Estar
Model UPC
Cooling
Btu
Heating
Btu
Volts
Rated
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts EER CEER
Estimated
Yearly
Energy
Cost
Moisture
Removal
Pints/Hr Refrigerant CFM
Net
Weight
Lbs
Ship
Weight
Lbs
UNI-FIT
®
Cool Only
UCT08B10A 724587442342 8000 — 115 6.9 755 — — 10.7 10.6 $69 0.80 R-32 265 64 78
UCT10B10A 724587442359 10000 — 115 8.3 940 — — 10.7 10.6 $85 1.25 R-32 247 74 86
UCT10B30A 724587442366 10000 — 230 4.5 940 — — 10.7 10.6 $85 1.25 R-32 265 74 86
UCT12B10A 724587442373 12000 — 115 10.1 1130 — — 10.6 10.5 $102 1.70 R-32 276 75 88
UCT12B30A 724587442380 12000 — 230 5.4 1130 — — 10.6 10.5 $102 1.70 R-32 265 75 88
UCT14B30A 724587442397 14000 — 230 7.2 1490 — — 9.4 9.3 $135 2.15 R-32 265 76 89
Cool with Electric Heat
UET08A11A 724587436792 8000 4200 115 7.2 810 12.5 1320 9.7 9.6 $74 0.75 R410A 265 66 79
UET10A33A 724587436808 10000 10600 230 4.9 1030 15 3500 9.7 9.6 $93 1.2 R410A 276 75 87
UET12A33A 724587436815 12000 10600 230 5.9 1230 15 3500 9.7 9.6 $111 1.65 R410A 276 76 89
UET14A33A 724587436822 14000 10600 230 7.2 1490 15 3500 9.4 9.3 $135 2.15 R410A 265 77 90
OPTIONAL ACCESSORIES
USC SLEEVE
An existing or new sleeve is required for installation. The Friedrich USC
sleeve ships with the accessories needed for installation in new construc-
tion, or installation into an existing sleeve.
INCLUDED WITH USC SLEEVE
USC wall sleeve ships with weather panels (2) and grille. Sleeve is
shown at right with:
1. Painted steel inner panel
2. Painted steel outer panel
3. Painted steel standard grille
Inner weather panelUSC sleeve
Outer weather panel Standard grille
OPTIONAL GRILLE
ARCHITECTURAL GRILLE-UXAA
Optional extruded brushed aluminum grille.
UXAA, optional architectural grille
IMPORTANT:
When installing into an existing sleeve, consult Installation Section of your Installation/Operation Manual to determine whether or
not the grille needs to be replaced and/or a bafe adapter (included with chassis) should be used.
Model
Height W idt h Depth
Depth
with
Front
Minimum
Extension
Into Room
Minimum
Ex tension
Outside
Thru-the-wall
Finished Hole
Height Width Max. Depth
Uni-Fit
®
USC Sleeve
15
1
/
2
" 25
7
/
8
" 16
3
/
4
" 20
1
/
2
"
–
1
/
2
" 15
3
/
4
" 26
1
/
8
" 16
1
/
4
"
UCT, UET Chassis
14
1
/
2
"
24
1
/
4
" -
20
5
/
16
" 3
3
/
4
"
– – – –
SLEEVE/ CHASSIS DIMENSIONS
Sleeve
Dimensions
Friedrich
USC Sleeve Amana
Carrier
(51S
Series)
Fedders/
Emerson/
Friedrich WSE
Emerson/
Fedders
GE/
Hotpoint Whirlpool
White-Westinghouse/
Frigidaire/ Carrier (52F Series)
Height 15
1
/
2
" 15
5
/
8
" 16
7
/
8
" 16
3
/
4
" 15
3
/
4
" 15
5
/
8
" 16
1
/
2
" 15
1
/
4
"
Width 25
7
/
8
" 26" 25
3
/
4
" 27" 26
3
/
4
" 26" 25
7
/
8
" 25
1
/
2
"
Depth 16
3
/
4
" 16
7
/
8
" 18
5
/
8
" 16
3
/
4
" or 19
3
/
4
" 15" 16
7
/
8
" 17
1
/
8
" or 23" 16", 17
1
/
2
" or 22"
UNIVERSAL FIT
NOTE: Chassis requires USC sleeve for new installations (sold and shipped separately).
Easy replacement in existing 24 1/2", 26" or 27" sleeves, including sleeves listed below.
INSTALLATION
Power cords are located on front left of Uni-Fit models.
Uni-Fit
®
Model Number
Circuit
Rating
Breaker
or T-D Fuse
Plug
Face
(NEMA#)
Power
Cord
Length
(ft.)
Wall
Outlet
Appearance
UCT08B10A, UCT10B10A,
UCT12B10A
125V - 15A 5 - 15P 6
UCT10B30A, UCT12B30A,
UCT14B30A
250V - 15A 6 - 20P 6
UET08A11A 125V - 15A 5 - 15P 4.75
UET10A33A, UET12A33A,
UET14A33A
250V - 20A 6 - 20P 4.75
PLUG FACE / CIRCUIT RATING / POWER CORD
LISTED
ROOM AIR CONDITIONERS
183H
As an Energy Star
®
partner, Friedrich Air Conditioning Co. has determined that the selected Energy Star
®
models meet the Energy Star
®
guidelines
for energy efciency. EER is the unit’s Energy Efciency Ratio; CEER is the unit’s Combined Energy Efciency Ratio.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
Your energy costs will depend on your utility rates and use. The estimated energy cost is based on a electricity cost of $.13 per kWh.
For more information, visit -www.ftc.gov/energy.
Model
Carton Dimensions Inches
Height Width Depth
Uni-Fit
®
USC Sleeve
17
7
/
8
"
28"
19
1
/
4
"
UCT, UET Chassis 16
3
/
8
" 27
3
/
4
" 26
5
/
8
"
CARTON DIMENSIONS
SPECS_UF_2023 (Rev. 2-19-23)
Friedrich Air Conditioning Co. l www.friedrich.com
