10KG
HEAT PUMP
TUMBLE DRYER
SC-1000AU10HP
INSTRUCTION
MANUAL
Please read this manual carefully before using, and keep it for future reference.
General Safety Instructions 4
Product Overview 8
Getting Started 10
Instructions 11
Operation 12
Maintenance 15
Troubleshooting 17
Specifications 18
Customer Helpline 20
CONTENTS
4
Read this manual thoroughly before you start using the Clothes Dryers.
The safety precautions instructions reduces the risk of fire, electric shock and injury
when correctly complied to.
Please follow all instructions and take notice of all warnings.
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage
to the cord may cause a short circuit, fire and/or electric shock.
Contact our support centre on info@ayonz.com for advice
• Disconnection: Never pull the power cord to unplug appliance. Grip the plug and
pull straight out from the power point. After turning the device o, wait at least 2
minutes before turning the appliance back on again.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
WARNING
Make sure your home is fitted with a residual current device (Safety Switch).
Pay close attention to messages that follow this safety alert symbol or the words DANGER,
WARNING or CAUTION. These words will be used to alert you of potential hazards that
and injure you and others. Following these instruction will tell you how to reduce the
chance of injury and the possible dangers if
instructions aren’t followed.
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
5
GENERAL SAFETY INSTRUCTIONS (cont.)
To reduce risk of fire, electric shock or injury, always follow these basic precautions and
accident prevention measures when using this appliance, including the below:
INSTALLATION
• The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on info@ayonz.com for advice.
• While installing the appliance make sure that the power cord is not bent
or flattened.
• Install appliance on a flat level and stable ground.
• Do not install appliance in a tight fitted cabinet.
• Do not install appliance near other heat sources such as radiators, heaters or
direct sunlight.
• If not wall mounted, be sure that the appliance is not placed on any soft
materials such as plastics or foams.
WARNING
Make sure that transport packaging is removed from the rear of the dryer. Do not overload the
dryer with too many clothes.
IMPORTANT

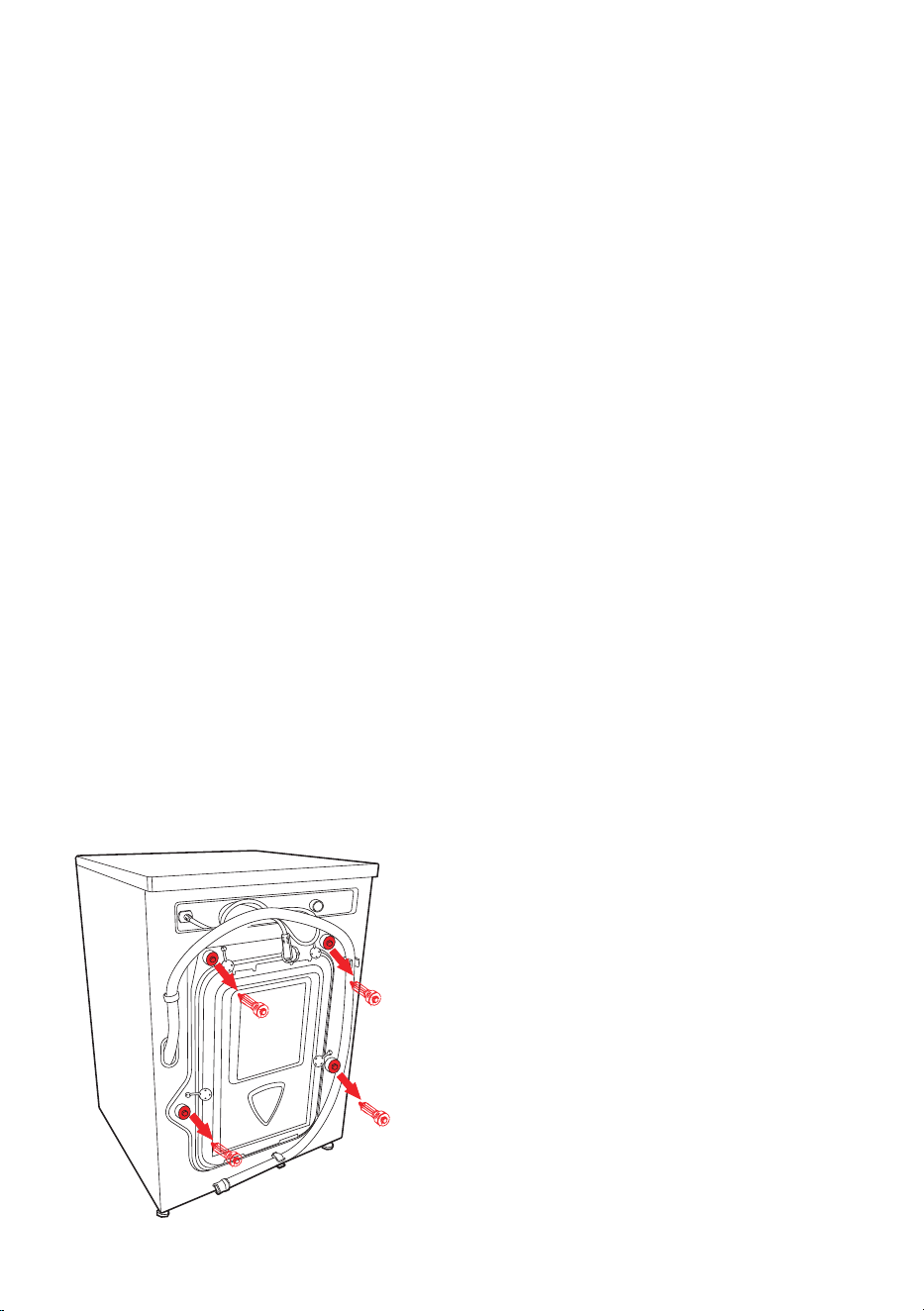

Before using the washing machine, you must remove the 4 transport bolts from the rear of
the machine.
If you do not remove these transport bolts before first time use, you will damage the unit
and also void warranty. You must remove these transport bolts before first time use.
6
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are being supervised or been given instructions on how to use of the
appliance in a safe way and understand the hazards with using this
appliance incorrectly.
• Do not block any ventilation openings. Ensure that vents are not covered
by anything.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• Only load items that are suitable for the clothes dryer.
• Do not place any open source flames on the dryer such as candles, etc..
• The door/window will be hot after a long cycle, be sure not to touch the window
and to keep children away from the appliance.
• Never stop the clothes dryer before the cycle finishes, the last stage of the cycle
is a drying mode without heat to ensure items are left at a temperature that will
not damage them.
• The only part that can be changed is the filter, other than this nothing else in the
dryer contains user serviceable parts. Do not open, disasseble or try to repair the
appliance yourself. Only have this appliance serviced by a qualified technician.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
WARNING
Never try to repair, modify or replace any part of the appliance, unless this manual says you
can do so. All other servicing is to be done by a qualified technician, or contact our support
centre on info@ayonz.com for advice.
IMPORTANT
Before using the washing machine, you must remove the 4 transport bolts from the rear of
the machine.
If you do not remove these transport bolts before first time use, you will damage the unit
and also void warranty. You must remove these transport bolts before first time use.
7
GENERAL SAFETY INSTRUCTIONS (Cont.)
CAUTION
ITEMS BELOW ARE NOT SUITABLE FOR DRYING. IT CAN CAUSE FIRE IN
THE APPLIANCE OR EXTENSIVE DAMAGE. DO NOT PLACE FOLLOWING
IN THE APPLIANCE
• Items containing rubber or foam like rubber or any other similar
textured materials.
• Items that are spotted or soaked with cooking oil or any other flammable items.
These other items include kerosene, stain removers, dry-cleaning solvents,
alcohol, petrol, turpentine, waxes, hair care products, wax removers.
• Washing the items vigoursly beforehand in hot water with extra detergent will
reduce, but not completely eliminate the hazard.
• Undergarments that contain metal reinforcements (such as underwire bras).
Plastic articles such shower caps and waterproof bibs.
• Rubber-backed articles, clothes with foam rubber pads, pillows, galoshes and
rubber coated tennis shoes.
• Fabric softeners or similar products unless recommended by product
manufacturer for use in a clothes dryer.
• WARNING: Never stop a dryer before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
CAUTION
• Do not use the tumble dryer if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the dryer.
• Do not allow lint to accumulate around the tumble dryer. Clean the Lint Trap and
Filter after every use.
• Enough ventilation has to be provided to avoid the backflow of gases into the
room from appliances burning other fuels including open fires.
• Remove all objects from pockets such as lighters and matches.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminat-
ed by hair care products be placed in a tumble dryer they should first be washed in hot water
with extra detergent - this will reduce, but not eliminate the hazard.
This symbol alerts you to take care as oil-aected items can ignite,
especially when exposed to heat, such as in a clothes dryer. The items become
warm, causing an oxidation reaction in the oil. Oxidation causes heat. If the heat
cannot escape, the items can become hot enough to catch fire. Piling, stacking or
storing oil-aected items can prevent heat from escaping and so it will create a
fire hazard.
8

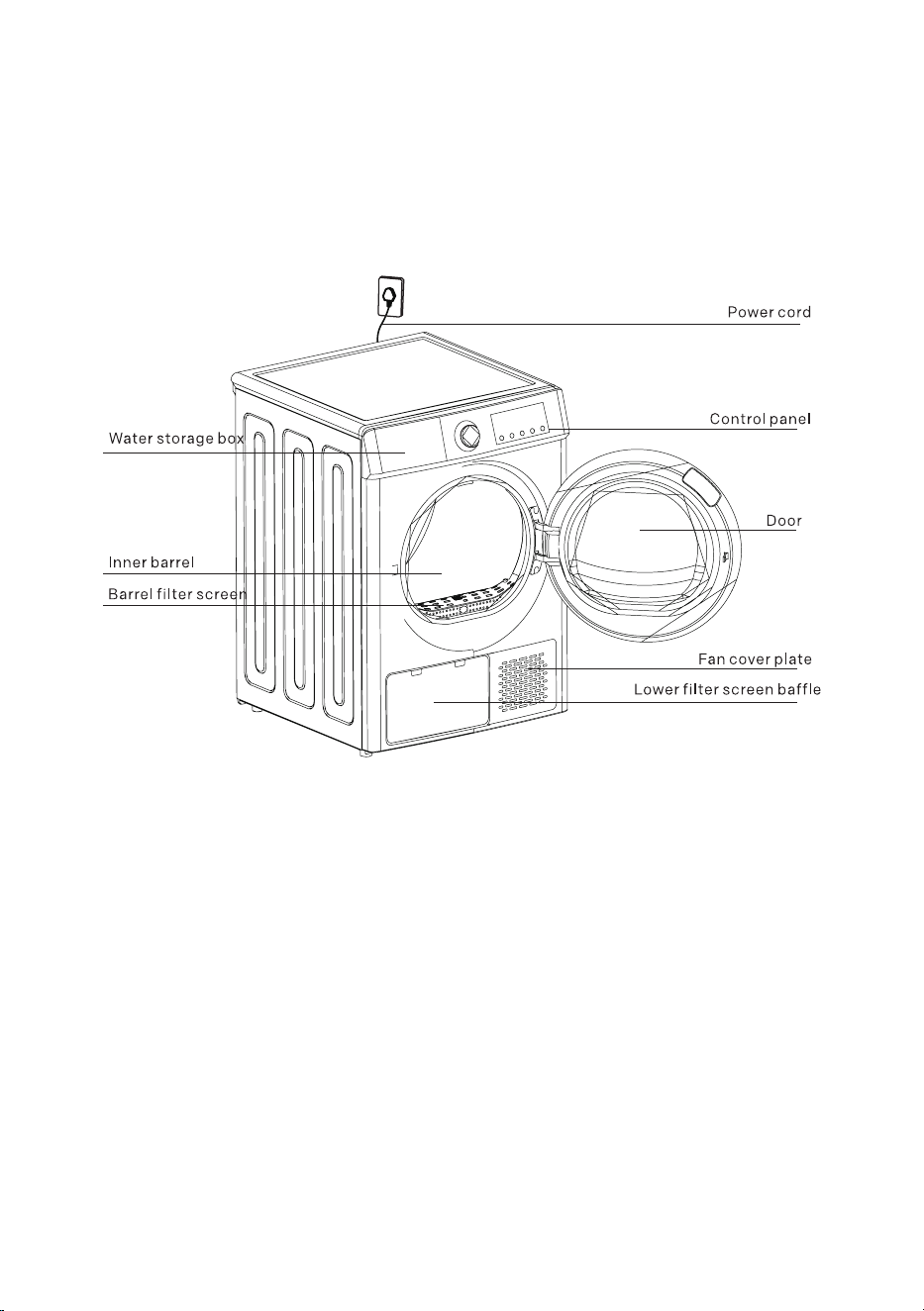

PRODUCT OVERVIEW
9
PRODUCT OVERVIEW (Cont.)
CONTROL PANEL
Start/Pause button
Press the “Start/Pause” button to start or pause the procedure.
Delay
Press the “Delay” button to enter the delay setting,press the”Delay” button again
to select the delay time, and then press the”Start/Pause” button to start the delay,
The delay time shall be selected after selecting the procedure and before pressing
the”Start/Pause” button. After the delay is started, all buttons except the”Start/
Pause” button are invalid.
Dry Level
Press the”Dry Level” button to select the degree of dryness. Different procedures
have different setting ranges for dryness. As for timing procedure, degree of
dryness cannot be selected. There are 3 degrees of dryness: L1(dry), L2(drier),
L3(extra dry)
Time-,time+
It is used to adjust the clothes drying time, Different procedures have different
setting ranges of drying time. In some procedures. it can’t choose drying time.
Child lock
In order to prevent children from mis-operation during the machine operation, the
child lock function can be turned on.
During the running of the procedure, press the “Time+” and “Delay” button to
enter the child lock state, and the child lock indicator is on. Press the “Time+” and
“Delay” button again to release the child lock state, and the child lock indicator
goes out. Under the child lock state, all buttons are invalid.
10
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
INSTALLATION
• This clothes dryer can be installed on the floor (as supplied).
• This appliance can not be installed behind a lockable door, sliding or a door
with a hinge on the opposite of the clothes dryer. In all ways that full opening of
clothes dryer door is strictly not allowed.
• Make sure that all electrical connections are made by qualified technicians and
all instructions in this manual are observed.
• Place the dryer in a dry, well ventilated area, away heat and direct sunlight.
• Exhaust air must not be discharged into the flue which is used for exhausting
fumes from appliances burning gas or other fuels.

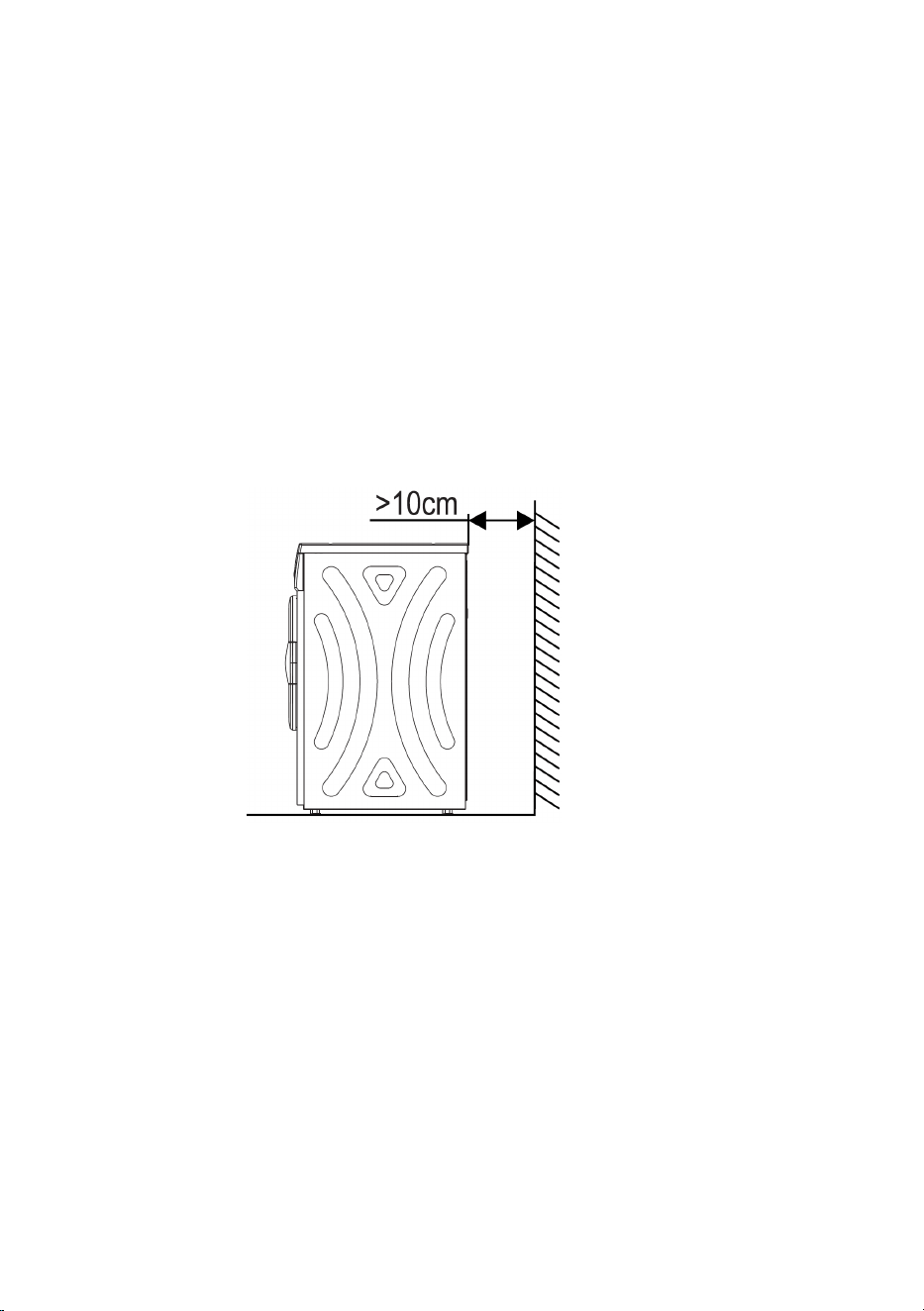

• Make sure to allow 10cm of spacing behind the dryer to the wall.
GETTING STARTED
LEVELING THE APPLIANCE
• Make sure to position the dryer is on a level and stable ground. If the floor
is uneven you can adjust the feet by twisting it as if to screw in the feet to the
product, either clockwise or counter-clockwise to adjust the feet up or down
until appliance is completely level.
NOTE: The Dryer will not work correctly unless it is positioned perfectly level.
• Do not install the dryer in a place that can easily be reached by rain
• Do not place the back of the dryer near curtains.
• Do not place the dryer near gas or flammable areas.
11
LOADING THE DRYER
• Before loading the dryer, check that none of the clothes you are inserting into

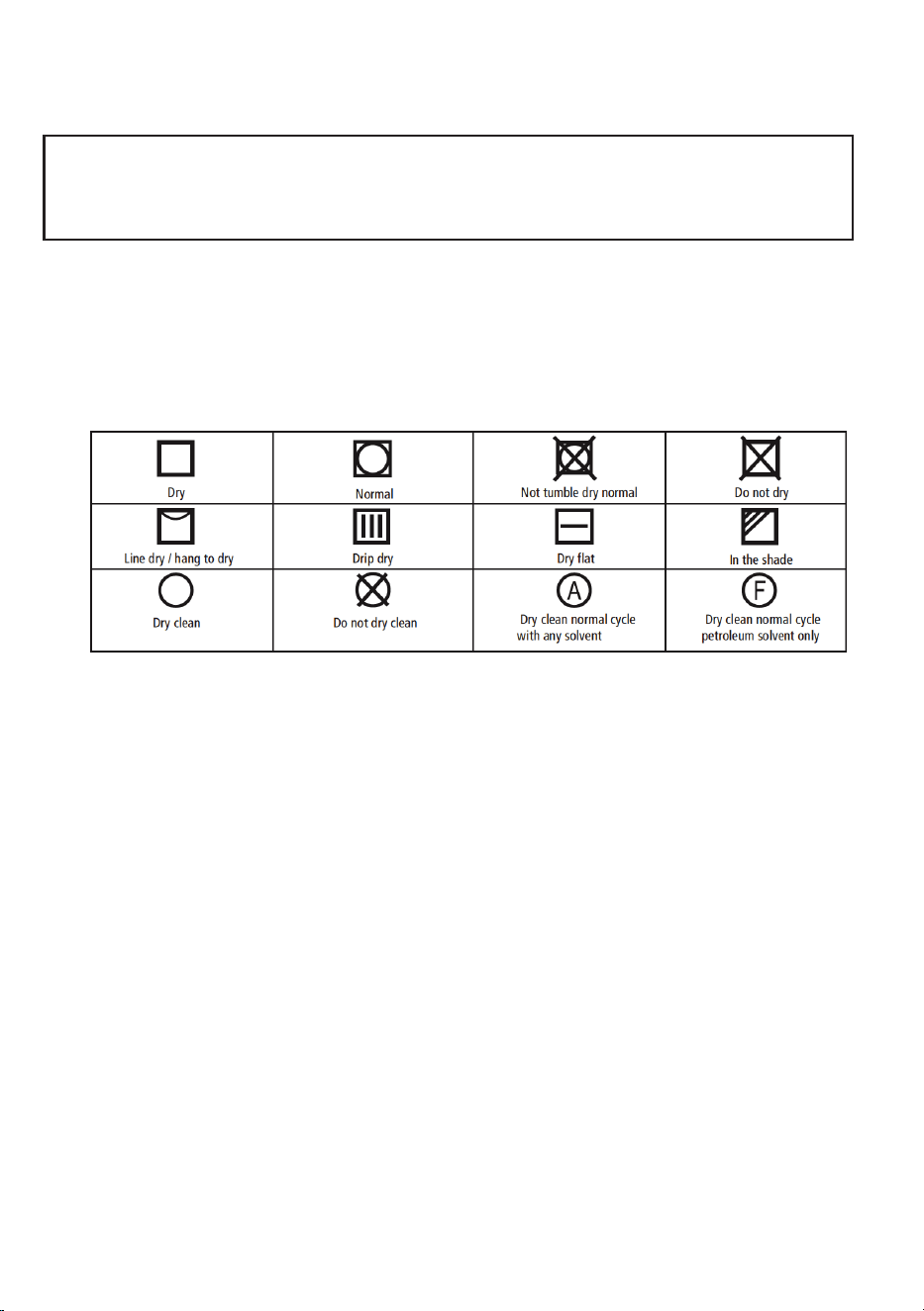

the dryer have any symbols anywhere on them. These symbols indicate that
there are not suitable for clothes drying.
• Make sure none of the items you are putting into the dryer have no
combustible materials or foreign objects (such as coins, hair pins or lighters).
Be sure to empty pockets of everything before putting into the dryer.
• Clean the filter before each use and make sure its properly back in place.
• To avoid items getting tangled in the dryer which can reduce drying
performance, please insert items into the dryer one at a time.
• Turn items with cippers inside out and fasten buckles, as this will help
to reduce impact noise with items hitting the drum while spinning.
• Make sure to check items for stains before inserting into the dryer, as drying
can permanently set stains.
• As you dry large blankets or sheets from time to time open the dryer door
take out the blanket or sheet and give it a shake then place back into the
dryer. This will help larger items with drying process.
WARNING: Do not overload the dryer, maximum amount of items that can be dried in one
load is 10 kg.
• Make sure only items that have been washed and are still we are placed in
the dryer, no items that are dry are to be placed in.
• Be sure when closing the dryer door that not items are jammed in the door.
• Do not add items to the dryer while it is operating.
CAUTION!
Make sure you read all safety precaution in this manual that cause a hazard if placed
in the clothes dryer.
INSTRUCTIONS
12

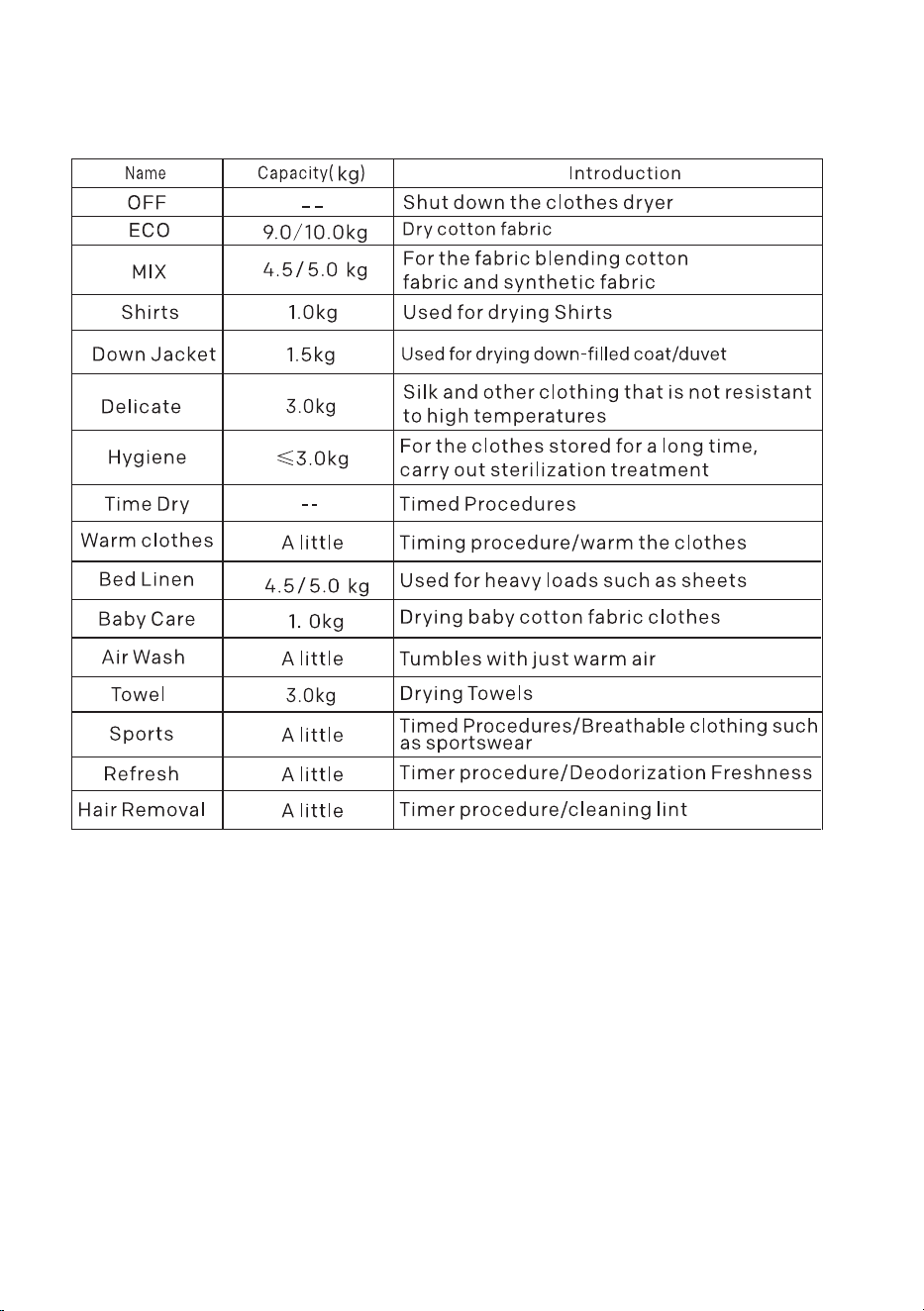

OPERATION
13
OPERATION (Cont.)
NOTE
The above procedures are the recommended procedures, and the users can
choose appropriate procedures according to their personal habits. If the clothes
are not completely dried, the users can choose the timing adjustable procedure
to continue drying.
The timing adjustable procedure will not automatically judge the degree of
wetness. If the clothes are still wet after the procedure finishes, please repeat the
procedure or adjust the drying time until clothes are dried.
Large fabrics such as sheets or curtains are easy to be wrapped into a ball when
drying. If so, stop the clothes dryer, take fabrics out and shake them, and then
put them into the clothes dryer to continue drying.
When drying down-filled coat, before drying, please turn the inside of the clothes
to the outside.
The time when the machine starts is the default time. In the actual operation, the
temperature and humidity of the environment, the type and weight of clothes
will affect the drying time. When the machine is running, the humidity sensor
intelligently senses the humidity of clothes and automatically adjusts the drying
time. The display time of the corresponding LED screen will increase or decrease
synchronously, which is normal.
14
OPERATION (Cont.)
Preparations before drying clothes
1. Put some cloth strips in the inner cylinder.
2. Plug in power and press the “Power” button.
3. Select the “Timing drying” procedure and press the “Start/Pause” button.
4. After the procedure finishes, please clean the filter screen according to the content
in the “Cleaning and maintenance”
NOTE
After handling, please stand the machine upright for more than 2 hours before using the
machine, and pick soft cloth strips to clean the inner barrel before using it for the first time.
During the operation of the clothes dryer, the compressor and drain pump will generate some
sounds, and it is normal.
How to use
1. Please dehydrate the clothes before putting them into the clothes dryer. The drier the
clothes are after dehydration, the more time and electricity are saved when drying clothes.
2. Please shake the clothes, zip them up, button them up and put them in the clothes dryer;
to avoid the zipper or button from making noise during drying, please turn the clothes
outside over before putting them into the clothes dryer.
3. Clean the filter screen before starting the clothes dryer.
4. According to the prompt of the procedure name, select the corresponding drying
procedure according to the material type and label information of the clothes.
5. ln order to get the ideal drying effect, please classify the clothes, and don’t dry the clothes
with different thickness or different degrees of dryness or wetness at the same time as far as
possible.
6. When drying a small amount of clothes, it is recommended to use the timing adjustable
procedure.
7. When drying sheets, curtains and other large-sized fabrics, if in the drying process, the
fabrics are lumped, the operation can be suspended, and drying can continue after shaking.
8. For the clothes that need to be dried by the clothes dryer, it is recommended to use fabric
softener when washing.
9. Some heavy clothes (jeans, big towels, etc.) are difficult to be dried locally because of
the material characteristics; if you find that the drying is still incomplete after the end of the
procedure, it is recommended to use the “Timing drying” procedure to adjust the drying time.
15
CLEANING AND CARE
EMPTY THE WATER CONTAINER
1. Hold and pull out the water container
with 2 hands.
2. Tilt the water container, pour out the
condensate water into basin.
3. Install the water container.

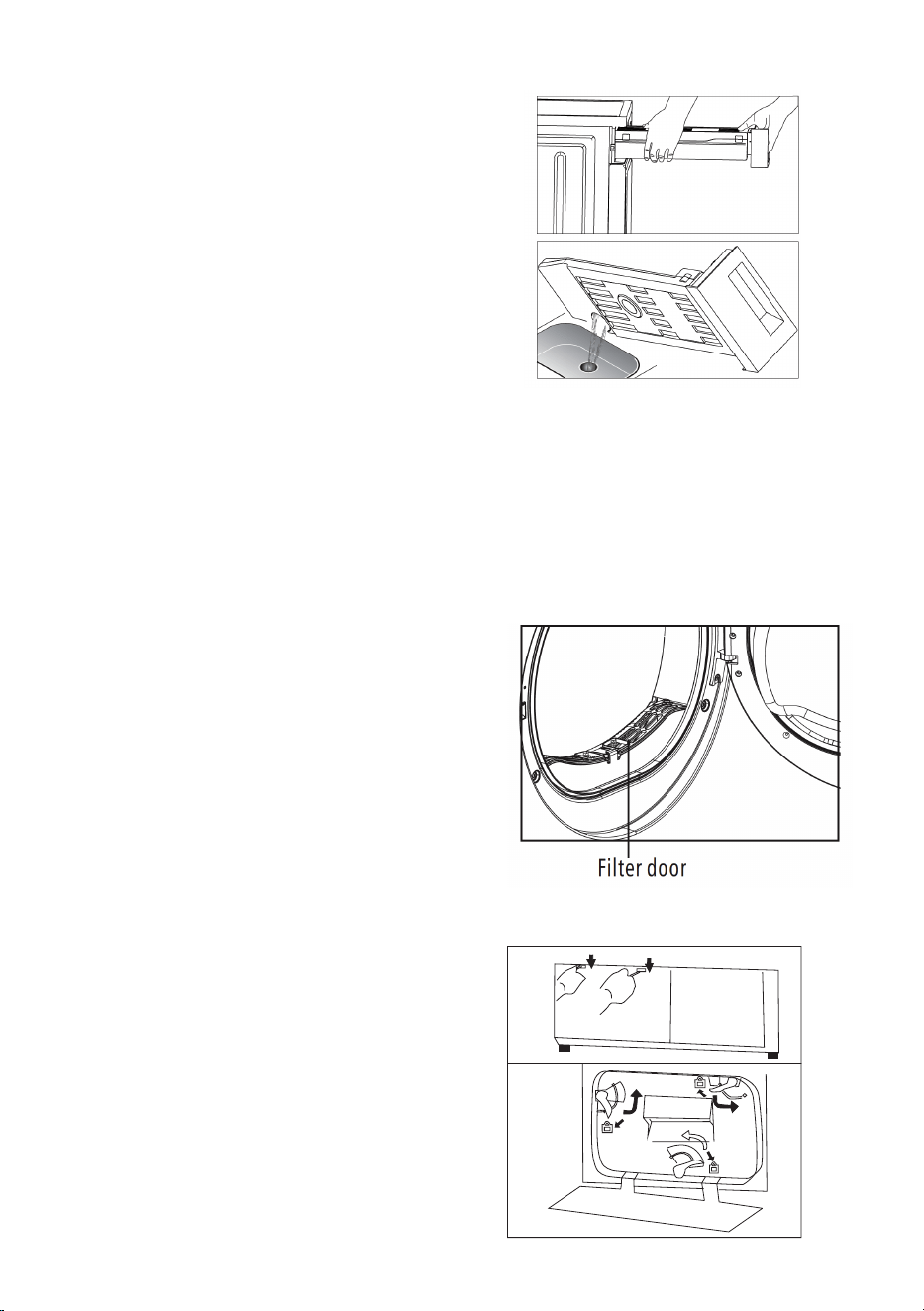

CLEAN THE FILTER DOOR
1. Open the door and take our the filter.
2. Clean the door filter; wipe off the scrap
threads accumulated on the filter.
3. Re-install the filter back in the door.
CLEAN THE FILTER BASE
1. Pull the lower filter screen baffle in
the lower left corner of the machine.
2. Turn the knob, and take out the
lower filter screen. Clean the
lower filter screen with soft brush.
3. Put the lower filter knob, and baffle to
the original position.
WARNING:
Empty the water container after each use, the programme will be paused and the
water box will light if the water container is full during the drying process.
After the container is emptied, the dryer can be restarted by pressing the
“start/pause” button.
• Do not consume the condensate water.
• Do not use the dryer without the water container.
MAINTENANCE
16
MAINTENANCE (Cont.)
WARNING:
• The fluff accumulated on the filter will block the air circulation, which will cause
the extension of drying time and energy consumption.
• Make sure to disconnect the power from the wall socket before cleaning.
• Do not operate this dryer without the filter.
• Clean the filter after each use to prevent lint accumulation inside the dryer.
• Clean the heat exchanger. When doing this, please use gloves. According to the need, it
is recommended to clean the heat exchanger once every month.
WARNING:
• Disconnect the power before cleaning!
• Please wear gloves when cleaning.
• When cleaning the surface or other parts of the clothes dryer, use a wet cloth soaked
with clean water, otherwise the plastic surface or other parts may be damaged.
• Do not rinse the clothes dryer directly with tap water hose or high-pressure water gun.
Cleaning steps:
• Prepare a wet cloth soaked in clean water.
• Clean the door, especially the internal windows.
• Clean the sealing ring around the front support.
• Clean the humidity sensor of the drum.
• Clean fluff in the air duct. Before starting the machine, dry it with a soft cloth.

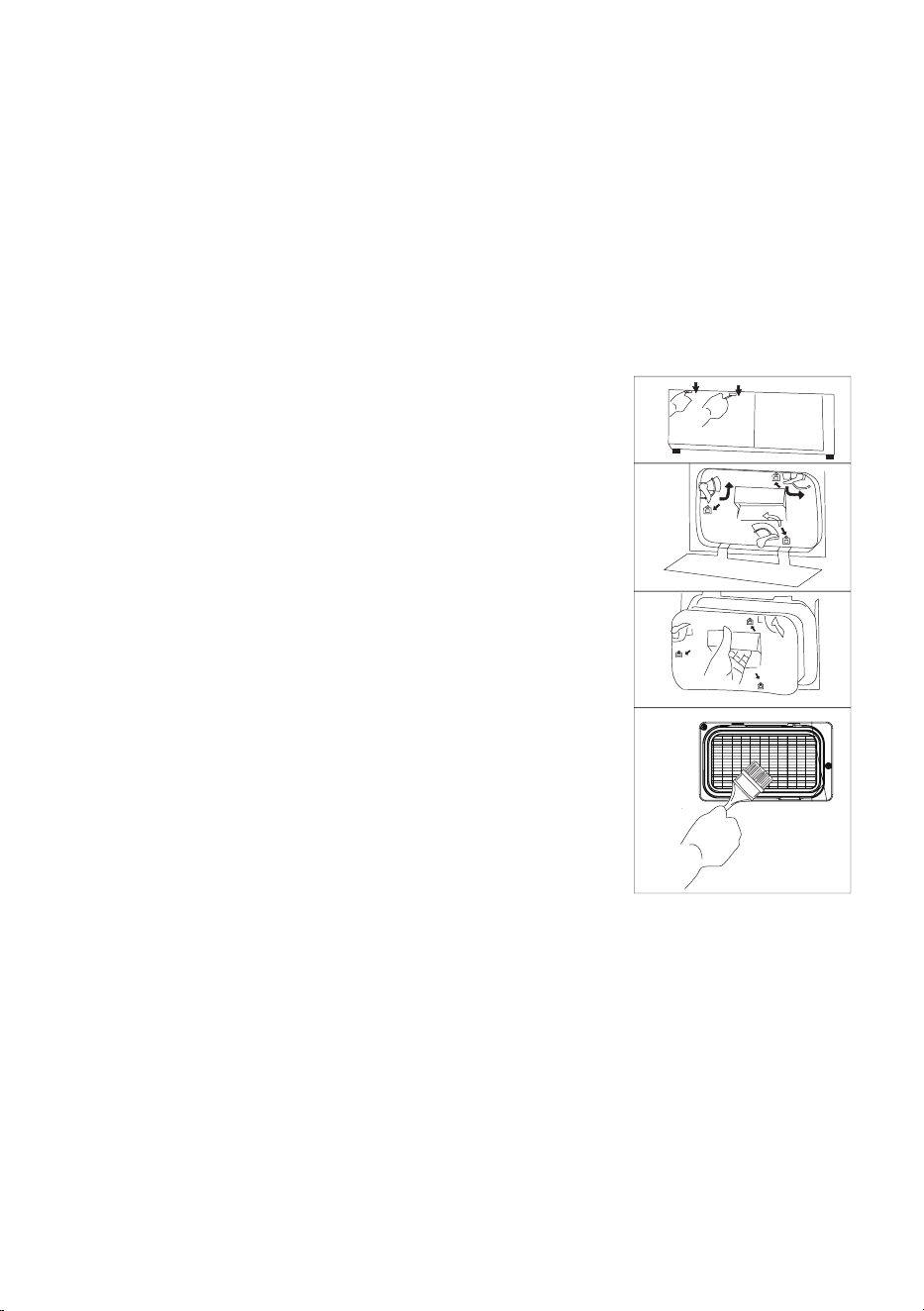

CLEAN THE FILTER BASE
1. Pull the lower filter screen baffle in the lower left corner of
the machine.
2. Turn the knob, and take out the lower filter screen. Clean the
lower filter screen with soft brush.
3. Put the lower filter knob, and baffle to the original position.
NOTE:
1. Do not press it hard when cleaning the heat exchanger,
otherwise it will damage the heat exchanger.
2. Disconnect the power before cleaning.
3. Clean the drum clothes dryer.
17
TROUBLESHOOTING

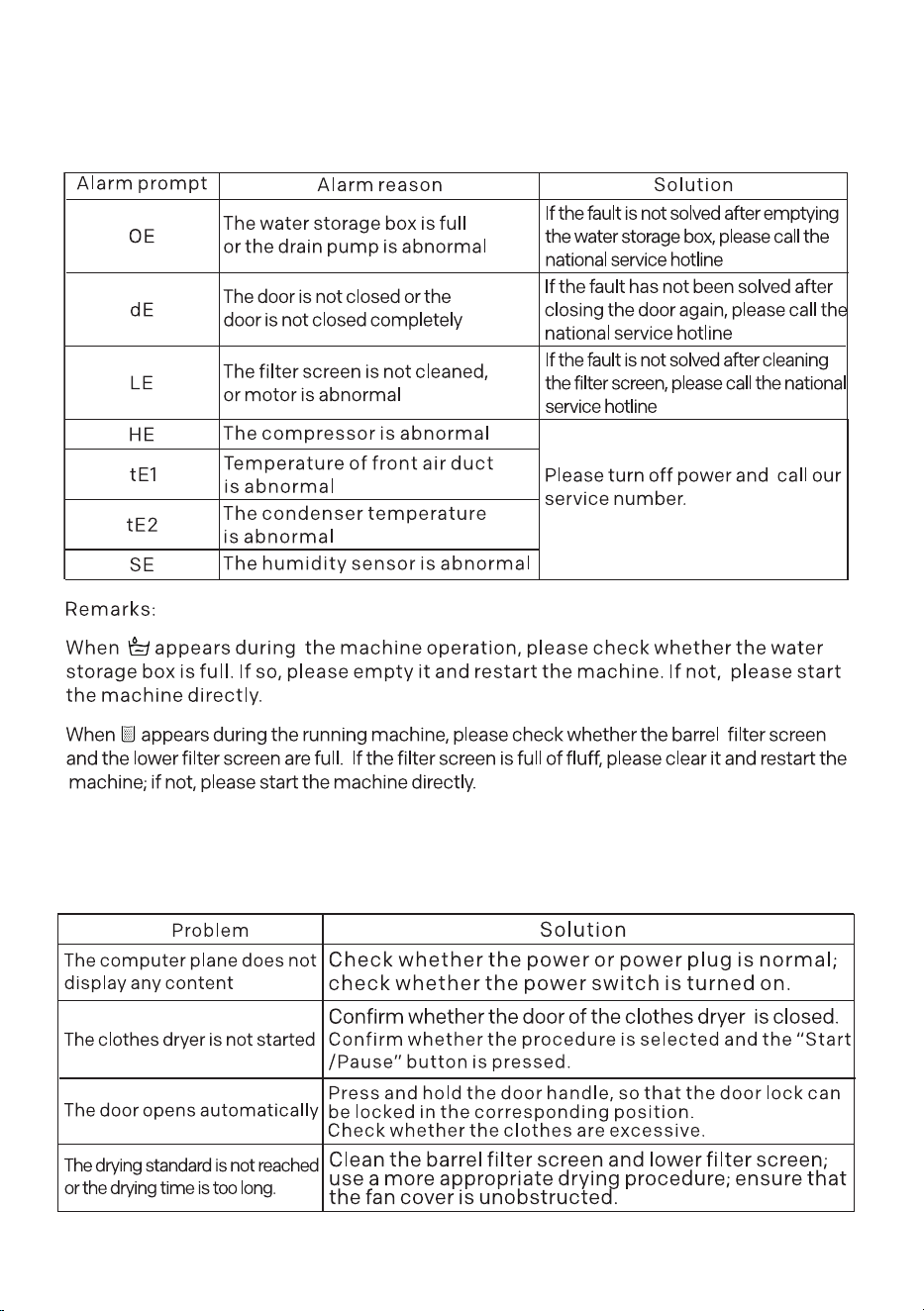

ERROR CODES
TROUBLESHOOTING GUIDE
Use the below list to identify if your clothes dryer is having any issues and to
identify and solve any problems. If you cannot solve the problem, contact our call centre on
info@ayonz.com.
18
NOTE: The rated capacity is maximum capacity, make sure that the dry clothes which
are loaded in to the appliance do not exceed the rated capacity each time.
SPECIFICATIONS
Power Supply 220-240V ~ 50Hz
Rated Power 850W
Grade of Waterproof IPX4
Drying Capacity 10 kg
Weights
Net: 52 kg
Gross: 58 kg
Dimensions 595 (w) x 670 (d) x 850 (h) mm
19
20
CUSTOMER HELPLINE:
info@ayonz.com
02 8279 8606
DISTRIBUTED BY:
Ayonz Pty Ltd
