DOMINO COOKING HOBS
INSTALLATION ADVICES - INSTRUCTIONS FOR THE USE
GB
• CHW23PX SASO
22
33
Dear Customer,
Thank you for having purchased and given your preference to
our product.
The safety precautions and recommendations reported below
are for your own safety and that of others. They will also provide
a means by which to make full use of the features oered by your
appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should
arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking foodstus.
Any other form of usage is to be considered as inappropriate
and therefore dangerous.
The manufacturer declines all responsibility in the event
of damage caused by improper, incorrect or illogical use of
the appliance.
44
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
• After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
55
• CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
• Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
• Do not cover the hob with aluminium foils.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs/controls are in the o position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
66
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o the appliance and then cover ame e.g.
with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
• If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
• If the appliance is not tted with a supply cord and a plug, or with
other means for disconnection from the supply mains having a
contact separation in all poles that provide full disconnection under
overvoltage category III conditions, means for disconnection
must be incorporated in the xed wiring in accordance with the
wiring rules.
• WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
77
• WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
88
ADVICEADVICE
for thefor the
INSTALLERINSTALLER
99
IMPORTANT :
• The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments
and could aect any third party or public liability insurances you may have.
• This appliance is to be installed, regulated and adapted to function only by an authorized
person in compliance with the current local regulations in force and in observation of the
instructions supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
• The appliance must be installed in compliance with regulations in force in your country
and in observation of the manufacturer’s instructions.
• Installation technicians must comply to current laws in force concerning ventilation and
the evacuation of exhaust gases.
• Incorrect installation, for which the manufacturer accepts no responsibility, may cause
personal injury or damage.
• This appliance shall only be serviced by authorized personnel.
• Always disconnect the appliance from mains power supply before carrying out any
maintenance operations or repairs.
• Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
• These tops are designed to be embedded into kitchen xtures measuring 600
mm in depth, working surface 20 to 40 mm thick.
• The appliance must be housed in heat-resistant units.
• The walls of the units must not be higher than work top and must be capable of
resisting temperatures of 105°C above room temperature.
• We would point out that the adhesive which bonds the plastic laminate to the
furniture must withstand temperatures not less than 150°C to avoid delamination.
• Do not install the appliance near inammable materials (eg. curtains).
WARNING!
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
underneath of the appliance as this area is not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
1010
TECHNICAL INFORMATION FOR
THE INSTALLER

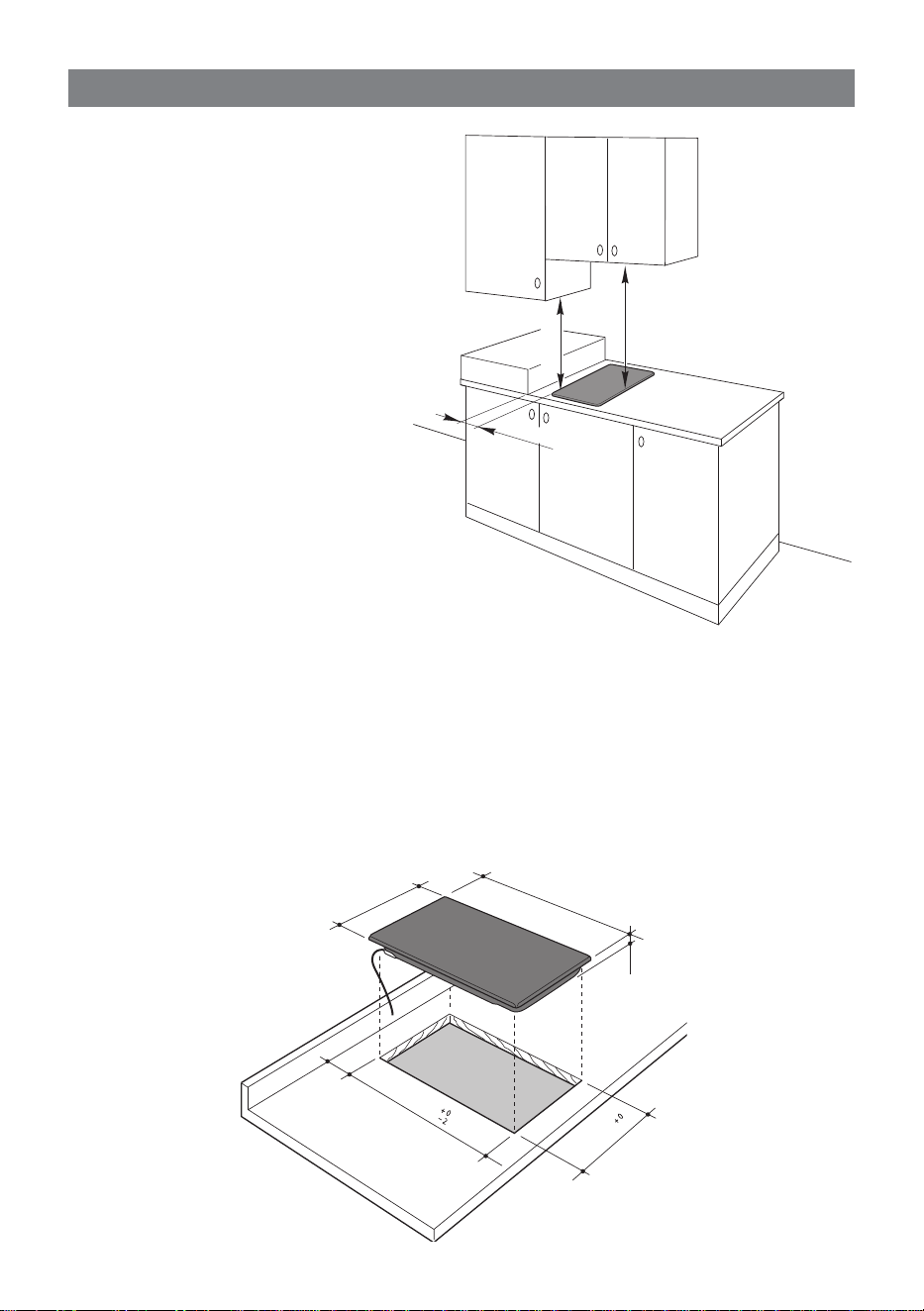

In order to install the cooker top into the
kitchen xture, a hole with the dimensions
shown in g. 1.2 has to be made, bearing
in mind the following:
• A 30 mm ventilation gap must be
provided between the bottom of the
appliance and any cabinetry, draw
unit, thermal protection barrier or
appliance.
• If the base of the cooktop is
accessible through a cupboard or
drawer space after installation or if
the oven installed below the cooktop
has a cooling fan motor, the thermal
protection barrier is not required.
• If the cooktop is installed above
an oven, the two appliances shall
be connected to the gas and/or
electrical supply with independent
connections.
• The cooker top must be kept no less than 100 mm away from any side wall (from side
edge of cutout - g. 1.1).
• The hob must be installed at least 50 mm from the wall (from rear edge of cutout - g. 1.2).
• There must be a distance of at least 650 mm between the hob and any wall cupboard or
extractor hood positioned immediately above (see g. 1.1).
650 mm
450 mm
min 100 mm
Fig. 1.2
INSTALLATION
1
490
510
270
– 2
288
50
42
Fig. 1.1
1111

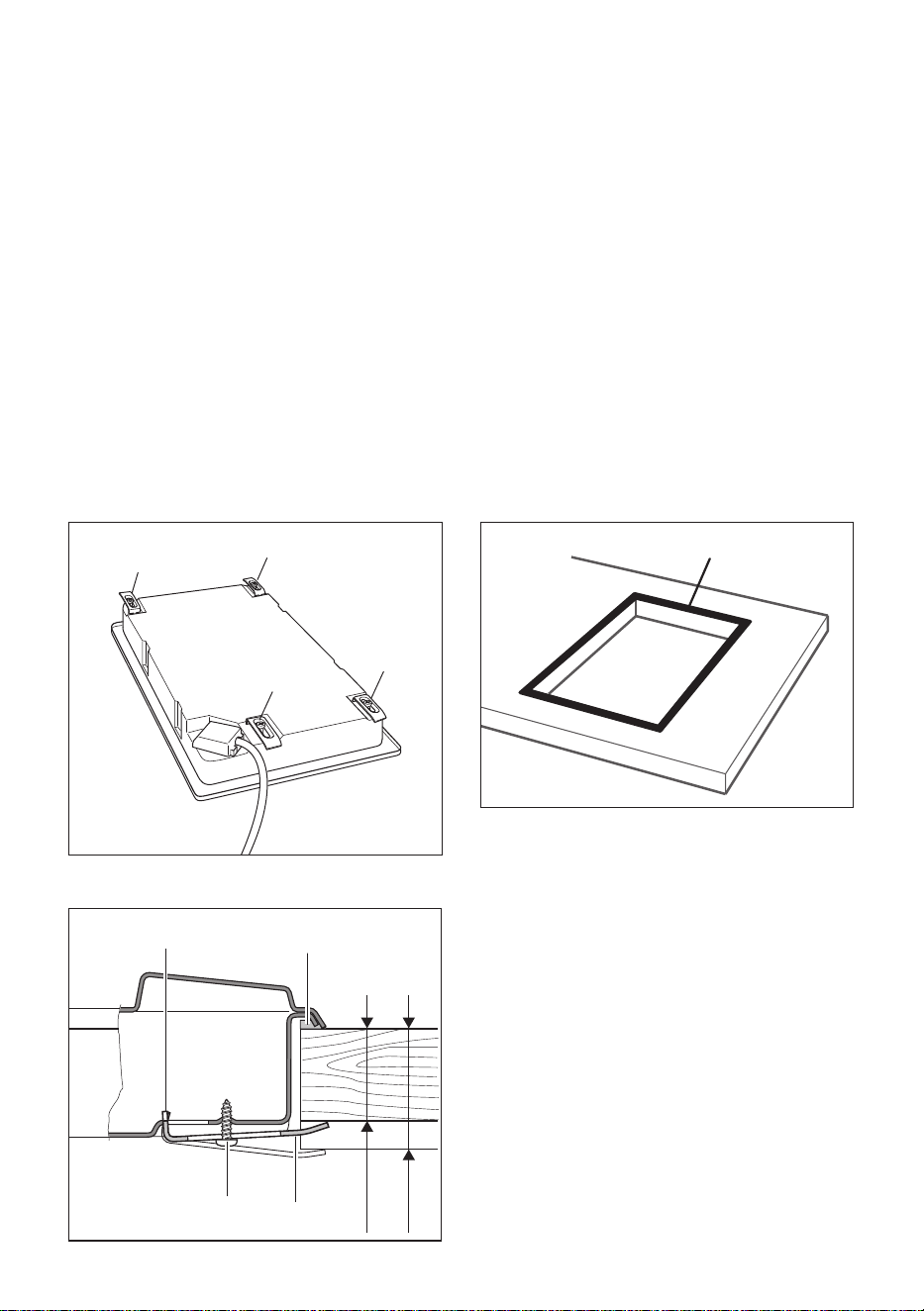

FASTENING THE INSTALLATION BRACKETS (gs. 1.3a, 1.3b, 1.3c)
Each cooktop is provided with an installation kit including brackets and screws for fastening
the cooktop to benches from 20 to 40mm thick.
The kit includes 4 tabs “A” and 4 selfthreading screws “B”.
• Cut the unit.
• Stretch gasket “G” over the edge of the hole made, being careful to overlay the junction
edges (fig. 1.3b).
• Turn the cooktop over and put tabs “A” (fig. 1.3a) into the mountings, only tighten
screws “B” a few turns. Make sure that the tabs are mounted correctly as shown in the
figure 1.3c. Turn the tabs so that the cooktop can be put into the hole.
• Put the cooktop into the hole cut into the unit and position it correctly.
• Put tabs “A” into place, tooth “C” of the tabs should go into the hole.
• Tighten screws “B” until the cooktop is completely secured.
• Using a sharp tool cut off the part of gasket “G” which protrudes from the cooktop.
Take care not to damage the benchtop.
Fig. 1.3c
Fig. 1.3a
G
Fig. 1.3b
A
A
A
A
20 mm min.
40 mm max.
B
D
A
C
A
A
A
A
G
1212

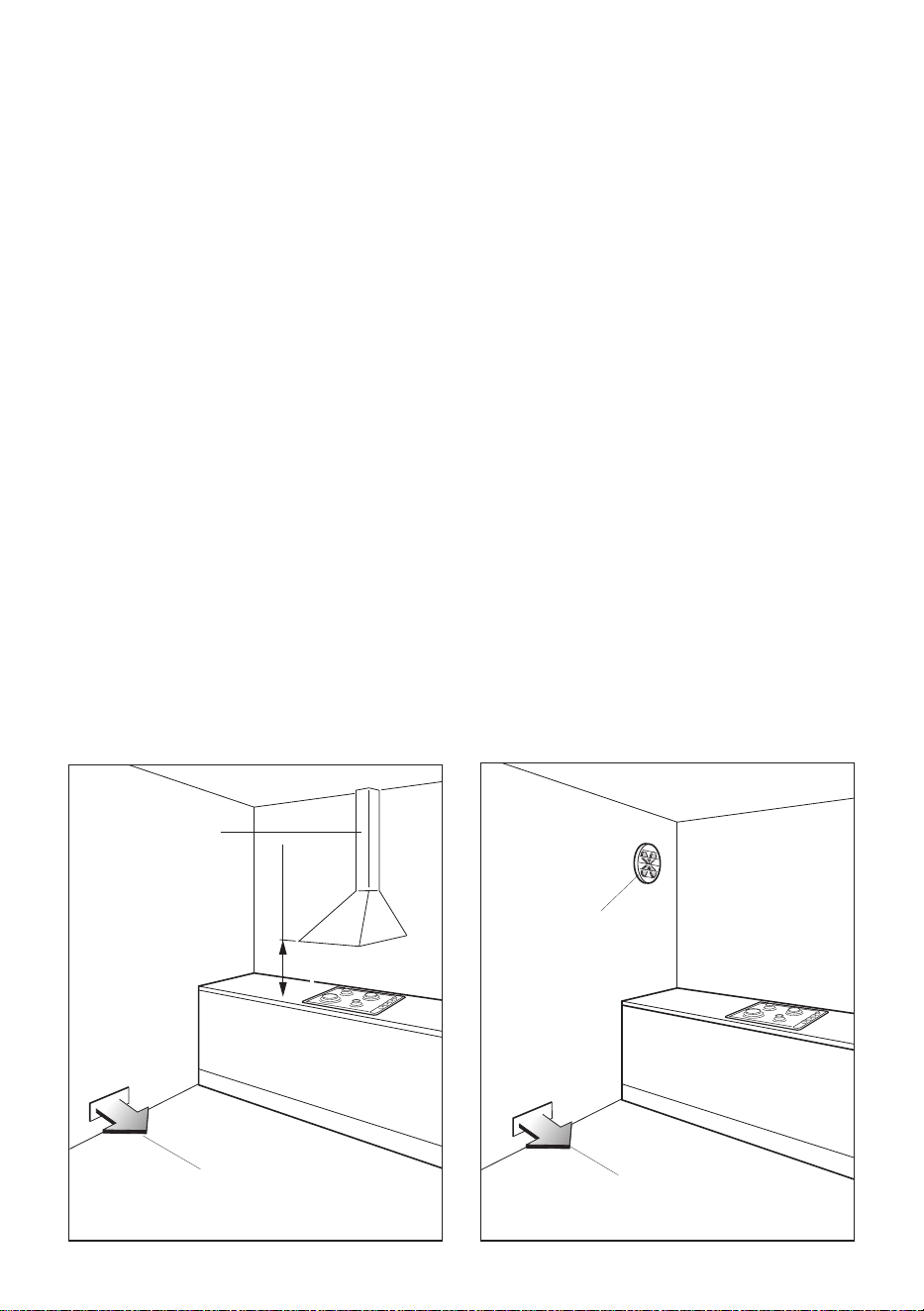

VENTILATION REQUIREMENTS
The appliance must be installed in compliance with applicable local regulations
concerning ventilation and the evacuation of exhaust gases.
Intensive and prolonged use may require extra ventilation, e.g. opening a window,
or more ecient ventilation increasing the mechanical suction power if this is tted.
CHOOSING SUITABLE SURROUNDINGS
The room where the gas appliance is to be installed must have a natural ow of air so that
the gas can burn (in compliance with applicable local regulations).
The ow of air must come directly from one or more openings made in the outside walls
with a free area of at least 100 cm
2
(or refer to applicable local regulations).
The openings should be near the oor and preferably on the side opposite the exhaust for
combustion products and must be made so that they cannot be blocked from either the
inside or the outside.
When these openings cannot be made, the necessary air can come from an adjacent
room which is ventilated as required, as long as it is not a bed room or a danger area (in
compliance with applicable local regulations).
In this case, the kitchen door must allow the passage of the air.
DISCHARGING PRODUCTS OF COMBUSTION
Extractor hoods connected directly to the outside must be provided, to allow the products
of combustion of the gas appliance to be discharged (g. 1.4).
If this is not possible, an electric fan may be used, attached to the external wall or the
window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the
total volume of the kitchen (g. 1.5).
The fan can only be installed if the room has suitable vents to allow air to enter, as described
under the heading “Choosing suitable surroundings”.
H min 650 mm
Extractor hood
for products of
combustion
Air vent Air vent
Electric fan to
extract products of
combustion
Fig. 1.5Fig. 1.4
1313
GAS SECTION
2
GAS INSTALLATION REQUIREMENTS
Important!
• This appliance must be installed and serviced only by a suitably qualied,
registered installer. The installer shall refer to the local standards in force.
• Failure to install the appliance correctly could invalidate any manufacturer’s
warranty.
• Before installation, make sure that the local distribution conditions (gas type and
pressure) and the adjustment of this appliance are compatible. The appliance
adjustment conditions are given on the plate or the label.
• If the gas pressure (for which the appliance is to be used) is variable or if it is
not within the values indicated on the rating plate, it is mandatory to install a
proper gas pressure regulator which must be adjusted to guarantee the correct
operating pressure to the appliance (as per rating plate).
The regulator must be installed, adjusted and tested by a qualied technician.
• WARNING: Using the appliance with a wrong and/or variable gas pressure may
be extremely dangerous and may result in serious injury to the user. Damage to
the appliance could occur if not observing this condition.
The manufacturer declines every responsibility for any inconvenience resulting
from the inobservance of this condition.
This appliance is supplied for use on LPG (PROPANE/BUTANE, 5 kPa; check the gas
regulation label attached on the appliance).
CONNECTING THE COOKTOP TO THE GAS SUPPLY
The gas connection tting (g. 2.1) is made up of:
• the oating nut;
• the elbow;
• the gaskets;
The gas connection must be carried out by an authorised person according to the
relevant local standards.
• If using a exible hose, make sure it does not come into contact with moving parts.
• The rear of the chassis is recessed to provide a channel for the appliance inlet pipe.
• The gas connection tting can be turned in the direction required (but never in a vertical
or horizontal position) after loosening the elbow and oating nut connection.
• Never attempt to turn the elbow without having rst loosened the oating nut.
• The supplied gaskets guarantee a good seal for the gas connection. We recommend
that you replace the gaskets on the slightest sign of wear, deformation or imperfection.
• After connecting to the gas mains, check that the couplings are correctly sealed, using
soapy solution, but never a naked ame.
1414
IM P OR TA
NT !
The c onic al pipe f
itting mus t be
us ed for the U nited
K ingdom only
or if reques ted by
the a pplic a ble
local regul
ations .
If this c onic al ada pto
r is not s upplied
with the applia nc e it c
an be purc has ed
by contac ting the Aft
er-S ales S ervic e.
E lbow
Gas ket
Floating nut
Applianc e
inlet
pipe
C onical
pipe
fitting
IS O 228-1 (female)
1/2” G c ylindrical
IS O 7-1 (male)
1/2” G c onical
Gas ket
IS O 228-1 (male)
1/2” G c ylindrical
IS O 228-1 (male)
1/2” G c ylindrical
R igid pipe
or flexible hos e
Fig. 2.1
Gasket Floating nut
Gasket
Elbow
ISO 228-1 (male)
1/2” cylindrical
ISO 228-1 (male)
1/2” cylindrical
Rigid pipe or
exible hose
Appliance
inlet pipe
ADDITIONAL GAS CONNECTION REQUIREMENTS
When connecting the cooktop to the gas supply with rigid pipes or a exible hose, make
sure that:
• You use rigid pipes or a exible hose compliant with applicable local regulations. The
exible hose shall be of the correct construction for the type of gas being used and of
the correct size to maintain the heat output of the appliance.
• The connection with rigid metal pipes does not cause stress or pressure to the gas
piping.
• The exible hose is not under tension, twisted, kinked, or too tightly bent, neither while
the cooktop is in use nor while it is being connected or disconnected.
• The exible hose is not longer than 2000 mm (or refer to applicable local regulations)
and does not come into contact with sharp edges, corners, or moving parts, as these
may cause abrasion. Use a single exible hose only; never connect the cooktop with
more than one exible hose.
• The exible hose can easily be inspected along its entire length to check its condition;
if it has an expiry date, it should be replaced before that date.
• If using a exible hose which is not entirely made of metal, make sure that it does not
come into contact with any part of the cooktop with a surface temperature of 70°C or
above (or refer to applicable local regulations).
• The rigid pipe or exible hose is replaced if it shows signs of damage.
• The exible hose is not subject to excessive heat by direct exposure to ue products
or by contact with hot surfaces.
• The socket into which the plug of the exible hose t is permanently attached to a rmly
xed gas installation pipe and is positioned so that the hose hangs freely downwards.
• The plug of the exible hose is accessible after installation, so that it can be
disconnected for service or removal.
• You inform the customer that the rigid pipe or exible hose should not be subjected to
corrosion by cleaning agents.
1515
TABLE FOR THE CHOICE OF THE INJECTORS
LUBRICATION OF THE GAS TAPS
The operations must be executed by a qualied technician.
IMPORTANT
All intervention regarding installation and maintenance of the appliance must be
fullled with original factory parts.
The manufacturer declines any liability resulting from the non-compliance of this
obligation.
BURNERS
Nominal Power Reduced Power
LPG (PROPANE/
BUTANE) 5 kPa
[g/h] [kW] [g/h] [kW]
Ø injector
[1/100 mm]
Auxiliary (AUX) 73 1,00 25 0,34 46
Rapid (R) 219 3,00 73 1,00 79
AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m
3
/h x kW)
BURNERS Air necessary for combustion [m
3
/h]
Auxiliary (AUX) 2,00
Rapid (R) 6,00
1616
J

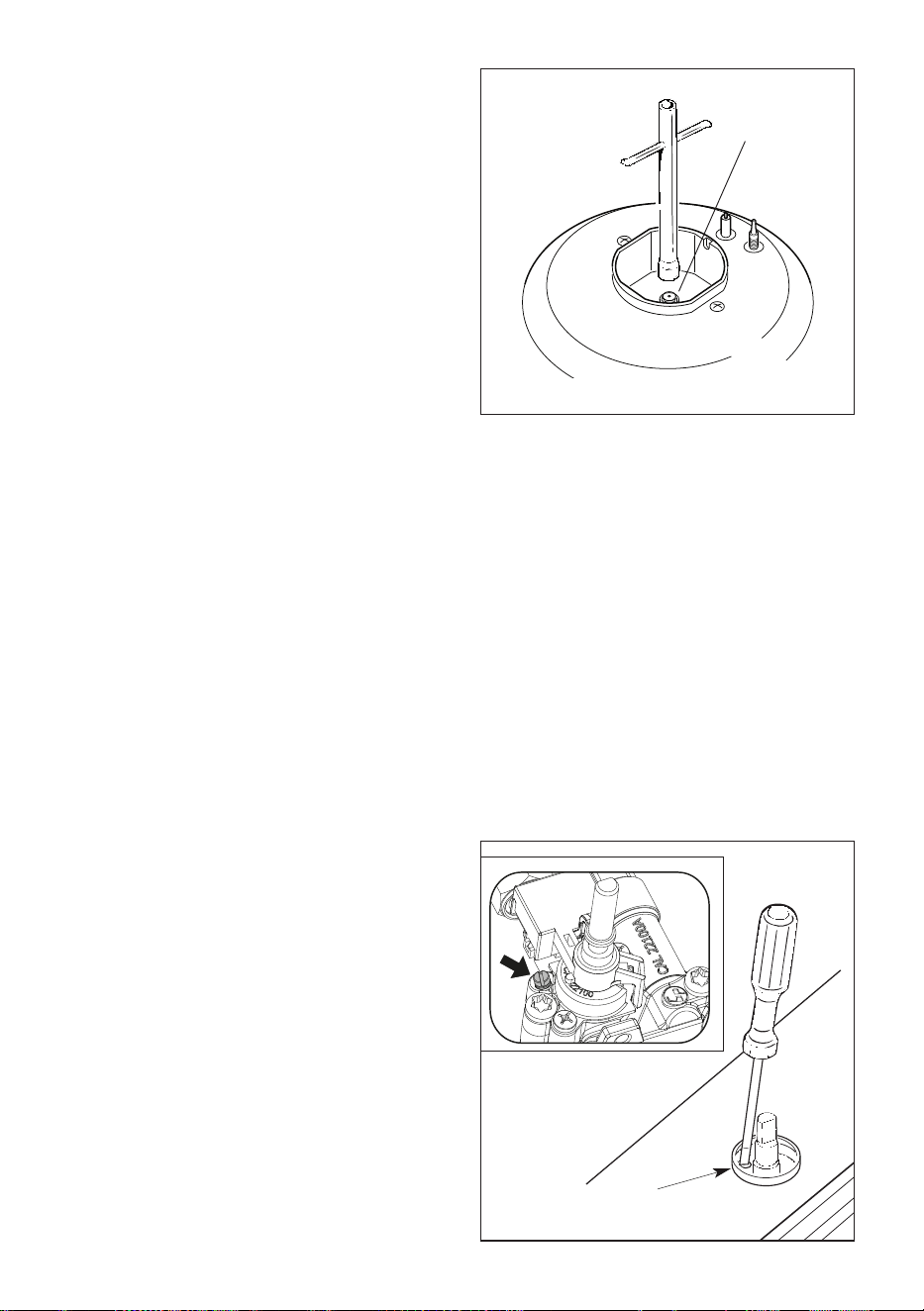

REPLACEMENT OF THE INJECTORS
Select the injectors to be replaced
according to the “Table for the choice of the
injectors”.
The nozzle diameters, expressed in
hundredths of a millimetre, are marked on
the body of each injector.
If the injectors are not supplied they can
be obtained from the “Service Centre”.
REPLACEMENT OF THE
INJECTORS OF THE COOKTOP
BURNERS
To replace the injectors proceed as follows:
• Remove pan supports and burners
from the cooktop.
• Using a wrench, substitute the nozzle
injectors “J” (gs. 2.2) with those most
suitable for the kind of gas for which it
is to be used.
The burners are conceived in such a
way so as not to require the regulation
of the primary air.
ADJUSTING OF THE MINIMUM OF
THE TOP BURNERS
In the minimum position the ame must
have a length of about 4 mm and must
remain lit even with a quick turn from the
maximum position to that of minimum.
The ame adjustment is done in the
following way:
• Turn on the burner.
• Turn the tap to the MINIMUM position.
• Take o the knob.
• With a small at screwdriver turn the
screw “A” to the correct regulation
(gs. 2.3).
Normally for LPG, tighten up the
regulation screw.
Fig. 2.2
Semi-rapid
and rapid
burners
A
Fig. 2.3
1717
IMPORTANT: The appliance must be
installed by a qualied technician
according with the current local
regulations and in compliance with
the manufacturer instructions.
Incorrect installation might cause
harm and damage to people, animals
or objects, for which the manufacturer
accepts no responsibility.
Connection to a good earth wiring
system is absolutely essential.
The manufacturer accepts no
responsibility for any inconvenience
caused by failure to comply with this
rule.
Before carrying out any work on the
electrical section of the appliance,
it must be disconnected from the
mains.
GENERAL
• Connection to the electric power
supply must be carried out by a
qualied technician and following the
appropriate safety regulations.
• The appliance must be connected to
the mains checking that the voltage
corresponds to the value given in the
rating plate and that the electrical
cable sections can withstand the load
specied on the plate.
• If the hob is supplied without plug, t a
standard plug which is suitable for the
power absorbed by the appliance and in
conformity with the local rules in force.
• The colours of the wires in the appliance
power cable may not correspond with
the colours marked on the terminals of
your electrical plug. The plug should
always be wired as follows:
– connect the green/yellow wire to
the terminal marked with the letter
“E” or the earth symbol “ ” or
coloured green/yellow;
– connect the blue wire to the
terminal marked with the letter “N”
or coloured black;
– connect the brown wire to the
terminal marked with the letter “L”
or coloured red.
• The plug must be connected to an
outlet connected to the grounding unit
in conformity to security norms.
• If the appliance is to be connected
directly to the mains, it must be placed
with an omnipolar switch with minimum
opening between the contacts of 3 mm
between the appliance and the mains.
• The power supply cable must not touch
the hot parts and must be positioned
so that it does not exceed 50°C above
ambient.
• Once the appliance has been installed,
the power switch or power plug must
always be in a accessible position.
• If the power supply cable is damaged it
must be substituted by a suitable cable
available in the after sales service.
• The appliance must have its own
supply; any other appliances installed
near it must be supplied separately.
– N.B. For connection to the mains,
do not use adapters, reducers or
branching devices as they can
cause overheating and burning.
– If the hob surface is cracked
disconnect the appliance from the
mains and contact the After-Sales
Service.
In the event that installation should
require modications to the mains supply
wiring system, it is recommended that a
qualied technician be called to carry out
substitution.
The technician will also have to verify that
the cross-section of the electric cables
on the power point match the appliance’s
power rating.
ELECTRICAL SECTION
3
1818
REPLACING THER POWER SUPPLY CABLE
The operations must be executed by a qualied technician.
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorized service agent in order to avoid a hazard.
Use the same type of power supply cable.
This cable must be connected to the terminal block following the diagram in g. 3.1.
NOTE: The earth conductor must be left about 3 cm longer than the others.
SECTION OF THE SUPPLY CABLE
TYPE “H05V2V2-F”
resistant to temperatures of 90°C
220-240 V 50-60 Hz 3 x 0,75 mm
2
(*) (**)
(*) Connection possible with plug and outlet
(**) Connection with wall box connection.
Fig. 3.1
L1 N(L2)PE
220-240 V ac
E
1919
ADVICEADVICE
for thefor the
USERSUSERS
2020
Fig. 1.1a
FEATURES
1
4 3
1
2
4 3
1
2
Fig. 1.1b
NOTE:
The knobs and symbols may vary.
Caution!
Do not cover the hob with aluminium
foils.
2121

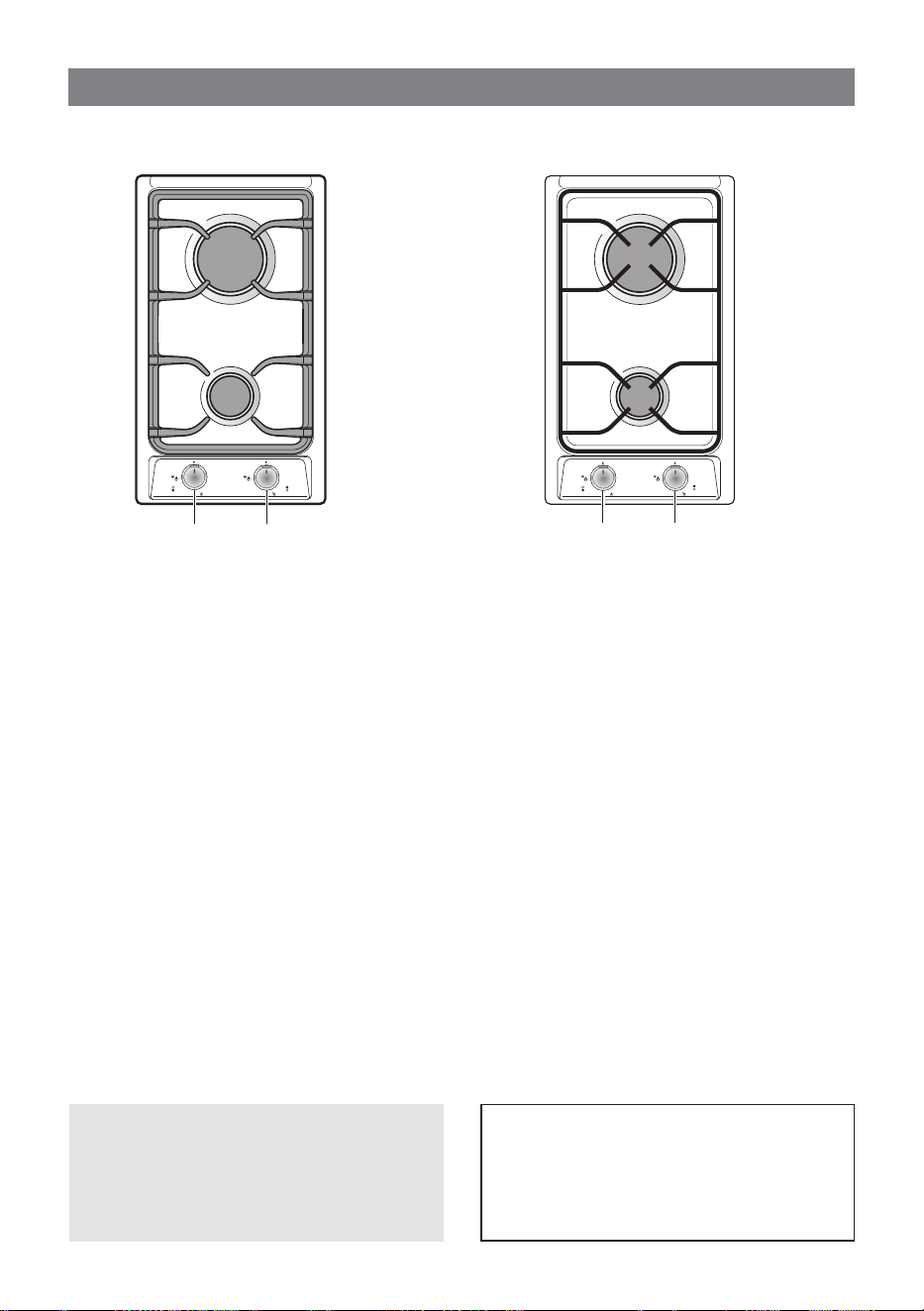

COOKING POINTS
1. Auxiliary (AUX) 1,00 kW (73 g/h)
2. Rapid burner (R) 3,00 kW (219 g/h)
CONTROL PANEL DESCRIPTION
3. Rapid burner control knob (2)
4. Semirapid burner control knob (1)
NOTE:
• The electric ignition is incorporated in the knobs.
• The appliance has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
CAUTION:
If the burner is accidentally extinguished, turn the gas o at the control knob and wait at
least 1 minute before attempting to re-light.
CAUTION:
Gas hobs produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or
by installing an extractor hood connected to an outlet duct.
CAUTION:
If the hob is used for a prolonged time it may be necessary to provide further ventilation by
opening a window or by increasing the suction power of the extractor hood (if tted).

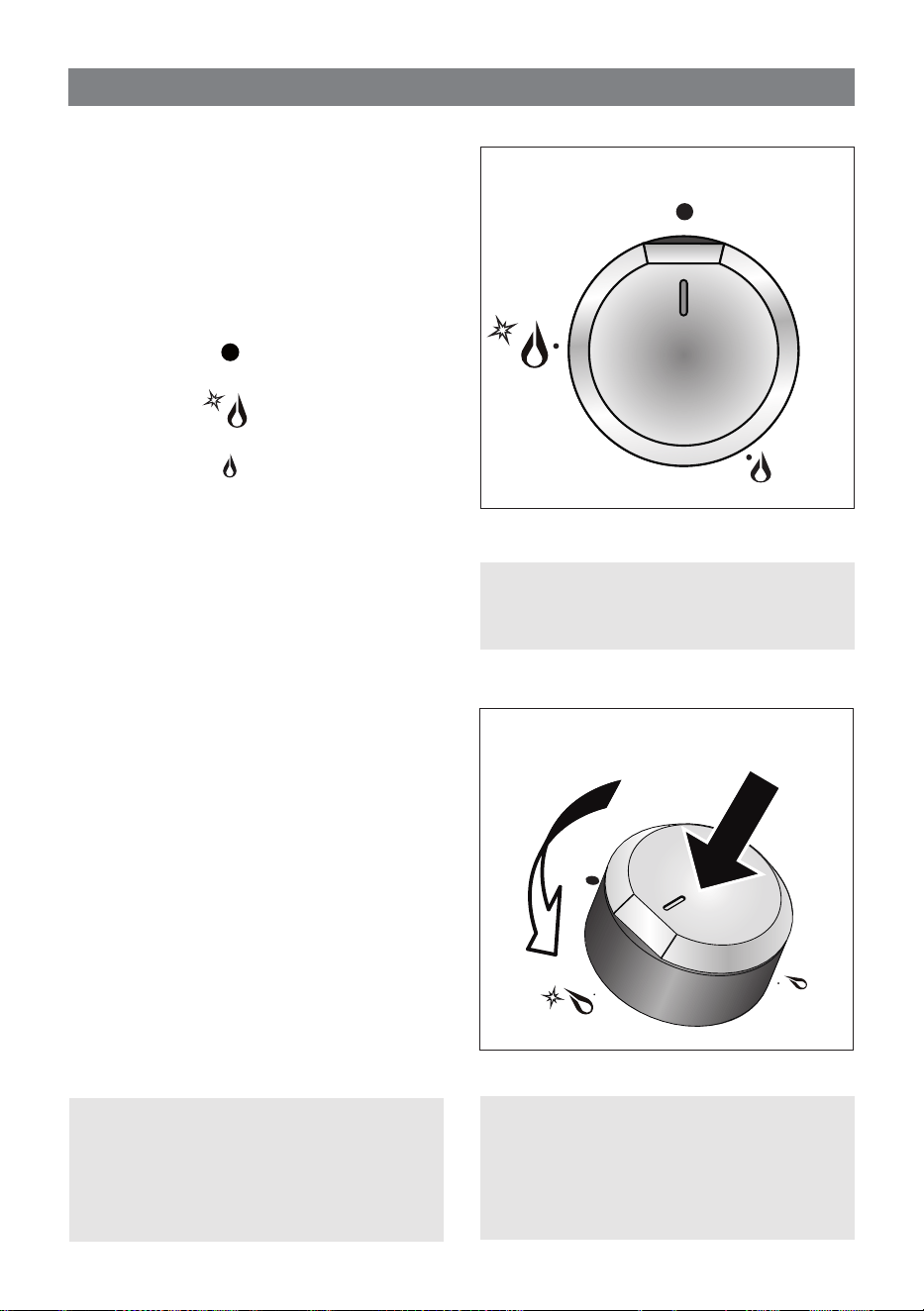

2222
GAS BURNERS
Gas ow to the burners is adjusted by
turning the knobs (illustrated in g. 2.1)
which control the safety valves.
Turning the knob, so that the indicator line
points to the symbols printed on the panel,
achieves the following functions:
– symbol closed valve
– symbol
maximum
aperture or ow
– symbol
minimum
aperture or ow
• The maximum aperture position
permits rapid boiling of liquids, whereas
the minimum aperture position allows
slower warming of food or maintaining
boiling conditions of liquids.
• To reduce the gas ow to minimum
rotate the knob further anti-clockwise
to point the indicator towards the small
ame symbol.
• Other intermediate operating
adjustments can be achieved by
positioning the indicator between the
maximum and minimum aperture
positions, and never between the
maximum aperture and closed
positions.
GAS BURNERS
2
Caution!
The cooking hob becomes very hot
during operation.
Keep children well out of reach.
Caution!
Do not cover the hob with aluminium
foils.
N.B. When the cooktop is not being
used, set the gas knobs to their
closed positions and also close the
cock valve on the gas bottle or the
main gas supply line.
Fig. 2.1
NOTE: The knob and symbols may vary.
Fig. 2.2
NOTE: The knob and symbols may vary.
2323
LIGHTING GAS BURNERS
FITTED WITH SAFETY VALVE
DEVICE
To ignite the burner, the following
instructions are to be followed:
1. Press in the corresponding knob and
turn counter-clockwise (g. 2.2) to the
full ame position marked by the
symbol (g. 2.1); hold the knob in until
the ame has been lit.
In the case of a mains failure light the
burner with a match or lighted taper.
2. Wait for a few seconds after the gas
burner has been lit before letting
go of
the knob (valve activation delay).
3. Adjust the gas valve to the desired
position.
If the burner ame should go out for some
reason, the safety valve will automatically
stop the gas ow.
To re-light the burner, return the knob to
the closed “ ” position, wait for at least
1 minute and then repeat the lighting
procedure.
Note: If your local gas supply makes it
dicult to light the burner with the knob set
to maximum, set the knob to minimum and
repeat the operation.
Fig. 2.4
CHOICE OF THE BURNER
On the control panel, near every knob
there is a diagram that indicates which
burner is controlled by that knob.
The suitable burner must be chosen
according to the diameter and the capacity
used.
The burners and pans must be used in
accordance with the following instructions:
DIAMETERS OF PANS WHICH MAY
BE USED ON THE BURNERS
BURNERS MINIMUM MAXIMUM
Auxiliary 12 cm (*)
14 cm
Rapid 22 cm 26 cm
do not use pans with concave or
convex bases
(*) with grill for small cookware: minimum
diameter 6 cm (only for the models supplied
with grill for small pans)
It is important that the diameter of the pot
be suitable to the potentiality of the burner
so as not to compromise the high output
of the burners and therefore energy waste.
A small pot on a large burner does not give
you a boiling point in a shorter amount of
time since the capacity of heat absorption
of a liquid mass depends on the volume
and the surface of the pot.
CAUTION: Make sure the pans are central
to the burner for maximum stability and
greater eciency.
Make sure the pans are not in contact with
the control knobs, otherwise the ame
could overheat the knobs and permanently
damage them.
AUXILIARY GRATE FOR SMALL
PANS (Optional)
This grate is to be placed on top of the
(smaller) auxiliary burner when using small
diameter pans, in order to prevent them
from tipping over.
Fig. 2.3
2424
Do not shut lid when
burner alight.
ATTENTION
Do not lower the glass lid when
the gas burner are still hot
and when the oven, installed
below the cooking hob,
is on or still hot.
Do not lay on the glass lid hot
pans and heavy kitchen utensils.
Dry off any liquid which may
have spilt on the cover befor
e
opening it.
COOKING HOBS WITH
GLASS LID (optional)
GENERAL ADVICE
• Before you begin cleaning you must
ensure that the hob is switched o.
• It is advisable to clean when the appliance
is cold and especially when cleaning the
enamelled parts.
• All enamelled surfaces have to be washed
with soapy water or some other non-abrasive
product with a sponge and are to be dried
preferably with a soft cloth.
• Avoid leaving alkaline or acid substances
(lemon juice, vinegar etc.) on the surfaces.
• Do not use cleaning products with a
chlorine or acidic base.
• Important: The use of suitable protective
clothing/gloves is recommended when
handling or cleaning of this appliance.
• Under no circumstances should any
external covers be removed for servicing
or maintenance except by suitable
qualied personnel.
• Clean surfaces with a damp cloth and use
gentle, neutral cleaning products. Dry with a
clean, dry cloth.
• IMPORTANT: Do not use any abrasive
products (e.g. certain types of sponge) and/
or aggressive products (e.g. caustic soda,
products containing corrosive substances), which could cause irreparable surface
damage.
WARNING
When correctly installed, your product meets all safety requirements laid down for this
type of product category. However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be touched and may contain
sharp or rough edges, that may cause injury.
ENAMELLED PARTS
• All the enamelled parts must be cleaned with a sponge and soapy water only or other
non-abrasive products.
• Dry preferably with a microbre or soft cloth.
If acid substances such as lemon juice, tomato conserve, vinegar etc. are left on the
enamel for a long time they will etch it, making it opaque.
CLEANING AND MAINTENANCE
3
Important: The manufacturer declines all liability for possible damage caused by
the use of unsuitable products to clean the appliance.
Attention! The appliance gets very hot, mainly around the cooking areas. It is very
important that children are not left alone in the kitchen when you are cooking.
Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
2525
STAINLESS STEEL ELEMENTS
Stainless steel parts must be rinsed with
water and dried with a soft and clean cloth.
For persistent dirt, use specic non-
abrasive products available commercially
or a little hot vinegar.
Note: Continuous use may cause a
change in the glaze around the burners,
corresponding to the areas exposed to
the heat.
PAINTED PARTS AND SILKSCREEN
PRINTED SURFACES
Clean using an appropriate product. Always
dry thoroughly.
IMPORTANT: these parts must be cleaned
very carefully to avoid scratching and
abrasion.
You are advised to use a soft cloth and
neutral soap.
CAUTION: Do not use abrasive
substances or non-neutral detergents
as these will irreparably damage the
surface.
GAS TAPS
• Do not let cleaning products come into
contact with the valves.
• Periodic lubrication of the gas taps
must be carried out by specialist
personnel only.
• In the event of operating faults in the
gas taps, call the Service Department.
CONTROL KNOB
The control knobs may be removed for
cleaning but care should be taken not to
damage the seal.
BURNERS AND PAN SUPPORTS
These parts must be cleaned using a
sponge and soapy water or other suitable
non-abrasive products. Dry with a soft
cloth.
Warning! Not dishwasher safe.
If left on the surface for a length of time,
acidic substances such as lemon juice,
tomato sauces and passata, vinegar and
other similar products will damage the
surface and dull its shine.
After cleaning, they must be repositioned
properly (g. 3.3).
It is very important to check that the burner
ame spreader and the cap have been
correctly positioned. Failure to do so can
cause serious problems.
In the models with safety device, check that
the probe “T” (gs. 3.1) next to each burner
is always clean to ensure correct operation
of the safety valves.
Check that the electrode “S” (
gs. 3.1
)
next
to each burner
is always clean to ensure
trouble-free sparking.
Both the probe and ignition plug must
be very carefully cleaned.
Note: To avoid damage to the electric
ignition do not use it when the burners
are not in place.

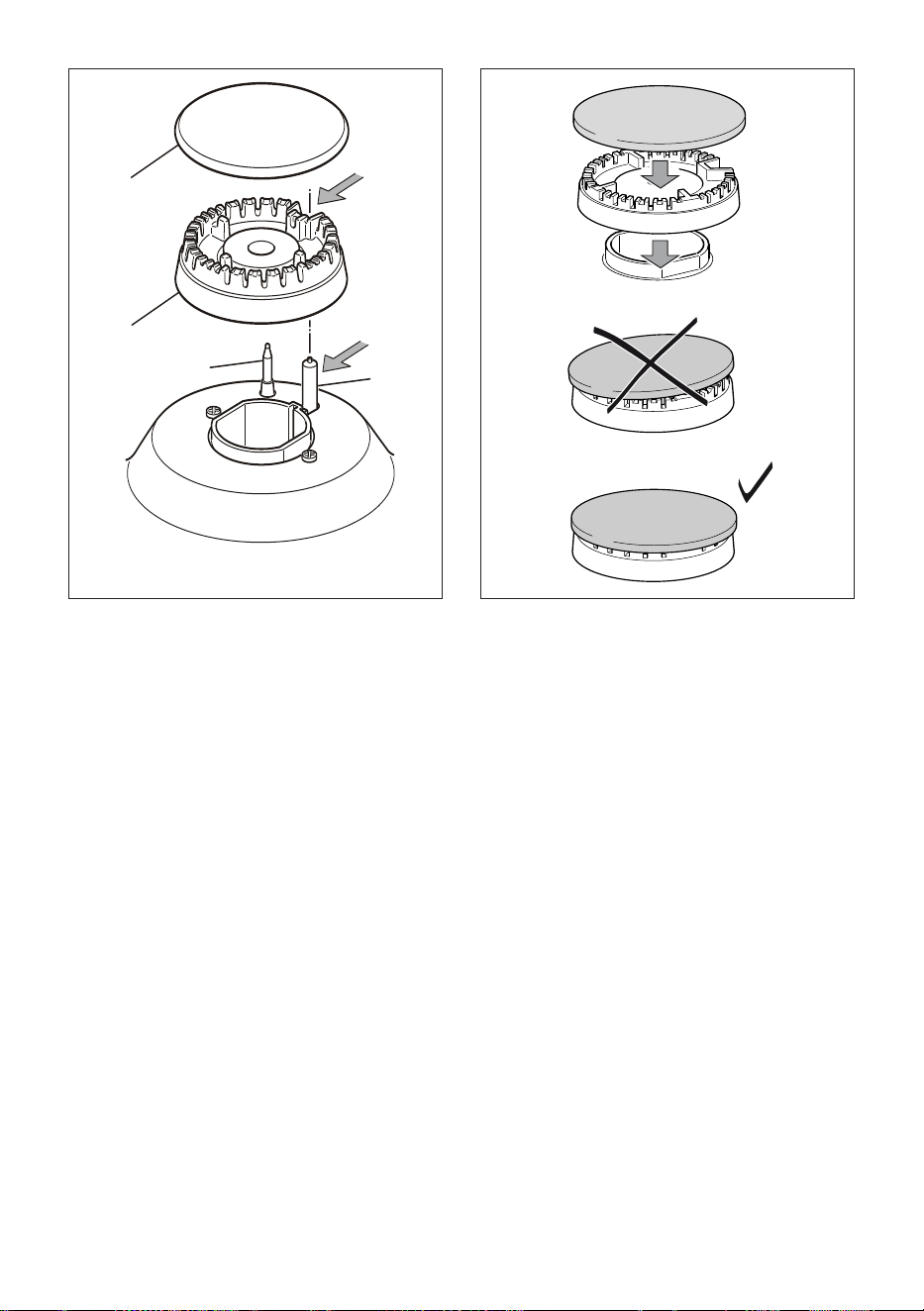

CORRECT REPLACEMENT OF THE
AUXILIARY AND RAPID BURNERS
It is very important to check that the burner
ame spreader “F” and the cap “C” have
been correctly positioned (see gs. 3.1 and
3.2) Failure to do so can cause serious
problems.
Note: Continuous use may cause a
change in the glaze around the burners
and grids, corresponding to the areas
exposed to the heat. This is a natural
phenomenon and does not prevent the
parts from working properly.
2626
Fig. 3.1 Fig. 3.2
S
F
C
T
2727
Cod. 1106519/GB - ß0
The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors
contained in this brochure. We reserve the right to carry out modications to products as required,
including the interests of consumption, without prejudice to the characteristics relating to safety or
function.
GB
