REFRIGERATOR FREEZERS
PLANNING GUIDE
SERIES 7 | FRENCH DOOR REFRIGERATOR FREEZER
RF505ANUX1 | RF505ANUB1 | RF505ANX1
SERIES 5 | REFRIGERATOR FREEZER
RF505BRNX1 | RF505BRNB1 | RF505BRNUX1 | RF505BRNQX1
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
RF505AN, RF505BRN
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
Specification guide
RF505ANUB1, RF505ANUX1 Models 4
RF505ANX1 5
RF505BRNUX1 6
RF505BRNX1, RF505BRNB1, RF505BRNQX1 Models 7
Design choices
Product options 9
Data sheets
RF505ANUX1, RF505ANUB1 11
RF505ANX1 12
RF505BRNUX1 13
RF505BRNX1, RF505BRNB1, RF505BRNQX1
14
Planning considerations

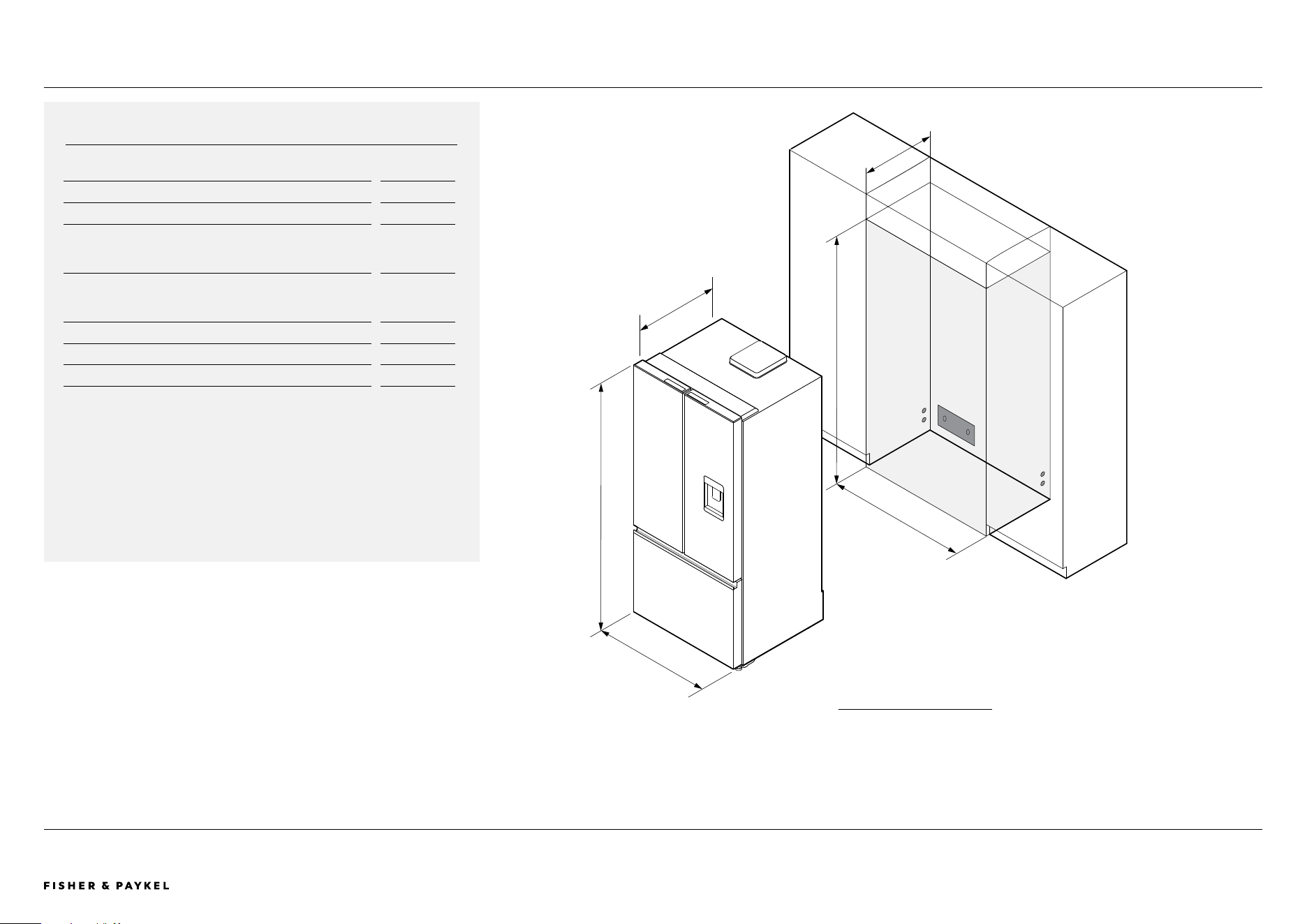

Cavity specifications 16

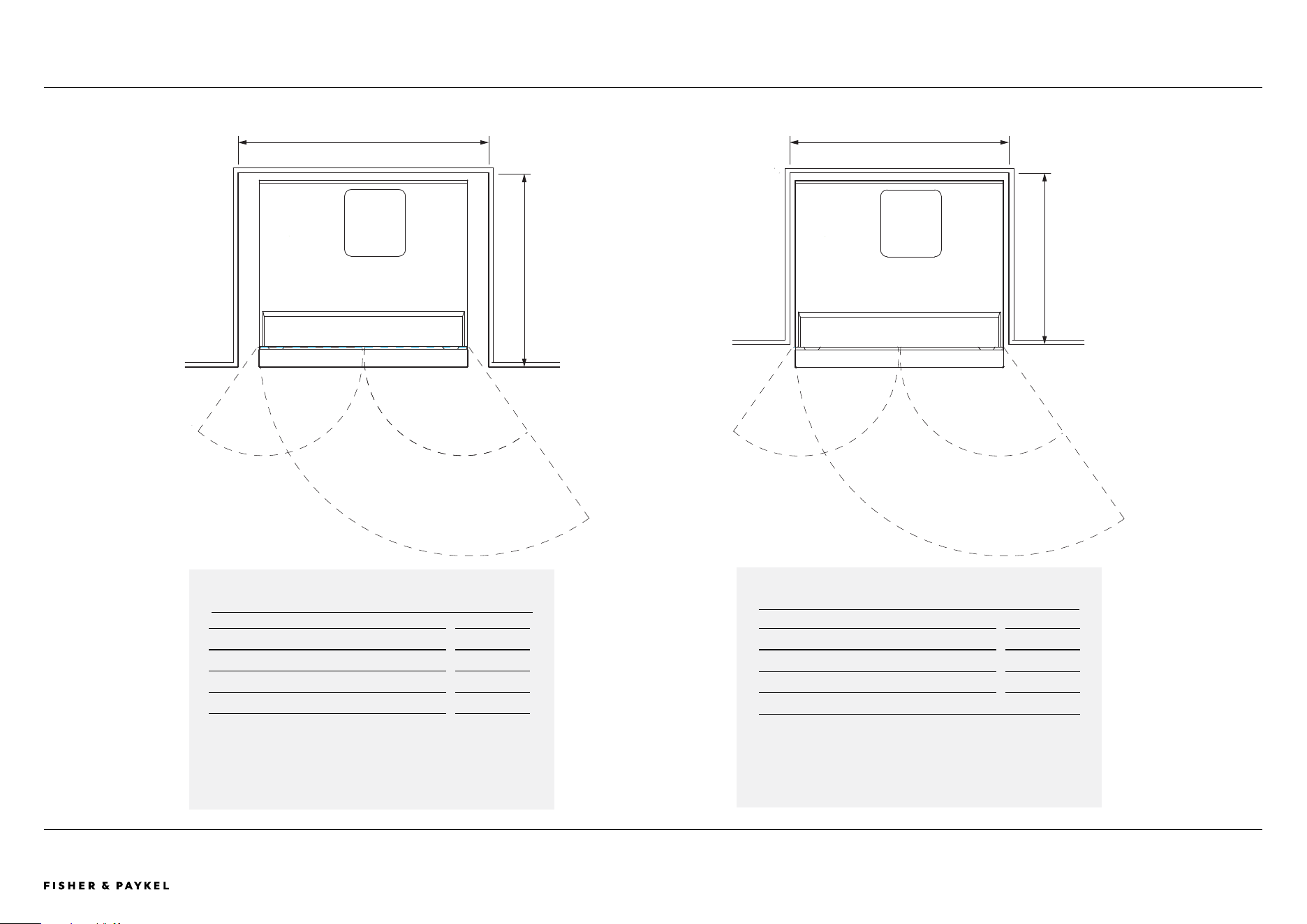

Cavity width for door opening 17

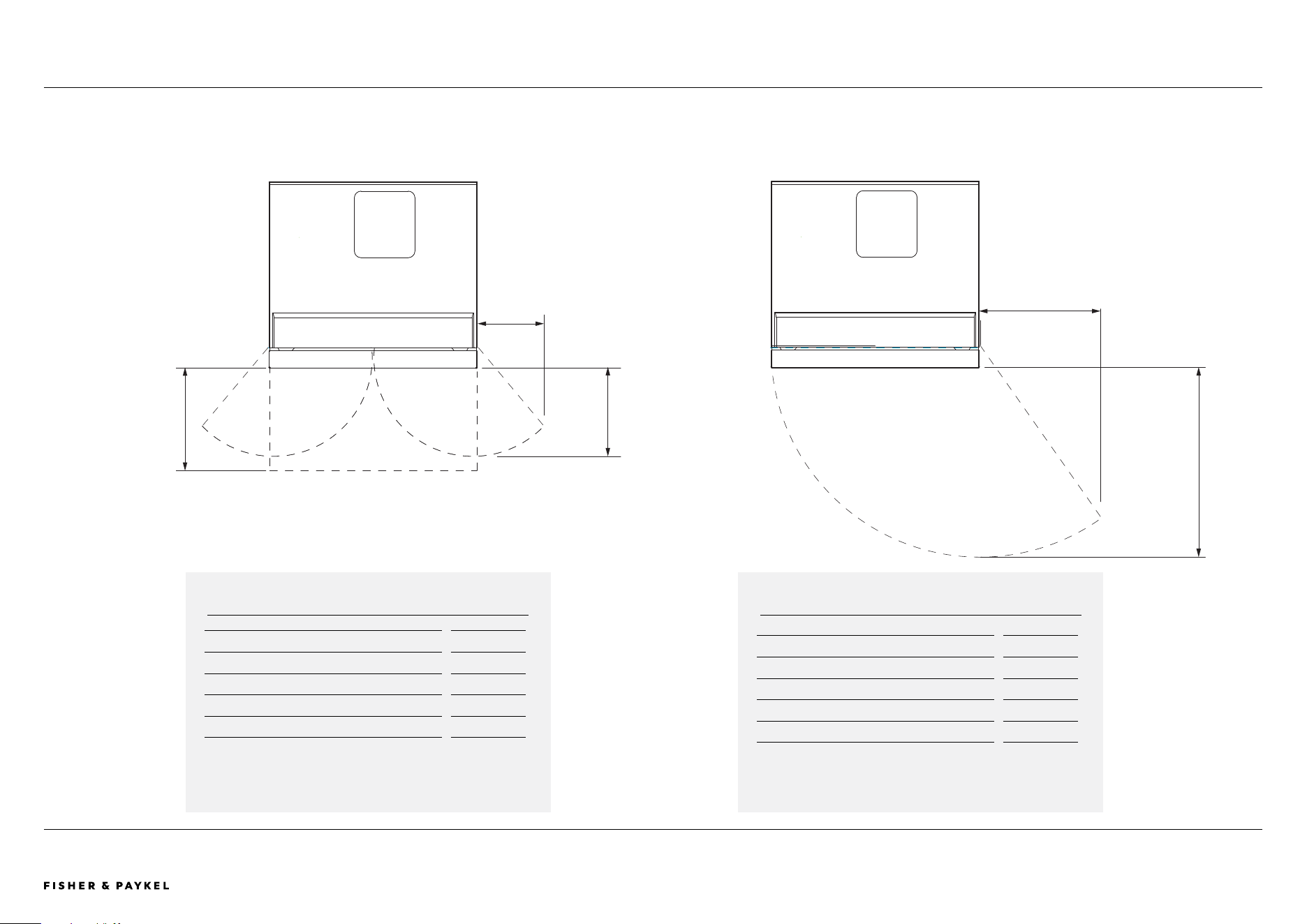

Door opening clearance 18

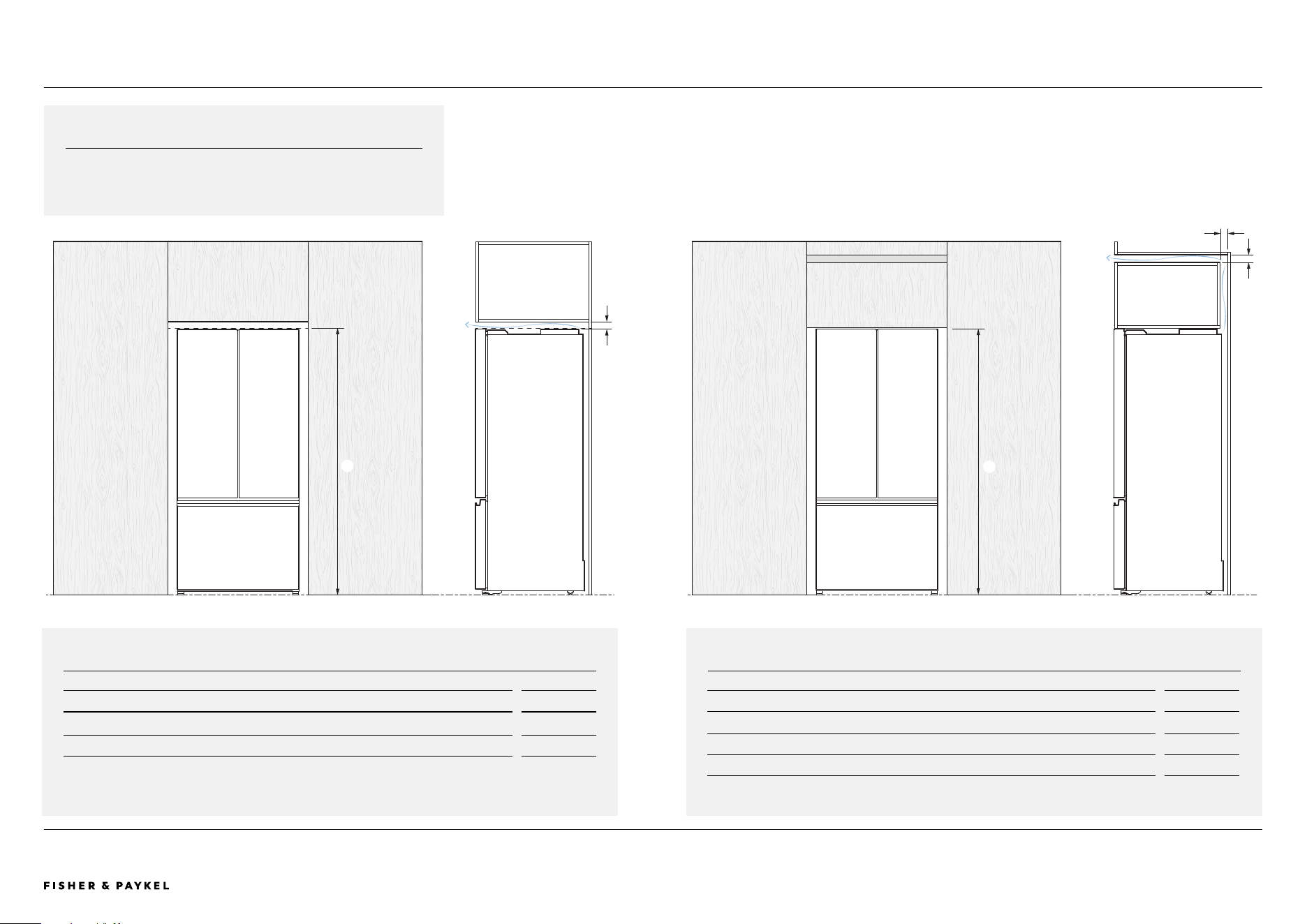

Venting specifications 19

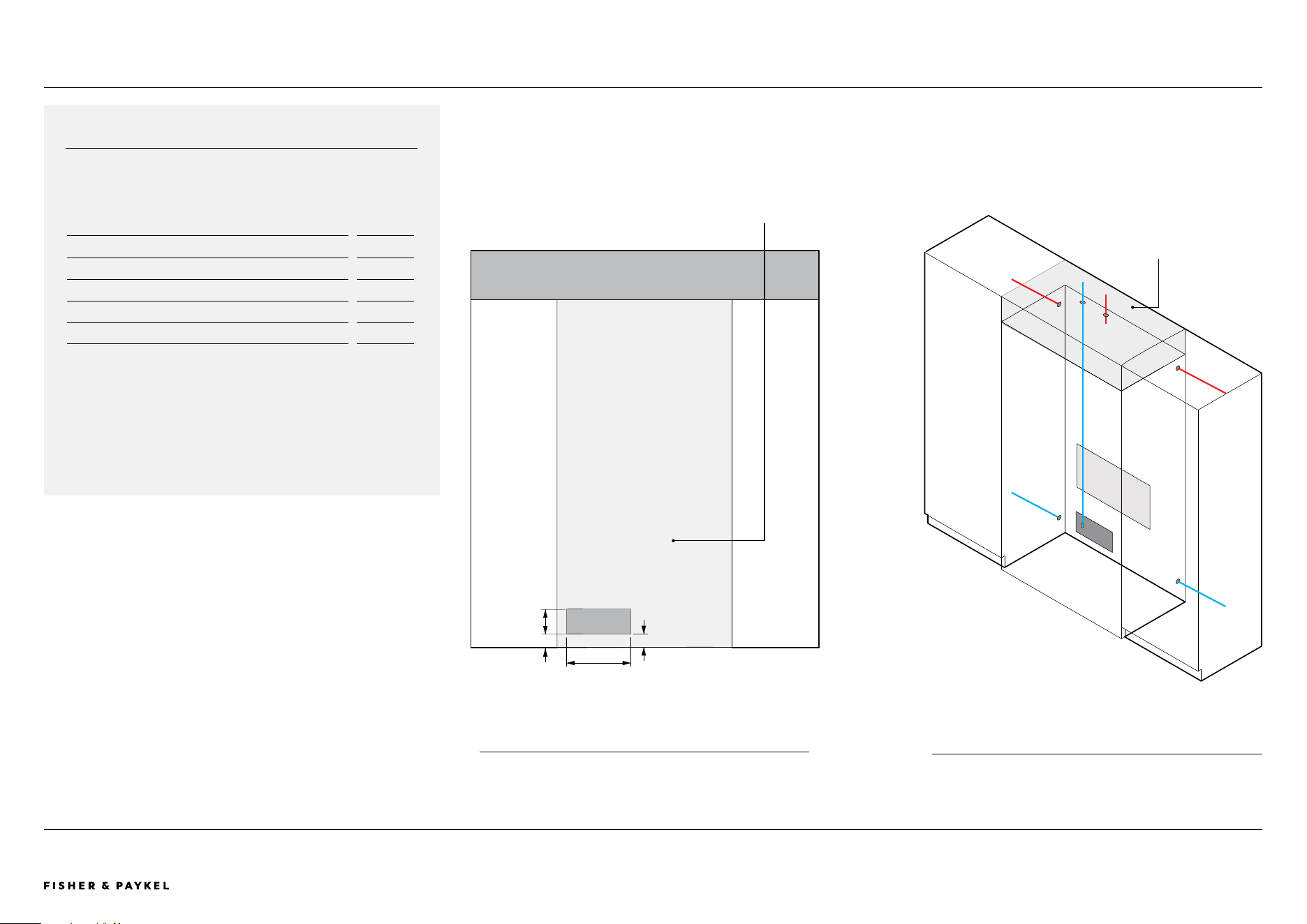

Service specifications 20
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | REFRIGERATOR FREEZER
Services
RF505ANUX1, RF505ANUB1 22
RF505ANX1 23
RF505BRNUX1 24
RF505BRNX1, RF505BRNB1, RF505BRNQX1 25
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE TEMPLATE VERSION A - JUNE 202590004868A
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
RF505ANUB1, RF505ANUX1SPECIFICATION GUIDE | FRENCH DOOR REFRIGERATOR FREEZER, ICE & WATER
OVERVIEW
With a sleek stainless or black stainless finish, this 511L French
Door fridge is designed for everyday convenience. It oers
plenty of fresh food space with a 70:30 split, dual humidity bins,
and a slimline dispenser for chilled water and ice - making it a
practical, stylish choice for busy households.
PRODUCTS*
RF505ANUX1
511L Series 7 French Door Refrigerator Freezer, Ice & water.
Stainless steel
RF505ANUB1
511L Series 7 French Door Refrigerator Freezer, Ice & water.
Black
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
FEATURES
1 Sleek French Door design with recessed handles for a
contemporary look.
2 Available in stainless steel or black stainless steel to
complement any kitchen style.
3 70:30 fridge-to-freezer split for generous fresh food
capacity.
4 Dual humidity bins preserve fruits and vegetables in ideal
conditions for lasting freshness.
5 ActiveSmart™ technology maintains the ideal temperature to
help keep food fresher for longer.
6 Slimline water dispenser and internal ice maker provide
chilled water and ice on demand.
7 Energy-efficient design cools and defrosts only when
needed, saving energy without compromise.
8 Full-width drawers and flexible shelving support easy
organisation.
9 Premium materials including solid glass shelving and
stainless detailing.
RF505ANUX1
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
RF505ANX1SPECIFICATION GUIDE | FRENCH DOOR REFRIGERATOR FREEZER
OVERVIEW
With its sleek French Door design and recessed handles, this
511L refrigerator brings refined style to everyday living. A 70:30
split prioritises fresh food storage, while dual humidity drawers
and ActiveSmart™ technology help maintain ideal conditions.
Designed for energy eciency and easy access with a spacious
bottom freezer.
PRODUCTS*
RF505ANX1
511L Series 7 French Door Refrigerator Freezer. Stainless steel
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
FEATURES
1 Sleek French Door design with recessed handles for a
contemporary look.
2 70:30 fridge-to-freezer split for generous fresh food
capacity.
3 Dual humidity bins preserve fruits and vegetables in ideal
conditions for lasting freshness.
4 ActiveSmart™ technology maintains the ideal temperature to
help keep food fresher for longer.
5 Energy-efficient design cools and defrosts only when
needed, saving energy without compromise.
6 Spacious bottom freezer with full extension drawers gives
easy access to frozen goods.
7 Premium materials including solid glass shelving and
stainless detailing.
8 Bright LED lighting ensures easy access to contents.
RF505ANX1
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 690004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
RF505BRNUX1
OVERVIEW
This 515L bottom freezer refrigerator oers generous fresh food
storage and everyday convenience, with a slimline water
dispenser and internal ice maker. A 70:30 fridge-freezer split,
dual humidity bins, and ActiveSmart™ technology help keep
food fresher for longer in a sleek, counter-depth stainless steel
design.
PRODUCTS*
RF505BRNUX1
515L Series 5 Refrigerator Freezer, Ice & water. Stainless Steel
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
FEATURES
1 Slimline, counter-depth design with a bottom freezer.
2 70:30 fridge-to-freezer split for generous fresh food
capacity.
3 Dual humidity bins preserve fruits and vegetables in ideal
conditions for lasting freshness.
4 Slimline water dispenser and internal ice maker provide
chilled water and ice on demand.
5 ActiveSmart™ technology maintains the ideal temperature to
help keep food fresher for longer.
6 Energy-efficient design cools and defrosts only when
needed, saving energy without compromise.
7 Full-width drawers and flexible shelving support easy
organisation.
8 Premium materials including solid glass shelving and
stainless detailing.
9 Bright LED lighting ensures easy access to contents.
SPECIFICATION GUIDE | REFRIGERATOR FREEZER
RF505BRNUX1
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
RF505BRNX1, RF505BRNB1, RF505BRNQX1
OVERVIEW
With a slimline, counter-depth design and recessed handles, this
515L bottom freezer refrigerator oers a streamlined aesthetic
and generous fresh food capacity. A 70:30 fridge-freezer split,
dual humidity bins, and ActiveSmart™ technology help keep
food fresher for longer, while flexible shelving supports easy
organisation.
PRODUCTS*
RF505BRNX1
515L Series 5 Refrigerator Freezer. Stainless Steel
RF505BRNB1
515L Series 5 Refrigerator Freezer Black
RF505BRNQX1 - Energy Hero
515L Series 5 Refrigerator Freezer, Stainless Steel
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
FEATURES
1 Slimline, counter-depth design with a bottom freezer.
2 Available in stainless steel or black stainless steel to
complement any kitchen style.
3 70:30 fridge-to-freezer split for generous fresh food
capacity.
4 Dual humidity bins preserve fruits and vegetables in ideal
conditions for lasting freshness.
5 ActiveSmart™ technology maintains the ideal temperature to
help keep food fresher for longer.
6 Spacious bottom freezer with full extension drawers gives
easy access to frozen goods.
7 Full-width drawers and flexible shelving support easy
organisation.
8 Premium materials including solid glass shelving and
stainless detailing.
9 Reversible door hinge for flexible installation.
SPECIFICATION GUIDE | REFRIGERATOR FREEZER
RF505BRNX1
RF505BRNB1
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE TEMPLATE VERSION A - JUNE 202590004868A
DESIGN CHOICES
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | FRENCH DOOR REFRIGERATOR FREEZER
FRENCH DOOR REFRIGERATOR FREEZER
1
2
3
Model Finish
1 RF505ANUX1 80cm French Door Refrigerator Freezer with Ice and Water
Stainless steel
2 RF505ANUB1 80cm French Door Refrigerator Freezer with Ice and Water
Black stainless steel
3 RF505ANX1 80cm French Door Refrigerator Freezer
Stainless steel
REFRIGERATOR FREEZER
Model Finish
4 RF505BRNUX1 80cm Refrigerator Freezer with Ice and Water
Stainless steel
5 RF505BRNX1 80cm Refrigerator Freezer
Stainless steel
6 RF505BRNB1 80cm Refrigerator Freezer
Black Stainless steel
7 RF505BRNQX1 80cm Door Refrigerator Freezer - Energy Ecient
Stainless steel
4
5
6
7
<< CONTENTS
PAGE 10© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE TEMPLATE VERSION A - JUNE 202590004868A
DATA SHEETS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025

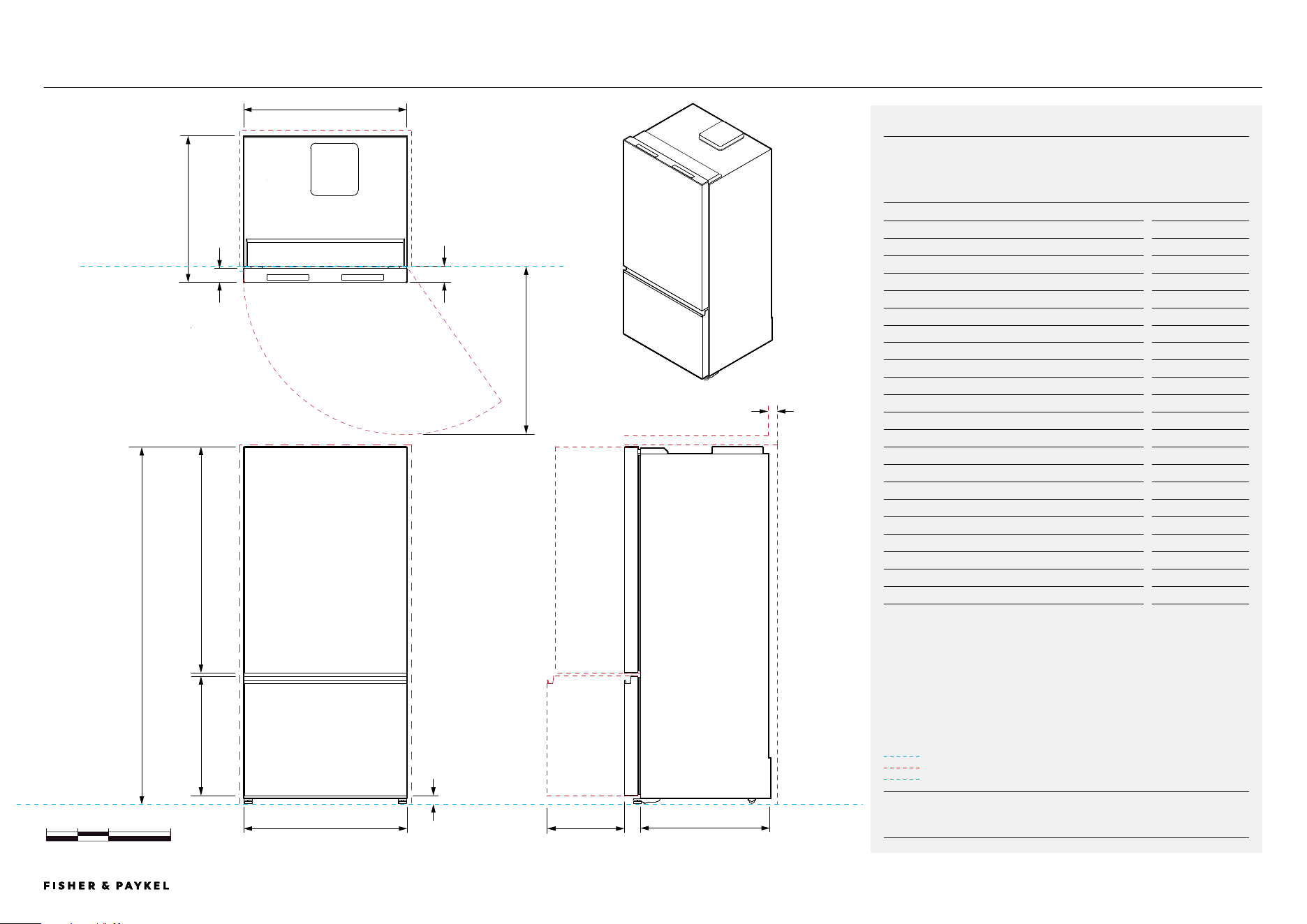

INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

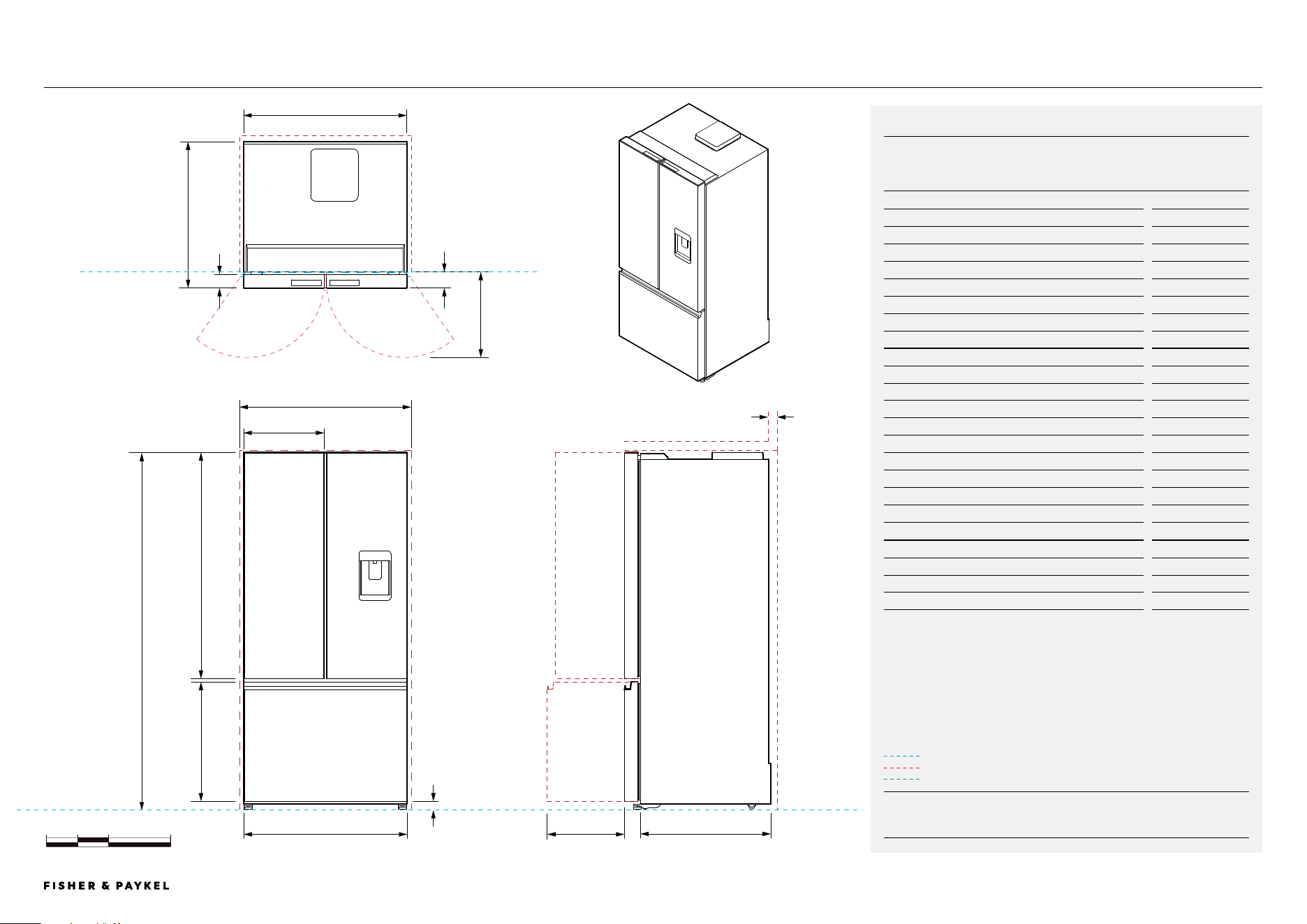

RF505ANUX1, RF505ANUB1
Model no:
RF505ANUX1
RF505ANUB1
Product Dimensions mm
A Overall height of product 1725
B Width of chassis 790
C Overall depth of product 707
D Overall depth of door 66
E Depth of chassis 629
Door Dimensions mm
F Height of door 1095
G Height of drawer 578
H Width of door 390
I Width of drawer 790
J Door panel to floor 38
Door/Drawer Opening Dimensions* mm
K Depth of drawer (open) 375
L Depth of door (max opening) from front of panel** 403
M Depth of door to front of chassis 78
Minimum Clearances mm
N Vent cavity* 50
Minimum clearance to chassis side** 20
Minimum rear clearance 30
*Venting cavity must be included either directly over the refrigerator or around
an overhead cupboard. Check the Venting Specifications page for details.
**Does not include door opening.
***Assumes minimum side clearance of 20mm.
DATA SHEET | FRENCH DOOR REFRIGERATOR FREEZER
0
100 200 600
Milimeters
D
A
G
C
I
J
PROFILE VIEW
FRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS DATUM: FRONT OF CHASSIS
DOOR AT MAXIMUM OPENING
F
H
B
DATUM: FLOOR
M
L
K
790
1725
N
O
E
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

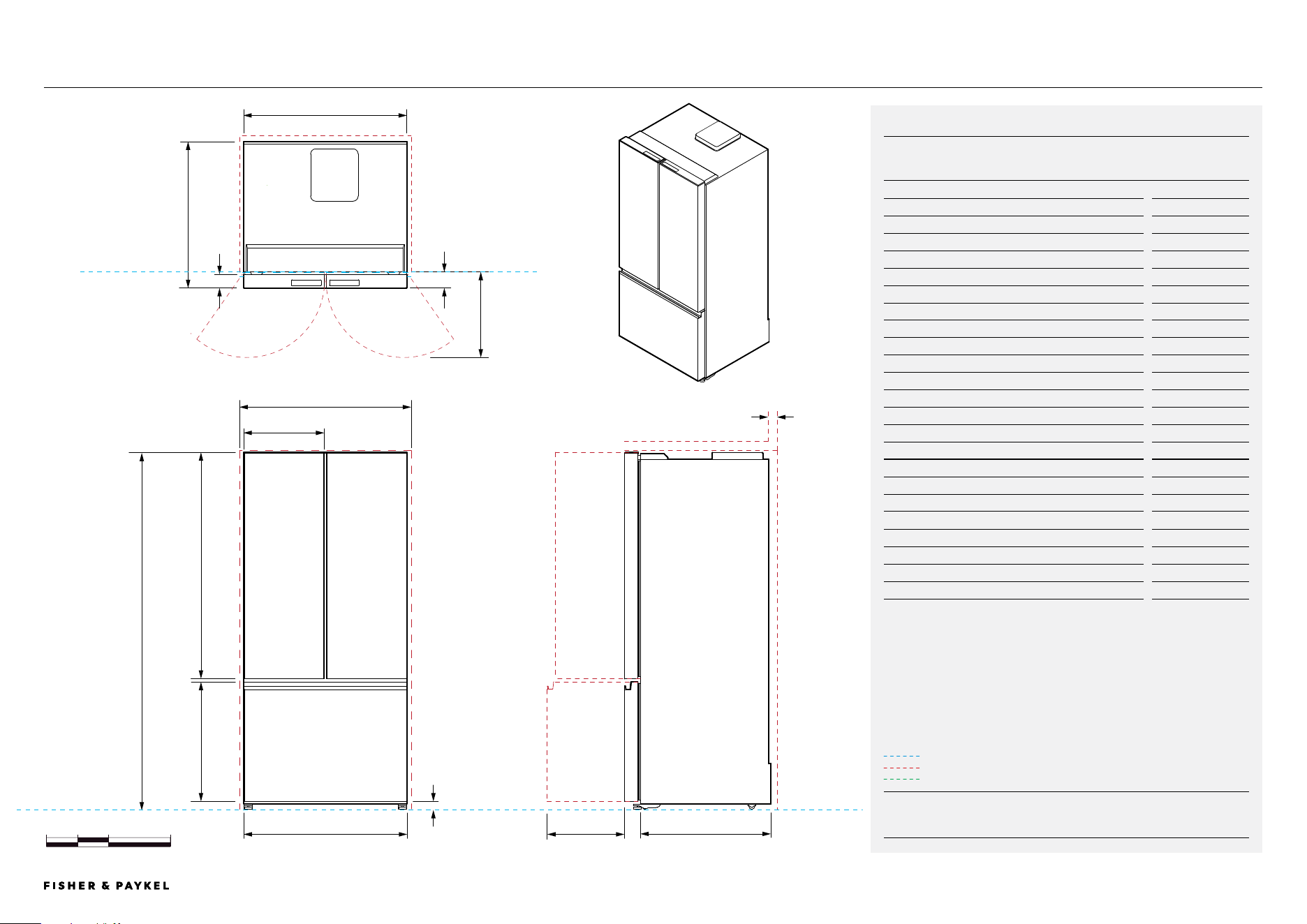

RF505ANX1
Model no:
RF505ANX1
Product Dimensions mm
A Overall height of product 1725
B Overall width of chassis 790
C Overall depth of product 707
D Overall depth of door 66
E Depth of chassis 629
Door Dimensions mm
F Height of door 1095
G Height of drawer 578
H Width of door 390
I Width of drawer 790
J Door panel to floor 38
Door/Drawer Opening Dimensions* mm
K Depth of drawer (open) 375
L Depth of door (max opening) from front of panel** 403
M Depth of door to front of chassis 78
Minimum Clearances mm
N Vent cavity* 50
Minimum clearance to chassis side** 20
Minimum rear clearance 30
*Vent cavity must be included either directly over the refrigerator or around an
overhead cupboard. Check the Venting Specifications page for details.
**Does not include door opening.-
***Assumes minimum side clearance of 20mm.
DATA SHEET | FRENCH DOOR REFRIGERATOR FREEZER
0
100 200 600
Milimeters
D
A
G
C
I
J
PROFILE VIEW
FRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS DATUM: FRONT OF CHASSIS
F
H
B
DATUM: FLOOR
M
L
K
790
1725
N
O
E
DOOR AT MAXIMUM OPENING
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1390004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

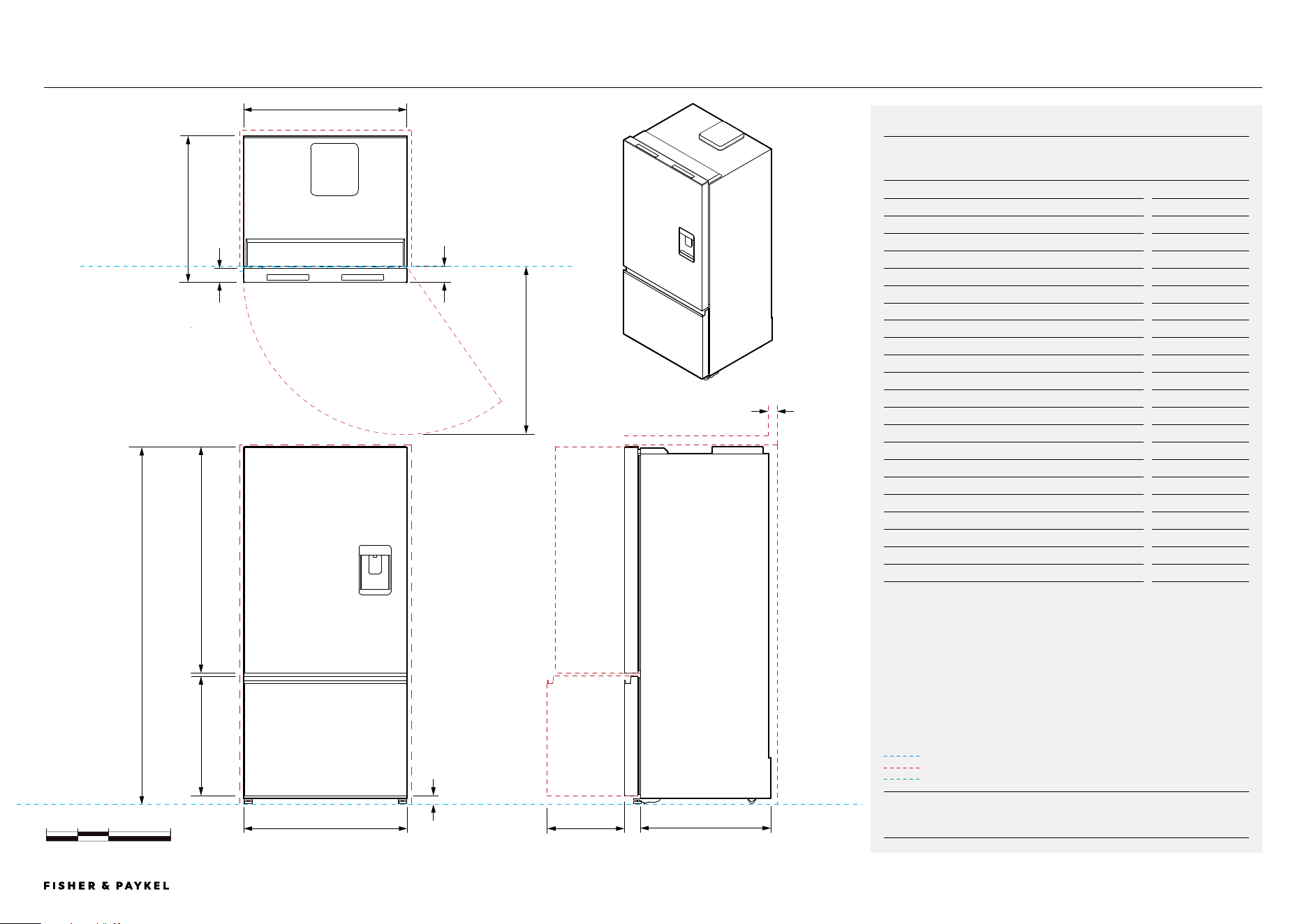

RF505BRNUX1
Model no:
RF505BRNUX1
Product Dimensions mm
A Overall height of product 1725
B Overall width of chassis 790
C Overall depth of product 707
D Overall depth of door 66
E Depth of chassis 629
Door Dimensions mm
F Height of door 1095
G Height of drawer 578
H Width of door and drawer 790
I Door panel to floor 38
Door/Drawer Opening Dimensions* mm
J Depth of drawer (open) 375
K Depth of door (max opening) from front of panel** 803
L Depth of door to front of chassis 78
Minimum Clearances mm
M Vent cavity* 50
Minimum clearance to chassis side** 20
Minimum rear clearance 30
*Vent cavity must be included either directly over the refrigerator or around an
overhead cupboard. Check the Venting Specifications page for details.
**Does not include door opening.
***Assumes minimum side clearance of 20mm.
DATA SHEET | REFRIGERATOR FREEZER
0
100 200 600
Milimeters
D
A
G
C
I
J
PROFILE VIEW
FRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
F
H
B
DATUM: FLOOR
M
L
K
790
1725
E
DOOR AT MAXIMUM OPENING
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1490004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com
RF505BRNX1, RF505BRNB1, RF505BRNQX1
Model no:
RF505BRNX1
RF505BRNB1
RF505BRNQX1
Product Dimensions mm
A Overall height of product 1725
B Overall width of chassis 790
C Overall depth of product 707
D Overall depth of door 66
E Depth of chassis 629
Door Dimensions mm
F Height of door 1095
G Height of drawer 578
H Width of door and drawer 790
I Door panel to floor 38
Door/Drawer Opening Dimensions* mm
J Depth of drawer (open) 375
K Depth of door (max opening) from front of panel** 803
L Depth of door to front of chassis 78
Minimum Clearances mm
M Vent cavity* 50
Minimum clearance to chassis side** 20
Minimum rear clearance 30
*Vent cavity must be included either directly over the refrigerator or around an
overhead cupboard. Check the Venting Specifications page for details.
**Does not include door opening.
***Assumes minimum side clearance of 20mm.
DATA SHEET | REFRIGERATOR FREEZER
0
100 200 600
Milimeters
D
A
G
C
I
J
PROFILE VIEW
FRONT VIEW
PLAN VIEW
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
F
H
B
DATUM: FLOOR
L
M
K
790
1725
E
DOOR AT MAXIMUM OPENING
<< CONTENTS
PAGE 15© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE TEMPLATE VERSION A - JUNE 202590004868A
PLANNING CONSIDERATIONS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1690004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | CAVITY SPECIFICATIONS
A
B
C
D
E
F
CAVITY SPECIFICATIONS
Dimensions mm
A Minimum cavity height* 1735
B Minimum cavity width
Flush to door - maximum opening
Flush to chassis - maximum opening
950
830
C Minimum cavity depth**
Flush to door - maximum opening
Flush to chassis - maximum opening
737
650
D Product height 1725
E Product width 790
F Product depth 707
*The minimum cabinet gap above door panels is 10mm
**Water and electrical connections must not protrude from the wall if
located behind the refrigerator.
ISO VIEW CAVITY
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1790004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | CAVITY SPECIFICATIONS - DOOR OPENING
FLUSH TO DOOR - MAXIMUM OPENING
Dimensions mm
A Minimum cavity width 950
B Minimum cavity depth 737
FLUSH TO CHASSIS - MAXIMUM OPENING
Dimensions mm
C Minimum cavity width 910
D Minimum cavity depth 737
A
B
C
D
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1890004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | DOOR OPENING CLEARANCES
B
C
A
D
FRENCH DOOR REFRIGERATOR FREEZER
Dimensions Maximum Opening mm
A Drawer open clearance 375
B Door open distance from chassis 255
C Door open clearance 341
REFRIGERATOR FREEZER
Dimensions Maximum Opening mm
D Door open clearance 720
E Door open distance from chassis 462
E
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1990004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | VENTING SPECIFICATIONS
VENTING ABOVE REFRIGERATOR FREEZER
Dimensions mm
A Minimum cavity height 1735
B Minimum vent 50
VENTING ABOVE UPPER CUPBOARD
Dimensions mm
C Minimum cavity height 1735
D Minimum vent 50
E Minimum vent 50
B
C
D
E
VENTING
A 50mm vent is required above the refrigerator or around an upper
cupboard.
A
C
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2090004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
Electrical connection should be located in an adjacent cabinet to
either side, or above the refrigerator cavity.
Ensure that the power connection is accessible after installation.
Cavity Dimensions mm
A Height of supply area 130
B Width of supply area 270
C Supply area - distance from left side of cavity 38
D Supply area - distance from floor 60
FRONT VIEW - CAVITY SUPPLY POSITION
A
B
C
D
ISO VIEW - CAVITY
HOSE & ELECTRICAL ROUTING OPTIONS
If water or power connections are installed
at the back of the refrigerator, the water
tap must to be recessed into the wall.
The recess must allow for an 80mm bend
radius for the water hose.
Allow for venting in this area
<< CONTENTS
PAGE 21© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE TEMPLATE VERSION A - JUNE 202590004868A
SERVICES
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2290004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | RF505ANUX1, RF505ANUB1
Electrical / Plumbing Specifications
RF505ANUX1,
RF505ANUB1
Integrated French Door Refrigerator Freezer
Specifications
Electrical
Supply 220V - 240V, 50Hz
Service 10 A circuit
Plumbing
Water Supply 1/4" LLDPE piping
Pressure Min 150 kPa (22 psi)
Max 827 kPa (120 psi) @ 68°F (20°C)
*Water inlet hose dimensions apply to ice and water models only.
Connections may be located in an adjacent cabinet to either side of the fridge or
above the fridge cavity.
RIGHT HAND SIDE
LEFT HAND SIDE
Water inlet hose* - 3900mm
Power cord (excluding plug) - 2050mm
Water inlet hose* - 3300mm
Power cord (excluding plug) - 2000mm
Power cord (excluding plug)
2350mm
Water inlet hose*
2250mm
Power cord (excluding plug) - 300mm
Power cord (excluding plug) - 250mm
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2390004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | RF505ANX1
Electrical / Plumbing Specifications
RF505ANX1 Integrated French Door Refrigerator Freezer
Specifications
Electrical
Supply 220V - 240V, 50Hz
Service 10 A circuit
Connections may be located in an adjacent cabinet to either side of the fridge or
above the fridge cavity.
Power cord (excluding plug) - 2050mm Power cord (excluding plug) - 2000mm
Power cord (excluding plug)
2350mm
RIGHT HAND SIDE
LEFT HAND SIDE
Power cord (excluding plug) - 300mm
Power cord (excluding plug) - 250mm
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2490004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | RF505BRNUX1
Electrical / Plumbing Specifications
RF505BRNUX1 Integrated Refrigerator Freezer
Specifications
Electrical
Supply 220V - 240V, 50Hz
Service 10 A circuit
Plumbing
Water Supply 1/4" LLDPE piping
Pressure Min 150 kPa (22 psi)
Max 827 kPa (120 psi) @ 68°F (20°C)
*Water inlet hose dimensions apply to ice and water models only.
Connections may be located in an adjacent cabinet to either side of the fridge or
above the fridge cavity.
Water inlet hose* - 3900mm
Power cord (excluding plug) - 2050mm
Water inlet hose* - 3300mm
Power cord (excluding plug) - 2000mm
Water inlet hose*
2250mm
RIGHT HAND SIDE
LEFT HAND SIDE
Power cord (excluding plug) - 300mm
Power cord (excluding plug) - 250mm
Power cord (excluding plug)
2350mm
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 2590004868A PLANNING GUIDE TEMPLATE VERSION A - JUNE 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN PLANNING | RF505BRNX1, RF505BRNB1, RF505BRNQX1
Electrical / Plumbing Specifications
RF505BRNB1,
RF505BRNQX1
Integrated Refrigerator Freezer
Specifications
Electrical
Supply 220V - 240V, 50Hz
Service 10 A circuit
Connections may be located in an adjacent cabinet to either side of the fridge or
above the fridge cavity.
Power cord (excluding plug) - 2050mm Power cord (excluding plug) - 2000mm
RIGHT HAND SIDE
LEFT HAND SIDE
Power cord (excluding plug) - 300mm
Power cord (excluding plug) - 250mm
Power cord (excluding plug)
2350mm
<< CONTENTS
