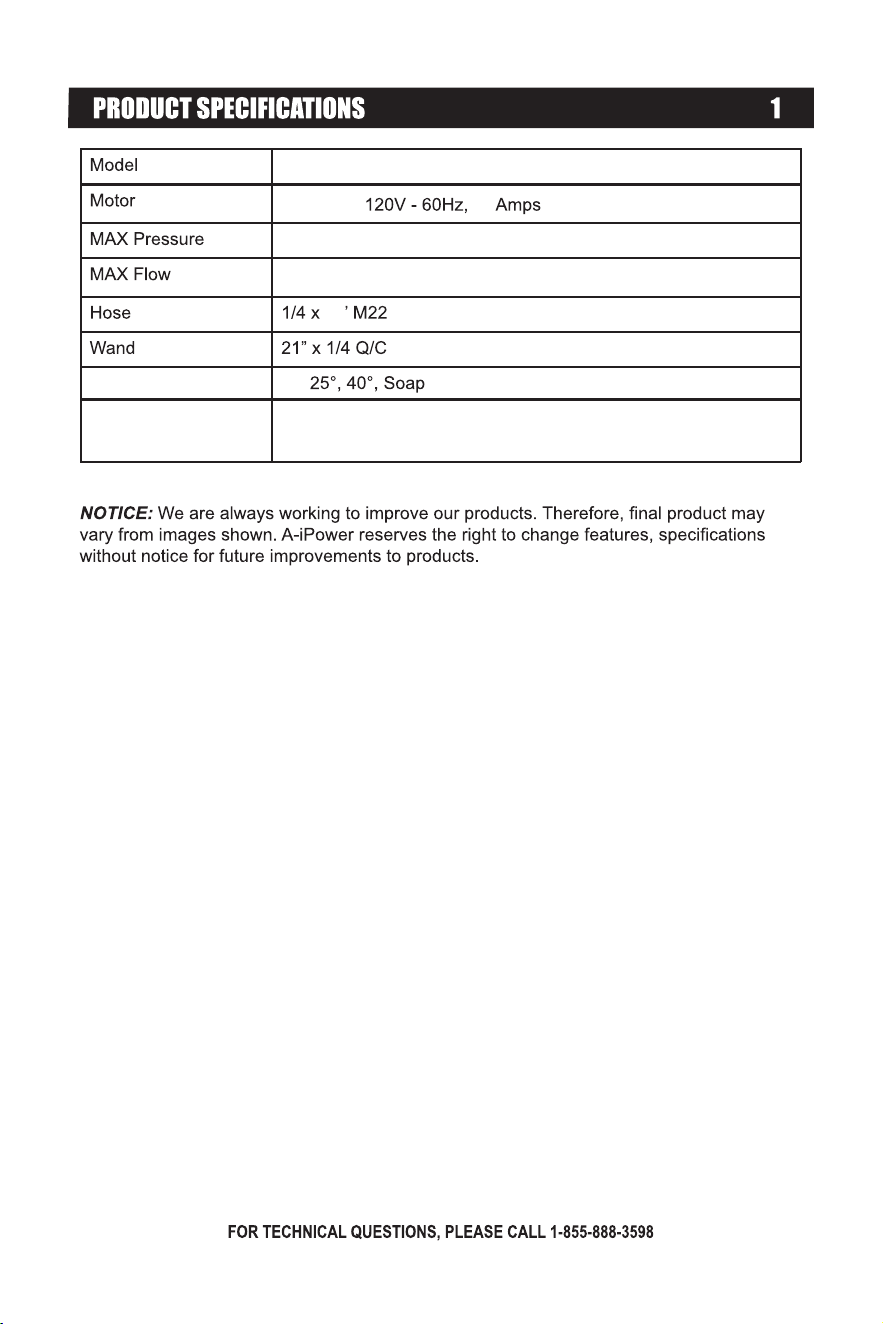

PWE3000
3000 PSI
and Turbo
Nozzle Selection
0°,
Included
Owner’s Manual, Quick Start Guide, Open End Wrench,
Nozzle Cleaning Tool and Allen Wrench
15
1.1 GPM
25
Brushless,

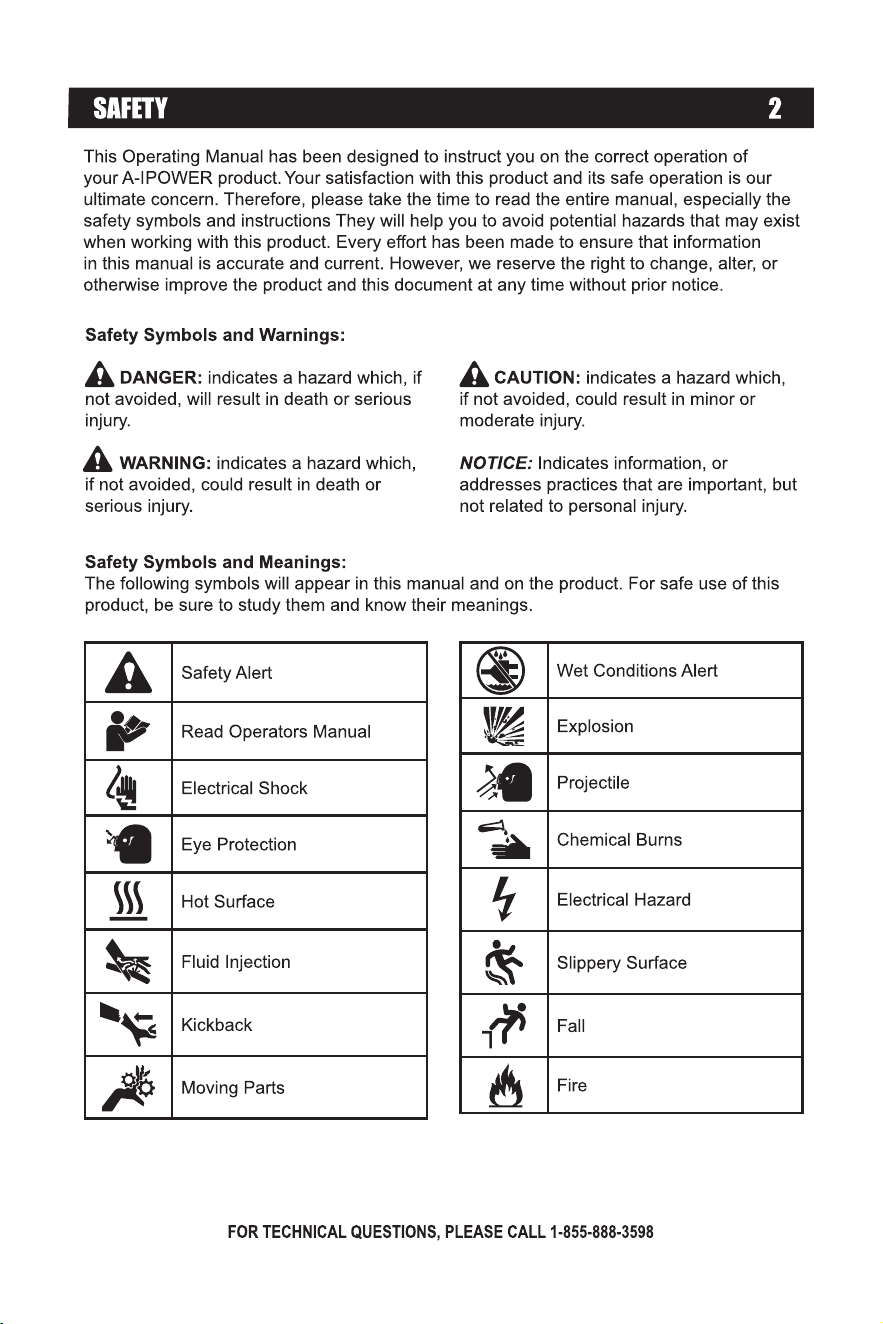

For cold water only.
Outdoor use only. Household use only.
If connection is made to a potable water system, the system should be
protected against backflow.

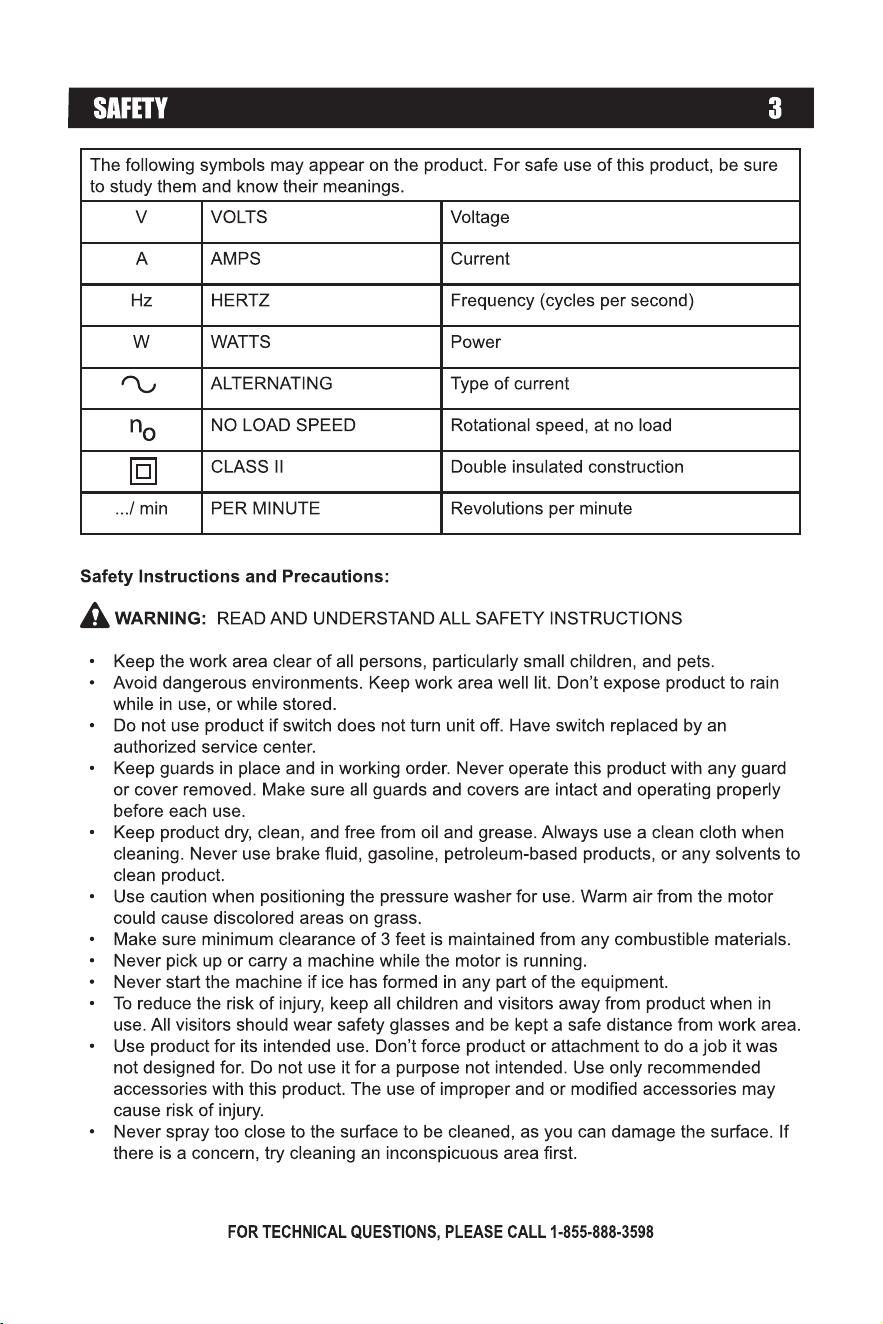

Caution
If connected to circuit protected by fuses, use time delay fuse marked "D"
Caution

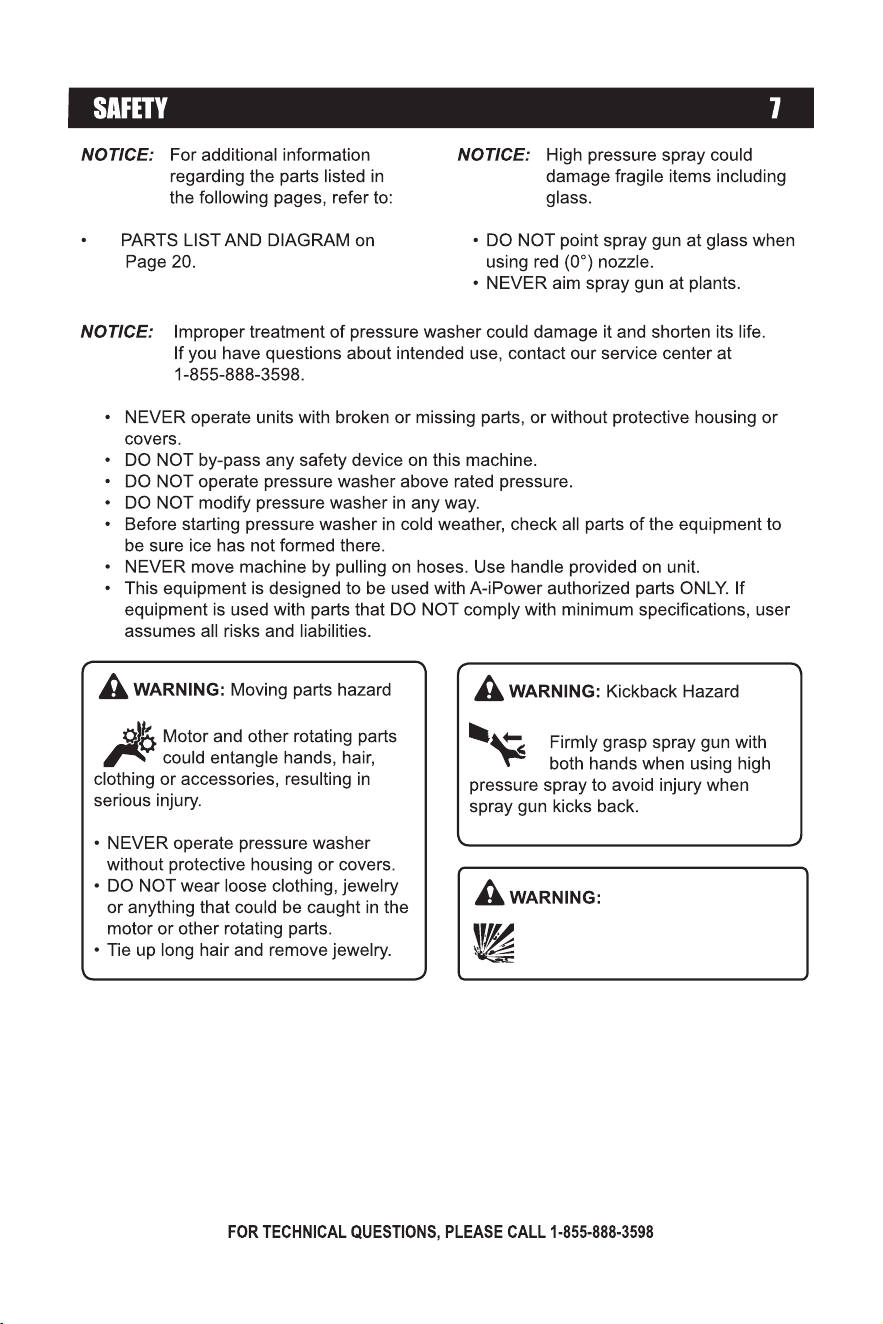

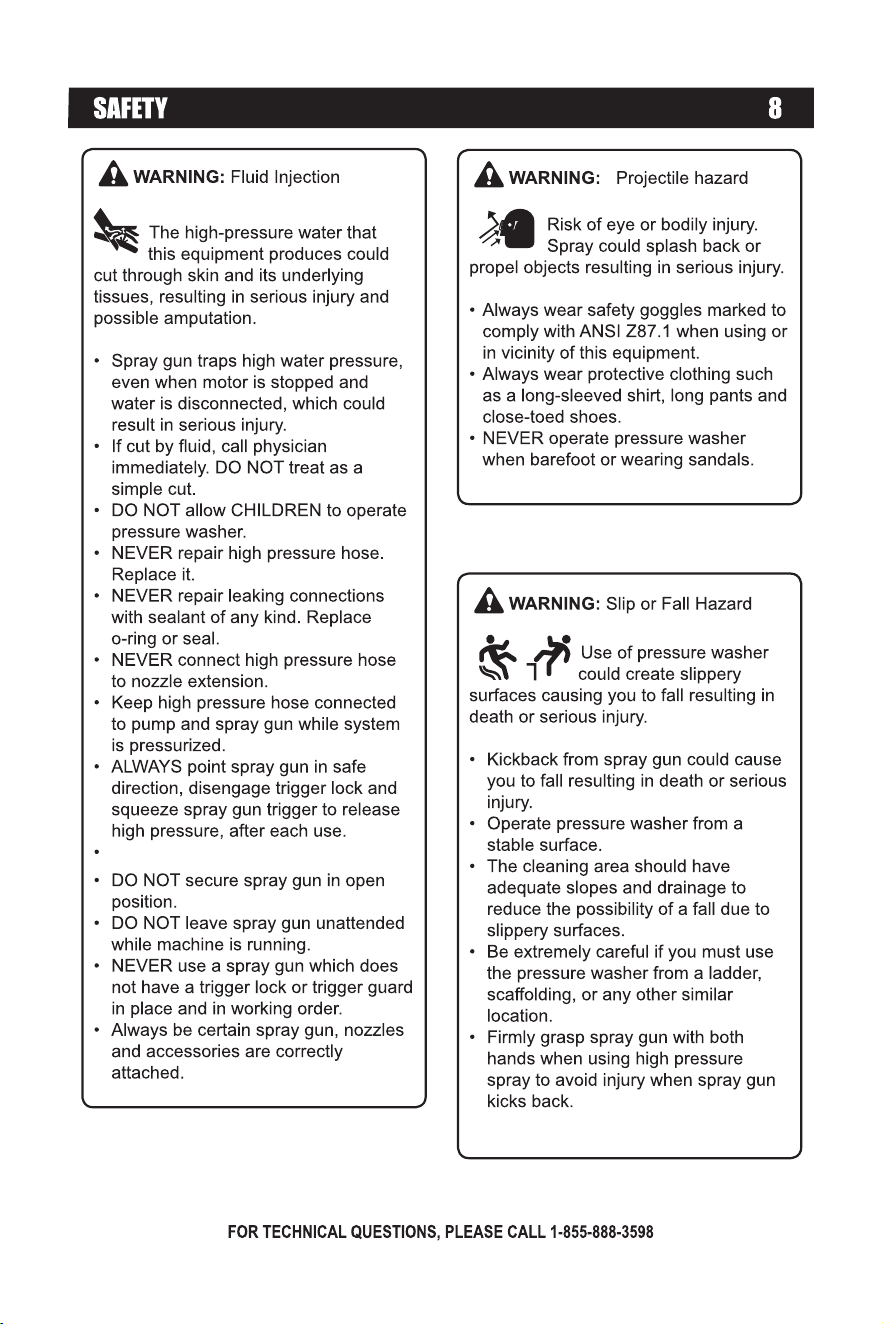

DO NOT spray flammable liquids.
Risk of Explosion
DO NOT discharge stream at persons.
WARNING

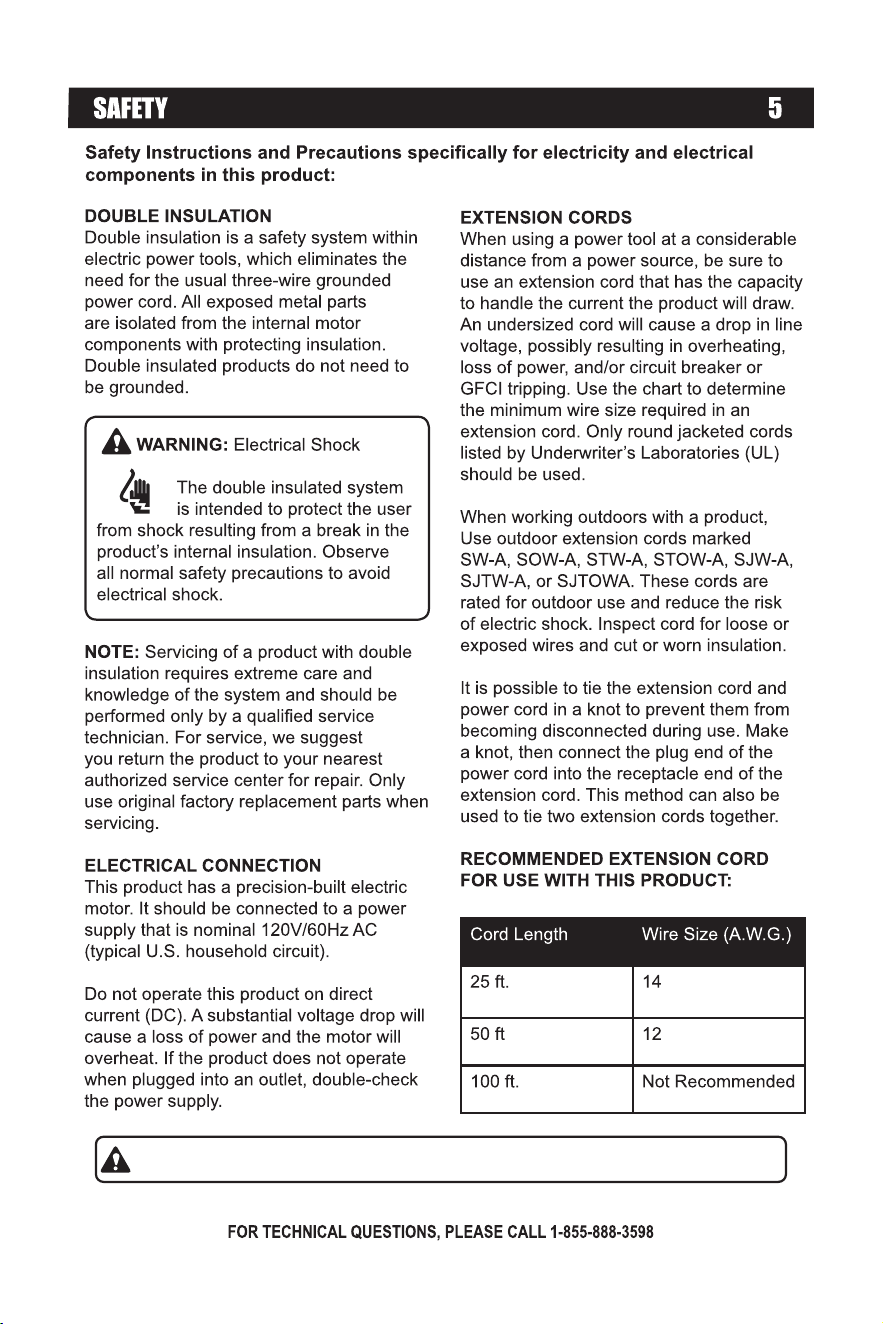

Risk of electrocution

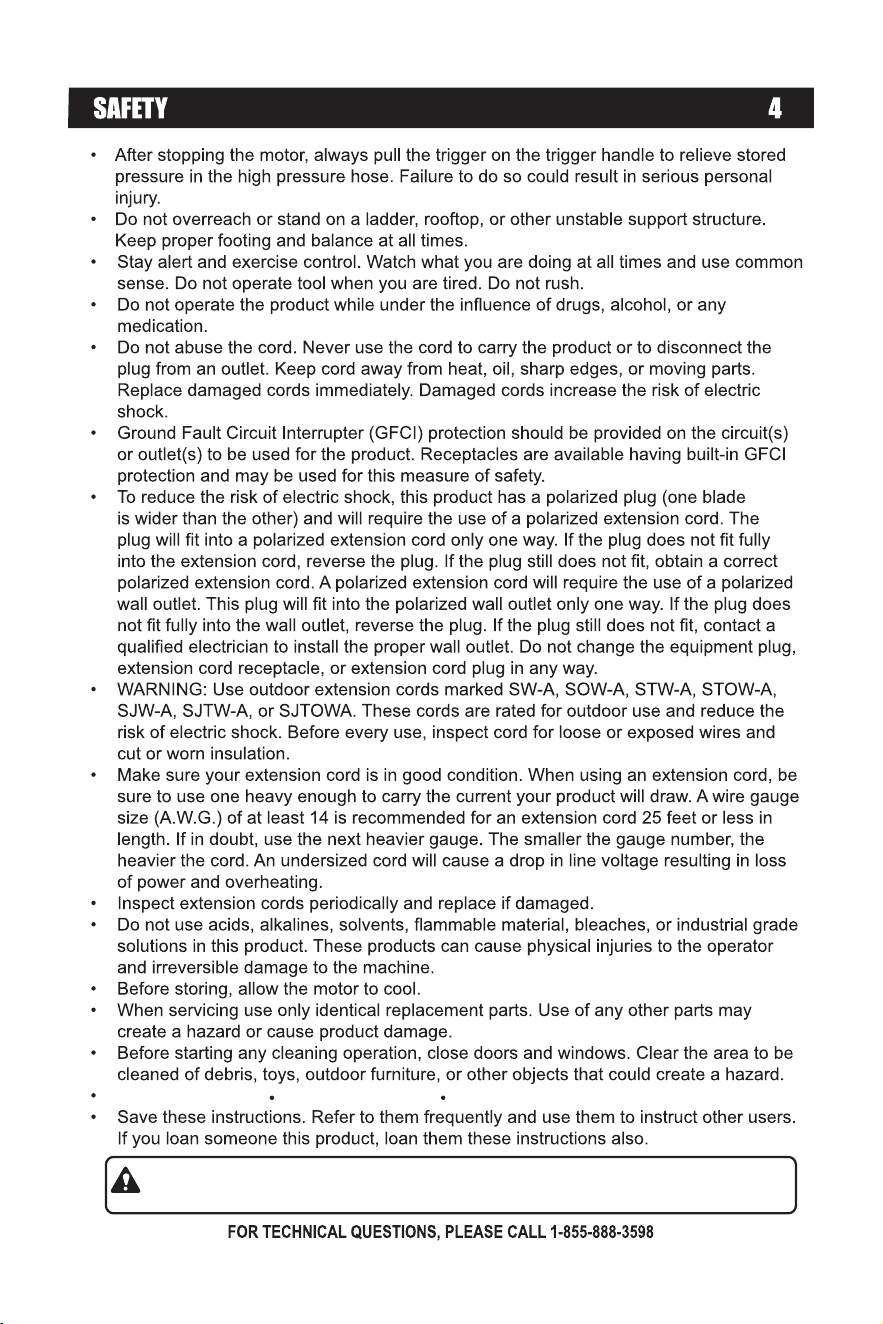

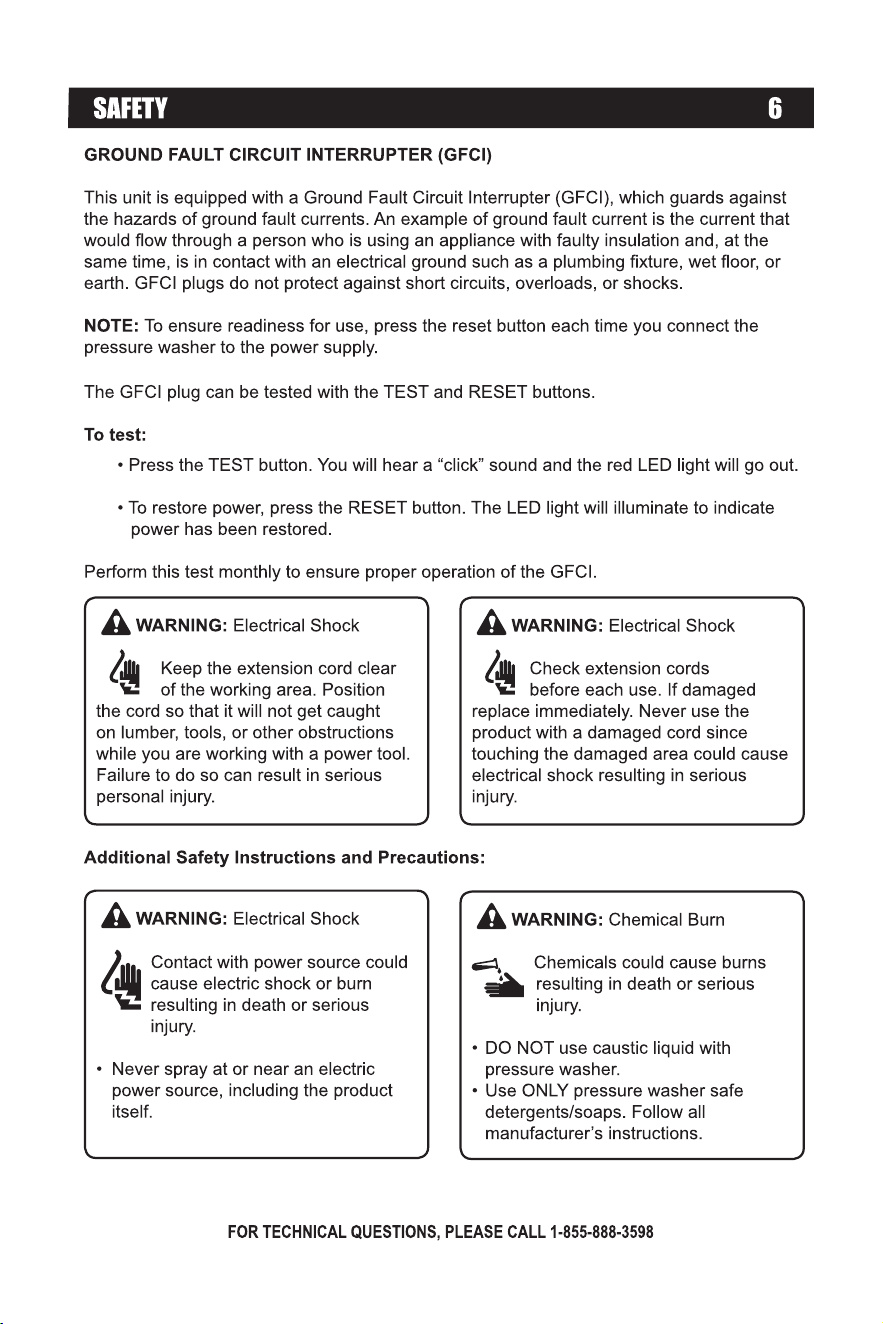

1. Inspect cord before using. Do not use lf cord ls damaged.
2. Keep all connections dry and off the ground.
3. Do not touch plug with wet hands.
4. Double insulated - when servicing use only ldentent parts.
5. This product is provided with a ground fault circuit interrupter built into the power cord plug. If
replacement of the plug or cord ls needed, use only ldentical replacement parts.
6. Do not spray elecrical apparatus and wiring.
7. Read instruction manual before using. Do not remove this tag.
9
WARNING: California Proposition 65
This product, the engine exhaust and other substances that may become airborne from
its use contains chemicals, including lead, known to the State of California to cause
cancer, birth defects, or other reproductive harm. Wash your hands after handling
product.
10
A
K
L
M
H
I
D
J
S
B
C
F
E
G

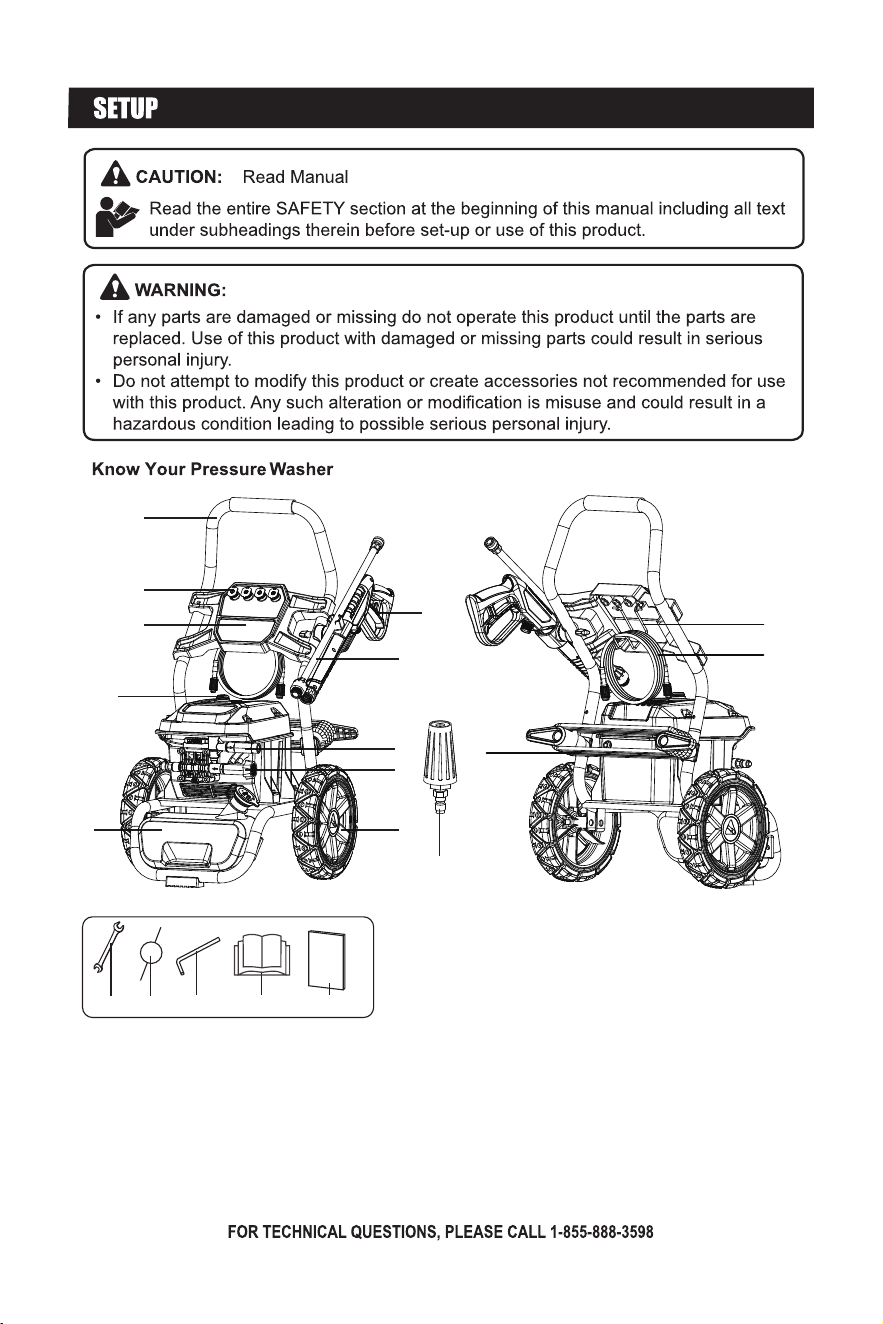

A - Handle
B - Nozzles
C - Storage Panel
D - Push Botton
E - Water Outlet
F - Water Inlet
G - Detergent Tank
H - Trigger
I - Spray Gun/Wand
J - Wheel
K - Power Cord
L - Hose Hanger
M - High Pressure Hose
N - Open End Wrench
O - Nozzle Cleaning Tool
P - Allen Wrench
Q - Owner's Manual
R - Quick Start Guide
S - Turbo Nozzle
N
O P Q R
11

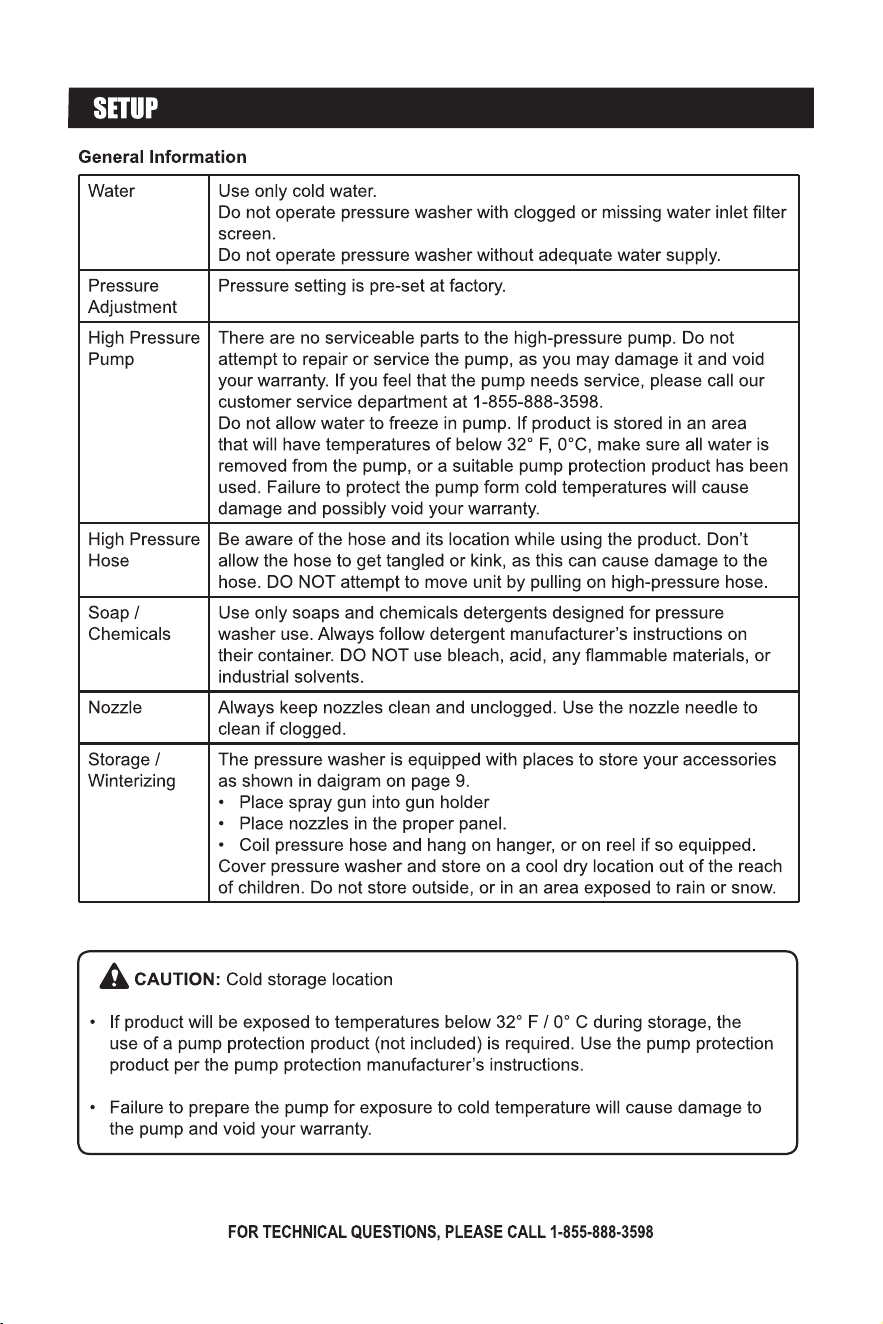

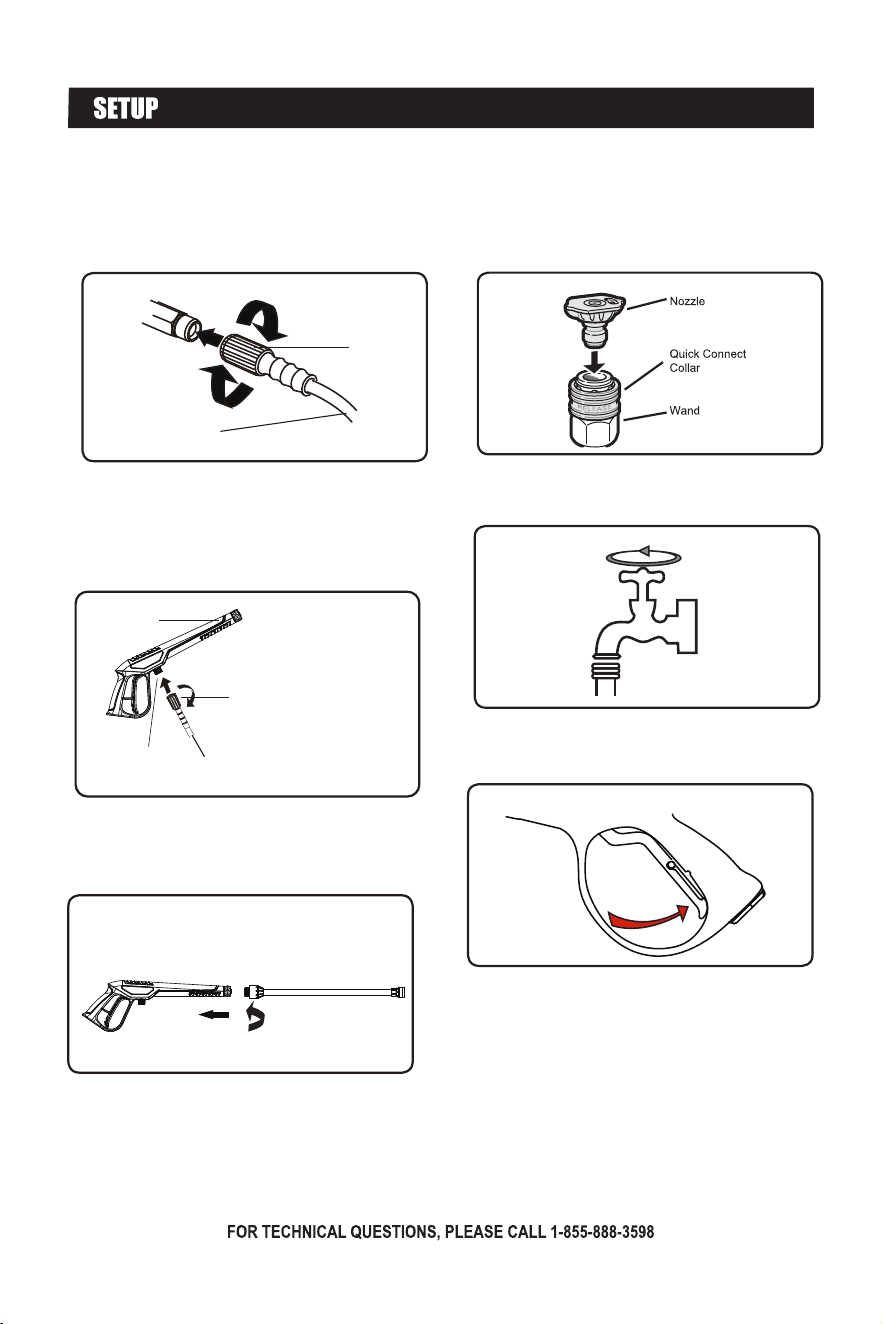

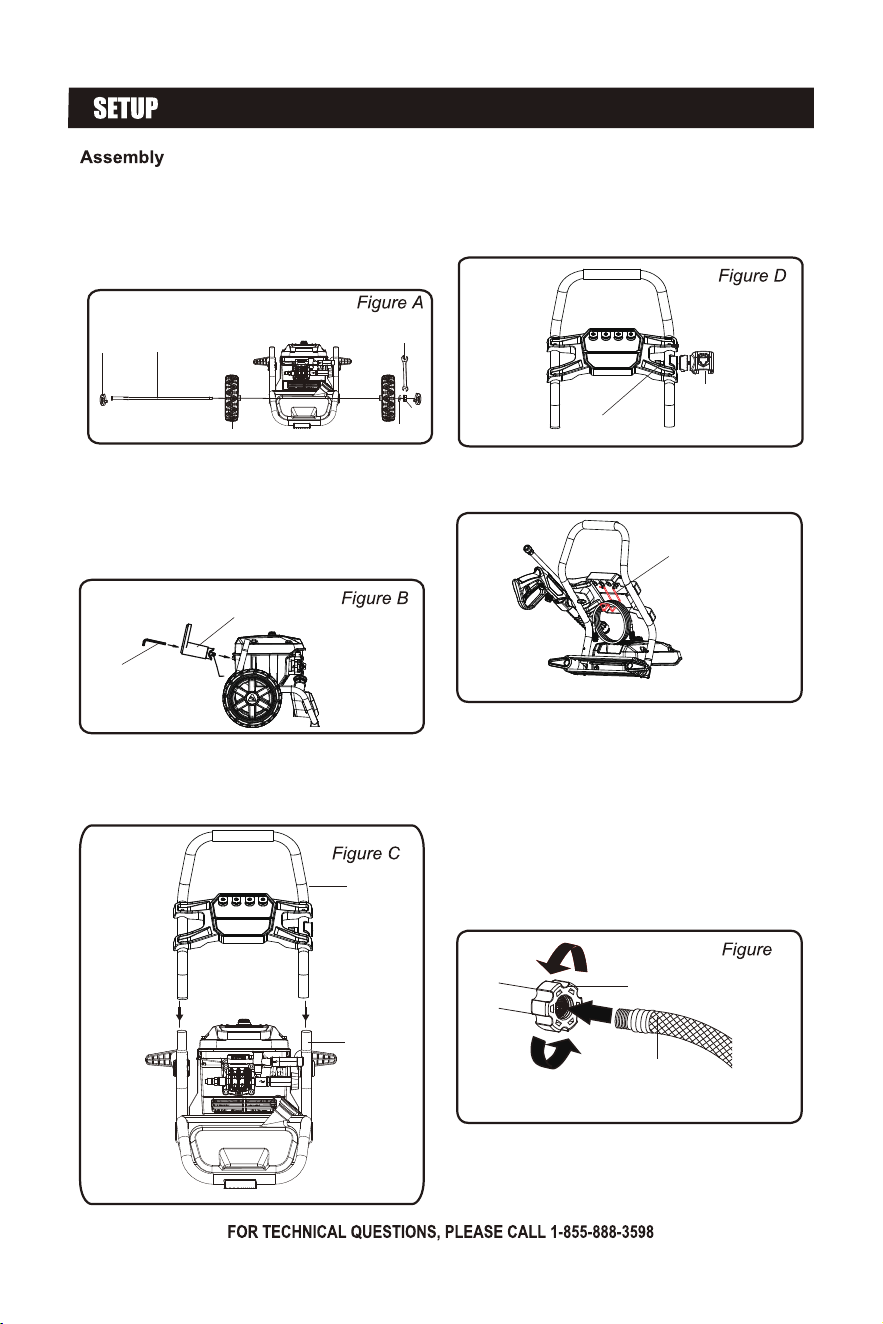

1. Insert the axle through the frame, wheels and
flat washer, then use the open end wrench to
tighten the nut securely. Finally push the wheel
caps in position.
See Figure A.
6. Insert the water supply hose into the water
inlet. Thread the collar on the inlet onto the
garden hose. Tighten securely.
See Figure F.
The water source must be able to provide a
minimum of three gallons of clean, cold
water per minute at 20PSI. Only use a 5/8”
inner diameter, or larger hose that is rated to
meet this capacity.
F
5. Install pressure hose hanger to the back of
storage panel. See Figure E.
Water Inlet Collar
Water Supply Hose
(Garden Hose)
Figure E
2. Use the Allen wrench to hold the internal bolt
inside the power cord holder, and remove the
nut 1. Then use the Allen wrench to screw the
internal bolt into the handle tube threaded
hole, and tighten it securely. See Figure B.
3. Slide the handle onto the frame until it
contacts the buttons.
SeeFigure C.
4. Install the gun holder to the handle by tightening the
knob nut manually.
See Figure D.
Handle
Frame
Gun Holder
Knob Nut
Open End
Wrench
Wheel
Cap
Axle
Flat Washer
Nut
Wheel
Hose Hanger
Allen Wrench
1
Power Cord Holder
Figure J
See Figure J.
7. Pull the collar on the high pressure hose back and
push the hose fitting into the threaded outlet on
the pressure washer. Screw the collar onto the
outlet and tighten securely.
See Figure G.
8. Pull the collar on the spray gun hose back and
push the hose fitting into the threaded outlet on
the spray gun. Screw the collar onto the
outlet and tighten securely.
See Figure H.
12
10. Attach the nozzle to the wand by pulling back
the quick connect collar and pushing the nozzle
onto the end of the wand. Make sure the quick
connect collar locks the nozzle in place.
Figure G
Collar
High Pressure
Hose
11. Connect to the water supply & turn on.
See Figure K.
See Figure K
See Figure L
12. Unlock trigger, then pull trigger to release
pressure. See Figure L.
Figure I
Figure H
9. Push the wand into spray gun and turn to
tighten. Do not over tighten.
See Figure I.
Collar
Gun
Inlet Coupler
Spray Gun
Hose
13
14

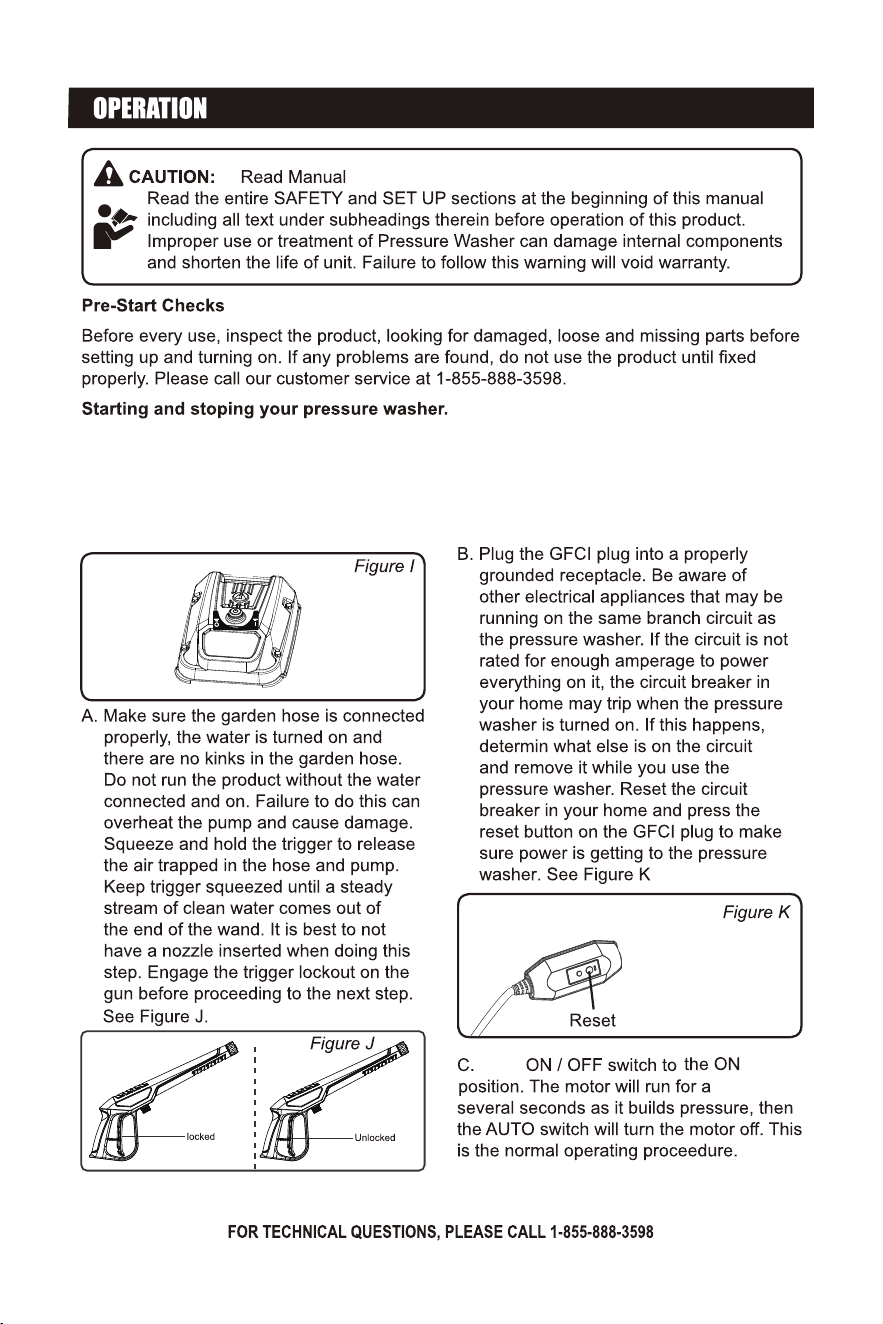

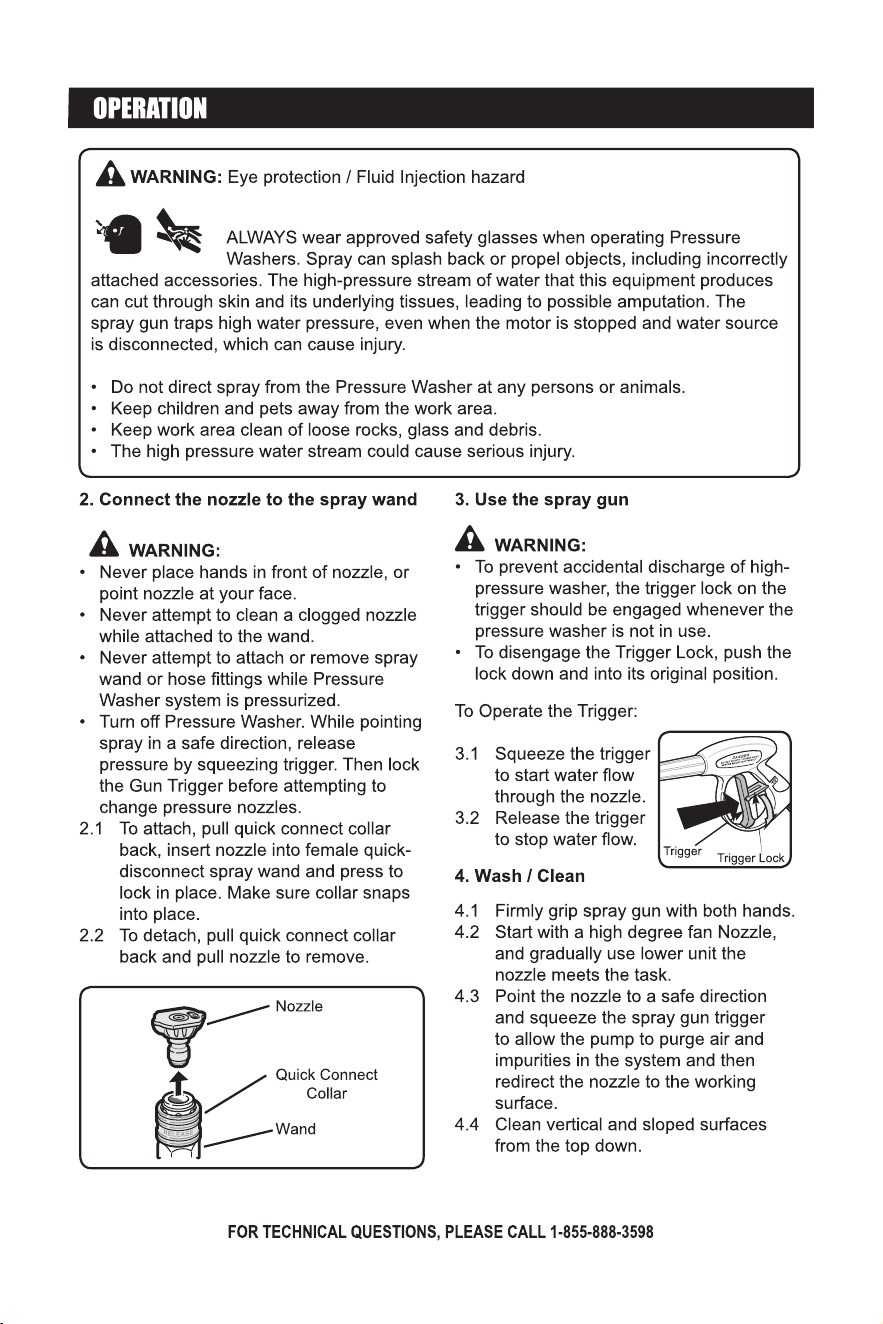

On the top of the product is the MAIN ON / OFF push button switch (See Figure I). This
switch works in conjunction with the AUTO ON / OFF switch built into the product. The AUTO
switch turns on and off when the trigger of the gun is squeezed and / or released. Because of
this, the system can have pressure, even when the motor is not running. Always use caution
around the pressure washer.
Push
SOAP
Turbo
Nozzle
Turbo Nozzle
Soap

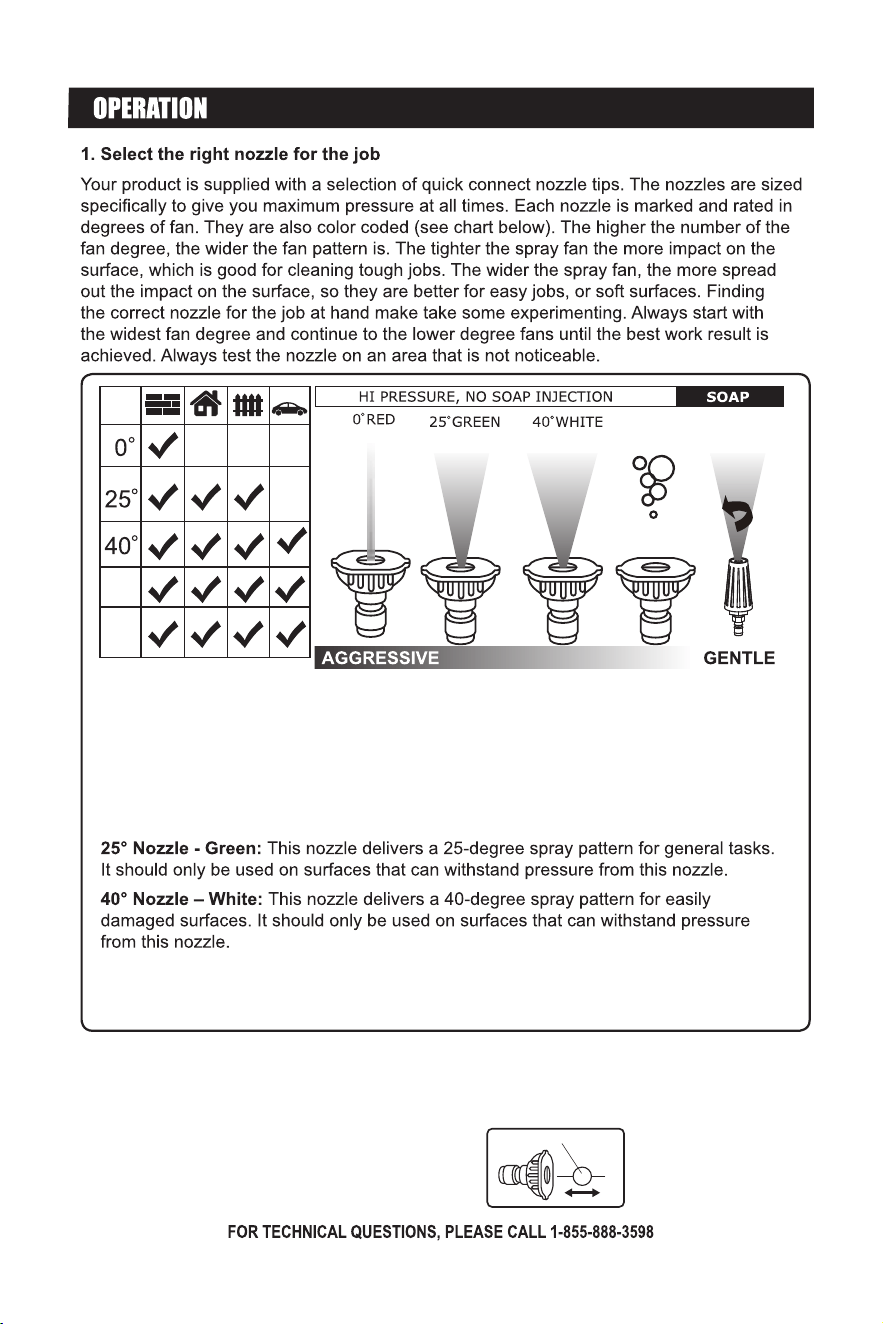

Soap Nozzle: This nozzle is used to apply special chemicals and cleaning solutions.
This nozzle produces the weakest pressure stream of the nozzles.
Turbo Nozzle: High-speed rotation generates strong pressurized jet water with an angle
of 15 °. The turbocharger nozzle can save 50% of energy, 30% of water, 50% of cleaning
agent, and increase 50% of work efficiency, which is extremely economical.
0° Nozzle - Red: This nozzle delivers a pinpoint stream of pressurized water and is
extremely powerful. Use it for the toughest cleaning jobs, although It covers only a
small area. This nozzle should only be directed at surfaces that can withstand intense
high pressure such as metal or concrete. Do not use this nozzle to clean wood or soft
surfaces.
15

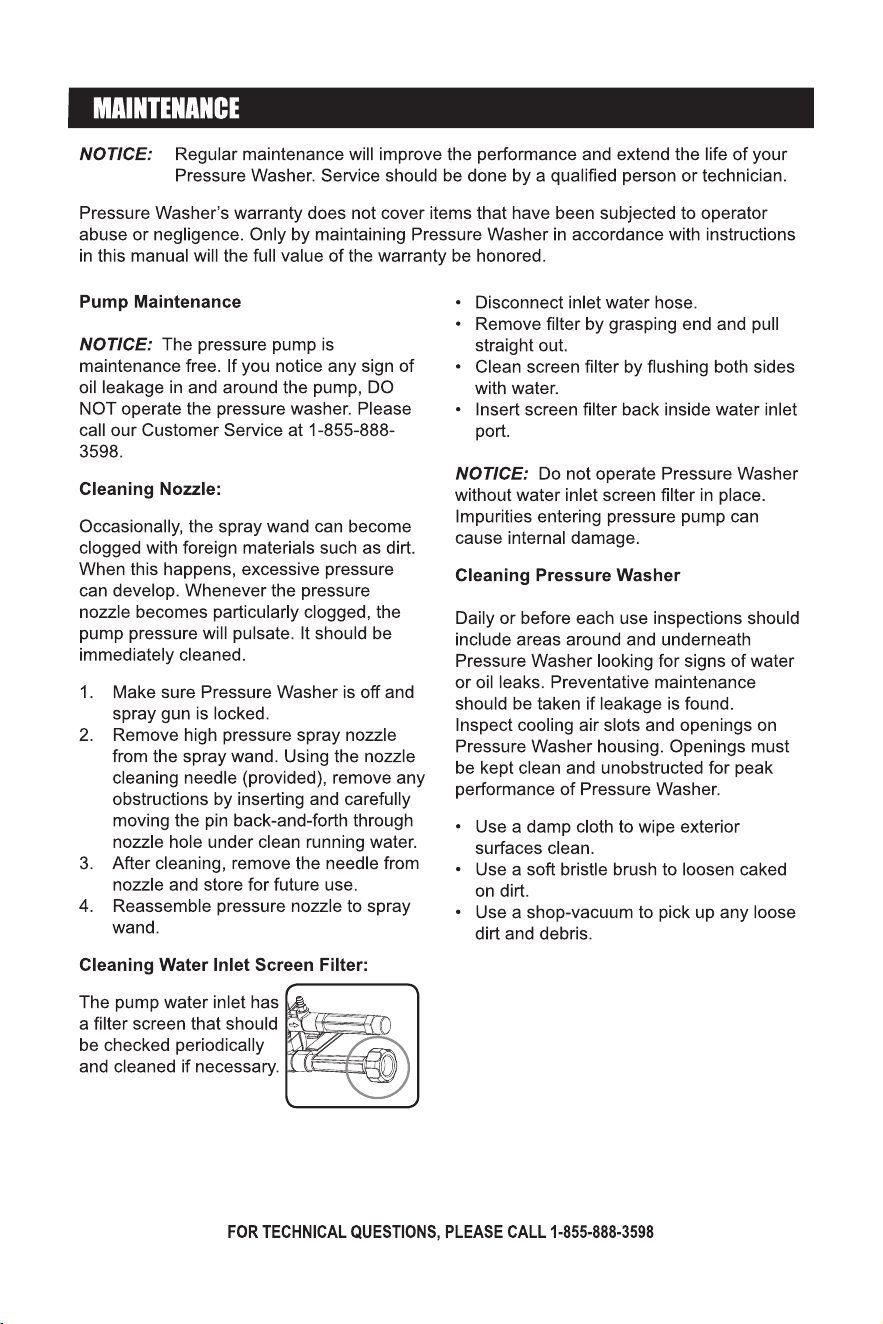

2. If the nozzle tip is found blocked by debris, use the nozzle cleaning tool to poke it
several times until the water flows out normally.
1. Not all models come with all nozzles described in this section. Use only theinformation
pertaining to the nozzles supplied with your product.
NOTICE:
Nozzle Cleaning Tool
16
17

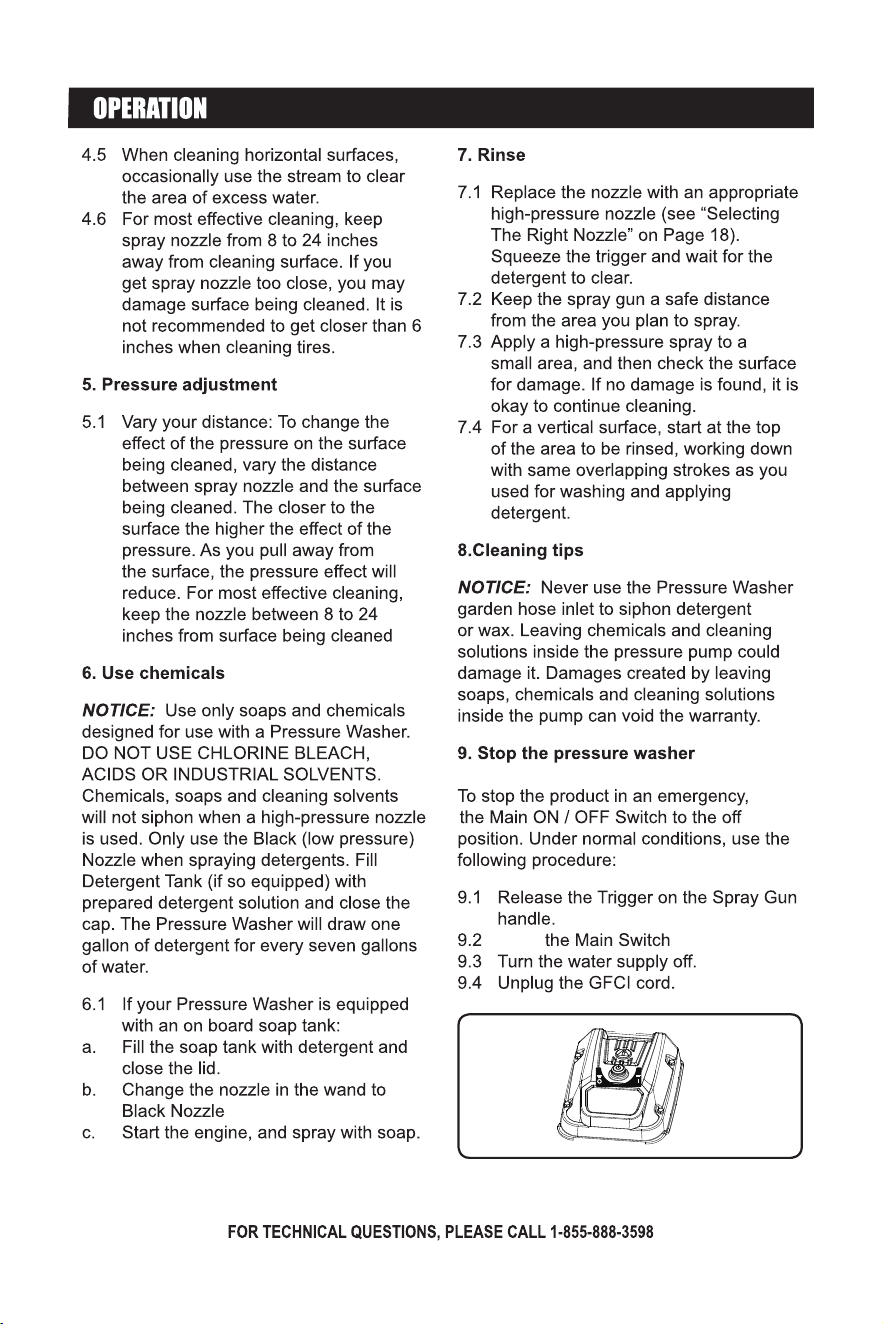

push
Push to off position.

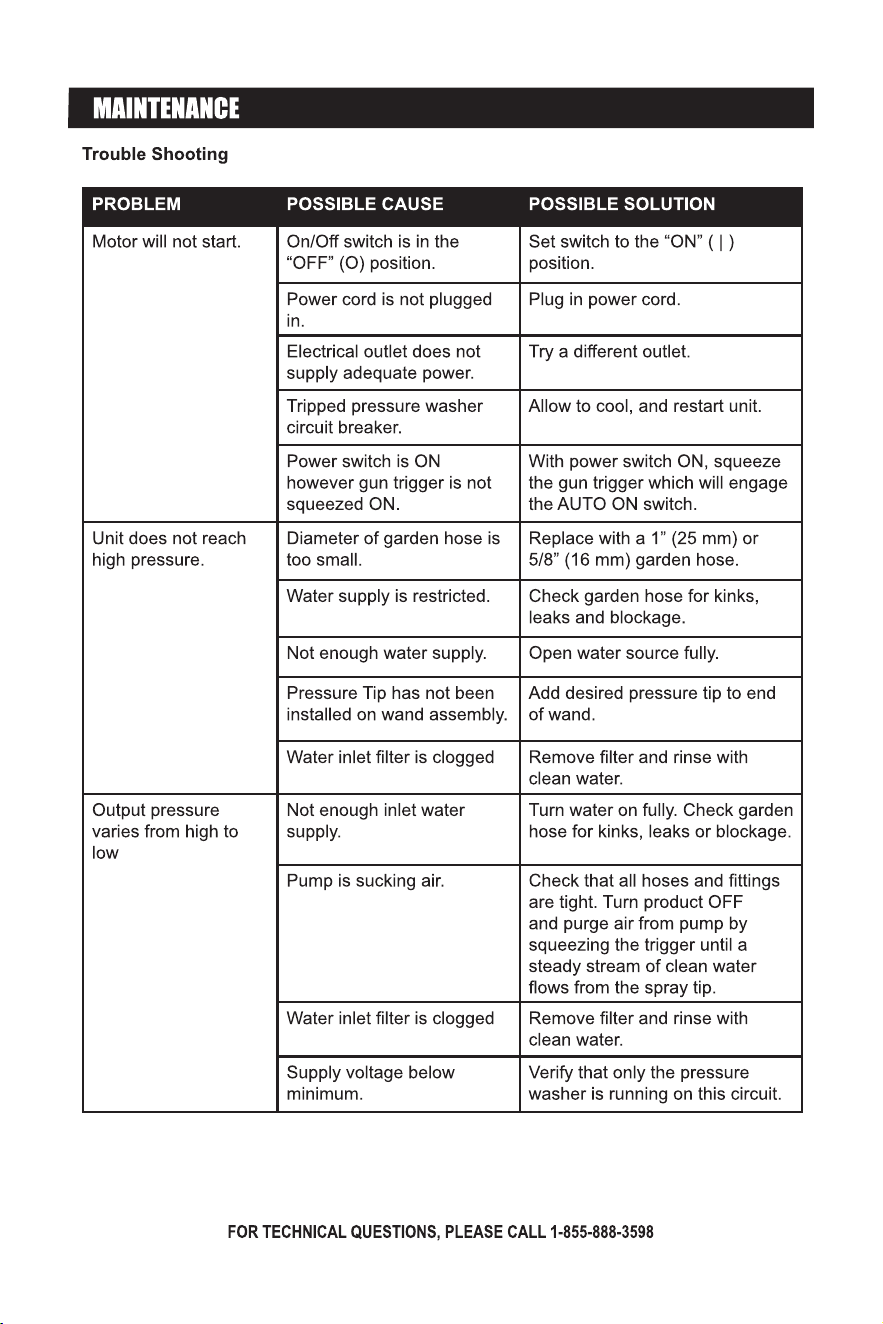

18

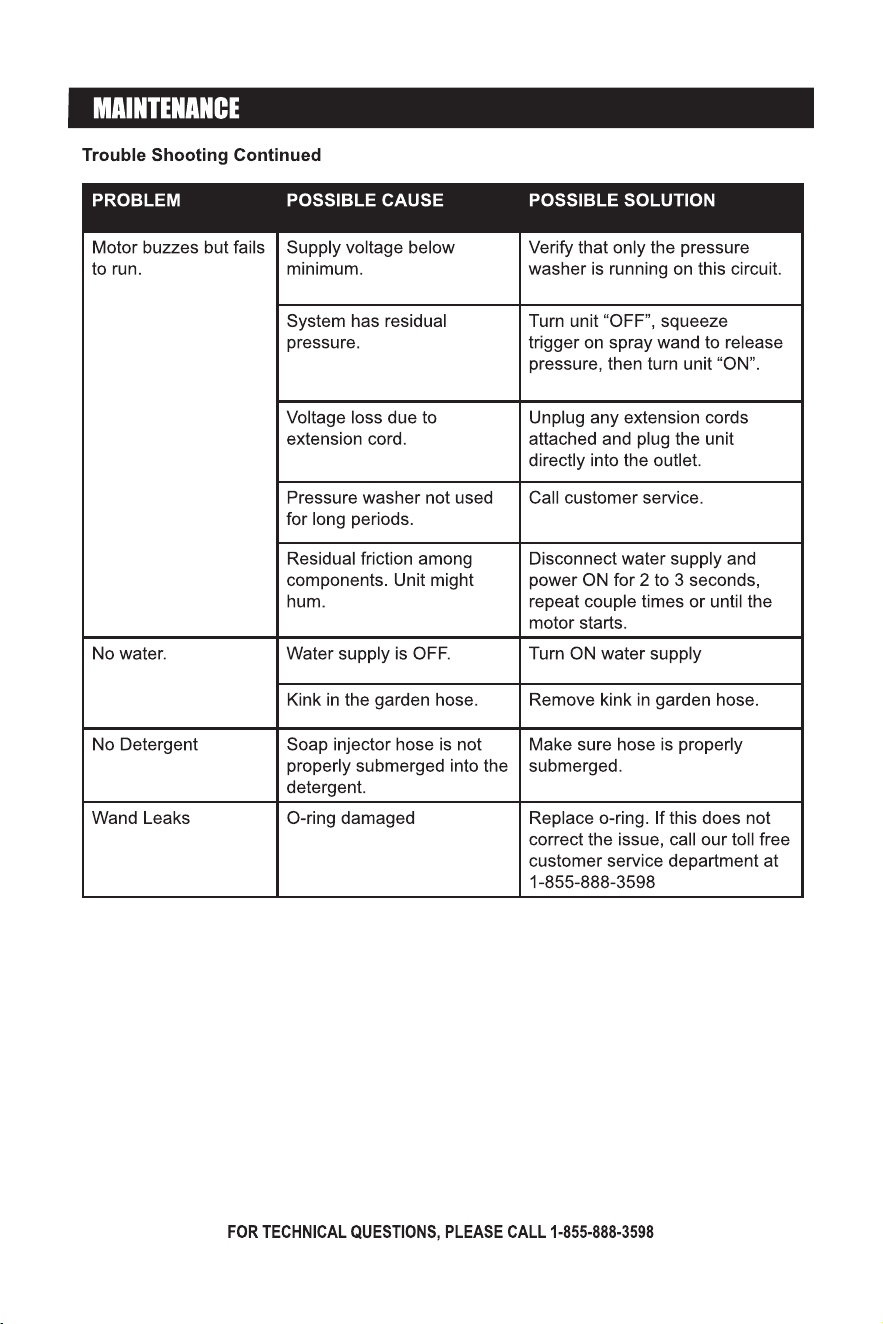

19
20
21

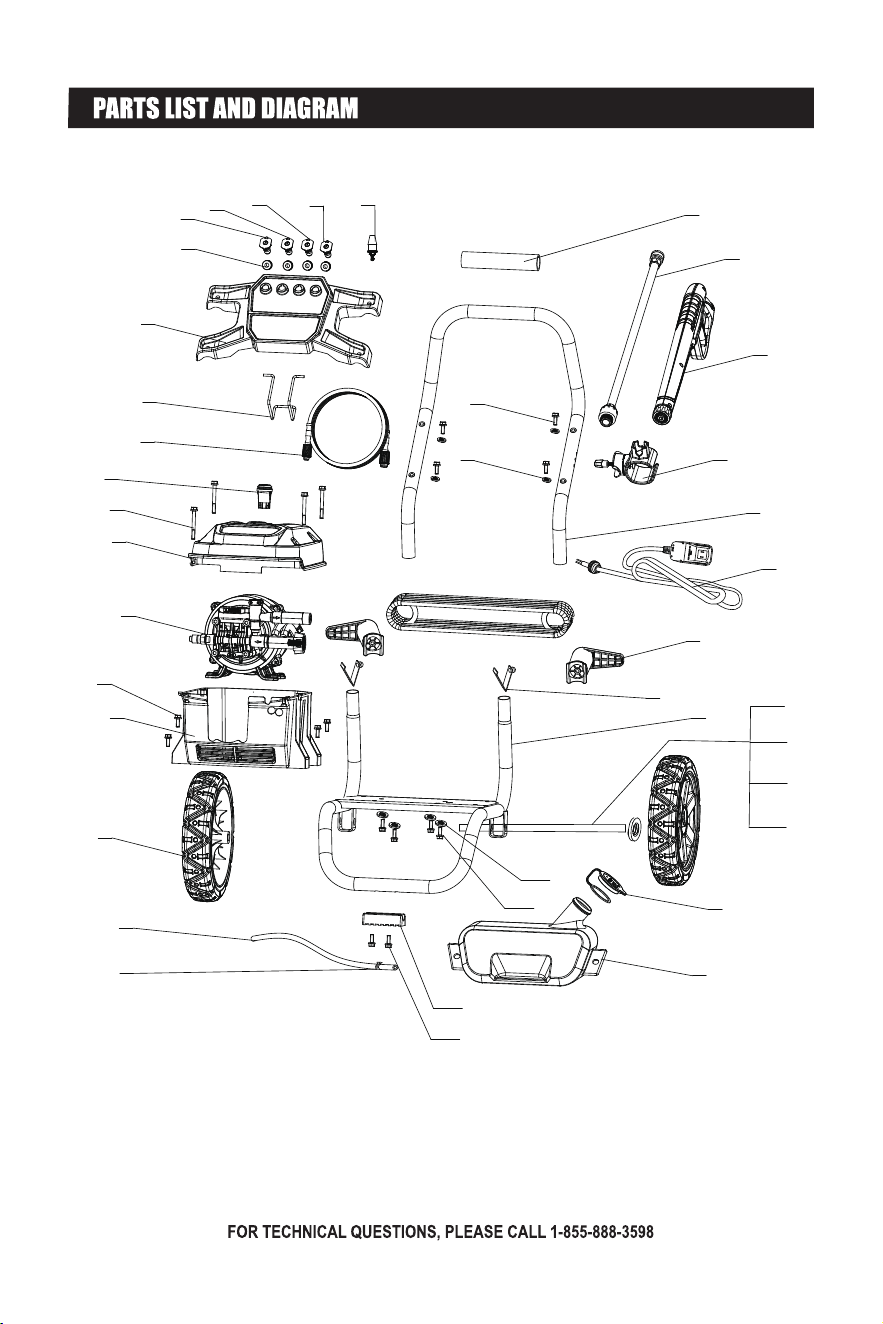

2
12
13
20
21
28
29
31
35
3
14
15
16
17
19
27
1
4
6
33
5
7
8
11
18
26
23
24
22
30
32
25
31
31
36
9
10
37
38
ELEGRP
