TG2000i
INVERTER GENERATOR
Operation Manual
Operation Manual
CRANKCASE
CRANKSHAFT CYLINDER

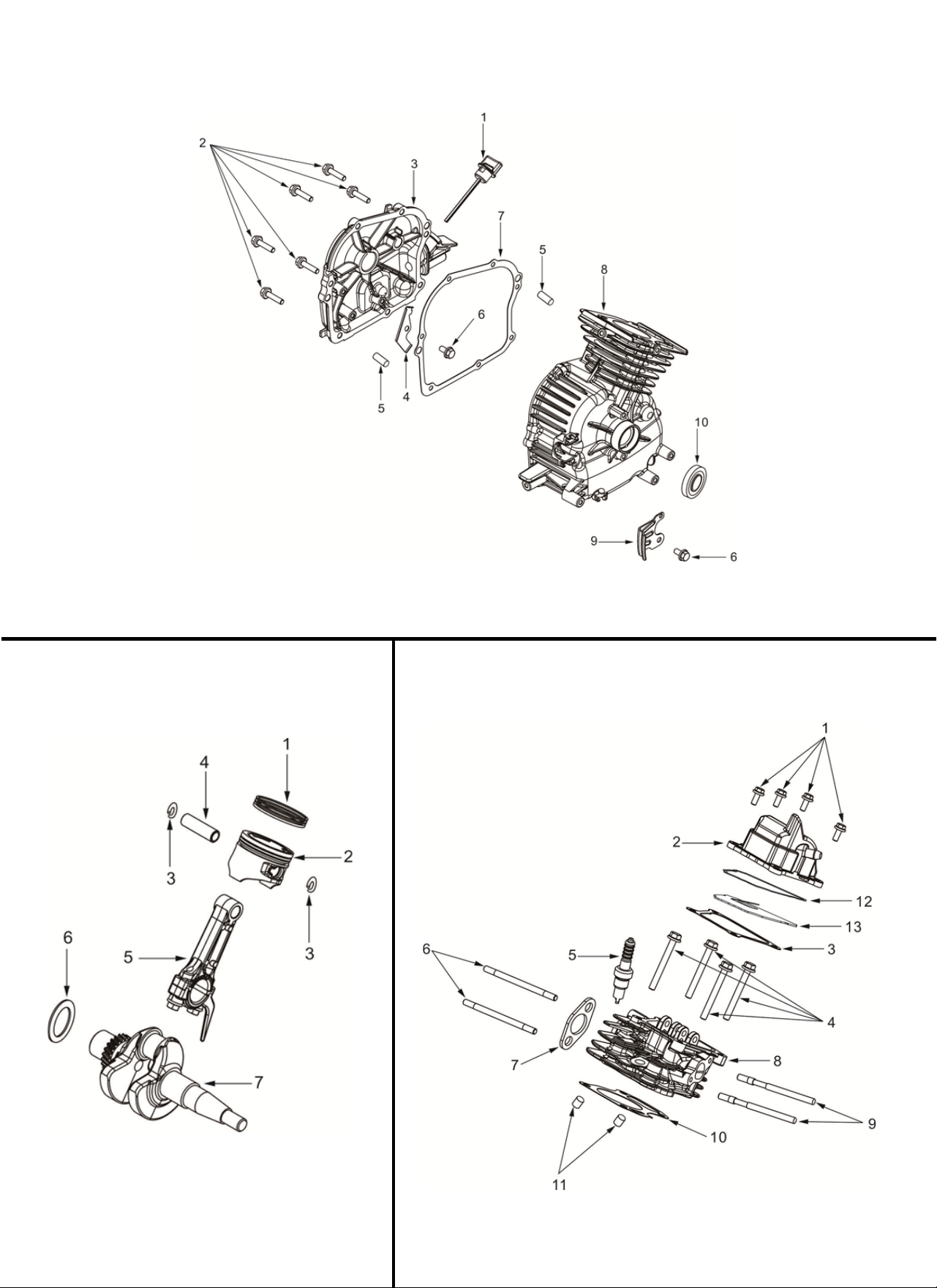

No. Part No. Description Quantity
1 1230.T48.001V.04.00 Dipstick Subassembly, Oil 1
2 5787.06025.00.01 Bolt 6
3 1010.T48.001V.00.00 Over Subassembly, Crankcase 1
4 2090.148.001V.00.00 Oil Alarm Block 1
5 3170.188.001V.00.00 Pin 2
6 5787.06012.00.01 Bolt 2
7 3040.T48.001V.00.00 Over Subassembly, Crankcase 1
8 1000.T48.001V.00.00 Crankcase Subassembly 1
9 2090.T48.001V.00.00 Crimping Board 1
10 3150.T48.001V.00.00 Oil Seal 1
No. Part No. Description Quantity
1 0210.148.001V.00.00 Ring Set, Oil 1
2 0200.148.001V.00.00 Piston 1
3 0230.148.001V.00.00 Clip,Piston Pin 2
4 0220.148.001V.00.00 Pin,Piston 1
5 0190.148.001V.00.00 Rod,Connecting 1
6 0185.T48.001V.00.00 Crankshaft Gasket 1
7 0180.T48.001V.00.00 Crankshaft Assy 1
No. Part No. Description Quantity
1 5789.06020.00.01 Bolt 4
2 0001.148.001V.00.00 Cover Subassembly,Cylinder Head 1
3 3000.148.001V.00.00 Gasket,Cover Subassembly 1
4 5789.06050.00.03 Bolt 4
5 2160.148.R001V.00.00 Plug,Spark 1
6 7071.165.001V.00.00 Bolt 2
7 3100.148.001V.00.00 Gasket,Exhaust Outlet 1
8 0010.T48.0011.00.00 Cylinder Head 1
9 0900.06088.00.01 Bolt 2
10 3020.148.001V.00.00 Gasket,Cylinder Head 1
11 3170.188.001V.00.00 Pin 2
12 7061.148.001V.00.00 Limit Plate Gasket 1
13 3088.148.001V.00.00 Breathing Valve Limit Plate 1
CRANKCASE
CRANKSHAFT
CYLINDER
ENGINE STARTER
ELECTRICAL COMPONENTS
CAMSHAFT COMPONENTS
No. Part No. Description Quantity

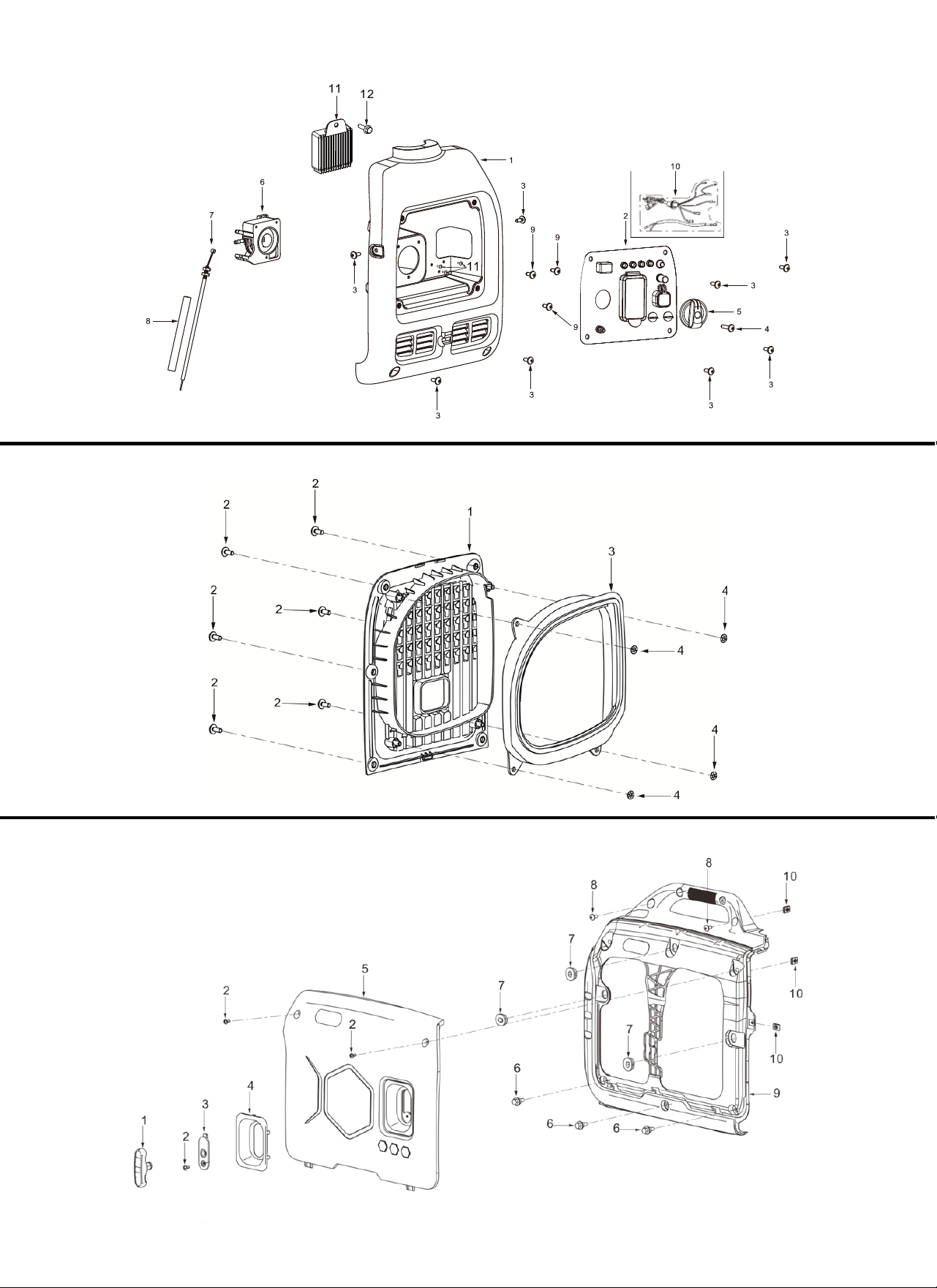

1 2269.T48.001V.00.00 Rear Shield Housing 1
2 5789.06020.00.01 Bolt 2
3 7344.T48.001V.00.00 Bolt 2
4 5231.T48.001V.00.00 Rubber Sleeve of Rear Shield 1
5 2000.T48.001V.00.03 Wind Deflector 1
6 0845.48020.00.01 Self Tapping Screw 6
7 7071.T48.001V.00.00 Stud Support Bolt 2
8 2000.148.001V.00.04 Pulling Plate 1
9 5787.06016.00.01 Bolt 3
10 2268.T48.001V.00.00 Front Shield Housing 1

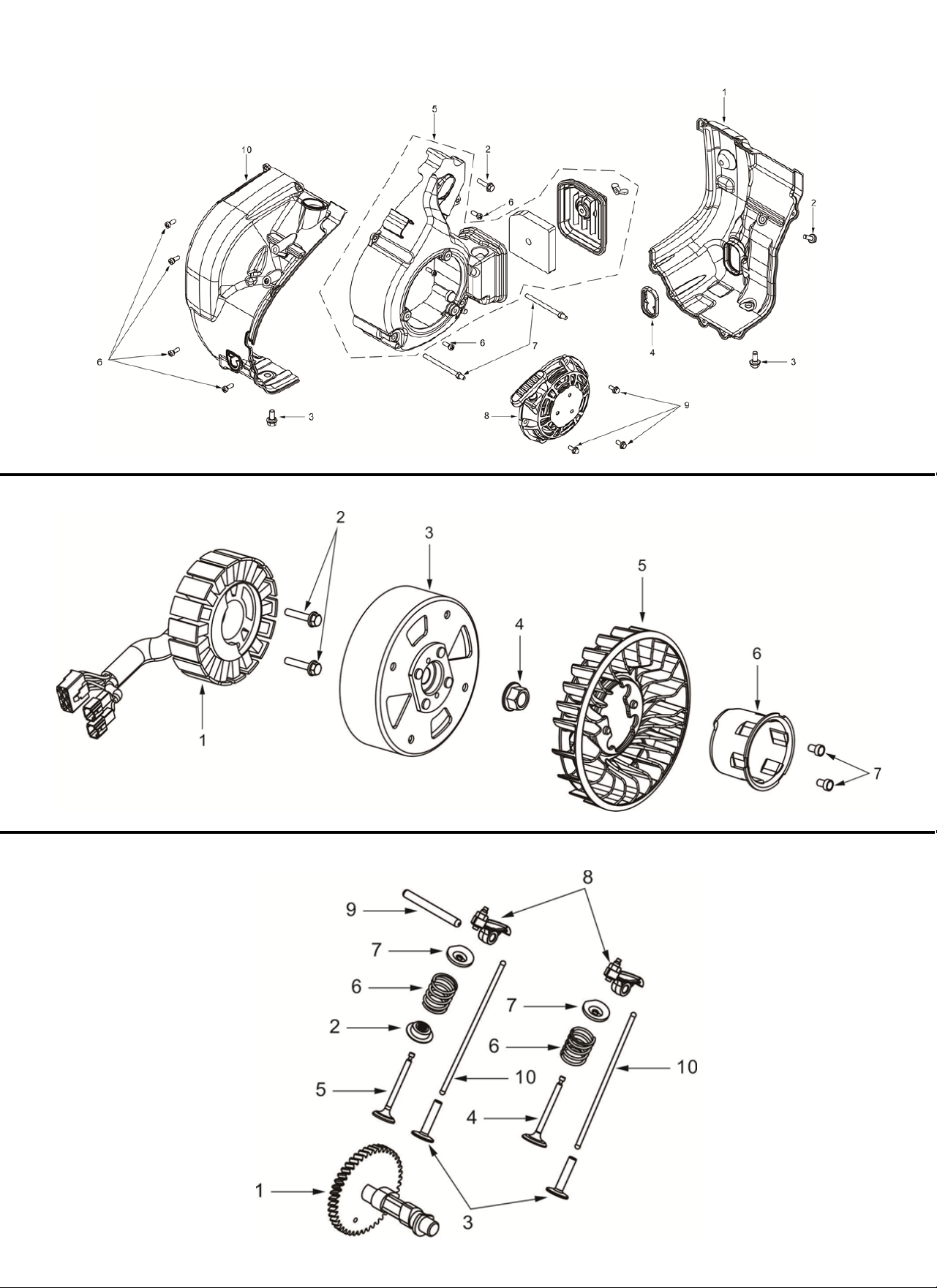

No. Part No. Description Quant
ity
1 4000.469.003V.00.02 Camshaft Assy 1
2 5787.06035.00.01 Oil Baffle 2
3 4000.469.001V.00.01 Rods 1
4 6177.12000.05.01 Intake Valve 1
5 2030.T48.0020.63.00 Exhaust Valve 1
6 2020.T48.001V.00.00 Valve Spring 1
7 0070.06010.00.04 Valve-Spring Seat 2
No. Part No. Description Quantity
1 1040.148.002V.00.00 Camshaft Assy 1
2 0085.148.001V.00.00 Oil Baffle 1
3 0160.T48.0010.00.00 Rods 2
4 0020.148.001V.00.00 Intake Valve 1
5 0030.148.001V.00.00 Exhau
st Valve 1
6 0040.148.001V.00.00 Valve Spring 2
7 0060.148.001V.00.00 Valve-Spring Seat 2
8 0100.148.001V.00.00 Valve Rocker 2
9 0101.148.001V.00.00 Valve Rocker Shaft 1
10 1030.148.001V.00.00 Tappet 2
ENGINE STARTER
ELECTRICAL COMPONENTS
CAMSHAFT COMPONENTS
CARBURETOR
IGNITER ASSEMBLY MUFFLER PARTS
No. Part No. Description Quantity
1 2260.T48.C01V.00.00 Stepper motor cover 1
2 2370.148.001V.00.00 Exhaust pipe 1
3 3060.148.001V.00.00 Air inlet gasket 1
4 2300.148.001V.00.00 Carburetor heat shield 1
5 3080.148.001V.00.00 Carburetor insulation pad 1
6 2260.T48.C01V.00.00 Carburetor 1
7 3090.148.001V.00.00 Carburetor gasket 1
8 2280.148.001V.00.02 Intake hose 1
9 6177.06000.00.01 Locking nut with disc 2
10 4000.435.006V.00.00 Stepper mo
tor 1
11 2360.458.R005V.00.00 Ribbon tubing clamp 1
12 2360.458.R004V.00.00 Ribbon tubing clamp 3
13 2330.464.C010.00.021 Tubing 1
14 2325.469.0010.00.00 Fuel filter 1
15 2332.467.006V.00.00 Silicone protective sleeve 1
No. Part No. Description Quantity

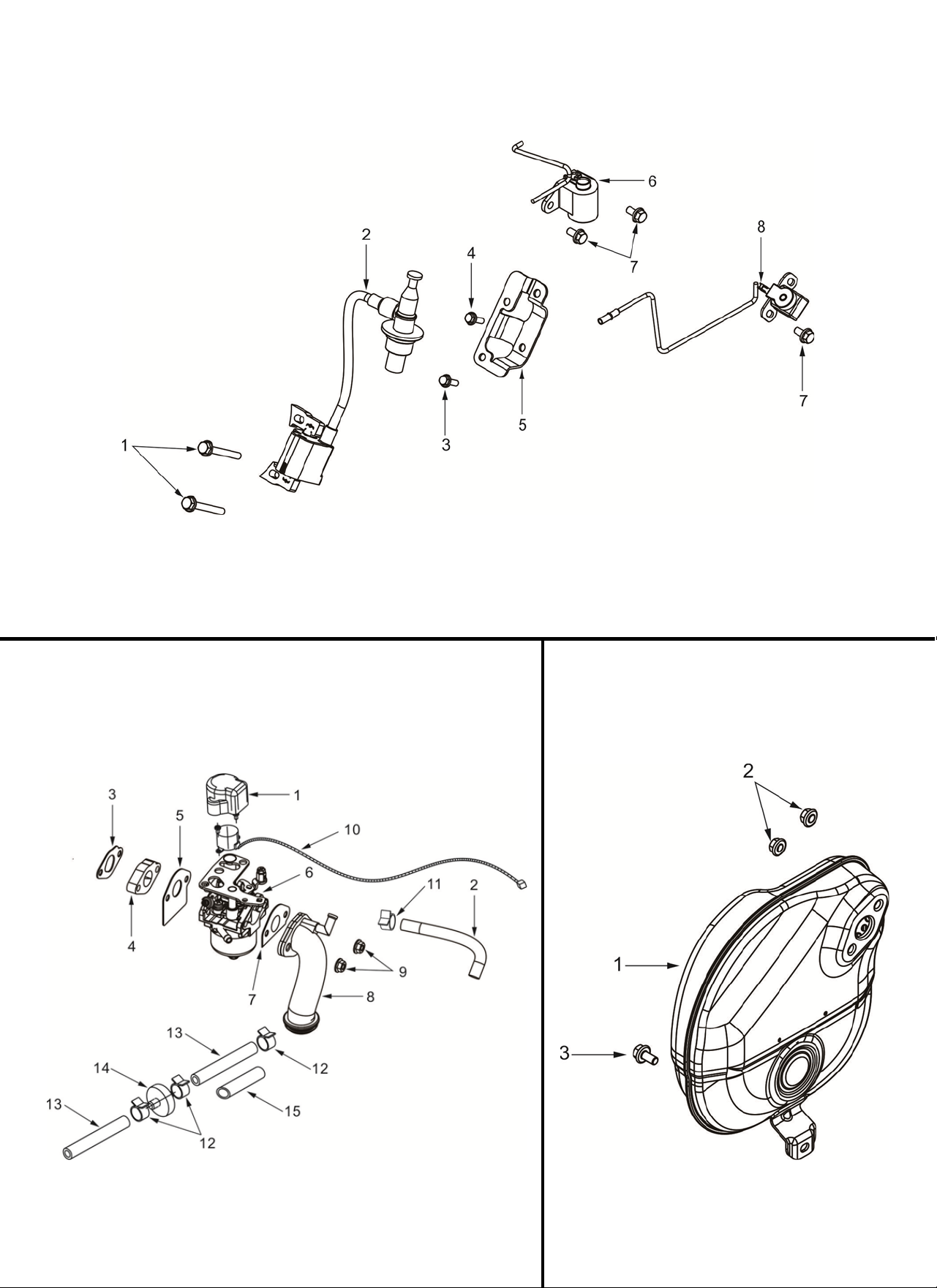

1 5789.06018.00.01 Bolt 2
2 1522.T48.002V.00.00 Ignition coil 1
3 5789.06012.00.01 Bolt 1
4 5789.06035.00.01 Bolt 1
5 5695.T48.001V.00.00 Igniter mounting bracket 1
6 1020.164.0011.00.00 Oil ala
rm 1
7 5787.06012.00.01 Bolt 3
8 2050.T48.002V.00.00 Trigger coil assembly 1
No. Part No. Description Quantity
1 2400.T48.001V.00.00 Muffler 1
2 6177.06000.00.01 Locking nut with disc 2
3 5789.06012.00.01 Bolt 1
CARBURETOR
IGNITER ASSEMBLY
MUFFLER PARTS
ENGINE
INVERTER

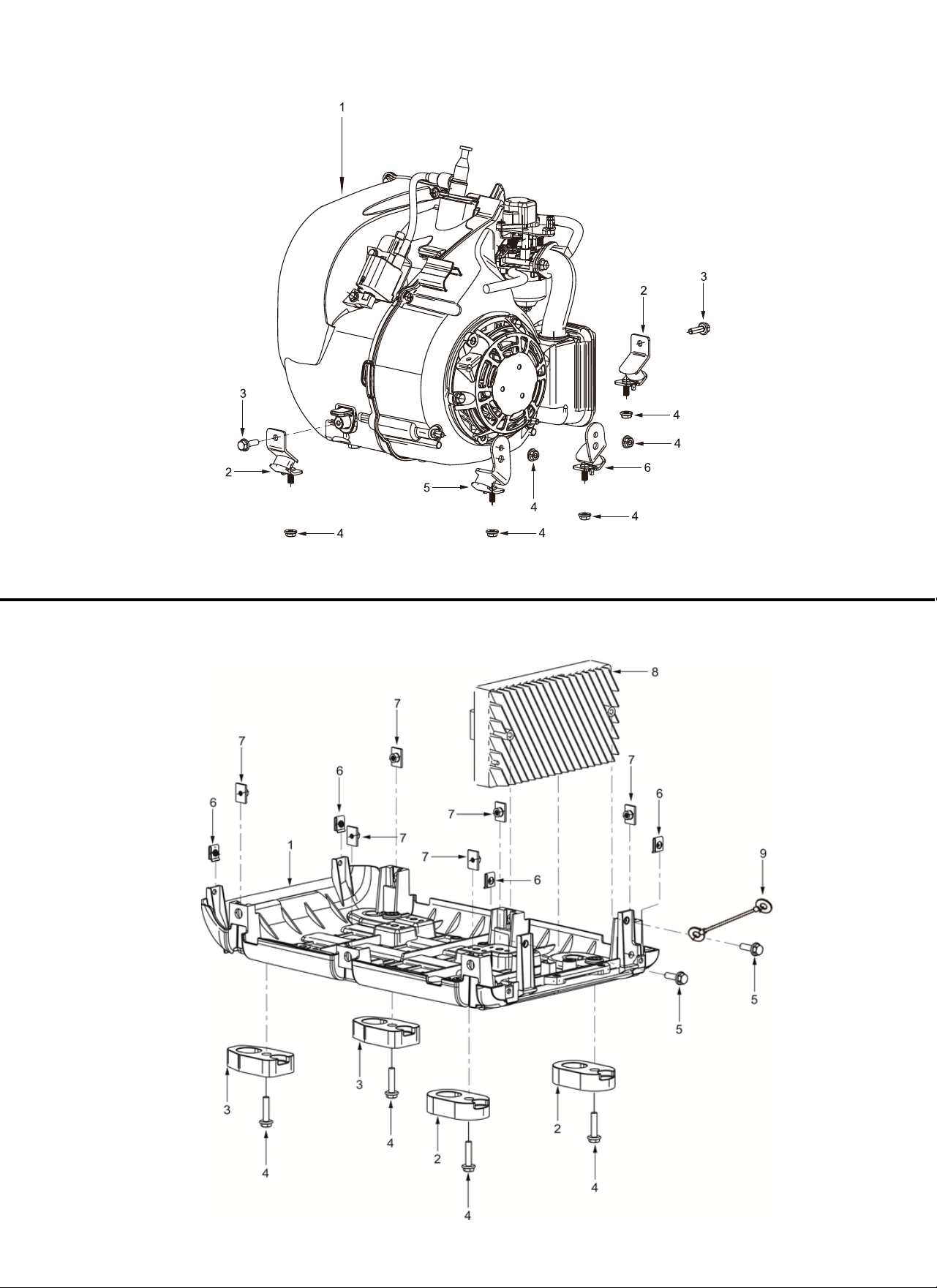

No. Part No. Description Quantity
1 BP00.073.001.06 Engine 1
2 3360.473.0020.00.00 Shock Pad 2
3 5789.06012.00.01 Bolt 2
4 6177.06000.00.01 Nut 6
5 3350.T48.001V.00.00 Shock Mount 1
6 3350.T48.002V.00.00 Shock Mount 1
No. Part No. Description Quantity
1 3340.469.0020.00.00 Base Plate 1
2 3350.469.002V.00.00 Shock Absorber Of Unit 2
3 3350.469.001V.00.00 Shock Absorber Of Unit 2
4 5789.06018.00.01 Bolt 4
5 5789.06012.00.01 Bolt 2
6 6178.05000.00.04 Nu
t 4
7 3145.469.001V.00.00 Nut 6
8 2470.469.001V.00.00 Inverter 1
9 3410.467.003V.00.00 Ground Wire 1
No. Part No. Description Quantity
1 6655.469.0040.00.00 Panel Bed 1
2 3370.469.1120.00.99 Panel 1
3 0818.05016.00.07 Cross Recessed Pan Head Screw 8
4 0818.04014.00.01 Screw 1
5 2141.467.001V.A6.00 Three In One Switch Handle 1
6 2140.467.011V.00.00 Three In One Switch 1
7 2140.467.011V.00.03 Cable Assembly 1
8 2332.467.002V.00.00 Sheath 1
9 0819.04212.00.01 Cross Countersunk Head Tapping Screw 3
10 6950.468.0020.00.00 Control Harness 1
11 6854.487.002V.00.00 Voltage Regulating Rectifier 1
12 5787.05016.00.01 Bolt 1
ENGINE
INVERTER
PANEL

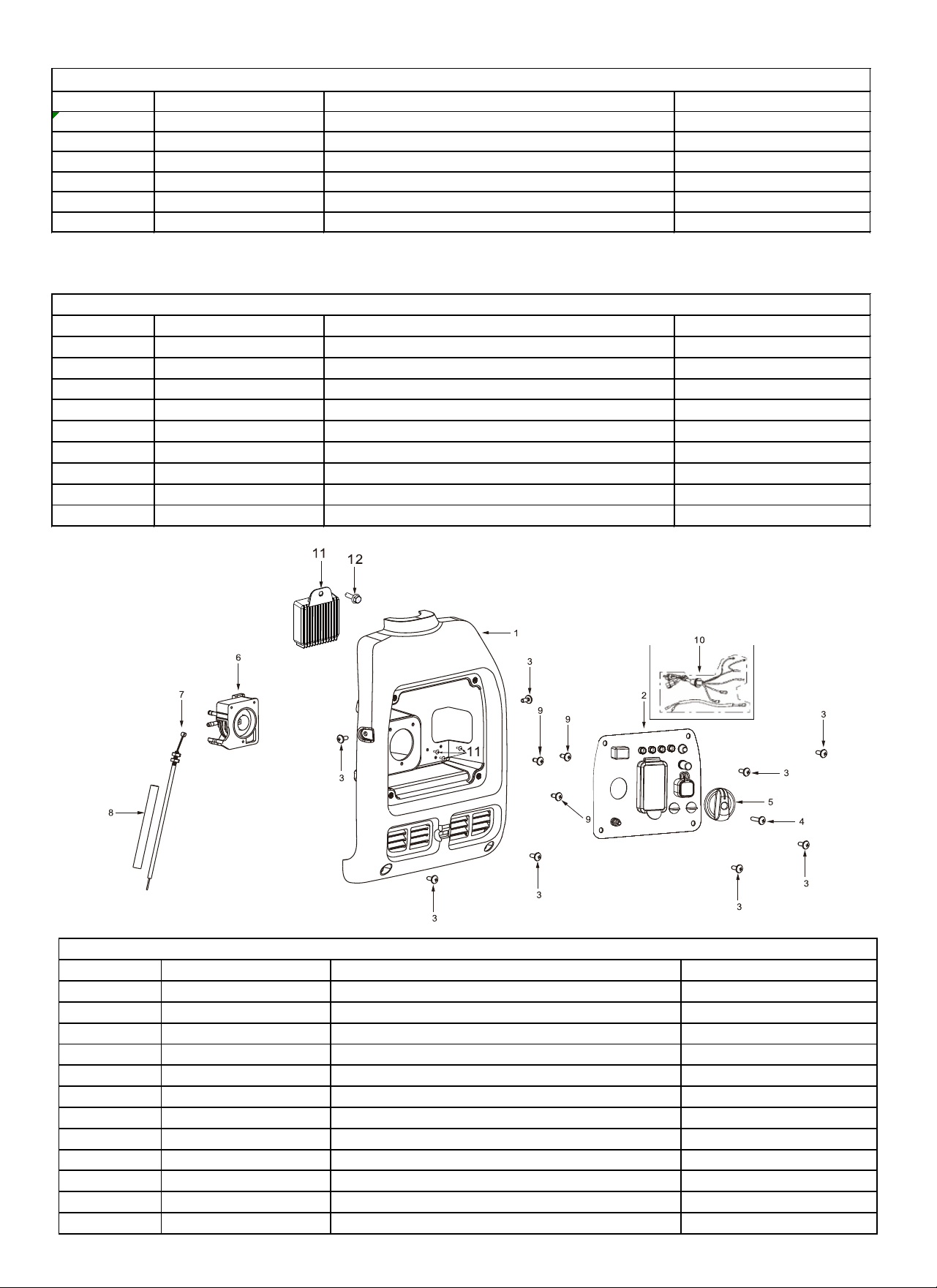

No. Part No. Description Quantity
1 BP00.073.001.06 Engine 1
2 3360.473.0020.00.00 Shock Pad 2
3 5789.06012.00.01 Bolt 2
4 6177.06000.00.01 Nut 6
5 3350.T48.001V.00.00 Shock Mount 1
6 3350.T48.002V.00.00 Shock Mount 1
No. Part No. Description Quantity
1 3340.469.0020.00.00 Base Plate 1
2 3350.469.002V.00.00 Shock Absorber Of Unit 2
3 3350.469.001V.00.00 Shock Absorber Of Unit 2
4 5789.06018.00.01 Bolt 4
5 5789.06012.00.01 Bolt 2
6 6178.05000.00.04 Nu
t 4
7 3145.469.001V.00.00 Nut 6
8 2470.469.001V.00.00 Inverter 1
9 3410.467.003V.00.00 Ground Wire 1
ENGINE
INVERTER
CONTROL PANEL
MUFFLER SHIELD
LEFT COVER
No. Part No. Description Quantity
1 6655.469.0040.00.00 Panel Bed 1
2 3370.469.1120.00.99 Panel 1
3 0818.05016.00.07 Cross Recessed Pan Head Screw 8
4 0818.04014.00.01 Screw 1
5 2141.467.001V.A6.00 Three In One Switch Handle 1
6 2140.467.011V.00.00 Three In One Switch 1
7 2140.467.011V.00.03 Cable Assembly 1
8 2332.467.002V.00.00 Sheath 1
9 0819.04212.00.01 Cross Countersunk Head Tapping Screw 3
10 6950.468.0020.00.00 Control Harness 1
11 68
54.487.002V.00.00 Voltage Regulating Rectifier 1
12 5787.05016.00.01 Bolt 1
No. Part No. Description Quantity
1 2420.469.002V.04.00 Muffler Shield 1
2 0818.05016.00.07 Screw 6
3 7824.469.001V.00.00 Muffler Sealant Sleeve 1
4 5598.467.001V.00.00 Plum Ring 4
No. Part No. Description Quantity
1 2000.T70.001V.04.03 Starting Handle 1
2 0818.05010.00.07 Screw 3
3 2186.T48.001V.00.00 Cover Plate 1
4 7866.469.0011.00.00 Handle Trim Panel 1
5 5596.469.0
03V.P4.00 Ornament Shell 1
6 4789.467.001V.00.00 Step Bolts 3
7 5522.467.002V.00.00 Sheath 3
8 0818.05016.00.07 Screw 2
9 2220.469.002V.04.00 Left Shell 1
10 6178.05000.00.04 Nut 3
CONTROL PANEL
MUFFLER SHIELD
LEFT COVER
RIGHT COVER
FUEL TANK COMPONENTS

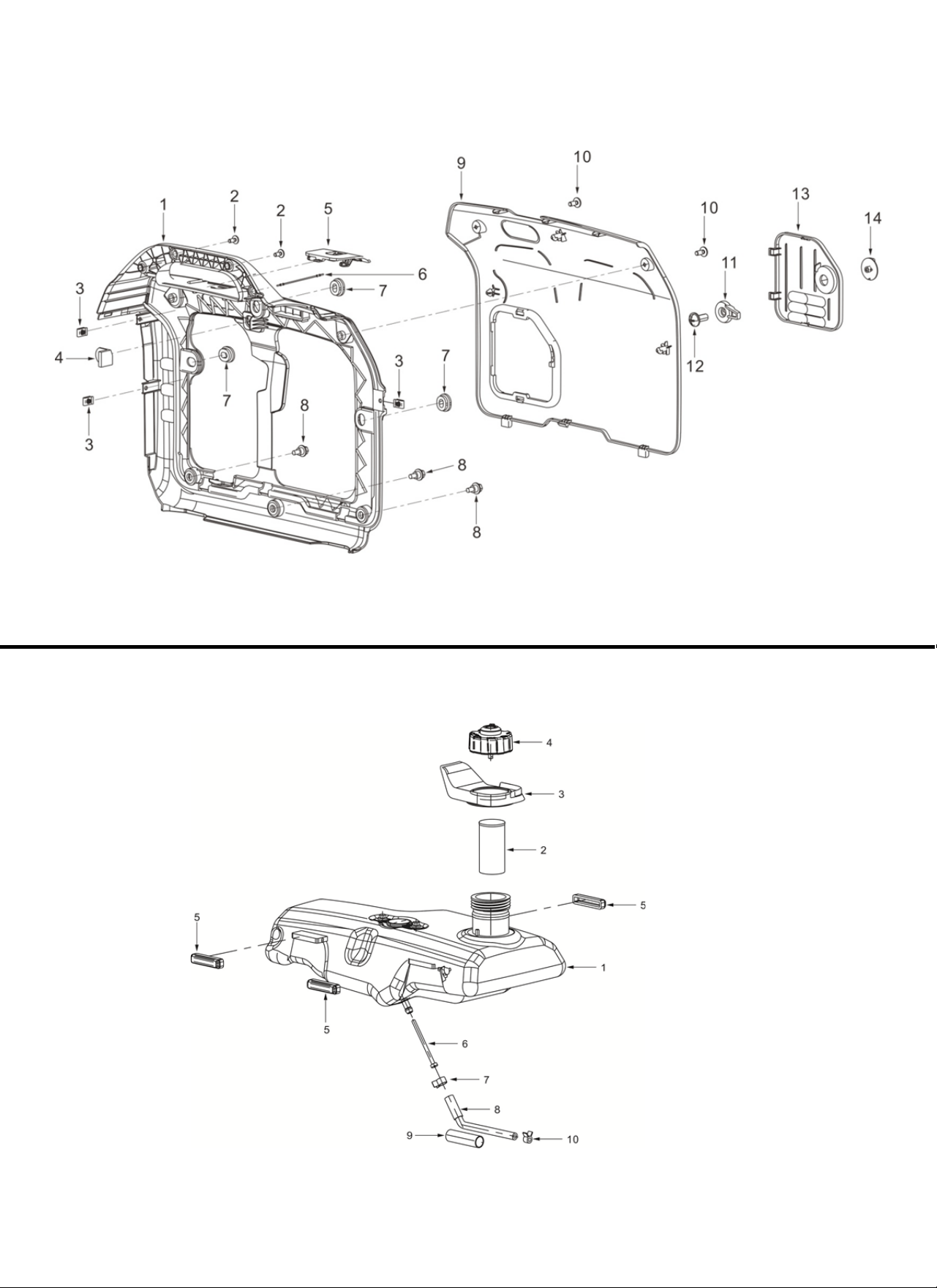

No. Part No. Description Quantity
1 2222.469.002V.04.00 Right Shell 1
2 0818.05016.00.07 Cross Recessed Pan Head Screw 2
3 6178.05000.00.04 Nut 3
4 6234.467.002V.00.00 Sheath 1
5 4259.469.001V.A6.00 Spark-Plug Outer Cover 1
6 4562.469.001V.00.00 Anti Loss Rubber Strip 1
7 5522.467.002V.00.00 Sheath 3
8 4789.467.001V.00.00 Step Bolts 3
9 5596.469.004V.A6.00 Right Exterior Cover 1
10 0818.05010.00.07 Screw 2
11 6345.469.001V.04.00 Knob Limit Ca
rd 1
12 0845.04012.00.01 Screw 1
13 7540.469.002V.A6.00 Oil Maintenance Cover 1
14 1560.469.001V.04.00 Knob 1
No. Part No. Description Quantity
1 3200.469.C01V.00.00 Tank,Fuel 1
2 3200.467.001V.00.02 Fuel Filter 1
3 3200.469.001V.00.03 Sheath 1
4 3200.467.C05V.00.01 Tank Cap 1
5 7868.469.001V.00.00 Sheath 3
6 3208.P70.001V.00.00 Filt Tip 1
7 2360.458.R007V.00.00 Ferrule 1
8 2330.469.C010.00.22 Oil Tube 1
9 2332.467.006V.00.00 Sheath 1
10 2360.458.R003V.00.00 Ferrule 1
RIGHT COVER
FUEL TANK COMPONENTS
