BAUMR-AG DRLCREBM20VA 3000W 200mm Core Drill w/ Rig Stand User Manual

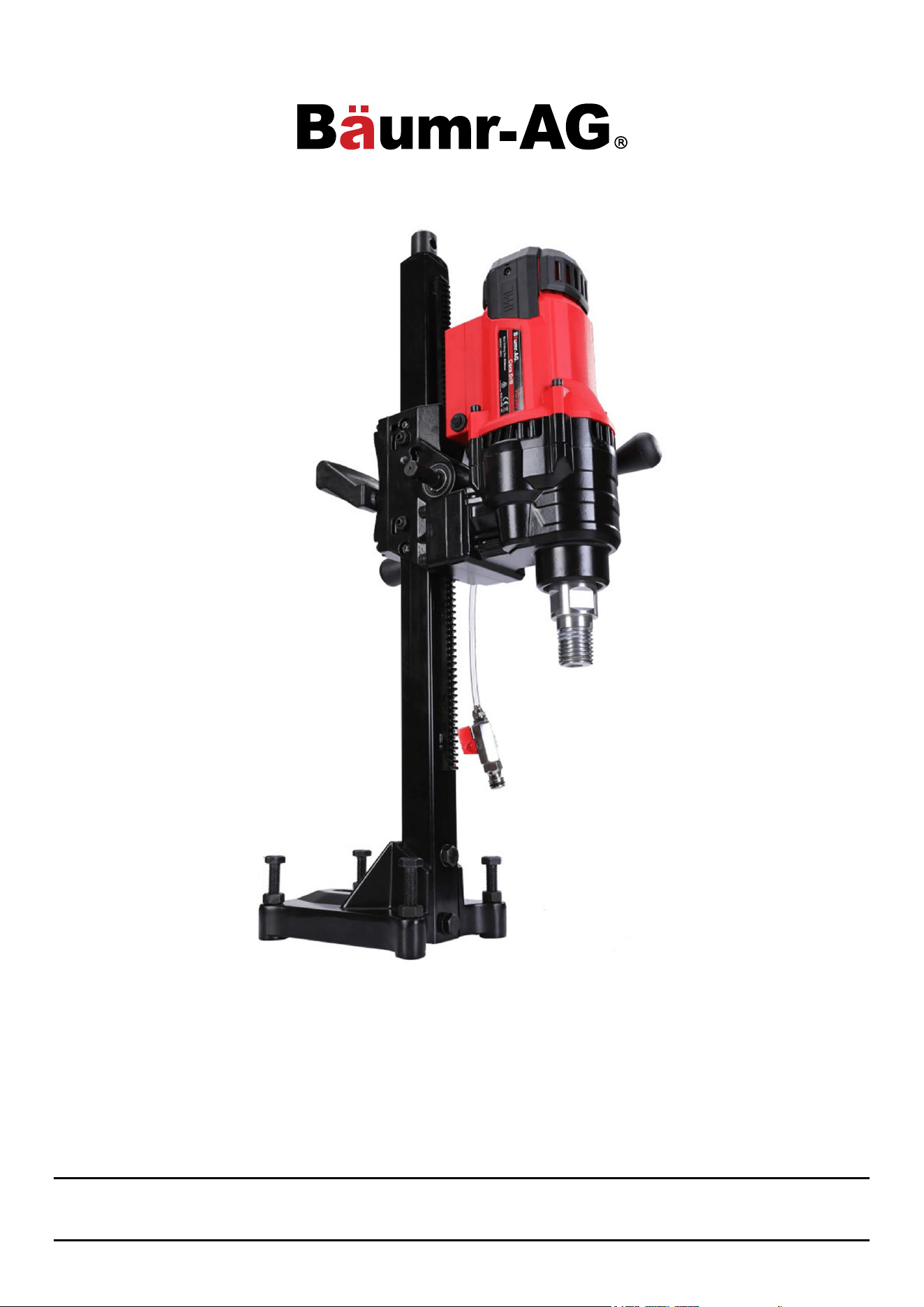

VC-200 Vertical Stand Core Drill

User Manual

[Revision 3.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Wor

k areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear

appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• P

etrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• U

sing a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• K

eep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 3

General Electrical Safety

• I

nspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• E

lectrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• T

he equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING

: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

HAZARDOUS COMPONENTS!

• BE

AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS DRILLS, HOT SURFACES AND MOVING

PARTS.

• ROTATING DRILLS CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.

• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT.

FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.

• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

General Power Tool Safety Warnings

• W

ARNING

READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS

MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY.

• Save all warnings and instructions for future reference.

• The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• K

eep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• P

ower tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of

electric shock.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 4

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the

risk of electric shock.

Personal safety

• S

tay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or

carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or

long hair can be caught in moving parts.

• Warning- Be sure to wear ear protectors when using this product.

• WARNING- Be sure to wear dust masks when using this product.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust

collection can reduce dust-related hazards.

Power tool use and care

• D

o not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for

which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must

be repaired.

• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or

storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the

power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power

tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories, and tool bits etc. in accordance with these instructions, considering the working conditions and the work to be

performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

• H

ave your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power

tool is maintained.

Diamond Core Drill Safety Warnings

• U

se auxiliary handles supplied with the tool. Loss of control can cause personal injury.

• Consider work area environment: Don’t use diamond core drill in damp or wet locations. Don’t expose diamond core drill to rain. Keep work area

well-lit. In particular no inflammable liquids or gases must be present. The series motor produce sparks during normal rotating, the sparks may

cause the risk of fire.

• Grounding of class I tools is necessary while in use to protect you from electric shock, class I tools is equipped with an approved three-conductor

cord and three-prong grounding-type plug, the green/yellow conductor in the cord is the grounding wire, one end of wire is in the grounding sign

of tool outer shell, the other end of wire is connected with the ground wire of plug. Never connect the green/yellow wire to a live terminal.

•

WARNING THE SOCKET MUST FIT WITH GROUNDING, DON’T INSERT CLASS I TOOLS INTO THE SOCKET WITHOUT GROUNDING.

• Use extension cords when tool is used outdoors or indoors, use special extension wire board. Use only three-conductor cord and with reliable

grounding.

• Take care of downward direction in the high position, safety belt and safety cap etc are recommended.

• In order to avoid unintentional electric shock, please check the grounding condition of electrified body in working area before operating, it is not

allowed to operate the tool under the uncertain condition, once the drill bit touched the electrified body in the wall, floorboard or baseboard, the

electrified outer shell of drill may cause personal injuries.

• The safety equipment is recommended when drilling on high the ceiling to avoid the drill core injuring the persons downstairs or damaging the

property downstairs.

• Connecting the soft pipe with the inner diameterΦ16mm to the adaptor of the valve.

• Please make sure that there is no leak of water in order that it will not damp the motor when you use the liquid and the attachments.

• Usually inspect the hoses and other critical parts of the tool which could deteriorate; When appear of leak of water from the testing hole of the

gear box, must turn off the tool immediately then replacing the rubber seal.

• Replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organization.

• Keep liquid clear off the parts of the tool and away from persons in the working area in order that the water cannot enter into the electronic

equipment of the tool and keep your safety. It must be using catchment set when the machine working with elevation.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 5

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 6

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 7

Table of Contents

Safety ......................................................................................................................................................... 2

Safety Symbols ........................................................................................................................................................... 5

Before Use ................................................................................................................................................. 8

Anchoring The Core Drill .......................................................................................................................... 9

Operation ................................................................................................................................................. 10

Maintenance ............................................................................................................................................. 12

Troubleshooting ...................................................................................................................................... 13

Specifications .......................................................................................................................................... 14

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 8

Before Use

•

Ensure the unit is firmly bolted to the ground.

•

Handle the core drill in a manner that will reduce injury from potential kickbacks.

•

Note that the core drill is equipped with a safety clutch to reduce the chance of injury.

•

Vibration and kickbacks will occur when the drill bit makes contact with any reinforcement/rebar or other

materials/debris within the concrete.

•

Product is only for use while fastened securely to the surface being drilled, so it cannot be dislodged during

use. Do not attempt to use this item by hand, without secure attachment to the surface being drilled, or in

any other manner.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

E&OE © Baumr-AG 9

Anchoring The Core Drill

WARNING! It is the responsibility of the user to ensure the core drill is

anchored correctly prior to operation. Incorrect use, anchoring, or anchor

bolt embedment depth can result in serious injury or death.

Use of the drill requires the base of the drill to be fastened to the surface

being drilled using “anchor bolts.” Fastening must be done with a type and

quantity of anchor bolts suitable for the surface being drilled, to ensure the

drill cannot become dislodged or loose during drilling. Anchor bolts are not

supplied with the drill, as anchor bolt requirements will vary depending on

the surface and location being drilled. When selecting anchor bolts to use for

your application, consult the manufacturer of the anchor bolts to confirm

suitability, correct use, and the required embedment depth of the anchor

bolts selected.

Ensure the surface you are drilling is clean, structurally secure, and free of

debris.

1. Determine the locations you will use for anchoring, mark the drill locations and

use the appropriate drill bit, using a handheld power drill to drill holes at the

marked locations.

2. Fasten the core drill to the surface being drilled using the type and quantity of

anchor bolts to ensure the core drill cannot come loose during operation.

3. Shake and rock the core drill to ensure it is fully secure and there is no play.

4. The core drill is now ready for operation.

Reference image only

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

Operation

1. How to install a bit:

Smear a bit of grease on the thread and tighten the drill bit in place.

2. Attach water supplier to the water inlet:

The core drill must be attached to a water source before use.

3. Material:

When drilling on the reinforced concrete begin by turning on the core drill at a low speed. Let the drill bit cut into

the concrete slowly to prevent overheating or damaging the bit, When drilling reinforced steel the motor speed

will ramp up and you will notice some vibration. Lower the drill at a lower rate in which you would with concrete.

If the drill bit catches or seizes up the safety clutch will activate, if this happens please shut off the tool, remove

the drill bit and clean and debris in the existing hole, please wait for about 3 minutes, let the drill cool down

before restarting the switch to continue drilling, when drilling the wood, thick blacktop and asphalt felt etc, its

current will be increased, so please drill slowly. If the clutch activates continuously, please stop the drill, and

retighten the clutch.

4. Keep the motor ventilated and cool

During operating the ventilated notches of the motor should not be blocked or congested. Failure to keep the

motor ventilated and result in motor burn out or reduced lifespan.

6. Waterless operation forbidden:

Do not use the core drill if there is no water source connected

7. Avoid water contact with the motor:

Keep the enclosure of the motor away from the water. Only use the machine in vertical orientation.

8. Drill vibration:

In the case of excessive vibration, please shut off the tool, inspect the mounting points and the surface it is

mounted to and tighten the mounting bolts accordingly.

9. Speed Adjustment:

When adjusting the speed, the machine must be stopped, the adjust the speed via the adjustment dial, you

cannot adjust the motor speed while the unit is in use.

ATTACHING THE CORE DRILL TO THE WORK SURFACE:

Before drilling any surface:

• Ensure there are no wires or pipes that could be damaged during drilling.

• Ensure work surface attachment point:

• Strong enough to hold the drill securely.

• Select a concrete anchoring bolt:

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

• Suitable for the work surface material.

• Strong enough to withstand the force from the drill during operation.

• Suitable for use with the mounting base of the core drill.

• More than one anchoring bolt can be used if necessary.

• Drill a hole for anchoring bolt(s):

• Use a handheld masonry/hammer drill.

• Hole should be suitable for your anchoring bolt(s).

• Mount the drill to the work surface:

• Use the centre slot on the mounting base of the drill.

• Firmly attach the drill using the selected anchoring bolt(s).

• Tighten levelling bolts (on each corner of the core drill mounting base):

• Ensure the core drill is correctly levelled.

• Ensure the core drill is firmly attached to the work surface and cannot come loose during operation.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

Maintenance

ATTENTION! Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends

on factors such as proximity to the ocean and humidity or condensation of water vapour on metal

surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied

periodically, it will prevent rust from forming.

•

If the drill had any troubles, please send it to an authorized service centre. It is not strictly allowed to

dismantle or replace the parts optionally.

•

Please check the electric brush and commutator periodically, when the brushes are worn by the length of

about 7mm, they must be changed. Use only original ones, otherwise, the commutator may be damaged,

both brushes must be changed at the same time. If you find heavy sparking in running or the commutator are

worn or burned seriously, please check, and repair the commutator or replace a new rotor.

•

The drill should be checked and repaired periodically after used for a long time. Its main items are whether

the electrical wire is good or not, the grounding is reliable or not, the inner wire, switch and plug works well

or not, the insulating resistance of motor is safe or not, the stator and rotor are in short circuit or not, the

bolts are loosened or not, please replace the lubricating oil and wearing parts etc.

•

Replace the rubber sealing washer in time. After using for a long time, if you find the water is coming in the

top of the drill, please check and replace the sealing washer immediately. The gear in the gear case can use

lubricating oil, if you find some lubricating oil penetrate the mid-cover airport, please replace the rubber

sealing oil ring on the rotor spindle. The brand of special lubricating oil is 110# industrial gear oil. It is not

allowed to use common engine oil.

•

Keep the drill clean and dry If not in use, please clean the drill and it should be kept in dry, clean place,

dismantle the drill bit, the main shaft of the drill and the connecting parts of drill thread should be smeared

some grease so as to protect them.

•

Adjust safety clutch (When you find the friction of clutch become too small).

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

Troubleshooting

Problems Possible Reasons Solution

Motor doesn’t run when

connected to power supply.

5. Power supply disconnected.

6. Switch breaker positioned.

7. Brush ill contacting or use up.

8. The winding of stator & rotor

circuit open.

1. Check and connect power supply.

2. Check and repair switch or replace

improperly or ill contacting switch.

3. Replace electric brush.

4. Check or replace stator & rotor

open circuit.

Heavy sparks and ring sparks

occur on commutator of motor.

1. Rotor winding is on short circuit or

open circuit.

2. Brush spring positioned

Improperly or ill contacting.

3. Commutator worn out.

1. Repair or replace rotor.

2. Adjust the spring pressure.

3. Replace a new rotor.

Drill vibrated.

1. The base fixture has loosened.

2. The gap between elevating body

and square rack has enlarged.

3. Elevating body and connecting

bolts has loosened.

1. Reassemble and fix the frame.

2. Adjust the gap.

3. Check bolt.

Drill speed is slow.

1. Drill bit worn.

2. Ceiling pouring quality is bad,

there are grits or chips in gap.

3. Drill vibrated.

4. The nuts on the safety friction.

1. Repair or replace drill bit.

2. Stop the drill, remove the foreign

materials from gap.

3. Adjust and tighten connecting bolt.

4. Tightening nuts clutch loosened.

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

VC-200 Vertical Stand Core Drill

Specifications

Input Power 240V 50Hz AC

Rated Output Power 3000W

Cooling Air cooled

No load speed 1100r/min

Speeds 1 speed

Drilling Size Range 20-200mm

Spindle Thread 1-1/4" UNC

Coring Type Wet/Dry Coring

Construction Material

•

Drill: Copper Motor, Aluminium Chassis, Steel

Forged Output Shaft, Copper Water Inlet

•

Stand: Aluminium Guide Rail, Steel Base

IP Rating IP54

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

BAUMR-AG DRLCREBM20VA 3000W 200mm Core Drill w/ Rig Stand VC-200

Product's Documents

Product manual

Specifications

BAUMR-AG DRLCREBM20VA Questions and Answers
