ELECTRIC HIGH PRESSURE
FUEL PUMPS INSTRUCTIONS
MODEL: HP128, HP121, HP156
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
HP128
HP121
HP156
(The picture is for reference only, please refer to the actual object)
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ELECTRIC HIGH
PRESSURE FUEL PUMPS
- 2 -
Symbol
Symbol Description
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This product is of protection class III.
This product is subject to the provision of European
Directive 2012/19/EC. The symbol showing a wheelie bin
crossed through indicates that the product requires
separate refuse collection in the European Union. This
applies to the product and all accessories marked with this
symbol. Products marked as such may not be discarded
with normal domestic waste, but must be taken to a
collection point for recycling electrical and electronic
devices
SAFETY INFORMATION
1. Repair procedures, tools, and parts to service motor vehicles, and
the experience of the person performing the work make it impossible to
describe all ways or conditions under which motor vehicles are or may
be serviced, or to provide cautionary statements regarding hazards that
may result.
2. Standard and accepted safety precautions and equipment should be
used.when handling toxic or flammable materials. Safety goggles, other
protection,and appropriate clothing (long-sleeve shirt, trousers and safety
shoes) are required.
3. Make sure your work area is well ventilated and not exposed to
heat,electricity, or open flames. No smoking! Clean up spills immediately
and have a Class B or C fire extinguisher readily accessible. Consult
appropriate repair manuals for any required special tools.
4. Not for use in marine or aircraft applications.
- 3 -

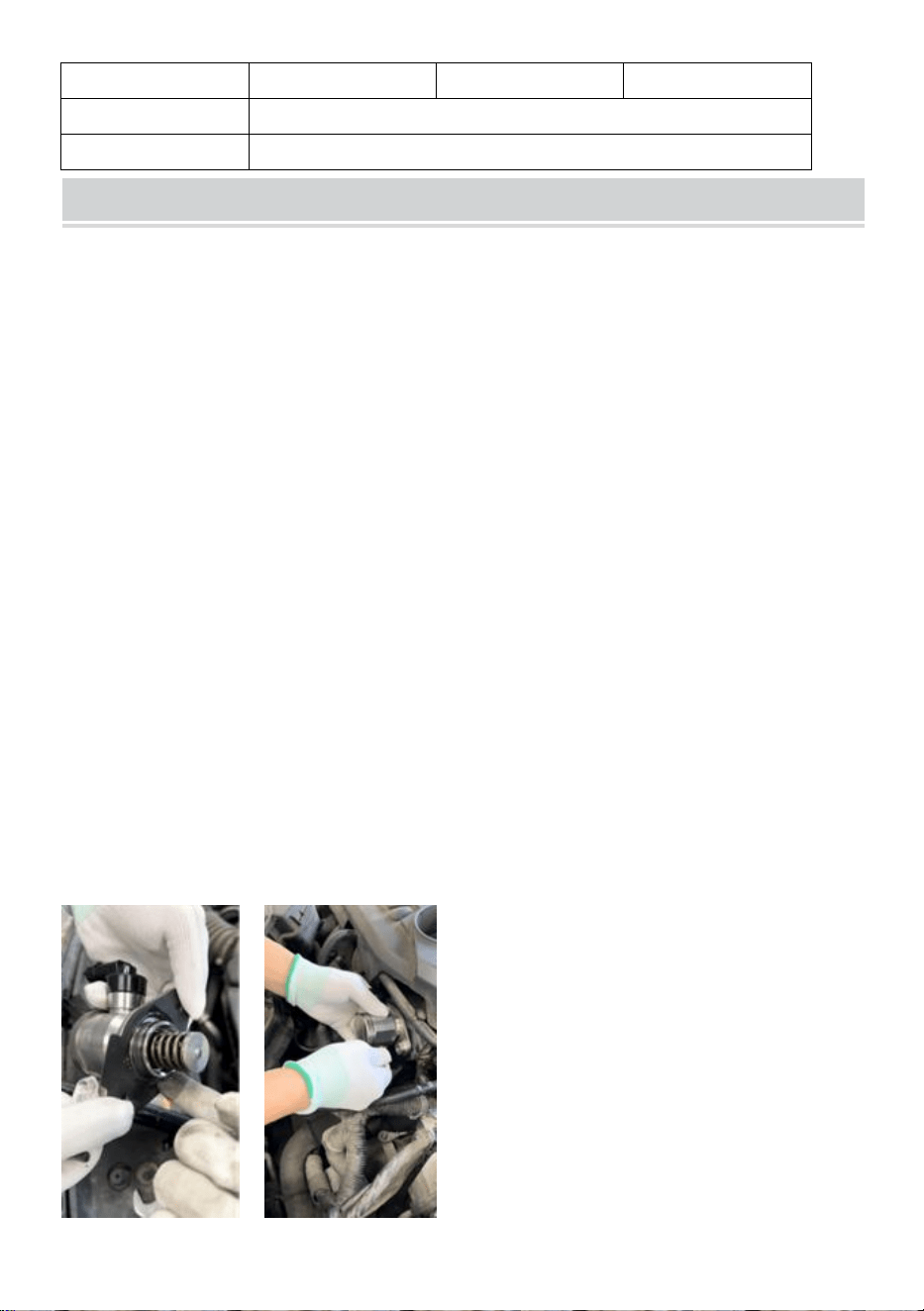

Model
HP128
HP121
HP156
Input
DC12V
Current(Max)
0.8A
INSTRUCTIONS
Installation step of High Pressure Fuel Pump
1.Detect high pressure pump O-ring,and use clean engine oil slightly
wetting insert roller tappet into vacuum pump. Pay attention to align recess
of roller tappet with groove on vacuum pump.
2.Rotate the crankshaft until the roller tappet is at its lowest point Insert the
high pressure pump into the vacuum pump.
3.Cross tighten the fastening bolt by hand,and cross tighten the fastening
bolt with the specified torque of 20N.m. Insert the fuel hose again and fix it
with spring clamps Connect fuel pressure regulator
4.Use engine oil to infiltrate the ball head of the high pressure hose and
install the high pressure hose Tighten the lock nut of the fuel distributor
indicated by the arrow in the drawing with a wrench
5.Fasten the high pressure pipe connector with a wrench and tighten the
live joint nut of the high pressure tube with another wrench.
6.Install high pressure pipe clamps and use 5N.m torque to tighten clamps.
7.Start the engine after installation to observe whether there is oil leakage
on each interface.
Step 1 Step 2
- 4 -

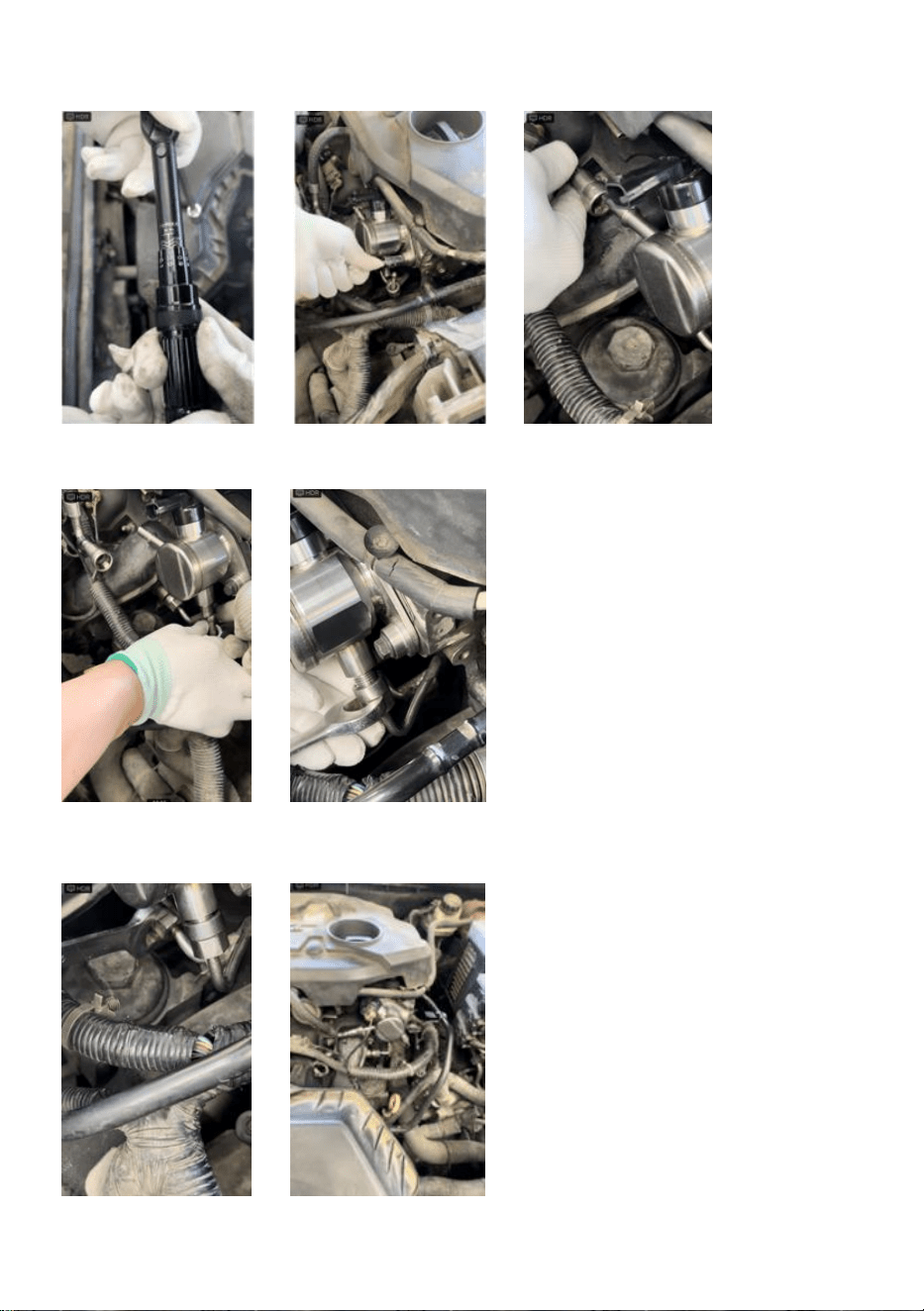

Step 3
Step 4
Step 5 Step 7
- 5 -

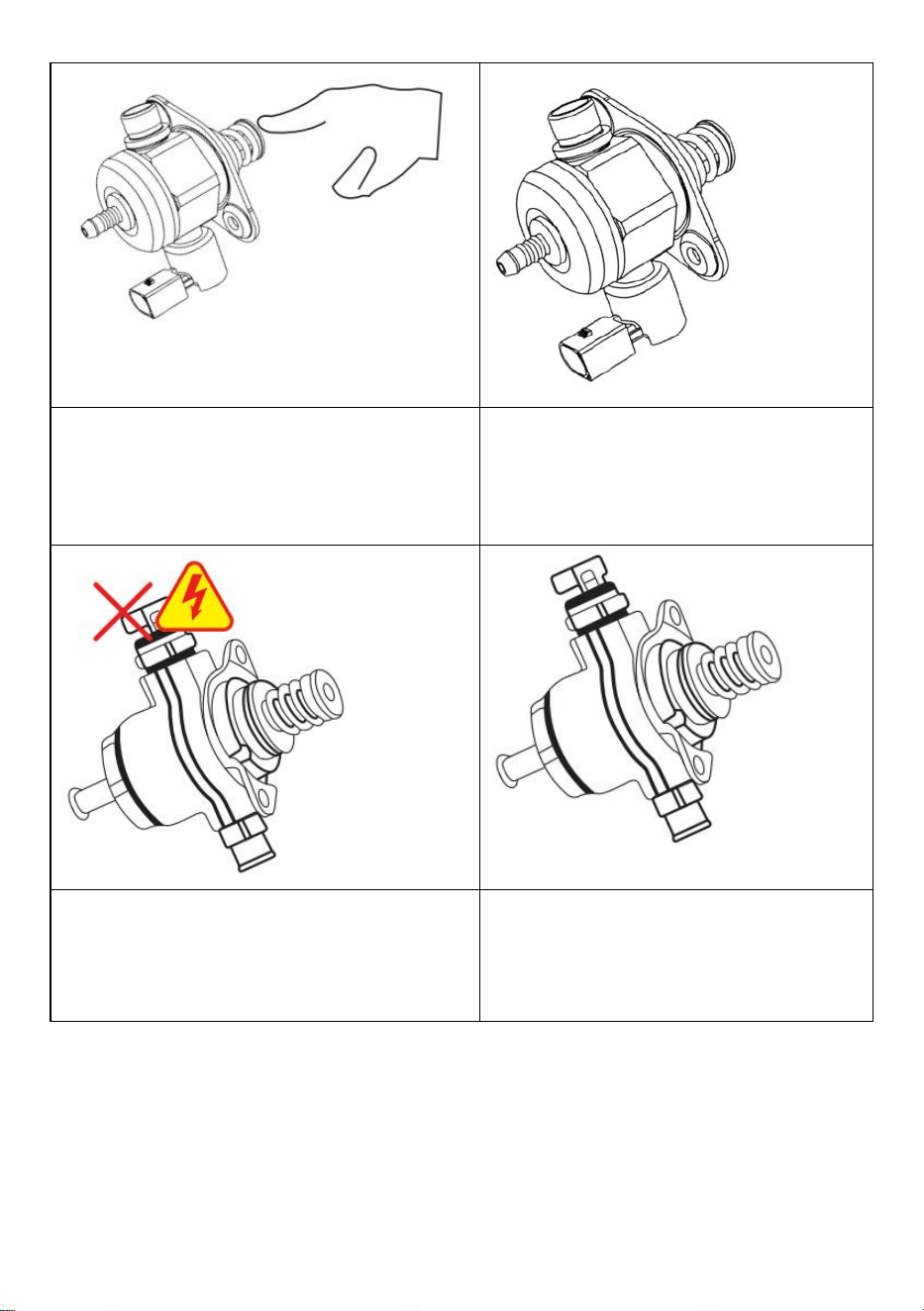

Do not hit the plug, do not grip or
stretch the spring part, which will
cause irreparable damage
Do not open the solenoid valve, do
not turn on the direct current
Do not open the solenoid valve, do
not turn on the direct current
Replace the copper connector
after it has been installed and
removed twice
- 6 -

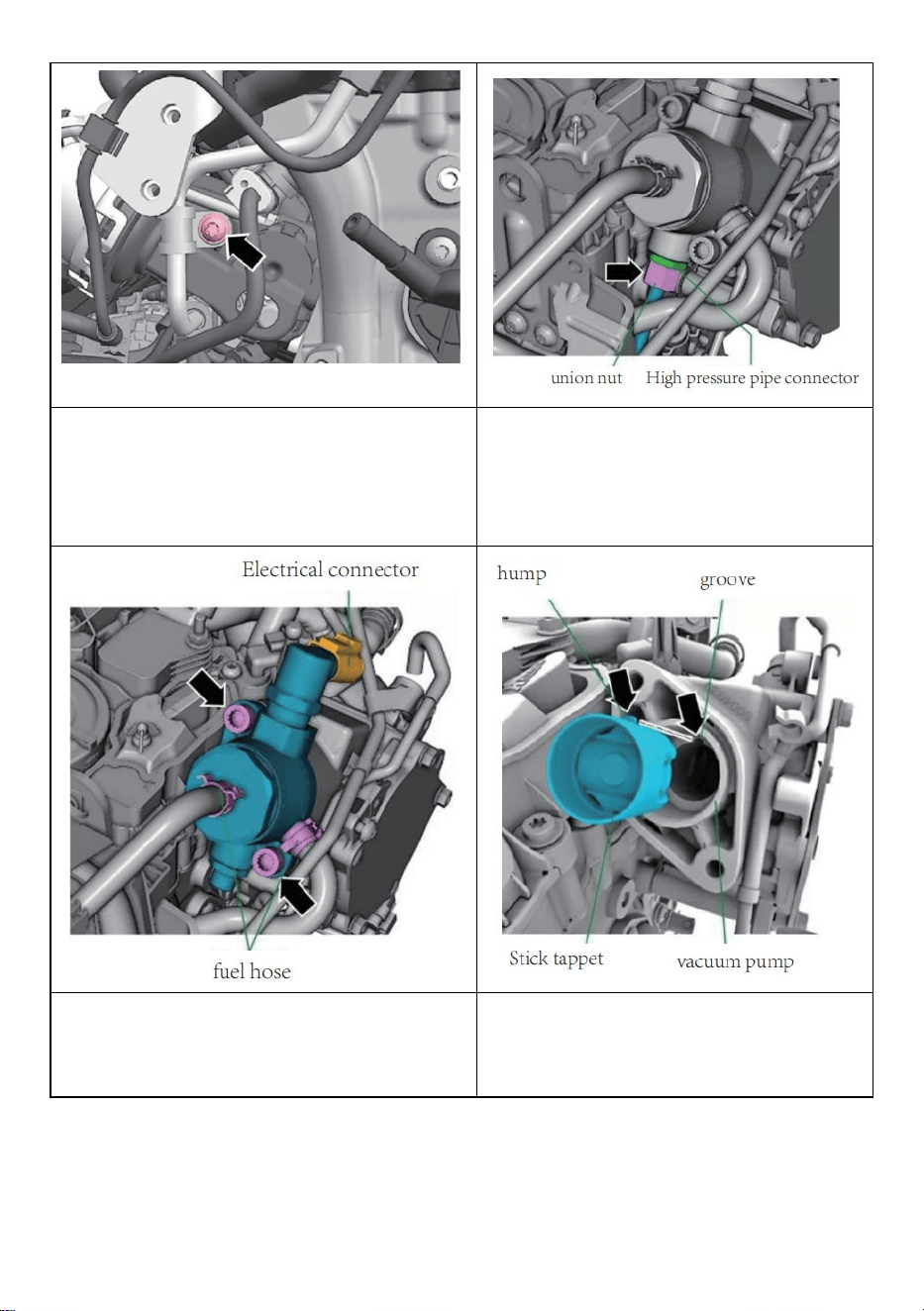

Release the fuel pressure of the high
pressure system before removing the
high pressure oil
pump
The torque to install the clamp
bolts for the high-pressure pipe is
5N.m
Tighten the bolts to a torque of 20N.m
When installing roller tappets,
ensure that no debris enters the
vacuum pump
