SEDONA BY LYNX
TM
SERIES
30" SEDONA BUILT-IN GRILL
WITH 1 PROSEAR INFRARED BURNER AND 1 STAINLESS STEEL BURNER (L501PS)
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
■
Precise power—one ProSear™ Infrared Burner and one stainless steel
burner combining to provide up to 46,000 BTU
■
Dependable performance—direct spark ignition with battery backup
■
Perfect clarity—halogen grill surface light
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Steadfast durability—heavy-duty welded construction eliminates
gaps where grease can collect
■
Ample capacity—733 square inches of cooking surface (508 primary,
225 secondary)
■
Beautiful illumination—blue-lit control knobs
■
Smooth opening—fluid rotation handle
■
Premier platform—stainless steel grilling grates
■
Understated luxury—brushed stainless steel finish on canopy,
bullnose, and drip tray
■
Installation into a combustible enclosure requires an insulated jacket
accessory

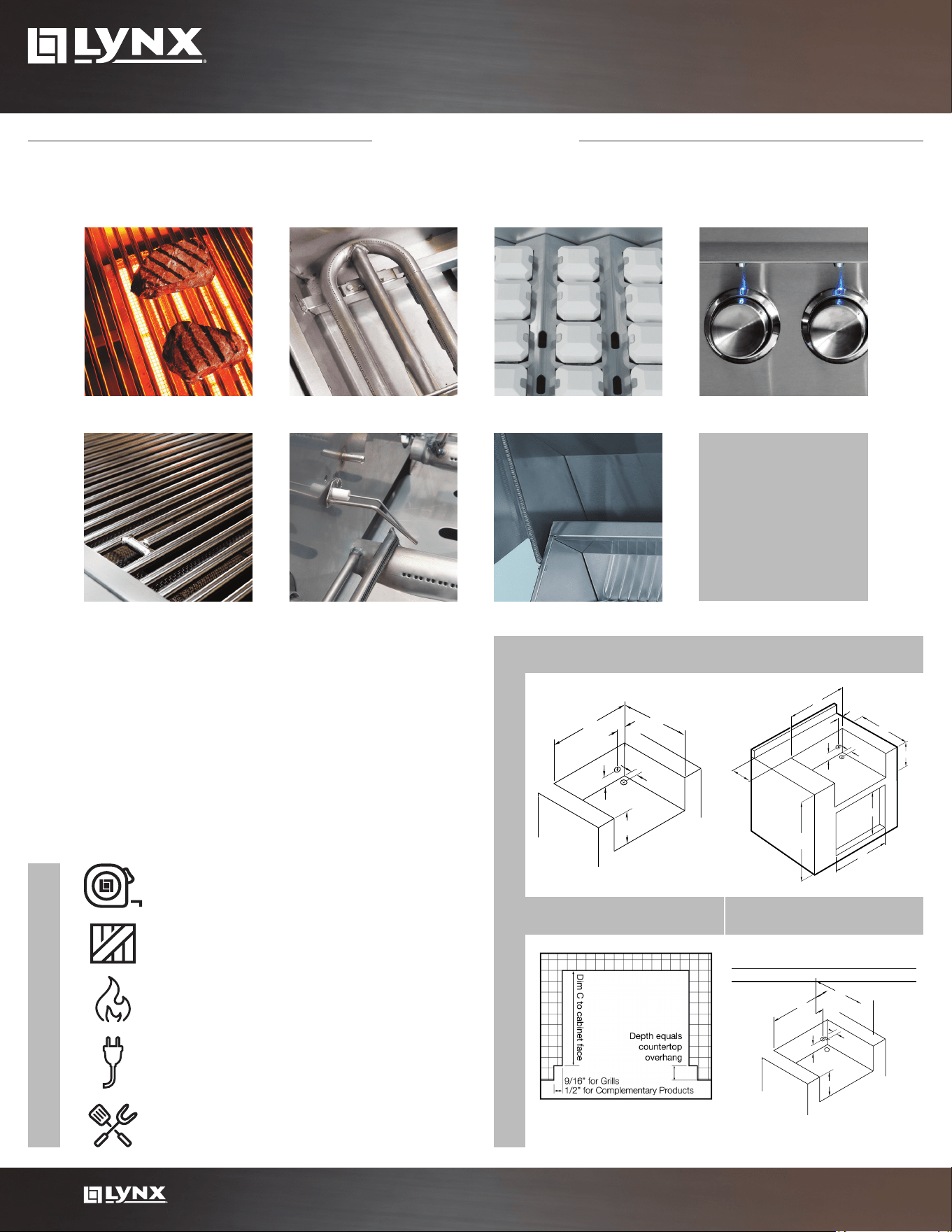

L501PS PRODUCT OVERVIEW
The Sedona by Lynx
TM
Series is always evolving to be the best at something new. That philosophy is reflected in its features.
We’ve refined these features to give you a grilling experience that’s both simple and stunning.
30" SEDONA BUILT-IN GRILL
WITH 1 PROSEAR INFRARED BURNER AND 1 STAINLESS STEEL BURNER (L501PS)
PROSEAR
TM
INFRARED BURNER CERAMIC RADIANT BRIQUETTES
EXPANSIVE GRILLING SURFACE
SPARK IGNITION SYSTEM
LYNX HOOD ASSIST
L501PS PRODUCT FEATURES
STAINLESS STEEL BURNERS INTEGRATED ILLUMINATION
FOR MORE
INFORMATION ON
SEDONA BY LYNX
TM
SERIES
PRODUCT FEATURES,
PLEASE VISIT
LYNXGRILLS.COM
PRODUCT TECHNICAL SPECIFICATIONS
CUT-OUT DIMENSIONS: WIDTH: 29" / HEIGHT: 10" / DEPTH: 21.25"
SHIPPING DIMENSIONS: WIDTH 35" / HEIGHT 33.5" / DEPTH 30"
SHIPPING WEIGHT: 168 POUNDS
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREMENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
COOKING CONFIGURATION: BUILT-IN GRILL WITH 1 PROSEAR INFRARED
BURNER AND 1 STAINLESS STEEL BURNER
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VISIT LYNXGRILLS.COM
Note: Insulating jacket required for all grills installed into a combustible enclosure. For natural gas grills,
Lynx recommends using ¾" gas lines. Side burners may be rotated 90 degrees. See installation manuals for details.
COUNTERTOP NOTCH DETAIL INSULATING JACKET
L501PS ISLAND PREPARATION
PRODUCT SPECIFICATIONS & INSTALLATION
Grill*
Access
Doors
19”
2
1/4
”
3
1/2
”
2”
29”
21
1/4
”
10
3”
min.
28
1/4
”
36
3/8
”
min.
Insulated
Jacket
3
6
”
1
1
5/8
”
3
”
2
3
1/4
”
4
1/2
”
5
”
3”
C
B
Insulating
Jacket
A
5”
4-1/2"
BUILT-IN GRILL WITH INSULATING JACKET
Model A B C
L501PS 29” 10” 21 ¼”
2” round hole must be
located at rear of grill cutout. 120V GFI
outlet must be located within 6’ of the
2” hole.
