Lynx LN24REF 24 Inch Outdoor Refrigerator Door Alarm, Integrated Lock, Adjustable Temperature and Energy Star Certified

Owner Guide - Transcript

• Page 1: MAKE THE MOST OF YOUR CARE amp USEINSTALLATION LN15REF LN24REF LN24REFG OUTDOOR REFRIGERATOR
• Page 2 - English - : CARE AND USEINSTALLATION NOTE CAUTION CONTENTS AND SAFETY INSTRUCTIONS Safety information 2 Unpacking your appliance 3 Warranty registration 3 Installing your appliance 4 Cabinet clearances 4 Leveling the appliance 4 Electrical connection 5 Installing the antitip device 6 Product Dimensions 8 Using your Electronic control 10 Shelving congurations 11 Care and cleaning 13 Long term storage winterization 14 Stainless steel maintenance 15 Energy saving tips 16 Obtaining service 16 Troubleshooting 17 WARNING State of California Proposition 65 Warning This product contains one or more chemicals known to the State of California to cause cancer WARNING State of California Proposition 65 Warning This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm Important Safety Instructions Contents WARNING WARNING  This unit contains R600a Isobutane which is a ammable hydrocarbon It is safe for regular use Do not use sharp objects to expedite defrosting Do not damage refrigerant circuit Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa tions that may occur Common sense caution and care must be exercised when installing maintaining or operat ing this appliance Recognize Safety Symbols Words and Labels WARNING WARNINGYou can be killed or seriously injured if you do not follow these instructions CAUTIONHazards or unsafe practices which could re sult in personal injury or property product damage NOTEImportant information to help assure a problem free installation and operation Warranty 18
• Page 3 - English - : CARE AND USEINSTALLATION NOTE CAUTION UNPACKING YOUR APPLIANCE Warranty Registration Remove Interior Packaging XXXXXXXXXXXXXX XXXXXXXXXXXXXX XXXXXXXXXXX It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at wwwlynxgrillscomsupportregistration The following information will be required when registering your appliance ServiceModel Number Serial Number Date of Purchase Dealers name and address The servicemodel number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top See Figure 1 WARNING EXCESSIVE WEIGHT HAZARD Use two or more people to move product Failure to do so can result in personal injury Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened Remove internal packing materials and any tape holding in ternal components in place The owners manual is shipped inside the product in a plastic bag along with the warranty registration card and other accessory items Important Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condi tion If there is damage the packaging will be needed as proof of damage in transit Afterwards please dispose of all items responsibly Note to Customer This merchandise was carefully packed and thoroughly inspected before leaving our plant Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment Claims for loss or damage sustained in transit must be made to the retailer DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER FILE THE CLAIM WITH THE RETAILER If the appliance was shipped handled or stored in other than an upright position for any period of time allow the ap pliance to sit upright for a period of at least 24 hours before plugging in This will assure oil returns to the compressor Plugging the appliance in immediately may cause damage to internal parts Figure 1 WARNING WARNING Help Prevent Tragedies Child entrapment and suocation are not problems of the past Junked or abandoned refrigerators are still dangerous even if they sit out for quotjust a few hoursquot If you are getting rid of your old refrigerator please follow the instructions below to help prevent acci dents Before you throw away your old refrigerator or freezer Take o the doors or remove the drawers Leave the shelves in place so children may not easily climb inside WARNING WARNING Dispose of the plastic bags which can be a suocation hazard Greenwood MS 38930 R600A
• Page 4 - English - : CARE AND USEINSTALLATION CAUTION Leveling Legs Front Grille Do not obstruct the front grille The openings within the front grille allow air to ow through the condenser heat ex changer Restrictions to this air ow will result in increased energy usage and loss of cooling capacity For this reason it is important this area not be obstructed and the grille openings kept clean Lynx Grills does not recommend the use of a custom made grille as air ow may be restricted See Figure 2 Front Leveling Legs Figure 2 Rear Leveling Legs Front Grille keep this area open INSTALLING YOUR APPLIANCE Select Location The proper location will ensure peak performance of your appliance We recommend a location where the unit will be out of direct sunlight and away from heat sources To ensure your product performs to specifications the recom mended installation location temperature range is from 55 to 100F 13 to 38C Cabinet Clearance Ventilation is required from the bottom front of the appli ance Keep this area open and clear of any obstructions Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstruct ed Adjustable legs at the front and rear corners of the appli ance should be set so the unit is rmly positioned on the oor and level from side to side and front to back The over all height of your Lynx appliance may be adjusted between the minimum 33 4quot 857 cm by turning the leveling leg in CW P and the maximum 34 4quot 883 cm by turning the leveling leg out CCW Q To adjust the leveling legs place the appliance on a solid surface and protect the oor beneath the legs to avoid scratching the oor With the assistance of another person lean the appliance back to access the front leveling legs Raise or lower the legs to the required dimension by turning the legs Repeat this process for the rear by tilting the appli ance forward using caution On a level surface check the appliance for levelness and adjust accordingly The front grille screws may be loosened and the grille ad justed to the desired height When adjustment is complete tighten the two front grille screws See Figure 5
• Page 5 - English - : CARE AND USEINSTALLATION NOTE Figure 6 Electrical Connection Electrical Shock Hazard Do not use an extension cord with this appliance They can be hazardous and can degrade product performance This appliance should not under any circumstanc es be installed to an ungrounded electrical supply Do not remove the grounding prong from the power cord See Figure 3 Do not use an adapter See Figure 4 Do not splash or spray water from a hose on the appliance Doing so may cause an electrical shock which may result in severe injury or death WARNING A grounded 115 volt 15 amp dedicated circuit is required This product is factory equipped with a power supply cord that has a threepronged grounded plug It must be plugged into a mating grounding type receptacle in accor dance with the National Electrical Code and applicable lo cal codes and ordinances see Figure 6 If the circuit does not have a grounding type receptacle it is the responsibility and obligation of the customer to provide the proper power supply The third ground prong should not under any cir cumstances be cut or removed Ground Fault Circuit Interrupters GFCI are prone to nui sance tripping which will cause the appliance to shut down GFCIs are generally not used on circuits with power equip ment that must run unattended for long periods of time un less required to meet local building codes and ordinances Front grille screw Front grille Figure 5 INSTALLING YOUR APPLIANCE Figure 3 Figure 4 Do not remove ground prong
• Page 6 - English - : CARE AND USEINSTALLATION INSTALLING THE ANTI TIP DEVICE CAUTION NOTE Bottom View of Refrigerator AntiTip Bracket Leveling Leg Front of cabinet 2quot 546 cm Figure 7 The antitip bracket is to be located on the oor in the left or right rear corner of the refrigerator as shown in Figure 7 for locating the position of the bracket 1 Decide where you want to place the refrigerator Slide it into place being careful not to damage the floor leaving 1quot 25 cm of clearance from the rear wall to allow room for the antitip bracket 2 Raise the rear leveling legs approximately 14quot 6 mm to allow engagement with the antitip bracket Level the unit by adjusting all the leveling legs as required Turning the leveling leg counterclockwise will raise the unit and clock wise will lower the unit 3 Make sure the refrigerator is in the desired location then mark on the floor the rear and side corner of the cabinet where the antitip bracket will be installed If the installation does not allow marking the rear corner of the cabinet then make temporary lines on the floor marking the front corner of the cabinet excluding the door Slide the refrigerator out of the way From the temporary line extend the sidewall line back 21 2quot 546 cm as shown in Figure 8 4 Align the antitip bracket to the marks on the floor so the side of the bracket lines up with the side of the cabinet mark and the quotVquot notches on the antitip bracket line up with the end of the 21 2quot 546 cm line Rear of cabinet line 5 Fasten the antitip bracket to the floor using the supplied screw See Figure 8 6 Slide the cabinet back into position making sure the rear cabinet leveling leg slides under the antitip bracket engag ing the slot WARNING ALL APPLIANCES CAN TIP RESULTING IN INJURY INSTALL THE ANTITIP BRACKET PACKED WITH THE APPLIANCE FOLLOW THE INSTRUC TIONS BELOW Any nished ooring should be protected with appropriate material to avoid damage when moving the unit If installing on a concrete oor concrete fasteners are required not included with the antitip kit WARNING If your refrigerator is not located under a counter top free standing you must use an antitip device installed as per these instructions If the refrigerator is removed from its location for any reason make sure that the device is properly engaged with the antitip bracket when you push the refrigerator back into the original location If the device is not properly engaged there is a risk of the refrigerator tipping over with the potential for property damage or personal injury AntiTip Device Floor Mount Installation Step by Step Instructions
• Page 7 - English - : CARE AND USEINSTALLATION INSTALLING THE ANTI TIP DEVICE 2quot 546 cm quotVquot notches in bracket quotVquot notches in bracket Side of cabinet line Figure 8 Front of cabinet line Rear of cabinet line Rear Leveling leg Screw Figure 8a NOTE When the oor mounted antitip bracket is used the mini mum adjusted height of the cabinet is increased by 8quot 9 mm
• Page 8 - English - : CARE AND USEINSTALLATION MODEL ROUGHIN OPENING DIMENSIONS CABINET DIMENSIONS quotAquot quotBquot quotCquot quotDquot quotEquot quotFquot quotGquot quotHquot quotJquot LN15REF 15quot 381 cm 34quot to 35quot 864 to 889 cm 8quot 378 cm 4quot to 34 4quot 857 to 883 cm 32quot 602 cm 4quot 679 cm 32quot 95 cm 4quot 451 cm LN24REF LN24REFG 24quot 61 cm 34quot to 35quot 864 to 889 cm 8quot 607 cm 4quot to 34 4quot 857 to 883 cm 32quot 602 cm 4quot 679 cm 32quot 1179 cm 4quot 679 cm quotAquot quotBquot quotCquot quotDquot quotEquot If necessary to gain clearance inside the roughin opening a hole can be cut through the adjacent cabi net and the power cord routed through this hole to a power outlet Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug Not all recessed outlet boxes will work for this applica tion as they are too narrow but a recessed outlet box equivalent to Arlington DVFR1W is recommended for this application see Figure 10 PRODUCT DIMENSIONS Figure 9 Figure 9a Figure 10
• Page 9 - English - : CARE AND USEINSTALLATION quotFquot 2quot 546 cm Depth dimension of roughin opening may vary depend ing on each individual installation To recess entire door quotFquot dimension plus 1quot 25 cm for thickness of power cord plug is required Minimum roughin opening required is to be larger than the adjusted height of the cabinet A grounded 15 amp dedicated circuit is required Follow all local building codes when installing electrical and appli ance MODEL PRODUCT DATA ELECTRICAL REQUIREMENTS PRODUCT WEIGHT LN15REF 115V60Hz15A 105 lbs 477 kg LN24REF LN24REFG 115V60Hz15A 140 lbs 636 kg quotDquot quotEquot quotHquot quotJquot quotGquot PRODUCT DIMENSIONS Figure 11 WARNING Floor mount Antitip Bracket must be installed for freestand ing applications Not required for built in applications
• Page 10 - English - : CARE AND USEINSTALLATION USING YOUR ELECTRONIC CONTROL Control Function Guide Figure 13 Electronic control Function Command Notes ONOFF Press and hold for 5 seconds Unit will immediately turn ON or OFF Leave Interior Light On Press and release to leave interior light on for 3 hours press again to deactivate After 12 hours factory default is restored light will turn on when door is open Adjust Temperature Press or and release When the display is ashing press or to adjust the set point temperature Note temperature displayed is the actual temperature inside unit Toggle Between o F o C Hold and for 5 seconds The display will change units Enable Sabbath Mode Press and hold for 5 seconds and release The o F o C symbol will ash briey after 5 seconds Interior light and display will go dark and remain so until user resets mode unit continues to operate Disable Sabbath Mode Press hold for 5 seconds and release Display and interior light return to normal operation Showroom Mode Hold and for 5 seconds Display will show for 2 seconds Interior light and display will function normally but the compressor and fans will not be energized Repeat command to return to normal operation Display will show for 2 seconds NOTE Temperature displayed reects actual temperature inside unit If the temperature displayed is dierent than selected the unit is progressing towards the selected temperature Time to reach set point varies based upon ambient temperature temperature of product loaded door openings etc Lynx Grills recommends allowing the unit to reach set points before loading

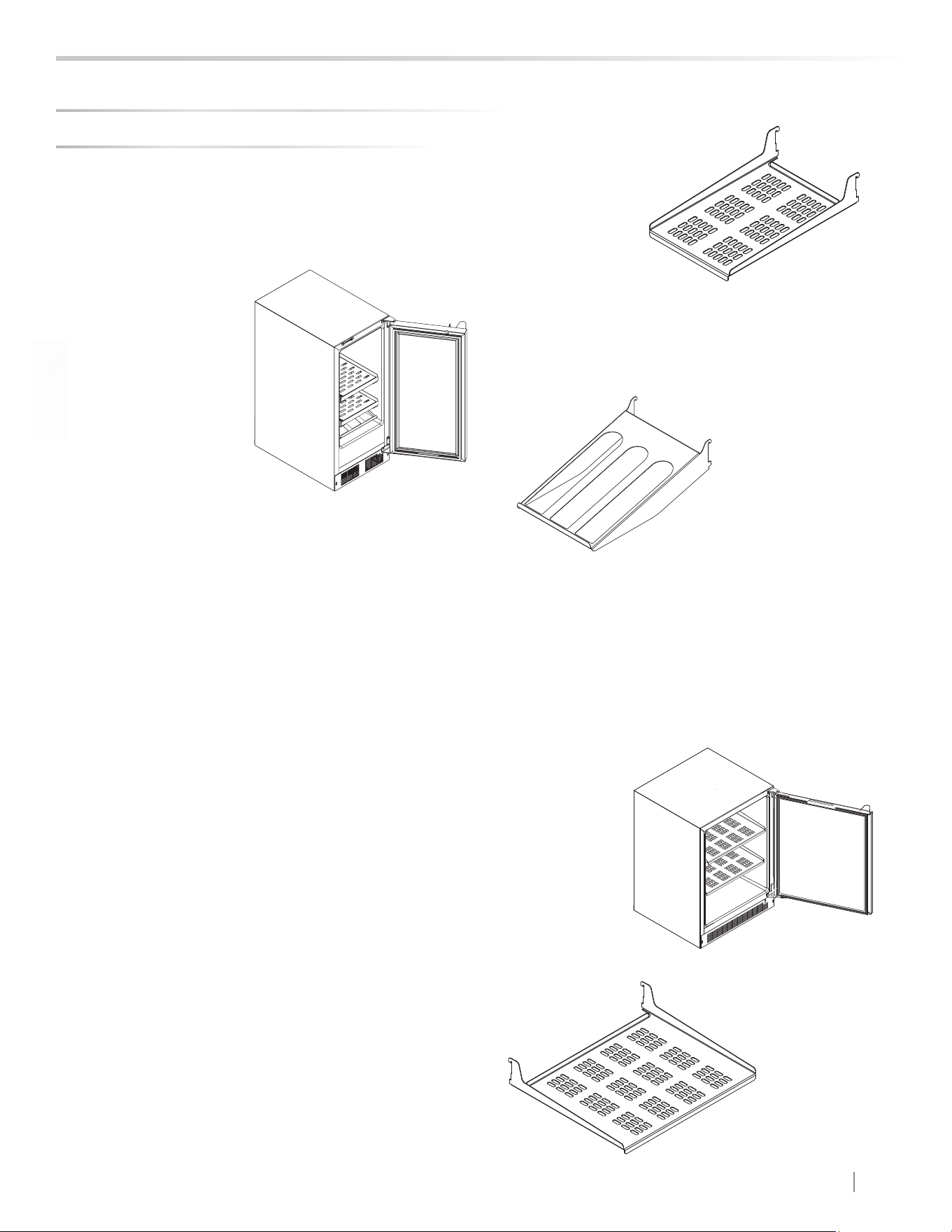

• Page 11 - English - : CARE AND USEINSTALLATION Figure17 SHELVING CONFIGURATIONS Refrigerator 2 perforated metal cantilever shelves See Figure 18 24quot 61 cm Wide Models With a solid or glass door Figure 17 Figure 15 perforated metal shelf Figure 18 Perforated metal shelf Figure 14 Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below 15quot 381 cm Wide Models LWKa solid door Figure 14 2 perforated stainlesssteel slide out shelves See Figure 15 1 3 bottle wine shelf see Figure 16 Loading Tips and Suggestions Figure 16 Wine shelf 3 bottle
• Page 12 - English - : CARE AND USEINSTALLATION Remove stored product from the shelf Do not try to remove a loaded shelf from the appliance Grasp the shelf front with both hands rotate the front upward and lift out See Figure 19 To install a shelf insert the shelf in the appliance and insert the top hooks into the shelf support slots and drop the shelf down so the hooks drop over the bottom of the slots Rear tang hook on shelf Shelf support slot Installed shelf tang Make sure your cantilever shelf is secure on the shelf sup ports by pressing down on the shelf before loading CAUTION Grasp the shelf by the front with both hands and rotate the front of the shelf up then lift the shelf up and remove the shelf from the shelf ladders CAUTION Never try to move a loaded shelf remove everything from the shelf before moving Use both hands when moving the shelf SHELVING CONFIGURATIONS Figure 19a Figure 19 To Add or Remove a Shelf
• Page 13 - English - : CARE AND USEINSTALLATION CARE AND CLEANING CAUTION Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected Turning the appliance control quotOFFquot does not remove electrical power from the units wiring Replace all parts and panels before operating WARNING Electrocution Hazard Front Grille Cabinet Interior Care of Appliance In the Event of a Power Failure Light Assembly Replacement Be sure that nothing obstructs the required air ow open ings in front of the cabinet At least once or twice a year brush or vacuum lint and dirt from the front grille area see page 4 SHOCK HAZARD Disconnect electrical power from the appliance before cleaning with soap and water The stainless steel cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water See quotStainless Steel Maintenancequot on page 15 Wash interior compartment with mild soap and water Do NOT use an abrasive cleaner solvent polish cleaner or undiluted detergent 1 Avoid leaning on the door you may bend the door hinges or tip the appliance 2 Exercise caution when sweeping vacuuming or mop ping near the front of the appliance Damage to the grille can occur 3 Periodically clean the interior of the appliance as needed If a power failure occurs try to correct it as soon as pos sible Minimize the number of door openings while the power is o so as not to adversely aect the appliances temperature All models use LED lamps to illuminate the interior of the appliance This component is very reliable but should one fail contact a qualied service technician for replacement of the LED
• Page 14 - English - : CARE AND USEINSTALLATION CARE AND CLEANING 1 Time to Winterize when the daily low ambient tempera ture is at or below 38F 33C CAUTION Operation of the unit at ambient temperatures below the recommended Winterization temperature will void your war ranty 2 Turn unit o see page 10 3 Remove all contents 4 If necessary move the unit so you can gain access to the rear of the product 5 Unplug the unit from the power outlet 6 It is also recommended that the power to the outlet be turnedo if the circuit is not required for other items during the Winter season 7 When cleaning unit pay particular attention to any cracks and crevices that may have accumulated dirt and debris 8 Remove the front toegrille see Figure 20 and use a brush and vacuum to clean dirt and debris from be neath the unit 9 Thoroughly clean the toegrille and reinstall on the unit See Figure 20 10 Remove the rear access cover see Figure 21 and use a brush and vacuum to clean dirt and debris from the machine compartment 11 Thoroughly clean the rear access cover and reinstall on the unit 12 Wipe down all interior surfaces with antibacterial cleaner to be followed with clean rinse water to remove any residual chemicals which could cause staining Do not use any abrasive cleaners or scouring pads 13 Leave the door open and allow to completely dry out before closing the door 14 Thoroughly clean the door gasket with antibacterial cleaner to be followed with clean rinse water to remove any residual chemicals 15 Thoroughly clean the exterior with a cleaner approved for stainless steel Do not use any abrasive cleaners or scouring pads See quotStainless Steel Maintenancequot on page 15 16 Any mounting hardware fasteners that are showing signs of corrosion should be replaced 17 Once the exterior has been thoroughly cleaned you may want to apply a coating of car wax to help protect against spotting from moisture dirt and debris that may accumulate on the surfaces during the Winteriza tion period If the plastic defrost drain pan located under the compressor contains water use a sponge to remove as much water as possible 1 If stored outside it is recommended that the unit again be thoroughly inspected per the storage instructions above to address any dirt or debris from the weather andor animalsinsects 2 Connect the unit to electrical power 3 Turn unit on and conrm your desired control settings 4 Allow 24hrs for the unit to stabilize before loading contents Figure 20 Grille Spacer Clean out behind grille Figure 21 Soak up water from plastic drain pan if necessary Clean out debris Remove screws around perimeter of access cover 18 Do not place a cover on the unit as this can trap con densation After completion of the above you may choose to store the unit indoors although this is not required Remove screw from each end of grille Access cover Long Term StorageWinterization Startup after Long Term Storage
• Page 15 - English - : CARE AND USEINSTALLATION STAINLESS STEEL MAINTENANCE NOTE Background Care and Cleaning Choosing a Cleaning Product Stainless steel does not stain corrode or rust as easily as ordinary steel but it is not stain or corrosion proof Stain less steels can discolor or corrode if not maintained prop erly Stainless steels dier from ordinary carbon steels by the amount of chromium present It is this chromium that provides an invisible protective lm on the surface called chromeoxide This protective chromeoxide lm on the surface can be damaged or contaminated which may result in discoloration staining or corrosion of the base metal Routine cleaning of the stainless steel surfaces will serve to greatly extend the life of your product by removing contami nants This is especially important in coastal areas which can expose the stainless to severe contaminants such as halide salts sodium chloride It is strongly recommended to periodically inspect and thor oughly clean crevices weld points under gaskets rivets bolt heads and any locations where small amounts of liquid could collect become stagnant and concentrate contami nates Additionally any mounting hardware that is showing signs of corrosion should be replaced Frequency of cleaning will depend upon the installation location environmental and usage conditions The choice of a proper cleaning product is ultimately that of the consumer and there are many products from which to choose Depending upon the type of cleaning and the degree of contamination some products are better than others Typically the most eective and ecient means for routine cleaning of most stainless steel products is to give the sur faces a brisk rubbing with a soft cloth soaked in warm water and a gentle detergent or mild mixture of ammonia Rub bing should to the extent possible follow the polish lines of the steel and always insure thorough rinsing after cleaning Although some products are called quotstainless steel clean ersquot some may contain abrasives which could scratch the surface compromising the protective chromeoxide lm and some many contain chlorine bleach which will dull tarnish or discolor the surface if not completely removed After the stainless surfaces have been thoroughly cleaned a good quality car wax may be applied to help maintain the nish Stainless steel products should never be installed or stored in close proximity to chlorine chemicals Whichever cleaning product you chose it should be used in strict accordance with the instructions of the cleaner manufacturer
• Page 16 - English - : CARE AND USEINSTALLATION ENERGY SAVING TIPS AND OBTAINING SERVICE If Service is Required If the product is within the rst year warranty period please contact your dealer or call Lynx Grills Customer Service at 8882895969 for directions on how to obtain warranty coverage in your area If the product is outside the twoyear warranty period Lynx Grills Customer Service can provide recommen dations of service centers in your area In all correspondence regarding service be sure to give the servicemodel number serial number and proof of purchase Try to have information or description of nature of the problem how long the appliance has been running the room temperature and any additional information that may be helpful in quickly solving the problem Table quotAquot is provided for recording pertinent information regarding your product for future reference For Your Records Date of Purchase Dealers name Dealers Address Dealers City Dealers State Dealers Zip Code Appliance Serial Number Appliance ServiceModel Number Date Warranty Card Sent Must be within 10 days of purchase Table A The following suggestions will minimize the cost of operating your refrigeration appliance 1 Do not install your appliance next to a hot appliance cooker dishwasher etc heating air duct or other heat sources 2 Install product out of direct sunlight 3 Ensure the front grille vents at front of appliance be neath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat 4 Plug your appliance into a dedicated power circuit Not shared with other appliances 5 When initially loading your new product or whenever large quantities of warm contents are placed within refrigerated storage compartment minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature 6 Maintaining a relatively full storage compartment will require less appliance run time than an empty compart ment 7 Ensure door closing is not obstructed by contents stored in your appliance 8 Allow hot items to reach room temperature before plac ing in product 9 Minimize door openings and duration of door openings 10 Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents 11 When on vacation or away from home for extended pe riods set the appliance to warmest acceptable tem perature for the stored contents 12 Set the control to the o position if cleaning the appliance requires the door to be open for an extended period of time Energy Saving Tips
• Page 17 - English - : CARE AND USEINSTALLATION Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected Turning the appliance control quotOFFquot does not remove electrical power from the units wiring Replace all parts and panels before operating WARNING Electrocution Hazard Before You Call for Service If the appliance appears to be malfunctioning read through this manual rst If the problem persists check the trouble shooting guide below Locate the problem in the guide and refer to the cause and its remedy before calling for service The problem may be something very simple that can be solved without a service call However it may be required to contact your dealer or a qualied service technician TROUBLESHOOTING Problem Possible Cause Remedy Appliance not cold enough See Adjusting the temperaturequot on page 10 Control set too warm Content temperature not stabi lized Excessive usage or prolonged door openings Airow to front grille blocked Door gasket not sealing properly Adjust temperature colder Al low 24 hours for temperature to stabilize Allow temperature to stabilize for at least 24 hours Airow must not be obstructed to front grille See clearances on page 4 Replace door gasket Appliance too cold See Adjusting the Temperature on page 10 Control set too cold Door gasket not sealing properly Adjust temperature warmer Allow 24 hours for temperature to stabilize Replace door gasket No interior light Failed LED light assembly or light switch Contact a qualied service techni cian Light will not go out when door is closed Display light is turned on Glass door models only Door not activating light switch Failed light switch Turn o display light shut door Appliance not level level appli ance See page 4 leveling legs Contact a qualied service techni cian Noise or Vibration Appliance not level Fan hitting tube obstruction Level appliance see Leveling Legs on page 4 Contact a qualied service techni cian Appliance will not run Appliance turned o Power cord not plugged in No power at outlet Turn appliance on See Starting your appliance on page 10 Plug in power cord Check house circuit CAUTION In the unlikely event you lose cooling in your unit do not unplug the product from the electric supply but do call a qualied service technician immediately It is possible that the loss of cooling capacity is a result of excessive frost buildup on the evaporator cooling coil In this case removing power to the unit will result in the melting of this excessive quantity of ice which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home The enduser will be ultimately responsible for any water damage caused by prematurely turning the unit o without appropriately managing the excess water runo
• Page 18 - English - : HOUSEHOLD PRODUCT WARRANTY UNDERCOUNTER REFRIGERATOR BEVERAGE CENTER WARRANTY ONE YEAR FULL WARRANTY Undercounter refrigerators Beverage Centers and all of their component parts except as detailed below are warranted to be free from defective materials or workmanship in normal residential use for a period of one 1 year from the date of original retail purchase Lynx warrantor agrees to repair or replace at its option any part which fails or is found to be defective during the warranty period FULL NINETY 90 DAY COSMETIC WARRANTY Product is warranted to be free from cosmetic defects in materials or workmanship such as scratches on stainless steel paintporcelain blemishes etc for a period of ninety 90 days from the date of original retail purchase or closing date for new construction whichever period is longer Any defects must be reported to the selling dealer within ninety 90 days from date of original retail purchase Lynx uses high quality processes and materials available to produce all color finishes However slight color variation may be noticed because of the inherent differences in painted parts and porcelain parts as well as differences in kitchen lighting product locations and other factors Therefore this warranty does not apply to color variation attributable to such factors FULL NINETY 90 DAY WARRANTY IN RESIDENTIAL PLUS APPLICATIONS Lynx products are designed and certified for residential use only They are not intended for use in commercial applications Lynx products should only be used in accordance to national and local codes Lynx is not responsible for property damage or injury resulting from use in a commercial application To support the manufacturing quality of its appliances Lynx will provide a full 90 day warranty for products used in Residential Plus applications This Residential Plus warranty applies to applications where use of the product extends beyond residential use but is in compliance with national and local code In some jurisdictions these applications are zoned as residential Examples of but not limited to such applications covered by this warranty are bed and breakfasts fire stations private clubs churches condominium apartment common areas etc Under this quotResidential Plusquot warranty the product its components and accessories are warranted to be free from defective material or workmanship for a period of ninety 90 days from the date of original retail purchase Lynx warranter agrees to repair or replace at its option any part which fails or is found to be defective during the warranty period This warranty covers parts and labor This warranty excludes use of the product in all commercial locations such as restaurants food service locations and institutional food service locations TWO YEAR LIMITED WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED Any sealed refrigeration system component as listed below which fails due to defective materials or workmanship in normal household use during the second year from the date of original retail purchase will be repaired or replaced free of charge for the part itself with the owner paying all other costs including labor Sealed Refrigeration System Components Compressor Evaporator Condenser Connecting Tubing DryerStrainer WARRANTY TERMS This warranty extends to the original retail purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the original purchasers warranty The warranty is transferable by the original retail purchaser via home sale only If a transferee owner is unable to provide proof of purchase from the original purchaser and the product has not been previously registered the production date of the product located in the serial number of the product will serve as the effective warranty start date The activation date of the warranty begins from the date of original retail purchase In the case of new product purchase via building development sales activation begins from the earlier date of either certificate of occupancy or 24 months from date of manufacture Note date of manufacture is identified by serial tag on product This warranty does not cover units purchased as bstock liquidation salvage seconds refurbished asis used products This warranty shall apply to products purchased in the United States and Canada Products must be purchased in the country where service is requested Warranty service must be performed by a Lynx authorized service agency or representative Warranty shall not apply to damage resulting from abuse accident natural disaster loss of electrical power to the product for any reason alteration improper installation improper operation or repair service of the product by anyone other than a Lynx authorized service agency or representative This warranty does not apply to commercial usage Warrantor is not responsible for consequential or incidental damage whether arising out of breach of warranty breach of contract or otherwise Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages if so the above limitations do not apply to you Owner shall be responsible for proper installation providing normal care and maintenance providing proof of purchase upon request and making the product reasonably accessible for service If the product or one of its component parts contains a defect or malfunction during the warranty period after a reasonable number of attempts by the warrantor to remedy the defects or malfunctions the owner is entitled to either a refund or replacement at the warrantors discretion of the product or its component part or parts Warrantors liability on any claim of any kind with respect to the goods or services covered hereunder shall in no case exceed the price of the goods or service or part thereof which gives rise to the claim WARRANTY SERVICE Under the terms of this warranty service must be performed by a Lynx authorized service agent or representative Service will be provided during normal business hours Labor performed at overtime or premium rates shall not be covered by the warranty To obtain warranty service contact Lynx Customer Care at 18882895969 Please have model number serial number and date of original purchase available when calling IMPORTANT Retain proof of original purchase to establish warranty period The return of the owner registration card is not a condition of warranty coverage You should however return the owner registration card so Lynx can contact you should any question of safety arise which could affect you Any implied warranties of merchantability and fitness applicable to the above described and stainless steel parts are limited in duration to the period of coverage of the applicable express written limited warranties set forth above Some jurisdictions do not allow limitations on how long an implied warranty lasts if so the above limitations may not apply to you This warranty gives you specific legal rights and you may also have other rights which may vary from jurisdiction to jurisdiction Specifications subject to change without notice WARRANTY
• Page 20 - English - : All specications and product designs subject to change without notice Such revisions do not entitle the buyer to corresponding changes improvements additions replacements or compensation for previously purchased products 41016154 Rev A 10192023 The best outdoor kitchen products come from Lynx Grills 62201 Highway 82 West Greenwood MS 38930 Service 8882895969 wwwlynxgrillscom
