Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
59489
20 LB.
PRESSURIZED ABRASIVE
BLASTER
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 23g
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. 59489
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 6
Setup .......................................................... 7
Operation ................................................... 12
Maintenance .............................................. 14
Parts Lists and Diagram ............................ 15
Warranty .................................................... 16
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS
WARNING – When using tools, basic precautions should always be followed, including the following:
General
To reduce the risks of electric shock, fire, and injury to persons,
read all the instructions before using the tool.
Work Area
1. Keep the work area clean and well lighted.
Cluttered benches and dark areas increase the
risks of electric shock, fire, and injury to persons.
2. Do not operate the tool in explosive
atmospheres, such as in the presence
of flammable liquids, gases, or dust.
The tool is able to create sparks resulting
in the ignition of the dust or fumes.
3. Keep bystanders, children, and visitors away
while operating the tool. Distractions are
able to result in the loss of control of the tool.
SAFETY OPERATION MAINTENANCESETUP
Page 3For technical questions, please call 1-888-866-5797.59489
Personal Safety
1. Stay alert. Watch what you are doing and
use common sense when operating the tool.
Do not use the tool while tired or under the
influence of drugs, alcohol, or medication.
A moment of inattention while operating the
tool increases the risk of injury to persons.
2. Dress properly. Do not wear loose
clothing or jewelry. Contain long hair.
Keep hair, clothing, and gloves away from
moving parts. Loose clothes, jewelry, or long
hair increases the risk of injury to persons as
a result of being caught in moving parts.
3. Avoid unintentional starting. Be sure the switch
is off before connecting to the air supply.
Do not carry the tool with your finger on the switch or
connect the tool to the air supply with the switch on.
4. Do not overreach.
Keep proper footing and balance at all times.
Proper footing and balance enables better
control of the tool in unexpected situations.
5. Use safety equipment.
A dust mask, non-skid safety shoes
and a hard hat must be used for the
applicable conditions.
6. Always wear eye protection.
Wear ANSI-approved safety goggles.
7. Always wear hearing protection
when using the tool.
Prolonged exposure to high intensity
noise is able to cause hearing loss.
8. Wear heavy-duty work gloves during use.
Tool Use and Care
1. Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against the body is
unstable and is able to lead to loss of control.
2. Do not force the tool. Use the correct tool for the
application. The correct tool will do the job better
and safer at the rate for which the tool is designed.
3. Do not use the tool if the switch does
not turn the tool on or off. Any tool that
cannot be controlled with the switch is
dangerous and must be repaired.
4. Disconnect the tool from the air source
before making any adjustments, changing
accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the
tool unintentionally. Turn off and detach the air
supply, safely discharge any residual air pressure,
and release the throttle and/or turn the switch to
its off position before leaving the work area.
5. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the hands of untrained users.
6. Maintain the tool with care. Keep a cutting
tool sharp and clean. A properly maintained
tool, with sharp cutting edges reduces the
risk of binding and is easier to control.
7. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that affects the tool's operation. If damaged,
have the tool serviced before using. Many accidents
are caused by poorly maintained tools.
There is a risk of bursting if the tool is damaged.
8. Use only accessories that are identified by the
manufacturer for the specific tool model. Use of
an accessory not intended for use with the specific
tool model, increases the risk of injury to persons.
Service
1. Tool service must be performed only
by qualified repair personnel.
2. When servicing a tool, use only identical
replacement parts. Use only authorized parts.
3. Use only the lubricants supplied with the tool or
specified by the manufacturer.
Do not use any lubricants with this tool.
SAFETYOPERATIONMAINTENANCE SETUP
Page 4 For technical questions, please call 1-888-866-5797. 59489
Air Source
1. Never connect to an air source that
is capable of exceeding 200 psi.
Over pressurizing the tool may cause
bursting, abnormal operation,
breakage of the tool or serious injury
to persons. Use only clean, dry, regulated
compressed air at the rated pressure or within the
rated pressure range as marked on the tool. Always
verify prior to using the tool that the air source has
been adjusted to the rated air pressure or within the
rated air-pressure range.
2. Never use oxygen, carbon dioxide, combustible
gases or any bottled gas as an air source
for the tool. Such gases are capable of
explosion and serious injury to persons.
SAVE THESE INSTRUCTIONS.
Symbols and Specific Safety Instructions
Symbol Definitions
Symbol Property or statement
PSI
Pounds per square inch of pressure
CFM
Cubic Feet per Minute flow
SCFM
Cubic Feet per Minute flow
at standard conditions
NPT
National pipe thread, tapered
NPS
National pipe thread, straight
Symbol Property or statement
WARNING marking
concerning Risk of Eye Injury.
Wear ANSI-approved eye protection.
WARNING marking concerning Risk of
Hearing Loss. Wear hearing protection.
WARNING marking concerning
Risk of Respiratory Injury. Wear
NIOSH-approved dust mask/respirator.
WARNING marking concerning
Risk of Explosion.
Specific Safety Instructions
1. The warnings and precautions discussed in this
manual cannot cover all possible conditions and
situations that may occur. It must be understood
by the operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the operator.
2. Only use with accessories rated to handle the
forces exerted by this tool during operation.
Other accessories not designed for the forces
generated may break and forcefully launch pieces.
3. Attach all accessories properly to the tool before
connecting the air supply. A loose accessory
may detach or break during operation.
4. Obey the manual for the air compressor
used to power this tool.
5. Install an in-line shutoff valve to allow
immediate control over the air supply in an
emergency, even if a hose is ruptured.
6. Use this tool with both hands only. Using tools
with only one hand can result in loss of control.
7. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
SAFETY OPERATION MAINTENANCESETUP
Page 5For technical questions, please call 1-888-866-5797.59489
Silicosis Safety Measures
DO NOT USE SAND!
Abrasive blasting with sand (which contains crystalline silica) can cause
silicosis (a serious lung disease), cancer and death. To reduce crystalline silica
exposures in the workplace and prevent silicosis and silicosis-related deaths:
1. Prohibit silica sand (or other substances
containing more than 1% crystalline silica)
as an abrasive blasting material and
substitute less hazardous materials.
2. Conduct air monitoring to measure
worker exposures.
3. Use containment methods such as blast-cleaning
machines and cabinets to control the hazard
and protect adjacent workers from exposure.
4. Practice good personal hygiene to avoid
unnecessary exposure to silica dust.
5. Wear washable or disposable protective
clothes at the work site. Shower and change
into clean clothes before leaving the work site
to prevent contamination of cars, homes and
other work areas. Avoid skin exposure.
6. Always wear a NIOSH approved respirator and
safety goggles. Ventilate the work area properly.
7. Provide periodic medical examinations for all
workers who may be exposed to crystalline silica.
8. Post signs to warn workers about the hazard and to
inform them about required protective equipment.
9. Provide workers with training that includes
information about health effects, work practices
and protective equipment for crystalline silica.
10. Report all cases of silicosis to State health
departments and to OSHA or the Mine Safety
and Health Administration (MSHA).
Vibration Precautions
This tool vibrates during use. Repeated or
long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders. To
reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check-ups to ensure medical problems are not
being caused or worsened from use. Pregnant
women or people who have impaired blood
circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or Raynaud's
Disease should not use this tool. If you feel
any symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain
tool as explained in this manual.
If abnormal vibration occurs, stop immediately.
SAVE THESE INSTRUCTIONS.
SAFETYOPERATIONMAINTENANCE SETUP
Page 6 For technical questions, please call 1-888-866-5797. 59489

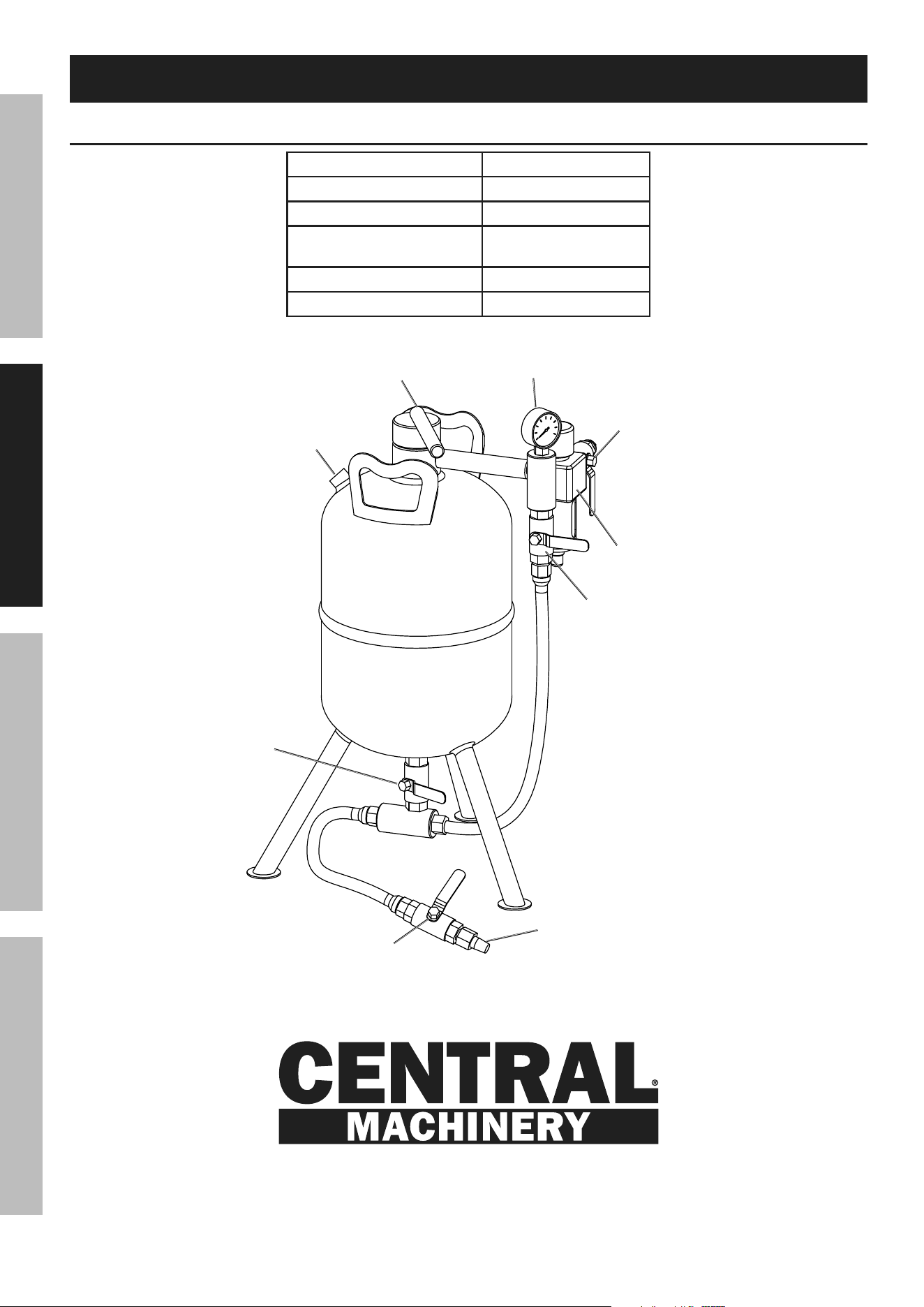

Functional Description
Specifications
Average Air Pressure 90 PSI
Maximum Air Pressure 125 PSI
Air Inlet 1/4″ -18 NPT
Average Air Consumption
10 CFM at 90 PSI
or 71 SCFM
Required Air Hose 3/8″ or larger
Abrasive Capacity 20 lb.
Filler Cap
Pressure Gauge
Safety Valve
Abrasive Valve
Trigger Valve
Nozzle
Throttle Valve
Water Trap Filter
Air Supply Valve
SAFETY OPERATION MAINTENANCESETUP
Page 7For technical questions, please call 1-888-866-5797.59489
Initial Tool Set Up/Assembly
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Note: Wrap 3 to 4 turns of thread seal tape on all airline connections. Make sure all joints are securely tightened.
Note: For additional information regarding the parts listed in this section, refer to the Parts Lists and Diagram.

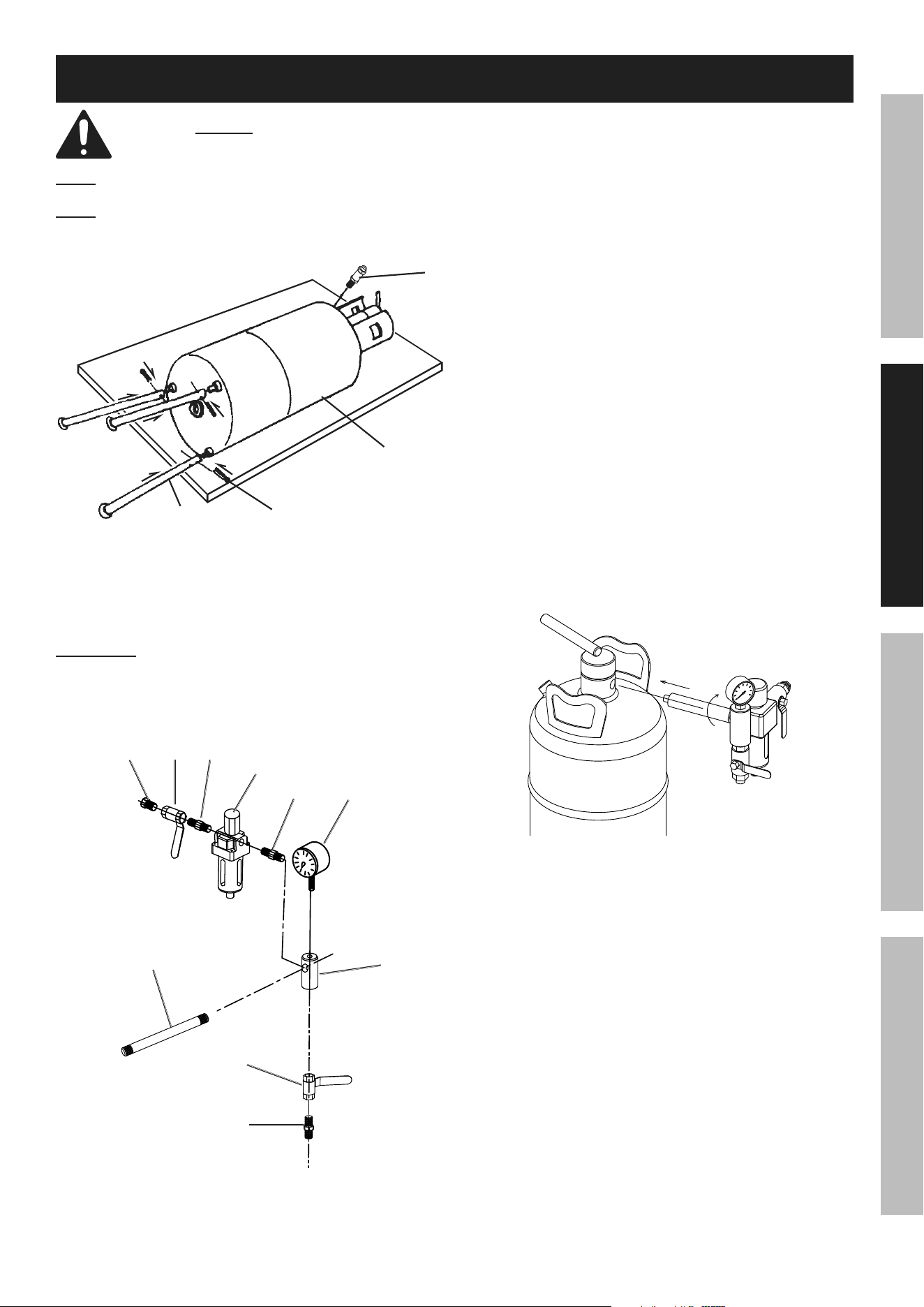

1. Place the Tank (1) on a table.
Table
2
1
34
2. Slide each Leg (4) onto a post and
secure with a Cotter Pin (3).
3. Thread the Safety Valve (2) into the
hole at the top of the Tank (1).
WARNING! TO PREVENT SERIOUS INJURY AND
DEATH FROM EXPLOSION:
Do not thread anything other than the
Safety Valve (2) into the hole provided
at the top of the Tank (1).
7
8
11A
12
10 11 9
21
9
23
4. Assemble the Air Inlet assembly.
a. Thread the Pipe (7) into the T-connector (8).
b. Thread the Air Inlet (10) into the Air Valve (11).
c. Thread the Nipple Connector (9) into
the other end of the Air Valve (11).
d. Thread the other side of the Nipple Connector (9)
to the Water Trap Filter (21).
e. Thread another Nipple Connector (9) into the
other side of the Water Trap Filter (21).
f. Thread the Nipple Connector (9) to
the side of the T-Connector (8).
g. Thread the Pressure Gauge (23) to the
top side of the T-Connector (8).
h. Thread a Throttle Valve (11A)
to the T-Connector (8).
i. Thread the Hose Connector (12)
to the Throttle Valve (11A).
5. Thread the Air Inlet assembly
into the top of the Tank.
6. Attach the Air Hose (13) to the Hose Connector (12).
SAFETYOPERATIONMAINTENANCE SETUP
Page 8 For technical questions, please call 1-888-866-5797. 59489

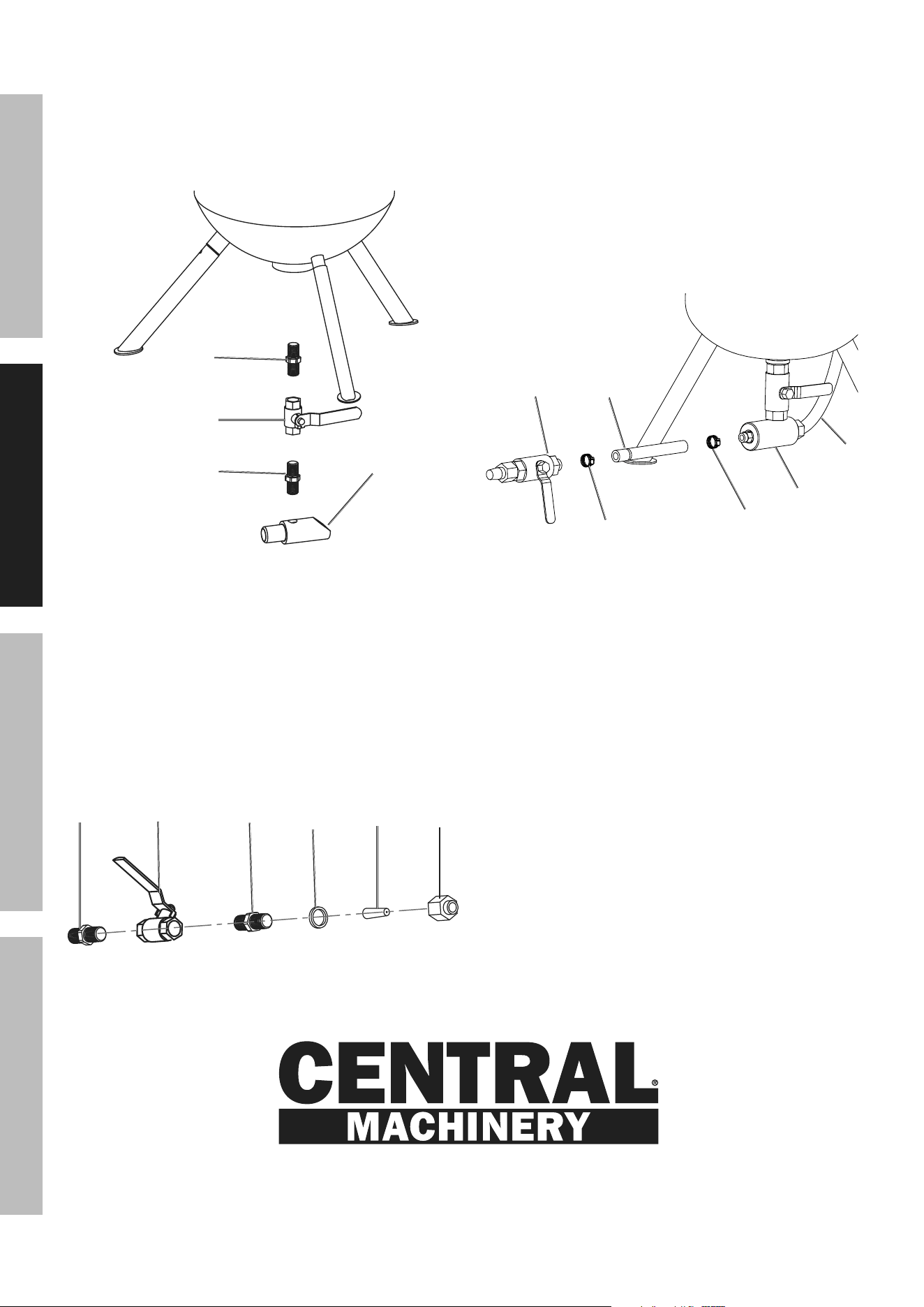

7. Assemble one end of a Nipple Connector (9)
into the Abrasive Outlet Pipe (22), and the
other end into the Abrasive Valve (11B).
8. Thread another Nipple Connector (9) into
the other end of the Abrasive Valve (11B),
and then thread it into the Tank (1).
9
9
11b
22
9. Assemble the Nozzle Assembly:
a. Thread the Trigger Valve (11C)
onto the Adapter (16).
b. Thread a Nipple Connector (9) into the
other side of the Trigger Valve (11C).
c. Onto the other end of the Nipple
Connector (9), add Nozzle Gasket
(19) and a Nozzle (18A – 18D).
d. Thread the Nozzle Cap Nut (17)
on over the Nozzle.
16
11c
9 19
18
17
10. Attach the nozzle assembly to the
Abrasive Hose (15), using the Clamp (14)
to secure them together.
11. Use another Clamp (14) to attach the
other end of the Abrasive Hose (15)
to the Abrasive Outlet Pipe (22).
12. Connect the Air Hose (13) to the
Abrasive Outlet Pipe (22).
13. After assembly, use a wrench to make sure
all threaded connections are tight.
13
14
16
15
14
22
SAFETY OPERATION MAINTENANCESETUP
Page 9For technical questions, please call 1-888-866-5797.59489
Air Supply
TO PREVENT SERIOUS INJURY FROM EXPLOSION:
Use only clean, dry, regulated, compressed air to power this tool.
Do not use oxygen, carbon dioxide, combustible gases,
or any other bottled gas as a power source for this tool.
1. Incorporate a filter, regulator with pressure
gauge, dryer, in-line shutoff valve, and quick
coupler for best service, as shown page 10
and page 11. An in-line shutoff ball valve
is an important safety device because it
controls the air supply even if the air hose
is ruptured. The shutoff valve should be a
ball valve because it can be closed quickly.
Note: An oiler system should not be used
with this tool. The oil will mix with the material
being propelled, causing poor results.
2. Attach an air hose to the compressor's air outlet.
Connect the air hose to the air inlet of the tool.
Other components, such as a coupler plug
and quick coupler, will make operation
more efficient, but are not required.
WARNING! TO PREVENT SERIOUS INJURY
FROM ACCIDENTAL OPERATION:
Do not install a female quick coupler on the tool.
Such a coupler contains an air valve that will
allow the air tool to retain pressure and operate
accidentally after the air supply is disconnected.
Note: Air flow, and therefore tool performance, can
be hindered by undersized air supply components.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. Turn the tool's throttle or switch to the off position;
refer to Operation section for description of controls.
4. Close the in-line shutoff valve between
the compressor and the tool.
5. Turn on the air compressor according to
the manufacturer's directions and allow it
to build up pressure until it cycles off.
6. Adjust the air compressor's output regulator
so that the air output is enough to properly
power the tool, but the output will not exceed
the tool's maximum air pressure at any time.
Adjust the pressure gradually, while checking the
air output gauge to set the right pressure range.
7. Inspect the air connections for leaks.
Repair any leaks found.
8. If the tool will not be used at this time, turn off
and detach the air supply, safely discharge
any residual air pressure, and release
the throttle and/or turn the switch to its off
position to prevent accidental operation.
Note: Residual air pressure should not be present
after the tool is disconnected from the air supply.
However, it is a good safety measure to attempt to
discharge the tool in a safe fashion after disconnecting
to ensure that the tool is disconnected and not powered.
SAFETYOPERATIONMAINTENANCE SETUP
Page 10 For technical questions, please call 1-888-866-5797. 59489

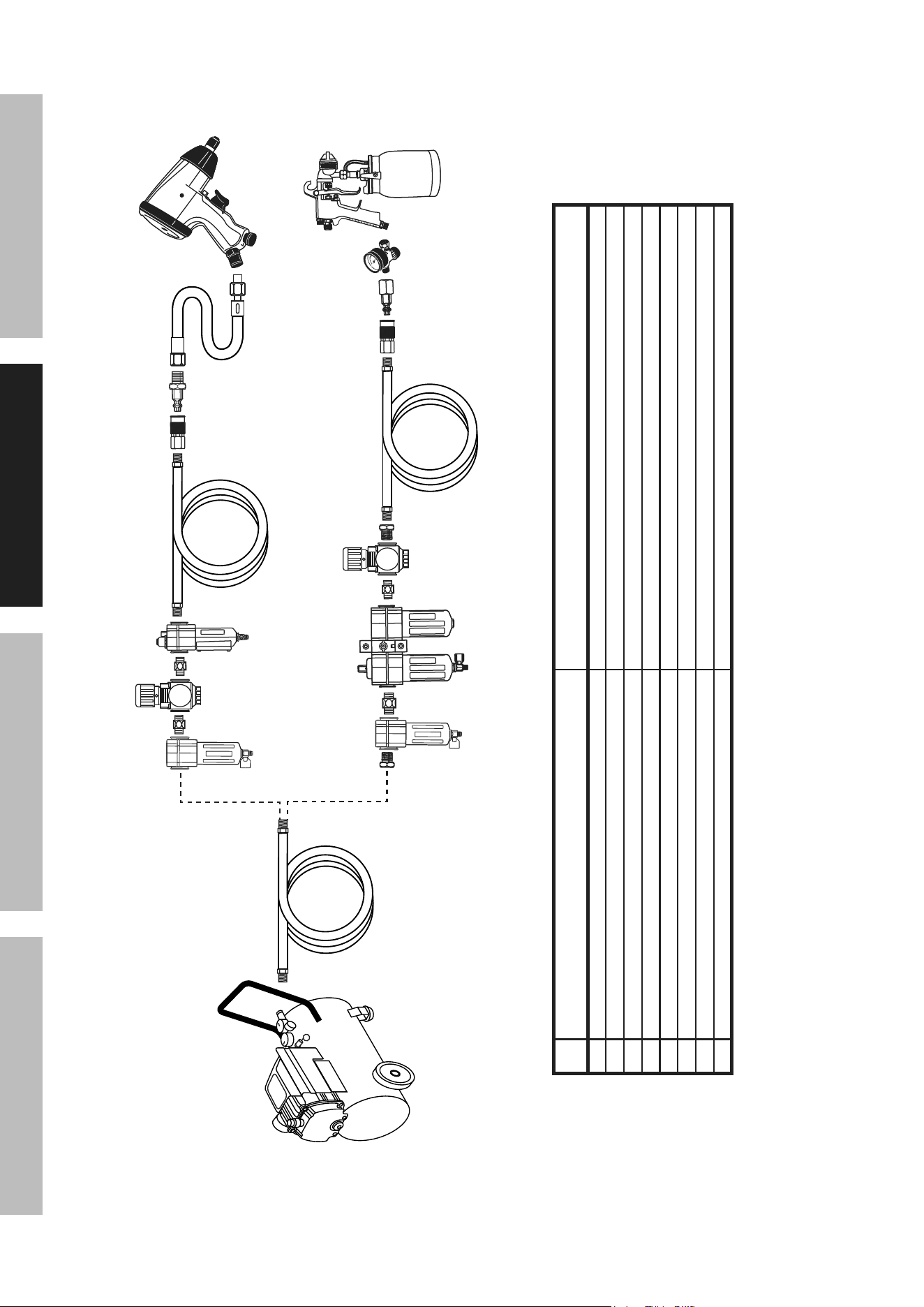

Portable Air Supply Setup
G
A
E
E H
F
B
Non-lubricated
Tools
Lubricated
Tools
A
B
C
C
D
A
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
C Regulator Adjusts air pressure to tool
D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
H Air Adjusting Valve (optional) For fine tuning airflow at tool
SAFETY OPERATION MAINTENANCESETUP
Page 11For technical questions, please call 1-888-866-5797.59489

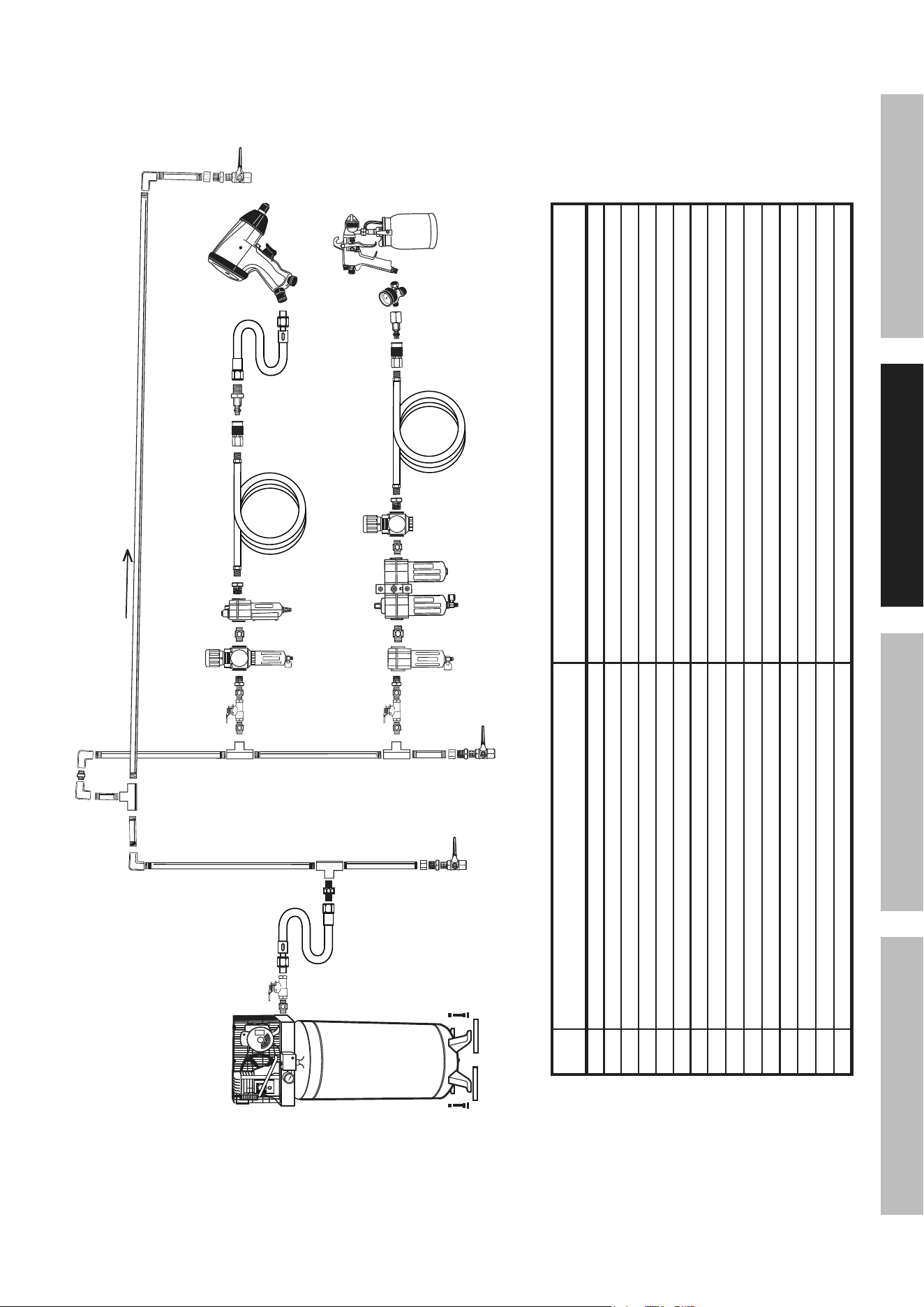

Stationary Air Supply Setup
N
L
L O
M
C
C
Non-lubricated
Tools
Lubricated
Tools
H
I
I
J
J
K
H
F
G
E
Slope
F
F
B B
A
A
C
D
Description Function
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
E Main Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or workpiece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at tool
SAFETYOPERATIONMAINTENANCE SETUP
Page 12 For technical questions, please call 1-888-866-5797. 59489
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Close all Valves, detach the air supply, safely discharge any residual air pressure in the tool
(See ″After Blasting:″ on page 13), and close all Valves again
before performing any procedure in this section.
TO PREVENT SERIOUS INJURY:
Do not adjust or tamper with any control or component in a way not specifically explained within
this manual. Improper adjustment can result in tool failure or other serious hazards.
Abrasive Selection
The type of abrasive selected effects the time
required to blast clean a given surface area.
Particularly for large surfaces, test one or more of the
following abrasives to determine which is most effective:
a. Silicon Carbide
b. Aluminum Oxide
c. Glass Beads
d. Walnut Shells
WARNING: Do not use sand or other blasting
materials that contain crystalline silica.
Note: Check to ensure the abrasives are dry
and clean so that they do not clog the unit.
Note: The Nozzle size depends on grit of media used.
The larger sizes are best suited to glass
beads and walnut shells, while smaller sizes
are best suited for fine aluminum oxide.
Change the nozzle as needed to suit the abrasive.
Loading Abrasive
1. Wear protective gear including a
NIOSH-approved respirator.
2. Close the Air Valve, Abrasive Valve,
and Trigger Valve.
3. Remove Filler Cap.
4. Insert Funnel into Tank and pour in
abrasive (up to 3/4 full). Do not fill
more than 3/4 of the Tank.
Note: If humidity in your region is 90% or more,
only fill the tank halfway and check the
Water Trap Filter (21) more frequently.
5. Re-attach Filler Cap securely.
6. Turn on the compressor and set the regulator to the
pressure recommended for this Blaster - 90 PSI.
CAUTION! Do not exceed 125 PSI.
Workpiece and Work Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the air hose along a safe route to reach
the work area without creating a tripping hazard
or exposing the air hose to possible damage.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be hazardous objects
(such as utility lines or foreign objects) nearby
that will present a hazard while working.
SAFETY OPERATION MAINTENANCESETUP
Page 13For technical questions, please call 1-888-866-5797.59489
General Operating Instructions
Note: Both Abrasive Valve and Trigger Valve should
be either fully opened or fully closed at all times.
1. WARNING! Wear ANSI-approved safety goggles
and NIOSH-approved respirator under
blasting hood, and heavy-duty canvas gloves
when operating the Abrasive Blaster.
2. Close all four Valves, then connect air supply.
3. Open Air Valve. Check for any air leaks at
the Filler Cap. Replace O-Ring if leaking.
4. Fully open the Abrasive Valve.
5. Point the Nozzle at the work so that the abrasive will
strike the surface of the work at about a 45° angle.
6. Grip the Discharge Hose firmly, and
QUICKLY open the Trigger Valve fully.
CAUTION! Do not attempt to regulate air/abrasive
mixture discharge rate with the Trigger Valve.
Doing so will damage the valve.
To stop in the middle of operation,
QUICKLY close the Trigger Valve fully.
7. Slightly open Throttle Valve to start blasting.
Regulate Throttle Valve handle position
for optimum blasting pressure.
Note: The flow rate of the abrasive may
be irregular when the unit is first started.
Provided the abrasive is dry, the flow rate will
stabilize in approximately one minute.
Note: The impact pattern of the blast is affected by the
output pressure and the distance from the workpiece.
After Blasting:
WARNING! Keep Nozzle pointed in a safe direction
until the blaster is completely shut down.
8. Close Air Valve, Abrasive Valve, and Throttle Valve.
9. Quickly open the Trigger Valve fully. Allow abrasive
and any compressed air to leave the Nozzle.
10. Close Trigger Valve.
11. Close all Valves.
12. Pull out on ring on Safety Valve to make
sure tank is not pressurized.
13. To prevent accidents, detach the air supply, safely
discharge any residual air pressure in the tool,
and close all valves after use. Clean external
surfaces of the tool with clean, dry cloth.
Then store the tool indoors out of children's reach.
SAFETYOPERATIONMAINTENANCE SETUP
Page 14 For technical questions, please call 1-888-866-5797. 59489
User-Maintenance Instructions
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Close all Valves, detach the air supply, safely discharge any residual air pressure in the tool
(see ″After Blasting:″ on page 13), and close all Valves again
before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise, vibration,
or leaking air occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
Note: These procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the air-operated tool.
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware or housing,
• misalignment or binding of moving parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. Daily - Air Supply Maintenance:
Every day, maintain the air supply according
to the component manufacturers' instructions.
Drain the moisture filter regularly.
Performing routine air supply maintenance
will allow the tool to operate more safely
and will also reduce wear on the tool.
3. When re-using abrasive, sharp edges of abrasive
particles eventually become rounded and lose
cutting ability. At this point replace the abrasive.
4. The parts of the Blaster that require frequent
wear inspection and occasional replacement
are those that carry the air/abrasive mixture.
Pay particular attention to the Abrasive Hose,
Gasket, the Abrasive Valve, the Trigger Valve
and the Nozzles, as they will wear out much
more quickly than the other pieces.
CAUTION! Air leaks in any of the above mentioned
parts need to be repaired before use.
5. Abrasive Hose inspection:
When new, the Abrasive Hose has 1/4″ ID.
The Hose will need to be replaced when its side
walls develop leaks or show blisters on the surface.
WARNING! TO PREVENT SERIOUS INJURY: The
hose could have residual abrasive or suddenly
burst. Point the nozzle in a safe direction and
wear all safety gear when doing this test.
a. Close the Abrasive and Trigger Valves.
b. Adjust the air pressure to 90 PSI.
c. Open the Air Valve.
d. Open the Throttle Valve.
e. Then, run your fingers along the length of
the Hose. An enlarged spot (or bubble)
indicates a weakened section of the Hose.
Do not use the Blaster if this problem is
present - replace the entire Hose first.
6. To protect the compressor and its engine
or motor from damage by abrasive or dust
from Abrasive blasting, keep the compressor
up-wind of the Blaster or in a separate room.
Troubleshooting
1. Excess moisture will cause the abrasive to slow
or stop flowing through the Abrasive Outlet Pipe.
To correct, check the abrasive by pouring a 6″
cone of abrasive on dry newspaper. After several
minutes, remove the abrasive from the newspaper.
Do not use the abrasive if the newspaper is moist.
2. Poor or irregular flow of the abrasive may also
be due to low air pressure or a worn Nozzle.
To correct, increase the air pressure (to no more
than 125 PSI) and/or replace the worn Nozzle.
SAFETY OPERATION MAINTENANCESETUP
Page 15For technical questions, please call 1-888-866-5797.59489
Part Description Qty
1 Tank 1
2 Safety Valve 1
3 Cotter Pin 3
4 Leg 3
5 Filler Cap 1
6 O-Ring 1
7 Pipe 1
8 T-Connector 1
9 Nipple Connector 5
10 Air Inlet 1
11 Air Valve 3/8" 1
11A Throttle Valve 3/8" 1
11B Abrasive Valve 3/8" 1
11C Trigger Valve 3/8" 1
12 Hose Connector 1
Part Description Qty
13 Air Hose 1
14 Clamp 2
15 Abrasive Hose 1
16 Adaptor 1
17 Nozzle Cap Nut 1
18A 3.6 mm Nozzle 1
18B 3.2 mm Nozzle 1
18C 2.7 mm Nozzle 1
18D 2.4 mm Nozzle 1
19 Nozzle Gasket 1
20 Funnel 1
21 Water Trap Filter 1
22 Sand Outlet 1
23 Pressure Gauge 1

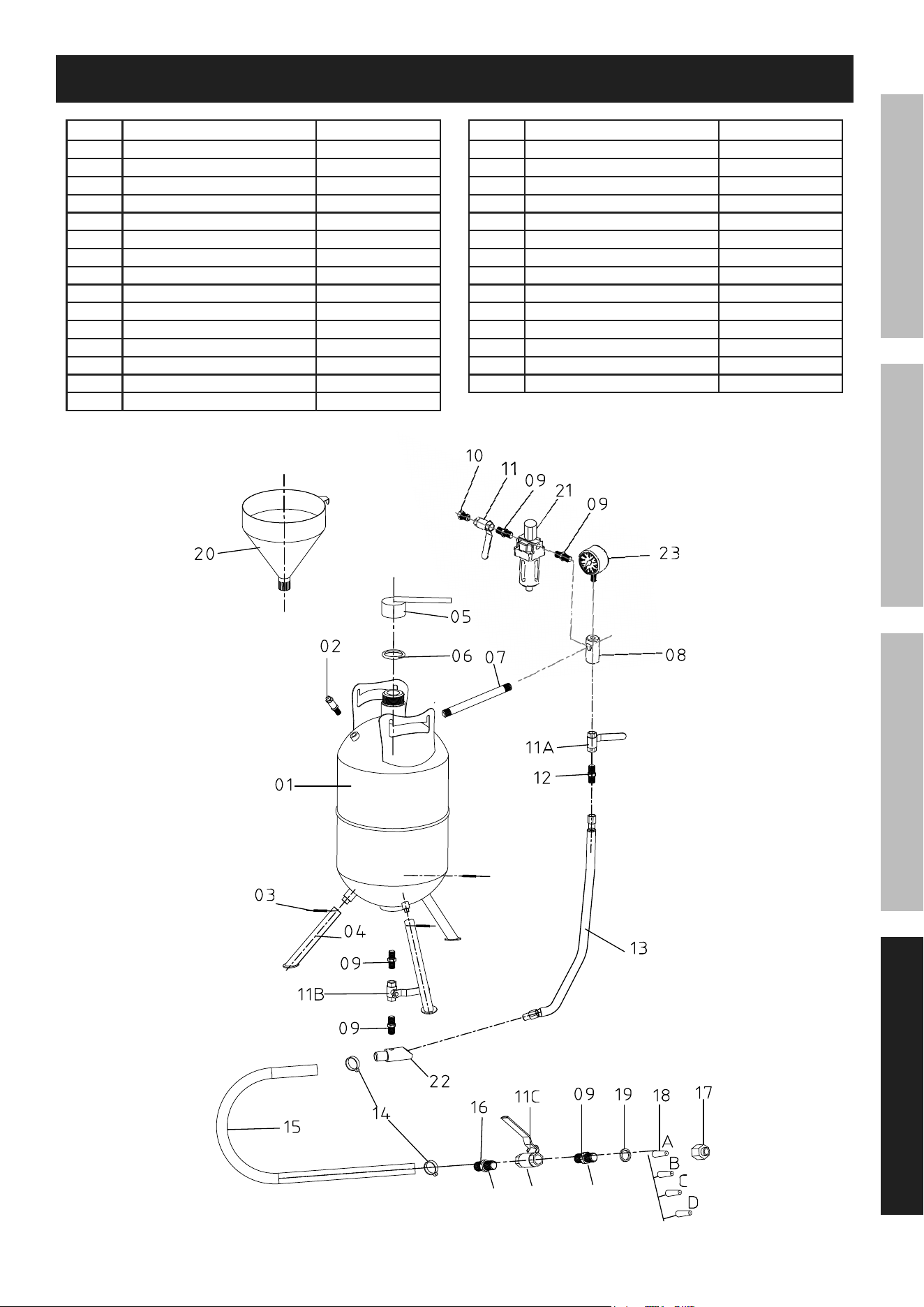

Parts Lists and Diagram
SAFETYOPERATIONMAINTENANCE SETUP
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product's Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175472298 when ordering parts.
