I
mportant!
It is essential that you read the instructions in this manual
before assembling, operating and maintaining the product.
Subject to technical modifications.

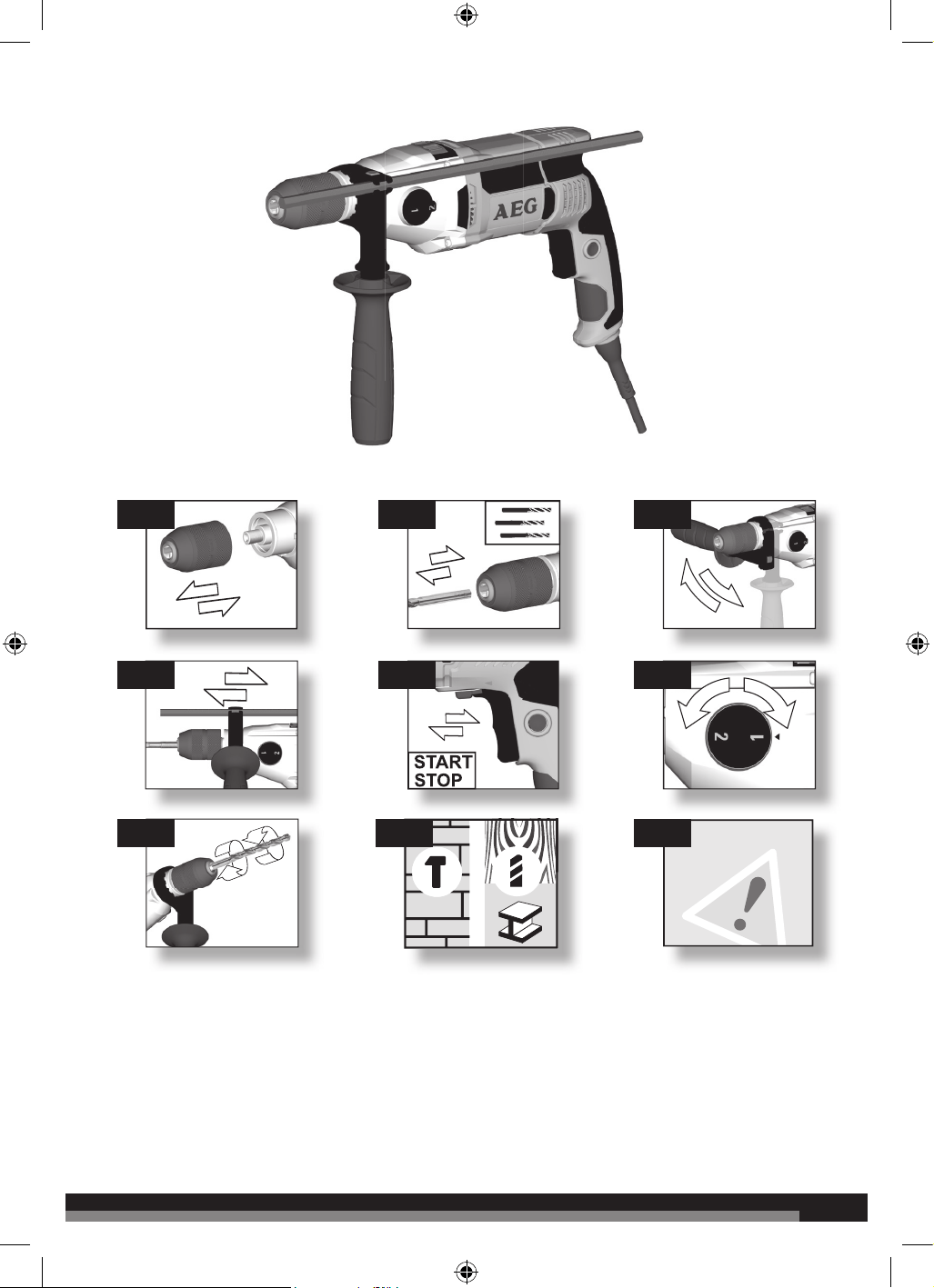

3
3
4 65
9
11
87
12
13
Technical data

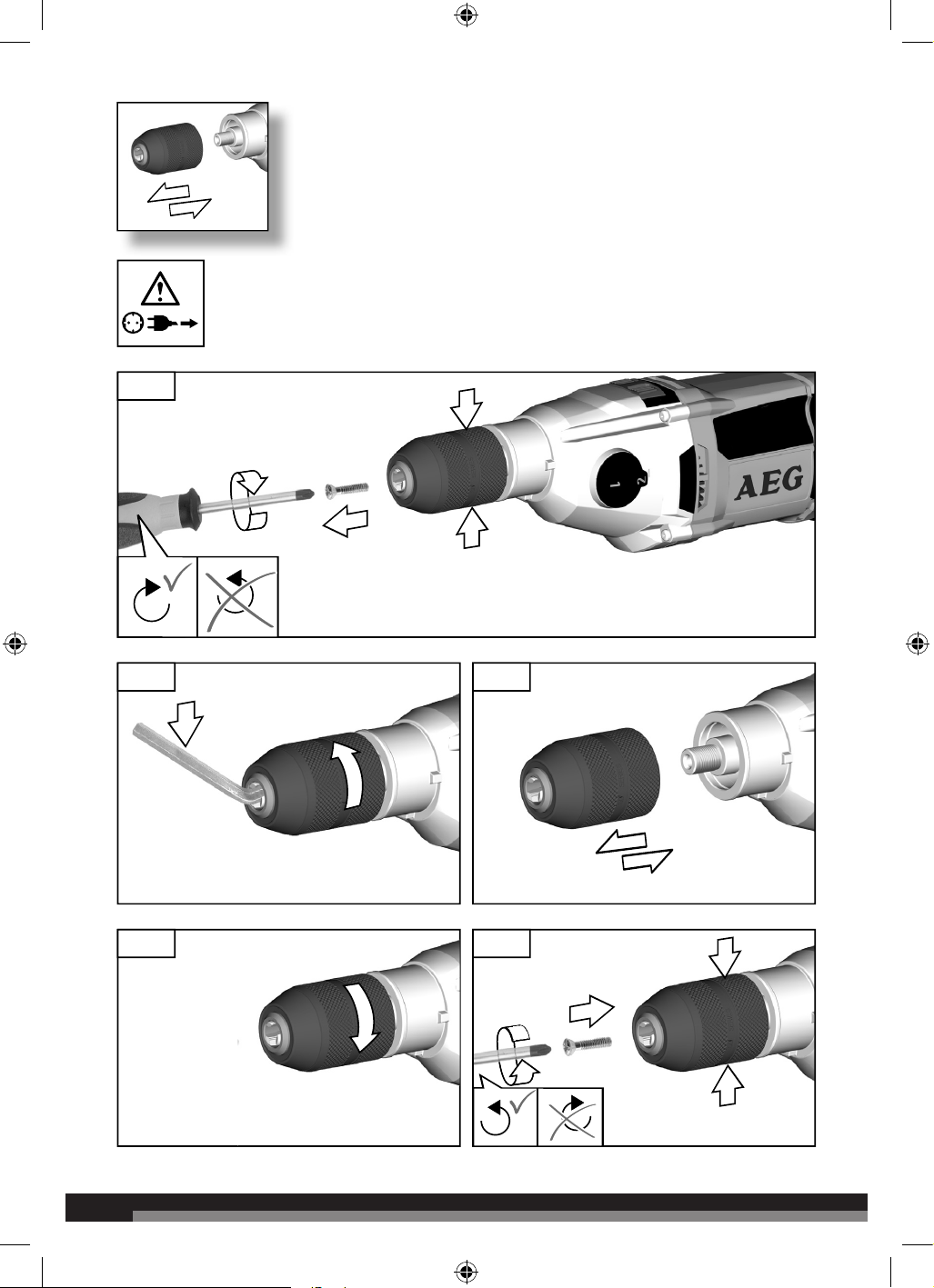

4
4
2.
4.
3.
1.
5.

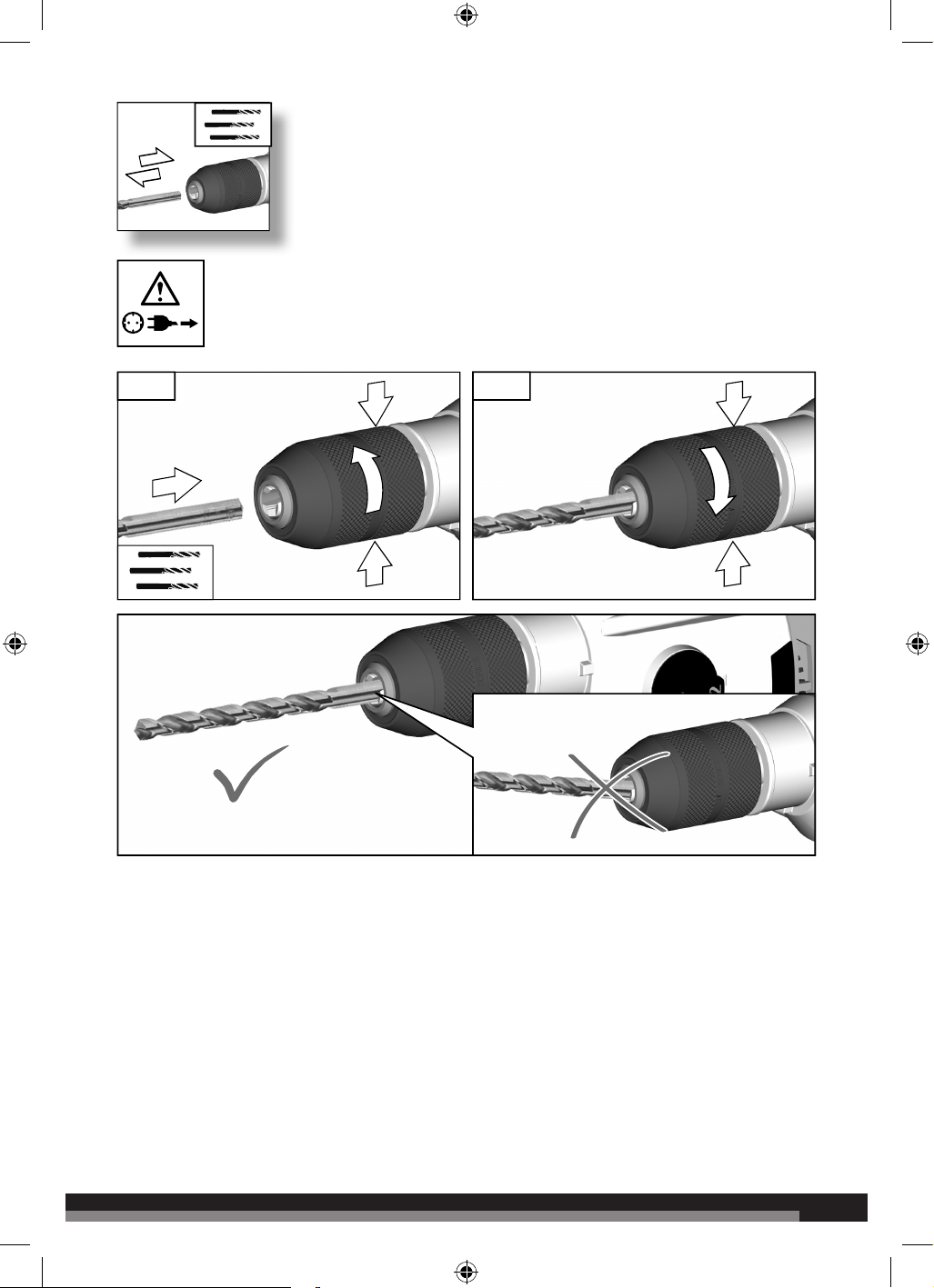

II
5
5
I
3
1 1
1 1
1. 2.
2
4

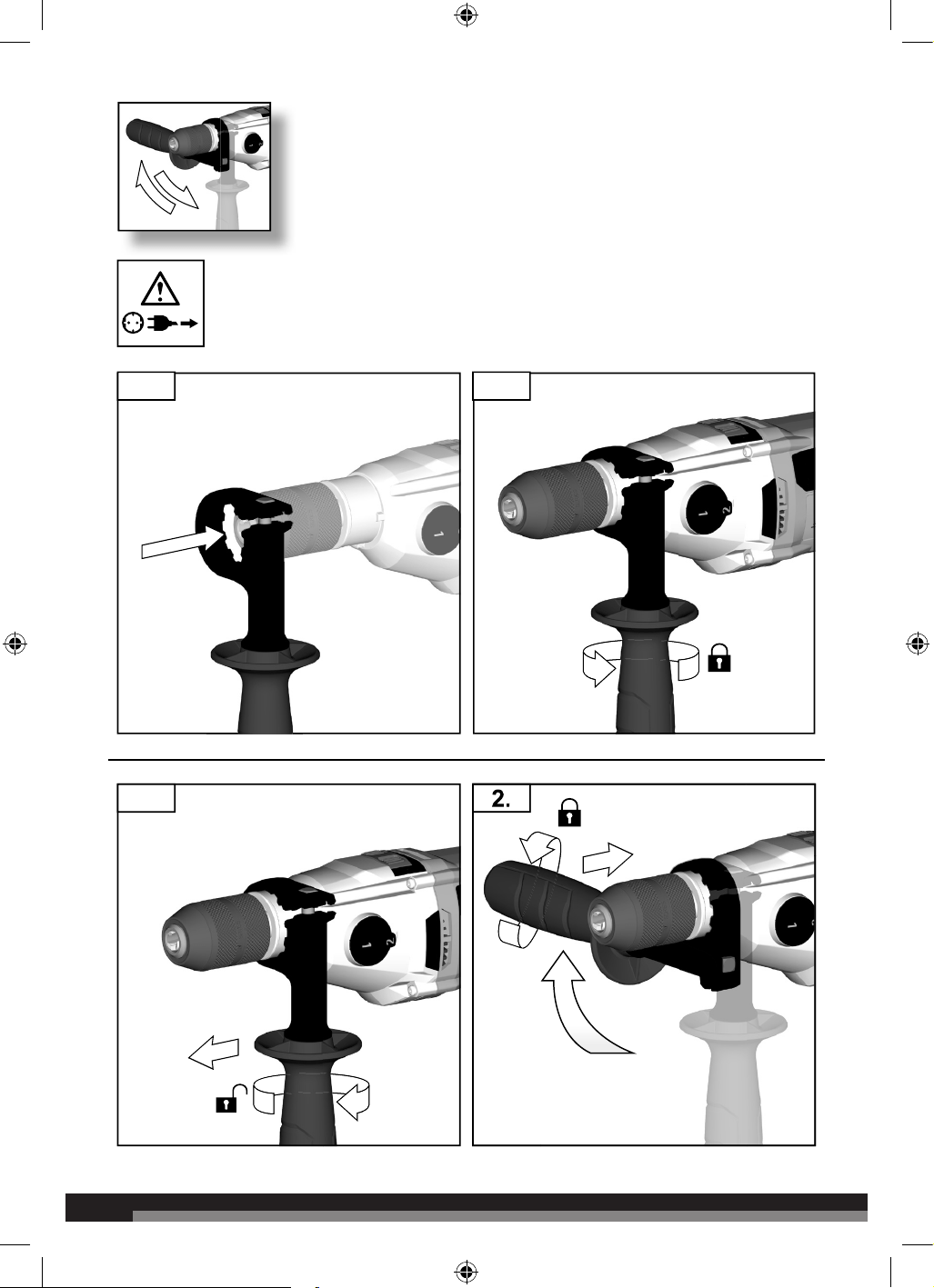

6
6
1.
1.
2.
2.
2.
1
1
3
IV
2
2

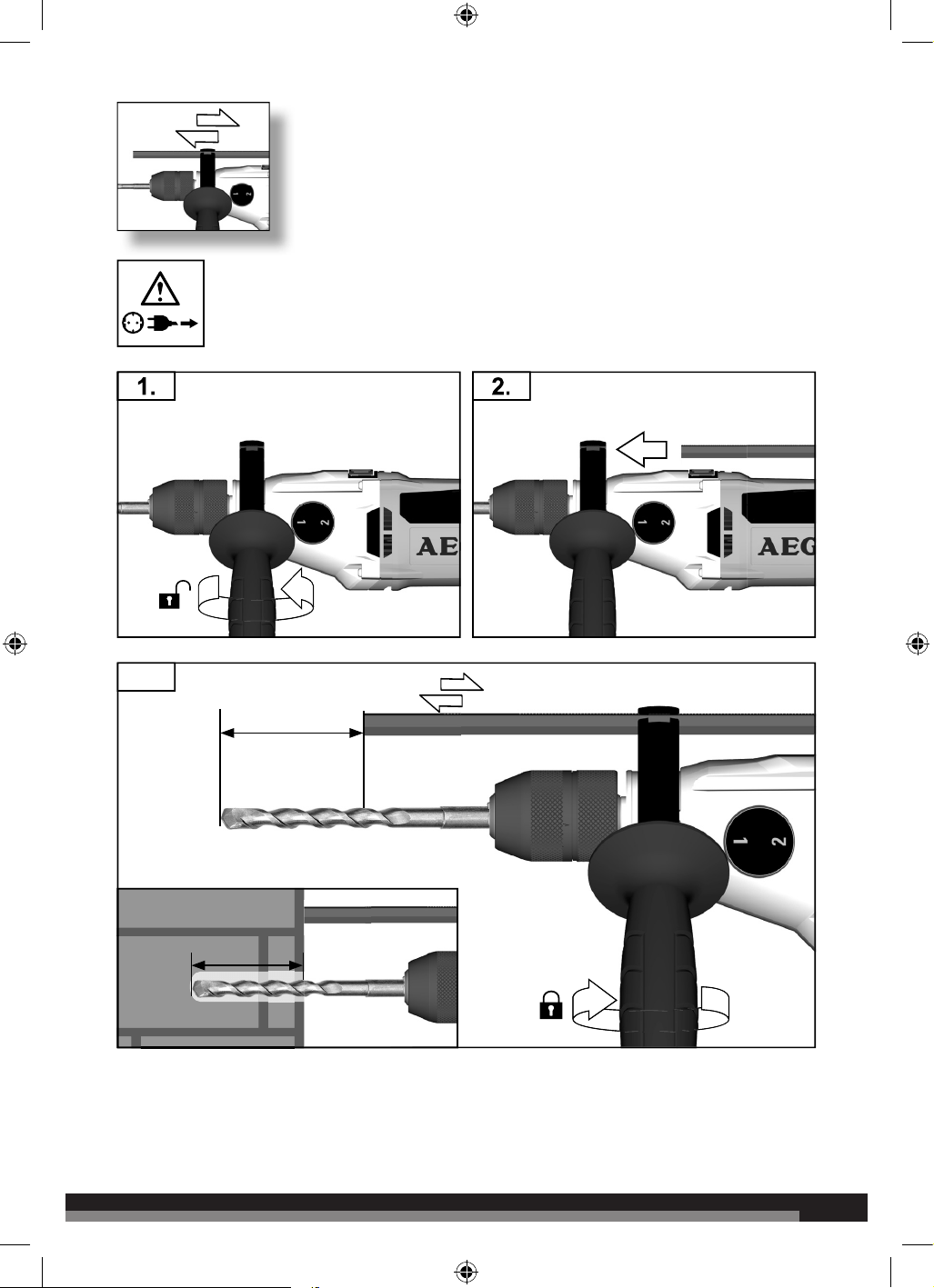

7
7
III
x
x
2
1
3.
1. 2.
1.
2.
8
8
V

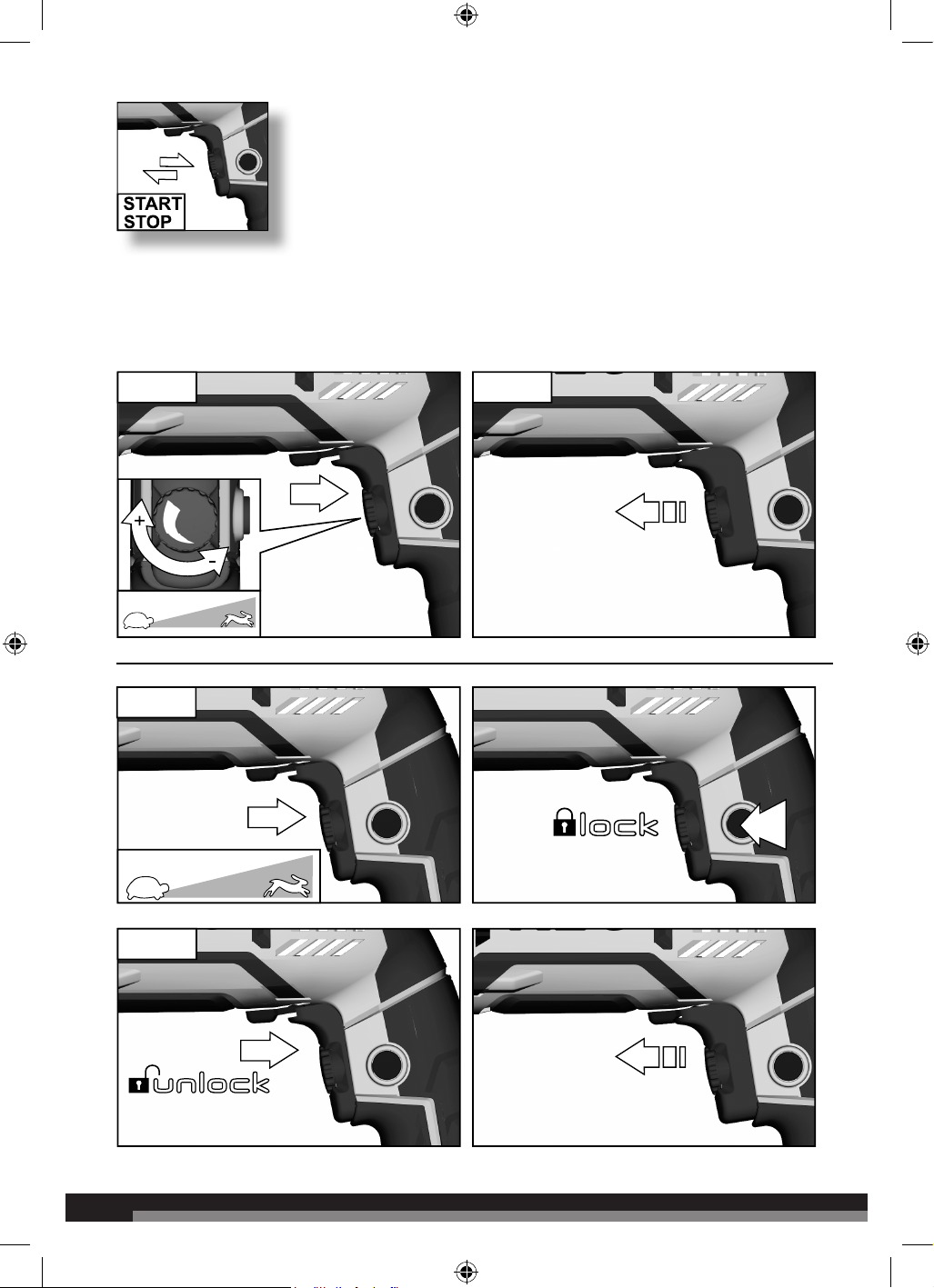

Start
Stop
Start Stop
SB2E 850 R
9
9
1
2
VI
10
10
VI

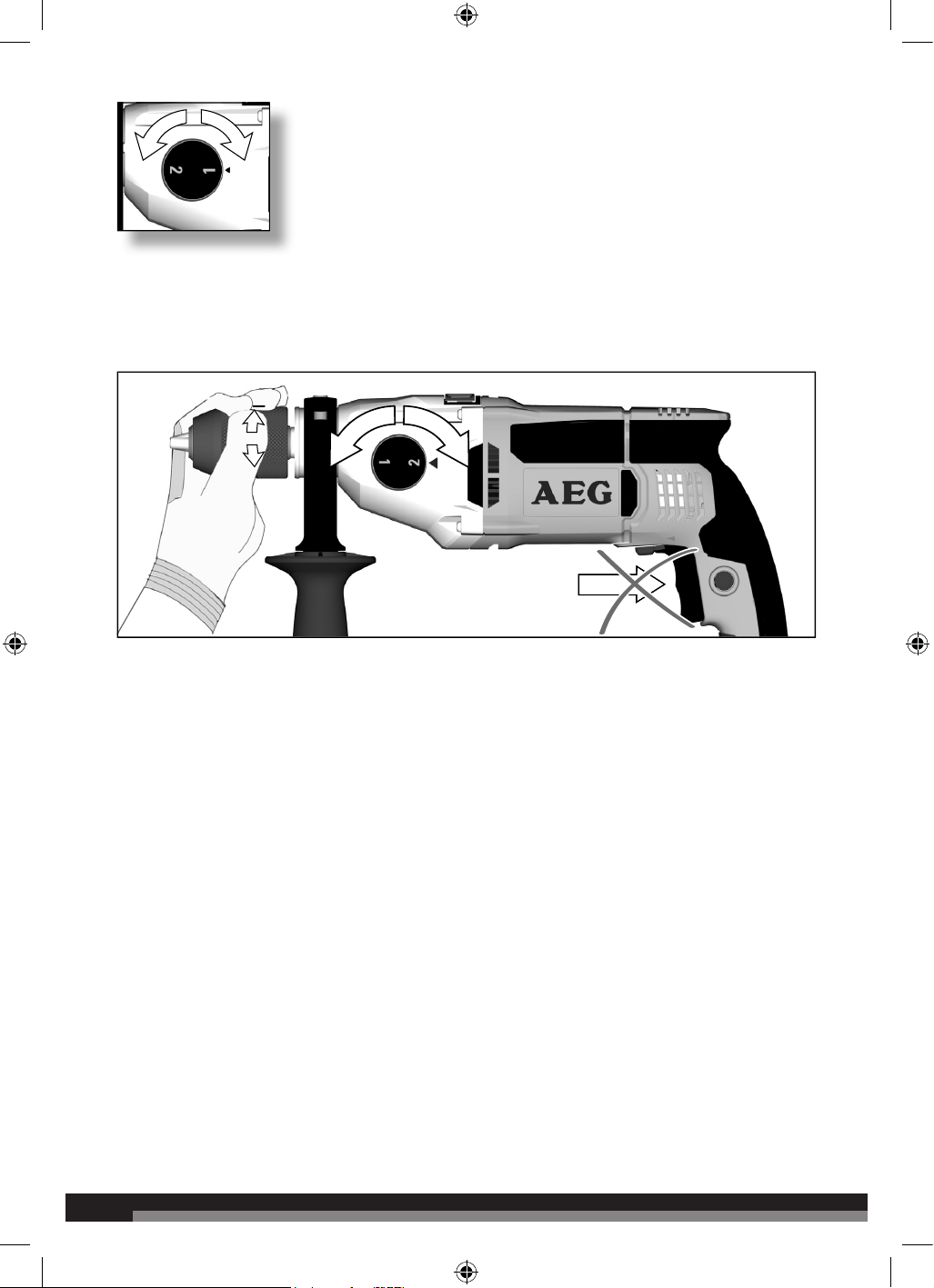

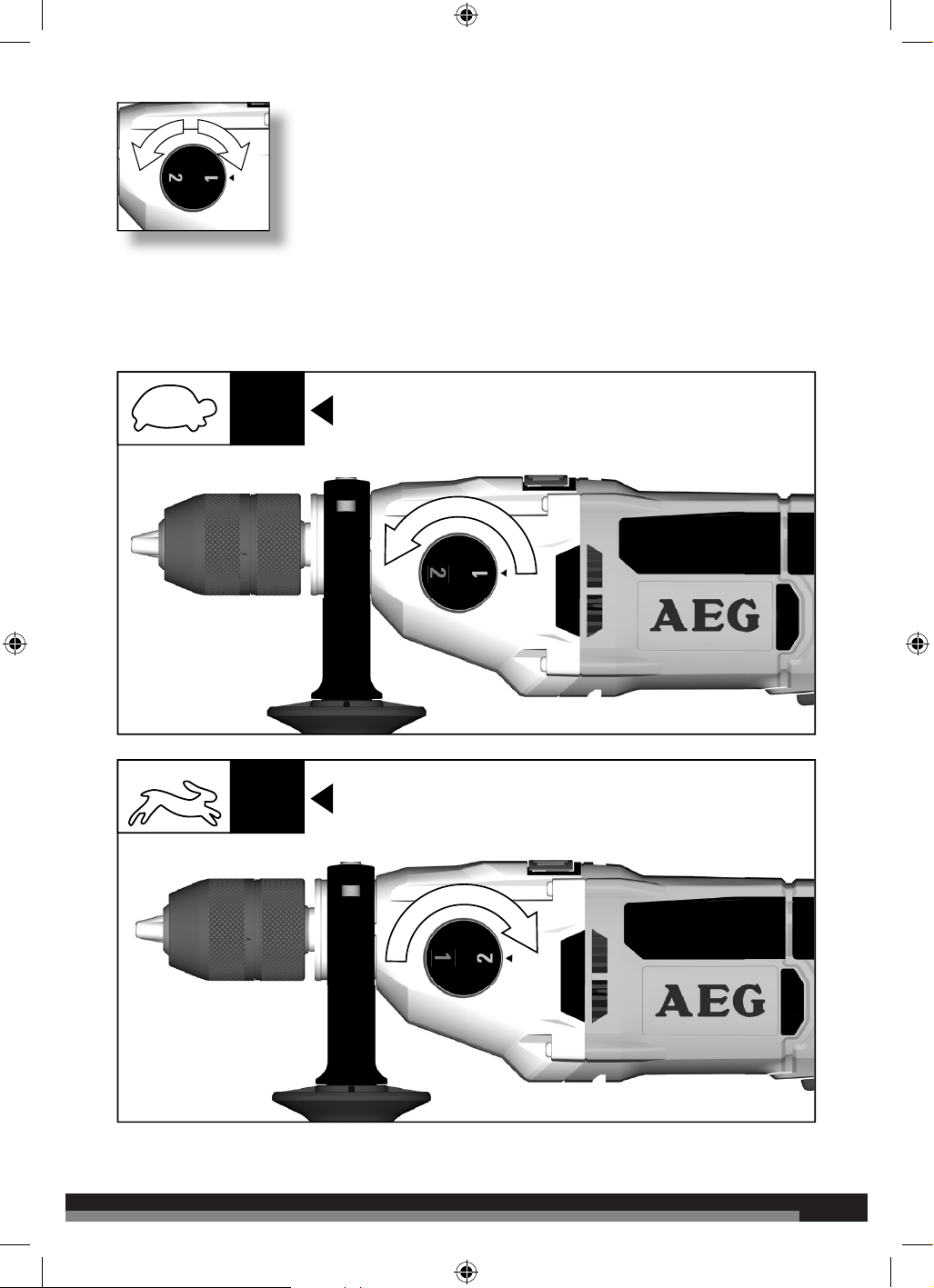

Never use the gear switch whilst the machine is operating.
Only use the switch when the machine is at a standstill.

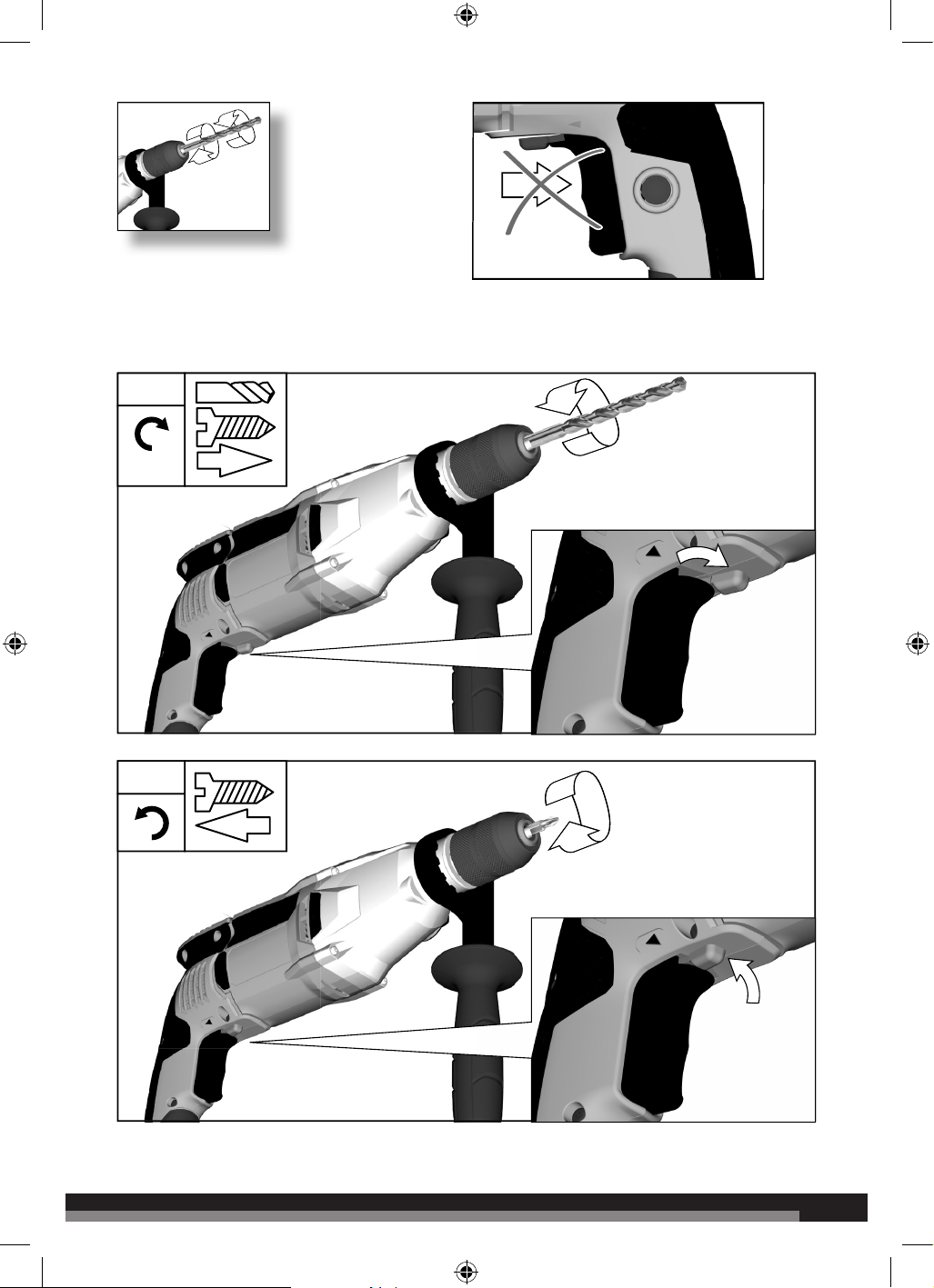

11
11
A
B
VIII

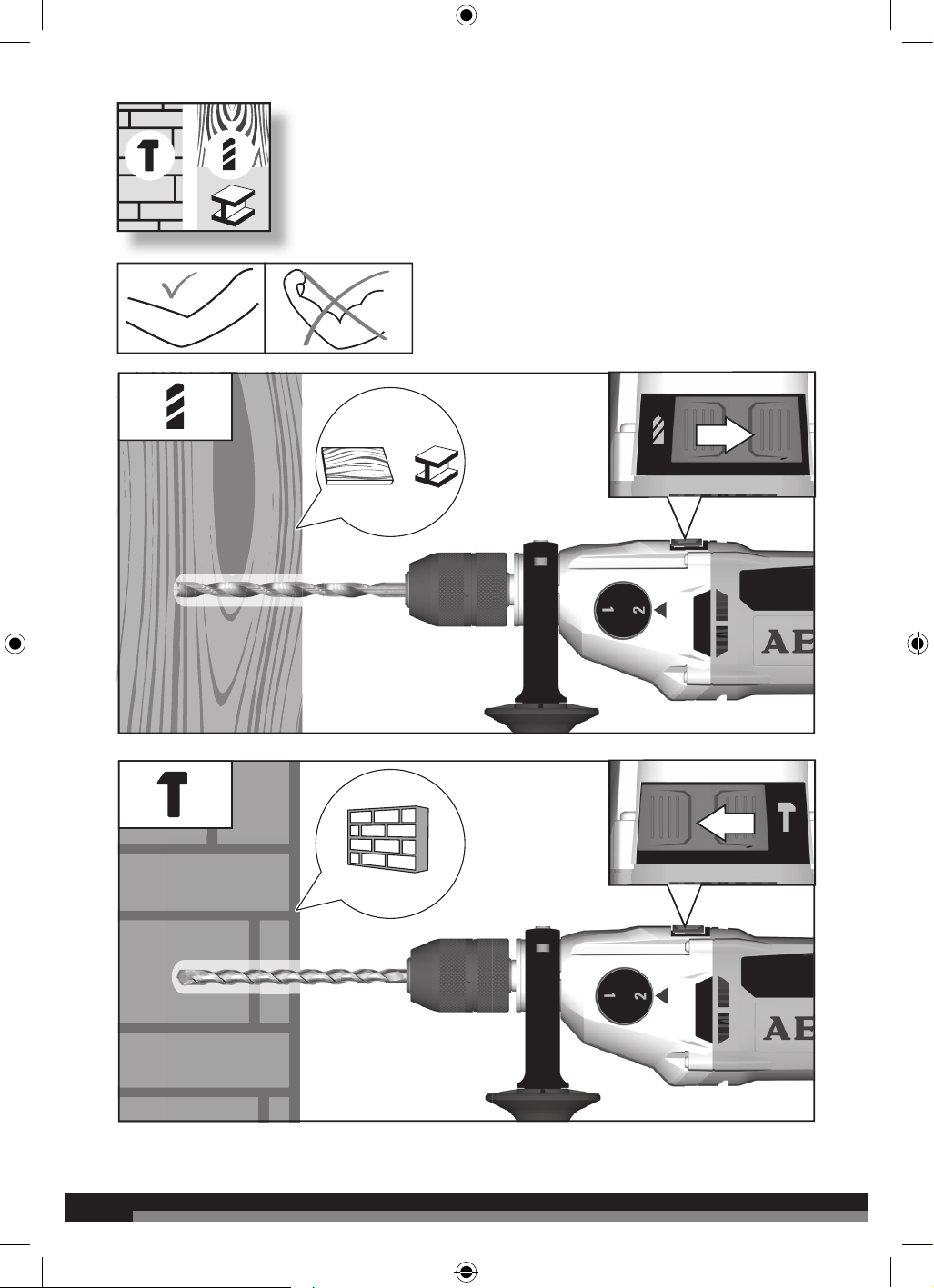

12
12
/
13
13
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future reference.
DRILL SAFETY WARNINGS
Wear ear protectors when impact drilling. Exposure to noise can
cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control
can cause personal injury.
Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may
contact hidden wiring or its own cord. Cutting accessory
contacting a “live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
SCREWDRIVER SAFETY WARNINGS
Hold power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact
hidden wiring or its own cord. Fasteners contacting a “live” wire
may make exposed metal parts of the power tool “live” and could
give the operator an electric shock.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Use protective equipment. Always wear safety glasses when
working with the machine. The use of protective clothing is
recommended, such as dust mask, protective gloves, sturdy non-
slip footwear, helmet and ear defenders.
Keep mains lead clear from working range of the machine. Always
lead the cable away behind you.
Do not machine any materials that present a danger to health (e.g.
asbestos).
When working in walls ceiling, or oor, take care to avoid electric
cables and gas or waterpipes.
Clamp your workpiece with a clamping device. Unclamped
workpieces can cause severe injury and damage.
Switch the device off immediately if the insertion tool stalls! Do not
switch the device on again while the insertion tool is stalled, as
doing so could trigger a sudden recoil with a high reactive force.
Determine why the insertion tool stalled and rectify this, paying
heed to the safety instructions.
Possible causes can be:
• it is tilted in the workpiece to be machined
• breakage of the material to be used
• the power tool is overloaded
Do not reach into the machine while it is running.
The insertion tool may become hot during use.
WARNING! Danger of burns
• when changing tools
• when setting the device down
Chips and splinters must not be removed while the machine is
running.
Always disconnect the plug from the socket before carrying out any
work on the machine.
MAINS CONNECTION
Appliances used at many different locations including wet room and
open air must be connected via a residual current device (FI, RCD,
PRCD) of 30mA or less.
Connect only to single-phase AC system voltage as indicated on
the rating plate. It is also possible to connect to sockets without an
earthing contact as the design conforms to safety class II.
Only plug-in when machine is switched off.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
If the machine is mainly used for percussion drilling, regularly
remove collected dust from the chuck. To remove the dust hold the
machine with the chuck facing down vertically, and completely open
TECHNICAL DATA PERCUSSION DRILL
SB2E850R
Rated input 850 W
Output 460 W
No load speed (low) 0 - 1000 min
-1
No load speed (high) 0 - 3000 min
-1
Rate of percussion under load max. 38000 min
-1
Impact rate max. 57000 min
-1
Static jamming moment 56/30 Nm
Drilling capacity in concrete 20 mm
Drilling capacity in brick and tile 22 mm
Drilling capacity in steel 13 mm
Drilling capacity in wood 40 mm
Drill chuck range 1.5 - 13 mm
Drive shank 1/2” - 20 UNF
Chuck neck diameter 43 mm
Weight 2.7 kg
14
14
and close the chuck. The collected dust will fall from the chuck. It
is recommended to regularly use cleaner for the clamping jaws and
the clamping jaw borings.
If the supply cord of this appliance is damaged, it must only be
replaced by a repair shop appointed by the manufacturer, to avoid
hazardous situations.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries (Australia) Pty. Ltd.
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 361 505
Australia
Techtronic Industries N.Z. Ltd.
PO Box 12-806
Penrose AUCKLAND 1642
Tel no. 0800 279 624
New Zealand
SYMBOLS
Safety alert
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Please read the instructions carefully before
starting the machine.
Class II tool. Tool in which protection against
electric shock does not rely on basic insulation
only, but in which additional safety precautions,
such as double insulation or reinforced insulation,
are provided.
No-load speed
V
Volts
min
-1
Revolutions or reciprocations per minute
Always disconnect the plug from the socket before
carrying out any work on the machine.
Accessory - Not included in standard equipment,
available as an accessory.
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the end of
their life must be collected separately and returned
to an environmentally compatible recycling facility.
15
15
Techtronic Industries GmbH
Max-Eyth-Straße 10
71364 Winnenden
Germany
Techtronic Industries (Australia) Pty. Ltd.
31 Gilby Road,
Mount Waverley VIC 3149,
Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere,
Auckland, New Zealand 2022
961096268-01A
