Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 22g
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2022 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 59430
IMPORTANT SAFETY INSTRUCTIONS
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to
follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1. This product is not a toy.
Keep it out of reach of children.
2. Do not use outdoors.
3. To disconnect, turn all controls to the
off position, then remove plug from
outlet. Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
4. Always unplug this product immediately
after using. Unplug from outlet when not in
use and before servicing or cleaning.
5. Never operate this product if it has a damaged
cord or plug, if it is not working properly,
if it has been dropped or damaged, or
dropped into water. Return the product to a
service center for examination and repair.
6. To reduce the risk of electrical shock, do
not submerge product in water or other
liquid. Do not store or place product where
it can fall or be pulled into a tub or sink.
7. Do not reach for a product that has
fallen into water. Unplug immediately.
8. Use this product only for its intended use as
described in this manual. Do not use attachments
not recommended by the manufacturer.
9. Keep the cord away from heated surfaces.
10. Never block the air openings of the product
or place it on a soft surface, such as a bed or
couch, where the air openings may be blocked.
Keep the air openings free of lint, hair, and the like.
11. Never use while sleeping or drowsy.
12. Connect this product to a properly grounded
outlet only. See Grounding Instructions.
13. Unplug this product before filling. Fill tank with
water or cleaning solutions only unless otherwise
specified by manufacturer. Do not overfill.
14. Use only water-based, non-
corrosive cleaning solutions.
15. Do not run Cleaner dry.
16. People with pacemakers should consult
their physician(s) before using this
product. Electromagnetic fields in close
proximity to a heart pacemaker could cause
interference to or failure of the pacemaker.
17. This product is for household use.
SAVE THESE INSTRUCTIONS.
Page 3For technical questions, please call 1-888-866-5797.Item 59430
SPECIFICATIONS
Electrical Rating
120 V / 60 Hz / 400W
120 W (Ultrasonic), 270 W (Heating)
Tank Dimensions 11-3/4" x 5-7/8" x 5-7/8"
Tank Capacity 6 L
Max Temperature 176° F
FOR HOUSEHOLD USE ONLY
FCC Statement:
Potential Equipment Interference: This equipment has been tested and found to comply with
the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is not guarantee that interference will not occur in a particular installation.
System Maintenance: Please note that changes or modifications of this
product is not expressly approved by the party responsible for compliance
and could void the user's authority to operate the equipment.
Simple Measures To Correct Interference: If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.
Page 4 For technical questions, please call 1-888-866-5797. Item 59430
INSTALLATION INSTRUCTIONS

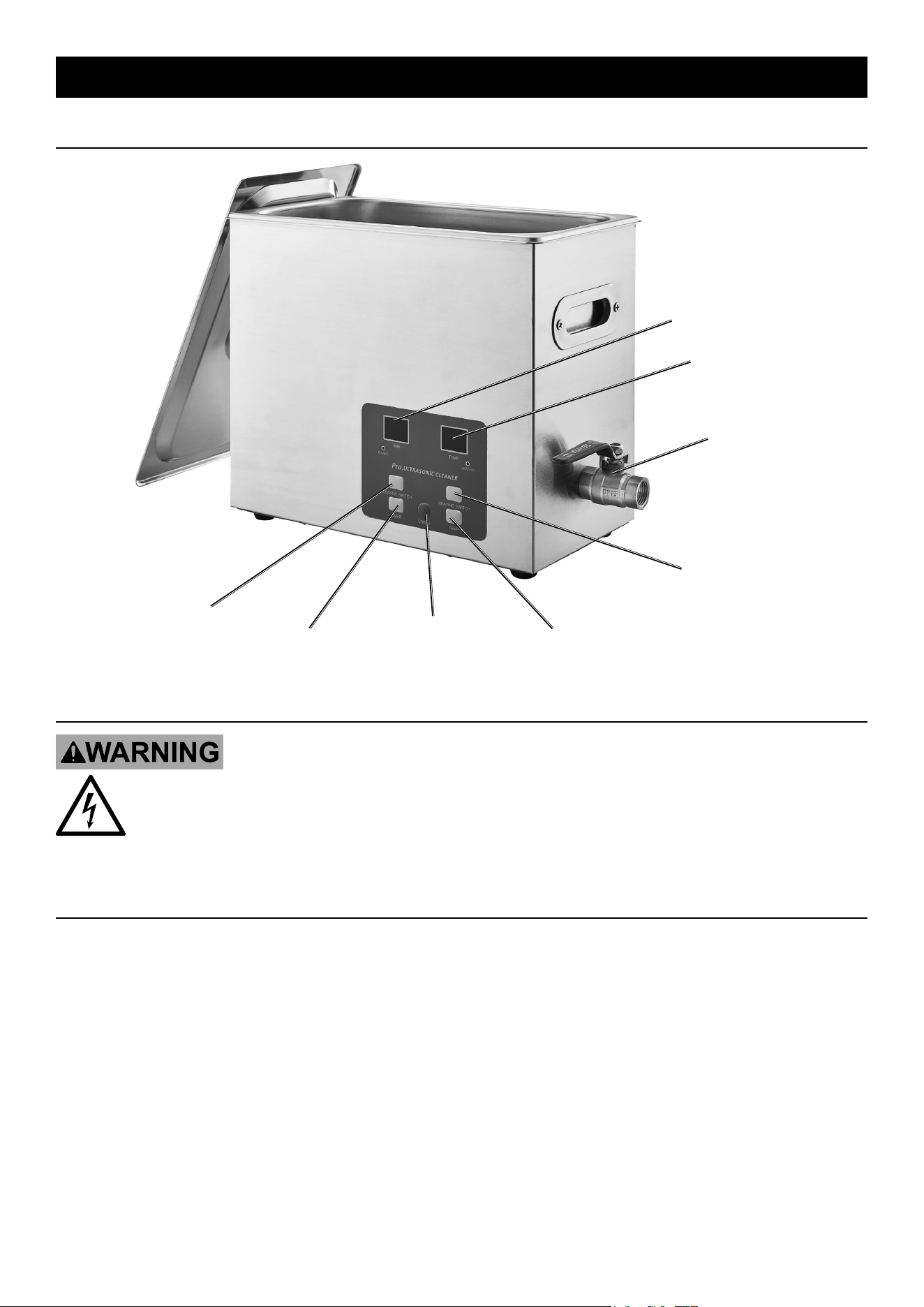

Functions
Cleaner Switch
Timer Button
Power Button
Temperature
Button
Heating Switch
Timer Display
Temperature
Display
Drain
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
Do not modify the power cord plug provided with the product. Do not use the if the power cord or
plug is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Extension Cords
Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.
Page 5For technical questions, please call 1-888-866-5797.Item 59430
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Ultrasonic Cleaner is off before performing any procedure in this section.
Setup
NOTE: Only use Ultrasonic Cleaner on a flat surface.
1. Add cleaning solution to bath. Do not
fill more than two-thirds full.
WARNING! TO PREVENT SERIOUS
INJURY: Do not use flammable or corrosive
liquids with Ultrasonic Cleaner.
2. Place objects to be cleaned in basket
in the Ultrasonic Cleaner.
NOTE: Do not clean multiple objects at a time.
Using many objects in the tank at one time will
cause them to bang against one another, damaging
both the articles being cleaned and the tank.
3. Plug Ultrasonic Cleaner in. Press
Power Button to turn Cleaner on.
4. To adjust temperature, press the TEMP Button.
Each press of the TEMP Button adjusts the
target temperature in increments up to 176° F.
NOTE: To start or stop temperature
control, press the Heating Switch.
5. To adjust time, press the TIMER Button. Each
press of the TIMER button adjusts the target time
by 5 minutes between 5 minutes and 30 minutes.
General Use
1. Begin cleaning cycle by pressing
CLEANER SWITCH.
2. Allow cleaning cycle to run for allotted
time. When timer reachers 00:00, press the
CLEANING SWITCH to end cleaning cycle.
NOTE: If Timer reaches 0 minutes and no buttons are
pressed after cleaning cycle finishes, the Heater will
switch on and off to maintain target temperature.
3. Remove items from bath using tongs.
4. If running more than one cleaning cycle, allow
a 20 minute rest period between cycles.
5. After use, drain cleaning solution using the
Drain on the side of the Ultrasonic Cleaner.
6. Close Drain. Fill bath with water and run a short
cleaning cycle to flush any remaining cleaning
solution out. Open Drain and drain water from bath.
7. Use Power Button to turn Ultrasonic Cleaner
off and unplug item. Allow Ultrasonic
Cleaner to cool down before cleaning inside
of tank with a clean, damp cloth.
8. Allow Ultrasonic Cleaner to fully dry before
storing. Store indoors in a dry location.
Page 6 For technical questions, please call 1-888-866-5797. Item 59430
USER MAINTENANCE
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Ultrasonic Cleaner is off and unplugged before performing any procedure in this section.
Instructions
1. Before each use, inspect the general condition
of the Ultrasonic Cleaner. Check for:
• loose hardware
• cracked or broken parts
• damaged electrical wiring, power plug or cord
• any other condition that may
affect its safe operation.
If a problem occurs, have the problem
corrected before further use.
Do not use damaged equipment.
2. Disconnect the Power Cord Plug from the power
source before storing the Ultrasonic Cleaner to
reduce the risk of starting the product accidentally.
3. Store the Ultrasonic Cleaner indoors in a dry
location. Keep out of the reach of children and
other untrained persons. Ultrasonic Cleaners
are dangerous in the hands of untrained users.
4. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
5. WARNING! If the supply cord of this
Ultrasonic Cleaner is damaged, it must be
replaced only by a qualified service technician.
CAUTION! This product has no user serviceable parts.
Troubleshooting
Problem Possible Causes Probable Solutions
Cleaner will not start 1. No power at outlet.
2. Cord not connected.
3. Automatic overheating safety
shut-off feature has tripped.
1. Check power at outlet.
2. Check that cord is plugged in.
3. Allow 20 minute cool-down
period before attempting to use
the Ultrasonic Cleaner.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175470836 when ordering parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE
TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR
SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS
OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
Page 7For technical questions, please call 1-888-866-5797.Item 59430

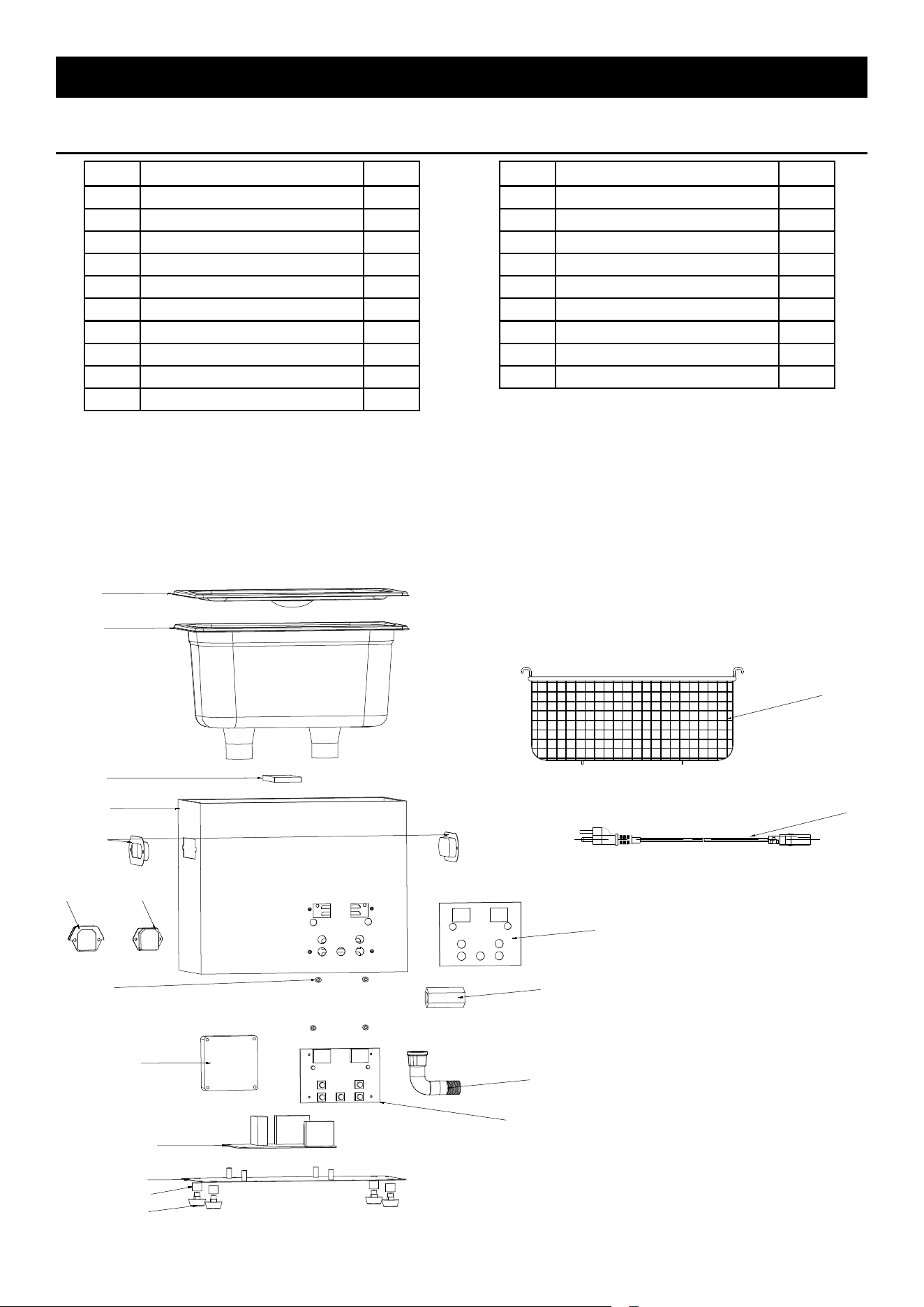

PARTS LIST AND DIAGRAM
Parts List
Part Description Qty
1 Cover 1
2 Steel Basin Components 1
3 PTC Heating Sheet 1
4 Main Body 1
5 Handle 2
6 Socket Baffle 1
7 Socket 1
8 Power Strip Gasket 4
9 Display Label 1
10 Ball Valve 1
Part Description Qty
11 DC Fan 1
12 Drain 1
13 Display Board 1
14 Power Board 1
15 Bottom Cover 1
16 Foot Pad Sleeve 4
17 Foot Pad 4
18 Power Cord 1
19 Basket 1
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
17
18
19
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
