What's in the Box
Screw Driver
Silicone Strip Light
Screws × 9
(including 3 spare screws)
Pole A
(with a lid pre-installed on the upper end)
Lamp BasePole B × 2
Power Adapter Control Unit
Quick Start Guide
At a Glance
1
2
345
4.5ft (1.4m) 4.3 ft (1.3m) 1 ft (0.3m)
5 ft (1.5m)
①
Lamp Pole
②
Lamp Base
③
Control Unit (Power Button)
• Press to turn on/o the lights.
• Press and hold for 2 seconds to enable the pairing mode.
④
Power Connectors
⑤
Power Adapter
Installing your Indoor Lamp
The installation will take approximately 10 minutes.
1. Slide Pole B onto the base, align the screw holes, and tighten with two screws.

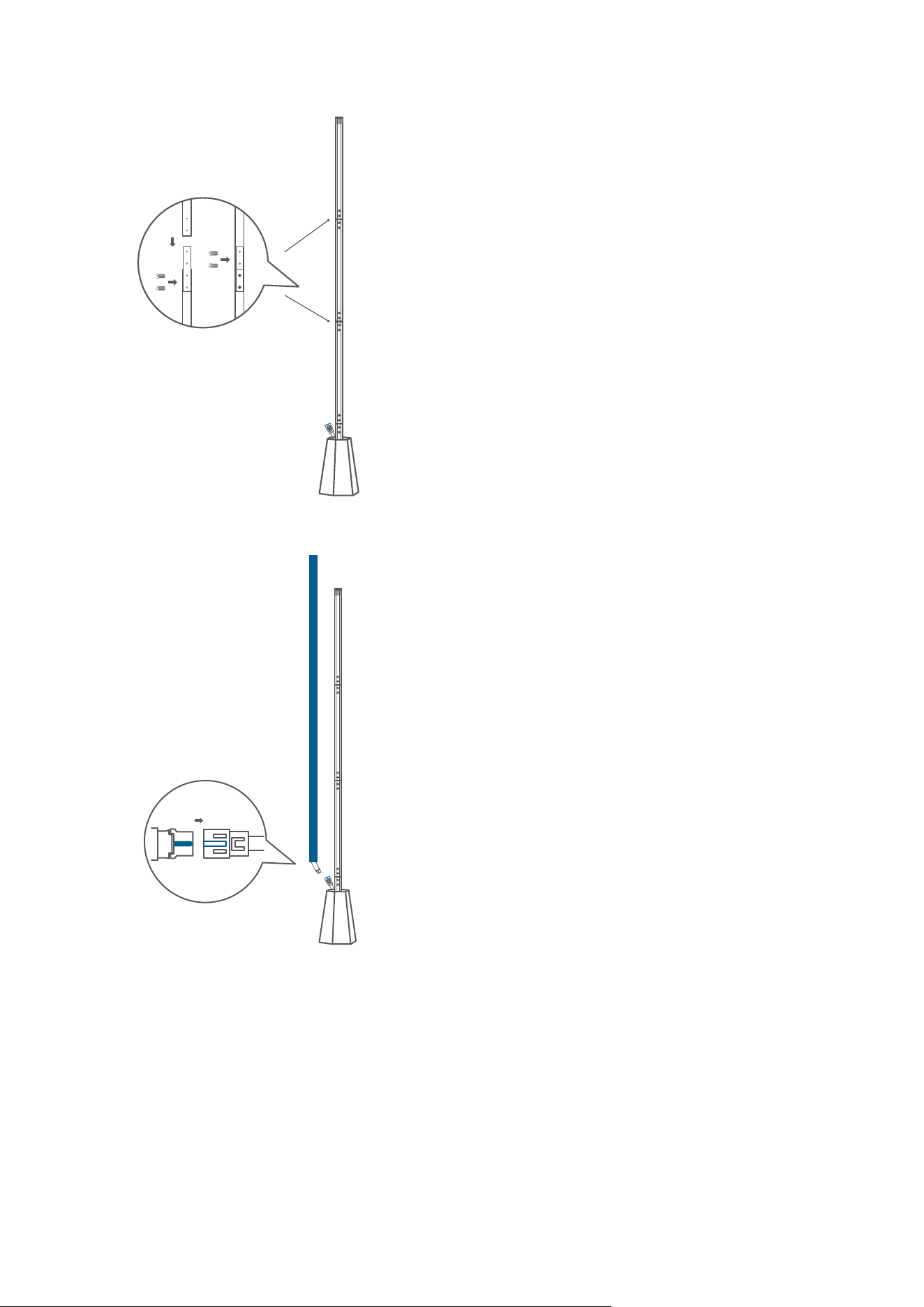

2. Connect the rest of the poles, and ensure Pole A is on top. Align their screw holes and tighten
them with two screws for each connection.
3. Plug the power connector of the light strip into the lamp base.

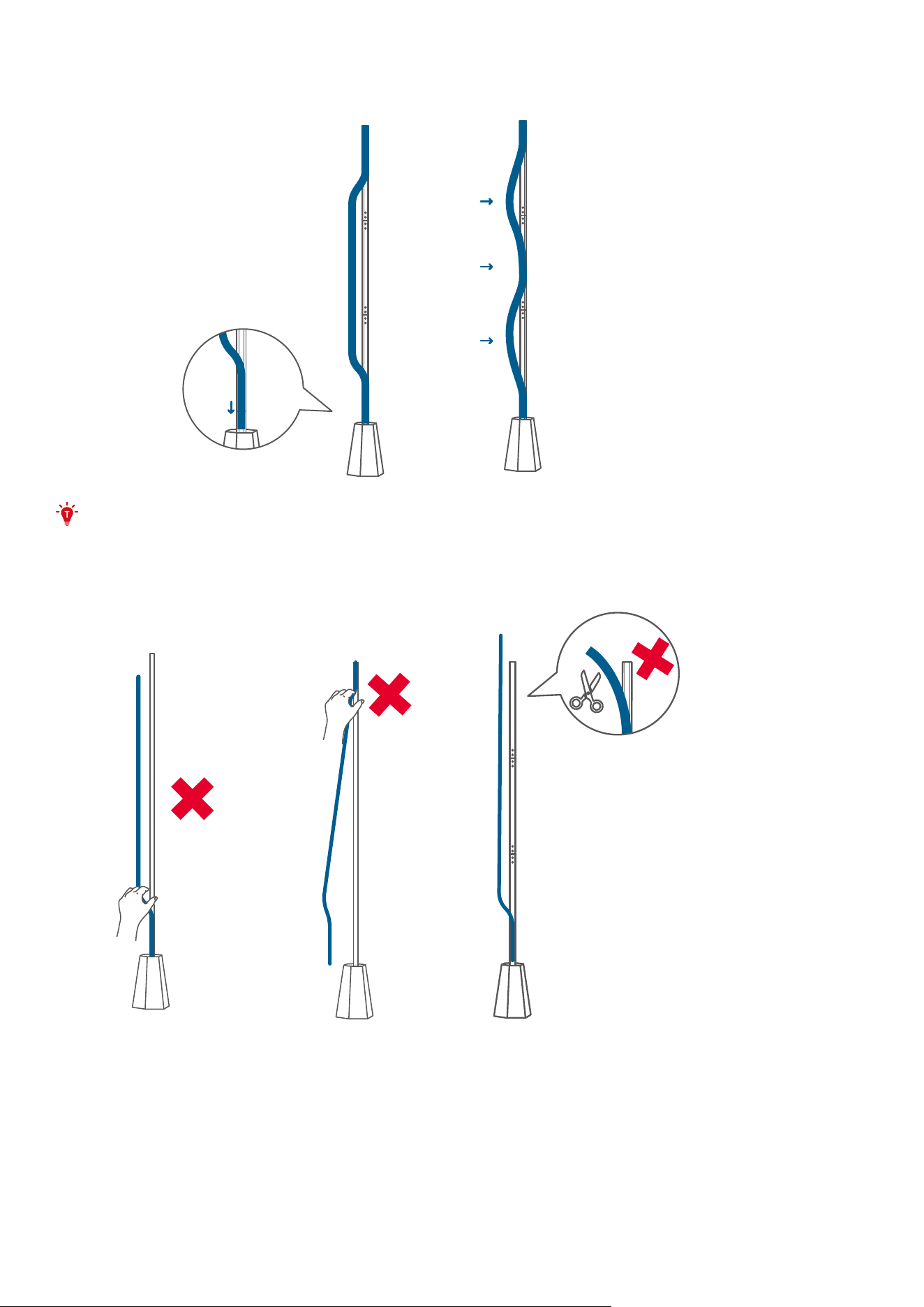

4. Insert the 2 ends of the light strip into the pole first, then press the rest part of the light strip
from middle to both ends.
• Do not insert one end of the light strip into the pole and press straight down or up to the
other end, otherwise the silicone light strip might be deformed.
• Never cut the light strip. If it is too long, follow step 4 to reinstall the light strip.

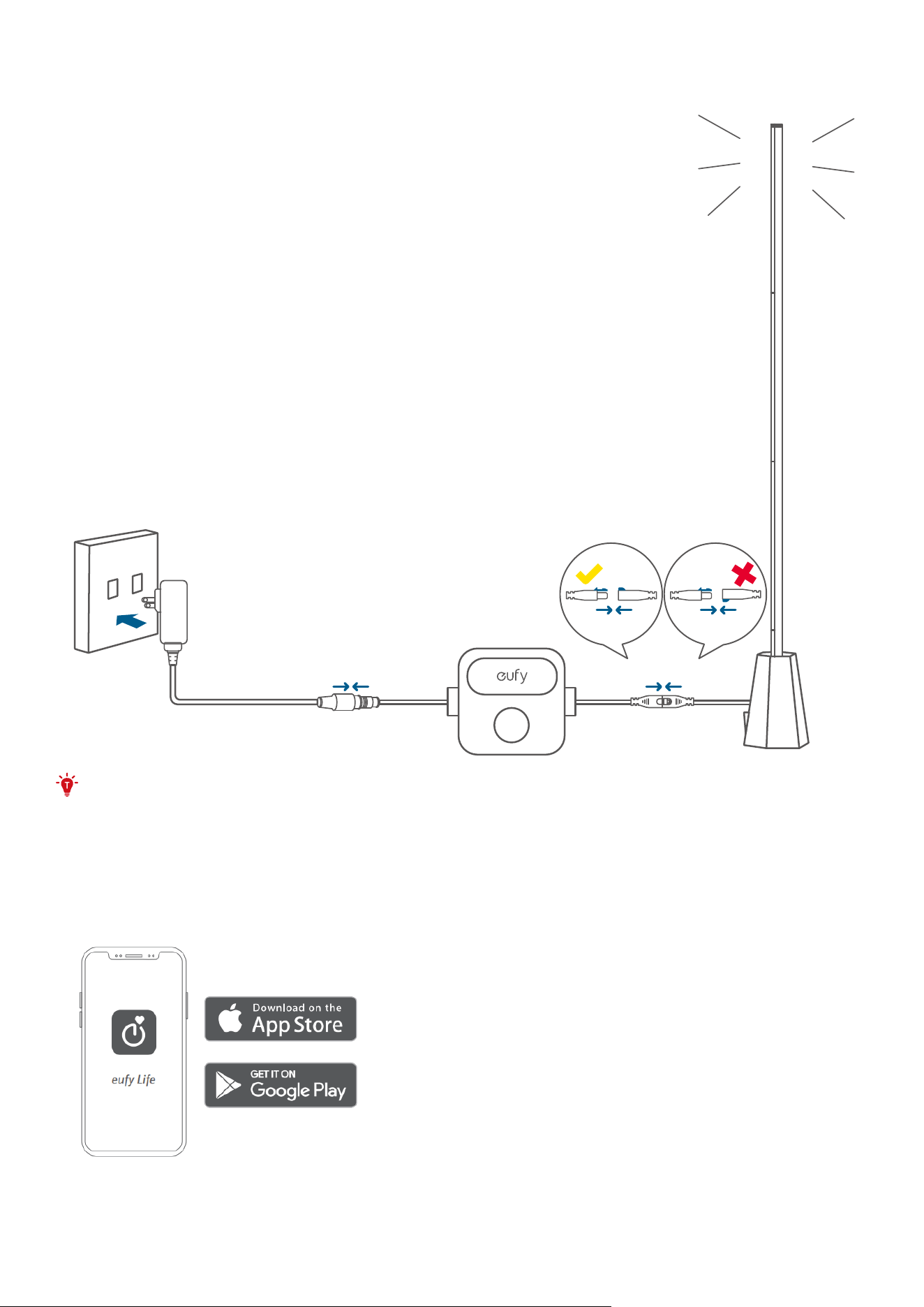

5. Connect the control unit to the lamp base, and the power cable to the control unit, and the
power adapter into a power outlet, then check if the light is working properly.
• Align the pins of the control unit connector with the slots in the socket before connecting.
Make sure the connectors are inserted in correct orientation to prevent electrical
damage.
Setting up the System
1. Download and install the eufy Life app, then sign in or create an account.
• Make sure that the eufy Life app is version 2.11.0 or later to support this light strip.
2. Follow the in-app instructions to add this device and complete the setup.
Specifications
Input (Power Adapter)
24W
120V AC ~, 50/60Hz (US)
100-240V AC ~, 50/60Hz (EU, UK, Australia)
Input (Lights) 24V
1A
Component Length
Lamp (including the base): 4.5ft (1.4m)
Control Unit Cable: 4.3 ft (1.3m)
Power Adapter Cable: 5 ft (1.5m)
Cable on the base: 1 ft (0.3m)
Light Displaying Technology RGBWWIC
Working Temperature -10°C to 40°C (14°F to 104°F)
IP Ratings For indoor use only
Troubleshooting
1. Cannot connect to Wi-Fi.
• The 5GHz network is not supported. Please set the router to 2.4GHz and then reset it.
• Do not skip the Wi-Fi connection steps in the app.
• Make sure you have entered the correct Wi-Fi name and password.
• Connect the hotspot of your phone to the product.
2. The light does not glow.
• Unplug the power adapter, disconnect and reconnect all components, and plug the power
adapter in again.
• If the problem persists, contact eufy support team for a product replacement.
Customer Service
• Lifetime Technical Support
• 18-month Limited Warranty
Important Safety Instructions
• This product is for indoor use only. Do not use the product in an outdoor environment.
• This product is NOT waterproof. Please avoid water splashing on the product or soaking the
product in the water.
• The lamp bead and other internal parts of the product cannot be replaced. If damaged,
please contact eufy@support.com for a product replacement.
• Do not allow children to assemble or install this product.
• Be careful with the sharp edge of the product.
• Avoid installing this product in a closed environment or near large heat sources.
• The recommended temperature range for devices and accessories is -10°C to 40°C (14°F to
104°F).
• Unless specifically indicated that it is safe to do so in the user guide or instruction manual,
do not use this device in an environment that exceeds the recommended low or high
temperature.
• Unless specifically indicated that it is safe to do so in the user guide or instruction manual,
avoid exposing your device to direct sunshine or excessively wet environments.
• For pluggable equipment, the socket outlet should be easily accessible.
• Use only the adapter provided by the manufacturer. Using unauthorized adapters may cause
danger and violate the authorized use of the device or the warranty article. External dimmers
cannot be used with this product.
• Avoid placing the product near potentially dangerous objects (e.g. candles, glass, etc.).
