CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
OperatOr’s Manual
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Zero Turn Riding Mower
Time Saver Models
i1046
i1050
FORM NO. 769-03732
(Dec, 2007)
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.cubcadet.com
Locate your nearest Cub Cadet Dealer at (877) 282-8684
Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019
◊
◊
◊
Thank you for purchasing a Lawn Tractor manufactured by Cub
Cadet LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. Cub Cadet
LLC reserves the right to change product specifications, designs
and equipment without notice and without incurring obligation.
This product has met the rigid safety standards of the Outdoor
Power Equipment Institute and an independent testing
laboratory. If you have any problems or questions concerning
the machine, phone your local Cub Cadet dealer or contact us
directly. Cub Cadet’s Customer Support telephone numbers,
website address and mailing address can be found on this page.
We want to ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by looking beneath the seat. This information will be
necessary, should you seek technical support via our web site or
with your local Cub Cadet dealer.
MOdel nuMber
serial nuMber
To The Owner
1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 8
Controls & Features ...............................................10
Operation ................................................................13
Maintenance & Adjustment .................................17
Service .................................................................... 23
Troubleshooting .................................................... 28
Replacement Parts ............................................... 29
Attachments & Accessories .................................. 30
Warranties ..............................................................31
Table of Contents
Important Safe Operation Practices
2
3
Children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
machine and the mowing activity. They do not understand
the dangers. Never assume that children will remain where
you last saw them.
Keep children out of the mowing area and in
watchful care of a responsible adult other than the
operator.
Be alert and turn machine off if a child enters the
area.
Before and while backing, look behind and down for
small children.
Never carry children, even with the blade(s) shut off.
They may fall off and be seriously injured or interfere
with safe machine operation.
Use extreme care when approaching blind corners,
doorways, shrubs, trees or other objects that may
block your vision of a child who may run into the
machine.
To avoid back-over accidents, always disengage
the cutting blade(s) before shifting into Reverse.
If equipped, the “Reverse Caution Mode” should
not be used when children or others are around.
1.
a.
b.
c.
d.
e.
f.
Keep children away from hot or running engines.
They can suffer burns from a hot muffler.
Remove key when machine is unattended to
prevent unauthorized operation.
Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
Operation
Safe Handling of Gasoline:
To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.
Use only an approved gasoline container.
Never fill containers inside a vehicle or on a truck
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
g.
h.
2.
1.
a.
b.
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the rules for safe operation
practices in this manual. As with any type of power equipment, carelessness or error on the
part of the operator can result in serious injury. This machine is capable of amputating hands
and feet and throwing objects. Failure to observe the following safety instructions could
result in serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling
4 sectiOn 2 — iMpOrtant safe OperatiOn practices
When practical, remove gas-powered equipment
from the truck or trailer and refuel it on the ground.
If this is not possible, then refuel such equipment on
a trailer with a portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
Never fuel machine indoors.
Never remove gas cap or add fuel while the engine
is hot or running. Allow engine to cool at least two
minutes before refueling.
Never over fill fuel tank. Fill tank to no more than ½
inch below bottom of filler neck to allow space for
fuel expansion.
Replace gasoline cap and tighten securely.
If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
To reduce fire hazards, keep machine free of grass,
leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel soaked debris.
Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
as on a water heater, space heater, furnace, clothes
dryer or other gas appliances.
Allow a machine to cool at least five minutes before
storing.
General Operation:
Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
Never allow adults to operate this machine without proper
instruction.
To help avoid blade contact or a thrown object injury,
keep bystanders, helpers, children and pets at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
c.
d.
e.
f.
g.
h.
i.
j.
k.
l.
m.
1.
2.
3.
4.
5.
6.
Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction
which may cause discharged material to ricochet back
toward the operator.
Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Loose fitting clothes and jewelry can be
caught in movable parts. Never operate this machine in
bare feet or sandals.
Be aware of the mower and attachment discharge direction
and do not point it at anyone. Do not operate the mower
without the discharge cover or entire grass catcher in its
proper place.
Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate
hands and feet.
A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
Stop the blade(s) when crossing gravel drives, walks, or
roads and while not cutting grass.
Watch for traffic when operating near or crossing
roadways. This machine is not intended for use on any
public roadway.
Do not operate the machine while under the influence of
alcohol or drugs.
Mow only in daylight or good artificial light.
Never carry passengers.
Disengage blade(s) before shifting into reverse. Back up
slowly. Always look down and behind before and while
backing to avoid a back-over accident.
Slow down before turning. Operate the machine smoothly.
Avoid erratic operation and excessive speed.
Disengage blade(s), set parking brake, stop engine and
wait until the blade(s) come to a complete stop before
removing grass catcher, emptying grass, unclogging chute,
removing any grass or debris, or making any adjustments.
Never leave a running machine unattended. Always turn
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.
Use extra care when loading or unloading the machine into
a trailer or truck. This machine should not be driven up or
down ramp(s), because the machine could tip over, causing
serious personal injury. The machine must be pushed
manually on ramp(s) to load or unload properly.
Muffler and engine become hot and can cause a burn. Do
not touch.
Check overhead clearances carefully before driving under
low hanging tree branches, wires, door openings etc.,
where the operator may be struck or pulled from the
machine, which could result in serious injury.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
5sectiOn 2 — iMpOrtant safe OperatiOn practices
Disengage all attachment clutches, depress the brake
pedal completely and shift into neutral before attempting
to start engine.
Your machine is designed to cut normal residential grass of
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/or
build up on the mower deck presenting a potential fire
hazard.
Use only accessories and attachments approved for this
machine by the machine manufacturer. Read, understand
and follow all instructions provided with the approved
accessory or attachment.
Data indicates that operators, age 60 years and above, are
involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability
to operate the riding mower safely enough to protect
themselves and others from serious injury.
If situations occur which are not covered in this manual, use
care and good judgment. Contact your customer service
representative for assistance.
Slope Operation:
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. All slopes
require extra caution. If you cannot back up the slope or if you
feel uneasy on it, do not mow it.
For your safety, use the slope gauge included as part of this
manual to measure slopes before operating this machine on
a sloped or hilly area. If the slope is greater than 15 degrees as
shown on the slope gauge, do not operate this machine on that
area or serious injury could result.
Do:
Mow up and down slopes, not across. Exercise extreme
caution when changing direction on slopes.
Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
Use slow speed. Choose a low enough speed setting so
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.
Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.
Use extra care with grass catchers or other attachments.
These can change the stability of the machine.
Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which could
cause serious injury.
Avoid starting or stopping on a slope. If tires lose traction,
disengage the blade(s) and proceed slowly straight down
the slope.
25.
26.
27.
28.
29.
1.
2.
3.
4.
5.
6.
7.
Do Not:
Do not turn on slopes unless necessary; then, turn slowly
and gradually downhill, if possible.
Do not mow near drop-offs, ditches or embankments. The
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
Do not try to stabilize the machine by putting your foot on
the ground.
Do not use a grass catcher on steep slopes.
Do not mow on wet grass. Reduced traction could cause
sliding.
Do not shift to neutral and coast downhill. Over-speeding
may cause the operator to lose control of the machine
resulting in serious injury or death.
Do not tow heavy pull behind attachments (e.g. loaded
dump cart, lawn roller, etc.) on slopes greater than 5
degrees. When going down hill, the extra weight tends
to push the tractor and may cause you to loose control.
(e.g. tractor may speed up, braking and steering ability are
reduced, attachment may jack-knife and cause tractor to
overturn).
Towing:
Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.
Follow the manufacturers recommendation for weight
limits for towed equipment and towing on slopes.
Never allow children or others in or on towed equipment.
On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.
Travel slowly and allow extra distance to stop.
Do not shift to neutral and coast downhill.
Service
Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless,
and deadly gas.
Before cleaning, repairing, or inspecting, make certain the
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
Periodically check to make sure the blades come to
complete stop within approximately (5) five seconds after
operating the blade disengagement control. If the blades
do not stop within the this time frame, your machine
should be serviced professionally by an authorized MTD
Service Dealer.
Check brake operation frequently as it is subjected to wear
during normal operation. Adjust and service as required.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
6 sectiOn 2 — iMpOrtant safe OperatiOn practices
Check the blade(s) and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade(s)
for damage (e.g., excessive wear, bent, cracked). Replace
the blade(s) with the original equipment manufacturer’s
(O.E.M.) blade(s) only, listed in this manual. “Use of parts
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”
Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.
Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
Never tamper with the safety interlock system or other
safety devices. Check their proper operation regularly.
After striking a foreign object, stop the engine, disconnect
the spark plug wire(s) and ground against the engine.
Thoroughly inspect the machine for any damage. Repair
the damage before starting and operating.
Never attempt to make adjustments or repairs to the
machine while the engine is running.
Grass catcher components and the discharge cover are
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
Do not change the engine governor settings or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
Maintain or replace safety and instruction labels, as
necessary.
Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered,
brushcovered or grass-covered land unless the
engine’s exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if
any).
If a spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
Average Useful Life
According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years, or 270
hours of operation. At the end of the Average Useful Life, buy
a new machine or have the machine inspected annually by an
authorized service dealer to ensure that all mechanical and
safety systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
7sectiOn 2 — safe OperatiOn practices
Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (represents a 15° slope)
15°
Use this page as a guide to determine slopes where you may not operate safely.
WARNING: Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees
(a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. Operate riding
mowers up and down slopes, never across the face of slopes.
Assembly & Set-Up
3
8
Gasoline Fill-up
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and
the vapors are explosive. Never fuel machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes, and other
sources of ignition.
nOte: Purchase gasoline in small quantities. Do not use
gasoline left over from the previous season, to minimize
gum deposits in the fuel system.
This engine is certified to operate on unleaded
gasoline. For best results, fill the fuel tank with only
clean, fresh, unleaded gasoline with a pump sticker
octane rating of 87 or higher. In countries using the
Research method, it should be 90 octane minimum.
Unleaded gasoline is recommended because it leaves
less combustion chamber deposits and reduces
harmful exhaust emissions. Leaded gasoline is not
recommended and must not be used where exhaust
emissions are regulated.
Gasohol (up to 10% ethyl alcohol, 90% unleaded
gasoline by volume) is an approved fuel. Other
gasoline/alcohol blends are not approved.
Methyl Tertiary Butyl Ether (MTBE) and unleaded
gasoline blends (up to a maximum of 15% MTBE by
volume) are approved fuels. Other gasoline/ether
blends are not approved.
The gasoline tank is under the rear fender, with the fuel fill
cap located in the center of the rear fender. The fuel cap is
tethered to the tractor to prevent its loss. Do not attempt
to remove the cap from the tractor.
IMPORTANT: Your tractor is shipped with motor oil in
the engine. However, you MUST check the oil level before
operating. Refer to the engine Owner’s Manual provided with
your tractor for instructions on checking the oil level.
Tire Pressure
WARNING: Maximum tire pressure under any
circumstances is 25 psi. Equal tire pressure
should be maintained at all times.
The tires on your unit may be over-inflated for shipping
purposes. Reduce the tire pressure before operating
the tractor. Recommended operating tire pressure is
approximately 10 p.s.i for the rear tires & 14 p.s.i. for the
front tires. Check sidewall of tire for maximum p.s.i.
•
•
•
•
Opening the Tractor Hood
To attach the negative battery cable and check the engine
oil level the hood must be open. Locate the hood lift notch
at the front/center of the dash panel. Grasping the hood at
the notch, lift and pivot the hood forward to open.
Attaching the Battery Cables
The tractor is shipped with an activated sealed battery. The
positive battery cable is factory connected. The negative
cable must be connected. The positive battery terminal is
marked Pos. (+). The negative battery terminal is marked
Neg. (–).
IMPORTANT: Make sure the ignition switch is in the “OFF”
position before attaching the battery cables.
From the center notch at the front of the dash panel,
lift the tractor hood and pivot forward to open.
Remove the hex shoulder bolt and wing nut from the
negative (black)cable.

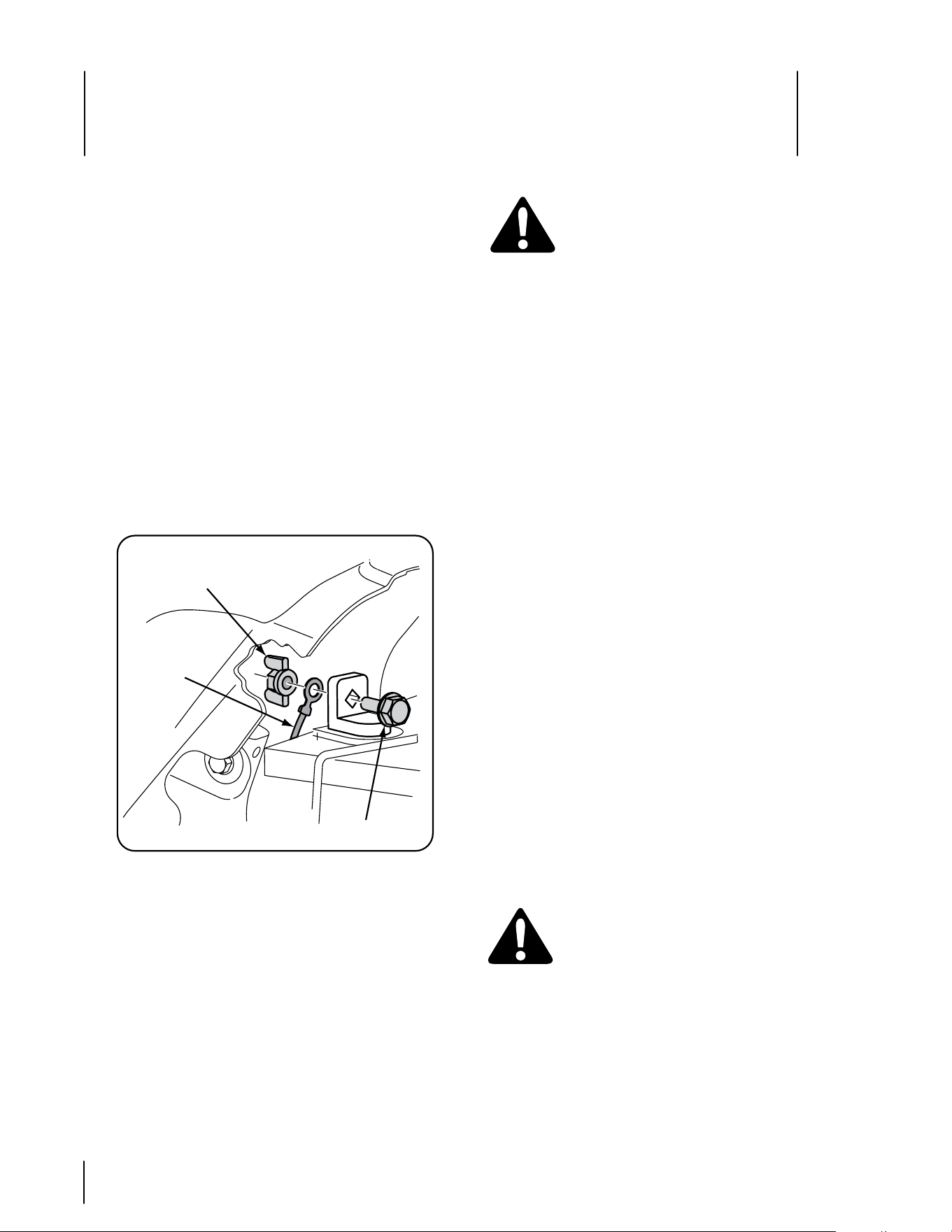

Figure 3-1
Pull the protective cap, if present, off the negative
battery terminal. Attach the negative cable (heavy
black wire) to the negative battery terminal (–) with
the bolt and wing nut. See Figure 1.
The positive cable (red cable) is secured to the positive
battery terminal (+) with a carriage bolt and hex sems
nut at the factory. Make certain that the rubber boot
covers the positive battery terminal.
NOTE: If the battery is put into service after the date
shown on top of battery, charge the battery as instructed
on page 20 of this manual prior to operating the tractor.
•
•
•
•
Shoulder Bolt
Wing Nut
Negative
Battery
Cable
9sectiOn 2 — asseMbly & set-up
Mulching Plug & Shipping Brace Removal
WARNING!: Make sure the riding mower’s
engine is off, remove the ignition key, and set
the parking brake before removing the ship-
ping brace.
WARNING!: The shipping brace, used for pack-
aging purposes only, must be removed and
discarded before operating your riding mower.
WARNING!: The mowing deck is capable of
throwing objects. Never operate the mower
deck without the chute deflector in its down
position, even with the mulching plug installed.
Failure to do so could result in serious personal
injury and/or property damage.

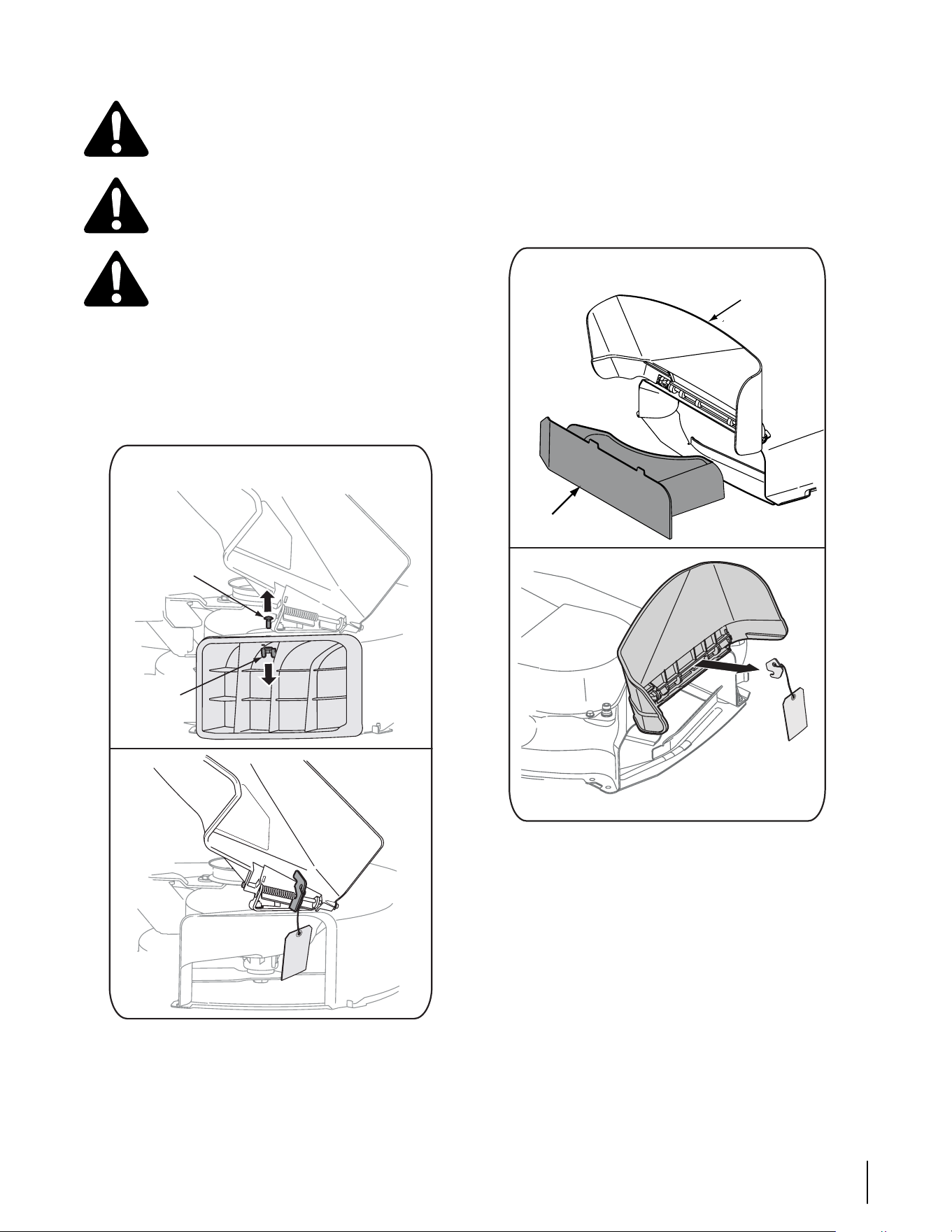

Removing Mulching Plug & Shipping Brace From 46" Decks ONLY
Remove the wing nut and carriage bolt securing the
mulching plug in the deck discharge opening, and pull
the mulching plug from the deck. See Figure 3-2.
Figure 3-2
Locate the shipping brace and tag, if present, between
the chute deflector and the cutting deck. Holding the
chute deflector fully upward, remove the shipping by
grasping it and rotating it clockwise. Lower the chute
deflector. Refer to Figure 2.
•
•
46” Mower Deck
Carriage
Bolt
Wing
Nut
Removing Mulching Plug & Shipping Brace From 50" Decks ONLY
Fully raise and hold the chute deflector; then slide the
mulching plug out of the deck discharge opening.
Lower the chute deflector.
Locate the shipping brace and tag, if present, between
the chute deflector and the cutting deck. Holding the
chute deflector fully upward, remove the shipping
brace by grasping it and rotating it. Lower the chute
deflector. Refer to Figure 3-3.
Figure 3-3
Store the mulching plug for future use. Refer to
“Mulching” in “Operation” for instructions on installing and
using the mulching feature.
•
•
Mulching Plug
Chute
Deflector
50" Mower Deck

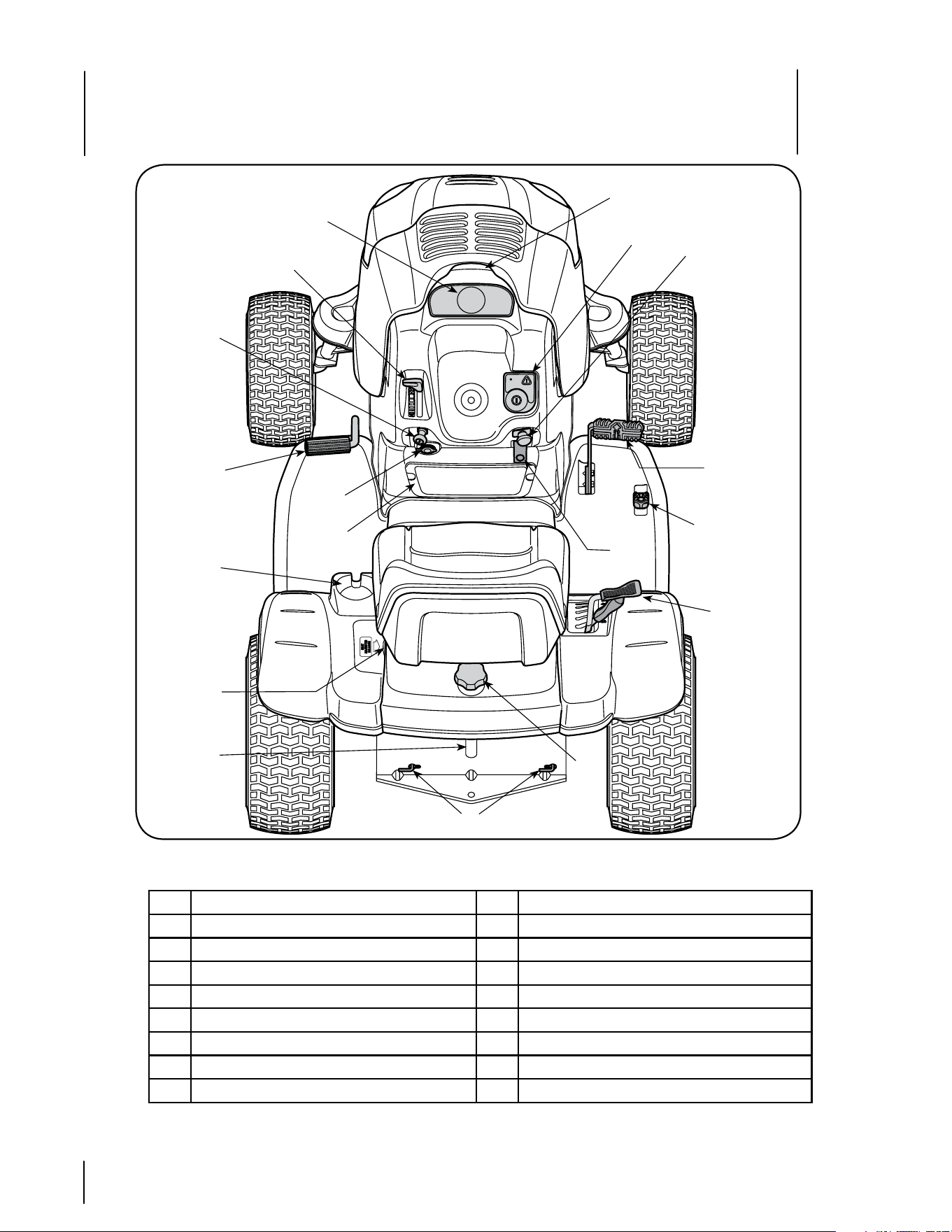

Controls and Features
4
10
Figure 4-1
C
A Systems Indicator Monitor/ Hour Meter J Deck Lift Lever
B Throttle Control Lever K Cup Holder
C Key Switch Module L Seat Adjustment Lever
D Choke Control Knob M Fuel Fill Cap
E PTO (Blade Engage)Control Switch N Hydro Transmission Bypass Rods
F Parking Brake Lever O Fuel Level Window
G Forward Control Pedal P Cargo Net
H Reverse Control Pedal Q 12 V Power Outlet
I Brake Pedal
R
Hood Lift Notch
A
B
D
E
F
G
H
I
J
K
L
M
O
N
P
R
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s position.
Q
11sectiOn 4 — cOntrOls and features
and check the engine oil level. If the oil level is within the
operating range, but the light remains on, contact your
Cub Cadet dealer. NOTE: The oil pressure indicator may
illuminate when the key switch is turned to an on position, but
should turn off when the engine is started.
PTO Engaged Indicator Light
This indicator illuminates when the key switch is turned
to the “START” position while the PTO switch is in the
“ENGAGED” position. Check this indicator if the engine
will not crank with the key switch in the “START” position.
Move the PTO switch to the “DISENGAGED” position.
Brake Engaged Indicator
This indicator illuminates when the key switch is turned
to the “START” position and the brake pedal is not fully
depressed. Check this indicator if the engine will not crank
with the key switch in the “START” position. If necessary,
fully depress the brake pedal.
Throttle Control Lever
The throttle control lever controls the
speed of the engine. When set in a given
position, the throttle will maintain a
uniform engine speed.
IMPORTANT: When operating the tractor
with the cutting deck engaged, throttle
control lever must always be in the FAST
(rabbit) position.
Key Switch Module
The key switch module is used
to start and stop the engine.
It is also used to activate the
REVERSE CAUTION MODE.
Insert key into the key switch
module and turn clockwise to
the START position. Release
the key into the NORMAL
MOWING position once engine
has started.
To stop the engine, turn the
ignition key counterclockwise
to the STOP position.
WARNING: Never leave a running machine
unattended. Always disengage PTO, move
shift lever into neutral position, set parking
brake, stop engine and remove key to prevent
unintended starting.
IMPORTANT: Prior to operating the tractor, refer to both
“Safety Interlock System” on page 12 and “Starting The
Engine” on page 13 of this manual for detailed instructions
regarding the Ignition Switch Module and operating the
tractor in REVERSE CAUTION MODE.
WARNING: Never move the key into the Start
position while the engine is running. Doing so
may cause damage to your engine’s starter.
Systems Indicator Monitor/Hour Meter
Your tractor is equipped with a Systems Indicator
Monitor as shown in Figure 5. The monitor records the
accumulated hours of tractor operation, and displays
the information on the LCD hour meter display (tenths
of an hour - right most digit). The monitor also has four
indicator lights that show the status of various functions
of the tractor.

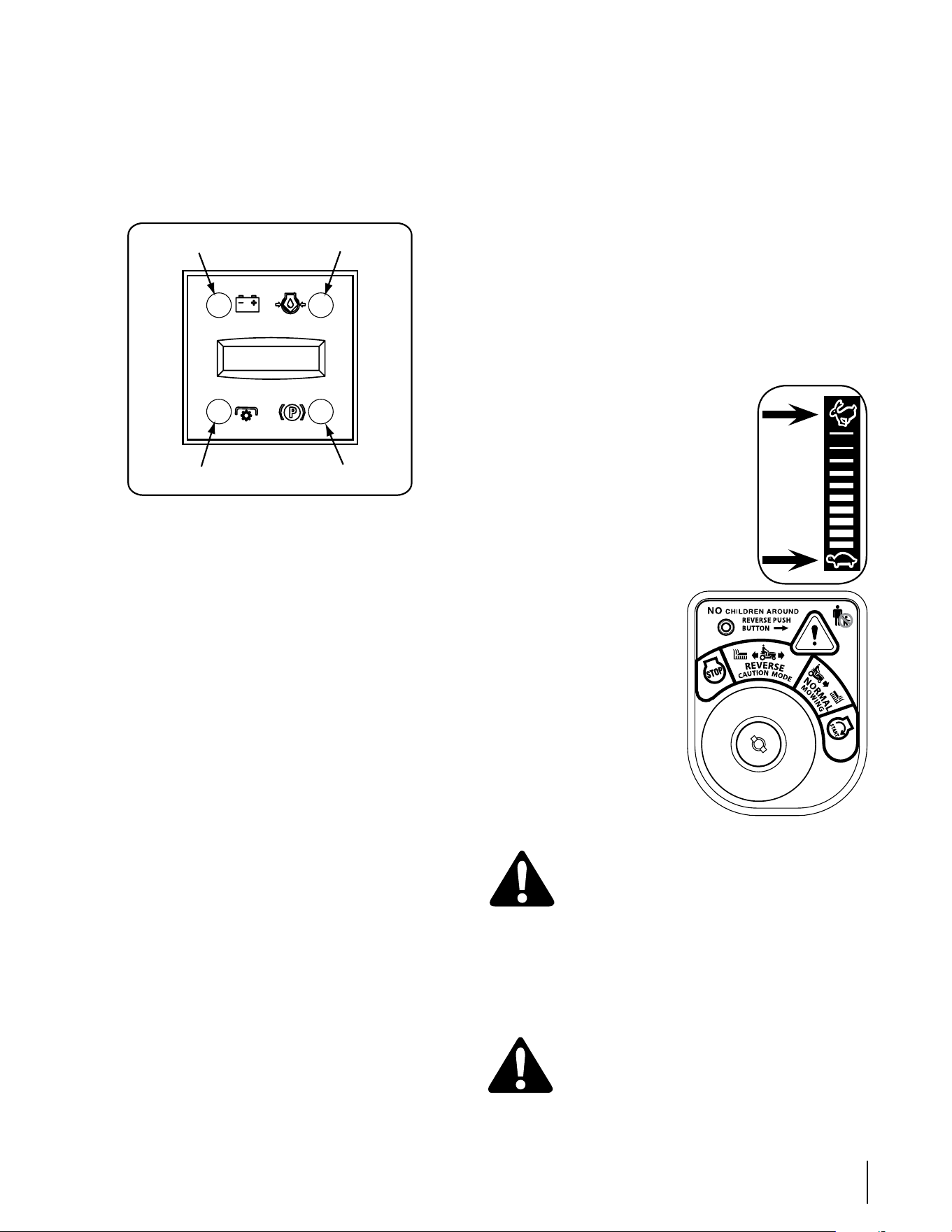

Figure 4-2
The system indicator monitor features are as follows:
LCD Hour Meter Display
The hour meter display is activated when the key switch is
turned to either the “NORMAL MOWING” or the “REVERSE
CAUTION MODE” switch positions. When the key switch is
turned to an on position, the battery indicator light briefly
illuminates and the battery voltage is briefly displayed. The
display then changes to the accumulated hours.
NOTE: A record of the actual hours of operation
should be kept to assure maintenance procedures are
completed according to the schedule in this manual.
The Indicator Monitor will also remind the operator of
maintenance intervals for changing the engine oil. The
LCD will alternately flash the recorded hours, “CHG” and
“OIL” for five minutes, after every 50 hours of recorded
operation elapse. The maintenance interval lasts for two
hours (from 50-52, 100-102, 150-152, etc.). The LCD will
flash as described for five minutes every time the tractor’s
engine is started during this maintenance interval. Follow
the oil change intervals provided in the engine manual.
Battery Indicator Light
Illuminates when the ignition switch it turned to an ON
position and the engine is not started.
Illuminates to indicate the battery voltage has dropped
below 11.5 (+0.5/-1.0) DC volts (the battery voltage is also
displayed on the hour meter). If this indicator and display
come on during operation, check the battery and charging
system for possible causes and/or contact your Cub Cadet
dealer.
Oil Pressure Indicator Light
This warning lamp indicates low engine oil pressure. If
this indicator illuminates, stop the tractor immediately
Fast
Position
Slow
Position
Battery
LCD Hour Meter
PTO
Oil
Parking Brake
123.4
12 sectiOn 4— cOntrOls and features
Choke Control
The choke control knob is located on the lower left side
of the dash panel and is activated by pulling outward.
Activating the choke control closes the choke plate on the
carburetor and aids in starting the engine.
PTO (Blade Engage) Control Switch
To engage the electric PTO and provide
power to the cutting deck, pull outward
on the PTO control switch knob. Push the
switch knob inward to disengage the PTO
and stop the cutting deck.
NOTE: The PTO Control Switch must be
in the disengaged (OFF) position when
starting the engine.
Parking Brake Lever
NOTE: The parking brake must be set if the operator leaves
the seat with the engine running; otherwise the engine will
automatically shut off.
To set the parking brake, fully depress
the brake pedal and push the bottom
of parking brake lever inward. See the
image to the right for parking brake
identification. Hold the lever in while
removing your foot from the brake pedal.
Both parking brake lever and brake pedal
will stay depressed.
To release the parking brake, depress the
brake pedal slightly. The parking brake lever will then
return to its original position.
IMPORTANT: Always set the parking brake when leaving
the tractor unattended.
Forward Control Pedal
The forward control pedal is located on the right side of
the tractor, at the front of the right running board. Depress
the forward control pedal to cause the tractor to travel in
the forward direction. The forward ground speed of the
tractor is directly affected by the distance the pedal is
depressed. The further the pedal is depressed, the faster
the tractor will travel. The tractor will slow and the pedal
will return to its original position when released.
Reverse Control Pedal
The reverse control pedal is located in the right front
running board rearward of the forward control pedal.
Depress the reverse control pedal to cause the tractor to
travel in reverse. The further the pedal is depressed, the
faster the tractor will travel. The tractor will slow and the
pedal will return to its original position when released.
Brake Pedal
The brake pedal is located at the front of the left running
board and is used for quick stops, or setting the parking
brake. This pedal must be FULLY depressed to activate the
safety interlock switch when starting the tractor.
•
•
Deck Lift Lever
The deck lift lever is located in the right fender and is
used to change the cutting height of the mower deck.
The cutting heights range from 1-1/2" to 4". Each of the six
index notches represent an approximately 1/2" adjustment
to the deck height. To use, grasp the lift lever handle and
pull slightly upward (rearward) while pivoting the lever
inward and out of its index notch. Move the lift lever
as necessary to place in the notch best suited for your
application.
After changing the cutting height of the deck, you must
check the position of the deck front gauge wheels. They
should be approximately ½-inch above the ground when
the tractor is on a smooth, flat surface such as a driveway.
Refer to “Maintenance & Adjustments” later in this manual
Cup Holder
The tractor’s cup holder is located on the fender to the left
of the seat.
Seat Adjustment Lever
The seat adjustment lever is on the left side of the seat.
Use this lever to adjust the seat forward or rearward to a
comfortable operating position. See the “Maintenance &
Adjustments” section later in this manual for instructions.
Fuel Fill Cap and Fuel Level Window
The fuel fill cap is located in the center of the rear fender.
Pivot the seat forward to fully access the fuel fill cap and fill
the fuel tank.
Turn the fill cap approximately 1/4 turn and pull upward to
remove. Push the cap downward on the fuel tank fill neck
and turn 1/4 turn clockwise to tighten.
The level of fuel in the fuel tank can be viewed through the
fuel level window in the rear hitch plate.
Cargo Net
Conveniently located on the tractor’s dash panel, the cargo
net can be used to store personal items while operating
the lawn tractor.
Hydro Transmission Bypass Rods
The hydro transmission bypass rods are located at the
back of the tractor above the rear hitch plate. When
engaged, these levers open a hydro pump bypass valve
in each transmission which allows the tractor to be
manually pushed short distances. See the “Maintenance &
Adjustments” section later in this manual for instructions.
12V Power Outlet
The 12V power outlet is located below the choke control
on the left side of the dash panel. It is used for the
convenience of plugging in accessories that require a
power source with a maximum load of 5 amps at 12 volts.
Headlights
The tractor headlights are turned on whenever the ignition
switch is turned to either of the run positions.
Safety Interlock System
The safety interlock system is designed for safe operation
of the tractor. If this system should ever malfunction, do
not operate the tractor, immediately contact your Cub
Cadet dealer.
The safety interlock system prevents the engine from
starting unless the parking brake is engaged and the
PTO switch is in the disengaged (OFF) position.
The safety interlock system will automatically shut
off the engine if the operator leaves the seat before
engaging the parking brake.
The safety interlock system will automatically shut off
the engine if the operator leaves the tractor’s seat with
the PTO (Blade Engage) switch engaged, regardless of
whether the parking brake is engaged.
With the ignition key in the NORMAL MOWING position,
the electric PTO clutch will automatically shut off if the
PTO switch is in the engaged (ON) position and the
drive pedal is depressed for Reverse travel.
WARNING: Tampering with or attempting
to bypass the Safety Interlock Switches in any
way will void your tractor’s warranty. Do not
operate the tractor if the interlock system is
malfunctioning.
•
•
•
•
Reverse Caution Mode
WARNING: Use extreme caution while operating
the tractor in the REVERSE CAUTION MODE.
Always look down and behind before and
while backing. Do not operate the tractor when
children or others are around. Stop the tractor
immediately if someone enters the area.

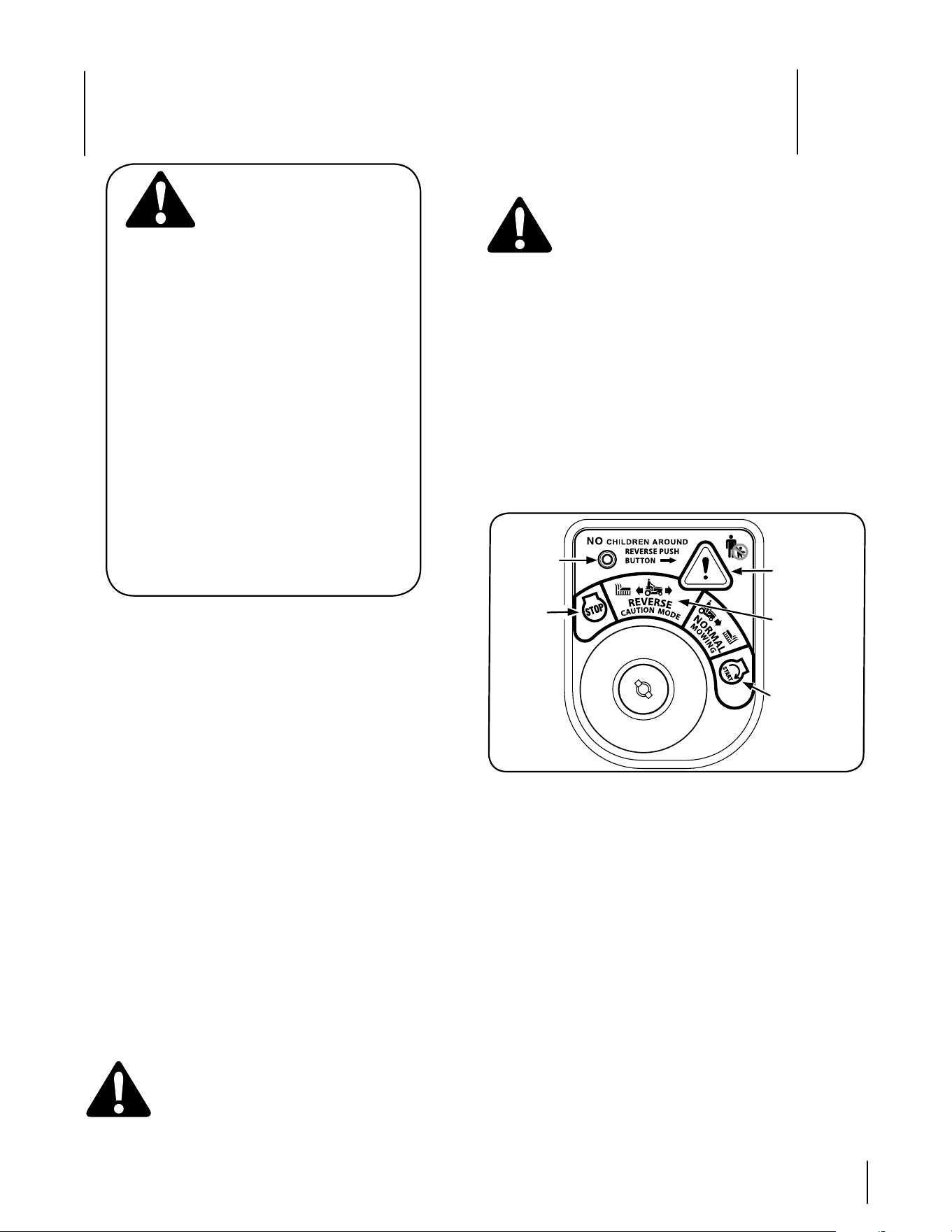

The REVERSE CAUTION MODE position of the key switch
module allows the tractor to be operated in reverse with
the blades (PTO) engaged.
IMPORTANT: Mowing in reverse is not recommended.
To use the REVERSE CAUTION MODE:
IMPORTANT: The operator MUST be seated in the tractor seat.
Start engine as instructed in the following sub section.
Turn the key from the NORMAL MOWING (Green)
position to the REVERSE CAUTION MODE (Yellow)
position of the key switch module. See Figure 5-1.
Figure 5-1
Depress the REVERSE PUSH BUTTON (Orange, Triangular
Button) at the top, right corner of the key switch
module. The red indicator light at the top, left corner of
the key switch module will be ON while activated. See
Figure 5-1.
Once activated (indicator light ON), the tractor can be
driven in reverse with the cutting blades (PTO) engaged.
Always look down and behind before and while
backing to make sure no children are around.
After resuming forward motion, return the key to the
NORMAL MOWING position.
IMPORTANT: The REVERSE CAUTION MODE will remain
activated until:
a. The key is placed in either the NORMAL MOWING
position or STOP position.
b. The operator leaves the seat. Follow the previous
instructions to re-activate.
1.
2.
3.
4.
5.
6.
WARNING
AVOID SERIOUS INJURY OR DEATH
• GO UP AND DOWN SLOPES, NOT ACROSS.
• AVOID SUDDEN TURNS.
• DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIP.
•
IF MACHINE STOPS GOING UPHILL, STOP BLADE(S) AND
BACK DOWNHILL SLOWLY.
• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.
• NEVER CARRY CHILDREN, EVEN WITH BLADES OFF.
• LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING.
• K
EEP SAFETY DEVICES (GUARDS, SHIELDS, AND
SWITCHES) IN PLACE AND WORKING.
• REMOVE OBJECTS THAT COULD BE THROWN BY THE
BLADE(S).
• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.
•
BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE
PLACING HANDS OR FEET NEAR BLADE(S).
•
BEFORE LEAVING OPERATOR’S POSITION, DISENGAGE
BLADE(S), PLACE THE SHIFT LEVER IN NEUTRAL, ENGAGE
BRAKE LOCK, SHUT ENGINE OFF AND REMOVE KEY.
READ OPERATOR’S MANUAL
Indicator
Light
Reverse
Push Button
Stop
Position
Start
Position
Reverse
Caution Mode
Position
Operation
5
13
Starting the Engine
WARNING: Do not operate the tractor if the
interlock system is malfunctioning. This system
was designed for your safety and protection.
NOTE: Refer to the engine Owner’s Manual for gasoline
and oil fill-up instructions.
Insert the tractor key into the key switch module.
Disengage the PTO (Blade Engage) lever/knob.
Engage the tractor’s parking brake.
Pull the choke control knob outward into the full choke
position (a warm engine may not require choking).
Move the throttle control lever to midway between the
SLOW and FAST positions.
Turn the ignition key clockwise to the START position.
After the engine starts, release the key. It will return to
the NORMAL MOWING position.
IMPORTANT: Do not hold the key in the START position
for longer than ten seconds at a time. Doing so may cause
damage to your engine’s electric starter.
After the engine starts, gradually push the choke knob
fully inward as the engine warms up.
NOTE: Do not use the choke control to enrich the fuel
mixture, except as necessary to start and warm up the
engine.
Stopping the Engine
WARNING: If you strike a foreign object, stop
the engine and disconnect the spark plug
wire(s). Thoroughly inspect the machine for any
damage. Repair the damage before restarting
and operating
If the blades are engaged, disengage the PTO.
Move the throttle control lever to midway between
the half and full throttle. Then turn the ignition key
counterclockwise to the OFF position.
Remove the key from the ignition switch to prevent
unintended starting.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
Driving The Tractor
IMPORTANT: Avoid sudden starts, excessive speed and
sudden stops.
Briefly depress the brake pedal to release the parking
brake. Move the throttle lever into the FAST (rabbit)
position.
To travel forward: Slowly depress the forward drive
control pedal until the desired speed is achieved. See
Figure 5-2.

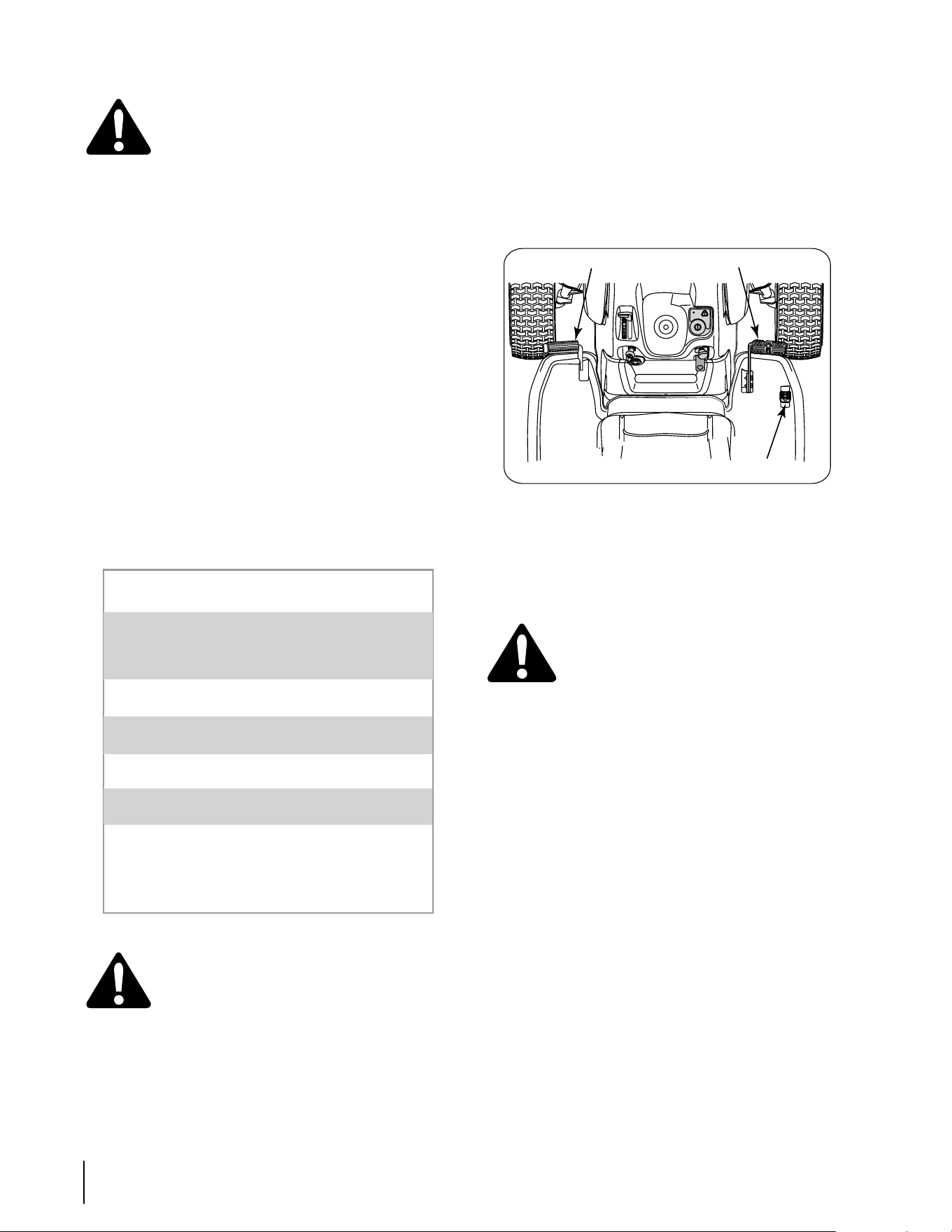

Figure 5-2
To travel in reverse: Check that the area behind is clear,
then slowly depress the reverse drive control pedal until
the desired speed is achieved. See Figure 5-2.
Release the depressed drive pedal and depress the
brake pedal to stop the tractor.
WARNING! Do not leave the seat of the tractor
without first placing the PTO/Blade Engage
knob in the disengaged (OFF) position and
engaging the parking brake. If leaving the
tractor unattended, also turn the engine off
and remove the ignition key.
Steering the Tractor
Your i1000 series tractor is equipped with an innovative
steering system. Turning the steering wheel not only
turns the front wheels, but also adjusts the position of
the drive control linkage of the two hydro transmissions
that drive the tractor. This steering system allows you to
vary the radius of turns from a normal wide U-turn down
to a zero turn. Some practice may be needed to become
accustomed to the steering of your tractor. The steering
works as follows:
The steering wheel turns approximately two turns stop
to stop. With the center position being the straight
ahead position.
Minor turns of the steering wheel from the center
position (approximately 10º to 15º) turn only the front
axles and will result in wider turns.
Increasing the turn of the steering wheel (beyond 10°-
15º) results in increasingly tighter turns. As the steering
mechanism turns the front wheels, it also changes the
position of the transmission drive control linkage to
slow down the inner rear wheel in the turn, and adjust
the speed of the outer wheel as necessary to complete
•
•
•
•
•
•
•
IMPORTANT
Do not leave the seat of the tractor without
Disengaging PTO lever
Depressing brake pedal
Engaging parking brake
If leaving the tractor unattended, also turn the
ignition key off and remove the key.
Avoid sudden starts, excessive speed and sudden
stops while driving the tractor.
Do not mow on slope in excess of 15 degrees (a rise
of approximately 2-1/2 feet every 10 feet).
Keep hands and feet away from the opening of the
cutting deck.
Plan your mowing pattern to avoid discharge of
materials toward roads, sidewalks, bystanders and
the like. Also, avoid discharging material against a
wall or obstruction which may cause discharged
material to ricochet back toward the operator.
1.
2.
3.
Brake Pedal
Forward Drive Pedal
Reverse Drive Pedal
14 sectiOn 5— OperatiOn
the desired turn. Turn the steering wheel back to the
center position as the turn is completed.
NOTE: It is not necessary to release the drive pedal when
making a turn. The change to the transmission linkage
occurs regardless of how far the drive pedal is depressed.
When the steering wheel is straightened, the tractor will
return to the speed set by the drive pedal.
Turning the steering wheel fully to its stop in either
direction will fully turn the front wheels, reverse the
direction of the inner wheel and adjust the outer wheel
speed to execute a zero turn in the chosen direction.
Turn the steering wheel back to the center position as
the turn is completed.
NOTE: As the steering wheel is turned further toward
its stop, the effort needed to turn the steering wheel
increases.
IMPORTANT: Making tight or zero turns on grass will
greatly increase the potential for defacement of the turf.
Driving On Slopes
IMPORTANT: Refer to the SLOPE GAUGE on page 7 to
help determine slopes where you may operate the tractor
safely.
Mow up and down slopes, never across.
Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine.
Tall grass can hide obstacles.
Avoid turns when driving on a slope. If a turn must
be made, turn downhill on the slope. Turning uphill
increases the possibility of a tractor rollover.
Avoid stopping when driving up a slope. If it is
necessary to stop while driving up a slope, start up
smoothly and carefully to reduce the possibility of
flipping the tractor over backward.
Engaging the Parking Brake
NOTE: The parking brake must be set if the operator
leaves the seat with the engine running or the engine will
automatically shut off.
To set the parking brake:
Press the brake pedal completely down with you right
foot and hold it that position.
Push the parking brake lever downward and hold it in
that position.
Remove your foot from the brake pedal.
Release pressure from the parking brake lever.
After completing step 3, the brake pedal should remain
in the down position. If it doesn’t, the parking brake is not
enaged. Repete steps 1-4 to engage the parking brake.
To disengage the parking brake, lightly press the brake
pedal .
WARNING: Never leave a running machine
unattended. Always disengage PTO, set parking
brake, stop engine and remove key to prevent
unintended starting
•
•
•
•
•
1.
2.
3.
4.
Engaging the PTO
Engaging the PTO transfers power to the cutting deck or
other (separately available) attachments. To engage the
PTO:
Move the throttle control lever to the FAST (rabbit)
position.
Pull the PTO/Blade Engage knob outward into the
engaged (ON) position.
NOTE: Always operate the tractor with the throttle lever
in the FAST (rabbit) position for the most efficient use of
the cutting deck or other (separately available) PTO driven
attachments.
Mowing
WARNING: To help avoid blade contact or a
thrown object injury, keep bystanders, helpers,
children and pets at least 75 feet from the
machine while it is in operation. Stop machine
if anyone enters the area.
This tractor is equipped with one of Cub Cadet’s high
quality cutting decks. The following information will be
helpful when using the cutting deck with your tractor.
Do not mow at high ground speed, especially if a mulch
kit or grass collector is installed.
For best results it is recommended that the first two laps be
cut with the discharge thrown towards the center. After the
first two laps, reverse the direction to throw the discharge
to the outside for the balance of cutting. This will give a
better appearance to the lawn.
Do not cut the grass too short. Short grass invites weed
growth and yellows quickly in dry weather.
Mowing should always be done with the engine at full
throttle.
Under heavier conditions it may be necessary to go back
over the cut area a second time to get a clean cut.
Do not attempt to mow heavy brush and weeds and
extremely tall grass. Your tractor is designed to mow
lawns, not clear brush.
Keep the blades sharp and replace the blades when
worn. Refer to the “SERVICE” section of this manual for
proper blade sharpening instructions.
IMPORTANT: When stopping the tractor for any reason
while on a grass surface, always
Place the shift lever in neutral,
Engage the parking brake,
Shut engine off and remove the key.
Doing so will minimize the possibility of having your lawn
‘‘browned’’ by hot exhaust from your tractor’s running
engine.
1.
2.
•
•
•
•
•
•
•
•
•
•
15sectiOn 5 — OperatiOn
Mulching
The i1000 series tractor decks are equipped with a mulching
kit. The mulch kit which incorporates special blades, already
on your tractor, in a process of recirculating grass clippings
repeatedly beneath the cutting deck. The ultra-fine
clippings are then forced back into the lawn where they act
as a natural fertilizer.
Observe the following points for best results when mulching:
Never attempt to mulch if the lawn is damp. Wet grass
tends to stick to the underside of the cutting deck
preventing proper mulching of the clippings.
Do not attempt to mulch more than 1/3 the total height
of the grass or approximately 1-1/2 inches. Doing so will
cause the clippings to clump up beneath the deck and
not be mulched effectively.
Maintain a slow ground speed to allow the grass
clippings more time to effectively be mulched.
Always position throttle control lever in the FAST
(rabbit) position and allow it to remain there while
mowing. Failing to keep the engine at full throttle
places strain on the tractor’s engine and does not allow
the blades to properly mulch grass.
NOTE: It is not necessary to remove the chute deflector to
operate the mower with the mulch plug installed.
The mulch plug installed at the factory was removed
earlier in the “Setting up your Lawn Tractor” section. To
reinstall the mulching plug, proceed as follows:
Installing Mulching Plug on 46" Decks ONLY
Raise and hold the chute deflector in up position.
Locate the 1/4 inch hole in the top of the mulching
plug. With the hole facing upward insert the mulching
plug fully into the discharge opening of the deck.
•
•
•
•
•
•
•
Align the mulching plug hole with the hole in the top of the
deck discharge. Insert the carriage bolt through the top of
the deck and the mulching plug and secure with the wing
nut. Refer to Figure 3-2 on page 9.
Installing Mulching Plug on 50” Decks ONLY
Pivot the chute deflector up to access the deck discharge
opening.
Locate two notches in the chute deflector hinge bracket
above the deck discharge opening.
Insert the mulch plug into the deck discharge opening.
Make sure the two tabs on the top of the plug are in the
notches of the hinge bracket. Lightly tap on the plug with
your hand to assure that the tabs fit snugly into the
notches.
While holding the mulching plug in position, fully lower
the chute deflector. Refer to Figure 3-3 on page 9.
WARNING!: The mowing deck is capable of
throwing objects. Never operate the mower
deck without the chute deflector in its down
position, even with the mulching plug installed.
Failure to do so could result in serious personal
injury and/or property damage.
•
•
•
•
•
16 sectiOn 5— OperatiOn
Maintenance & Adjustments
6
17
Maintenance
WARNING! Before performing any mainte-
nance or repairs, disengage the PTO, move the
drive control levers fully outward in the neutral
position, engage the parking brake, stop the
engine and remove the key to prevent unin-
tended starting.
Engine
Refer to the Kohler Owner’s Manual for all engine mainte-
nance intervals, procedures, specifications and instructions.
Changing the Engine Oil
WARNING! If the engine has been recently run,
the engine, muffler and surrounding metal
surfaces will be hot and can cause burns to the
skin. Exercise caution to avoid burns.
To complete an oil change, proceed as follows:
Run the engine for a short time to warm the engine
oil. The oil will flow more freely and carry away more
impurities. Use care to avoid burns from hot oil.
Locate the oil drain port on the right side of the engine.
Pop open the protective cap on the end of the oil drain
valve to expose the drain port. See Figure 6-1. Remove
the oil fill cap/dipstick from the oil fill tube.

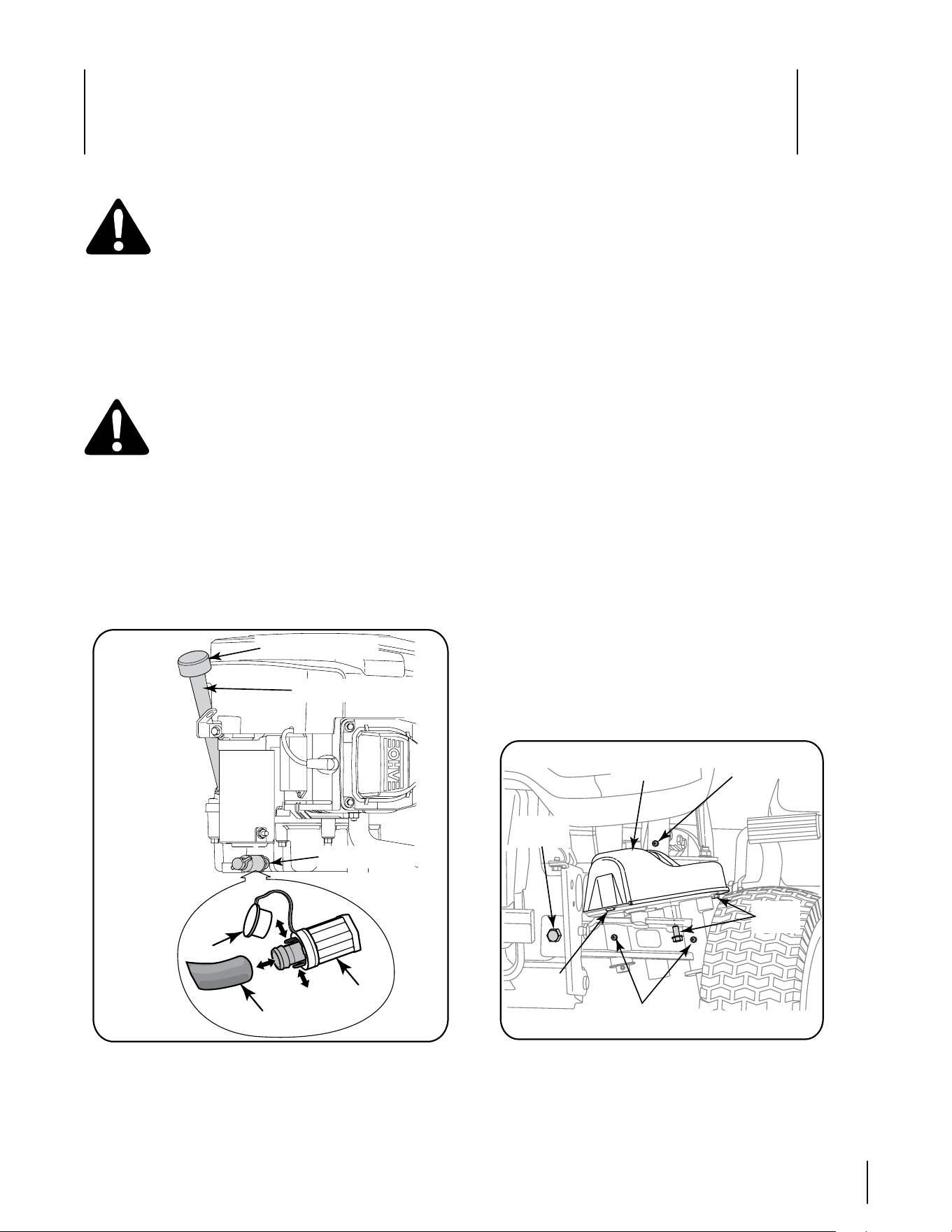

Figure 6-1
Push the oil drain hose (packed with this manual) onto
the oil drain port. Route the opposite end of the hose
into an appropriate oil collection container with at least
a 2.5 quart capacity, to collect the used oil.
1.
2.
3.
4.
Pinch the tabs on the oil drain valve, then pull outward
to begin draining oil. Refer to Figure 6-1.
After the oil has finished draining, push the end of the
oil drain valve back in, until the tabs click into place.
Re-cap the end of the oil drain valve to keep debris
from entering the drain port.
Replace the oil filter, and refill the engine with new oil
as instructed in the Kohler Owner’s Manual.
Air Cleaner
Service the pre-cleaner and cartridge/air cleaner element
as instructed in the Kohler Owner’s Manual.
Spark Plug
The spark plugs should be cleaned and the gap reset once
a season. Refer to the Kohler Owner’s Manual for correct
plug type and gap specifications.
Hydrostatic Transmission
The zero turn tractor is equipped with dual integrated
hydrostatic pumps/transaxles that are sealed and are
maintenance-free. Fluid levels cannot be checked and fluid
cannot be added or changed.
Steering Lubrication
The steering arms, pivot shafts, and axles must be lubri-
cated if ever the steering effort increases, or after every
25 hour of operation. Lubricate using a pressure grease
gun and Cub Cadet 251H EP grease, or an equivalent No. 2
multipurpose lithium grease.
Apply grease through the lube fitting on the RH and LH
steering arms which are located at rearward end of the
two steering drag links. See Figure 6-2.
Figure 6-2
Locate the lube fittings for the pivot shaft and axle on
the front of one end of the axle pivot bar. Apply grease
through the two lube fittings, then repeat to lubricate
the other end of the pivot bar. See Figure 6-2.
5.
6.
7.
•
•
Axle Pivot Bar
Lube Fittings
Shoulder
Bolt
Hex
Screw
Steering
Gear Cover
Cover
Tab
Steering Arm
Lube Fitting
Oil Fill Tube
Oil Drain Valve
Dipstick/Oil Fill Cap
Cap
Drain
Drain
Hose
Valve
18 sectiOn 6— Maintenance & adjustMents
Cleaning Steering Gears
Once a year, or if a tight spot is experienced when turning
the steering wheel, remove the steering gear cover on
each end of the pivot bar and clean the two steering gears.
From beneath the cover base plate on each end of the
pivot bar, remove the three hex screws securing the
steering gear cover. Remove the covers and clean the
gears. It is not necessary to lubricate the gears. Refer to
Figure 6-2.
Insert the tab of the LH steering gear cover into the
square hole in the LH base plate, position the cover, and
secure with the three hex screws. Do not over tighten.
Repeat to install the cover on the RH side.
Lubricate Front Wheel Bearings
Lubricate the front wheel bearings with Cub Cadet 251H EP
grease after every 25 hours of operation. The lube fittings
are located in the rim hub inside each front wheel.
Lubricate Deck Spindles and Idler Bracket
Lubricate the deck spindles and idler bracket with Cub
Cadet 251H EP grease after every 10 hours of operation.
The deck spindle lube fittings are in the spindle housings,
and can only be accessed from the underside of the deck.
Lubricate the idler bracket through the lube fitting in the
top of the shoulder bolt. Use a pressure grease gun to
lubricate the spindles and idler bracket.
Lubricate Pivot Points & Linkage
Lubricate all the pivot points on the drive system, parking
brake and lift linkage at least once a season with light oil.
Lubricate Rear Wheels
The rear wheels should be removed from the axles once
a season. Lubricate the axles and the rims well with an all-
purpose grease before re-installing them.
Tires
WARNING: Never exceed the maximum
inflation pressure shown on the sidewall of
tire. Refer to the tire sidewall for exact tire
manufacturer’s recommended or maximum psi.
Do not overinflate.
The recommended operating tire pressure is:
Approximately 10 psi for the rear tires
Approximately 14 psi for the front tires
IMPORTANT: Uneven tire pressure could cause the cutting
deck to mow unevenly.
Cleaning the Tractor and Deck
Any fuel or oil spilled on the machine should be wiped off
promptly. Do NOT allow debris to accumulate around the
deck pulleys or any other part of the machine.
Periodically remove the belt covers and remove any ac-
cumulated grass clippings from around the spindle pulleys
and the deck belt.
IMPORTANT: The use of a pressure washer to clean your
tractor is NOT recommended. It may cause damage to
electrical components, spindles, pulleys, bearings or the
engine.
•
•
•
•
Using Deck Wash System™
Use the Deck Wash System™ to rinse grass clippings from
the deck’s underside and prevent the buildup of corrosive
chemicals. Your tractor’s deck is equipped with a water
nozzle on the left end of the deck.
Complete the following steps AFTER EACH MOWING:
1. Drive the tractor to a level, clear spot on your lawn, near
enough to a water sillcock (spigot) for your garden hose
to reach.
IMPORTANT: Make certain the tractor’s discharge chute is
directed AWAY from your house, garage, parked cars, etc.
2. Disengage the PTO (Blade Engage), set the parking
brake, and stop the engine.
3. Thread the nozzle adapter (packaged with your tractor’s
Operator’s Manual) onto the end of your garden hose.
4. Pull back the lock collar of the nozzle adapter and push
the adapter onto the deck wash nozzle at the left end
of the mower deck. Release the lock collar to lock the
adapter on the nozzle. See Figure 6-3.

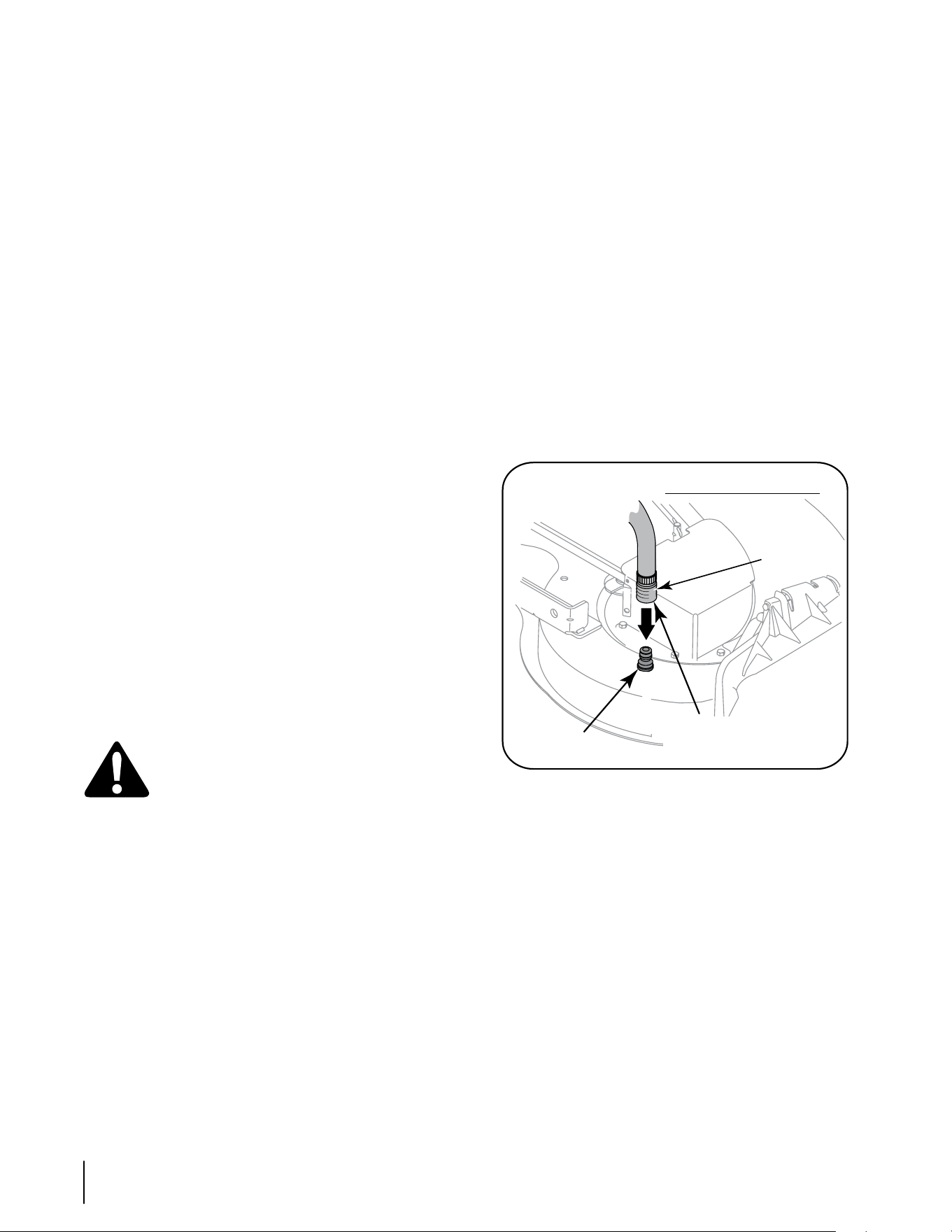

Figure 6-3
5. Turn the water on.
6. While sitting in the operator’s position on the tractor,
re-start the engine and place the throttle lever in the
FAST (rabbit) position.
7. Move the tractor’s PTO (Blade Engage) into the ON posi-
tion. Remain in the operator’s position with the cutting
deck engaged for a minimum of two minutes, allowing
the underside of the cutting deck to thoroughly rinse.
8. Move the tractor’s PTO (Blade Engage) into the OFF
position. Turn the ignition key to the STOP position to
turn the tractor’s engine off.
9. Pull back the lock collar of the nozzle adapter to discon-
nect the adapter from the nozzle.
10. Repeat the previous steps 4 thru 9 to clean the deck
using the nozzle at the other end of the deck.
46" Deck Shown
Nozzle
Adapter
Deck Wash
Nozzle
Adapter
Lock Collar
19sectiOn 6 — Maintenance & adjustMents

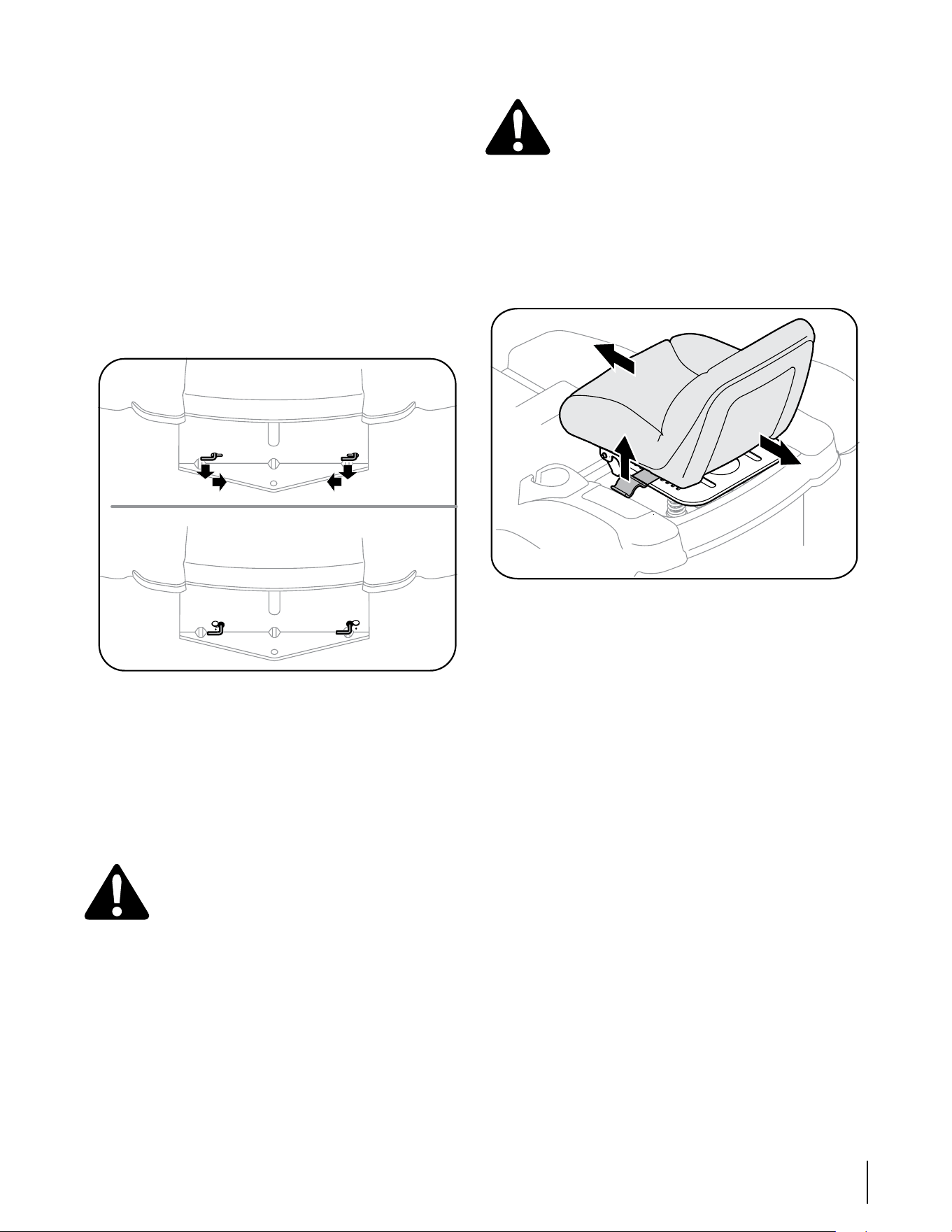

Adjusting the Seat
WARNING: After adjusting the seat or before
driving the tractor, make sure that the seat
adjustment lever is engaged in the seat index
plate and that the seat will not move. Do not
adjust the seat while the tractor is being driven.
Adjusting the seat while the tractor is moving
could cause the operator to lose control of the
tractor.
While sitting in the seat, grasp the seat adjustment
lever on the left side of the seat and pull it upward to
disengage from the seat index plate. See Figure 6-5.
Figure 6-5
Slide the seat to the desired position. See Figure 6-5.
Once the desired position is reached, release the seat
lever. Slide the seat slightly fore and aft as necessary to
engage the seat lever into one of the eight adjustment
positions in the index plate. Make certain the seat is
locked in position.
Side to Side Leveling the Deck
NOTE: Check the tractor’s tire pressure before performing
any deck leveling adjustments. Refer to “Tires” earlier in
this section for information regarding tire pressure.
If the cutting deck appears to be mowing unevenly, a side
to side adjustment can be performed. Adjust if necessary
as follows:
With the tractor parked on a firm, level surface, move
the deck to the mid height position (third or fourth
notch) using the deck lift lever. Rotate both outer
blades so that they are perpendicular with the tractor
frame.
Measure the distance from the outside of the left blade
tip to the ground and the distance from the outside of
the right blade tip to the ground. Both measurements
taken should be equal. If they’re not, note whether the
left side of the deck is lower or higher and proceed to
the next step.
1.
2.
3.
1.
2.
Moving the Tractor Manually
If for any reason the tractor will not drive or you wish to
move the tractor, engage the two hydro transmission
bypass rods to manually move the tractor short distances.
IMPORTANT: Never tow or drag the tractor with the rear
wheels on the ground. Even with the bypass rods engaged.
Doing so will damage the transmissions.
To engage a bypass rod, pull the rod rearward so that the
flange on the rod passes through the larger/rounded part
of the keyhole slot. With the flange of the rod outside
(rearward) of the hitch plate, push the rod inward in the
small part of the keyhole slot so that rod’s flange is locked
against the back of the hitch plate. Repeat to engage
the other bypass rod to allow the tractor to be manually
moved. See Figure 6-4.
Figure 6-4
To disengage, move the rod to align its flange with the
larger/rounded part of the keyhole slot and release the rod
back through the hitch plate.
NOTE: The transmission will NOT engage when the hydro-
static bypass rod is pulled out. Return the rod to its normal
position prior to operating the tractor.
Adjustments
WARNING: Never attempt to make any adjust-
ments while the engine is running, except
where specified in the operator’s manual. Dis-
connect spark plug wire(s) before performing
any adjustments, repairs or maintenance.
Steering and Transmission Linkage
The steering tie rod and drag links and the related
transmission linkage are set at the factory and should
not require further adjustment. Because of the complex
adjustment procedure, the steering and transmission
linkage should only be serviced or adjusted by a qualified
mechanic. If you experience problems with steering, or
with the hydro drive transmissions, contact your nearest
Cub Cadet dealer to have the tractor inspected.
20 sectiOn 6— Maintenance & adjustMents
Working from the left side of the tractor, loosen, but do
not remove, the hex cap screw on the left deck hanger
bracket.Working from the left side of the tractor,
loosen, but do not remove, the hex cap screw in the left
deck adjustment bracket. See Figure 6-6.

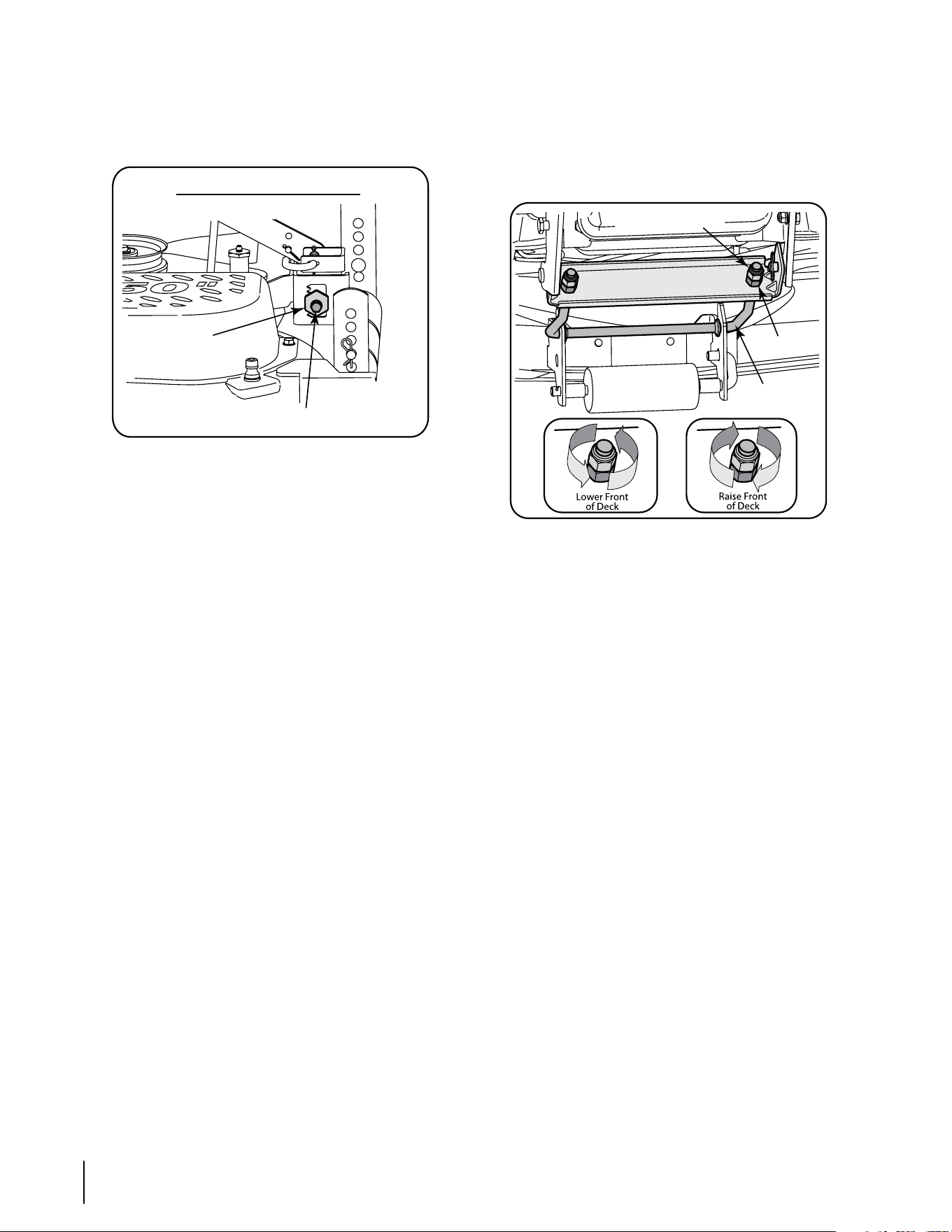

Figure 6-6
To even the deck turn the adjustment gear, located
immediately behind the hex cap screw, clockwise (rear-
ward) to lower the left side of the deck. Turn the gear
counter-clockwise (toward front) to raise the left side of
the deck. See Figure 6-6.
The deck is properly leveled when both blade tip mea-
surements, as described earlier, are equal.
Retighten the hex cap screw in the left deck adjust-
ment bracket when proper adjustment is achieved.
Front To Rear Deck Leveling
The front of the cutting deck is supported by an adjustable
front deck hanger rod. This rod can be adjusted to set the
front to rear pitch of the deck. The front of the deck should
be between 1/4-inch and 3/8-inch lower than the rear of
the deck. Adjust if necessary as follows:
With the tractor parked on a firm, level surface, move
the deck to the mid height position (third or fourth
notch) using the deck lift lever. Rotate the blade nearest
the discharge chute so that it is parallel with the tractor
frame.
Measure the distance from the front of the blade tip to
the ground and the rear of the blade tip to the ground.
The front measurement taken should be between 1/4”
and 3/8” less than the rear measurement. Determine
the approximate distance necessary for proper adjust-
ment and proceed, if necessary, to the next step.
Working at the front of the tractor, loosen the two hex
lock nuts at the front of the deck hanger rod. Thread
the lock nuts away from the hex nuts behind them.
Refer to Figure 6-7.
3.
5.
6.
7.
1.
2.
3.
Use a open end wrench to turn the inner hex nuts to
adjust the front of the deck. Turn the hex nuts clock-
wise to raise the front of the deck, or counterclockwise
to lower the front of the deck. Adjust the hex nuts
evenly so that the deck hanger rod is at the front of
both slots in the hanger bracket on the front of the
deck. See Figure 6-7.
Figure 6-7
Retighten the two hex lock nuts when properly
adjusted.

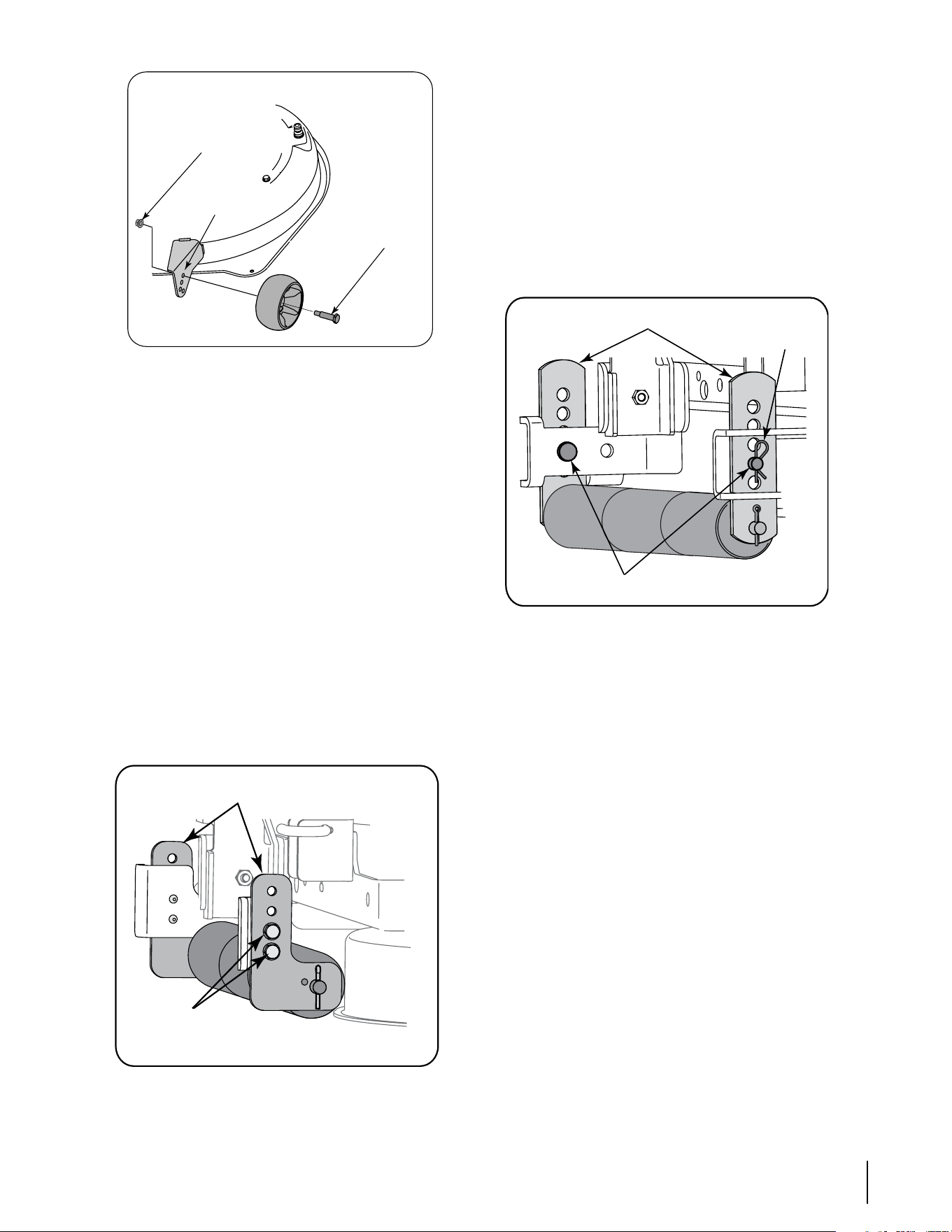

Deck Gauge Wheel Adjustment
NOTE: The deck gauge wheels are an anti-scalp feature
of the deck and are not designed to support the weight of
the cutting deck.
The deck gauge wheels should neither contact the ground,
nor be high off the ground, when the deck is moved to the
desired height setting. If you change your cutting height
during the mowing season, the gauge wheels should be
checked and adjusted as necessary.
Adjust the gauge wheels as follows:
Place the tractor on a smooth, flat surface and move the
deck to the desired mowing height using the deck lift
lever.
Check gauge wheels distance from the flat surface
below. If the gauge wheels contact the ground, they
must be raised. If the gauge wheels are higher than 1/2"
above the ground, they should be lowered.
Remove the shoulder bolt securing one of the front
ball wheels to the front index bracket. Reposition the
ball wheel to align with the one of four index holes that
places the wheel 1/4" to 1/2" above the ground. Secure
the ball wheel to the index bracket with the shoulder
bolt. Note the index hole used and secure the other ball
wheel in the same position. See Figure 6-8.
4.
5.
•
•
•
50”Mower Deck Shown
Hex Cap Screw
Adjustment
Gear
Hex Lock Nut
Hex Nut
Front Deck
Hanger Rod
21sectiOn 6 — Maintenance & adjustMents
Figure 6-8
Deck Rear Roller Adjustment
The rear rollers on the mower deck are not designed to
carry the weight of the deck. The rear rollers should be
adjusted to approximately 1/4" to 1/2" above the ground
when the deck is moved to the desired cutting height.
Place the tractor on a smooth, flat surface, move the deck
to the desired cutting height, and check the height of the
rear rollers. If contacting the ground, or above 1/2" from
the ground, adjust the rear rollers as follows:
46" Deck ONLY
The 46" deck roller assembly index bracket has three
adjustment positions using either the bottom two holes,
middle two holes, or top two holes.
Support the roller assembly and remove the two self
tapping screws from both the left and right roller index
brackets.
Position the roller assembly so that the rollers are ap-
proximately 1/4" to 1/2" above the flat surface below.
Align the nearest two index bracket holes with holes in
the deck mounting brackets. See Figure 6-9.
Figure 6-9
•
•
Secure the roller assembly with the four self tapping
screws. Refer to Figure 6-9.
NOTE: The self tapping screws should be in the cor-
responding holes of both the left and right roller index
brackets.
50" Deck ONLY
The 50" deck roller assembly index bracket has five adjust-
ment positions holes.
While supporting the roller assembly, remove click pin
and withdraw the clevis pin from both the left and right
roller index brackets. See Figure 6-10.
Figure 6-10
Position the roller assembly so that the rollers are ap-
proximately 1/4" to 1/2" above the flat surface below.
Align the nearest index bracket holes with the holes
in the deck mounting brackets. Insert the clevis pins
through the deck brackets and the index brackets and
secure with the click pins. See Figure 6-10.
NOTE: The clevis pins should be in the corresponding
holes of both the left and right roller index brackets.
•
•
•
•
Shoulder
Bolt
Lock Nut
Front Index
Bracket
Roller Index Brkt.
Self Tapping
Screws
Clevis Pin
Index Brkt.
Click Pin
22 sectiOn 6— Maintenance & adjustMents
Maintenance Schedule
Before
Each use
Every
10 Hours
Every
25 Hours
Every
50 Hours
Every
100 Hours
Prior
to Storing
Clean Hood/Dash Louvers
P P
Check Engine Oil Level
P
Check Air Filter for Dirty, Loose or Damaged Parts
P
Clean and Re-oil Air Filter’s Foam Precleaner
P
Replace Air Filter Element
P
Change Engine Oil and Replace Oil Filter
P
Clean Battery Terminals
P P
Lube Mid Steering Arms, Pivot Shafts, and Axles
P P
Lube Front Wheel Bearings
P P
Clean Engine Cooling Fins
P P
Lube Front Deck Wheels
P P
Lube Deck Spindles and Idler Bracket
P P
Lube Pedal Pivot Points
P
Check Spark Plug Condition & Gap
P P
Replace Fuel Filter
P
Service
7
23
Pivot Bar adjustment
If excessive play is experienced in the steering wheel,
check the pivot bar for forward/rearward movement.
Raise the front of the tractor and set it on jack stands,
so the front wheels are suspended above the ground.
Grasping the ends of the pivot bar, attempt to move
each end of the axle forward and rearward to check
for side play. There should be minimal or no side play.
If there is no side play, lower the tractor to the
ground and have the steering linkage inspected by
you Cub Cadet dealer. If there is side play, tighten the
pivot bar as follows:
Support the pivot bar, then remove the hex lock
nuts securing the two shoulder bolts that pass
through the pivot bar bracket, the pivot bar, and
frame. Refer to Figure 6-2.
Slide a half inch flat washer, with a maximum thick-
ness of .030 inch, onto each shoulder bolt. Reinstall
the shoulder bolts w/washers and fasten with the
two hex lock nuts.
Gradually and evenly tighten the hex lock nut
while continuing to check the forward/rearward
movement of the pivot bar. Tighten the lock nuts
until minimum play, without binding the pivot
bar’s up and down movement, is achieved.
Checking Main Harness Fuse
A 20 amp fuse is installed in your tractor’s wiring
harness to protect the tractor’s electrical system from
damage caused by excessive amperage.
If the electrical system does not function, or your
tractor’s engine will not crank, first check to be certain
that the fuse has not blown.
The fuse can be found inside of the dash panel behind
the battery tray. You may need to remove the battery
to gain access to the fuse. Always use a fuse with the
same amperage capacity for replacement.
A five amp fuse can also be found inside the dash
panel. This fuse is for the 12 volt power outlet.
IMPORTANT: Always use a fuse with the same amperage
capacity for replacement.
Battery
The battery is sealed and is maintenance-free. Acid levels
cannot be checked.
Always keep the battery cables and terminals clean
and free of corrosive build-up.
After cleaning the battery and terminals, apply a light
coat of petroleum jelly or grease to both terminals.
Always keep the rubber boot positioned over the
positive terminal to prevent shorting.
1.
2.
3.
•
•
•
•
•
•
•
•
•
•
IMPORTANT: If removing the battery for any reason, discon-
nect the NEGATIVE (Black) wire from it’s terminal FIRST,
followed by the POSITIVE (Red) wire. When re-installing the
battery, always connect the POSITIVE (Red) wire its terminal
first, followed by the NEGATIVE (Black) wire. Be certain that
the wires are connected to the correct terminals; reversing
them could change the polarity and result in damage to
your engine’s alternating system.
Charging the Battery
If the tractor has not been put into use for an extended pe-
riod of time, charge the battery with an automotive-type
12-volt charger for a minimum of one hour at six amps.
WARNING!: Batteries give off an explosive gas
while charging. Charge battery in a well venti-
lated area and keep away from an open flame
or pilot light as on a water heater, space heater,
furnace, clothes dryer or other gas appliances.
Cleaning the Battery
Clean the battery by removing it from the tractor and
washing with a baking soda and water solution. If neces-
sary, scrape the battery terminals with a wire brush to
remove deposits. Coat terminals and exposed wiring with
grease or petroleum jelly to prevent corrosion.
Battery Failures
Some common causes for battery failure are:
• incorrect initial activation • undercharging
• overcharging • corroded connections
• freezing
These failures are NOT covered by your tractor’s warranty.
Changing Transmission Drive Belt
NOTE: Several components must be removed, including
transmission steering linkage which will have to be read-
justed, in order to change the tractor’s transmission drive
belt. Contact your Cub Cadet dealer to have your transmis-
sion drive belt replaced.
Hydrostatic Transmission
Keep the area around the transmission cooling fan free of
grass and debris at all times. The hydrostatic transmission
is sealed at the factory and is maintenance free. The fluid
level cannot be checked and cannot be changed.
Jump Starting
WARNING!: When removing or installing the
battery, follow these instructions to prevent
the screwdriver (or other metal tools) from
shorting against the frame.
24 sectiOn 7— service
10. While holding the front deck hanger rod upward until it clears
the hanger bracket on the front of the deck, carefully slide the
deck out from the right side of the tractor.
Cutting Blades
WARNING: Be sure to shut the engine off,
remove ignition key, disconnect the spark plug
wire(s) to prevent unintended starting before
removing the cutting blade(s) for sharpening or
replacement. Protect your hands by using heavy
gloves or a rag to grasp the cutting blade.
WARNING: Periodically inspect the blade
spindles for cracks or damage, especially if you
strike a foreign object. Replace immediately if
damaged
The blades may be removed as follows.
Remove the deck from beneath the tractor, (refer to
Cutting Deck Removal) then gently flip the deck over to
expose its underside.
NOTE: A block of wood may be placed between the deck
housing and the cutting edge of the blade to help in
breaking loose the hex nut securing the blade.
Use a 15/16" wrench to loosen the hex flange nut securing
the blade to the bottom of the spindle assembly. Secure
the spindle by either holding the blade tightly, or by using
a second wrench to hold the nut at the top of the spindle.
Continue holding the blade onto the star hub of the
spindle, and remove the flange nut and cutting blade.
Repeat the previous steps to remove the other blades.
To properly sharpen the cutting blades, remove equal
amounts of metal from both ends of the blades along
the cutting edges, parallel to the trailing edge, at a 25°
to 30° angle.
IMPORTANT: If the cutting edge of the blade has already
been sharpened to within 1 5/8” from the edge, or if any
metal separation is present, replace the blades with new
ones. See Figure 7-2.
Figure 7-2
•
•
•
•
•
1-5/8 inch
Blade Separation
Worn Blade
Edge
Sharpen Edge
Evenly
Wind Wing
IMPORTANT: Never jump your tractor’s dead battery with
the battery of a running vehicle.
Connect end of one jumper cable to the positive
terminal of the good battery, then the other end to the
positive terminal of the dead battery.
Connect the other jumper cable to the negative termi-
nal of the good battery, then to the frame of the unit
with the dead battery.
WARNING!: Failure to use this procedure could
cause sparking, and the gas in either battery
could explode.
Cutting Deck Removal
To remove the cutting deck, proceed as follows:
Disengage the PTO (Blade Engage) and engage the
parking brake.
Place the deck gauge wheels in their highest setting
(lowest deck setting).
Lower the deck by moving the deck lift lever into the
bottom notch on the right fender.
Looking at the cutting deck from the left side of the
tractor, locate the deck support pin on the rear left side
of the deck. Refer to Figure 7-1.
Pull the deck support pin outward to release the deck
from the deck lift arm. Pivot the support pin handle
downward to lock the pin in the disengaged position.
Refer to Figure 7-1.

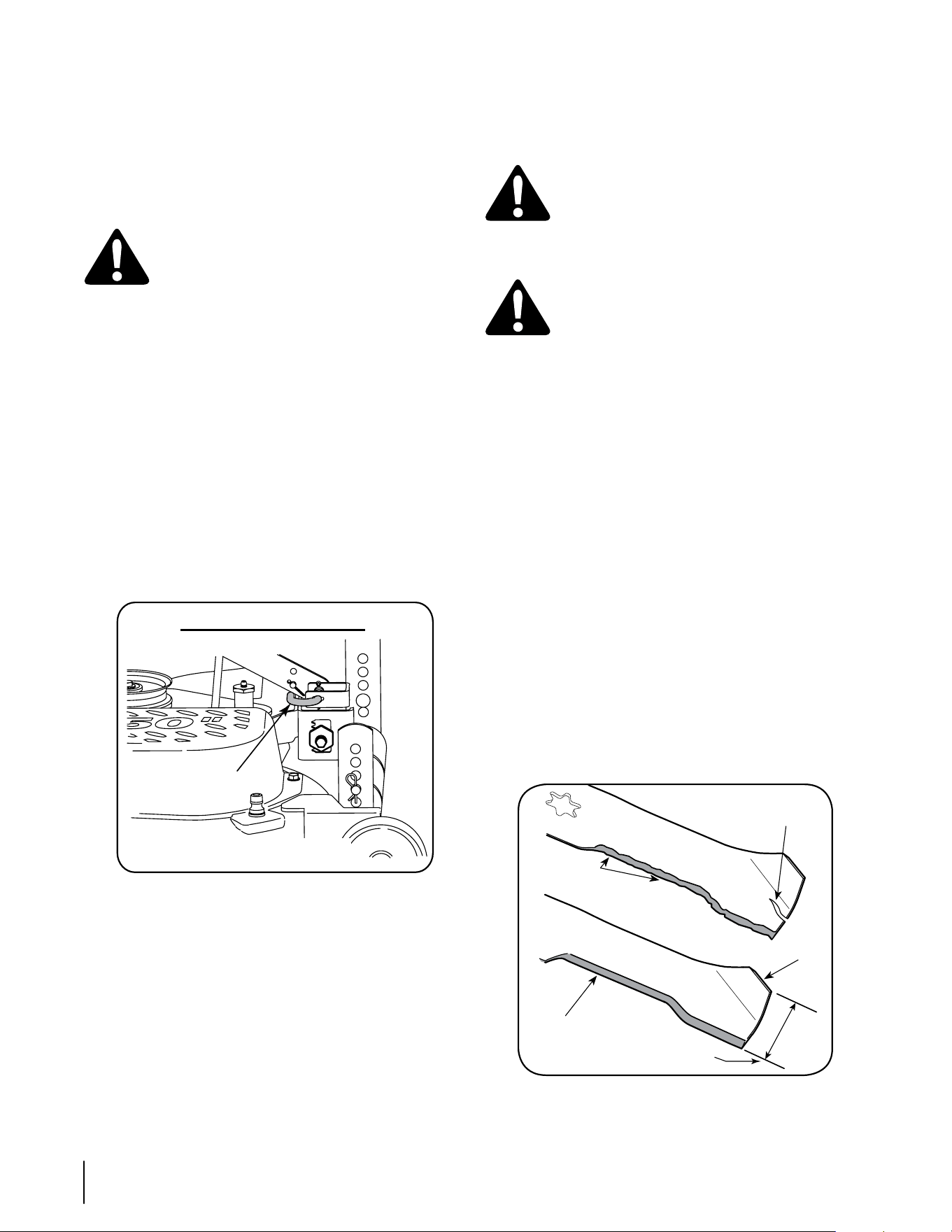

Figure 7-1
Move to the right side of the tractor and repeat the
previous step to release the deck from the RH lift arm.
Move the deck lift lever into the top notch on the right
fender to raise deck lift arms up and out of the way.
Carefully slide the cutting deck forward and remove the deck
belt from around the tractor’s PTO pulley on the bottom of the
engine.
9. Continue to roll the deck toward the front of the tractor until
the front deck hanger rod can be removed from the slots of the
hanger bracket at the front of the deck.
1.
2.
1.
2.
3.
4.
5.
6.
6.
50" Mower Deck Shown
Deck Support
Pin
25sectiOn 7 — service
It is important that each cutting blade edge be ground
equally to maintain proper blade balance.
A poorly balanced blade will cause excessive vibration
and may cause damage to the tractor and result in per-
sonal injury. The blade can be tested by balancing it on
a round shaft screwdriver. Grind metal from the heavy
side until it balances evenly.
IMPORTANT: When replacing the blades, make certain the
side of the blade marked ‘‘Bottom’’ faces the ground when
the mower is turned to the operating position.
Rotate the blade as necessary to align its star hole
with the star of the spindle shaft, then slide the blade
onto the spindle shaft. Thread the hex flange onto the
spindle shaft and use a torque wrench to tighten the
hex flange nut to 70 to 90 foot-pounds.
Repeat the above procedure to install the other blades.
Changing the Deck Belt
WARNING: Be sure to shut the engine off,
remove ignition key, disconnect the spark plug
wire(s) to prevent unintended starting before
removing the belt(s).
WARNING: Avoid the possibility of a pinching
injury. Do not place your fingers on the idler
spring or between the belt and a pulley while
removing the belt.
All belts on your tractor are subject to wear and should be
replaced if any signs of wear are present.
IMPORTANT: Do not use substitute belts. The V-belt found
on your tractor is specially designed for optimal perfor-
mance and service life for your deck application. Use only
OEM original replacement belts.
To change or replace the deck belt on your tractor, pro-
ceed as follows:
Remove the deck from beneath the tractor (refer to Cut-
ting Deck Removal on page 24)
Remove the spindle covers by removing the self-tap-
ping screws that fasten them to the deck. See to Figure
7-3.

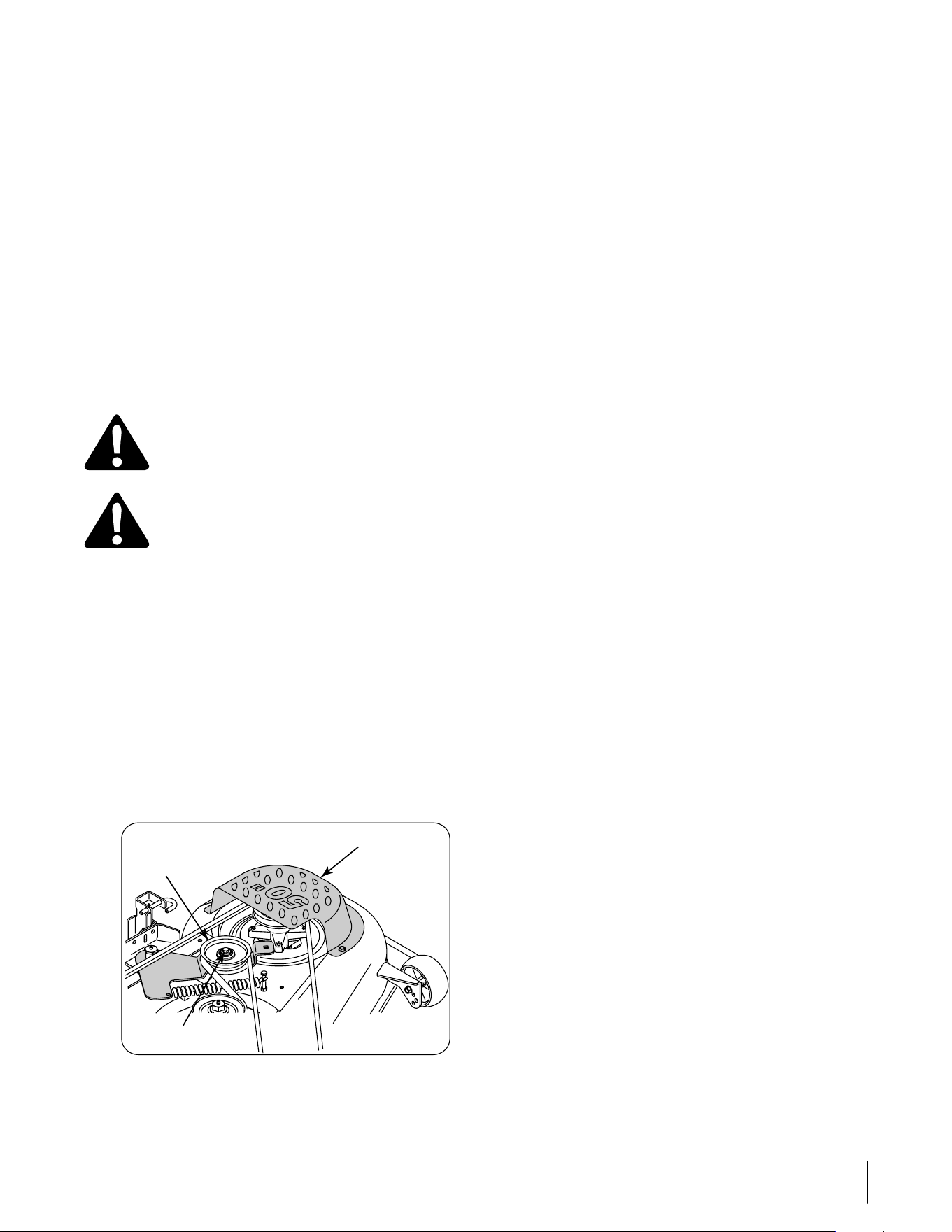

Figure 7-3
•
•
•
•
•
•
46" Mower Deck ONLY - Remove the old belt from the
deck. Install the new belt around the spindle and idler
pulleys as shown in Figure 7-4.
50" Mower Deck ONLY
Loosen the hex screw fastening the idler pulley to
the idler arm as necessary to slide the belt from be-
tween the idler pulley and idler arm. See Figure 7-3.
Place the new belt between the idler pulley and
idler arm. The backside of the ‘V’ belt should be
against the idler pulley. Tighten the hex screw to
secure the idler pulley.
Route the deck belt around the spindle pulleys and
idler pulleys as shown in Figure 7-5.
Reinstall the spindle covers on the deck using the self-
tapping screws. Do not overtighten the screws.
Reinstalling the Cutting Deck
There are two methods for reinstalling the mower deck on
the tractor. One method involves rotating the deck idler
arm to relieve enough belt tension to allow the belt to be
placed in either the PTO pulley or the deck idler pulley.
Because that method is difficult, we recommend using the
second method of rolling the belt onto the PTO pulley.
Install the cutting deck as follows:
From the right side of the tractor, slide the deck under
the tractor and align the read deck hanger bracket with
the deck lift arms.
Slide the deck forward and place the deck front hanger
rod into the slots of the deck front hanger bracket. Then
slide the deck rearward so that the hanger rod is at the
front of the slots.
Using the deck lift lever, lower the deck lift arms. From
either side of the tractor, pull the support pin in the
deck rear hanger bracket outward, align the deck lift
arm hole with the deck support pin and release the pin
so that it goes through the deck lift arm. Repeat on the
other side of the tractor to secure the deck.
After first making sure the deck belt is properly
engaged in all of the deck pulleys, route the deck belt
forward through the center of the front deck hanger
rod and toward the PTO pulley on the bottom of the
engine.
Using the deck lift handle, raise the deck to the posi-
tion that gives you the most horizontal run of the belt
between the deck pulleys and the PTO pulley on the
bottom of the engine.
Sitting in front of the tractor, facing rearward, make
certain the belt is not twisted; then reach beneath the
tractor to grasp the belt and pull it toward the PTO
pulley.
•
•
1.
2.
3.
•
•
•
•
•
•
•
Hex Screw
Spindle Cover
Idler Pulley
26 sectiOn 7— service
NOTE: References to left and right are from the front of the
tractor in the following instructions.
Pull the right side of the belt forward and place the nar-
row V side of the belt into the PTO pulley.
While holding the belt and pulley together, rotate the
pulley to the left. Continue holding and rotating the
pulley and belt until the belt is fully rolled into the PTO
pulley. Refer to Figure 7-6.
WARNING!: Use caution to prevent pinching
your fingers when rolling the belt onto the PTO
pulley.
•
•

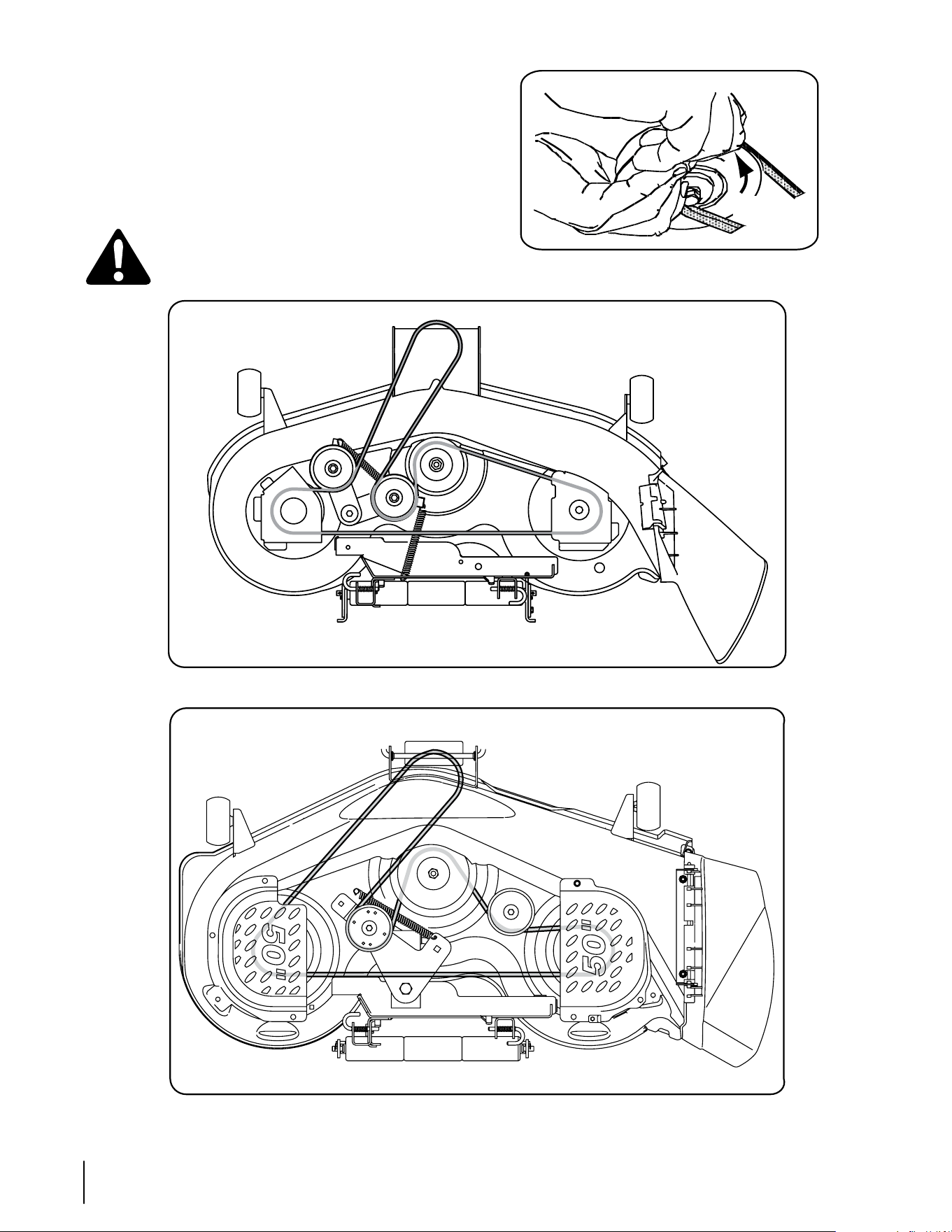

Figure 7-6
PTO Belt
Rotate
Pulley
46" Mower Deck Replacement Belt Routing
Figure 7-4 Replacement Belt Routing 46" Mower Deck
50" Mower Deck Replacement Belt Routing
Figure 7-5 Replacement Belt Routing 50" Mower Deck
27sectiOn 7 — service
Off Season Storage
If the machine is to be inoperative for a period longer than
30 days, the following procedures are recommended:
WARNING: Never store the machine or fuel
container indoors where there is an open flame,
spark or pilot light such as on water heater,
furnace, clothes dryer or other gas appliance.
IMPORTANT: Fuel left in the fuel tank during warm weath-
er deteriorates and will cause serious starting problems.
To prevent gum deposits from forming inside the engine’s
carburetor and causing possible malfunction of the en-
gine, the fuel system must be either completely emptied,
or the gasoline must be treated with a stabilizer to prevent
deterioration.
If using a fuel stabilizer:
Read the product manufacturer’s instructions and
recommendations.
Add to clean, fresh gasoline the correct amount of
stabilizer for the capacity of the fuel system.
Fill the fuel tank with treated fuel and run the
engine for 2-3 minutes to get stabilized fuel into the
carburetor.
1.
•
•
•
If emptying the fuel system:
Do not drain fuel when the engine is hot. Allow the
engine adequate time to cool. Drain fuel into an ap-
proved container outdoors, away from open flame.
Drain any large volume of fuel from the tank by
disconnecting the fuel line from the in-line fuel filter
near the engine.
Reconnect the fuel line and run the engine until
it starts to falter, then use the choke to keep the
engine running until all fuel in the carburetor has
been exhausted.
Again disconnect the fuel line and drain any remain-
ing gasoline from the system.
WARNING: Drain fuel only into an approved
container outdoors, away from an open flame.
Allow engine to cool. Extinguish cigarettes,
cigars, pipes, and other sources of ignition prior
to draining fuel.
Remove the spark plug and pour one (1) ounce of engine
oil through the spark plug hole into the cylinder. Crank the
engine several times to distribute the oil. Replace the spark
plug.
Before storing for an extended period, clean and lubricate
the tractor as instructed in “Maintenance and Adjustments.”
2.
•
•
•
•
Problem Cause Remedy
Engine fails to start PTO/Blade Engage knob engaged.
Parking brake not engaged.
Spark plug wire(s) disconnected.
Throttle control lever not in correct starting
position.
Choke not activated
Fuel tank empty, or stale fuel.
Blocked fuel line.
Faulty spark plug(s).
Engine flooded.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Place knob in disengaged (OFF) position.
Engage parking brake.
Connect wire(s) to spark plug(s).
Place throttle lever to FAST position.
Pull the CHOKE control outward.
Fill tank with clean, fresh (less than 30 days
old) gas.
Clean fuel line and replace fuel filter.
Clean, adjust gap or replace plug(s).
Crank engine with throttle in FAST position.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Engine runs erratic Unit running with CHOKE activated.
Spark plug wire(s) loose.
Blocked fuel line or stale fuel.
Vent in gas cap plugged.
Water or dirt in fuel system.
Dirty air cleaner.
1.
2.
3.
4.
5.
6.
Push CHOKE control in.
Connect spark plug wire(s).
Clean fuel line; fill tank with clean, fresh
gasoline and replace fuel filter.
Clear vent or replace cap if damaged.
Drain fuel tank. Refill with clean, fresh
gasoline.
Replace air cleaner paper element or clean
foam precleaner.
1.
2.
3.
4.
5.
6.
Engine overheats Engine oil level low.
Air flow restricted.
1.
2.
Fill crankcase with proper amount and
weight of oil.
Clean grass clippings and debris from around
the engine’s cooling fins and blower housing.
1.
2.
Engine hesitates at high
RPM
Spark plug(s) gap too close. 1. Remove spark plug(s) and reset the gap. 1.
Engine Idles rough Spark plug(s) fouled, faulty or gap too wide.
Dirty air cleaner.
1.
2.
Replace spark plug(s). Set plug gap.
Replace air cleaner element and/or clean
pre-cleaner.
1.
2.
Excessive vibration Cutting blade loose or unbalanced.
Damaged or bent cutting blade.
1.
2.
Tighten blade and spindle.
Replace blade.
1.
2.
Mower will not mulch grass Engine speed too low.
Wet grass.
Excessively high grass.
Dull blade.
1.
2.
3.
4.
Place throttle in FAST (rabbit) position.
Do not mulch when grass is wet.
Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting swath.
Sharpen or replace blade.
1.
2.
3.
4.
Uneven cut Deck not leveled properly.
Dull blade.
Uneven tire pressure.
1.
2.
3.
Perform side-to-side deck adjustment.
Sharpen or replace blade.
Check tire pressure in all four tires.
1.
2.
3.
Troubleshooting
8
28
Replacement Parts
9
29
Contact your Cub Cadet dealer to order replacement parts. If you do not have a dealer, call the Customer Dealer Referral Line at 1-877-
282-8684 or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area. Phone (800) 965-4CUB to order replacement
parts or a complete Parts Manual (have your full model number and serial number ready). Parts Manual downloads are also available
free of charge at www.cubcadet.com.
Description Model i1046 Model i1050
Lower Drive Belt - Contact Dealer 954-04134 954-04134
Engine to Deck/ Deck Spindle Belt 754-04153 954-04077
Deck Blades - 46" Deck 942-04124 (Qty. 1) 942-04053C (Qty. 3)
942-04125 (Qty. 2)
Deck Spindle 618-0660 (Qty. 3) 618-04126A (Qty. 3)
Deck Front Ball Wheels 734-04155 (Qty. 2) 734-04155 (Qty. 2)
Deck Rollers 731-05679 (Qty. 3) 731-05679 (Qty. 4)
Battery 925-1707D 925-1707D
Starter Solenoid 725-04439 725-04439
Ignition Keys 725-2054 725-2054
Engine Oil Filter KH-52-050-02-S KH-52-050-02-S
Engine Oil (Capacity 57.6 ounces) 737-3030A (1qt.) 737-3030A (1qt.)
Engine Air Filter Element AND
Foam Precleaner
KH-32-883-03-S1 KH-32-883-03-S1
Fuel Filter KH-25-050-22-S KH-25-050-22-S
Spark Plug 759-3336 759-3336
Deck Discharge Chute Assembly 931-1032B 631-04070A
The following attachments and accessories are availalbe for the Model i1046 and/or i1050 Lawn Tractors. See the retailer from which you
purchased your tractor, or an authorized Cub Cadet Dealer for information regarding price and availability.
MODEL DESCRIPTION
19A-100-100 Twin Rear Bagger Grass Collector for 46" Deck
19A-101-100 Twin Rear Bagger Grass Collector for 50" Deck
190-833-000 46” Dozer Blade
19A-102-100 18 Cubic Foot Steel Cart
19A-106-100 10 Cubic Foot Poly Cart
19A-105-100 48" Broadcast Spreader
19A-103-100 42" Sweeper
19A-104-100 25 Gallon Sprayer
19A-107-100 48" Dethatcher
19A-113-100 48" Poly Roller
19A-108-100 48" Plug Aerator
19A-109-100 48" Spike Aerator
Attachments & Accessories
10
30
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and MTD Consumer Group Inc are pleased to explain the evaporative emission control system warranty on your 2008 lawn
mower. In California, new lawn mower must be designed, built and equipped to meet the State’s stringent anti-smog standards. MTD Consumer Group Inc must
warrant the EECS on your lawn mower for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your lawn mower.
Your EECS may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines, fuel caps, valves,
canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components.
Where a warrantable condition exists, MTD Consumer Group Inc will repair your lawn mower at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If any evaporative emission-related part on your equipment is defective, the part will be
repaired or replaced by MTD Consumer Group Inc.
OWNER’S WARRANTY RESPONSIBILITIES:
As the lawn mower owner, you are responsible for performance of the required maintenance listed in your owner’s manual. MTD Consumer Group Inc recom-
mends that you retain all receipts covering maintenance on your lawn mower, but MTD Consumer Group Inc cannot deny warranty solely for the lack of receipts.
As the lawn mower owner, you should however be aware that MTD Consumer Group Inc may deny you warranty coverage if your lawn mower or a part has failed
due to abuse, neglect, or improper maintenance or unapproved modifications.
You are responsible for presenting your lawn mower to MTD Consumer Group Inc’s distribution center or service center as soon as the problem exists. The
warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage, you should
contact the MTD Consumer Group Inc Service Department at 1-800-800-7310.
GENERAL EMISSIONS WARRANTY COVERAGE:
MTD Consumer Group Inc warrants to the ultimate purchaser and each subsequent purchaser that the lawn mower is: Designed, built and equipped so as to
conform with all applicable regulations; and free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to that part as described in MTD Consumer Group Inc’s application for certification.
The warranty period begins on the date the lawn mower is delivered to an ultimate purchaser or first placed into service. The warranty period is two years.
Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the warranty period
stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by MTD Consumer Group Inc according to subsection
(4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
2. Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated above. Any such
part repaired or replaced under warranty will be warranted for the remaining warranty period.
3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied is warranted for the period of time before the
first scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by MTD Consumer
Group Inc according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the
first scheduled replacement point for the part.
4. Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner.
5. Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution centers that are franchised to service the subject
engines or equipment.
6. The lawn mower owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission-related warranted part,
provided that such diagnostic work is performed at a warranty station.
7. MTD Consumer Group Inc is liable for damages to other engine or equipment components proximately caused by a failure under warranty of any warranted
part.
8. Throughout the lawn mower warranty period stated above, MTD Consumer Group Inc will maintain a supply of warranted parts sufficient to meet the expected
demand for such parts.
9. Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will
not reduce the warranty obligations of MTD Consumer Group Inc.
10. Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the
ultimate purchaser will be grounds for disallowing a warranty claims. MTD Consumer Group Inc will not be liable to warrant failures of warranted parts caused
by the use of a non-exempted add-on or modified part.
WARRANTED PARTS:
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if MTD Consumer Group
Inc demonstrates that the lawn mower has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the
direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed, and properly
operating, adjustment limiting device is still eligible for warranty coverage. The following emission warranty parts list are covered: Fuel Line, Fuel Line Clamps
IMPORTANT: To obtain warranty coverage owner must present an
original proof of purchase and applicable maintenance records to the
servicing dealer. Please see the operator’s manual for information on
required maintenance and service intervals.
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the United
States and/or its territories and possessions, and by MTD Products
Limited with respect to new merchandise purchased or leased and
used in Canada and/or its territories and possessions (either entity
respectively, “Cub Cadet”).
Cub Cadet warrants this product (excluding its Normal Wear Parts,
Batteries, Frame and Front Axle and Attachments as described below)
against defects in material and workmanship for a period of three (3)
years or one hundred twenty (120) operation hours, whichever comes
first, commencing on the date of original retail purchase or lease and
will, at its option, repair or replace, free of charge, any part found to be
defective in materials or workmanship.
Normal Wear Parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of original
purchase or lease. Normal wear parts include, but are not limited to
items such as: belts, blades, blade adapters, grass bags, rider deck
wheels, seats, and tires.
Batteries have a one-year prorated limited warranty against defects in
material and workmanship, with 100% replacement during the first three
months. After three months, the battery replacement credit is based on
the months remaining in the twelve (12) month period dating back to the
original date of original sale or lease. Any replacement battery will be
warranted only for the remainder of the original warranty period.
Frame and Front Axle — Cub Cadet warrants the frame, and front cast iron
pivot axle against defects in material and workmanship for a period of
five (5) years or 500 hours, whichever occurs first, commencing on the
date of original purchase or lease.
Attachments — Cub Cadet warrants attachments for this product against
defects in material and workmanship for a period of two (2) years,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as: grass
collectors and mulch kits.
This limited warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual furnished
with the product, and has not been subject to misuse, abuse, neglect,
accident, improper maintenance, alteration, vandalism, theft, fire, water,
or damage because of other peril or natural disaster. Damage resulting
from the installation or use of any part, accessory or attachment not
approved by Cub Cadet for use with the product(s) covered by this
manual will void your warranty as to any resulting damage. In addition,
Cub Cadet may deny warranty coverage if the hour meter, or any part
thereof, is altered, modified, disconnected or otherwise tampered with.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF
OF PURCHASE AND APPLICABLE MAINTENANCE RECORDS, through
your local authorized service dealer. To locate the dealer in your area:
In the U.S.A.:
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.
In Canada:
Contact MTD Products Limited, Kitchener, ON N2G 4J1, call 1-800-668-
1238 or log on to our website at www.mtdcanada.com.
Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:
a. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to
use or exposure.
b. Service completed by someone other than an authorized service
dealer.
c. Cub Cadet does not extend any warranty for products sold or
exported outside of the United States and/or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of export distribution.
d. Replacement parts and\or accessories that are not genuine Cub
Cadet parts.
e. Transportation charges and service calls.
There are no implied warranties, including without limitation any
implied warranty of merchantability or fitness for a particular
purpose. No warranties shall apply after the applicable period of
express written warranty above. No other express warranties beyond
those mentioned above, given by any person or entity, including a
dealer or retailer, with respect to any product, shall bind Cub Cadet.
The exclusive remedy is repair or replacement of the product as
set forth above. The terms of this warranty provide the sole and
exclusive remedy arising from the sale and/or lease of the products
covered hereby. Cub Cadet shall not be liable for any incidental or
consequential loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply to
you.
In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for
loss, damage, or injury to you and your property and/or to others and
their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty
gives you specific legal rights, and you may also have other rights that
vary in different jurisdictions.
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY FOR
SERIES 1000 & SERIES 1500 TRACTORS
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: 1-877-282-8684
MTD Products Limited, Kitchener, ON N2G 4J1, Phone: 1-800-668-1238
GDOC-100014 REV. B
