Operator's Manual
16" 48V MAX* Lithium-Ion Cordless Scarier and Lawn
Dethatcher CLGVB4816
Save this manual for future reference
* Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V).
Nominal voltage is 43.2 volts (2*21.6 V).
Battery Model Number is 24LB4005-CN
Charger Model Number is 24LFC15-ETL
Read all safety rules and instructions carefully before operating this tool.
Distributed By: Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China
2
Section Page
TABLE OF CONTENTS
TABLE OF CONTENTS 2
SPECIFICATIONS 3
IMPORTANT SAFETY INSTRUCTIONS 4-8
SYMBOLS 9
KNOW YOUR SCARIFIER/DETHATCHER 10-11
ASSEMBLY 12-16
BATTERY PACK AND CHARGER 17-19
OPERATION 20-24
MAINTENANCE 25-26
ENVIRONMENTALLY SAFE BATTERY DISPOSAL 27
TROUBLESHOOTING 28-29
LAWNMASTER
®
WARRANTY 30
EXPLODED VIEW 31
PARTS LIST 32
NOTES 33
3
Type Cordless, Battery-powered
No-load Speed 3200 RPM
Cutting Width 16 inch (406 mm)
Height Adjustments 14 positions: -0.39 - 0.19 inch (-10 - 5mm) for Scarier Cylinder
14 positions: -0.19 - 0.39 inch (-5 - 10mm) for Dethatcher Cylinder
Collection Bag Capacity 11.9 gallon (45 liters)
Wheel Size 3.9 inch (100 mm) / 6.7 inch (170 mm)
Unit Weight (With two 4.0Ah Batteries) 26.5 lbs (12 kg)
SPECIFICATIONS
48V MAX* CORDLESS SCARIFIER/DETHATCHER
Model Number 24LB4005-CN
Rated Voltage of Battery 24 V Max* D.C.
Capacity of Battery 4.0 Ah
Battery Type Lithium-ion
BATTERY PACK
Model Number 24LFC15-ETL
Charger Input 120 V ~ 60 Hz 120 W
Charger Output 24 V D.C. 4.0 A
150 minutes (For two 24LB4005-CN)
80 minutes (For one 24LB4005-CN)
* Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V).
Nominal voltage is 43.2 volts (2*21.6 V).
BATTERY CHARGER
Charging Time
4
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below and, on the tool, may result in electric shock, re, and/or
serious personal injury.
This symbol indicates important safety instructions. If these instructions are not followed, it could
endanger the personal safety and/or property of the operator and others. Read and understand all
instructions in this manual before attempting to operate the scarier/dethatcher. Failure to comply with
these instructions may result in personal injury.
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable.
Safety, performance, and dependability have been given top priority in the design of this product making
it easy to maintain and operate.
TRAINING AND PREPARATION
■
Read this Operator’s Manual carefully in its entirety before attempting to assemble this tool. Read,
understand, and follow all instructions on the tool and in the manual before operating it. Keep this
manual in a safe place for future and regular reference and for ordering replacement parts.
■
Be completely familiar with the proper use of this tool before operating it.
■
Avoid operating the tool in a dangerous environment. Do not use the tool in damp or wet conditions
or operate in the rain.
■
Only allow operators, who are responsible, trained, familiar with the instructions, and physically
capable to operate the tool.
■
Keep the area of operation clear of all persons, particularly small children, and pets. Stop the tool
and attachment(s) if anyone enters the working area.
■
Wear appropriate personal protective equipment such as safety glasses, hearing protection, and
footwear.
■
Dress properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of
rubber gloves and footwear is recommended when working outdoors.
■
Clear the operating area of any objects which could be thrown by or interfere with operation of the
tool.
■
Avoid operating the tool on wet grass. Poor footing could cause a slip and fall accident.
■
Do not operate the tool under any condition where traction, steering, or stability is uncertain. Tires
could slide even if the wheels are stopped.
■
Use the scarier/dethatcher for the correct purpose. Do not use the tool for any job except that for
which it is intended.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING
5
IMPORTANT SAFETY INSTRUCTIONS
■
Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to
be used for the scarier/dethatcher. Receptacles are available having built-in GFCI protection and
may be used for this measure of safety.
■
Store idle scarier/dethatcher indoors. When not in use, the tool should be stored indoors, in a dry
and secure place that cannot be accessed by children.
■
Maintain the tool with care. Keep cutting edges sharp and clean for best and safest performance.
■
Check damaged parts. Check all safety guards or other parts that could affect operation carefully
to ensure that the tool will operate properly and perform its intended function. Check for alignment
of moving parts, binding of moving parts, broken parts, mounting, and any other condition that may
affect its operation. A guard or other part that is damaged should be properly repaired or replaced by
a qualied person.
OPERATION
■ Only operate the equipment in daylight or good articial light.
■ Avoid unintentional starting – be sure switch is off when inserting the batteries.
■ Do not put hands or feet near or under rotating parts or the scarier/dethatcher. Always keep clear
of the discharge opening.
■ Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the tool, or
cause operator to lose their balance or footing.
■ Do not direct discharge material toward anyone. Avoid discharging material against a wall or
obstruction. Material may ricochet back toward the operator.
■ Always wear safety glasses with side shields. Everyday glasses have only impact-resistant lenses.
They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use a face mask
if operation is dusty.
■ Always be sure of your footing. A slip and fall can cause serious personal injury.
■ Do not operate the tool in reverse unless absolutely necessary. Always look down and behind
before and while backing.
■ Always be sure the cylinder has stopped after releasing the switch lever and unplug before removing
the collection bag, cleaning, servicing, transporting, or lifting the scarier/dethatcher.
■ Stay behind the handle when the motor is running.
■ Do not force the tool. It will do the job better and safer at the rate for which it was designed.
■ Stop the motor and remove the battery packs whenever leaving the equipment, before cleaning the
scarier/dethatcher housing, and before making any repairs or inspections.
■ Do not operate the tool on excessively steep slopes.
■ Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make
turns slowly and gradually.
■ Stay alert. Watch what you are doing. Use common sense. Do not operate the scarier/dethatcher
when you are tired.
■ Do not overreach. Always keep proper footing and balance.
■ Do not make the equipment overload, such as scarify too deep or operate at a very high speed.
■ Only use parts and accessories made for this tool by the manufacturer. Failure to do so can result in
personal injury.
■ Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires,
and other foreign objects.
■ Never attempt to make a wheel height adjustment while the motor is running.
6
OPERATING THE SCARIFIER/DETHATCHER ON A SLOPE
Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation
on slopes requires extra caution. If you feel uneasy on a slope, do not operate this tool.
■ Scarify/dethatch across the face of slopes; never up and down. Exercise caution when changing
direction on slopes.
■ Watch for holes, ruts, rocks, hidden objects, or bumps that can cause you to slip or trip.
■ Always be sure of your footing. A slip and fall can cause serious personal injury.
■ Do not operate the tool near drop-offs, ditches, or embankments; you could lose your footing or
balance.
■ Do not operate the tool in wet grass. Unstable footing could cause slipping.
CHILDREN
Tragic accidents can occur if the operator is not alert in the presence of small children. Children are
often attracted to the tool and the scarifying/dethatching activity. Children do not understand the
dangers. Never assume that children will remain where you last saw them.
■ Keep children out of the working area and under the watchful care of a responsible adult other than
the operator.
■ Be alert and stop operating if a child or others, including pets, enter the area.
■ Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that
may obscure your vision of a child who may run into the scarier/dethatcher.
■ Never allow children to operate this tool.
BATTERY PACK
■ The battery pack is only compatible with LawnMaster
®
24LFC15-ETL, 24LFC14-ETL, 24LFC02-ETL
or 24LSC01-ETL chargers.
■ Recharge only with the charger specied by the manufacturer and listed in this manual. A charger
that is suitable for one type of battery pack may create a risk of re when used with another battery
pack.
■ Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric
shock.
■ Do not place battery powered tools or their batteries near re or heat. This will reduce the risk of
explosion and possibly injury.
■ Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic if swallowed.
■ Do not dispose of battery packs in re. They will explode or leak and cause injury. Liquid ejected
from the battery may cause irritation or burns.
■ Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been
dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a
dropped or damaged battery immediately.
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
7
IMPORTANT SAFETY INSTRUCTIONS
■ Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the
risk of serious personal injury, never use any cordless product in the presence of open ame. An
exploded battery can propel debris and chemicals. If exposed, ush with water immediately.
■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, ush
them with clean water for at least 10 minutes, then seek immediate medical attention. Following this
rule will reduce the risk of serious personal injury.
■ When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws, or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
■ Do not expose a battery pack or the tool to re or excessive temperature. Exposure to re or
temperature above 265°F (130°C) may cause an explosion.
■ Do not modify or attempt to repair the tool or the battery pack (as applicable) except as indicated in
the instructions for use and care.
■ Follow all charging instructions and do not charge the battery pack or the tool outside of the
temperature range specied in the instructions. Charging improperly or at temperatures outside of
the specied range may damage the battery and increase the risk of re.
■ All tool services should be performed by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
■ When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and
discharged batteries could increase internal cell pressure and rupture the discharge battery(ies).
BATTERY CHARGER
■ This charger is only compatible with LawnMaster
®
24LB4005-C, 24LB4005-CN, 24LB1304,
24LB2004, 24LB2605, or 24LB4005 lithium-ion batteries.
■ To reduce the risk of injury, charge only the specied lithium-ion rechargeable batteries. Other types
of batteries may burst, causing personal injury or damage.
■ Keep cord and charger away from heat to prevent damage to housing or internal parts.
■ Do not operate charger with a damaged cord or plug, which could cause shorting and electric shock.
If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the
Parts List of this manual.
■ Do not use a charger that has been dropped or received a sharp blow.
■ Do not disassemble charger. Take it to a qualied service center for check or replacement. Incorrect
reassembly may result in a risk of electric shock or re.
■ Do not abuse the charger cord. Never use the cord for carrying, pulling or unplugging.
■ Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock. If the charger cord is damaged, replace the charger with an identical
model as listed in this manual.
■ A charger that is suitable for one type of battery pack may create a risk of re when used with
another battery pack.
■ Charge the battery at the normal charging temperature between 40°F (4°C) and 100°F (38°C).
8
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Refer to them frequently and use them to instruct others who may use this tool. If you loan someone
this tool, loan them these instructions also.
FCC COMPLIANCE
■ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired
operation.
■ NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that of the receiver.
- Consult the dealer or an experienced radio/ TV technician for help.
9
SYMBOLS
V Volts Voltage
A Amperes Current
Hz Hertz Frequency(cycles per second)
W Watt Power
hrs Hours Time
Class II Construction Double-insulated construction
Some of the following symbols may be used on this product. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to operate the product
better and safer.
SYMBOL
NAME DESIGNATION/EXPLANATION
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
SERVICE
Service requires extreme care and knowledge and should be performed only by a qualied service
technician. When servicing, use only identical replacement parts.
For troubleshooting or replacement, please call Customer Service for assistance (Toll-free number
1-866-384-8432).
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand
completely the Operator’s Manual.
If you do not understand the warnings and instructions in the Operator’s Manual, do not use this product.
Call Customer Service for assistance (Toll-free number 1-866-384-8432).
WARNING
SYMBOL SIGNAL MEANING
10
KNOW YOUR SCARIFIER/DETHATCHER
The safe use of this product requires an understanding of the information on the product and in
this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
7
8
1
2
3
4
5
6
10
11
12
13
14
9
15
16
17
18
19
20
21
22
23
11

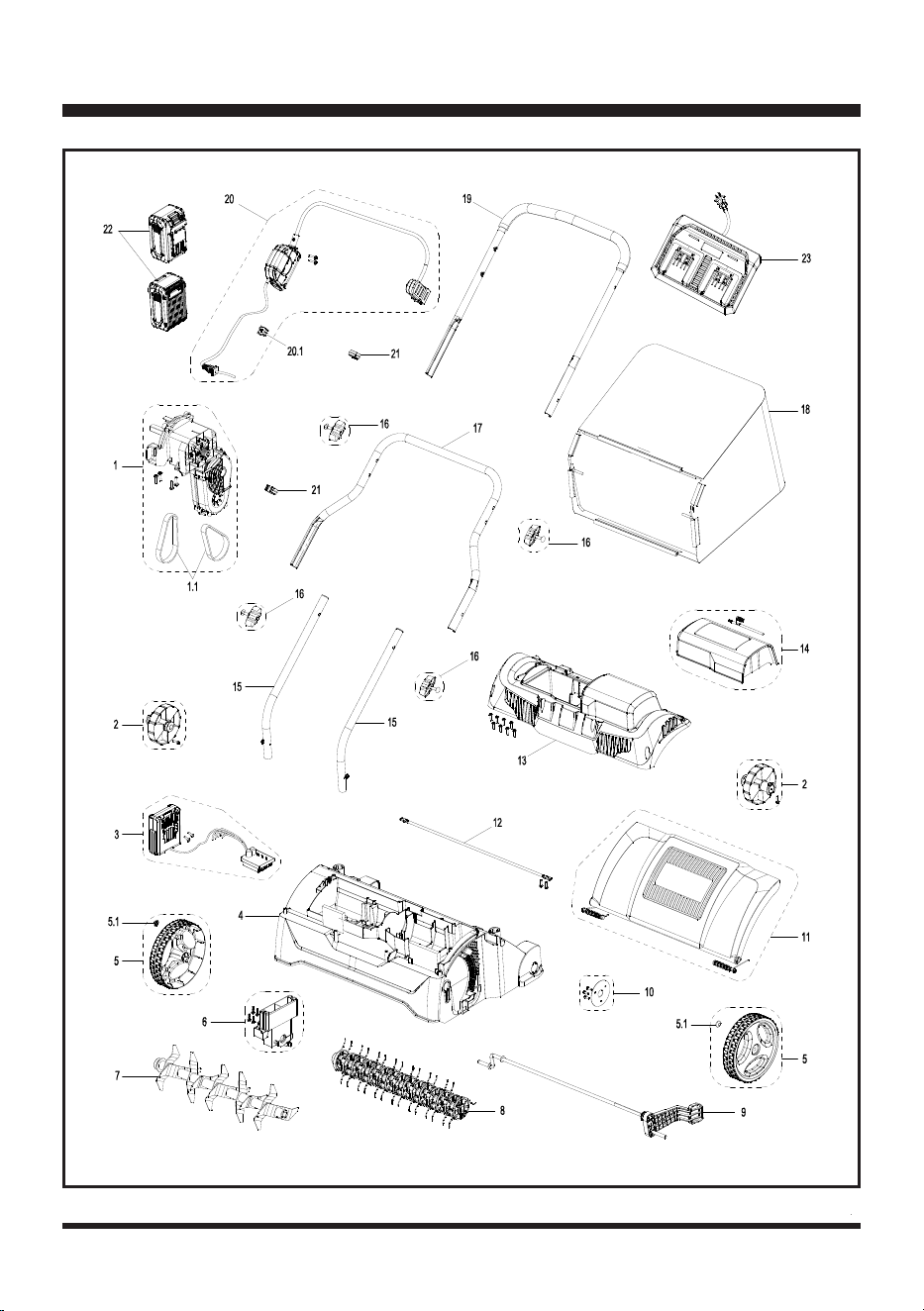

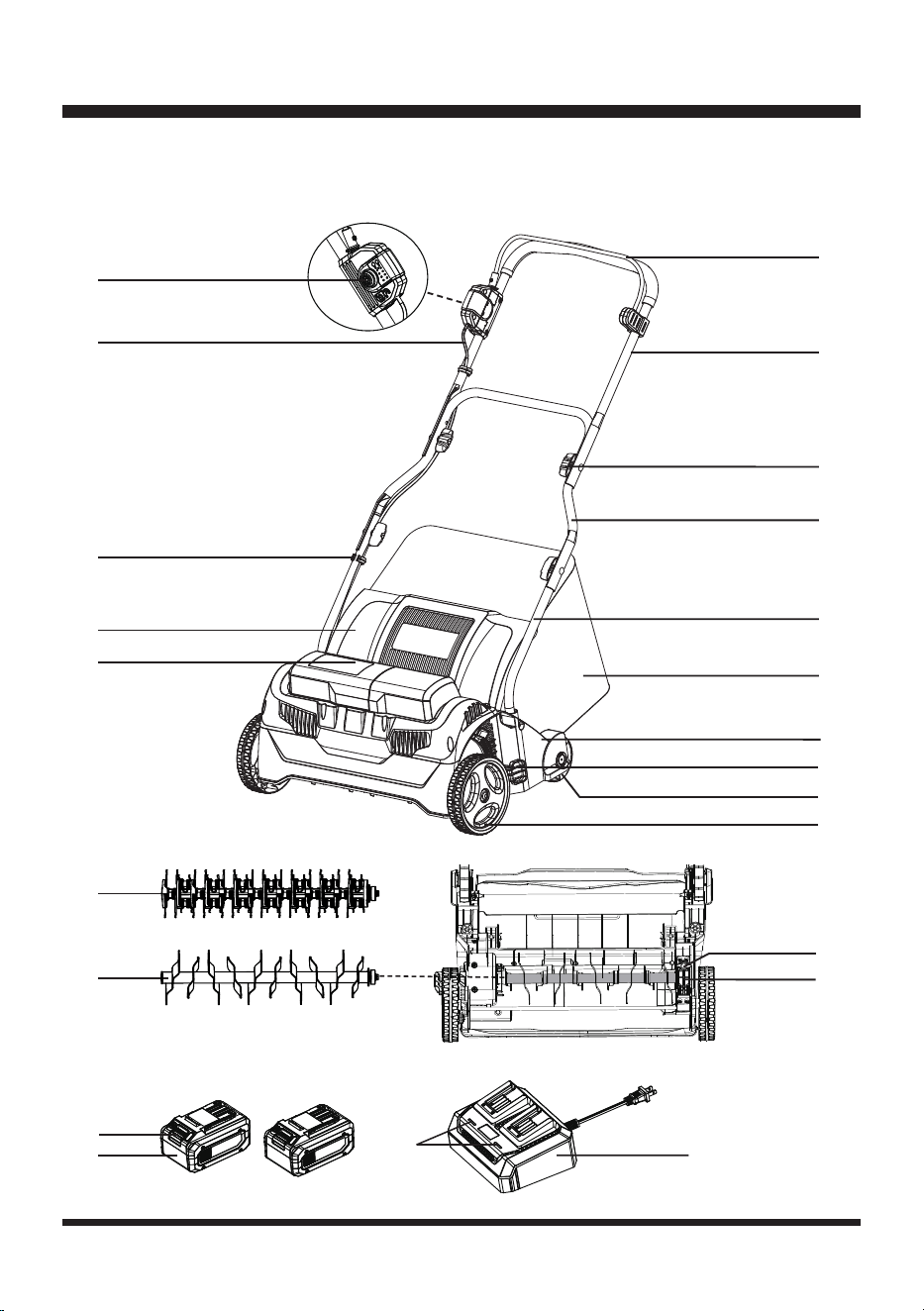

Components
1. Start/Stop Bale Switch
2. Upper Handle
3. Carriage Bolt & Wing Nut (X4)
4. Middle Handle
5. Lower Handle
6. Collection Bag
7. Deck
8. Height Adjustment Lever
9. Rear Wheel
10. Front Wheel
11. Battery Compartment Cover
12. Safety Guard Flap
13. Cable Clip (X2)
14. Control Cable
15. Safety Switch Button
16. Dethatcher Cylinder
17. Scarier Cylinder
18. Mounting Bolt
19. Bearing Cover
20. Battery Release Button
21. Battery Pack (X2)
22. Battery Charger Indicators
23. Battery Charger
KNOW YOUR SCARIFIER/DETHATCHER
12
ASSEMBLY
WARNING
This product requires assembly.
■ Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
■ If any parts are damaged or missing, call Customer Service for assistance (Toll-free number 1-866-
384-8432).
PACKING LIST
(1) Scarier/Dethatcher
(1) Upper Handle
(1) Middle Handle
(2) Lower Handles
(2) Screws
(4) Carriage Bolts
(4) Wing Nuts
(2) Cable Clips
(1) Collection Bag Assembly (Bag & Metal Frame)
(1) Dethatcher Cylinder
(1) Scarier Cylinder (Pre-installed)
(1) 24V Lithium-ion Battery Charger
(2) 24V 4.0Ah Lithium-ion Battery Packs
(1) Operator’s Manual
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury and will void the warranty.
WARNING
Do not connect the batteries before the product is completely assembled. Failure to comply could
result in accidental starting and possible serious personal injury.
13
Screw
WARNING
Never operate the tool without the proper safety devices in place and working. Never operate the tool
with damaged safety devices. Failure to heed this warning can result in serious personal injury.

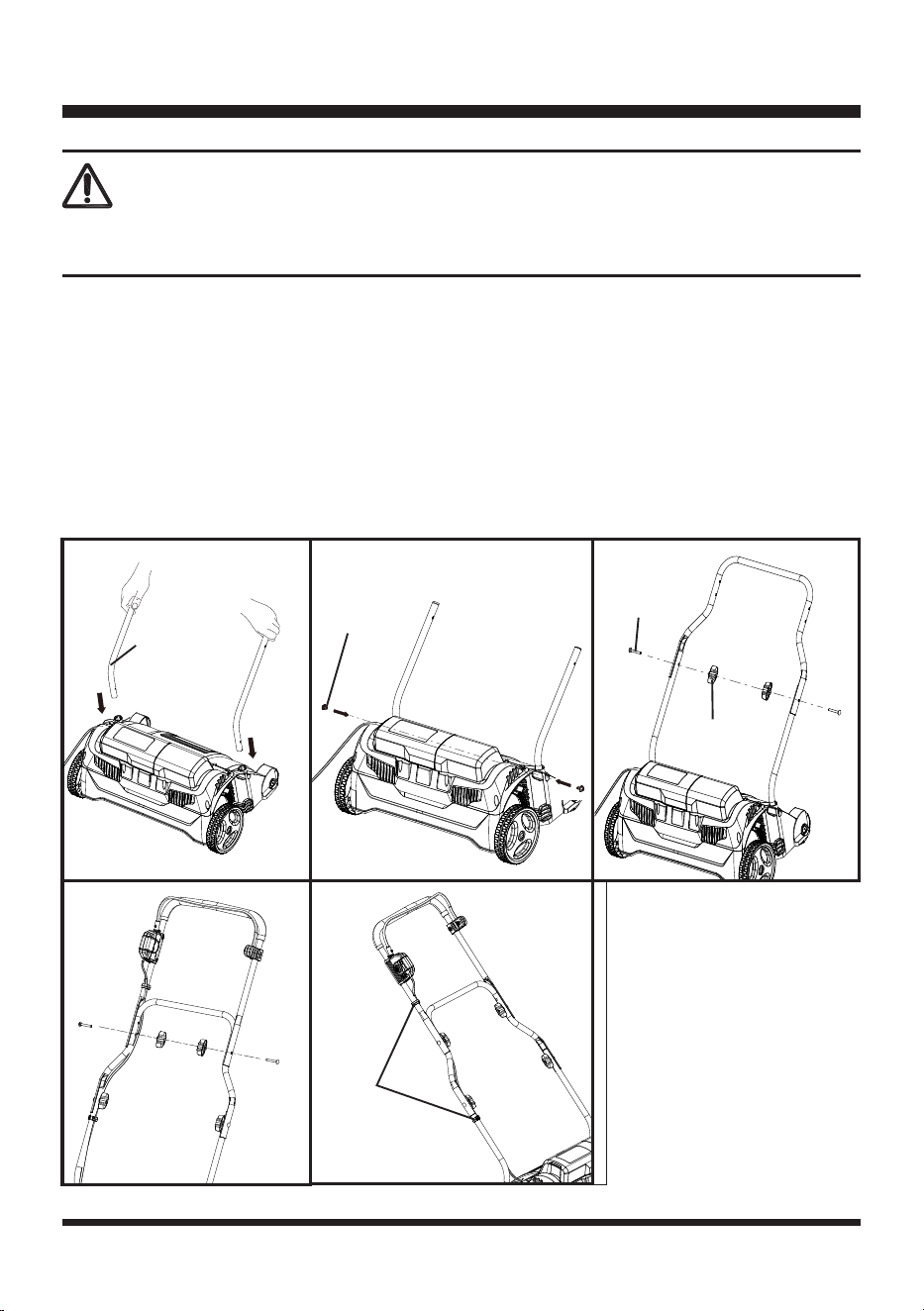

Fig. 1
Fig. 4
Fig. 2
Fig. 5
Fig. 3
ASSEMBLY
ASSEMBLING THE HANDLE (See Figs. 1-5)
■ Insert the two lower handles into the deck and secure them with two screws (Fig. 1 & 2).
■ Place the cord retainer on middle handle. Secure the middle handle to the lower handle with two
carriage bolts and two wing nuts (Fig. 3).
■ Secure the upper handle to the middle handles, at the desired height, with two carriage bolts and
two wing nuts (Fig. 4). There are two possible positions.
■ Use the two cable clips to attach the control cable to the handles (Fig. 5).
During assembly, ensure that the control cable is not squeezed and that it has sufcient play.
Lower Handle
Carriage
Bolt
Wing Nut
Cable
Clips
14
ASSEMBLY

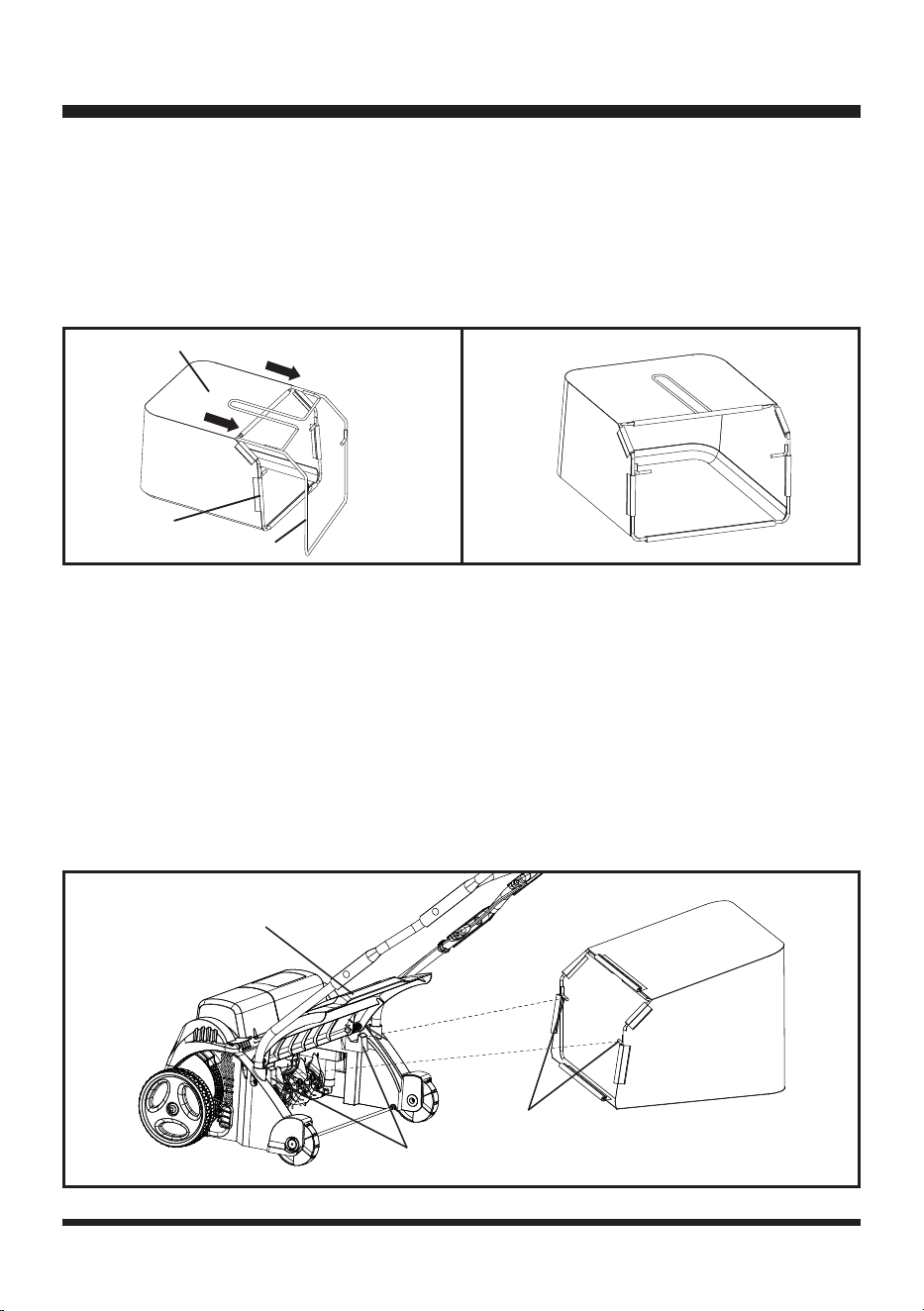

ASSEMBLING THE COLLECTION BAG
■ Check the collection bag before assembling to make sure there is no damage.
■ Pull the grass collection bag over the metal frame as shown (Fig. 6).
■ Pry open the soft plastic clamping sleeves and insert the metal frame into the sleeves. Ensure all sleeves
are properly clamped on the frame.

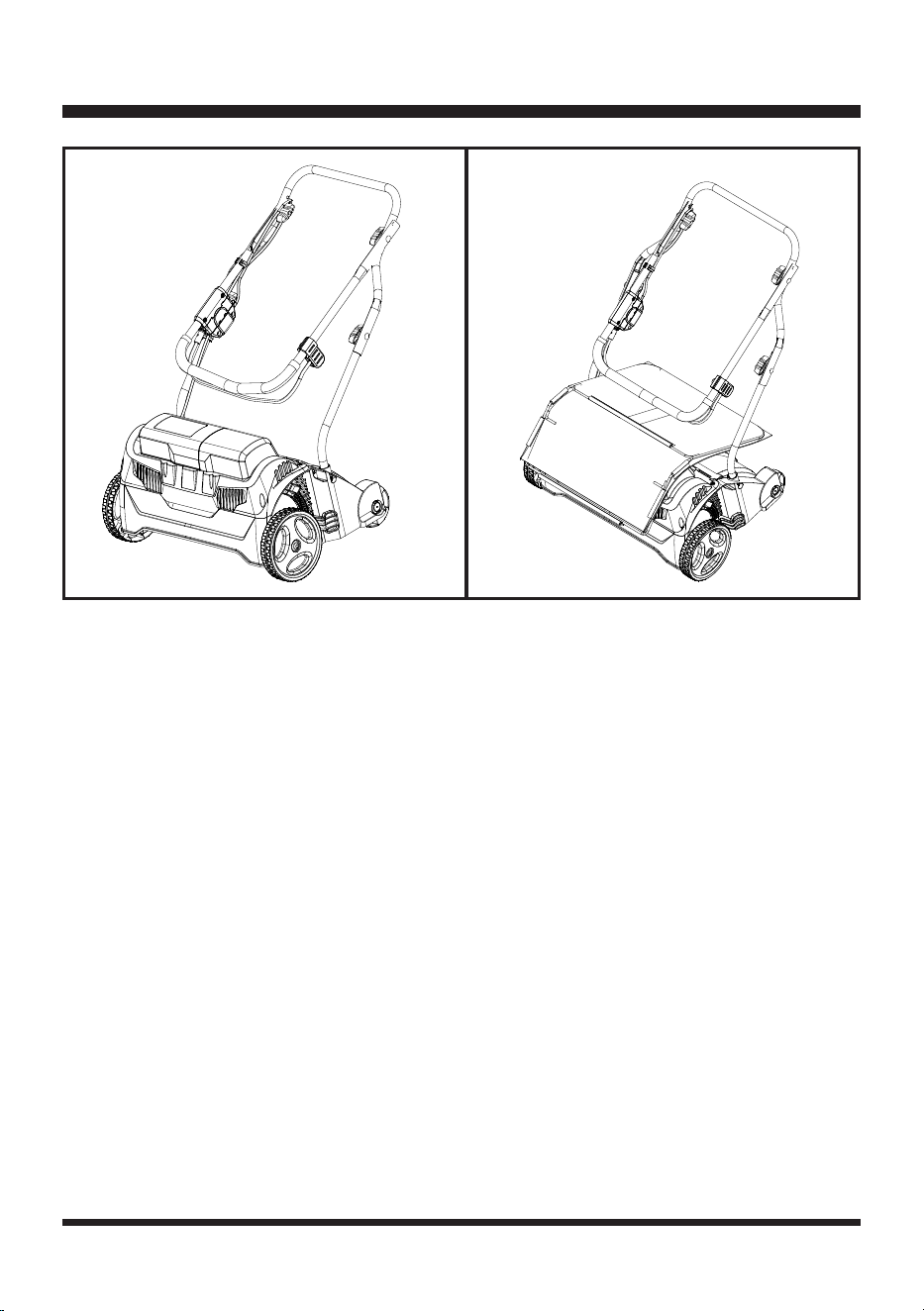

■ The completely assembled grass collection bag is shown as below (Fig. 7).
Fig. 6 Fig. 7
Grass Collection Bag
Sleeve
Metal Frame
INSTALLING AND REMOVING THE COLLECTION BAG
NOTE: The safety ap is spring operated. Ensure you have a rm grip when opening and closing to
avoid personal injury.
Recommendation: Work with the collection bag for dethatching and without the collection bag for
scarifying.
Installing the collection bag:
■ Lift the safety guard ap and hold it in position.
■ Lift the collection bag by its handle and make the collection bag seated on the sockets in the deck (Fig. 8).
■ Release the safety guard ap.

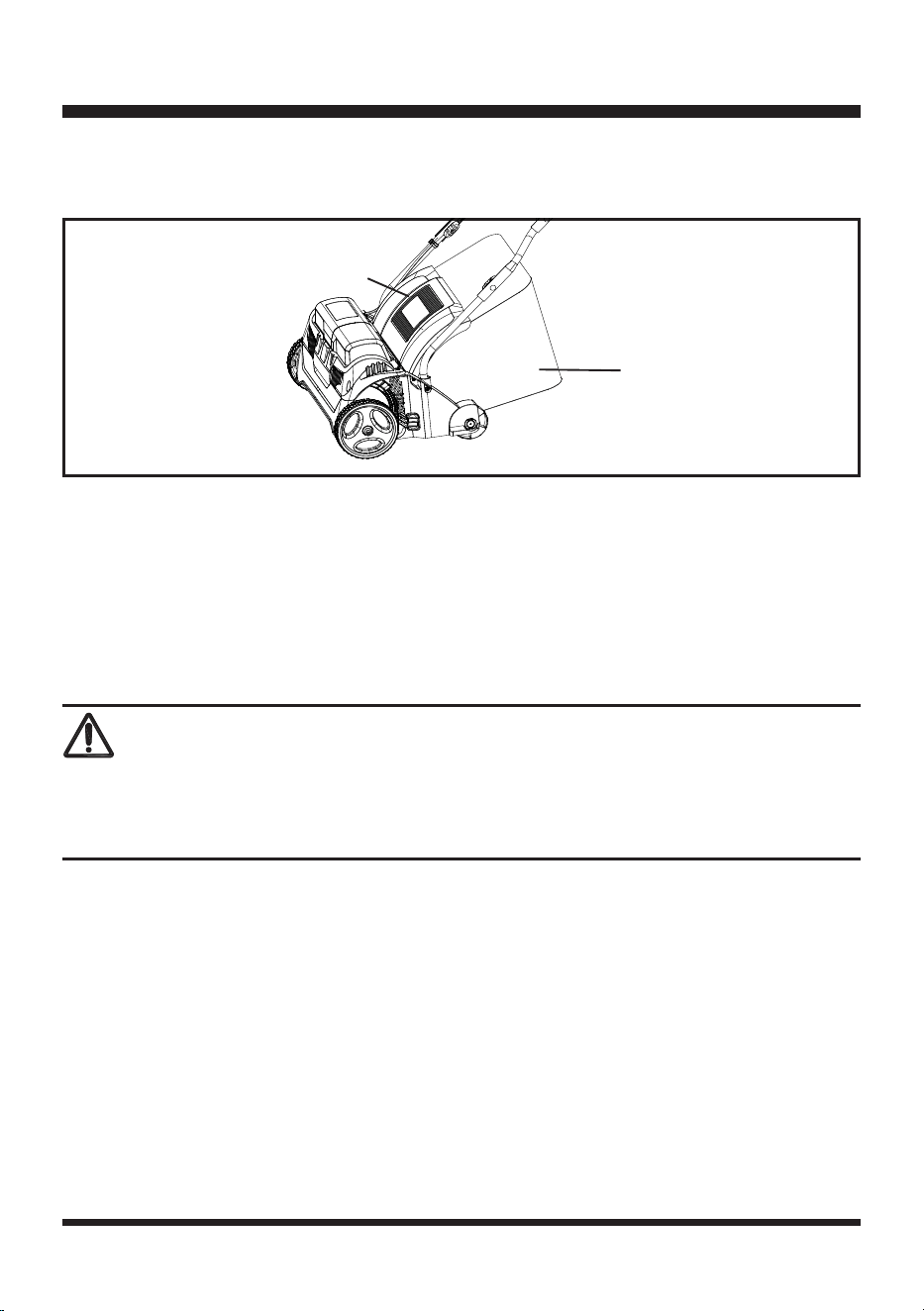

Fig. 8
Sockets
Rods
Safety Guard Flap
15
Fig. 9
Safety Guard Flap
Collection Bag
Removing the collection bag:
■ Lift the safety guard ap and hold it in position.
■ Lift the grass collection bag by its handle and remove it from the scarier/dethatcher.
■ Release the safety guard ap.
NOTE: To reduce the risk of injury, frequently inspect the bag assembly and replace if there are any
signs of wear or deterioration.
ASSEMBLY
■ Make sure both rods are rmly seated on the sockets and the safety guard ap rests rmly against the top
of the grass collection bag (Fig. 9).
INSTALLING AND REMOVING THE BATTERY PACKS
If any parts are broken or missing, do not attempt to attach the battery packs to the product or operate the
product until the broken or missing parts are replaced. Failure to do so could result in serious injury. Do not
connect the batteries before the product is completely assembled.
NOTE: Both batteries should be installed into the compartments in order to start the product.
To install battery packs:
1. Make sure both batteries are fully charged.
2. Lift the plastic battery compartment cover on the top of the deck.
3. Align the raised ribs on the product with the grooves in the battery pack, and then insert the battery packs
into the compartment (Fig. 10).
4. Push the battery packs until you hear a “click”.
5. Close the battery compartment cover.
NOTE: Make sure that the battery packs rmly snap into place and are secured to the product before starting
operation.
WARNING
16
ASSEMBLY

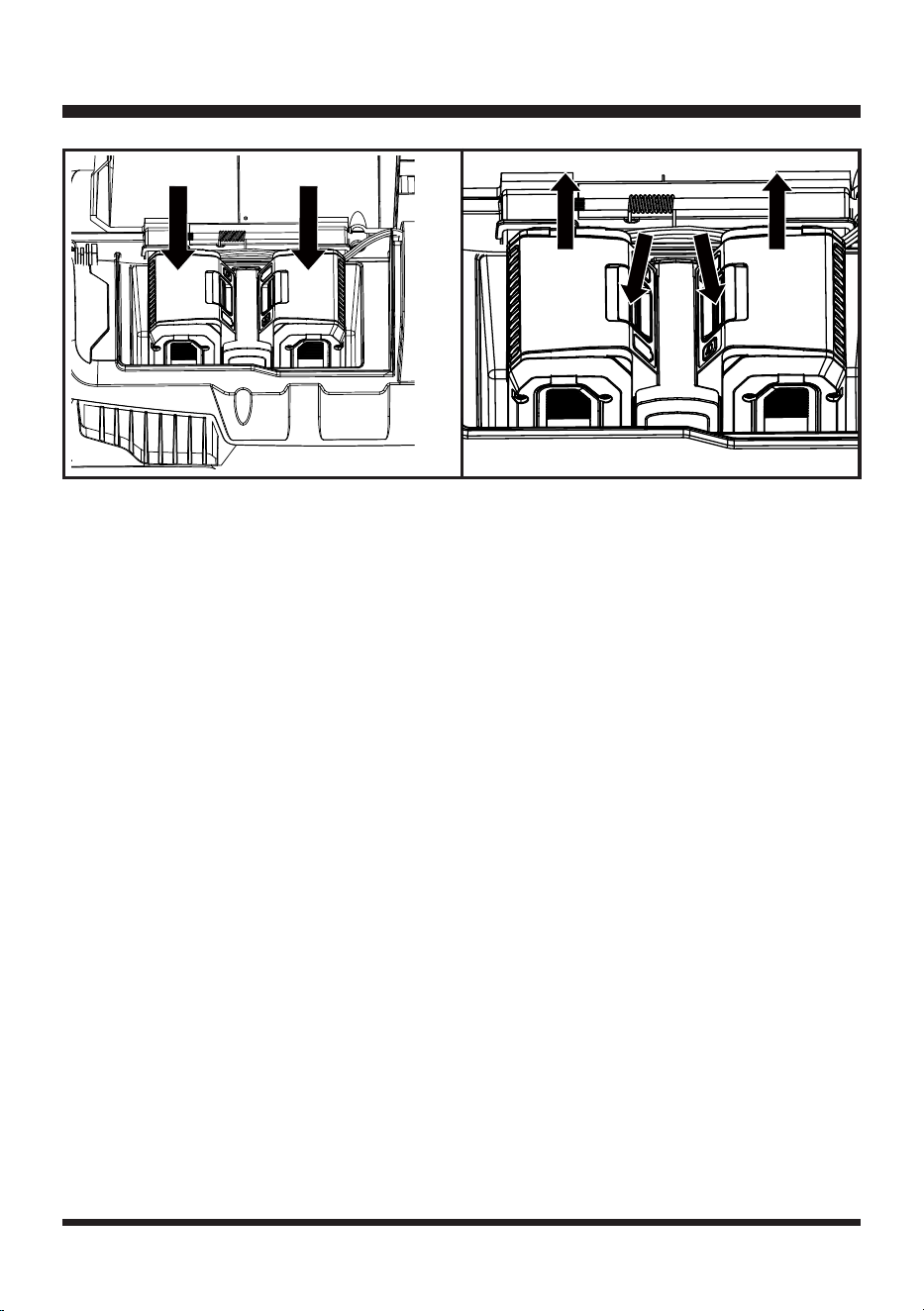

Fig. 10
Fig. 11
To remove battery packs:
1. Stop the product. Lift the battery compartment cover.
2. Press the release button on the battery pack, grasp the battery pack rmly and pull out of the battery
compartment. Remove the second battery in the same way (Fig. 11).
3. Close the battery compartment cover.
17
BATTERY PACK AND CHARGER
BATTERY CHARGING
1. Use only with 24V LawnMaster
®
battery chargers. The battery charger supplied is specically designed for
the lithium-ion batteries used in this tool.
2. Check the power voltage! Battery chargers operate on 120V.
3. The batteries are charged between 40°F (4°C) and 100°F (38°C). This ensures an optimum battery
service life.
4. Protect the batteries from heat, from continuous exposure to sun and keep away from radiation or other
heat sources. Do not leave the batteries in the product in direct sunlight over long periods.
5. The batteries are supplied partially charged. To ensure full capacity of each battery, charge the batteries
before using the tool for the rst time. The lithium-ion batteries can be charged at any time without reducing
their service life. Interrupting the charging procedure does not affect the batteries.
LED CHARGER STATUS
1. If batteries are not inserted into the charger, continuous red LED lights indicate that the outlet plug is
plugged into an outlet socket and the battery charger is ready for operation.
2. Charging: Flashing green LEDs on the charger indicate that batteries are charging normally. The LED’s
ashing frequency is 1Hz.
3. Charged: Continuous green LEDs on the charger indicate that batteries are ready for use.
4. Technical Issue: Flashing red LED lights on the charger indicates that batteries have a charging problem
or might be defective.
a) One possible condition is the battery temperature is lower than 0°C. As soon as the permitted
temperature is reached, the battery charger will automatically switch to charging.
b) If the temperature range is correct and ashing red LED light continues, then remove and reinstall the
battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery
charges normally, dispose of the defective battery pack (see Environmentally Safe Battery Disposal
section).
c) If the ashing red light continues after installing the second battery, the charger may be defective.
Replace with a new one.
5. Flashing green LED lights on the charger (the LED’s ashing frequency (2Hz) is faster than charging
normally (1Hz)), which indicates the battery temperature is higher than 50°C. As soon as the permitted
temperature is reached, the battery charger will automatically switch to charging.
6. After continuous or repeated charging cycles without interruption, the charger may warm up. This is normal
and does not indicate a technical defect of the battery charger.
18
BATTERY PACK AND CHARGER
The indicator lights on the charger show the charger status:
BATTERY LED PANEL
1. The panel consists of 3 LEDs on the battery. Press and hold the button, then release it, the LEDs will show
you the charge levels.
2. The battery’s charge level can be checked either when the battery is attached on the charger/tool or
removed from the charger/tool.
SYMBOL INDICATOR LIGHTS STATUS
Red, continuous Connected to power supply
Green, blinking.
(ashing frequency: 1Hz)
Charging.
Green, blinking.
(ashing frequency: 2Hz)
Battery is overheated.
Green, continuous. Fully charged.
Red, blinking.
(ashing frequency: 2Hz)
Charging problem:
See Technical Issue above
LEDs on Battery
(Continuous
Lighting)
Battery Capacity
3 LEDs
Fully charged
2 LEDs (orange & red)
≥40%
1 LED (red only)
<40% (Recharge required)
Indicator Lights
19
BATTERY PACK AND CHARGER
CHARGING THE BATTERY PACK
If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one.
Failure to heed this warning could result in possible serious injury.
Check the voltage! The voltage must comply with the information on the rating label.

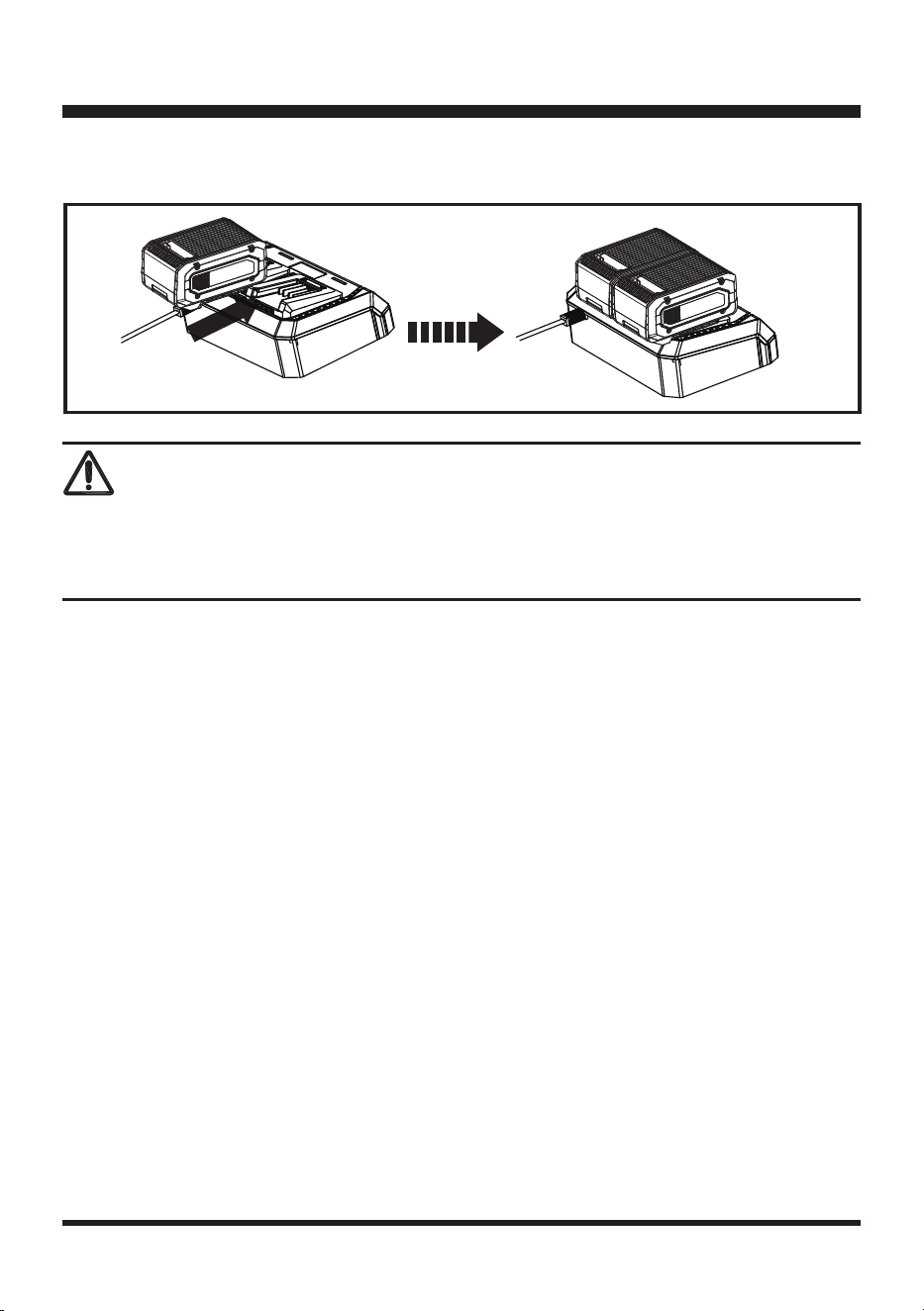

1. Align the slot of the battery pack with the rail on the charger. Slide the slot onto the rail until the battery
pack secures into place. Connect the second battery in the same way (Fig. 12).
2. Connect the charger to the power supply.
3. Allow sufcient charging time (see Specications), and then disconnect the charger from the power supply.
4. Press the release buttons on the battery packs and remove them from the charger.
NOTE: It is normal for the battery packs and the charger to become warm (but not hot) during charging
process. If the battery does not charge properly, check to make sure the electrical outlet is operational. Always
charge the battery before storage!
WARNING
Fig. 12
20
To set the work positions:
■ Check that the tool is turned off before adjusting the working position.
■ Hold the tool and pull up the height adjustment lever. Turn the lever to the appropriate level and push it
down to snap in (Fig. 13).
NOTE: The height adjustment lever is not intended for
height adjustment but rather to compensate for wear.
Selection of a readjustment position without the
corresponding wear can overload the motor and damage
the cylinder.
OPERATION
WARNING
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
Do not switch on the tool until it has been completely assembled. Before switching on the tool, always
check it for signs of damage.
The tool has 4 principal position settings:
Transport position ( )
This position sets the maximum safety spacing between the tool and the oor.
Working position (1)
Set this position when working with a new tool.
Readjustment working positions (2 & 3)
The working position can be lowered with increased knife and spring tine wear. Wear can be identied
from an increasingly poor result.
NOTE: When the tool is delivered, it will be set in in the transport position.

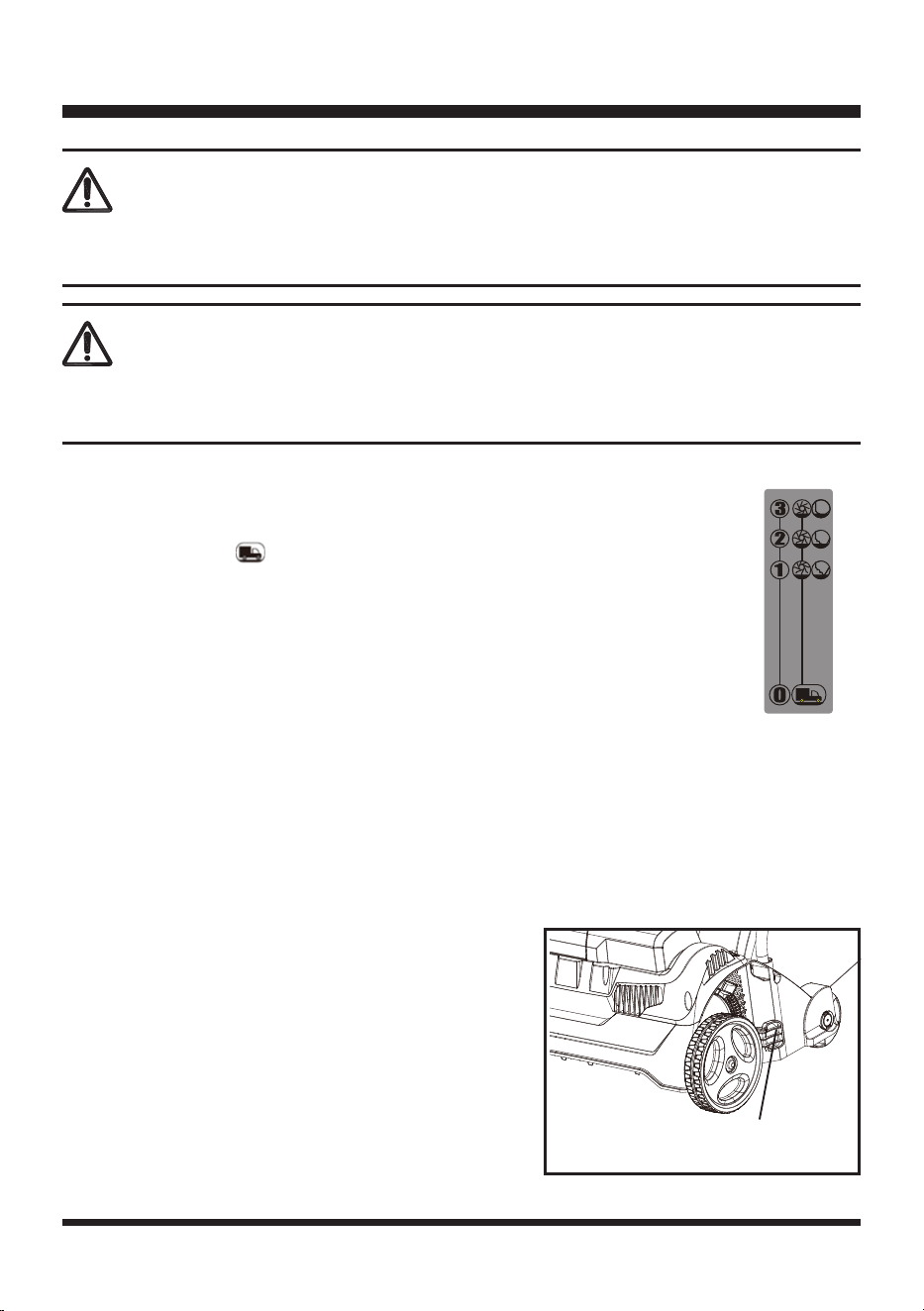

SETTING THE WORKING POSITIONS
Height Adjustment Lever
Fig. 13
21
STARTING/STOPPING THE TOOL
■ Place the tool on a level lawn surface.
■ Press down the safety switch button and hold it (Fig. 14).
■ Pull the start/stop bale switch toward the handle and release the safety switch button. Continue to
hold the start/stop bale switch against the handle as you operate (Fig. 14).
■ To stop the tool, release the start/stop bale switch.
WARNING
Before switching on the tool ensure that it is not in contact with any objects. Keep your feet and hands
well away from the cylinder and the ejector opening. There is a danger of injury!
WARNING
The cylinder continues to run for a brief period after the tool has been switched off. Do not tilt or carry
the tool while the motor is still running and do not touch the cylinder while it is still rotating. There is a
possible danger of injury!
OPERATION
1
2
Fig. 14
Safety Switch
Button
Start/Stop Bale
Switch
22

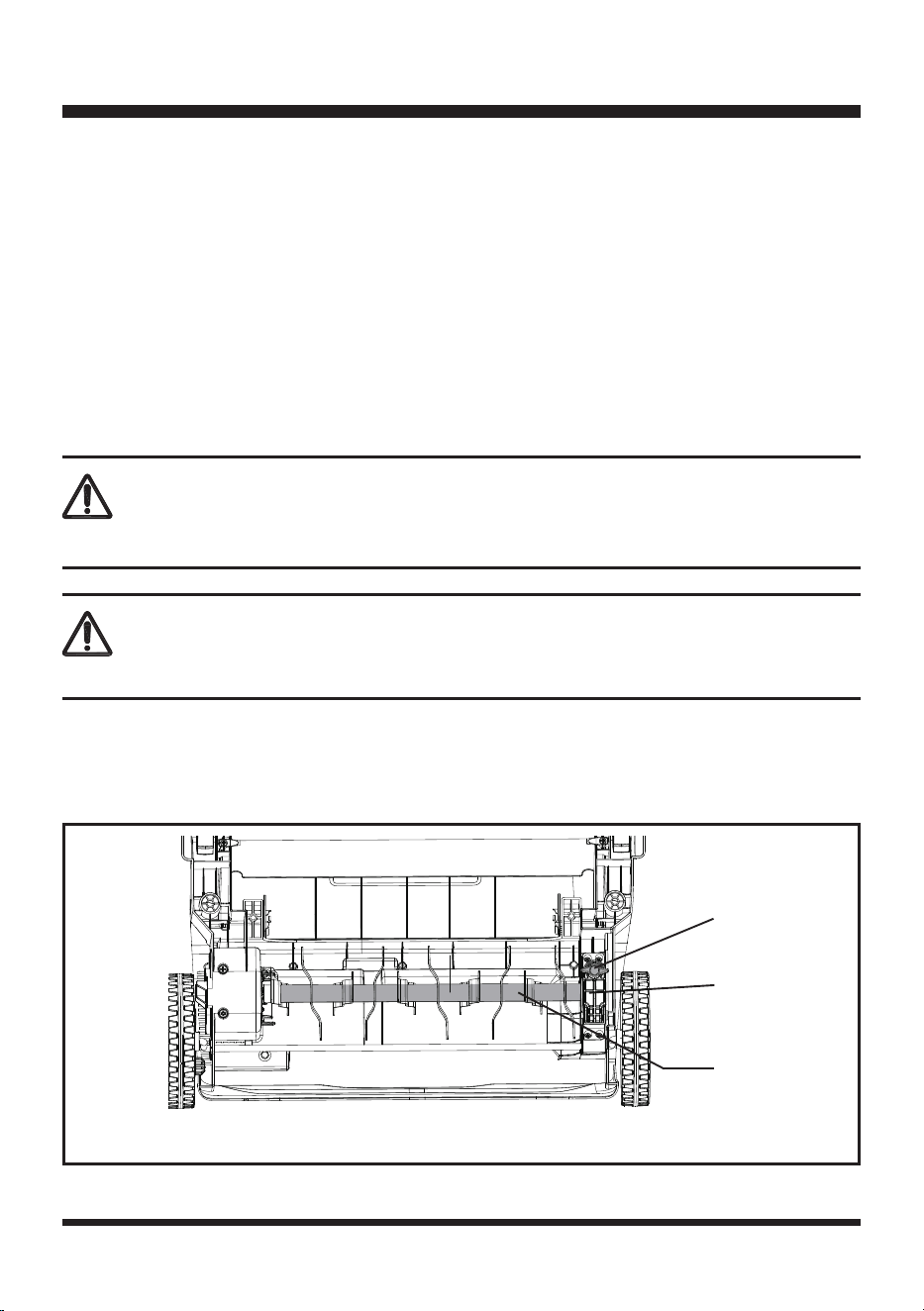

CHANGING THE CYLINDER
The tool has two easily exchangeable work cylinders: a dethatcher cylinder made of hard plastic with
vertically rotating spring tines, and a scarier cylinder with vertically mounted high-grade steel knives.
■ Turn the tool over.
■ Release the mounting bolt and fold the bearing cover away (Fig. 15).
■ Tilt the cylinder upwards and pull the shaft out of its seat. Pulling the shaft out of its seat may require
some force initially.
WARNING
WARNING
Switch off the tool, remove the battery packs and wait until the cylinder is standing still.
Always wear gloves when handling the cylinder.
OPERATION
This product is equipped with overload protection function, and it will be activated in the following
circumstances:
1. If the cutting device is wrapped by a build-up of debris.
2. If the material scaried is larger than the motor capacity.
3. Where there is too much resistance against the cutting device.
When the circuit breaker has been activated, switch off the product and disconnect it from the power
supply. Let the product cool down and clear the problem before restarting.
Overload Protection
Fig. 15
Bearing
Cover
Mounting
Bolt
Scarier
Cylinder
23
OPERATION
USING YOUR TOOL
To maintain a well-cared-for lawn it should be dethatched every 4 to 6 weeks.
Scarifying with the blade cylinder is a more intensive treatment than dethatching and should only be
carried out once a year. The best time is in spring after the lawn has been mown for the rst time.
How to use your scarier
■ By scarifying you remove the hardened surface, grass felt, and at-growing weeds and the crusted
over grassroots are loosened up. The lawn will start to breathe again and assimilate nourishing
substances such as oxygen and water. This also prevents bacteria from growing in the lawn felt
when the grass is dormant.
■ Cut the grass to a height of about 1.57 inch (40 mm) before scarifying. The lawn must be dry when
using the tool. The best time for scarifying is any time during the vegetative season, from end of
April through to September. Scarify it at least once a year. We recommend using a fertilizer straight
after airing if you want a healthy lawn.
How to use your dethatcher
■ By dethatching you remove the dead matter, moss, and weed that disgures a lawn. The build-up
of dead grass provides a mat of absorbent bers which prevents water from getting through to the
ground.
■ Do not force your dethacther through grass that is longer than 2.95 inch (75 mm). The lawn must be
dry when using the tool. It’s recommended that your dethacther be used at the beginning and the
end of each grass cutting season to give your lawn a thorough raking. Your dethacther should also
be used after each mowing to remove any grass clippings that may be left by your tool.
Dethatcher
Cylinder
Fig. 16

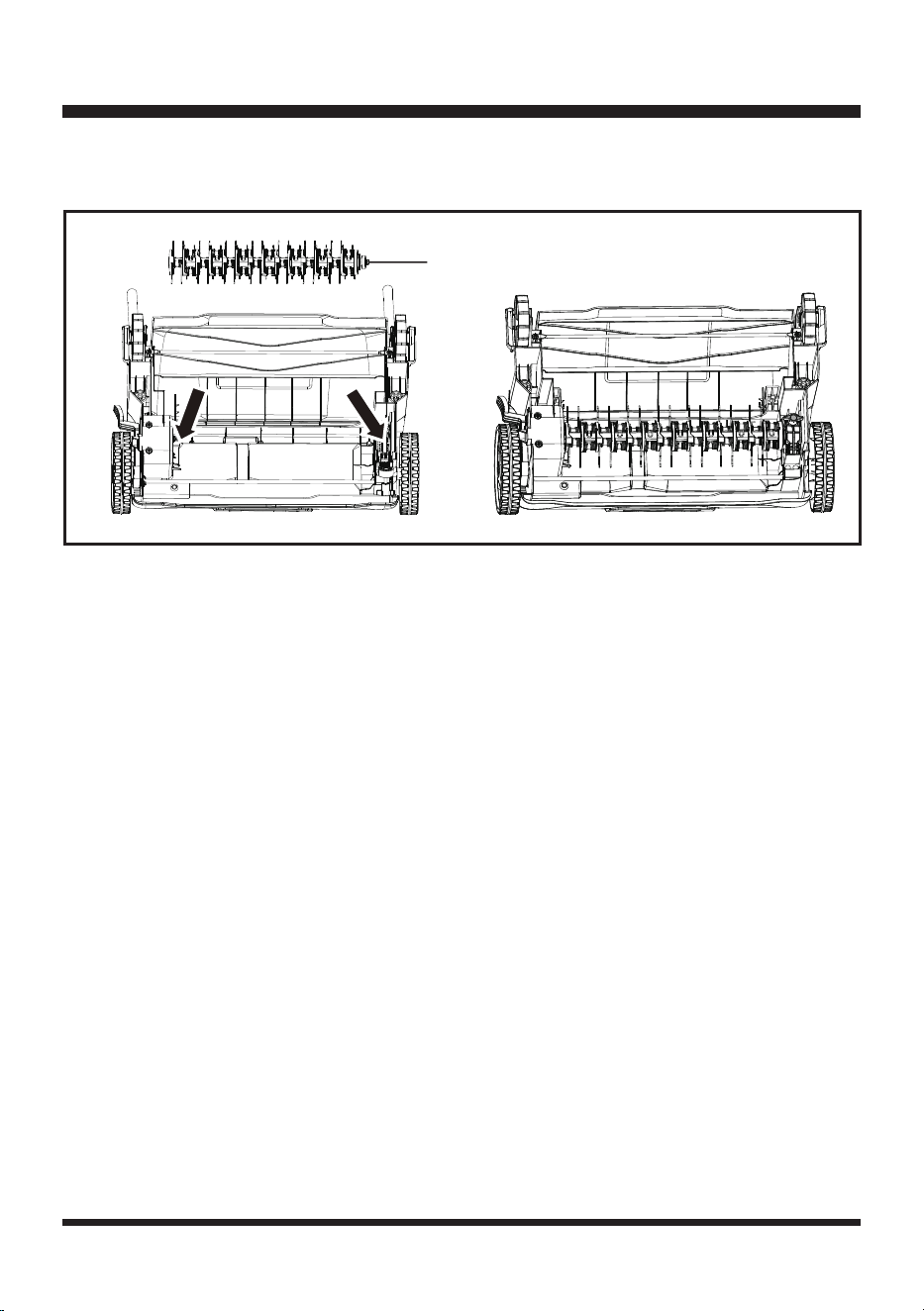

■ Install the new cylinder by reversing the sequence (Fig. 16). Ensure that the attened side of the
bearing shell is rst inserted in the bearing.
24
OPERATION
■ The tool can be operated with or without the collection bag.
Recommendation: Work with the collection bag for dethatching and without the collection bag for
scarifying.
■ To ensure that the safety guard ap closes properly, remove any earth that may have collected on
the safety guard springs and/or the housing. When working without the bag, check that the safety
guard ap is tightly closed.
■ Mow the lawn to the required grass height.
■ Do not use the scarier in long grass. It may otherwise wind around the scarier blade and result in
damage to the tool.
■ Select the appropriate working or readjustment position (in the event of cylinder wear) so that the
tool is not overloaded.
■ Commence work in the vicinity of the power socket and proceed away from the socket.
■ Guide the tool at a walking pace down lanes that are as straight as possible. To ensure
uninterrupted scarifying/dethatching the individual lanes should always overlap by 2 to 3 inches.
Dwelling too long at the same place while the tool is running can damage the lawn.
■ After work and to transport the tool, remove the battery packs and wait until the cylinder is standing
still.
■ Adjust the position to the transport position (0 setting) (see Setting the Working Positions) when
transporting the tool.
■ Lift the tool to transport it oversteps and sensitive surfaces (e.g., tiles).
■ Always clean the tool after each use (see Maintenance).
■ After having treated lawns with dense moss growth, it is advisable to reseed the lawn so that it can
regenerate itself more quickly.
When working on slopes always proceed across the slope. Be particularly careful when walking
backwards and pulling the tool. There is a possible danger of stumbling.
NOTE: The shorter the grass, the better the lawn can be treated. Furthermore, the load on the tool is
less and the service life of the cylinder is prolonged.
WARNING
25
MAINTENANCE
GENERAL MAINTENANCE
WARNING
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or
cause product damage.
Always wear gloves when handling the cylinder.
Prior to all maintenance and cleaning work always switch off the tool, remove the battery packs and
wait until the cylinder is standing still.
WARNING
Do not jet water onto the tool and do not clean it under owing water. This would result in the danger of
an electric shock and the tool could be damaged.
Do not use any attachments or accessories not recommended by the manufacturer of this product. The
use of attachments or accessories not recommended can result in serious personal injury.
■ When battery packs are removed and all parts are no longer moving, remove debris adhering to the
wheels, inside the ventilation opening, the grass ejector opening and the cylinder. Do not use hard
or pointed objects for this purpose as they could damage the tool.
■ To ensure that the safety guard ap closes properly, remove any earth that may have collected on
the safety guard springs and/or the housing.
■ Completely empty the collection bag.
■ Always keep the tool clean. Do not use cleaning agents or solvents.
STORAGE
■ Remove the battery packs.
■ Store the tool in a clean, dry place out of the reach of children.
■ Allow the motor to cool down before placing the tool in a closed room.
■ Do not wrap plastic sacks around the tool as this could result in the formation of moisture.
■ To store the tool, lower the handle before storing:
- Remove and clean the collection bag.
- Fully loosen the wing nuts on the sides of the upper handle and fold the upper handle down (Fig. 17).
- To save space, the collection bag can be put on the tool (Fig. 18).
WARNING
26
MAINTENANCE
BATTERY PACK MAINTENANCE
■ Fully charge the batteries before placing in storage.
■ Recharge the battery packs whenever there is a noticeable reduction in the performance. Do not
allow the battery packs to become completely discharged.
■ Do not recharge a battery pack that is already fully charged. Overcharging shortens battery life.
■ Once the battery packs are fully charged, remove them from the charger and disconnect charger
from the outlet.
■ Do not store the battery packs on the tool or on the charger.
■ If the battery pack is hot, allow it to cool down before recharging.
CHARGER MAINTENANCE
■ Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or
on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions.
■ Always unplug the charger when the battery packs are not installed on the charger.
■ Do not store the charger in excessive heat. Do not use in direct sunlight.
■ Disconnect the charger from the AC power outlet when not in use and once batteries have reached
a full charge.
Fig. 17 Fig. 18
27
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this battery pack:
lithium-ion, a toxic material.
WARNING
All toxic materials must be disposed of in a specic manner to prevent contamination of the
environment. Before disposing of damaged or worn out lithium-ion battery packs, contact your local
waste disposal agency, or the local Environment Protection Agency for information and specic
instructions.
WARNING
If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use it. Dispose
of it and replace with a new battery pack.
DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of re, explosion, or electric shock, and to avoid
damage to the environment:
• Cover the battery terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the solution in
eyes or on skin, and do not swallow it.
• DO NOT place damaged or defective batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place batteries where they will become part of any waste landll or municipal solid waste
stream.
• Take batteries to a certied recycling or disposal center.
28
TROUBLESHOOTING
Suspected malfunctions are often due to causes that the user can x themselves.
Therefore, check the product using this section. In most cases the problem can be solved quickly.
WARNING
Only perform the steps described within these instructions!
If further assistance is required, please call Customer Service at 1-866-384-8432. All further inspection,
maintenance and repair work must be performed by an authorized service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Tool does not start.
The batteries are not
installed correctly.
Check connection of batteries to the tool.
The batteries are not
charged or power is too
low.
Charge the batteries.
Safety switch button is not
pressed.
Press and hold the safety switch button.
Pull the start/stop bale switch toward the
handle and release the safety switch button.
The batteries are defective
or old.
Replace the batteries (Toll-free number
1-866-384-8432).
Start/stop bale switch
defective.
Contact Customer Service at 1-866-384-
8432.
Carbon brushes worn out.
Motor defective.
Abnormal noises,
clatter or vibrations.
Foreign object in the
cylinder.
Remove the foreign object .
Damaged spring tines or
cylinder knives.
Exchange the cylinder.
Cylinder incorrectly
mounted.
Install the cylinder correctly. See Changing
the Cylinder on page 22.
Toothed-belt slip.
Contact Customer Service at 1-866-384-
8432.
29
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Motor fails.
Blocked by a foreign
object.
Remove the foreign object.
Grass is too long.
Mow beforehand. See Operation on page
23-24.
Clogged by debris.
Clean debris.
Work result is not
satisfactory.
Spring tines of dethatcher
cylinder worn out.
Exchange the cylinder.
Blades of scarier cylinder
blunt or damaged.
Exchange the cylinder.
Toothed-belt defective.
Contact Customer Service at 1-866-384-
8432.
Transport position or
incorrect working position
selected.
Select working position 1 or readjust position
2-3. See Setting the Working Positions on
page 20.
Grass is too long.
Mow beforehand. See Operation on page
23-24.
30
We take pride in producing a high-quality, durable product. This Lawnmaster
®
product carries a limited
two (2) year warranty against defects in workmanship and materials from date of purchase under normal
household use. If product is to be used for commercial, industrial or rental use, a 30-day limited warranty
will apply. Batteries carry a one-year warranty against defects in workmanship and materials.
Batteries must be charged in accordance with the operator’s manual directions and regulations in order
to be valid. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse,
accidents, repairs or alterations and lack of maintenance. Please keep your receipt/packing list as proof
of purchase. This warranty gives you specic legal rights, and you may have other rights, which vary
from state to state. For product service call Customer Service at 1-866-384-8432.
Items not covered by warranty:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration;
2. The unit, if it has not been operated and/or maintained in accordance with the Operator's Manual;
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior nish due to use or exposure.
Transportation Charges: Transportation charges for the movement of any power equipment unit or
attachment are the responsibility of the purchaser. It is the purchaser's responsibility to pay transportation
charges for any part submitted for replacement under this warranty unless such return is requested in
writing by LawnMaster
®
.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
LawnMaster
®
WARRANTY
31
EXPLODED VIEW
32
PARTS LIST
Key Number Part Number Description Quantity
1 Motor Drive Assembly 1
1.1 Belt 2
2 Rear Wheel Assembly 2
3 PCB Controller Components 1
4 Deck Assembly 1
5 Front Wheel Assembly (170mm) 2
5.1 Cap 2
6 Bearing Holder Assembly 1
7 Scarier Cylinder 1
8 Dethatcher Cylinder 1
9 Front Axle Assembly 1
10 Deck Bafe Assembly 1
11 Safety Guard Flap Assembly 1
12 Wire Assembly 1
13 Motor Cover Assembly 1
14 Battery Compartment Cover Assembly 1
15 Lower Handle Assembly 2
16 Wing Nut Assembly 4
17 Middle Handle Assembly 1
18 Collection Bag Assembly 1
19 Upper Handle Assembly 1
33
Key Number Part Number Description Quantity
20 Switch Box Assembly 1
20.1 Switch 1
21 Cable Clip 2
22 211070122 Battery 2
23 211070120 Charger 1
Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or
internal parts should only be done by a qualied service professional. Please contact your authorized
service dealer or Customer Service at 1-866-384-8432.
PARTS LIST
34
NOTES
